7. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-5
F
ConexionesTipoCam-Lock
Cam-LockCouplings

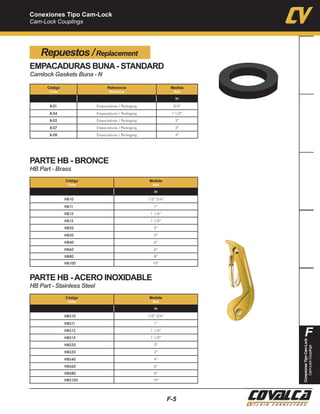

EMPACADURAS BUNA- STANDARD
Camlock Gaskets Buna - N
Repuestos /Replacement
B-01 Empacaduras / Packaging 3/4”
B-04 Empacaduras / Packaging 1 1/2”
B-05 Empacaduras / Packaging 2”
B-07 Empacaduras / Packaging 3”
B-08 Empacaduras / Packaging 4”
Código
Code
Referencia
Reference
Medida
Size
in
PARTE HB - BRONCE
HB Part - Brass
HB10 1/2”-3/4”
HB11 1”
HB12 1 1/4”
HB15 1 1/2”
HB20 2”
HB30 3”
HB40 4”
HB60 6”
HB80 8”
HB100 10”
Código
Code
Medida
Size
in
PARTE HB -ACERO INOXIDABLE
HB Part - Stainless Steel
HBS10 1/2”-3/4”
HBS11 1”
HBS12 1 1/4”
HBS15 1 1/2”
HBS20 2”
HBS30 3”
HBS40 4”
HBS60 6”
HBS80 8”
HBS100 10”
Código
Code
Medida
Size
in
8. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-6
F
ConexionesTipoCam-Lock
Cam-LockCouplings

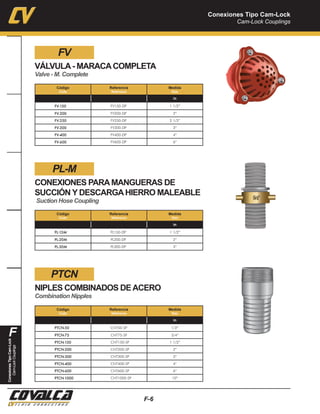

VÁLVULA- MARACACOMPLETA
Valve - M. Complete
FV-150 FV150-DP 1 1/2”
FV-200 FV200-DP 2”
FV-250 FV250-DP 2 1/2”
FV-300 FV300-DP 3”
FV-400 FV400-DP 4”
FV-600 FV600-DP 6”
Código
Code
Referencia
Reference
Medida
Size
in
FV
CONEXIONES PARAMANGUERAS DE
SUCCIÓN Y DESCARGAHIERRO MALEABLE
Suction Hose Coupling
PL-15M PL150-DP 1 1/2”
PL-20M PL200-DP 2”
PL-30M PL300-DP 3”
Código
Code
Referencia
Reference
Medida
Size
in
PL-M
NIPLES COMBINADOS DEACERO
Combination Nipples
PTCN-50 CNT50-SP 1/2”
PTCN-75 CNT75-SP 3/4”
PTCN-150 CNT150-SP 1 1/2”
PTCN-200 CNT200-SP 2”
PTCN-300 CNT300-SP 3”
PTCN-400 CNT400-SP 4”
PTCN-600 CNT600-SP 6”
PTCN-1000 CNT1000-SP 10”
Código
Code
Referencia
Reference
Medida
Size
in
PTCN
9. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-7
F
ConexionesTipoCam-Lock
Cam-LockCouplings

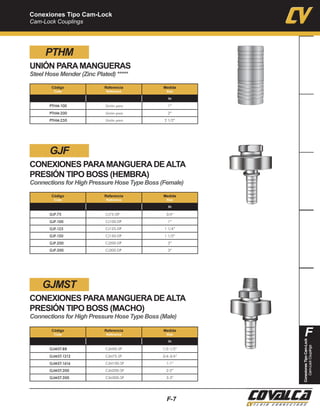

UNIÓN PARAMANGUERAS
Steel Hose Mender (Zinc Plated) *****
PTHM-100 Unión para 1”
PTHM-200 Unión para 2”
PTHM-250 Unión para 2 1/2”
Código
Code
Referencia
Reference
Medida
Size
PTHM
CONEXIONES PARAMANGUERADEALTA
PRESIÓN TIPO BOSS (HEMBRA)
Connections for High Pressure Hose Type Boss (Female)
GJF-75 CJ75-DP 3/4”
GJF-100 CJ100-DP 1”
GJF-125 CJ125-DP 1 1/4”
GJF-150 CJ150-DP 1 1/2”
GJF-200 CJ200-DP 2”
GJF-300 CJ300-DP 3”
Código
Code
Referencia
Reference
Medida
Size
in
GJF
GJMST-88 CJM50-SP 1/2-1/2”
GJMST-1212 CJM75-SP 3/4-3/4”
GJMST-1616 CJM100-SP 1-1”
GJMST-200 CJM200-SP 2-2”
GJMST-300 CJM300-SP 3-3”
Código
Code
Referencia
Reference
Medida
Size
in
CONEXIONES PARAMANGUERADEALTA
PRESIÓN TIPO BOSS (MACHO)
Connections for High Pressure Hose Type Boss (Male)
GJMST
in
10. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-8
F
ConexionesTipoCam-Lock
Cam-LockCouplings

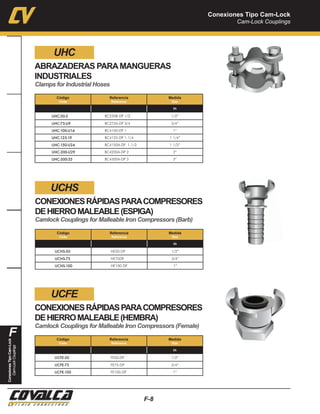

CONEXIONESRÁPIDASPARACOMPRESORES
DEHIERROMALEABLE(ESPIGA)
Camlock Couplings for Malleable Iron Compressors (Barb)
UCHS-50 HE50-DP 1/2”
UCHS-75 HE75DP 3/4”
UCHS-100 HE100-DP 1”
Código
Code
Referencia
Reference
Medida
Size
in
UCHS
ABRAZADERAS PARAMANGUERAS
INDUSTRIALES
Clamps for Industrial Hoses
UHC-50-5 BC250B-DP 1/2 1/2”
UHC-75-U9 BC275A-DP 3/4 3/4”
UHC-100-U14 BC4100-DP 1 1”
UHC-125-19 BC4125-DP 1-1/4 1 1/4”
UHC-150-U24 BC4150A-DP 1-1/2 1 1/2”
UHC-200-U29 BC4200A-DP 2 2”
UHC-300-35 BC4300A-DP 3 3”
Código
Code
Referencia
Reference
Medida
Size
in
UHC
CONEXIONESRÁPIDASPARACOMPRESORES
DEHIERROMALEABLE(HEMBRA)
Camlock Couplings for Malleable Iron Compressors (Female)
UCFE-50 FE50-DP 1/2”
UCFE-75 FE75-DP 3/4”
UCFE-100 FE100-DP 1”
Código
Code
Referencia
Reference
Medida
Size
in
UCFE
11. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-9
F
ConexionesTipoCam-Lock
Cam-LockCouplings
CONEXIONESRÁPIDASPARACOMPRESORES
DEHIERROMALEABLE(MACHO)
Camlock Couplings for Malleable Iron Compressors (Male)
UCME-50 ME50-DP 1/2”
UCME-75 ME75-DP 3/4”
UCME-100 ME100-DP 1”
Código
Code
Referencia
Reference
Medida
Size
in
UCME
TAPÓN PARACOMPRESORES
Plug to Compressors
UC BE300-DP -
Código
Code
Referencia
Reference
Medida
Size
UC
in
ANILLO DE GOMA
Rubber Belt
RG CG75NBR (ANILLO) -
Código
Code
Referencia
Reference
Medida
Size
RG
in
CONEXIONESRÁPIDASPARACOMPRESORES
DEHIERROMALEABLE(CONEXIÓNTRIPLE)
Camlock Couplings for Malleable Iron Compressors (Triple
Connection)
TWC UW300-DP 1/2”
Código
Code
Referencia
Reference
Medida
Size
in
TWC
12. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-10
F
ConexionesTipoCam-Lock
Cam-LockCouplings

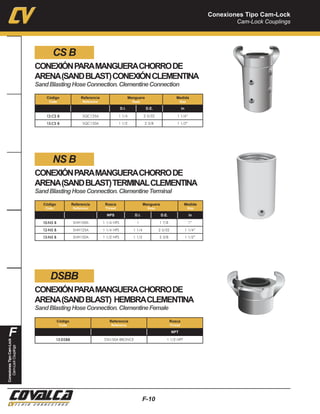

CONEXIÓNPARAMANGUERACHORRODE
ARENA(SANDBLAST)CONEXIÓNCLEMENTINA
SandBlastingHoseConnection.ClementineConnection
12-CS B SQC125A 1 1/4 2 5/32 1 1/4”
15-CS B SQC150A 1 1/2 2 3/8 1 1/2”
Código
Code
Referencia
Reference
Manguera
Hose
Medida
Size
D.I. D.E. in
CS B
CONEXIÓNPARAMANGUERACHORRODE
ARENA(SANDBLAST)TERMINALCLEMENTINA
SandBlastingHoseConnection.ClementineTerminal
NS B
CONEXIÓNPARAMANGUERACHORRODE
ARENA(SANDBLAST) HEMBRACLEMENTINA
SandBlastingHoseConnection.ClementineFemale
15-DSBB STA150A BRONCE 1 1/2 NPT
Código
Code
Referencia
Reference
Rosca
Thread
NPT
DSBB
10-NS B SNH100A 1 1/4 NPS 1 1 7/8 1”
12-NS B SNH125A 1 1/4 NPS 1 1/4 2 5/32 1 1/4”
15-NS B SNH150A 1 1/2 NPS 1 1/2 2 3/8 1 1/2”
Código
Code
Referencia
Reference
Rosca
Thread
Manguera
Hose
Medida
Size
NPS D.I. D.E. in
13. Conexiones Tipo Cam-Lock
Cam-Lock Couplings
F-11
F
ConexionesTipoCam-Lock
Cam-LockCouplings
FERRUL-16 Ferrul 1”
FERRUL-20 Ferrul 1 1/4”
FERRUL-24 Ferrul 1 1/2”
FERRUL-32 Ferrul 2”
FERRUL-48 Ferrul 3”
FERRUL-60 Ferrul 4”
Código
Code
Referencia
Reference
Medida
Size
Ferrules /Ferruls
in
ARGOLLA Argolla Pequeña 1/2” a 2 1/2”
ARGOLLA Argolla Grande 3” a 5”
Código
Code
Referencia
Reference
Medida
Size
Argollas /Rings
in
Para Mangueras Industriales
For Industrial Hoses
