The document provides information on various riflescopes, sights, and accessories from Sightmark. It includes specifications for several products, such as the WRAITH 4K Mini riflescopes that feature 4K imaging, night vision modes, and video recording. The document also discusses reticle basics and how different reticle styles like mil-dot and duplex are suited to various types of shooting. Success stories are included that feature hunters who use Sightmark products.

2. About Us / Table of Contents

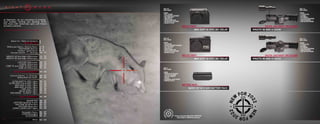

NEW FOR 2022
Riflescope Basics / Reticle Basics
SIGHTMARK Reticles

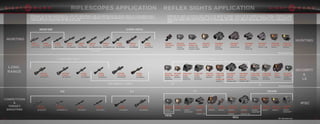

Product Applications
Success Stories - L. Jennings

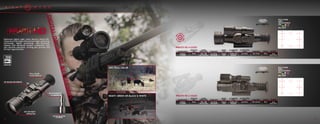

WRAITH 4K Day/Night Riflescopes
WRAITH HD Day/Night Riflescopes

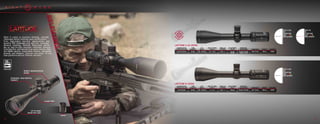

LATITUDE Riflescopes

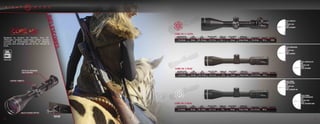

CITADEL Riflescopes

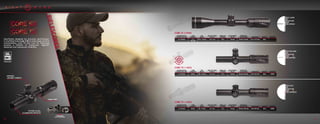

CORE TX and CORE SX Riflescopes
CORE HX Riflescopes

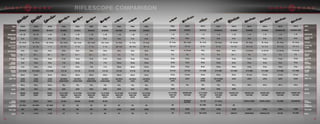

RIFLESCOPE COMPARISON

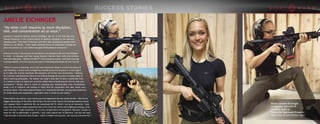

Success Stories - A. Eichinger

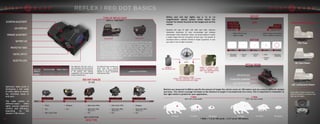

Reflex/Red Dot Basics

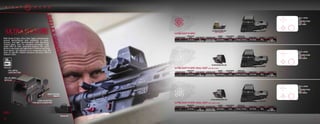

ULTRA SHOT R -SPEC Sights

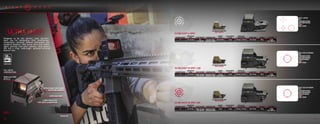

ULTRA SHOT A & M-SPEC Sights
MINI SHOT A-SPEC Sights
MINI SHOT M-SPEC Sights
CORE SHOT Sights
SOLAR SERIES Sights
WOLVERINE - ELEMENT Sights

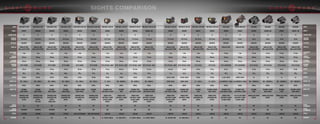

SIGHT COMPARISON
MAGNIFIERS

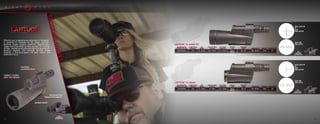

LATITUDE Spotting Scopes

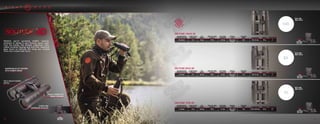

SOLITUDE XD Binoculars
SOLITUDE Binoculars
LOPRO LASER/LIGHT Sights
Boresights Basics

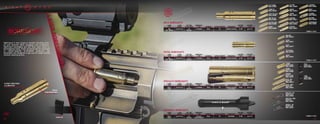

LASER Boresights
ACCESSORIES
Notes
2
3
4 - 5
6 - 7
8 - 9
10 - 11
12 - 13
14 - 15
16 - 17
18 - 19
20 - 21
22 - 23
24 - 25
26 - 27
28 - 29
30 - 31
32 - 33
34 - 35
36 - 37
38 - 39
40 - 41
42 - 43
44 - 45
46 - 47
48 - 49
50 - 51
52 - 53
54 - 55
56 - 57
58 - 59
60 - 61
62 - 63
At Sightmark, we are committed to bringing
your outdoor, hunting and shooting world
into focus with world-class optic and firearm
accessory solutions.
* All specs and availability are subject to change WRAITH 4K MINI 4-32X40
MINI SHOT M-SPEC M3- SOLAR
MINI SHOT M-SPEC M2- SOLAR
QUICK DETACH MINI BATTERY PACK
WRAITH 4K MINI 2-16X32
REFLEX SIGHT
REFLEX SIGHT
BATTERY PACK
DIGITAL DAY/NIGHT RIFLESCOPE
DIGITAL DAY/NIGHT RIFLESCOPE
PAGE:36-37
MODEL:SM26050
FEATURES:
•RMS-CFOOTPRINT
•AUTOBRIGHTNESSADJUSTMENTS
•DUALPOWERABILITY
•20MMOBJECTIVE
•SCRATCHRESISTANTLENS
•ANTI-REFLECTIVELENSCOATING
•UNLIMITEDEYERELIEF
PAGE:60
MODEL:SM28004
FEATURES:
•POWERSANYUNITTHATUSESA
USBCABLEFORCHARGING
•TOOLLESSPICATINNYQD
•6,000MAH
•RECHARGEABLELITHIUM-POLYMER
•UNIVERSALUSBTYPEA
PAGE:36-37
MODEL:SM26048
FEATURES:
•RMRFOOTPRINT
•AUTOMATICBRIGHTNESSADJUSTMENTS
•DUALPOWERABILITY
•20MMOBJECTIVE
•SCRATCHRESISTANTLENS
•ANTI-REFLECTIVELENSCOATING
•UNLIMITEDEYERELIEF
PAGE:12-13
MODEL:SM18041
FEATURES:
•1X8DIGITALZOOM
•4KIMAGING
•IRILLUMINATOR
•FULLCOLORDAYTIMEIMAGING
•2NIGHTVISIONMODES
•VIDEOANDAUDIORECORDING
PAGE:12-13
MODEL:SM18042
FEATURES:
•1X8DIGITALZOOM
•4KIMAGING
•IRILLUMINATOR
•FULLCOLORDAYTIMEIMAGING
•2NIGHTVISIONMODES
•VIDEOANDAUDIORECORDING
*Products marked with “EMEA SPECIAL REQUEST ONLY”
will be avaialbe 3-6 MONTHS from order date.
2 3

3. All riflescopes share these common features: objective lens, windage/elevation adjustments and an ocular focus.
Depending on the model, others can be equipped with variable magnification, locking turrets and a zero stop, to name a few.
EYEPIECE
ELEVATION TURRET
MAGNIFICATION DIAL
ERECTOR TUBE
WINDAGE TURRET
FIRST-FOCAL-PLANE RETICLE
PARALLAX ADJUSTMENT
ILLUMINATION DIAL
OBJECTIVE LENS
Anti-Reflective (AR) lens coatings
make a significant difference in
how bright and sharp the image
will be. Without AR coatings,
glass reflects four to five percent
of light. With 10 or more glass
surfaces in riflescopes, as much as
50 percent of light is possibly lost
as it passes through all the lenses.
AR coatings reduce reflected light
to about one to two percent per
glass surface. Using AR coatings
greatly increase light transmission,
resolution, contrast and color
fidelity while reducing reflections,
light scattering and glare.
OPTIC COATINGS
REDUCE REFLECTED LIGHT
NO COATING
CLEAR CLEARER CLEAREST
FULLY COATED
All air-to-glass surfaces
are coated with a single
anti-reflective coating
FULLY MULTI-COATED
All air-to-glass
surfaces are coated
with multiple anti-
reflective coatings
In First Focal Plane configuration, the reticle remains
a constant size compared to the target. In low
magnification, FFP reticles will appear small but grow
in size when increasing magnification. The advantage
of FFP reticles is that the dimensions, or subtensions,
stay true to the target, thus range finding and
holdovers can be performed at any magnification. In
Second Focal Plane configuration, the reticle remains
a constant ideal size to the user while the target size
changes.
FIRST-FOCAL-PLANE
RETICLE SIZE CHANGES WITH ZOOM
SECOND-FOCAL-PLANE
RETICLE SIZE FIXED (DOESN’T CHANGE WITH ZOOM)
HOLDOVERS
Once the distance is measured, the vertical scale
can be used for holdovers to compensate for
bullet drop. The shooter must learn their caliber’s
specific bullet drop number in accordance to the
reticle’s dimensions. The LR2 reticle should use a
dope chart in Milliradian. Once the shooter knows
the bullet drop the correct hashmark can be used
for holdover.
In this example, a 548 m (600 yds) holdover (5,5
MRAD) is used. No wind is present.
RANGE / DISTANCE
Either the vertical or horizontal scale can be used to
range for your target. Try to read mils as accurately as
possible. Reading MRADs in 1/10 accuracy or MOA in
0,25 MOA accuracy will provide a more accurate range
to the target. Therefore, using the end of either the
horizontal or vertical scale will provide more accurate
measurements.
For example, in the image (at right) a silhouette
target is 114,3 cm (45 in) tall and reads 3 MRAD tall.
114,3 cm x 10 / 3 MRAD = 381 m
Estimating range to your target
requires knowing the height or
width of your target. By placing
the reticle on your target, read the
number of MRAD or MOA hashmarks
spanning the targets height or
width. Measuring the target as
accurate as possible will yield a
more accurate distance.
Some reticles can be used to
determine target range and
perform shot holdovers for wind/
drop compensation accurately at
any magnification.
Consider the LR2 Reticle – the
vertical and horizontal MRAD
scales are scaled in 0,5 MRAD
increments. The top, left, and
right end of the vertical and
horizontal scale are scaled
in 0,1 MRAD increments. The
reticle’s drop lines contain a
series of reference dots for quick
windage holdovers in 0,2 MRAD
increments. Finally, the aiming
crosshair is 0,3 MRAD.
1 MRAD = 10 cm at 100 meters (3,6” at 100 yards)
Mil, or MRAD, is short for milliradian, a trigonometric unit for angular
measurement. A MRAD is defined as a one thousandth (1/1000). Such as 1
meter is equal to 1,000 millimeters. A milliradian would then be 1/1000 of a
radian, or 1.000 milliradians. A single MRAD is equal to 10 cm at 100 meters.
A riflescope with 0,1 mrad click adjustment means that each click will move
the point of impact 1 cm at 100 meters.
1 MOA = 1” at 100 yards (2,91 cm at 100 meters)
MOA is short for minute of angle and is also a unit for angular
measurement. MOA is widely used in shooting sports in North America.
1 MOA is equal to 1,047 inches at 100 yards (2,91 cm at 100 meters), but
rounded to 1 inch. A riflescope with 0,25 MOA (1/4MOA) click adjustment
means that each click will move the point of impact 0,25” at 100 yards,
or 7,27 mm at 100 meters.
MRAD RANGING FORMULAS:
Target Size (inch) x 27,8 = Range (yards)
MRADs Read
Target Size (cm) x 10 = Range (meters)
MRADs Read
MOA RANGING FORMULAS:
Target Size (inch) x 95,5 = Range (yards)
MOA Read
Target Size (cm) x 34,38 = Range (meters)
MOA Read
MOA & MIL
ANGULAR MEASUREMENTS
Reticle: LR2
Line Thickness: 0,03 MRAD
Measurements: MRAD
Choosing a reticle comes down to personal preference; however, the type of shooting and game you hunt needs consideration as to which reticle
is the most accurate. For example, duplex reticles are popular for hunting, while mil-dot reticles are better for long-range precision shooting.
The CR1 reticle is a second-focal-plane, minute of angle
(MOA) reticle.This reticle is calibrated for 5.56x45/.223
Rem. 55gr FMJ ammo. The reticle was designed for a
100 yds/91,44 m zero. At 1x magnification, the outer
circle will cover approximately 38 centimeters of a
target at 25 yds / 23 m. This is nearly equivalent to
shoulder width of IPSC targets.
The second-focal-plane HDR Hunter Dot Reticle is
designed to reduce the time it takes to acquire
the reticle’s aiming point. This reticle can be
used for hunting various game, large or small. The
heavy duplex posts also aids in leading the eye
toward the aiming dot.
The TMD-HW is a first-focal-plane reticle designed
for long-range shooting and is based on milliradian
(mrad or mil) design. Milliradian is a measurement of
angle. A single mrad is equal to 10 cm at 100 meters.
The reticle can be used to determine ranges and
shot holdovers for wind compensation and moving
targets.
LONG RANGE HUNTING SPORTING & TACTICAL
4 5

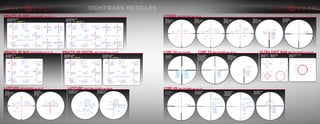

4. SECOND FOCAL PLANE RETICLES SECOND FOCAL PLANE RETICLES
LATITUDE RIFLESCOPES pg 16-17 LATITUDE SPOTTING SCOPES pg 48-49
CITADEL RIFLESCOPES pg 18-19
CORE TX RIFLESCOPES pg 20-21 ULTRA SHOT RAM REFLEX SIGHTS pg 30-33
CORE HX RIFLESCOPES pg 22-23
WRAITH HD DIGITAL RIFLESCOPES pg 14-15
WRAITH 4K MAX RIFLESCOPE pg 12-13
WRAITH 4K MINI RIFLESCOPES pg 12-13
SECOND FOCAL PLANE RETICLES
CORE SX RIFLESCOPE
50 YARDS
75 YARDS
100 YARDS
125 YARDS
150 YARDS
STANDARD VELOCITY
100 YARDS
125 YARDS
150 YARDS
175 YARDS
200 YARDS
HIGH VELOCITY
RETICLE: .22LR BDC
MEASUREMENTS: BDC
CALIBER: .22LR
6 7

5. 8 9

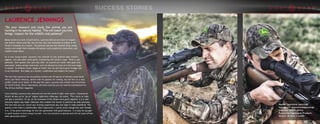

6. LAURENCE JENNINGS
“Do your research and study the animal you are
hunting in its natural habitat. This will teach you two
things: respect for the wildlife and patience”
Being raised on a farm in South Africa, Laurence did not only learn to respect
and admire nature and life, but he was also very fortunate to follow in his
family’s footsteps as a hunter. His personal journey has inspired many young
hunters and taught them valuable life lessons, such as patience, dedication, and
wildlife conservation.
As a very young hunter, Laurence was allowed to only practice pest control -
pigeons, rats and other small game, threatening the family’s crops. “First it was
pheasant, then guinea fowl and only after we proved our worth with good shot
placement, safety and gun awareness, were we allowed to move on to the next stage
or animal. As children, these ‘stages or levels’ that my dad had us gone through, left
us so frustrated. But today, as a hunter, I understand and respect his means.”
The fact that Laurence has successfully hunted over 50 species of animals across South
Africa and North America, paired with his passion for writing, has led him to a very
prolific career as an author. In the past few years, Laurence has written over 60 articles
for Game & Hunt, Africa’s Sportsman, and since recently you can read his contributions for
The African Outfitter magazine.
Since recently, Laurence has ventured out into the world of night vision optics, choosing the
Wraith 4K Max as his “go-to” digital nightvision riflescope. He states, “The clarity at night
and day is excellent. To me, all the elements of the Wraith work great together. It is a well-
balanced digital day/night riflescope that enables the hunter to perform his task precisely.
The fact that you can record your hunting experiences day and night is really beneficial. The
quality of the video is unbelievable. Most importantly, I cannot stress enough how user-friendly
it is. It has great technology for the new generation with good features. It is easy for younger
or youth hunters to learn using it as well. It is very intuitive to operate and will not scare off the
older generation either.”
10 11

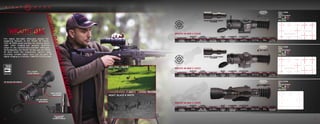

7. RETICLE: 14-PATTERN
MIL/MOA
1280 X 720 FLCOS DISPLAY
COLOR:
MODEL: SM18042
RETICLE: 14-PATTERN
MIL/MOA
1280 X 720 FLCOS DISPLAY
COLOR:
MODEL: SM18041
INCLUDES:
FLIP-UP LENS COVERS
RUBBER EYE CUP
DETACHABLE IR ILLUMINATOR
FULL COLOR
FLCOS DISPLAY
ON-BOARD RECORDING
EASY ACCESS
BATTERIES
DAY OR NIGHT
OPERATION
MAXIMUM CALIBER
INCLUDES SEPARATE PICATINNY MOUNTABLE
IR ILLUMINATOR
INCLUDES SEPARATE PICATINNY MOUNTABLE
IR ILLUMINATOR
FOR AVAILABLE
MOUNTING OPTIONS
SEE PAGE 61
FOR AVAILABLE
MOUNTING OPTIONS
SEE PAGE 61
FOR AVAILABLE
MOUNTING OPTIONS
SEE PAGE 61
MAGNIFICATION
MAGNIFICATION
2x Optical
1-8x Digital
4x Optical
1-8x Digital
OBJECTIVE
LENS
OBJECTIVE
LENS
32 mm
40 mm
CAMERA
RESOLUTION
CAMERA
RESOLUTION
3840 x 2160
with Recording
3840 x 2160
with Recording
FRAME RATE
FRAME RATE
Up to 60 fps
(Interpolated)
Up to 60 fps
(Interpolated)
MOUNT
TYPE
MOUNT
TYPE
Picatinny
Fixed
Picatinny
Fixed
ILLUMINATOR
TYPE
ILLUMINATOR
TYPE
IR 850nm LED
Mountable
IR 850nm LED
Mountable
NV DETECTION
RANGE
NV DETECTION
RANGE
up to 274 m
up to 274 m
DIMENSIONS
DIMENSIONS
160 x 77 mm
166 x 77 mm
WEIGHT
WEIGHT
612 g
1066 g
BATTERY
BATTERY
2x CR123A
up to 4.4 hrs
2x CR123A
up to 4.4 hrs
WRAITH 4K MINI 2-16X32
WRAITH 4K MINI 4-32X40
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
Few digital day/night riflescopes possess the
staggering features of the Wraith 4K Family.
Their 4K CMOS sensor provides the clearest digital
night vision imaging—and greatest detection
range—of any commercially-available riflescopes.
Technologically, the Wraith 4K Max and the Wraith
4K Minis dwarf the competition: Built-in video
recording, variable digital zoom and full-color, 4K
digital imaging on a flawless 1280x720 FLCOS screen.
MAGNIFICATION
3x Optical
1-8x Digital
OBJECTIVE
LENS
50 mm
CAMERA
RESOLUTION
4000 x 3000
with Recording
FRAME RATE
Up to 200 fps
MOUNT
TYPE
Picatinny
Fixed
ILLUMINATOR
TYPE
IR 850nm LED
Adjustable
NV DETECTION
RANGE
up to 275 m
DIMENSIONS
304,8 x 75 mm
WEIGHT
981 g
BATTERY
Rechargeable
up to 8 hrs
WRAITH 4K MAX 3-24X50
RETICLE: 10-PATTERN
MOA
1280 X 720 FLCOS DISPLAY
COLOR:
MODEL: SM18030
12 13

8. INCLUDES:
LENS COVER (NOT PICTURED)
IR ILLUMINATOR
FULL COLOR
FLCOS DISPLAY
ON-BOARD RECORDING
DETACHABLE IR
ILLUMINATOR
DAY OR NIGHT
OPERATION
MAXIMUM CALIBER
MAGNIFICATION
MAGNIFICATION
4x Optical
1-8x Digital
2x Optical
1-8x Digital
OBJECTIVE
LENS
OBJECTIVE
LENS
50 mm
28 mm
CAMERA
RESOLUTION
CAMERA
RESOLUTION
1920 x 1080
with Recording
1920 x 1080
with Recording
FRAME RATE
FRAME RATE
Up to 60 fps
(Interpolated)
Up to 60 fps
(Interpolated)
MOUNT
TYPE
MOUNT
TYPE
Picatinny
Fixed
Picatinny
Fixed
ILLUMINATOR
TYPE
ILLUMINATOR
TYPE
IR 850nm LED
Adjustable
IR 850nm LED
Adjustable
NV DETECTION
RANGE
NV DETECTION
RANGE
up to 183 m
up to 183 m
DIMENSIONS
DIMENSIONS
266 x 75 mm
255 x 65,5 mm
WEIGHT
WEIGHT
1029 g
952 g
BATTERY
BATTERY
4x aa
up to 4.5 hrs
4x aa
up to 4.5 hrs
WRAITH HD 4-32X50
WRAITH HD 2-16X28
RETICLE: 10-PATTERN
MIL/MOA
1280 X 720 FLCOS DISPLAY
COLOR:
MODEL: SM18011
RETICLE: 10-PATTERN
MIL/MOA
1280 X 720 FLCOS DISPLAY
COLOR:
MODEL: SM18021
FOR AVAILABLE
MOUNTING OPTIONS
SEE PAGE 61
FOR AVAILABLE
MOUNTING OPTIONS
SEE PAGE 61
Sightmark digital night vision devices unlock the
mysteriesofthenightwithpremiumlight-gathering
technology, digital processing, high-resolution
displays and advanced sensors compatible with
safe daytime operation, turning your pursuits into
24-hour opportunities.
14 15

9. ROBUST MAGNIFICATION
RANGE
OVERSIZED, HIGH-PROFILE
TURRETS
34 MM TUBE
UP TO 60MM
OBJECTIVE LENS
INCLUDES:
SUN SHADE
MAXIMUM CALIBER
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
6.25-25 x 56 mm
8-32 x 60 mm
TUBE
DIAMETER
TUBE
DIAMETER
34 mm
34 mm
EYE
RELIEF
EYE
RELIEF
120 - 107 mm
120 - 107 mm
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
4,9 - 1,2 m
4 - 1 m
PARALLAX
SETTING
PARALLAX
SETTING
18 m - ∞
18 m - ∞
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1/4 moa
0,1 mil
1/8 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
70 moa/ 110 moa
20 mil / 31 mil
70 moa / 110 moa
DIMENSIONS
DIMENSIONS
350 x 75 mm
357 x 75 mm
WEIGHT
WEIGHT
938,4 g
1026,3 g
BATTERY
BATTERY
CR2032
CR2032
RETICLE: PRS
MIL
1ST FOCAL PLANE
COLOR:
MODEL: SM13042PRS
LATITUDE 6.25-25X56
LATITUDE 8-32X60
RETICLE: F-CLASS
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13042FTR
RETICLE: F-CLASS
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13043FTR
When it comes to precision shooting, Latitude
riflescopes deliver premium optic performance.
From high-stakes one-shot opportunities and
dynamic PRS challenges and slow-fire, extended-
distance shooting, Latitude Riflescopes deliver
big on best-in-class precision riflescope features
including first- and second-focal-plane reticles, MOA
and MRAD options, illuminated reticles, adjustable
parallax and diopters, External zero-stops, 34 mm
tube platforms and our lifetime warranty.
16 17

10. FAST-FOCUS EYEPIECE
LOCKING OR
CAPPED TURRETS
30MM TUBE
FIRST OR
SECOND FOCAL PLANE INCLUDES:
THROW LEVER
SUN SHADE (5-30X, 3-18X)
FLIP-UP LENS COVERS (1-6X, 1-10X)
MAXIMUM CALIBER
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
5-30 x 56 mm
3-18 x 50 mm
1-10 x 24 mm
1-6 x 24 mm
TUBE
DIAMETER
TUBE
DIAMETER
TUBE
DIAMETER
TUBE
DIAMETER
30 mm
30 mm
30 mm
30 mm
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
125 - 94 mm
117 - 94 mm
94 - 79 mm
89 - 74 mm
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
6 - 1 m
11 - 2 m
36,8 - 3,6 m
35,5 - 6 m
PARALLAX
SETTING
PARALLAX
SETTING
PARALLAX
SETTING
PARALLAX
SETTING
18 m - ∞
14 m - ∞
91 m
91 m
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
0,1 mil
1/4 moa
0,1 mil
1/2 moa
1/2 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
17 mil / 17 mil
60 moa / 60 moa
17 mil / 17 mil
100 moa / 100 moa
120 moa / 120 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
DIMENSIONS
378,4 x 55,9 mm
330 x 56 mm
286 x 42 mm
272 x 42 mm
WEIGHT
WEIGHT
WEIGHT
WEIGHT
780 g
740 g
496 g
459 g
BATTERY
BATTERY
BATTERY
BATTERY
CR2032
CR2032
CR2032
CR2032
RETICLE: LR2
MIL
1ST FOCAL PLANE
COLOR:
MODEL: SM13039LR2
RETICLE: HDR
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13138HDR
CITADEL 5-30X56
CITADEL 3-18X50
CITADEL 1-10X24
CITADEL 1-6X24
RETICLE: LR1
MOA
1ST FOCAL PLANE
COLOR:
MODEL: SM13039LR1
RETICLE: CR1
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13138CR1
RETICLE: CR1
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13038CR1
RETICLE: LR2
MIL
1ST FOCAL PLANE
COLOR:
MODEL: SM13040LR2
RETICLE: MR2
MIL
1ST FOCAL PLANE
COLOR:
MODEL: SM13039MR2
RETICLE: HDR
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13038HDR
Situated on the high ground of close- to long-
range optic performance, Citadel riflescopes
include illuminated reticles; locking, low-
profile turrets; and first- or second-focal-plane
reticle options designed to enhance every
shooting scenario from precise, long-range
capabilities to high-speed, low-drag tactical
solutions—all with razor-sharp clarity and a
lifetime warranty.
18 19

11. EXPOSED
LOCKING TURRETS
30MM TUBE
ETCHED GLASS,
ILLUMINATED RETICLES
INCLUDES:
STARTER RINGS
FLIP-UP LENS COVERS
MAXIMUM CALIBER
NE
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
3-9 x 40 mm
1-4 x 24 mm
1-4 x 24 mm
TUBE
DIAMETER
TUBE
DIAMETER
TUBE
DIAMETER
1 in
25,4 mm
30 mm
30 mm
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
101,6 - 94 mm
102 - 94 mm
102 - 94 mm
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
11,8 - 4 m
32 - 8 m
32 - 8 m
PARALLAX
SETTING
PARALLAX
SETTING
PARALLAX
SETTING
45 m
91 m
91 m
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1/4 moa
1/2 moa
1/2 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
70 moa / 70 moa
80 moa / 80 moa
120 moa /120 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
311,4 x 47,5 mm
245 x 63,5 mm
245 x 50,8 mm
WEIGHT
WEIGHT
WEIGHT
420 g
482 g
459 g
BATTERY
BATTERY
BATTERY
CR2032
CR2032
CORE SX 3-9X40
CORE TX 1-4X24
CORE TX 1-4X24
RETICLE: DUAL CALIBER
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13072DCR
RETICLE: AR-223
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13082AR.223
RETICLE: .22LR BDC
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13066LR
Specifically designed for precision performance
in anything from tough CQB to long-range tactical
environments, Core TX and Core SX riflescopes
promise a lifetime of shockproof, fogproof,
dustproof and waterproof reliability.
20 21

12. RETICLES DESIGNED
FOR HUNTING
CAPPED TURRETS
MULTI-COATED OPTICS
INCLUDES:
STARTER RINGS
SCOPE COVER
MAXIMUM CALIBER
NE
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
3-12 x 56 mm
3-9 x 40 mm
3-9 x 40 mm
TUBE
DIAMETER
TUBE
DIAMETER
TUBE
DIAMETER
30 mm
25,4 mm
25,4 mm
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
109 - 96,5 mm
101 - 94 mm
101 - 94 mm
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
11,8 - 2,9 m
11,8 - 4,1 m
11,8 - 4,1 m
PARALLAX
SETTING
PARALLAX
SETTING
PARALLAX
SETTING
18 m - ∞
91 m
91 m
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1/4 moa
1/4 moa
1/4 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
60 moa / 60 moa
70 moa / 70 moa
70 moa / 70 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
323 x 65 mm
311,4 x 47,5 mm
311,4 x 47,5 mm
WEIGHT
WEIGHT
WEIGHT
708,7 g
402,5 g
402,5 g
BATTERY
BATTERY
BATTERY
CR2032
CORE HX 3-12X56
CORE HX 3-9X40
CORE HX 3-9X40
RETICLE: HUNTER DOT
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13080HDR
RETICLE:VENISONHUNTER
MOA
2NDFOCALPLANE
COLOR:
MODEL:SM13068VHR
RETICLE:VENISON
HUNTER350LEGEND
MOA
2NDFOCALPLANE
COLOR:
MODEL:SM13068VHR-350L
RETICLE: VENISON
HUNTER 450 BUSHMASTER
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13068VHR-450BM
RETICLE: HUNTER BALLISTIC
MOA
2ND FOCAL PLANE
COLOR:
MODEL: SM13068HBR
Designed by hunters for hunters, Core HX
riflescopes combine razor-sharp clarity, precise
tracking and illuminated reticles to enhance
accuracy and leverage success at the moment of
truth.
22 23

13. SERIES
MODEL #
MAGNIFICATION
OBJECTIVE LENS
DIAMETER
EYE RELIEF
FIELD OF VIEW
@ 100 M
TUBE DIAMETER
PARALLAX
SETTING
ADJUSTMENT
VALUE
WINDAGE
ADJUSTMENT
ELEVATION
ADJUSTMENT
MAXIMUM
CALIBER
LENGTH
TURRET TYPE
WEIGHT
BATTERY
INCLUDES
RETICLE
CALIBRATION
RETICLE
ILLUMINATION
FOCAL PLANE
RETICLE
SERIES
MODEL #
MAGNIFICATION
OBJECTIVE LENS
DIAMETER
EYE RELIEF
FIELD OF VIEW
@ 100 M
TUBE DIAMETER
PARALLAX
SETTING
ADJUSTMENT
VALUE
WINDAGE
ADJUSTMENT
ELEVATION
ADJUSTMENT
MAXIMUM
CALIBER
LENGTH
TURRET TYPE
WEIGHT
BATTERY
INCLUDES
RETICLE
CALIBRATION
RETICLE
ILLUMINATION
FOCAL PLANE
RETICLE
LATITUDE
SM13042PRS
6.25 - 25X
56 mm
120 - 107 mm
6,6 - 1,5 m
34 mm
18 m - ∞
0,1 mil
20 mil
31 mil
UP TO .50 BMG
350 mm
LOCKING
EXPOSED
938,4 g
CR2032
SUNSHADE
BATTERY
MIL DASH
RED / GREEN
FIRST
PRS
LATITUDE
SM13042FTR
6.25 - 25X
56 mm
120 - 107 mm
6,6 - 1,5 m
34 mm
18 m - ∞
1/4 moa
70 moa
110 moa
UP TO .50 BMG
350 mm
LOCKING
EXPOSED
938,4 g
CR2032
SUNSHADE
BATTERY
MOA DOT
RED / GREEN
SECOND
F-CLASS
LATITUDE
SM13043FTR
8 - 32X
60 mm
120 - 107 mm
4 - 1 m
34 mm
18 m - ∞
1/8 moa
70 moa
110 moa
UP TO .50 BMG
357 mm
LOCKING
EXPOSED
1026,3 g
CR2032
SUNSHADE
BATTERY
MOA DOT
RED / GREEN
SECOND
F-CLASS
CITADEL
SM13040LR2
5 - 30X
56 mm
124,5 - 94 mm
6,5 - 1,7 m
30 mm
18 m - ∞
0,1 mil
11 mil
11 mil
UP TO .338
378,4 mm
LOW-PROFILE
LOCKING EXPOSED
780 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
MIL DASH
RED
FIRST
LR2
CITADEL
SM13039LR1
3 - 18X
50 mm
124,5 - 94 mm
11 - 2 m
30 mm
14 m - ∞
1/4 moa
60 moa
60 moa
UP TO .338
330 mm
LOW-PROFILE
LOCKING EXPOSED
740 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
MOA DASH
RED
FIRST
LR1
CITADEL
SM13039LR2
3 - 18X
50 mm
124,5 - 94 mm
11 - 2 m
30 mm
14 m - ∞
0,1 mil
17 mil
17 mil
UP TO .338
330 mm
LOW-PROFILE
LOCKING EXPOSED
740 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
MIL DASH
RED
FIRST
LR2
CITADEL
SM13039MR2
3 - 18X
50 mm
124,5 - 94 mm
11 - 2 m
30 mm
14 m - ∞
0,1 mil
17 mil
17 mil
UP TO .338
330 mm
LOW-PROFILE
LOCKING EXPOSED
740 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
MIL DASH
RED
FIRST
MR2
CITADEL
SM13138CR1
1 - 10X
24 mm
94 - 79 mm
36,8 - 3,6 m
30 mm
91 m
1/2 moa
100 moa
100 moa
UP TO .338
286 mm
LOW-PROFILE
CAPPED
496 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
-
RED
SECOND
CR1
CITADEL
SM13138HDR
1 - 10X
24 mm
94 - 79 mm
36,8 - 3,6 m
30 mm
91 m
1/2 moa
100 moa
100 moa
UP TO .338
286 mm
LOW-PROFILE
CAPPED
496 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
-
RED
SECOND
HDR
CITADEL
SM13038CR1
1 - 6X
24 mm
89 - 74 mm
35,5 - 6 m
30 mm
91 m
1/2 moa
120 moa
120 moa
UP TO .338
272 mm
LOW-PROFILE
CAPPED
496 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
-
RED
SECOND
CR1
CITADEL
SM13038HDR
1 - 6X
24 mm
89 - 74 mm
35,5 - 6 m
30 mm
91 m
1/2 moa
120 moa
120 moa
UP TO .338
272 mm
LOW-PROFILE
CAPPED
496 g
CR2032
FLIP-UP COVERS
THROW LEVER
BATTERY
-
RED
SECOND
HDR
CORE SX
SM13066LR
3-9X
40 mm
101,6 - 94 mm
11,8 - 4 m
1 in / 25,4 mm
45 m
1/4 moa
70 moa
70 moa
UP TO .308
311,4 mm
CAPPED
420 g
-
NEOPRENE COVER
SCOPE RINGS
.22LR 40gr SV/
29gr HV BDC
-
SECOND
.22 LR BDC
CORE TX
SM13072DCR
1 - 4X
24 mm
102 - 94 mm
32 - 8 m
30 mm
91 m
1/2 moa
80 moa
80 moa
UP TO .500NE
245 mm
LOCKING
EXPOSED
482 g
CR2032
FLIP-UP COVERS
SCOPE RINGS
BATTERY
.223 & .308
RED / GREEN
SECOND
DUAL CALIBER
CORE TX
SM13082AR.223
1 - 4X
24 mm
102 - 94 mm
32 - 8 m
30 mm
91 m
1/2 moa
120 moa
120 moa
UP TO .500NE
245 mm
POP-UP LOCKING
EXPOSED
459 g
CR2032
FLIP-UP COVERS
SCOPE RINGS
BATTERY
.223 - 55/62 gr
RED / GREEN
SECOND
AR-223
CORE HX
SM13080HDR
3 - 12X
56 mm
109 - 96,5 mm
11,8 - 2,9 m
30 mm
18 m - ∞
1/4 moa
60 moa
60 moa
UP TO .500NE
323 mm
CAPPED
708,7 g
CR2032
NEOPRENE COVER
SCOPE RINGS
-
RED
SECOND
HUNTER DOT
CORE HX
SM13068VHR
3 - 9X
40 mm
101 - 94 mm
11,8 - 4,1 m
1 in / 25,4 mm
91 m
1/4 moa
70 moa
70 moa
UP TO .500NE
311,4 mm
CAPPED
402,5 g
-
NEOPRENE COVER
SCOPE RINGS
WHITETAIL CALIBERS
-
SECOND
VENISON HUNTER
CORE HX
SM13068VHR-350L
3 - 9X
40 mm
101 - 94 mm
11,8 - 4,1 m
1 in / 25,4 mm
91 m
1/4 moa
70 moa
70 moa
UP TO .500NE
311,4 mm
CAPPED
402,5 g
-
NEOPRENE COVER
SCOPE RINGS
350 LEGEND
-
SECOND
VHR-350L
CORE HX
SM13068HBR
3 - 9X
40 mm
101 - 94 mm
11,8 - 4,1 m
1 in / 25,4 mm
91 m
1/4 moa
70 moa
70 moa
UP TO .500NE
311,4 mm
CAPPED
402,5 g
-
NEOPRENE COVER
SCOPE RINGS
WHITETAIL CALIBERS
-
SECOND
HUNTER BALLISTIC
CORE HX
SM13068VHR-450BM
3 - 9X
40 mm
101 - 94 mm
11,8 - 4,1 m
1 in / 25,4 mm
91 m
1/4 moa
70 moa
70 moa
UP TO .500NE
311,4 mm
CAPPED
402,5 g
-
NEOPRENE COVER
SCOPE RINGS
450 BUSHMASTER
-
SECOND
VHR-450BM
24 25

14. AMELIE EICHINGER
“No other craft requires so much discipline,
skill, and concentration all at once.”
Located in beautiful Austria, Amelie Eichinger, age 24, is the first and only
female instructor in the civilian sector of defense shooting in the German-
speaking area. “The topic of firearms and their safe handling has always been
present in my family. I have spent countless hours of dedicated training and
years of practice, so I can achieve my goal of becoming an instructor.”
Amy is currently in the process of starting her own company with one main purpose
in mind - to educate and help young shooters improve their skills and achieve
their personal goals. “HESA by Amy9x19” offers shooting classes, individual shooting
training sessions, survival courses and more to shooting enthusiasts all over Austria.
“When it comes to shooting, one of the most important things is to learn the basics of
safe handling. I cannot stress enough how beneficial dry fire practice is in this regard,
as it helps the trainee automate the sequence of his/her own movements.” Helping
her trainees understand the value of not rushing through the journey is another pillar of
Amy’s teaching philosophy. “No matter how long it may take to learn a particular skill,
it is better to learn it slowly but correctly rather than to build sources of error into your
movements.” Finally, when it comes to choosing your shooting gear, Amy recommends
doing a lot of research and testing to really find the equipment that best meets your
personal needs. “The most expensive gear isn’t necessarily the best, but you also should not
be cheap about your equipment, especially when it comes to your safety.”
Following her own advice, Amy mainly uses the equipment she has tested herself. “One of the
biggest advantages of the Ultra Shot M-Spec for me is that—due to its locking picatinny mount
and compact form—it perfectly fits my customized AR-15, which I use as an instructor. I also
enjoy the ultra fast target acquisition due to its circle dot reticle and brightness settings. Even
when training in rough conditions, it is a very reliable piece of equipment. Because I choose to
keep my rifle as lightweight as possible, I also really appreciate its lightness. Last but not least,
I like the look of the Ultra Shot M-Spec, which is modern and puristic, yet tactical and powerful.”
26 27

15. ELEVATION ADJUSTMENT
LED APERTURE
WINDAGE ADJUSTMENT
BATTERY CAP
PROTECTIVE HOOD
DIGITAL SWITCH
OBJECTIVE LENS
Sightmark takes pride in
developing a full range
of reflex sights to answer
the individual needs of
end users.
The wide variety of
different-sized reflex
sights ensures maximum
comfort and efficiency,
depending on the
shooter’s rifle choice.
Reticles are measured in MOA to specify the amount of target the reticle covers at 100 meters and can come in different designs
and sizes. The reticle coverage increases as the distance to target is increased and vice versa. This is important to remember so
the right reticle is picked for your application.
Some sights include mounts that
allow for absolute co-witness with
back-up iron sights.
4 MOA
BEST FOR CLOSE RANGE
2 MOA
BEST FOR LONG RANGE
1 MOA = 1 in at 100 yards = 2,91 cm at 100 meters
45 meters 45 meters
91 meters 91 meters
182 meters 182 meters
REFLECTIVE LENS
ETCHED METAL DIAPHRAGM
LIGHT EMITTING DIODE
OPTICAL DESIGN
IMAGING SYSTEM
28 29

16. INCLUDES:
NEOPRENE COVER
MAXIMUM CALIBER
US PATENTS:
USD10139197
FULL METAL
CONSTRUCTION
RED OR GREEN
RETICLES
QUICK DETACH
MOUNT
LARGE OBJECTIVE
FOR QUICK ACQUISITION
MAGNIFICATION
MAGNIFICATION
MAGNIFICATION
1x
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
OBJECTIVE
LENS
33 x 24 mm
33 x 24 mm
33 x 24 mm
AUTO ON/OFF
AUTO ON/OFF
AUTO ON/OFF
No/
1 hr Auto Off
No/
1 hr Auto Off
No/
1 hr Auto Off
CONSTRUCTION
CONSTRUCTION
CONSTRUCTION
Aluminum Alloy
Aluminum Shield
Aluminum Alloy
Aluminum Shield
Aluminum Alloy
Aluminum Shield
MOUNT
TYPE
MOUNT
TYPE
MOUNT
TYPE
Quick Detach
Quick Detach
Quick Detach
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
120 moa / 120 moa
120 moa / 120 moa
120 moa / 120 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
110 x 58 mm
110 x 58 mm
110 x 58 mm
WEIGHT
WEIGHT
WEIGHT
303 g
304 g
304 g
BATTERY
BATTERY
BATTERY
cr123A
up to 2000 hrs
cr123A
up to 2000 hrs
cr123A
up to 2000 hrs
ULTRA SHOT R-SPEC
ULTRA SHOT R-SPEC DUAL SHOT (WITH RED LASER)
ULTRA SHOT R-SPEC DUAL SHOT (WITH GREEN LASER)
RETICLE: 4-PATTERN
MOA
10 BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26031
RETICLE: 4-PATTERN
MOA
10 BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26033R
RETICLE: 4-PATTERN
MOA
10 BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26033G
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26031DE
INCLUDES INTEGRATED RED LASER
INCLUDES INTEGRATED GREEN LASER
RAM Series R-Spec Ultra Shot Sights demonstrate
proven performance and reliability in close-
quarter, low-light environments with advanced,
coated glass; true 1x, parallax-corrected, wide-
angle field of view; extended battery life; quick-
detach mounting and Sightmark’s lifetime warranty.
Even better, the addition of an integrated class IIIA
laser on specific models enhances accuracy when it
matters most.
30 31

17. FULL METAL
CONSTRUCTION
PARALLAX FREE
RETICLE
AUTO SHUT-OFF
RETRACTABLE SUN-SHADE
ON M-SPEC MODELS
LARGE OBJECTIVE
FOR QUICK ACQUISITION
INCLUDES:
NEOPRENE COVER
MAXIMUM CALIBER
US PATENTS:
USD10139197
MAGNIFICATION
MAGNIFICATION
MAGNIFICATION
1x
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
OBJECTIVE
LENS
33 x 24 mm
33 x 24 mm
33 x 24 mm
AUTO ON/OFF
AUTO ON/OFF
AUTO ON/OFF
No/
1 hr Auto Off
Motion Sensing/
12hr Auto Off
Motion Sensing/
12hr Auto Off
CONSTRUCTION
CONSTRUCTION
CONSTRUCTION
Aluminum Alloy
Aluminum Shield
Magnesium Alloy
Aluminum Shield
Magnesium Alloy
Aluminum Shield
MOUNT
TYPE
MOUNT
TYPE
MOUNT
TYPE
Quick Detach
Locking
Quick Detach
Fixed
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
120 moa / 120 moa
120 moa / 120 moa
120 moa / 120 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
110 x 58 mm
102 x 59 mm
102 x 59 mm
WEIGHT
WEIGHT
WEIGHT
306 g
289 g
272 g
BATTERY
BATTERY
BATTERY
cr123A
up to 2000 hrs
cr123A
up to 2000 hrs
cr123A
up to 2000 hrs
ULTRA SHOT A-SPEC
ULTRA SHOT M-SPEC LQD
ULTRA SHOT M-SPEC FMS
RETICLE: 4-PATTERN
MOA
16 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26032
RETICLE: CIRCLE DOT CROSSHAIR
MOA
16 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
INTEGRATED SUNSHADE
COLOR:
MODEL: SM26034
RETICLE: CIRCLE DOT CROSSHAIR
MOA
16 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
INTEGRATED SUNSHADE
COLOR:
MODEL: SM26035
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26032DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26034DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26035DE
Designed to be the perfect close quarters
optic line for demanding LEOs, professional
competitors, personal defense enthusiasts and
weekend shooters, RAM Series Ultra Shot Reflex
Sights promise rock-solid stability, long battery
life and a crisp, wide-angle, parallax-corrected
field of view.
32 33

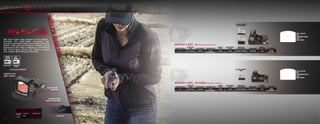

18. MAGNIFICATION
1x
OBJECTIVE
LENS
22 x 17 mm
AUTO ON/OFF
No / No
CONSTRUCTION
1 Piece
Aluminum Alloy
MOUNT
TYPE
Fixed
ADJUSTMENT
VALUE
1 moa
WIND/ELEV.
ADJUSTMENT
110 moa / 110 moa
DIMENSIONS
31 x 28 mm
WEIGHT
W/O MOUNT
34 g
BATTERY
CR1632
up to 160 hrs
MINI SHOT A-SPEC - M1 (DOCTOR/NOBLEX®
FOOTPRINT)
RETICLE: 2 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26045
INCLUDES LOW PROFILE
AND RISER MOUNTS
MAGNIFICATION
1x
OBJECTIVE
LENS
20 x 16 mm
AUTO ON/OFF
Yes / Yes
CONSTRUCTION
1 Piece
Aluminum Alloy
MOUNT
TYPE
Fixed
ADJUSTMENT
VALUE
1 moa
WIND/ELEV.
ADJUSTMENT
130 moa / 80 moa
DIMENSIONS
40,8 x 22,8 mm
WEIGHT
W/O MOUNT
20 g
BATTERY
CR2032
up to 100000 hrs
MINI SHOT A-SPEC - M3 MICRO (SHIELD RMS-C®
FOOTPRINT)
RETICLE: 3 MOA DOT
MOA
AUTO BRIGHTNESS RETICLE
COLOR:
MODEL: SM26049
INCLUDES LOW PROFILE
MOUNT
CLICK ADJUSTMENTS
COMPACT FULL
METAL DESIGN
AMBIDEXTROUS
DIGITAL SWITCHES
EASY ACCESS
BATTERY
INCLUDES:
RUBBER COVER
M1
DOCTER/
NOBLEX
BURRIS
MINI SHOT FOOTPRINTS
M2
TRIJICON
RMR
M3
SHIELD RMS-C
MAXIMUM CALIBER
.375
Mini Shot A-Specs take shooters to new heights.
Excellent for quick-target acquisition and
precision, Mini Shot A-Specs work comfortably with
pistols, rifles and even shotguns. Whether you’re
practicing at the range or engaging in self-defense,
Mini Shot A-Specs provide the reflexive accuracy
that satisfies demanding professionals.
MAXIMUM PISTOL
CALIBER
34 35

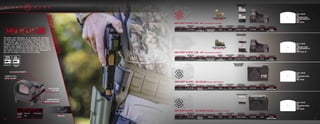

19. MAGNIFICATION
MAGNIFICATION
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
20 x 15 mm
21 x 15 mm
AUTO ON/OFF
AUTO ON/OFF
Always On /
Dimming
Always On /
Dimming
CONSTRUCTION
CONSTRUCTION
Aluminum
Aluminum
MOUNT
TYPE
MOUNT
TYPE
Fixed
Fixed
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
90 moa / 60 moa
160 moa / 110 moa
DIMENSIONS
DIMENSIONS
41 x 28 mm
45 x 32 mm
WEIGHT
W/O MOUNT
WEIGHT
W/O MOUNT
42,5 g
71 g
BATTERY
BATTERY
CR1620
20,000hrs(onmiddle)
CR1620
20,000hrs(onmiddle)
MINI SHOT M-SPEC - M3 MICRO SOLAR (SHIELD RMS-C®
FOOTPRINT)
MINI SHOT M-SPEC - M2 SOLAR (TRIJICON®
, RMR®
FOOTPRINT)
RETICLE: 3 MOA DOT
MOA
AUTO BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26048
RETICLE: 3 MOA DOT
MOA
AUTO BRIGHTNESS SETTINGS
COLOR:
MODEL: SM26050
CLICK ADJUSTMENTS
COMPACT FULL
METAL DESIGN
AMBIDEXTROUS
DIGITAL SWITCHES
EASY ACCESS
BATTERY
INCLUDES:
RUBBER COVER
M1
DOCTER/
NOBLEX
BURRIS
MINI SHOT FOOTPRINTS
M2
TRIJICON
RMR
M3
SHIELD RMS-C
MAGNIFICATION
MAGNIFICATION
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
21 x 15 mm
21 x 15 mm
AUTO ON/OFF
AUTO ON/OFF
No/
12 hr Auto Off
No/
12 hr Auto Off
CONSTRUCTION
CONSTRUCTION
Aluminum Alloy
Steel Shield
Aluminum Alloy
Steel Shield
MOUNT
TYPE
MOUNT
TYPE
Fixed
Locking
Quick Detach
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
110 moa / 110 moa
110 moa / 110 moa
DIMENSIONS
DIMENSIONS
31 x 27 mm
31 x 27 mm
WEIGHT
W/O MOUNT
WEIGHT
W/O MOUNT
42,5 g
42,5 g
BATTERY
BATTERY
CR1632
up to 30000 hrs
CR1632
up to 30000 hrs
MINI SHOT M-SPEC FMS - M1 (DOCTER/NOBLEX®
FOOTPRINT)
MINI SHOT M-SPEC LQD - M1 (DOCTER/NOBLEX FOOTPRINT)
RETICLE: 3 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHTVISIONCOMPATIBLE(V2)
COLOR:
MODEL: SM26043
RETICLE: 3 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHTVISIONCOMPATIBLE(V2)
COLOR:
MODEL: SM26043-LQD
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26043DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26043-LQDDE
INCLUDES LOW PROFILE
AND RISER MOUNTS
INCLUDES LOW PROFILE
INCLUDES LOW PROFILE
AND RISER MOUNTS
(MOUNTS NOT PICTURED)
INCLUDES LOW PROFILE
AND RISER MOUNTS
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
Versatile and effective in a variety of shooting
environments, the Mini M-Spec red dots are ideal
for tactical use on everything from pistols and
shotguns to MSRs and lever actions. How quick you
acquire your target in close-quarters shooting can
often be the difference between winning or losing
the battle and our mini red dots were designed to
get you on target swiftly and accurately.
MAXIMUM PISTOL
CALIBER
MAXIMUM CALIBER
.375
36 37

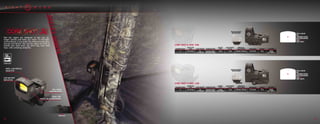

20. LOW BATTERY
INDICATION
WIDE, LOW-PROFILE
OBJECTIVE
FULL METAL
CONSTRUCTION
IDEAL FOR
PISTOL AR’S & SHOTGUNS
INCLUDES:
RUBBER COVER
MAXIMUM CALIBER
MAGNIFICATION
MAGNIFICATION
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
28 x 18 mm
28 x 18 mm
AUTO ON/OFF
AUTO ON/OFF
No/
1 hr Auto Off
No/
1 hr Auto Off
CONSTRUCTION
CONSTRUCTION
Aluminum Alloy
Aluminum Shield
Aluminum Alloy
Aluminum Shield
MOUNT
TYPE
MOUNT
TYPE
Fixed
Locking
Quick Detach
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
100 moa / 100 moa
100 moa / 100 moa
DIMENSIONS
DIMENSIONS
59 x 56 mm
59 x 56 mm
WEIGHT
WEIGHT
125 g
139 g
BATTERY
BATTERY
CR2032
up to 1400 hrs
CR2032
up to 1400 hrs
CORE SHOT A-SPEC FMS
CORE SHOT A-SPEC LQD
RETICLE: 5 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26017
RETICLE: 5 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26018
INCLUDES LOW PROFILE
AND RISER MOUNTS
INCLUDES LOW PROFILE
AND RISER MOUNTS
Red dot sights are designed to get you on
target quickly and keep you there. In low-light
environments, it can mean the difference between
success and failure. Our red dot sights are built to
handle your hard work, day after day, hour after
hour, with unfailing reliability.
38 39

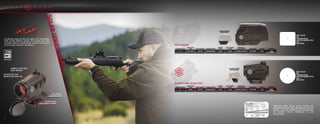

21. COMPACT, ENCLOSED
SIGHT DESIGNS
SOLAR PANEL FOR
INFINITE DAYLIGHT USE
FULL METAL
CONSTRUCTION
ECLIPSE LIGHT
MANAGMENT SYSTEM
MAXIMUM CALIBER
MAGNIFICATION
MAGNIFICATION
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
28 x 28 mm
22 mm
AUTO ON/OFF
AUTO ON/OFF
No / No
No / No
CONSTRUCTION
CONSTRUCTION
Aluminum Alloy
Aluminum Alloy
MOUNT
TYPE
MOUNT
TYPE
Fixed
Fixed
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1/2 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
160 moa / 120 moa
160 moa / 120 moa
DIMENSIONS
DIMENSIONS
82 x 50 mm
75 x 69 mm
WEIGHT
WEIGHT
207 g
156 g
BATTERY
BATTERY
2x AAA
up to 400000 hrs
CR2032
up to 200000 hrs
VOLTA SOLAR
ELEMENT MINI SOLAR 1X22
RETICLE: 2 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
ECLIPSE LIGHT MANAGEMENT SYSTEM
COLOR:
MODEL: SM26030
RETICLE: 3 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
ECLIPSE LIGHT MANAGEMENT SYSTEM
COLOR:
MODEL: SM26041
INCLUDES LOW PROFILE
AND RISER MOUNTS
INCLUDES LOW PROFILE
AND RISER MOUNTS
Sightmark Solar Series optics include our
innovative Eclipse Light Management System
(ELMS), with auto dimming and brightening,
for perfect reticle brightness in any
environment.
Combining state-of-the-art solar cell technology
with proven battery power, our brand new solar
red dots feature a dual power system to keep you
at the ready anytime, anywhere.
40 41

22. PROTECTED HAND
ADJUSTMENTS
ALUMINUM BODY WITH
RUBBER ARMOR
USES COMMON
AA BATTERY
GREATLY EXTENDED
BATTERY LIFE
INCLUDES:
LENS COVER
MAXIMUM CALIBER
MAGNIFICATION
MAGNIFICATION
1x
1x
OBJECTIVE
LENS
OBJECTIVE
LENS
28 mm
23 mm
AUTO ON/OFF
AUTO ON/OFF
No / No
No / No
CONSTRUCTION
CONSTRUCTION
Aluminum with
Rubber Shell
Aluminum with
Rubber Shell
MOUNT
TYPE
MOUNT
TYPE
Fixed or
LQD
Fixed or
LQD
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1/2 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
120 moa / 120 moa
120 moa / 120 moa
DIMENSIONS
DIMENSIONS
113 x 65 mm
87 x 61 mm
WEIGHT
WEIGHT
349 g
292 g
BATTERY
BATTERY
1x AA
up to 1 million hrs
1x AA
up to 1 million hrs
WOLVERINE 1X28 FSR
WOLVERINE 1X23 CSR
RETICLE: 2 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26020
RETICLE: 4 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26021
RETICLE: 2 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26020-LQD
RETICLE: 4 MOA DOT
MOA
10 BRIGHTNESS SETTINGS
NIGHT VISION COMPATIBLE
COLOR:
MODEL: SM26021-LQD
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26020DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM26021DE
Mount:
Fixed
Mount:
Fixed
Mount:
LQD
Mount:
LQD
Built for speed and reliability, our rubber-
armored Wolverine red dot sights feature
fixed-magnification, ultra-crisp fields of view
and illuminated reticles. Reticle illumination
is powered for up to 1 million hours on a single
AA battery (50,000 hrs on brightness level 6) and
Wolverines are backed by our Sightmark Lifetime
Warranty.
42 43

23. SERIES
MODEL #
MAGNIFICATION
OBJECTIVE
APERTURE
EYE RELIEF
PARALLAX
ADJUSTMENT
VALUE
WINDAGE
ADJUSTMENT
ELEVATION
ADJUSTMENT
MAXIMUM
CALIBER
LENGTH
WEIGHT
BATTERY
BATTERY LIFE
SWITCH TYPE
MOUNT TYPE
INCLUDES
RETICLE
CALIBRATION
RETICLE
ILLUMINATION
RETICLE
FOOTPRINT
ULTRA SHOT R-SPEC
SM26031
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
110 mm
303 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY,
QUICK-DETACH
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED/GREEN
4 PATTERN
N/A
ULTRA SHOT R-SPEC
SM26033R
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
110 mm
304 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY,
QUICK-DETACH
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
RED LASER
N/A
RED/GREEN
4 PATTERN
N/A
ULTRA SHOT R-SPEC
SM26033G
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
110 mm
304 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY,
QUICK-DETACH
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
GREEN LASER
N/A
RED/GREEN
4 PATTERN
N/A
ULTRA SHOT A-SPEC
SM26032
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
110 mm
306 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY,
QUICK-DETACH
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED
4 PATTERN
N/A
ULTRA SHOT M-SPEC LQD
SM26034
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
102 mm
289 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY, LOCKING
QUICK-DETACH
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED
CIRCLE DOT CROSSHAIR
N/A
ULTRA SHOT M-SPEC FMS
SM26035
1X
33 X 24 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
120 moa
120 moa
UP TO .50 BMG
102 mm
272 g
CR123A
200 - 2,000 hrs
DIGITAL
PICATINNY,
FIXED
NEOPRENE COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED
CIRCLE DOT CROSSHAIR
N/A
MINI SHOT A-SPEC M3
SM26049
1X
20 X 16 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
130 moa
80 moa
UP TO .375 H&H / .45ACP
40,8 mm
46 g
CR2032
500 - 100,000 hrs
DIGITAL
PICATINNY,
FIXED
RUBBER COVER
LOW PROFILE MOUNT
BATTERY
N/A
RED
3 MOA DOT
M3 -SHIELD RMS-C
MINI SHOT A-SPEC M1
SM26045
1X
22 X 17 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
110 moa
110 moa
UP TO .375 H&H / .45ACP
31 mm
34 g
CR1632
15 - 160 hrs
DIGITAL
PICATINNY, FIXED
LOW-PROFILE & RISER
RUBBER COVER
LOW PROFILE MOUNT
AR RISER MOUNT
BATTERY
N/A
RED
2 MOA DOT
M1 -DOCTER / NOBLEX
MINI SHOT M-SPEC M1
SM26043
1X
21 X 15 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
110 moa
110 moa
UP TO .375 H&H / .45ACP
31,5 mm
42,5 g
CR1632
300 - 30,000 hrs
DIGITAL
PICATINNY, FIXED
LOW-PROFILE & RISER
RUBBER COVER
LOW PROFILE MOUNT
AR RISER MOUNT
BATTERY
N/A
RED
3 MOA DOT
M1 -DOCTER / NOBLEX
MINI SHOT M-SPEC M2
SM26048
1X
21 X 15 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
160 moa
110 moa
UP TO .375 H&H / .45ACP
45,5 mm
71 g
CR1620 / SOLAR
20,000 / Infinite
DIGITAL
PICATINNY, FIXED
LOW-PROFILE & RISER
RUBBER COVER
LOW PROFILE MOUNT
AR RISER MOUNT
BATTERY
N/A
RED
3 MOA DOT
M2 -TRIJICON / RMR
MINI SHOT M-SPEC M3
SM26050
1X
20 X 15 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
90 moa
60 moa
UP TO .375 H&H / .45ACP
41 mm
42,5 g
CR1620 / SOLAR
20,000 / Infinite
DIGITAL
PICATINNY, FIXED
LOW-PROFILE
RUBBER COVER
LOW PROFILE MOUNT
BATTERY
N/A
RED
3 MOA DOT
M3 -SHIELD RMS-C
MINI SHOT M-SPEC M1 LQD
SM26043-LQD
1X
21 X 15 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
110 moa
110 moa
UP TO .375 H&H / .45ACP
31,5 mm
42,5 g
CR1632
300 - 30,000 hrs
DIGITAL
PICATINNY, LOCKING QD
LOW-PROFILE & RISER
RUBBER COVER
LOW PROFILE LQD MOUNT
AR RISER LQD MOUNT
BATTERY
N/A
RED
3 MOA DOT
M1 -DOCTER / NOBLEX
CORE SHOT A-SPEC FMS
SM26017
1X
28 X 18 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
100 moa
100 moa
UP TO .50 CAL
59 mm
125 g
CR1632
20 - 1,400 hrs
DIGITAL
PICATINNY,
FIXED
RUBBER COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED
5 MOA DOT
N/A
CORE SHOT A-SPEC LQD
SM26018
1X
28 X 18 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1 moa
100 moa
100 moa
UP TO .50 CAL
59 mm
139 g
CR1632
20 -1,400 hrs
DIGITAL
PICATINNY, LOCKING
QUICK-DETACH
RUBBER COVER
ADJUSTMENT TOOL
BATTERY
N/A
RED
5 MOA DOT
N/A
VOLTA SOLAR
SM26030
1X
28 x 28 mm
UNLIMITED
PARALLAX-FREE
1/2 moa
120 moa
160 moa
UP TO .338 WIN MAG
82 mm
207 g
2x AAA / SOLAR
up to 400,000 hrs / Infinite
DIGITAL
PICATINNY, FIXED
LOW-PROFILE & RISER
RUBBER COVER
LOW PROFILE MOUNT
AR RISER MOUNT
N/A
RED
2 MOA DOT
N/A
ELEMENT MINI SOLAR
SM26041
1X
22 mm
UNLIMITED
PARALLAX-FREE
1 moa
120 moa
160 moa
UP TO .338 WIN MAG
75 mm
156 g
CR2032 / SOLAR
up to 200,000 hrs / Infinite
DIGITAL
PICATINNY, FIXED
LOW-PROFILE & RISER
FLIP-UP LENS COVERS
LOW PROFILE MOUNT
AR RISER MOUNT
N/A
RED
2 MOA DOT
N/A
WOLVERINE
SM26020
1X
28 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1/2 moa
120 moa
120 moa
UP TO .375 H&H
113 mm
349 g
AA
900 - 1,000,000 hrs
DIGITAL
PICATINNY,
FIXED
RUBBER LENS COVERS
BATTERY
N/A
RED
2 MOA DOT
N/A
WOLVERINE
SM26020-LQD
1X
28 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1/2 moa
120 moa
120 moa
UP TO .375 H&H
113 mm
349 g
AA
900 - 1,000,000 hrs
DIGITAL
PICATINNY, LOCKING
QUICK-DETACH
RUBBER LENS COVERS
BATTERY
N/A
RED
2 MOA DOT
N/A
WOLVERINE
SM26021
1X
23 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1/2 moa
120 moa
120 moa
UP TO .375 H&H
87 mm
292 g
AA
900 - 1,000,000 hrs
DIGITAL
PICATINNY,
FIXED
RUBBER LENS COVERS
BATTERY
N/A
RED
4 MOA DOT
N/A
WOLVERINE
SM26021-LQD
1X
23 mm
UNLIMITED
PARALLAX-FREE
DUAL-GLASS SYSTEM
1/2 moa
120 moa
120 moa
UP TO .375 H&H
87 mm
292 g
AA
900 - 1,000,000 hrs
DIGITAL
PICATINNY, LOCKING
QUICK-DETACH
RUBBER LENS COVERS
BATTERY
N/A
RED
4 MOA DOT
N/A
SERIES
MODEL #
MAGNIFICATION
OBJECTIVE
APERTURE
EYE RELIEF
PARALLAX
ADJUSTMENT
VALUE
WINDAGE
ADJUSTMENT
ELEVATION
ADJUSTMENT
MAXIMUM
CALIBER
LENGTH
WEIGHT
BATTERY
BATTERY LIFE
SWITCH TYPE
MOUNT TYPE
INCLUDES
RETICLE
CALIBRATION
RETICLE
ILLUMINATION
RETICLE
FOOTPRINT
44 45

24. ADJUSTABLE
ALIGNMENT
FULLY
MULTICOATED
ABSOLUTE
CO-WITNESS
LOCKING FLIP-TO-SIDE
MAXIMUM CALIBER
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
5 x 23 mm
3 x 23 mm
TUBE
DIAMETER
TUBE
DIAMETER
30 mm
30 mm
EYE
RELIEF
EYE
RELIEF
57 mm
57 mm
FIELD OF VIEW
@100 M
FIELD OF VIEW
@100 M
9,8 m
14,4 m
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
4,6 mm
7,6 mm
MOUNT
TYPE
MOUNT
TYPE
Locking
Quick Detach
Locking
Quick Detach
ALIGNMENT
ADJUSTMENT
ALIGNMENT
ADJUSTMENT
External
External
DIMENSIONS
DIMENSIONS
120 x 42,5 mm
103 x 42,5 mm
WEIGHT
WEIGHT
309 g
300,5 g
FLIP-TO-
SIDE
FLIP-TO-
SIDE
Yes
Yes
FLIP-TO-SIDE LQD MOUNT
MODEL: SM19064
FLIP-TO-SIDE LQD MOUNT
MODEL: SM19063
T-5 TACTICAL MAGNIFIER
T-3 TACTICAL MAGNIFIER
MAGNIFICATION
X OBJECTIVE LENS
3 x 23 mm
TUBE
DIAMETER
30 mm
EYE
RELIEF
88,9 mm
FIELD OF VIEW
@100 M
13,2 m
EXIT PUPIL
DIAMETER
7,6 mm
MOUNT
TYPE
Locking
Quick Detach
ALIGNMENT
ADJUSTMENT
External
DIMENSIONS
103 x 54 mm
WEIGHT
360 g
FLIP-TO-
SIDE
Yes
XT-3 TACTICAL MAGNIFIER FLIP-TO-SIDE LQD MOUNT
MODEL: SM19062
Designed for use with red dot sights, Sightmark 3x
and 5x magnifiers employ Picatinny rail compatible
flip-to-side mounts for rapid transitions between
CQB and mid-range engagements.
46 47

25. COMPACT, FOLDED
LIGHT PATH DESIGN
PICATINNY
ACCESSORY RAILS
TOP OR BOTTOM
TRIPOD ATTACHMENTS
RUBBAR ARMOR
INCLUDES:
CASE
LENS COVERS
ACCESSORY RAILS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
20-60 x 80 mm
15-45 x 60 mm
CLOSE FOCUS
DISTANCE
CLOSE FOCUS
DISTANCE
12 m
8 m
EYE
RELIEF
EYE
RELIEF
27 - 26 mm
27 - 26 mm
FIELD OF VIEW
@1000 M
FIELD OF VIEW
@1000 M
43,7 - 14,5 m
59 - 20 m
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
4,1 - 1,3 mm
4,2 - 1,3 mm
OPTICAL
TYPE
OPTICAL
TYPE
Mirror
Dielectric
Mirror
Dielectric
TWILIGHT
INDEX
TWILIGHT
INDEX
40 - 69,3
30 - 52
DIMENSIONS
DIMENSIONS
394 x 146 mm
279 x 145 mm
WEIGHT
WEIGHT
1919 g
1295 g
RESOLUTION
RESOLUTION
2.2”
2.8”
LATITUDE 20-60X80 XD
LATITUDE 15-45X60
20-60X
RETICLE: TACTICAL MIL
MIL
COLOR:
MODEL: SM11034TD
RETICLE: TACTICAL MIL
MIL
COLOR:
MODEL: SM11033TD
RETICLE: NONE
MODEL: SM11034
RETICLE: NONE
MODEL: SM11033
15-45X
INCLUDES:
CASE
LENS COVERS
ACCESSORY RAILS
INCLUDES:
CASE
LENS COVERS
ACCESSORY RAILS
Whether you’re glassing my mule deer in Wyoming
or spotting for someone at the range, Latitude
spotting scopes feature powerful magnification
ranges and crisp fields of view, perfect for reading
mirage, making wind calls and identifying extreme-
distance impacts. The Latitude Tactical model
includes a first-focal-plane mil-dash reticle with
dedicated focus.
48 49

26. MAGNESIUM ALLOY HOUSING
WITH RUBBER ARMOR
FULLY MULTI-COATED
OPTICS
PHASE CORRECTIVE
PRISM COATINGS
EXTRA LOW
DISPERSION XD GLASS
INCLUDES:
CASE
LENS COVERS
NECK STRAP
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
8 x 42 mm
7 x 36 mm
CLOSE FOCUS
DISTANCE
CLOSE FOCUS
DISTANCE
2 m
1,8 m
EYE
RELIEF
EYE
RELIEF
16,6 mm
16,8 mm
FIELD OF VIEW
@1000 M
FIELD OF VIEW
@1000 M
142 m
159 m
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
5,2 mm
5,1 mm
OPTICAL
TYPE
OPTICAL
TYPE
BAK-4 Roof
Prisms
BAK-4 Roof
Prisms
TWILIGHT
INDEX
TWILIGHT
INDEX
17,8
15,8
DIMENSIONS
DIMENSIONS
170 x 51 mm
149,8 x 50,8 mm
WEIGHT
WEIGHT
757 g
672 g
RESOLUTION
RESOLUTION
4”
4.3”
SOLITUDE 8X42 XD
SOLITUDE 7X36 XD
RETICLE: NONE
MODEL: SM12103
RETICLE: NONE
MODEL: SM12102
RETICLE: NONE
MODEL: SM12101
MAGNIFICATION
X OBJECTIVE LENS
10 x 42 mm
CLOSE FOCUS
DISTANCE
2 m
EYE
RELIEF
15 mm
FIELD OF VIEW
@1000 M
113 m
EXIT PUPIL
DIAMETER
4,27 mm
OPTICAL
TYPE
BAK-4 Roof
Prisms
TWILIGHT
INDEX
20,2
DIMENSIONS
170 x 51 mm
WEIGHT
757 g
RESOLUTION
4”
SOLITUDE 10X42 XD
10X
8X
7X
INCLUDES:
CASE
LENS COVERS
NECK STRAP
INCLUDES:
CASE
LENS COVERS
NECK STRAP
INCLUDES:
CASE
LENS COVERS
NECK STRAP
Whether you’re surveying wildlife, hunting
whitetail or taking in your favorite sports team
from the stands, the durable magnesium alloy,
rubber-armored housing and extra-low dispersion
glass found on Solitude XDs bring your outdoor
views into crystal-clear focus.
50 51

27. ALUMINUM HOUSING
COMPACT AND
PORTABLE
RUBBER ARMOR
INCLUDES:
CASE
LENS COVERS
NECK STRAP
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
MAGNIFICATION
X OBJECTIVE LENS
12 x 50 mm
10 x 42 mm
8 x 42 mm
8 x 32 mm
CLOSE FOCUS
DISTANCE
CLOSE FOCUS
DISTANCE
CLOSE FOCUS
DISTANCE
CLOSE FOCUS
DISTANCE
4 m
4 m
4 m
2 m
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
EYE
RELIEF
18,2 mm
18,2 mm
19,8 mm
14,7 mm
FIELD OF VIEW
@1000 M
FIELD OF VIEW
@1000 M
FIELD OF VIEW
@1000 M
FIELD OF VIEW
@1000 M
80 m
101 m
103,9 m
142 m
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
EXIT PUPIL
DIAMETER
4,1 mm
4,2 mm
4,1 mm
4,1 mm
OPTICAL
TYPE
OPTICAL
TYPE
OPTICAL
TYPE
OPTICAL
TYPE
BAK-4 Roof
Prisms
BAK-4 Roof
Prisms
BAK-4 Roof
Prisms
BAK-4 Roof
Prisms
TWILIGHT
INDEX
TWILIGHT
INDEX
TWILIGHT
INDEX
TWILIGHT
INDEX
21,47
20,42
18,24
16,19
DIMENSIONS
DIMENSIONS
DIMENSIONS
DIMENSIONS
165 x 58 mm
150 x 51 mm
150 x 51 mm
110 x 45 mm
WEIGHT
WEIGHT
WEIGHT
WEIGHT
898,6 g
757 g
757 g
666 g
RESOLUTION
RESOLUTION
RESOLUTION
RESOLUTION
4,2”
5,33”
5,33”
5.7”
SOLITUDE 12X50
SOLITUDE 10X42
SOLITUDE 8X42
SOLITUDE 8X32
12X
10X
8X
8X
RETICLE: NONE
MODEL: SM12004
RETICLE: NONE
MODEL: SM12002
RETICLE: NONE
MODEL: SM12003
RETICLE: NONE
MODEL: SM12001
INCLUDES:
CASE
LENS COVERS
NECK STRAP
INCLUDES:
CASE
LENS COVERS
NECK STRAP
INCLUDES:
CASE
LENS COVERS
NECK STRAP
INCLUDES:
CASE
LENS COVERS
NECK STRAP
Out in the field you need optics you can depend
on. Our binoculars offer wide, sharp fields of view,
practical magnification options and a long-lasting
aluminum housing with rubber-armor coating,
getting you closer to the action season after season.
52 53

28. LOW PROFILE DESIGN
WINDAGE/ELEVATION
LASER ADJUSTMENTS
AMBIDEXTROUS
OPERATION
INCLUDES:
PRESSURE PAD
LASER
TYPE
LASER
TYPE
LASER
TYPE
Green
520 Nm
Green
520 Nm
Green
520 Nm
LASER
RANGE
LASER
RANGE
LASER
RANGE
up to 550 m
up to 550 m
up to 550 m
FLASH LIGHT
TYPE
FLASH LIGHT
TYPE
FLASH LIGHT
TYPE
White LED
300 Lumens
White LED
300 Lumens
IR ILLUMINATOR
TYPE
IR ILLUMINATOR
TYPE
IR ILLUMINATOR
TYPE
810 Nm LED
1800 mW
MOUNT
TYPE
MOUNT
TYPE
MOUNT
TYPE
Fixed
Fixed
Fixed
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
ADJUSTMENT
VALUE
1 moa
1 moa
1 moa
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
WIND/ELEV.
ADJUSTMENT
200 moa / 200 moa
200 moa / 200 moa
200 moa / 200 moa
DIMENSIONS
DIMENSIONS
DIMENSIONS
114 x 38,9 mm
88 x 36 mm
66 x 36 mm
WEIGHT
WEIGHT
WEIGHT
374 g
198,4 g
190 g
BATTERY
BATTERY
BATTERY
cr123a
up to 18 hrs
cr123A
up to 18 hrs
cr123A
up to 18 hrs
LOPRO COMBO
LOPRO MINI COMBO
LOPRO MINI
PROFILE: LOW
INCLUDES: LASER, LIGHT AND IR ILLUMINATOR
LASER COLOR:
MODEL: SM25013* *Availablein<1mwEU
PROFILE: LOW
INCLUDES: LASER AND LIGHT
LASER COLOR:
MODEL: SM25012* *Availablein<1mwEU
PROFILE: LOW
INCLUDES: LASER
LASER COLOR:
MODEL: SM25016
ALSO AVAILABLE IN DARK EARTH
MODEL: SM25013DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM25012DE
ALSO AVAILABLE IN DARK EARTH
MODEL: SM25016DE
PLATFORM WORKS WITH
MINI SHOT MSPEC AND M1 SIGHTS
Sightmark weapon-mounted laser/light systems
shed disorienting light and enhance accuracy in
low-light environments while long battery life and
our lifetime warranty ensure the kind of reliability
you demand.
54 55

29. BATTERIES
EQUIVALENT CALIBER
BRASS CONSTRUCTION
8 POINT PRECISION
CALIBRATION
LASER WAVELENGTH,
632 - 650 NM
56 57

30. 8 POINT PRECISION
CALIBRATION
BRASS
CONSTRUCTION
INCLUDES:
CARRYING CASE
US PATENTS:
USD8769859
*Availablein<1mwEU
*Availablein<1mwEU
*Availablein<1mwEU
Sighting-in a new scope or double-checking zero
on your favorite rifles, handguns and crossbows?
Sightmark boresights are the first, best name in
boresighting tools. From universal barrel-mounted
to caliber-specific in-chamber products, our
boresights are designed to get you on target quickly
without wasting ammo.
LASER
TYPE
LASER
TYPE
LASER
TYPE
LASER
TYPE
Red
632 - 650 Nm
Red or
Green
Red
632 - 650 Nm
Red or
Green
LASER
RANGE
LASER
RANGE
LASER
RANGE
LASER
RANGE
up to 91,4 m
up to 91,4 m
up to 91,4 m
up to 91,4 m
DOT SIZE
@ 100 YDS/M
DOT SIZE
@ 100 YDS/M
DOT SIZE
@ 100 YDS/M
DOT SIZE
@ 100 YDS/M
2 in
50,8 mm
2 in
50,8 mm
2 in
50,8 mm
2 in
50,8 mm
BORESIGHT
TYPE
BORESIGHT
TYPE
BORESIGHT
TYPE
BORESIGHT
TYPE
In-Chamber
In-Chamber
In-Chamber
Universal
(front of barrel)
MATERIAL
MATERIAL
MATERIAL
MATERIAL
Brass
Brass
Brass
Brass
AUTO-ACTIVATED
AUTO-ACTIVATED
AUTO-ACTIVATED
AUTO-ACTIVATED
No
No
No
No
OPERATION
OPERATION
OPERATION
OPERATION
Batteries Inserted
Batteries Inserted
or Push Button
Batteries Inserted
Push Button
BATTERY
TYPE
BATTERY
TYPE
BATTERY
TYPE
BATTERY
TYPE
2x AG5
Varies
2x AG5
2x AG5
BATTERY
LIFE
BATTERY
LIFE
BATTERY
LIFE
BATTERY
LIFE
up to 1 hr
up to 1 hr
up to 1 hr
up to 1 hr
RIFLE BORESIGHTS
SPECIALTY BORESIGHTS
PISTOL BORESIGHTS
UNIVERSAL BORESIGHTS
.223, .5.56 NATO
MODEL: SM39001*
.300 WSM
MODEL: SM39010*
.30-06, .270, .25-06
MODEL: SM39003*
9MM LUGER
MODEL: SM39015*
TRIPLE DUTY - RED
BATTERY: 3X AG3
MODEL: SM39024*
7.62X54MM R
MODEL: SM39037
.243, .308, 7.62X51
MODEL: SM39005*
.45 ACP
MODEL: SM39017*
UNIVERSAL - RED
BATTERY: 3X AG3
MODEL: SM39014
.303 BRITISH
MODEL: SM39013
6.5 GRENDEL
MODEL: SM39047
7.62MM X 39
MODEL: SM39002*
.270 WSM
MODEL: SM39011*
6.8 REM SPC
MODEL: SM39023
7MM, .338, .264
MODEL: SM39004
.40 S&W
MODEL: SM39016
TRIPLE DUTY - GREEN
BATTERY: CR2
MODEL: SM39026
300 BLK
MODEL: SM39043
.300 WM
MODEL: SM39006*
.357/.38 SPECIAL
MODEL: SM39018*
6.5 CREED, .22-250
MODEL: SM39020
350 LEGEND
MODEL: SM39048
.30-30 WIN
MODEL: SM39009*
.380 ACP
MODEL: SM39046
.17HMR
BATTERY: 2AAA
MODEL: SM39022
20 GUAGE
BATTERY: 2X AG5
MODEL: SM39008
.22 LR
BATTERY: 2AAA
MODEL: SM39021*
12 GUAGE
BATTERY: 2X AG5
MODEL: SM39007*
.50 CAL - RED
BATTERY: CR2
MODEL: SM39012*
CROSSBOW
BATTERY: 1X AG5
MODEL: SM39039
.50 CAL - GREEN
BATTERY: CR2
MODEL: SM39038
450 BUSHMASTER
MODEL: SM39049
58 59

31. OBJECTIVE SIZE
20-25MM
26-30MM
31-35MM
36-40MM
41-45MM
46-50MM
51-55MM
56-60MM
TRADITIONAL GUN
LOW
LOW
LOW
LOW - MEDIUM
MEDIUM
MEDIUM - HIGH
HIGH
HIGH - EXTRAHIGH
SEMI-AUTO MSR
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
EXTRA HIGH
HOW TO PICK TACTICAL RING SIZE
RING
DIAMETER
RING
DIAMETER
RING
DIAMETER
RING
DIAMETER
RING
DIAMETER
WORKS
WITH
RING
DIAMETER
WORKS
WITH
30 mm
& 1 in
30 mm
or 34mm
30 mm
& 1 in
30 mm
or 34mm
34 mm
Wraith HD and
Wraith 4K models
34 mm
Wraith HD and
Wraith 4K models
CENTERLINE
HEIGHT
BUBBLE
LEVEL
CENTERLINE
HEIGHT
RING
HEIGHT
CENTERLINE
HEIGHT
RIFLE
TYPE
CENTERLINE
HEIGHT
MOUNT
TYPE
1,5 in
38,1 mm
Yes
1,5 in
38,1 mm
Low, Med, High
Extra High
1,5 in
38,1 mm
Bolt Action -
Multiple Positions
1,5 in
38,1 mm
Tool Less
Picatinny QD
TORQUE SPEC
HEX
SINGLE BOLT
MOUNTING
TORQUE SPEC
HEX
TORQUE SPEC
HEX
TORQUE SPEC
HEX
TORQUE SPEC
HEX
TORQUE SPEC
HEX
CAPACITY
4,5 - 5,6 N m
Yes
4,5 - 5,6 N m
13,5 - 15,8 N m
4,5 - 5,6 N m
3,4 - 4,5 N m
4,5 - 5,6 N m
10,000 mAh
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
TORQUE SPEC
RINGS
BATTERY
TYPE
3,4 - 3,8 N m
1,1 - 1,4 N m
3,4 - 3,8 N m
2,1 - 2,5 N m
3,4 - 3,8 N m
3,4 - 4,5 N m
3,4 - 3,8 N m
Rechargeable
Lithium-Polymer
MATERIAL
MATERIAL
MATERIAL
MATERIAL
MATERIAL
MATERIAL
MATERIAL
OUTPUT
CONNECTION
6061-T6
Aluminum
Aluminum
6061-T6
Aluminum
6061-T6
Aluminum
6061-T6
Aluminum
6061-T6
Aluminum
6061-T6
Aluminum
Universal USB
Type A
FIXED CANTILEVER MOUNTS
BUBBLE LEVEL RINGS
LQD CANTILEVER MOUNTS
TACTICAL RINGS
FIXED CANTILEVER MOUNTS
WRAITH BOLT ACTION MOUNT
LQD CANTILEVER MOUNTS
QUICK DETACH BATTERY PACK
SLOPE: NONE
MODEL: SM34019
RING SIZE: 30 MM
MODEL: SM19044
HEIGHT: LOW SIZE: 30 MM
MODEL: SM34005
HEIGHT: MEDIUM SIZE: 34 MM
MODEL: SM34013
SLOPE: NONE
MODEL: SM34020
SLOPE: NONE
MODEL: SM34023
SLOPE: NONE
MODEL: SM34022
SLOPE: 20 MOA
MODEL: SM34021
RING SIZE: 34 MM
MODEL: SM19045
HEIGHT: MEDIUM SIZE: 30 MM
MODEL: SM34006
HEIGHT: HIGH SIZE: 30 MM
MODEL: SM34007
MOUNT: PICATINNY FIXED
MODEL: SM18011.01
MOUNT: PICATINNY QD
MODEL: SM28003
SLOPE: 20 MOA
MODEL: SM34024
HEIGHT: HIGH SIZE: 34 MM
MODEL: SM34014
HEIGHT: EXTRA HIGH SIZE: 30 MM
MODEL: SM34008
WORKS
WITH
Wraith 4K Mini models
RIFLE
TYPE
Bolt Action -
Multiple Positions
TORQUE SPEC
HEX
3,4 - 4,5 N m
TORQUE SPEC
RINGS
3,4 - 4,5 N m
MATERIAL
6061-T6
Aluminum
WRAITH MINI LONG ACTION MOUNT
MOUNT: PICATINNY FIXED
MODEL: SM18041.01
INCLUDES 45 DEGREE
PICATINNY MOUNT OPTION
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
•
N
E
W
FOR 20
2
2
•
N
E
W
F
O
R
2
0
2
2
WORKS
WITH
Wraith HD and
Wraith 4K models
MOUNT
TYPE
Tool Less
Picatinny QD
CAPACITY
6,000 mAh
BATTERY
TYPE
Rechargeable
Lithium-Polymer
OUTPUT
CONNECTION
Universal USB
Type A
QUICK DETACH MINI BATTERY PACK
MOUNT: PICATINNY QD
MODEL: SM28004
At Sightmark, “Make Your Mark” means more than
optics and point of impact. We offer an array
of accessories, from scope rings and covers to
data books, to enhance your shooting and overall
outdoor experiences.
60 61

32. 62 63

33. www.sightmark.com
Sightmark - US
2201 Heritage Parkway
Mansfield, TX 76063
817.225.0310
sales@sightmark.com
Sightmark - EMEA
94 Iliyantsi Blvd
Area PA Iliyantsi – East
1271 Sofia, Bulgaria
+359 2 434 3287
sales@sellmarkeu.net
