The document provides a list of parts for the Roschen HW/HWT Wireline Casing Advancer. It includes 17 items that make up the inner assembly and complete advancer. Some key components are the spearhead, latch body, latch shoe, and bit sub. The document also provides contact information for Roschen Group Limited and notes that designs and specifications may change without notice.

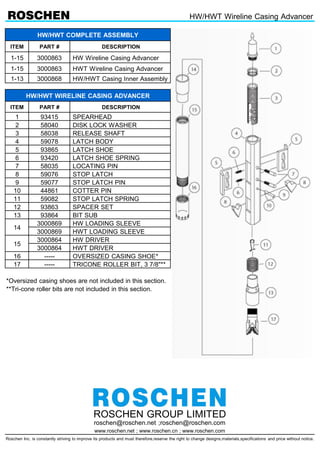

1. ROSCHEN HW/HWT Wireline Casing Advancer
HW/HWT COMPLETE ASSEMBLY
ITEM PART # DESCRIPTION
1-15 3000863 HW Wireline Casing Advancer
1-15 3000863 HWT Wireline Casing Advancer
1-13 3000868 HW/HWT Casing Inner Assembly
HW/HWT WIRELINE CASING ADVANCER
ITEM PART # DESCRIPTION
1 93415 SPEARHEAD
2 58040 DISK LOCK WASHER
3 58038 RELEASE SHAFT
4 59078 LATCH BODY
5 93865 LATCH SHOE
6 93420 LATCH SHOE SPRING
7 58035 LOCATING PIN
8 59076 STOP LATCH
9 59077 STOP LATCH PIN
10 44861 COTTER PIN
11 59082 STOP LATCH SPRING
12 93863 SPACER SET
13 93864 BIT SUB
14
3000869 HW LOADING SLEEVE
3000869 HWT LOADING SLEEVE
15
3000864 HW DRIVER
3000864 HWT DRIVER
16 ----- OVERSIZED CASING SHOE*
17 ----- TRICONE ROLLER BIT, 3 7/8"**
*Oversized casing shoes are not included in this section.
**Tri-cone roller bits are not included in this section.
ROSCHEN GROUP LIMITED
roschen@roschen.net ;roschen@roschen.com
www.roschen.net ; www.roschen.cn ; www.roschen.com
Roschen Inc. is constantly striving to improve its products and must therefore,reserve the right to change designs,materials,specifications and price without notice.
