1. C++ Memory leak detection
@Hero

2. Question?
2
 What does “memory leak” mean ?
 How is memory structure ?
 What does its consequences ?
 Why does “memory leak” happen ?
 How to detect and solve?

3. What does “memory leak” mean ?
First, How is memory structure ?
3

4. How is memory structure ?
STACK vs HEAP
4

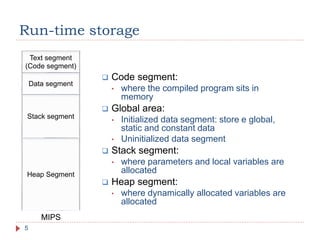

5. Run-time storage
5
 Code segment:
• where the compiled program sits in
memory
 Global area:
• Initialized data segment: store e global,
static and constant data
• Uninitialized data segment
 Stack segment:
• where parameters and local variables are
allocated
 Heap segment:
• where dynamically allocated variables are
allocated
Text segment
(Code segment)
Stack segment
Heap Segment
Data segment
MIPS

6. Stack
6
 Where parameters and
local variables are
allocated
 Limited size  Stack
overflow
 Memory use in stack is
temporary and auto
release
 Fast processing/low size
Parameters
Return Address
where to begin execution
when function exits
Dynamic link
pointer to caller's stack
frame
Static link
pointer to lexical parent
(for nested functions)
Return value
Local variables
“Concept” Stack frame
Text segment
(Code segment)
Stack frame
Heap Segment
Data segment
Stack frame

7. Heap
7
 Large pool of memory
 Dynamic allocation
 Stays allocated until
specifically deallocated 
leak !
 Must be accessed through a
pointer
 Large arrays, structures, or
classes should be stored
Heap  why?
 Large & dynamic
Parameters
Return Address
where to begin execution
when function exits
Dynamic link
pointer to caller's stack
frame
Static link
pointer to lexical parent
(for nested functions)
Return value
Local variables
“Concept” Stack frame
Text segment
(Code segment)
Stack frame
Heap Segment
Data segment
Stack frame

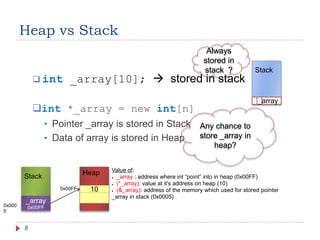

8. Heap vs Stack
8
 int _array[10];  stored in stack
Stack
_array
int *_array = new int[n]
• Pointer _array is stored in Stack
• Data of array is stored in Heap
_array
0x00FF
Stack
10
Heap
0x00FF
0x000
5
Value of:
● _array : address where int “point” into in heap (0x00FF)
● (*_array): value at it's address on heap (10)
● (&_array): address of the memory which used for stored pointer
_array in stack (0x0005)
Always
stored in
stack ?
Any chance to
store _array in
heap?

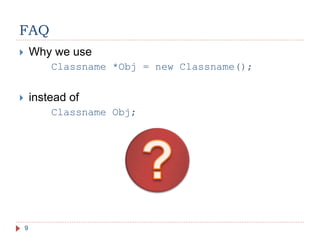

9. FAQ
9
 Why we use
Classname *Obj = new Classname();
 instead of
Classname Obj;

10. Memory leak overview
10

11. What does memory leaking mean?
11
 Definition:
 Particular type of unused memory, unable to release
 Common:
 Refer to any unwanted increase in memory usage
 Different from memory fragmentation
* for heap memory
void Leak()
{
int *A = new int[1000];
// some code here
// ...
// without delete A
//
return;
}
4000 bytes
Return without free A →
Leak

12. What does its consequences ?
12
 Application gets slow fps
 Application is crashed
 Device has been freeze, restarted

13. Why does “memory leak”
happen?
First, Let's see some examples
13

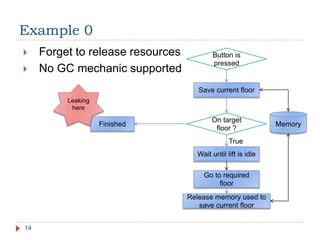

14. Example 0
14
 Forget to release resources
 No GC mechanic supported
Button is
pressed
Save current floor
On target
floor ?
Wait until lift is idle
Go to required
floor
Release memory used to
save current floor
True
Finished Memory
Leaking
here

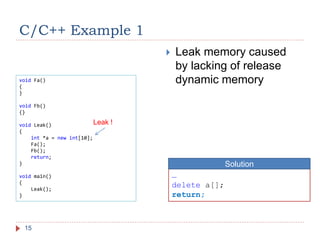

15. void Fa()
{
}
void Fb()
{}
void Leak()
{
int *a = new int[10];
Fa();
Fb();
return;
}
void main()
{
Leak();
}
C/C++ Example 1
15
 Leak memory caused
by lacking of release
dynamic memory
…
delete a[];
return;
Solution
Leak !

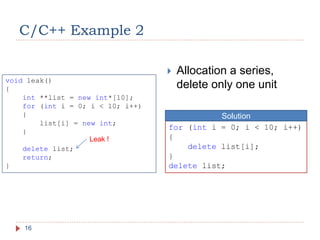

16. C/C++ Example 2
16
 Allocation a series,
delete only one unit
Leak !
for (int i = 0; i < 10; i++)
{
delete list[i];
}
delete list;
Solution
void leak()
{
int **list = new int*[10];
for (int i = 0; i < 10; i++)
{
list[i] = new int;
}
delete list;
return;
}

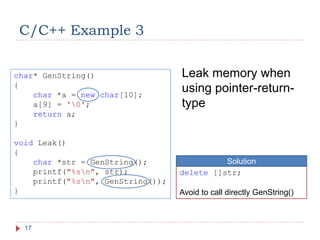

17. C/C++ Example 3
17
Leak memory when
using pointer-return-
type
delete []str;
Avoid to call directly GenString()
Solution
char* GenString()
{
char *a = new char[10];
a[9] = '0';
return a;
}
void Leak()
{
char *str = GenString();
printf("%sn", str);
printf("%sn", GenString());
}

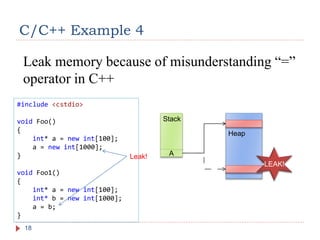

18. #include <cstdio>
void Foo()
{
int* a = new int[100];
a = new int[1000];
}
void Foo1()
{
int* a = new int[100];
int* b = new int[1000];
a = b;
}
C/C++ Example 4
18
Leak memory because of misunderstanding “=”
operator in C++
Stack
Heap
A
LEAK!
Leak!

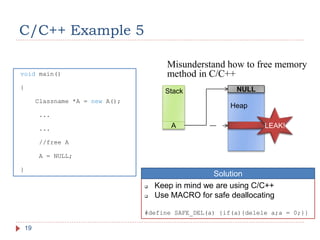

19. C/C++ Example 5
19
void main()
{
Classname *A = new A();
...
...
//free A
A = NULL;
}
Misunderstand how to free memory
method in C/C++
Stack
Heap
A
NULL
LEAK!
 Keep in mind we are using C/C++
 Use MACRO for safe deallocating
#define SAFE_DEL(a) {if(a){delele a;a = 0;}}
Solution

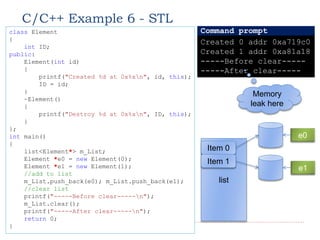

20. C/C++ Example 6 - STL
20
class Element
{
int ID;
public:
Element(int id)
{
printf("Created %d at 0x%xn", id, this);
ID = id;
}
~Element()
{
printf("Destroy %d at 0x%xn", ID, this);
}
};
int main()
{
list<Element*> m_List;
Element *e0 = new Element(0);
Element *e1 = new Element(1);
//add to list
m_List.push_back(e0); m_List.push_back(e1);
//clear list
printf("-----Before clear-----n");
m_List.clear();
printf("-----After clear-----n");
return 0;
}
Created 0 addr 0xa719c0
Created 1 addr 0xa81a18
-----Before clear-----
-----After clear-----
Command prompt
Memory
leak here
list
Item 0
Item 1
e0
e1

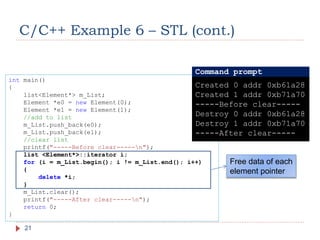

21. C/C++ Example 6 – STL (cont.)
21
int main()
{
list<Element*> m_List;
Element *e0 = new Element(0);
Element *e1 = new Element(1);
//add to list
m_List.push_back(e0);
m_List.push_back(e1);
//clear list
printf("-----Before clear-----n");
list <Element*>::iterator i;
for (i = m_List.begin(); i != m_List.end(); i++)
{
delete *i;
}
m_List.clear();
printf("-----After clear-----n");
return 0;
}
Free data of each
element pointer
Created 0 addr 0xb61a28
Created 1 addr 0xb71a70
-----Before clear-----
Destroy 0 addr 0xb61a28
Destroy 1 addr 0xb71a70
-----After clear-----
Command prompt

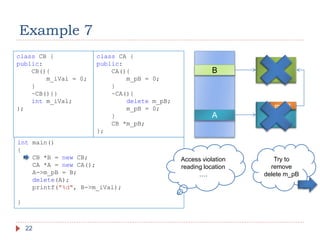

22. Example 7
22
class CB {
public:
CB(){
m_iVal = 0;
}
~CB(){}
int m_iVal;
};
class CA {
public:
CA(){
m_pB = 0;
}
~CA(){
delete m_pB;
m_pB = 0;
}
CB *m_pB;
};
int main()
{
CB *B = new CB;
CA *A = new CA();
A->m_pB = B;
delete(A);
printf("%d", B->m_iVal);
}
B
A
m_pB
Access violation
reading location
….
Try to
remove
delete m_pB

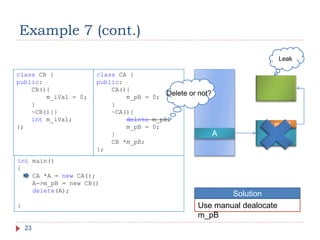

23. Example 7 (cont.)
23
class CB {
public:
CB(){
m_iVal = 0;
}
~CB(){}
int m_iVal;
};
class CA {
public:
CA(){
m_pB = 0;
}
~CA(){
delete m_pB;
m_pB = 0;
}
CB *m_pB;
};
int main()
{
CA *A = new CA();
A->m_pB = new CB()
delete(A);
}
A
m_pB
Leak
Delete or not?
Use manual dealocate
m_pB
Solution

24. 24
C/C++ Example 8
class cA()
{
public :
cA() {m_pdata = new int[100];}
virtual ~cA() {delete[]
m_pdata;}
int *m_pdata;
};
class cB: public cA()
{
public
cB():cA() {m_pdata2 = new
int[100];}
~cB() {delete []m_pdata2;}
int *m_pdata2;
}
void main()
{
cA *A = new cB();
delete A;
}
Memory leak caused by
misunderstanding finalization method
Without “virtual”, in this case,
m_pdata is not deleted → leak
ALWAYS use virtual for
finalization methods
Solution

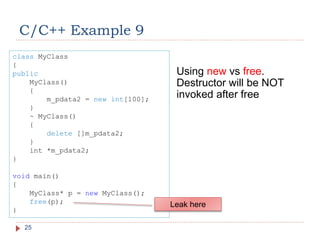

25. C/C++ Example 9
25
Using new vs free.
Destructor will be NOT
invoked after free
class MyClass
{
public
MyClass()
{
m_pdata2 = new int[100];
}
~ MyClass()
{
delete []m_pdata2;
}
int *m_pdata2;
}
void main()
{
MyClass* p = new MyClass();
free(p);
}
Leak here

26. What are reasons of memory leak?
26
 Forget/ misunderstand C/C++ mechanism
 Out-of-Control (logic)

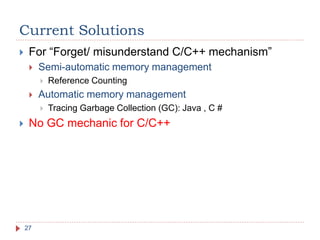

27. Current Solutions
27
 For “Forget/ misunderstand C/C++ mechanism”
 Semi-automatic memory management
 Reference Counting
 Automatic memory management
 Tracing Garbage Collection (GC): Java , C #
 No GC mechanic for C/C++

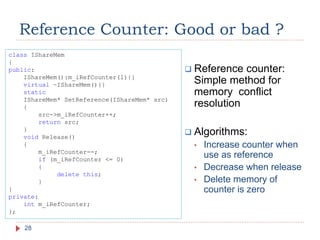

28. Reference Counter: Good or bad ?
28
 Reference counter:
Simple method for
memory conflict
resolution
 Algorithms:
• Increase counter when
use as reference
• Decrease when release
• Delete memory of
counter is zero
class IShareMem
{
public:
IShareMem():m_iRefCounter(1){}
virtual ~IShareMem(){}
static
IShareMem* SetReference(IShareMem* src)
{
src->m_iRefCounter++;
return src;
}
void Release()
{
m_iRefCounter--;
if (m_iRefCounter <= 0)
{
delete this;
}
}
private:
int m_iRefCounter;
};

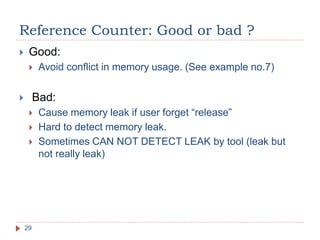

29. Reference Counter: Good or bad ?
29
 Good:
 Avoid conflict in memory usage. (See example no.7)
 Bad:
 Cause memory leak if user forget “release”
 Hard to detect memory leak.
 Sometimes CAN NOT DETECT LEAK by tool (leak but
not really leak)

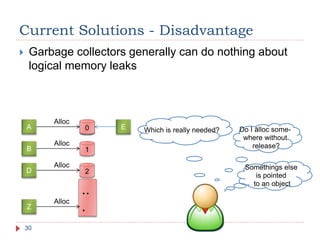

30. Current Solutions - Disadvantage
30
 Garbage collectors generally can do nothing about
logical memory leaks
0
1
2
n
..
.
Alloc
Alloc
Alloc
Alloc
Which is really needed?A
B
D
E
Z
Do I alloc some-
where without
release?
Somethings else
is pointed
to an object

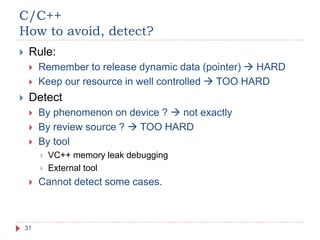

31. C/C++
How to avoid, detect?
31
 Rule:
 Remember to release dynamic data (pointer)  HARD
 Keep our resource in well controlled  TOO HARD
 Detect
 By phenomenon on device ?  not exactly
 By review source ?  TOO HARD
 By tool
 VC++ memory leak debugging
 External tool
 Cannot detect some cases.

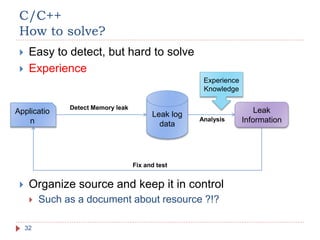

32. C/C++
How to solve?
32
 Easy to detect, but hard to solve
 Experience
 Organize source and keep it in control
 Such as a document about resource ?!?
Applicatio
n
Leak log
data
Detect Memory leak
Leak
InformationAnalysis
Experience
Knowledge
Fix and test

33. Detect Memory Leak
33

34. Memory leak – quick detection
34
 Windows: use task manager / process tab
 Android:
adb shell top -m <number_of_record>
See VSS, RSS

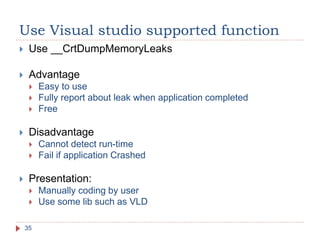

35. Use Visual studio supported function
35
 Use __CrtDumpMemoryLeaks
 Advantage
 Easy to use
 Fully report about leak when application completed
 Free
 Disadvantage
 Cannot detect run-time
 Fail if application Crashed
 Presentation:
 Manually coding by user
 Use some lib such as VLD

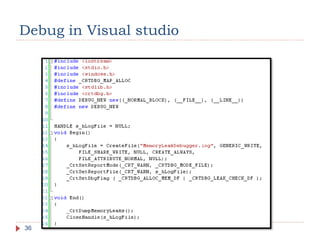

36. Debug in Visual studio
36

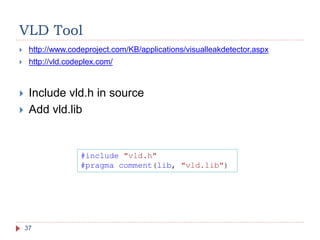

37. VLD Tool
37
 http://www.codeproject.com/KB/applications/visualleakdetector.aspx
 http://vld.codeplex.com/
 Include vld.h in source
 Add vld.lib
#include "vld.h"
#pragma comment(lib, "vld.lib")

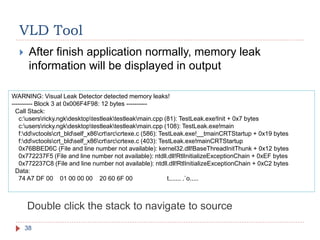

38. VLD Tool
38
 After finish application normally, memory leak
information will be displayed in output
WARNING: Visual Leak Detector detected memory leaks!
---------- Block 3 at 0x006F4F98: 12 bytes ----------
Call Stack:
c:usersricky.ngkdesktoptestleaktestleakmain.cpp (81): TestLeak.exe!Init + 0x7 bytes
c:usersricky.ngkdesktoptestleaktestleakmain.cpp (108): TestLeak.exe!main
f:ddvctoolscrt_bldself_x86crtsrccrtexe.c (586): TestLeak.exe!__tmainCRTStartup + 0x19 bytes
f:ddvctoolscrt_bldself_x86crtsrccrtexe.c (403): TestLeak.exe!mainCRTStartup
0x76BBED6C (File and line number not available): kernel32.dll!BaseThreadInitThunk + 0x12 bytes
0x772237F5 (File and line number not available): ntdll.dll!RtlInitializeExceptionChain + 0xEF bytes
0x772237C8 (File and line number not available): ntdll.dll!RtlInitializeExceptionChain + 0xC2 bytes
Data:
74 A7 DF 00 01 00 00 00 20 60 6F 00 t....... .`o.....
Double click the stack to navigate to source

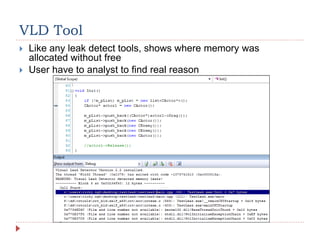

39. VLD Tool
 Like any leak detect tools, shows where memory was
allocated without free
 User have to analyst to find real reason

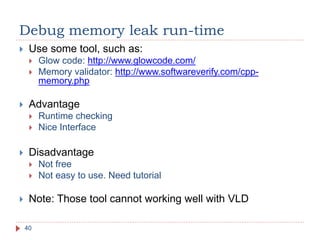

40. Debug memory leak run-time
40
 Use some tool, such as:
 Glow code: http://www.glowcode.com/
 Memory validator: http://www.softwareverify.com/cpp-
memory.php
 Advantage
 Runtime checking
 Nice Interface
 Disadvantage
 Not free
 Not easy to use. Need tutorial
 Note: Those tool cannot working well with VLD

41. The end!
Thanks for your attention

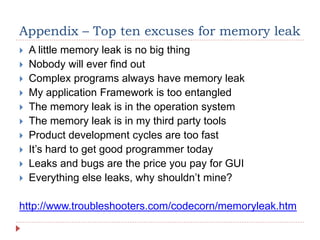

42. Appendix – Top ten excuses for memory leak
 A little memory leak is no big thing
 Nobody will ever find out
 Complex programs always have memory leak
 My application Framework is too entangled
 The memory leak is in the operation system
 The memory leak is in my third party tools
 Product development cycles are too fast
 It’s hard to get good programmer today
 Leaks and bugs are the price you pay for GUI
 Everything else leaks, why shouldn’t mine?
http://www.troubleshooters.com/codecorn/memoryleak.htm
