Building a piano with the Web Audio API - Sophie
- 1. Play them off,Keyboard App: Building a piano in Javascript
- 2. sophie.omg.lol Hi, I’m Sophie! �Web Lead @ Monzo Bank, UK � Hobbyist musician & choir conductor � localghost.dev � @sophie@social.lol
- 3.
- 4.
- 5.
- 6.

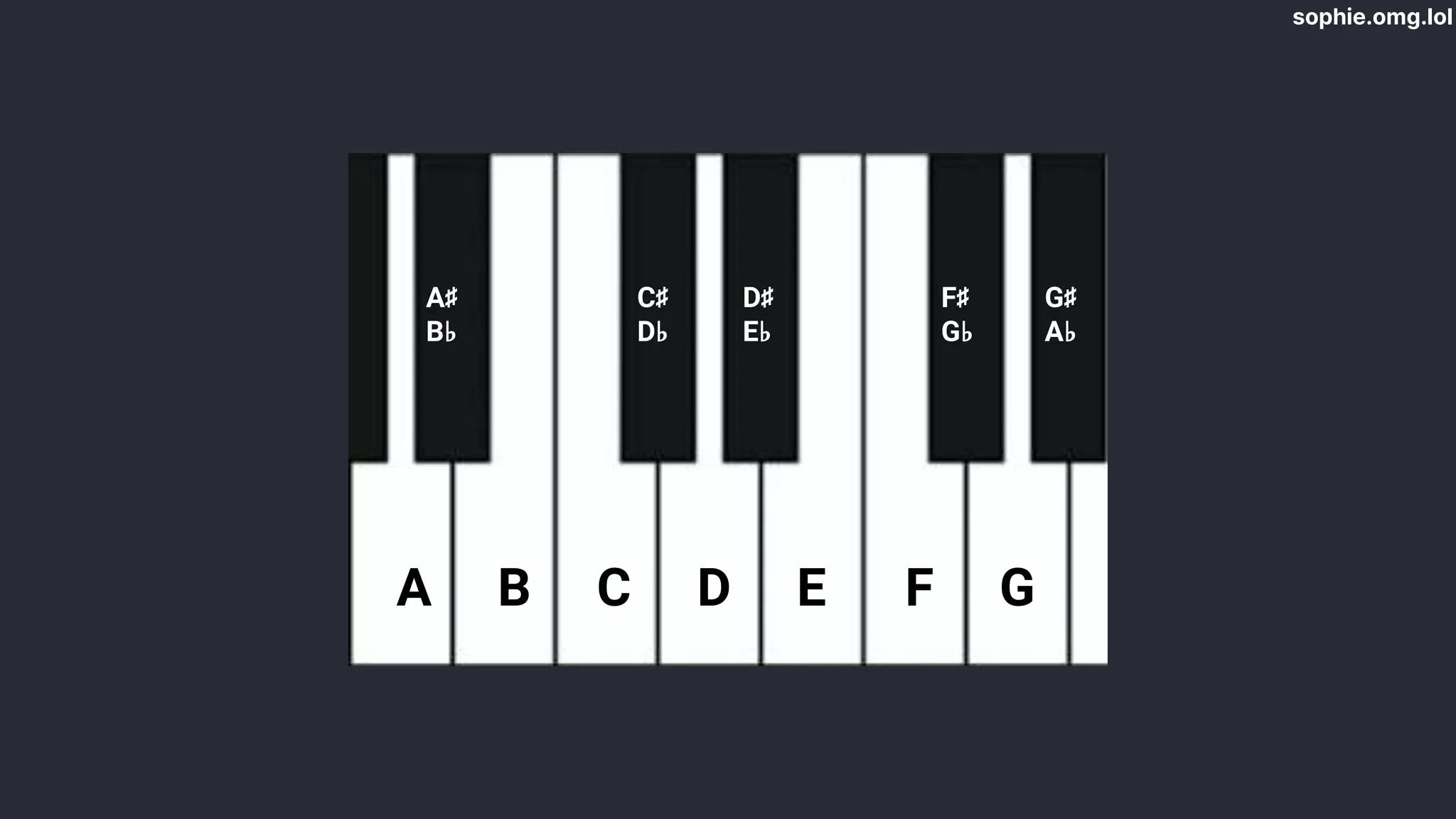

- 7. sophie.omg.lol A B CD E F G C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭

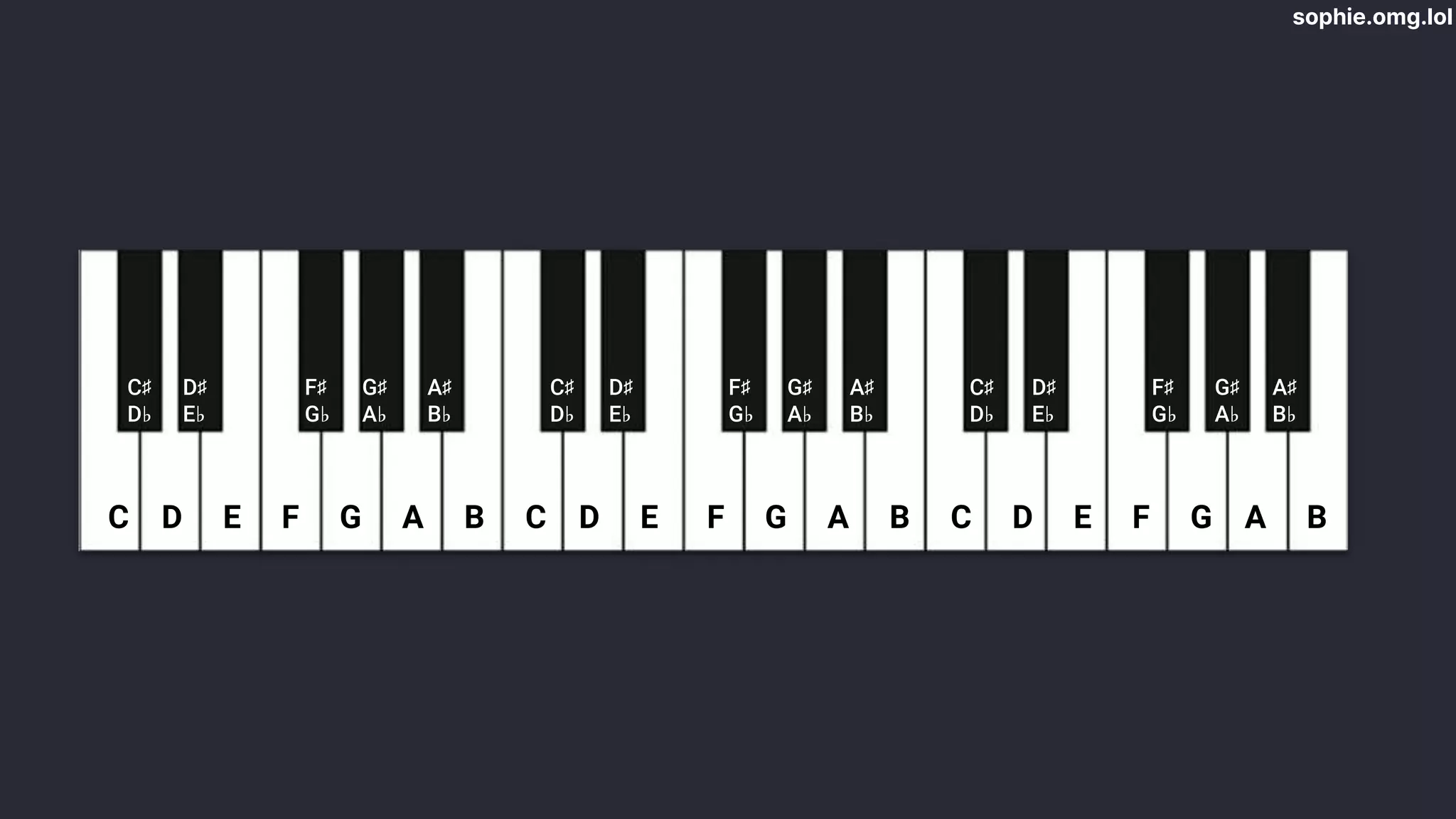

- 8. sophie.omg.lol C D EF G A B C D E F G A B C D E F G A B C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭ C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭ C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭
- 9.
- 10.
- 11.
- 12.
- 13. sophie.omg.lol G A BC D E F G C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭ G♯ A♭
- 14.
- 15.
- 16. sophie.omg.lol An oscillator (thing thatmakes sound)
- 17.
- 18.
- 19. sophie.omg.lol A piano interface (toplay with)
- 20.
- 21.

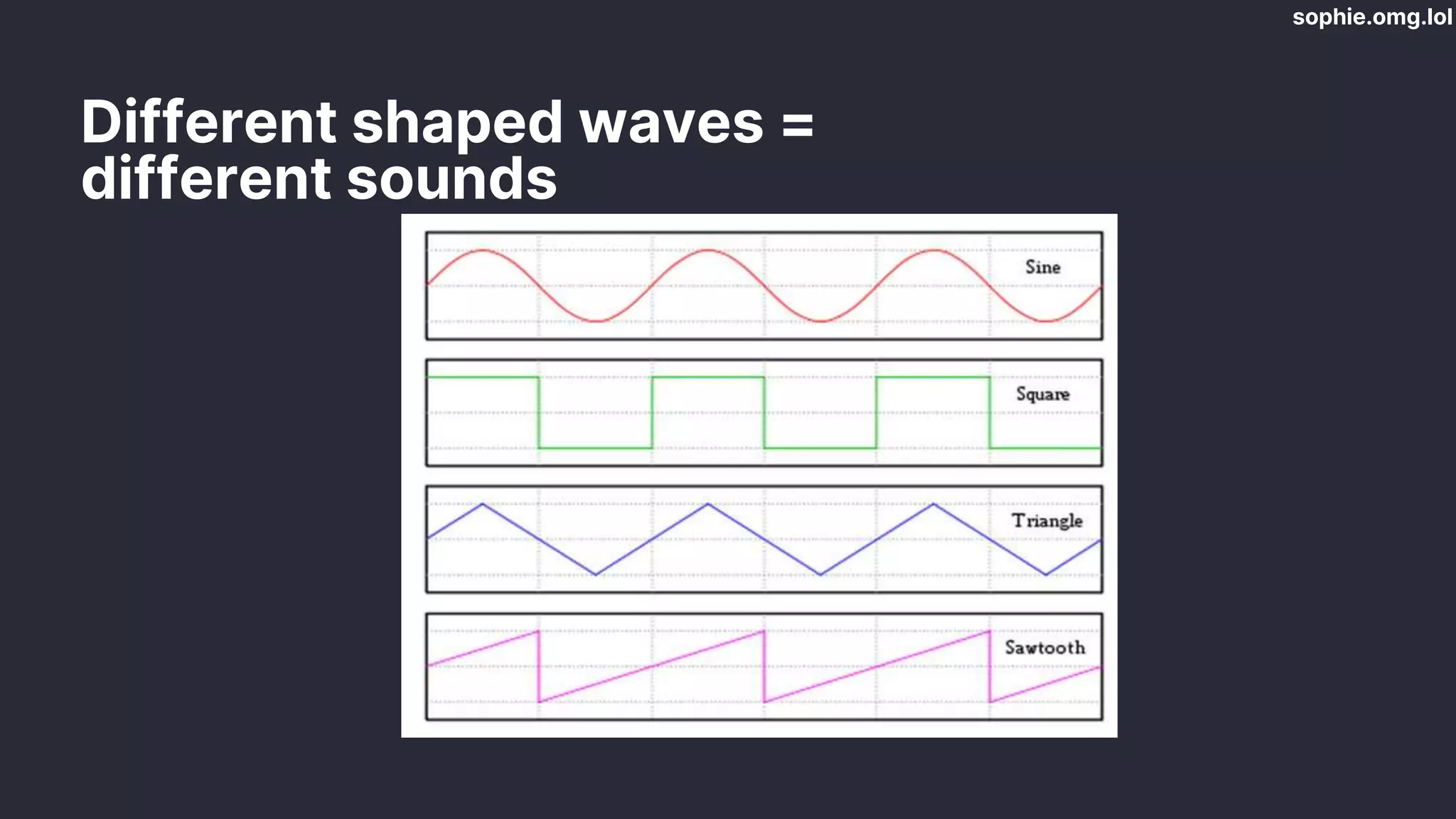

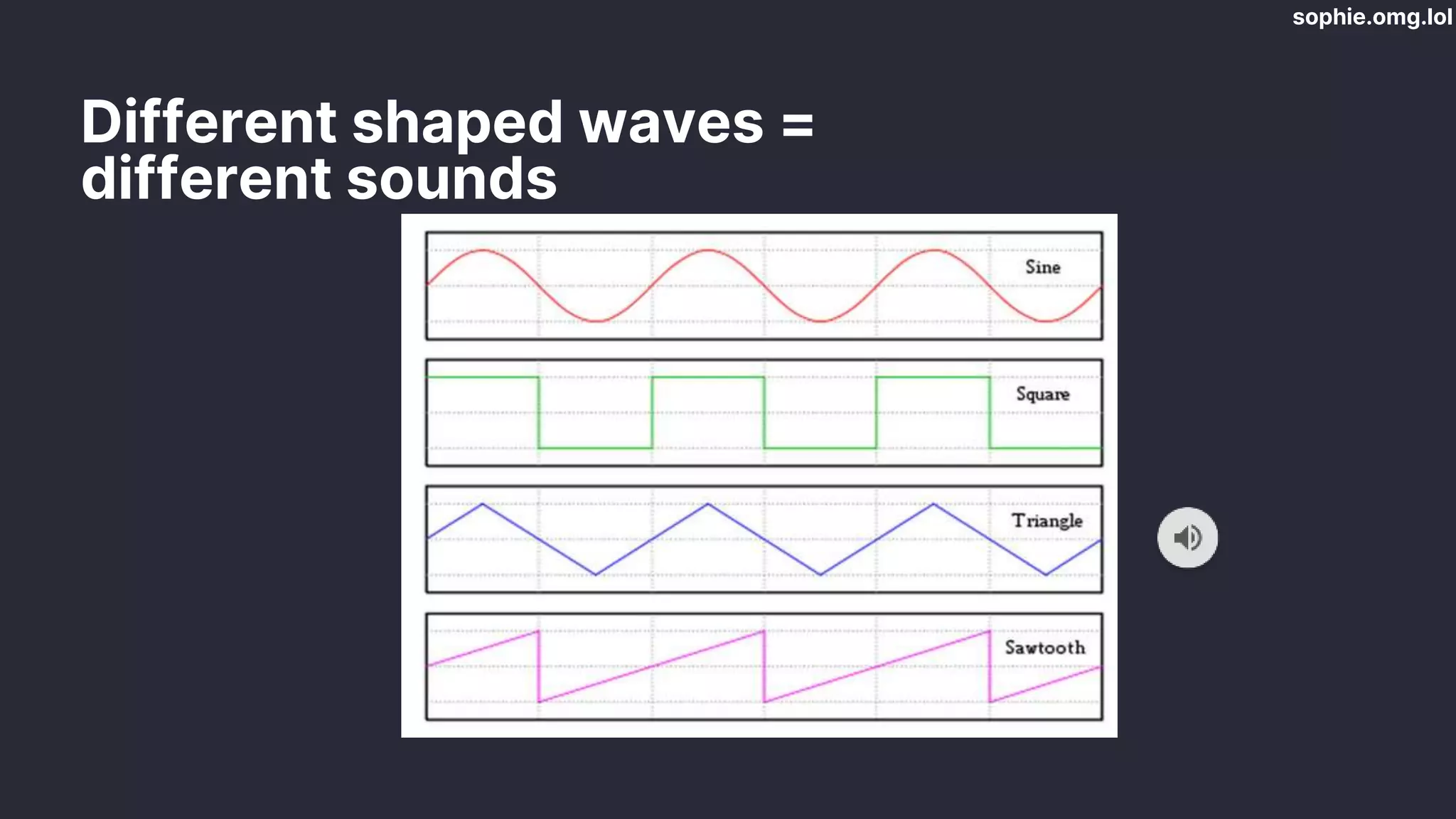

- 22. sophie.omg.lol Different shaped waves= different sounds

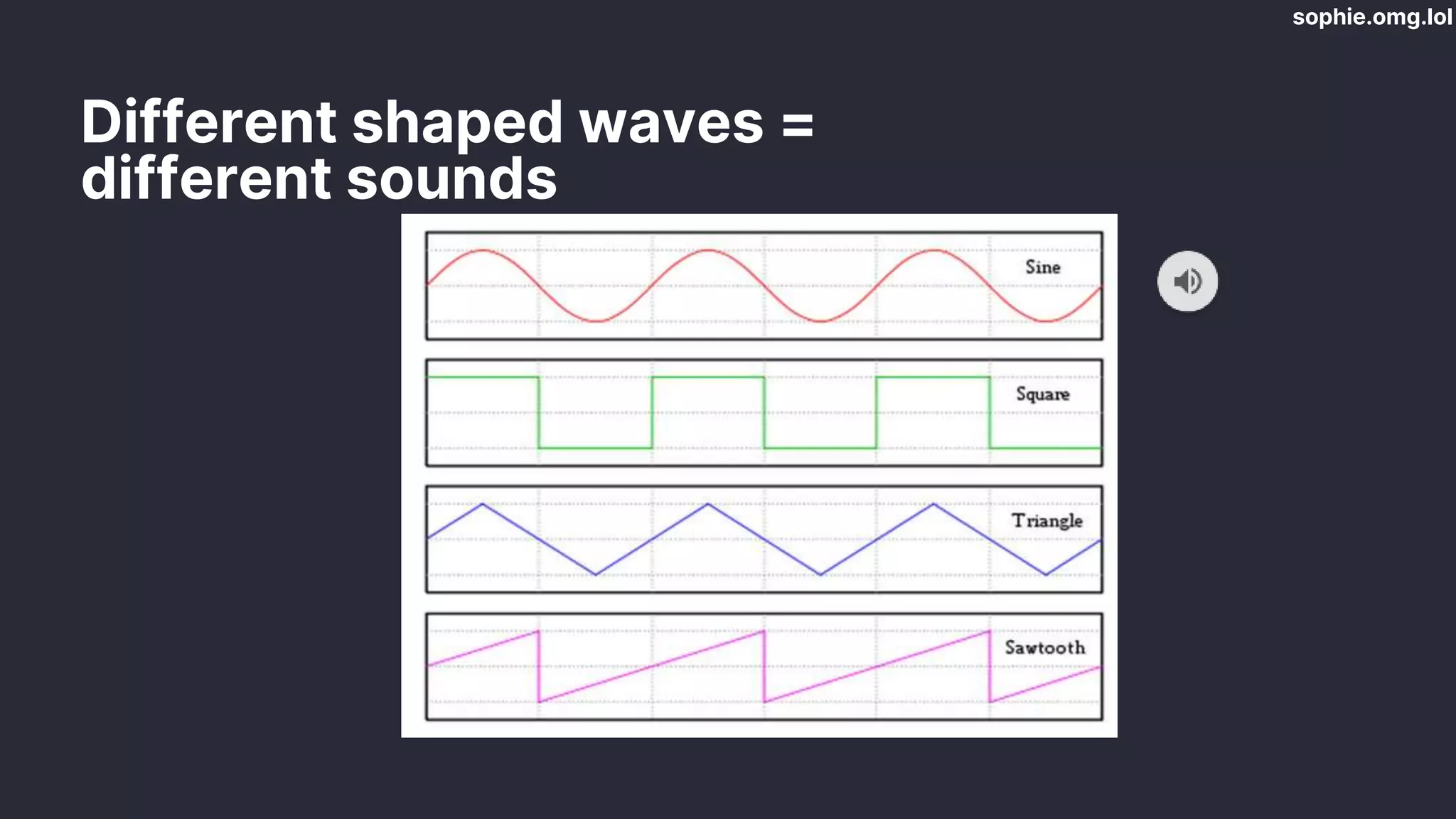

- 23. sophie.omg.lol Different shaped waves= different sounds
- 24. sophie.omg.lol Different shaped waves= different sounds
- 25. sophie.omg.lol Different shaped waves= different sounds

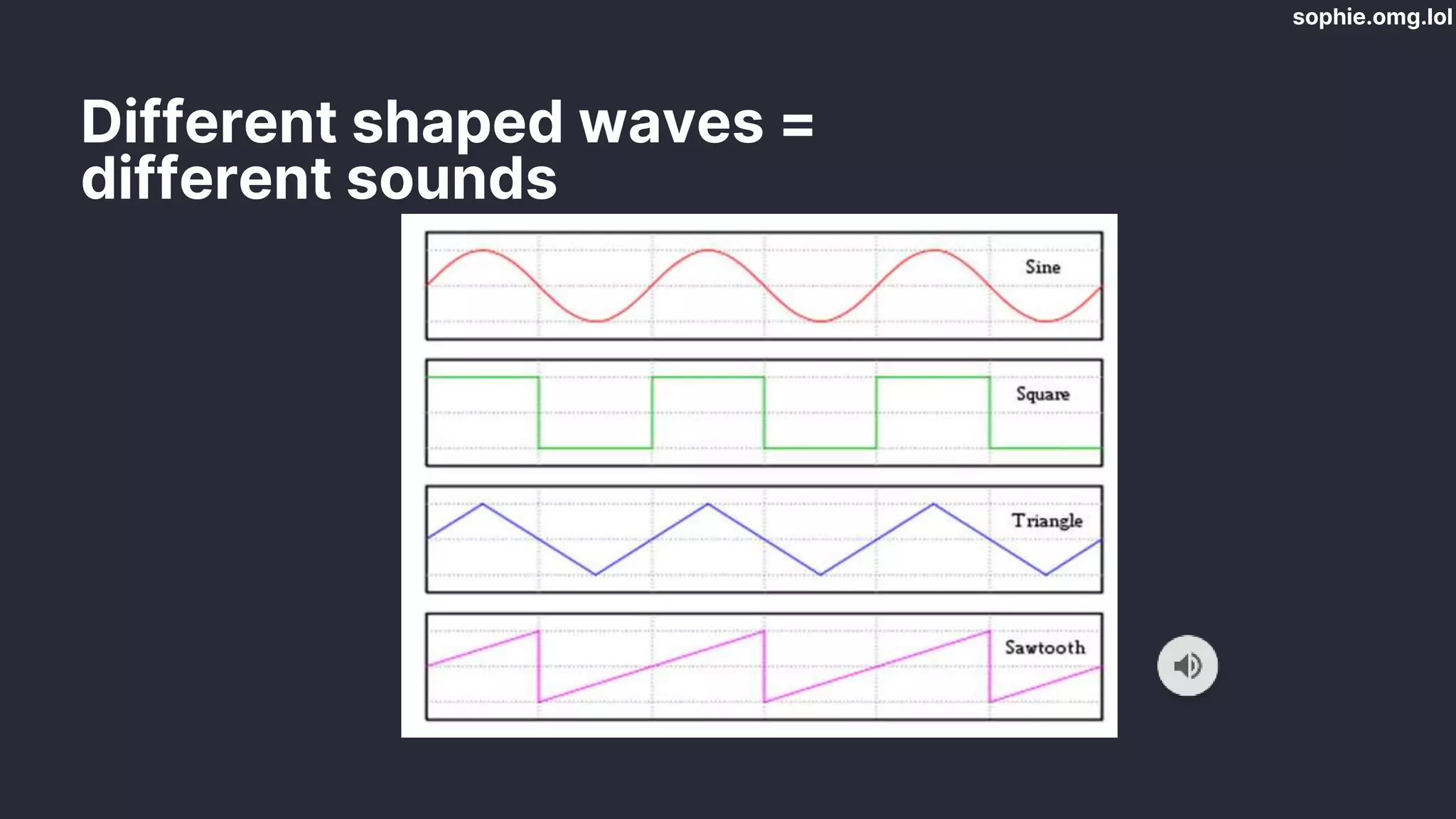

- 26. sophie.omg.lol Different shaped waves= different sounds
- 27.
- 28. sophie.omg.lol We need tocalculate note frequencies
- 29. sophie.omg.lol A4 (A in octave4) 440Hz
- 30.

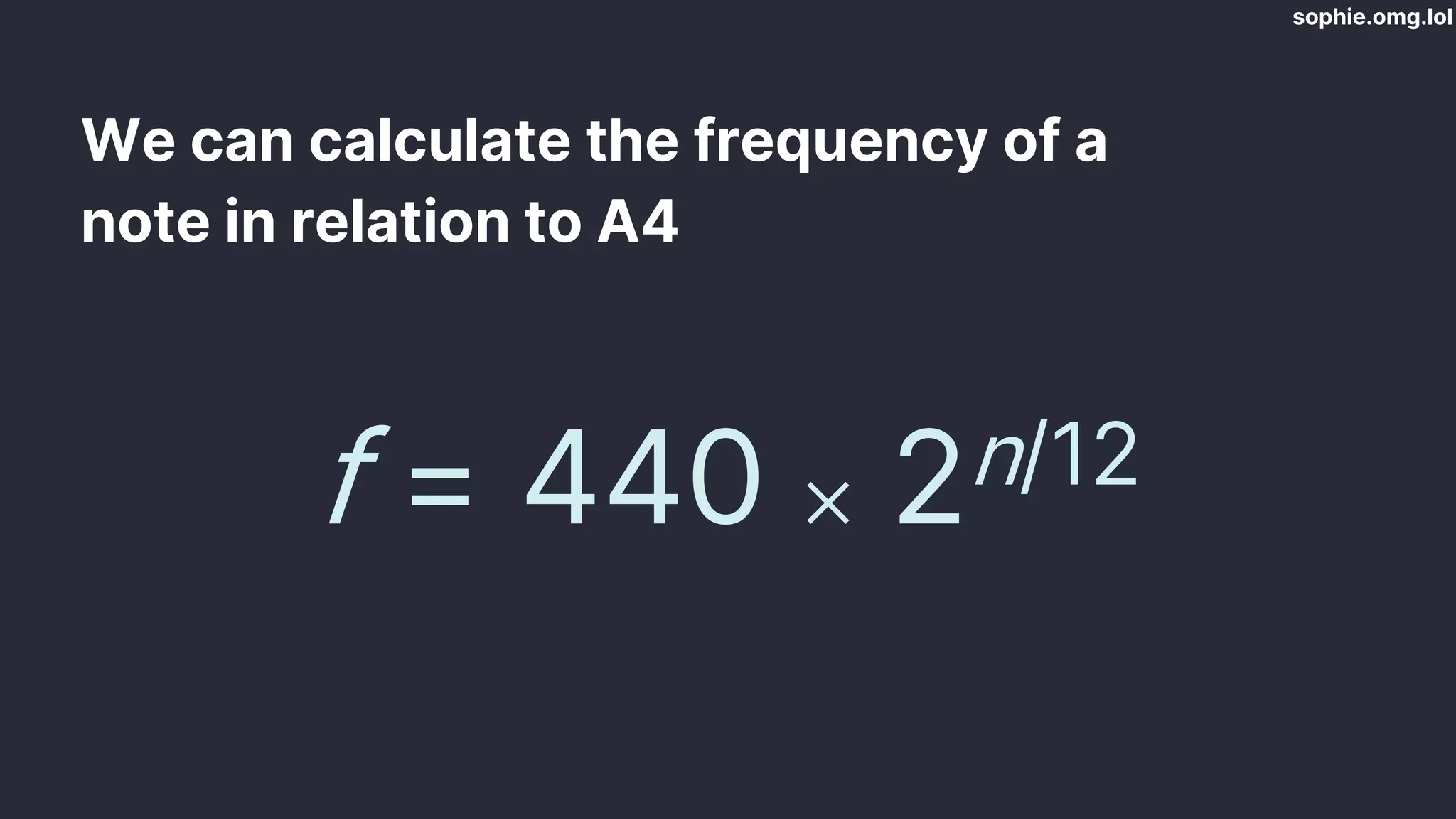

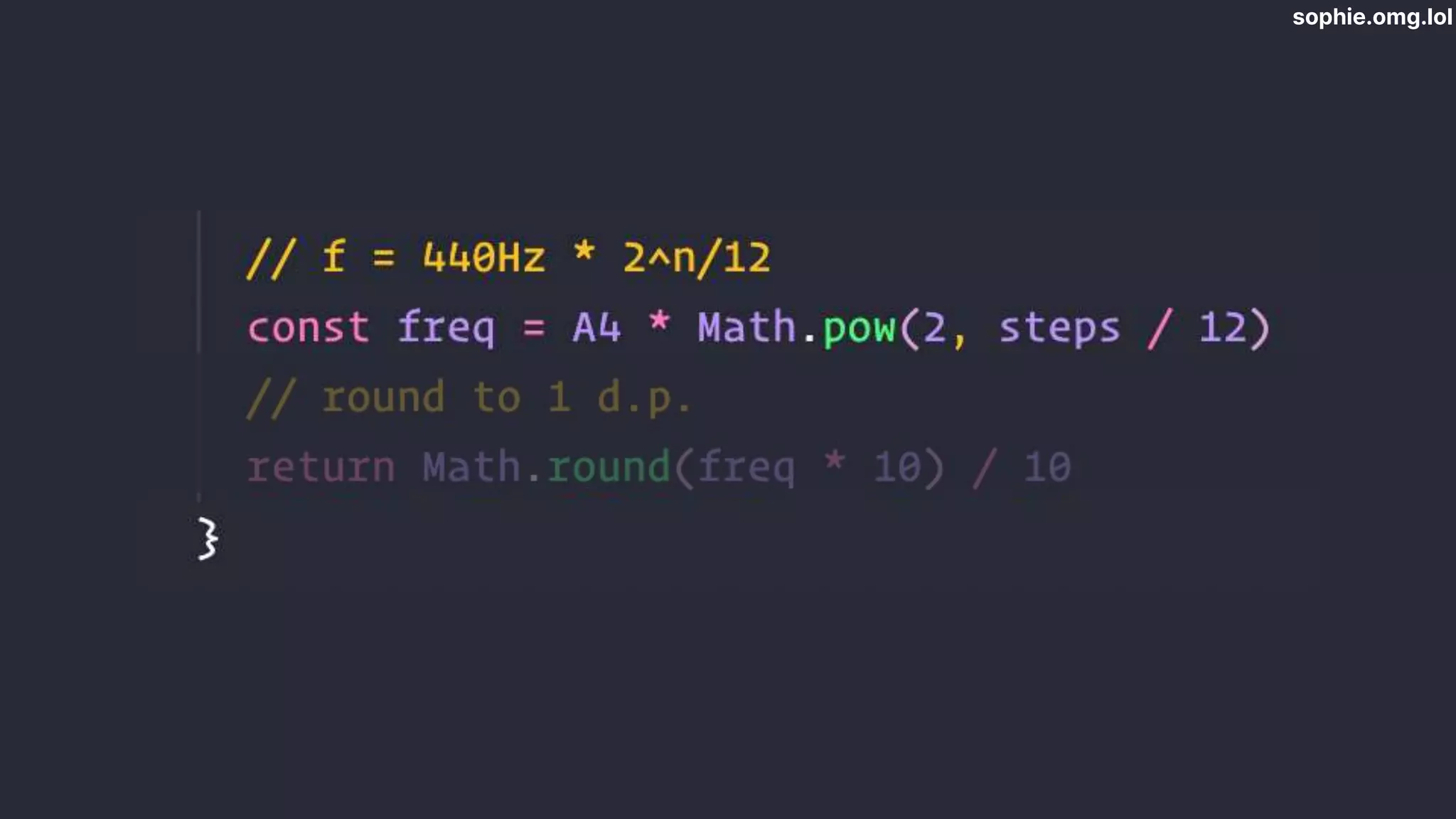

- 31. sophie.omg.lol We can calculatethe frequency of a note in relation to A4 f = 440 ⨉ 2n/12
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46. sophie.omg.lol G A BC D E F G C♯ D♭ D♯ E♭ F♯ G♭ G♯ A♭ A♯ B♭ G♯ A♭
- 47.
- 48.
- 49.

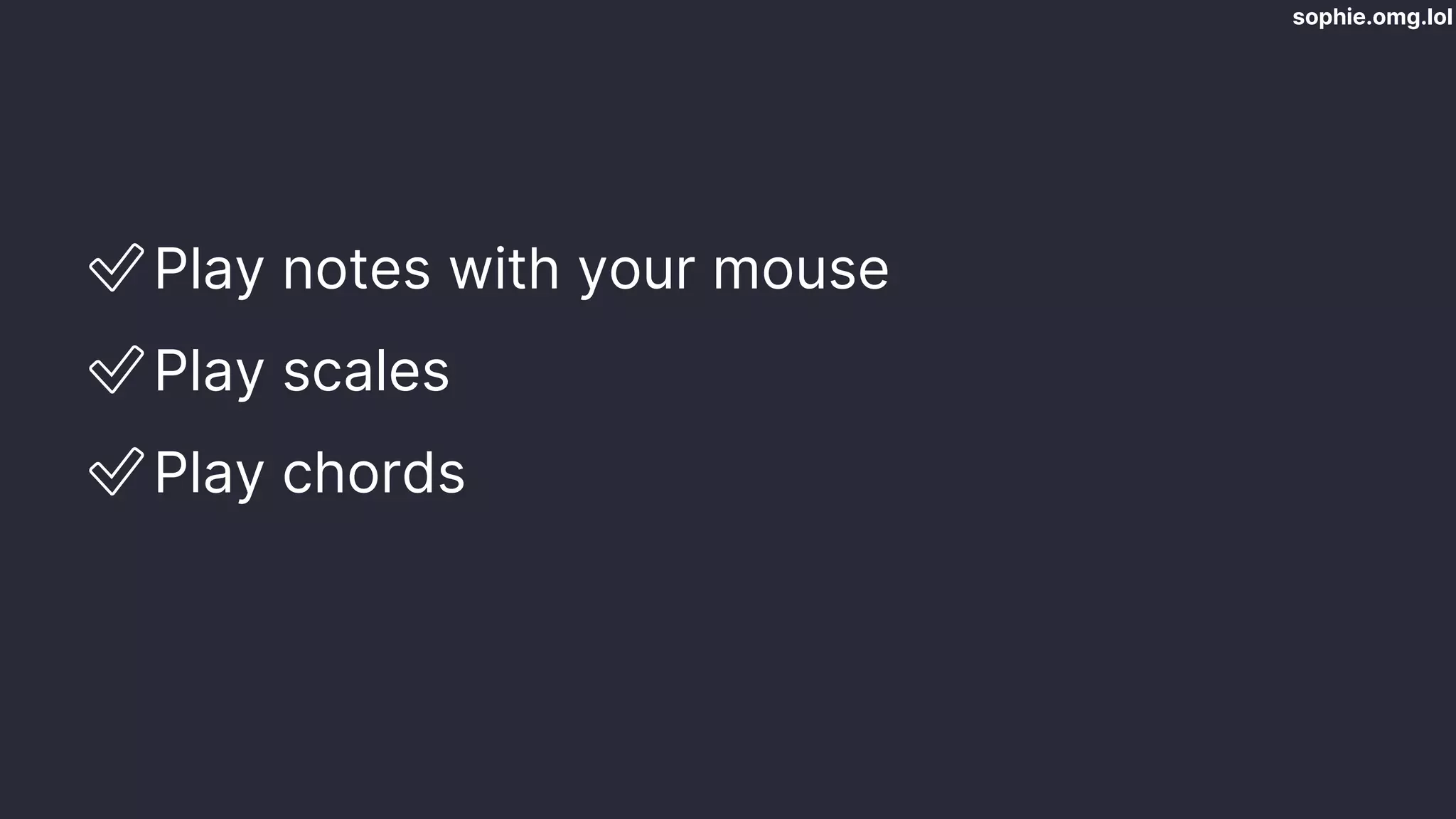

- 50. sophie.omg.lol ✅Play notes withyour mouse ✅Play scales ✅Play chords
- 51.
- 52.

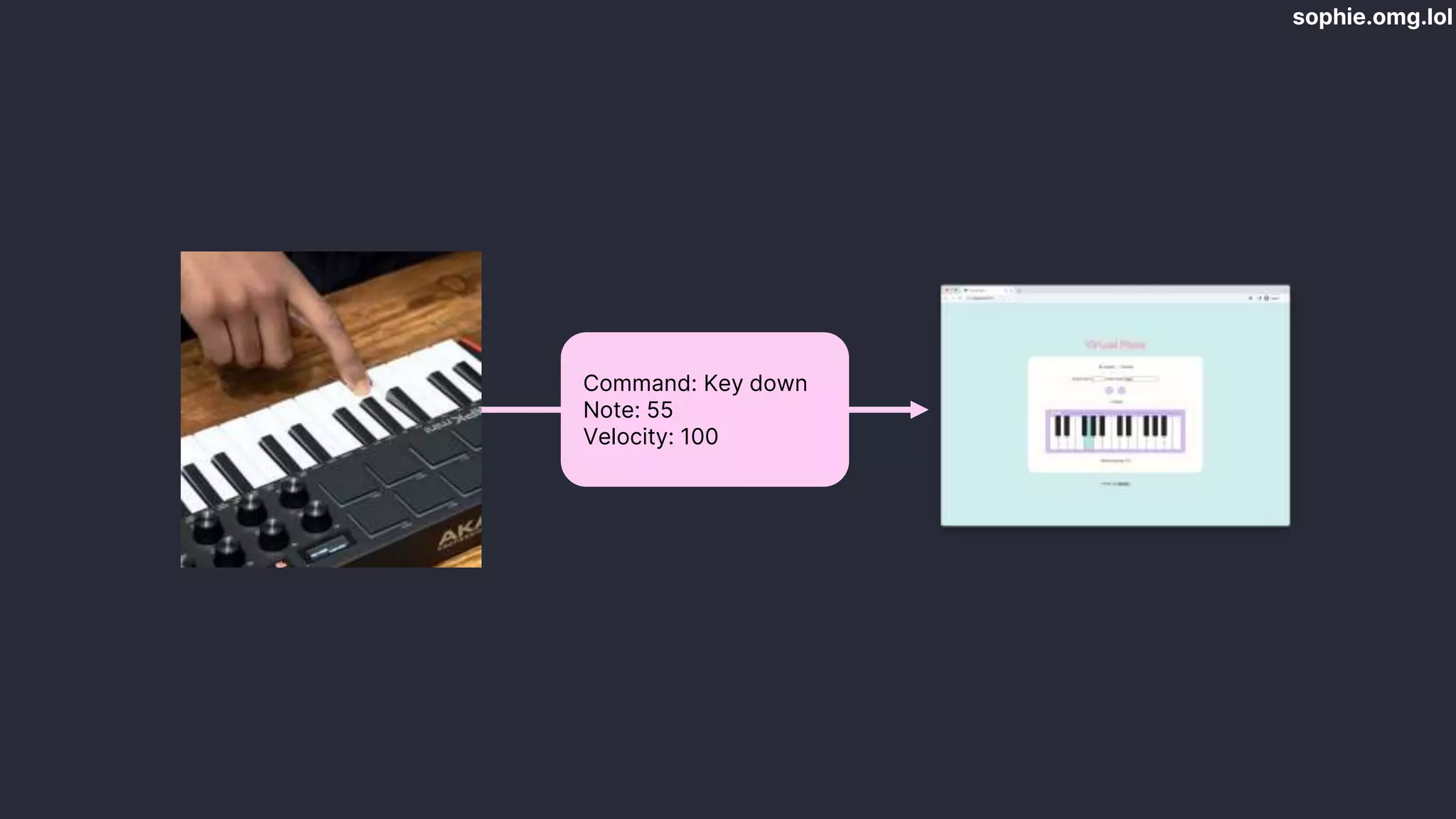

- 53. sophie.omg.lol Command: Key down Note:55 Velocity: 100
- 54.
- 55.
- 56.

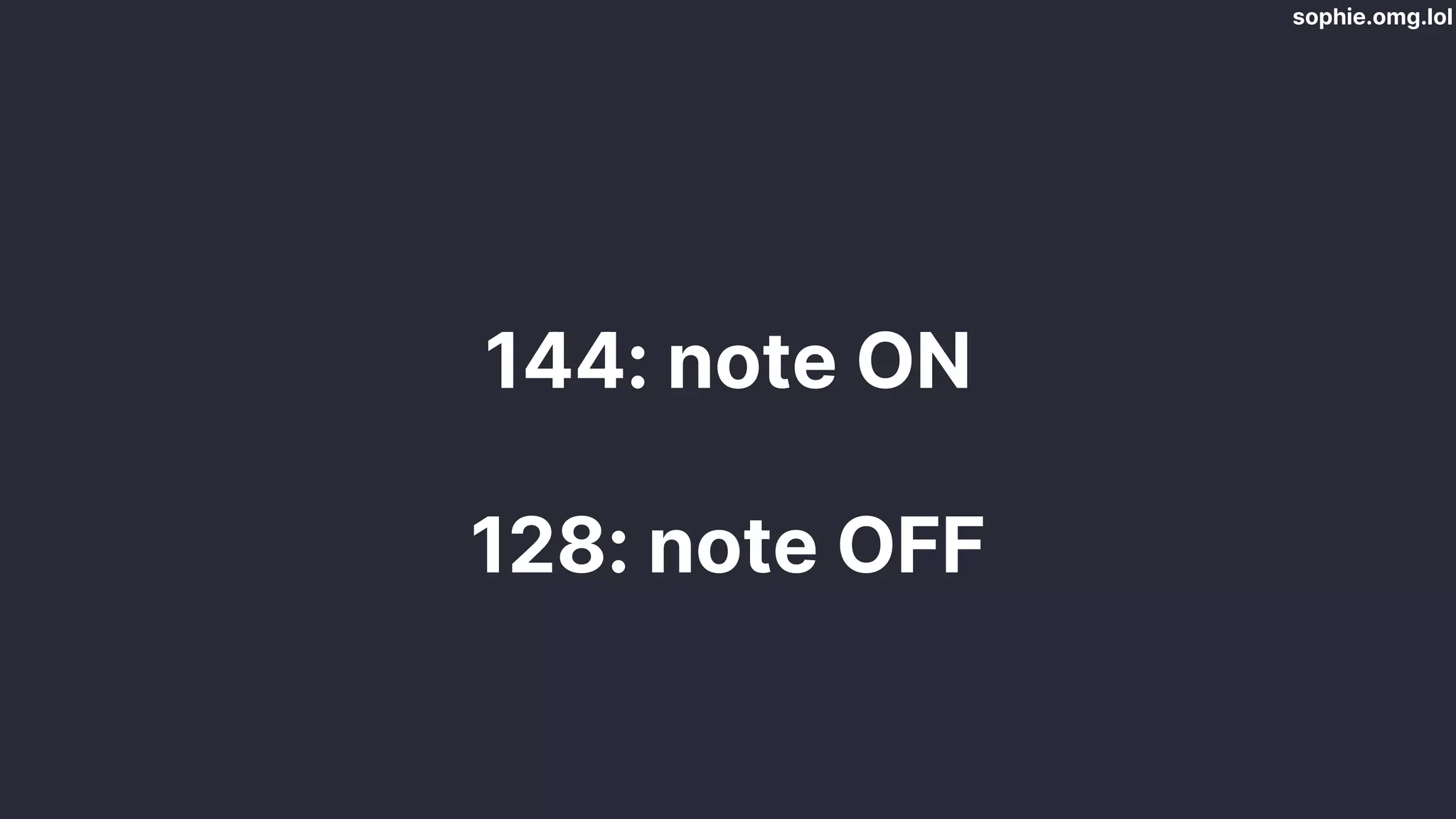

- 57. sophie.omg.lol 144: note ON 128:note OFF
- 58.
- 59.
- 60.
- 61.
Editor's Notes
- #2 USE CHROME!!! This is a talk to show you the potential of the web
- #3 The link in the corner?
- #4 tell you how I built it the musical theory behind it, show you a bit of the APIs that power it - the Web Audio API and Web MIDI API First, let’s see what it does
- #6 Start with musical theory, science This theory actually went into building the app

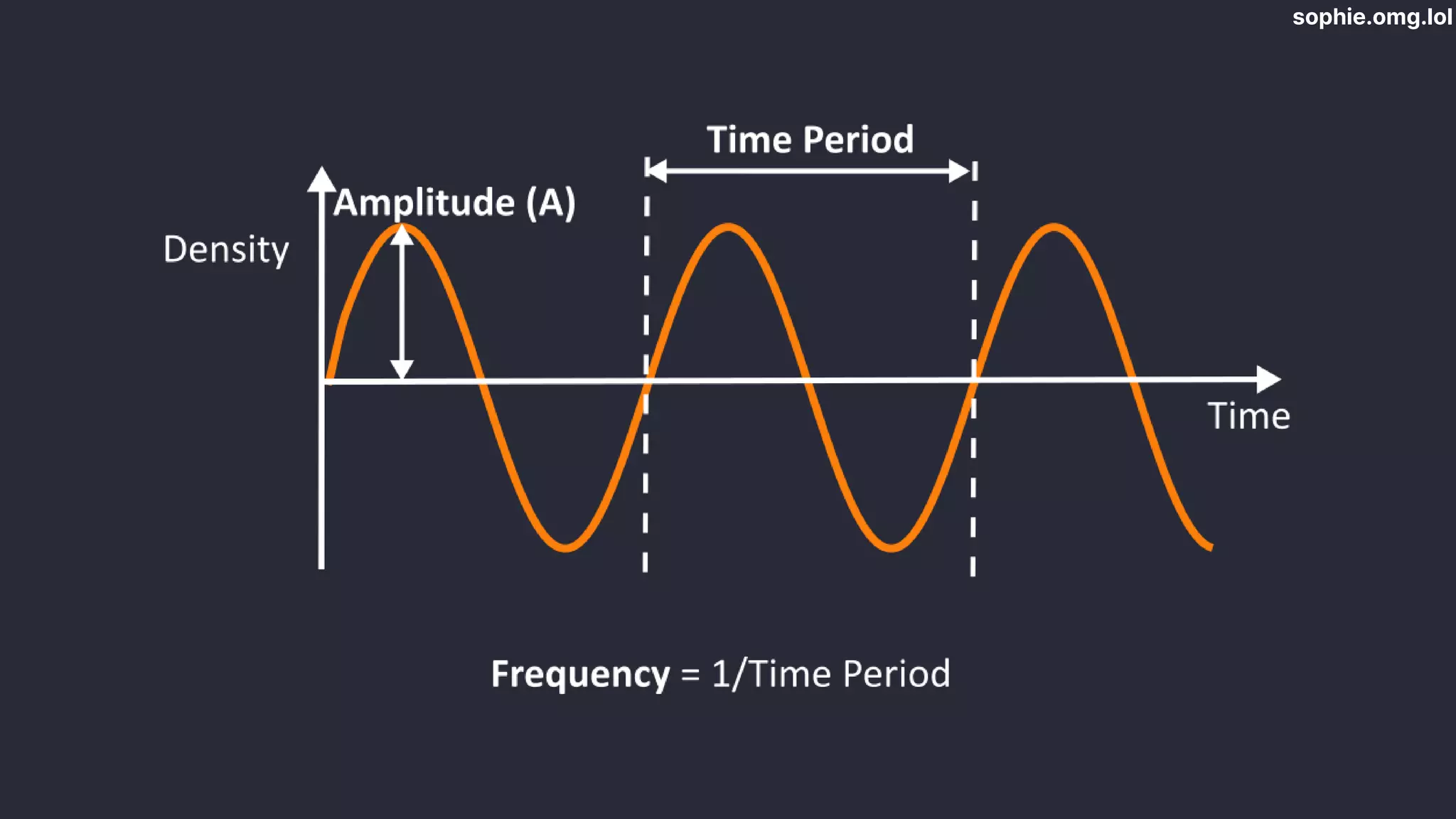

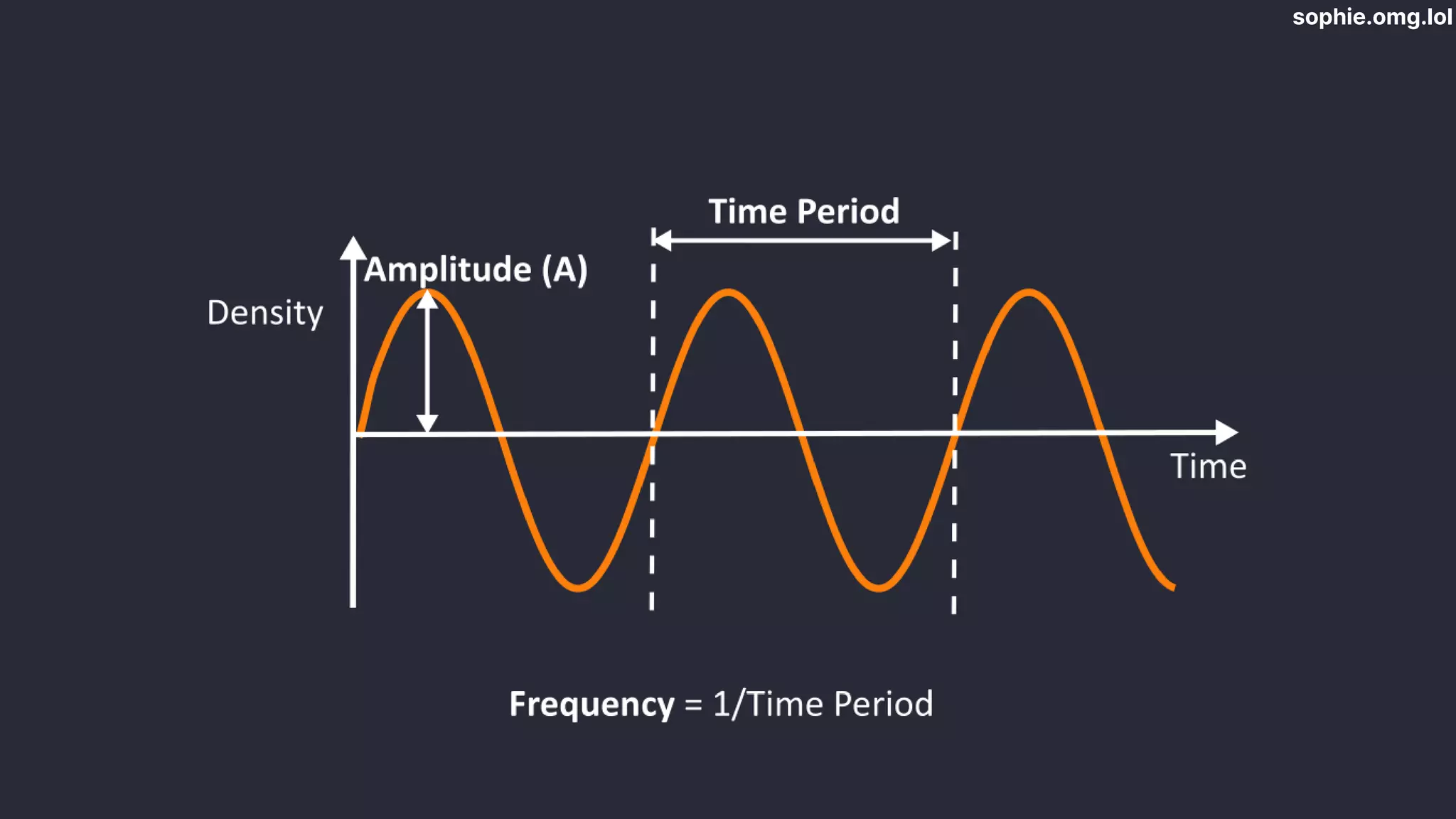

- #7 I know you’re thinking “this is a web conf!”- it will all become clear Sound = vibrations that travel as waves. The number of vibrations in a set time period = frequency of the sound frequency is measured in Hertz which is one cycle per second. Keys on a piano - hammers on strings - vibrate at frequencies
- #8 Western music - set of tones with specific frequencies UK and US has 12 notes - each with a letter, A to G. Division based on frequency Only 7? 5 accidentals. similar to the ones either side, so they don’t get their own letter. Instead we give them a symbol and call them sharp or flat
- #9 Talk about notes as on keyboard, starting from C keyboard has 61 and starts from C, piano has 88 notes and starts from A Repeat in groups from lowest to highest

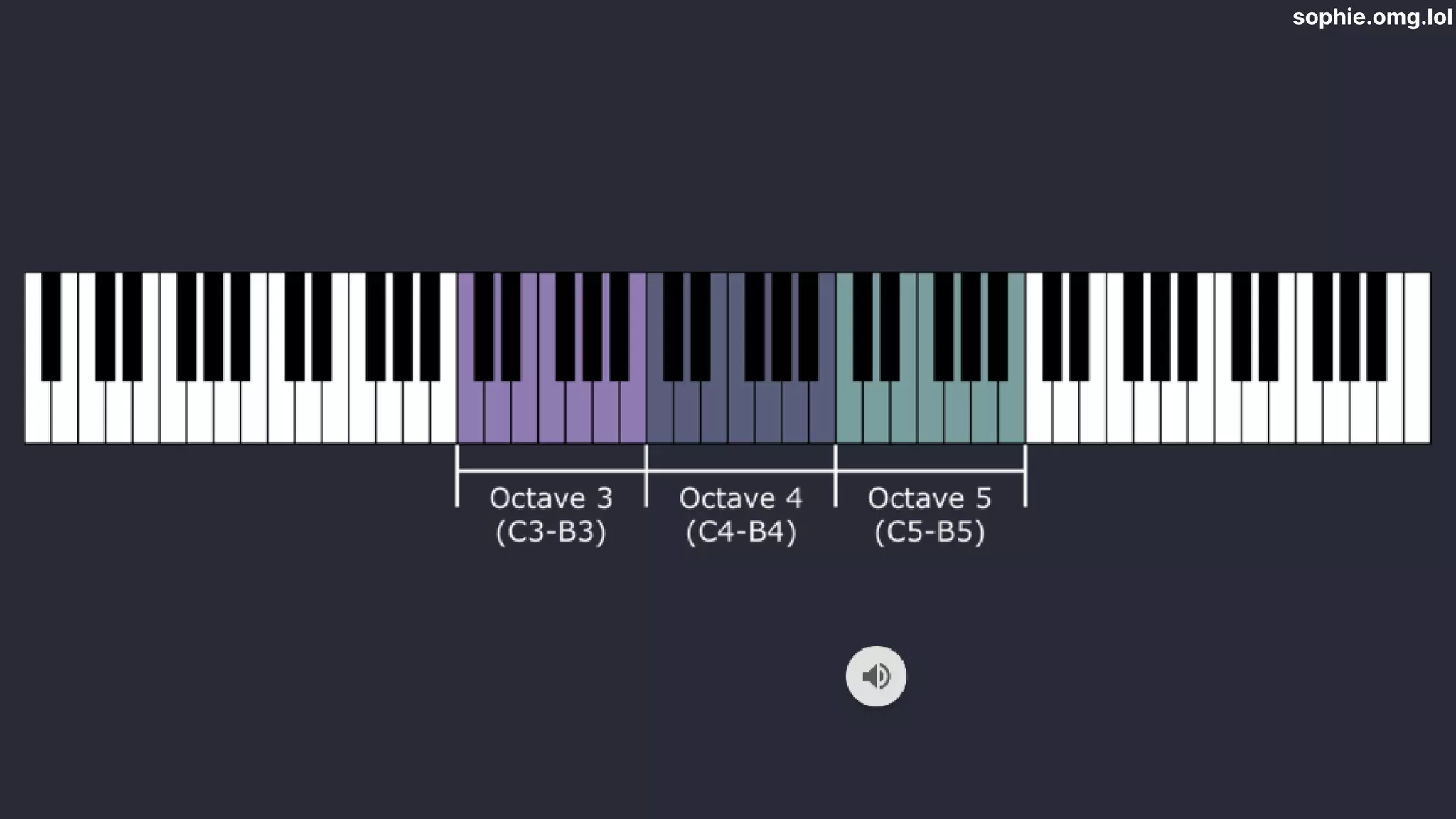

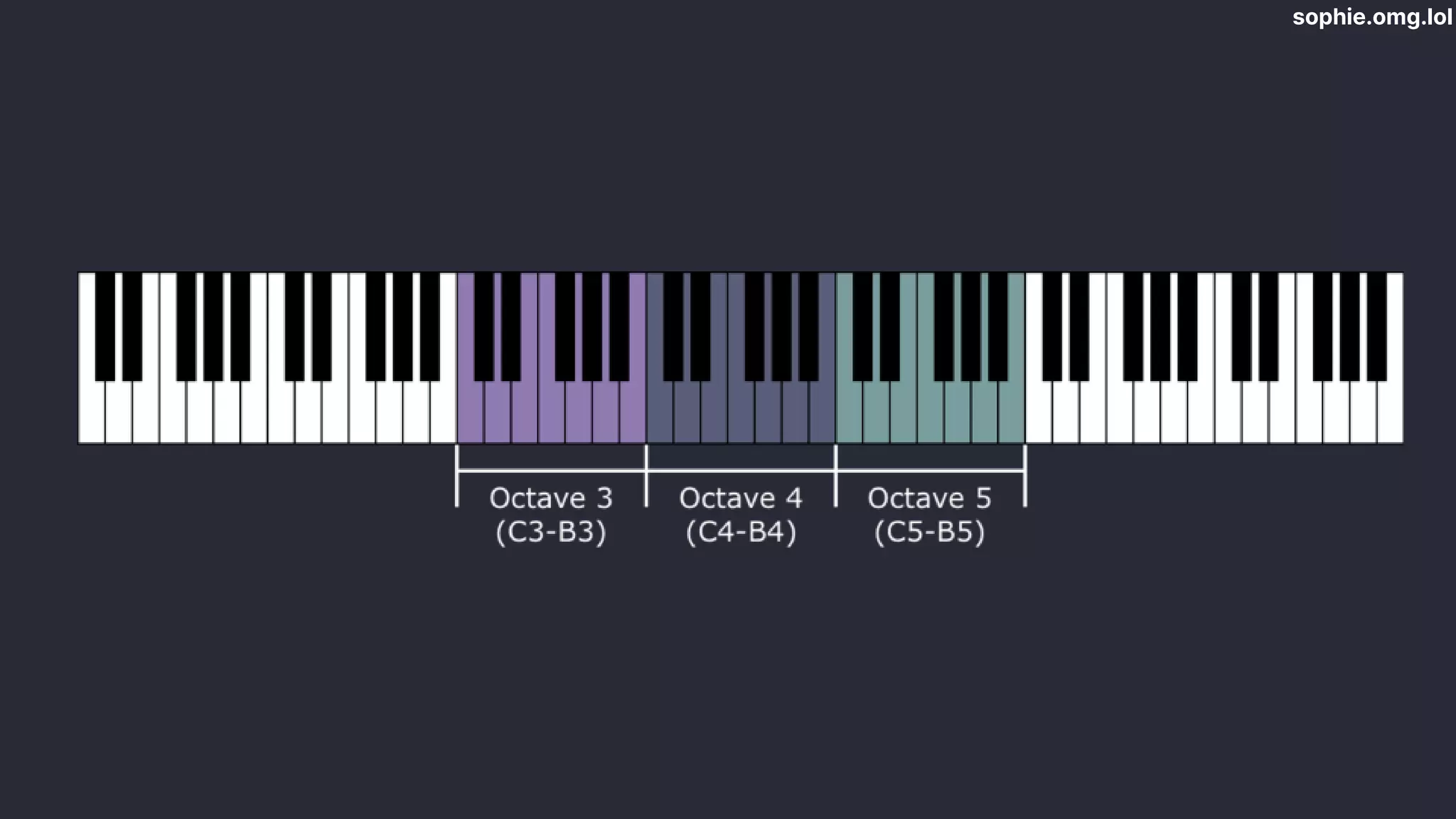

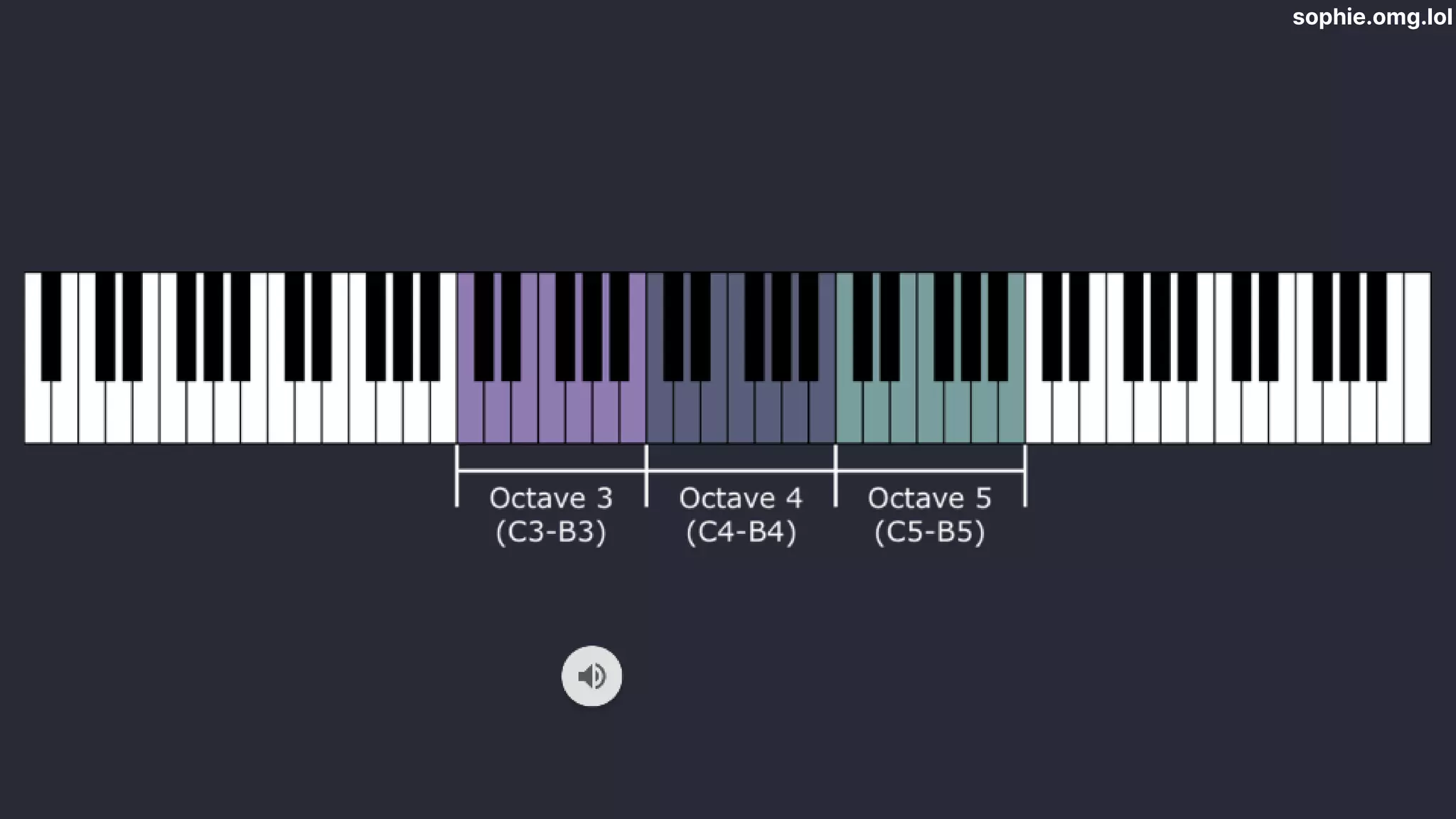

- #10 These groups of repeating letters are called octaves 61 keys - 5 octaves 88 keys - 7 ¼ octaves. A4 and A5 demo (next)
- #11 Weird ability of brain - same note in diff octaves sounds same - same note but different pitch (high/low) NEXT
- #12 Each octave jump - double freq 440Hz -> 880Hz

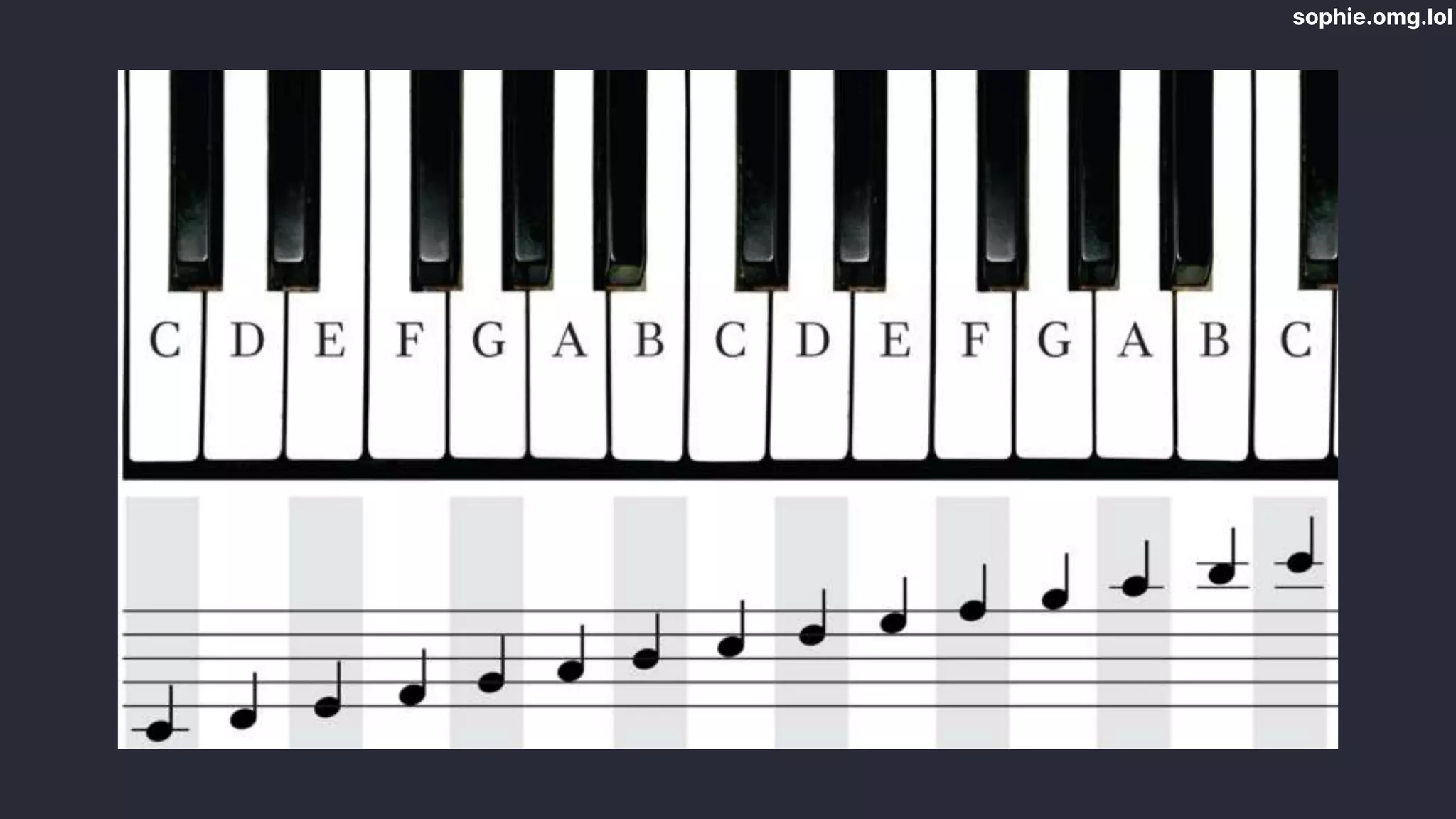

- #13 - Music tends to use only some notes, not all of them. - scales are ordered sequence of notes - a set of tones you can use to build music - like a colour palette - emotions - music uses notes of particular scale - key This picture shows two octaves of the C major scale written in musical notation. Scales follow strict patterns

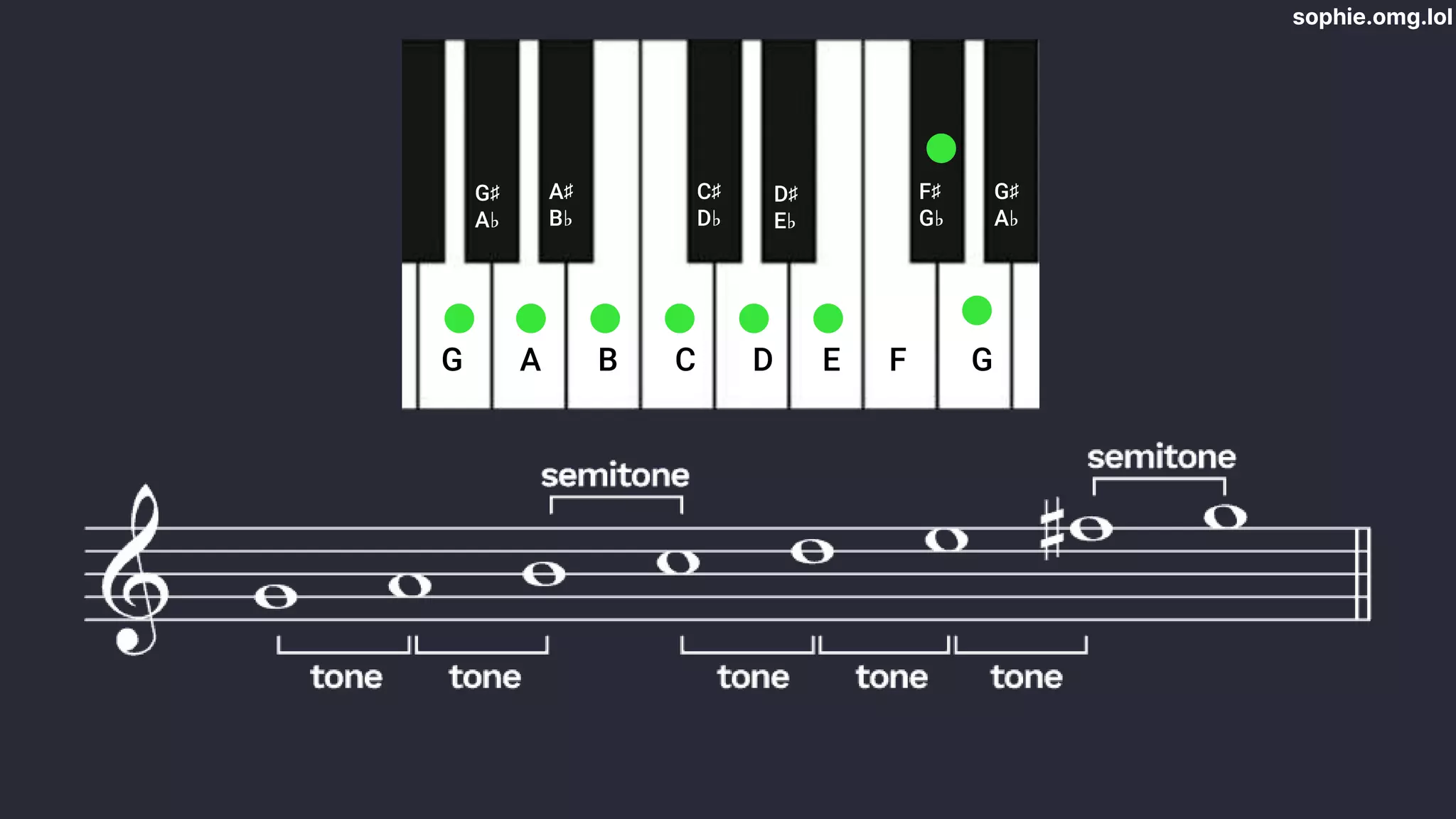

- #14 G major - pattern for major scale. Different notes but same pattern as the one I just showed you One semitone or half tone = distance between one note and its neighbour Tone/whole tone = two semitones Tone, tone, semitone, tone, tone, tone, semitone. Every major scale Other scales have different patterns but are fundamentally the same
- #15 Okay! Time for some JavaScript. Enough musical theory. Let’s talk about the Web Audio API. Play audio Mix Analyse Visualise Synthesize
- #16 Recap: sound waves + frequencies Synthesizers generate these waves electronically to make sound. We’re basically going to build a little synthesizer. Here’s what we need…
- #17 Circuit that produces alternating waveform -> constant tone
- #18 Define the waveform Makes a particular sound
- #19 frequencies of all the notes on the piano to tell the synthesizer what note to play
- #20 And then we need to actually build those piano keys.

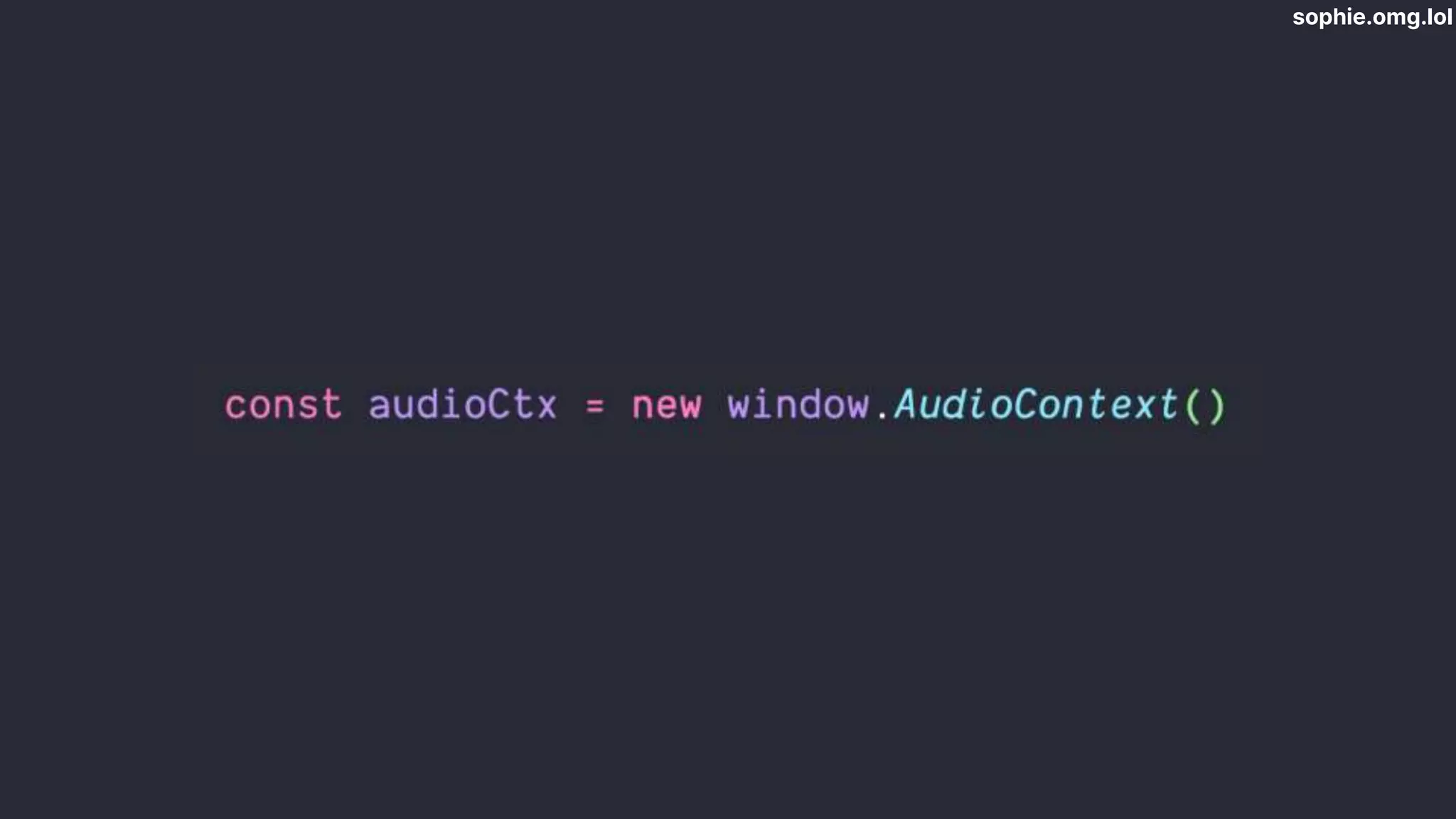

- #21 initialise an AudioContext. This is like a big graph that contains lots of audio modules linked together exists on the window object in the big 4 browsers. only want one of these in the app: multiple -> lots of sounds at once

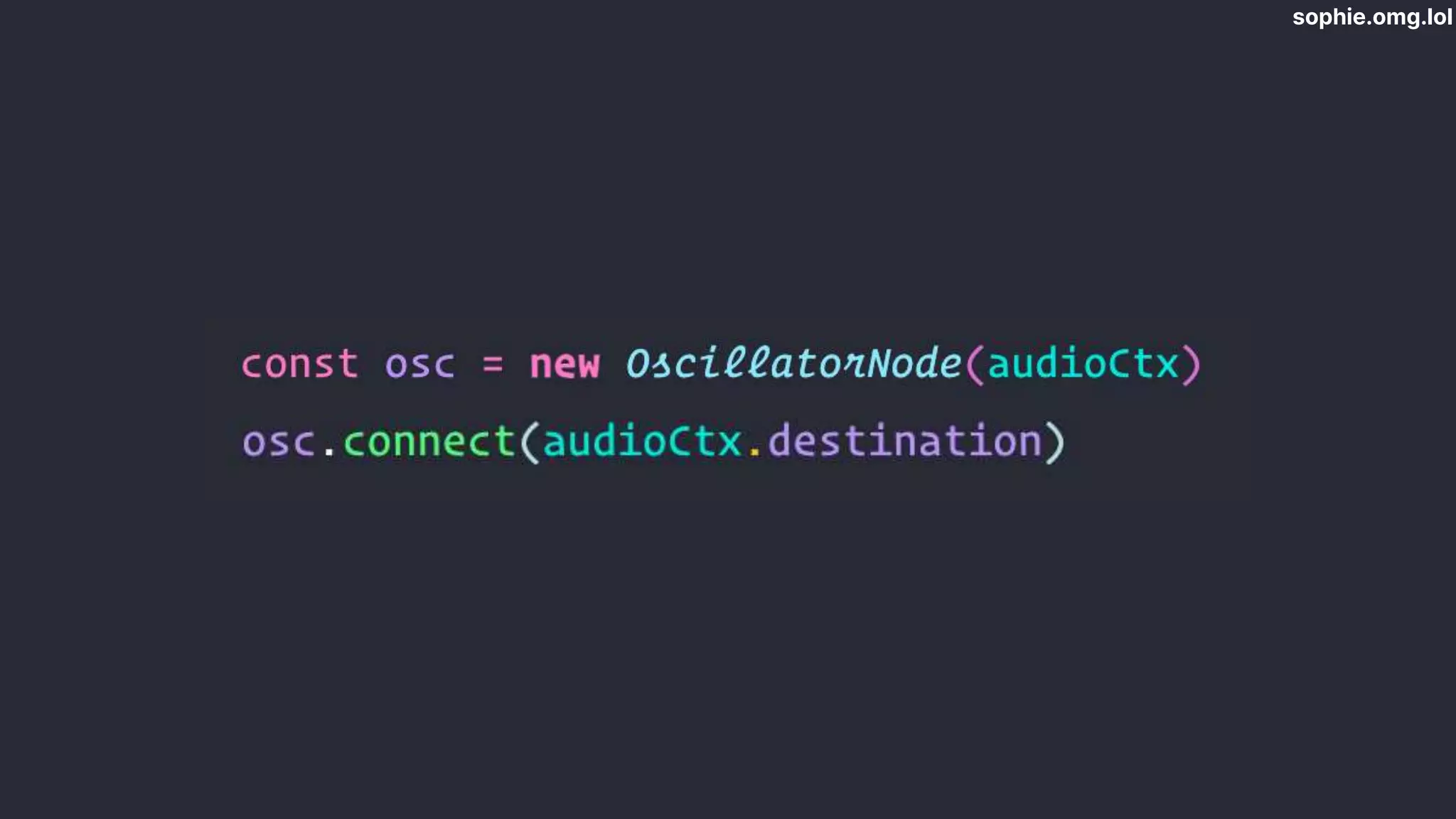

- #22 createOscillator Connect to audio context destination (default system output) Not doing anything yet

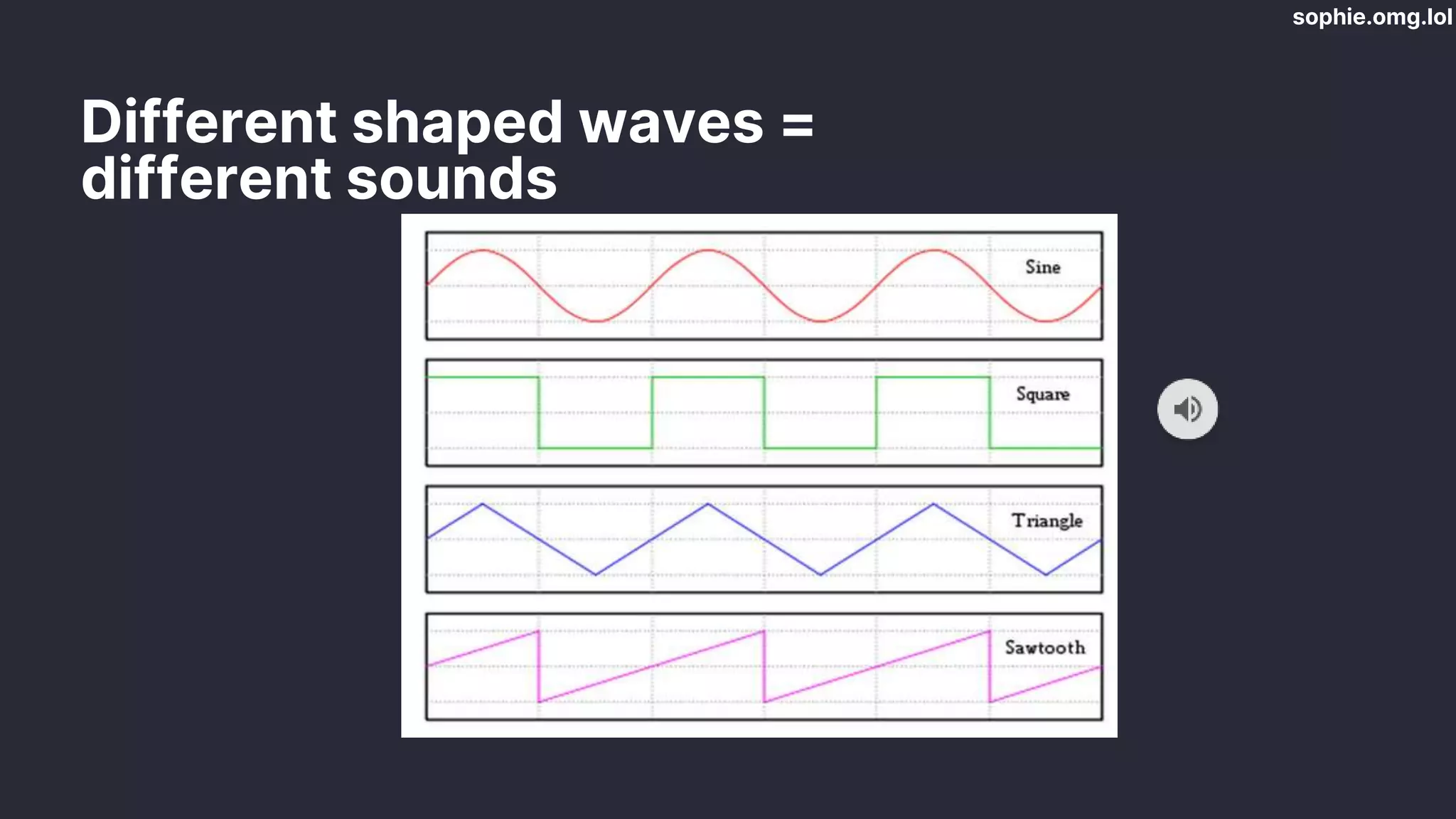

- #23 Create waveform The shape of this waveform determines the sound that’s produced. 4 really common waveforms - sine, square, triangle, sawtooth. a sine wave will make a very different sound to a square wave, for example (play audio).
- #24 Sine wave
- #25 Square
- #26 Triangle
- #27 Sawtooth

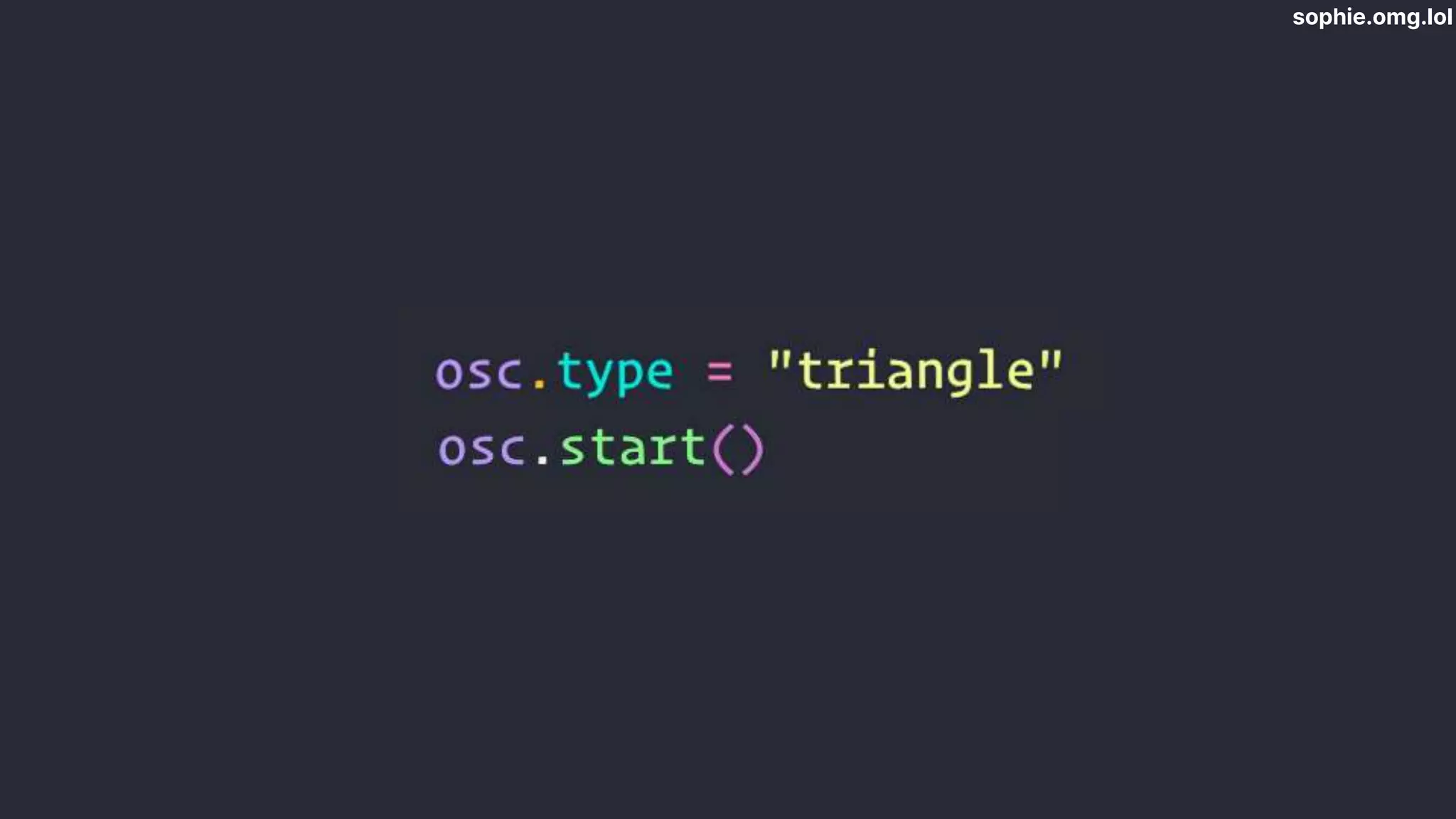

- #28 I chose triangle Start oscillator App playing fixed tone @ 440Hz. How do we do different tone?
- #29 We can calculate them using a formula§
- #30 A4 is an important note A above middle C on the piano - 4th octave Standardised as ISO-16 - standard orchestral tuning frequency Nice round number

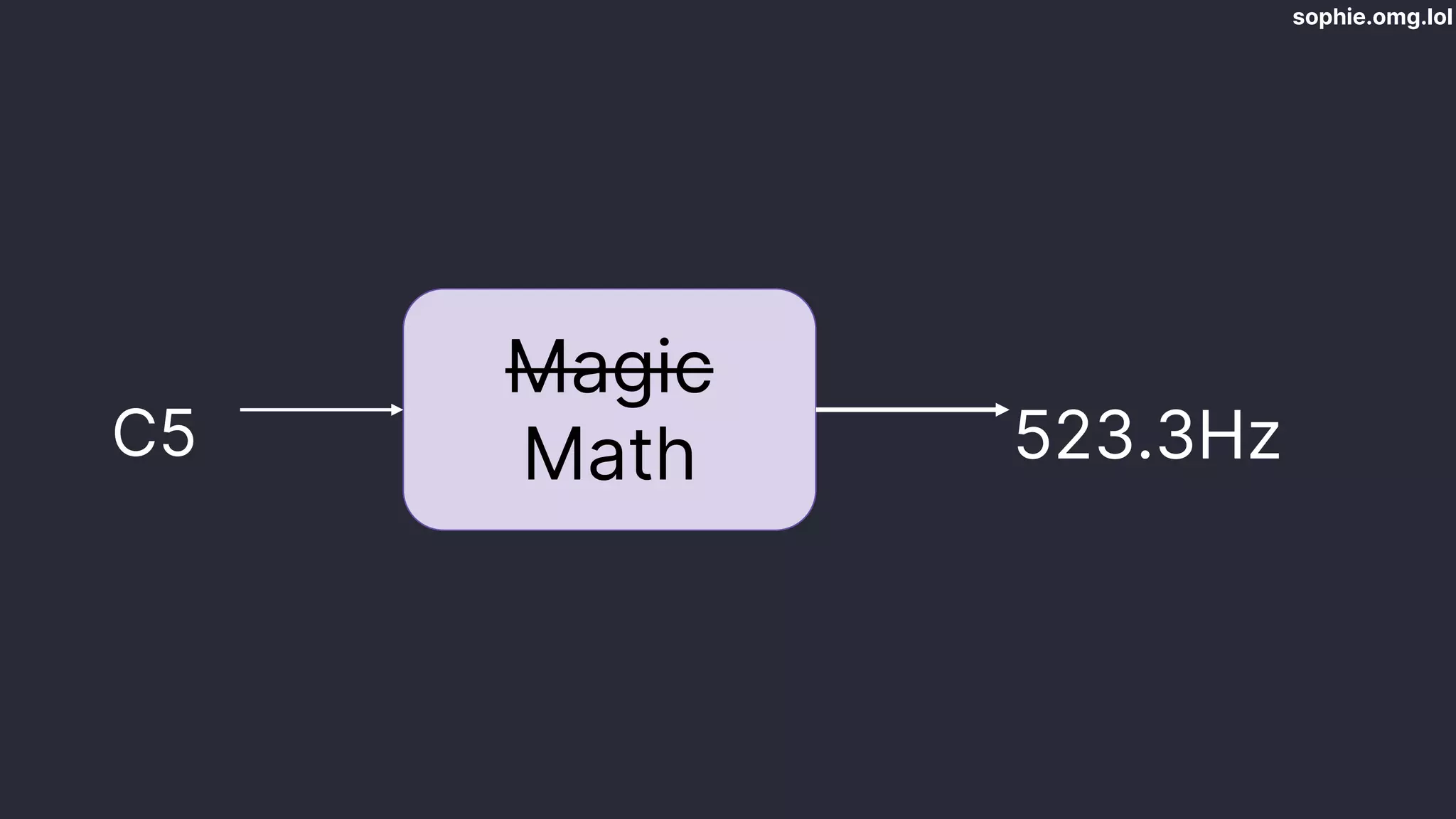

- #31 Formula to calculate a note’s frequency based on its position relative to another note, which we know the frequency of Makes sense to use 440Hz as a constant
- #32 where 𝑛 is the number of semitones between A4 and the note we’re looking for. For example, the note C5 is the next C above A4 on the piano. If you count it out, that’s a difference of 3 semitones.

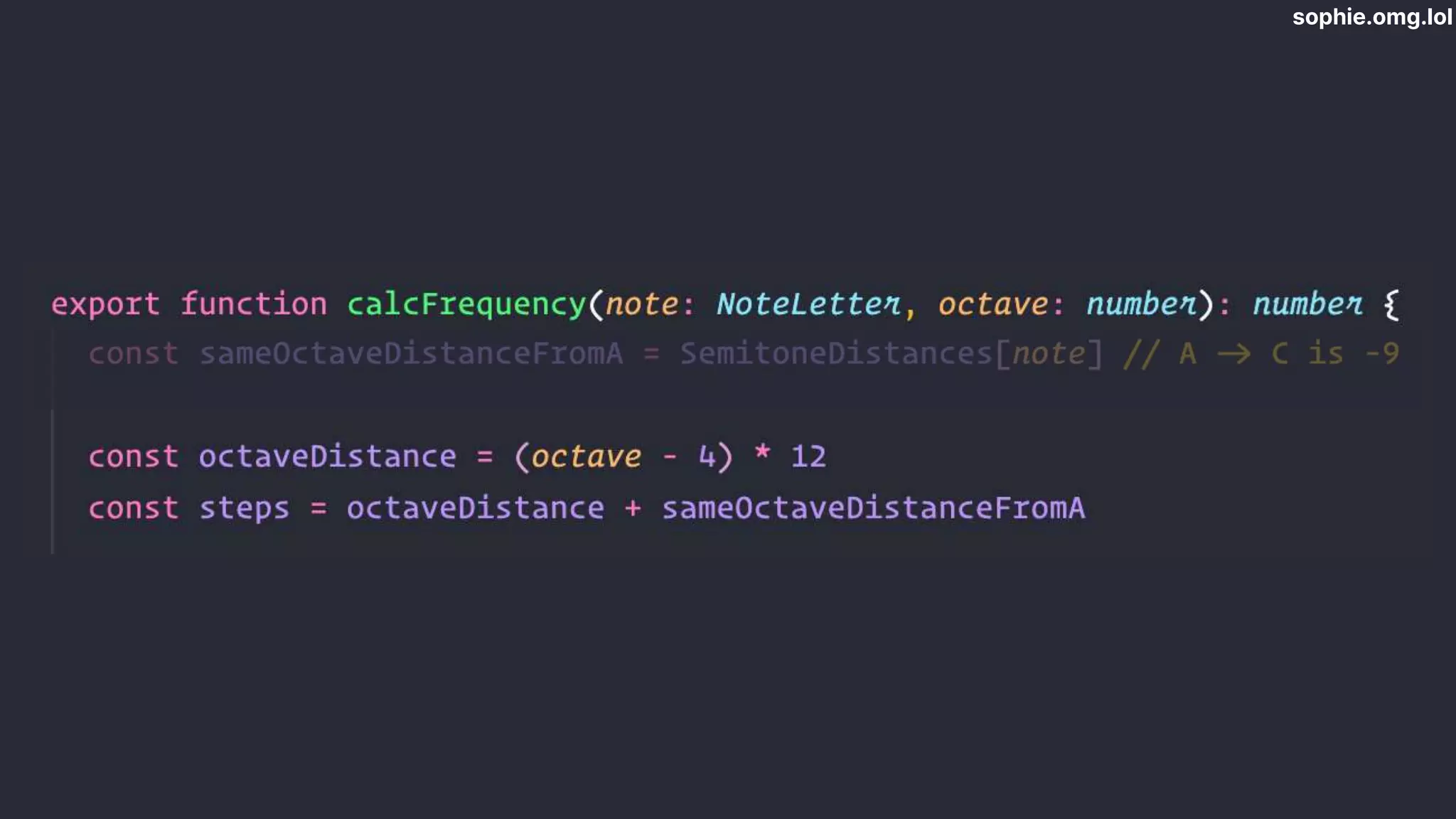

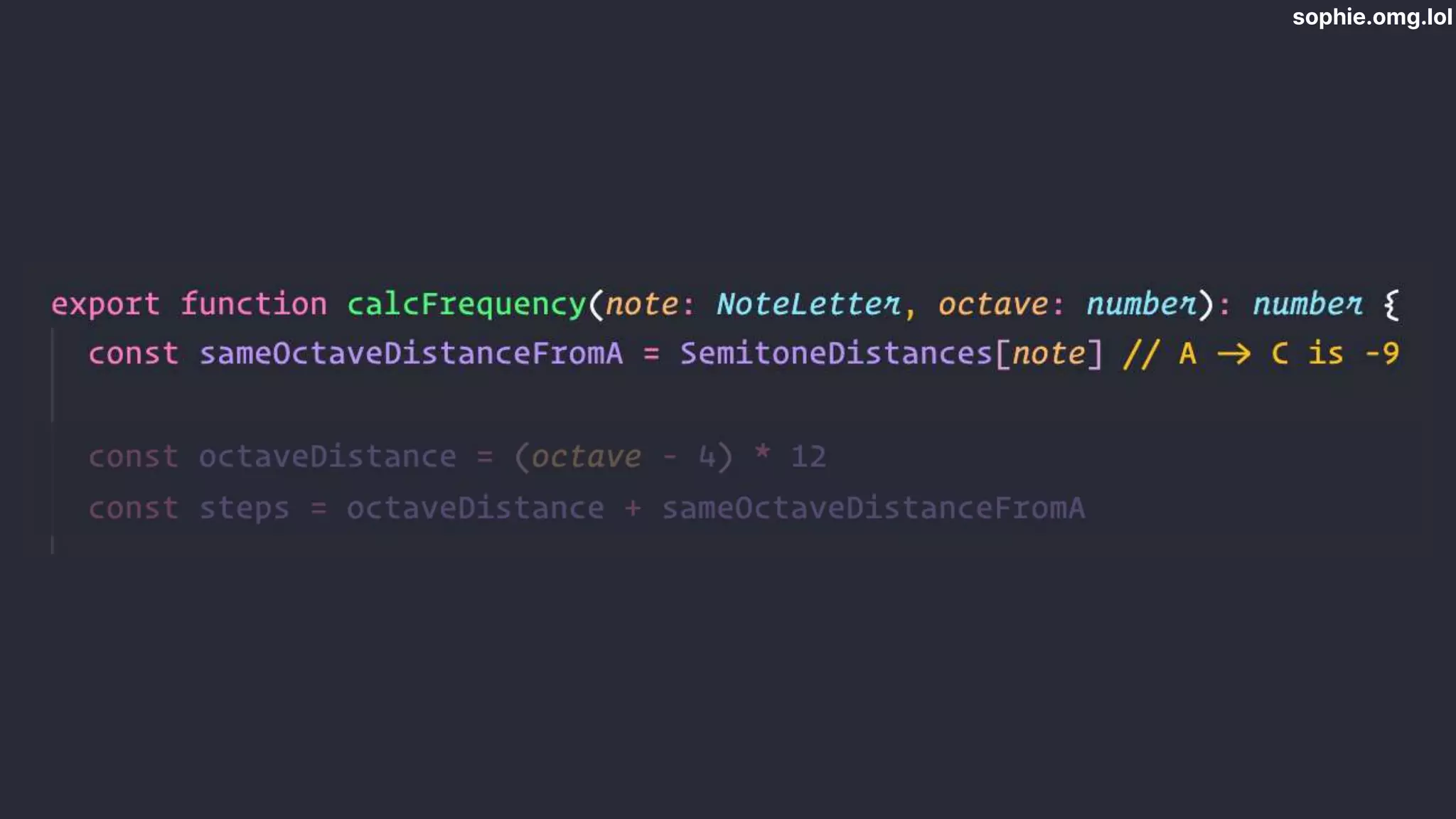

- #33 Translated equation to code. This function takes a letter and number combination -> freq Get interval between A and our note within the same octave Get octave interval - octave difference multiplied by semitones Add together
- #34 Translated equation to code. This function takes a letter and number combination -> freq Get interval between A and our note within the same octave Get octave interval - octave difference multiplied by semitones Add together
- #35 Run equation to calculate frequency

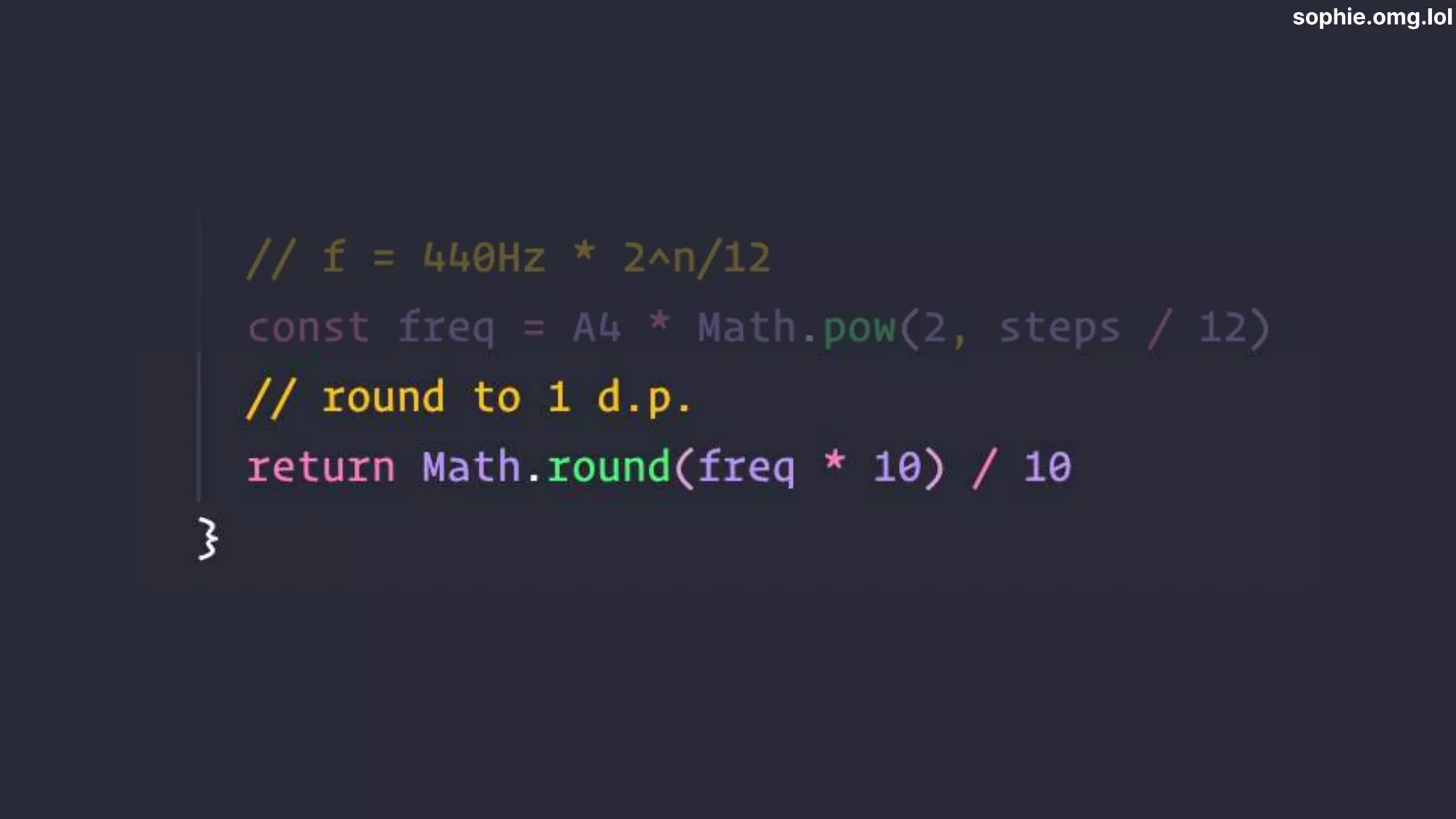

- #36 For convenience we round it to 1 decimal place.

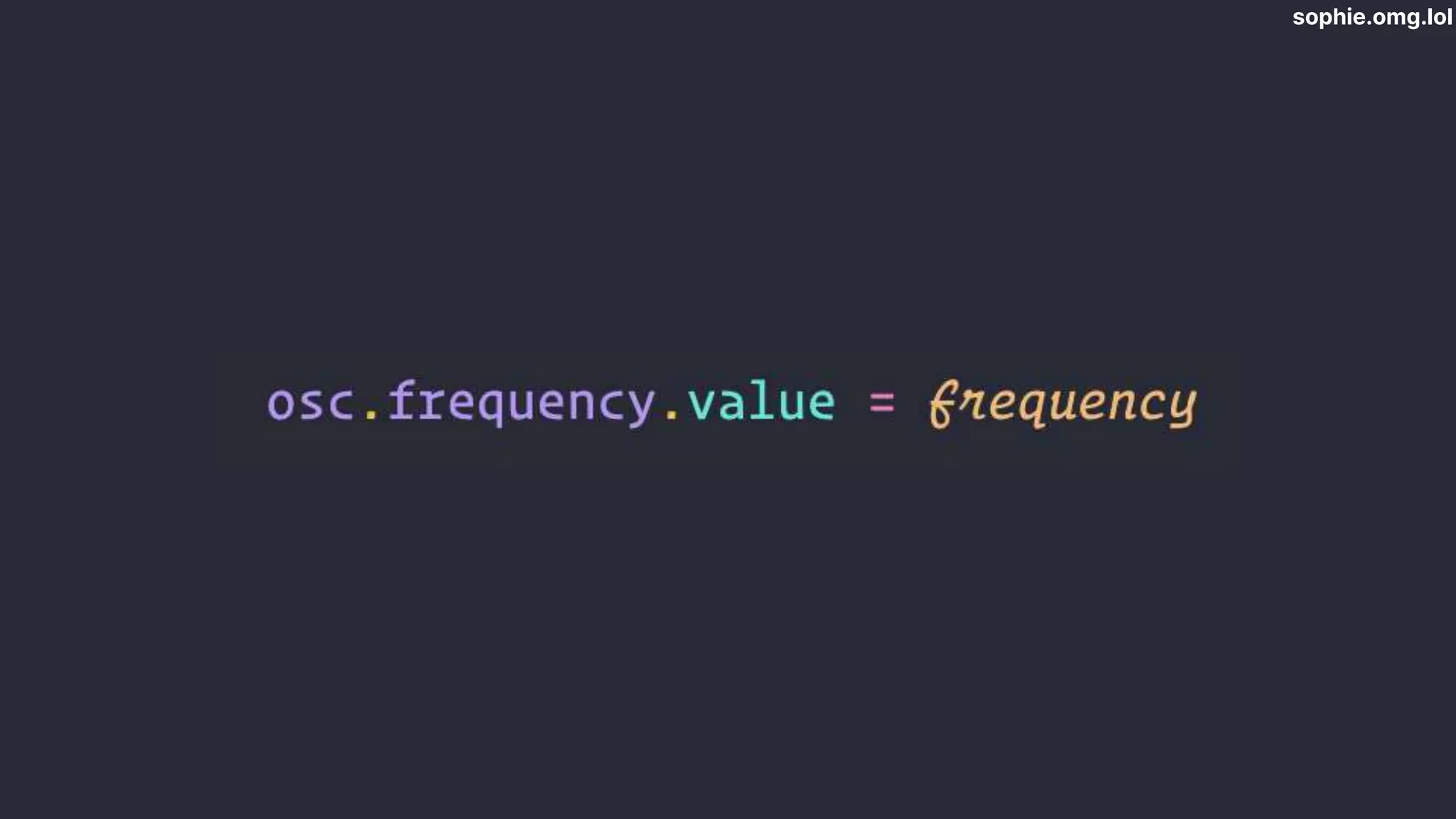

- #37 Once we have the frequency, it’s simple to set the oscillator frequency. So now we can make an oscillator play whatever note we want.

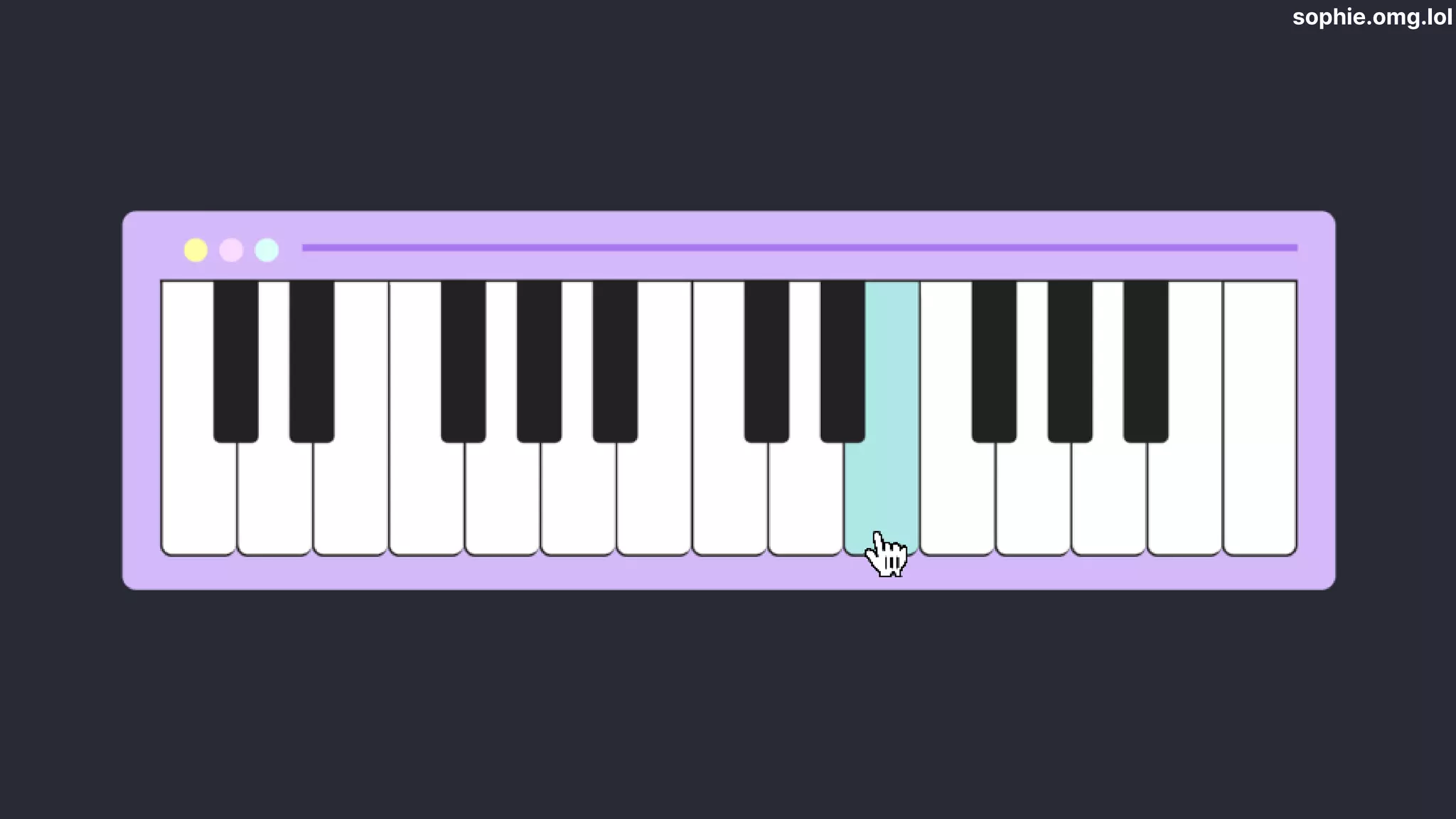

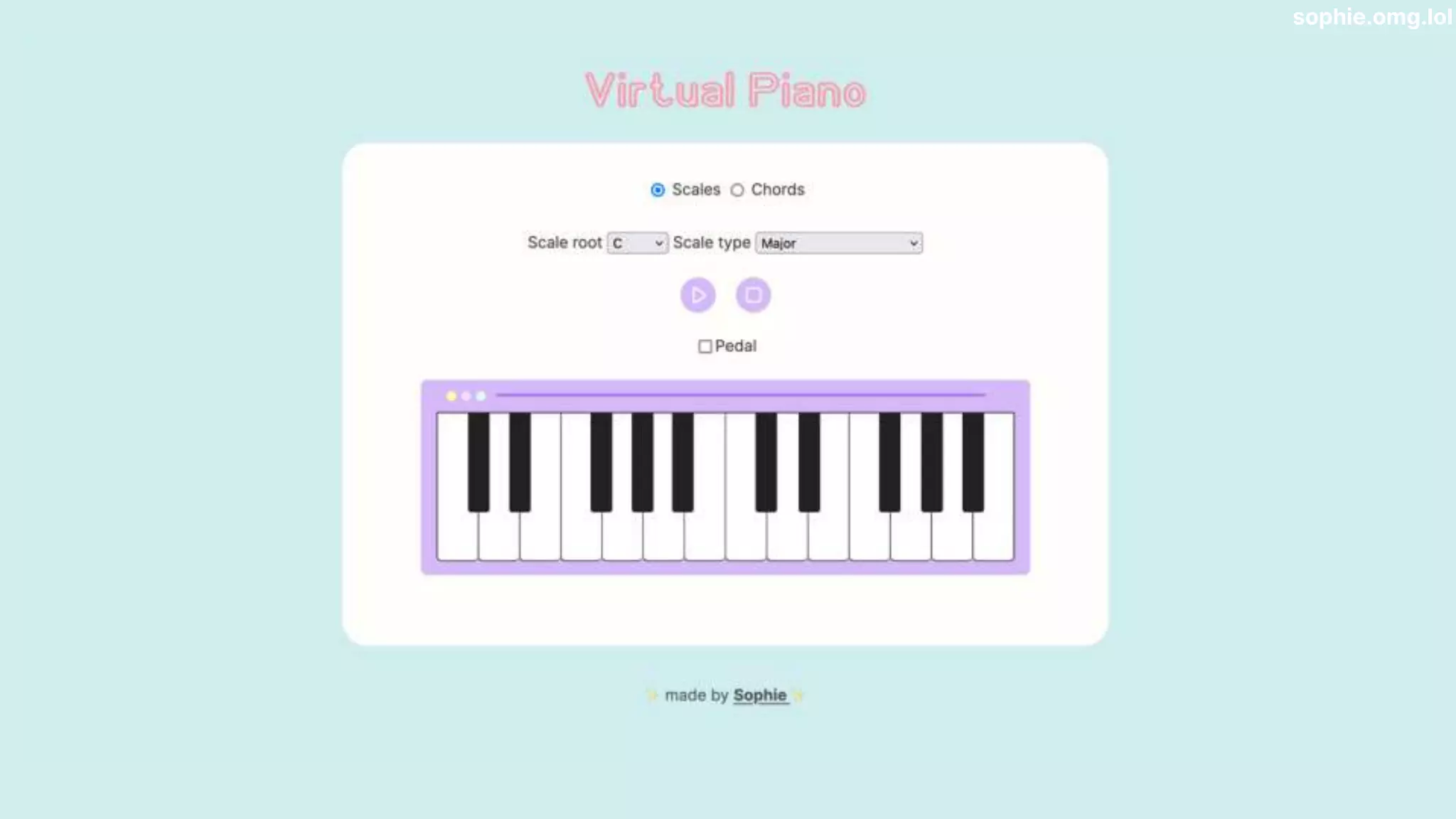

- #38 Now can build piano Did the OG one in React but had problems with things getting out of sync Vanilla JS has been much easier Each key is a button, positioned with CSS grid Each note has ID - index of array of notes Title attribute
- #39 Each key has event listeners for mouse down and mouse up We either play or stop the note Pedal - don’t stop on mouse up

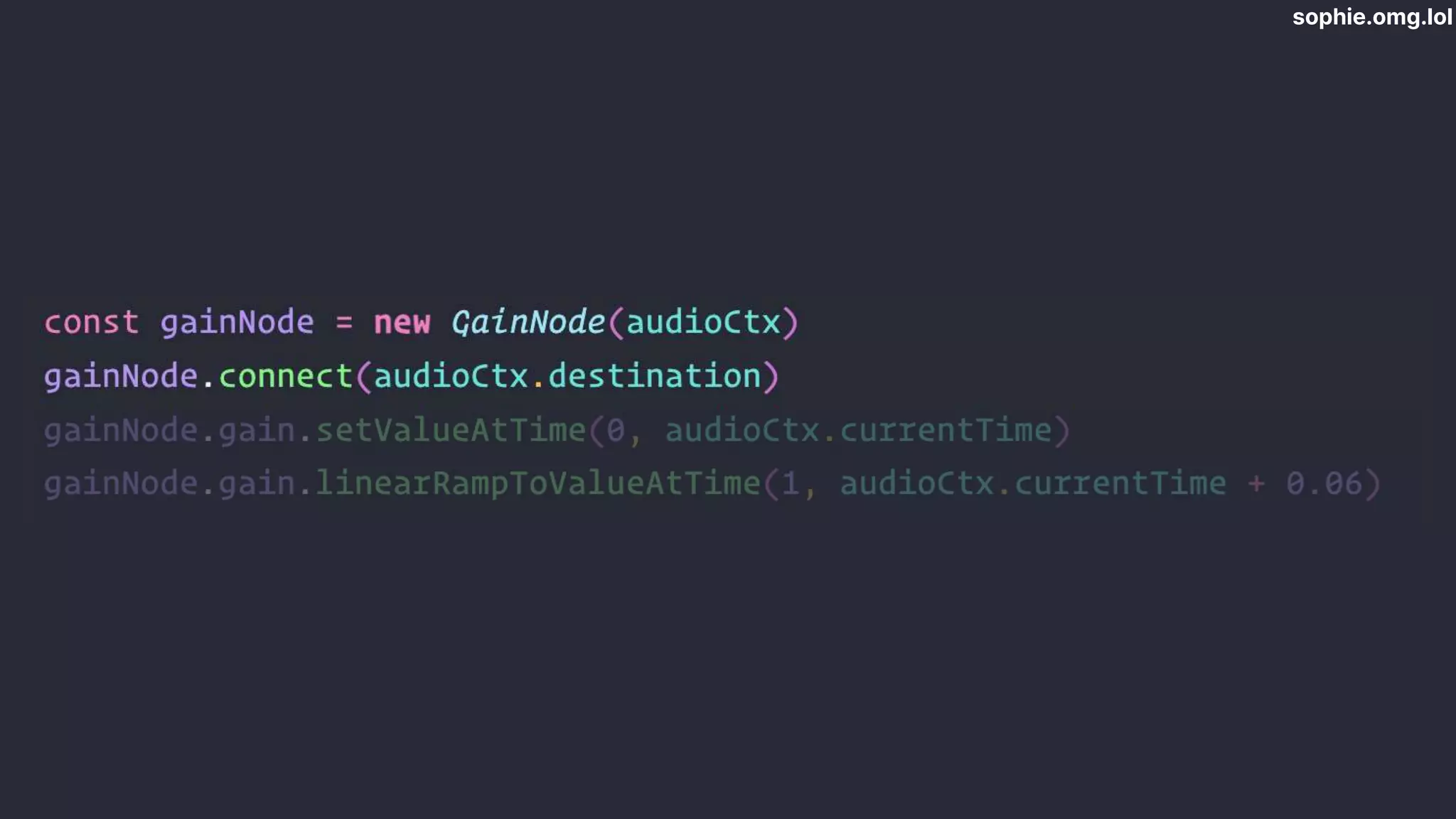

- #40 Playing a note - new audio channel for each note press Create a gain node to ramp the sound up and down to make it sound a bit smoother CLICK

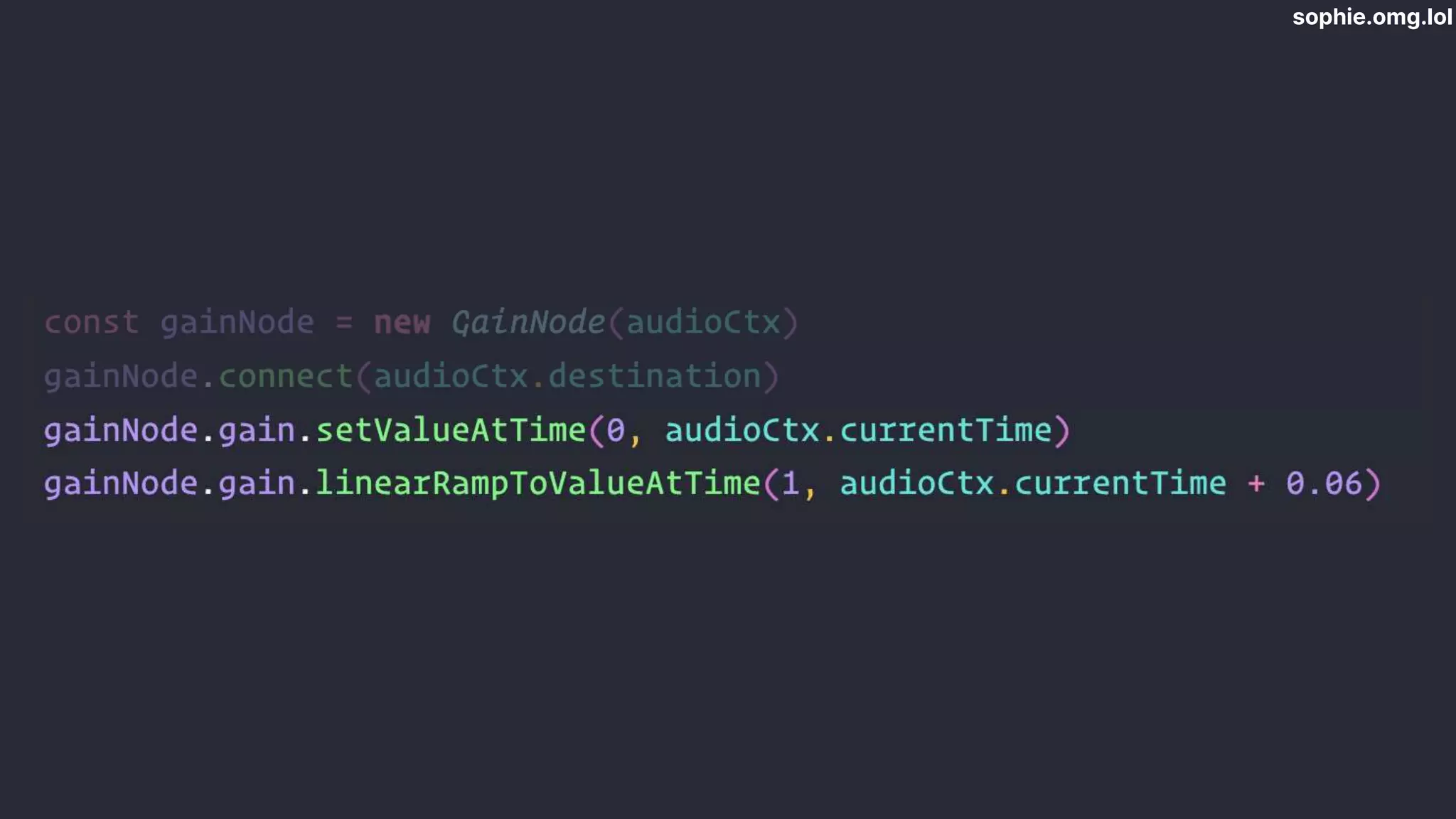

- #41 We set the gain to zero to start with and ramp it up over 0.06s - if you’re familiar with music terms this is controlling the attack of the note, the onset

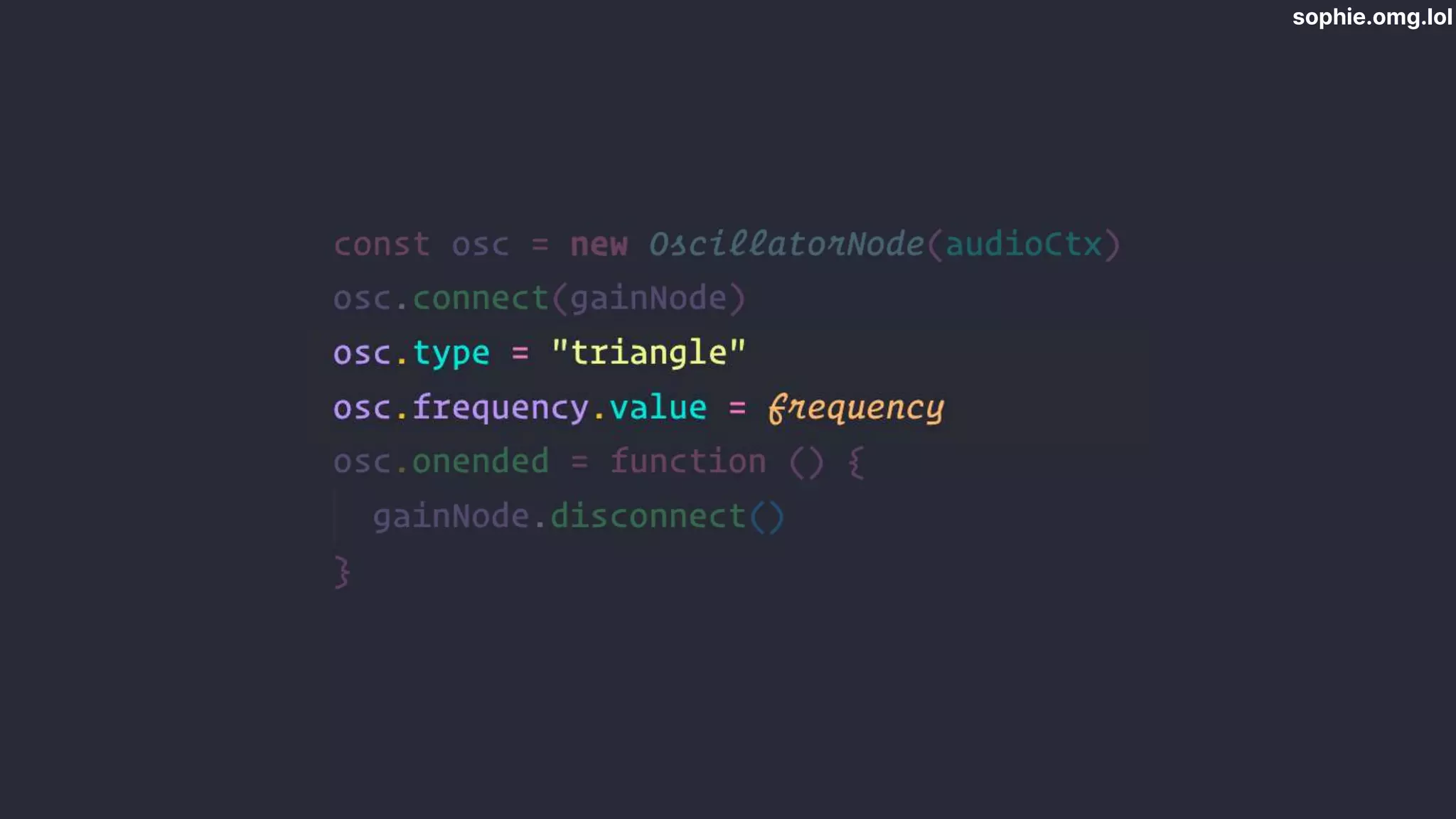

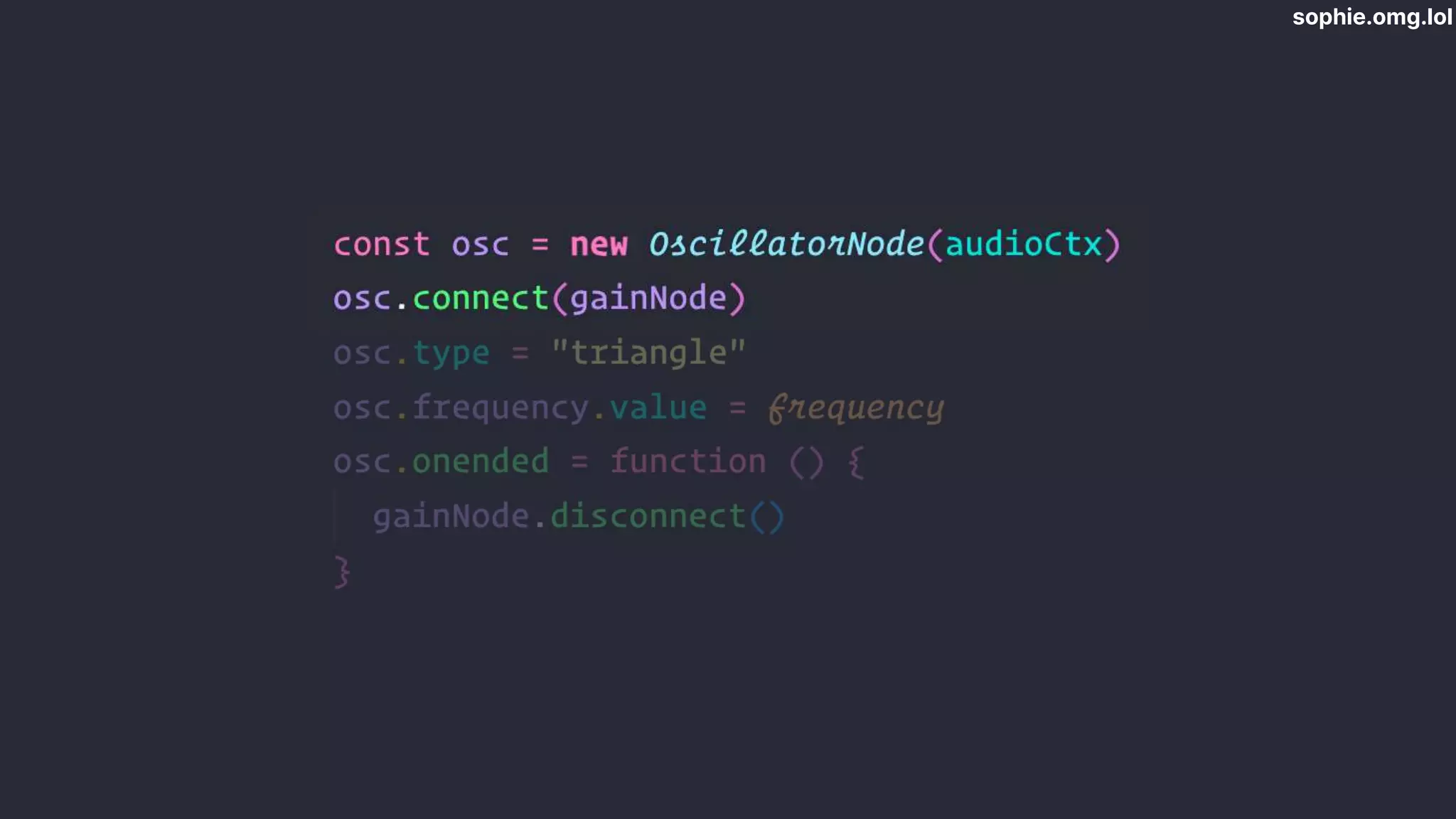

- #42 We init our oscillator, and connect it to the gain node Think of these like a chain of modules, each one has to be connected to the last
- #43 Then we set the wave type and the frequency,

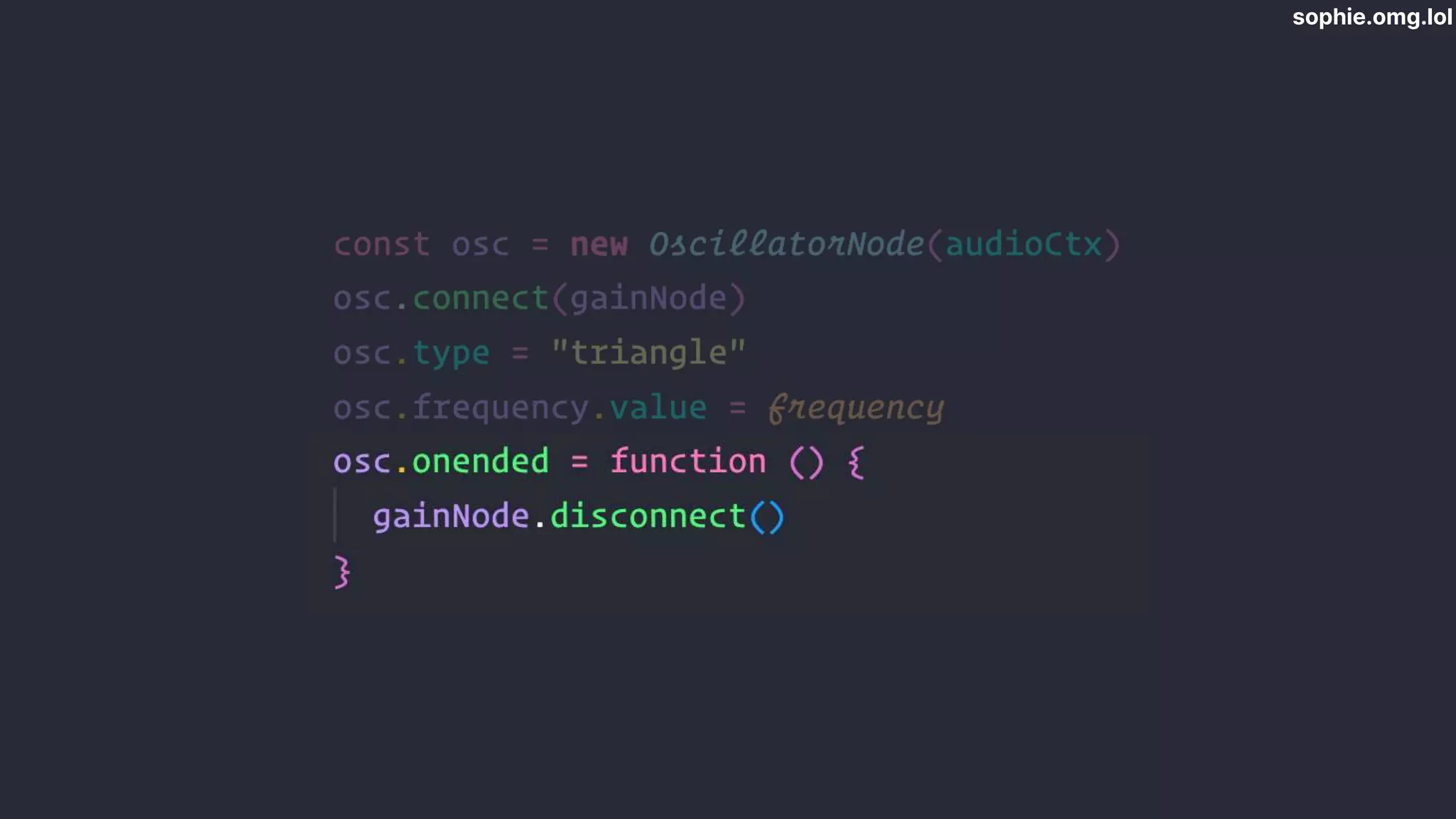

- #44 When osc stops, disconnect gain node Garbage collection

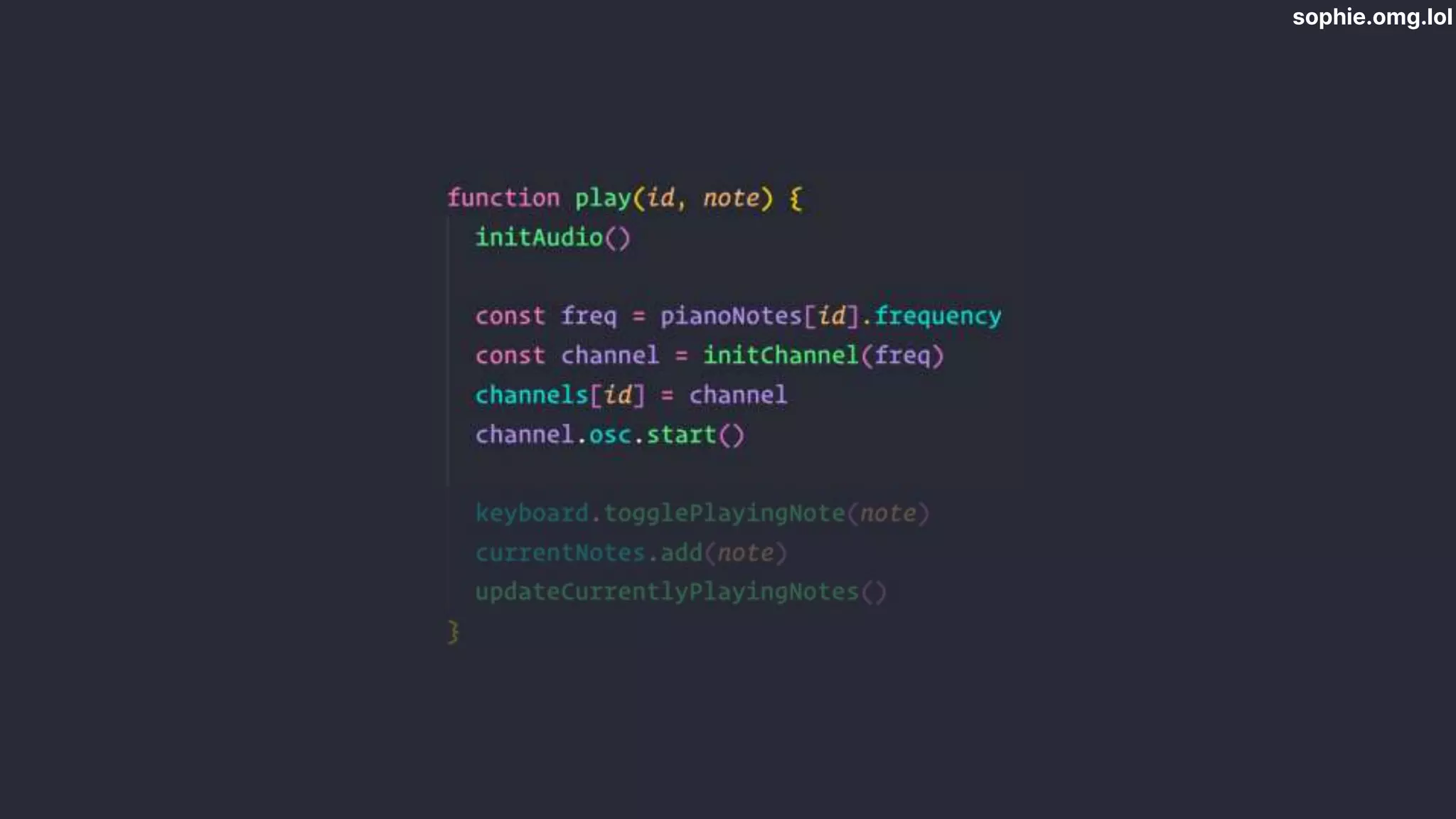

- #45 When we click a note, init audio - need to respond to user gesture - then find note and init channel, then start osc Storing all the channels in global var

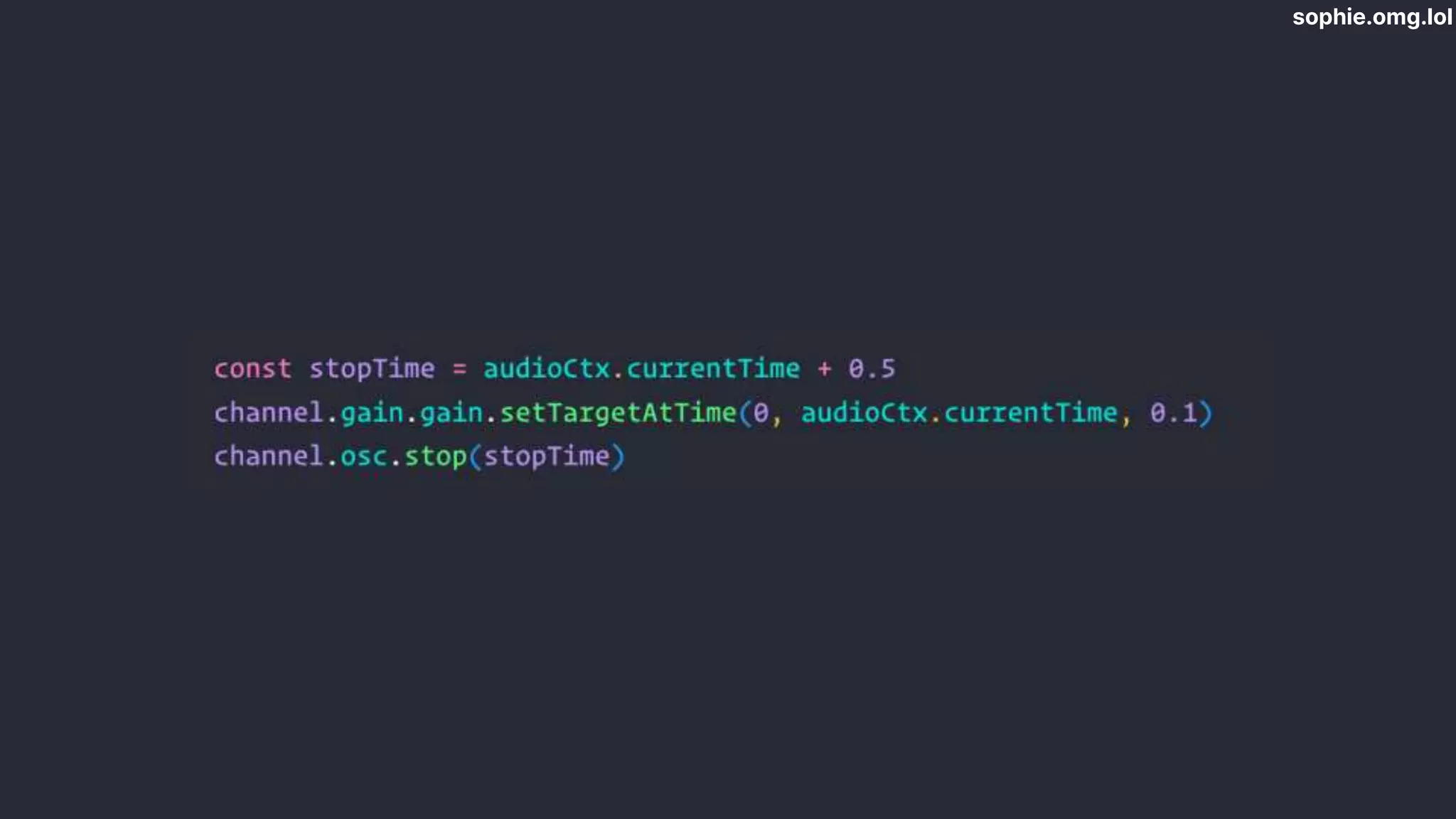

- #46 Stopping a note - on mouse up, ramp down to 0 very quickly then stop oscillator Can’t repeatedly stop and start oscillators - need a new one for each one Oscillator disconnects itself when turned off. Every time I play a note I overwrite the channel for that note so the old one will get GC’d

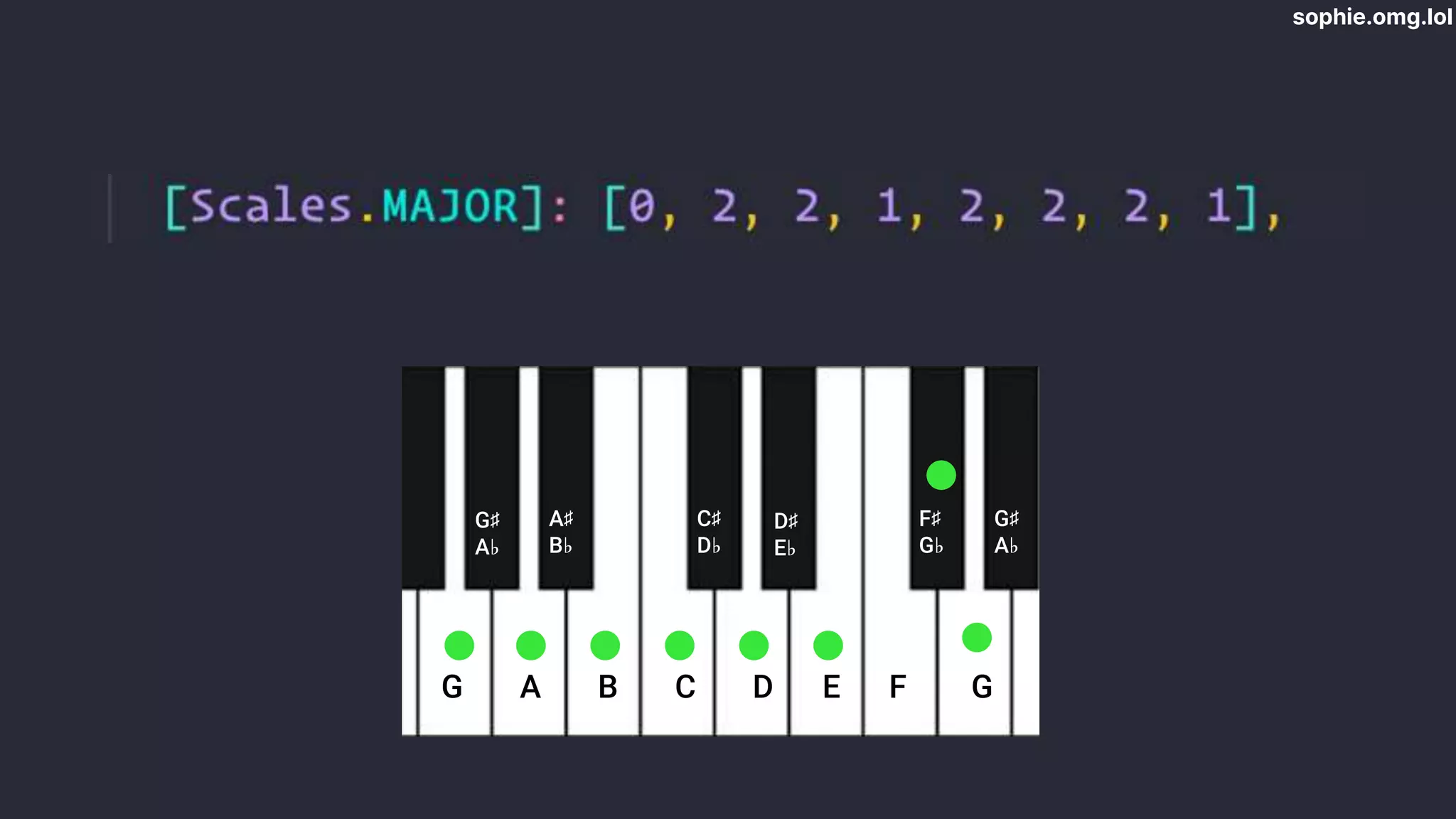

- #47 Automatically play notes of scale Patterns of scale -> generate notes Table of intervals for scales Each number represents a semitone interval from the previous note Start at 0 - root note Recap major scale pattern as numbers

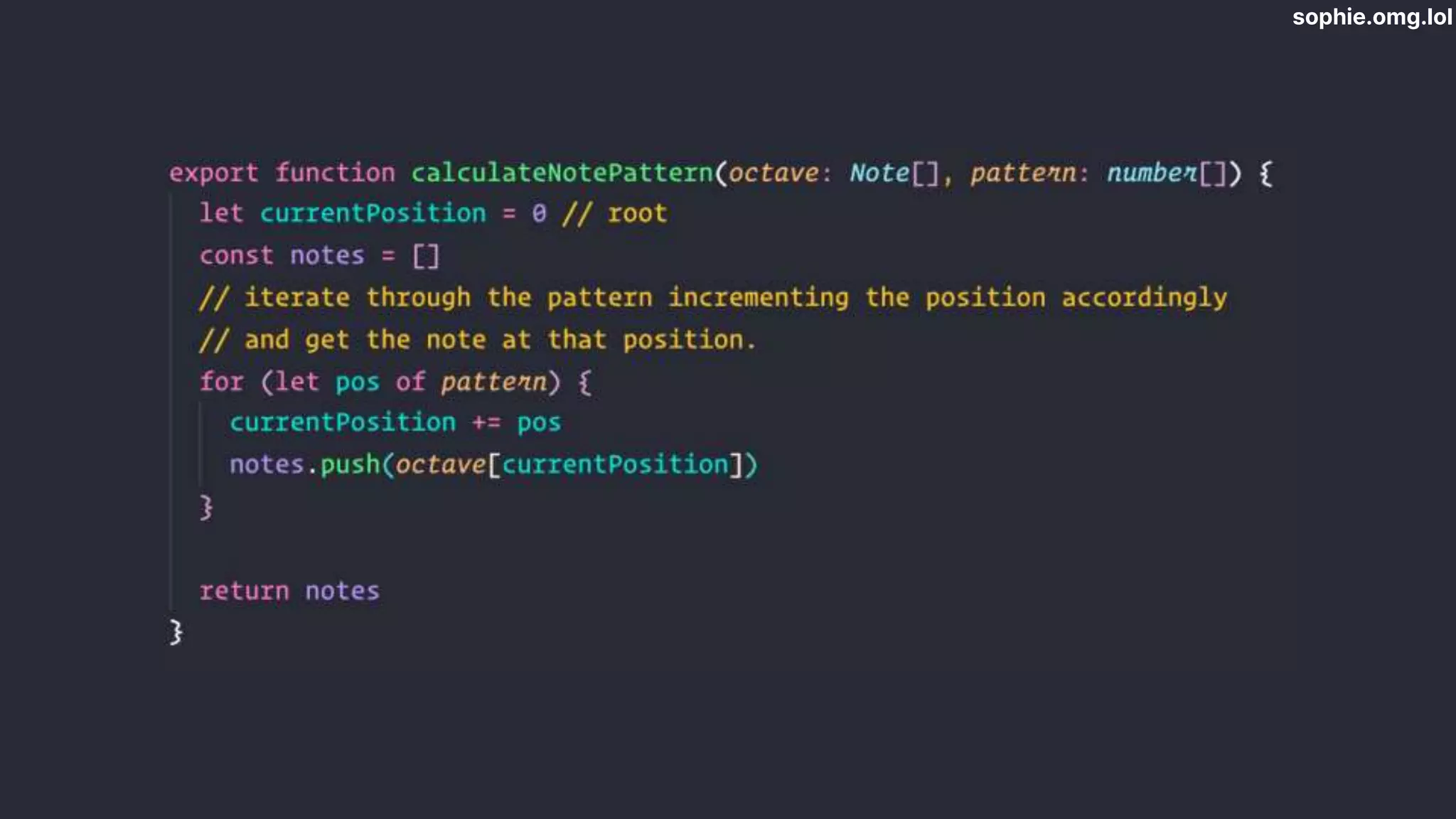

- #48 Generating scales Generate octave Iterate through scale pattern Cursor currentPosition that keeps track of which note we’re on based on index Add each interval to currentPosition to find next note

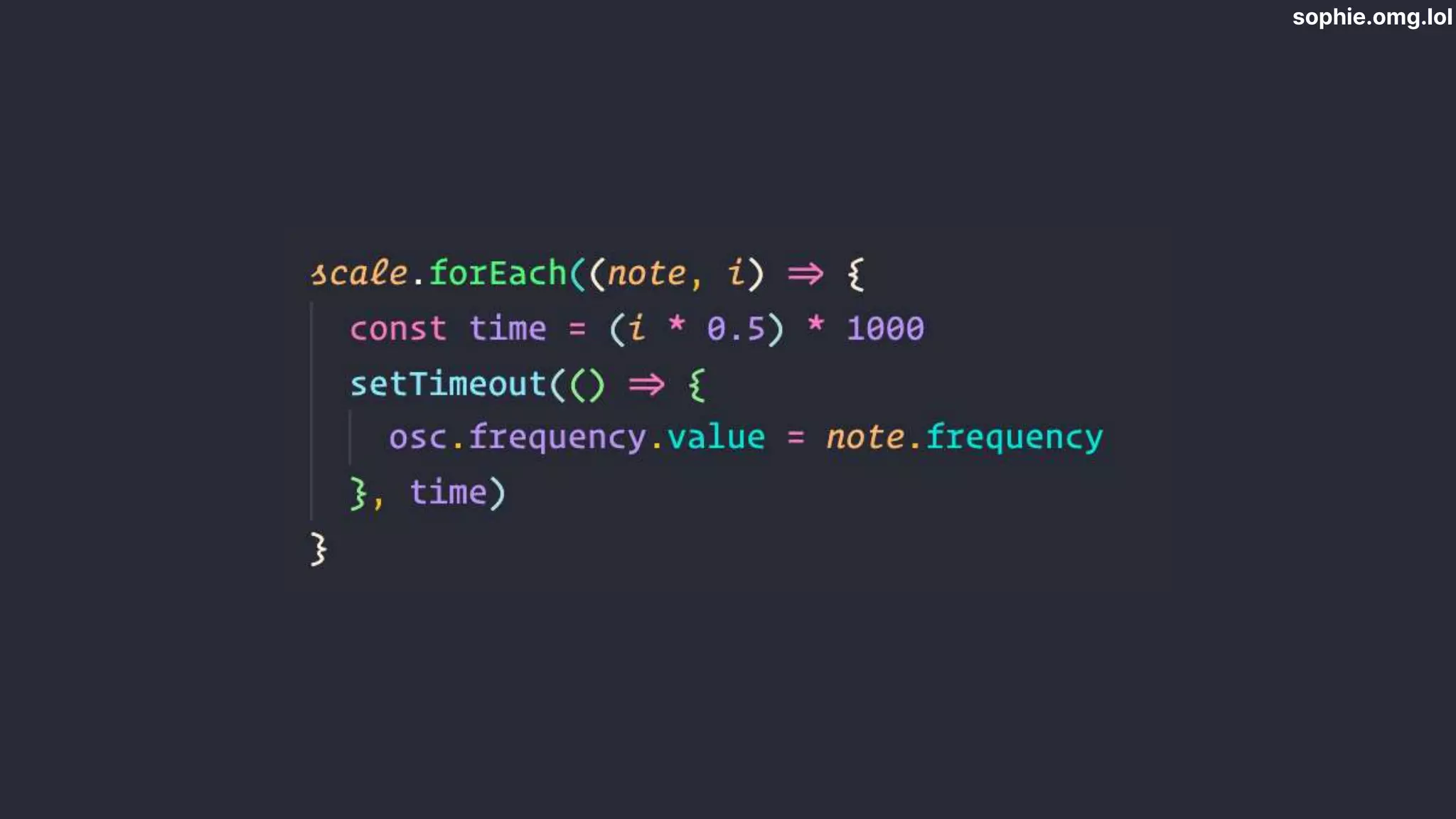

- #49 Playing scale: change oscillator frequency at regular intervals Only want one oscillator Set timeouts per note - 0.5 sec - multiply by index of note in array so staggered Timeout elapses- osc frequency changes Store timeouts in a global variable if we want to stop

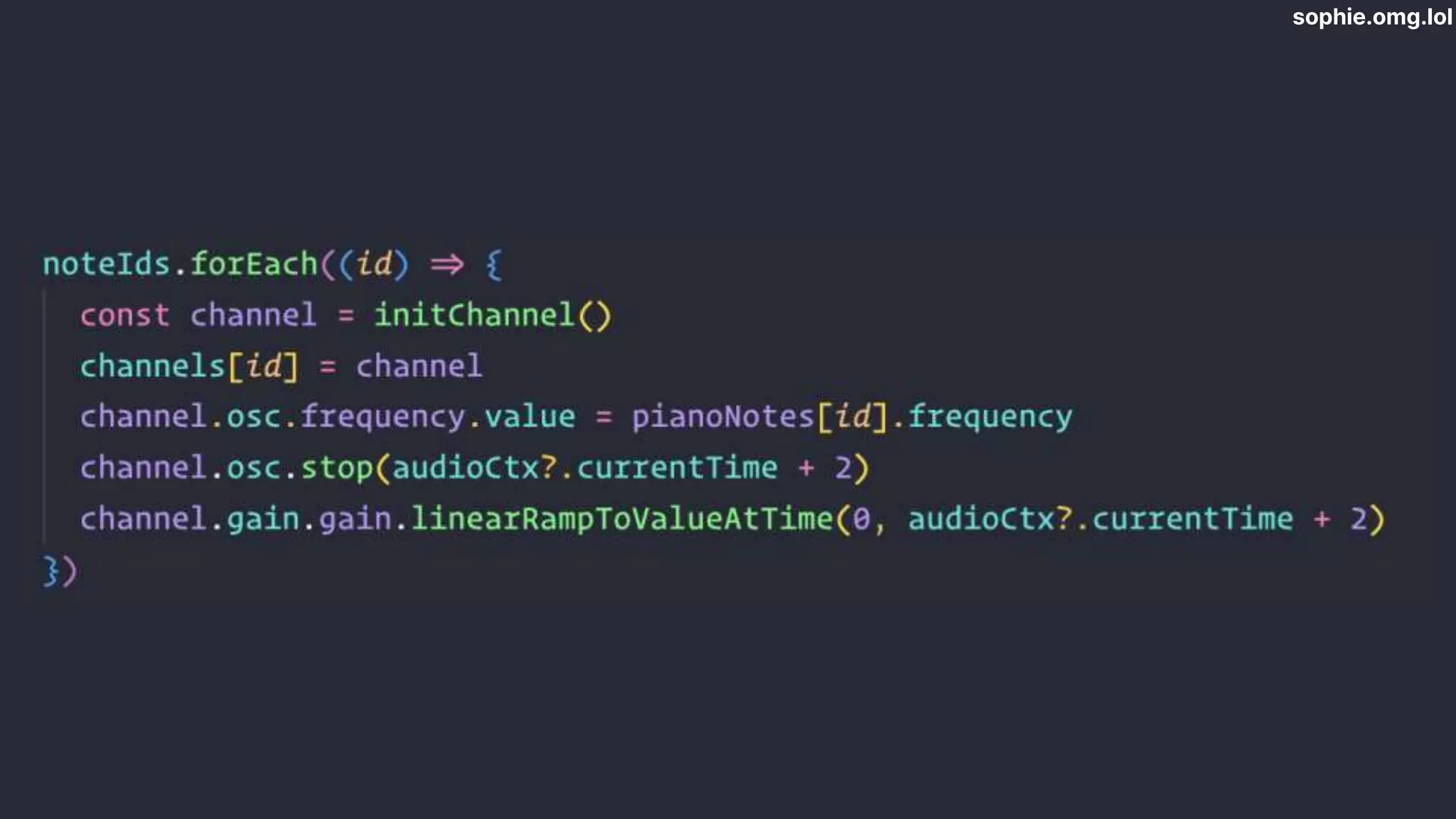

- #50 For chords: different patterns, fewer notes, same principle. Get the oscillator to stop playing 2 seconds in Find the frequencies new oscillator for each note.
- #51 We’ve got it to…
- #52 This is a midi controller... Open browser and demo midi controller

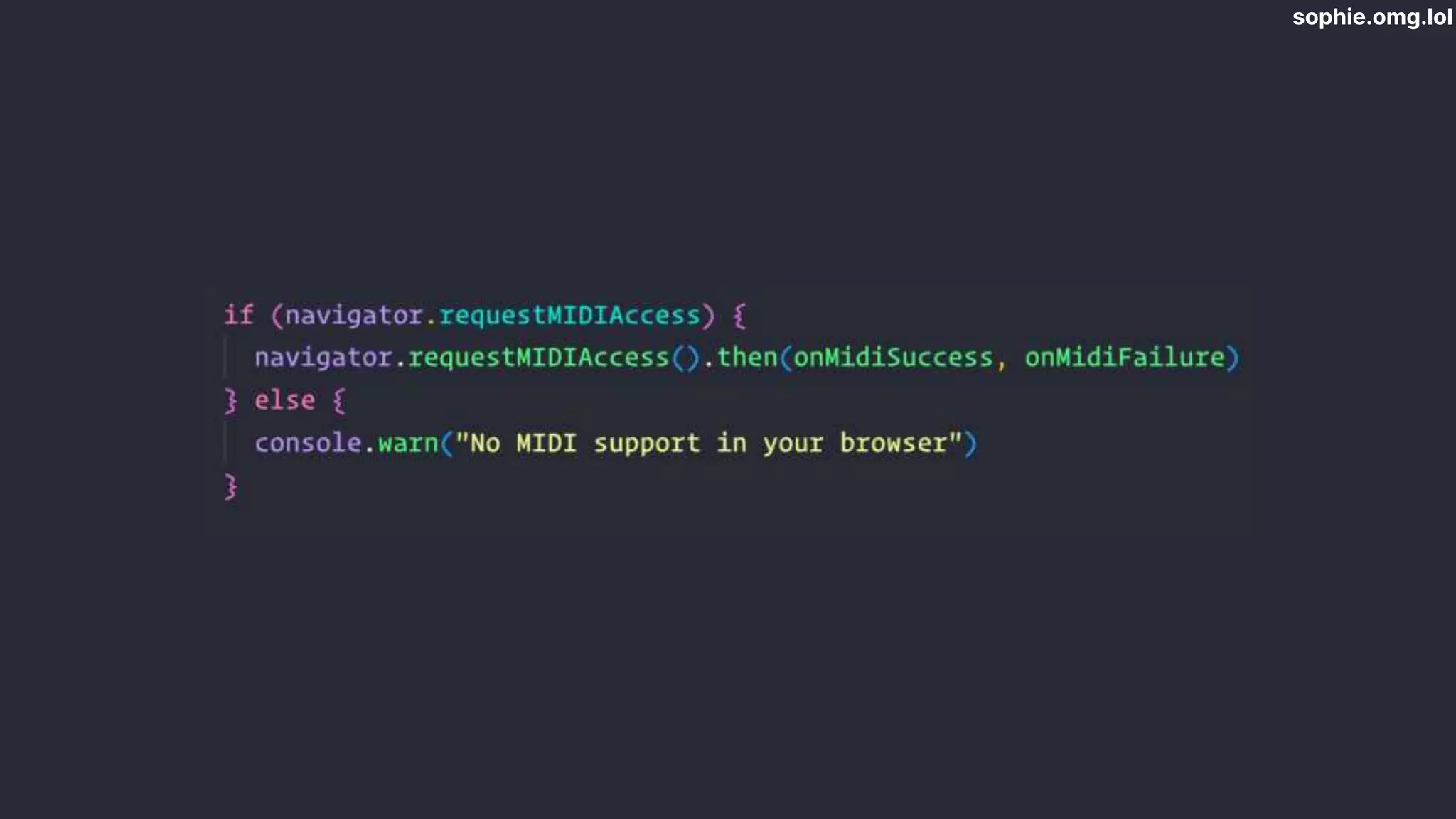

- #53 Connects to Musical Instrument Digital Interface devices Chrome, Edge and Opera - not Firefox

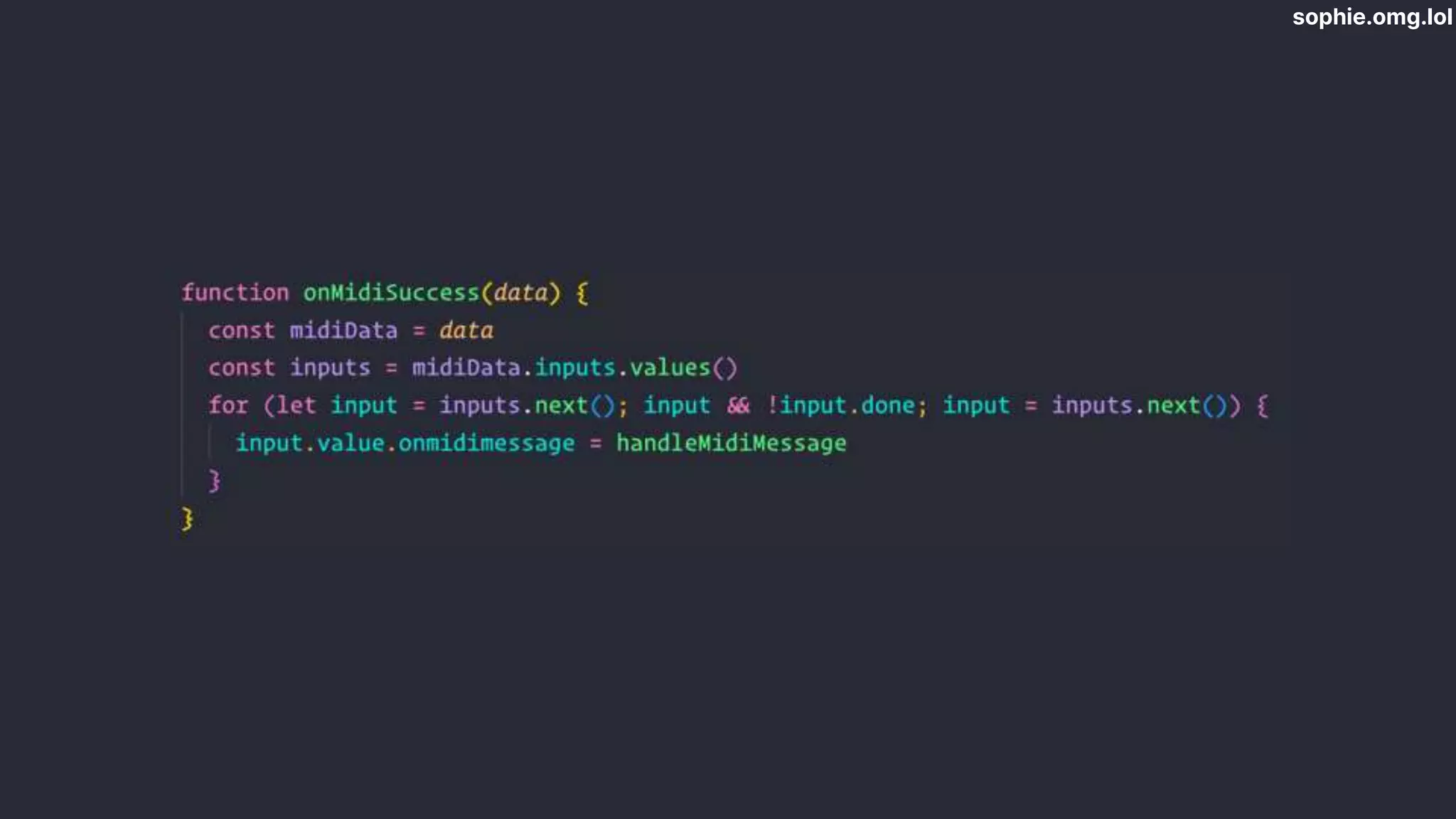

- #54 When you press a note on the controller it sends a message to the computer with info about what was pressed The browser is listening for those messages

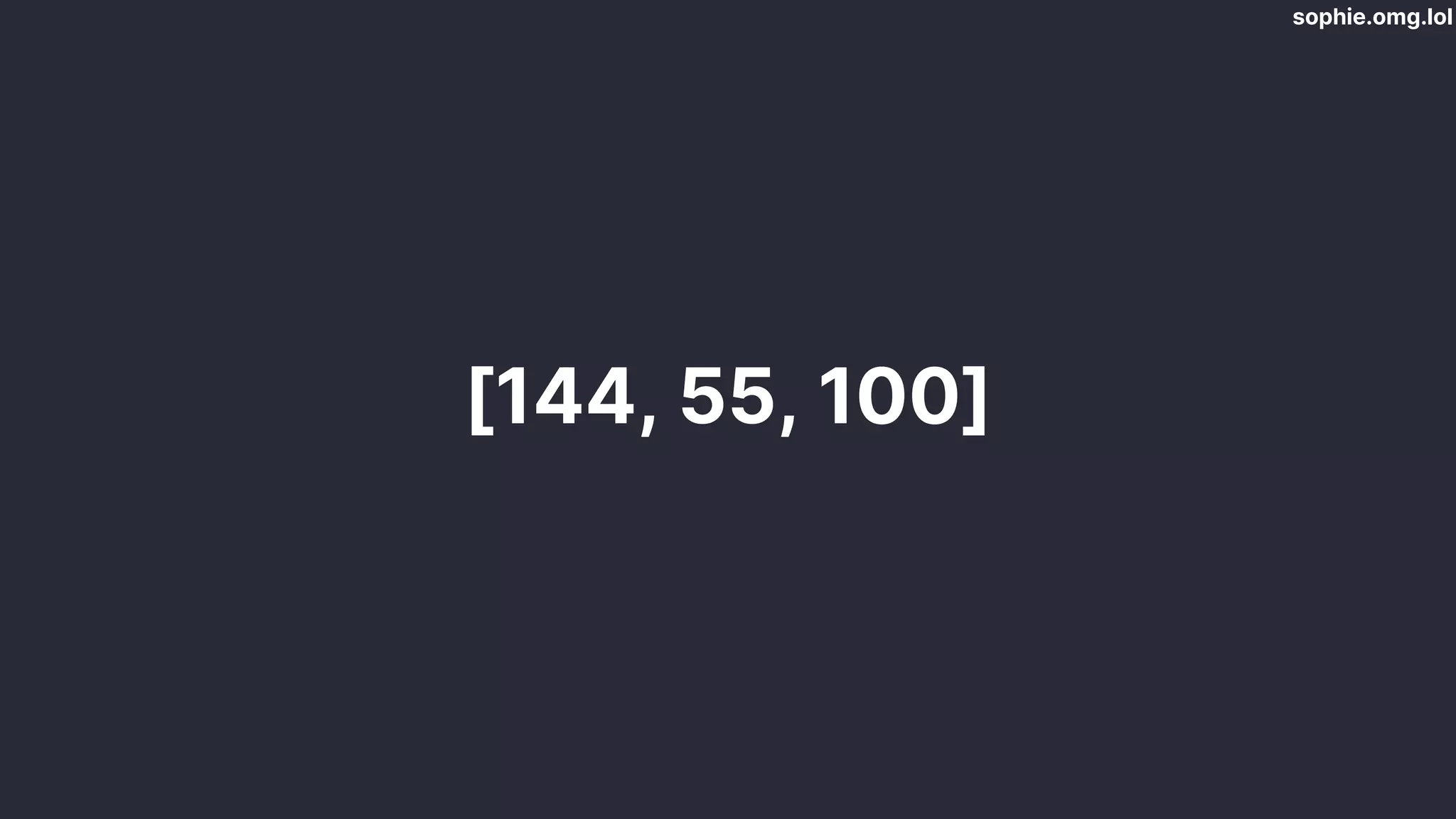

- #57 The data we get from the midi message looks like this Command, note, velocity Ignoring velocity
- #58 The two commands we care about

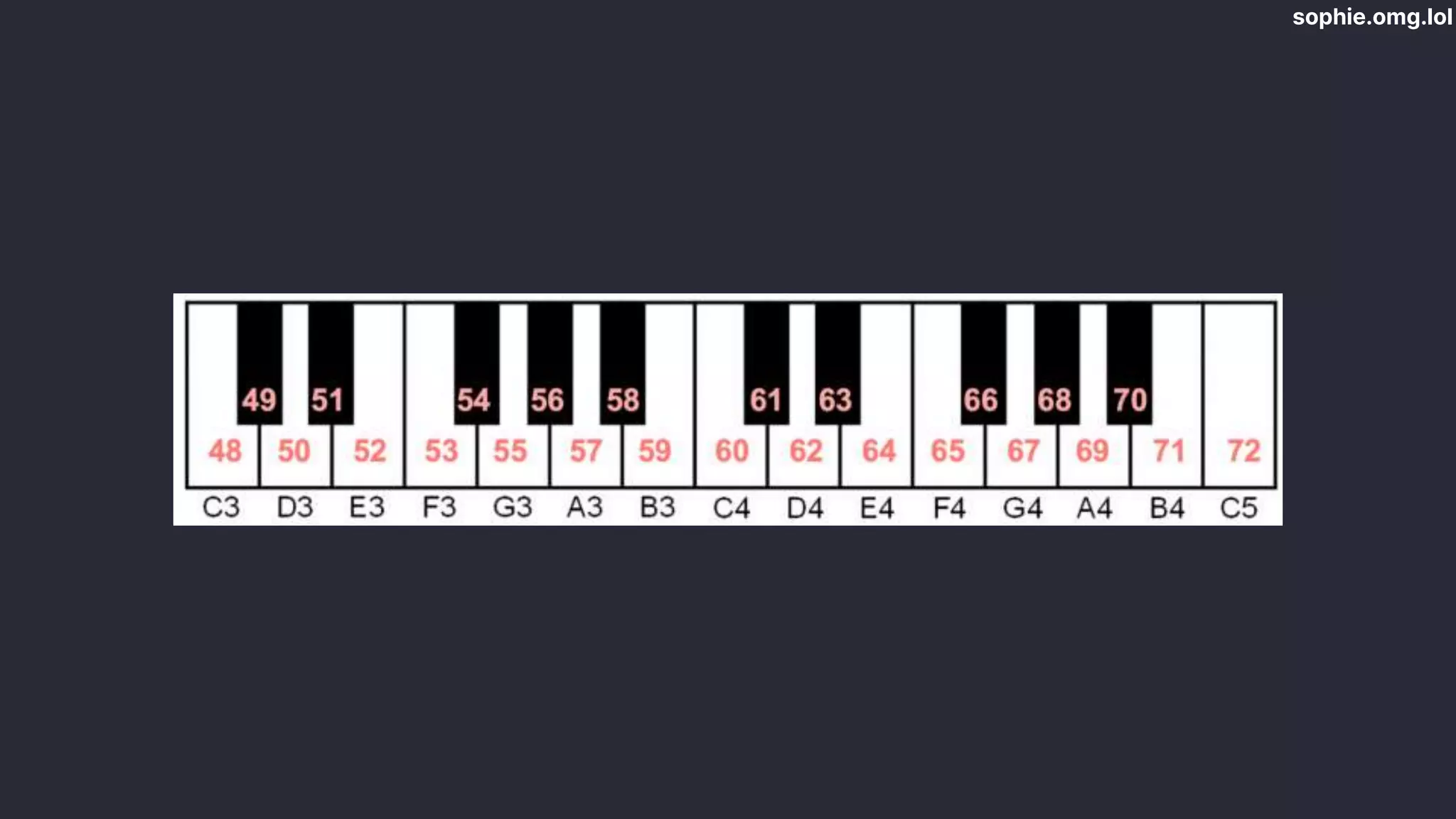

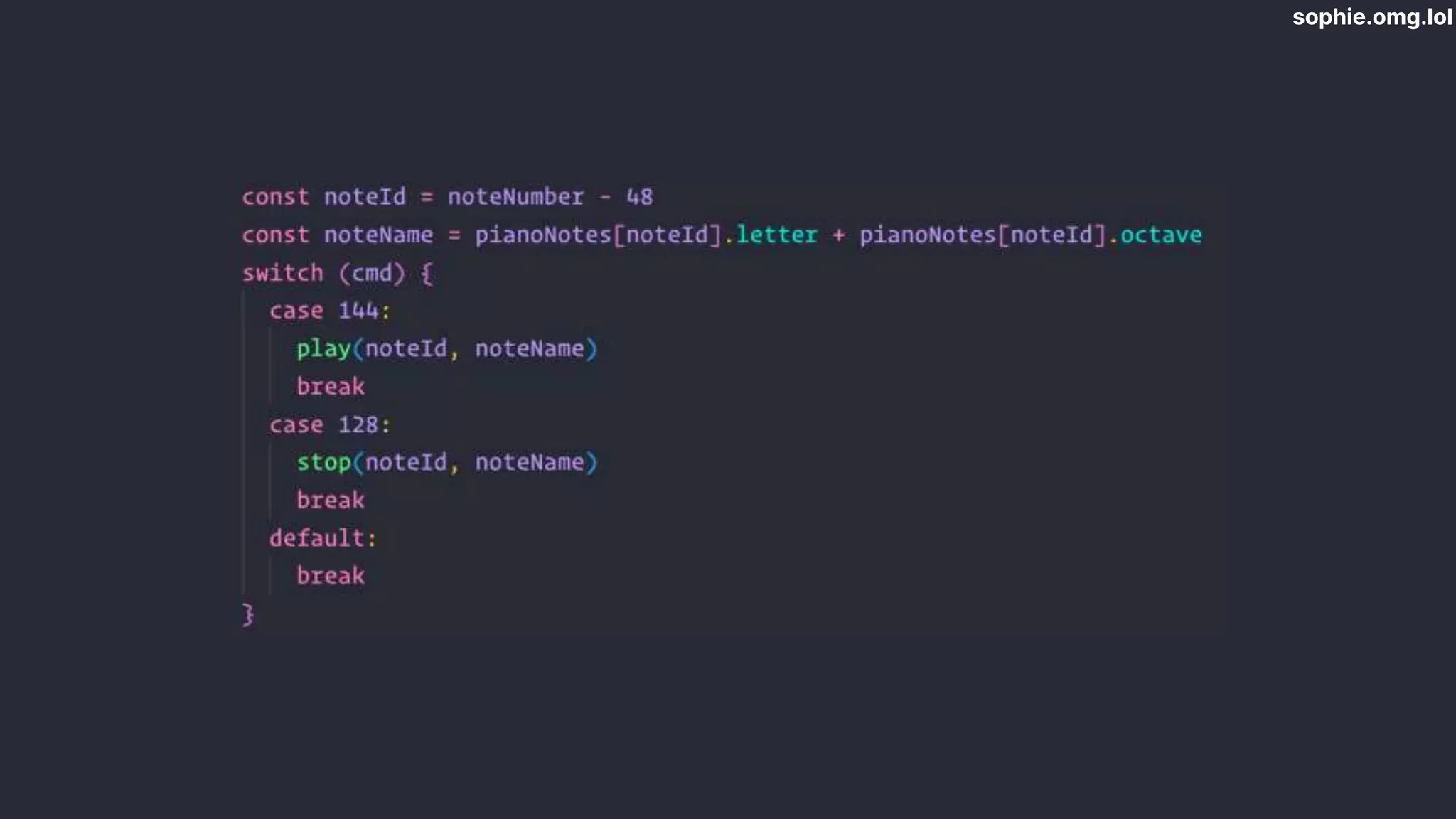

- #59 Midi standard assigns numbers to each key Default for my midi controller is octaves 3+4, starting at 48 My keyboard has 0-24 When I get a number, have to subtract 48 to get index
- #60 Midi standard assigns numbers to each key Default for my midi controller is octaves 3+4, starting at 48 My keyboard has 0-24 When I get a number, have to subtract 48 to get index One more demo for good measure
- #62 I’m happy to answer any questions you might have.
