Java defines data as objects with methods that support the objects. It provides features like abstraction, encapsulation, inheritance and polymorphism. Java programs can be executed on any platform that supports a Java Virtual Machine as Java code is compiled to bytecode, which is platform independent. To execute a Java program, the source code must be compiled to bytecode using the javac compiler, which checks for errors. The bytecode can then be executed using the java command.

1. 1
OOPS with Java
BT0074 Part-1

2. 2

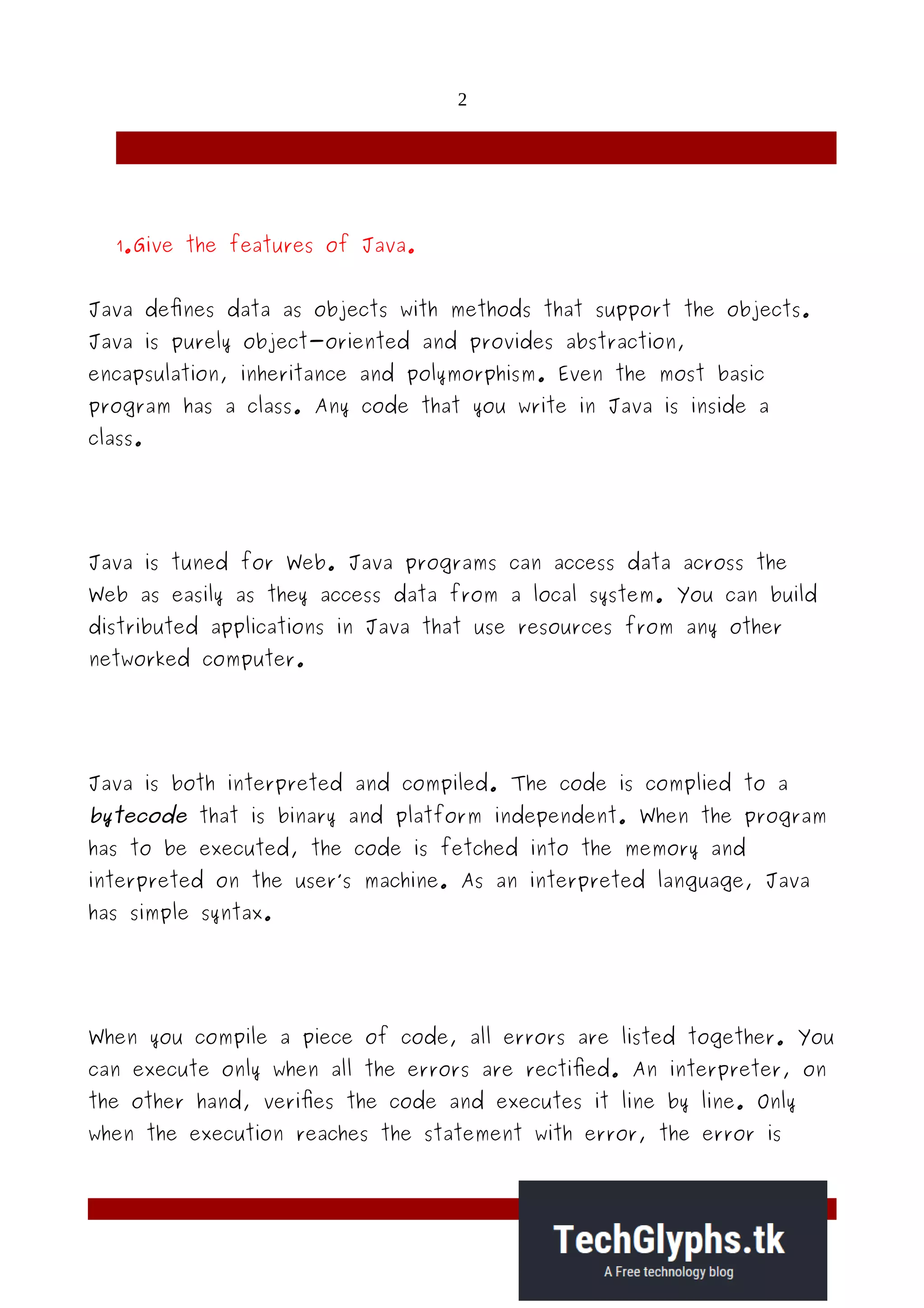

1.Give the features of Java.
Java defines data as objects with methods that support the objects.
Java is purely object-oriented and provides abstraction,
encapsulation, inheritance and polymorphism. Even the most basic
program has a class. Any code that you write in Java is inside a
class.
Java is tuned for Web. Java programs can access data across the
Web as easily as they access data from a local system. You can build
distributed applications in Java that use resources from any other
networked computer.
Java is both interpreted and compiled. The code is complied to a
bytecode that is binary and platform independent. When the program
has to be executed, the code is fetched into the memory and
interpreted on the user’s machine. As an interpreted language, Java
has simple syntax.
When you compile a piece of code, all errors are listed together. You
can execute only when all the errors are rectified. An interpreter, on
the other hand, verifies the code and executes it line by line. Only
when the execution reaches the statement with error, the error is

3. 3

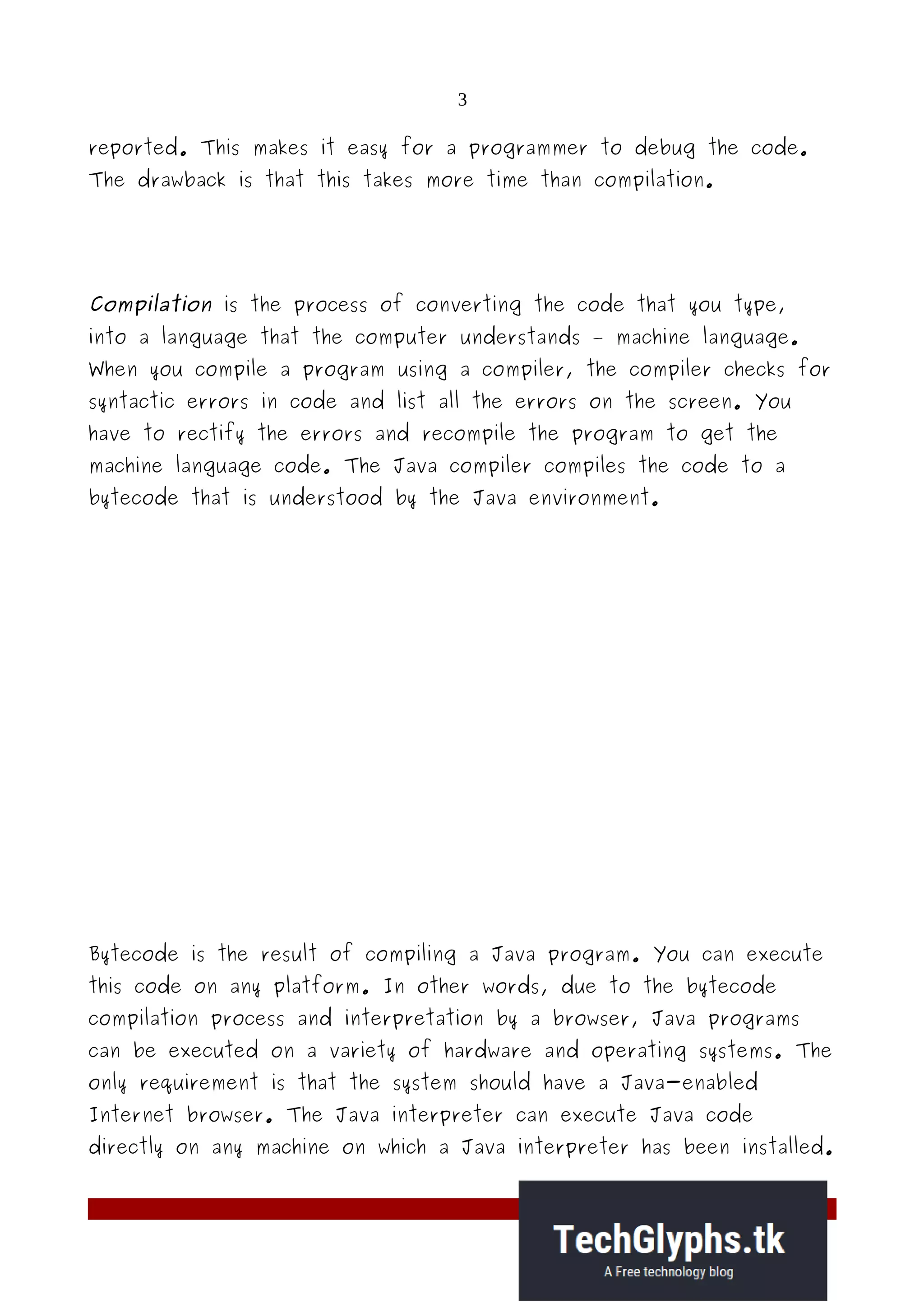

reported. This makes it easy for a programmer to debug the code.
The drawback is that this takes more time than compilation.
Compilation is the process of converting the code that you type,
into a language that the computer understands – machine language.
When you compile a program using a compiler, the compiler checks for
syntactic errors in code and list all the errors on the screen. You
have to rectify the errors and recompile the program to get the
machine language code. The Java compiler compiles the code to a
bytecode that is understood by the Java environment.
Bytecode is the result of compiling a Java program. You can execute
this code on any platform. In other words, due to the bytecode
compilation process and interpretation by a browser, Java programs
can be executed on a variety of hardware and operating systems. The
only requirement is that the system should have a Java-enabled
Internet browser. The Java interpreter can execute Java code
directly on any machine on which a Java interpreter has been installed.

4. 4

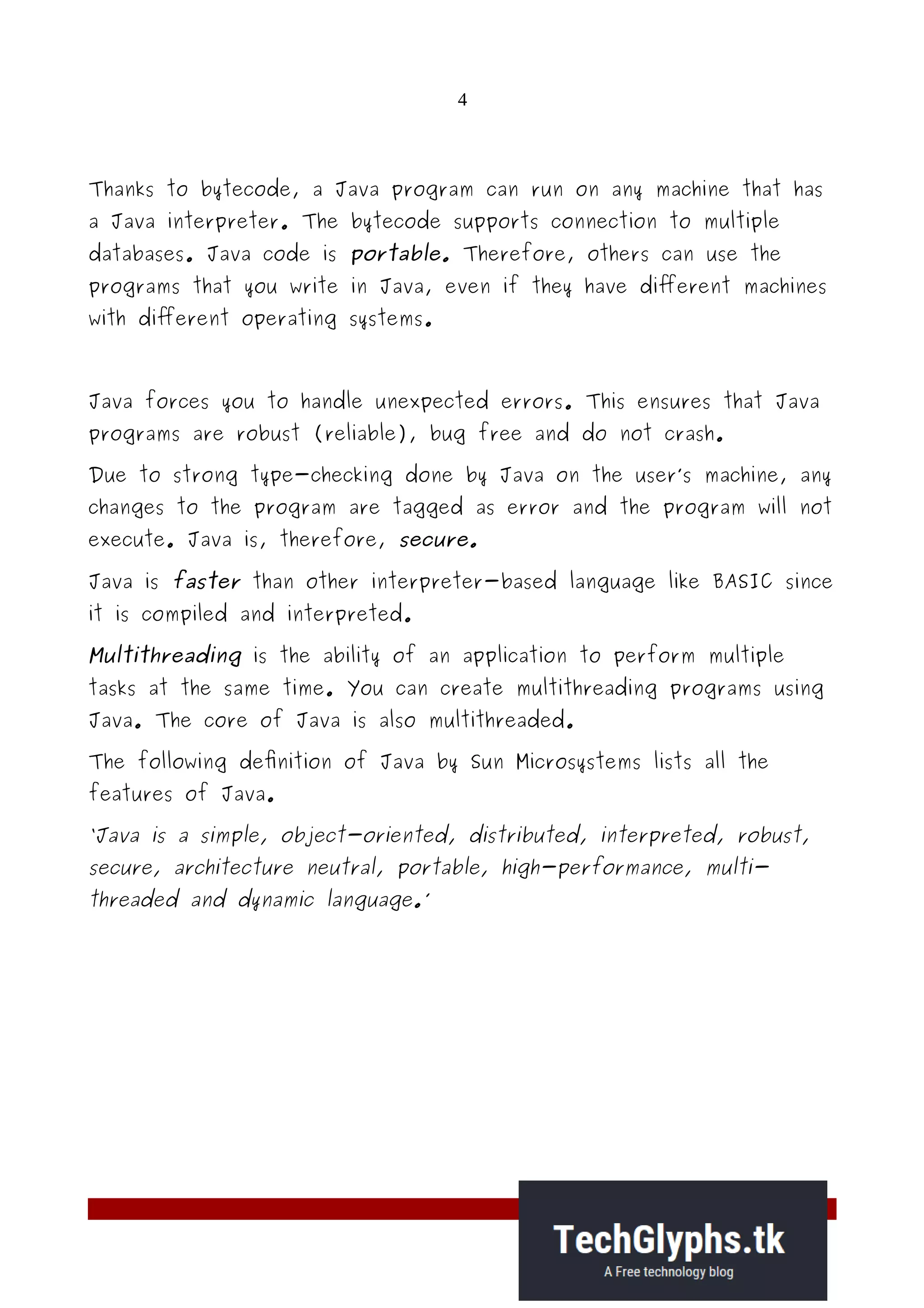

Thanks to bytecode, a Java program can run on any machine that has
a Java interpreter. The bytecode supports connection to multiple
databases. Java code is portable. Therefore, others can use the
programs that you write in Java, even if they have different machines
with different operating systems.
Java forces you to handle unexpected errors. This ensures that Java
programs are robust (reliable), bug free and do not crash.
Due to strong type-checking done by Java on the user’s machine, any
changes to the program are tagged as error and the program will not
execute. Java is, therefore, secure.
Java is faster than other interpreter-based language like BASIC since
it is compiled and interpreted.
Multithreading is the ability of an application to perform multiple
tasks at the same time. You can create multithreading programs using
Java. The core of Java is also multithreaded.
The following definition of Java by Sun Microsystems lists all the
features of Java.
‘Java is a simple, object-oriented, distributed, interpreted, robust,
secure, architecture neutral, portable, high-performance, multi-
threaded and dynamic language.’

5. 5
2. How do you execute a Java program?
The programs that you write in Java should be saved in a file, which
has the following name format: program is a set of instructions. In
order to execute a program, the operating system needs to
understand the language. The only language an operating system
understands is in terms of 0’s and 1’s i.e. the binary language.
.Before the Java virtual machine (VM) can run a Java program, the
program's Java source code must be compiled into byte-code using
the javac compiler. Java byte-code is a platform independent version
of machine code; the target machine is the Java VM rather than the
underlying architecture. To compile a Java source code file Foo.java,
you would do the following:
% javac -g Foo.java
The -g command line option is optional, but we recommend using it
as it makes debugging easier.
If there are no errors in your source file, the Java compiler will
produce one or more .class files (one .class file for each class
defined in the Foo.java source file). For example, the results of a
successful compile of Foo.java will produce a byte-code version of
the class in a file named Foo.class.
Every public class that you write must be in a separate .java file
where the first part of the file name is identical to the class name.

6. 6
The .java file additionally can contain code for protected and private
classes.
In Java, the program is compiled into bytecode (.class file) that run
on the Java Virtual Machine, which can interpret and run the program
on any operating system. This makes Java programs platform-
independent.
At the command prompt, type
javac <filename>.java
to compile the Java program.
Executing
When the code is compiled and error-free, the program can be
executed using the command:
java <class filename>
3.What are the different types of operators used in Java?
Operators play an important role in Java. There are three kinds of
operators in Java. They are (i) Arithmetic Operators (ii)
Comparison / Relational Operators and (iii) Logical Operators
Addition, Subtraction, Multiplication, Division and Modulus are the
various arithmetic operations that can be performed in Java.Java
provides eight Arithmetic operators. They are for addition,
subtraction, multiplication, division, modulo (or remainder), increment
(or add 1), decrement (or subtract 1), and negation. An example
program is shown below that demonstrates the different arithmetic
operators in java.

7. 7
The binary operator + is overloaded in the sense that the operation
performed is determined by the type of the operands. When one of
the operands is a String object, the other operand is implicitly
converted to its string representation and string concatenation is
performed.
Relational operators in Java are used to compare 2 or more objects.
Java provides six relational operators:
greater than (>), less than (<), greater than or equal (>=), less than
or equal (<=), equal (==), and not equal (!=).
All relational operators are binary operators, and their operands are
numeric expressions.
Binary numeric promotion is applied to the operands of these
operators. The evaluation results in a boolean value. Relational
operators have precedence lower than arithmetic operators, but higher
than that of the assignment operators. An example program is shown
below that demonstrates the different relational operators in java.The
increment operator is ++ and decrement operator is –. This is used
to add 1 to the value of a variable or subtract 1 from the value of a
variable. These operators are placed either before the variable or
after the variable nameComparison operators are used to compare two
values and give the resultsLogical operators are used to perform
Boolean operations on the operands.Logical operators return a true

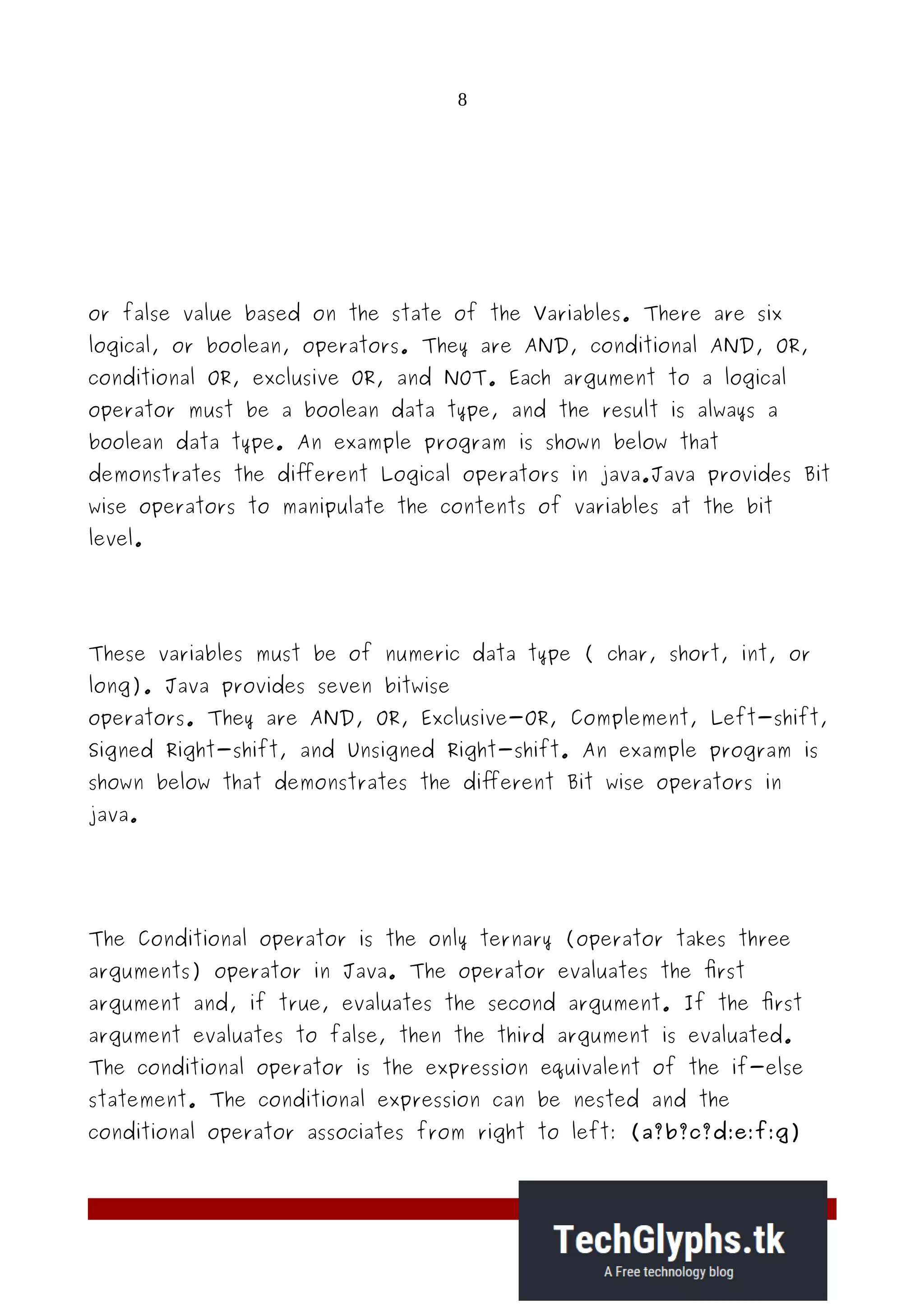

8. 8
or false value based on the state of the Variables. There are six
logical, or boolean, operators. They are AND, conditional AND, OR,
conditional OR, exclusive OR, and NOT. Each argument to a logical
operator must be a boolean data type, and the result is always a
boolean data type. An example program is shown below that
demonstrates the different Logical operators in java.Java provides Bit
wise operators to manipulate the contents of variables at the bit
level.
These variables must be of numeric data type ( char, short, int, or
long). Java provides seven bitwise
operators. They are AND, OR, Exclusive-OR, Complement, Left-shift,
Signed Right-shift, and Unsigned Right-shift. An example program is
shown below that demonstrates the different Bit wise operators in
java.
The Conditional operator is the only ternary (operator takes three
arguments) operator in Java. The operator evaluates the first
argument and, if true, evaluates the second argument. If the first
argument evaluates to false, then the third argument is evaluated.
The conditional operator is the expression equivalent of the if-else
statement. The conditional expression can be nested and the
conditional operator associates from right to left: (a?b?c?d:e:f:g)

9. 9
evaluates as (a?(b?(c?d:e):f):g)
4. What are the various character extraction functions available in
Java?
The String class provides a number of ways in
which characters can be extracted from a String object. Each is
examined here. Although the characters that comprise a string within a
String object cannot be indexed as if they were a character array,
many of the String methods employ an index (or offset) into the
string for their operation. Like arrays, the string indexes begin at
zero.

10. 10

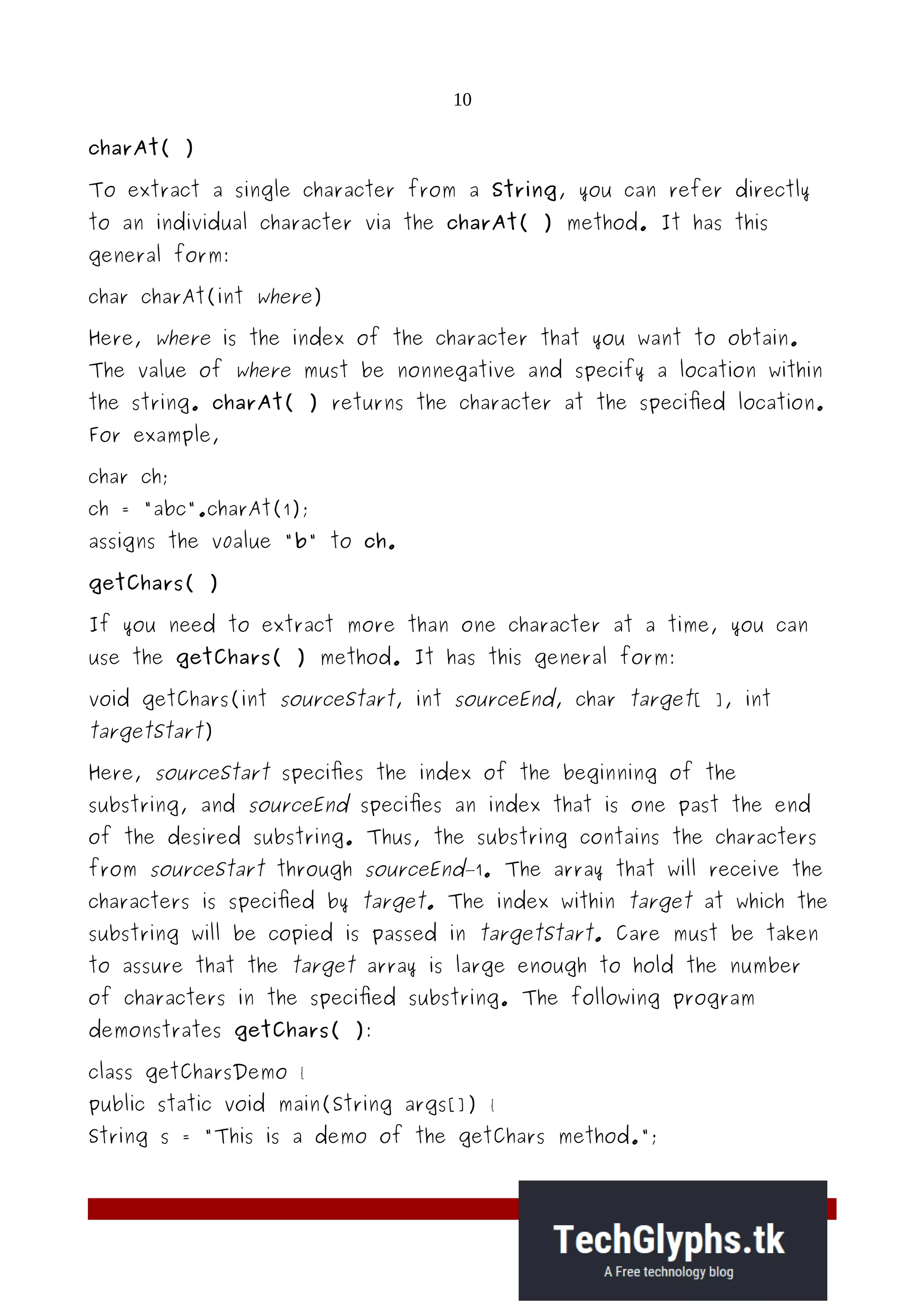

charAt( )
To extract a single character from a String, you can refer directly
to an individual character via the charAt( ) method. It has this
general form:
char charAt(int where)
Here, where is the index of the character that you want to obtain.
The value of where must be nonnegative and specify a location within
the string. charAt( ) returns the character at the specified location.
For example,
char ch;
ch = "abc".charAt(1);
assigns the v0alue "b" to ch.
getChars( )
If you need to extract more than one character at a time, you can
use the getChars( ) method. It has this general form:
void getChars(int sourceStart, int sourceEnd, char target[ ], int
targetStart)
Here, sourceStart specifies the index of the beginning of the
substring, and sourceEnd specifies an index that is one past the end
of the desired substring. Thus, the substring contains the characters
from sourceStart through sourceEnd–1. The array that will receive the
characters is specified by target. The index within target at which the
substring will be copied is passed in targetStart. Care must be taken
to assure that the target array is large enough to hold the number
of characters in the specified substring. The following program
demonstrates getChars( ):
class getCharsDemo {
public static void main(String args[]) {
String s = "This is a demo of the getChars method.";

11. 11

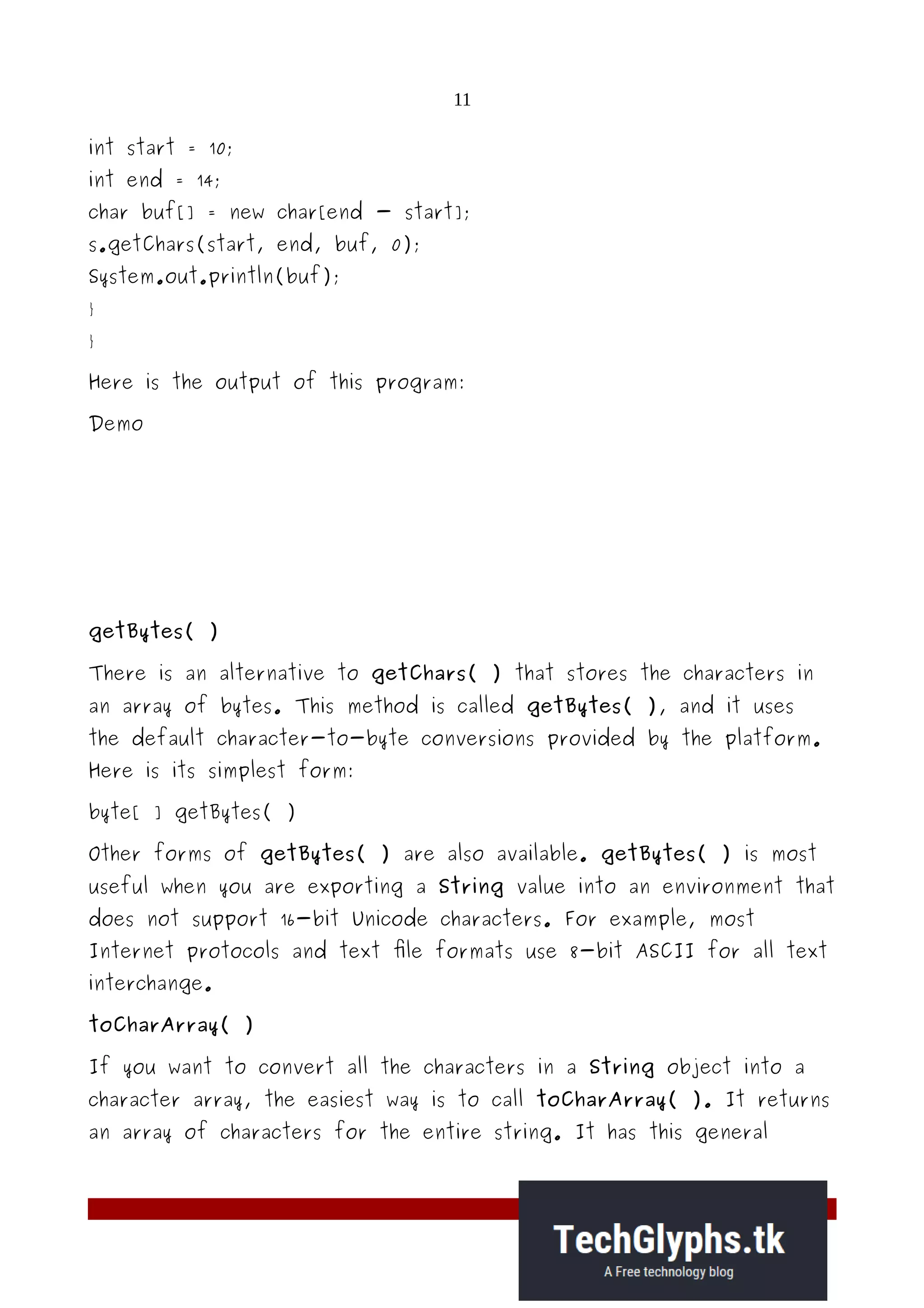

int start = 10;
int end = 14;
char buf[] = new char[end - start];
s.getChars(start, end, buf, 0);
System.out.println(buf);
}
}
Here is the output of this program:
Demo
getBytes( )
There is an alternative to getChars( ) that stores the characters in
an array of bytes. This method is called getBytes( ), and it uses
the default character-to-byte conversions provided by the platform.
Here is its simplest form:
byte[ ] getBytes( )
Other forms of getBytes( ) are also available. getBytes( ) is most
useful when you are exporting a String value into an environment that
does not support 16-bit Unicode characters. For example, most
Internet protocols and text file formats use 8-bit ASCII for all text
interchange.
toCharArray( )
If you want to convert all the characters in a String object into a
character array, the easiest way is to call toCharArray( ). It returns
an array of characters for the entire string. It has this general

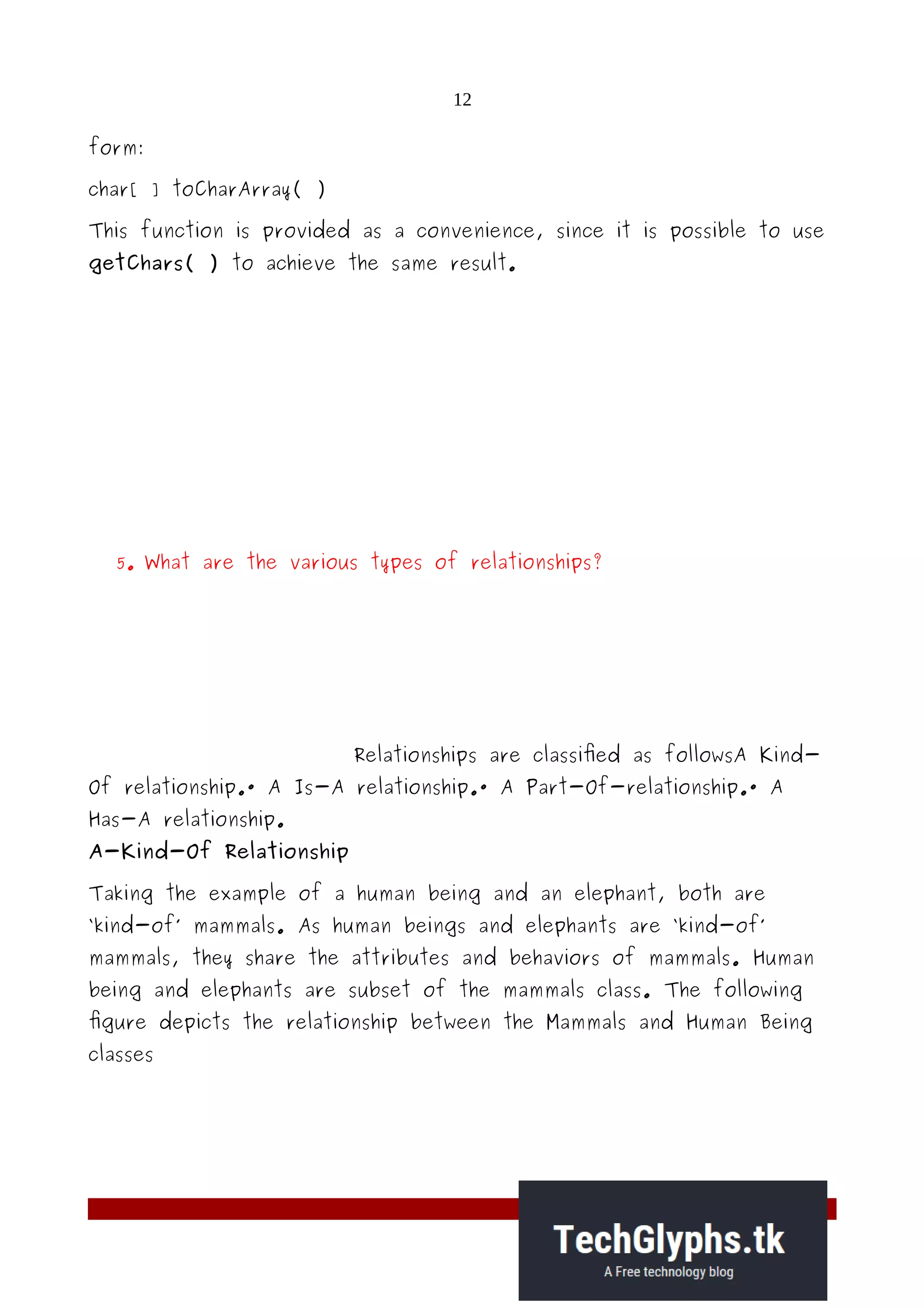

12. 12
form:
char[ ] toCharArray( )
This function is provided as a convenience, since it is possible to use
getChars( ) to achieve the same result.
5. What are the various types of relationships?
Relationships are classified as followsA Kind-
Of relationship.· A Is-A relationship.· A Part-Of-relationship.· A
Has-A relationship.
A-Kind-Of Relationship
Taking the example of a human being and an elephant, both are
‘kind-of’ mammals. As human beings and elephants are ‘kind-of’
mammals, they share the attributes and behaviors of mammals. Human
being and elephants are subset of the mammals class. The following
figure depicts the relationship between the Mammals and Human Being
classes

13. 13

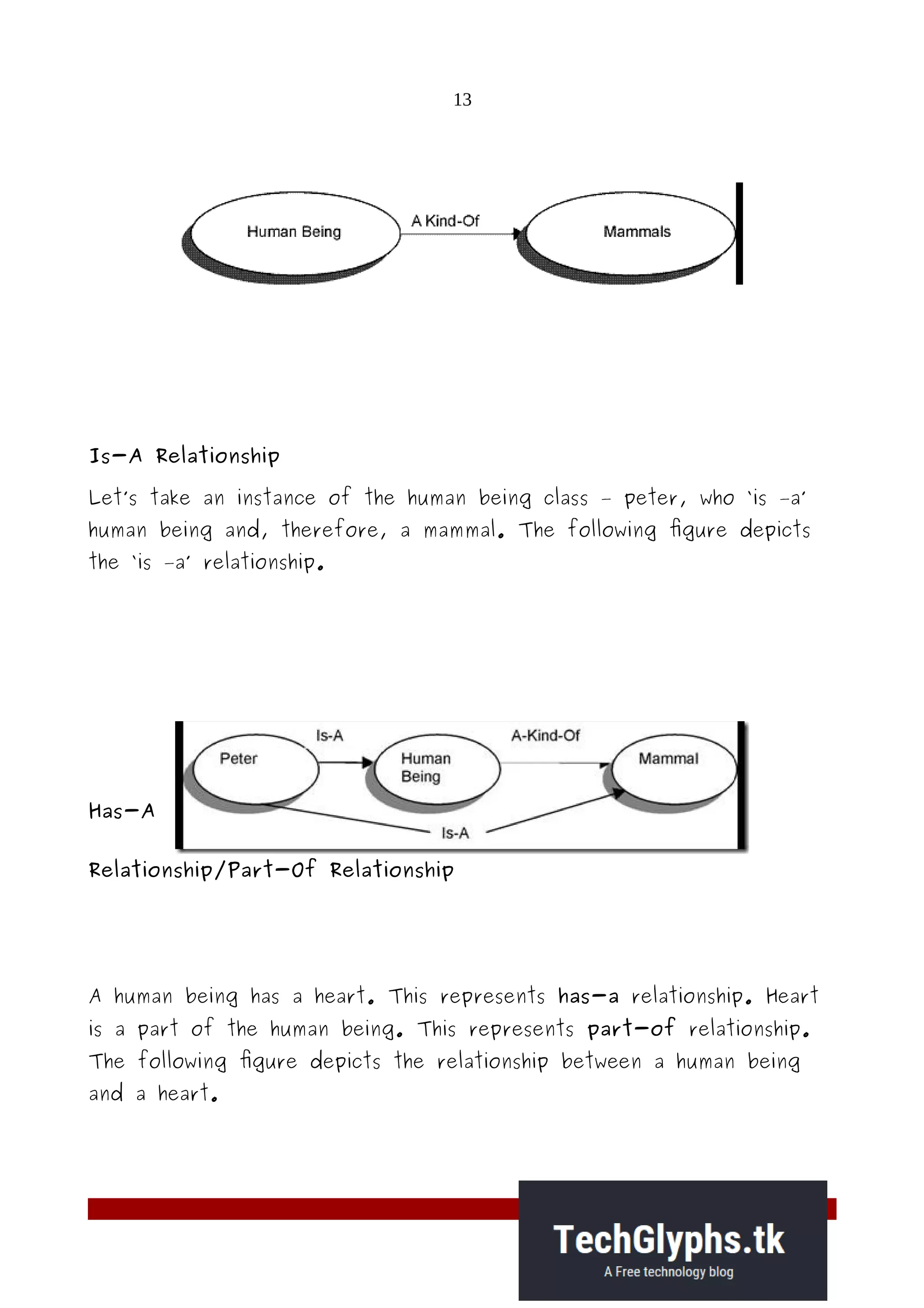

Is-A Relationship
Let’s take an instance of the human being class – peter, who ‘is –a’
human being and, therefore, a mammal. The following figure depicts
the ‘is –a’ relationship.
Has-A
Relationship/Part-Of Relationship

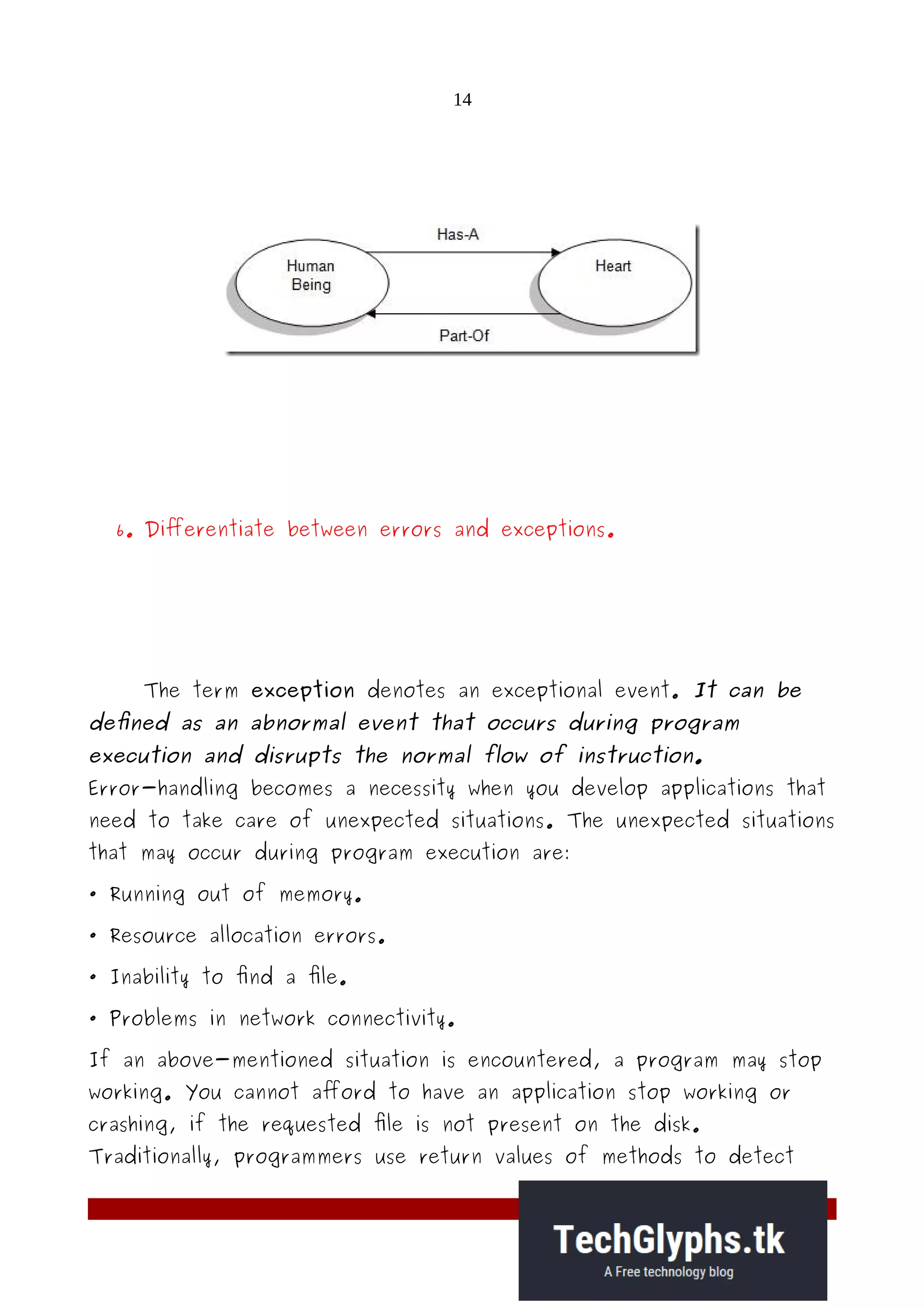

A human being has a heart. This represents has-a relationship. Heart
is a part of the human being. This represents part-of relationship.
The following figure depicts the relationship between a human being
and a heart.

14. 14
6. Differentiate between errors and exceptions.
The term exception denotes an exceptional event. It can be
defined as an abnormal event that occurs during program
execution and disrupts the normal flow of instruction.
Error-handling becomes a necessity when you develop applications that
need to take care of unexpected situations. The unexpected situations
that may occur during program execution are:
· Running out of memory.
· Resource allocation errors.
· Inability to find a file.
· Problems in network connectivity.
If an above-mentioned situation is encountered, a program may stop
working. You cannot afford to have an application stop working or
crashing, if the requested file is not present on the disk.
Traditionally, programmers use return values of methods to detect

15. 15
the errors that has occurred at runtime. A variable errno was used
for a numeric representation of the error. When multiple errors has
occurred in a method, errno would have only one value-that of the
last error that occurred in the method.
Java handles exceptions in the object-oriented way. You can use a
hierarchy of exception classes to manage runtime errors.
The class at the top of the exception classes hierarchy is Throwable
class. Two classes are derived from the Throwable class – Error and
Exception. The Exception class is used for the exceptional conditions
that has to be trapped in a program. The Error class defines a
condition that does not occur under normal circumstances. In other
words, the Error class is used for catastrophic failures such as
VirtualMachineError. These classes are available in the java.lang
package.
Java has several predefined exceptions. The most common exceptions
that you may encounter are described below.
· Arithmetic Exception
This exception is thrown when an exceptional arithmetic condition has
occurred. For example, a division by zero generates such an
exception.
· NullPointer Exception

16. 16

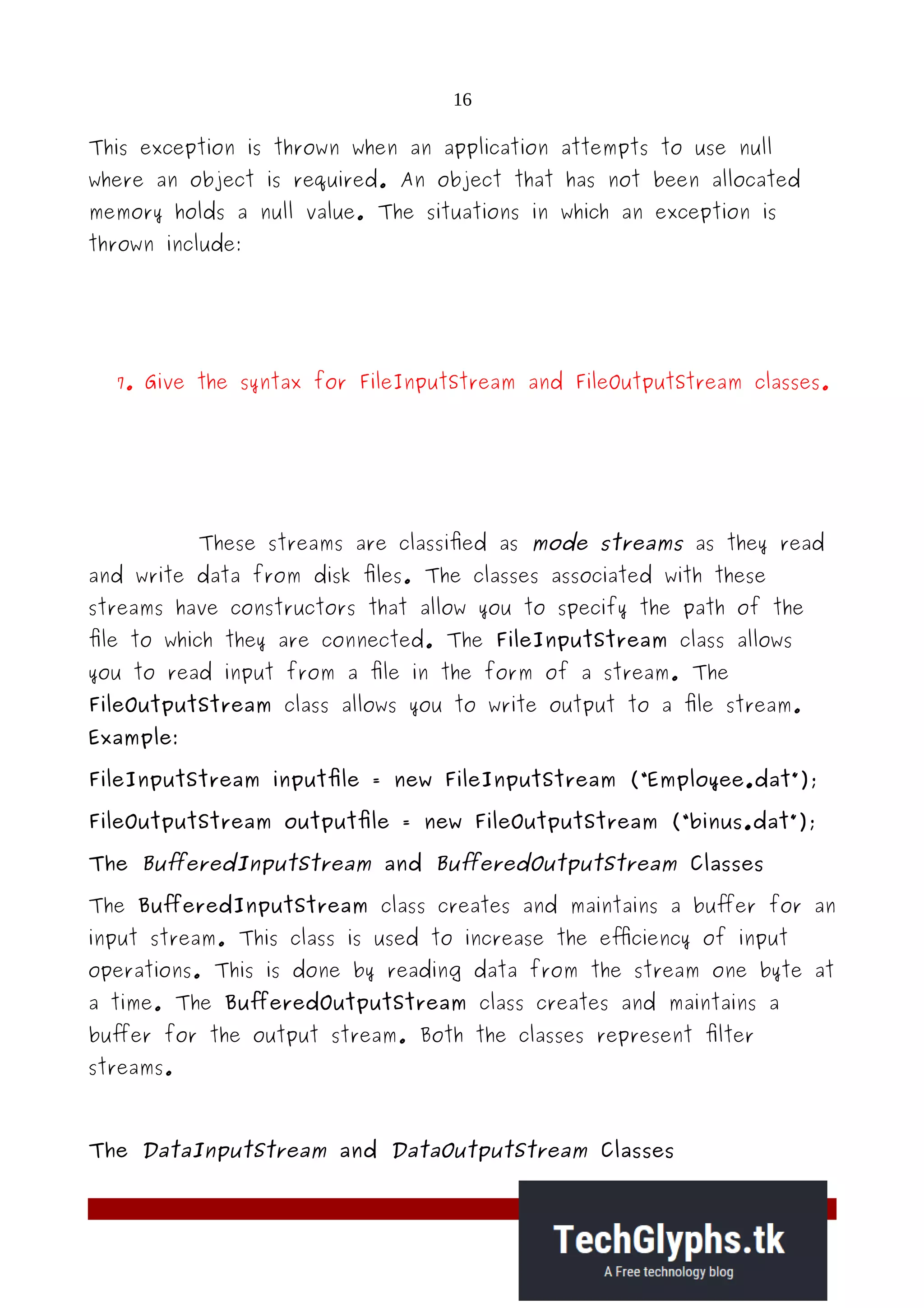

This exception is thrown when an application attempts to use null
where an object is required. An object that has not been allocated
memory holds a null value. The situations in which an exception is
thrown include:
7. Give the syntax for FileInputStream and FileOutputStream classes.
These streams are classified as mode streams as they read
and write data from disk files. The classes associated with these
streams have constructors that allow you to specify the path of the
file to which they are connected. The FileInputStream class allows
you to read input from a file in the form of a stream. The
FileOutputStream class allows you to write output to a file stream.
Example:
FileInputStream inputfile = new FileInputStream (“Employee.dat”);
FileOutputStream outputfile = new FileOutputStream (“binus.dat”);
The BufferedInputStream and BufferedOutputStream Classes
The BufferedInputStream class creates and maintains a buffer for an
input stream. This class is used to increase the efficiency of input
operations. This is done by reading data from the stream one byte at
a time. The BufferedOutputStream class creates and maintains a
buffer for the output stream. Both the classes represent filter
streams.
The DataInputStream and DataOutputStream Classes

17. 17

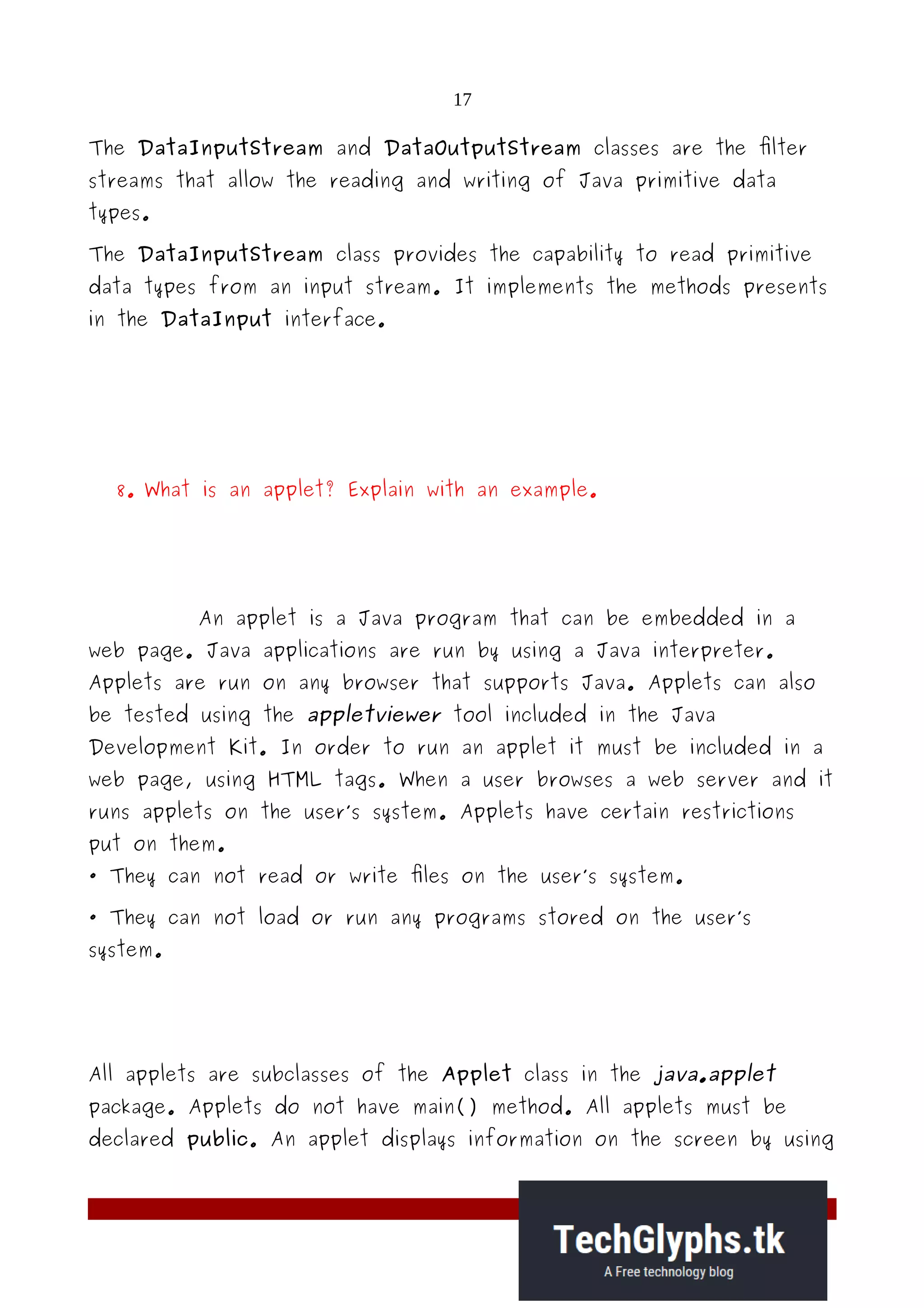

The DataInputStream and DataOutputStream classes are the filter
streams that allow the reading and writing of Java primitive data
types.
The DataInputStream class provides the capability to read primitive
data types from an input stream. It implements the methods presents
in the DataInput interface.
8. What is an applet? Explain with an example.
An applet is a Java program that can be embedded in a
web page. Java applications are run by using a Java interpreter.
Applets are run on any browser that supports Java. Applets can also
be tested using the appletviewer tool included in the Java
Development Kit. In order to run an applet it must be included in a
web page, using HTML tags. When a user browses a web server and it
runs applets on the user’s system. Applets have certain restrictions
put on them.
· They can not read or write files on the user’s system.
· They can not load or run any programs stored on the user’s
system.
All applets are subclasses of the Applet class in the java.applet
package. Applets do not have main() method. All applets must be
declared public. An applet displays information on the screen by using

18. 18

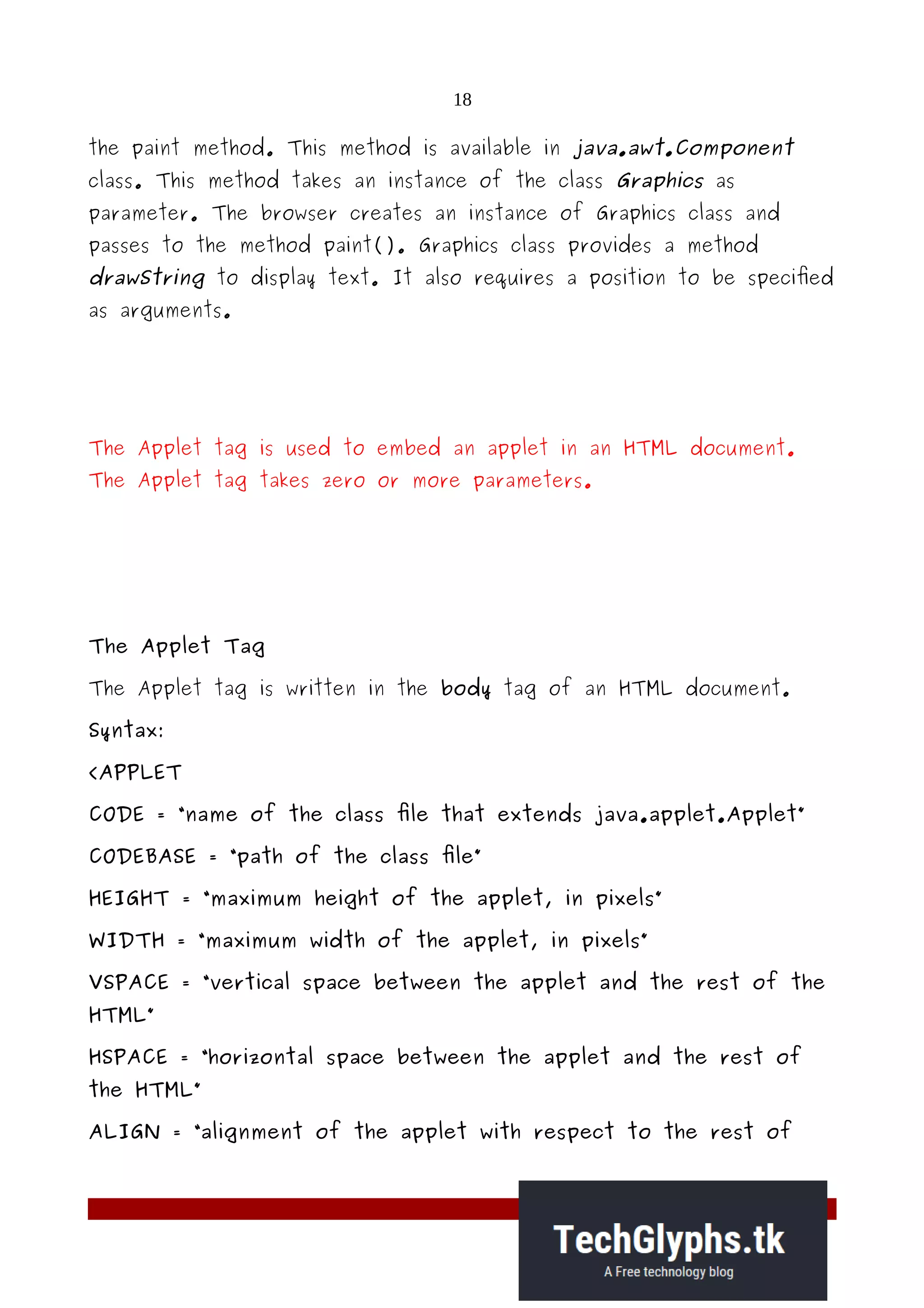

the paint method. This method is available in java.awt.Component
class. This method takes an instance of the class Graphics as
parameter. The browser creates an instance of Graphics class and
passes to the method paint(). Graphics class provides a method
drawString to display text. It also requires a position to be specified
as arguments.
The Applet tag is used to embed an applet in an HTML document.
The Applet tag takes zero or more parameters.
The Applet Tag
The Applet tag is written in the body tag of an HTML document.
Syntax:
<APPLET
CODE = “name of the class file that extends java.applet.Applet”
CODEBASE = “path of the class file”
HEIGHT = “maximum height of the applet, in pixels”
WIDTH = “maximum width of the applet, in pixels”
VSPACE = “vertical space between the applet and the rest of the
HTML”
HSPACE = “horizontal space between the applet and the rest of
the HTML”
ALIGN = “alignment of the applet with respect to the rest of

19. 19

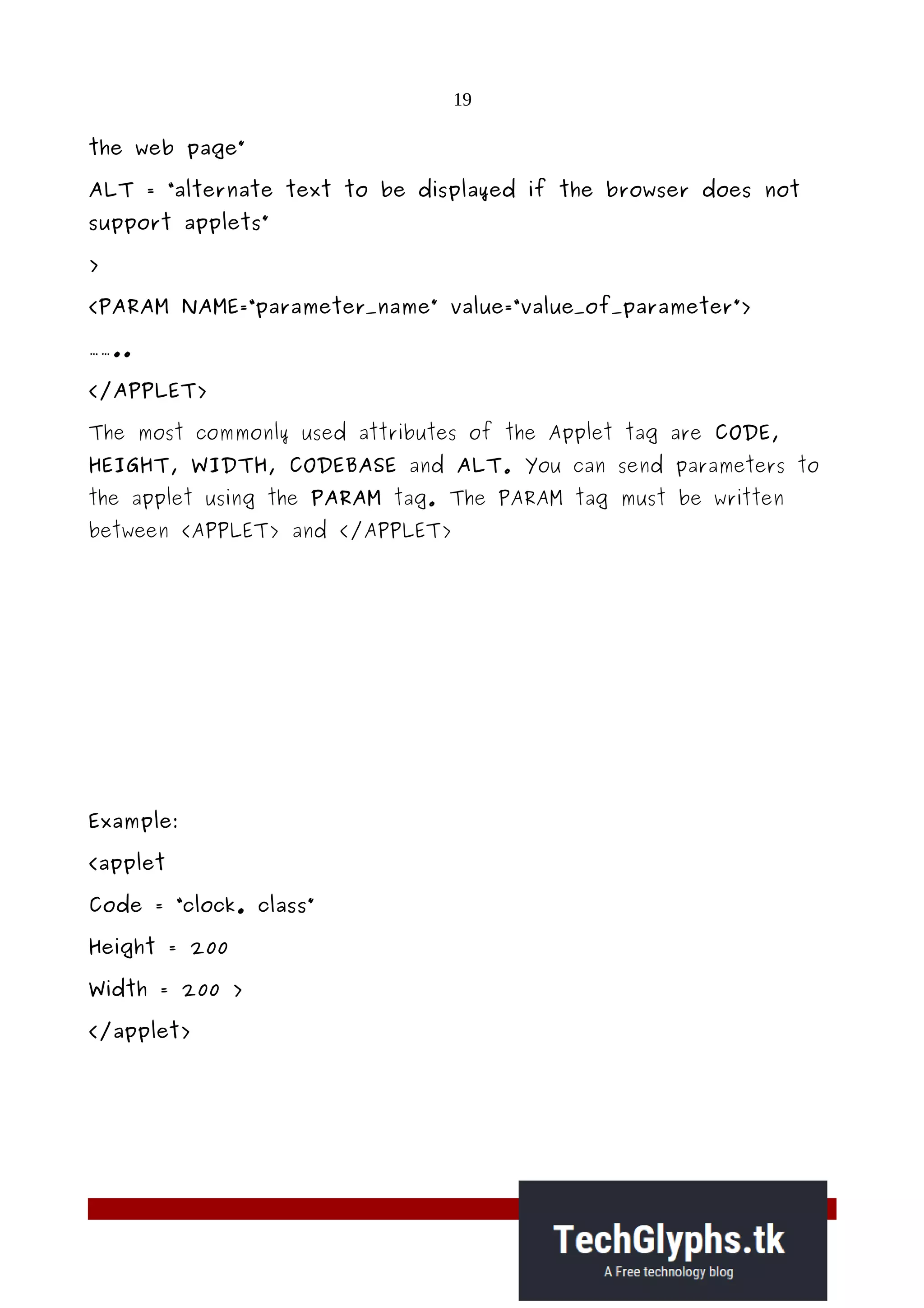

the web page”
ALT = “alternate text to be displayed if the browser does not
support applets”
>
<PARAM NAME=“parameter_name” value=“value_of_parameter”>
……..
</APPLET>
The most commonly used attributes of the Applet tag are CODE,
HEIGHT, WIDTH, CODEBASE and ALT. You can send parameters to
the applet using the PARAM tag. The PARAM tag must be written
between <APPLET> and </APPLET>
Example:
<applet
Code = “clock. class”
Height = 200
Width = 200 >
</applet>

20. 20

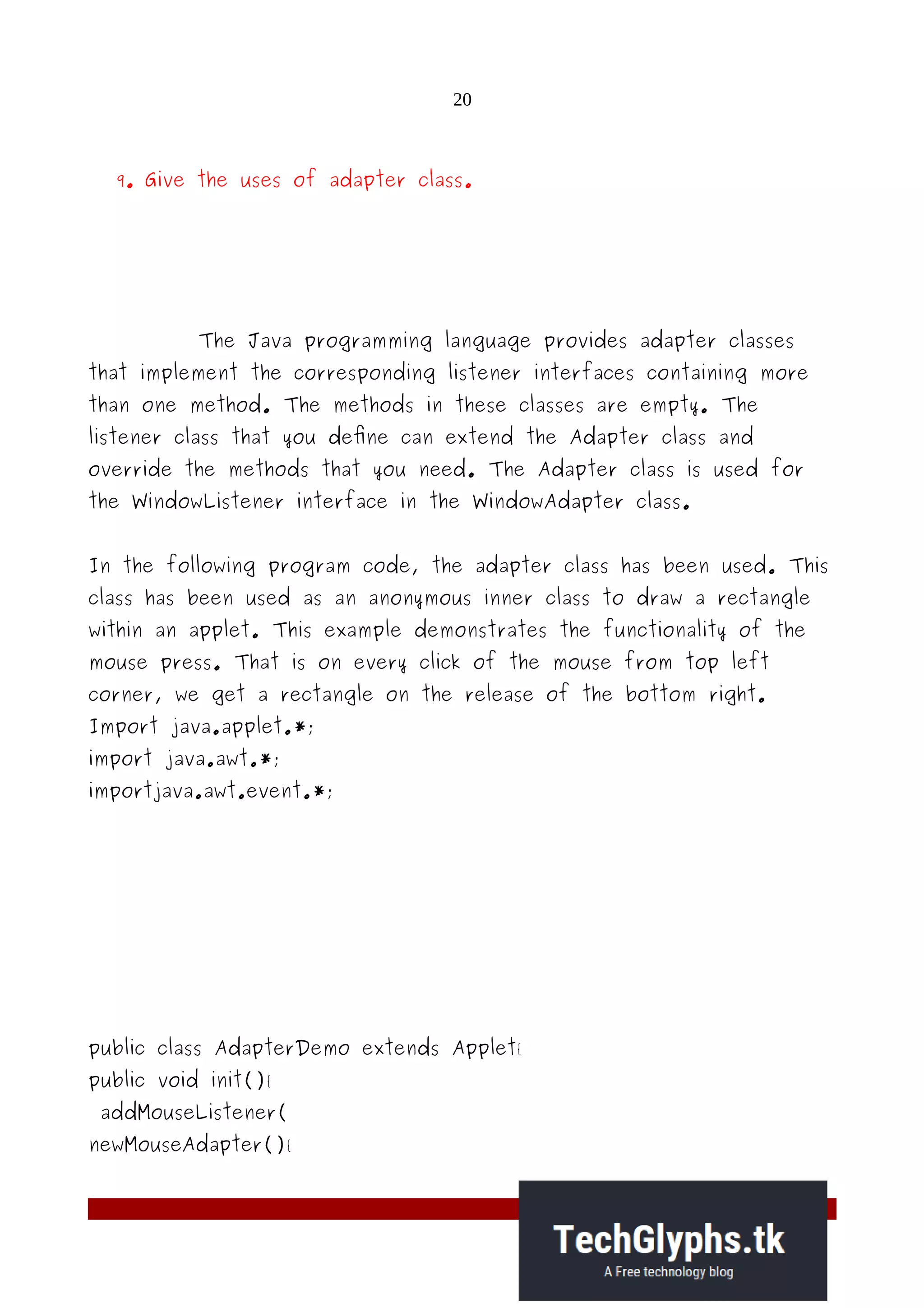

9. Give the uses of adapter class.
The Java programming language provides adapter classes
that implement the corresponding listener interfaces containing more
than one method. The methods in these classes are empty. The
listener class that you define can extend the Adapter class and
override the methods that you need. The Adapter class is used for
the WindowListener interface in the WindowAdapter class.
In the following program code, the adapter class has been used. This
class has been used as an anonymous inner class to draw a rectangle
within an applet. This example demonstrates the functionality of the
mouse press. That is on every click of the mouse from top left
corner, we get a rectangle on the release of the bottom right.
Import java.applet.*;
import java.awt.*;
importjava.awt.event.*;
public class AdapterDemo extends Applet{
public void init(){
addMouseListener(
newMouseAdapter(){

21. 21

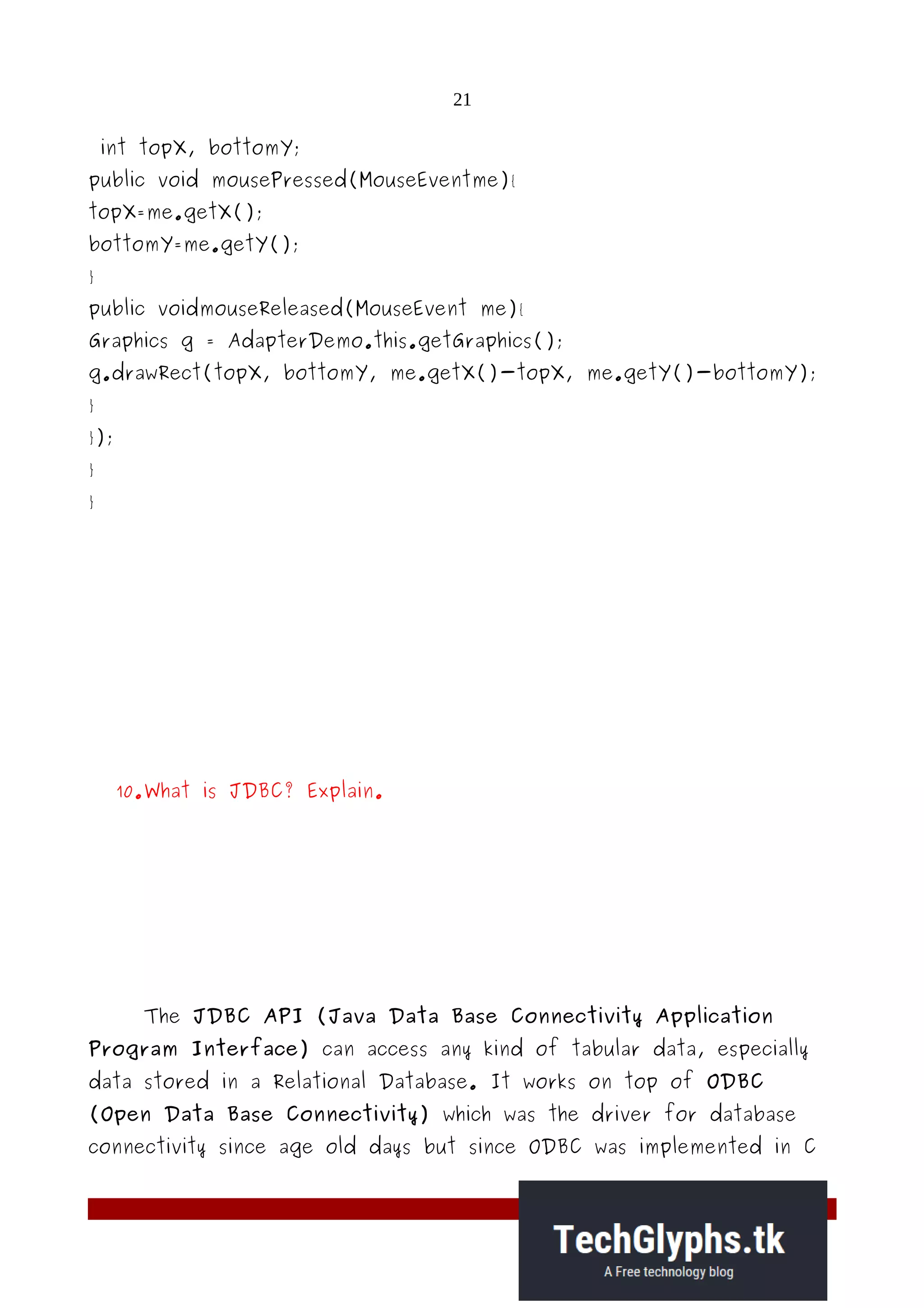

int topX, bottomY;
public void mousePressed(MouseEventme){
topX=me.getX();
bottomY=me.getY();
}
public voidmouseReleased(MouseEvent me){
Graphics g = AdapterDemo.this.getGraphics();
g.drawRect(topX, bottomY, me.getX()-topX, me.getY()-bottomY);
}
});
}
}
10.What is JDBC? Explain.
The JDBC API (Java Data Base Connectivity Application
Program Interface) can access any kind of tabular data, especially
data stored in a Relational Database. It works on top of ODBC
(Open Data Base Connectivity) which was the driver for database
connectivity since age old days but since ODBC was implemented in C

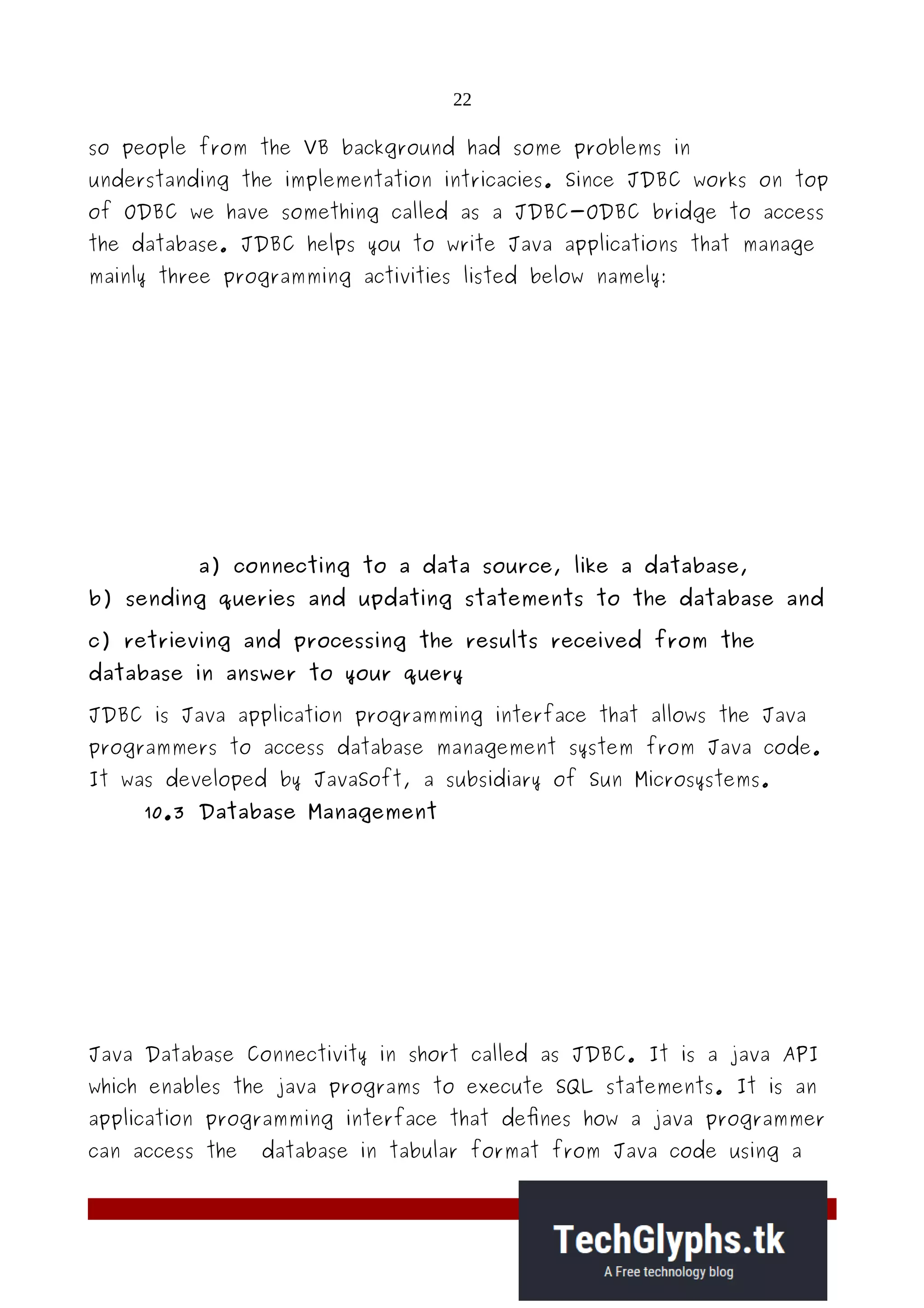

22. 22
so people from the VB background had some problems in
understanding the implementation intricacies. Since JDBC works on top
of ODBC we have something called as a JDBC-ODBC bridge to access
the database. JDBC helps you to write Java applications that manage
mainly three programming activities listed below namely:
a) connecting to a data source, like a database,
b) sending queries and updating statements to the database and
c) retrieving and processing the results received from the
database in answer to your query
JDBC is Java application programming interface that allows the Java
programmers to access database management system from Java code.
It was developed by JavaSoft, a subsidiary of Sun Microsystems.
10.3 Database Management
Java Database Connectivity in short called as JDBC. It is a java API
which enables the java programs to execute SQL statements. It is an
application programming interface that defines how a java programmer
can access the database in tabular format from Java code using a

23. 23

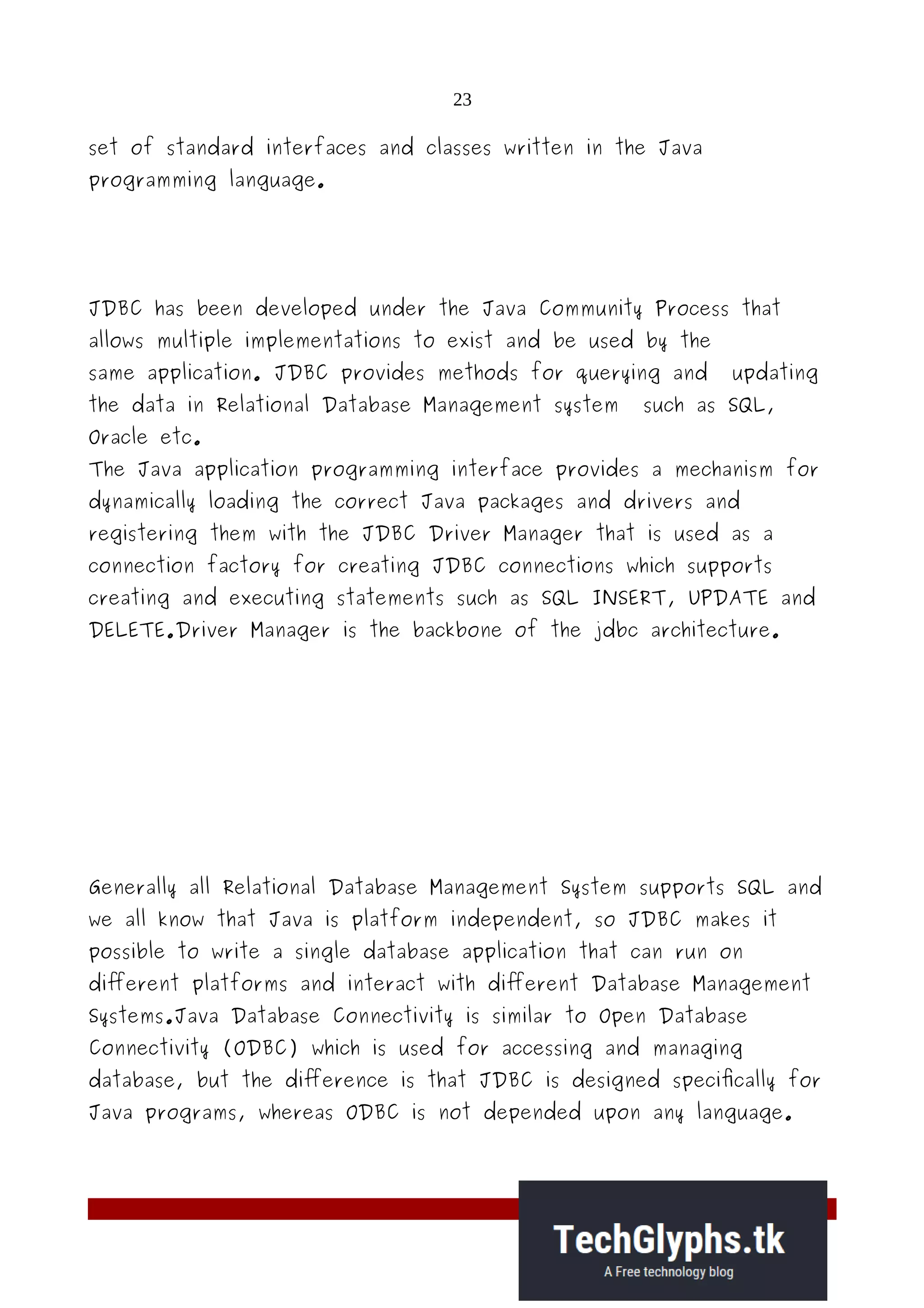

set of standard interfaces and classes written in the Java
programming language.
JDBC has been developed under the Java Community Process that
allows multiple implementations to exist and be used by the
same application. JDBC provides methods for querying and updating
the data in Relational Database Management system such as SQL,
Oracle etc.
The Java application programming interface provides a mechanism for
dynamically loading the correct Java packages and drivers and
registering them with the JDBC Driver Manager that is used as a
connection factory for creating JDBC connections which supports
creating and executing statements such as SQL INSERT, UPDATE and
DELETE.Driver Manager is the backbone of the jdbc architecture.
Generally all Relational Database Management System supports SQL and
we all know that Java is platform independent, so JDBC makes it
possible to write a single database application that can run on
different platforms and interact with different Database Management
Systems.Java Database Connectivity is similar to Open Database
Connectivity (ODBC) which is used for accessing and managing
database, but the difference is that JDBC is designed specifically for
Java programs, whereas ODBC is not depended upon any language.

24. 24

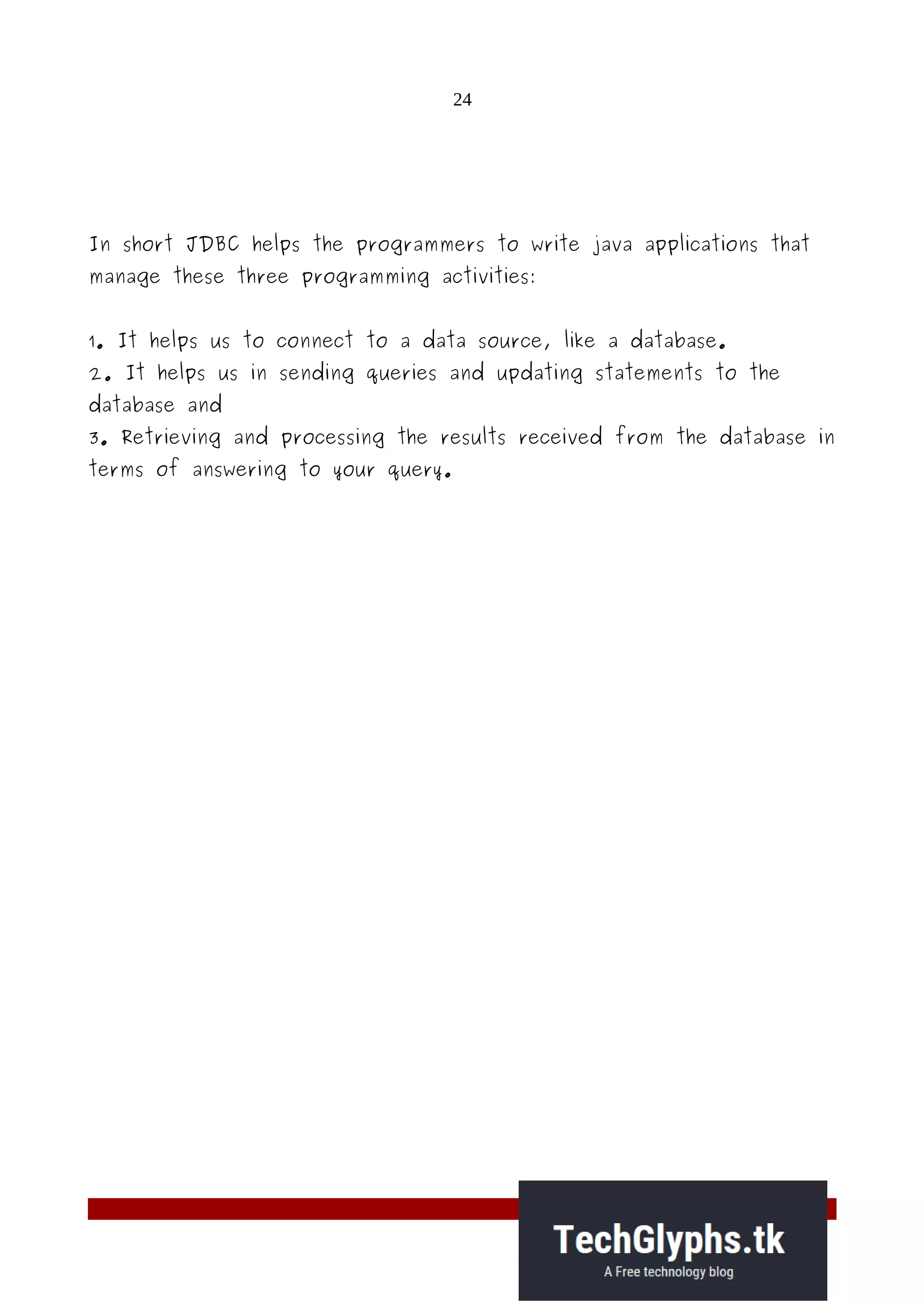

In short JDBC helps the programmers to write java applications that
manage these three programming activities:
1. It helps us to connect to a data source, like a database.
2. It helps us in sending queries and updating statements to the
database and
3. Retrieving and processing the results received from the database in
terms of answering to your query.
