Noah Zoschke's presentation at the SF Microservices Meetup outlines a streamlined approach to bootstrapping microservices by embracing constraints and standardizing packaging, configuration, and architecture. Key recommendations include using Docker for packaging and Docker Compose for managing configurations, along with automation strategies to enhance resilience and streamline deployment processes. The presentation illustrates how to compose and manage microservices effectively within an AWS architecture, focusing on health checks, service discovery, and dependency management.

1. Noah Zoschke
noah@convox.com
@nzoschke
SF Microservices Meetup
2/23/2017
Bootstrapping Microservices

2. Microservices often
mean more things to
worry about.

3. Architecture
Cloud services
Resource contention
Inter-service dependencies
…
Organizational
Different development languages
Different deployment techniques
…

4. But there is a simple
formula to avoid
many problems.

5. 1. Embrace constraints
2. Use the same packaging for every
microservice codebase
3. Use the same configuration files for every
microservice codebase
4. Use the same cloud service oriented
architecture for every microservice
5. Follow best practices for cloud service
automation
For every microservice:

6. Constraints: Twelve-Factor
Packaging: Docker
Configuration File: docker-compose.yml
SOA: ELB / ECS
Automation: CF / ASG / Lambda
For every microservice:

7. I. Codebase
One codebase tracked in git, many deploys
II. Dependencies
Explicitly declare and isolate dependencies
III. Config
Store config in the environment
IV. Backing services
Treat backing services as attached resources
V. Build, release, run
Strictly separate build and run stages
VI. Processes
Execute the app as one or more stateless
processes
Constrants - Twelve-Factor
VII. Port binding
Export services via port binding
VIII. Concurrency
Scale out via the process model
IX. Disposability
Maximize robustness with fast startup/shutdown
X. Dev/prod parity
Keep dev, staging, and production similar
XI. Logs
Treat logs as event streams
XII. Admin processes
Run admin/management tasks as one-off
processes

8. Add a Dockerfile
build recipe to
every microservice
Solves the multi-
language problem
Packaging - Docker
# start from a base image
FROM ubuntu:16.04
# install system dependencies
RUN apt-get update &&
apt-get install -y nodejs npm
# specify the app location
WORKDIR /app
# install app dependencies
COPY package.json /app/
package.json
RUN npm install
# add app source code
COPY . /app

9. Add a docker-
compose.yml
config recipe to
every codebase
Defines the SOA
for an app
Config - Docker Compose
version: '2'
services:
web:
build: .
command: ["bin/web"]
environment:
- REDIS_URL
- NODE_ENV=development
labels:
- convox.port.443.protocol=https
links:
- redis
ports:
- 80:8000
- 443:8000
worker:
build: .
command: ["bin/worker"]
environment:
- NODE_ENV=development
- REDIS_URL
links:
- redis
redis:
image: convox/redis
ports:
- 6379

10. Architecture - Cloud SOA
• Service Level Agreements
• Versioned APIs
• Independent Scaling
• Utility Pricing
┌────────────────────────────────────┐
┌┤ Load Balancer ├┐
│└────────────────────────────────────┘│
│┌─────────────────┐┌─────────────────┐│
││┌─────┐┌────────┐││ ┌─────┐ ││
│││web 1││worker 1│││ │web 2│ ││
││└─────┘└────────┘││ └─────┘ ││
││ VM 1 ││ VM 2 ││
│└─────────────────┘└─────────────────┘│
│ ┌────────┐ │
│ │Database│ │
│ └────────┘ │
│ VPC │
└──────────────────────────────────────┘
┌──────┐┌─────┐┌───┐┌──────┐┌──┐┌────┐
│Crypto││Image││Log││Metric││KV││Blob│
└──────┘└─────┘└───┘└──────┘└──┘└────┘

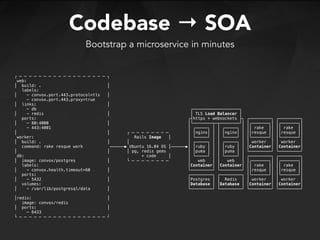

11. Codebase → SOA
Bootstrap a microservice in minutes
┌ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┐
web:
│ build: . │
labels:
│ - convox.port.443.protocol=tls │
- convox.port.443.proxy=true
│ links: │
- db ┌───────────────────┐
│ - redis │ │ TLS Load Balancer │
ports: ┌┤https + websockets ├┐ ┌─────────┐ ┌─────────┐
│ - 80:4000 │ │└────────┬─┬────────┘│ │┌───────┐│ │┌───────┐│
- 443:4001 │ ┌─────┐ │ │ ┌─────┐ │ ││ rake ││ ││ rake ││
│ │ ┌ ─ ─ ─ ─ ─ ─ ─ ─ │ │nginx│ │ │ │nginx│ │ ││resque ││ ││resque ││
worker: Rails Image │ │ └─────┘ │ │ └─────┘ │ │└───────┘│ │└───────┘│
│ build: . │ │ │ ┌─────┐ │ │ ┌─────┐ │ │ worker │ │ worker │
command: rake resque work ──────▶ Ubuntu 16.04 OS │──────▶│ │ruby │ │ │ │ruby │ │ │Container│ │Container│
│ │ │ pg, redis gems │ │puma │ │ │ │puma │ │ └─────────┘ └─────────┘
db: + code │ │ └─────┘ │ │ └─────┘ │ ┌─────────┐ ┌─────────┐
│ image: convox/postgres │ └ ─ ─ ─ ─ ─ ─ ─ ─ │ web │ │ web │ │┌───────┐│ │┌───────┐│
labels: │Container│ │Container│ ││ rake ││ ││ rake ││
│ - convox.health.timeout=60 │ └─────────┘ └─────────┘ ││resque ││ ││resque ││
ports: ┌─────────┐ ┌─────────┐ │└───────┘│ │└───────┘│
│ - 5432 │ │Postgres │ │ Redis │ │ worker │ │ worker │
volumes: │Database │ │Database │ │Container│ │Container│
│ - /var/lib/postgresql/data │ └─────────┘ └─────────┘ └─────────┘ └─────────┘
│redis: │
image: convox/redis
│ ports: │
- 6433
└ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┘

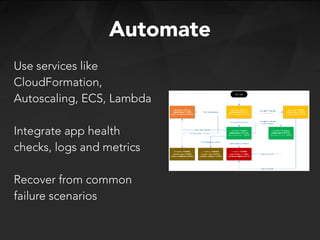

12. Automate
Use services like
CloudFormation,
Autoscaling, ECS, Lambda
Integrate app health
checks, logs and metrics
Recover from common
failure scenarios

13. Automate - Health Checks
Verify during deployment
Automatically roll back if
unhealthy
Check every second
Automatically replace if
unhealthy
version: '2'
services:
web:
labels:
- convox.health.path=/_health
- convox.health.port=5000
- convox.health.timeout=3
- convox.port.443.secure=true
- convox.port.443.protocol=https
ports:
- 443:5000

14. Automate - Periodic Tasks
Define in codebase
Trigger with
serverless
architecture (Lambda)
Control other services
web:
labels:
- convox.cron.myjob=0 * * * ? bin/myjob

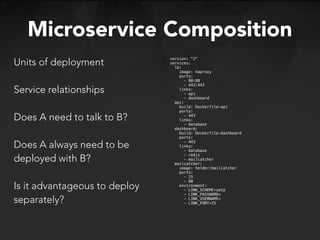

15. Microservice Composition
Units of deployment
Service relationships
Does A need to talk to B?
Does A always need to be
deployed with B?
Is it advantageous to deploy
separately?
version: "2"
services:
lb:
image: haproxy
ports:
- 80:80
- 443:443
links:
- api
- dashboard
api:
build: Dockerfile-api
ports:
- 443
links:
- database
dashboard:
build: Dockerfile-dashboard
ports:
- 443
links:
- database
- redis
- mailcatcher
mailcatcher:
image: helder/mailcatcher
ports:
- 25
- 80
environment:
- LINK_SCHEME=smtp
- LINK_PASSWORD=
- LINK_USERNAME=
- LINK_PORT=25

16. Microservice Discovery
Glue microservices
together with
Lambda and Route
53
https://aws.amazon.com/blogs/compute/service-discovery-an-amazon-ecs-reference-architecture/

17. Embraces constraints
Uses Docker for packaging
Uses docker-compose for configuration
Runs on a reliable AWS architecture
Automates common failures
When every microservice:
There’s little to worry about
except code.

18. Noah Zoschke
noah@convox.com
@nzoschke
SF Microservices Meetup
2/23/2016
Thanks!
