BenchmarkDotNet is a powerful .NET library for benchmarking code. It allows developers to easily write benchmarking code, run benchmarks across different runtimes and environments, and view results in various formats like markdown, CSV, HTML and plain text. Key features include support for multiple .NET implementations, automatic warmup and overhead evaluation, parameterization of benchmarks, and diagnostic tools to analyze benchmark performance.

1. BENCHMARKDOTNET -
POWERFUL .NET LIBRARY FOR
BENCHMARKING
Larry Nung

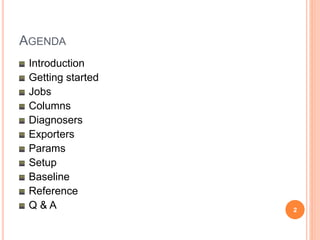

2. AGENDA
Introduction
Getting started
Jobs
Columns
Diagnosers
Exporters
Params
Setup
Baseline
Reference
Q & A 2

3. INTRODUCTION
3

4. INTRODUCTION
 A powerful .NET library for benchmarking
 Standard benchmarking routine: generating an isolated
project per each benchmark method; auto-selection of
iteration amount; warmup; overhead evaluation; statistics
calculation; and so on.
 Supported runtimes: Full .NET Framework, .NET Core (RTM),
Mono
 Supported languages: C#, F#, and Visual Basic
 Supported OS: Windows, Linux, MacOS
 Easy way to compare different environments
(x86 vs x64, LegacyJit vs RyuJit, and so on; see: Jobs)
 Reports: markdown, csv, html, plain text, png plots.
 Advanced features: Baseline, Params
 Powerful diagnostics based on ETW events
(see BenchmarkDotNet.Diagnostics.Windows) 4

5. GETTING STARTED
5

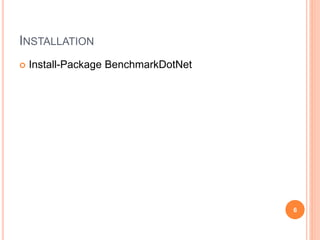

6. INSTALLATION
 Install-Package BenchmarkDotNet
6

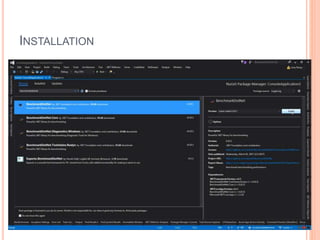

7. INSTALLATION
7

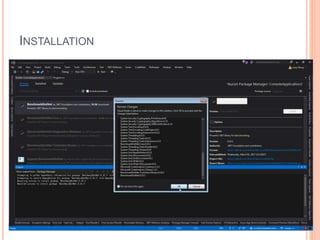

8. INSTALLATION
8

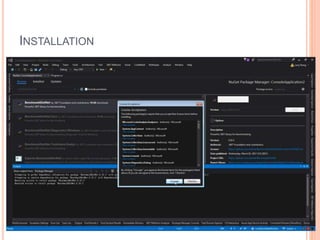

9. INSTALLATION
9

10. INSTALLATION
10

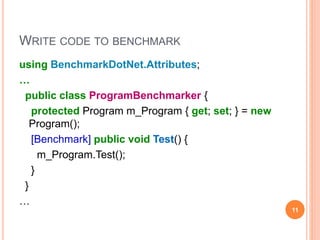

11. WRITE CODE TO BENCHMARK
using BenchmarkDotNet.Attributes;
…
public class ProgramBenchmarker {
protected Program m_Program { get; set; } = new
Program();
[Benchmark] public void Test() {
m_Program.Test();
}
}
…
11

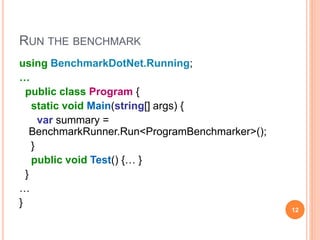

12. RUN THE BENCHMARK
using BenchmarkDotNet.Running;
…
public class Program {
static void Main(string[] args) {
var summary =
BenchmarkRunner.Run<ProgramBenchmarker>();
}
public void Test() {… }
}
…
}
12

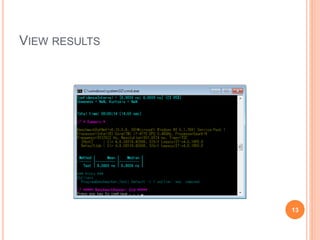

13. VIEW RESULTS
13

14. ANALYZE RESULTS
14

15. JOBS
15

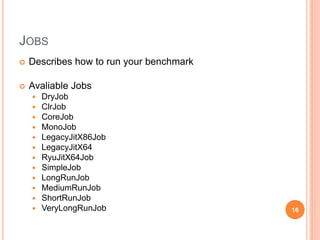

16. JOBS
 Describes how to run your benchmark
 Avaliable Jobs
 DryJob
 ClrJob
 CoreJob
 MonoJob
 LegacyJitX86Job
 LegacyJitX64
 RyuJitX64Job
 SimpleJob
 LongRunJob
 MediumRunJob
 ShortRunJob
 VeryLongRunJob 16

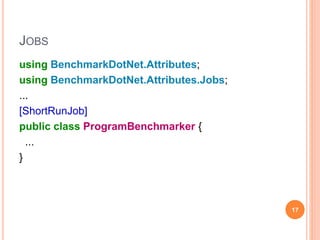

17. JOBS
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Attributes.Jobs;
...
[ShortRunJob]
public class ProgramBenchmarker {
...
}
17

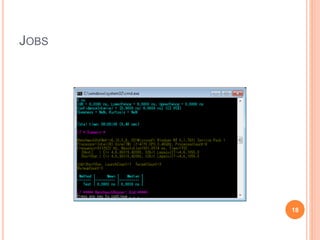

18. JOBS
18

19. COLUMNS
19

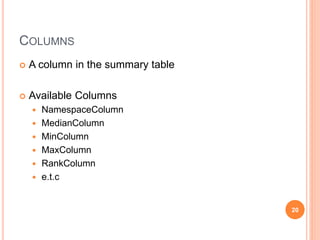

20. COLUMNS
 A column in the summary table
 Available Columns
 NamespaceColumn
 MedianColumn
 MinColumn
 MaxColumn
 RankColumn
 e.t.c
20

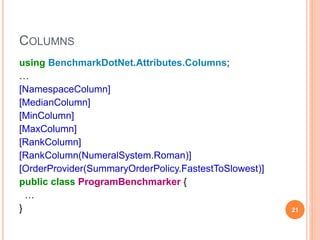

21. COLUMNS
using BenchmarkDotNet.Attributes.Columns;
…
[NamespaceColumn]
[MedianColumn]
[MinColumn]
[MaxColumn]
[RankColumn]
[RankColumn(NumeralSystem.Roman)]
[OrderProvider(SummaryOrderPolicy.FastestToSlowest)]
public class ProgramBenchmarker {
…
} 21

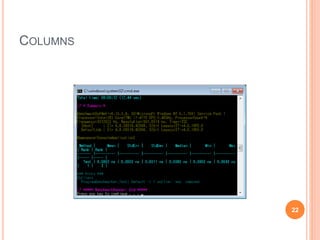

22. COLUMNS
22

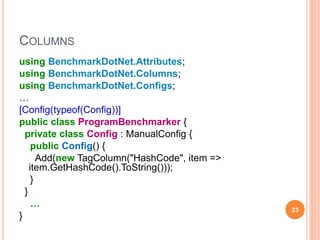

23. COLUMNS
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Columns;
using BenchmarkDotNet.Configs;
…
[Config(typeof(Config))]
public class ProgramBenchmarker {
private class Config : ManualConfig {
public Config() {
Add(new TagColumn("HashCode", item =>
item.GetHashCode().ToString()));
}
}
…
}
23

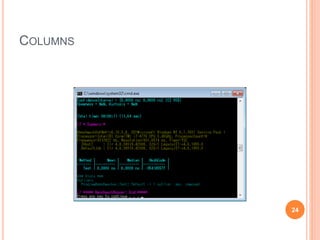

24. COLUMNS
24

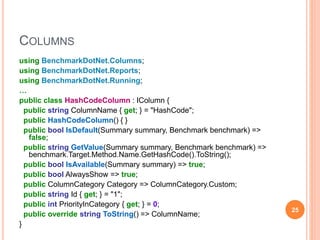

25. COLUMNS
using BenchmarkDotNet.Columns;
using BenchmarkDotNet.Reports;
using BenchmarkDotNet.Running;
…
public class HashCodeColumn : IColumn {
public string ColumnName { get; } = "HashCode";
public HashCodeColumn() { }
public bool IsDefault(Summary summary, Benchmark benchmark) =>
false;
public string GetValue(Summary summary, Benchmark benchmark) =>
benchmark.Target.Method.Name.GetHashCode().ToString();
public bool IsAvailable(Summary summary) => true;
public bool AlwaysShow => true;
public ColumnCategory Category => ColumnCategory.Custom;
public string Id { get; } = "1";
public int PriorityInCategory { get; } = 0;
public override string ToString() => ColumnName;
}
25

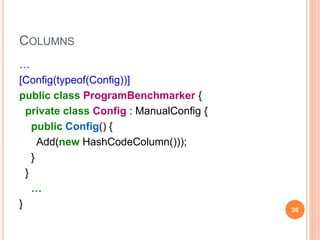

26. COLUMNS
…
[Config(typeof(Config))]
public class ProgramBenchmarker {
private class Config : ManualConfig {
public Config() {
Add(new HashCodeColumn()));
}
}
…
} 26

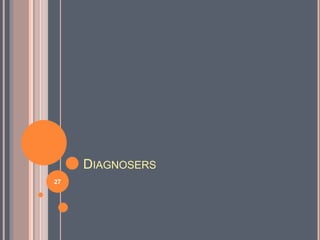

27. DIAGNOSERS
27

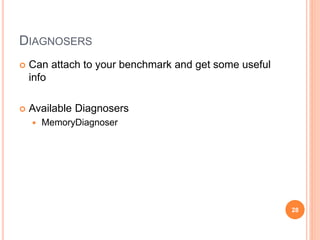

28. DIAGNOSERS
 Can attach to your benchmark and get some useful
info
 Available Diagnosers
 MemoryDiagnoser
28

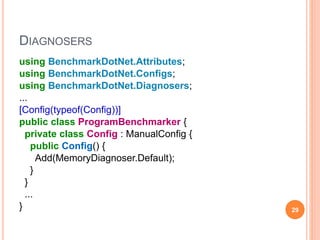

29. DIAGNOSERS
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Configs;
using BenchmarkDotNet.Diagnosers;
...
[Config(typeof(Config))]
public class ProgramBenchmarker {
private class Config : ManualConfig {
public Config() {
Add(MemoryDiagnoser.Default);
}
}
...
} 29

30. DIAGNOSERS
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Configs;
using BenchmarkDotNet.Diagnosers;
...
[MemoryDiagnoser]
public class ProgramBenchmarker {
...
}
30

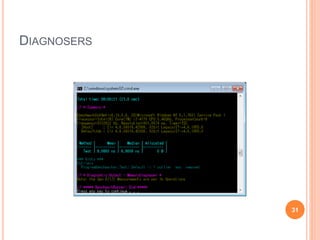

31. DIAGNOSERS
31

32. EXPORTERS
32

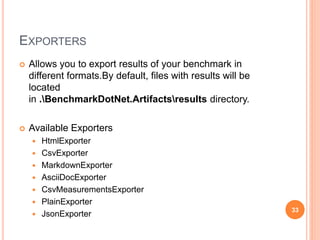

33. EXPORTERS
 Allows you to export results of your benchmark in
different formats.By default, files with results will be
located
in .BenchmarkDotNet.Artifactsresults directory.
 Available Exporters
 HtmlExporter
 CsvExporter
 MarkdownExporter
 AsciiDocExporter
 CsvMeasurementsExporter
 PlainExporter
 JsonExporter
33

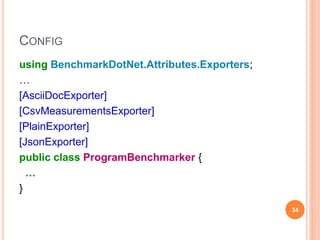

34. CONFIG
using BenchmarkDotNet.Attributes.Exporters;
…
[AsciiDocExporter]
[CsvMeasurementsExporter]
[PlainExporter]
[JsonExporter]
public class ProgramBenchmarker {
…
}
34

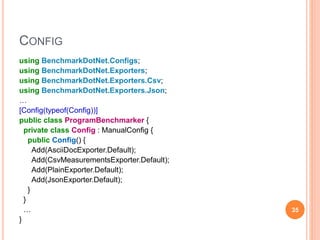

35. CONFIG
using BenchmarkDotNet.Configs;
using BenchmarkDotNet.Exporters;
using BenchmarkDotNet.Exporters.Csv;
using BenchmarkDotNet.Exporters.Json;
…
[Config(typeof(Config))]
public class ProgramBenchmarker {
private class Config : ManualConfig {
public Config() {
Add(AsciiDocExporter.Default);
Add(CsvMeasurementsExporter.Default);
Add(PlainExporter.Default);
Add(JsonExporter.Default);
}
}
…
}
35

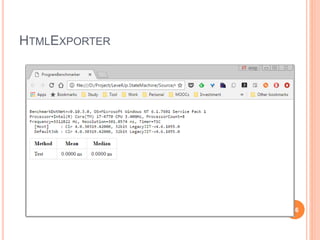

36. HTMLEXPORTER
36

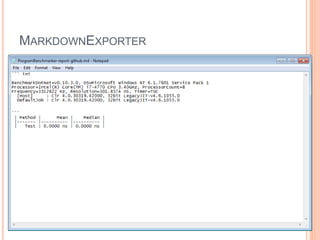

37. MARKDOWNEXPORTER
37

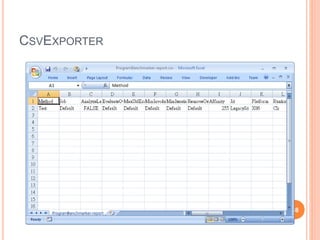

38. CSVEXPORTER
38

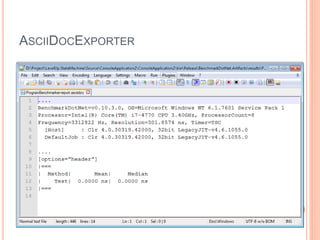

39. ASCIIDOCEXPORTER
39

40. CSVMEASUREMENTSEXPORTER
40

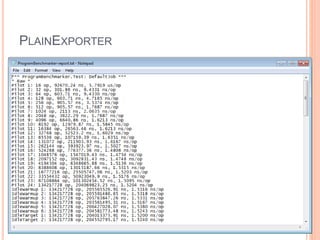

41. PLAINEXPORTER
41

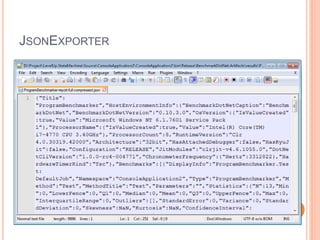

42. JSONEXPORTER
42

43. PARAMS
43

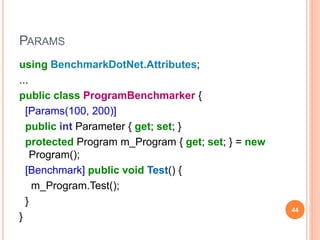

44. PARAMS
using BenchmarkDotNet.Attributes;
...
public class ProgramBenchmarker {
[Params(100, 200)]
public int Parameter { get; set; }
protected Program m_Program { get; set; } = new
Program();
[Benchmark] public void Test() {
m_Program.Test();
}
}
44

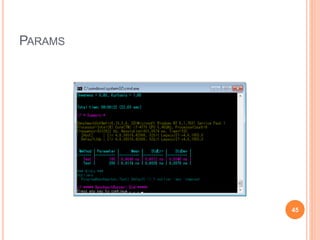

45. PARAMS
45

46. SETUP
46

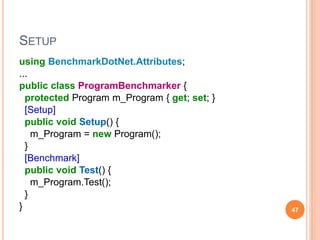

47. SETUP
using BenchmarkDotNet.Attributes;
...
public class ProgramBenchmarker {
protected Program m_Program { get; set; }
[Setup]
public void Setup() {
m_Program = new Program();
}
[Benchmark]
public void Test() {
m_Program.Test();
}
} 47

48. BASELINE
48

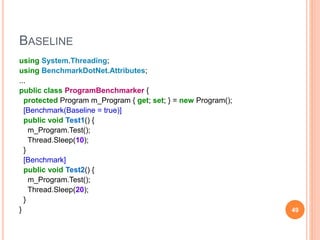

49. BASELINE
using System.Threading;
using BenchmarkDotNet.Attributes;
...
public class ProgramBenchmarker {
protected Program m_Program { get; set; } = new Program();
[Benchmark(Baseline = true)]
public void Test1() {
m_Program.Test();
Thread.Sleep(10);
}
[Benchmark]
public void Test2() {
m_Program.Test();
Thread.Sleep(20);
}
} 49

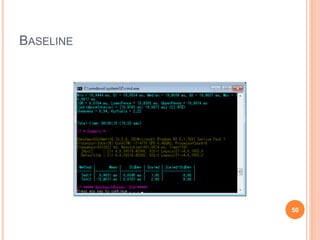

50. BASELINE
50

51. REFERENCE
51

52. REFERENCE
 NuGet Gallery | BenchmarkDotNet 0.10.3
 https://www.nuget.org/packages/BenchmarkDotNet
 dotnet/BenchmarkDotNet: Powerful .NET library for
benchmarking
 https://github.com/dotnet/BenchmarkDotNet
 Home - BenchmarkDotNet Documentation
 http://benchmarkdotnet.org/
52
