Premier pas avec Docker
BBL : CONECS
2019/10/08

#BBL

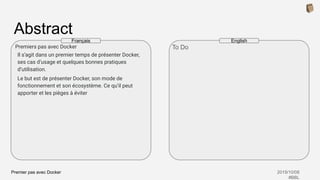

Abstract
Premiers pas avec Docker
Il s’agit dans un premier temps de présenter Docker,
ses cas d’usage et quelques bonnes pratiques
d’utilisation.
Le but est de présenter Docker, son mode de
fonctionnement et son écosystème. Ce qu’il peut
apporter et les pièges à éviter
To Do
Français English

#BBL
@kanedafromparis
Charles Sabourdin
Javaiste
Linuxien
Devoxx France
ParisJUG
OpenSource
Architect
Dev/Ops
https://github.com/kanedafromparis/
https://github.com/kanedafromparisfriends
- 60:00

#BBL
Firstly
InfrastructureInfrastructure
Hypervisor OS (operating system)
Guest OS Guest OS Guest OS
Bin/Lib
App 1
Bin/Lib
App 2
Bin/Lib
App 3
App A
Bin/Lib
App b
Bin/Lib
App c
Containers Engine
ContainersVirtual Machines
Bin/Lib
App d
Bin/Lib
App e
Bin/Lib
App f
Bin/Lib

#BBL

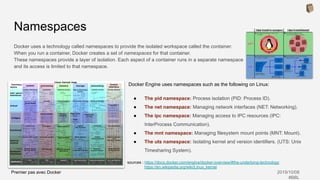

Docker Engine uses namespaces such as the following on Linux:
● The pid namespace: Process isolation (PID: Process ID).
● The net namespace: Managing network interfaces (NET: Networking).
● The ipc namespace: Managing access to IPC resources (IPC:
InterProcess Communication).
● The mnt namespace: Managing filesystem mount points (MNT: Mount).
● The uts namespace: Isolating kernel and version identifiers. (UTS: Unix
Timesharing System).
Namespaces
Docker uses a technology called namespaces to provide the isolated workspace called the container.
When you run a container, Docker creates a set of namespaces for that container.
These namespaces provide a layer of isolation. Each aspect of a container runs in a separate namespace
and its access is limited to that namespace.
sources : https://docs.docker.com/engine/docker-overview/#the-underlying-technology
https://en.wikipedia.org/wiki/Linux_kernel

#BBL

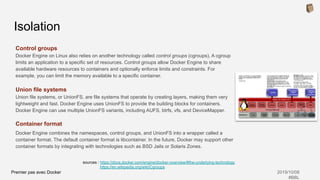

Control groups
Docker Engine on Linux also relies on another technology called control groups (cgroups). A cgroup
limits an application to a specific set of resources. Control groups allow Docker Engine to share
available hardware resources to containers and optionally enforce limits and constraints. For
example, you can limit the memory available to a specific container.
Union file systems
Union file systems, or UnionFS, are file systems that operate by creating layers, making them very
lightweight and fast. Docker Engine uses UnionFS to provide the building blocks for containers.
Docker Engine can use multiple UnionFS variants, including AUFS, btrfs, vfs, and DeviceMapper.
Container format
Docker Engine combines the namespaces, control groups, and UnionFS into a wrapper called a
container format. The default container format is libcontainer. In the future, Docker may support other
container formats by integrating with technologies such as BSD Jails or Solaris Zones.
Isolation
https://en.wikipedia.org/wiki/Cgroups

#BBL
https://docs.docker.com/ee/ucp/user-access/cli/

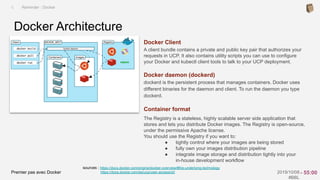

Docker Client
A client bundle contains a private and public key pair that authorizes your
requests in UCP. It also contains utility scripts you can use to configure
your Docker and kubectl client tools to talk to your UCP deployment.
Docker daemon (dockerd)
dockerd is the persistent process that manages containers. Docker uses
different binaries for the daemon and client. To run the daemon you type
dockerd.
Container format
The Registry is a stateless, highly scalable server side application that
stores and lets you distribute Docker images. The Registry is open-source,
under the permissive Apache license.
You should use the Registry if you want to:
● tightly control where your images are being stored
● fully own your images distribution pipeline
● integrate image storage and distribution tightly into your
in-house development workflow
Docker Architecture
I. Reminder : Docker
- 55:00

#BBL

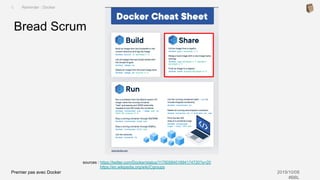

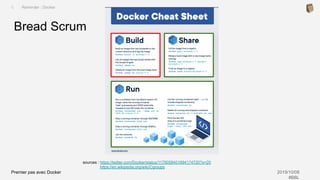

Bread Scrum
sources : https://twitter.com/Docker/status/1179058401894174720?s=20

#BBL

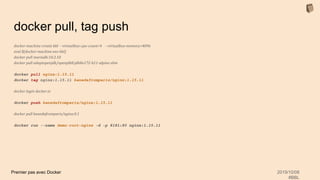

docker pull, tag push
docker-machine create bbl --virtualbox-cpu-count=4 --virtualbox-memory=4096
eval $(docker-machine env bbl)
docker pull mariadb:10.3.10
docker pull adoptopenjdk/openjdk8:jdk8u172-b11-alpine-slim
docker pull nginx:1.15.11
docker tag nginx:1.15.11 kanedafromparis/nginx:1.15.11
docker login docker.io
docker push kanedafromparis/nginx:1.15.11
docker pull kanedafromparis/nginx:0.1
docker run --name demo-root-nginx -d -p 8181:80 nginx:1.15.11

#BBL

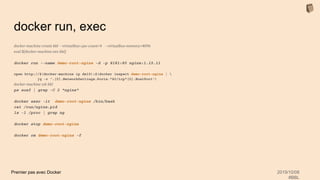

docker run, exec
docker run --name demo-root-nginx -d -p 8181:80 nginx:1.15.11
open http://$(docker-machine ip dx19):$(docker inspect demo-root-nginx |
jq -r '.[0].NetworkSettings.Ports."80/tcp"[0].HostPort')
docker-machine ssh bbl
ps auxf | grep -C 2 "nginx"
docker exec -it demo-root-nginx /bin/bash
cat /run/nginx.pid
ls -l /proc | grep ng
docker stop demo-root-nginx
docker rm demo-root-nginx -f

#BBL
sources : https://docs.docker.com/machine/overview/
Aside : Docker-Machine
Docker Machine
Docker Machine is a tool that lets you install Docker Engine on virtual
hosts, and manage the hosts with docker-machine commands. You can
use Machine to create Docker hosts on your local Mac or Windows box, on
your company network, in your data center, or on cloud providers like
Azure, AWS, or DigitalOcean.
Using docker-machine commands, you can start, inspect, stop, and restart
a managed host, upgrade the Docker client and daemon, and configure a
Docker client to talk to your host.
$ docker-machine create bbl --virtualbox-cpu-count=4 --virtualbox-memory=4096
$ docker-machine start bbl
$ eval $(docker-machine env bbl)

#BBL

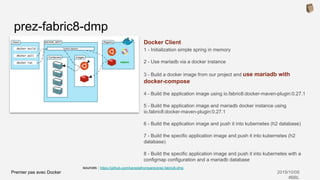

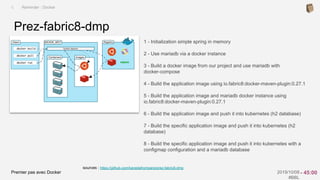

sources : https://github.com/kanedafromparis/prez-fabric8-dmp
1 - Initialization simple spring in memory
2 - Use mariadb via a docker instance
3 - Build a docker image from our project and use mariadb with
docker-compose
4 - Build the application image using io.fabric8:docker-maven-plugin:0.27.1
5 - Build the application image and mariadb docker instance using
io.fabric8:docker-maven-plugin:0.27.1
6 - Build the application image and push it into kubernetes (h2 database)
7 - Build the specific application image and push it into kubernetes (h2
database)
8 - Build the specific application image and push it into kubernetes with a
configmap configuration and a mariadb database
Prez-fabric8-dmp
- 45:00

#BBL

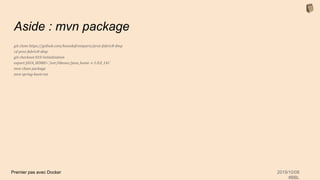

Aside : mvn package
git clone https://github.com/kanedafromparis/prez-fabric8-dmp
cd prez-fabric8-dmp
git checkout 010-Initialization
export JAVA_HOME=`/usr/libexec/java_home -v 1.8.0_141`
mvn clean package
mvn spring-boot:run

#BBL
docker-compose
database)

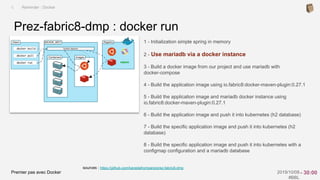

Prez-fabric8-dmp : docker run
- 30:00

#BBL

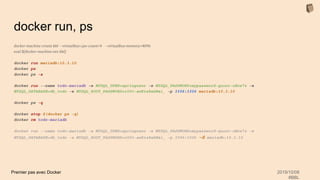

docker run, ps
docker run mariadb:10.3.10
docker ps
docker ps -a
docker run --name todo-mariadb -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z -e
MYSQL_DATABASE=db_todo -e MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -p 3306:3306 mariadb:10.3.10
docker ps -q
docker stop $(docker ps -q)
docker rm todo-mariadb
docker run --name todo-mariadb -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z -e
MYSQL_DATABASE=db_todo -e MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -p 3306:3306 -d mariadb:10.3.10

#BBL
docker exec (--name)
docker run -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z -e
MYSQL_DATABASE=db_todo -e MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -p 3306:3306 -d mariadb:10.3.10
docker exec -it 616ebd281296 bash
mysql -u $MYSQL_USER -p$MYSQL_PASSWORD
show databases;
use db_todo;
show tables;
select * from todo_item;
# mvn spring-boot:run
-Dspring.config.location=$(pwd)/src/main/resources/application.mariadb.properties
watch -n 2 bash src/main/bash/showtables.sh
sources : https://github.com/kanedafromparis/prez-fabric8-dmp/blob/020-UseMariadbDockerInstance/
src/main/bash/showtables.sh

#BBL
docker restart
docker restart todo-mariadb
docker exec -it todo-mariadb bash
show databases;
use db_todo;
show tables;
select * from todo_item;
# mvn spring-boot:run
-Dspring.config.location=$(pwd)/src/main/resources/application.mariadb.properties
docker run --rm --name todo-mariadb -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z
-e MYSQL_DATABASE=db_todo -e MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -p 3306:3306 -d mariadb:10.3.10

#BBL

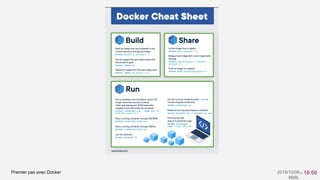

Bread Scrum
sources : https://twitter.com/Docker/status/1179058401894174720?s=20
XXXXXX-
40:00

#BBL

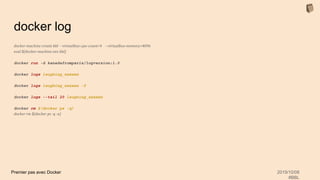

docker log
docker run -d kanedafromparis/logversion:1.0
docker logs laughing_xxxxxx
docker logs laughing_xxxxxx -f
docker logs --tail 20 laughing_xxxxxx
docker rm $(docker ps -q)
docker rm $(docker ps -q -a)

#BBL
docker inspect
docker run -d kanedafromparis/logversion:1.0
docker inspect 4e653286d191 | jq .[0].Config.Labels
docker ps --filter label=artifactId=logversion
docker rm $(docker ps -q)
docker rm $(docker ps -q -a)

#BBL

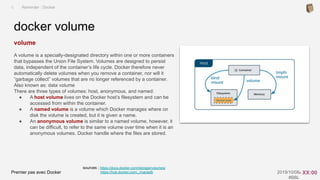

sources : https://docs.docker.com/storage/volumes/
https://hub.docker.com/_/mariadb
volume
A volume is a specially-designated directory within one or more containers
that bypasses the Union File System. Volumes are designed to persist
data, independent of the container’s life cycle. Docker therefore never
automatically delete volumes when you remove a container, nor will it
“garbage collect” volumes that are no longer referenced by a container.
Also known as: data volume
There are three types of volumes: host, anonymous, and named:
● A host volume lives on the Docker host’s filesystem and can be
accessed from within the container.
● A named volume is a volume which Docker manages where on
disk the volume is created, but it is given a name.
● An anonymous volume is similar to a named volume, however, it
can be difficult, to refer to the same volume over time when it is an
anonymous volumes. Docker handle where the files are stored.
docker volume
- XX:00

#BBL

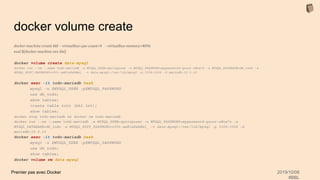

docker volume create
docker volume create data-mysql
docker run --rm --name todo-mariadb -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z -e MYSQL_DATABASE=db_todo -e
MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -v data-mysql:/var/lib/mysql -p 3306:3306 -d mariadb:10.3.10
use db_todo;
show tables;
create table toto (bbl int);
show tables;
docker stop todo-mariadb && docker rm todo-mariadb
docker run --rm --name todo-mariadb -e MYSQL_USER=springuser -e MYSQL_PASSWORD=mypassword-quoor-uHoe7z -e
MYSQL_DATABASE=db_todo -e MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_ -v data-mysql:/var/lib/mysql -p 3306:3306 -d
mariadb:10.3.10
use db_todo;
show tables;
docker volume rm data-mysql

#BBL
docker-compose
database)

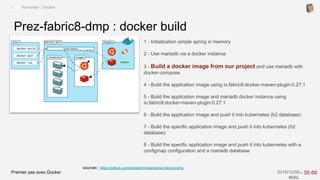

Prez-fabric8-dmp : docker build
- 30:00

#BBL
sources : https://github.com/kanedafromparis/prez-fabric8-dmp/blob/030-FullDocker-DockerCompose/Dockerfile
Dockerfile
FROM adoptopenjdk/openjdk8:jdk8u172-b11-alpine-slim
LABEL Maintainer="kanedafromparis@gmail.com"
Version="0.3"
Name="todo-spring"
ENV JVM_OPTIONS="-Djava.security.egd=file:/dev/./urandom
-XX:+UnlockExperimentalVMOptions
-XX:+UseCGroupMemoryLimitForHeap
-XshowSettings:vm"
RUN mkdir -p /opt/prez-fabric8-dmp/conf/
COPY src/main/resources/application.mariadb.compose.properties
/opt/prez-fabric8-dmp/conf/application.properties
COPY target/prez-fabric8-dmp-0.0.3-SNAPSHOT.jar /opt/prez-fabric8-dmp/
USER 1001
WORKDIR /opt/prez-fabric8-dmp
ENTRYPOINT java $JVM_OPTIONS
-Dspring.config.location=/opt/prez-fabric8-dmp/conf/application.properties
-jar /opt/prez-fabric8-dmp/prez-fabric8-dmp-0.0.3-SNAPSHOT.jar

#BBL

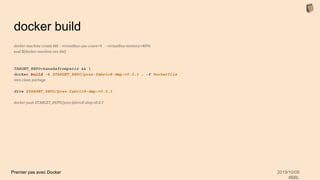

docker build
TARGET_REPO=kanedafromparis &&
docker build -t $TARGET_REPO/prez-fabric8-dmp:v0.0.3 . -f Dockerfile
mvn clean package
dive $TARGET_REPO/prez-fabric8-dmp:v0.0.3
docker push $TARGET_REPO/prez-fabric8-dmp:v0.0.3

#BBL
sources : https://docs.docker.com/develop/develop-images/multistage-build/
Dockerbuild from image
FROM golang:1.7.3 AS builder
WORKDIR /go/src/github.com/alexellis/href-counter/
RUN go get -d -v golang.org/x/net/html
COPY app.go .
RUN CGO_ENABLED=0 GOOS=linux go build -a -installsuffix cgo -o app .
FROM alpine:latest
RUN apk --no-cache add ca-certificates
WORKDIR /root/
COPY --from=builder /go/src/github.com/alexellis/href-counter/app .
CMD ["./app"]

#BBL
sources : https://docs.docker.com/engine/reference/commandline/build/

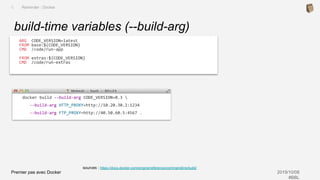

build-time variables (--build-arg)
ARG CODE_VERSION=latest
FROM base:${CODE_VERSION}
CMD /code/run-app
FROM extras:${CODE_VERSION}
CMD /code/run-extras
docker build --build-arg CODE_VERSION=0.3
--build-arg HTTP_PROXY=http://10.20.30.2:1234
--build-arg FTP_PROXY=http://40.50.60.5:4567 .

#BBL
Union file systems (again)
Union file systems, or UnionFS, are file systems that operate by creating layers,
making them very lightweight and fast. Docker Engine uses UnionFS to provide the
building blocks for containers. Docker Engine can use multiple UnionFS variants,
including AUFS, btrfs, vfs, and DeviceMapper.
Container format
A Docker image is built up from a series of layers. Each layer represents an
instruction in the image’s Dockerfile. Each layer except the very last one is read-only.
Each layer is only a set of differences from the layer before it. The layers are stacked
on top of each other. When you create a new container, you add a new writable layer
on top of the underlying layers. This layer is often called the “container layer”.
All changes made to the running container, such as writing new files, modifying
existing files, and deleting files, are written to this thin writable container layer.
Layers
sources : https://docs.docker.com/storage/storagedriver/#images-and-layers
- 15:00

#BBL
docker dive
docker pull mariadb:10.3.10
TARGET_REPO=kanedafromparis &&
docker build -t $TARGET_REPO/prez-fabric8-dmp:v0.0.3 . -f Dockerfile
mvn clean package
dive $TARGET_REPO/prez-fabric8-dmp:v0.0.3

#BBL
- 10:00

#BBL
Docker Client
docker-compose
database)
prez-fabric8-dmp

#BBL
sources :
https://github.com/kanedafromparis/prez-fabric8-dmp/blob/030-FullDocker-DockerCompose/docker-compose.yml
Dockerbuild from image
version: '3'
services:
springboot:
restart: always
container_name: prez-compose-fabric8-dmp
image: kanedafromparis/prez-fabric8-dmp:0.0.3-SNAPSHOT
ports:
- "8080:8080"
build: .
#working_dir: .
depends_on:
- mariadb
mariadb:
restart: always
container_name: todo-compose-mariadb
image: mariadb:10.3.10
ports:
- "3306:3306"
environment:
- MYSQL_USER=springuser
- MYSQL_PASSWORD=mypassword-quoor-uHoe7z
- MYSQL_DATABASE=db_todo
- MYSQL_ROOT_PASSWORD=r00t-aeKie8ahWai_

#BBL

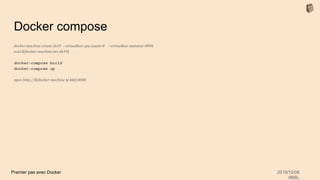

Docker compose
docker-machine create dx19 --virtualbox-cpu-count=4 --virtualbox-memory=4096
eval $(docker-machine env dx19)
docker-compose build
docker-compose up
open http://$(docker-machine ip bbl):8080

#BBL
Thank you
● Questions ?
- 00:00

#BBL

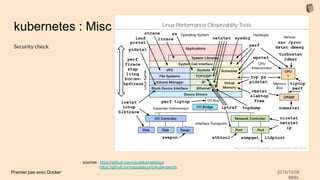

kubernetes : Misc
Security check
sources : https://github.com/nicolaka/netshoot
https://github.com/aquasecurity/kube-bench

BBL Premiers pas avec Docker

More Related Content

What's hot

Similar to BBL Premiers pas avec Docker

More from kanedafromparis

Recently uploaded

BBL Premiers pas avec Docker
