Flap barrier are access control systems commonly used in areas where there's a need to regulate pedestrian traffic. Unlike boom barriers which are designed for vehicular access control, flap barriers are specifically intended for controlling the movement of people. They consist of vertical barriers, often made of stainless steel or other durable materials, which can swing open or close to permit or restrict passage. Access Control: Flap barriers are often integrated with access control systems such as card readers, biometric scanners, or ticketing systems. Individuals must present a valid access credential, such as an access card or biometric identification, to unlock the barriers and gain entry. https://www.novusapl.com/flapbarrier-economy-series.php

1. Model : NS-FS9-V120
FLAP BARRIER
Entrance Management System

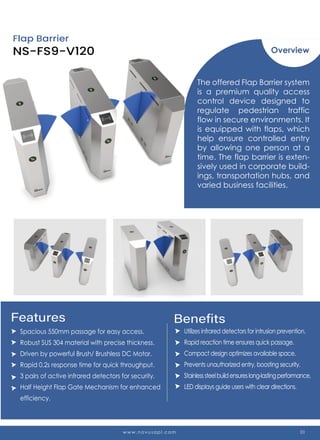

2. 01
Flap Barrier
NS-FS9-V120
Spacious 550mm passage for easy access.
Robust SUS 304 material with precise thickness.
Driven by powerful Brush/ Brushless DC Motor.
Rapid 0.2s response time for quick throughput.
3 pairs of active infrared detectors for security.
Half Height Flap Gate Mechanism for enhanced
efficiency.
Utilizes infrared detectors for intrusion prevention.
Rapid reaction time ensures quick passage.
Compact design optimizes available space.
Prevents unauthorized entry, boosting security.
Stainlesssteelbuildensureslong-lastingperformance.
LED displays guide users with clear directions.
w w w .n ovu sapl.com
The offered Flap Barrier system
is a premium quality access
control device designed to
regulate pedestrian traffic
flow in secure environments. It
is equipped with flaps, which
help ensure controlled entry
by allowing one person at a
time. The flap barrier is exten-
sively used in corporate build-
ings, transportation hubs, and
varied business facilities.
Overview

3. 02
Product Size
Material
Pass Width
Material Thickness
Passage Direction
1200*280*960mm
SUS 304 stainless steel
Top:1.2mm+body1.0mm
Single directional / Bi-directional
Throughput Rate 30p/m
Reaction Time 0.2S
Acoustic Alarm Buzzer Alarm (optional)
LED Single/ Triple color LED (optional)
Driving Voltage DC24V 4.2A
Power Input AC110~220V±10%
-20~+70 C
Working Temperature
3 pairs of active infrared intrusion detector
Sensor
Brush/ Brushless DC Motor
Motor
Half Height Flap Gate Mechanism
Mechanism
Supercapacitor (12V/3A)
Back up power
LED direction indication
Indication
550 MM
Technical Specifications
www.novu sapl.com
Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are
shown for reference only; the actual product may differ due to product enhancement.
Disclaimer:
Weight
IP Rating
MCBF
Tourque motor
44
6 + Million
Higher
60 kg
