This document outlines the design sequence for an electrical distribution system for a warehouse project in AutoCAD. It includes front and top views of the warehouse, descriptions of design elements like the front entrance and metal containment, and how to create and insert blocks. It also provides details on the design process, including determining load characteristics and supply options, positioning distribution boards, and designing the distribution system by selecting cable types and sizes and calculating voltage drop, fault currents, and earth fault loop impedances. An example calculation for an outside lights circuit is shown.

1. AutoCAD Warehouse Project 2016
1

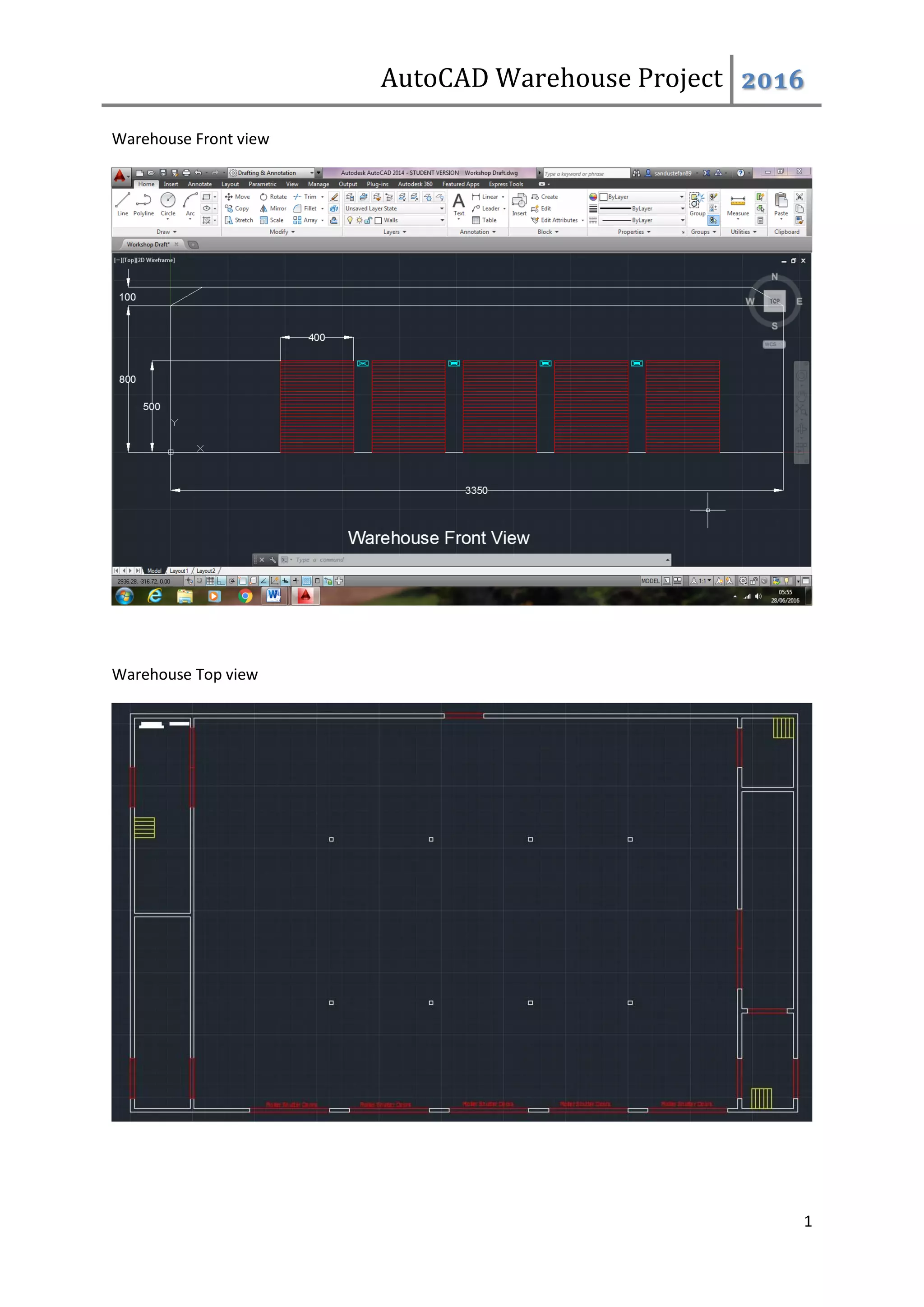

Warehouse Front view
Warehouse Top view

2. AutoCAD Warehouse Project 2016
2

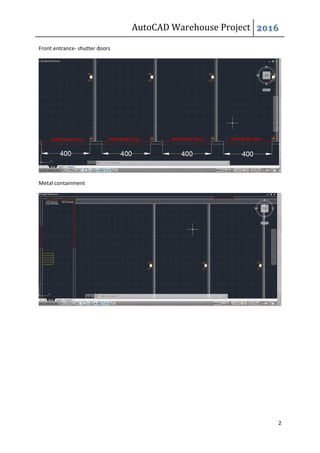

Front entrance- shutter doors
Metal containment

3. AutoCAD Warehouse Project 2016
3

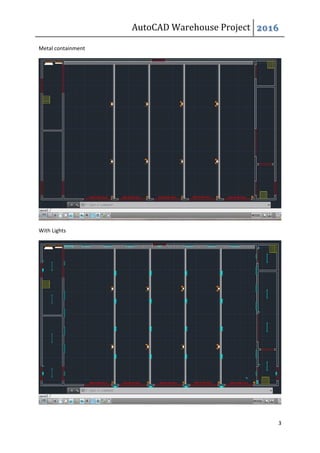

Metal containment
With Lights

4. AutoCAD Warehouse Project 2016
4

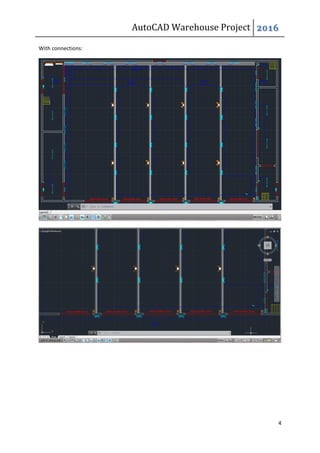

With connections:

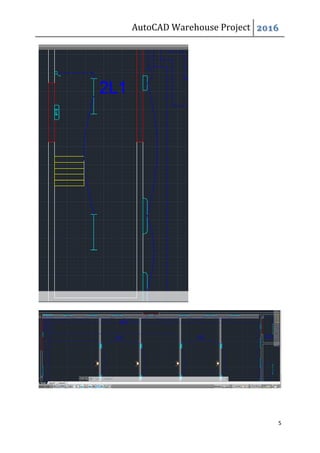

5. AutoCAD Warehouse Project 2016
5

6. AutoCAD Warehouse Project 2016
6

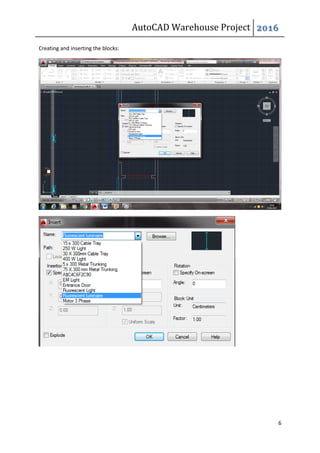

Creating and inserting the blocks:

7. AutoCAD Warehouse Project 2016
7
Paper Space Mode:

8. AutoCAD Warehouse Project 2016
8
Design sequence
1. Determine load characteristics, load centres, maximum current demands of load centres.
2. Determine supply charcateristics and agree tariffs with electricity company.
3. Position main and sub-distribution boards.
4. Prepare installation outline of a distribution system.
5. Design distribution system:
a) Estimate maximum current(Ib) demands of each distribution board.
b) Select protective devices and rating(In).
c) Select cable type and size (s).
d) Calculate the voltage drop.
e) Calculate prospective fault currents.
f) Calculate earth fault loop impedances.
g) Select earthing and protective conductor size (s).
6. Size final circuits:
a) Determine circuit design current (Ib).
b) Select protective devices and rating(In).
c) Select cable type and size (s).
d) Calculate the voltage drop.
e) Calculate prospective fault currents.
f) Calculate earth fault loop impedances.
g) Select earthing and protective conductor size (s).
7. Check isolation and switching requirements.
8. Carry out final assessment.
Cable selection:
Nr. Circuit Lenght Protective device Cable
1. Outside lights
1L1
28m 6A Type B MCB 1.0mm2
line;
1.0mm2
cpc
2. 1L2, 400W
Lights
16A 2.5mm2
line;
1.5mm2
cpc
3. 1L3, 400W
Lights
16A 2.5mm2
line;
1.5mm2
cpc
4. 2L1, Fluorescent
Lights 38W
2.5mm2
line;
1.5mm2
cpc
5. 2L2, Fluorescent
Lights 38W
2.5mm2
line;
1.5mm2
cpc
6. 2L3, Fluorescent
Lights 38W
2.5mm2
line;
1.5mm2
cpc

9. AutoCAD Warehouse Project 2016
9
Calculation example:
Outside lights 1L1
1. Calculate design current from KW:
Ib= P/ U0=1000W/230V= 4.347A
Select protective device rating: In> Ib => In=6A
2. Protection against overload and short circuit:
It≥In/(CgCaCiCf)= 6/ (1.03x 0.6x 1x 1)= 9.708 A
Using the information contained in Appendix 4 of BS 7671, the method of installation is C
from Table 4A2.
Ca= 1.03 from Table 4B1 for 25°C and thermoplastic cable
Cg= 0.6 from Table 4C1
Ci=1 as no thermal insulation exists
Cf= 1 as the device is not to BS 3036
Using Table 4D1A BS7671, select cable size 1mm2
.
3. Cable selection for voltage drop:
Vd=(mV/A/m) x Ib x L / 1000= 44 x 4.35 x 28/ 1000= 5.36 V < 6.9 V (3% Vd for light )
4. Determining values of R1+ R2:
Using Table I1, OSG (r1+r2) = 36.2 for 1mm2
Using Table I3, OSG Cr(correction factor)= 1.20
R1+R2= (r1+r2) x L x Cr /1000= 36.2 x 28 x 1.20 / 1000= 1.216 Ω
Zs= Ze + (R1+R2) = 0.35 + 1.216= 1.566 Ω
Calculated Zs < Max Zs
1.56Ω < 7.67 Ω => disconnection times are satisfied.
From Table 41.3, BS 7671, Zs= 7.67 Ω (for 6A type B MCB)
