ASSIGN DWG1 1 01 OCT
This document provides details on different foundation and structural elements at varying scales. It describes cast-in-place concrete footings, plaster foundations, concrete block foundations, beams set on foundations and columns, steel and wood columns, concrete piers, and beams supported by piers or set on columns. The scales listed are 1:30 for foundation and beam details and 1:40 for a beam set on a column. The document was created by Arnel Serrano on October 6, 2015 for architectural drawings and details.
More Related Content
What's hot
![[EB1 Boca do Monte - 3rd] World's BEST Dad](https://cdn.slidesharecdn.com/ss_thumbnails/worldsbestdad-110318192537-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Viewers also liked
More from ARNEL SERRANO
ASSIGN DWG1 1 01 OCT

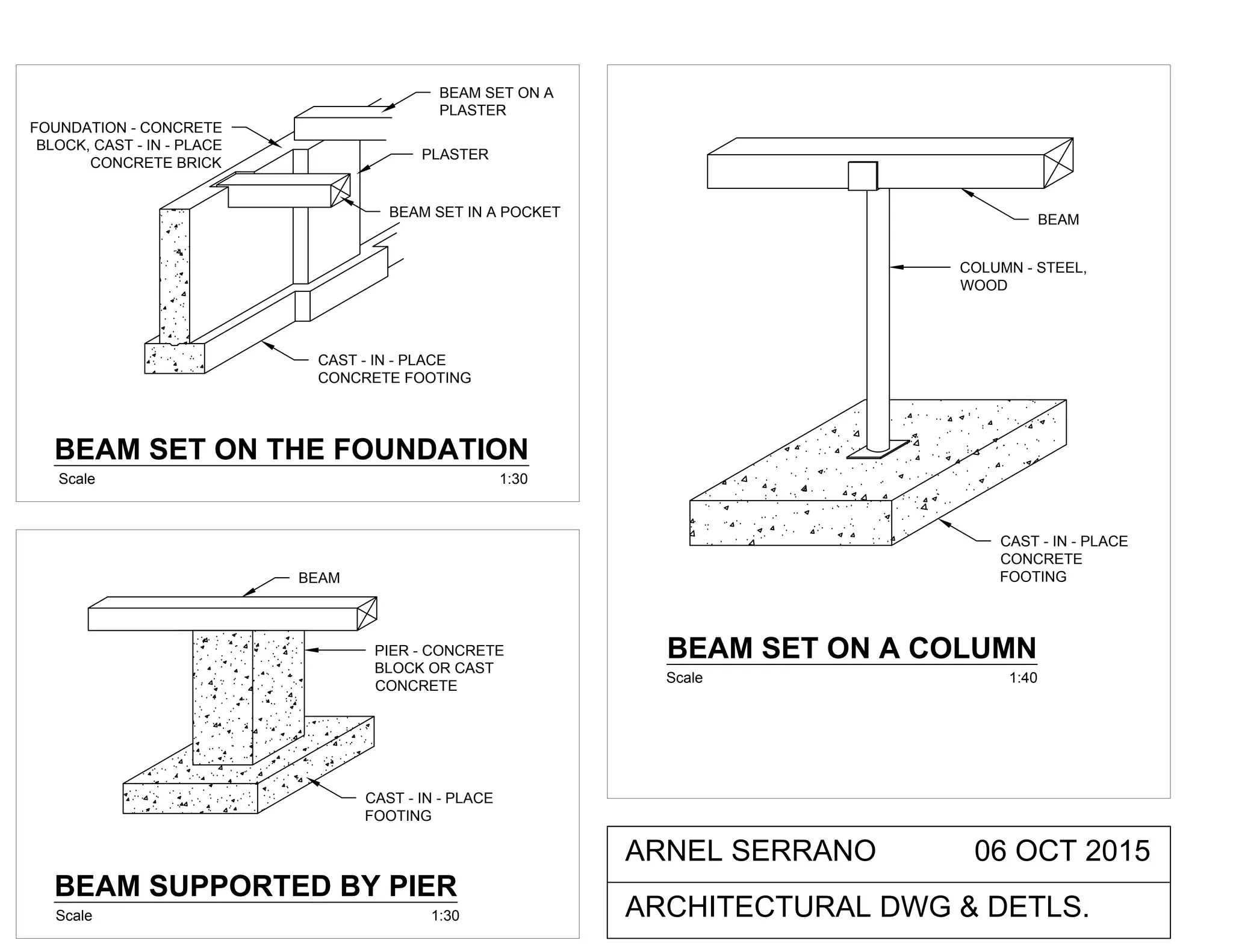

- 1. CAST - IN- PLACE CONCRETE FOOTING PLASTER BEAM SET ON A PLASTER FOUNDATION - CONCRETE BLOCK, CAST - IN - PLACE CONCRETE BRICK BEAM SET IN A POCKET BEAM COLUMN - STEEL, WOOD CAST - IN - PLACE CONCRETE FOOTINGBEAM CAST - IN - PLACE FOOTING PIER - CONCRETE BLOCK OR CAST CONCRETE BEAM SET ON THE FOUNDATION Scale 1:30 BEAM SUPPORTED BY PIER Scale 1:30 BEAM SET ON A COLUMN Scale 1:40 ARNEL SERRANO 06 OCT 2015 ARCHITECTURAL DWG & DETLS.
