![Loading Settings
var builder = new ConfigurationBuilder()
.SetBasePath(env.ContentRootPath)
.AddJsonFile("appsettings.json", optional: true, reloadOnChange: true)
.AddXmlFile("appsettings.xml", optional:true)
.AddJsonFile($"appsettings.{env.EnvironmentName}.json",true);
if (env.IsDevelopment())
{
builder.AddUserSecrets();
}
builder.AddEnvironmentVariables();
IConfigurationRoot Configuration = builder.Build();
...
string connString = Configuration["Data:Default:ConnectionString"];](https://image.slidesharecdn.com/aspnetcorewide-160809175314/85/ASP-NET-Core-1-0-16-320.jpg)
![Logging with Controllers
public class TodoController : Controller
{
private readonly ITodoRepository _todoRepository;
private readonly ILogger<TodoController> _logger;
private const int LIST_ITEMS = 1001;
public TodoController(ITodoRepository todoRepo, ILogger<TodoController> logger)
{
_todoRepository = todoRepo;
_logger = logger;
}
[HttpGet]
public IEnumerable<TodoItem> GetAll()
{
_logger.LogInformation(LIST_ITEMS, "Listing all items");
EnsureItems();
return _todoRepository.GetAll();
}
}](https://image.slidesharecdn.com/aspnetcorewide-160809175314/85/ASP-NET-Core-1-0-20-320.jpg)
![Controllers – Two in One
• UI – same as with MVC 5
• API – similar, but different
public class HomeController : Controller
{
public IActionResult Index()
{
return View();
}
}
[Route("api/[controller]")]
public class ProductsController : Controller
{
[HttpGet("{id:int}")]
public Product GetProduct(int id)
{
return new Product() { ID = id };
}
}](https://image.slidesharecdn.com/aspnetcorewide-160809175314/85/ASP-NET-Core-1-0-30-320.jpg)
![Actions – IActionResult
[HttpGet("{id:int}", Name = "GetByIdRoute")]
public IActionResult GetById (int id)
{
var item = _items.FirstOrDefault(x => x.Id == id);
if (item == null) { return NotFound(); }
return new ObjectResult(item);
}
[HttpPost]
public IActionResult CreateTodoItem([FromBody] TodoItem item)
{
_items.Add(item);
return CreatedAtRoute(
"GetByIdRoute", new { id = item.Id }, item);
}](https://image.slidesharecdn.com/aspnetcorewide-160809175314/85/ASP-NET-Core-1-0-31-320.jpg)
Uploaded byIdo Flatow
ASP.NET Core 1.0
This document provides an overview and summary of ASP.NET Core: 1. It outlines the history of ASP.NET and the problems with the previous architecture that ASP.NET Core aims to address, such as limited hosting possibilities and dependency on the full .NET Framework. 2. The key features of ASP.NET Core are described, including being cross-platform, using a modular pipeline, unifying MVC and Web API, and enabling lightweight high-performance apps. 3. An example project is demonstrated to show the new project structure and configuration without web.config. Features like dependency injection, logging, and hosting are also covered at a high level.
More Related Content
ASP.NET Core 1.0
- 1. ASP.NET Core: ReimaginingWeb Application Development in .NET Ido Flatow Senior Architect Microsoft MVP & RD Sela Group @idoflatow
- 2. Agenda • ASP.NET History •ASP.NET Core 1.0 and .NET • ASP.NET Core 1.0 Features • ASP.NET Core MVC
- 3.

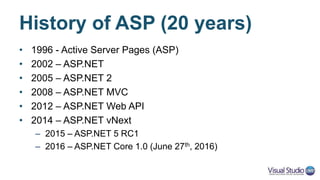

- 4. History of ASP(20 years) • 1996 - Active Server Pages (ASP) • 2002 – ASP.NET • 2005 – ASP.NET 2 • 2008 – ASP.NET MVC • 2012 – ASP.NET Web API • 2014 – ASP.NET vNext – 2015 – ASP.NET 5 RC1 – 2016 – ASP.NET Core 1.0 (June 27th, 2016)

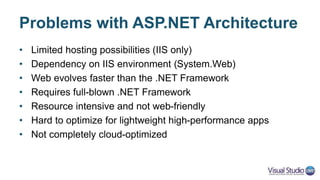

- 5. Problems with ASP.NETArchitecture • Limited hosting possibilities (IIS only) • Dependency on IIS environment (System.Web) • Web evolves faster than the .NET Framework • Requires full-blown .NET Framework • Resource intensive and not web-friendly • Hard to optimize for lightweight high-performance apps • Not completely cloud-optimized

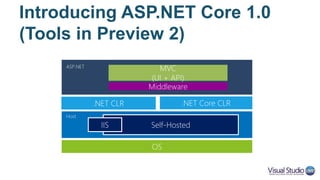

- 6. Introducing ASP.NET Core1.0 (Tools in Preview 2) OS .NET CLR ASP.NET MVC (UI + API) Host Self-HostedIIS .NET Core CLR Middleware
- 7. What is Tooling? •Everything that is part of the framework • Command line tools – dotnet CLI • Project tools – ASP.NET templates – xproj / csproj • Visual Studio tools – Configuration IntelliSense – Debugger support

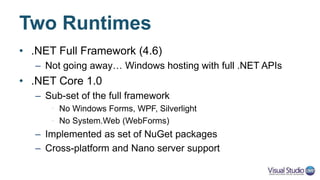

- 8. Two Runtimes • .NETFull Framework (4.6) – Not going away… – Windows hosting with full .NET APIs • .NET Core 1.0 – Subset of the full framework • No Windows Forms, WPF, Silverlight • No System.Web (WebForms) – Implemented as set of NuGet packages – Cross-platform and Nano server support
- 9. GETTING TO KNOWASP.NET CORE

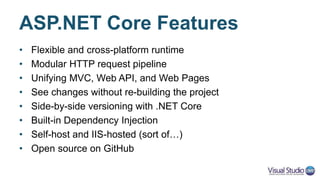

- 10. ASP.NET Core Features •Flexible and cross-platform runtime • Modular HTTP request pipeline • Unifying MVC, Web API, and Web Pages • Side-by-side versioning with .NET Core • Built-in Dependency Injection • Self-host and IIS-hosted (sort of…) • Open source on GitHub

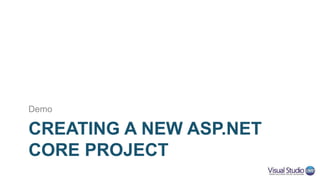

- 11. CREATING A NEWASP.NET CORE PROJECT Demo

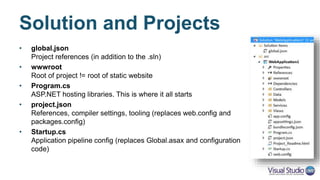

- 12. Solution and Projects •global.json Project references (in addition to the .sln) • wwwroot Root for static content (html, css, js, images, etc…) • Program.cs ASP.NET hosting libraries. This is where it all starts • project.json References, compiler settings, tooling (replaces web.config and packages.config) • Startup.cs DI and pipeline configuration (replaces global.asax and configuration code)
- 13.

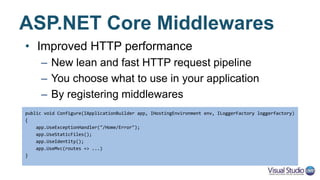

- 14. ASP.NET Core Middlewares •Improved HTTP performance – New lean and fast HTTP request pipeline – You choose what to use in your application – By registering middlewares public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerfactory) { app.UseExceptionHandler("/Home/Error"); app.UseStaticFiles(); app.UseIdentity(); app.UseMvc(routes => ...) }

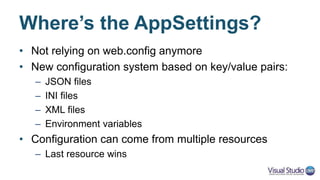

- 15. Where’s the AppSettings? •Not relying on web.config anymore • New configuration system based on key/value pairs: – JSON files – INI files – XML files – Environment variables • Configuration can come from multiple resources – Last resource wins
- 16. Loading Settings var builder= new ConfigurationBuilder() .SetBasePath(env.ContentRootPath) .AddJsonFile("appsettings.json", optional: true, reloadOnChange: true) .AddXmlFile("appsettings.xml", optional:true) .AddJsonFile($"appsettings.{env.EnvironmentName}.json",true); if (env.IsDevelopment()) { builder.AddUserSecrets(); } builder.AddEnvironmentVariables(); IConfigurationRoot Configuration = builder.Build(); ... string connString = Configuration["Data:Default:ConnectionString"];

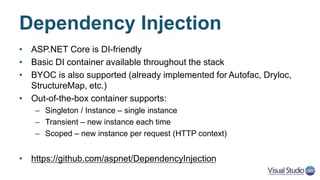

- 17. Dependency Injection • ASP.NETCore is DI-friendly • Basic DI container available throughout the stack • BYOC is also supported (already implemented for Autofac, Dryloc, StructureMap, etc.) • Out-of-the-box container supports: – Singleton / Instance – single instance – Transient – new instance each time – Scoped – new instance per request (HTTP context) • https://github.com/aspnet/DependencyInjection
- 18. DI with Controllers publicclass ProductsController : Controller { private readonly IProductsRepository _repository; public ProductsController(IProductsRepository repository) { this._repository = repository; } public IActionResult Index() { var products = _repository.GetAllProducts(); return View(products); } } services.AddTransient<IProductsRepository, DefaultProductsRepository>();

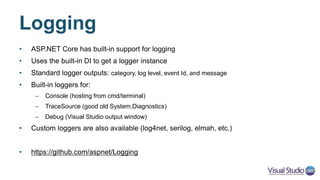

- 19. Logging • ASP.NET Corehas built-in support for logging • Uses the built-in DI to get a logger instance • Standard logger outputs: category, log level, event Id, and message • Built-in loggers for: – Console (hosting from cmd/terminal) – TraceSource (good old System.Diagnostics) – Debug (Visual Studio output window) • Custom loggers are also available (log4net, serilog, elmah, etc.) • https://github.com/aspnet/Logging
- 20. Logging with Controllers publicclass TodoController : Controller { private readonly ITodoRepository _todoRepository; private readonly ILogger<TodoController> _logger; private const int LIST_ITEMS = 1001; public TodoController(ITodoRepository todoRepo, ILogger<TodoController> logger) { _todoRepository = todoRepo; _logger = logger; } [HttpGet] public IEnumerable<TodoItem> GetAll() { _logger.LogInformation(LIST_ITEMS, "Listing all items"); EnsureItems(); return _todoRepository.GetAll(); } }

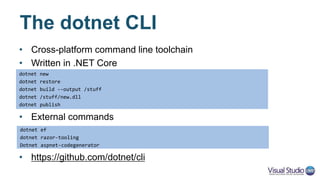

- 21. The dotnet CLI •Cross-platform command line toolchain • Written in .NET Core • External commands • https://github.com/dotnet/cli dotnet new dotnet restore dotnet build --output /stuff dotnet /stuff/new.dll dotnet publish dotnet ef dotnet razor-tooling Dotnet aspnet-codegenerator

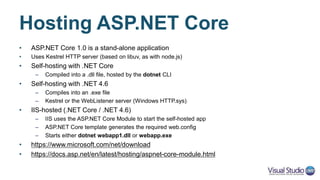

- 22. Hosting ASP.NET Core •ASP.NET Core 1.0 is a stand-alone application – Uses Kestrel HTTP server (based on libuv, as with node.js) • Self-hosting with .NET Core – Compiled into a .dll file, hosted by the dotnet CLI • Self-hosting with .NET 4.6 – Compiles into an .exe file – Kestrel or the WebListener server (Windows HTTP.sys) • IIS-hosted (.NET Core / .NET 4.6) – IIS uses the ASP.NET Core Module to start the self-hosted app – ASP.NET Core template generates the required web.config – Starts either dotnet webapp1.dll or webapp.exe • https://docs.asp.net/en/latest/hosting/aspnet-core-module.html
- 23.
- 24.
- 25. ASP.NET <= 4.6Frameworks
- 26.

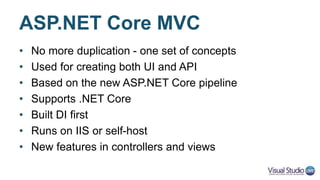

- 27. ASP.NET Core MVC •No more duplication - one set of concepts • Used for creating both UI and API • Based on the new ASP.NET Core pipeline • Supports .NET Core • Built DI first • Runs on IIS or self-host • New features in controllers and views

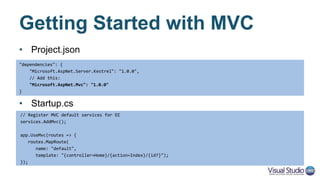

- 28. Getting Started withMVC • Project.json • Startup.cs "dependencies": { "Microsoft.AspNet.Server.Kestrel": "1.0.0", // Add this: "Microsoft.AspNet.Mvc": "1.0.0" } // Register MVC default services for DI services.AddMvc(); app.UseMvc(routes => { routes.MapRoute( name: "default", template: "{controller=Home}/{action=Index}/{id?}"); });

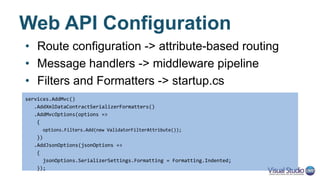

- 29. Web API Configuration •Route configuration -> attribute-based routing • Message handlers -> middleware pipeline • Filters and Formatters -> startup.cs services.AddMvc() .AddXmlDataContractSerializerFormatters() .AddMvcOptions(options => { options.Filters.Add(new ValidatorFilterAttribute()); }) .AddJsonOptions(jsonOptions => { jsonOptions.SerializerSettings.Formatting = Formatting.Indented; });

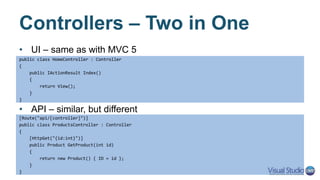

- 30. Controllers – Twoin One • UI – same as with MVC 5 • API – similar, but different public class HomeController : Controller { public IActionResult Index() { return View(); } } [Route("api/[controller]")] public class ProductsController : Controller { [HttpGet("{id:int}")] public Product GetProduct(int id) { return new Product() { ID = id }; } }

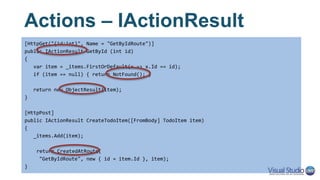

- 31. Actions – IActionResult [HttpGet("{id:int}",Name = "GetByIdRoute")] public IActionResult GetById (int id) { var item = _items.FirstOrDefault(x => x.Id == id); if (item == null) { return NotFound(); } return new ObjectResult(item); } [HttpPost] public IActionResult CreateTodoItem([FromBody] TodoItem item) { _items.Add(item); return CreatedAtRoute( "GetByIdRoute", new { id = item.Id }, item); }
- 32. Showing Some UIfor Your API • Swagger - a JSON-based service description framework • Create a Swagger endpoint using Swashbuckle.SwaggerGen – Browse to /swagger/v1/swagger.json • Host a built-in UI for testing APIs with Swashbuckle.SwaggerUi – Browse to /swagger/ui "dependencies": { "Swashbuckle.SwaggerGen": "6.0.0-beta901", "Swashbuckle.SwaggerUi": "6.0.0-beta901" } services.AddSwaggerGen(); app.UseSwagger(); app.UseSwaggerUi();

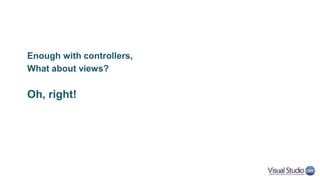

- 33. Enough with controllers, Whatabout views? Oh, right!

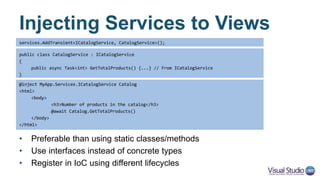

- 34. Injecting Services toViews • Preferable than using static classes/methods • Use interfaces instead of concrete types • Register in IoC using different lifecycles public class CatalogService : ICatalogService { public async Task<int> GetTotalProducts() {...} // From ICatalogService } @inject MyApp.Services.ICatalogService Catalog <html> <body> <h3>Number of products in the catalog</h3> @await Catalog.GetTotalProducts() </body> </html> services.AddTransient<ICatalogService, CatalogService>();

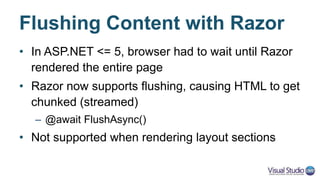

- 35. Flushing Content withRazor • In ASP.NET <= 5, browser had to wait until Razor rendered the entire page • Razor now supports flushing, causing HTML to get chunked (streamed) – @await FlushAsync() • Not supported when rendering layout sections

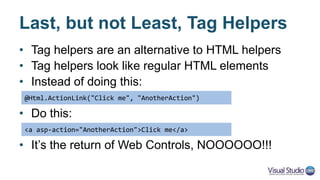

- 36. Last, but notLeast, Tag Helpers • Tag helpers are an alternative to HTML helpers • Tag helpers look like regular HTML elements • Instead of doing this: • Do this: • It’s the return of Web Controls, NOOOOOO!!! @Html.ActionLink("Click me", "AnotherAction") <a asp-action="AnotherAction">Click me</a>
- 37. Tag Helpers arenot Evil • Tag Helpers generate markup within their enclosing tag • Less Razor/HTML mess in the .cshtml file • Data-attributes style approach • Use C# to better construct the markup – Add/remove parts from the inner content – Generate complex HTML (recursive, nested, …) – Cache the output

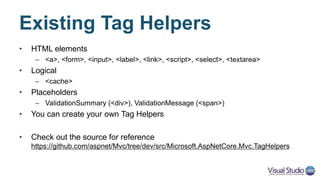

- 38. Existing Tag Helpers •HTML elements – <a>, <form>, <input>, <label>, <link>, <script>, <select>, <textarea> • Logical – <cache> • Placeholders – ValidationSummary (<div>), ValidationMessage (<span>) • You can create your own Tag Helpers • Check out the source for reference https://github.com/aspnet/Mvc/tree/dev/src/Microsoft.AspNetCore.Mvc.TagHelpers
- 39. Key Improvements inASP.NET Core • Totally modular - Everything is a package • Lightweight - you use minimum set of modules • Faster startup, lower memory footprint • Can be deployed side-by-side with .NET Core • Cross platform - can be hosted anywhere • Better developer experience – DI and one MVC • Everything is open-sourced
- 40. Key Improvements inASP.NET Core
- 41. Get Started withASP.NET Core • Install Visual Studio 2015 / Visual Studio Code • Walkthroughs and samples at http://www.asp.net/core • Documentation at http://docs.asp.net/en/latest • Get the code from http://github.com/aspnet • Read blogs at http://blogs.msdn.com/b/webdev • @IdoFlatow // idof@sela.co.il // http://www.idoflatow.net/downloads
Editor's Notes
- #17 http://docs.asp.net/en/latest/security/app-secrets.html
- #18 ($"appsettings.{env.EnvironmentName}.json” The $ is C# 6 string interpolation
- #30 Other dependencies that people may find relevant: aspnet.diagnostics, server.weblistener
- #31 For XML, add a nuget to the project.json: "Microsoft.AspNet.Mvc.Formatters.Xml": "6.0.0-rc1-final",
- #32 Other dependencies that people may find relevant: aspnet.diagnostics, server.weblistener
- #33 Don’t use void with beta3, it ignores status codes set in the method
- #34 Null returns 204, but void return 200 empty https://github.com/aspnet/Mvc/issues/4096
- #39 Other dependencies that people may find relevant: aspnet.diagnostics, server.weblistener
