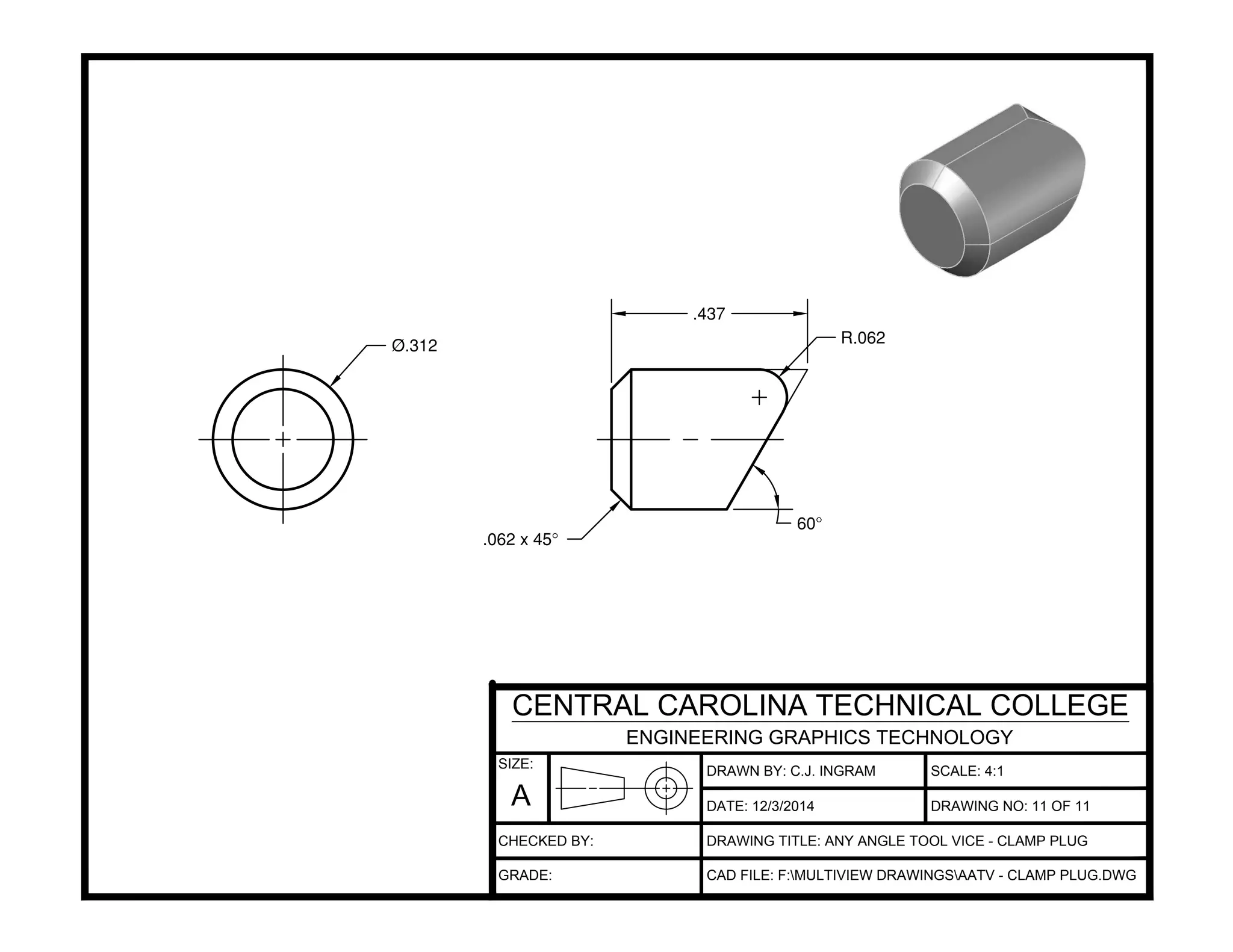

This technical drawing shows dimensions and specifications for a clamp plug for an any angle tool vice. It includes dimensions for various angles and diameters of the plug. The drawing also lists the date it was created, the scale, the title, associated CAD file, and the school and program where it was created.

1. .437
R.062
.062 x 45°
Ø.312
60°
DRAWN BY: C.J. INGRAM
DATE:
SCALE: 4:1
DRAWING TITLE: ANY ANGLE TOOL VICE - CLAMP PLUG
CAD FILE: F:MULTIVIEW DRAWINGSAATV - CLAMP PLUG.DWG
12/3/2014 DRAWING NO: 11 OF 11
SIZE:
A
CENTRAL CAROLINA TECHNICAL COLLEGE
ENGINEERING GRAPHICS TECHNOLOGY
CHECKED BY:
GRADE:
