An Advanced IR System of Relational Keyword Search Technique

ISSN 2350-1022
International Journal of Recent Research in Mathematics Computer Science and Information Technology
Vol. 2, Issue 1, pp: (236-242), Month: April 2015 – September 2015, Available at: www.paperpublications.org
Page | 236
Paper Publications
An Advanced IR System of Relational Keyword
Search Technique
1
Dhananjay A. Gholap, 2
Gumaste S. V
1
Second Year Master of Engineering, 2
Assistant Professor
1,2
Department of Computer Engineering Sharadchandra Pawar College of Engineering, Dumbarwadi, Otur, Pune, India
Abstract: Now these days keyword search to relational data set becomes an area of research within the data base
and Information Retrieval. There is no standard process of information retrieval, which will clearly show the
accurate result also it shows keyword search with ranking. Execution time is retrieving of data is more in existing
system. We propose a system for increasing performance of relational keyword search systems. In the proposed
system we combine schema-based and graph-based approaches and propose a Relational Keyword Search System
to overcome the mentioned disadvantages of existing systems and manage the information and user access the
information very efficiently. Keyword Search with the ranking requires very low execution time. Execution time of
retrieving information and file length during Information retrieval can be display using chart.
Keywords: Keyword Search, Datasets, Information Retrieval Query Workloads, Schema-based Systems, Graph-
based Systems, ranking, relational databases.
I. INTRODUCTION
Keyword search is a well-studied problem in the world of text documents and Web search engines. The Informational
Retrieval (IR) community has utilized the keyword search techniques for searching large-scale unstructured data, and has
developed various techniques for ranking query results and evaluating their effectiveness. Meanwhile, the Database (DB)
community has mostly focused on large-collections of structured data, and has designed sophisticated techniques for
efficiently processing structured queries over the data.
In recent years, emerging applications such as customer support, health care, and data management require high demands
of processing abundant mixtures of structured and unstructured data. As a result, the integration of Databases and
Information Retrieval technologies becomes very important. Keyword search provides great flexibility for analyzing both
structured and unstructured data that contain abundant text information. In this section, we summarize some
representative studies in different research areas including Information Retrieval, Databases, and the integration of
Databases and Information Retrieval.
II. OVERVIEW OF RELATIONAL KEYWORD SEARCH
Relational Keyword search are change for different applications and retrieval systems are different for that purposes. In
Information Retrieval, keyword search is a type of search method that looks for matching documents which contain one or
more keywords specified by a user. The Boolean retrieval model is one of the most popular models for information
retrieval in which users can pose any keyword queries in the form of a Boolean expression of keywords, that is, keywords
are combined with some Boolean operators such as AND, OR, and NOT. The Boolean retrieval model views each
document as just a set of keywords. A document either matches or does not match a keyword query. Inverted lists are
commonly adopted as the data structure for efficiently answering various keyword queries in the Boolean retrieval model.

ISSN 2350-1022
Page | 237
Paper Publications
[A]. Schema based approaches:
Schema based approaches support keyword search over relational databases using execution of SQL commands [1]. These
techniques are combination of vertices and edges including tuples and keys (primary and foreign key). There are some
techniques are existed for schema based approaches.
[B]. Graph Based Approaches:
Graph based approaches assume that the database is modeled as a weighted graph where the weight of the edges indicate
the importance of relationships. This weighted tree with edges is related to steiner tree problem [5]. Graph base search
techniques is more general than schema based techniques including XML, relational databases and internet.[1]
The basic idea of an inverted list is to keep a dictionary of keywords. Then, for each keyword, the index structure has a
list that records which documents the keyword occurs in. a simple example of the inverted list for a set of documents. In
the case of large document collections, the resulting number of matching documents using the Boolean retrieval model
can far more than what a human being could possibly scan through. Accordingly, it is essential for a search system to rank
the documents matching a keyword query properly. This model is called ranked retrieval model. The vector space model
is usually adopted to represent the documents and the keyword queries. The relevance of a document with respect to a
keyword query can be measured using the well-known Cosine similarity.
An important and necessary post-search activity for key-word search in Information Retrieval is the ranking of search
results. In general, the ranking metrics take into account two important factors. One is the relevance between a document
and a keyword query. The other is the importance of the document itself. The term-based ranking and the link-based
ranking are the two most popular ranking methods used widely in practice. The term-based ranking methods, such as
TFIDF [6], captures the relevance between documents and keyword queries based on the content information in the
documents. A document d and a keyword query q can be regarded as sets of keywords, respectively. The TFIDF score of
a document d with respect to a keyword query q is defined as
TFIDF(d,q) =Pt dq TF(t) IDF(t), where TF(t) is the term frequency of keyword t in d, and IDF(t) is the inverse document
frequency of keyword t which is the total number of documents in the collections divided by the number of documents
that contain t.
III. RELATED WORK
Existing evaluations of relational keyword search systems are ad hoc with little standardization. Webber [11] summarizes
existing evaluations with regards to search effectiveness. Although Coffman and Weaver [5] developed the benchmark
that we use in this evaluation, their work does not include any performance evaluation. Baid et al. [1] assert that many
existing keyword search techniques have unpredictable performance due to unacceptable response times or fail to produce
results even after exhausting memory. Our results particularly the large memory footprint of the systems confirm this
claim. A number of relational keyword search systems have been published beyond those included in our evaluation.
Chen et al. [4] and Chaudhuri and Das [8] both presented tutorials on keyword search in databases. Yu et al. provides an
excellent overview of relational keyword search techniques.
Liu et al. and SPARK [6] both propose modified scoring functions for schema-based keyword search. SPARK also
introduces a skyline sweep algorithm to minimize the total number of database probes during a search Golenberg et al.
provide an algorithm that enumerates results in approximate order by height with polynomial delay. Dalvi et al. [3]
consider keyword search on graphs that cannot fit within main memory. CS Tree provides alternative semantics the
compact Steiner tree to answer search queries more efficiently.
IV. PROPOSED SYSTEM
The proposed techniques are designed for different types of important data sources, including relational tables, graphs,
and search logs. In particular, we make the following contributions. For relational tables, we systematically develop the
aggregate keyword search method so as to enhance the capability of the keyword search technique. In particular, we
conduct a group-by-based keyword search. We are interested in identifying a minimal context where all the keywords in a
query are covered. We further extend our methods to allow partial matches and matches using a keyword ontology. For

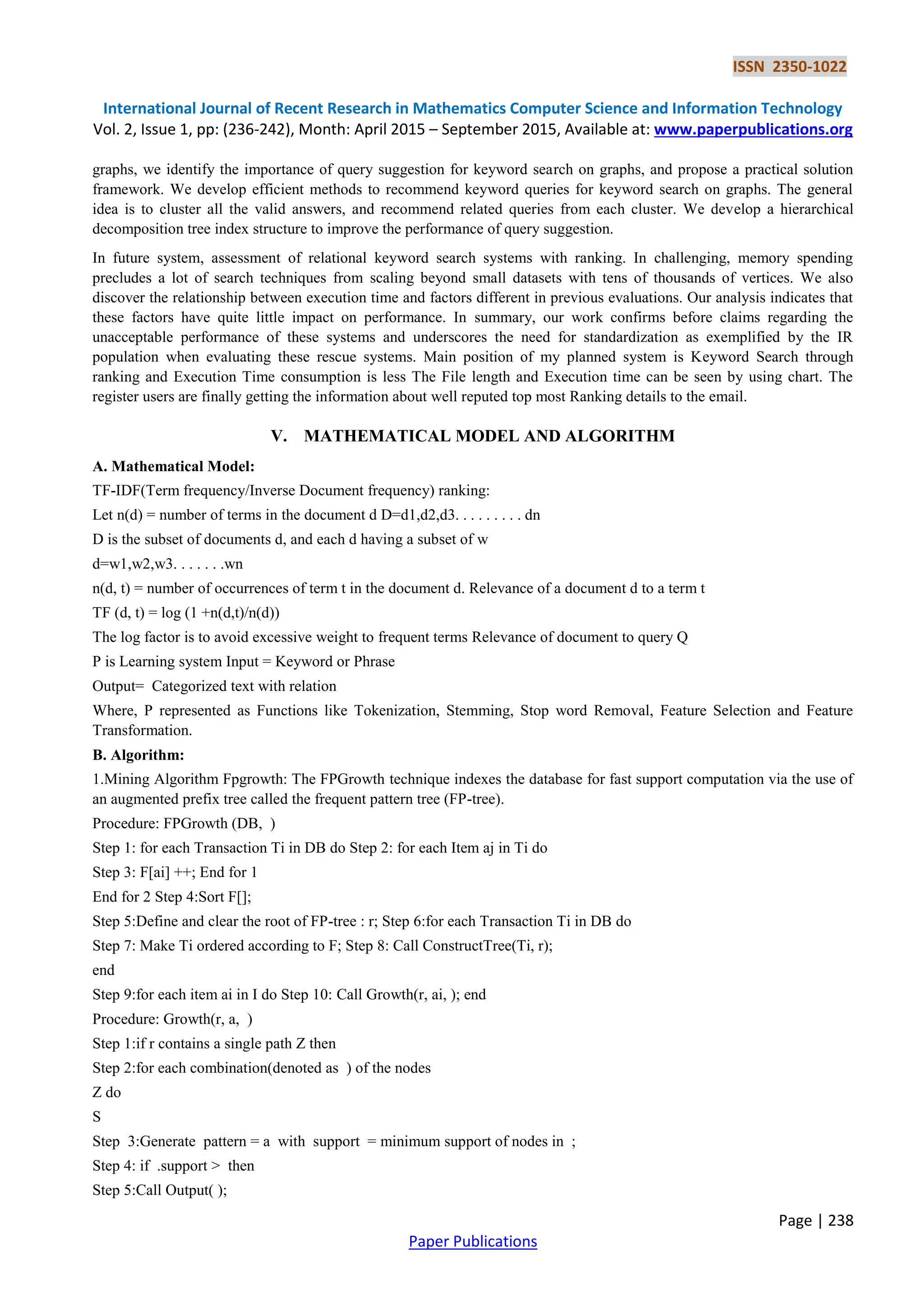

ISSN 2350-1022
Page | 238
Paper Publications
graphs, we identify the importance of query suggestion for keyword search on graphs, and propose a practical solution
framework. We develop efficient methods to recommend keyword queries for keyword search on graphs. The general
idea is to cluster all the valid answers, and recommend related queries from each cluster. We develop a hierarchical
decomposition tree index structure to improve the performance of query suggestion.
In future system, assessment of relational keyword search systems with ranking. In challenging, memory spending
precludes a lot of search techniques from scaling beyond small datasets with tens of thousands of vertices. We also
discover the relationship between execution time and factors different in previous evaluations. Our analysis indicates that
these factors have quite little impact on performance. In summary, our work confirms before claims regarding the
unacceptable performance of these systems and underscores the need for standardization as exemplified by the IR
population when evaluating these rescue systems. Main position of my planned system is Keyword Search through
ranking and Execution Time consumption is less The File length and Execution time can be seen by using chart. The
register users are finally getting the information about well reputed top most Ranking details to the email.
V. MATHEMATICAL MODEL AND ALGORITHM
A. Mathematical Model:
TF-IDF(Term frequency/Inverse Document frequency) ranking:
Let n(d) = number of terms in the document d D=d1,d2,d3. . . . . . . . . dn
D is the subset of documents d, and each d having a subset of w
d=w1,w2,w3. . . . . . .wn
n(d, t) = number of occurrences of term t in the document d. Relevance of a document d to a term t
TF (d, t) = log (1 +n(d,t)/n(d))
The log factor is to avoid excessive weight to frequent terms Relevance of document to query Q
P is Learning system Input = Keyword or Phrase
Output= Categorized text with relation
Where, P represented as Functions like Tokenization, Stemming, Stop word Removal, Feature Selection and Feature
Transformation.
B. Algorithm:
1.Mining Algorithm Fpgrowth: The FPGrowth technique indexes the database for fast support computation via the use of
an augmented prefix tree called the frequent pattern tree (FP-tree).
Procedure: FPGrowth (DB, )
Step 1: for each Transaction Ti in DB do Step 2: for each Item aj in Ti do
Step 3: F[ai] ++; End for 1
End for 2 Step 4:Sort F[];
Step 5:Define and clear the root of FP-tree : r; Step 6:for each Transaction Ti in DB do
Step 7: Make Ti ordered according to F; Step 8: Call ConstructTree(Ti, r);
end
Step 9:for each item ai in I do Step 10: Call Growth(r, ai, ); end
Procedure: Growth(r, a, )
Step 1:if r contains a single path Z then
Step 2:for each combination(denoted as ) of the nodes
Z do
S
Step 3:Generate pattern = a with support = minimum support of nodes in ;
Step 4: if .support > then
Step 5:Call Output( );

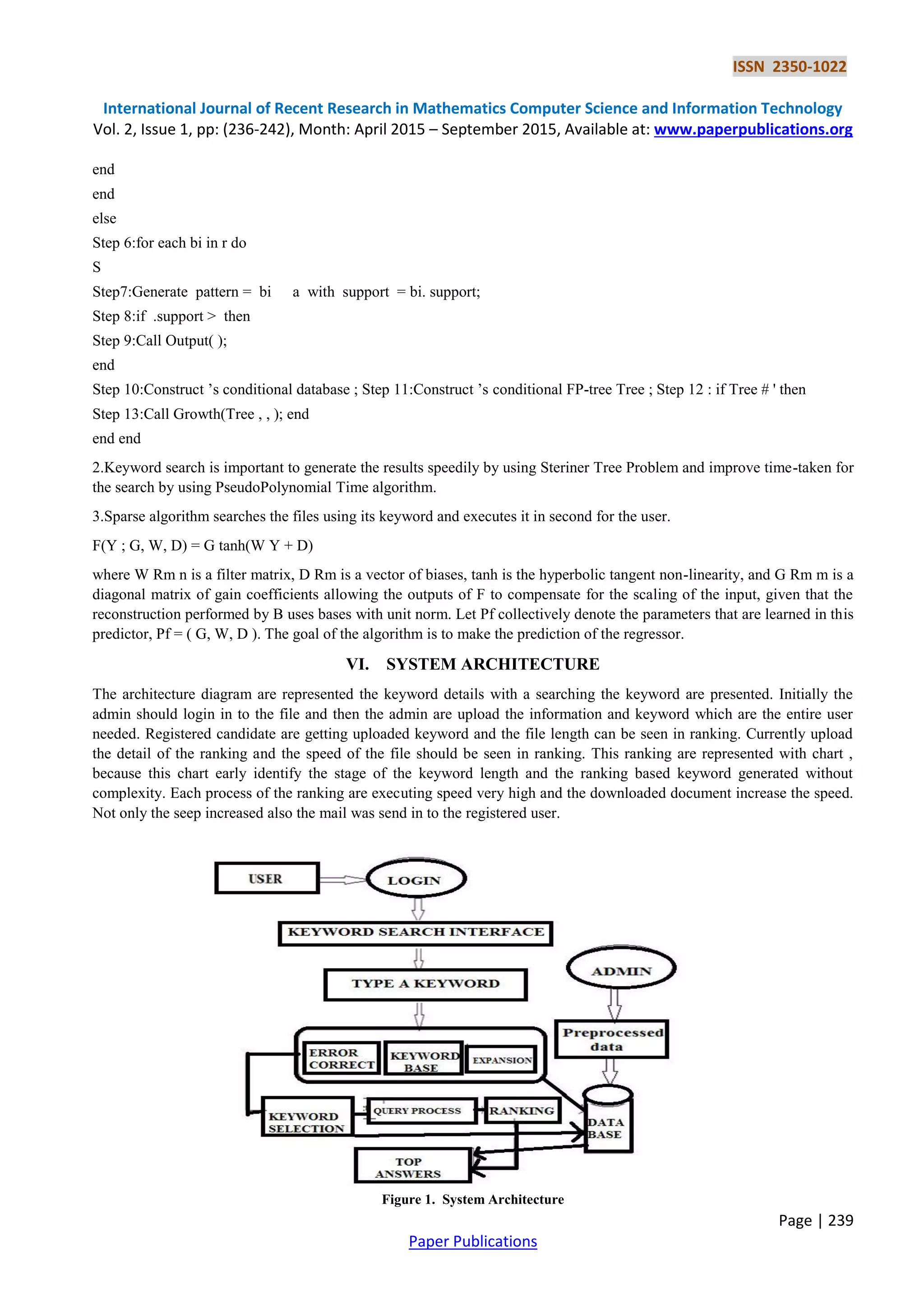

ISSN 2350-1022
Page | 239
Paper Publications
end
end
else
Step 6:for each bi in r do
S
Step7:Generate pattern = bi a with support = bi. support;
Step 8:if .support > then
Step 9:Call Output( );
end
Step 10:Construct ’s conditional database ; Step 11:Construct ’s conditional FP-tree Tree ; Step 12 : if Tree # ' then
Step 13:Call Growth(Tree , , ); end
end end
2.Keyword search is important to generate the results speedily by using Steriner Tree Problem and improve time-taken for
the search by using PseudoPolynomial Time algorithm.
3.Sparse algorithm searches the files using its keyword and executes it in second for the user.
F(Y ; G, W, D) = G tanh(W Y + D)
where W Rm n is a filter matrix, D Rm is a vector of biases, tanh is the hyperbolic tangent non-linearity, and G Rm m is a
diagonal matrix of gain coefficients allowing the outputs of F to compensate for the scaling of the input, given that the
reconstruction performed by B uses bases with unit norm. Let Pf collectively denote the parameters that are learned in this
predictor, Pf = ( G, W, D ). The goal of the algorithm is to make the prediction of the regressor.
VI. SYSTEM ARCHITECTURE
The architecture diagram are represented the keyword details with a searching the keyword are presented. Initially the
admin should login in to the file and then the admin are upload the information and keyword which are the entire user
needed. Registered candidate are getting uploaded keyword and the file length can be seen in ranking. Currently upload
the detail of the ranking and the speed of the file should be seen in ranking. This ranking are represented with chart ,
because this chart early identify the stage of the keyword length and the ranking based keyword generated without
complexity. Each process of the ranking are executing speed very high and the downloaded document increase the speed.
Not only the seep increased also the mail was send in to the registered user.
Figure 1. System Architecture

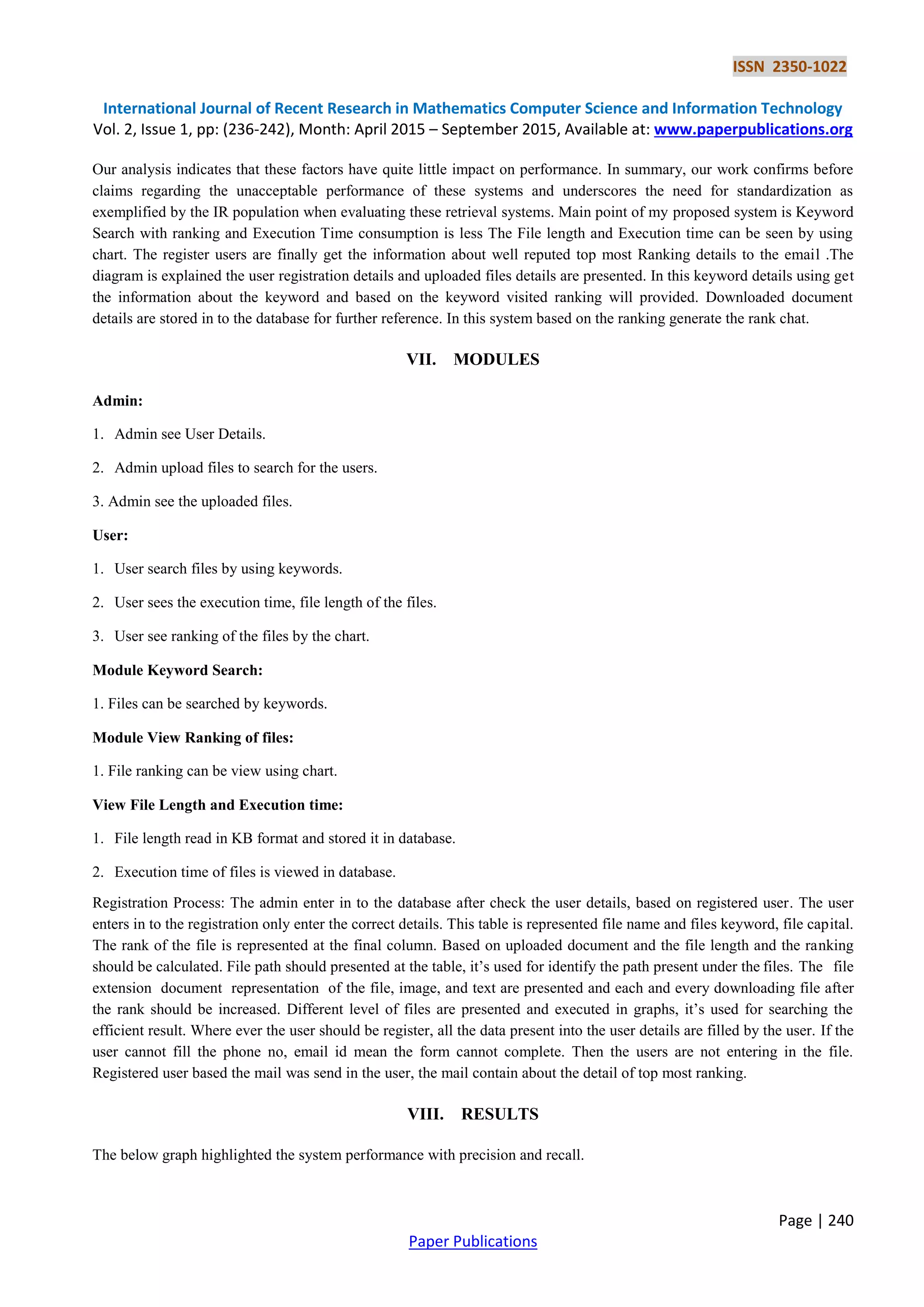

ISSN 2350-1022
Page | 240
Paper Publications
Our analysis indicates that these factors have quite little impact on performance. In summary, our work confirms before
claims regarding the unacceptable performance of these systems and underscores the need for standardization as
exemplified by the IR population when evaluating these retrieval systems. Main point of my proposed system is Keyword
Search with ranking and Execution Time consumption is less The File length and Execution time can be seen by using
chart. The register users are finally get the information about well reputed top most Ranking details to the email .The
diagram is explained the user registration details and uploaded files details are presented. In this keyword details using get
the information about the keyword and based on the keyword visited ranking will provided. Downloaded document
details are stored in to the database for further reference. In this system based on the ranking generate the rank chat.
VII. MODULES
Admin:
1. Admin see User Details.
2. Admin upload files to search for the users.
3. Admin see the uploaded files.
User:
1. User search files by using keywords.
2. User sees the execution time, file length of the files.
3. User see ranking of the files by the chart.
Module Keyword Search:
1. Files can be searched by keywords.
Module View Ranking of files:
1. File ranking can be view using chart.
View File Length and Execution time:
1. File length read in KB format and stored it in database.
2. Execution time of files is viewed in database.
Registration Process: The admin enter in to the database after check the user details, based on registered user. The user
enters in to the registration only enter the correct details. This table is represented file name and files keyword, file capital.
The rank of the file is represented at the final column. Based on uploaded document and the file length and the ranking
should be calculated. File path should presented at the table, it’s used for identify the path present under the files. The file
extension document representation of the file, image, and text are presented and each and every downloading file after
the rank should be increased. Different level of files are presented and executed in graphs, it’s used for searching the
efficient result. Where ever the user should be register, all the data present into the user details are filled by the user. If the
user cannot fill the phone no, email id mean the form cannot complete. Then the users are not entering in the file.
Registered user based the mail was send in the user, the mail contain about the detail of top most ranking.
VIII. RESULTS

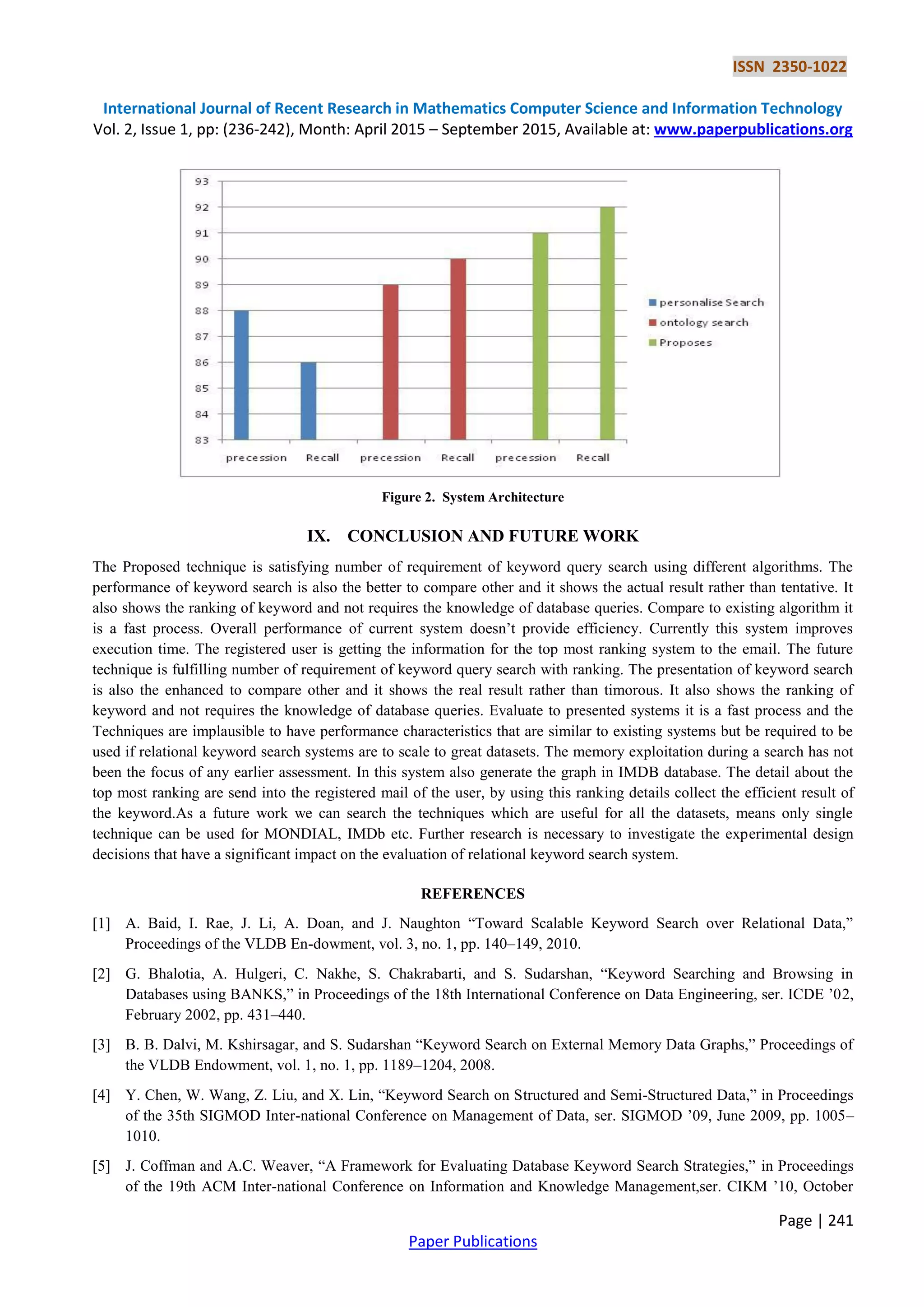

The below graph highlighted the system performance with precision and recall.

ISSN 2350-1022
Page | 241
Paper Publications
Figure 2. System Architecture
IX. CONCLUSION AND FUTURE WORK
The Proposed technique is satisfying number of requirement of keyword query search using different algorithms. The
performance of keyword search is also the better to compare other and it shows the actual result rather than tentative. It
also shows the ranking of keyword and not requires the knowledge of database queries. Compare to existing algorithm it
is a fast process. Overall performance of current system doesn’t provide efficiency. Currently this system improves
execution time. The registered user is getting the information for the top most ranking system to the email. The future
technique is fulfilling number of requirement of keyword query search with ranking. The presentation of keyword search
is also the enhanced to compare other and it shows the real result rather than timorous. It also shows the ranking of
keyword and not requires the knowledge of database queries. Evaluate to presented systems it is a fast process and the
Techniques are implausible to have performance characteristics that are similar to existing systems but be required to be
used if relational keyword search systems are to scale to great datasets. The memory exploitation during a search has not
been the focus of any earlier assessment. In this system also generate the graph in IMDB database. The detail about the
top most ranking are send into the registered mail of the user, by using this ranking details collect the efficient result of
the keyword.As a future work we can search the techniques which are useful for all the datasets, means only single
technique can be used for MONDIAL, IMDb etc. Further research is necessary to investigate the experimental design
decisions that have a significant impact on the evaluation of relational keyword search system.
REFERENCES
[1] A. Baid, I. Rae, J. Li, A. Doan, and J. Naughton “Toward Scalable Keyword Search over Relational Data,”
Proceedings of the VLDB En-dowment, vol. 3, no. 1, pp. 140–149, 2010.
[2] G. Bhalotia, A. Hulgeri, C. Nakhe, S. Chakrabarti, and S. Sudarshan, “Keyword Searching and Browsing in
Databases using BANKS,” in Proceedings of the 18th International Conference on Data Engineering, ser. ICDE ’02,
February 2002, pp. 431–440.
[3] B. B. Dalvi, M. Kshirsagar, and S. Sudarshan “Keyword Search on External Memory Data Graphs,” Proceedings of
the VLDB Endowment, vol. 1, no. 1, pp. 1189–1204, 2008.
[4] Y. Chen, W. Wang, Z. Liu, and X. Lin, “Keyword Search on Structured and Semi-Structured Data,” in Proceedings
of the 35th SIGMOD Inter-national Conference on Management of Data, ser. SIGMOD ’09, June 2009, pp. 1005–
1010.
[5] J. Coffman and A.C. Weaver, “A Framework for Evaluating Database Keyword Search Strategies,” in Proceedings
of the 19th ACM Inter-national Conference on Information and Knowledge Management,ser. CIKM ’10, October

ISSN 2350-1022
Page | 242
Paper Publications
2010, pp. Search in Databases, 1st ed. Morgan and Claypool Publishers, 2010.
[6] Y. Luo, X. Lin, W. Wang, and X. Zhou, “SPARK: Top-k Keyword Query in Relational Databases,” in Proceedings
of the 2007 ACM SIGMOD International Conference on Management of Data, ser. SIGMOD ’07, June 2007, pp.
115–126.
[7] S. Cohen, J. Mamou, Y. Kanza, and Y. Sagiv. XSEarch: A semantic search engine for XML. In VLDB, 2011.[8] W.
Webber, “Evaluating the Effectiveness of Keyword Search,” IEEE Data Engineering Bulletin, vol. 33, no. 1, pp. 54–
59, 2010.
[8] S. Chaudhuri and G. Das, “Keyword Querying and Ranking in Databases,” Proceedings of the VLDB Endowment,
vol.2, pp.1658–1659, August 2009. [Online] .Available:http://dl.acm.org/citation.cfm?id=1687553. 1687622
[9] Shiwen Cheng, Arash Termehchy, and Vagelis Hristidis, “Efficient Pre-diction of Difficult Keyword Queries over
Databases”, IEEE Trans. Knowledge and Data Engineering. June 2014, ISSN: 1041-4347.
[10] Reshma Sawant, Akshaya Deshmane, Shweta Sawant, “Personalization of Search Engines for Mobiles”,
International Journal of Advanced Engineering & Innovative Technology, Vol 1, Issue 1, April-2014, 24-29 ISSN:
2348-7208
[11] W. Webber, “Evaluating the Effectiveness of Keyword Search,” IEEE Data Engineering Bulletin, vol. 33, no. 1, pp.
54–59, 2010.

An Advanced IR System of Relational Keyword Search Technique

More Related Content

What's hot

Viewers also liked

Similar to An Advanced IR System of Relational Keyword Search Technique

Recently uploaded

An Advanced IR System of Relational Keyword Search Technique
