Amazon Cloud Services and Zend Framework

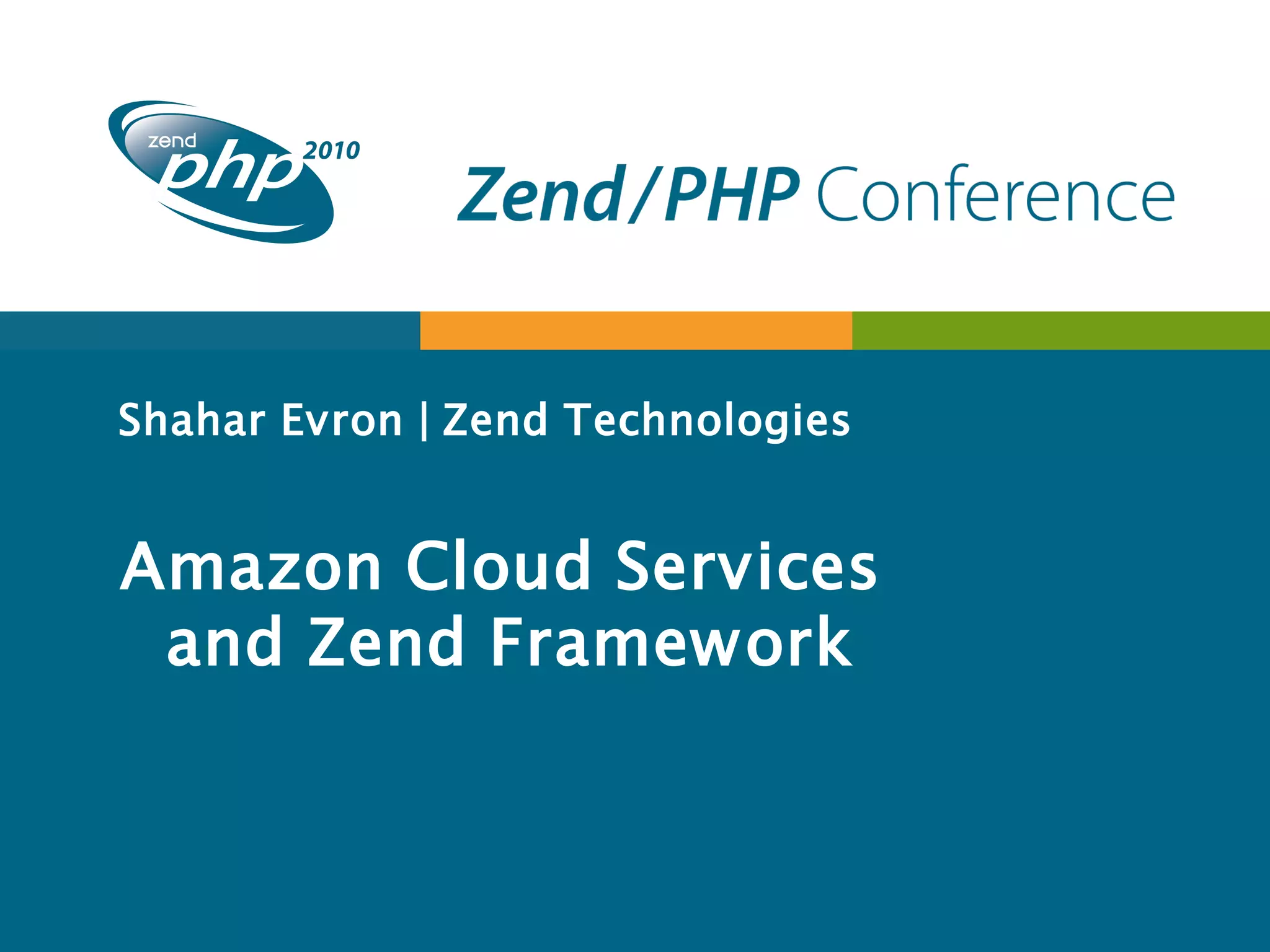

1. Shahar Evron | Zend Technologies
Amazon Cloud Services
and Zend Framework

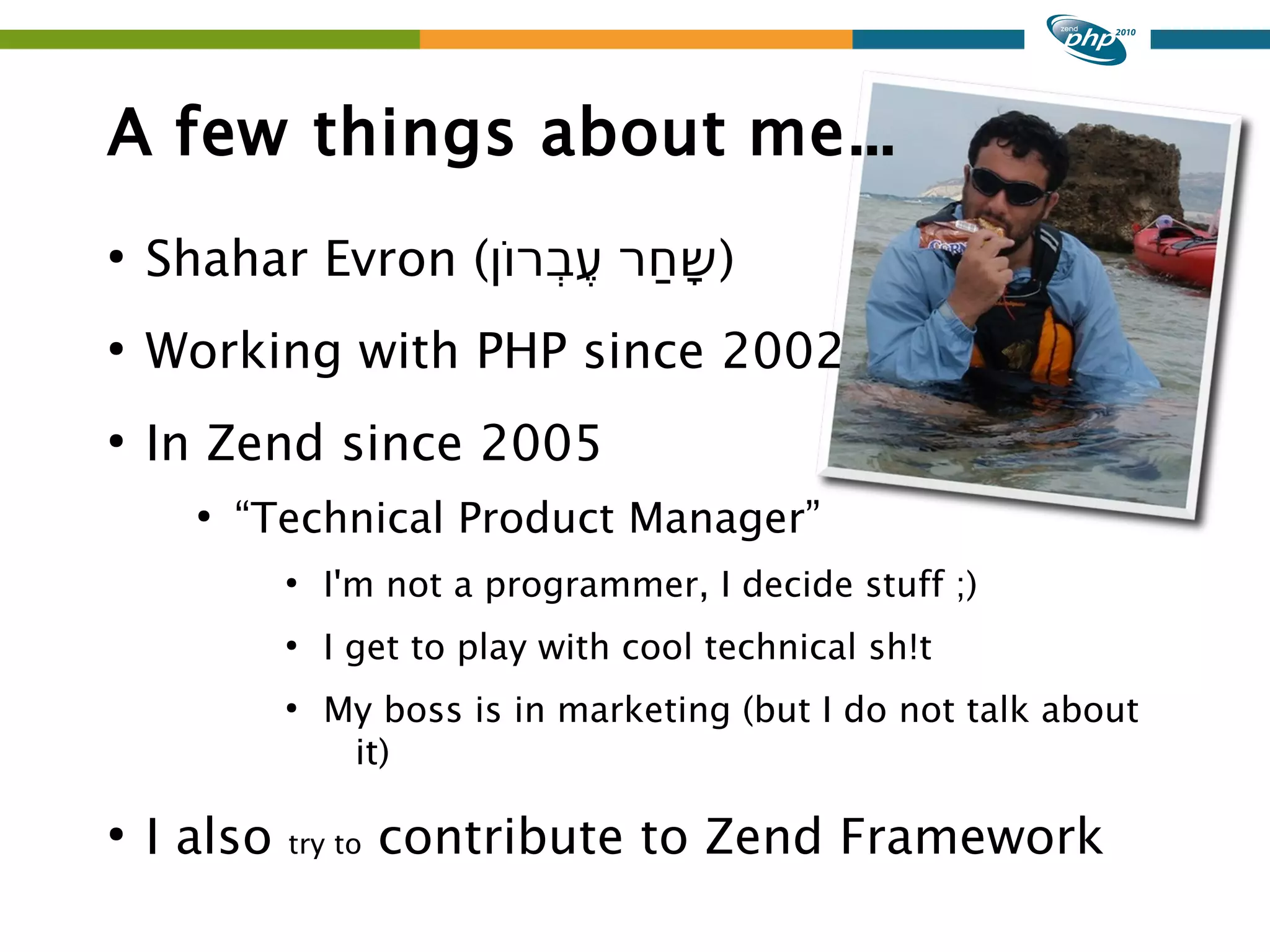

2. A few things about me...
●
Shahar Evron (ֹןוְרבֶע ַרחָש)
●
Working with PHP since 2002
●
In Zend since 2005
●
“Technical Product Manager”
●
I'm not a programmer, I decide stuff ;)
●
I get to play with cool technical sh!t
●
My boss is in marketing (but I do not talk about
it)
●
I also try to contribute to Zend Framework
3. Agenda
●
This is a code talk!
●
A quick introduction to the AWS platform
●
Showcase some of the Amazon services
through ZF-based examples
●
Amazon Simple Storage Service
●
Amazon Elastic Compute Cloud
●
Elastic Block Storage
●
Elastic Load Balancing
4. Usual Zend Framework Mantras
●
ZF is also a component library
...you all already know this right?
●
Everything I'll show today can be used
with any PHP 5.2+ code
5. Hype Aside, Why Cloud?
●
Lets take a deep breath for a minute..
●
We're not all moving to the cloud
...right?
●
It's not the solution for
everything!
●
It's not only a hosting platform
●
It can be used at will
6. Amazon Cloud Services
●
The biggest, most complete and best
known public cloud platform today
●
Amazon started externalizing (and
selling) internal infrastructures
●
EC2 public beta in 2006
●
Includes services for computing, file
storage, data storage, queueing and more
●
...no free development offering
7. Common Initialization Code
All code samples in this tutorial assume:
// Have ZF in your include_path
set_include_path('/path/to/zf/library');
// Load and register the ZF autoloader
require_once 'Zend/Loader/Autoloader.php';
$loader = Zend_Loader_Autoloader::getInstance();
// Set AWS access keys
define('AWS_ACCESS_KEY', 'YOURACCESSKEYID');
define('AWS_SECRET_KEY', '5om3R4Ndom53Cr3757uFf');
8. Amazon S3
●
“Simple Storage Service”
●
Object (file, blob) storage
●
Allows access control on files
●
Simple HTTP REST interface
●
Public objects can be accessed directly using
any regular web browser
●
Fault-tolerant
●
Not to be confused with: EBS, CloudFront
9. Amazon S3
The Basics:
/* Keys can also be set globally using the static
Zend_Service_Amazon_S3::setKeys() method */
$s3 = new Zend_Service_Amazon_S3(
AWS_ACCESS_KEY, AWS_SECRET_KEY
);
// Create a bucket
$bucket = 'shahar-talks';
$s3->createBucket($bucket);
// Store the current file in our bucket
$s3->putFile(
__FILE__,
$bucket . '/' . basename(__FILE__)
);
10. Amazon S3
●
The object we have just created is at
http://s3.amazonaws.com/shahar-talks/filename
●
...but it's private (objects are private by default)
so you can't access it without authenticating
●
You can access it using API after authenticating,
but not using a browser
●
More about access control later on
// Get the file we just uploadad
$file = $s3->getObject(
$bucket . '/' . basename(__FILE__)
);
12. Amazon S3 - Buckets
●
S3 stores files in “buckets”
●
Think of them as storage namespaces
●
Buckets are globally unique!
/** DON'T TRY THIS AT HOME, KIDS **/
$buckets = $s3->getBuckets();
foreach ($buckets as $bucket) {
$objects = $s3->getObjectsByBucket($bucket);
echo "Deleting " . count($objects) .
" from bucket $bucket...n";
$s3->cleanBucket($bucket);
$s3->removeBucket($bucket);
}
13. Amazon S3 – Access Control
●
Access Control can be set using the 3rd
parameter of putObject():
$location = 'shahar-talks/picture.jpg';
$s3->putObject('picture.jpg', $location, array(
// Make the picture publicly readable
Zend_Service_Amazon_S3::S3_ACL_HEADER =>
Zend_Service_Amazon_S3::S3_ACL_PUBLIC_READ,
// Specify content type
Zend_Service_Amazon_S3::S3_CONTENT_TYPE_HEADER =>
'image/jpeg'
));
14. Amazon S3 – Streaming
●
By default, the getObject and putObject
methods load entire files into memory
●
Dealing with large files, you will very
quickly hit PHP's memory limit
●
(or you'll just crash your server)
●
Solution: use the streaming methods!
15. Amazon S3 - Streaming
// Store a potentially large object
$localFile = '/home/shahar/pirated-movie-dvd.iso';
$destination = 'my-stuff/' . basename($localFile);
$s3->putFileStream($localFile, $destination, $meta);
// Or:
$fp = fopen($localFile);
$s3->putObject($destination, $fp, $meta);
// Get a potentially large object
$s3->getObjectStream($destination, $localFile);
// Or:
$response = $s3->getObjectStream($destination);
$fp = fopen($response->getStreamName(), 'r');
while ($data = fread($fp, 4096)) {
file_put_contents('/dev/null', $data);
}
fclose($fp);
16. The Amazon S3 Stream Wrapper
●
Even Cooler: ZF provides a user-space
stream wrapper for S3!
// Register the stream wrapper
$s3->registerStreamWrapper("s3");
// Now we can use S3 files more or less as regular files
$bucket = "my-secret-stuff";
mkdir("s3://$bucket");
$localFp = fopen($localFile, 'r');
$remoteFp = fopen("s3://$bucket/secret-dvd.iso", 'w');
stream_filter_append($remoteFp, 'mcrypt.tripledes',
STREAM_FILTER_WRITE, $filterOpts);
// Copy my local file to S3, encrypting it as we go
stream_copy_to_stream($localFp, $remoteFp);
17. Amazon EC2
●
Amazon Elastic Compute Cloud
●
On-demand virtual servers in the cloud
●
You are “guaranteed” CPU and memory
●
You are not-so-guaranteed I/O and
network throughput
●
Different machine types are available,
pricing varies
●
Useful for hosting, and for other stuff!
19. Amazon EC2 - Instances
// ... continued
// Wait for machine to be up and running
$instance = $result['instances'][0];
$state = $instance['instanceState']['name'];
while ($state != 'running') {
sleep(5);
$result = $ec2->describe($instance['instanceId']);
$instance = $result['instances'][0];
$state = $instance['instanceState']['name'];
}
// Print out the machine's public hostname
echo $instance['dnsName'];
20. Amazon EC2 - EBS
●
Allows you to create permanent storage
for EC2 instances
●
EBS volumes - block devices that can be
attached to any EC2 instance
●
Can be attached to a single EC2 machine at
a time, and detached while not in use
●
You can create EBS snapshots of volumes
●
These are stored in S3
●
You can quickly create multiple volumes
from a single snapshot
22. Amazon EC2 - EBS
/* Create a snapshot of a volume */
$snapInfo = $ebs->createSnapshot($volumeId);
while ($snapInfo['status'] != 'completed') {
sleep(1);
$snapInfo = array_shift(
$ebs->describeSnapshot($snapInfo['snapshotId'])
);
}
/* Create volumes from snapshot and attach to machines */
foreach($myInstances as $instInfo) {
$result = $ebs->createVolumeFromSnapshot(
$snapInfo['snapshotId'],$instInfo['availabilityZone']
);
$ebs->attachVolume(
$result['volumeId'], $instInfo['instanceId'], '/dev/sdf'
);
}
23. Amazon EC2 - ELB
●
Elastic Load Balancing – load balancing
service for EC2 machine clusters
●
Can do TCP or HTTP load balancing
●
Optionally provides session stickiness
●
Either TCP or HTTP based stickiness
●
You can set up health pings and add /
remove machines based on health
●
Can distribute load across availability
zones
24. Amazon EC2 - ELB
●
Ok, not really in ZF... but still useful
http://github.com/shevron/zf-amazonaws-elasticlb
●
I needed access to Amazon ELB, so I
wrote a ZF-compatible class for it
●
I got too busy / lazy / bored so it never
made it to ZF
●
Maybe you wanna finish it? ;-)
25. Amazon EC2 - EBS
/* NOTE: this class is NOT in ZF! */
$elb = new Zend_Service_Amazon_Ec2_ElasticLB(
AWS_ACCESS_KEY, AWS_SECRET_KEY
);
/* Create a listener on port 80, HTTP */
$listener = new Zend_Service_Amazon_Ec2_ElasticLB_Listener(
80, 80, 'HTTP'
);
/* Create a load balancer */
$lbInfo = $elb->create(
'my-http-lb', 'eu-west-1b', $listener
);
/* Register instances with load balancer */
$instanceIds = array();
foreach($myInstances as $instInfo) {
$instanceIds[] = $instInfo['instanceId'];
}
$elb->registerInstances('my-http-lb', $instanceIds);
26. More AWS + ZF Goodies
●
SimpleDB
●
Simple Queue Service
●
Elastic IP Addresses
●
EC2 Images
●
EC2 Windows Instances
●
CloudWatch Monitoring
●
Reserved Instances
27. Where Next?
●
Last Questions?
●
Email me: shahar.e@zend.com
●
IRC: #zftalk, #zendserver @ FreeNode
●
http://framework.zend.com/manual/
●
http://aws.amazon.com/documentation/
●
Pay-per-use Zend Server images:
http://zend.com/products/server/amazon/
