The document discusses classic web applications versus Ajax web applications and provides an overview of how Struts 2 can be used to build both. It explains that classic applications involve full page reloads when submitting forms, while Ajax applications use JavaScript to submit requests and update parts of the page without reloading. It also summarizes that Struts 2 handles much of the work behind the scenes, supports separation of concerns, and allows defining actions and results through XML configuration or annotations, making development faster.

1. Ajax on Struts 2

2. About Myself Chad Davis Blackdog Software, Inc. J2EE Consulting Corporate Training Struts 2 in Action Open Source Enthusiast Debian Devotee

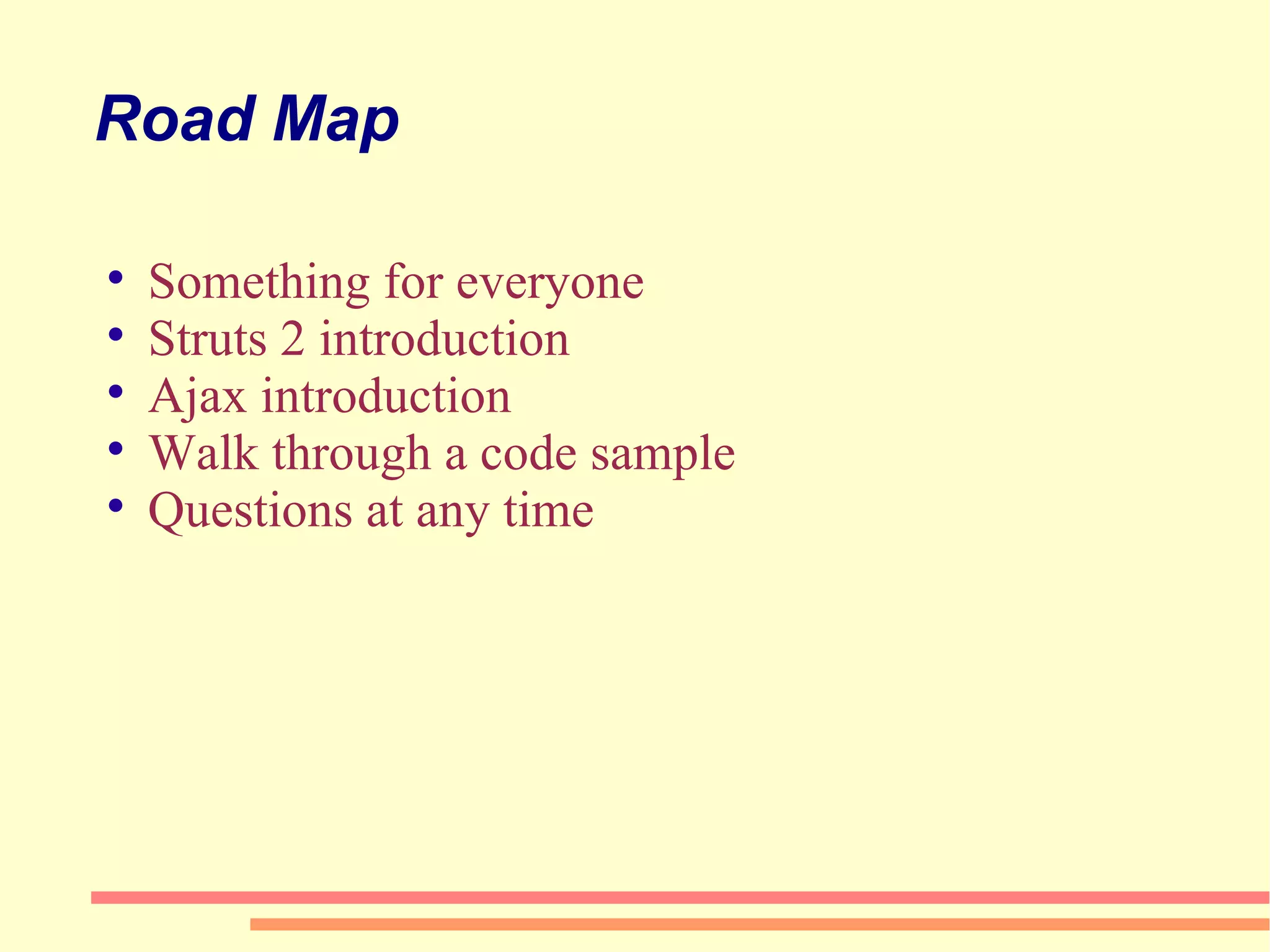

3. Road Map Something for everyone Struts 2 introduction Ajax introduction Walk through a code sample Questions at any time

4. Struts 2 Web application framework Java Servlets Second generation Software engineering

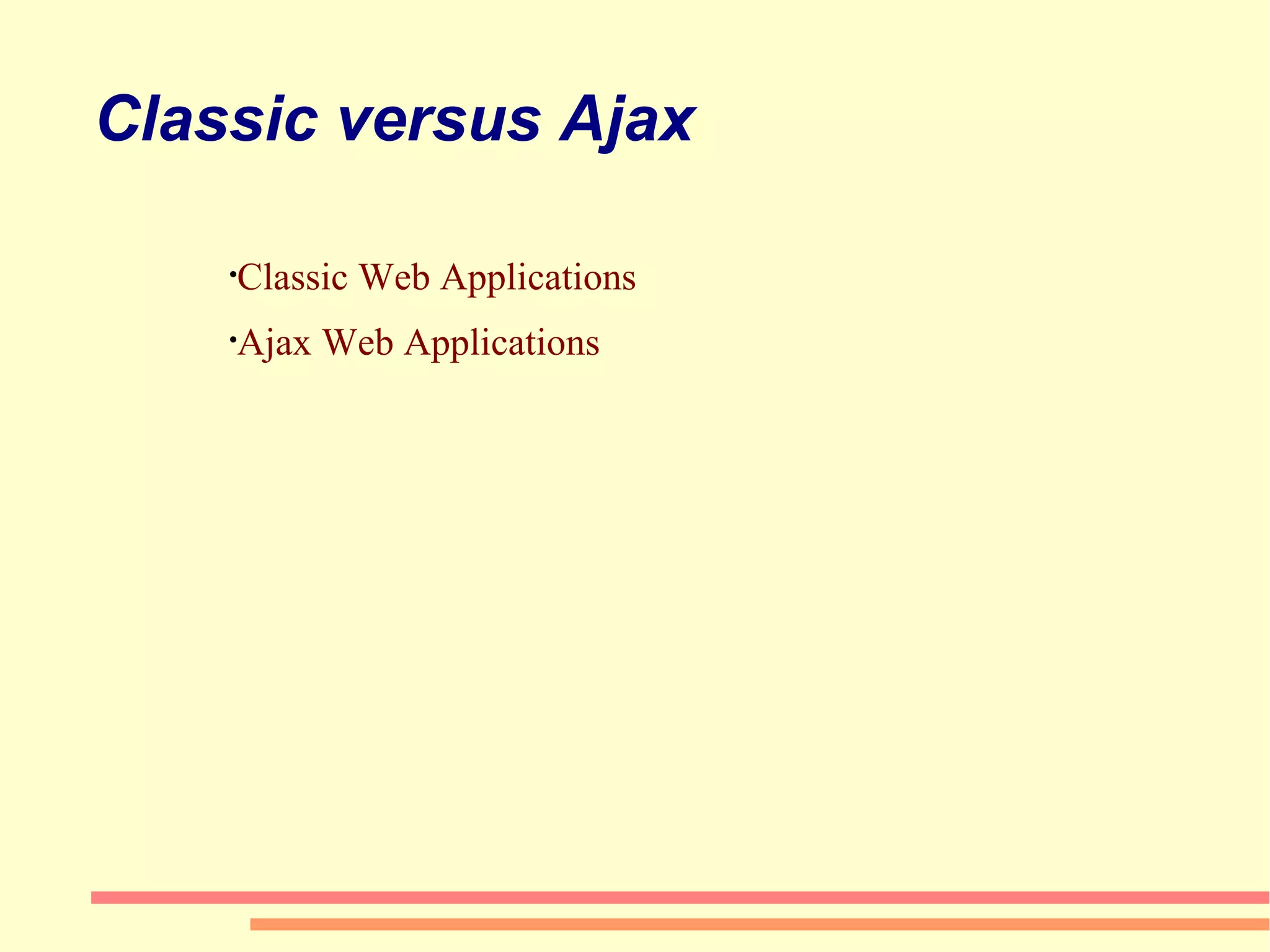

5. Classic versus Ajax Classic Web Applications Ajax Web Applications

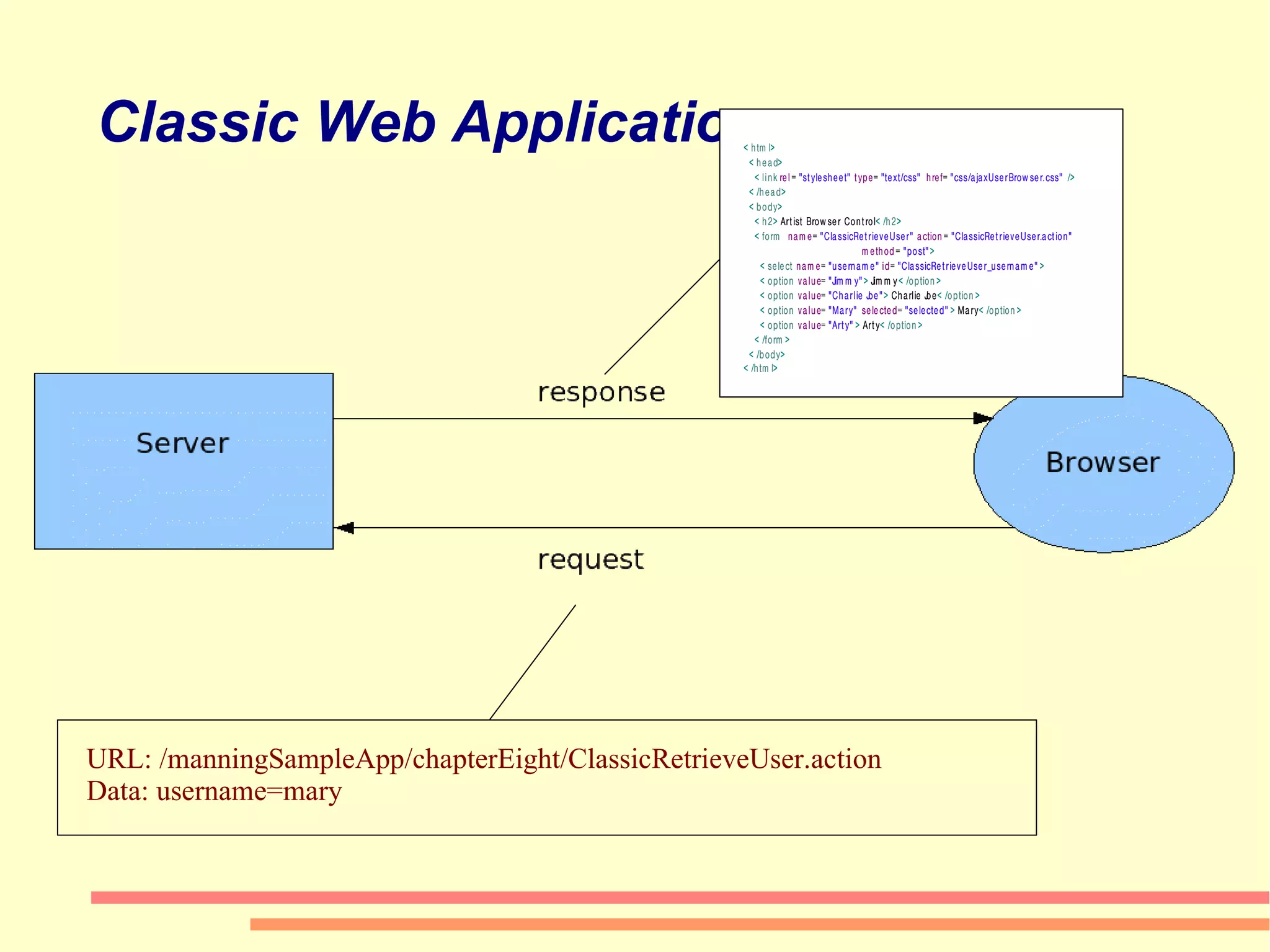

6. Classic Web Applications URL: /manningSampleApp/chapterEight/ClassicRetrieveUser.action Data: username=mary

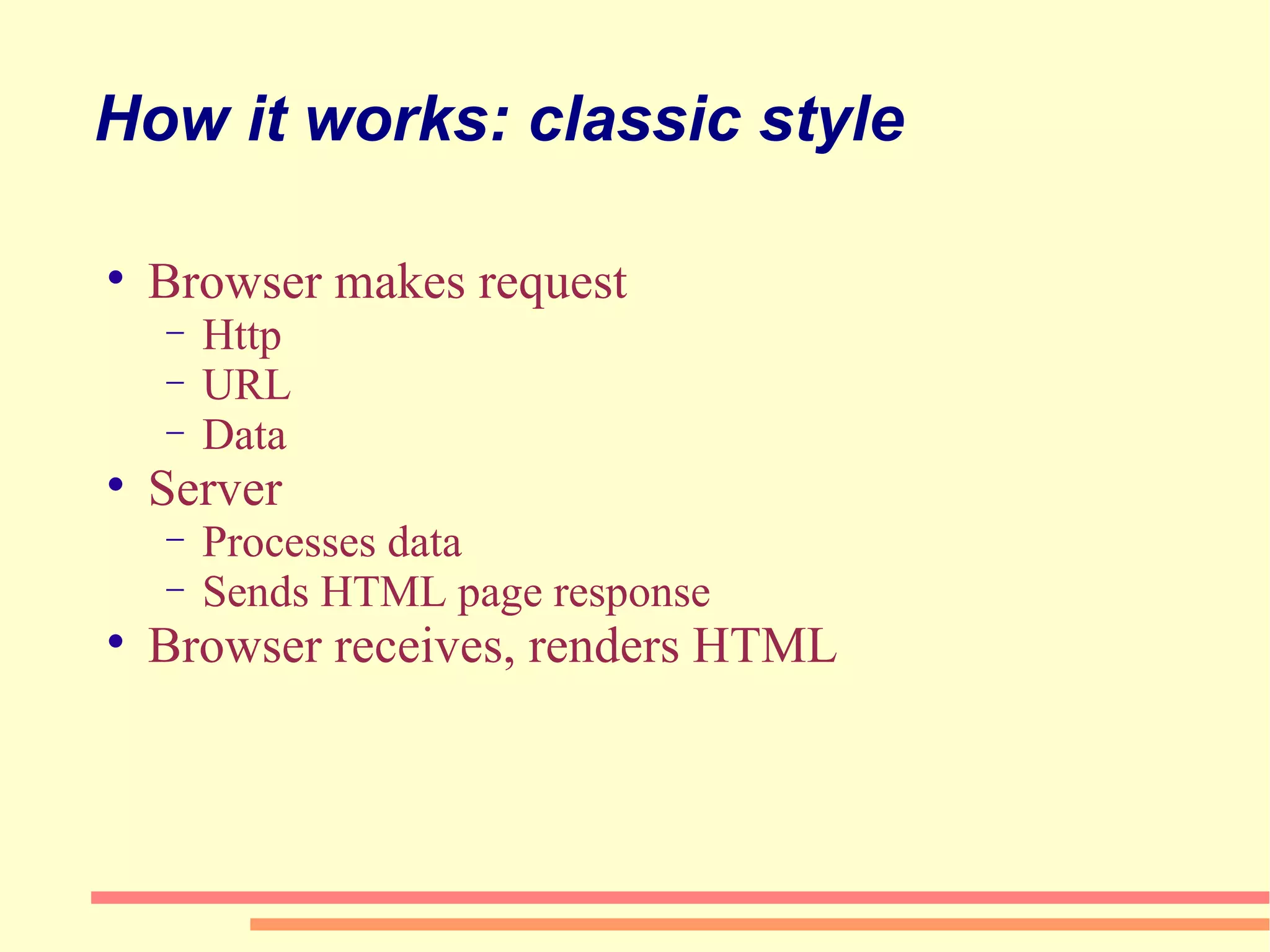

7. How it works: classic style Browser makes request Http URL Data Server Processes data Sends HTML page response Browser receives, renders HTML

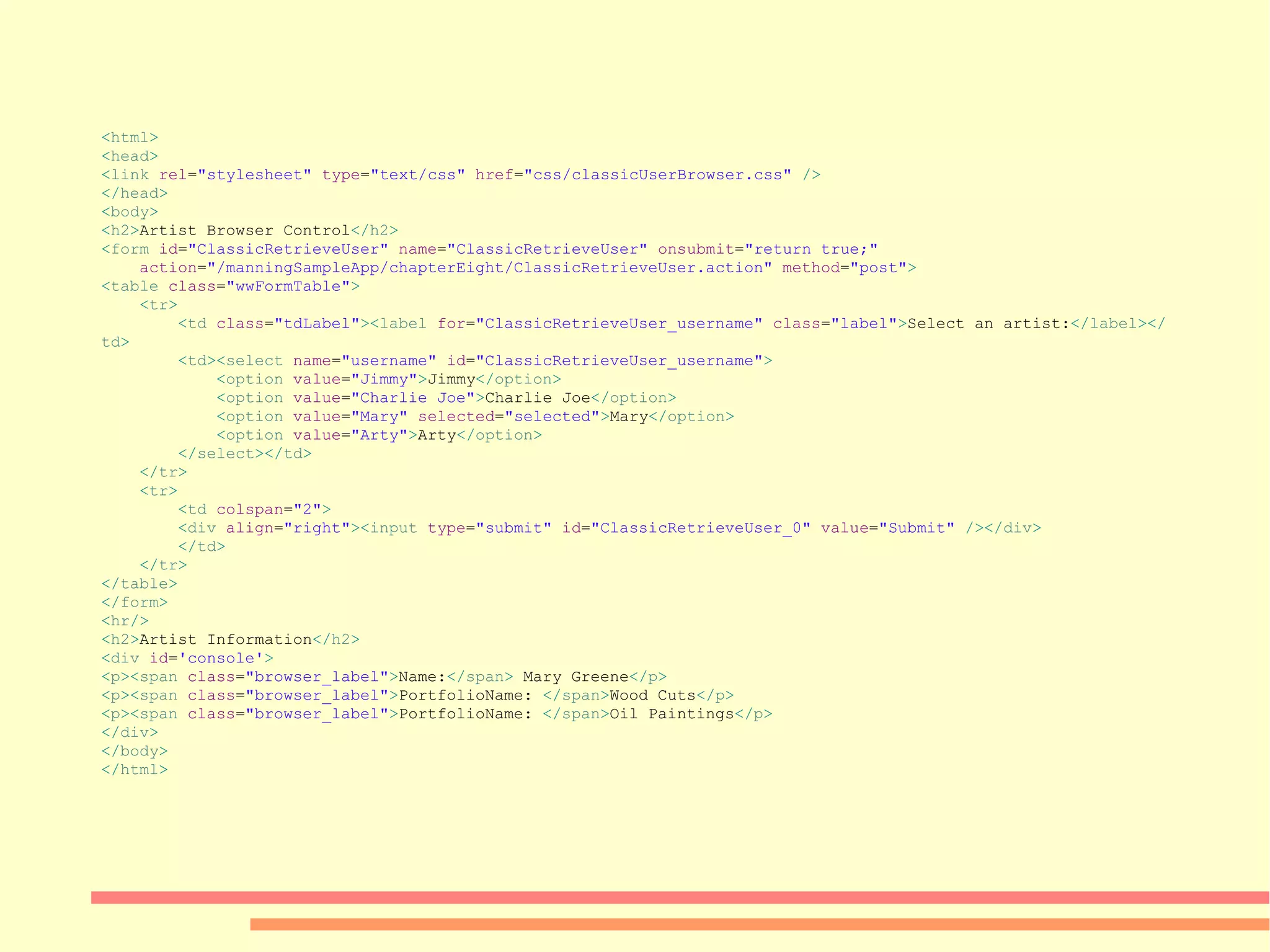

8. < html > < head > < link rel = &quot;stylesheet&quot; type = &quot;text/css&quot; href = &quot;css/classicUserBrowser.css&quot; /> </ head > < body > < h2 > Artist Browser Control </ h2 > < form id = &quot;ClassicRetrieveUser&quot; name = &quot;ClassicRetrieveUser&quot; onsubmit = &quot;return true;&quot; action = &quot;/manningSampleApp/chapterEight/ClassicRetrieveUser.action&quot; method = &quot;post&quot; > < table class = &quot;wwFormTable&quot; > < tr > < td class = &quot;tdLabel&quot; >< label for = &quot;ClassicRetrieveUser_username&quot; class = &quot;label&quot; > Select an artist: </ label ></ td > < td >< select name = &quot;username&quot; id = &quot;ClassicRetrieveUser_username&quot; > < option value = &quot;Jimmy&quot; > Jimmy </ option > < option value = &quot;Charlie Joe&quot; > Charlie Joe </ option > < option value = &quot;Mary&quot; selected = &quot;selected&quot; > Mary </ option > < option value = &quot;Arty&quot; > Arty </ option > </ select ></ td > </ tr > < tr > < td colspan = &quot;2&quot; > < div align = &quot;right&quot; >< input type = &quot;submit&quot; id = &quot;ClassicRetrieveUser_0&quot; value = &quot;Submit&quot; /></ div > </ td > </ tr > </ table > </ form > < hr /> < h2 > Artist Information </ h2 > < div id = 'console' > < p >< span class = &quot;browser_label&quot; > Name: </ span > Mary Greene </ p > < p >< span class = &quot;browser_label&quot; > PortfolioName: </ span > Wood Cuts </ p > < p >< span class = &quot;browser_label&quot; > PortfolioName: </ span > Oil Paintings </ p > </ div > </ body > </ html >

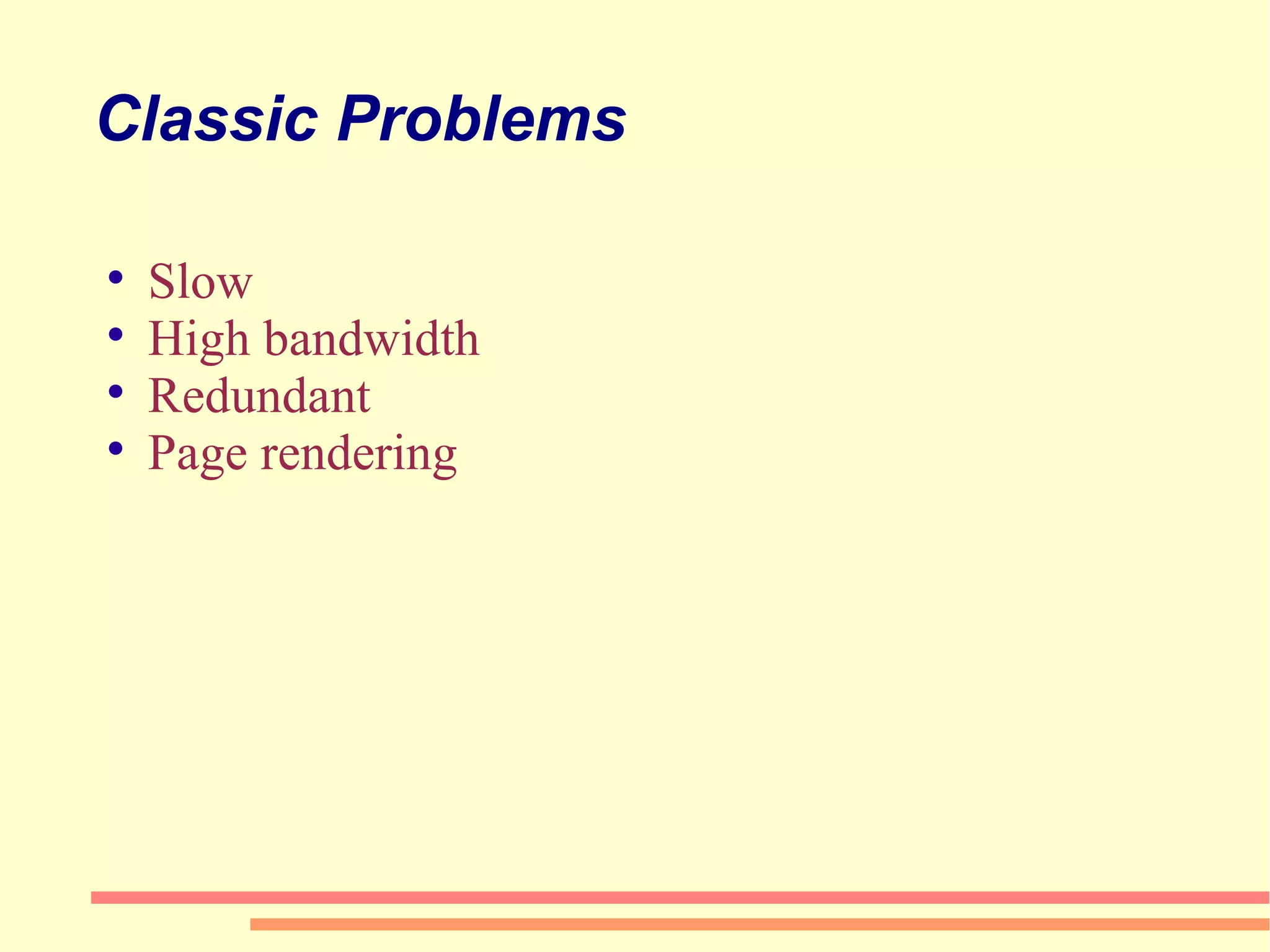

9. Classic Problems Slow High bandwidth Redundant Page rendering

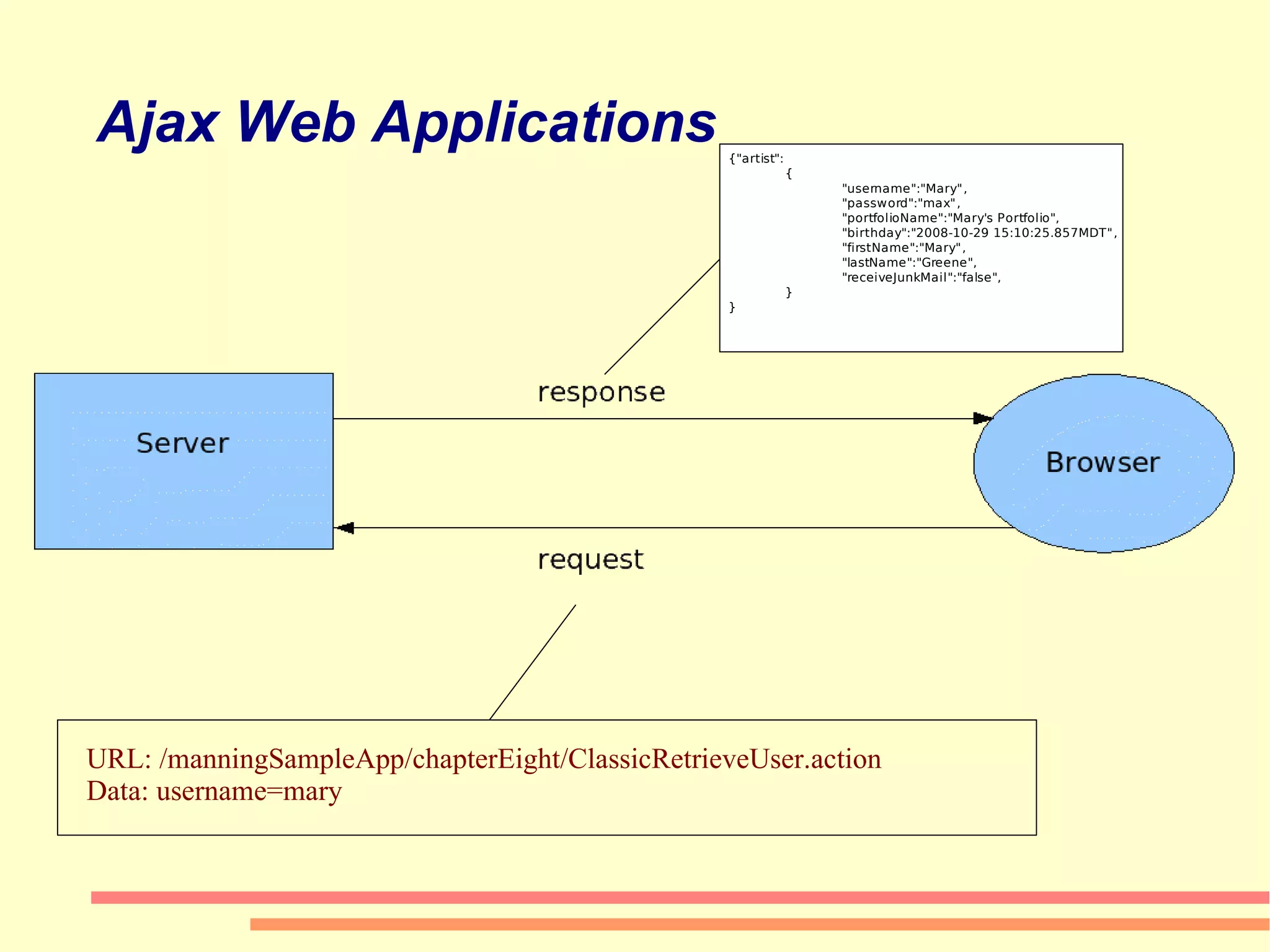

10. Ajax Web Applications URL: /manningSampleApp/chapterEight/ClassicRetrieveUser.action Data: username=mary

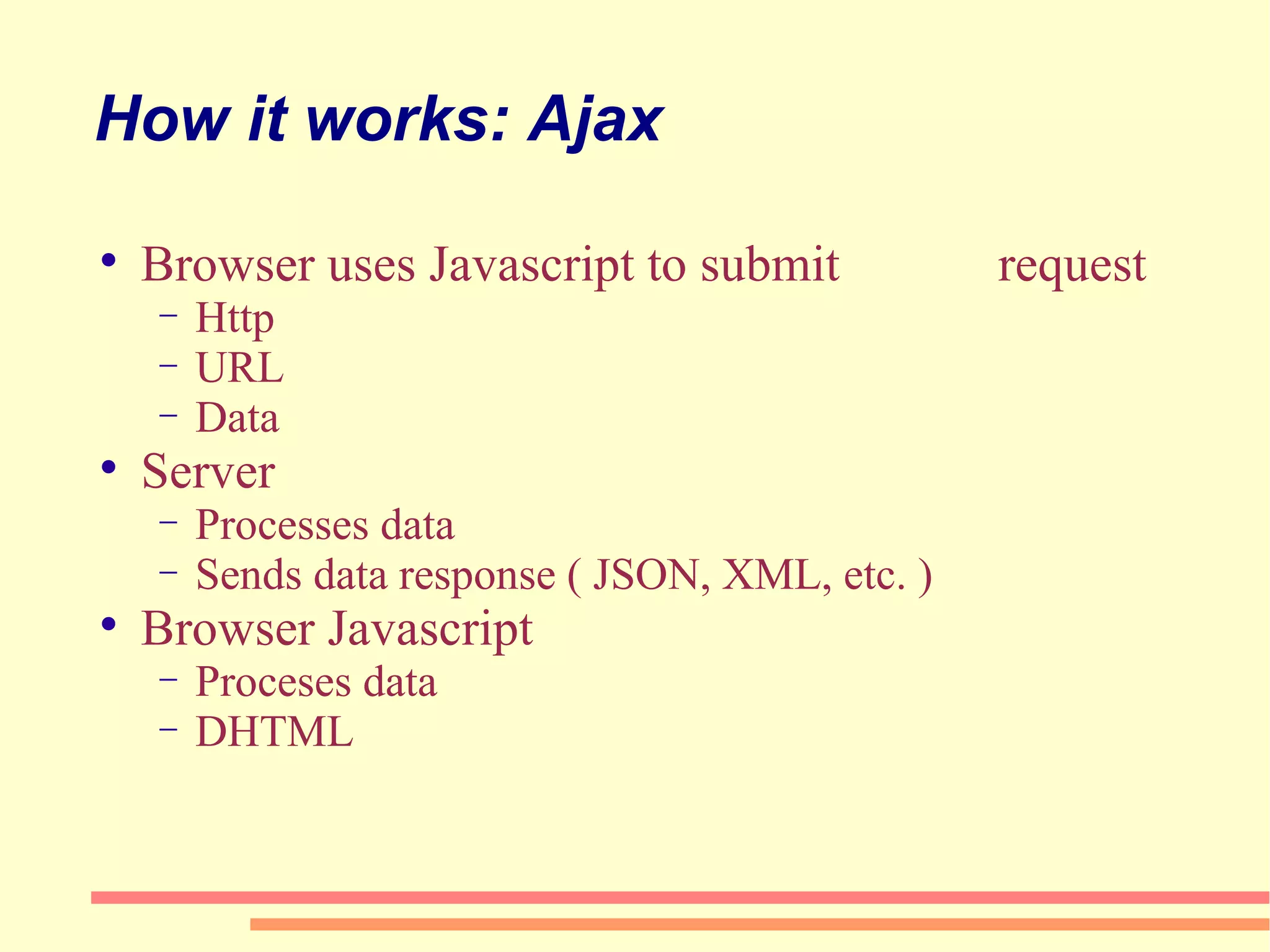

11. How it works: Ajax Browser uses Javascript to submit request Http URL Data Server Processes data Sends data response ( JSON, XML, etc. ) Browser Javascript Proceses data DHTML

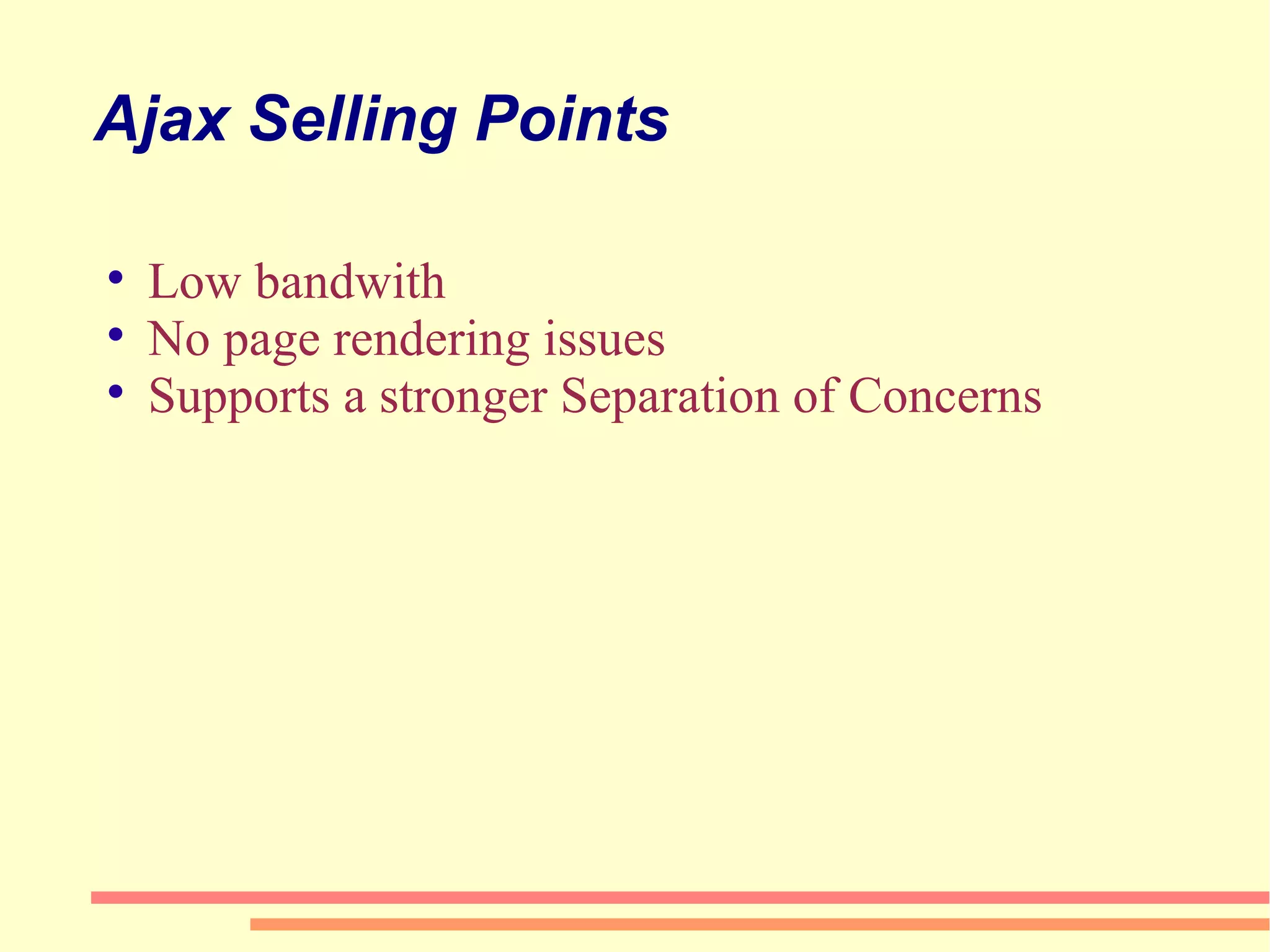

13. Ajax Selling Points Low bandwith No page rendering issues Supports a stronger Separation of Concerns

14. Observations . . . What does the server do? The page abstraction: JSP, ASP, PHP What should new frameworks do? What should new frameworks do?

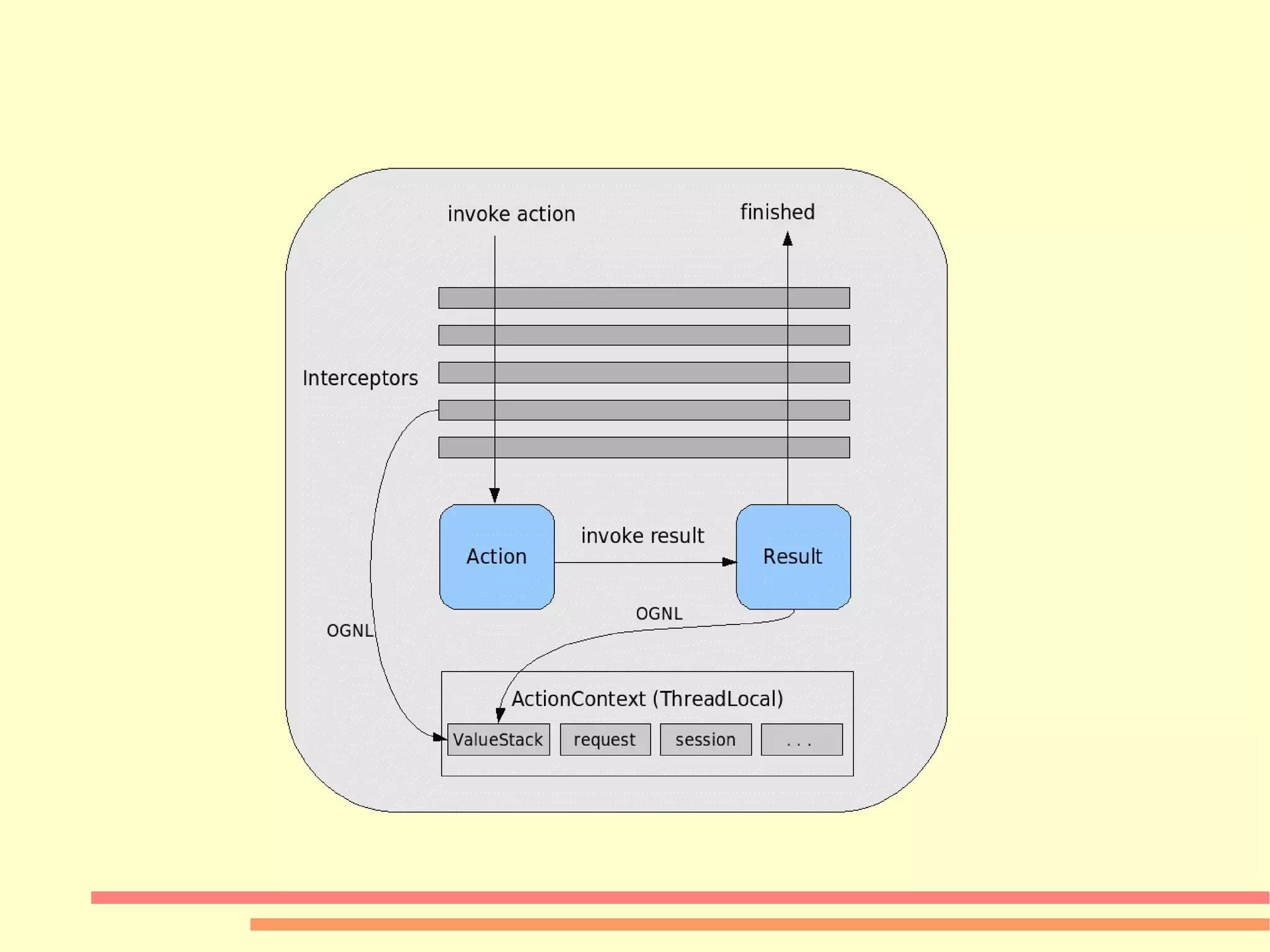

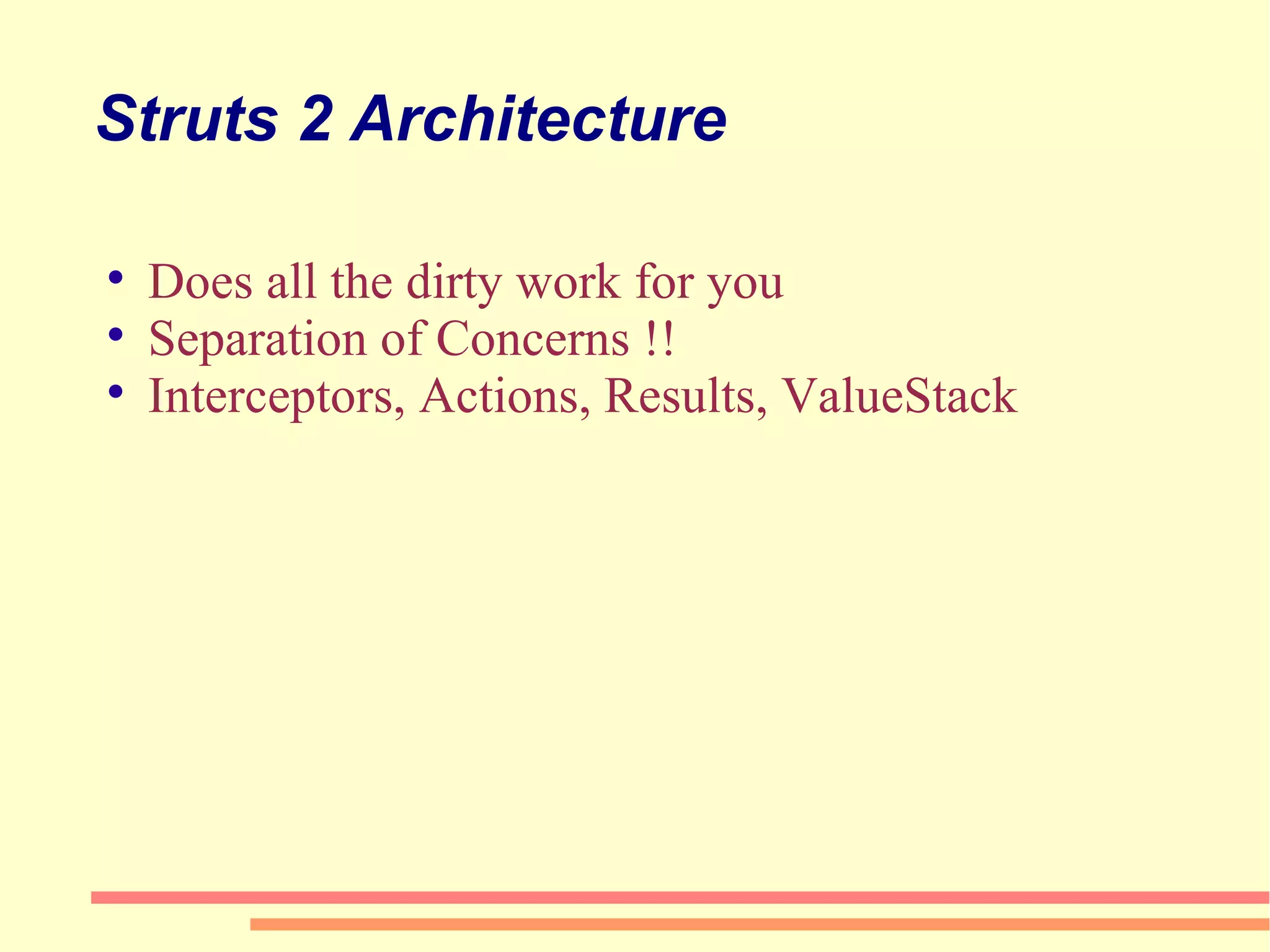

15. Struts 2 Architecture Does all the dirty work for you Separation of Concerns !! Interceptors, Actions, Results, ValueStack

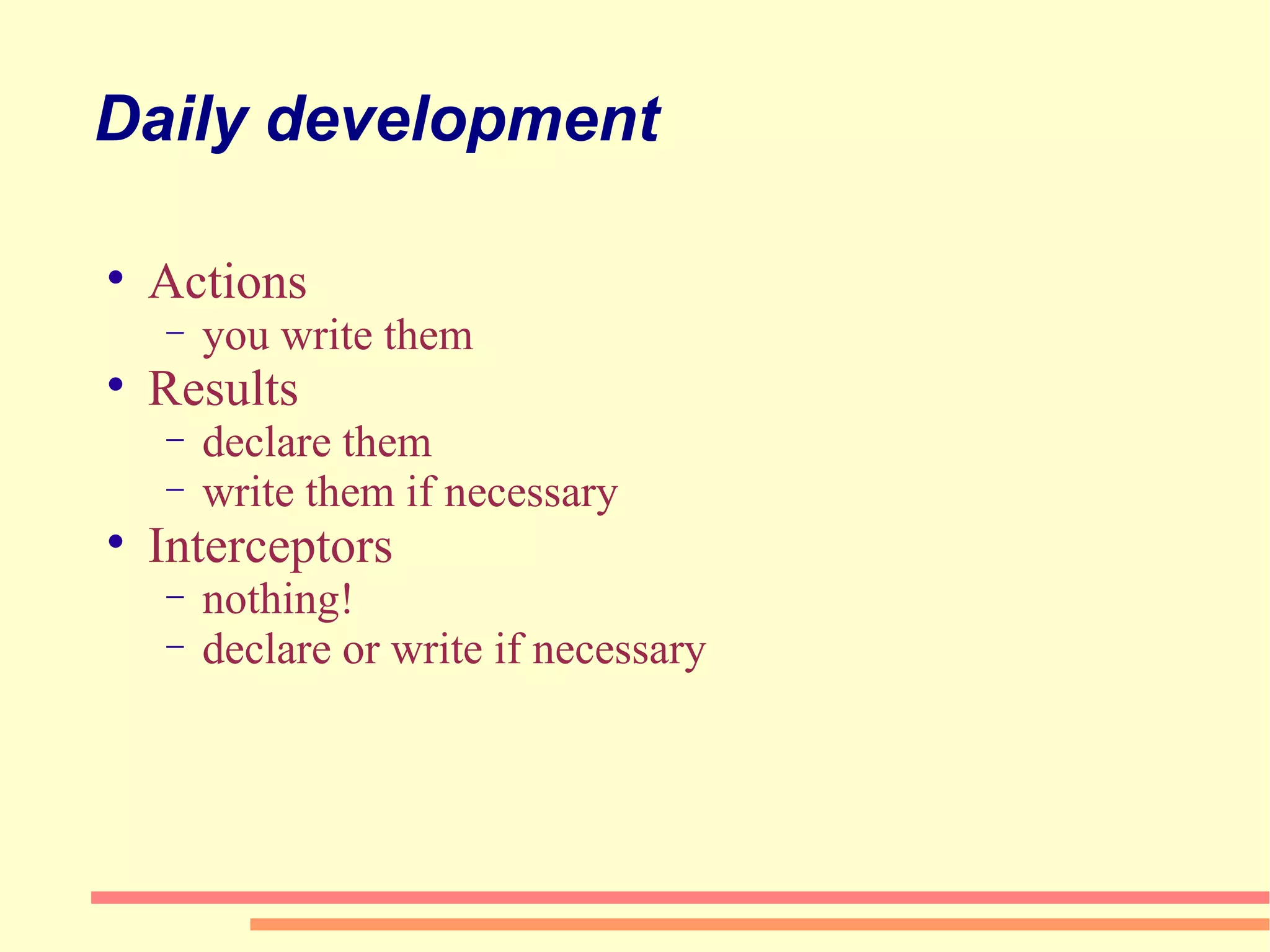

17. Daily development Actions you write them Results declare them write them if necessary Interceptors nothing! declare or write if necessary

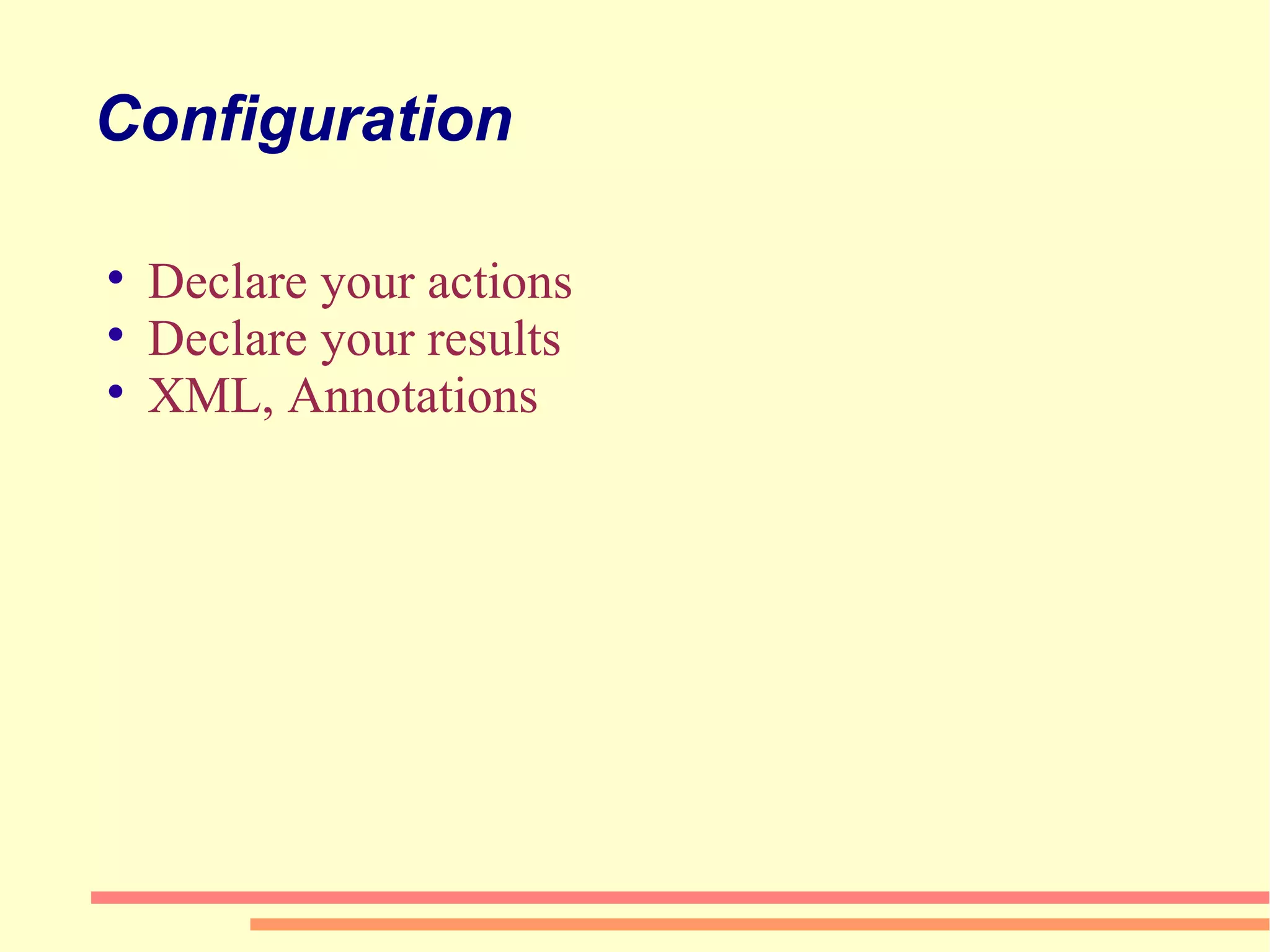

18. Configuration Declare your actions Declare your results XML, Annotations

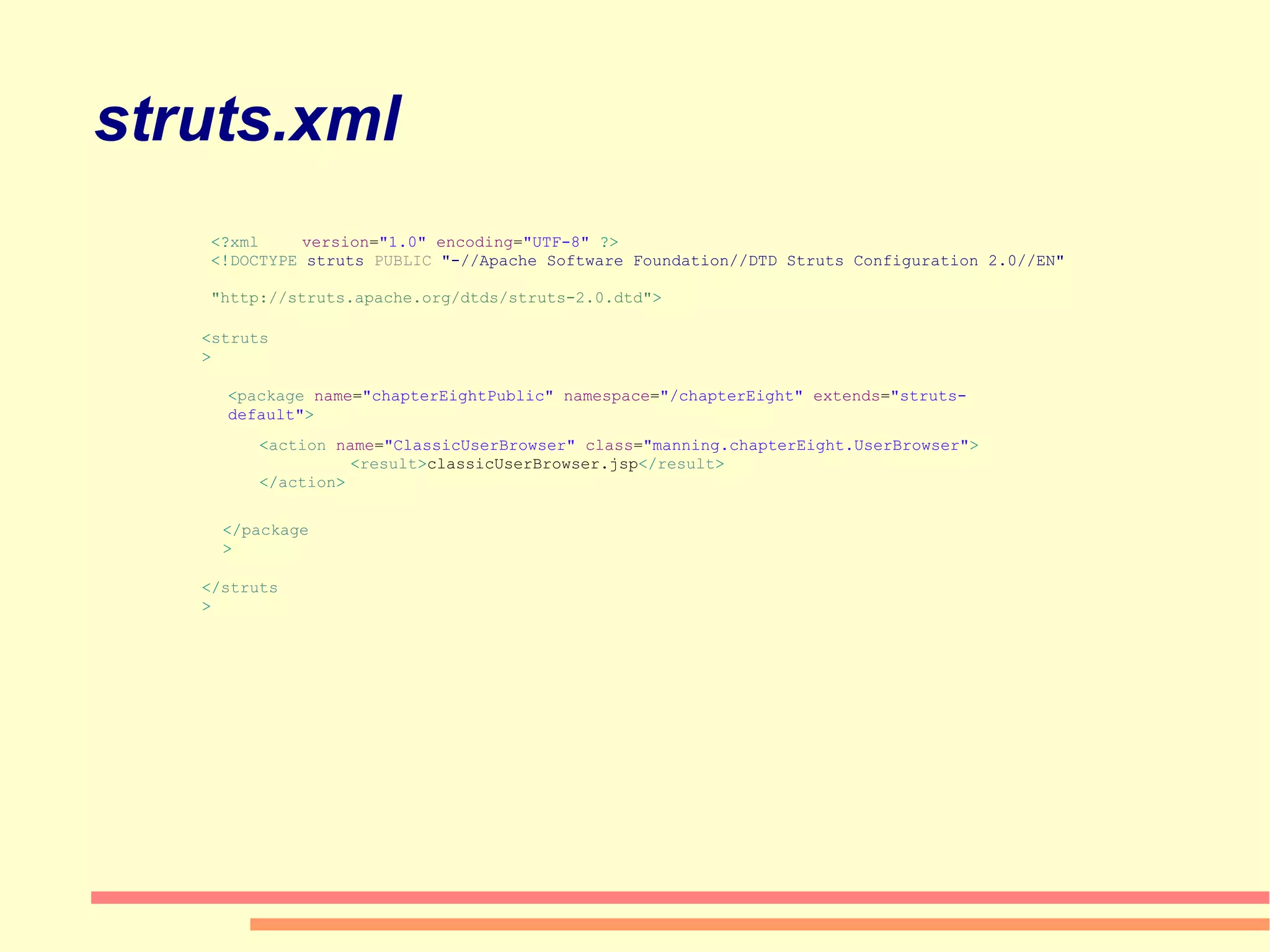

19. struts.xml <? xml version = &quot;1.0&quot; encoding = &quot;UTF-8&quot; ?> <! DOCTYPE struts PUBLIC &quot;-//Apache Software Foundation//DTD Struts Configuration 2.0//EN&quot; &quot;http://struts.apache.org/dtds/struts-2.0.dtd&quot; > < package name = &quot;chapterEightPublic&quot; namespace = &quot;/chapterEight&quot; extends = &quot;struts-default&quot; > < action name = &quot;ClassicUserBrowser&quot; class = &quot;manning.chapterEight.UserBrowser&quot; > < result > classicUserBrowser.jsp </ result > </ action > </ package > </ struts > < struts >

20. Let's code: classic style What do we need to write? Interceptors? Results? An Action A JSP Page

21. Let's Code: Ajax Style What do we need to write? Interceptors? Results? An Action A JSP Page? Javascript Client Application

22. Summary Struts 2 – Second Generation Framework Struts 2 – Built on Software Engineering Principles Struts 2 – Fast Development, Flexible Architecture Ajax – No Page Rendering Ajax – Javascript Client Ajax – Lower Bandwidth Ajax – JSON, XML
