The document discusses how to create and modify Oracle tables using SQL. It describes how to use the CREATE TABLE statement to define a table's structure, columns, constraints, and storage parameters. It also explains how to view table metadata using data dictionary views, add comments to tables and columns, and alter existing tables by adding or modifying columns while following certain restrictions.

1. DDL

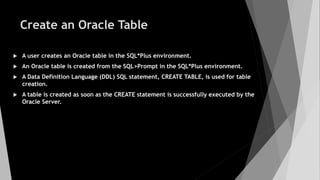

2. Create an Oracle Table
 A user creates an Oracle table in the SQL*Plus environment.
 An Oracle table is created from the SQL>Prompt in the SQL*Plus environment.
 A Data Definition Language (DDL) SQL statement, CREATE TABLE, is used for table
creation.
 A table is created as soon as the CREATE statement is successfully executed by the
Oracle Server.

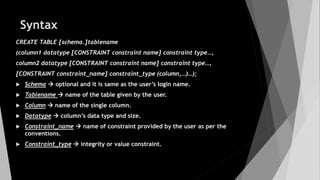

3. Syntax
CREATE TABLE [schema.]tablename
(column1 datatype [CONSTRAINT constraint name] constraint type…,
column2 datatype [CONSTRAINT constraint name] constraint type…,
[CONSTRAINT constraint_name] constraint_type (column,…)…);
 Schema  optional and it is same as the user’s login name.
 Tablename  name of the table given by the user.
 Column  name of the single column.
 Datatype  column’s data type and size.
 Constraint_name  name of constraint provided by the user as per the
conventions.
 Constraint_type  integrity or value constraint.

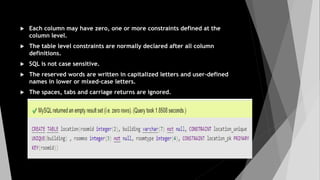

4.  Each column may have zero, one or more constraints defined at the
column level.
 The table level constraints are normally declared after all column
definitions.
 SQL is not case sensitive.
 The reserved words are written in capitalized letters and user-defined
names in lower or mixed-case letters.
 The spaces, tabs and carriage returns are ignored.

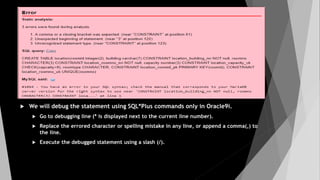

5.  We will debug the statement using SQL*Plus commands only in Oracle9i.
 Go to debugging line (* is displayed next to the current line number).
 Replace the errored character or spelling mistake in any line, or append a comma(,) to
the line.
 Execute the debugged statement using a slash (/).

6.  They table is created.
 We can edit erroneous statement with the help of an alternate editor, such as
notepad.
 To load an erroneous statement in notepad and modify it.
 At the SQL>prompt, we type Ed (or Edit) to invoke notepad
 We make required corrections to the script.
 We save our statement on the disk using the save option from the file menu in notepad
and we name our statement ‘A:CREATE’.
 Notepad adds the extension .txt to the filename.
 To suppress Notepad’s default .txt extension, type the file name in a pair of double
quotes, and use the extension .sql.
 We exit notepad to go back to the SQL*Plus environment.
 We can run the saved statement with @ or the RUN command.
The “Table created” message is displayed when the statement is error-free.
At this point, the table is created and its structure is saved.

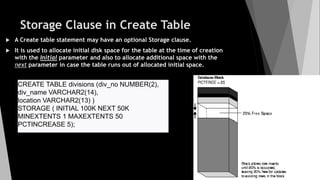

7. Storage Clause in Create Table
 A Create table statement may have an optional Storage clause.
 It is used to allocate initial disk space for the table at the time of creation
with the Initial parameter and also to allocate additional space with the
next parameter in case the table runs out of allocated initial space.
CREATE TABLE divisions (div_no NUMBER(2),
div_name VARCHAR2(14),
location VARCHAR2(13) )
STORAGE ( INITIAL 100K NEXT 50K
MINEXTENTS 1 MAXEXTENTS 50
PCTINCREASE 5);

9. Parameter Description
INITIAL The size, in bytes, of the first extent allocated when a segment is created. This parameter cannot be specified in an ALTER statement.
NEXT The size, in bytes, of the next incremental extent to be allocated for a segment. The second extent is equal to the original setting
for NEXT. From there forward, NEXT is set to the previous size of NEXT multiplied by (1 + PCTINCREASE/100).
PCTINCREASE The percentage by which each incremental extent grows over the last incremental extent allocated for a segment. If PCTINCREASE is 0,
then all incremental extents are the same size. If PCTINCREASE is greater than zero, then each time NEXT is calculated, it grows
by PCTINCREASE. PCTINCREASE cannot be negative.
The new NEXT equals 1 + PCTINCREASE/100, multiplied by the size of the last incremental extent (the old NEXT) and rounded up to the
next multiple of a block size.
MINEXTENTS The total number of extents to be allocated when the segment is created. This allows for a large allocation of space at creation time, even
if contiguous space is not available.
MAXEXTENTS The total number of extents, including the first, that can ever be allocated for the segment.
FREELIST
GROUPS
The number of groups of free lists for the database object you are creating. Oracle uses the instance number of Oracle Real Application
Cluster instances to map each instance to one free list group. For information on the use of this parameter, see Oracle9i Real Application
Clusters Administration.
Note: This parameter is ignored for objects created in locally managed tablespaces with segment space management specified as AUTO.
FREELISTS Specifies the number of free lists for each of the free list groups for the schema object. Not valid for tablespaces.The use of this
parameter is discussed in Oracle9i Database Performance Tuning Guide and Reference.
Note: This parameter is ignored for objects created in locally managed tablespaces with segment space management specified as AUTO.
OPTIMAL Relevant only to rollback segments. See Chapter 13, "Managing Undo Space" for information on the use of this parameter.
BUFFER POOL Defines a default buffer pool (cache) for a schema object. Not valid for tablespaces or rollback segments. For information on the use of
this parameter, see Oracle9i Database Performance Tuning Guide and Reference.

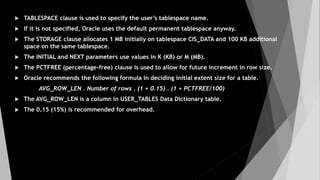

10.  TABLESPACE clause is used to specify the user’s tablespace name.
 If it is not specified, Oracle uses the default permanent tablespace anyway.
 The STORAGE clause allocates 1 MB initially on tablespace CIS_DATA and 100 KB additional
space on the same tablespace.
 The INITIAL and NEXT parameters use values in K (KB) or M (MB).
 The PCTFREE (percentage-free) clause is used to allow for future increment in row size.
 Oracle recommends the following formula in deciding initial extent size for a table.
AVG_ROW_LEN . Number of rows . (1 + 0.15) . (1 + PCTFREE/100)
 The AVG_ROW_LEN is a column in USER_TABLES Data Dictionary table.
 The 0.15 (15%) is recommended for overhead.

11. Displaying table information

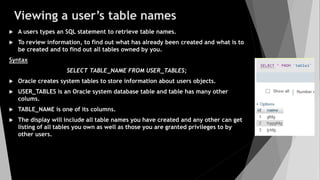

12. Viewing a user’s table names
 A users types an SQL statement to retrieve table names.
 To review information, to find out what has already been created and what is to
be created and to find out all tables owned by you.
Syntax
SELECT TABLE_NAME FROM USER_TABLES;
 Oracle creates system tables to store information about users objects.
 USER_TABLES is an Oracle system database table and table has many other
colums.
 TABLE_NAME is one of its columns.
 The display will include all table names you have created and any other can get
listing of all tables you own as well as those you are granted privileges to by
other users.

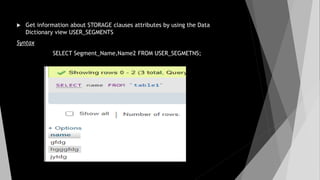

13.  Get information about STORAGE clauses attributes by using the Data
Dictionary view USER_SEGMENTS
Syntax
SELECT Segment_Name,Name2 FROM USER_SEGMETNS;

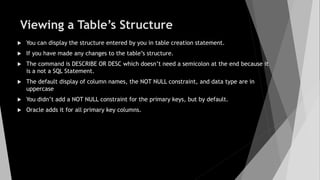

14. Viewing a Table’s Structure
 You can display the structure entered by you in table creation statement.
 If you have made any changes to the table’s structure.
 The command is DESCRIBE OR DESC which doesn’t need a semicolon at the end because it
is a not a SQL Statement.
 The default display of column names, the NOT NULL constraint, and data type are in
uppercase
 You didn’t add a NOT NULL constraint for the primary keys, but by default.
 Oracle adds it for all primary key columns.

16. Viewing constraint information
 Oracle’s Data Dictionary table USER_CONSTRAINTS stores information about
constraints have entered for each column.
 The statement and the result, which include the constraint’s name and type.
 When you type statement, the table name must be typed in uppercase, because
Oracle saves table names in uppercase.
 If you type the table name in lowercase, no constraint names will be displayed.
 The constraints named by the user have more meaningful names than the ones
named by Oracle.
 Constraints like NOT NULL are usually not named by the user.

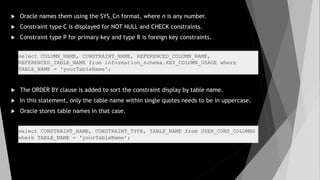

17.  Oracle names them using the SYS_Cn format, where n is any number.
 Constraint type C is displayed for NOT NULL and CHECK constraints.
 Constraint type P for primary key and type R is foreign key constraints.
 The ORDER BY clause is added to sort the constraint display by table name.
 In this statement, only the table name within single quotes needs to be in uppercase.
 Oracle stores table names in that case.
select COLUMN_NAME, CONSTRAINT_NAME, REFERENCED_COLUMN_NAME,
REFERENCED_TABLE_NAME from information_schema.KEY_COLUMN_USAGE where
TABLE_NAME = 'yourTableName';
select CONSTRAINT_NAME, CONSTRAINT_TYPE, TABLE_NAME from USER_CONS_COLUMNS
where TABLE_NAME = 'yourTableName';

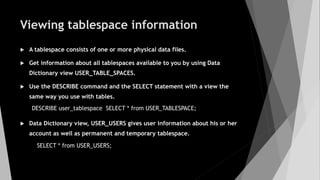

18. Viewing tablespace information
 A tablespace consists of one or more physical data files.
 Get information about all tablespaces available to you by using Data
Dictionary view USER_TABLE_SPACES.
 Use the DESCRIBE command and the SELECT statement with a view the
same way you use with tables.
 Data Dictionary view, USER_USERS gives user information about his or her
account as well as permanent and temporary tablespace.
DESCRIBE user_tablespace SELECT * from USER_TABLESPACE;
SELECT * from USER_USERS;

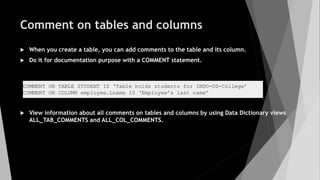

19. Comment on tables and columns
 When you create a table, you can add comments to the table and its column.
 Do it for documentation purpose with a COMMENT statement.
 View information about all comments on tables and columns by using Data Dictionary views
ALL_TAB_COMMENTS and ALL_COL_COMMENTS.
COMMENT ON TABLE STUDENT IS ‘Table holds students for INDO-US-College’
COMMENT ON COLUMN employee.Lname IS ‘Employee’s last name’

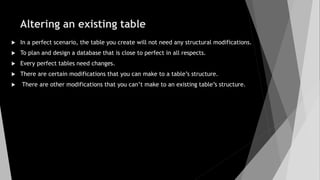

20. Altering an existing table
 In a perfect scenario, the table you create will not need any structural modifications.
 To plan and design a database that is close to perfect in all respects.
 Every perfect tables need changes.
 There are certain modifications that you can make to a table’s structure.
 There are other modifications that you can’t make to an existing table’s structure.

21. Modifications allowed without any
restrictions
Modifications allowed with any
restrictions
Modifications not allowed
Adding a new column to the table
Deleting a foreign key constraint from a table Adding a foreign key constraint is allowed only if the
current values are null or exist in the referenced
table’s primary key.
Deleting a primary key constraint from a table,
which also removes any references to it from
other tables in the database with CASCADE
clause.
Adding a primary key constraint is allowed if the
current values are not null and are unique.
Increasing the size of a column.
Example: Varchar2(15) can be changed to
Varchar2(20)
Changing a column’s data type and size is allowed
only if there is no data in it. In Oracle9i, column size
may be decreased if existing data can be stored with
the new column width.
Renaming columns and constraints (Oracle9i
onward)
Adding a unique constraint is possible if the current
data values are unique.
Adding a check constraint is possible if the current
data values comply with the new constraint.
Adding a default value is possible if there is no data
in the column.
Changing a column’s name
Changing a constraint’s name
Removing a column
Above all Oracle8 and earlier

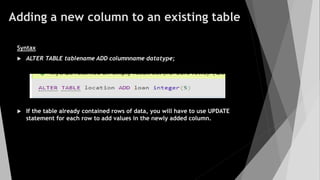

22. Adding a new column to an existing table
Syntax
 ALTER TABLE tablename ADD columnname datatype;
 If the table already contained rows of data, you will have to use UPDATE
statement for each row to add values in the newly added column.

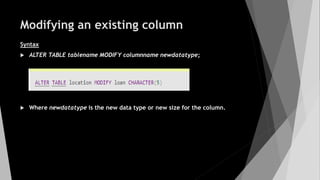

23. Modifying an existing column
Syntax
 ALTER TABLE tablename MODIFY columnname newdatatype;
 Where newdatatype is the new data type or new size for the column.

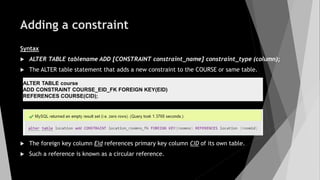

24. Adding a constraint
Syntax
 ALTER TABLE tablename ADD [CONSTRAINT constraint_name] constraint_type (column);
 The ALTER table statement that adds a new constraint to the COURSE or same table.
 The foreign key column Eid references primary key column CID of its own table.
 Such a reference is known as a circular reference.
ALTER TABLE course
ADD CONSTRAINT COURSE_EID_FK FOREIGN KEY(EID)
REFERENCES COURSE(CID);

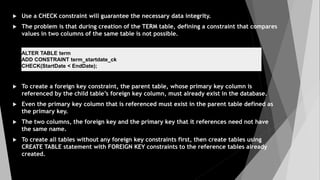

25.  Use a CHECK constraint will guarantee the necessary data integrity.
 The problem is that during creation of the TERM table, defining a constraint that compares
values in two columns of the same table is not possible.
 To create a foreign key constraint, the parent table, whose primary key column is
referenced by the child table’s foreign key column, must already exist in the database.
 Even the primary key column that is referenced must exist in the parent table defined as
the primary key.
 The two columns, the foreign key and the primary key that it references need not have
the same name.
 To create all tables without any foreign key constraints first, then create tables using
CREATE TABLE statement with FOREIGN KEY constraints to the reference tables already
created.
ALTER TABLE term
ADD CONSTRAINT term_startdate_ck
CHECK(StartDate < EndDate);

26.  To create all tables with their constraints except for the foreign key
constraint.
 Once all the tables are created, use the ALTER TABLE statement to add the
FOREIGN KEY constraint.
 The foreign key must reference a primary key.

27.  NOT NULL constraint and a DEFAULT value to the start term and state
columns, respectively.
 A user can always overwrite the default value, but if it is left blank or null,
the default value is used by Oracle.
 To add such constraints, a MODIFY clause is used with an ALTER TABLE
statement.
ALTER TABLE course MODIFY name varchar(20)
CONSTRAINT course_name_nn NOT NULL;

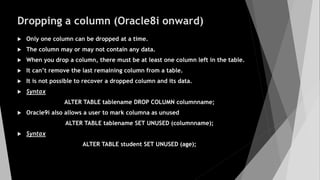

28. Dropping a column (Oracle8i onward)
 Only one column can be dropped at a time.
 The column may or may not contain any data.
 When you drop a column, there must be at least one column left in the table.
 It can’t remove the last remaining column from a table.
 It is not possible to recover a dropped column and its data.
 Syntax
ALTER TABLE tablename DROP COLUMN columnname;
 Oracle9i also allows a user to mark columna as unused
ALTER TABLE tablename SET UNUSED (columnname);
 Syntax
ALTER TABLE student SET UNUSED (age);

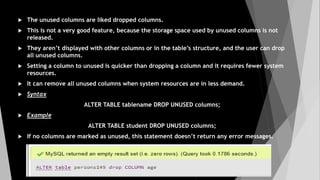

29.  The unused columns are liked dropped columns.
 This is not a very good feature, because the storage space used by unused columns is not
released.
 They aren’t displayed with other columns or in the table’s structure, and the user can drop
all unused columns.
 Setting a column to unused is quicker than dropping a column and it requires fewer system
resources.
 It can remove all unused columns when system resources are in less demand.
 Syntax
ALTER TABLE tablename DROP UNUSED columns;
 Example
ALTER TABLE student DROP UNUSED columns;
 If no columns are marked as unused, this statement doesn’t return any error messages.

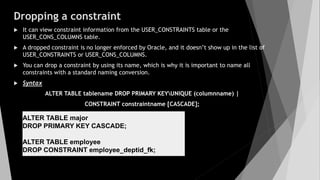

30. Dropping a constraint
 It can view constraint information from the USER_CONSTRAINTS table or the
USER_CONS_COLUMNS table.
 A dropped constraint is no longer enforced by Oracle, and it doesn’t show up in the list of
USER_CONSTRAINTS or USER_CONS_COLUMNS.
 You can drop a constraint by using its name, which is why it is important to name all
constraints with a standard naming conversion.
 Syntax
ALTER TABLE tablename DROP PRIMARY KEYUNIQUE (columnname) |
CONSTRAINT constraintname [CASCADE];
ALTER TABLE major
DROP PRIMARY KEY CASCADE;
ALTER TABLE employee
DROP CONSTRAINT employee_deptid_fk;

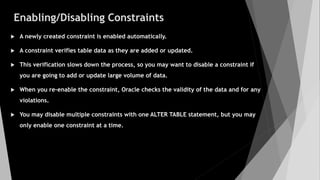

31. Enabling/Disabling Constraints
 A newly created constraint is enabled automatically.
 A constraint verifies table data as they are added or updated.
 This verification slows down the process, so you may want to disable a constraint if
you are going to add or update large volume of data.
 When you re-enable the constraint, Oracle checks the validity of the data and for any
violations.
 You may disable multiple constraints with one ALTER TABLE statement, but you may
only enable one constraint at a time.

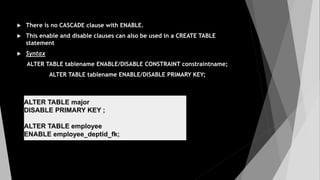

32.  There is no CASCADE clause with ENABLE.
 This enable and disable clauses can also be used in a CREATE TABLE
statement
 Syntax
ALTER TABLE tablename ENABLE/DISABLE CONSTRAINT constraintname;
ALTER TABLE tablename ENABLE/DISABLE PRIMARY KEY;
ALTER TABLE major
DISABLE PRIMARY KEY ;
ALTER TABLE employee
ENABLE employee_deptid_fk;

33. Tables Explanation
Renaming a column
(Oracle9i version 9.2 onward)
ALTER TABLE tablename RENAME COLUMN oldname to
newname;
Renaming a constraint
(Oracle9i version 9.2 onward)
ALTER TABLE tablename RENAME CONSTRAINT oldname to
newname;
Modifying storage of a table ALTER TABLE tablename STORAGE (NEXT nk);
It can change storage attributes of a table, such as NEXT,
PCTFREE, and so on.

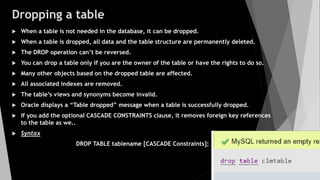

34. Dropping a table
 When a table is not needed in the database, it can be dropped.
 When a table is dropped, all data and the table structure are permanently deleted.
 The DROP operation can’t be reversed.
 You can drop a table only if you are the owner of the table or have the rights to do so.
 Many other objects based on the dropped table are affected.
 All associated indexes are removed.
 The table’s views and synonyms become invalid.
 Oracle displays a “Table dropped” message when a table is successfully dropped.
 If you add the optional CASCADE CONSTRAINTS clause, it removes foreign key references
to the table as we..
 Syntax
DROP TABLE tablename [CASCADE Constraints];

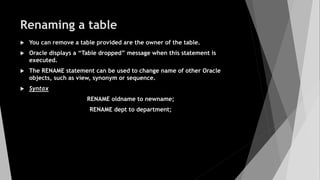

35. Renaming a table
 You can remove a table provided are the owner of the table.
 Oracle displays a “Table dropped” message when this statement is
executed.
 The RENAME statement can be used to change name of other Oracle
objects, such as view, synonym or sequence.
 Syntax
RENAME oldname to newname;
RENAME dept to department;

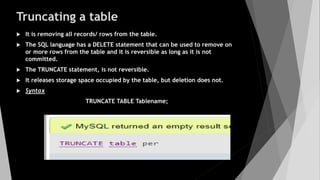

36. Truncating a table
 It is removing all records/ rows from the table.
 The SQL language has a DELETE statement that can be used to remove on
or more rows from the table and it is reversible as long as it is not
committed.
 The TRUNCATE statement, is not reversible.
 It releases storage space occupied by the table, but deletion does not.
 Syntax
TRUNCATE TABLE Tablename;

37.  Oracle displays a “Table truncated” message on this statement execution.
 The truncate operation releases all table storage except for the initially
allocated extent.
 It can keep all the storage used by table with the REUSE STORAGE clause
 Syntax
TRUNCATE TABLE TablenameREUSE STORAGE;

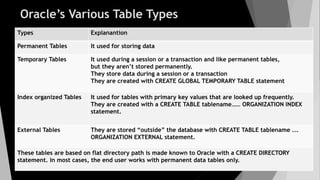

38. Oracle’s Various Table Types
Types Explanantion
Permanent Tables It used for storing data
Temporary Tables It used during a session or a transaction and like permanent tables,
but they aren’t stored permanently.
They store data during a session or a transaction
They are created with CREATE GLOBAL TEMPORARY TABLE statement
Index organized Tables It used for tables with primary key values that are looked up frequently.
They are created with a CREATE TABLE tablename…… ORGANIZATION INDEX
statement.
External Tables They are stored “outside” the database with CREATE TABLE tablename ….
ORGANIZATION EXTERNAL statement.
These tables are based on flat directory path is made known to Oracle with a CREATE DIRECTORY
statement. In most cases, the end user works with permanent data tables only.

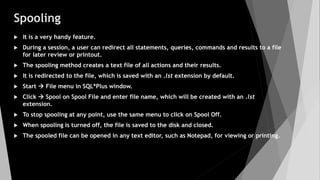

39. Spooling
 It is a very handy feature.
 During a session, a user can redirect all statements, queries, commands and results to a file
for later review or printout.
 The spooling method creates a text file of all actions and their results.
 It is redirected to the file, which is saved with an .lst extension by default.
 Start  File menu in SQL*Plus window.
 Click  Spool on Spool File and enter file name, which will be created with an .lst
extension.
 To stop spooling at any point, use the same menu to click on Spool Off.
 When spooling is turned off, the file is saved to the disk and closed.
 The spooled file can be opened in any text editor, such as Notepad, for viewing or printing.
