The document discusses the 555 timer integrated circuit, which is commonly used to generate clock pulses or time delays in electronic circuits. It describes the internal components of the 555 timer, including two comparators, a flip-flop, and three resistors that create a voltage divider. The 555 timer can operate in astable or monostable modes to produce oscillating or single output pulses using external resistors and capacitors. Formulas are provided to calculate the frequency, period, and duty cycle in astable mode and the time delay in monostable mode.

1. 555 TIMER
THE MOST
VERSATILE IC USED
IN ELECTRONICS
CIRCUITS
ELECTROKRITI
V6.0 INNOVATE TO IMPLEMENT…TEAM EHC

2. WHAT IS 555 TIMER
IT IS A 8 PIN IC.
GENERALLY USED TO GENERATE
CLOCK
PULSE OF WIDE RANGE OF
FREQUENCY
CAN BE ALSO USED TO GENERATE
SPECIFIC TIME DELAY
TEAM EHC

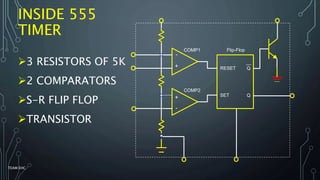

3. INSIDE 555
TIMER
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
3 RESISTORS OF 5K
2 COMPARATORS
S-R FLIP FLOP
TRANSISTOR
TEAM EHC

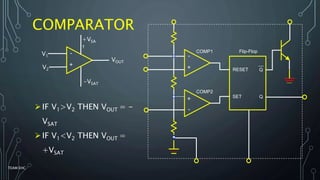

4. COMPARATOR
-
+
V1
V2
VOUT
IF V1>V2 THEN VOUT = -
VSAT
IF V1<V2 THEN VOUT =
+VSAT
+VSA
T
-VSAT
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
TEAM EHC

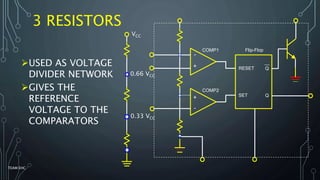

5. 3 RESISTORS
VCC
0.66 VCC
0.33 VCC
USED AS VOLTAGE
DIVIDER NETWORK
GIVES THE
REFERENCE
VOLTAGE TO THE
COMPARATORS
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
TEAM EHC

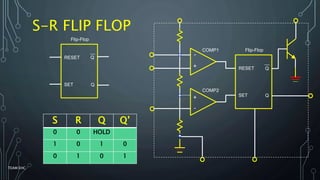

6. S-R FLIP FLOP
RESET
SET Q
Flip-Flop
Q
S R Q Q’
0 0 HOLD
1 0 1 0
0 1 0 1
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
TEAM EHC

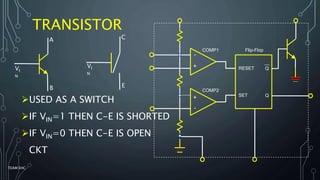

7. TRANSISTOR
A
B
VI
N
C
E
VI
N
USED AS A SWITCH
IF VIN=1 THEN C-E IS SHORTED
IF VIN=0 THEN C-E IS OPEN
CKT
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
TEAM EHC

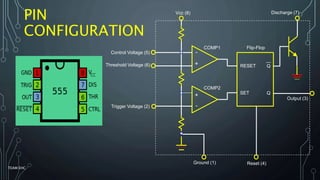

8. PIN
CONFIGURATION
Control Voltage (5)
Threshold Voltage (6)
Trigger Voltage (2)
Ground (1)
Vcc (8) Discharge (7)
Reset (4)
Output (3)
-
+
-
+
RESET
SET
Q
Q
COMP1
COMP2
Flip-Flop
TEAM EHC

9. MODE OF
OPERATION
MONOSTABLE MODE
ASTABLE MODE
TEAM EHC

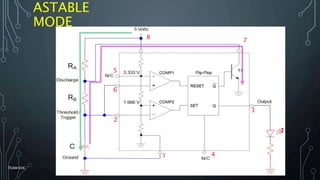

10. ASTABLE
MODE
TEAM EHC
8
5
6
2
1 4
3
7

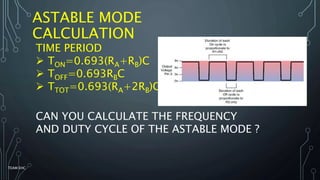

11. ASTABLE MODE
CALCULATION
TIME PERIOD
 TON=0.693(RA+RB)C
 TOFF=0.693RBC
 TTOT=0.693(RA+2RB)C
CAN YOU CALCULATE THE FREQUENCY
AND DUTY CYCLE OF THE ASTABLE MODE ?
TEAM EHC

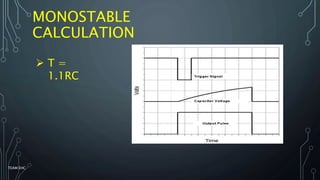

12. MONOSTABLE
CALCULATION
 T =
1.1RC
TEAM EHC

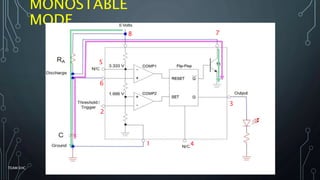

13. MONOSTABLE
MODE
TEAM EHC
8
5
6
2
1 4
3
7

14. LETS MAKE
IT
TEAM EHC
