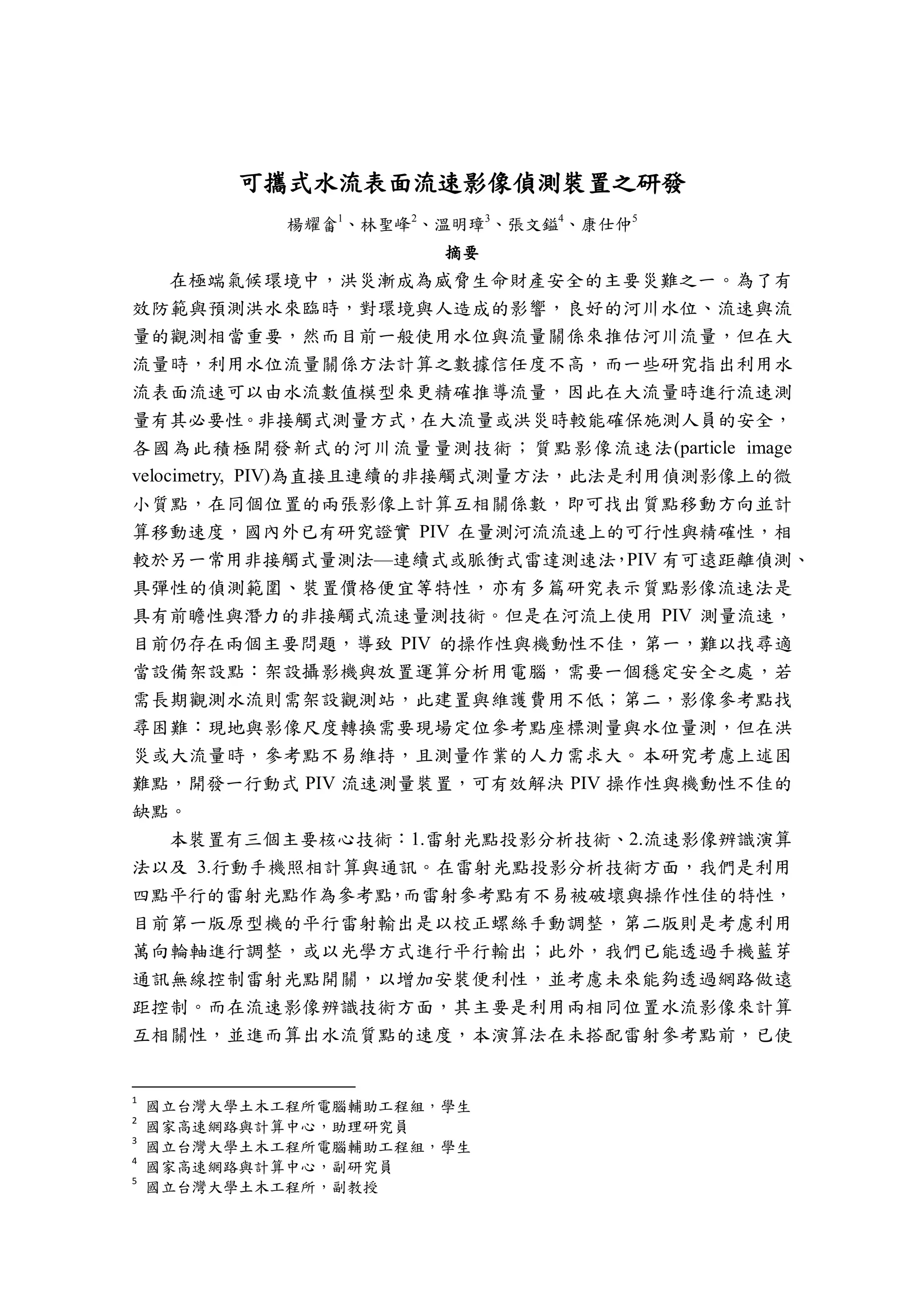

Development of a Mobile Surface Flow Measuring Device
Using Image Analysis
Yao-Yu, Yang6
、Franco, Lin7
、Min-Cheng, Wen8
、Wen-Yi, Chang9
、Shih-Chung, Kang10
Abstract
During flooding events, the traditional velocity measurement in the river may put the surveyors in
danger, hence the development of non-contact measurements is necessary. The particle image velocimetry
(PIV) has been recognized as one of the potential and precise methods in the recent studies. However, an
on-site PIV has two main difficulties: 1. the difficulty for camera and computer installation in the field;
and 2. the high labor needed for conducting the field survey and system calibration. In this study, we
developed a mobile PIV device, which includes techniques of the laser projection as ground reference
points, the flow image recognition method and the integration of communication, computation and
display on the mobile phone. Now, the mobile PIV device has been validated in the laboratory
experiments. In the future, we would like to extend this study to practical applications.
Keywords: image recognition、surface flow velocity、mobile device、laser reference point、device
integration、non-contact
6
Computer-Aided Engineering Group, Department of Civil Engineering, National Taiwan University,
student
7
National Center for High-performance Computing, National Applied Research Laboratories,Assistant
research fellow
8
Computer-Aided Engineering Group, Department of Civil Engineering, National Taiwan University,
student
9
National Center for High-performance Computing, National Applied Research Laboratories,Associate
research fellow
10
Computer-Aided Engineering Group, Department of Civil Engineering, National Taiwan University,
Associate professor
9. 正方式改為萬向輪軸校正,使雷射平行精度提
升,並以延時計算的方式解決手機影像取樣頻
率低的問題,再以計算實驗水流與實際河流流
速做測試,以完整研究與開發此裝置。
