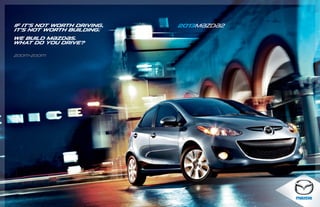

The document provides information about the 2013 Mazda2 subcompact car. It summarizes the car's key features and specifications in text and images. The Mazda2 has a 1.5L engine that gets up to 35 mpg highway and features including alloy wheels, air conditioning, Bluetooth connectivity and safety technologies. Mazda emphasizes the car's driving performance, lightweight design, and focus on the driver experience over its small size.

1. If it’s not worth driving,
it’s not worth building.
®
We build M{zd{s.
What do you drive?
zoo}-zoo}
2013m{zd{2

2. Wha do you drive?
t
Is it inspiring?
What were the people who built your car thinking?
Are they just another behemoth carmaker following the rules?
Or do they break them?
Do they push the boundaries of tradition
and habit to achieve the unachieved?
Are they insightful craftsmen,
obsessing over the details with a crazed passion?
Building less­ building better—
—
for a discerning few?
Are you one of the few
who cares about what you drive,
how it drives
and the way it makes you feel?
We’re with you.
Because we believe if it’s not worth driving,
it’s not worth building.®
We build Mazdas.
What do you drive?
How do you shave 220 lbs off a car? With a very sharp pencil.
ZOO}-ZOO}
There’s a lot to gain by losing a little excess weight. Improved performance, reduced emissions and increased fun. However, as
any Mazda engineer will tell you, dropping 220 lbs (100 kg) can only happen gram by gram. And to do that without compromising
structural integrity or crash performance requires a wealth of knowledge and an obsession for detail. To achieve this, the
engineers at Mazda developed the “Gram Strategy,” a process that involved meticulously analyzing and reengineering every
possible part of the Mazda2 one by one to be at least one gram lighter, and building the frame using “Triple H” construction and
lighter—yet stronger—high tensile steel. The result: a leaner and meaner Mazda2.

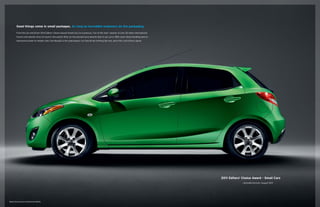

3. Good things come in small packages. As long as incredible engineers do the packaging.
From the Car and Driver 2011 Editors’ Choice Award–Small Cars, to numerous “Car of the Year” awards, to over 50 other international
honors and awards since its launch, this potent little car has earned more awards than it can carry. With razor-sharp handling and an
impressive power-to-weight ratio, the Mazda2 is the subcompact car that drives nothing like one, and critics and drivers agree.
2011 Editors’ Choice Award – Small Cars
Mazda2 Touring shown in Spirited Green Metallic
caranddriver.com, August 2011

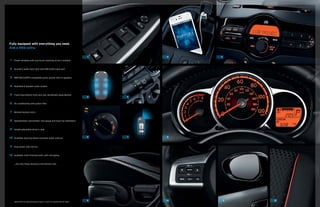

4. Fully equipped with everything you need.
And a little extra.
1
2
3
1 Power windows with one-touch down/up driver’s window
2 Auxiliary-audio input jack and USB-audio input port
3 AM/FM/CD/MP3-compatible audio system with 4 speakers
4 Available 6-speaker audio system
5 Fixed-intermittent front and rear windshield wiper/washer
4
5
6
7
6 Air conditioning with pollen filter
7 Remote keyless entry
8 Speedometer, tachometer, fuel gauge and dual trip odometers
9 Height-adjustable driver’s seat
0 Available steering-wheel-mounted audio controls
1
8
11 Dual power side mirrors
2 Available cloth-trimmed seats with red piping
1
…the only thing missing is the kitchen sink.
Apple and iPod® are registered trademarks of Apple Inc. iPhone® not compatible with iPod® adapter.
9
10
11
12

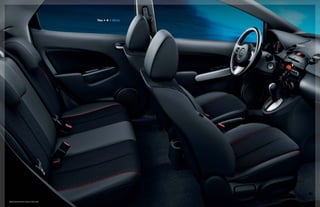

5. You + 4 + More.
Mazda2 Touring interior shown in black cloth

6. You + 4 + More.
Don’t let its subcompact size fool you. This car has seating for 5 or up to 27.8 cu ft of cargo* room with its 60/40 split folding rear
seatbacks down. The standard 6-way adjustable driver’s seat, deep cargo floor, multiple cup holders, cell phone/iPod® holder and other
hidden storage areas help to create a custom-fit experience. Accessories like a center armrest with storage allow you to go a step further
and design your own custom storage solutions. Because at Mazda, we believe when it comes to interiors, it’s what you can fit on the
inside that counts.
*Please remember to properly secure all cargo.
Mazda2 Touring interior shown in black cloth

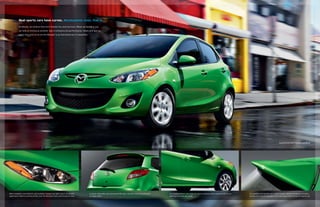

7. Real sports cars have curves. Aerodynamic ones, that is.
At Mazda, we believe that form follows fun and function. When we design a car,
we look at styling as another way to enhance its performance. Sleek and sporty,
every line and curve on the Mazda2 is as functional as it is beautiful.
Mazda2 Touring shown in Spirited Green Metallic
Wide headlights and taillights, and available halogen fog lights, give it an athletic
appearance while increasing airflow over the Mazda2’s back and around its sides.
A sporty silhouette and convenient fifth door conceal a surprising amount
of cargo space.
A sculpted exterior cuts down on wind resistance while catching light for an
alluring look from any angle.
An available race-inspired rear roofline spoiler reduces turbulence, providing
further proof that the Mazda2 is one subcompact with the soul of a sports car.

8. Active Safety
The standard Tire-Pressure Monitoring System monitors air pressure in real time and automatically alerts you
before one or more tires become critically low. Standard Dynamic Stability Control* modulates the throttle and
We trimmed the weight, not the peace of mind.
brakes when a sudden loss of traction is detected to help keep the vehicle stable during a turn. The standard
There’s a common misconception that strength comes from weight, a misconception that the engineers at Mazda have rigorously
with a better grip on the road and more sure-footed acceleration during difficult driving conditions.
Traction Control System detects any loss of traction, and then adjusts the throttle to provide the drive wheels
challenged time and time again. Built with “Triple H” body construction and high tensile steel, the lightweight and strong Mazda2
offers the ultimate in safety engineering. Reinforced driver and passenger compartments provide protection on all sides. A standard
collapsible steering column absorbs energy in the event of a heavy frontal impact, while a foldaway brake assembly reduces the risk
of serious injuries to the ankle and leg. Additional spot-welds and specialized adhesives between panels help improve body strength
where it counts and impact absorption where it’s needed. Bottom line: A light ride can be a safe one, and the Mazda2 is proof of that.
tire-pressure
monitoring system
dynamic
stability control
traction
control system
Air Bags
Six airbags† come standard on every Mazda2. Advanced dual front air bags utilize inflators with both crash-zone
and driver’s seat-position/passenger-weight sensors. Dual side-impact airbags and dual front side-impact air
curtains provide coverage for front and rear passengers.
Brakes
Every Mazda2 comes equipped with a wide range of standard braking features. The Anti-lock Brake System
pulses the brakes several hundred times a second, preventing wheel lock so the driver can make controlled
stops. Electronic Brakeforce Distribution monitors pedal pressure and vehicle weight to determine how much
force to apply to the front and rear brakes, while Brake Assist automatically increases braking pressure, thereby
reducing stopping distance in emergency situations.
advanced
braking system
electronic
brakeforce distribution
*Dynamic Stability Control (DSC) is an electronic system designed to help the driver maintain control under adverse conditions. It is not a substitute for safe driving practices.
Factors including speed, road conditions and driver steering input can all affect whether DSC will be effective in preventing loss of control. Please see your owner’s manual for
further details. †Always wear your seat belt and secure children in the rear seats in appropriate child restraints.

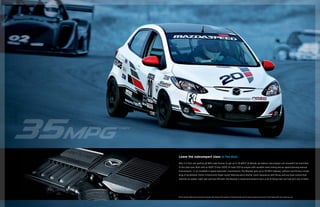

9. 35mpg
hwy
Leave the subcompact class in the dust.
Why is it that cars getting 35 mpg take forever to get up to 35 mph? At Mazda, we believe subcompact cars shouldn’t be restricted
to the slow lane. Built with an MZR 1.5-liter DOHC 16-valve 100-hp engine with variable valve timing and an award-winning manual
transmission,* or an available 4-speed automatic transmission, the Mazda2 gets up to 35 mpg highway† without sacrificing a single
drop of excitement. Factor in Electronic Power Assist Steering and a shorter, more responsive shift throw, and you have control that
matches its speed. Light, fast and fuel-efficient, the Mazda2 is tuned and toned to burn a lot of things fast, but fuel isn’t one of them.
*2011 Car and Driver 10Best manual transmission, November 2010. †Based on EPA-estimates for 2013 Mazda2 models with 1.5L engine and manual transmission 29 city/35 highway MPG. Actual results may vary.

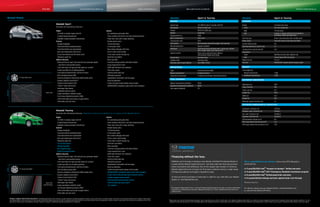

10. TRUE RED
CLEAR WATER BLUE metallic
LIQUID SILVER METALLIC
Mazda2 Models
BRILLIANT BLACK CLEARCOAT
Mazda2
Sport & Touring
Engine
Mazda2 Sport
15” Sport Wheel Cover
Upholstery
Wheels
Includes the following features:
Black Cloth
Engine
1.5L DOHC 4-cylinder engine with VVT
5-speed manual transmission
Available 4-speed automatic transmission
Exterior
Halogen headlights
Fixed-intermittent windshield wipers
Fixed-intermittent rear wiper/washer
Dual color-keyed power side mirrors
15-inch steel wheels with full wheel covers
Temporary spare tire
Safety & Security
Advanced front air bags* with seat belt-use, passenger-weight
and driver’s seat-position sensors
Front side-impact air bags and side-impact air curtains*
3-point seat belts for all seating positions
Front seat-belt pretensioners with force limiters
Anti-lock Brake System (ABS)
Electronic Brakeforce Distribution (EBD) & Brake Assist
Dynamic Stability Control (DSC)†
Traction Control System (TCS)
“Triple H” body construction
Side-impact door beams
Collapsible steering column
Engine-immobilizer antitheft system
Tire-Pressure Monitoring System (TPMS)
LATCH child-safety-seat anchors & upper tethers
Child-safety rear door locks
Interior
Air conditioning with pollen filter
Power windows with driver’s one-touch-down/up feature
Power door locks with 2-stage unlocking
Remote keyless entry
Tilt steering wheel
12-volt power outlet
Rear window defogger with timer
Driver’s side in-dash storage
Front center console storage tray
Dual front cup holders
Rear cup holder
Front door storage pockets with bottle holders
6-way manual driver’s seat
60/40 split fold-down rear seatbacks
Floor mats, carpet
Auxillary-audio input jack
USB-audio input port
Speedometer, tachometer and fuel gauge
Dual trip odometers
Center instrument panel display (clock & audio)
AM/FM/CD/MP3-compatible audio system with 4 speakers
Engine type
Horsepower
Torque
Redline
Displacement (cc)
Bore x stroke (mm)
Compression ratio
Fuel system
Recommended fuel
Valvetrain
Ignition system
Engine block
Cylinder head
Emission control type (Fed/Cal)
1.5L DOHC 16-valve 4-cylinder with VVT
100 hp @ 6,000 rpm
98 lb-ft @ 4,000 rpm
6,300 rpm
1,498
78.0 x 78.4
10.0:1
Electronically-controlled multiport fuel injection
Regular unleaded
Chain-driven dual overhead cams, 4 valves per cylinder
with variable intake valve timing (VVT)
Direct coil-on-plug electronic ignition
with platinum-tipped spark plugs
Aluminum alloy
Aluminum alloy
Tier2-BIN5 / ULEV2
Sport & Touring
Brakes
- Front
- Rear
- ABS
Front disc/rear drum
10.2-inch vented disc
7.9-inch drum
4-wheel, 4-channel with Electronic Brakeforce
Distribution (EBD) and Brake Assist
Steering type
Power assist
Power rack-and-pinion with variable assist
Electronic Power Assist Steering (EPAS)
Overall steering ratio
Steering wheel turns, lock-to-lock
15:1
2.7
Turning circle, curb-to-curb (ft)
32.2
Suspension
- Front
MacPherson strut with stabilizer bar
- Rear
Torsion beam with coil springs
Wheel size (in)
15 x 6.0
Tire size
P185/55 R15 V-speed rated all-season radial
Weight
Front-wheel drive (FWD)
5-speed overdrive
4-speed electronically-controlled overdrive
Fuel Economy
Manual transmission (city/hwy)
Automatic transmission (city/hwy)
Fuel capacity (gallons)
Mazda2
SPIRITED GREEN Metallic
chassis
Drivetrain
Type
Manual transmission
Automatic transmission
CRYSTAL WHITE PEARL MICA‡
Curb weight (lb)
- Manual transmission
2,306
- Automatic transmission
2,359
exterior Dimensions
29/35
28/34
11.3
Wheelbase (in)
Track, front (in)
98.0
58.1
Track, rear (in)
Length (in)
57.7
155.5
Width (in)
Height (in)
66.7
58.1
Minimum ground clearance (in)
5.1
Interior Dimensions & Capacities
Headroom, front/rear (in)
39.1/37.0
Shoulder room, front/rear (in)
52.8/51.2
Hip room, front/rear (in)
50.9/46.8
Legroom, front/rear (in)
42.6/33.0
EPA passenger volume (cu ft)
87.1
EPA cargo volume 2nd-row up (cu ft)
13.3
EPA cargo volume 2nd-row down (cu ft)
27.8
Mazda2 Touring
Upholstery
Wheels
Includes the following features: (Features in blue are in addition to or in place of the Mazda2 Sport.)
15” Touring Alloy Wheel
Black Cloth
with Red Piping
Engine
1.5L DOHC 4-cylinder engine with VVT
5-speed manual transmission
Available 4-speed automatic transmission
Exterior
Halogen headlights
Fixed-intermittent windshield wipers
Fixed-intermittent rear wiper/washer
Dual color-keyed power side mirrors
Temporary spare tire
15-inch alloy wheels
Halogen fog lights
Rear liftgate spoiler
Bright tip exhaust finisher
Safety & Security
Advanced front air bags* with seat belt-use, passenger-weight
and driver’s seat-position sensors
Front side-impact air bags and side-impact air curtains*
3-point seat belts for all seating positions
Front seat-belt pretensioners with force limiters
Anti-lock Brake System (ABS)
Electronic Brakeforce Distribution (EBD) & Brake Assist
Dynamic Stability Control (DSC)†
Traction Control System (TCS)
“Triple H” body construction
Side-impact door beams
Engine-immobilizer antitheft system
Tire-Pressure Monitoring System (TPMS)
LATCH child-safety-seat anchors & upper tethers
Child-safety rear door locks
Interior
Air conditioning with pollen filter
Power windows with driver’s one-touch-down/up feature
Power door locks with 2-stage unlocking
Remote keyless entry
Tilt steering wheel
12-volt power outlet
Rear window defogger with timer
Driver’s side in-dash storage
Front center-console storage tray
Dual front cup holders
Rear cup holder
Front door storage pockets with bottle holders
6-way manual driver’s seat
60/40 split fold-down rear seatbacks
Floor mats, carpet
Auxillary-audio input jack
USB-audio input port
Speedometer, tachometer and fuel gauge
Dual trip odometers
Center instrument panel display (clock & audio)
AM/FM/CD/MP3-compatible audio system with 6 speakers
Cruise control with steering-wheel-mounted controls
Leather-wrapped steering wheel
Steering-wheel-mounted audio controls
Cloth-trimmed door panel inserts
Trip computer
Product Changes and Options Availability: Following publication of this brochure, certain changes in standard equipment, options, prices and the like—or product delays—may have occurred which would not be included in these pages.
Your Mazda Dealer is your best source for up-to-date information. Mazda reserves the right to change product specifications at any time without incurring obligations. Options shown or described in this brochure are available at extra cost
and may be offered only in combination with other options or subject to additional ordering requirements or limitations.
Financing without the fuss.
Whether you’re buying or leasing a new Mazda, Certified Pre-Owned Mazda or
a used vehicle, Mazda Capital Services* can help make the financing process
more convenient and satisfying. One of the largest auto lenders in America,
Mazda Capital Services is known for first-class customer service, a wide range
of financing options and highly competitive rates.
To find out which purchase or lease plan is right for you, talk with your Mazda
Dealer, or visit MazdaUSA.com.
We’re committed to our drivers. Every new 2013 Mazda2 is
protected by:
> A 3-year/36,000-mile† “bumper-to-bumper” limited warranty
> A 3-year/36,000-mile† 24/7 Emergency Roadside Assistance program
> A 5-year/60,000-mile† limited powertrain warranty
> A 5-year/unlimited-mileage warranty against body rust-through
†Whichever comes first.
*The tradename “Mazda Capital Services,” as well as the Mazda and Mazda Capital Services logos, are owned by Mazda Motor
Corporation or its affiliates and are licensed to JPMorgan Chase Bank, N.A. (“Chase”). Retail/loan and lease accounts are
owned by Chase.
For details, please see your Mazda Dealer, visit MazdaUSA.com,
or call toll-free (800) 639-1000.
*Always wear your seat belt and deactivate passenger side air bag when using a child or infant-safety seat. †Dynamic Stability Control (DSC) is an electronic system designed to help the driver maintain control under adverse conditions. It is not a
substitute for safe driving practices. Factors including speed, road conditions and driver steering input can all affect whether DSC will be effective in preventing loss of control. Please see your owner’s manual for further details. ‡Extra cost option.

11. Every model in the Mazda lineup was built by a bunch of car-crazed craftsmen. Who love to drive. For people who love to drive. So from the Mazda2 to the CX-9, a Mazda is always a Mazda. Because if it’s not worth driving, it’s not worth building.
It’s your Mazda—make it your own. Customize your new Mazda2 with Genuine Mazda Accessories. When installed by your Mazda Dealer prior
to or at initial vehicle retail delivery, Genuine Mazda Accessories carry the same new-vehicle limited warranty as your new Mazda. Ask your
dealer for details.
A
b
Dear Driver,
c
As a Mazda2 engineer, I'm obsessed with weight. The weight of our Mazda2, that is. Which is why my
team and I have worked meticulously over the past five years to give you, the driver, a vehicle that is
nimble and fun to drive—period.
Poring over every little detail and design, we crafted this lively, weight-saving vehicle so it got back
to the most fundamental form of the compact car. Using numerous cutting-edge technologies and
new materials, the team succeeded in a significant 100 kg (220 lb) weight reduction in the pursuit
of low fuel consumption, low CO2 emissions without sacrificing strength and safety, and the kind of
D
E
F
driving excitement that sets Mazda apart.
And when it came to even the smaller details of the Mazda2, we went big. From textures and patterns
in the seats to the font choice in the odometer reading, nothing was overlooked or taken for granted.
A weighty task was given, and we didn't stop until the Mazda2 delivered pure driving pleasure turn
after turn. All you really have to do is get behind the wheel of a Mazda2 and you'll feel as obsessed
about driving one as we are about building them.
All-Weather Floor Mats. Replace your standard carpet mats with these all-weather floor mats to provide your Mazda2’s carpet with heavy-duty protection.
Center Armrest. Compact and convenient, the center-positioned armrest provides additional comfort, support and storage. C Roof Rack. Expand your
storage possibilities with a removable roof rack. Add any of our customized attachments to transport your kayak, bike, cargo, surfboard, luggage, snowboard and
more. D Splash Guards. Protect your paint’s finish from rocks and other road debris with front and rear splash guards. E Cargo Net.* Keep smaller items from
bouncing around in your cargo area. Easily installed and removed. F Bumper Guard. Protect your paint’s finish while loading and unloading the cargo area.
A
B
Michio Tomiyama
Mazda2 Program Manager
Additional accessories:
Fog Lights
License-Plate Frames
Side Sill Extensions
Tailpipe Finisher
Floor Mats, Carpet
*Please remember to properly secure all cargo.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Roof-Rack Attachments:
- Bike Carrier
- Cargo Box, Short
- Kayak Carrier
- Roof Luggage Basket
- Ski/Snowboard Carrier
- Surfboard Carrier
Auto-Dimming Rearview Mirror
3.5 mm Audio Cable
Portable Bluetooth Car Kit
by Motorola®
Touch-Up Paint
Integrated Bluetooth
Ashtray
Portable Navigation Devices
by Garmin®
Wheel Locks
First Aid Kit
Roadside Assistance Kit
MazdaUSA.com
facebook.com/mazda
© 2012 Mazda Motor of America, Inc. • 7755 Irvine Center Drive, Irvine CA 92618
(800) 639-1000 • MazdaUSA.com
