200T/D Extraction（Nagative pressure evaporation）Workshop equipment list

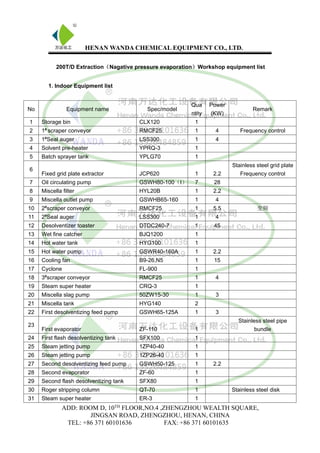

1. Indoor Equipment list
No Equipment name Spec/model
Qua
ntity
Power
(KW)
Remark
1 Storage bin CLX120 1
2 1# scraper conveyor RMCF25 1 4 Frequency control
3 1#
Seal auger LSS300 1 4
4 Solvent pre-heater YPRQ-3 1
5 Batch sprayer tank YPLG70 1
6
Fixed grid plate extractor JCP620 1 2.2
Stainless steel grid plate
Frequency control
7 Oil circulating pump GSWH80-100（I） 7 28
8 Miscella filter HYL20B 1 2.2
9 Miscella outlet pump GSWHB65-160 1 4
10 2#
scraper conveyor RMCF25 1 5.5 变频
11 2#
Seal auger LSS300 1 4
12 Desolventizer toaster DTDC240-7 1 45
13 Wet fine catcher BJQ1200 1
14 Hot water tank HYG100 1
15 Hot water pump GSWR40-160A 1 2.2
16 Cooling fan B9-26,N5 1 15
17 Cyclone FL-900 1
18 3#
scraper conveyor RMCF25 1 4
19 Steam super heater CRQ-3 1
20 Miscella slag pump 50ZW15-30 1 3
21 Miscella tank HYG140 2
22 First desolventizing feed pump GSWH65-125A 1 3
23
First evaporator ZF-110 1
Stainless steel pipe
bundle
24 First flash desolventizing tank SFX100 1
25 Steam jetting pump 1ZP40-40 1
26 Steam jetting pump 1ZP26-40 1
27 Second desolventizing feed pump GSWH50-125 1 2.2
28 Second evaporator ZF-60 1
29 Second flash desolventizing tank SFX80 1
30 Roger stripping column QT-70 1 Stainless steel disk
31 Steam super heater ER-3 1

2. HENAN WANDA CHEMICAL EQUIPMENT CO., LTD.
ADD: ROOM D, 10TH
FLOOR,NO.4 ,ZHENGZHOU WEALTH SQUARE,
JINGSAN ROAD, ZHENGZHOU, HENAN, CHINA
TEL: +86 371 60101636 FAX: +86 371 60101635

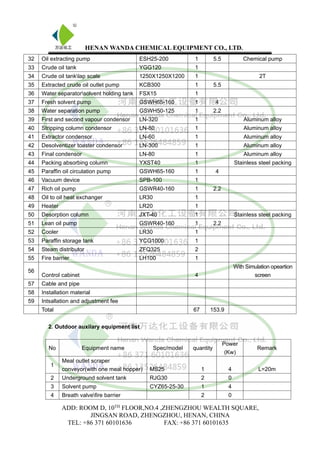

32 Oil extracting pump ESH25-200 1 5.5 Chemical pump
33 Crude oil tank YGG120 1
34 Crude oil tanklap scale 1250X1250X1200 1 2T
35 Extracted crude oil outlet pump KCB300 1 5.5
36 Water separatorsolvent holding tank FSX15 1
37 Fresh solvent pump GSWH65-160 1 4
38 Water separation pump GSWH50-125 1 2.2
39 First and second vapour condensor LN-320 1 Aluminum alloy
40 Stripping column condensor LN-80 1 Aluminum alloy
41 Extractor condensor LN-60 1 Aluminum alloy
42 Desolventizer toaster condensor LN-300 1 Aluminum alloy
43 Final condensor LN-80 1 Aluminum alloy
44 Packing absorbing column YXST40 1 Stainless steel packing
45 Paraffin oil circulation pump GSWH65-160 1 4
46 Vacuum device SPB-100 1
47 Rich oil pump GSWR40-160 1 2.2
48 Oil to oil heat exchanger LR30 1
49 Heater LR20 1
50 Desorption column JXT-40 1 Stainless steel packing
51 Lean oil pump GSWR40-160 1 2.2
52 Cooler LR30 1
53 Paraffin storage tank YCG1000 1
54 Steam distributor ZFQ325 2
55 Fire barrier LH100 1
56
Control cabinet 4
With Simulation opeartion
screen
57 Cable and pipe
58 Installation material
59 Intsallation and adjustment fee
Total 67 153.9

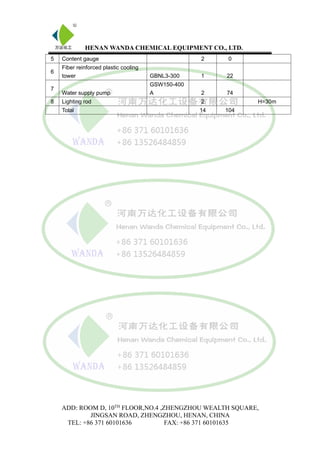

2. Outdoor auxilary equipment list
No Equipment name Spec/model quantity
Power
(Kw)
Remark
1
Meal outlet scraper
conveyor(with one meal hopper) MS25 1 4 L=20m
2 Underground solvent tank RJG30 2 0
3 Solvent pump CYZ65-25-30 1 4
4 Breath valvefire barrier 2 0

3. HENAN WANDA CHEMICAL EQUIPMENT CO., LTD.
ADD: ROOM D, 10TH
FLOOR,NO.4 ,ZHENGZHOU WEALTH SQUARE,
JINGSAN ROAD, ZHENGZHOU, HENAN, CHINA
TEL: +86 371 60101636 FAX: +86 371 60101635
5 Content gauge 2 0
6
Fiber reinforced plastic cooling
tower GBNL3-300 1 22
7
Water supply pump
GSW150-400
A 2 74
8 Lighting rod 2 H=30m
Total 14 104
