1. Electromagnetics
Microwave Engineering
CHO, Yong Heui

2. Microwave Engineering
0. Text
Introduction
David M. Pozar, “Microwave Engineering,” 2nd ed.,
John Wiley & Sons, 1997.
Robert E. Collin, “Foundations for Microwave
Engineering,” 2nd ed., IEEE Press, 2001.
2 EM Wave Lab

3. Microwave Engineering
0. Spirit
Who is he?
Oliver Heaviside (1850~1925, England)
3 EM Wave Lab

4. Microwave Engineering
0. Spirit
Who is she?
Hedy Lamarr (1913~2000, Austria)
4 EM Wave Lab

5. Microwave Engineering
1. Maxwell’s equations
Basic equations ( 기본방정식 )
  ∇•D = ρ : Gauss( 가우스 )’s law
 ∇×E = −
∂
B : Faraday( 패러데이 )’s
law ∂t
∇•B =0
∂ Biot-Savart( 비오 - 사바르 )’s
:

law × H = J +
∇ D
∂t
 : Ampere( 앙뻬르 )’s law
5 EM Wave Lab

6. Microwave Engineering
2. Explanations
Vector ( 벡터 )
  Vector: magnitude + direction
- Coordinate ( 좌표계 ): x, y , z )
(
- E
 Scalar: magnitude
- Real number ( 실수 )
- ρ
Velocity Temperature
6 EM Wave Lab

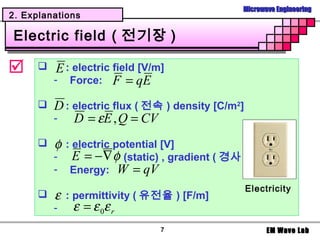

7. Microwave Engineering
2. Explanations
Electric field ( 전기장 )
  E : electric field [V/m]
- Force: F = qE
 D : electric flux ( 전속 ) density [C/m2]
- D = εE , Q = CV
 φ : electric potential [V]
- E = − ∇ φ (static) , gradient ( 경사 )
- Energy: W = qV
Electricity
 ε : permittivity ( 유전율 ) [F/m]
- ε = ε 0ε r
7 EM Wave Lab

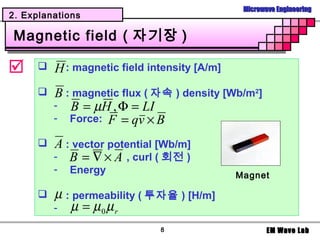

8. Microwave Engineering
2. Explanations
Magnetic field ( 자기장 )
  H : magnetic field intensity [A/m]
 B : magnetic flux ( 자속 ) density [Wb/m2]
- B = µH , Φ = LI
- Force: F = qv × B
 A : vector potential [Wb/m]
- B = ∇ × A , curl ( 회전 )
- Energy Magnet
 µ : permeability ( 투자율 ) [H/m]
- µ = µ0µr
8 EM Wave Lab

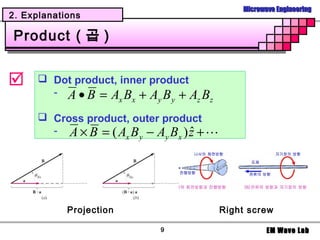

9. Microwave Engineering
2. Explanations
Product ( 곱 )
  Dot product, inner product
- A•B = A B + A B + A Bz
x x y y z
 Cross product, outer product
- A × B = ( A B − A B )z +
ˆ
x y y x
Projection Right screw
9 EM Wave Lab

10. Microwave Engineering
2. Explanations

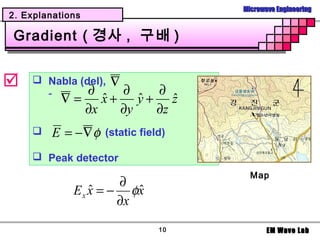

Gradient ( 경사 , 구배 )
  Nabla (del),
∂
∇
∂ ∂
-
∇= x+
ˆ y+ z
ˆ ˆ
∂x ∂y ∂z
 E = −∇φ (static field)
 Peak detector
Map
∂
E x x = − φx
ˆ ˆ
∂x
10 EM Wave Lab

11. Microwave Engineering
2. Explanations

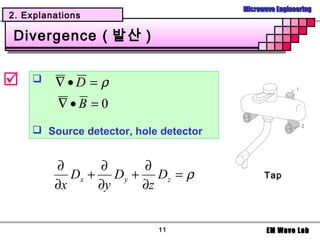

Divergence ( 발산 )
  ∇•D = ρ
∇•B =0
 Source detector, hole detector
∂ ∂ ∂
Dx + D y + Dz = ρ Tap
∂x ∂y ∂z
11 EM Wave Lab

12. Microwave Engineering
2. Explanations

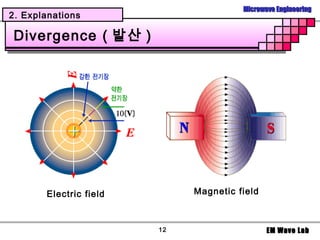

Divergence ( 발산 )
Electric field Magnetic field
12 EM Wave Lab

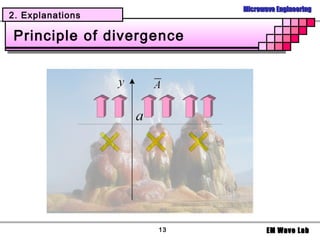

13. Microwave Engineering
2. Explanations
Principle of divergence
13 EM Wave Lab

14. Microwave Engineering
2. Explanations

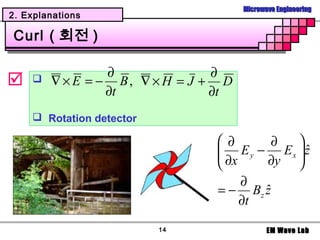

Curl ( 회전 )
∂ ∂
  ∇ × E = − B, ∇ × H = J + D
∂t ∂t
 Rotation detector
∂ ∂ 
 E y − Ex  z
 ∂x ˆ
 ∂y 
∂
= − Bz zˆ
∂t
14 EM Wave Lab

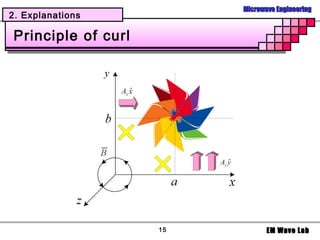

15. Microwave Engineering
2. Explanations
Principle of curl
15 EM Wave Lab

16. Microwave Engineering
2. Explanations

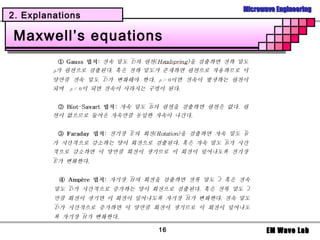

Maxwell’s equations
16 EM Wave Lab

17. Microwave Engineering
2. Explanations
Boundary conditions ( 경계조건 )
  n • D1 = n • D2
ˆ ˆ : continuity of normal D
 n × E1 = n × E2
ˆ ˆ : continuity of tangential E
 n • B1 = n • B2
ˆ ˆ : continuity of normal B
 n × H1 = n × H 2 : continuity of tangential H
ˆ ˆ
 Sourceless system
17 EM Wave Lab

18. Microwave Engineering
2. Explanations
Continuity of fields
 
∫ D • dS = Q
S
: continuity of normal D
 ∫ E • dL = 0
C
: continuity of tangential E
∇•D = ρ
n × H1 = n × H 2
ˆ ˆ Gauss’ divergence theorem
∂
∇×E = − B
∂t
Stokes’ theorem
18 EM Wave Lab

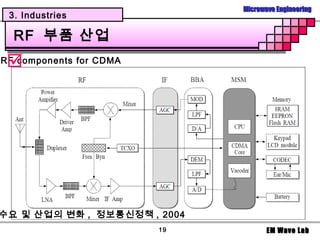

19. Microwave Engineering
3. Industries
RF 부품 산업

RF components for CDMA
수요 및 산업의 변화 , 정보통신정책 , 2004
19 EM Wave Lab

20. Microwave Engineering
3. Industries

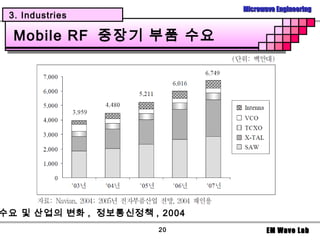

Mobile RF 중장기 부품 수요
수요 및 산업의 변화 , 정보통신정책 , 2004
20 EM Wave Lab

21. Microwave Engineering
3. Industries
RF 세부부품별 개발동향과 주요업체
(1)
수요 및 산업의 변화 , 정보통신정책 ,21
2004 EM Wave Lab

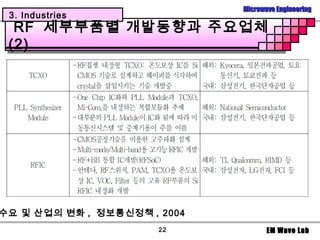

22. Microwave Engineering
3. Industries
RF 세부부품별 개발동향과 주요업체
(2)
수요 및 산업의 변화 , 정보통신정책 , 2004
22 EM Wave Lab

23. Microwave Engineering
3. Industries

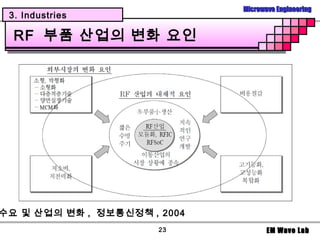

RF 부품 산업의 변화 요인
수요 및 산업의 변화 , 정보통신정책 , 2004
23 EM Wave Lab

24. Microwave Engineering
3. Industries

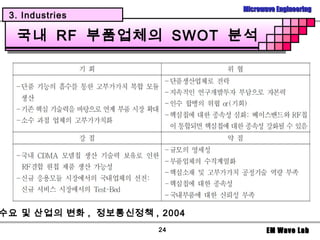

국내 RF 부품업체의 SWOT 분석
수요 및 산업의 변화 , 정보통신정책 , 2004
24 EM Wave Lab
