Jiangsu TSD Electronics Technology Co., LTD
185, South Yucheng Road, Yushan Town,
Kunshan City, Jiangsu 215300, CN
Tel +86-512-55177097-8506
Fax +86-512-55177095
matt.cheung@tsd-tech.com
Model AIO190
Touch Technology PCAP 10-points
Surface Durability Mohs' 7H
Active Display Area (W x H) 338.9mm x 277.3mm
Dimensions (W x D x H) 377.3mm x 302mm
Display Technology 1920 x 1080 @ 60hz (native) Active matrix TFT LCD with LED backlight
Mounting Options VESA 4-hole mount, desktop,
Diagonal Size 19"
Aspect Ratio 4:3
Number of Colors 16.7M
Brightness (typical) LCD Panel 250 nits;
Response Time (typical) 5 ms
Viewing Angle (typical) Horizontal: 170°; Vertical: 160°
Contrast Ratio (typical) 1000:1
Touch activation force 10g
Available I/O Ports Power input, USB (for Touch), VGA, DVI, HDMI, Audio Line in/out, RJ45/WIFI
Power DC12V 50/60Hz.
Speaker YES
Temperature Operating: 0°C to 40°C; Storage: -20°C to 60°C
Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Regulatory Approvals and Declarations FCC, CE
Optional Computer Modules CPU: Intel I3/I5; RAM: 2G/4G; Storage: 500G HHD or 120G SSD; OS: Win7, Win8, Win10, Linux, Andriod
Warranty 3 years standard. Free repair warranty and additional parts available

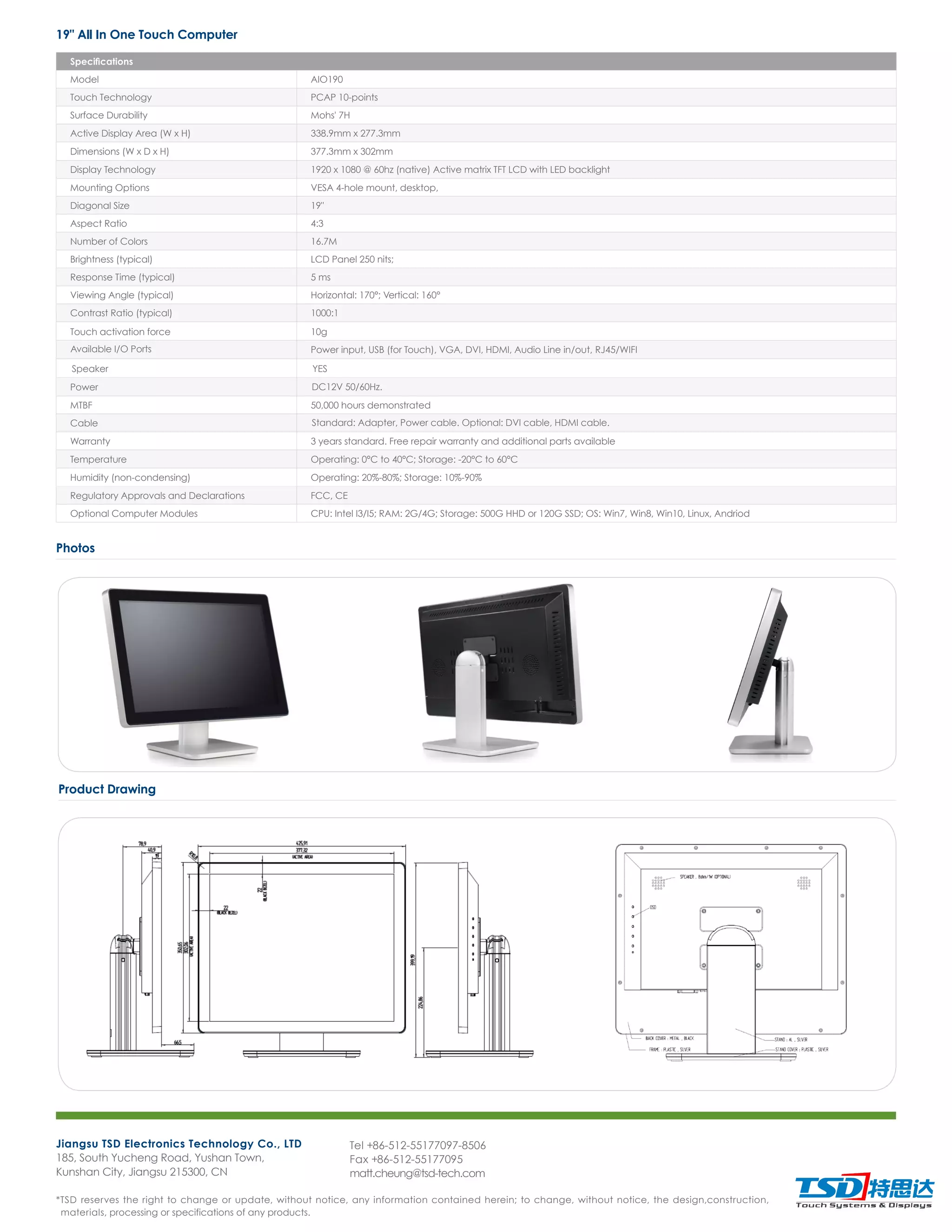

19" All In One Touch Computer
MTBF 50,000 hours demonstrated
Cable Standard: Adapter, Power cable. Optional: DVI cable, HDMI cable.
Photos
Product Drawing
*TSD reserves the right to change or update, without notice, any information contained herein; to change, without notice, the design,construction,
materials, processing or specifications of any products.

19" All-in-One Touch computer P-CAP
