This 16x2 LCD display board has a 16 pin header that can operate in either 4-bit or 8-bit mode. It includes pins for data, control signals, power and ground. The board has an on-board power indicator and contrast adjustment. It can interface with 8051, PIC, AVR or Arduino development boards, and sample code is available from the manufacturer's website.

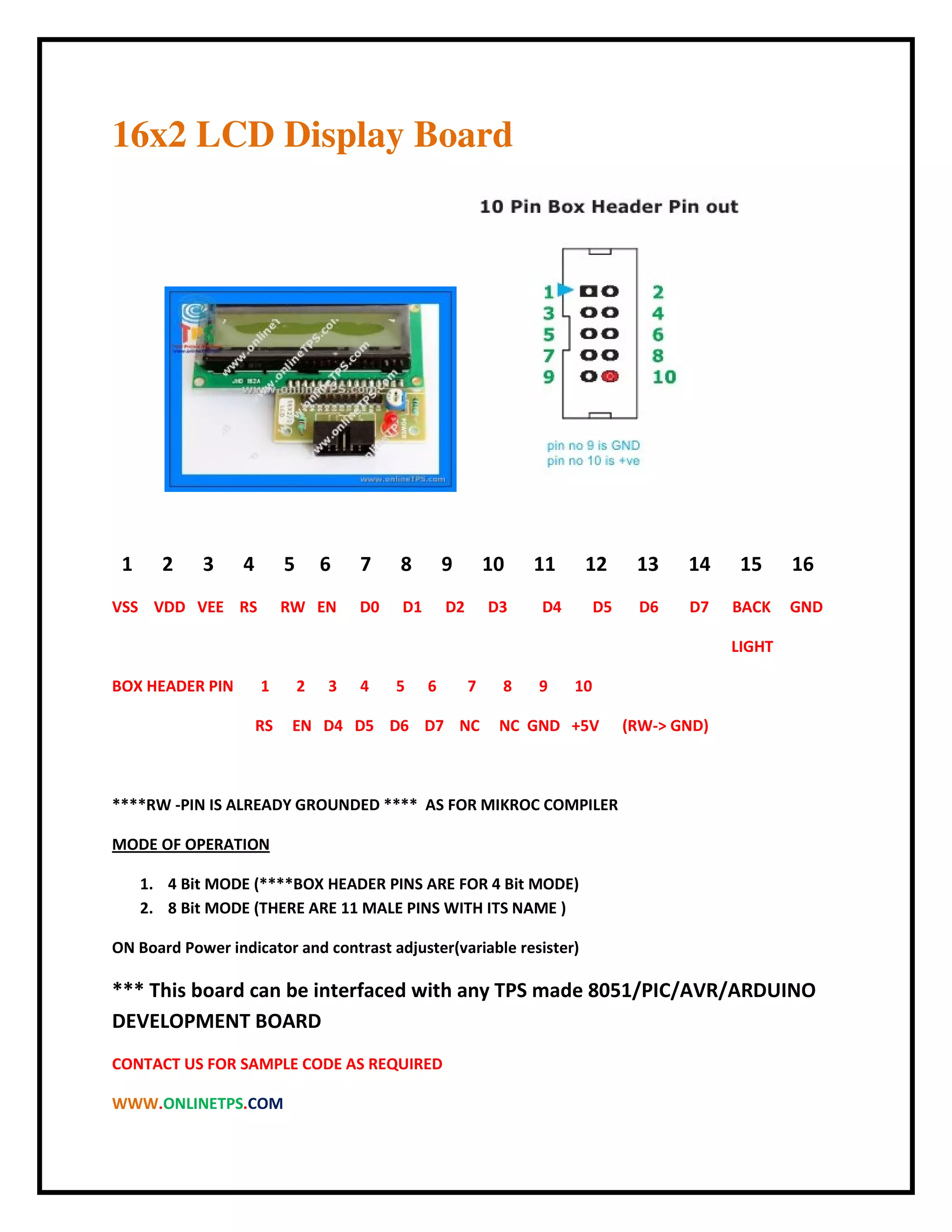

1. 16x2 LCD Display Board
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
VSS VDD VEE RS RW EN D0 D1 D2 D3 D4 D5 D6 D7 BACK GND
LIGHT
BOX HEADER PIN 1 2 3 4 5 6 7 8 9 10
RS EN D4 D5 D6 D7 NC NC GND +5V (RW-> GND)
****RW -PIN IS ALREADY GROUNDED **** AS FOR MIKROC COMPILER
MODE OF OPERATION
1. 4 Bit MODE (****BOX HEADER PINS ARE FOR 4 Bit MODE)
2. 8 Bit MODE (THERE ARE 11 MALE PINS WITH ITS NAME )
ON Board Power indicator and contrast adjuster(variable resister)
*** This board can be interfaced with any TPS made 8051/PIC/AVR/ARDUINO
DEVELOPMENT BOARD
CONTACT US FOR SAMPLE CODE AS REQUIRED
WWW.ONLINETPS.COM
