Extending the                           Java Message Service                               to Web devices                 ...
Agenda    l    HTML5 WebSockets vs. HTTP    l    Java Message Service    l    Implementing JMS over WebSockets    l   ...
Networked Applications                                                        Full duplexTCP socket                    Thi...
Networked Applications                                                            Full duplexTCP socket                   ...
HTTP Workarounds & Hacks                                                                                 Full duplex      ...
HTML5 WebSocket l    Extends TCP across the web       l    Full-duplex, single socket, very low overhead       l    Sha...
HTTP vs. WebSocket                          HTTP                                      WebSocket Overhead                 1...
Overheard…     "Reducing kilobytes of data to 2 bytes… and     reducing latency from 150ms to 50ms is far more     than ma...
Using the WebSocket API     Java     //Create and connect new WebSocket     WebSocket mySocket = new WebSocket();     // A...
WebSocket Browser SupportBrowser native support      §    Chrome      §    Firefox (need to turn on)      §    Opera 10...
JMS Over WebSocket                                 WebSocket                     Browser                                  ...
JMS Over WebSocket                                 WebSocket                     Browser                                  ...
Java Message Service13   JavaOne 2011   © 2011 – Kaazing Corporation
Why JMS?  l    WebSocket is a good start but doesnt offer        much help to the application developer  l    JMS well e...
Why JMS over WebSocket?Typical Current JMS Architecture                        Firewall                                   ...
Why JMS over WebSocket?Typical Current JMS Architecture                        Firewall                                   ...
Implementing JMS over WebSockets17   JavaOne 2011   © 2011 – Kaazing Corporation
JMS over WebSocket  1. JMS Client library (in browser, web device)  2. Protocol  3. Server (bridge between broker & web)  ...
JMS Client Library ●    Implements the JMS objects and API      l    Initiate WebSocket connection      l    Encode outg...
The Protocol  l    STOMP        l      Text-based wire encoding, so suitable for multiple                client language...
JMS Client Library ●    session.createConsumer      l    → SUBSCRIBE destination:xxx      l    Await RECEIPT ●    produc...
JMS Client Library ●    Transactions      l    Group message sends and Acks      l    Single unit of work ●    Auto-reco...
The Server ●    Bridge between Web and Message Broker      l    Accepts WebSocket connections      l    Connects to JMS ...
The Server l    Simplest implementation:       l    Each client connection → 1 broker Connection and             Session...
Demos                                           http://portfolio.kaazing.me!http://forex.kaazing.me!25   JavaOne 2011     ...
Portfolio Demo ●    "stock" topic for stock price updates      l     MessageConsumer stockConsumer!      l     MessageLi...
Code Examples     l    Creating a connection (omitting exception handling)           env.put(Context.INITIAL_CONTEXT_FACT...
Code Examples     l    From there its all just standard JMS API           Session	  session	  =	  connection.createSessio...
A Real World Solution:     Kaazing WebSocket Gateway29    JavaOne 2011   © 2011 – Kaazing Corporation
WebSocket Client Support  l    Java and JavaFX  l    JavaScript  l    Microsoft Silverlight        and .NET  l    Adob...
WebSocket EmulationEmulation for browsers with no native WebSocket support:      l    Kaazing WebSocket Gateway: makes We...
Kaazing JMS Edition  l    Messages traverse firewalls and proxies  l    Fast, secure communication over the Internet  l...
Resource Offloading ●    Connection + Session offload (fan out)      l     Reduces broker resource usage      l     Mini...
Resource Offloading34   JavaOne 2011   © 2011 – Kaazing Corporation
JMS Gateway Features ●    “stomp.jms” service      l     Clients speak STOMP to the service.      l     Service uses ven...
Using Multiple Gateways ●    Hundreds of thousands of clients or more can be      supported by using a network of gateways...
Using Multiple Gateways37   JavaOne 2011   © 2011 – Kaazing Corporation
Writing Applications     l    JMS API is available to code running within the browser           or mobile device     l  ...
Live Customer Application39   JavaOne 2011   © 2011 – Kaazing Corporation
Take-aways     l    HTML5 WebSockets offers a paradigm shift for highly           interactive and scalable Web applicatio...
Conclusion“We’re committed to providing real-timeaccess to critical management informationacross the enterprise...Kaazing ...
Questions and Answers42   JavaOne 2011   © 2011 – Kaazing     Corporation
Upcoming SlideShare
Loading in …5
×

Extending JMS to Web Devices over HTML5 WebSockets - JavaOne 2011

8,157 views

Published on

HTML5 WebSockets offers secure, high-performance, bidirectional network communication over the Web and in the cloud, making applications more responsive while using less bandwidth: live dashboards, financial quotes and transactions, real-time auctions and betting, gaming, equipment monitoring . . . the list is endless. In this session, see how to extend the Java Message Service (JMS) API to Web devices over HTML5 WebSockets to enrich and accelerate your applications. Discover through concrete code examples and a live customer application how to develop highly interactive UIs showing real-time data from any middleware supporting JMS, such as Tibco EMS or Informatica UMQ. Demos include JavaFX and JavaScript running in a Web browser and on a mobile device.

Published in: Technology
0 Comments
3 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
8,157
On SlideShare
0
From Embeds
0
Number of Embeds
944
Actions
Shares
0
Downloads
152
Comments
0
Likes
3
Embeds 0
No embeds

No notes for slide

Extending JMS to Web Devices over HTML5 WebSockets - JavaOne 2011

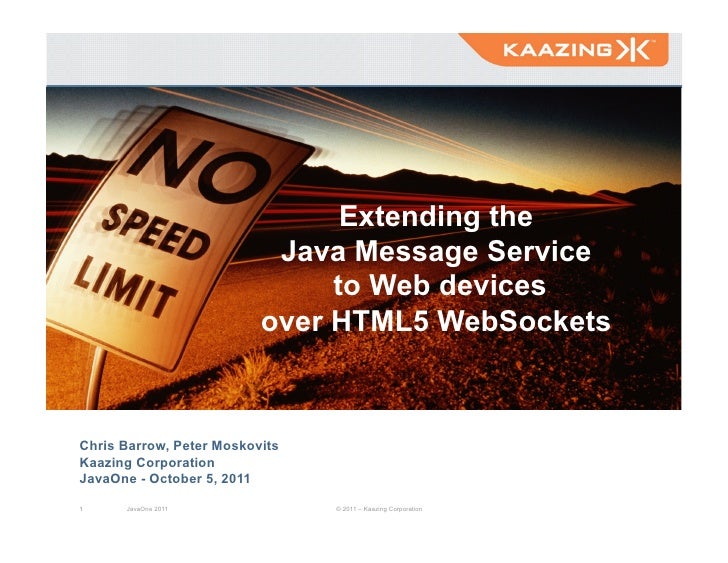

  1. 1. Extending the Java Message Service to Web devices over HTML5 WebSocketsChris Barrow, Peter MoskovitsKaazing CorporationJavaOne - October 5, 20111 JavaOne 2011 © 2011 – Kaazing Corporation
