Slides for a talk at Faculty Summit 2011 at Google Zurich about software language design and engineering, with mobl as big example.

1. Software Language
Design & Engineering
Eelco Visser
http://eelcovisser.org
Zürich, May 12, 2011

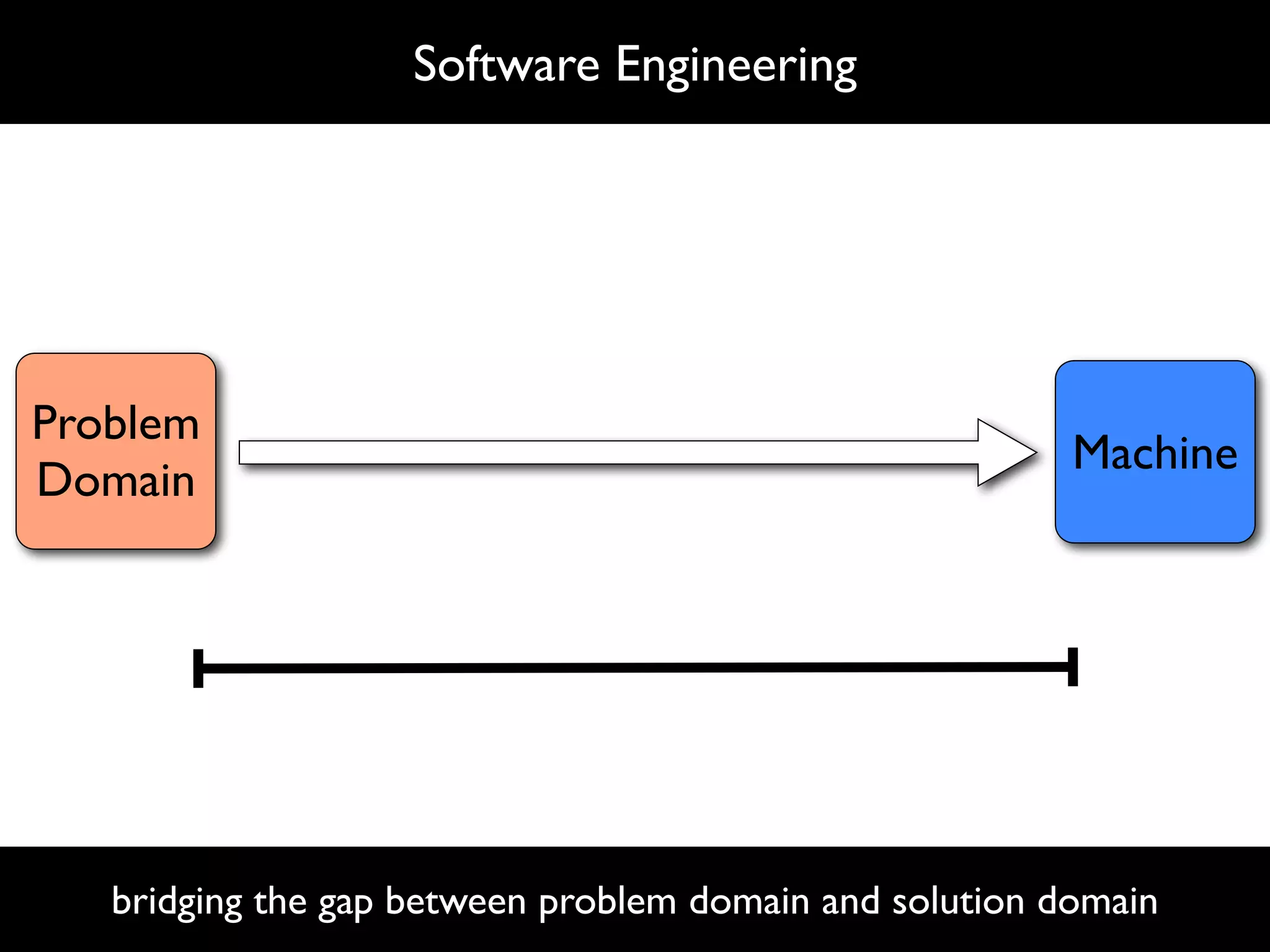

2. Software Engineering
Problem
Machine
Domain
bridging the gap between problem domain and solution domain

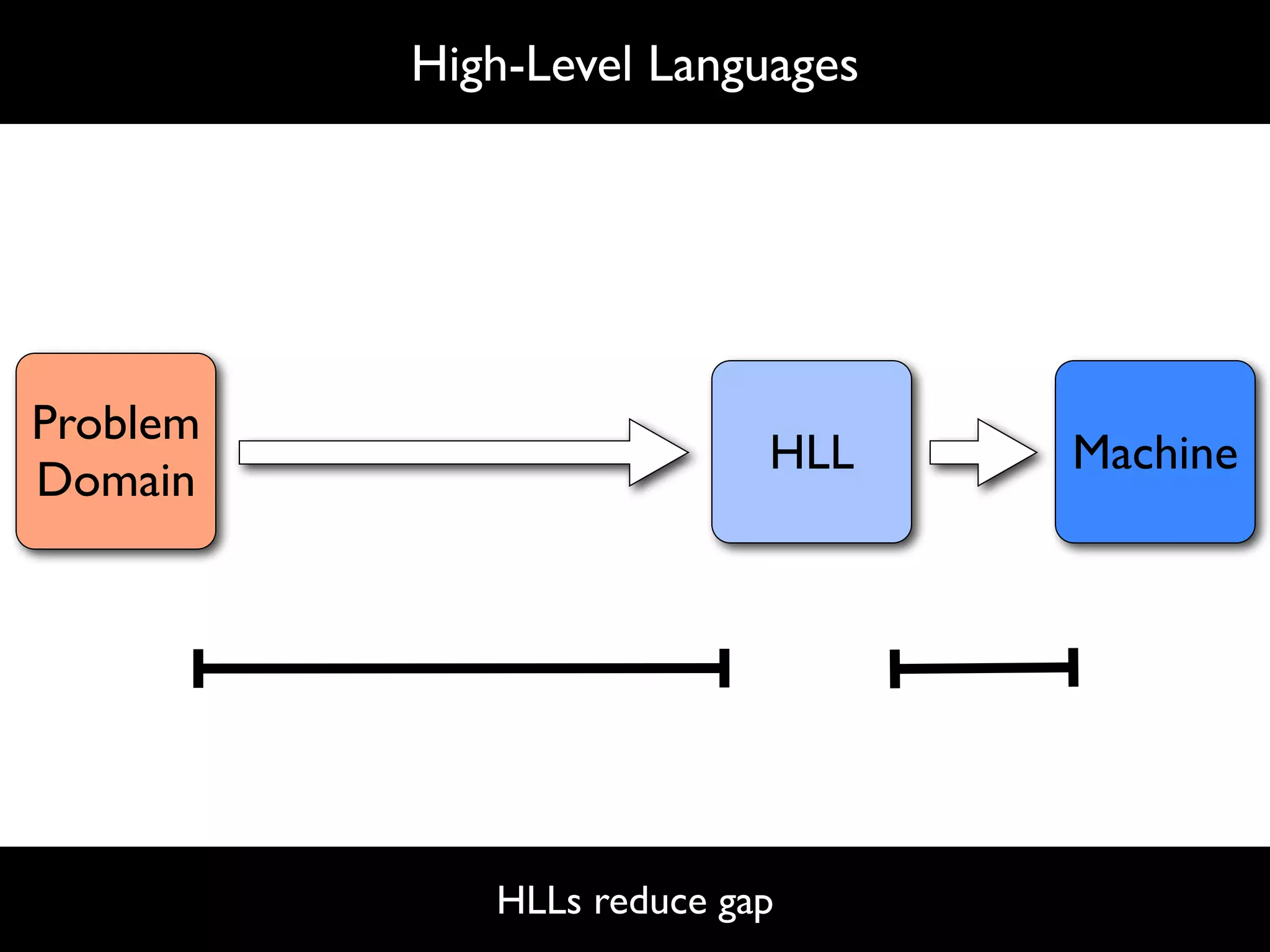

3. High-Level Languages
Problem
HLL Machine
Domain
HLLs reduce gap

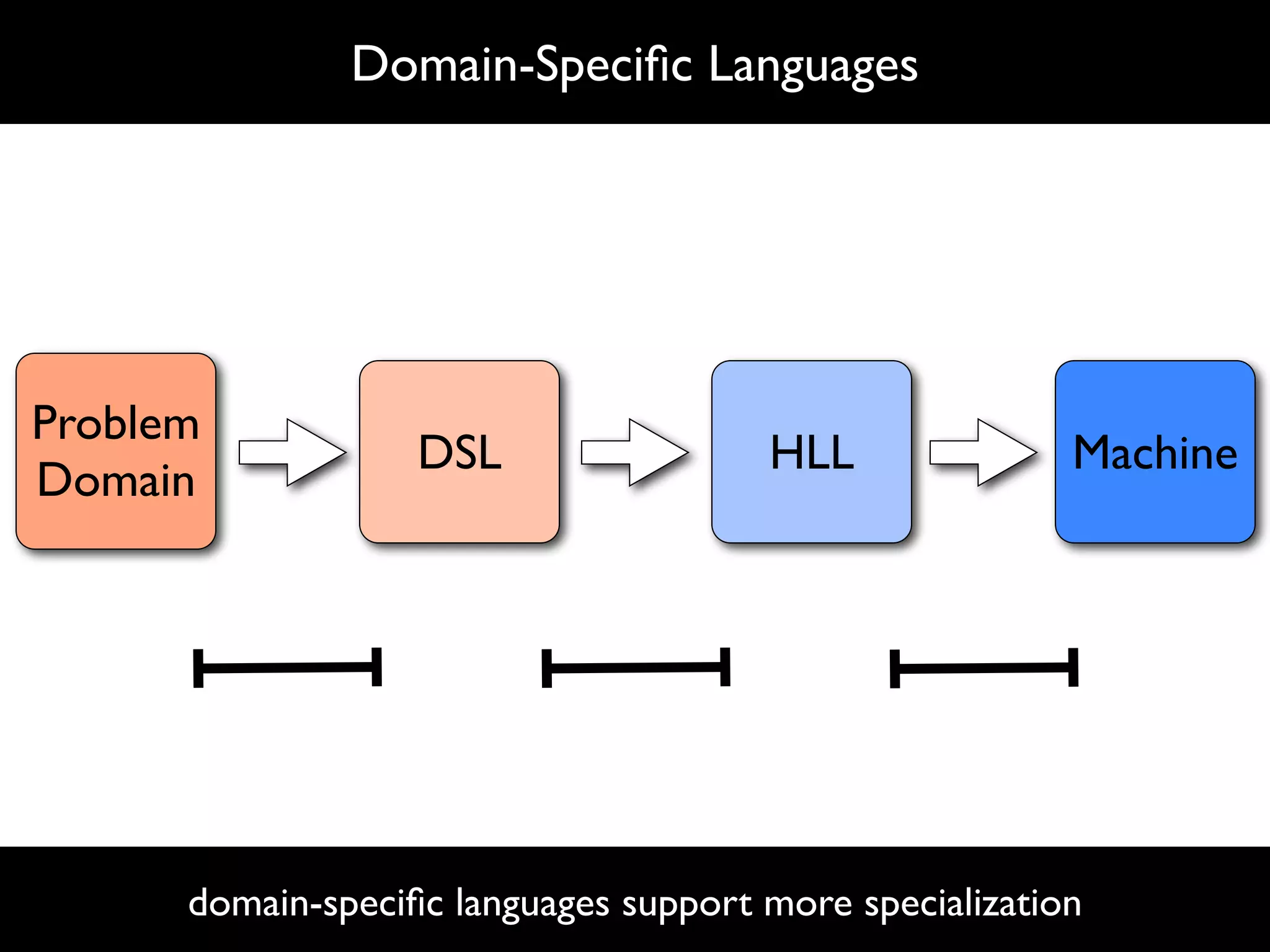

4. Domain-Specific Languages
Problem
DSL HLL Machine
Domain
domain-specific languages support more specialization

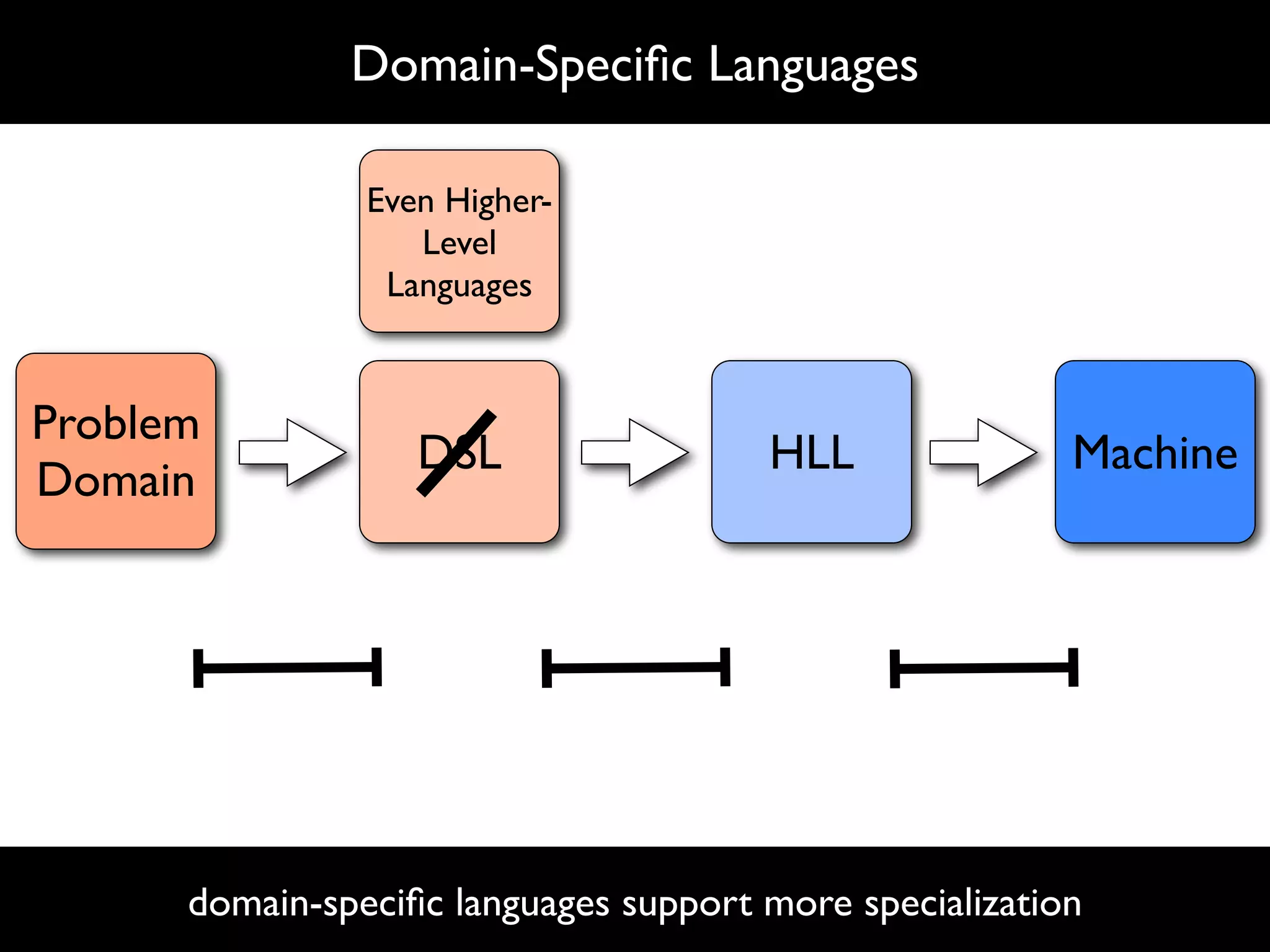

5. Domain-Specific Languages
Even Higher-
Level
Languages
Problem
DSL HLL Machine
Domain
domain-specific languages support more specialization

6. Software Language Design & Engineering
enable software engineers to
effectively design, implement,
and apply domain-specific
software languages

7. Research: Software Language Design
Systematically design domain-
specific software
languages with optimal
tradeoff between expressivity,
completeness, portability, coverage, and
maintainability

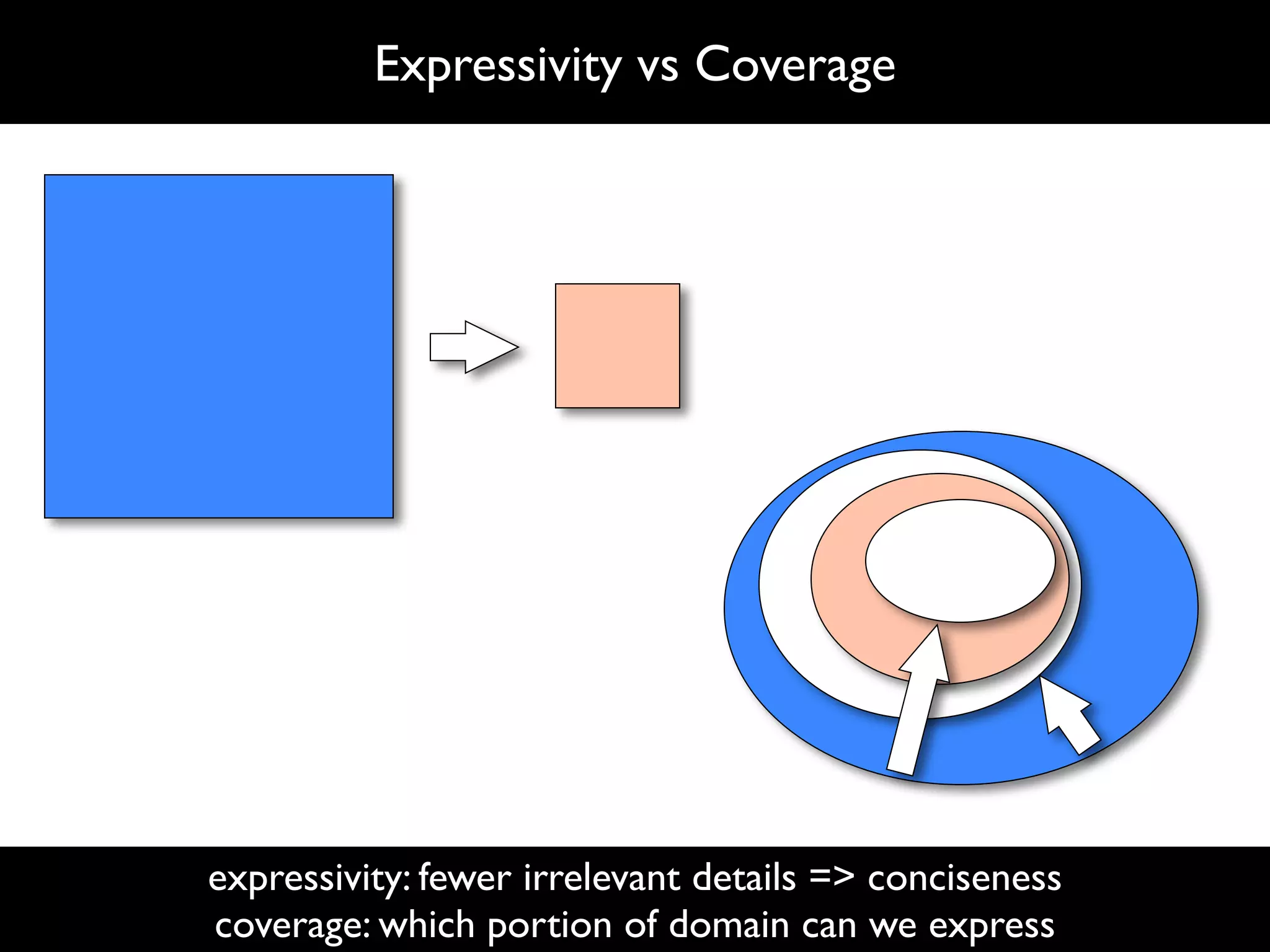

8. Expressivity vs Coverage
expressivity: fewer irrelevant details => conciseness
coverage: which portion of domain can we express

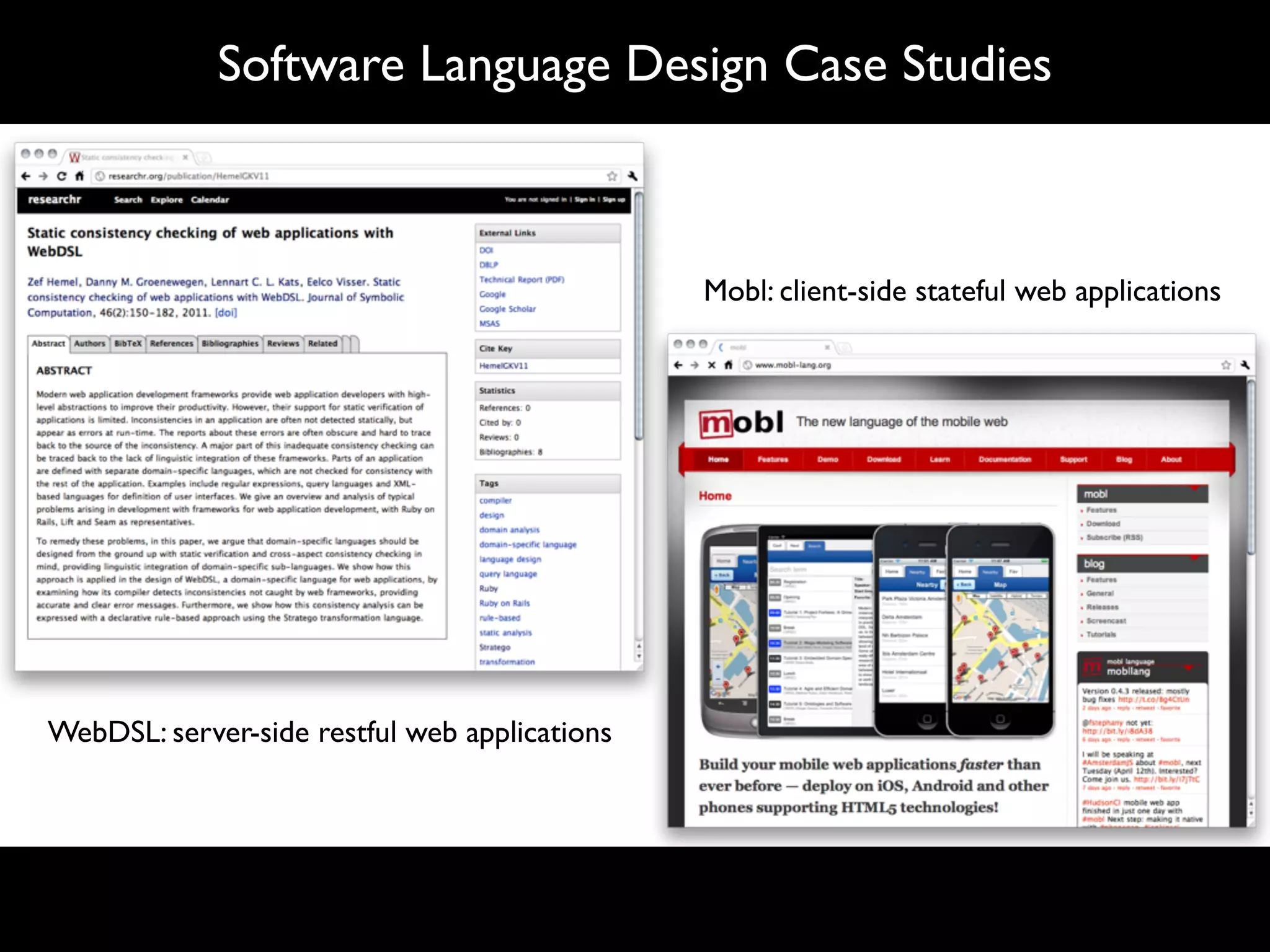

9. Software Language Design Case Studies
Mobl: client-side stateful web applications
WebDSL: server-side restful web applications

10. http://www.mobl-lang.org
Zef Hemel

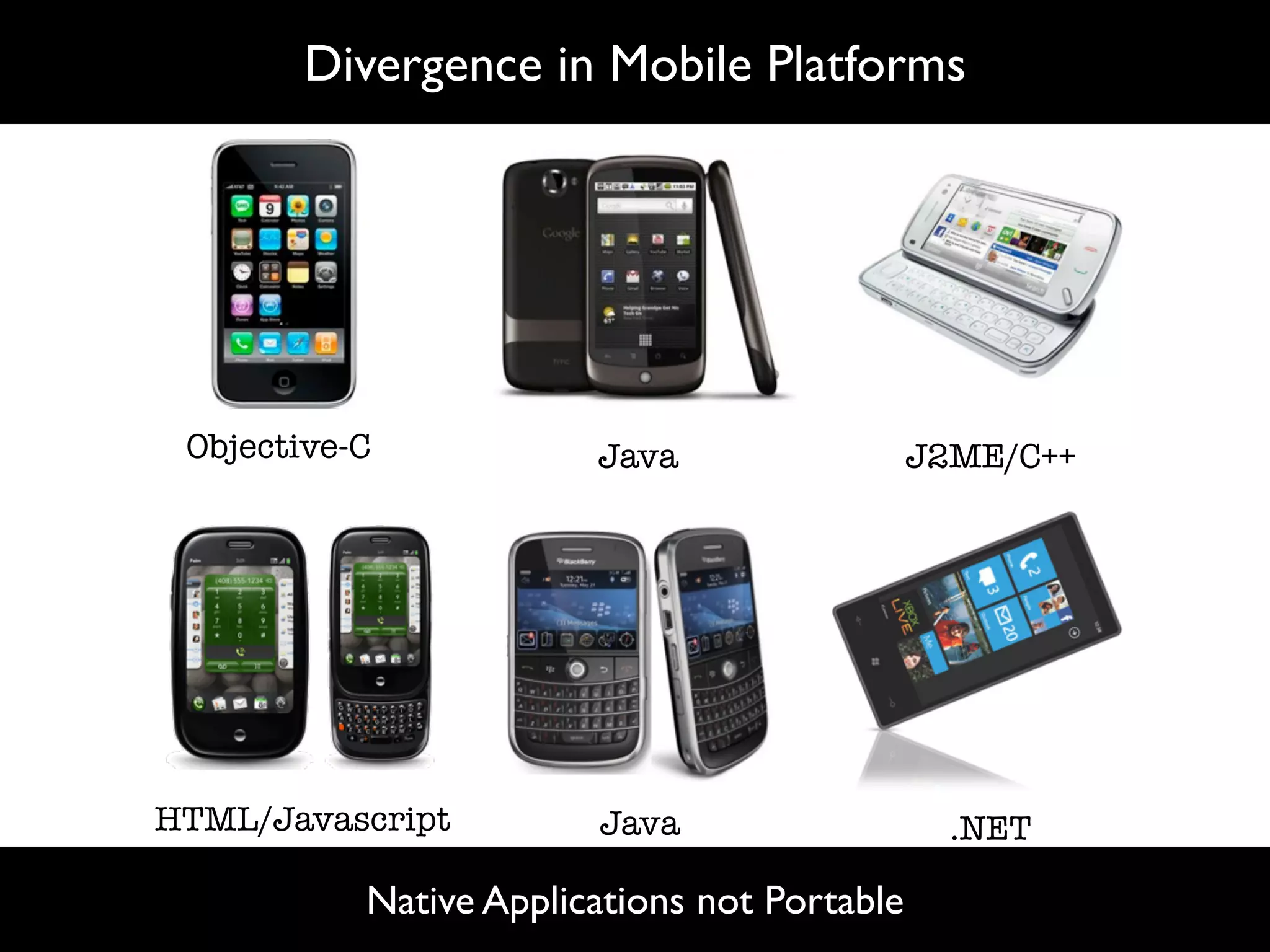

11. Divergence in Mobile Platforms
Objective-C Java J2ME/C++
HTML/Javascript Java .NET
Native Applications not Portable

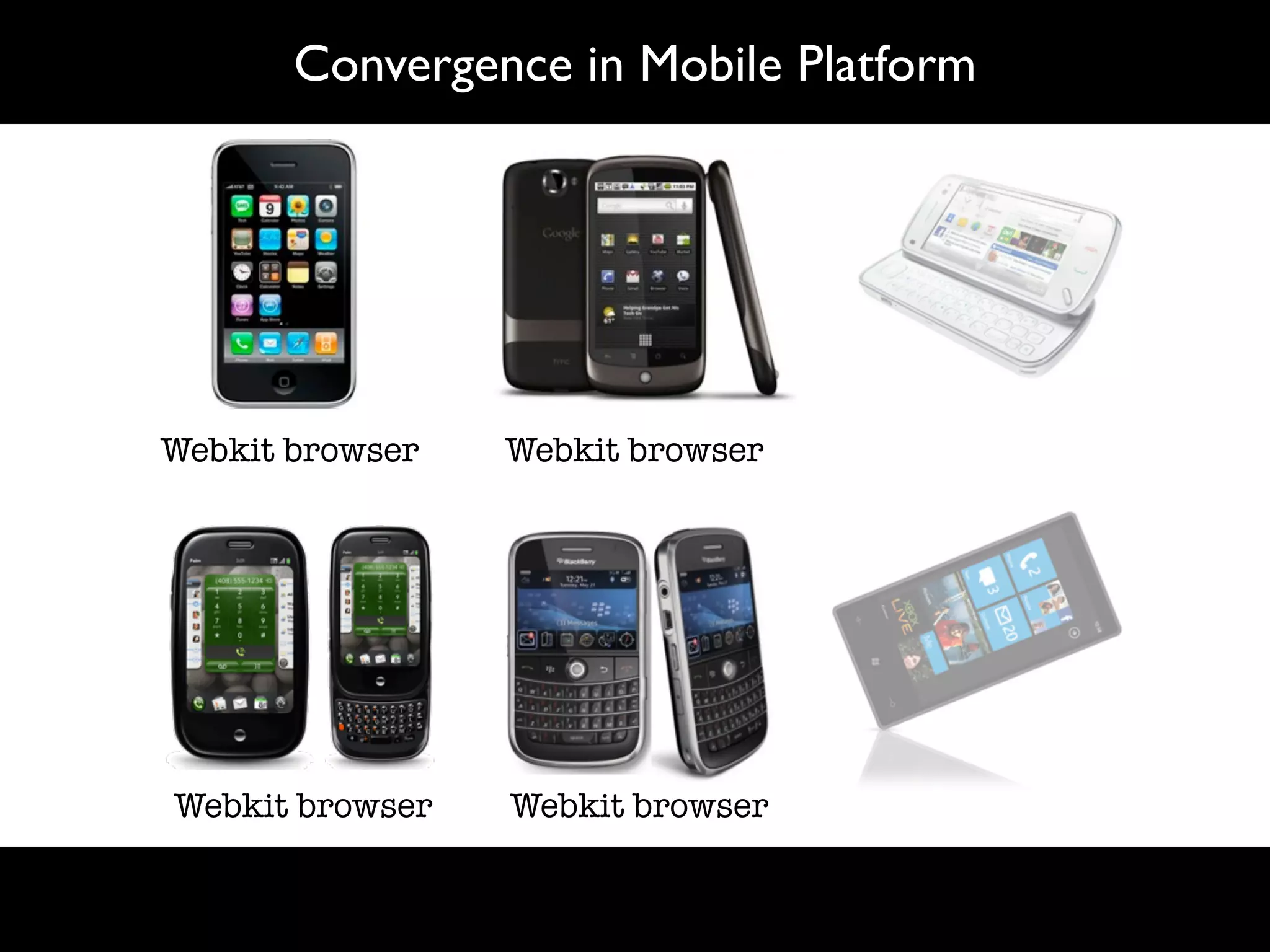

12. Convergence in Mobile Platform
Webkit browser Webkit browser
Webkit browser Webkit browser

13. The Universal Userinterface Engine

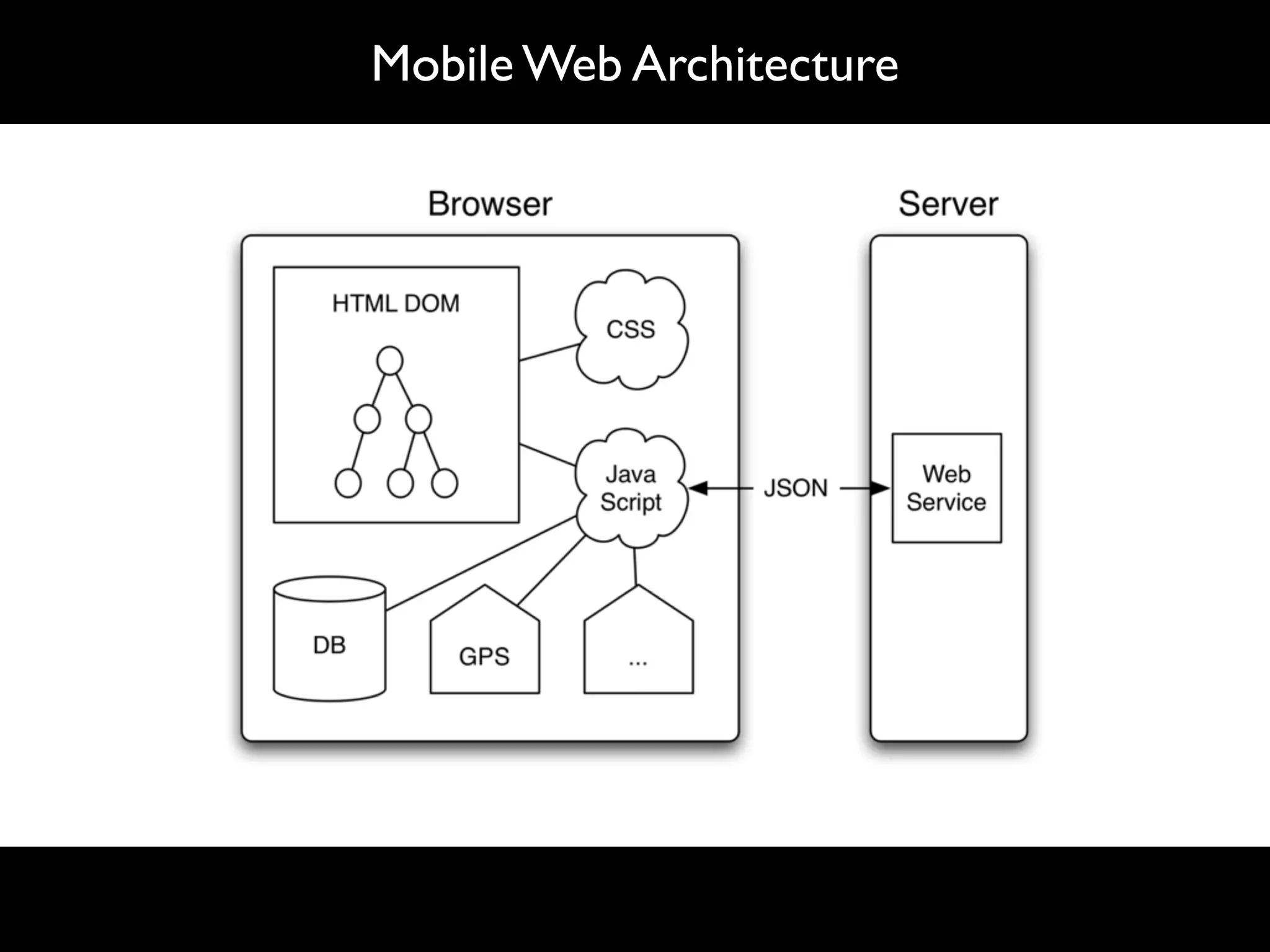

14. Mobile Web Architecture

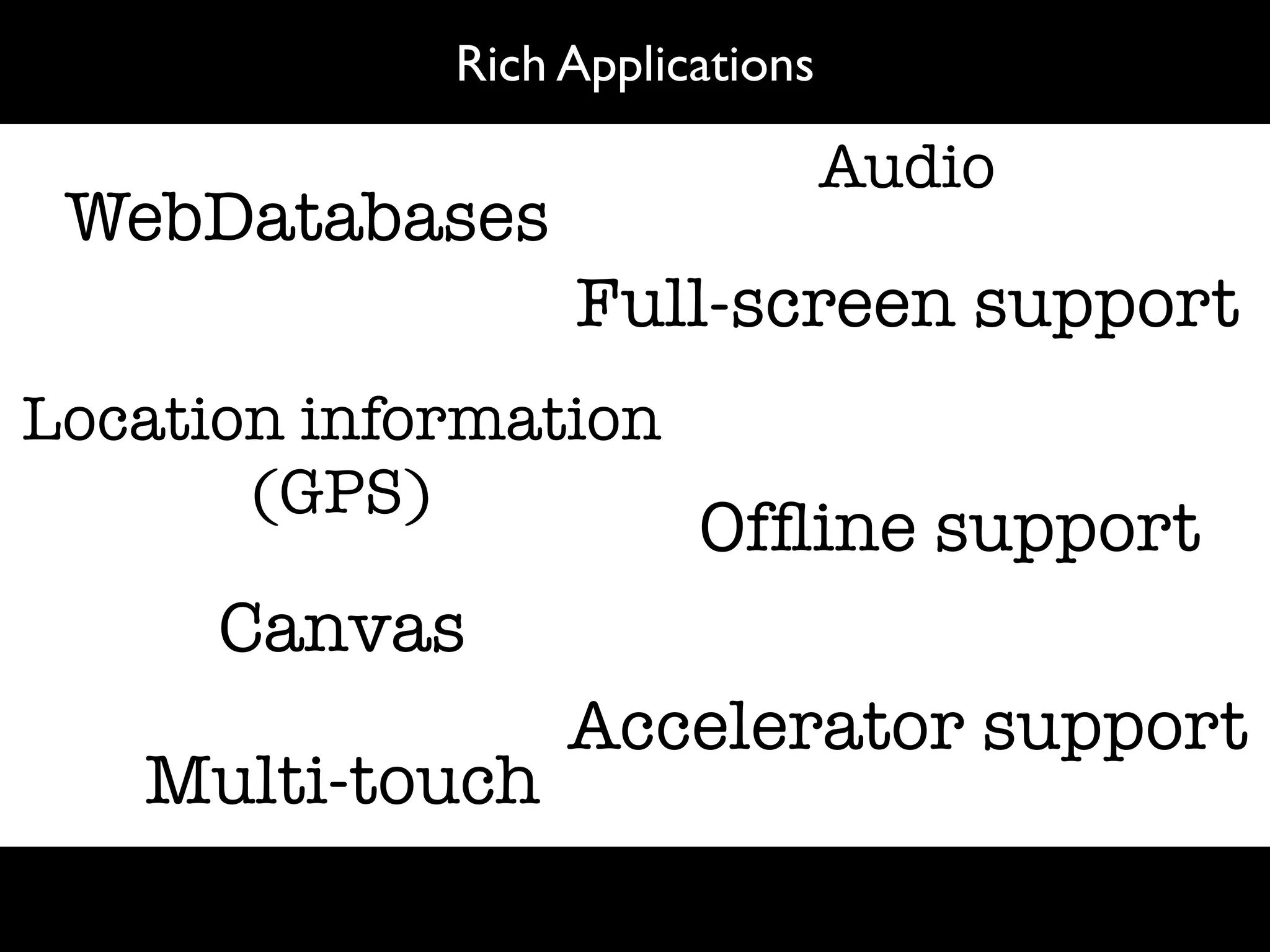

15. Rich Applications
Audio
WebDatabases
Full-screen support
Location information
(GPS)
Offline support
Canvas
Accelerator support
Multi-touch

16. Native Applications
Address book
Camera
Compass
File IO
Notifications

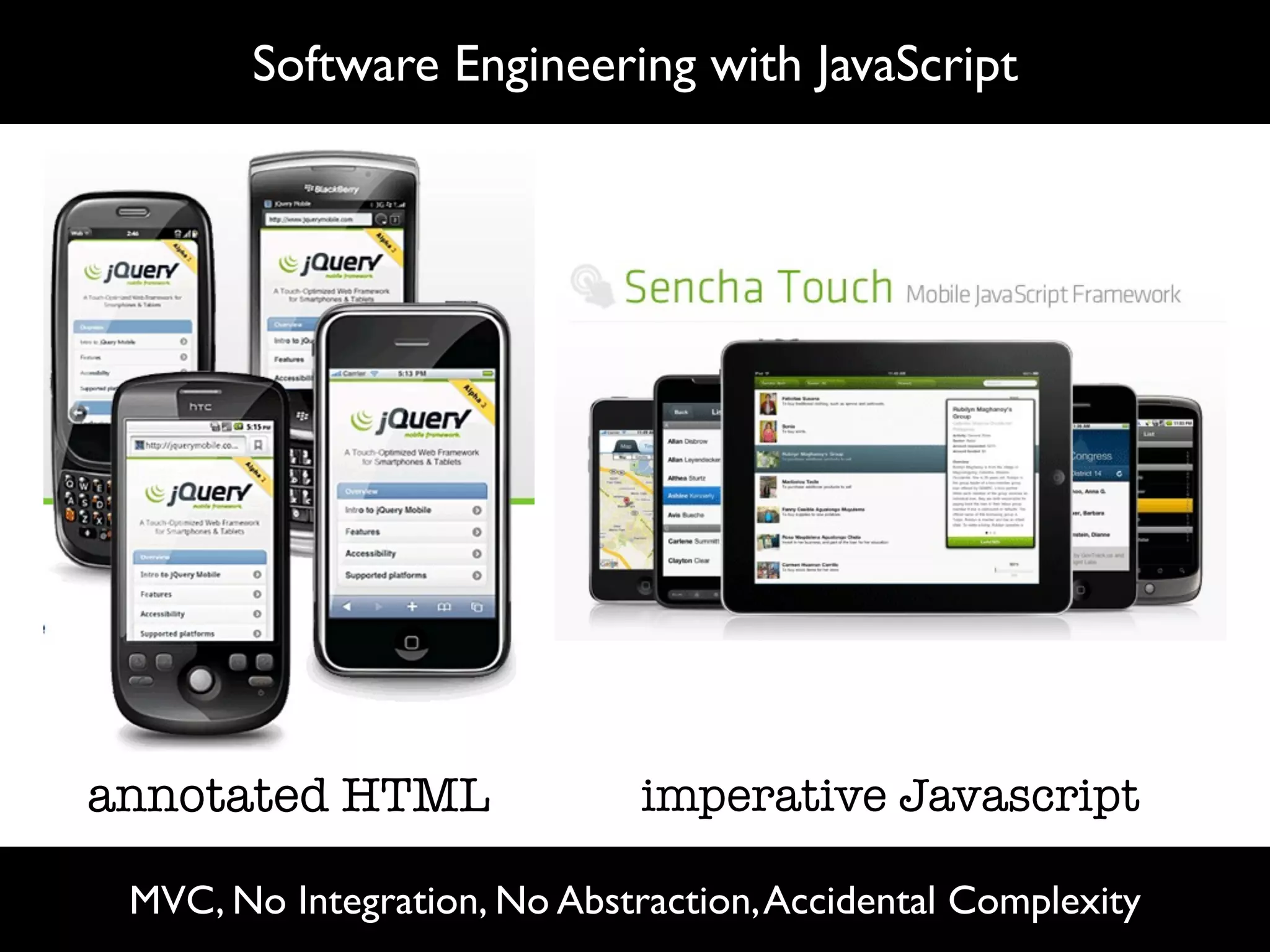

17. Software Engineering with JavaScript
annotated HTML imperative Javascript
MVC, No Integration, No Abstraction, Accidental Complexity

18. typed declarative
integrated concise

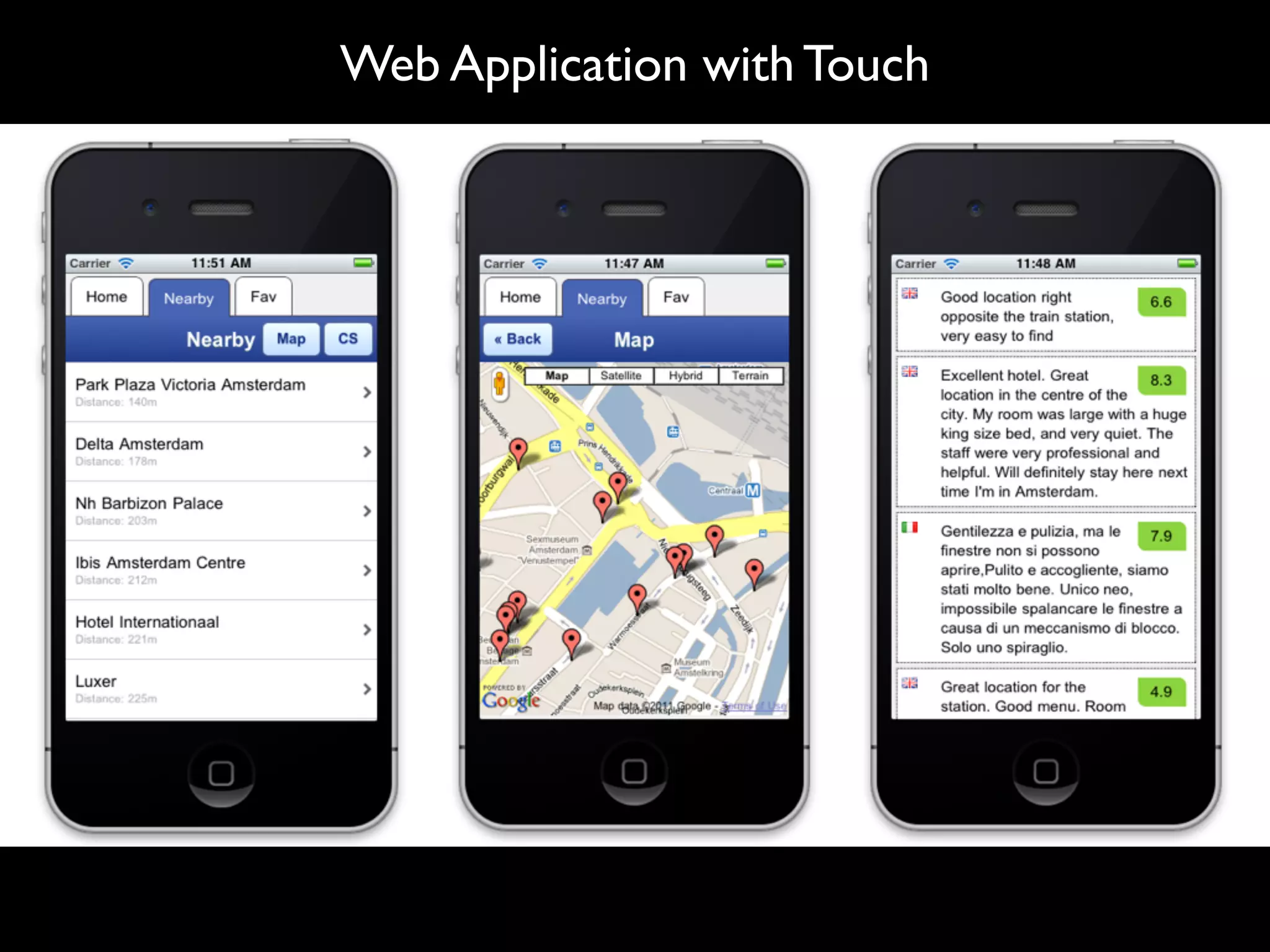

19. Web Application with Touch

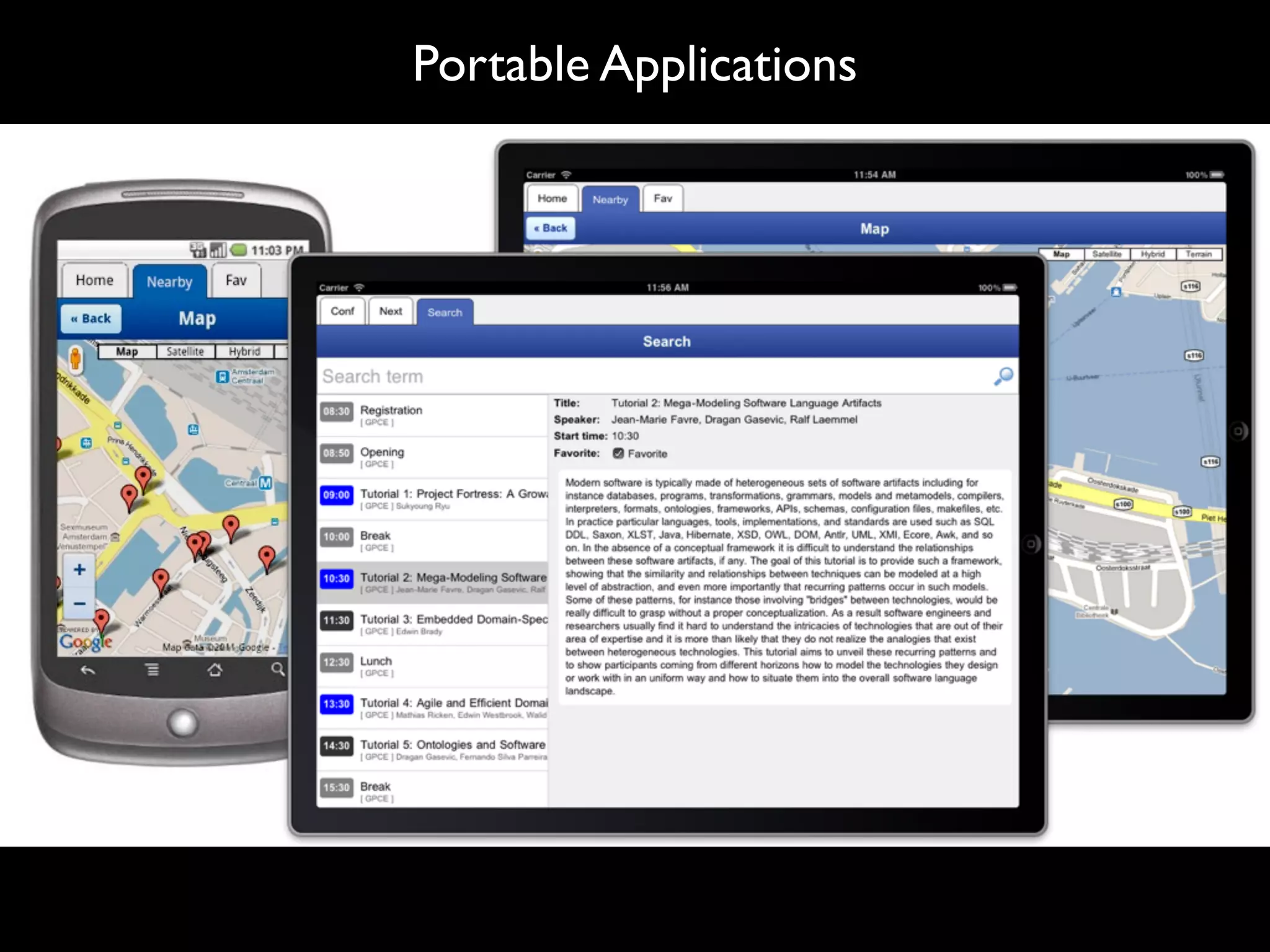

20. Portable Applications

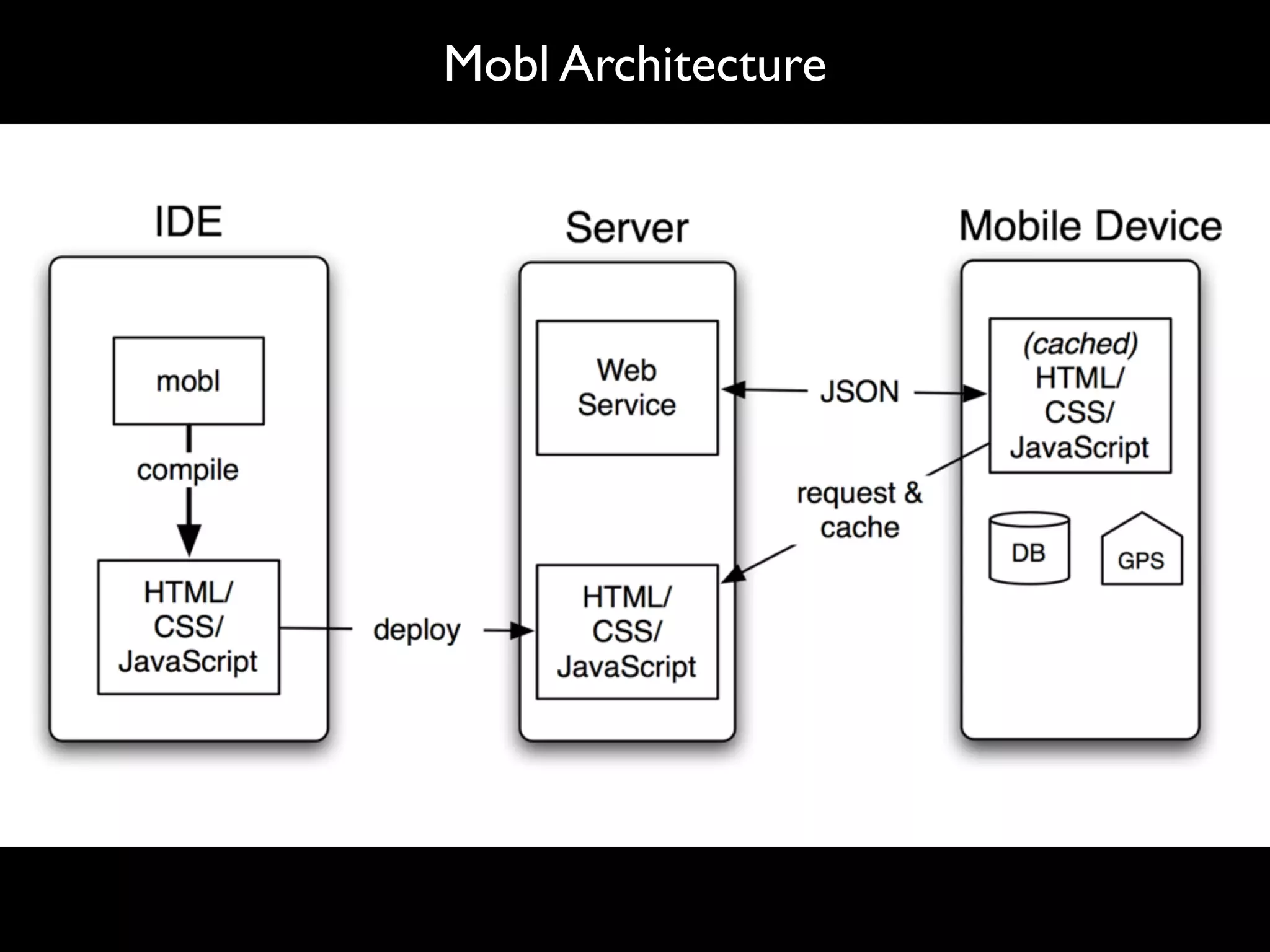

21. Mobl Architecture

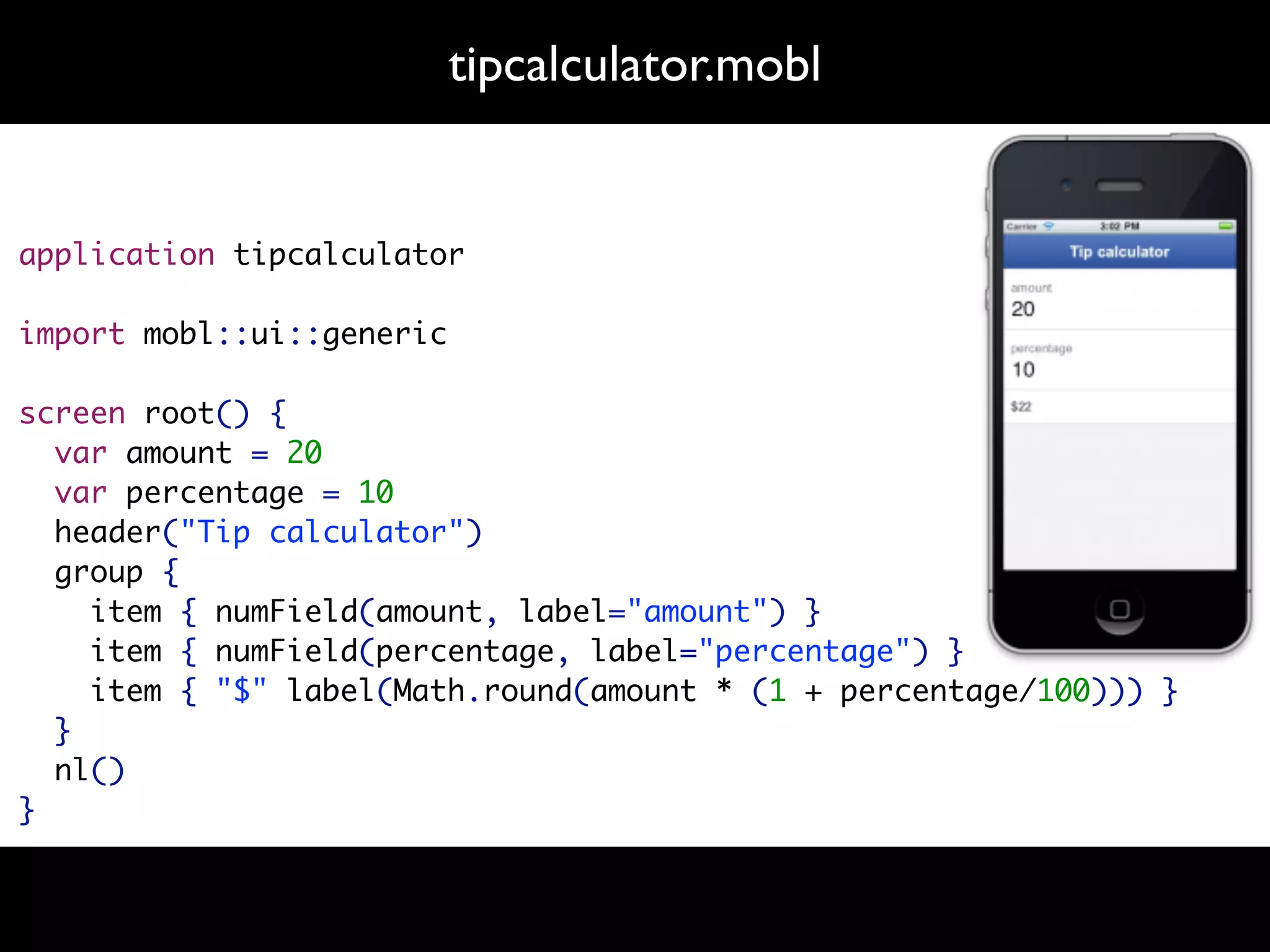

22. tipcalculator.mobl
application tipcalculator
import mobl::ui::generic
screen root() {
var amount = 20
var percentage = 10
header("Tip calculator")
group {
item { numField(amount, label="amount") }
item { numField(percentage, label="percentage") }
item { "$" label(Math.round(amount * (1 + percentage/100))) }
}
nl()
}

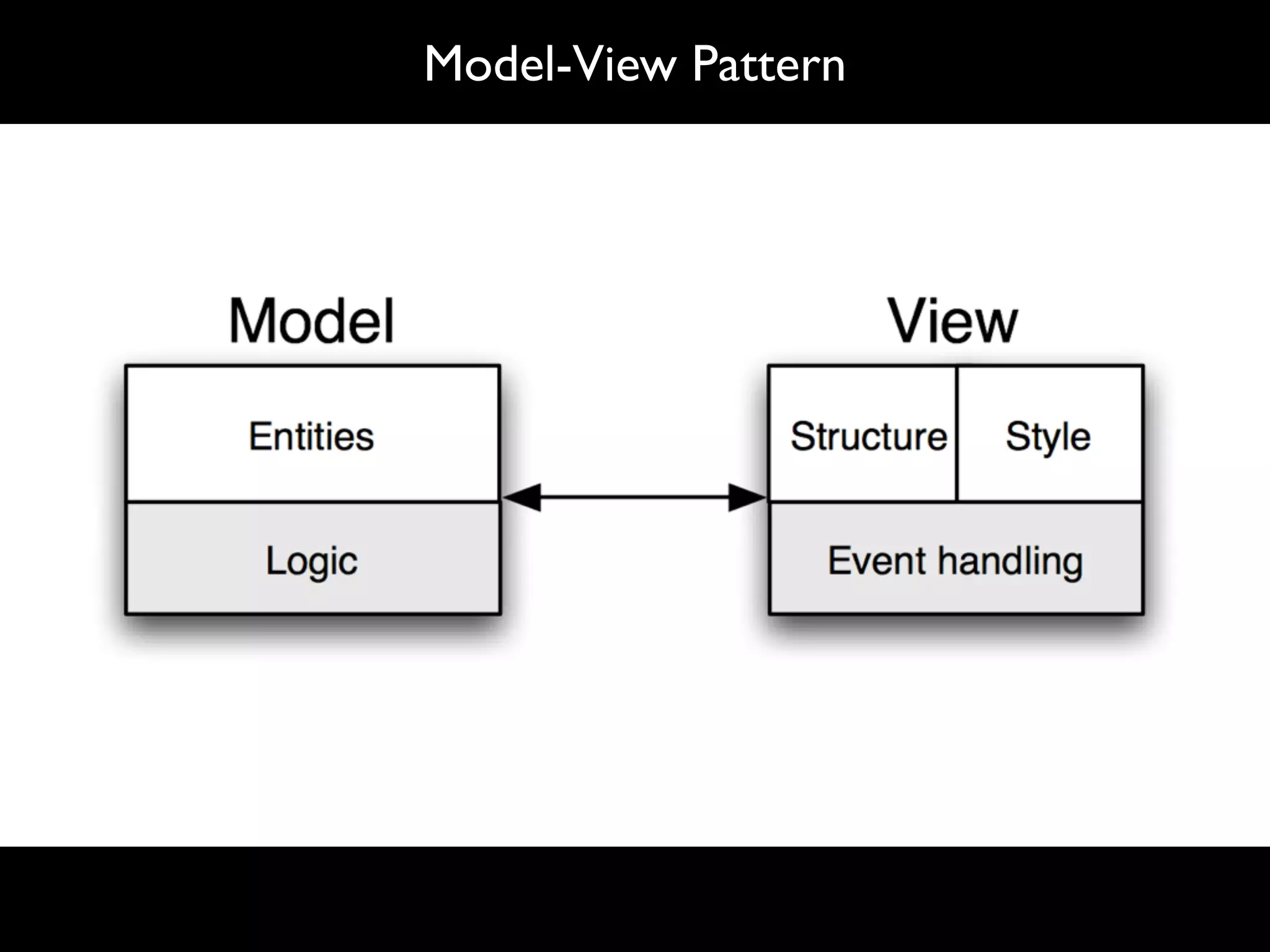

23. Model-View Pattern

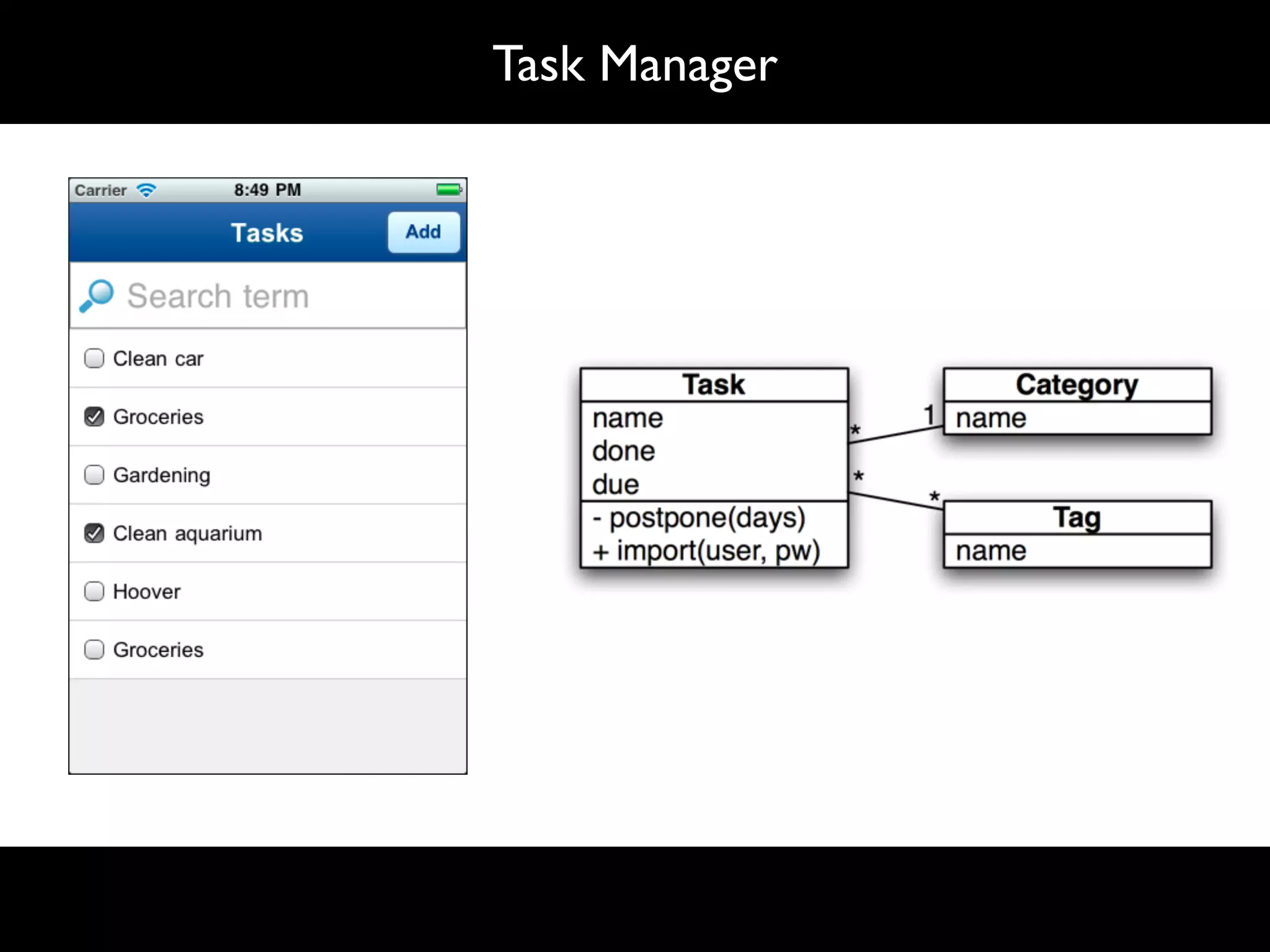

24. Task Manager

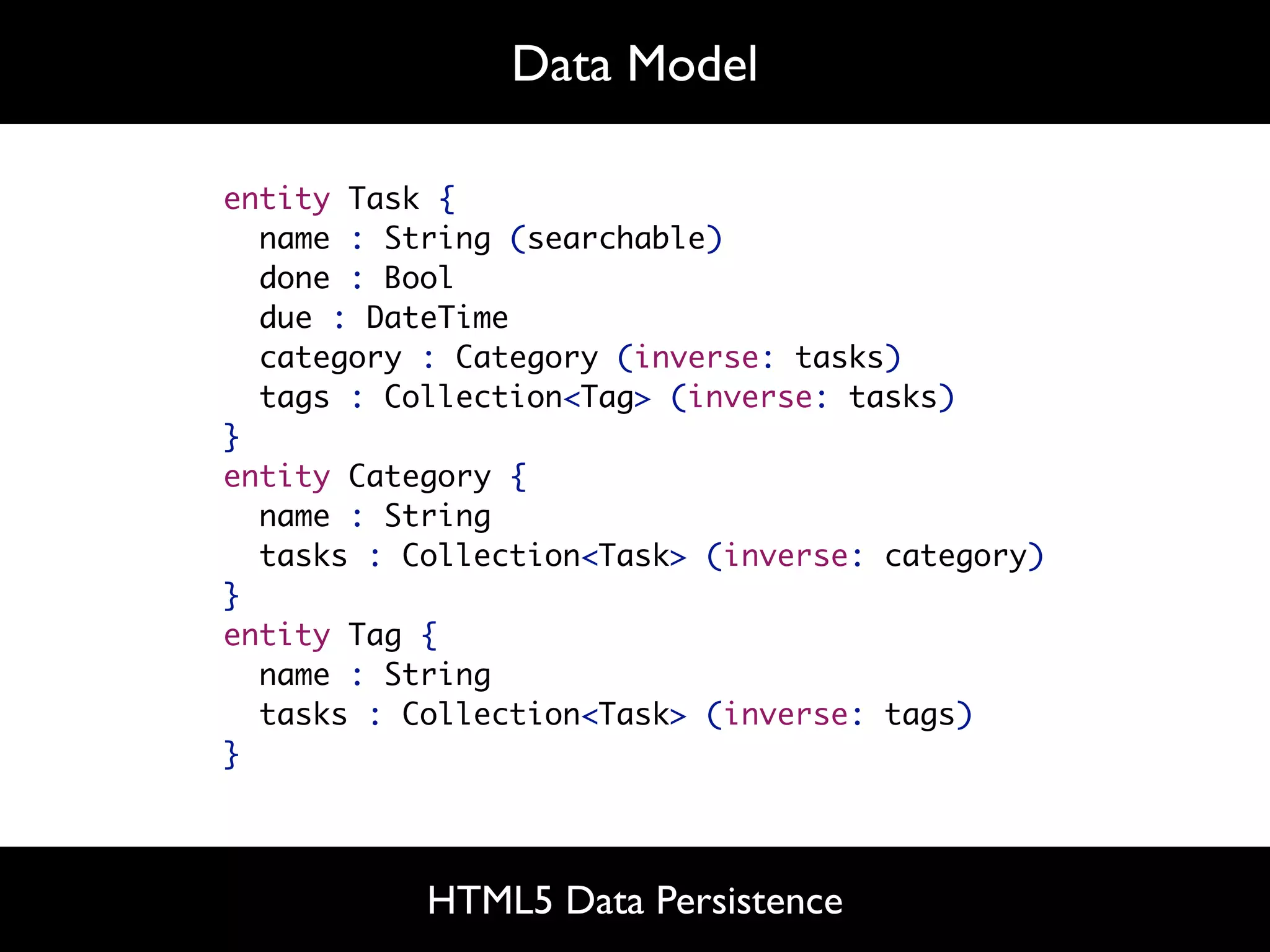

25. Data Model
entity Task {
name : String (searchable)
done : Bool
due : DateTime
category : Category (inverse: tasks)
tags : Collection<Tag> (inverse: tasks)
}
entity Category {
name : String
tasks : Collection<Task> (inverse: category)
}
entity Tag {
name : String
tasks : Collection<Task> (inverse: tags)
}
HTML5 Data Persistence

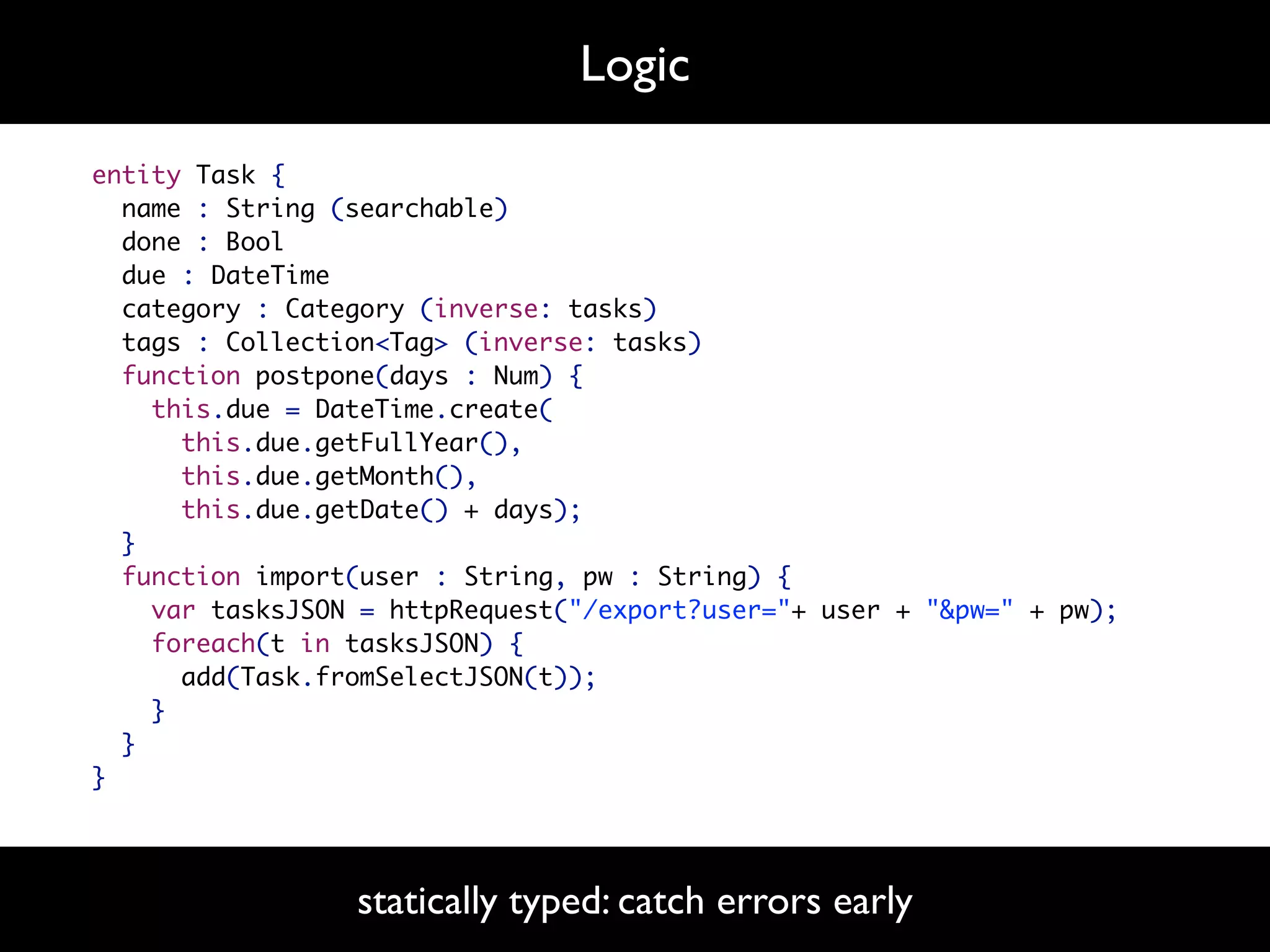

26. Logic
entity Task {
name : String (searchable)
done : Bool
due : DateTime
category : Category (inverse: tasks)
tags : Collection<Tag> (inverse: tasks)
function postpone(days : Num) {
this.due = DateTime.create(
this.due.getFullYear(),
this.due.getMonth(),
this.due.getDate() + days);
}
function import(user : String, pw : String) {
var tasksJSON = httpRequest("/export?user="+ user + "&pw=" + pw);
foreach(t in tasksJSON) {
add(Task.fromSelectJSON(t));
}
}
}
statically typed: catch errors early

27. Reactive User Interfaces
screen root() {
var phrase = ""
header("Tasks") {
button("Add", onclick={ addTask(); })
}
searchBox(phrase)
group {
list(t in Task.search(phrase) limit 20){
item {
checkBox(t.done, label=t.name)
}
}
}
}

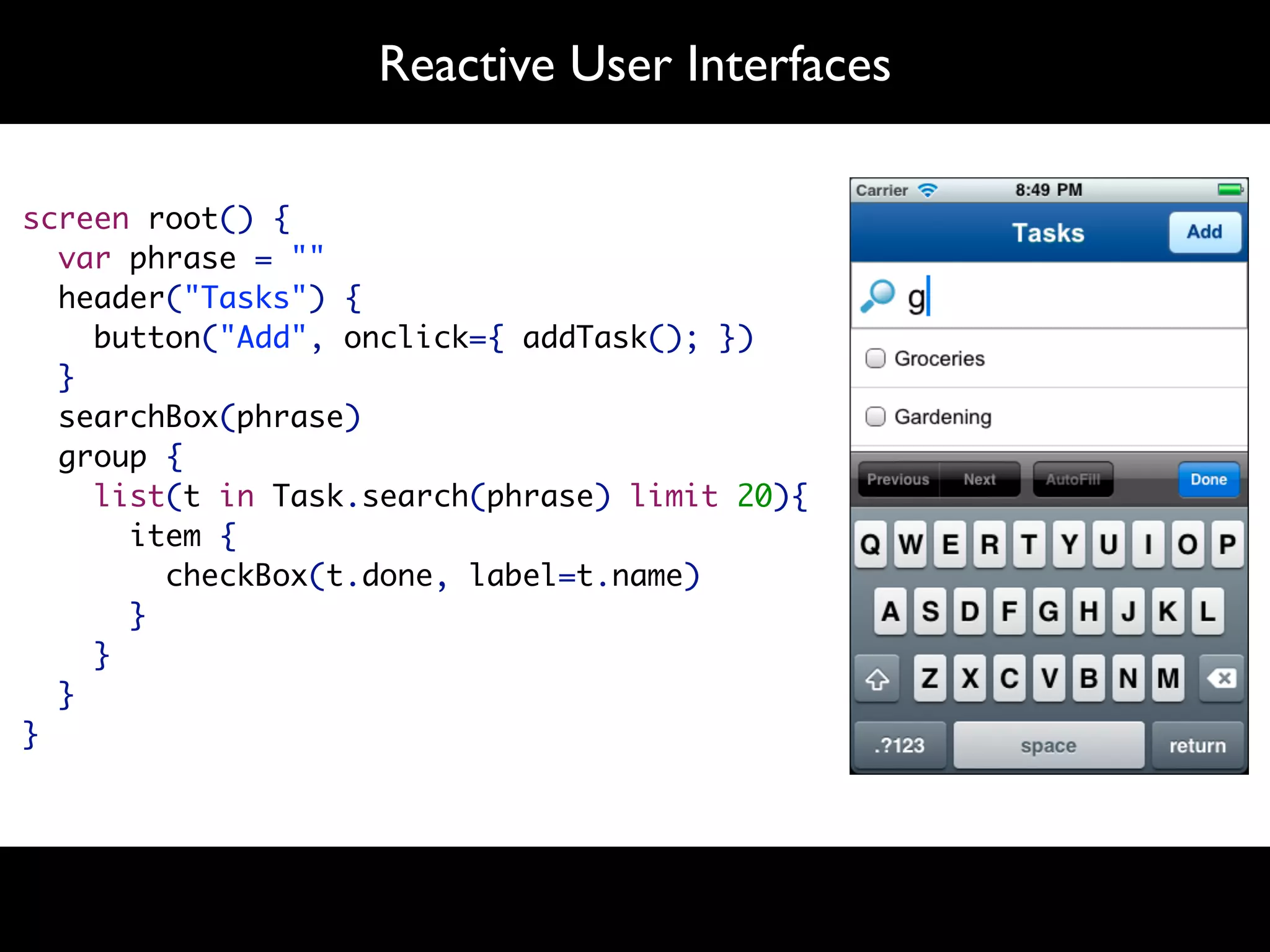

28. Reactive User Interfaces
screen root() {
var phrase = ""
header("Tasks") {
button("Add", onclick={ addTask(); })
}
searchBox(phrase)
group {
list(t in Task.search(phrase) limit 20){
item {
checkBox(t.done, label=t.name)
}
}
}
}

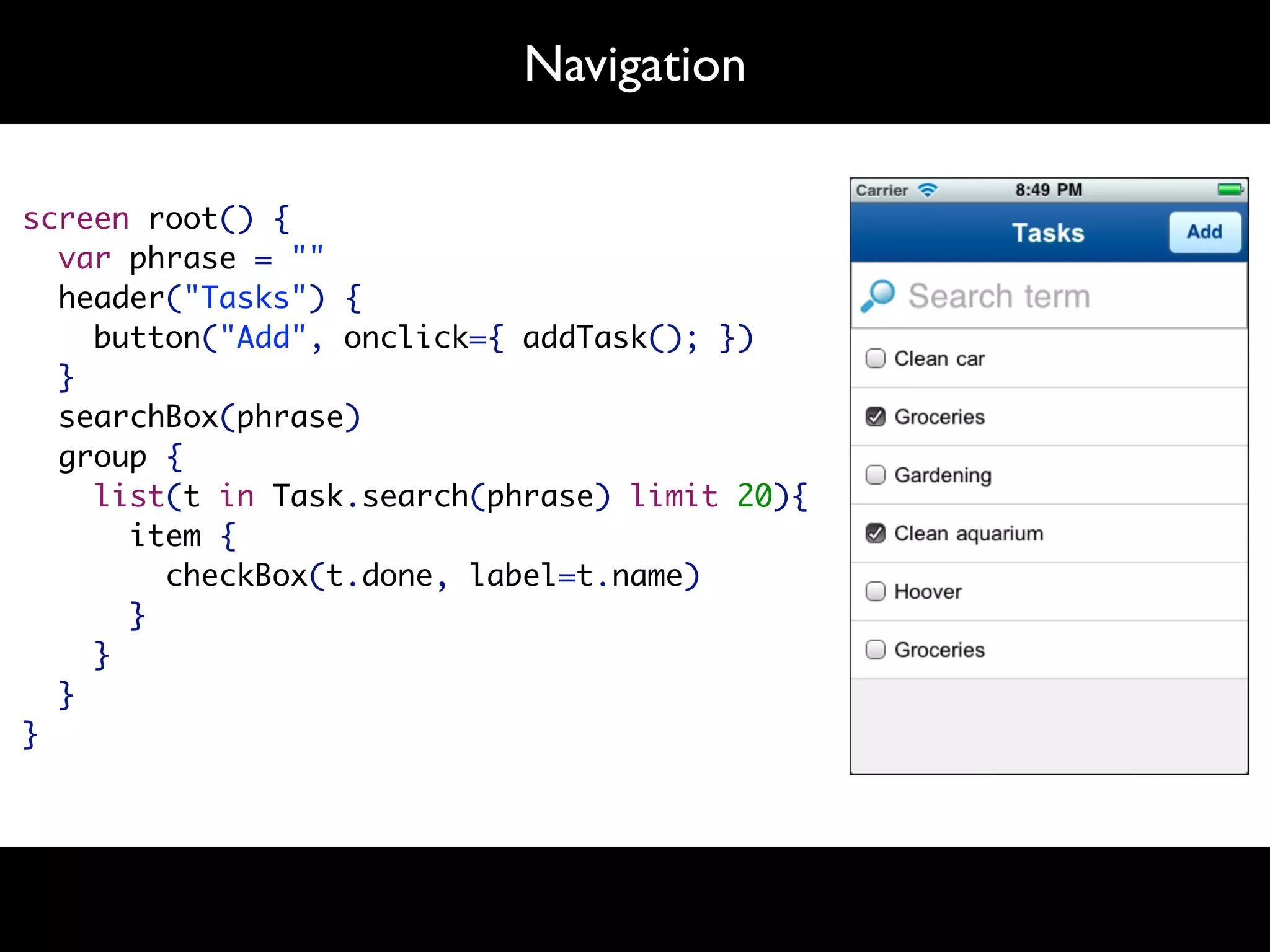

29. Navigation
screen root() {
var phrase = ""
header("Tasks") {
button("Add", onclick={ addTask(); })
}
searchBox(phrase)
group {
list(t in Task.search(phrase) limit 20){
item {
checkBox(t.done, label=t.name)
}
}
}
}

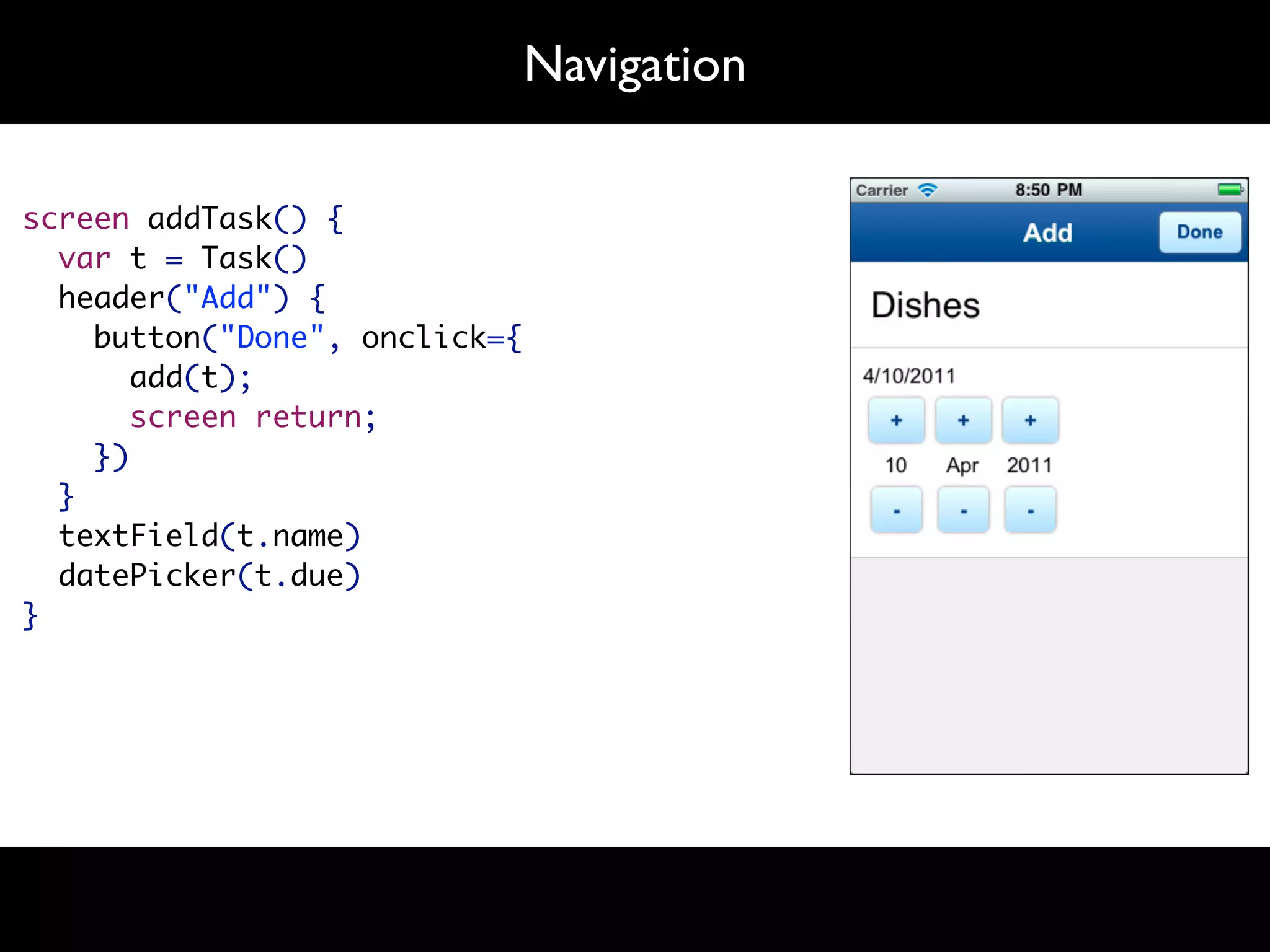

30. Navigation
screen root() { {
addTask()
var phrase = ""
t = Task()
header("Add") {
header("Tasks") {
button("Done", onclick={
button("Add", onclick={ addTask(); })
} add(t);
searchBox(phrase)
screen return;
group {
})
} list(t in Task.search(phrase) limit 20){
textField(t.name)
item {
datePicker(t.due)
checkBox(t.done, label=t.name)
} }
}
}
}

31. Navigation
screen root() {
var phrase = ""
header("Tasks") {
button("Add", onclick={ addTask(); })
}
searchBox(phrase)
group {
list(t in Task.search(phrase) limit 20){
item {
checkBox(t.done, label=t.name)
}
}
}
}

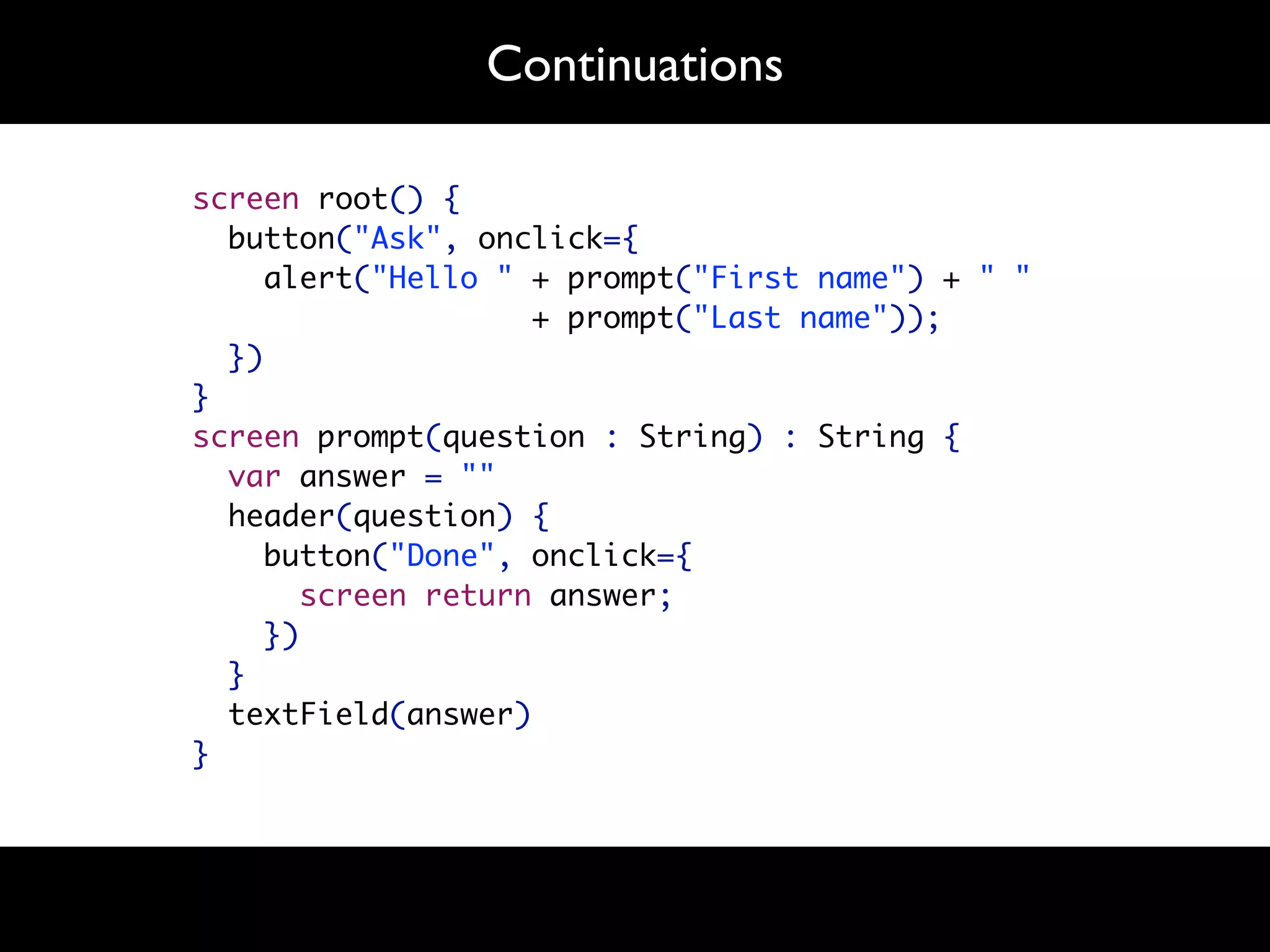

32. Continuations
screen root() {
button("Ask", onclick={
alert("Hello " + prompt("First name") + " "
+ prompt("Last name"));
})
}
screen prompt(question : String) : String {
var answer = ""
header(question) {
button("Done", onclick={
screen return answer;
})
}
textField(answer)
}

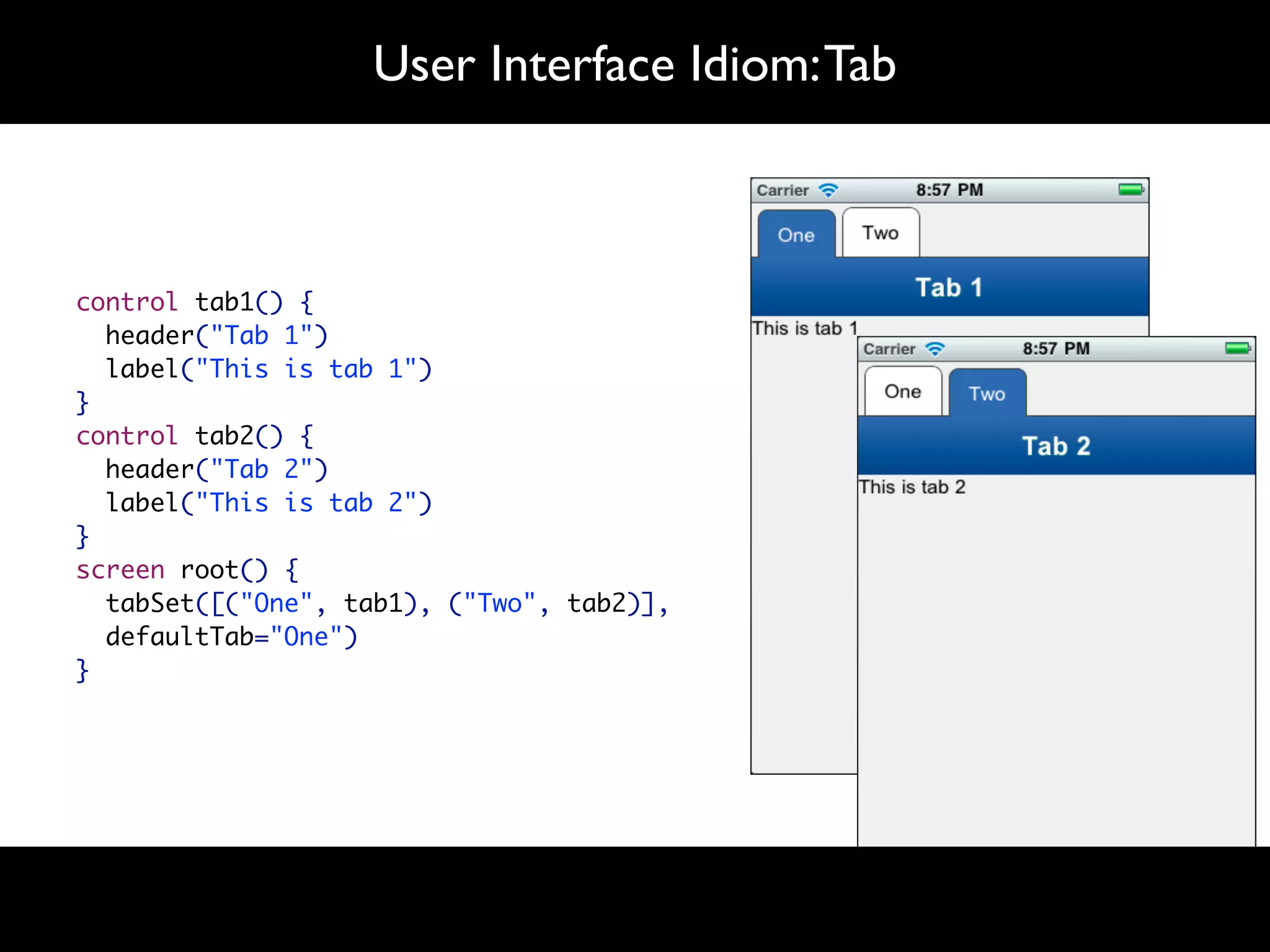

33. User Interface Idiom: Tab
control tab1() {
header("Tab 1")
label("This is tab 1")
}
control tab2() {
header("Tab 2")
label("This is tab 2")
}
screen root() {
tabSet([("One", tab1), ("Two", tab2)],
defaultTab="One")
}

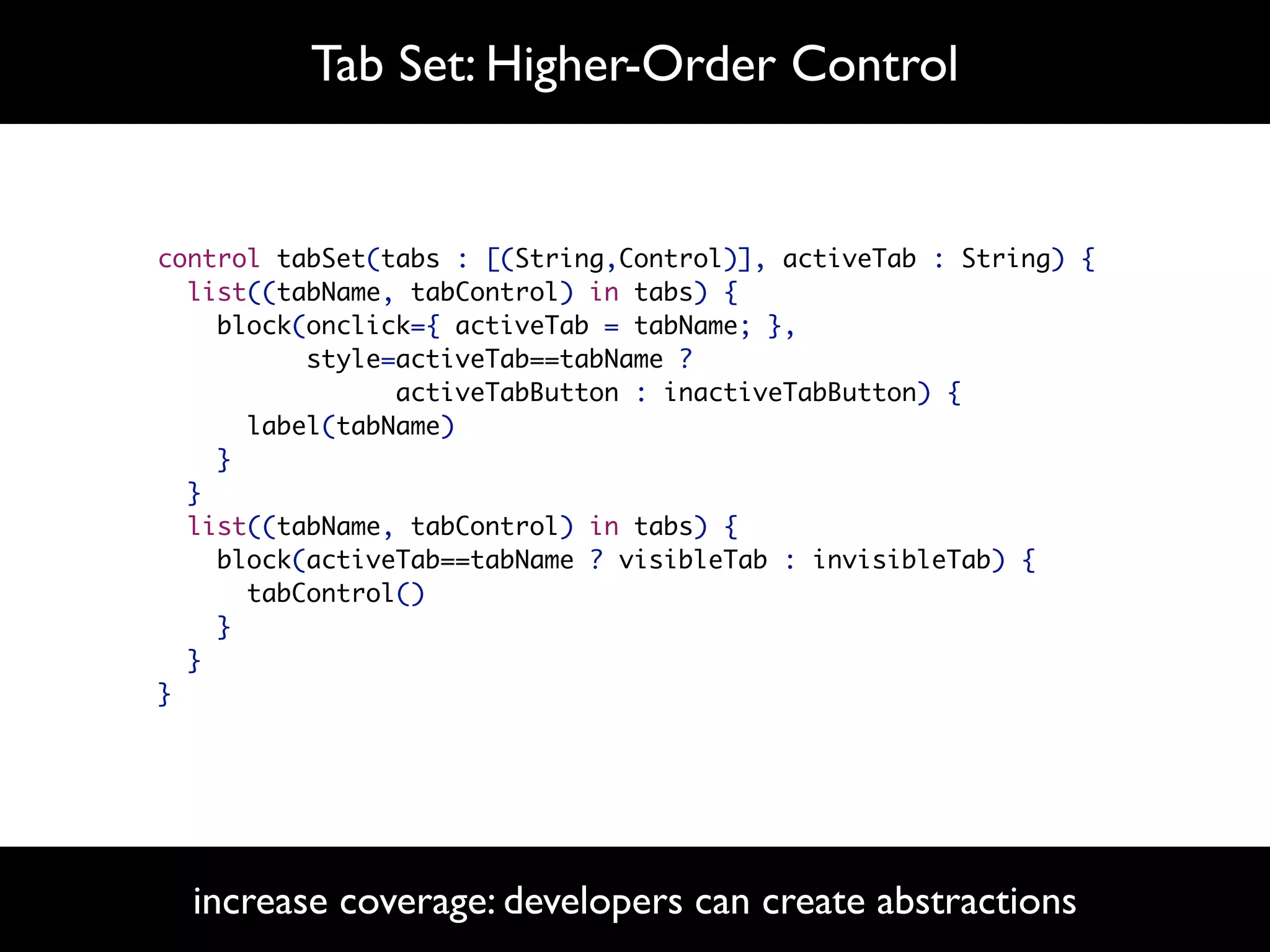

34. Tab Set: Higher-Order Control
control tabSet(tabs : [(String,Control)], activeTab : String) {
list((tabName, tabControl) in tabs) {
block(onclick={ activeTab = tabName; },
style=activeTab==tabName ?
activeTabButton : inactiveTabButton) {
label(tabName)
}
}
list((tabName, tabControl) in tabs) {
block(activeTab==tabName ? visibleTab : invisibleTab) {
tabControl()
}
}
}
increase coverage: developers can create abstractions

35. User Interface Idiom: Master Detail
control taskItem(t : Task) {
checkBox(t.done, label=t.name)
}
control taskDetail(t : Task) {
textField(t.name)
datePicker(t.due)
}
screen root() {
header("Tasks")
masterDetail(Task.all() order by due desc,
taskItem, taskDetail)
}

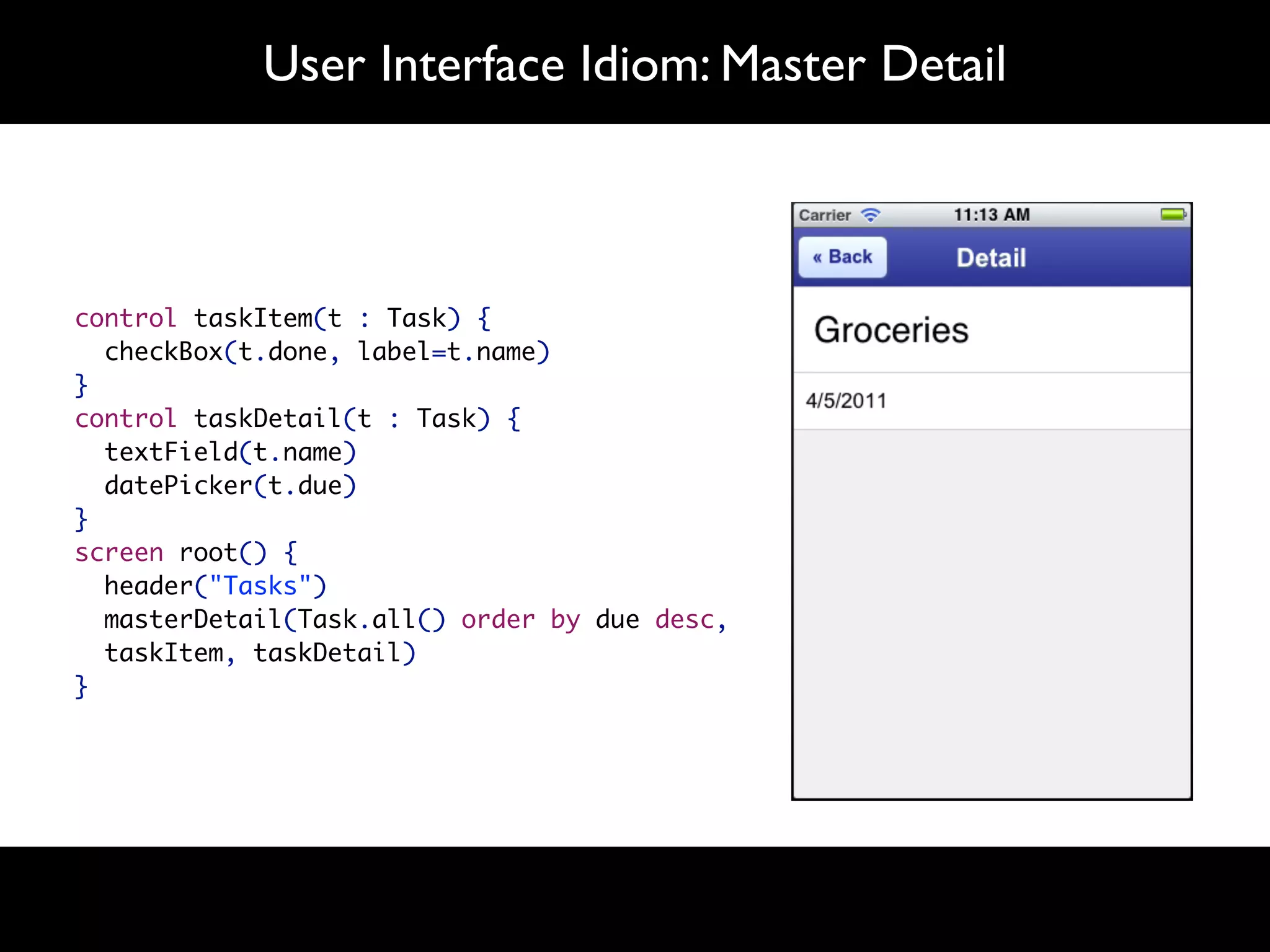

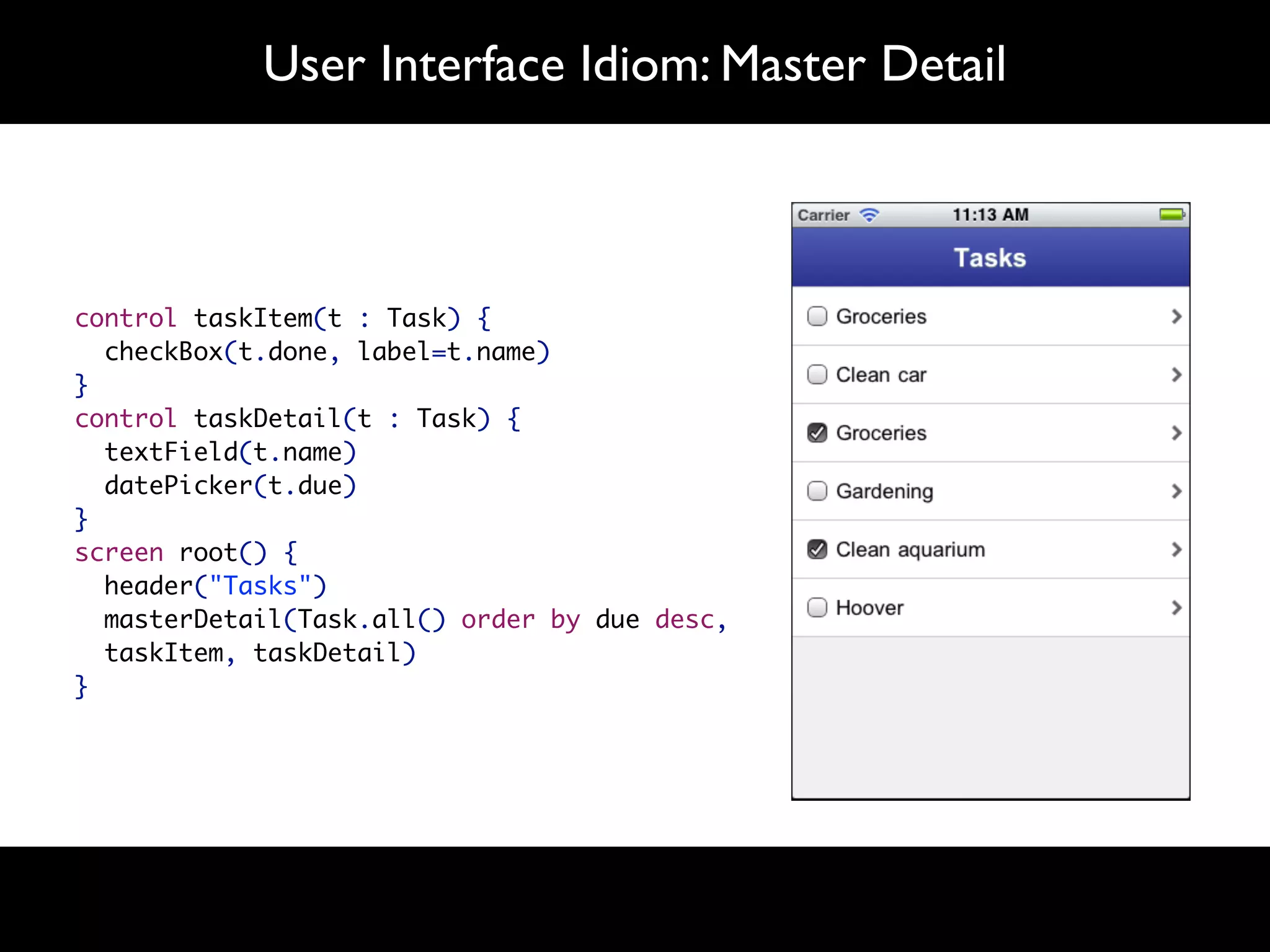

36. User Interface Idiom: Master Detail
control taskItem(t : Task) {
checkBox(t.done, label=t.name)
}
control taskDetail(t : Task) {
textField(t.name)
datePicker(t.due)
}
screen root() {
header("Tasks")
masterDetail(Task.all() order by due desc,
taskItem, taskDetail)
}

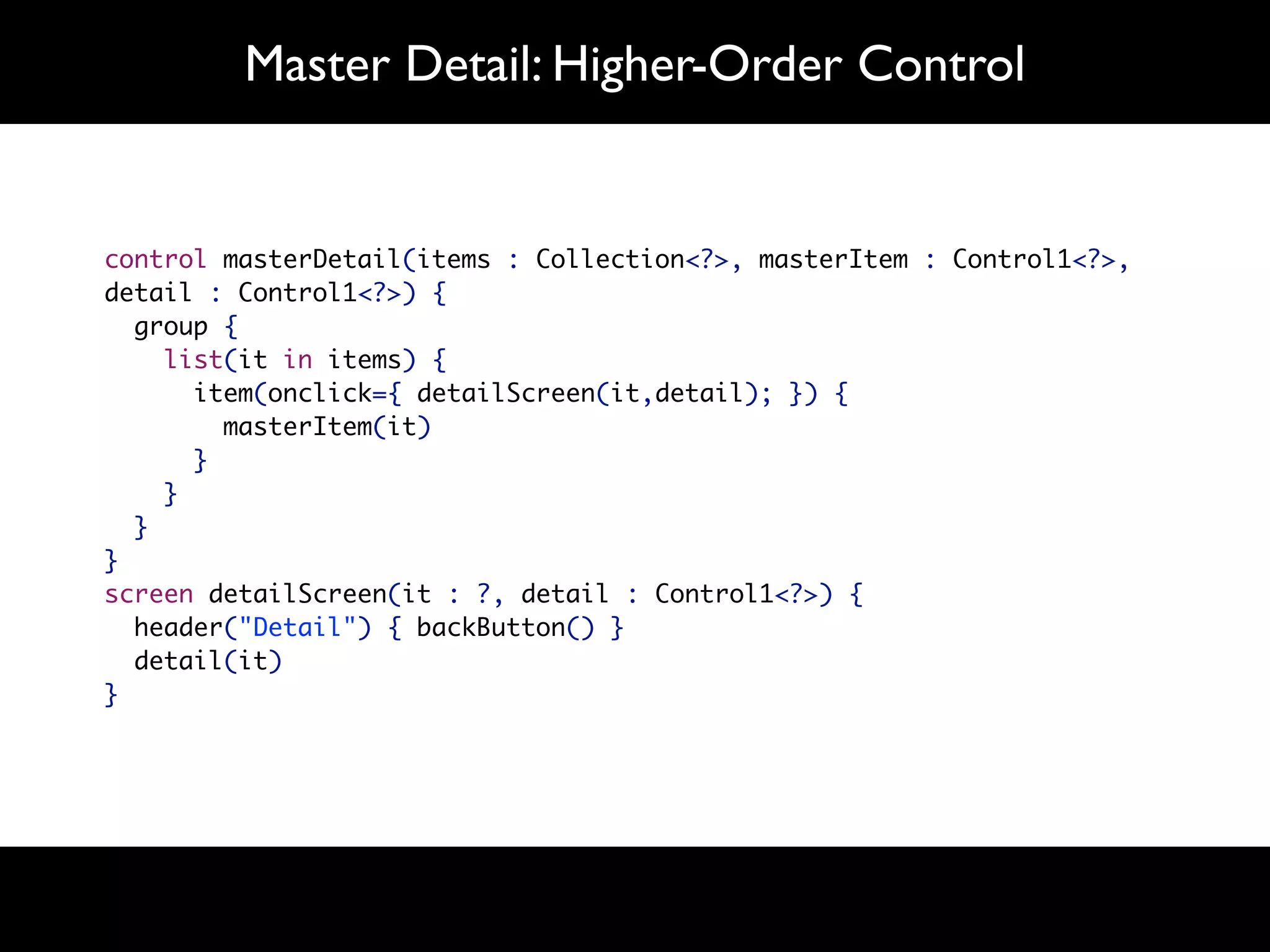

37. Master Detail: Higher-Order Control
control masterDetail(items : Collection<?>, masterItem : Control1<?>,
detail : Control1<?>) {
group {
list(it in items) {
item(onclick={ detailScreen(it,detail); }) {
masterItem(it)
}
}
}
}
screen detailScreen(it : ?, detail : Control1<?>) {
header("Detail") { backButton() }
detail(it)
}

38. Mobl Applications

39. GR8 Conference Program

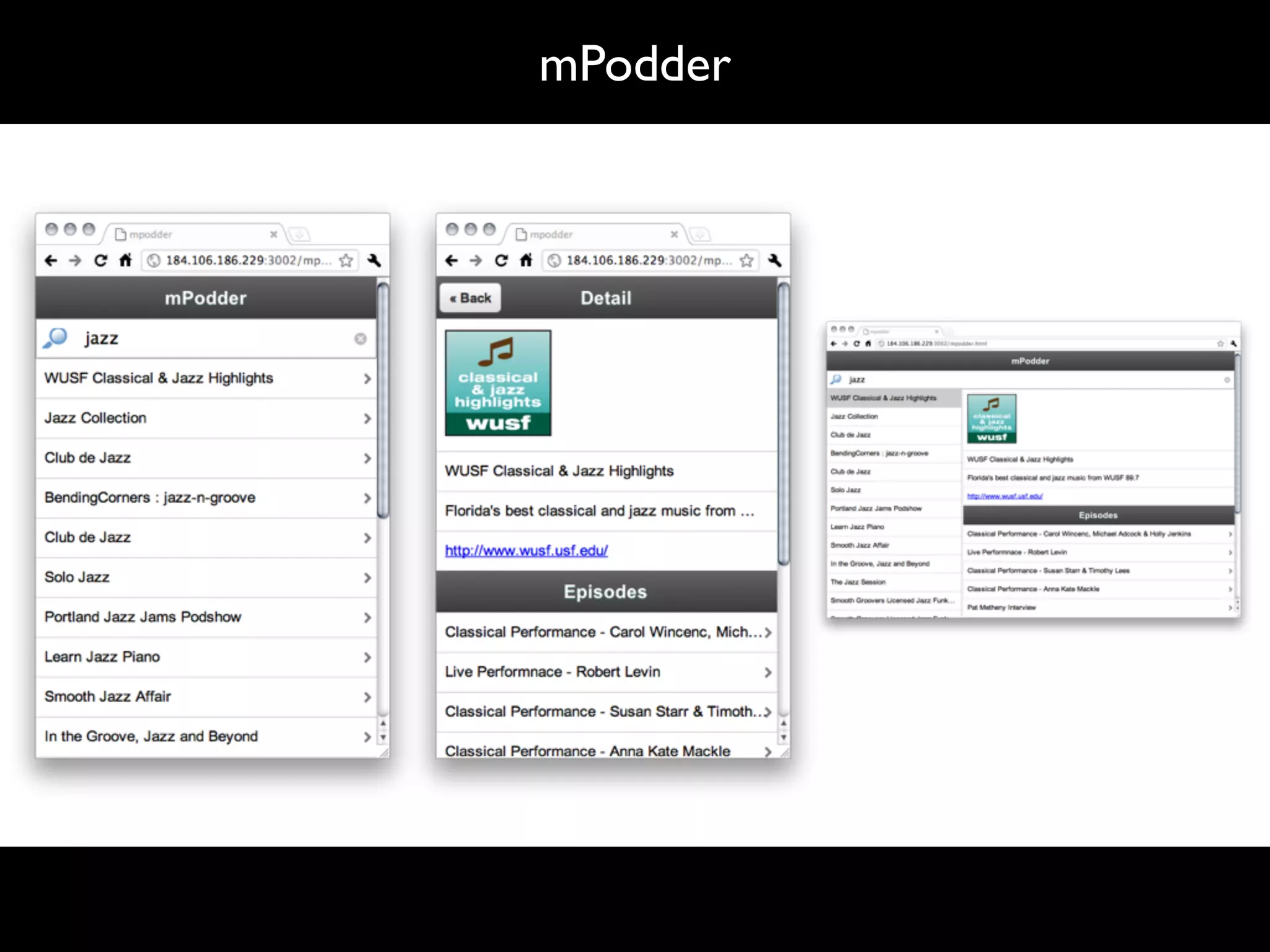

40. mPodder

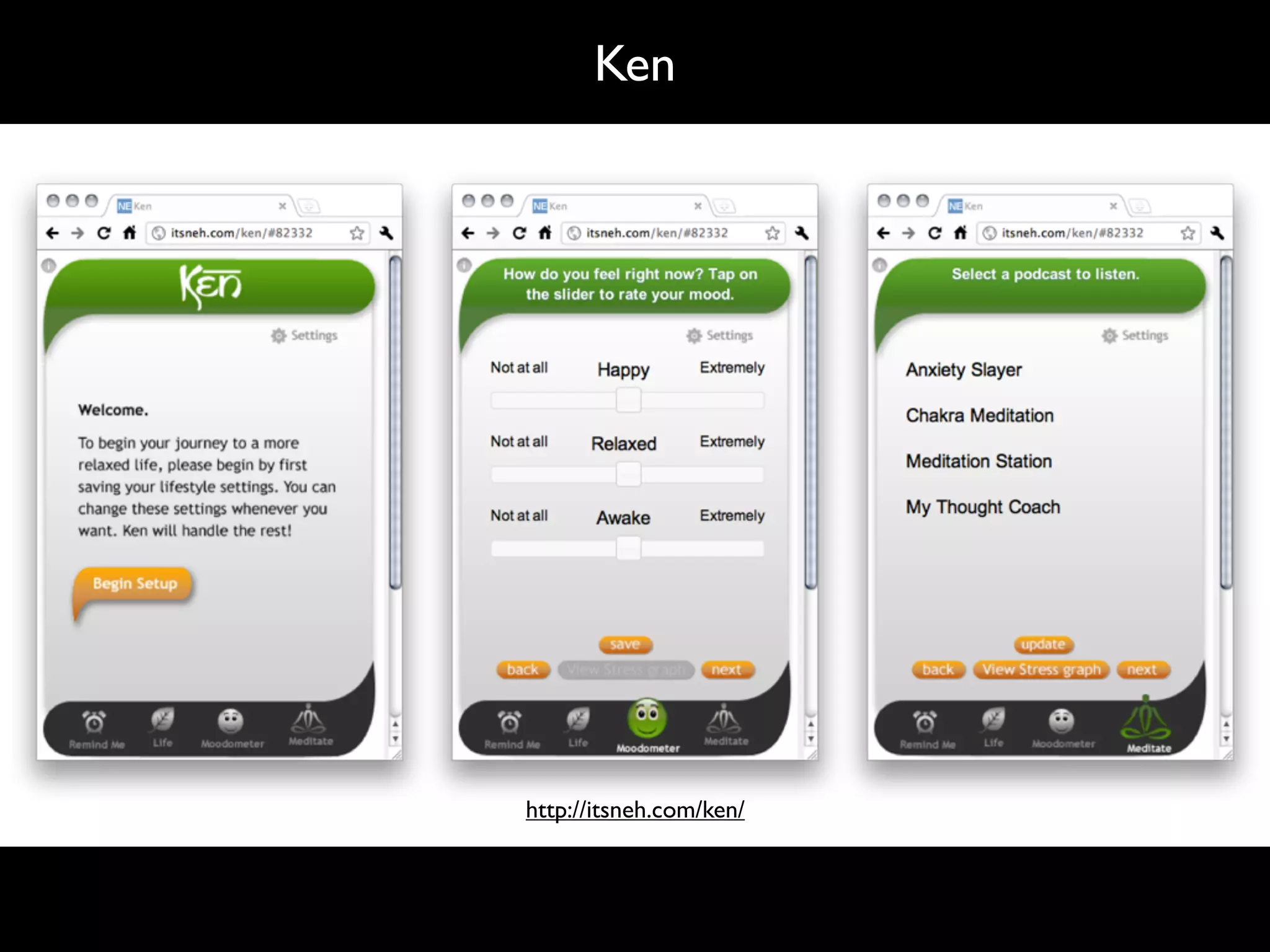

41. Ken
http://itsneh.com/ken/

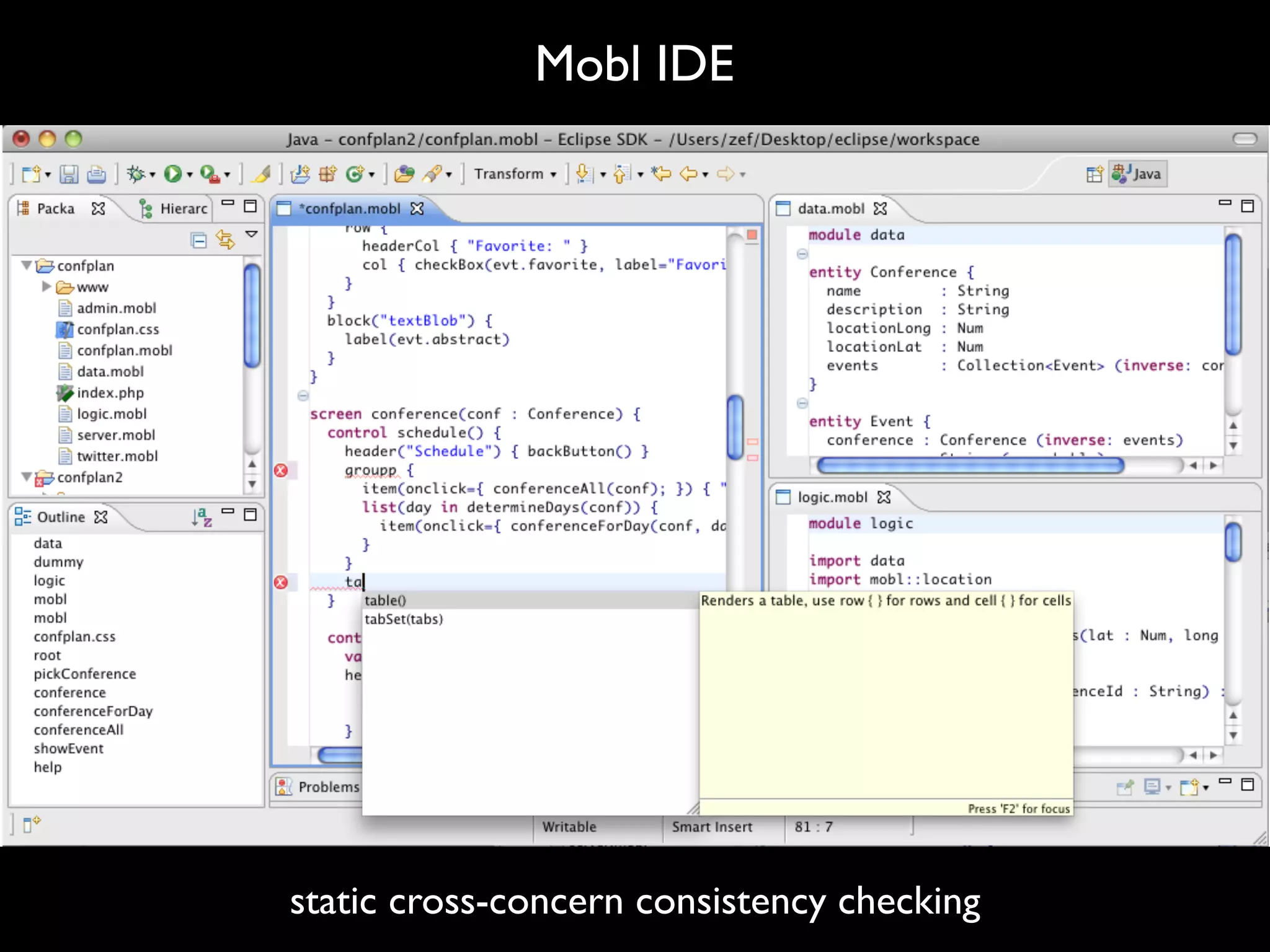

42. Mobl IDE
static cross-concern consistency checking

43. Research: Software Language Engineering
Automatically derive efficient,
scalable, incremental compiler +
usable IDE from high-level,
declarativelanguage
definition

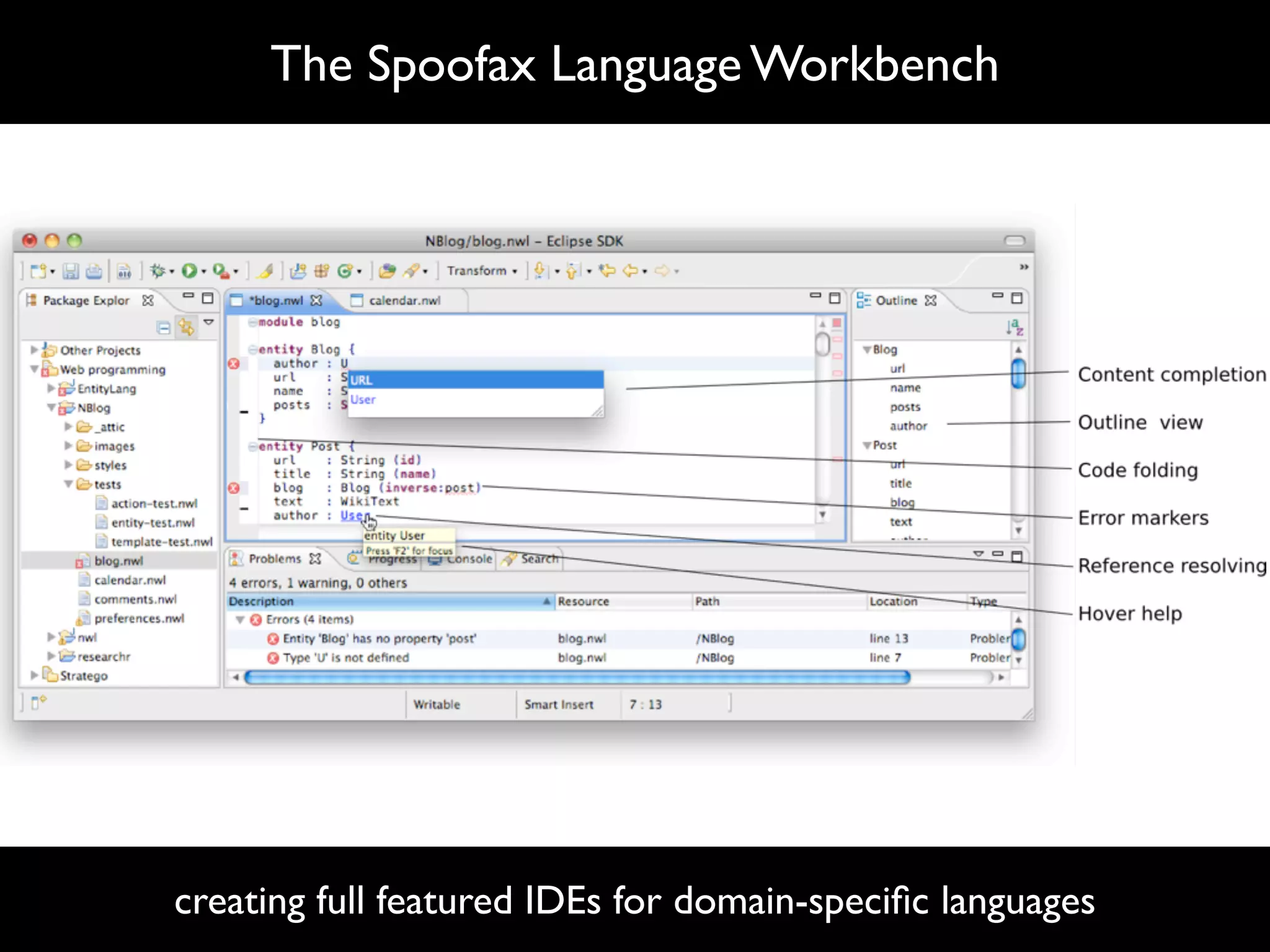

44. The Spoofax Language Workbench
creating full featured IDEs for domain-specific languages

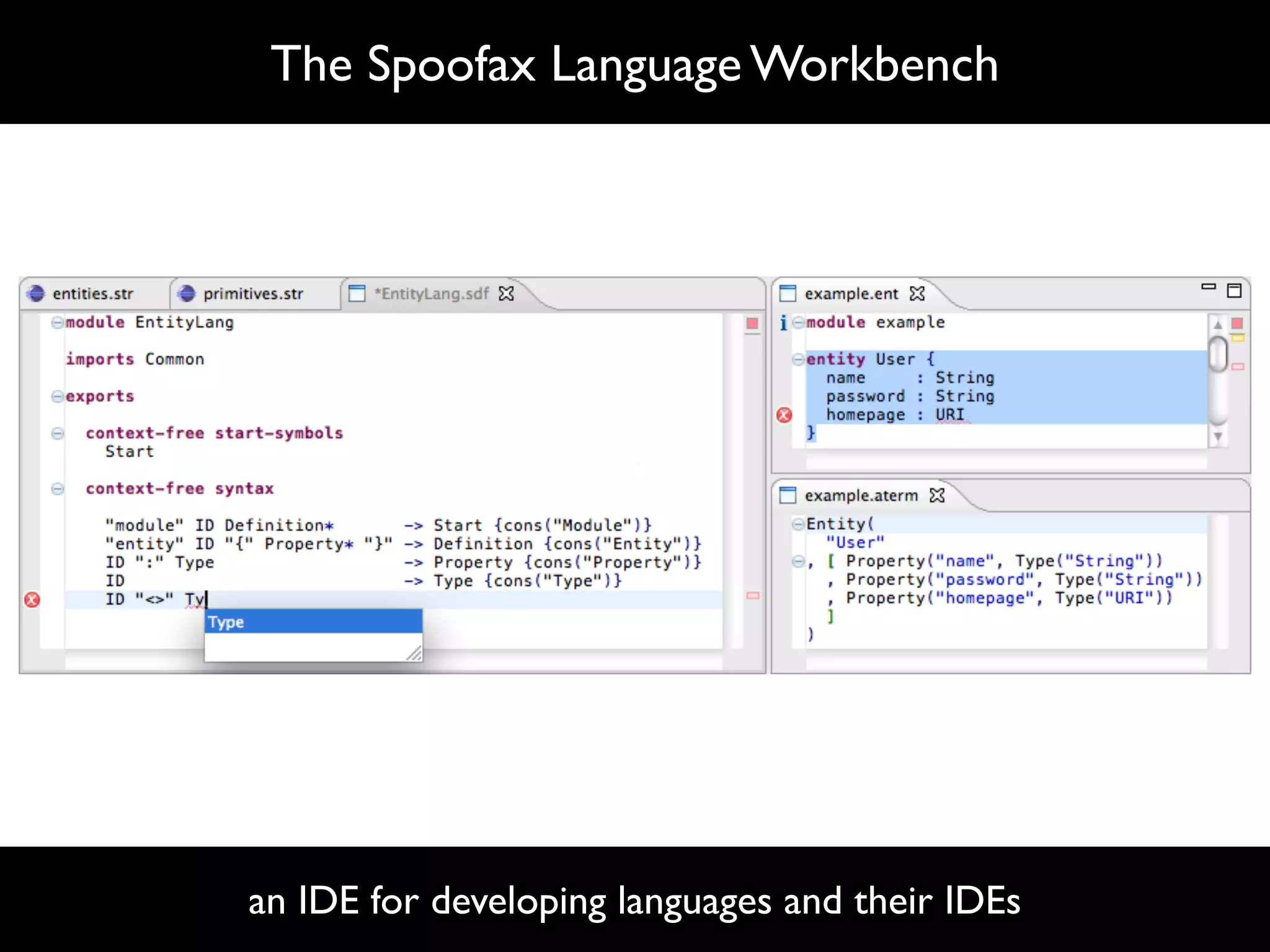

45. The Spoofax Language Workbench
an IDE for developing languages and their IDEs

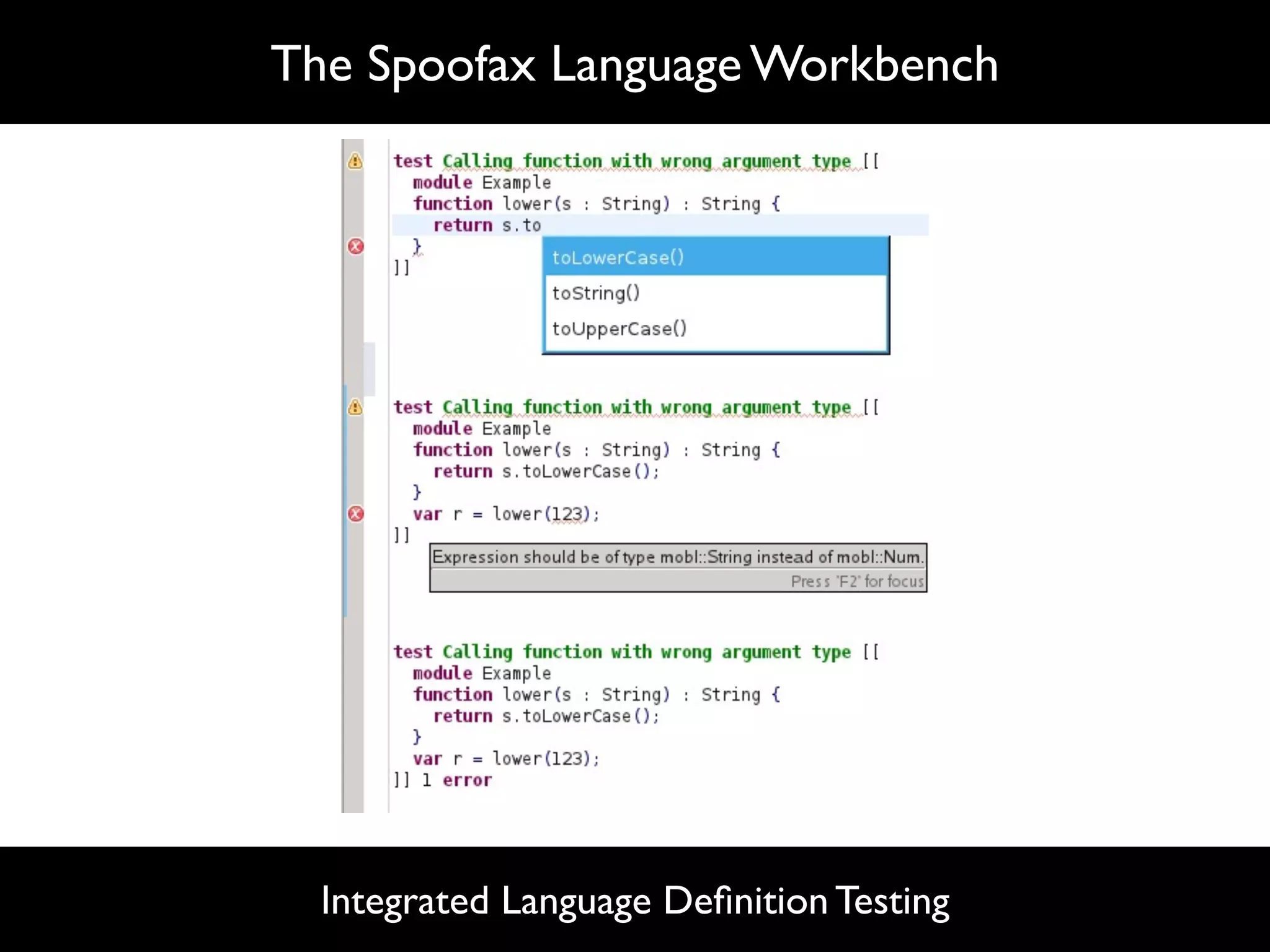

46. The Spoofax Language Workbench
Integrated Language Definition Testing

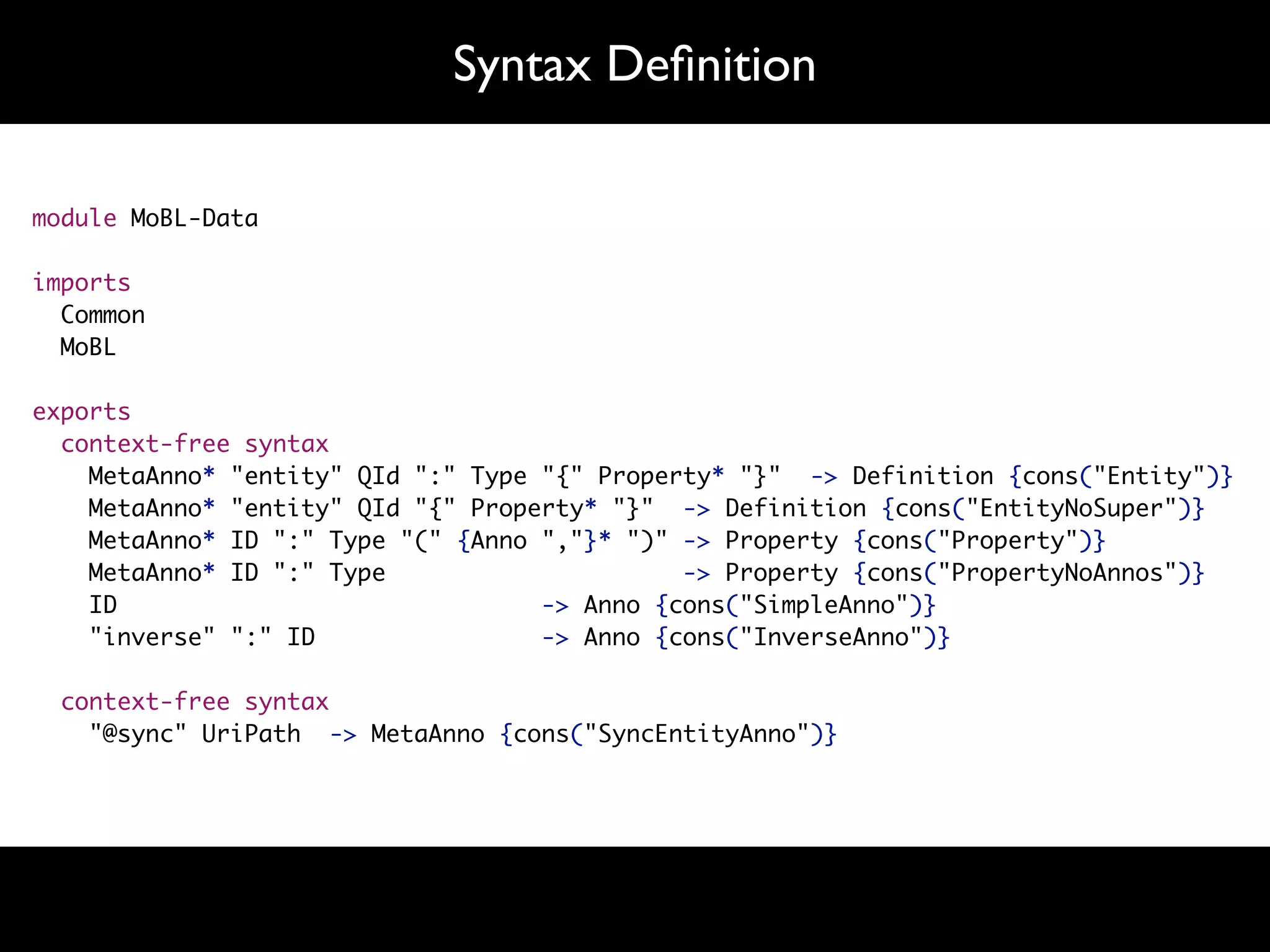

47. Syntax Definition
module MoBL-Data
imports
Common
MoBL
exports
context-free syntax
MetaAnno* "entity" QId ":" Type "{" Property* "}" -> Definition {cons("Entity")}
MetaAnno* "entity" QId "{" Property* "}" -> Definition {cons("EntityNoSuper")}
MetaAnno* ID ":" Type "(" {Anno ","}* ")" -> Property {cons("Property")}
MetaAnno* ID ":" Type -> Property {cons("PropertyNoAnnos")}
ID -> Anno {cons("SimpleAnno")}
"inverse" ":" ID -> Anno {cons("InverseAnno")}
context-free syntax
"@sync" UriPath -> MetaAnno {cons("SyncEntityAnno")}

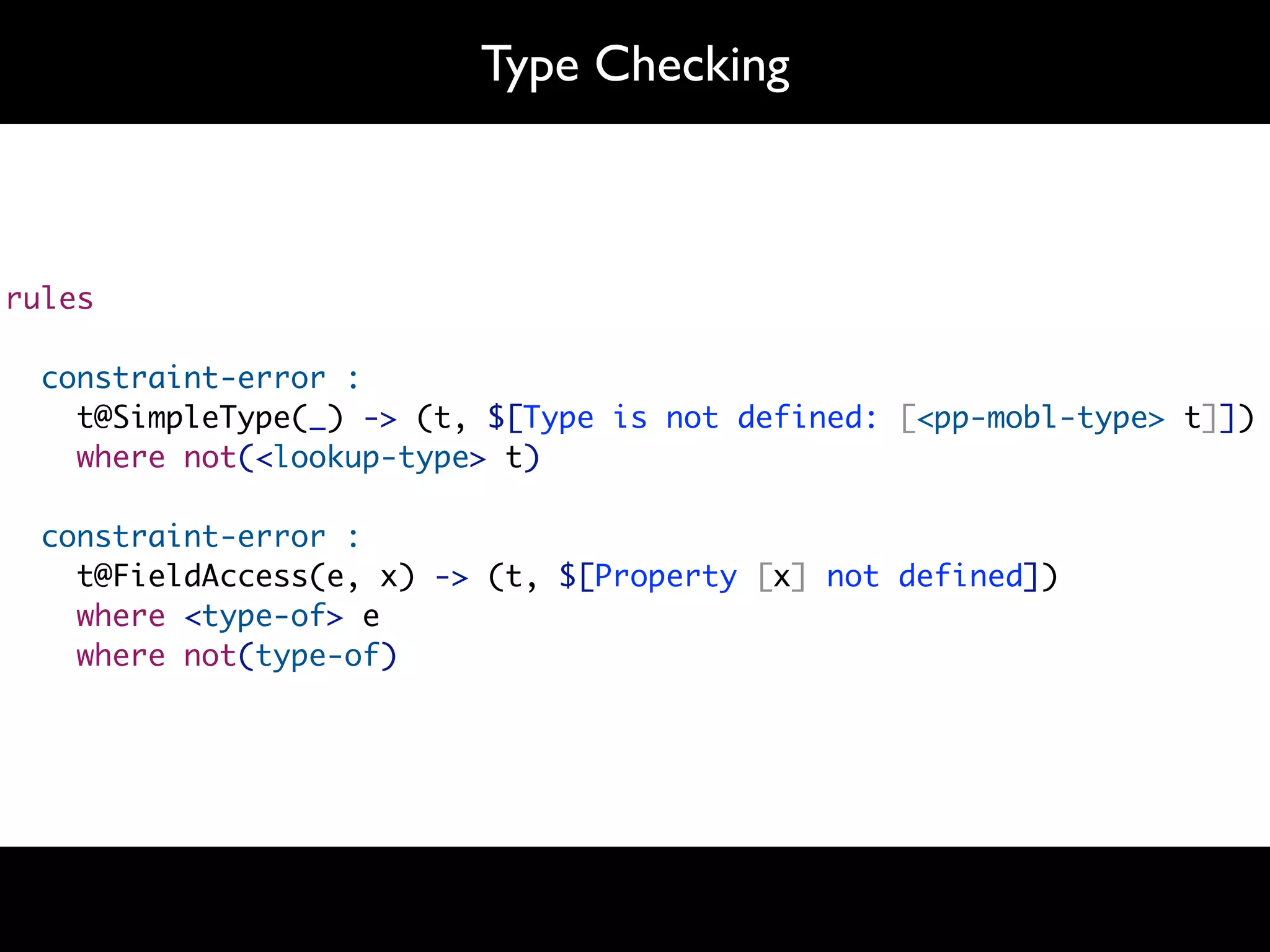

48. Type Checking
rules
constraint-error :
t@SimpleType(_) -> (t, $[Type is not defined: [<pp-mobl-type> t]])
where not(<lookup-type> t)
constraint-error :
t@FieldAccess(e, x) -> (t, $[Property [x] not defined])
where <type-of> e
where not(type-of)

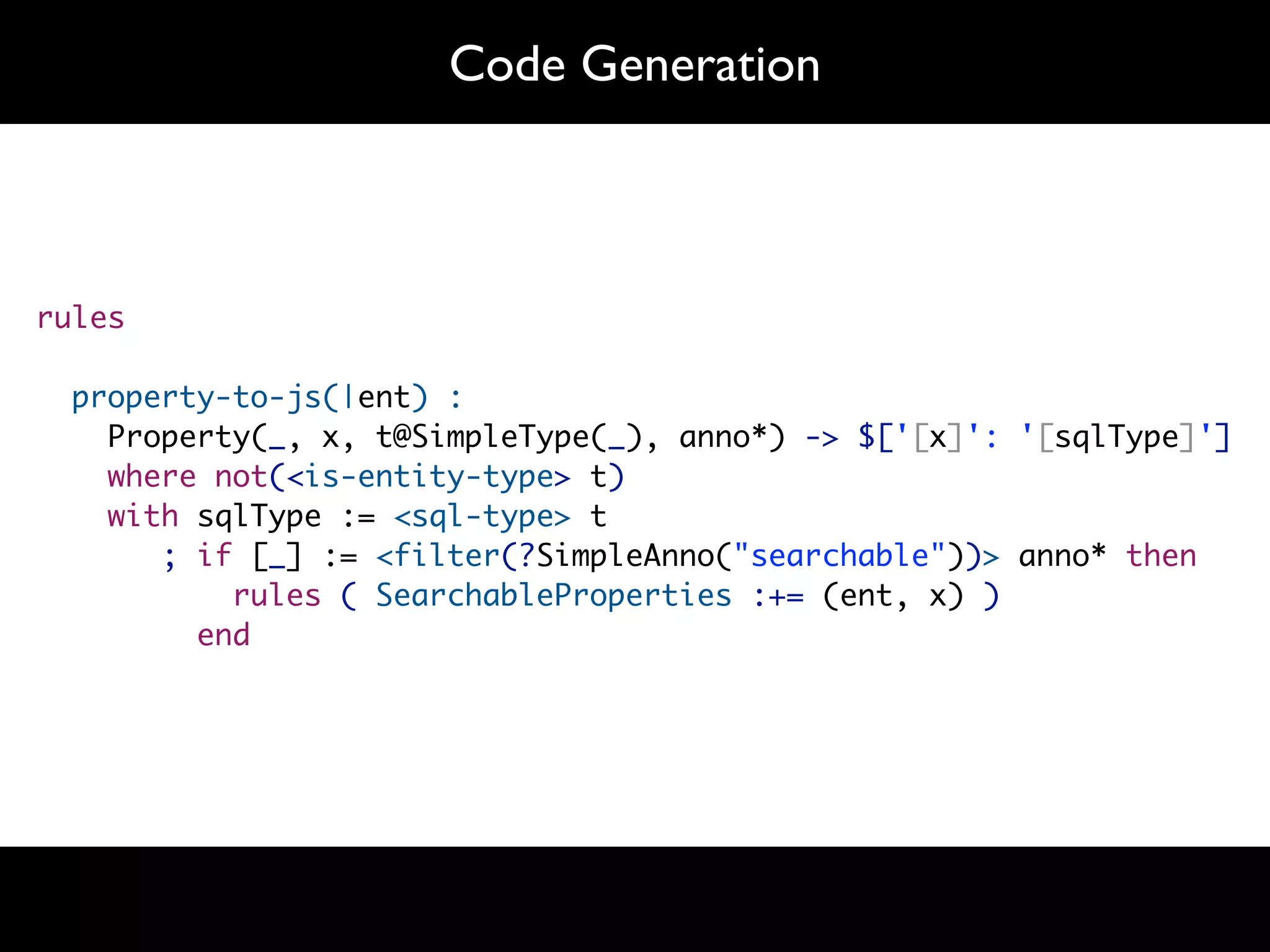

49. Code Generation
rules
property-to-js(|ent) :
Property(_, x, t@SimpleType(_), anno*) -> $['[x]': '[sqlType]']
where not(<is-entity-type> t)
with sqlType := <sql-type> t
; if [_] := <filter(?SimpleAnno("searchable"))> anno* then
rules ( SearchableProperties :+= (ent, x) )
end

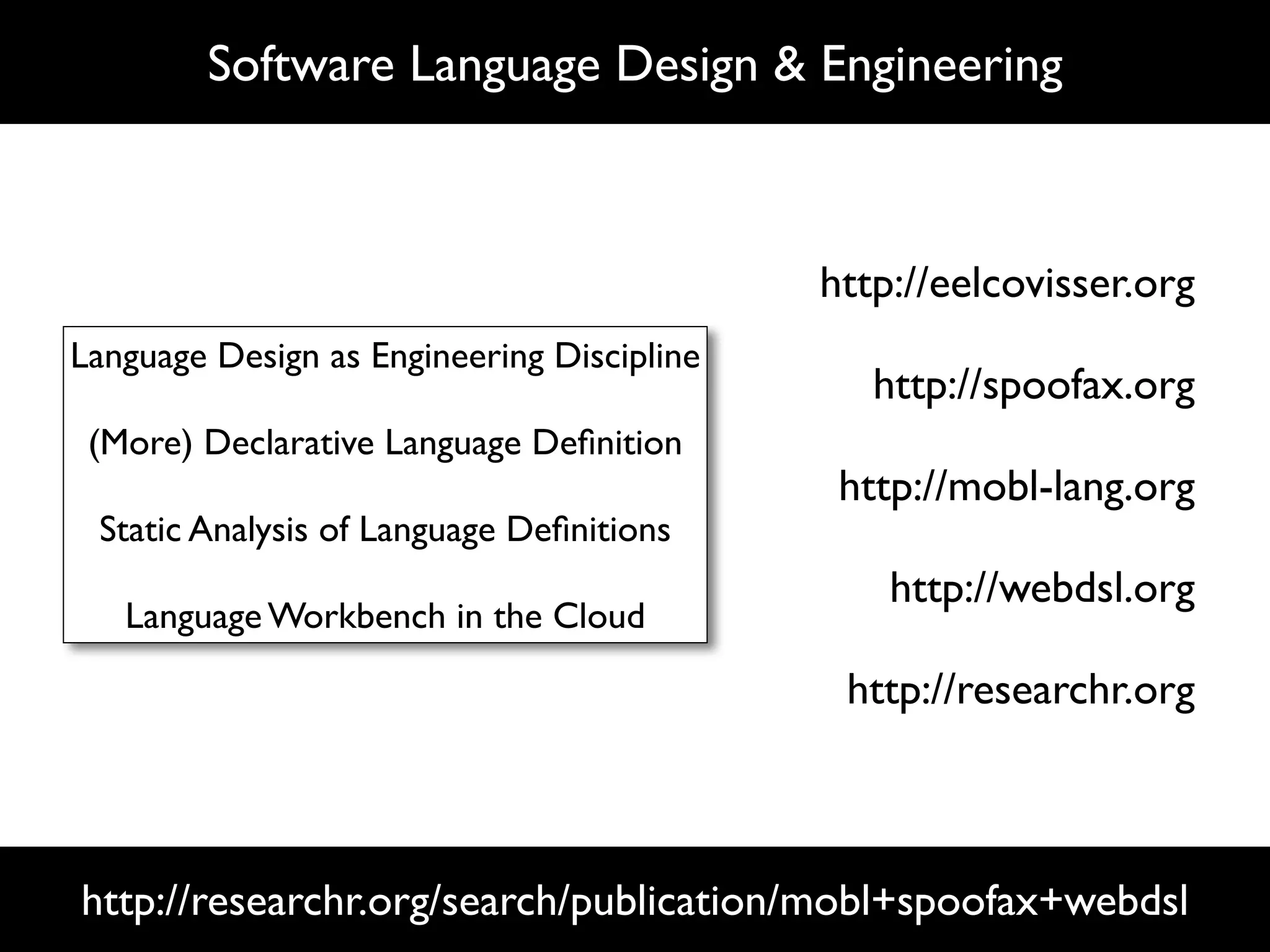

50. Software Language Design & Engineering
http://eelcovisser.org
Language Design as Engineering Discipline
http://spoofax.org
(More) Declarative Language Definition
http://mobl-lang.org
Static Analysis of Language Definitions
http://webdsl.org
Language Workbench in the Cloud
http://researchr.org
http://researchr.org/search/publication/mobl+spoofax+webdsl
