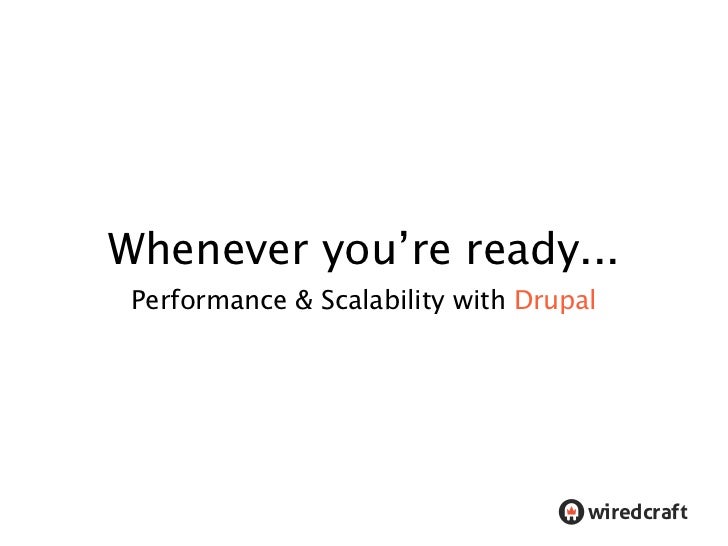

Whenever you’re ready... Performance & Scalability with Drupal                                     !"#$%&#()
Who the hell is this guy?• I run Wiredcraft (http://wiredcraft.com)• We build (serious) Web and mobile solutions  using Op...
What’s the deal?• Drupal is; • flexible & extensible • slow  as hell• We want to; • deliver the content quickly to the user...
How do we do that?• Analyze the bottleneck• Adapt the back-end and/or front-end• Test• Repeat                             ...
Now a few advices...• Add complexity incrementally• Scale vertically first• Focus on users not system administrators• Optim...
Analyze the bottleneck• Pimp up your shell skills• Problem: Network? Disk? CPU? Memory?• Source: Web server? App server? D...
Web server• Clean up your configuration (MPM,  MaxClients, MaxRequestsPerChild,  KeepAlive...)• Remove unnecessary modules•...
App server• Clean up your configurationand add slow logs if possible• Remove unnecessary modules• Consider switching to CGI...
Database server• Clean up your configuration   and add slow logs• Add caching; Memcache• Switch from MyISAM to InnoDB• Scal...
What is Pressflow?• Patched version of Drupalfor performance purpose• Runs Drupal.org• Only works with PHP5 and MySQL• Supp...
Other optimizations...• Views caching• Block caching (Block Cache Alter module)• Reverse proxy (Varnish) or file caching  (...
And then some more• Authenticated caching; much more complex  (AuthCache module)• More core patches; http://  tag1consulti...
Now the real big thing• The biggest bottleneck: the code• Too many modules (feature creep)• Poor code, slow queries• “Bad”...
Find out the culprit• Slow query logs (MySQL)• Slow script logs (PHP-FPM)• Code Profiling; XHProf, XDebug• Testingthe good ...
Dealing with the situation• Buy some time: • Quick wins; Opcode, Memcache • Switch to NGINX+PHP-FPM • Cleanup your configur...
Next step; front-end• Complete separate topic; • CSS/JS aggregation, • parallelization & CDN, • Gzip compression, • sprite...
Questions?Go easy on me though, I’m sick today...                                          !"#$%&#()
