Example-driven Web API Specification Discovery

2,463 views

Published on

Slides of my presentation at European Conference on Modelling Foundations and Applications (ECMFA'17). To be presented during the session on Thursday 16:00-17:30

Published in: Science
  • Be the first to comment

  • Be the first to like this

Example-driven Web API Specification Discovery

  1. 1. Flickr/BenNuttall flickr/FraserMummery Example-driven Web API Specification Discovery Hamza Ed-douibi, Javier L. Cánovas Izquierdo, Jordi Cabot
  2. 2. Motivation flickr/airpix
  3. 3. API Economy
  4. 4. API Economy
  5. 5. API Economy
  6. 6. API Economy
  7. 7. API Economy
  8. 8. API Economy
  9. 9. …consortium of forward-looking industry experts who recognize the immense value of standardizing on how REST APIs are described… …is focused on creating, evolving and promoting a vendor neutral description format… https://www.openapis.org
  10. 10. OpenAPI Example http://petstore.swagger.io/v2/pet/123GET "swagger":"2.0", "host":"petstore.swagger.io", "basePath":"/v2", Metadata { "swagger": "2.0", "info": { "version": "1.0.0", "title": "Swagger Petstore", "license": { "name": "MIT" } }, "host": "petstore.swagger.io", "basePath": "/v1", "schemes": [ "http" ], "consumes": [ "application/json" ], "produces": [ "application/json" ], "paths": { "/pets": { "get": { "summary": "List all pets", "operationId": "listPets", "tags": [ "pets" ], "parameters": [ { "name": "limit", "in": "query", "description": "How many items to return at one time (max 100)", "required": false, "type": "integer", "format": "int32" } ], "responses": { "200": { "description": "An paged array of pets", "headers": { "x-next": { "type": "string", "description": "A link to the next page of responses" } }, "schema": { "$ref": "#/definitions/Pets" } }, "default": { "description": "unexpected error", "schema": { "$ref": "#/definitions/Error" } } } }, OpenAPI document
  11. 11. OpenAPI Example http://petstore.swagger.io/v2/pet/123GET "swagger":"2.0", "host":"petstore.swagger.io", "basePath":"/v2", Metadata "paths":{ "/pet/{petId}":{ "get":{ "parameters":[ { "name":"petId", "in":"path",... } ], "responses":{ "200":..., },... },... }, Operations { "swagger": "2.0", "info": { "version": "1.0.0", "title": "Swagger Petstore", "license": { "name": "MIT" } }, "host": "petstore.swagger.io", "basePath": "/v1", "schemes": [ "http" ], "consumes": [ "application/json" ], "produces": [ "application/json" ], "paths": { "/pets": { "get": { "summary": "List all pets", "operationId": "listPets", "tags": [ "pets" ], "parameters": [ { "name": "limit", "in": "query", "description": "How many items to return at one time (max 100)", "required": false, "type": "integer", "format": "int32" } ], "responses": { "200": { "description": "An paged array of pets", "headers": { "x-next": { "type": "string", "description": "A link to the next page of responses" } }, "schema": { "$ref": "#/definitions/Pets" } }, "default": { "description": "unexpected error", "schema": { "$ref": "#/definitions/Error" } } } }, OpenAPI document
  12. 12. OpenAPI Example http://petstore.swagger.io/v2/pet/123GET "swagger":"2.0", "host":"petstore.swagger.io", "basePath":"/v2", Metadata "paths":{ "/pet/{petId}":{ "get":{ "parameters":[ { "name":"petId", "in":"path",... } ], "responses":{ "200":..., },... },... }, Operations { "swagger": "2.0", "info": { "version": "1.0.0", "title": "Swagger Petstore", "license": { "name": "MIT" } }, "host": "petstore.swagger.io", "basePath": "/v1", "schemes": [ "http" ], "consumes": [ "application/json" ], "produces": [ "application/json" ], "paths": { "/pets": { "get": { "summary": "List all pets", "operationId": "listPets", "tags": [ "pets" ], "parameters": [ { "name": "limit", "in": "query", "description": "How many items to return at one time (max 100)", "required": false, "type": "integer", "format": "int32" } ], "responses": { "200": { "description": "An paged array of pets", "headers": { "x-next": { "type": "string", "description": "A link to the next page of responses" } }, "schema": { "$ref": "#/definitions/Pets" } }, "default": { "description": "unexpected error", "schema": { "$ref": "#/definitions/Error" } } } }, OpenAPI document "definitions":{ "Pet":{ "type":"object", "properties":{ "id":..., "category":..., "name“:..., ... } } Schema
  13. 13. OpenAPI Example http://petstore.swagger.io/v2/pet/123GET "swagger":"2.0", "host":"petstore.swagger.io", "basePath":"/v2", Metadata "paths":{ "/pet/{petId}":{ "get":{ "parameters":[ { "name":"petId", "in":"path",... } ], "responses":{ "200":..., },... },... }, Operations { "swagger": "2.0", "info": { "version": "1.0.0", "title": "Swagger Petstore", "license": { "name": "MIT" } }, "host": "petstore.swagger.io", "basePath": "/v1", "schemes": [ "http" ], "consumes": [ "application/json" ], "produces": [ "application/json" ], "paths": { "/pets": { "get": { "summary": "List all pets", "operationId": "listPets", "tags": [ "pets" ], "parameters": [ { "name": "limit", "in": "query", "description": "How many items to return at one time (max 100)", "required": false, "type": "integer", "format": "int32" } ], "responses": { "200": { "description": "An paged array of pets", "headers": { "x-next": { "type": "string", "description": "A link to the next page of responses" } }, "schema": { "$ref": "#/definitions/Pets" } }, "default": { "description": "unexpected error", "schema": { "$ref": "#/definitions/Error" } } } }, OpenAPI document "definitions":{ "Pet":{ "type":"object", "properties":{ "id":..., "category":..., "name“:..., ... } } Schema
  14. 14. Advantages Publication & promotion
  15. 15. Advantages Publication & promotion Querying
  16. 16. Our approach flickr/Pascal
  17. 17. Approach
  18. 18. Approach
  19. 19. Approach
  20. 20. Approach
  21. 21. Approach
  22. 22. General view of the approach
  23. 23. Example provision { "request": { "method" : "POST" , "url" : "http://petstore... ", "body" : { ... } }, "response" : { "status" : 200, "body" : { ... } } } { "request": { "method" : "GET" , "url" : "http://petstore... ", "body" : { ... } }, "response" : { "status" : 200, "body" : { ... } } } { "request": { "method" : "GET" , "url" : "http://petstore... ", "body" : { ... } }, "response" : { "status" : 200, "body" : { ... } } }
  24. 24. APIDiscoverer
  25. 25. APIDiscoverer
  26. 26. The OpenAPI Metamodel
  27. 27. APIDiscoverer
  28. 28. Discovery & Enrichment Source Target host basepath protocol API relativePath Path httpMethod request-body response-body Operation query relative-Path request-Body Parameter response-Code Response request-body response-body Schema Behavioral Discoverer http://petstore.swagger.io/v2/pet/123GET
  29. 29. Discovery & Enrichment Source Target host basepath protocol API relativePath Path httpMethod request-body response-body Operation query relative-Path request-Body Parameter response-Code Response request-body response-body Schema Behavioral Discoverer http://petstore.swagger.io/v2/pet/123GET { "id": 123, "category": { "id": 1, "name": "dogs" }, "name": "doggie", "photoUrls": [ "http://exampleTcom" ], "tags": [ { "id": 1, "name": "black" } ], "status": "available" } Response
  30. 30. Discovery & Enrichment Source Target host basepath protocol API relativePath Path httpMethod request-body response-body Operation query relative-Path request-Body Parameter response-Code Response request-body response-body Schema Behavioral Discoverer http://petstore.swagger.io/v2/pet/123GET

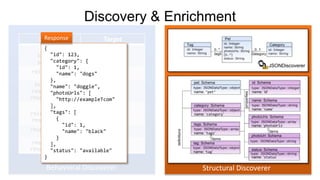

  31. 31. Structural Discoverer JSONDiscoverer Source Target host basepath protocol API relativePath Path httpMethod request-body response-body Operation query relative-Path request-Body Parameter response-Code Response request-body response-body Schema Behavioral Discoverer { "id": 123, "category": { "id": 1, "name": "dogs" }, "name": "doggie", "photoUrls": [ "http://exampleTcom" ], "tags": [ { "id": 1, "name": "black" } ], "status": "available" } Response Discovery & Enrichment
  32. 32. Discovery & Enrichment http://petstore.swagger.io/v2/pet/123GET
  33. 33. APIDiscoverer Example 1
  34. 34. APIDiscoverer Example 1 Example 2 Example 3 Example n
  35. 35. Generator { "swagger":"2.0", "info":{ }, "host":"petstore.swagger.io","basePath":"/v2", "tags":[ "pet" ],"Schemes":[ "http" ], "paths":{ "/pet/{petId}":{ "get":{ "produces":["application/json"], "parameters":[{"name":"petId","in":"path","type":"integer"}], "responses":{ "200":{ "description":"OK", "schema":{"$ref":"#/definitions/Pet" }}}} }}, "definitions":{ "Pet":{ "type":"object", "properties":{ "id":{"type":"integer"}, "category":{"$ref":"#/definitions/Category"}, "name":{"type":"string"}, "photoUrls":{"type":"array","items":{"type":"string"}}, "tags":{"type":"array","items":{"$ref":"#/definitions/Tag"}}, "Status":{"type":"string"}}, }}}
  36. 36. flickr/CodeRo
  37. 37. Tool Support APIDiscoverer https://github.com/SOM-Research/APIDiscoverer
  38. 38. HAPI HAPI (Home of APIs) https://github.com/SOM-Research/hapi APIDiscoverer Query
  39. 39. flickr/derekBruff
  40. 40. Conclusion and Further Work • Application of model-driven techniques for API discovery • Provided as Open Source tool • Help developers to integrate APIs What we have shown What we plan to do Extension of HAPI Automatic call generation OpenAPI Extensions • Quality of Service • Business Plans • Security • Semantics
  41. 41. Except where otherwise noted, content on this site is licensed under a Creative Commons Attribution 4.0 International license. Thanks! HAPI (Home of APIs) https://github.com/SOM-Research/hapi APIDiscoverer https://github.com/SOM-Research/APIDiscoverer Javier L. Cánovas Izquierdo jcanovasi@uoc.edu @jlcanovas Hamza Ed-douibi hed-douibi@uoc.edu @mazamiz Jordi Cabot jordi.cabot@icrea.cat @softmodeling

×
