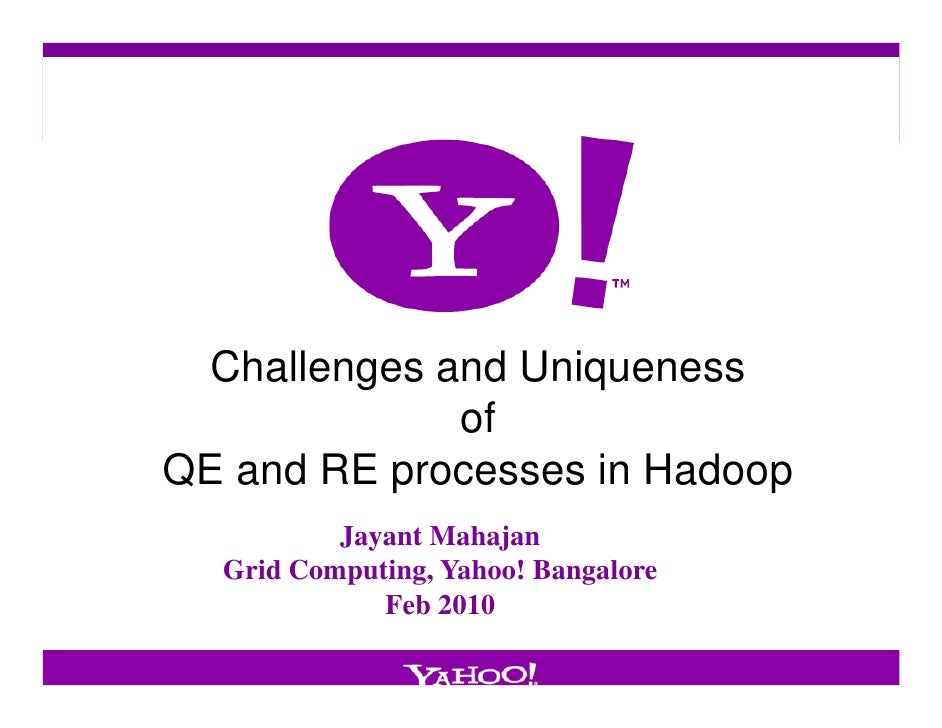

  1. 1. Challenges and Uniqueness of QE and RE processes in Hadoop Jayant Mahajan Grid Computing, Yahoo! Bangalore Feb 2010 -1- 1
  2. 2. Agenda • Quality Checks for a Patch at Hadoop • Additional QE at Yahoo! • Tools used for Hadoop QE and RE • Challenges -2-
  3. 3. Quality checks for a patch commit in Hadoop • Static Quality Analysis – Patch attached to Jira – Verify Findbugs warnings – Verify Javadoc warning – Verify ReleaseAudit warnings – Verify Unit Tests – if added or not • Committer Review • Unit Tests – Junit – Mini MR Tests -3-
  4. 4. Quality checks for a patch commit in Hadoop (Contd ..) COMMUNITY Secondary Build • Static analysis – findbugs • Jdiff • All Core unit tests with code coverage • All Contrib unit tests code coverage Jira Patch Set JIRA Patch commit raised attached status to picked up to JIRA “Patch for testing SVN Available” - HUDSON • Static analysis – Findbug • ReleaseAudit warning Committer • Fast unit tests - TestNG Review • Fast contrib unit tests (if Development patching contrib) -4-
  5. 5. Additional QE @ Y! for Hadoop • We are the largest test team for Hadoop • More than 1000 nodes dedicated for QE • Hadoop testing at Yahoo – Patch testing – Automated Testing – Manual Testing -5-
  6. 6. Additional QE @ Y! for Hadoop (Contd ..) COMMUNITY Jira Patch Set JIRA Patch commit raised attached status to picked up to JIRA “Patch for testing SVN Available” - HUDSON GIT Development YAHOO ! Test Environment Manual Manual HUDSON - HUDSON GIT Patch Functional Benchmark Release Y!Hadoop Testing Testing and Build Automation -6-
  7. 7. Tools used for Hadoop QE and RE • Hudson – Build automation • SVN and GIT – Source Code Mgmt (SCM) • Ant & ivy – Build and Dependency Mgmt • Checkstyle – code standard checker • Clover – code coverage • Forrest – Documentation • Jdiff – Track API changes • Findbugs – Static analysis to find bugs • Junit – Unit tests • Bugzilla & Jira – Issue Tracking -7-
  8. 8. Hudson • Hudson is a Continuous Integration Server used to execute and monitor job (Hudson job) • Used for: – Build – Unit Tests – Deployment – Validation Jobs – Automated tests • http://hudson-ci.org/ -8-
  9. 9. Challenges in Hadoop QE and RE • Reliability – Loss of nodes – Data corruption – Loss of data blocks • Scale – Network issues – Disk issues • Performance • Corner cases • Repeatability – Deployment – Continuous Integration -9-
  10. 10. Reliability • MapReduce Reliability – Fail Tasks – Lost TT’s • HDFS Reliability – Bringing a rack down – Corrupting data blocks – Loss of data blocks - 10 -
  11. 11. Scale • Testing at scale when Hardware resource are limited • If we want more nodes for testing, what will we do? – Use simulation ▪ DataNode simulation ▪ TaskTracker simulation – For example ▪ We need an environment of 3000 node cluster ▪ Run 3 instance of TT’s and DN’s per node on 1000 Node cluster ▪ This simulates an environment equivalent to 3000 node cluster - 11 -
  12. 12. Performance • Benchmark execution on 20 and 500 nodes – Eg: Sort, Shuffle, DFSIO • GridMix – V1 - A standard mix of MR jobs of varying types and sizes measuring throughput on a cluster – V2 - Customized mix of MR jobs where the number of small/large/medium jobs can be controlled – V3 ▪ It simulates user load pattern. ▪ Work load is generated from job history trace analysis - 12 -
  13. 13. Corner Cases • Challenges in reproducing a problem related to – Timing issues – Race conditions – Out of memory issues – Reproducing in the exact environment where it occurred. • AspectJ – Aspectj taps into source code and can run simulated scenarios before/after/during a method. – It can reproduce timing issues by introducing sleep statements. – out of memory issues, by reducing the memory available duing run time. – Exact environments can reproduced by changing the configs of the jobs in the go, when the exact configuration is not possible to replicate. - 13 -
  14. 14. Repeatability - Deployment • Deployment Challenges – Deploying on a multiple node cluster – Deciding on a JTNode and NameNode – Building configurations for variety of clusters • Solution – YUM repo for deployment – Backup host for JTNode and Namenode – Source code build & configuration build - 14 -
  15. 15. Repeatability - CI • Continuous Integration aka CI – Software development process where members of the team integrate their work frequently, usually daily – Every integration is verified by automated build (including tests) to verify integration errors as quickly as possible. • CI @ Y! – Commit build – Secondary build – Secondary smoke test build – Automated deployment - 15 -
  16. 16. Thank you - 16 - 16

×
