Introduction to Alfresco                     Dashlets                               for beginnersJordi Vilaplana - Compute...
What is a dashlet?"A dashlet is an application that appears in the Alfresco dashboard that presents informationto the user...
How it works?
Files involved - Naming conventionsTo create a dashlet we need to decide three things ● Dashlets name ● HTTP method used t...
Files involved - Naming conventions
Files involved - Naming conventions● mydashlet.get.desc.xml: Descriptor file● mydashlet.get.js: Model file, where we put t...
Files involved - One file at a timemydashlet.get.desc.xml<webscript>  <shortname>My Dashlet</shortname>  <description>A da...
Files involved - One file at a timemydashlet.get.jsfunction main() {  model.name = "Jordi";}main();All what we put inside ...
Files involved - One file at a timemydashlet.get.html.ftl<script type="text/javascript">//<![CDATA[   new Alfresco.widget....
Files involved - One file at a timemydashlet.propertieslabel.title=My Dashletlabel.hello=HelloWe should put all the string...
Deploy to Alfresco ShareCopy all four files inside:<ALF_HOME>/tomcat/shared/classes/alfresco/web-extension/site-webscripts...
Whats next - Where to look nowDashlets can be much more complex...stats-dashlet:http://code.google.com/p/stats-dashlet/sha...
Upcoming SlideShare
Loading in …5
×

Introduction to Alfresco Dashlets

11,129 views

Published on

The basics to understand and create an Alfresco dashlet for the Share interface.

Published in: Technology, Design
2 Comments
5 Likes
Statistics
Notes
  • I have followed, the example in the presentation but my dashlet is not showed in customise user dashboard. I have tried to restart alfresco and refresh web scripts, but still no result. I can see that the dashlet in my script list. What am I doing wrong
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • thanks you
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total views
11,129
On SlideShare
0
From Embeds
0
Number of Embeds
75
Actions
Shares
0
Downloads
194
Comments
2
Likes
5
Embeds 0
No embeds

No notes for slide

Introduction to Alfresco Dashlets

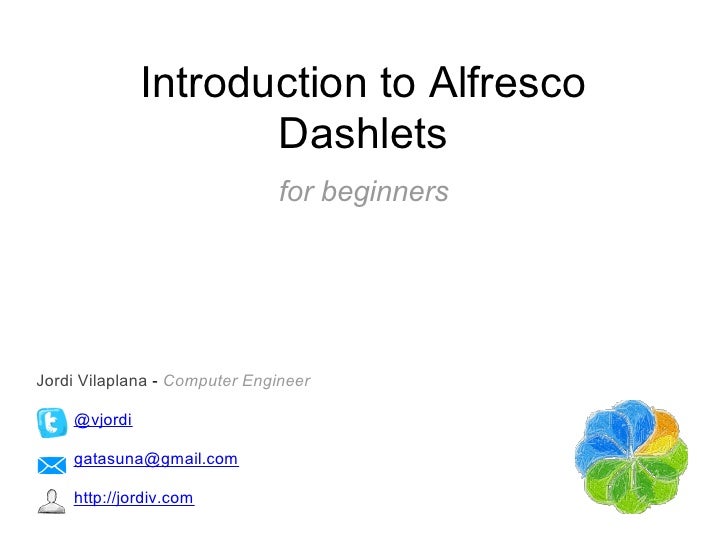

  1. 1. Introduction to Alfresco Dashlets for beginnersJordi Vilaplana - Computer Engineer @vjordi gatasuna@gmail.com http://jordiv.com
  2. 2. What is a dashlet?"A dashlet is an application that appears in the Alfresco dashboard that presents informationto the user." My Sites dashlet
  3. 3. How it works?
  4. 4. Files involved - Naming conventionsTo create a dashlet we need to decide three things ● Dashlets name ● HTTP method used to call the dashlet ● Presentation format for the responseAll dashlet files start with the name of the dashlet
  5. 5. Files involved - Naming conventions
  6. 6. Files involved - Naming conventions● mydashlet.get.desc.xml: Descriptor file● mydashlet.get.js: Model file, where we put the logic● mydashlet.get.html.ftl: View file for the presentation● mydashlet.properties: Properties file
  7. 7. Files involved - One file at a timemydashlet.get.desc.xml<webscript> <shortname>My Dashlet</shortname> <description>A dashlet that does nothing</description> <family>user-dashlet</family> <url>/jordiv/components/dashlets/mydashlet</url></webscript> ● shortname: A user-friendly name ● description: A short description ● family: One of user-dashlet, site-dashlet or dashlet ● url: URL used to access the dashlet
  8. 8. Files involved - One file at a timemydashlet.get.jsfunction main() { model.name = "Jordi";}main();All what we put inside the model variable will be availablein the view.
  9. 9. Files involved - One file at a timemydashlet.get.html.ftl<script type="text/javascript">//<![CDATA[ new Alfresco.widget.DashletResizer("${args.htmlid}", "${instance.object.id}");//]]</script><div class="dashlet"> <div class="title">${msg("label.title")}</div> <div class="body scrollable"> <p>${msg("label.hello")} ${name!}!</p> </div></div>We can access the strings defined in the properties filesusing the msg variable, and use variables from the model
  10. 10. Files involved - One file at a timemydashlet.propertieslabel.title=My Dashletlabel.hello=HelloWe should put all the strings of our dashlet in theproperties file, so it can be easily translatedSupport for more languages can be added creating moreproperties files: ● mydashlet_ca.properties ● mydashlet_es.properties
  11. 11. Deploy to Alfresco ShareCopy all four files inside:<ALF_HOME>/tomcat/shared/classes/alfresco/web-extension/site-webscripts/com/jordiv/Replace com/jordiv by your domainRestart Alfresco Share or click the "Refresh Web Scripts" button (http://<server>:8080/share/page/index) and it will be available in userscustomize dashboardThis is not the best way to deploy a dashlet into Alfresco Share, just thesimplest one
  12. 12. Whats next - Where to look nowDashlets can be much more complex...stats-dashlet:http://code.google.com/p/stats-dashlet/share-extras:http://code.google.com/p/share-extras/Alfresco Forums:https://forums.alfresco.com/en/Alfresco Wiki:http://wiki.alfresco.com/

×
