Mobile performance tuning:

poor man’s tips and tricks
Mantas Puida / Unity iOS
Maybe it is too pretty? :)
Why this happens?
•Many people perceive <20 fps as
bad performance
•60 fps = 16.7 ms / frame,

30 fps = 33.3 ms / frame, ...
Two most common problems: exhausted
fill rate or too much geometry

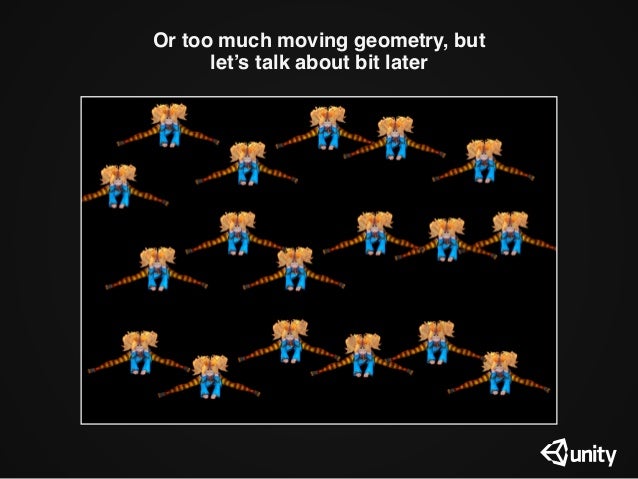

Or too much moving geometry, but
let’s talk about bit later

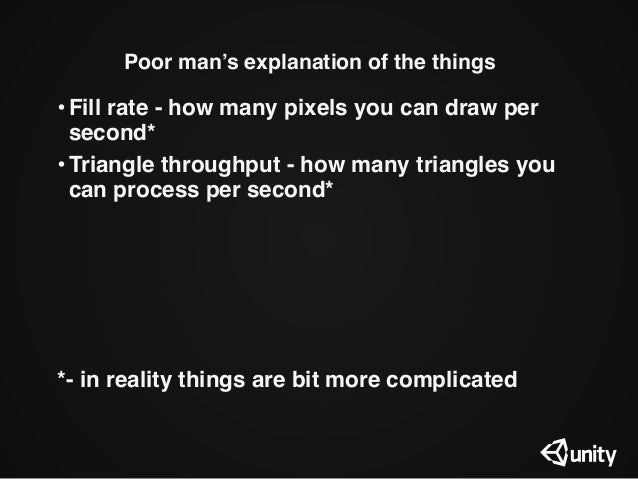

Poor man’s explanation of the things
•Fill rate - how many pixels you can draw per
second*
•Triangle throughput - how many...

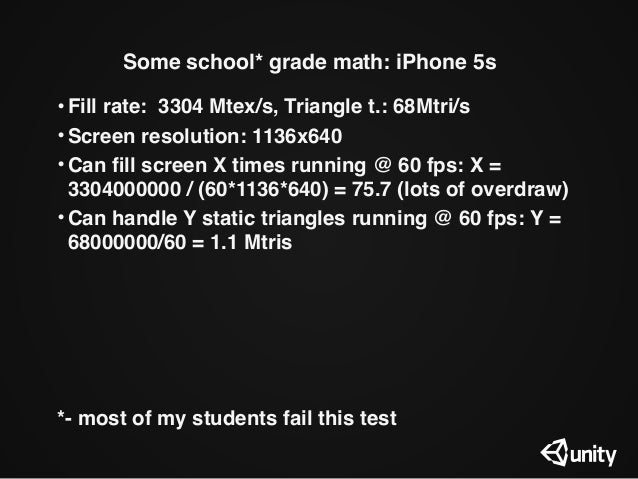

Some school* grade math: iPhone 5s
•Fill rate: 3304 Mtex/s, Triangle t.: 68Mtri/s
•Screen resolution: 1136x640
•Can fill sc...
Some school grade math: iPhone 4*
•Fill rate: 400 Mtex/s, Triangle t.: 14Mtri/s
•Screen resolution: 960x640
•Can fill scree...
How should I know if I’m GPU bound?

Xcode 5 + iOS 7 (Debug Navigator)!
Practical measurement
•iPhone 5s - up 55 layers of full screen transp. (75
theoretical) still allow 60 fps / 31 layer with...
Transparentfullscreenlayers
0
12.5
25
37.5
50
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
30
10.8
21.6
50
44
9...

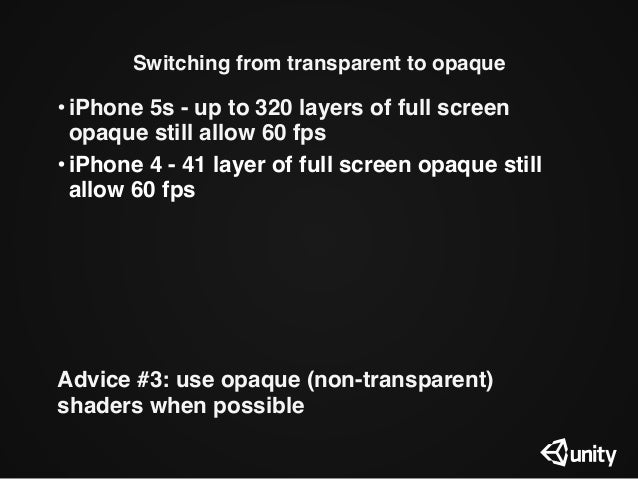

Switching from transparent to opaque
•iPhone 5s - up to 320 layers of full screen
opaque still allow 60 fps
•iPhone 4 - 41...
Opaquefullscreenlayers
0
100
200
300
400
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
7569
172
317
278
41.4

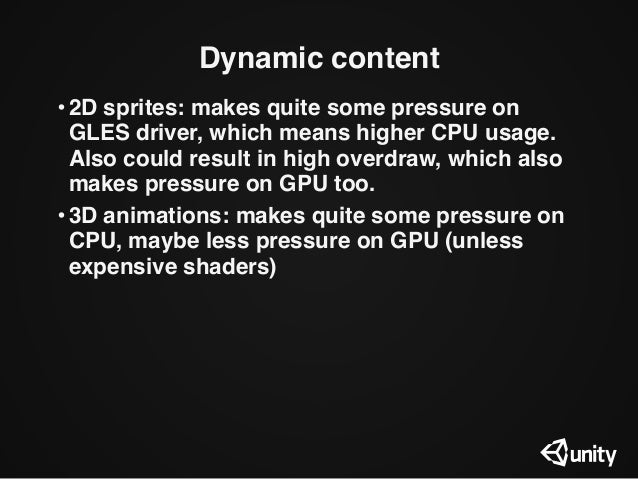

Dynamic content
•2D sprites: makes quite some pressure on
GLES driver, which means higher CPU usage.
Also could result in ...
Dynamic 2D content
•iPhone 5S - 578 sprites, iPhone 4 - 113 sprites
(square mesh 36 spr. / GPU bound) and still
maintainin...
2DSprites
0
150
300
450
600
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
372
284298
578
439
113

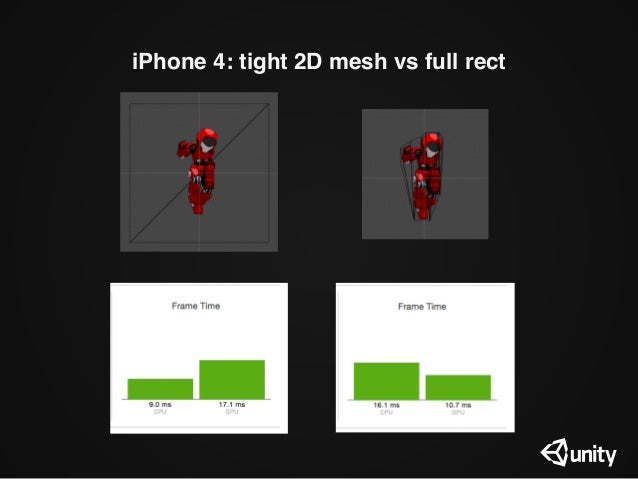

iPhone 4: tight 2D mesh vs full rect
Tons of objects = bad
•Lots of separate objects makes great pressure
on GLES driver.
•Dynamic and static batching to the r...
Dynamic 3D content
•iPhone 5S - 309 low poly (384 pol.) CPU skinned
meshes / 160 low poly GPU skinned meshes,



iPhone 4...
Disabling tangents
•iPhone 5S - 318 characters with CPU skinning /
202 characters with GPU skinning,
•iPhone 4 - still 55 ...
Lowpolyanimatedcharacters
0
100
200
300
400
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
303
118123
318
200
55

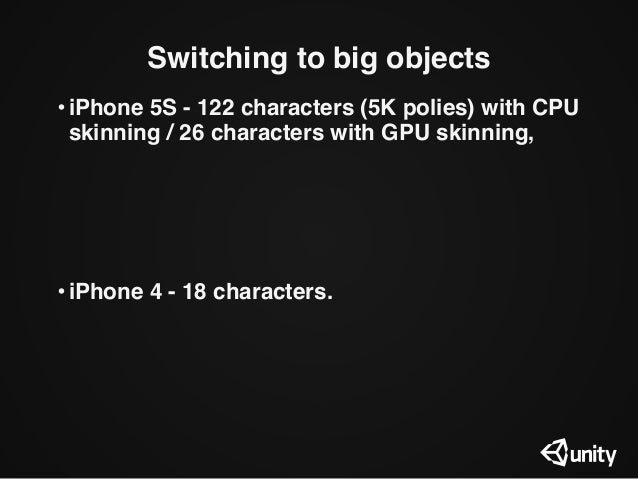

Switching to big objects
•iPhone 5S - 122 characters (5K polies) with CPU
skinning / 26 characters with GPU skinning,
•iPh...

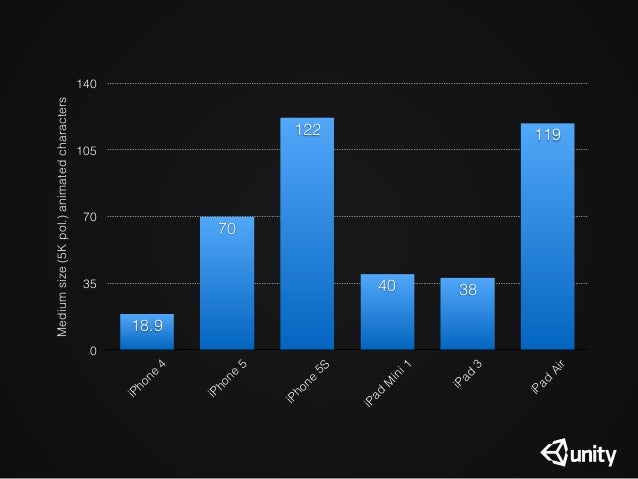

Mediumsize(5Kpol.)animatedcharacters
0
35
70
105
140
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
119
3840
122
...
Dynamic 3D content
•iPhone 5S - handles 90-400K moving polygons @ 60
fps (having less, but more detailed characters allows...
Animatedpolygoncount(KTris)
0
150
300
450
600
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
584
186198
596
343
92
Practical measurement: static content
•iPhone 5S - easily handles ~1.1 M static
polygons @ 60 fps

•iPhone 4 - handles ~2...
Staticpolygoncount(KTris)
0
300
600
900
1200
iPhone
4
iPhone
5
iPhone
5S
iPad
M
ini1
iPad
3
iPad
Air
845
657
597
1 1161 11...
Summary
•Don't trust numbers on the internet, profile in your
environment. Small details matter.
•Profile worst and best dev...
•Use tight meshes for transparent 2D stuff.
•Use non-transparent shaders when possible.
•Minimize amount of skinnable data...
Resources from Unity Asset Store
•Unity Chan
•Low Poly Micro Monster Pack
•Primitives
•2d CHARACTERS sprite package



Mobile Performance Tuning: Poor Man's Tips And Tricks
Upcoming SlideShare
Loading in …5
×

Mobile Performance Tuning: Poor Man's Tips And Tricks

5,511 views

Published on

Unity iOS performance optimizations by Mantas Puida, Unity Technologies.

Published in: Technology

Mobile Performance Tuning: Poor Man's Tips And Tricks

  1. 1. Mobile performance tuning:

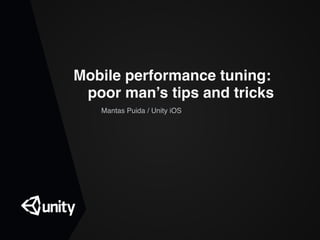

 poor man’s tips and tricks Mantas Puida / Unity iOS
  2. 2. Maybe it is too pretty? :)

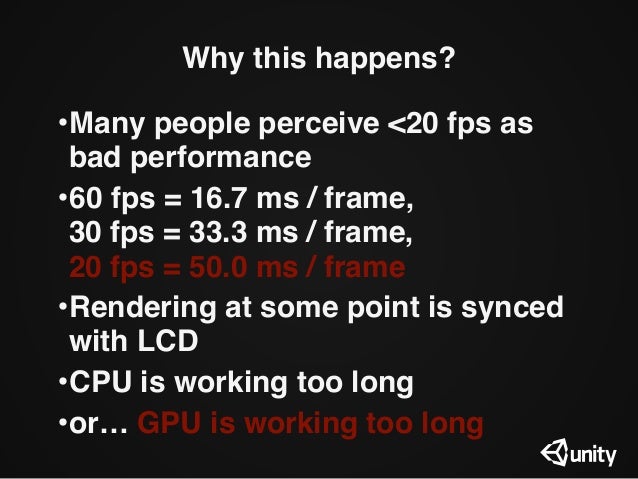

  3. 3. Why this happens? •Many people perceive <20 fps as bad performance •60 fps = 16.7 ms / frame,
 30 fps = 33.3 ms / frame,
 20 fps = 50.0 ms / frame •Rendering at some point is synced with LCD •CPU is working too long •or… GPU is working too long

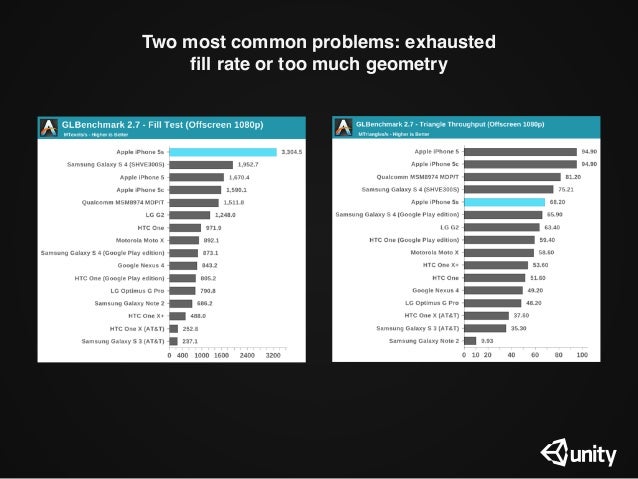

  4. 4. Two most common problems: exhausted fill rate or too much geometry
  5. 5. Or too much moving geometry, but let’s talk about bit later
  6. 6. Poor man’s explanation of the things •Fill rate - how many pixels you can draw per second* •Triangle throughput - how many triangles you can process per second* *- in reality things are bit more complicated
  7. 7. Some school* grade math: iPhone 5s •Fill rate: 3304 Mtex/s, Triangle t.: 68Mtri/s •Screen resolution: 1136x640 •Can fill screen X times running @ 60 fps: X = 3304000000 / (60*1136*640) = 75.7 (lots of overdraw) •Can handle Y static triangles running @ 60 fps: Y = 68000000/60 = 1.1 Mtris *- most of my students fail this test

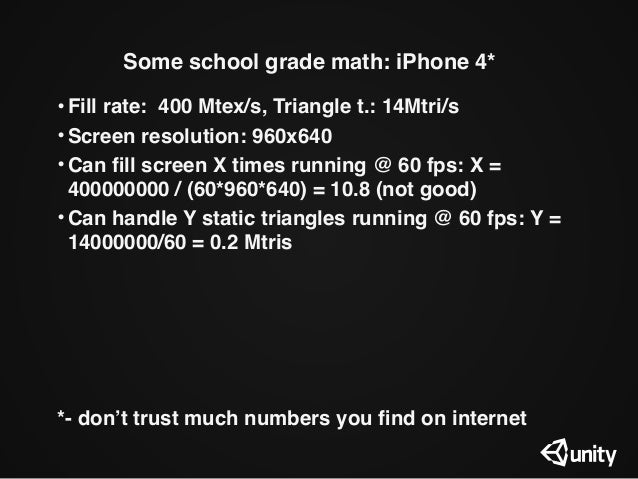

  8. 8. Some school grade math: iPhone 4* •Fill rate: 400 Mtex/s, Triangle t.: 14Mtri/s •Screen resolution: 960x640 •Can fill screen X times running @ 60 fps: X = 400000000 / (60*960*640) = 10.8 (not good) •Can handle Y static triangles running @ 60 fps: Y = 14000000/60 = 0.2 Mtris *- don’t trust much numbers you find on internet

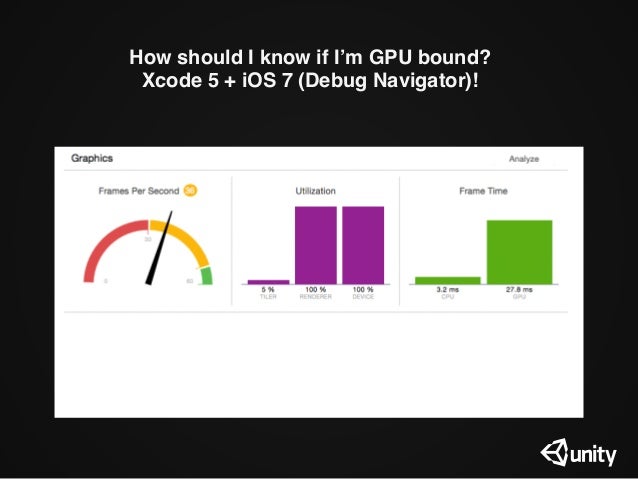

  9. 9. How should I know if I’m GPU bound?
 Xcode 5 + iOS 7 (Debug Navigator)!

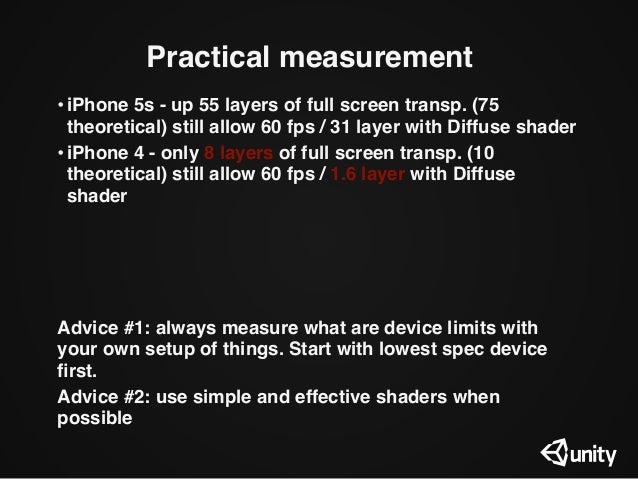

  10. 10. Practical measurement •iPhone 5s - up 55 layers of full screen transp. (75 theoretical) still allow 60 fps / 31 layer with Diffuse shader •iPhone 4 - only 8 layers of full screen transp. (10 theoretical) still allow 60 fps / 1.6 layer with Diffuse shader Advice #1: always measure what are device limits with your own setup of things. Start with lowest spec device first. Advice #2: use simple and effective shaders when possible

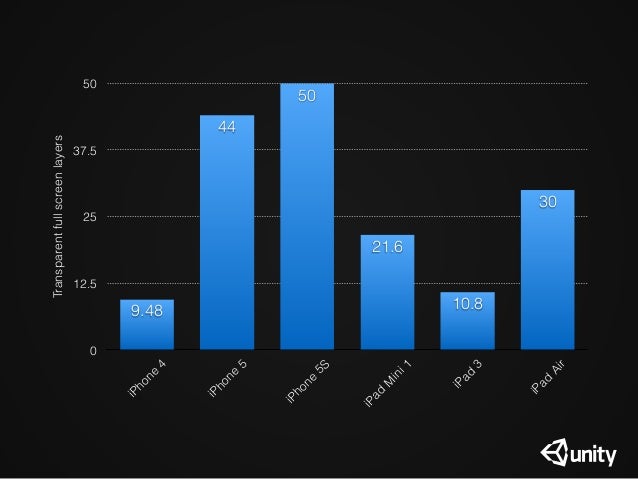

  11. 11. Transparentfullscreenlayers 0 12.5 25 37.5 50 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 30 10.8 21.6 50 44 9.48
  12. 12. Switching from transparent to opaque •iPhone 5s - up to 320 layers of full screen opaque still allow 60 fps •iPhone 4 - 41 layer of full screen opaque still allow 60 fps Advice #3: use opaque (non-transparent) shaders when possible
  13. 13. Opaquefullscreenlayers 0 100 200 300 400 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 7569 172 317 278 41.4
  14. 14. Dynamic content •2D sprites: makes quite some pressure on GLES driver, which means higher CPU usage. Also could result in high overdraw, which also makes pressure on GPU too. •3D animations: makes quite some pressure on CPU, maybe less pressure on GPU (unless expensive shaders)
  15. 15. Dynamic 2D content •iPhone 5S - 578 sprites, iPhone 4 - 113 sprites (square mesh 36 spr. / GPU bound) and still maintaining 60 fps.

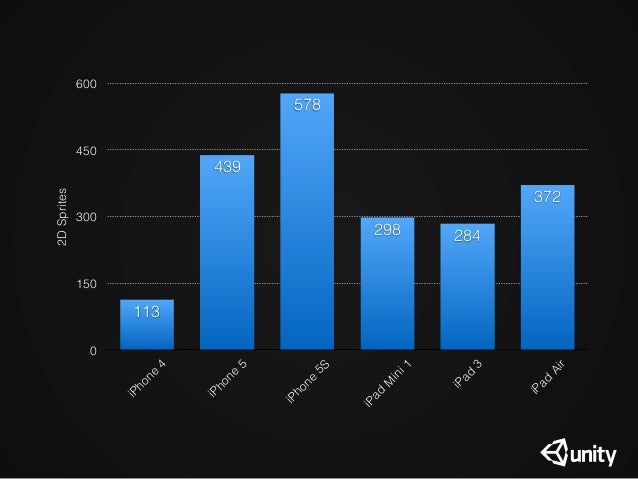

  16. 16. 2DSprites 0 150 300 450 600 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 372 284298 578 439 113
  17. 17. iPhone 4: tight 2D mesh vs full rect

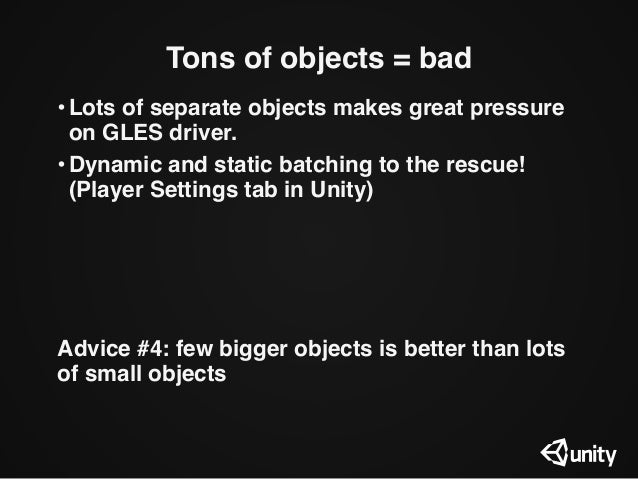

  18. 18. Tons of objects = bad •Lots of separate objects makes great pressure on GLES driver. •Dynamic and static batching to the rescue! (Player Settings tab in Unity) Advice #4: few bigger objects is better than lots of small objects

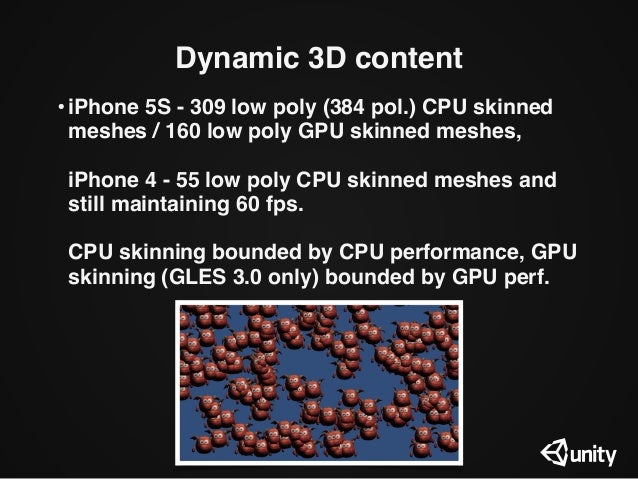

  19. 19. Dynamic 3D content •iPhone 5S - 309 low poly (384 pol.) CPU skinned meshes / 160 low poly GPU skinned meshes,

 iPhone 4 - 55 low poly CPU skinned meshes and still maintaining 60 fps.

 CPU skinning bounded by CPU performance, GPU skinning (GLES 3.0 only) bounded by GPU perf.

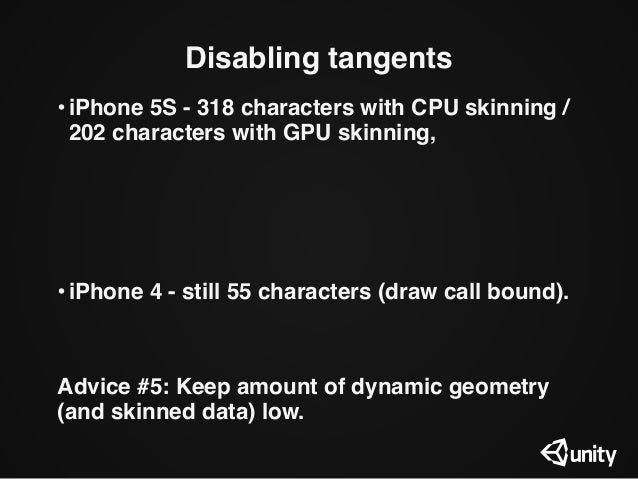

  20. 20. Disabling tangents •iPhone 5S - 318 characters with CPU skinning / 202 characters with GPU skinning, •iPhone 4 - still 55 characters (draw call bound). Advice #5: Keep amount of dynamic geometry (and skinned data) low.

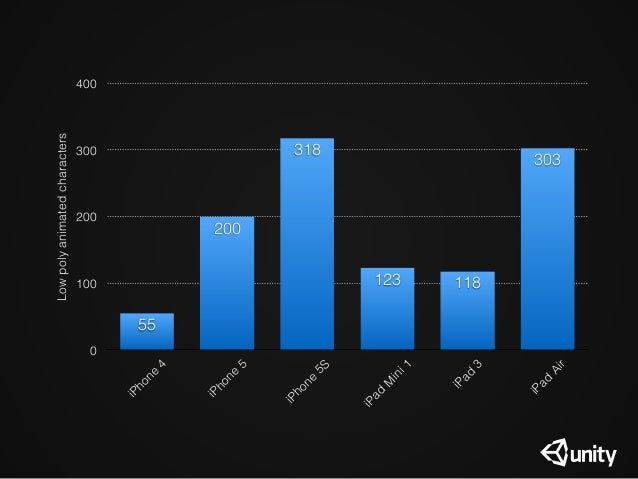

  21. 21. Lowpolyanimatedcharacters 0 100 200 300 400 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 303 118123 318 200 55
  22. 22. Switching to big objects •iPhone 5S - 122 characters (5K polies) with CPU skinning / 26 characters with GPU skinning, •iPhone 4 - 18 characters.
  23. 23. Mediumsize(5Kpol.)animatedcharacters 0 35 70 105 140 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 119 3840 122 70 18.9

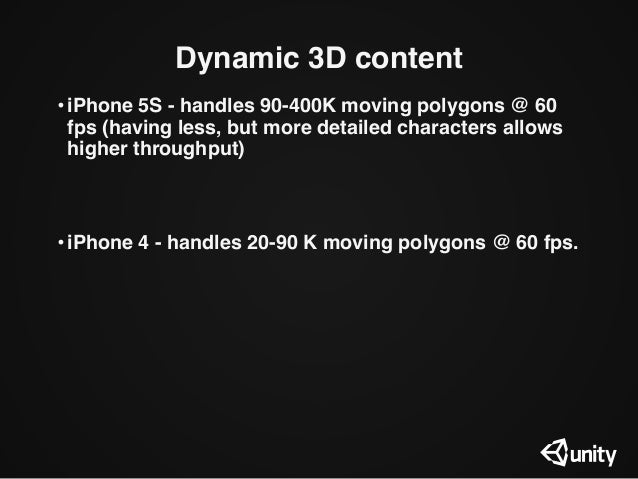

  24. 24. Dynamic 3D content •iPhone 5S - handles 90-400K moving polygons @ 60 fps (having less, but more detailed characters allows higher throughput)


 •iPhone 4 - handles 20-90 K moving polygons @ 60 fps.

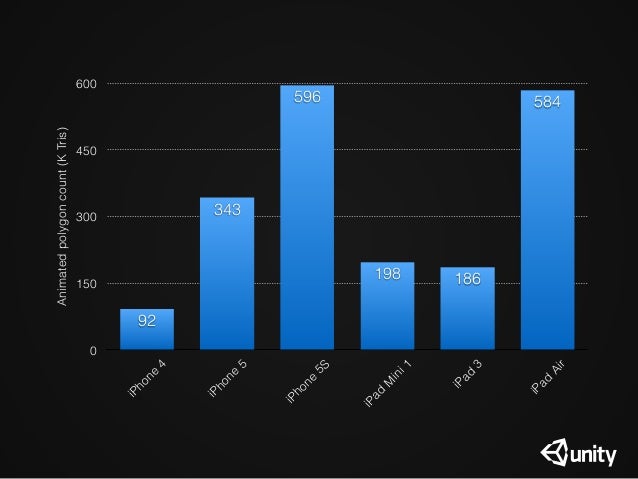

  25. 25. Animatedpolygoncount(KTris) 0 150 300 450 600 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 584 186198 596 343 92

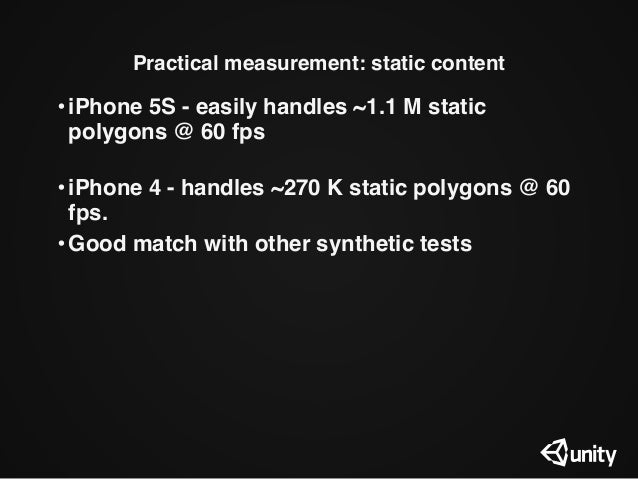

  26. 26. Practical measurement: static content •iPhone 5S - easily handles ~1.1 M static polygons @ 60 fps
 •iPhone 4 - handles ~270 K static polygons @ 60 fps. •Good match with other synthetic tests


  27. 27. Staticpolygoncount(KTris) 0 300 600 900 1200 iPhone 4 iPhone 5 iPhone 5S iPad M ini1 iPad 3 iPad Air 845 657 597 1 1161 113 276

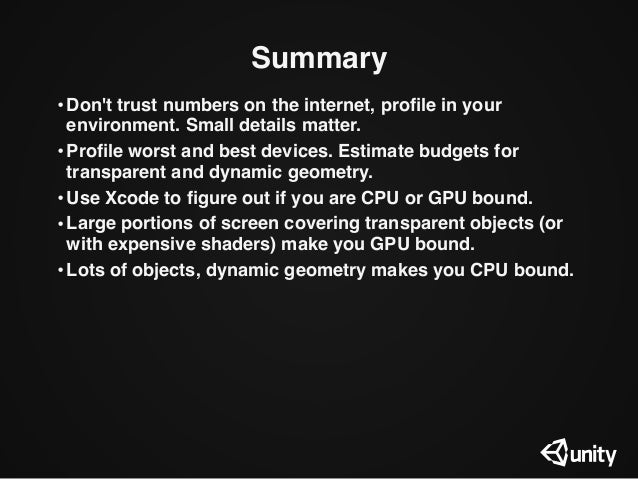

  28. 28. Summary •Don't trust numbers on the internet, profile in your environment. Small details matter. •Profile worst and best devices. Estimate budgets for transparent and dynamic geometry. •Use Xcode to figure out if you are CPU or GPU bound. •Large portions of screen covering transparent objects (or with expensive shaders) make you GPU bound. •Lots of objects, dynamic geometry makes you CPU bound.
