2. Enabling Low-level
Intrinsics in Burst

3. — You’re interested in CPU performance
— You’re considering porting engine systems to HPC#
— You just go to technical talks because it’s cool

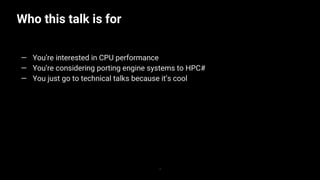

Who this talk is for
3

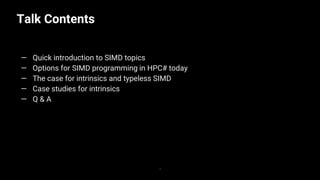

4. — Quick introduction to SIMD topics
— Options for SIMD programming in HPC# today
— The case for intrinsics and typeless SIMD
— Case studies for intrinsics
— Q & A
Talk Contents
4

5. SIMD: Some background
5

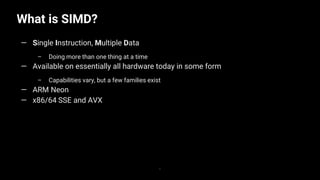

6. What is SIMD?
6
— Single Instruction, Multiple Data
– Doing more than one thing at a time
— Available on essentially all hardware today in some form
– Capabilities vary, but a few families exist
— ARM Neon
— x86/64 SSE and AVX

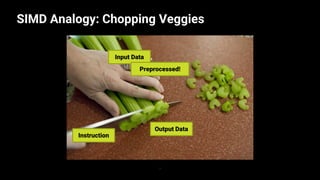

7. SIMD Analogy: Chopping Veggies
7
Input Data
Output Data
Instruction
Preprocessed!

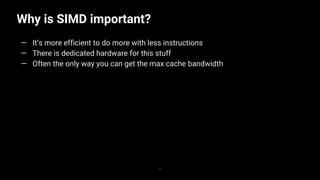

8. Why is SIMD important?
8
— It’s more efficient to do more with less instructions
— There is dedicated hardware for this stuff
— Often the only way you can get the max cache bandwidth

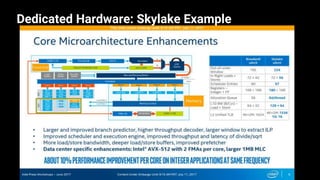

9. Dedicated Hardware: Skylake Example
9

10. Cache Bandwidth
10
— L1 Caches can deliver N bits every cycle
– N typically much larger than 64
– 128 or 256 bits per cycle common in most CPUs today
— Without using SIMD instructions, only get a fraction of this
– Important part of not leaving performance on the table

11. Cache Bandwidth
11
— This matters when you are processing in cache
– Which is what we hope to do most of the time
— Processing floats (4 bytes, 32 bits), 128-bit cache b/w
– Each load wastes 75% of bandwidth from the cache
— Better: Process 4 floats at a time
– Full cache utilization

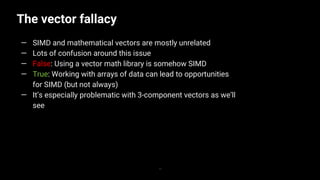

12. The vector fallacy
12
— SIMD and mathematical vectors are mostly unrelated
— Lots of confusion around this issue
— False: Using a vector math library is somehow SIMD
— True: Working with arrays of data can lead to opportunities
for SIMD (but not always)
— It’s especially problematic with 3-component vectors as we’ll
see

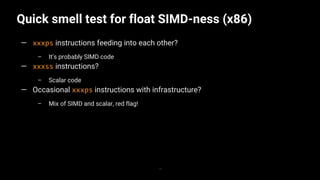

13. Quick smell test for float SIMD-ness (x86)
13
— xxxps instructions feeding into each other?
– It’s probably SIMD code
— xxxss instructions?
– Scalar code
— Occasional xxxps instructions with infrastructure?
– Mix of SIMD and scalar, red flag!

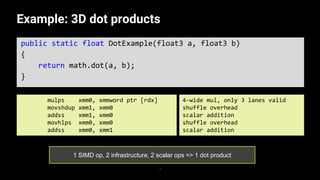

14. Example: 3D dot products
14
public static float DotExample(float3 a, float3 b)
{
return math.dot(a, b);
}
mulps xmm0, xmmword ptr [rdx]
movshdup xmm1, xmm0
addss xmm1, xmm0
movhlps xmm0, xmm0
addss xmm0, xmm1
1 SIMD op, 2 infrastructure, 2 scalar ops => 1 dot product
4-wide mul, only 3 lanes valid
shuffle overhead
scalar addition
shuffle overhead
scalar addition

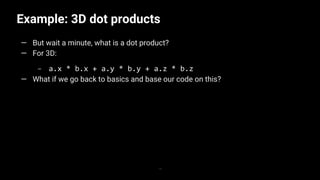

15. Example: 3D dot products
15
— But wait a minute, what is a dot product?
— For 3D:
– a.x * b.x + a.y * b.y + a.z * b.z
— What if we go back to basics and base our code on this?

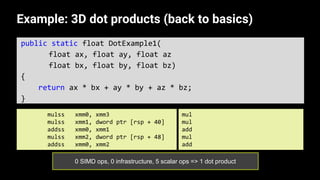

16. Example: 3D dot products (back to basics)
16
public static float DotExample1(
float ax, float ay, float az
float bx, float by, float bz)
{
return ax * bx + ay * by + az * bz;
}
mulss xmm0, xmm3
mulss xmm1, dword ptr [rsp + 40]
addss xmm0, xmm1
mulss xmm2, dword ptr [rsp + 48]
addss xmm0, xmm2
0 SIMD ops, 0 infrastructure, 5 scalar ops => 1 dot product
mul
mul
add
mul
add

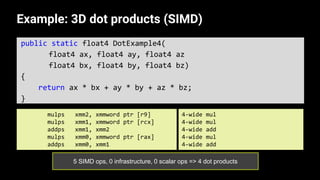

17. Example: 3D dot products (SIMD)
17
public static float4 DotExample4(
float4 ax, float4 ay, float4 az
float4 bx, float4 by, float4 bz)
{
return ax * bx + ay * by + az * bz;
}
mulps xmm2, xmmword ptr [r9]
mulps xmm1, xmmword ptr [rcx]
addps xmm1, xmm2
mulps xmm0, xmmword ptr [rax]
addps xmm0, xmm1
5 SIMD ops, 0 infrastructure, 0 scalar ops => 4 dot products
4-wide mul
4-wide mul
4-wide add
4-wide mul
4-wide add

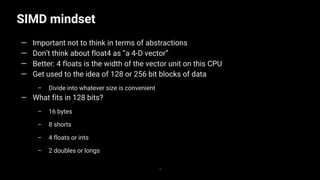

18. SIMD mindset
18
— Important not to think in terms of abstractions
— Don’t think about float4 as “a 4-D vector”
— Better: 4 floats is the width of the vector unit on this CPU
— Get used to the idea of 128 or 256 bit blocks of data
– Divide into whatever size is convenient
— What fits in 128 bits?
– 16 bytes
– 8 shorts
– 4 floats or ints
– 2 doubles or longs

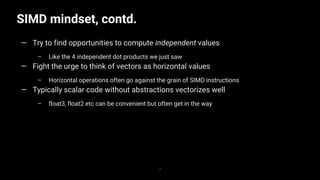

19. SIMD mindset, contd.
19
— Try to find opportunities to compute independent values
– Like the 4 independent dot products we just saw
— Fight the urge to think of vectors as horizontal values
– Horizontal operations often go against the grain of SIMD instructions
— Typically scalar code without abstractions vectorizes well
– float3, float2 etc can be convenient but often get in the way

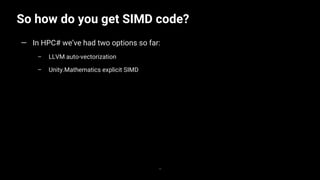

20. So how do you get SIMD code?
20
— In HPC# we’ve had two options so far:
– LLVM auto-vectorization
– Unity.Mathematics explicit SIMD

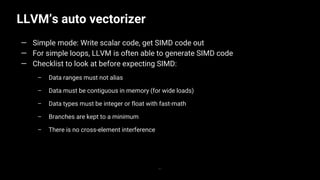

21. LLVM’s auto vectorizer
21
— Simple mode: Write scalar code, get SIMD code out
— For simple loops, LLVM is often able to generate SIMD code
— Checklist to look at before expecting SIMD:
– Data ranges must not alias
– Data must be contiguous in memory (for wide loads)
– Data types must be integer or float with fast-math
– Branches are kept to a minimum
– There is no cross-element interference

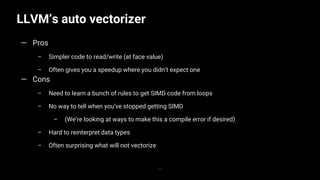

22. LLVM’s auto vectorizer
22
— Pros
– Simpler code to read/write (at face value)
– Often gives you a speedup where you didn’t expect one
— Cons
– Need to learn a bunch of rules to get SIMD code from loops
– No way to tell when you’ve stopped getting SIMD
– (We’re looking at ways to make this a compile error if desired)
– Hard to reinterpret data types
– Often surprising what will not vectorize

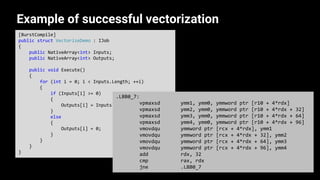

23. Example of successful vectorization
23
[BurstCompile]
public struct VectorizeDemo : IJob
{
public NativeArray<int> Inputs;
public NativeArray<int> Outputs;
public void Execute()
{
for (int i = 0; i < Inputs.Length; ++i)
{
if (Inputs[i] >= 0)
{
Outputs[i] = Inputs[i];
}
else
{
Outputs[i] = 0;
}
}
}
}
.LBB0_7:
vpmaxsd ymm1, ymm0, ymmword ptr [r10 + 4*rdx]
vpmaxsd ymm2, ymm0, ymmword ptr [r10 + 4*rdx + 32]
vpmaxsd ymm3, ymm0, ymmword ptr [r10 + 4*rdx + 64]
vpmaxsd ymm4, ymm0, ymmword ptr [r10 + 4*rdx + 96]
vmovdqu ymmword ptr [rcx + 4*rdx], ymm1
vmovdqu ymmword ptr [rcx + 4*rdx + 32], ymm2
vmovdqu ymmword ptr [rcx + 4*rdx + 64], ymm3
vmovdqu ymmword ptr [rcx + 4*rdx + 96], ymm4
add rdx, 32
cmp rax, rdx
jne .LBB0_7

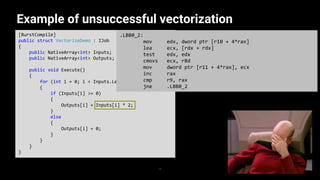

24. Example of unsuccessful vectorization
24
[BurstCompile]
public struct VectorizeDemo : IJob
{
public NativeArray<int> Inputs;
public NativeArray<int> Outputs;
public void Execute()
{
for (int i = 0; i < Inputs.Length; ++i)
{
if (Inputs[i] >= 0)
{
Outputs[i] = Inputs[i] * 2;
}
else
{
Outputs[i] = 0;
}
}
}
}
.LBB0_2:
mov edx, dword ptr [r10 + 4*rax]
lea ecx, [rdx + rdx]
test edx, edx
cmovs ecx, r8d
mov dword ptr [r11 + 4*rax], ecx
inc rax
cmp r9, rax
jne .LBB0_2

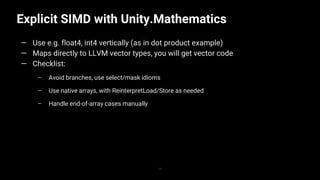

25. Explicit SIMD with Unity.Mathematics
25
— Use e.g. float4, int4 vertically (as in dot product example)
— Maps directly to LLVM vector types, you will get vector code
— Checklist:
– Avoid branches, use select/mask idioms
– Use native arrays, with ReinterpretLoad/Store as needed
– Handle end-of-array cases manually

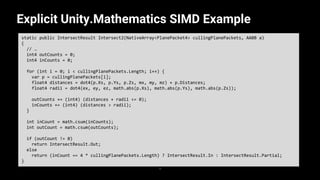

26. Explicit Unity.Mathematics SIMD Example
26
static public IntersectResult Intersect2(NativeArray<PlanePacket4> cullingPlanePackets, AABB a)
{
// …
int4 outCounts = 0;
int4 inCounts = 0;
for (int i = 0; i < cullingPlanePackets.Length; i++) {
var p = cullingPlanePackets[i];
float4 distances = dot4(p.Xs, p.Ys, p.Zs, mx, my, mz) + p.Distances;
float4 radii = dot4(ex, ey, ez, math.abs(p.Xs), math.abs(p.Ys), math.abs(p.Zs));
outCounts += (int4) (distances + radii <= 0);
inCounts += (int4) (distances > radii);
}
int inCount = math.csum(inCounts);
int outCount = math.csum(outCounts);
if (outCount != 0)
return IntersectResult.Out;
else
return (inCount == 4 * cullingPlanePackets.Length) ? IntersectResult.In : IntersectResult.Partial;
}

27. The Case For Intrinsics
27

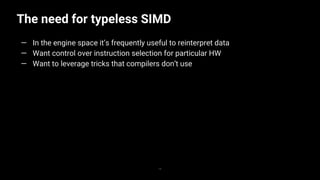

28. The need for typeless SIMD
28
— In the engine space it’s frequently useful to reinterpret data
— Want control over instruction selection for particular HW
— Want to leverage tricks that compilers don’t use

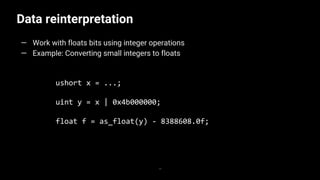

29. Data reinterpretation
29
— Work with floats bits using integer operations
— Example: Converting small integers to floats
ushort x = ...;
uint y = x | 0x4b000000;
float f = as_float(y) - 8388608.0f;

30. Instruction selection
30
— Often useful to base core engine loops around specific h/w
— Example: x86 pmulhrsw

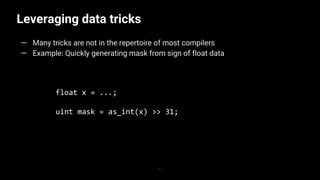

31. Leveraging data tricks
31
— Many tricks are not in the repertoire of most compilers
— Example: Quickly generating mask from sign of float data
float x = ...;
uint mask = as_int(x) >> 31;

32. Burst Intrinsics
32

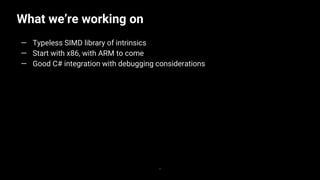

33. What we’re working on
33
— Typeless SIMD library of intrinsics
— Start with x86, with ARM to come
— Good C# integration with debugging considerations

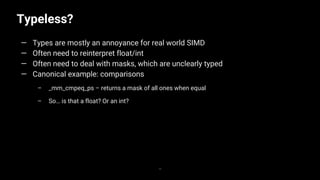

34. Typeless?
34
— Types are mostly an annoyance for real world SIMD
— Often need to reinterpret float/int
— Often need to deal with masks, which are unclearly typed
— Canonical example: comparisons
– _mm_cmpeq_ps – returns a mask of all ones when equal
– So… is that a float? Or an int?

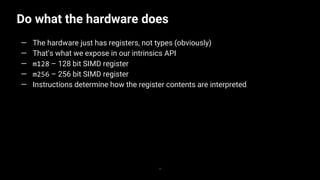

35. Do what the hardware does
35
— The hardware just has registers, not types (obviously)
— That’s what we expose in our intrinsics API
— m128 – 128 bit SIMD register
— m256 – 256 bit SIMD register
— Instructions determine how the register contents are interpreted

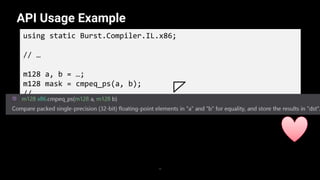

36. API Usage Example
36
using static Burst.Compiler.IL.x86;
// …
m128 a, b = …;
m128 mask = cmpeq_ps(a, b);
// …

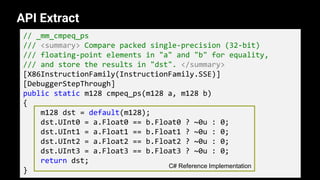

37. API Extract
37
// _mm_cmpeq_ps
/// <summary> Compare packed single-precision (32-bit)
/// floating-point elements in "a" and "b" for equality,
/// and store the results in "dst". </summary>
[X86InstructionFamily(InstructionFamily.SSE)]
[DebuggerStepThrough]
public static m128 cmpeq_ps(m128 a, m128 b)
{
m128 dst = default(m128);
dst.UInt0 = a.Float0 == b.Float0 ? ~0u : 0;
dst.UInt1 = a.Float1 == b.Float1 ? ~0u : 0;
dst.UInt2 = a.Float2 == b.Float2 ? ~0u : 0;
dst.UInt3 = a.Float3 == b.Float3 ? ~0u : 0;
return dst;
}
C# Reference Implementation

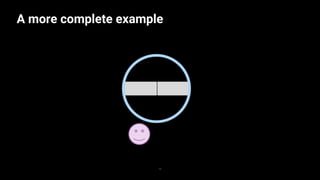

38. A more complete example
38

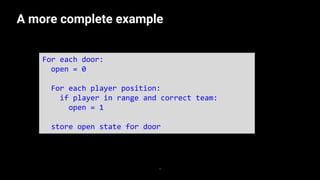

39. A more complete example
39
For each door:
open = 0
For each player position:
if player in range and correct team:
open = 1
store open state for door

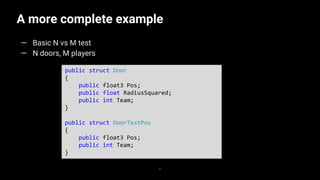

40. A more complete example
40
— Basic N vs M test
— N doors, M players
public struct Door
{
public float3 Pos;
public float RadiusSquared;
public int Team;
}
public struct DoorTestPos
{
public float3 Pos;
public int Team;
}

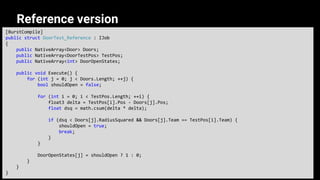

41. Reference version
41
[BurstCompile]
public struct DoorTest_Reference : IJob
{
public NativeArray<Door> Doors;
public NativeArray<DoorTestPos> TestPos;
public NativeArray<int> DoorOpenStates;
public void Execute() {
for (int j = 0; j < Doors.Length; ++j) {
bool shouldOpen = false;
for (int i = 0; i < TestPos.Length; ++i) {
float3 delta = TestPos[i].Pos - Doors[j].Pos;
float dsq = math.csum(delta * delta);
if (dsq < Doors[j].RadiusSquared && Doors[j].Team == TestPos[i].Team) {
shouldOpen = true;
break;
}
}
DoorOpenStates[j] = shouldOpen ? 1 : 0;
}
}
}

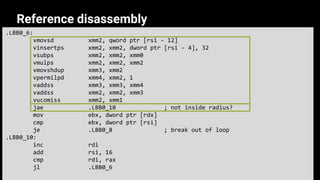

42. Reference disassembly
42
.LBB0_6:
vmovsd xmm2, qword ptr [rsi - 12]
vinsertps xmm2, xmm2, dword ptr [rsi - 4], 32
vsubps xmm2, xmm2, xmm0
vmulps xmm2, xmm2, xmm2
vmovshdup xmm3, xmm2
vpermilpd xmm4, xmm2, 1
vaddss xmm3, xmm3, xmm4
vaddss xmm2, xmm2, xmm3
vucomiss xmm2, xmm1
jae .LBB0_10 ; not inside radius?
mov ebx, dword ptr [rdx]
cmp ebx, dword ptr [rsi]
je .LBB0_8 ; break out of loop
.LBB0_10:
inc rdi
add rsi, 16
cmp rdi, rax
jl .LBB0_6

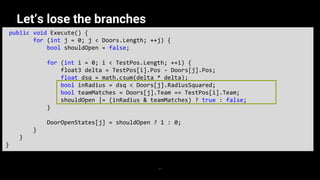

43. Let’s lose the branches
43
public void Execute() {
for (int j = 0; j < Doors.Length; ++j) {
bool shouldOpen = false;
for (int i = 0; i < TestPos.Length; ++i) {
float3 delta = TestPos[i].Pos - Doors[j].Pos;
float dsq = math.csum(delta * delta);
bool inRadius = dsq < Doors[j].RadiusSquared;
bool teamMatches = Doors[j].Team == TestPos[i].Team;
shouldOpen |= (inRadius & teamMatches) ? true : false;
}
DoorOpenStates[j] = shouldOpen ? 1 : 0;
}
}
}

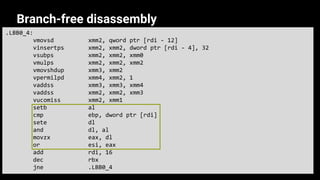

44. Branch-free disassembly
44
.LBB0_4:
vmovsd xmm2, qword ptr [rdi - 12]
vinsertps xmm2, xmm2, dword ptr [rdi - 4], 32
vsubps xmm2, xmm2, xmm0
vmulps xmm2, xmm2, xmm2
vmovshdup xmm3, xmm2
vpermilpd xmm4, xmm2, 1
vaddss xmm3, xmm3, xmm4
vaddss xmm2, xmm2, xmm3
vucomiss xmm2, xmm1
setb al
cmp ebp, dword ptr [rdi]
sete dl
and dl, al
movzx eax, dl
or esi, eax
add rdi, 16
dec rbx
jne .LBB0_4

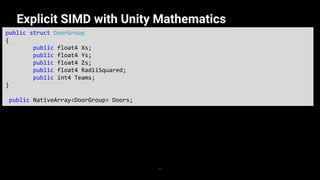

45. Explicit SIMD with Unity Mathematics
45
public struct DoorGroup
{
public float4 Xs;
public float4 Ys;
public float4 Zs;
public float4 RadiiSquared;
public int4 Teams;
}
public NativeArray<DoorGroup> Doors;

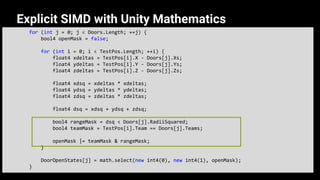

46. Explicit SIMD with Unity Mathematics
46
for (int j = 0; j < Doors.Length; ++j) {
bool4 openMask = false;
for (int i = 0; i < TestPos.Length; ++i) {
float4 xdeltas = TestPos[i].X - Doors[j].Xs;
float4 ydeltas = TestPos[i].Y - Doors[j].Ys;
float4 zdeltas = TestPos[i].Z - Doors[j].Zs;
float4 xdsq = xdeltas * xdeltas;
float4 ydsq = ydeltas * ydeltas;
float4 zdsq = zdeltas * zdeltas;
float4 dsq = xdsq + ydsq + zdsq;
bool4 rangeMask = dsq < Doors[j].RadiiSquared;
bool4 teamMask = TestPos[i].Team == Doors[j].Teams;
openMask |= teamMask & rangeMask;
}
DoorOpenStates[j] = math.select(new int4(0), new int4(1), openMask);
}

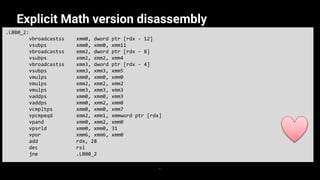

47. Explicit Math version disassembly
47
.LBB0_2:
vbroadcastss xmm0, dword ptr [rdx - 12]
vsubps xmm0, xmm0, xmm11
vbroadcastss xmm2, dword ptr [rdx - 8]
vsubps xmm2, xmm2, xmm4
vbroadcastss xmm3, dword ptr [rdx - 4]
vsubps xmm3, xmm3, xmm5
vmulps xmm0, xmm0, xmm0
vmulps xmm2, xmm2, xmm2
vmulps xmm3, xmm3, xmm3
vaddps xmm0, xmm0, xmm3
vaddps xmm0, xmm2, xmm0
vcmpltps xmm0, xmm0, xmm7
vpcmpeqd xmm2, xmm1, xmmword ptr [rdx]
vpand xmm0, xmm2, xmm0
vpsrld xmm0, xmm0, 31
vpor xmm6, xmm6, xmm0
add rdx, 28
dec rsi
jne .LBB0_2

48. Explicit SIMD with Burst Intrinsics

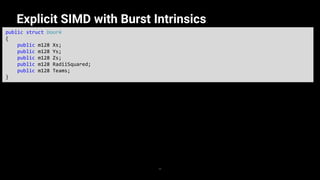

48
public struct Door4
{
public m128 Xs;
public m128 Ys;
public m128 Zs;
public m128 RadiiSquared;
public m128 Teams;
}

49. Explicit SIMD with Burst Intrinsics
49
for (int j = 0; j < Doors.Length; ++j) {
m128 openMask = new m128(~0u);
for (int i = 0; i < TestPos.Length; ++i) {
m128 tx = new m128(TestPos[i].X);
m128 ty = new m128(TestPos[i].Y);
m128 tz = new m128(TestPos[i].Z);
m128 tt = new m128(TestPos[i].Team);
m128 xdeltas = sub_ps(Doors[j].Xs, tx);
m128 ydeltas = sub_ps(Doors[j].Ys, ty);
m128 zdeltas = sub_ps(Doors[j].Zs, tz);
m128 xdsq = mul_ps(xdeltas, xdeltas);
m128 ydsq = mul_ps(ydeltas, ydeltas);
m128 zdsq = mul_ps(zdeltas, zdeltas);
m128 dsq = add_ps(xdsq, add_ps(ydsq, zdsq));
m128 rangeMask = cmple_ps(dsq, Doors[j].RadiiSquared);
rangeMask = and_ps(rangeMask, cmpeq_epi32(Doors[j].Teams, tt));
openMask = or_ps(openMask, rangeMask);
}
DoorOpenStates.ReinterpretStore(j * 4, openMask);
}

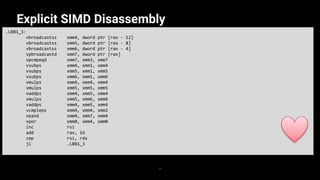

50. Explicit SIMD Disassembly
50
.LBB1_3:
vbroadcastss xmm4, dword ptr [rax - 12]
vbroadcastss xmm5, dword ptr [rax - 8]
vbroadcastss xmm6, dword ptr [rax - 4]
vpbroadcastd xmm7, dword ptr [rax]
vpcmpeqd xmm7, xmm3, xmm7
vsubps xmm4, xmm1, xmm4
vsubps xmm5, xmm1, xmm5
vsubps xmm6, xmm1, xmm6
vmulps xmm4, xmm4, xmm4
vmulps xmm5, xmm5, xmm5
vaddps xmm4, xmm5, xmm4
vmulps xmm5, xmm6, xmm6
vaddps xmm4, xmm5, xmm4
vcmpleps xmm4, xmm4, xmm2
vpand xmm4, xmm7, xmm4
vpor xmm0, xmm4, xmm0
inc rsi
add rax, 16
cmp rsi, rdx
jl .LBB1_3

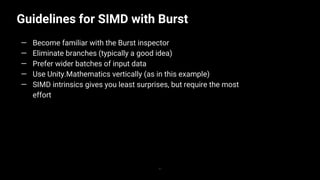

51. Guidelines for SIMD with Burst
51
— Become familiar with the Burst inspector
— Eliminate branches (typically a good idea)
— Prefer wider batches of input data
— Use Unity.Mathematics vertically (as in this example)
— SIMD intrinsics gives you least surprises, but require the most
effort

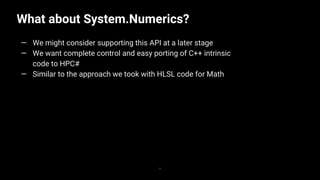

52. What about System.Numerics?
52
— We might consider supporting this API at a later stage
— We want complete control and easy porting of C++ intrinsic
code to HPC#
— Similar to the approach we took with HLSL code for Math

53. Summary
53
— Intrinsics are coming
— Be careful with abstractions
— Adopt a SIMD mindset with Unity.Mathematics today
— Independent values are your friends
— Get familiar with the Burst inspector
— Go forth and compute more things quickly!

54. Thank you!
54
— Q & A
— Forum feedback welcome
— Twitter: @deplinenoise
