2. GenerativeArt–MadewithUnity
Best Practices for
Shader Graph
2
Charles Sanglimsuwan
Developer Relations Engineer

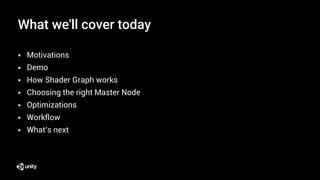

3. What we'll cover today
 Motivations
 Demo
 How Shader Graph works
 Choosing the right Master Node
 Optimizations
 Workflow
 What’s next
3

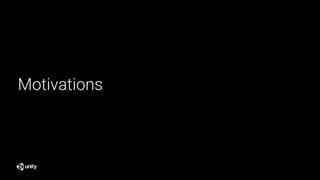

4. Motivations
4

5. 5
Democratize
Development
Solve Hard
Problems
Enable
Success

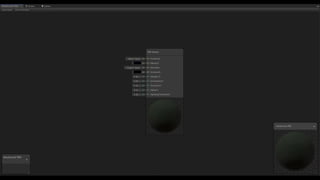

6. 6

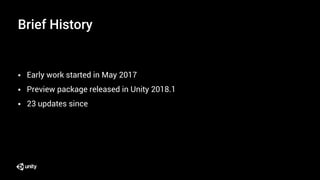

7. Brief History
 Early work started in May 2017
 Preview package released in Unity 2018.1
 23 updates since
7

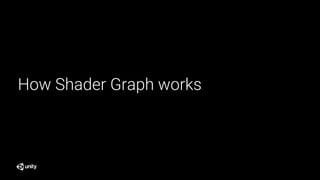

8. How Shader Graph works
8

9. Scriptable Render Pipeline
 Shader Graph requires SRP
 High Definition Render Pipeline (HDRP)
 Lightweight Render Pipeline (LWRP)
 VR Lightweight Render Pipeline (VR LWRP)
9

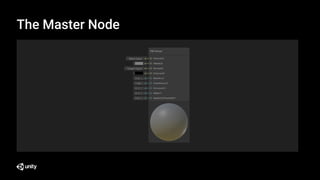

10. The Master Node
10

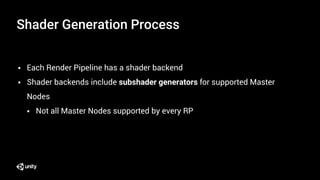

11. Shader Generation Process
 Each Render Pipeline has a shader backend
 Shader backends include subshader generators for supported Master
Nodes
 Not all Master Nodes supported by every RP
11

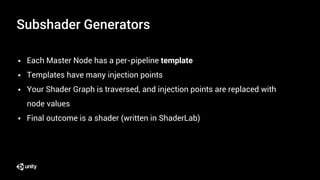

12. Subshader Generators
 Each Master Node has a per-pipeline template
 Templates have many injection points
 Your Shader Graph is traversed, and injection points are replaced with
node values
 Final outcome is a shader (written in ShaderLab)
12

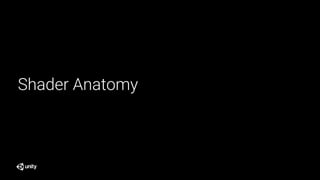

13. Shader Anatomy
13

14. Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
14
Shader Graph

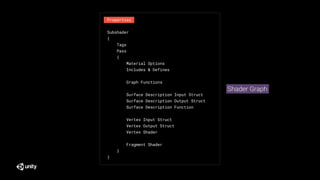

15. 15
Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
Shader Graph

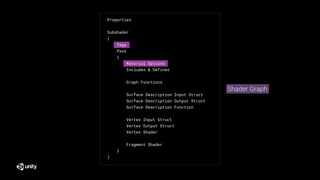

16. 16
Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
Shader Graph

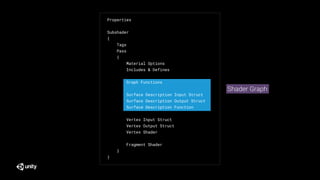

17. 17
Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
Shader Graph

18. 18
void Unity_Multiply_float (float3 A, float3 B, out float3 Out)
{
Out = A * B;
}
struct SurfaceDescriptionInputs
{
float3 WorldSpaceTangent;
}
struct SurfaceDescription
{
float3 Albedo;
}
SurfaceDescription PopulateSurfaceData (SurfaceDescriptionInputs IN)
{
SurfaceDescription surface = (SurfaceDescription)0;
float _Vector1_1EF2E600_Out = 2;
float3 _Multiply_E1E37A64_Out;
Unity_Multiply_float(IN.WorldSpaceTangent,
_Vector1_1EF2E600_Out.xxx,
_Multiply_E1E37A64_Out)
surface.Albedo = _Multiply_E1E37A64_Out;
return surface;
}
Example: Surface Description

19. 19
void Unity_Multiply_float (float3 A, float3 B, out float3 Out)
{
Out = A * B;
}
struct SurfaceDescriptionInputs
{
float3 WorldSpaceTangent;
}
struct SurfaceDescription
{
float3 Albedo;
}
SurfaceDescription PopulateSurfaceData (SurfaceDescriptionInputs IN)
{
SurfaceDescription surface = (SurfaceDescription)0;
float _Vector1_1EF2E600_Out = 2;
float3 _Multiply_E1E37A64_Out;
Unity_Multiply_float(IN.WorldSpaceTangent,
_Vector1_1EF2E600_Out.xxx,
_Multiply_E1E37A64_Out)
surface.Albedo = _Multiply_E1E37A64_Out;
return surface;
}
Example: Surface Description

20. 20
void Unity_Multiply_float (float3 A, float3 B, out float3 Out)
{
Out = A * B;
}
struct SurfaceDescriptionInputs
{
float3 WorldSpaceTangent;
}
struct SurfaceDescription
{
float3 Albedo;
}
SurfaceDescription PopulateSurfaceData (SurfaceDescriptionInputs IN)
{
SurfaceDescription surface = (SurfaceDescription)0;
float _Vector1_1EF2E600_Out = 2;
float3 _Multiply_E1E37A64_Out;
Unity_Multiply_float(IN.WorldSpaceTangent,
_Vector1_1EF2E600_Out.xxx,
_Multiply_E1E37A64_Out)
surface.Albedo = _Multiply_E1E37A64_Out;
return surface;
}

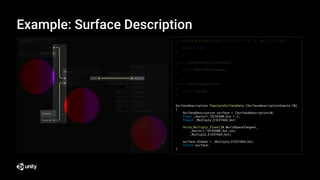

Example: Surface Description

21. 21
void Unity_Multiply_float (float3 A, float3 B, out float3 Out)
{
Out = A * B;
}
struct SurfaceDescriptionInputs
{
float3 WorldSpaceTangent;
}
struct SurfaceDescription
{
float3 Albedo;
}
SurfaceDescription PopulateSurfaceData (SurfaceDescriptionInputs IN)
{
SurfaceDescription surface = (SurfaceDescription)0;
float _Vector1_1EF2E600_Out = 2;
float3 _Multiply_E1E37A64_Out;
Unity_Multiply_float(IN.WorldSpaceTangent,
_Vector1_1EF2E600_Out.xxx,
_Multiply_E1E37A64_Out)
surface.Albedo = _Multiply_E1E37A64_Out;
return surface;
}
Example: Surface Description

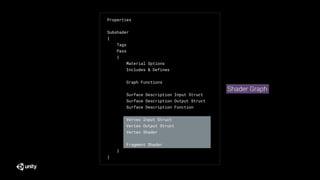

22. 22
Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
Shader Graph

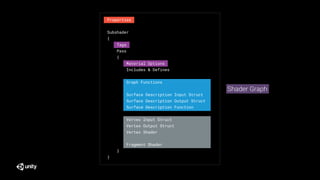

23. 23
Properties
Subshader
{
Tags
Pass
{
Material Options
Includes & Defines
Graph Functions
Surface Description Input Struct
Surface Description Output Struct
Surface Description Function
Vertex Input Struct
Vertex Output Struct
Vertex Shader
Fragment Shader
}
}
Shader Graph

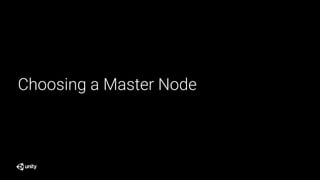

24. Choosing a Master Node
24

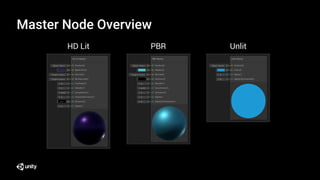

25. Master Node Overview
25
UnlitHD Lit PBR

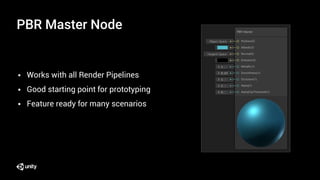

26. PBR Master Node
 Works with all Render Pipelines
 Good starting point for prototyping
 Feature ready for many scenarios
26

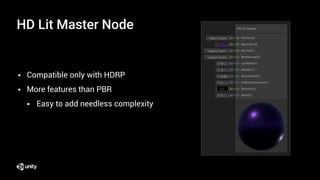

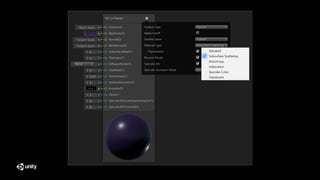

27. HD Lit Master Node
 Compatible only with HDRP
 More features than PBR
 Easy to add needless complexity
27

28. 28

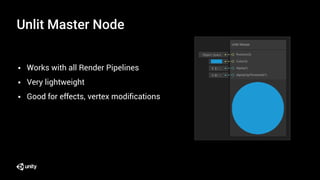

29. Unlit Master Node
 Works with all Render Pipelines
 Very lightweight
 Good for effects, vertex modifications
29

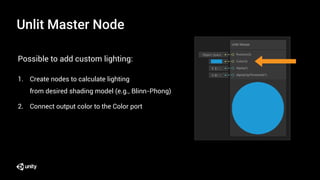

30. Unlit Master Node
Possible to add custom lighting:
1. Create nodes to calculate lighting
from desired shading model (e.g., Blinn-Phong)
2. Connect output color to the Color port
30

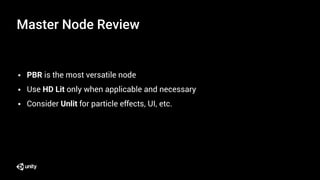

31. Master Node Review
 PBR is the most versatile node
 Use HD Lit only when applicable and necessary
 Consider Unlit for particle effects, UI, etc.
31

32. Unity Optimizations
32

33. Built-in Optimizations
1. Where ever possible, Shader Graph will not add unused features to
output shader
 Changing the default value will mark the feature active
 Connecting any node will mark the feature active
2. The shader compiler will compile out no-op features
33

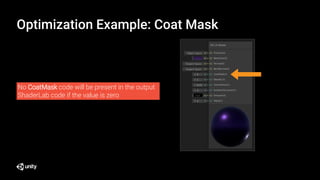

34. Optimization Example: Coat Mask
34
No CoatMask code will be present in the output
ShaderLab code if the value is zero

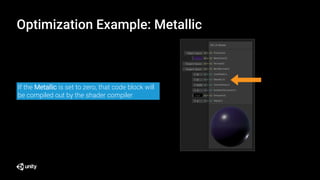

35. Optimization Example: Metallic
35
If the Metallic is set to zero, that code block will
be compiled out by the shader compiler

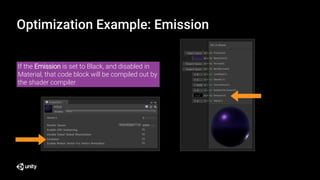

36. Optimization Example: Emission
36
If the Emission is set to Black, and disabled in
Material, that code block will be compiled out by
the shader compiler

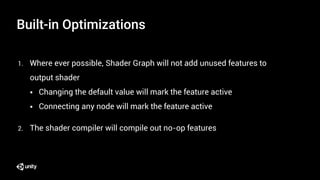

37. Built-in Optimizations
1. Where ever possible, Shader Graph will not add unused features to
output shader
 Changing the default value will mark the feature active
 Connecting any node will mark the feature active
2. The shader compiler will compile out no-op features
37

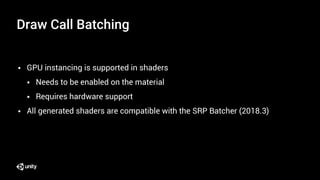

38. Draw Call Batching
 GPU instancing is supported in shaders
 Needs to be enabled on the material
 Requires hardware support
 All generated shaders are compatible with the SRP Batcher (2018.3)
38

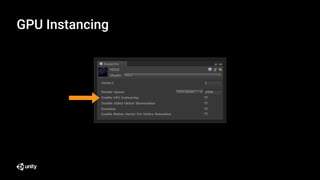

39. GPU Instancing
39

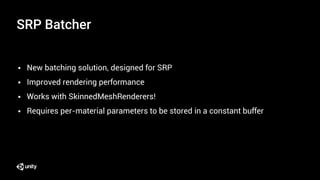

40. SRP Batcher
 New batching solution, designed for SRP
 Improved rendering performance
 Works with SkinnedMeshRenderers!
 Requires per-material parameters to be stored in a constant buffer
40

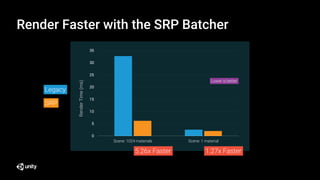

41. Render Faster with the SRP Batcher
41
0
5
10
15
20
25
30
35
Scene: 1024 materials Scene: 1 material
RenderTime(ms)
5.26x Faster 1.27x Faster
SRP
Legacy
Lower is better

42. Graph Optimizations
42

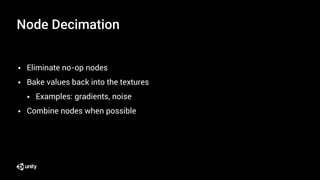

43. Node Decimation
 Eliminate no-op nodes
 Bake values back into the textures
 Examples: gradients, noise
 Combine nodes when possible
43

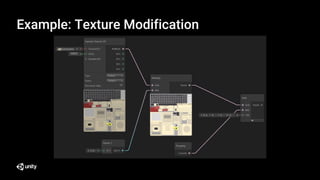

44. Example: Texture Modification
44

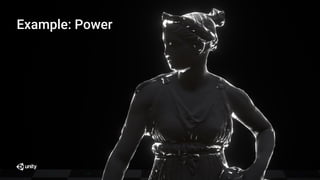

45. Example: Power
45

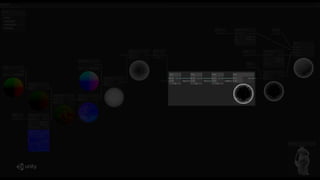

46. 46

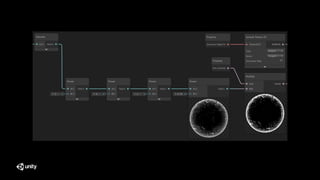

47. 47

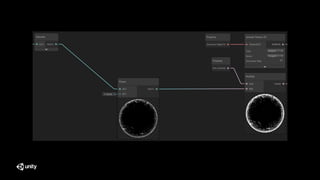

48. 48

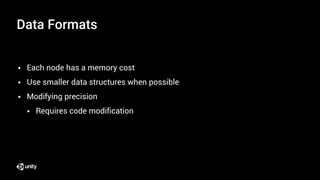

49. Data Formats
 Each node has a memory cost
 Use smaller data structures when possible
 Modifying precision
 Requires code modification
49

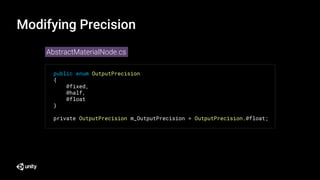

50. 50
public enum OutputPrecision
{
@fixed,
@half,
@float
}
private OutputPrecision m_OutputPrecision = OutputPrecision.@float;
Modifying Precision
AbstractMaterialNode.cs

51. Reduce Math Operations
 Multiply scalar values before vector values
 Prefer blending results, instead of branching
 Research impact of certain math operations
 Prefer constants when possible
51

52. Example: Reciprocal
52
Fast mode requires Shader Model 5

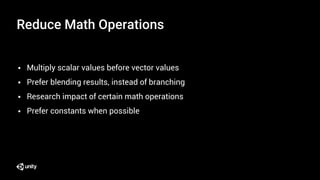

53. Reduce Math Operations
 Multiply scalar values before vector values
 Prefer blending results, instead of branching
 Research impact of certain math operations
 Prefer constants when possible
53

54. Example: Properties
54

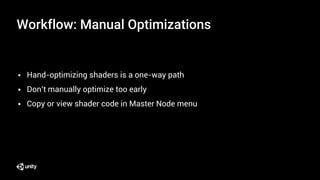

55. Workflow: Manual Optimizations
 Hand-optimizing shaders is a one-way path
 Don’t manually optimize too early
 Copy or view shader code in Master Node menu
55

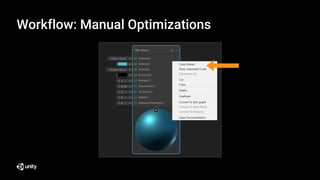

56. Workflow: Manual Optimizations
56

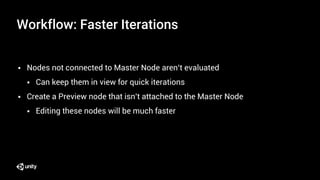

57. Workflow: Faster Iterations
 Nodes not connected to Master Node aren’t evaluated
 Can keep them in view for quick iterations
 Create a Preview node that isn’t attached to the Master Node
 Editing these nodes will be much faster
57

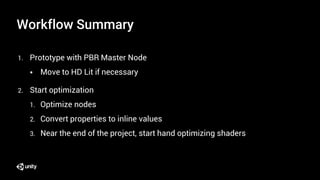

58. Workflow Summary
1. Prototype with PBR Master Node
 Move to HD Lit if necessary
2. Start optimization
1. Optimize nodes
2. Convert properties to inline values
3. Near the end of the project, start hand optimizing shaders
58

59. Exploratory
59

60. Custom API
 Create your own nodes
 Examples: specialized noise functions, custom lighting, etc.
 Full documentation available on GitHub
60

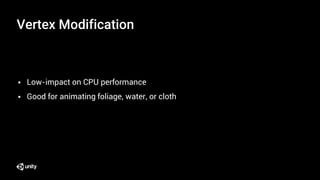

61. Vertex Modification
 Low-impact on CPU performance
 Good for animating foliage, water, or cloth
61

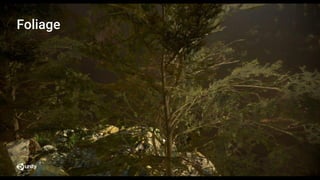

62. 62
Foliage

63. 63

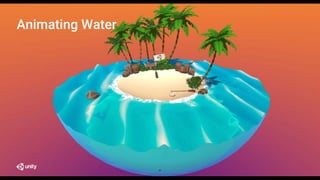

Animating Water

64. What’s next
64

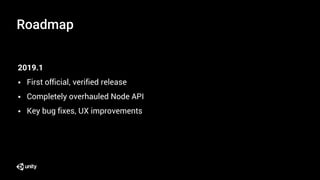

65. Roadmap
2019.1
 First official, verified release
 Completely overhauled Node API
 Key bug fixes, UX improvements
65

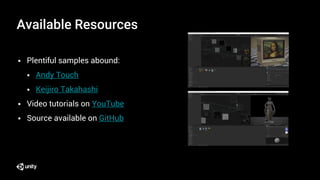

66. Available Resources
 Plentiful samples abound:
 Andy Touch
 Keijiro Takahashi
 Video tutorials on YouTube
 Source available on GitHub
66

67. Questions?
67

68. 68

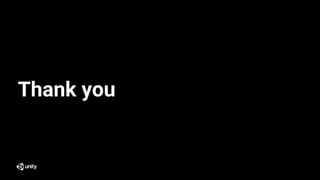

Thank you
