SQL on Hadoop in Taiwan

  1. 1. SQL on Hadoop a Perspective of a Cloud-based, Managed Service Provider Masahiro Nakagawa Sep 13, 2014 Hadoop Meetup in Taiwan

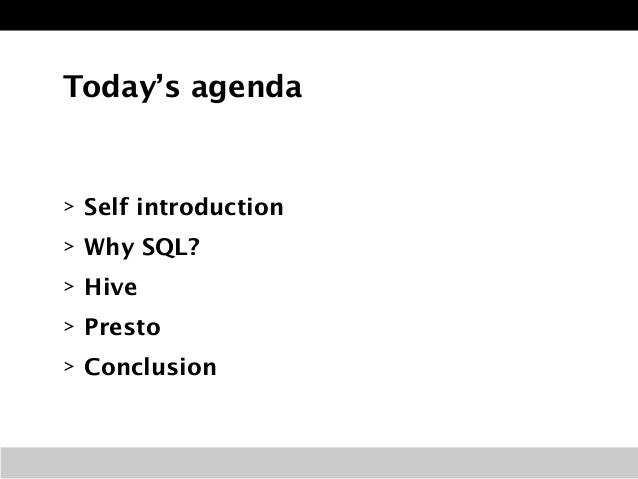

  2. 2. Today’s agenda > Self introduction > Why SQL? > Hive > Presto > Conclusion

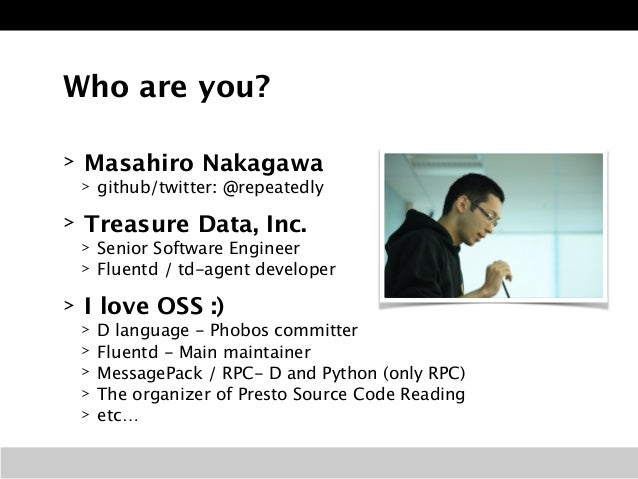

  3. 3. Who are you? > Masahiro Nakagawa > github/twitter: @repeatedly > Treasure Data, Inc. > Senior Software Engineer > Fluentd / td-agent developer > I love OSS :) > D language - Phobos committer > Fluentd - Main maintainer > MessagePack / RPC- D and Python (only RPC) > The organizer of Presto Source Code Reading > etc…
  4. 4. Do you love SQL?

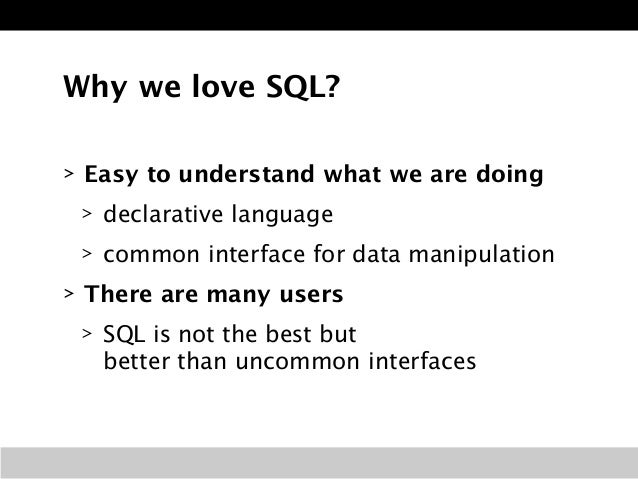

  5. 5. Why we love SQL? > Easy to understand what we are doing > declarative language > common interface for data manipulation > There are many users > SQL is not the best but better than uncommon interfaces
  6. 6. We want to use SQL in the Hadoop world

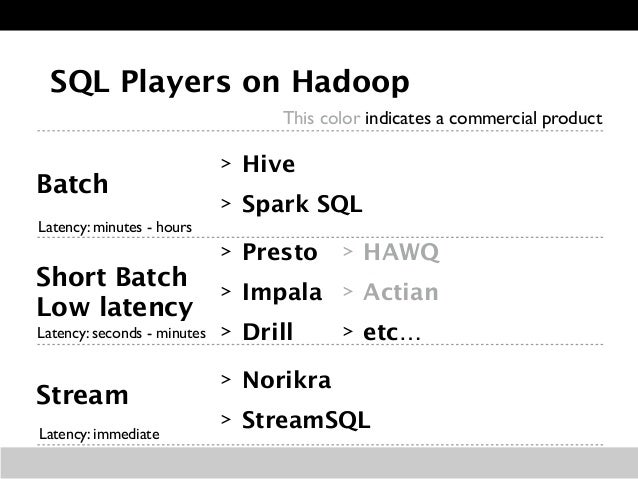

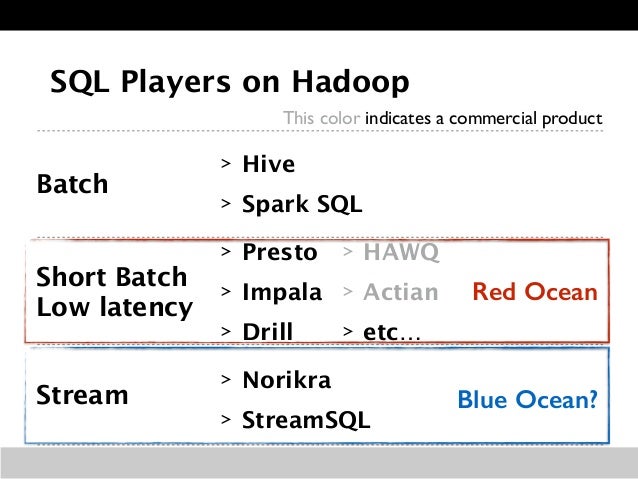

  7. 7. SQL Players on Hadoop This color indicates a commercial product > Hive > Spark SQL Batch Short Batch Low latency Stream > Presto > Impala > Drill > Norikra > StreamSQL > HAWQ > Actian > etc… Latency: minutes - hours Latency: seconds - minutes Latency: immediate
  8. 8. SQL Players on Hadoop This color indicates a commercial product > Hive > Spark SQL Batch Short Batch Low latency Stream > Presto > Impala > Drill > HAWQ > Actian > etc… Red Ocean Blue Ocean? > Norikra > StreamSQL

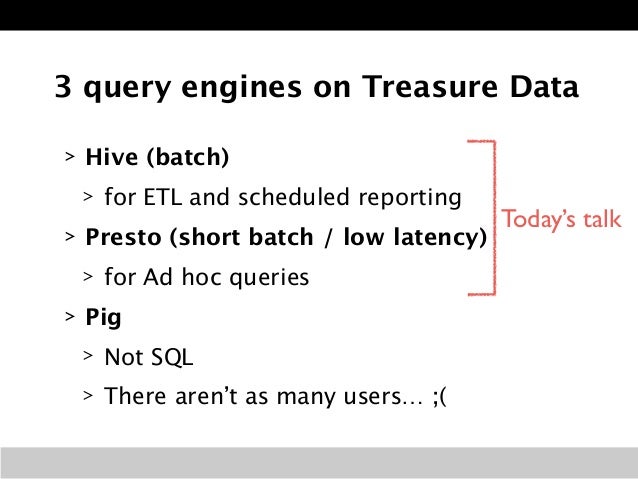

  9. 9. 3 query engines on Treasure Data > Hive (batch) > for ETL and scheduled reporting > Presto (short batch / low latency) > for Ad hoc queries > Pig > Not SQL > There aren’t as many users… ;( Today’s talk
  10. 10. Presto https://hive.apache.org/

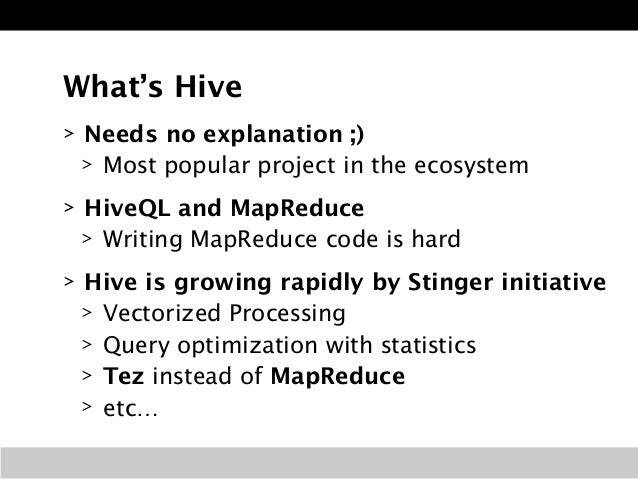

  11. 11. What’s Hive > Needs no explanation ;) > Most popular project in the ecosystem > HiveQL and MapReduce > Writing MapReduce code is hard > Hive is growing rapidly by Stinger initiative > Vectorized Processing > Query optimization with statistics > Tez instead of MapReduce > etc…

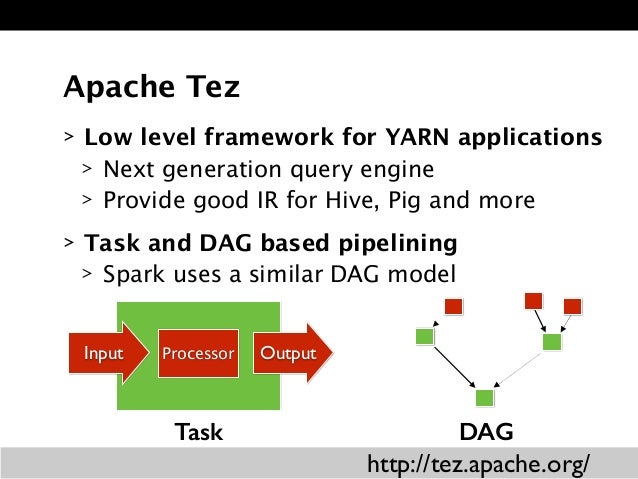

  12. 12. Apache Tez > Low level framework for YARN applications > Next generation query engine > Provide good IR for Hive, Pig and more > Task and DAG based pipelining > Spark uses a similar DAG model Input Processor Output Task DAG http://tez.apache.org/

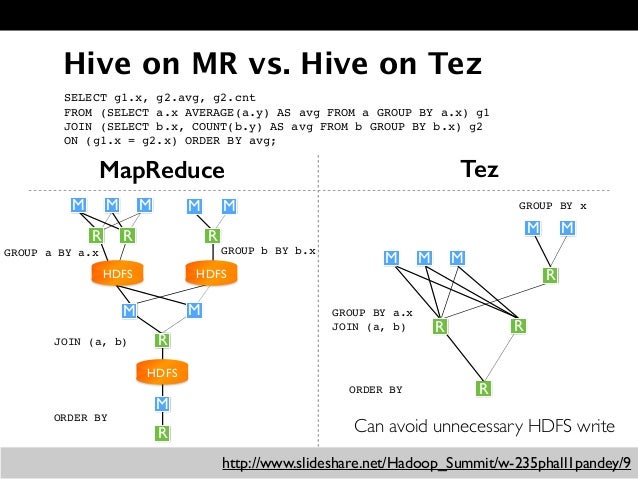

  13. 13. Hive on MR vs. Hive on Tez SELECT g1.x, g2.avg, g2.cnt FROM (SELECT a.x AVERAGE(a.y) AS avg FROM a GROUP BY a.x) g1" JOIN (SELECT b.x, COUNT(b.y) AS avg FROM b GROUP BY b.x) g2" ON (g1.x = g2.x) ORDER BY avg; MapReduce Tez M M M M R HDFS HDFS M M M http://www.slideshare.net/Hadoop_Summit/w-235phall1pandey/9 M M R HDFS M R R R M R M M R R R Can avoid unnecessary HDFS write GROUP a BY a.x GROUP b BY b.x JOIN (a, b) ORDER BY GROUP BY x GROUP BY a.x" JOIN (a, b) ORDER BY

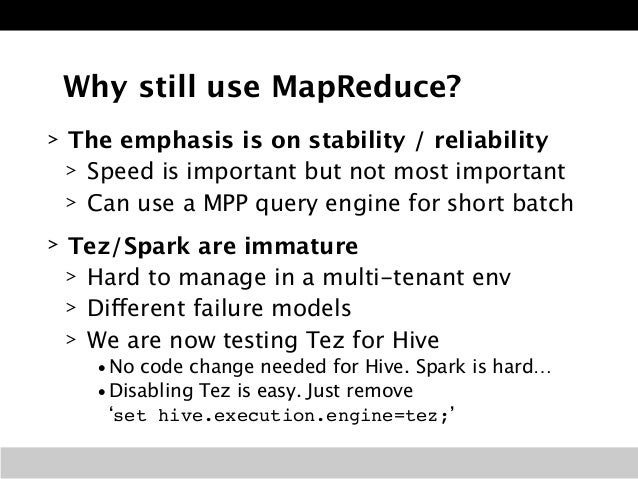

  14. 14. Why still use MapReduce? > The emphasis is on stability / reliability > Speed is important but not most important > Can use a MPP query engine for short batch > Tez/Spark are immature > Hard to manage in a multi-tenant env > Different failure models > We are now testing Tez for Hive •No code change needed for Hive. Spark is hard… • Disabling Tez is easy. Just remove ‘set hive.execution.engine=tez;’
  15. 15. Presto http://prestodb.io/
  16. 16. What’s Presto? A distributed SQL query engine for interactive data analisys against GBs to PBs of data.

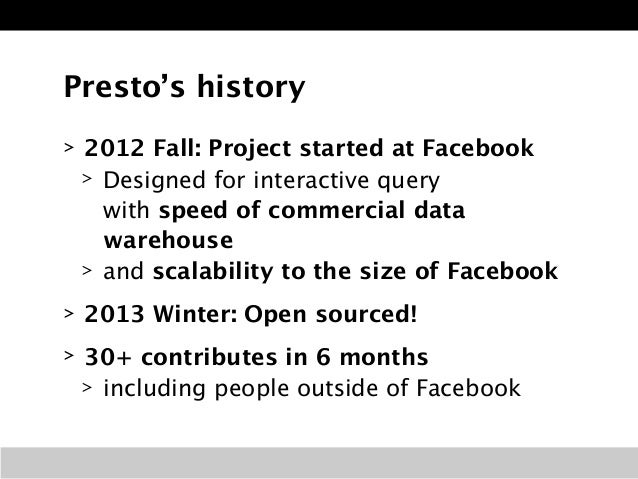

  17. 17. Presto’s history > 2012 Fall: Project started at Facebook > Designed for interactive query with speed of commercial data warehouse > and scalability to the size of Facebook > 2013 Winter: Open sourced! > 30+ contributes in 6 months > including people outside of Facebook

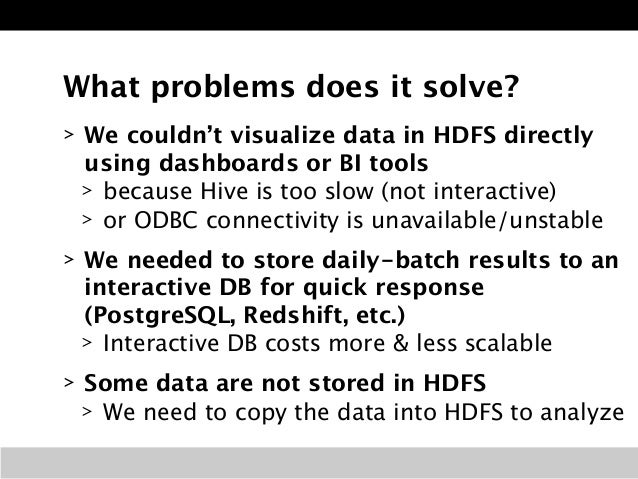

  18. 18. What problems does it solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more & less scalable > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

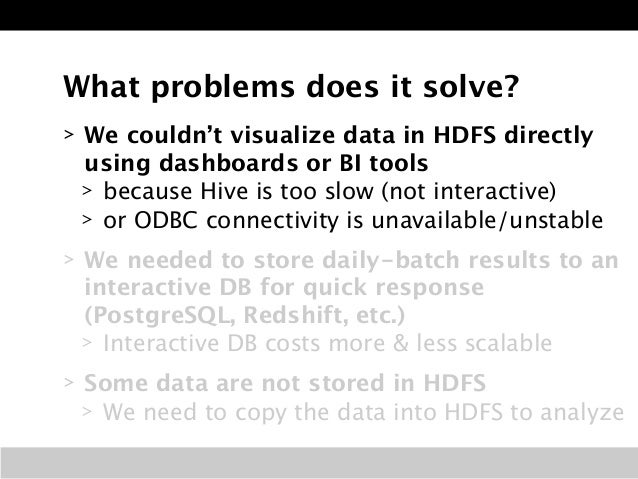

  19. 19. What problems does it solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more & less scalable > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

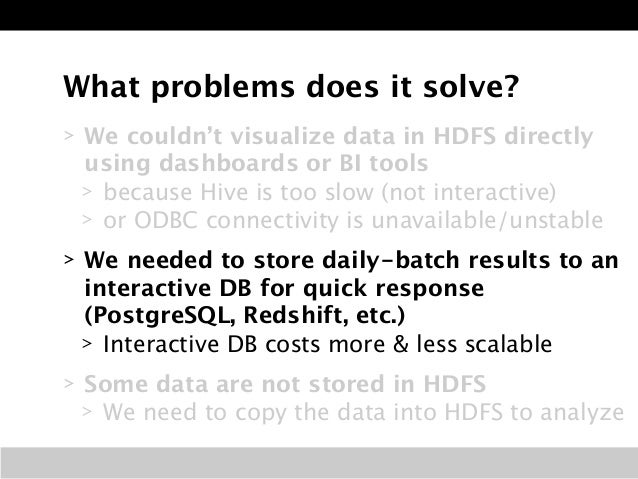

  20. 20. What problems does it solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more & less scalable > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

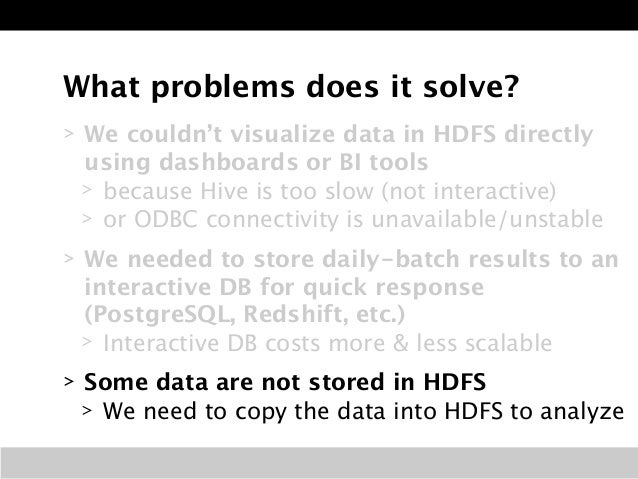

  21. 21. What problems does it solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more & less scalable > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

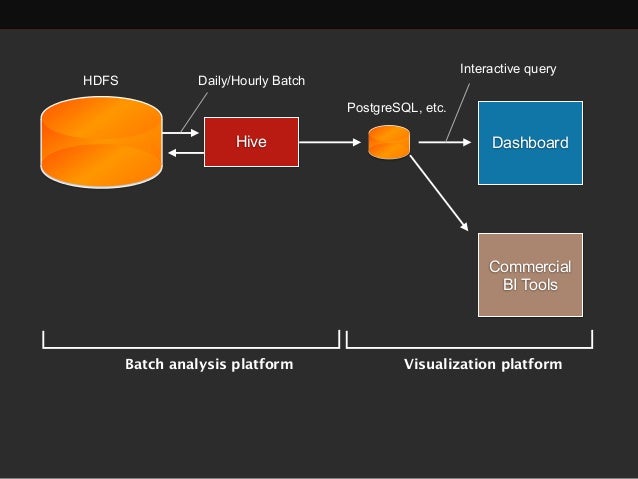

  22. 22. HDFS Hive PostgreSQL, etc. Daily/Hourly Batch Interactive query Dashboard Commercial BI Tools Batch analysis platform Visualization platform

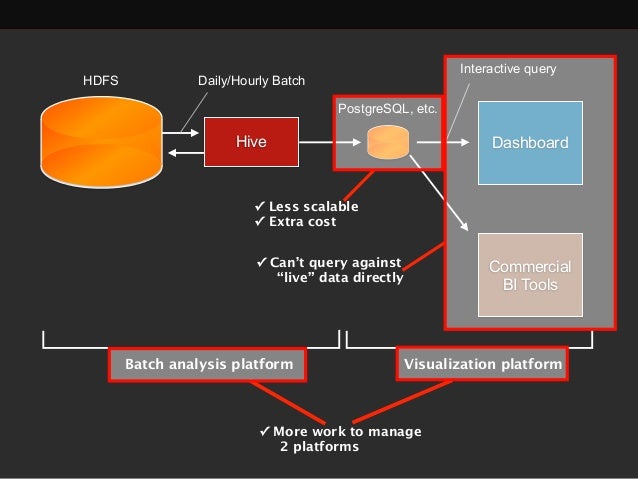

  23. 23. HDFS Daily/Hourly Batch Hive Interactive query PostgreSQL, etc. ✓ Less scalable ✓ Extra cost Dashboard Commercial BI Tools ✓ Can’t query against “live” data directly Batch analysis platform Visualization platform ✓ More work to manage 2 platforms

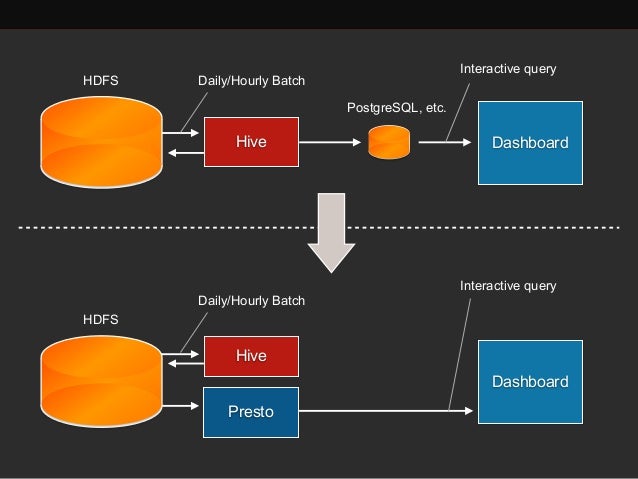

  24. 24. HDFS Hive Dashboard Presto PostgreSQL, etc. Daily/Hourly Batch HDFS Hive Dashboard Daily/Hourly Batch Interactive query Interactive query

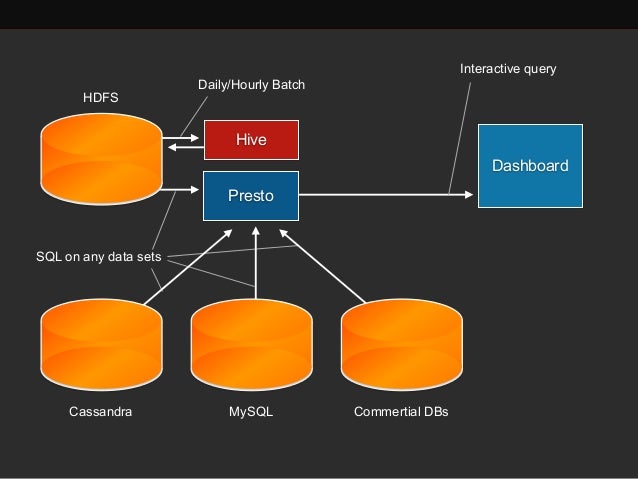

  25. 25. Presto HDFS Hive Dashboard Daily/Hourly Batch Interactive query SQL on any data sets Cassandra MySQL Commertial DBs

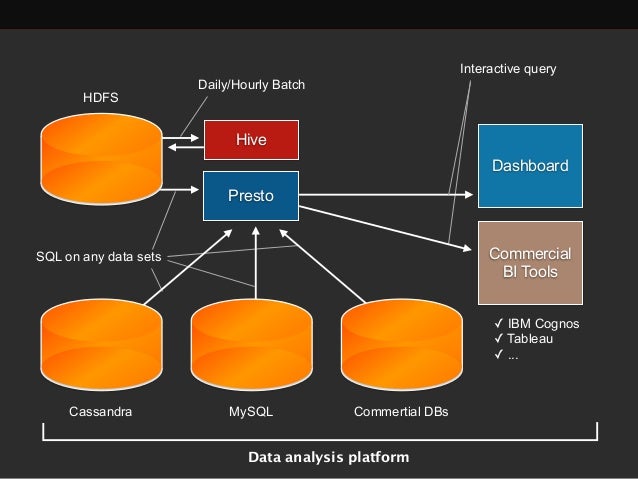

  26. 26. Presto HDFS Hive Dashboard Daily/Hourly Batch Interactive query SQL on any data sets Commercial Cassandra MySQL Commertial DBs BI Tools ✓ IBM Cognos ✓ Tableau ✓ ... Data analysis platform

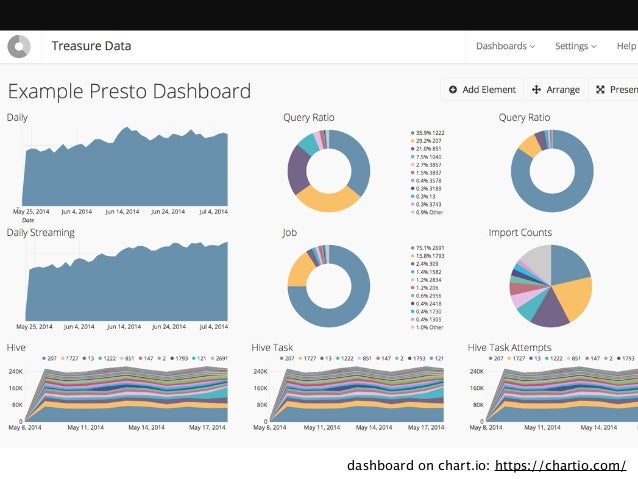

  27. 27. dashboard on chart.io: https://chartio.com/

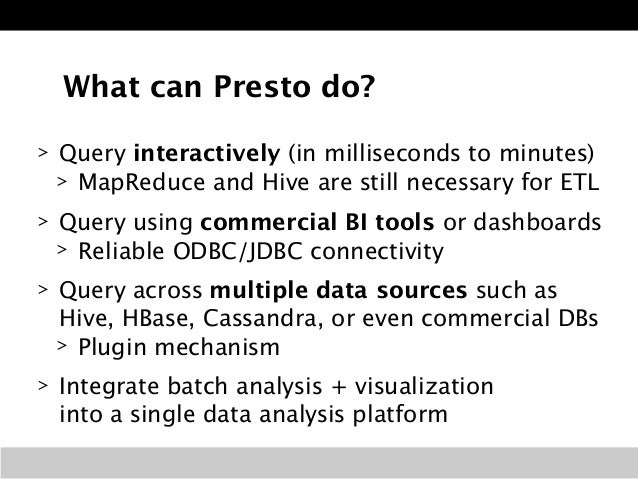

  28. 28. What can Presto do? > Query interactively (in milliseconds to minutes) > MapReduce and Hive are still necessary for ETL > Query using commercial BI tools or dashboards > Reliable ODBC/JDBC connectivity > Query across multiple data sources such as Hive, HBase, Cassandra, or even commercial DBs > Plugin mechanism > Integrate batch analysis + visualization into a single data analysis platform

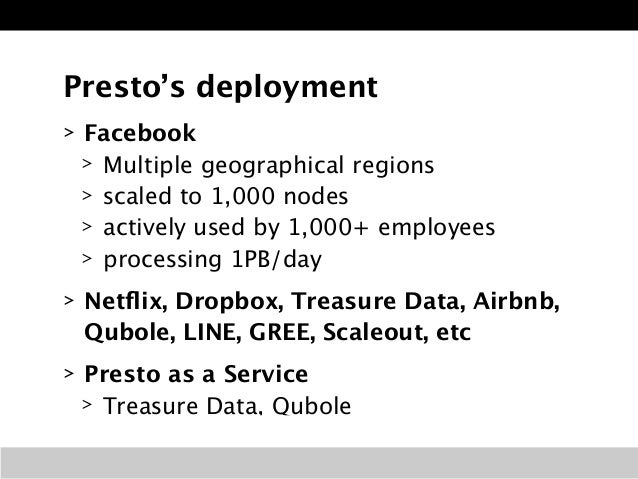

  29. 29. Presto’s deployment > Facebook > Multiple geographical regions > scaled to 1,000 nodes > actively used by 1,000+ employees > processing 1PB/day > Netflix, Dropbox, Treasure Data, Airbnb, Qubole, LINE, GREE, Scaleout, etc > Presto as a Service > Treasure Data, Qubole

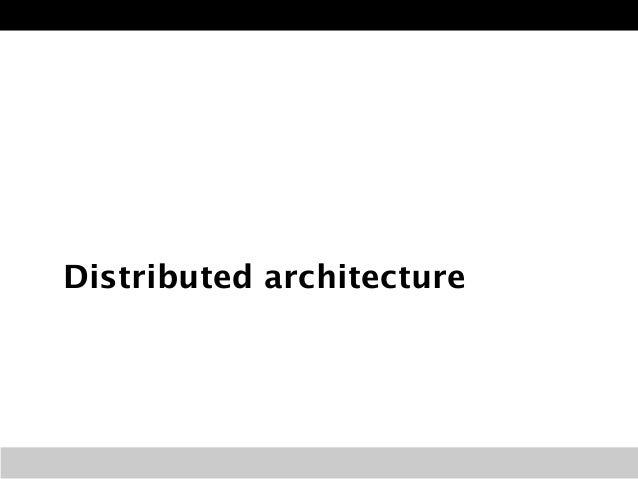

  30. 30. Distributed architecture
  31. 31. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service

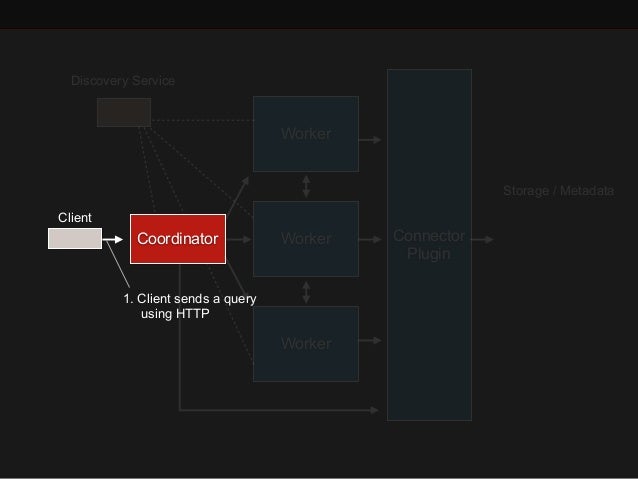

  32. 32. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 1. Client sends a query using HTTP

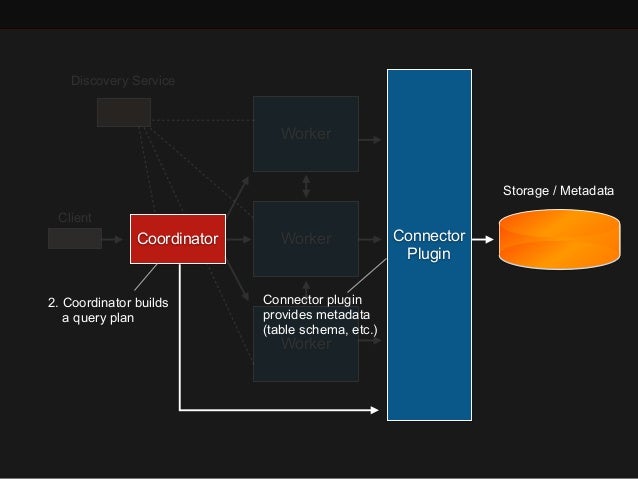

  33. 33. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 2. Coordinator builds a query plan Connector plugin provides metadata (table schema, etc.)

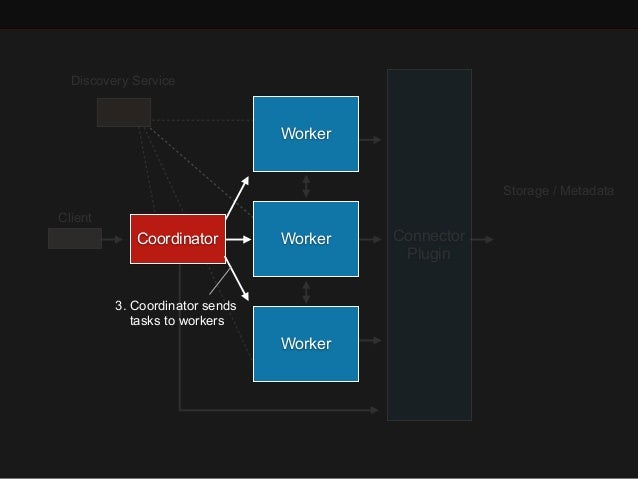

  34. 34. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 3. Coordinator sends tasks to workers

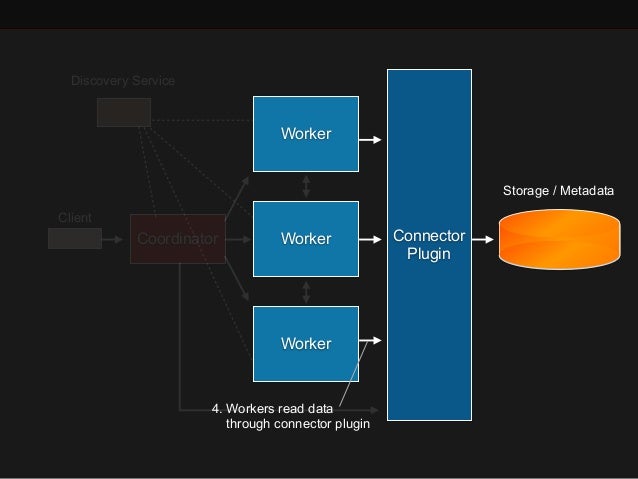

  35. 35. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 4. Workers read data through connector plugin

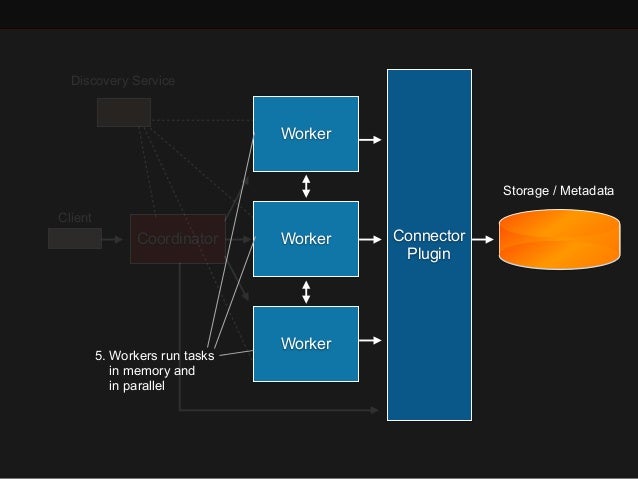

  36. 36. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 5. Workers run tasks in memory and in parallel
  37. 37. Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service Client 6. Client gets the result from a worker

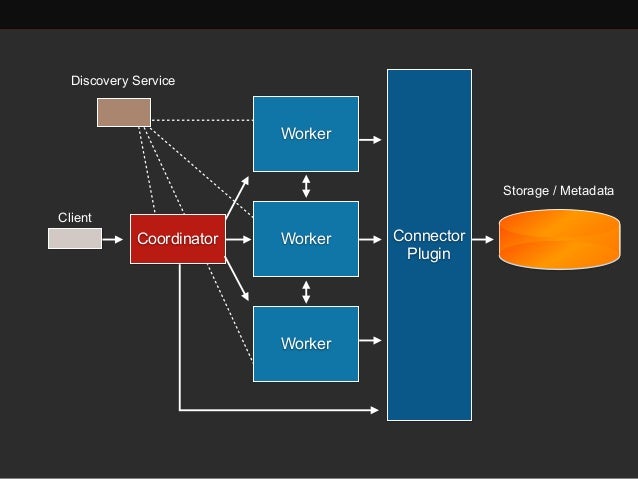

  38. 38. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service
  39. 39. What’s Connectors? > Access to storage and metadata > provide table schema to coordinators > provide table rows to workers > Connectors are pluggable to Presto > written in Java > Implementations: > Hive connector > Cassandra connector > MySQL through JDBC connector (prerelease) > Or your own connector
  40. 40. Hive connector Client Coordinator Hive Connector Worker Worker Worker HDFS, Hive Metastore Discovery Service find servers in a cluster

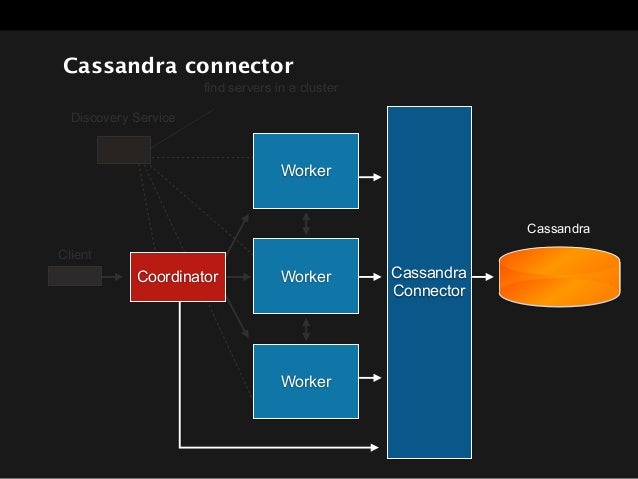

  41. 41. Cassandra connector Client Coordinator Cassandra Connector Worker Worker Worker Cassandra Discovery Service find servers in a cluster

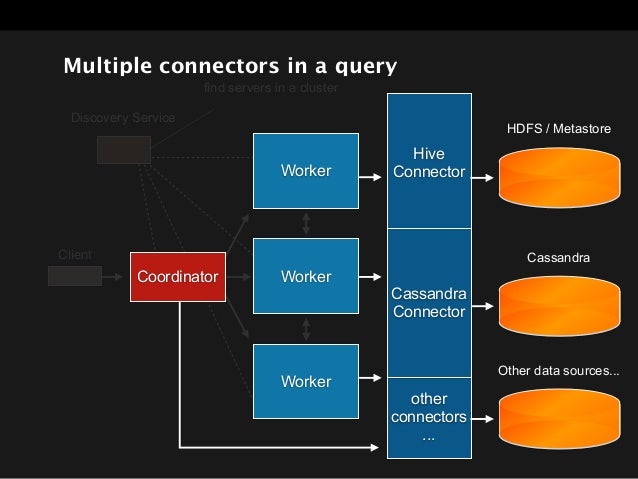

  42. 42. Client Coordinator other connectors ... Worker Worker Worker Cassandra Discovery Service find servers in a cluster Hive Connector HDFS / Metastore Multiple connectors in a query Cassandra Connector Other data sources...

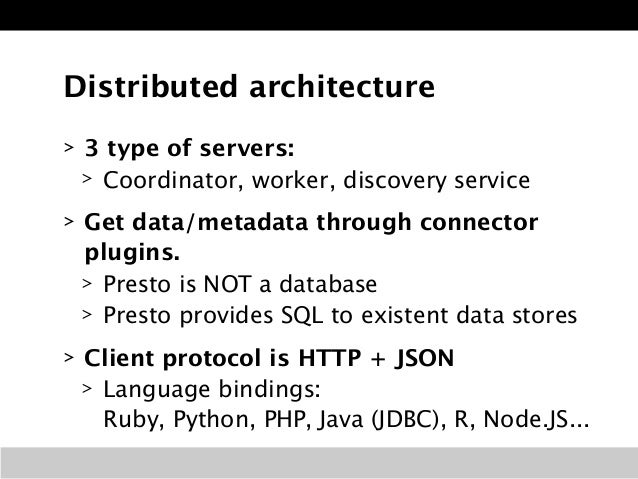

  43. 43. Distributed architecture > 3 type of servers: > Coordinator, worker, discovery service > Get data/metadata through connector plugins. > Presto is NOT a database > Presto provides SQL to existent data stores > Client protocol is HTTP + JSON > Language bindings: Ruby, Python, PHP, Java (JDBC), R, Node.JS...
  44. 44. Query Execution
  45. 45. Presto’s execution model > Presto is NOT MapReduce > Use its own execution engine > Presto’s query plan is based on DAG > more like Apache Tez / Spark or traditional MPP databases > Impala and Drill use a similar model

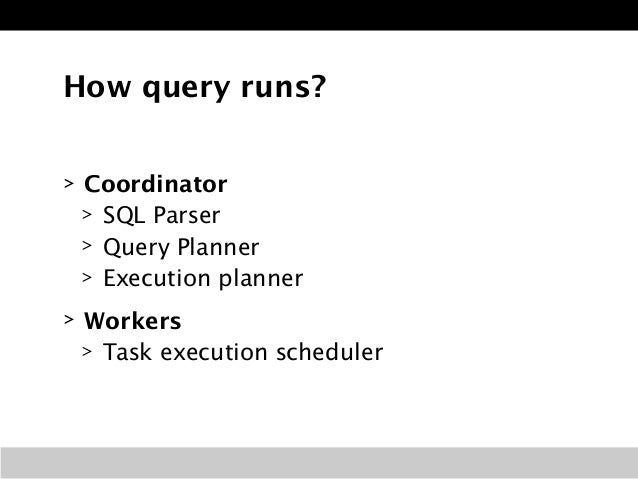

  46. 46. How query runs? > Coordinator > SQL Parser > Query Planner > Execution planner > Workers > Task execution scheduler

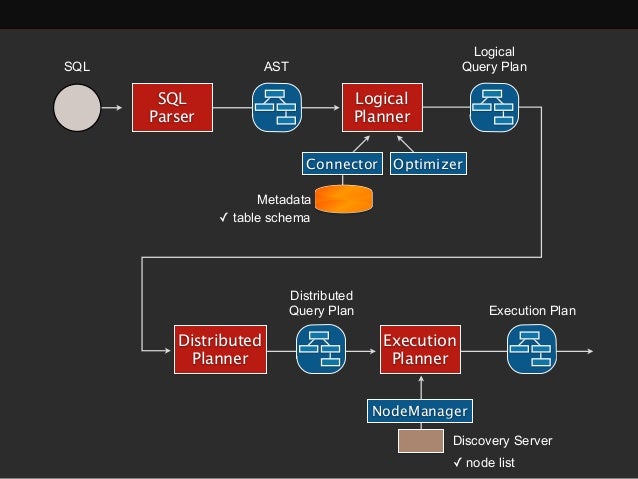

  47. 47. SQL SQL Parser AST Logical Planner Metadata Distributed Planner Logical Query Plan Optimizer Execution Planner Discovery Server Connector Distributed Query Plan Execution Plan NodeManager ✓ node list ✓ table schema

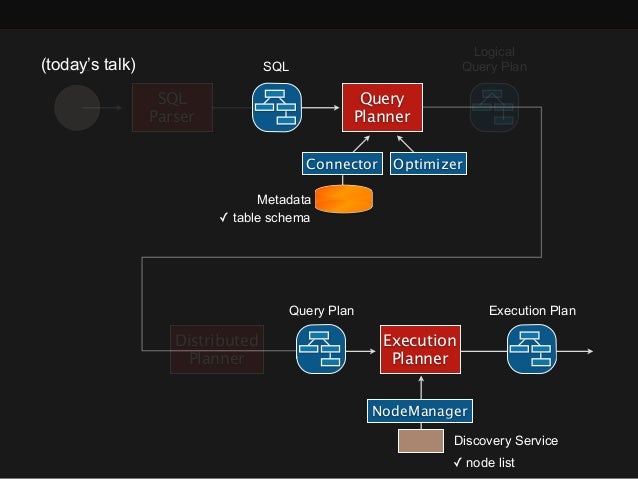

  48. 48. SQL SQL Parser SQL Metadata Distributed Planner Logical Query Plan Optimizer Execution Planner Discovery Service Connector Query Plan Execution Plan NodeManager ✓ node list ✓ table schema (today’s talk) Query Planner

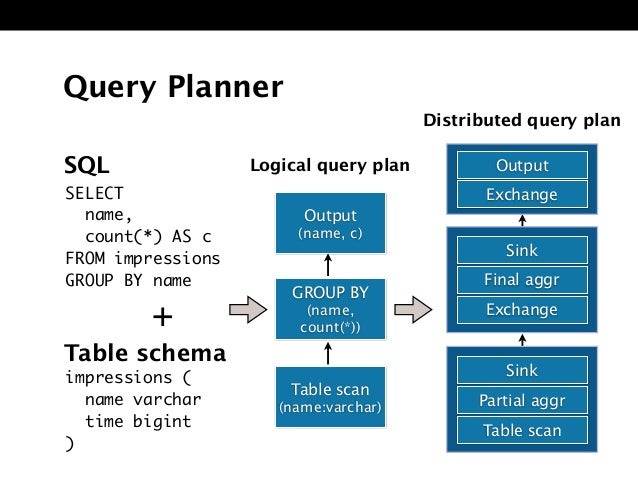

  49. 49. Query Planner SQL SELECT name, count(*) AS c FROM impressions GROUP BY name Table schema impressions ( name varchar time bigint ) Output (name, c) GROUP BY (name, count(*)) Table scan (name:varchar) + Output Exchange Sink Final aggr Exchange Sink Partial aggr Table scan Logical query plan Distributed query plan

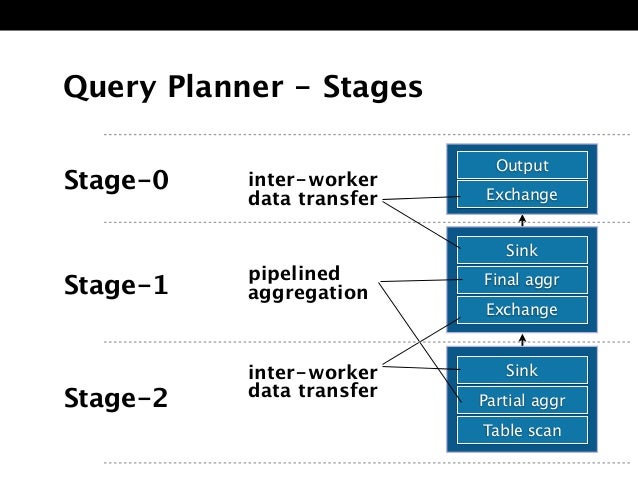

  50. 50. Query Planner - Stages Output Exchange Sink Final aggr Exchange Sink Partial aggr Table scan inter-worker data transfer Stage-0 pipelined aggregation inter-worker data transfer Stage-1 Stage-2

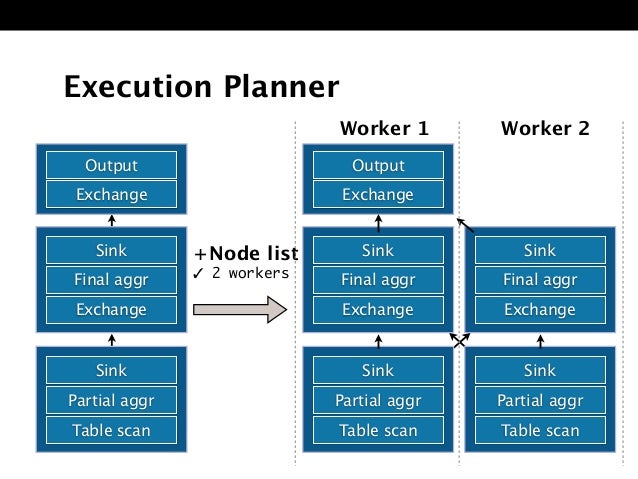

  51. 51. Output Exchange Sink Partial aggr Table scan Sink Partial aggr Table scan Execution Planner +Node list ✓ 2 workers Sink Final aggr Exchange Sink Final aggr Exchange Output Exchange Sink Final aggr Exchange Sink Partial aggr Table scan Worker 1 Worker 2

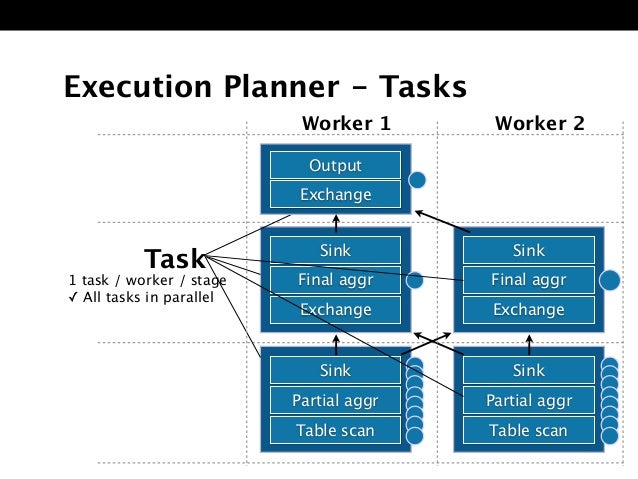

  52. 52. Execution Planner - Tasks Worker 1 Worker 2 Sink Final aggr Exchange Sink Partial aggr Table scan Sink Final aggr Exchange Sink Partial aggr Table scan Task 1 task / worker / stage ✓ All tasks in parallel Output Exchange

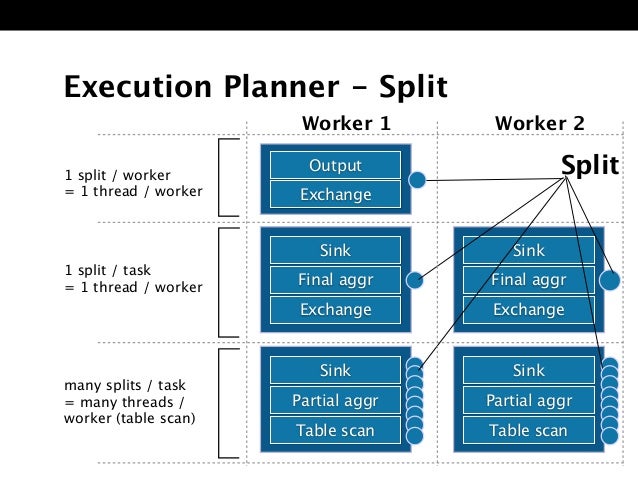

  53. 53. Execution Planner - Split Sink Final aggr Exchange Sink Partial aggr Table scan Sink Final aggr Exchange Sink Partial aggr Table scan Output Exchange Split 1 split / task = 1 thread / worker many splits / task = many threads / worker (table scan) Worker 1 Worker 2 1 split / worker = 1 thread / worker

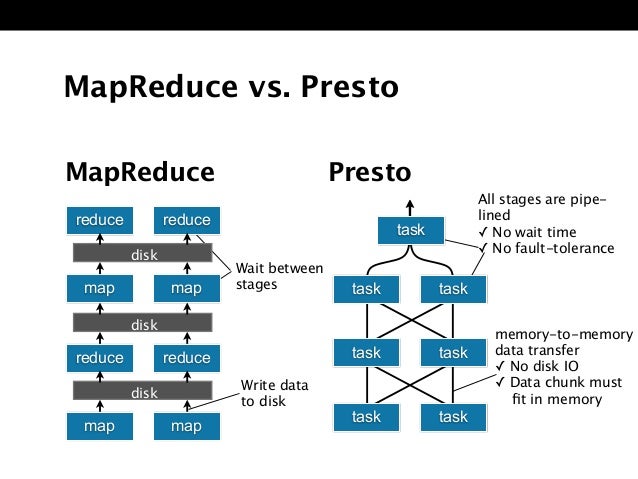

  54. 54. All stages are pipe-lined ✓ No wait time ✓ No fault-tolerance MapReduce vs. Presto MapReduce Presto reduce reduce disk map map disk reduce reduce map map task task task task task task memory-to-memory data transfer ✓ No disk IO ✓ Data chunk must fit in memory task disk Wait between stages Write data to disk
  55. 55. Query Execution > SQL is converted into stages, tasks and splits > All tasks run in parallel > No wait time between stages (pipelined) > If one task fails, all tasks fail at once (query fails) > Memory-to-memory data transfer > No disk IO > If aggregated data doesn’t fit in memory, query fails •Note: query dies but worker doesn’t die. Memory consumption of all queries is fully managed

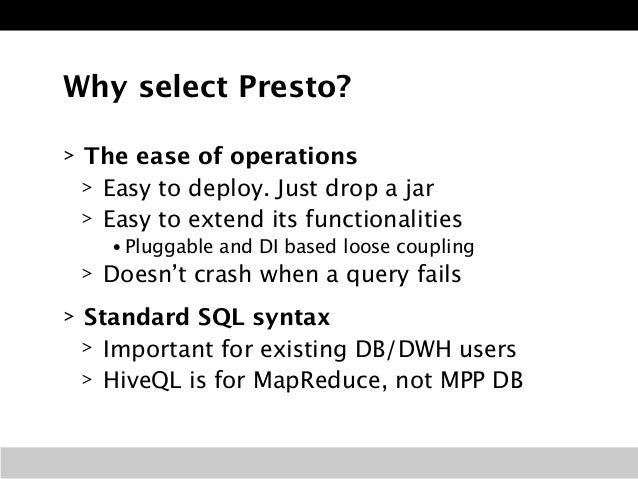

  56. 56. Why select Presto? > The ease of operations > Easy to deploy. Just drop a jar > Easy to extend its functionalities • Pluggable and DI based loose coupling > Doesn’t crash when a query fails > Standard SQL syntax > Important for existing DB/DWH users > HiveQL is for MapReduce, not MPP DB

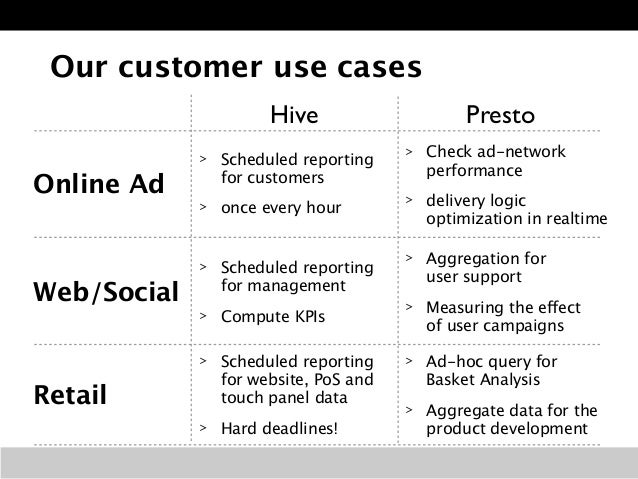

  57. 57. Our customer use cases Hive Presto > Scheduled reporting for customers > once every hour Online Ad Web/Social Retail > Scheduled reporting for management > Compute KPIs > Scheduled reporting for website, PoS and touch panel data > Hard deadlines! > Check ad-network performance > delivery logic optimization in realtime > Aggregation for user support > Measuring the effect of user campaigns > Ad-hoc query for Basket Analysis > Aggregate data for the product development
  58. 58. Conclusion

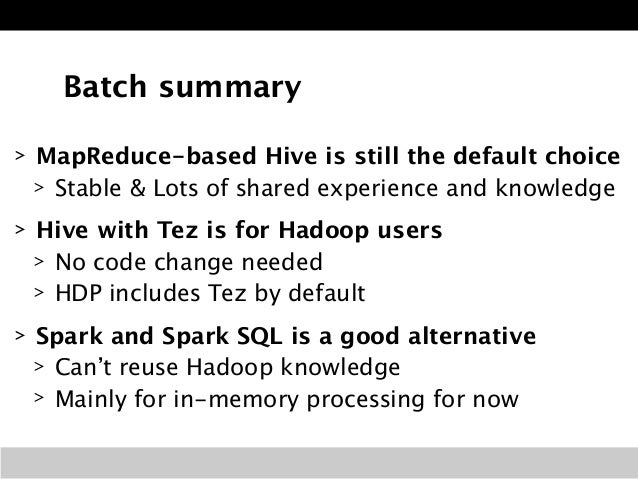

  59. 59. Batch summary > MapReduce-based Hive is still the default choice > Stable & Lots of shared experience and knowledge > Hive with Tez is for Hadoop users > No code change needed > HDP includes Tez by default > Spark and Spark SQL is a good alternative > Can’t reuse Hadoop knowledge > Mainly for in-memory processing for now

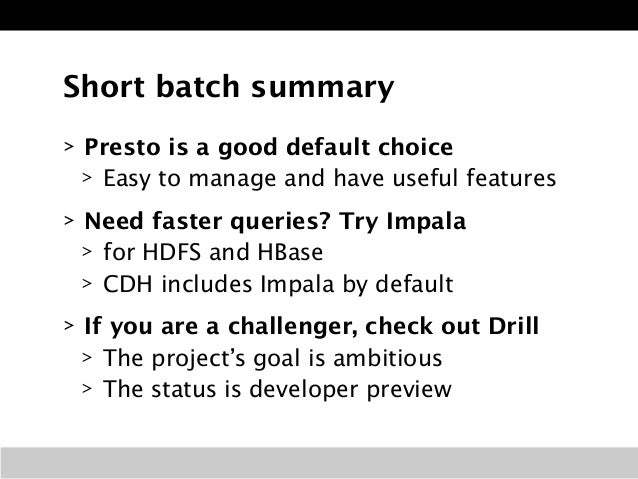

  60. 60. Short batch summary > Presto is a good default choice > Easy to manage and have useful features > Need faster queries? Try Impala > for HDFS and HBase > CDH includes Impala by default > If you are a challenger, check out Drill > The project’s goal is ambitious > The status is developer preview

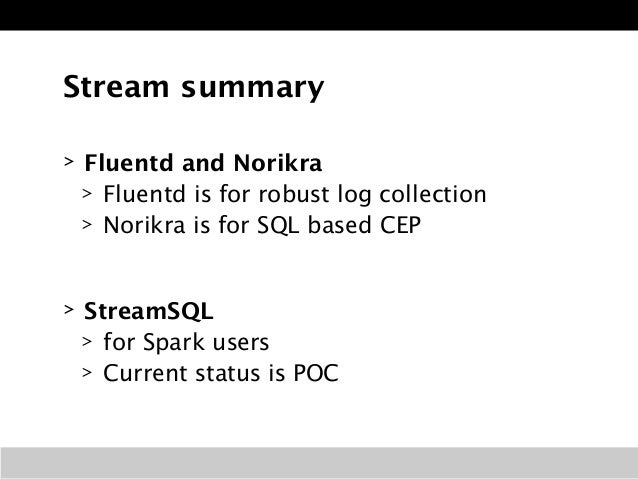

  61. 61. Stream summary > Fluentd and Norikra > Fluentd is for robust log collection > Norikra is for SQL based CEP ! > StreamSQL > for Spark users > Current status is POC

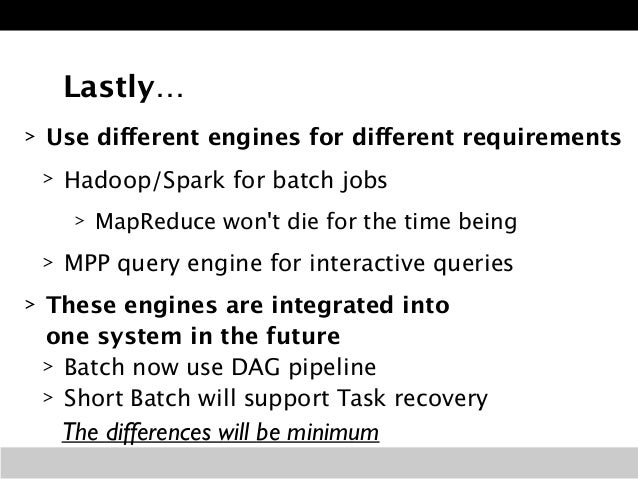

  62. 62. Lastly… > Use different engines for different requirements > Hadoop/Spark for batch jobs > MapReduce won't die for the time being > MPP query engine for interactive queries > These engines are integrated into one system in the future > Batch now use DAG pipeline > Short Batch will support Task recovery The differences will be minimum
  63. 63. Enjoy SQL!
  64. 64. Cloud service for the entire data pipeline, including Presto Check: treasuredata.com

×
