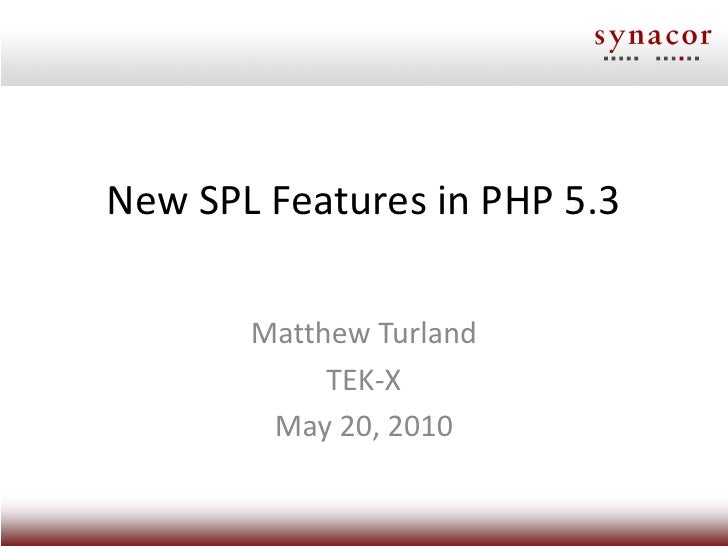

1. New SPL Features in PHP 5.3
Matthew Turland
TEK-X
May 20, 2010

2. Hi! My name is…
• Senior Platform Engineer for Synacor, Inc.
• Former author and TE for php|architect
• Author of Web Scraping with PHP
• Past contributor to Zend Framework
• Lead developer of Phergie
• ULL alumni with a BS in computer science

3. And I work for…
• Provides internet solutions to ISPs, media
companies, and advertisers
• International company with offices in Buffalo,
New York City, Los Angeles, and Amsterdam
• Clientele includes most of the top 20 cable
providers in the United States
• Great company – join us!

4. What about you?
• Used the SPL before?
• Using PHP 5.3?
• Computer science background?
• Knowledge of data structures?

5. Pre-5.3 SPL Features
• Classes: ArrayObject, SplFileInfo, SplSubject,
SplObserver, etc.
• Iterators: RecursiveIteratorIterator,
FilterIterator, LimitIterator, etc.
• Interfaces: ArrayAccess, Countable, Iterator,
IteratorAggregate, etc.
• Functions: spl_autoload_register,
iterator_to_array, spl_object_hash, etc.

6. Containers
“A container is a class, a data structure, or
an abstract data type whose instances are
collections of other objects. They are used
to store objects in an organized way
following specific access rules.”
Container (data structure) - Wikipedia

7. Why containers?
• We already have arrays and strings!
array() 'string'

8. Two excellent reasons
• Versus traditional arrays, there is potential for:
– Less CPU usage
– Less memory usage

9. Arrays are (not always) great
• Flexible general purpose container
• Underlying hash table algorithm is not always
ideal for the task at hand

10. Warning: Benchmarks Ahead
• Lies, Outrageous Lies, and Benchmarks
• PHP 5.3.2 compiled on Ubuntu 9.10
• Intel Core2Duo 1.83 GHz, 4 GB DDR2 RAM
• Performance results are shown in executions
per second rather than time per execution to
avoid really small numbers
• Code and results

11. The List

12. SplFixedArray - What
• Like an array, but with a fixed length
• Only allows integers >= 0 for keys
• Can be resized, but at a cost
• Not compatible with array functions

13. SplFixedArray - When
• It’s best to use this when:
– You know in advance how many elements you
want to store (e.g. mysql_num_rows)
– You only need to access elements in sequential
order

14. SplFixedArray - Code
<?php
$a = array();
for ($i = 0; $i < $argv[1]; $i++) {
$a[$i] = $i;
$i = $a[$i];
}
<?php
$a = new SplFixedArray($argv[1]);
for ($i = 0; $i < $argv[1]; $i++) {
$a[$i] = $i;
$i = $a[$i];
}

15. SplFixedArray - EPS

16. SplFixedArray - Memory

17. SplDoublyLinkedList - What
• Mainly intended as a parent class
• Same unlimited size as arrays without the
associated hash map algorithm
• Less performance, but more memory
efficiency

18. SplDoublyLinkedList - When
• It’s best to use this when:
– You do not know in advance how many elements
you want to store
– You only need to access elements in sequential
order

19. SplDoublyLinkedList - Code
<?php
$a = array();
for ($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
$i = $a[$i];
}
<?php
$a = new SplDoublyLinkedList($argv[1]);
for ($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
$i = $a[$i];
}

20. SplDoublyLinkedList - EPS

21. SplDoublyLinkedList - Memory

22. The Stack

23. SplStack - What
• 2 operations
– Push: [] for both array and SplStack
– Pop: array_pop() vs SplStack::pop()
• Last In, First Out (LIFO)
– The last item pushed onto the top of the stack is
the first item that will be popped off of the top of
the stack

24. SplStack - When
• It’s best to use this when:
– You do not know in advance how many elements
you want to store
– You only ever need to access the last element you
stored

25. SplStack - Code
<?php
$a = array();
for($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
}
for($i = 0; $i < $argv[1]; $i++) {
array_pop($a);
}

26. SplStack - Code (cont.)
<?php
$a = new SplStack;
for($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
}
for($i = 0; $i < $argv[1]; $i++) {
$a->pop();
}

27. SplStack - EPS

28. SplStack - Memory

29. The Queue

30. SplQueue - What
• 2 operations
– Enqueue: [] for both array and SplQueue
– Dequeue: array_shift() vs SplQueue::dequeue()
• First In, First Out (FIFO)
– The first item added to the end of the queue will
be the first item removed from the front of the
queue

31. SplQueue - When
• It’s best to use this when:
– You do not know in advance how many elements
you want to store
– You only ever need to access the remaining
element that was stored earliest

32. SplQueue - Code
<?php
$a = array();
for($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
}
for($i = 0; $i < $argv[1]; $i++) {
array_shift($a);
}

33. SplQueue - Code (cont.)
<?php
$a = new SplQueue;
for($i = 0; $i < $argv[1]; $i++) {
$a[] = $i;
}
for($i = 0; $i < $argv[1]; $i++) {
$a->dequeue();
}

34. SplQueue - EPS

35. SplQueue - Memory

36. The Heap

37. SplHeap - What
• 2 operations
– Insert: [] + sort vs SplHeap::insert()
– Remove: array_shift() vs SplHeap::extract()
• Internally reorders items based on comparison
– SplHeap::compare() can be overridden
• Subclasses
– SplMinHeap
– SplMaxHeap
• Better worst-case scenario performance
versus arrays (heap sort versus quick sort)

38. SplHeap - When
• It’s best to use this when:
– You do not know in advance how many elements
you want to store
– You need to access elements in an order based on
how they compare to each other

39. SplMinHeap - Code
<?php
$a = array();
for($i = 0; $i < $argv[1]; $i++) {
$a[] = rand(1, $argv[1]);
sort($a);
}
for($i = 0; $i < $argv[1]; $i++) {
array_shift($a);
}

40. SplMinHeap - Code (cont.)
<?php
$a = new SplMinHeap;
for($i = 0; $i < $argv[1]; $i++) {
$a->insert(rand(1, $argv[1]));
}
for($i = 0; $i < $argv[1]; $i++) {
$a->extract();
}

41. SplMinHeap - EPS

42. SplMinHeap - Memory

43. The Priority Queue

44. SplPriorityQueue - What
• Accepts a priority with the element value
• Element with highest priority comes out first
• Priorities may be of any comparable type
• SplPriorityQueue::compare() can be
overridden
• Operates similarly to a heap
– In fact, it uses a heap internally for storage

45. SplPriorityQueue - When
• It’s best to use this when:
– You do not know in advance how many elements
you want to store
– You need to access elements in an order based on
how priority values associated with those
elements compare to each other

46. SplPriorityQueue - Code
<?php
$threshold = $argv[1] * 0.1;
$a = array();
$i = 0;
do {
if ($i <= $argv[1]) {
$a[] = array($i, rand(1, 10));
usort($a, 'priority_sort');
}
if ($i > $threshold) {
array_shift($a);
}
$i++;
} while (count($a));
function priority_sort($a, $b) {
return $a[1] - $b[1];
}

47. SplPriorityQueue - Code (cont.)
<?php
$threshold = $argv[1] * 0.1;
$a = new SplPriorityQueue;
$i = 0;
do {
if ($i < 1) {
$a->insert($i, rand(1,10));
}
if ($i > $threshold) {
$a->extract();
}
$i++;
} while (count($a));

48. SplPriorityQueue - EPS

49. SplPriorityQueue - Memory

50. The Set

51. The Composite Hash Map
Just pretend the red pills are objects.

52. SplObjectStorage - What
• Combination of two data structures
– Composite hash map: a hash map with objects for
keys; the spl_object_hash() function must be used
for arrays to have this capability
– Set: focuses on a group of values rather than
individual values with operations like union,
intersection, difference, and element_of; no
concept of sequential order
• Currently lacks a method for the intersection
operation

53. SplObjectStorage - When
• It’s best to use this when:
– You need to store data using composite (i.e. non-
scalar) keys
– You need the ability to access data using set
operations more so than accessing it in a
particular order

54. SplObjectStorage - Code
<?php
$a = array();
for ($i = 0; $i < $argv[1]; $i++) {
$object = new stdClass;
$a[spl_object_hash($object)] = $object;
}
$a = array();
$b = array();
for ($i = 0; $i < $argv[1]; $i++) {
$a[] = rand(1, $argv[1]);
$b[] = rand(1, $argv[1]);
}
$c = array_merge($a, $b);
$c = array_diff($a, $b);

55. SplObjectStorage - Code (cont.)
<?php
$a = new SplObjectStorage;
for ($i = 0; $i < $argv[1]; $i++) {
$object = new stdClass;
$a->attach($object, $object);
}
$a = new SplObjectStorage;
$b = new SplObjectStorage;
for ($i = 0; $i < $argv[1]; $i++) {
$a->attach((object) rand(1, $argv[1]));
$b->attach((object) rand(1, $argv[1]));
}
$c = clone $a;
$c->addAll($b);
$c = clone $a;
$c->removeAll($b);

56. SplObjectStorage - EPS

57. SplObjectStorage - Memory

58. Thank this guy
• Etienne Kneuss did a lot of the work on the
new SPL features in PHP 5.3

59. Some great SPL resources
• SPL in the PHP manual
• Etienne Kneuss' blog
• "SPL to the Rescue" by Elizabeth Smith
• “SPL, a bridge not too far” by Michelangelo
van Dam
• This presentation as a blog post

60. Possible future SPL features
• Graphs
– Contain nodes and edges connecting them
– Directional / non-directional
– Cyclic / acyclic
– Connected / unconnected
– Edge costs
• Trees
– Acyclic unidirectional graph
– Hierarchical in nature

61. Feedback, please!
http://joind.in/1577

62. That’s all, folks
• Any questions?
• http://synacor.com
• http://matthewturland.com
• me@matthewturland.com
• @elazar on Twitter
• Elazar on the Freenode IRC network
