No BS Data Salon #3:Probabilistic SketchingMay 2012                          Analytics + Attribution =                    ...
Outline     What we do at AK     What’s sketching?     Our motivation for sketching     Why should you sketch?     Ou...
Here’s what we do at AK.                   Online ad analytics      Compare performance of different: campaigns, inventory...
Motivation     High throughput: 10s of K/s => 100s of K/s     High dimensionality: 100M+ reporting keys     Easy aggreg...
Why should you bother?    SELECT COUNT(DISTINCT user_id)    FROM access_logs    GROUP BY campaign_id5
What is probabilistic sketching?     One-pass     “Small” memory     Probabilistic error6
Our Case Study: unique counting     Non-unique stream of ints     Want to keep unique count, up to about a billion     ...
How it works                                     The Papers:     LogLog Counting of Large Cardinalities       Marianne Du...
How it works cont’d    1.   Stream of int_64 => “good” hash => random {0,1}64    2.   Keep track of longest run of leading...
Here’s what you get                     Native:                union, cardinality                    Implies:      interse...
Show me the money!      Used in production at AK for a year      Accurate: count to a billion with 1-3% error      Smal...
Lies, damn lies, and boxplots!                                                Cardinality Relative Error vs True Cardinali...
But wait, there’s more!                                     ●                                                             ...
Implementation caveats      If you store an HLL for each key, you’ll likely be wasting space when all the       registers...
How we use them, in production      Original problem: fast, on-the-fly overlaps and unique counts      Solution:        ...
UI example              To the browser, Robin!16
How we use them, Ad Hoc      Outside of production: amazing ad-hoc analysis tool      Example: gathering more than a yea...
“Soft” Caveats      Fixed N% error is deceiving      Additive error for set operations can balloon      Unbounded error...
Parting Advice      Test these on your data rigorously      Choose good hash functions      Tuning parameters are parti...
Questions?                  @timonk     timon@aggregateknowledge.com      blog.aggregateknowledge.com20
Credits     All the adorable cartoons you saw in this presentation were taken from     http://sureilldrawthat.com/ and htt...
Upcoming SlideShare
Loading in …5
×

No BS Data Salon #3: Probabilistic Sketching

1,828 views

Published on

Timon Karnezos' presentation on probabilistic sketching and distinct counting with HyperLogLog from the third No BS Data Salon on May 19th, 2012.

Published in: Technology, Business
  • Be the first to comment

  • Be the first to like this

No BS Data Salon #3: Probabilistic Sketching

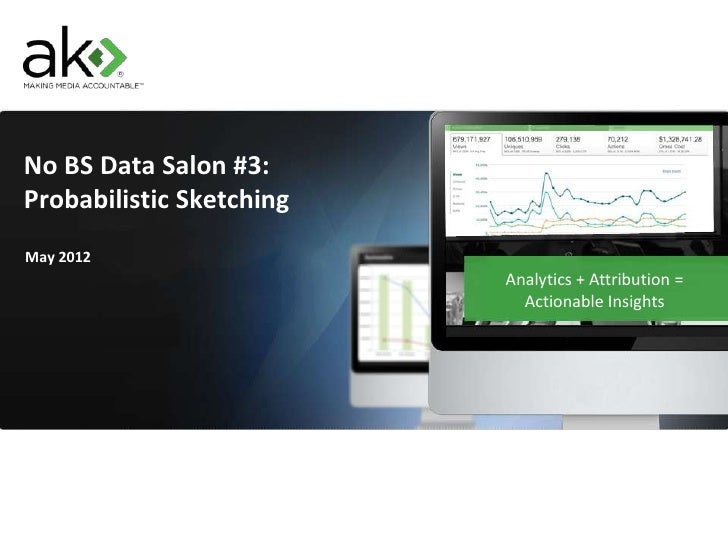

  1. 1. No BS Data Salon #3:Probabilistic SketchingMay 2012 Analytics + Attribution = Actionable Insights
  2. 2. Outline  What we do at AK  What’s sketching?  Our motivation for sketching  Why should you sketch?  Our case: unique counting How it works How well it works How we use them2
  3. 3. Here’s what we do at AK. Online ad analytics Compare performance of different: campaigns, inventory, providers, creatives, etc… Bottom Line: Give the advertisers insight into the performance of their ads.3
  4. 4. Motivation  High throughput: 10s of K/s => 100s of K/s  High dimensionality: 100M+ reporting keys  Easy aggregates: counters, scalars  Hard aggregates: unique user counting, set operations  No cheap or effective “online” solutions Streaming DBs (Truviso, Coral8, StreamBase) insufficient Warehouse appliances (Aster, custom PG) same Our data is immutable. Paying for unneeded ACID is silly.  Offline solutions slow, operationally finicky.  Not a bank. We don’t need to be perfect, just useful.4
  5. 5. Why should you bother? SELECT COUNT(DISTINCT user_id) FROM access_logs GROUP BY campaign_id5
  6. 6. What is probabilistic sketching?  One-pass  “Small” memory  Probabilistic error6
  7. 7. Our Case Study: unique counting  Non-unique stream of ints  Want to keep unique count, up to about a billion  Want to do set operations (union, intersection, set difference)  Straw Man #1: “Put them in a HashSet, and go away.”  (Maybe) Straw Man #2: “Fine, keep a sample.”  How we did it: HyperLogLog7
  8. 8. How it works The Papers:  LogLog Counting of Large Cardinalities Marianne Durand and Philippe Flajolet (RIP 2010), 2003  HyperLogLog: the analysis of a near-optimal cardinality estimation algorithm Flajolet, Fusy, Gandouet, Meunier, 2007 The (rudimentary, unrigorous) Intuition: Flip fair coins Longest streak of heads is length k, seen once Probability of streak ≈ (½)k E[x] = 1, p = (½)k => n ≈ 2k8
  9. 9. How it works cont’d 1. Stream of int_64 => “good” hash => random {0,1}64 2. Keep track of longest run of leading zeroes 3. Longest run of length k => cardinality ≈2k  Crazy math business Correct systematic bias with a derived constant Stochastic averaging Balls and bins correction9
  10. 10. Here’s what you get Native: union, cardinality Implies: intersection (!!!), set difference (!!!)10
  11. 11. Show me the money!  Used in production at AK for a year  Accurate: count to a billion with 1-3% error  Small: a few KB each so we can keep 100s of M in memory  Fast: benched at 2M inserts/s, used in production at 100s of K/s11
  12. 12. Lies, damn lies, and boxplots! Cardinality Relative Error vs True Cardinality log2m=13 [5kB] 4% 2% ● HLL Cardinality RE 0% −2% ● ● −4% 102 103 104 105 106 107 108 10912 True Cardinality
  13. 13. But wait, there’s more! ● ● Intersection Error vs Magnitude Diff erence log2m=13 [5kB] 40% ● ● ● ● ● ● ● ● ● ● ● ● ● 20% ● ● ● ● factor(overlap_fraction) ● ● 0.1 HLL Intersection Error ● ● ● 0.2 ● 0.3 ● ● 0.4 0% 0.5 ● ● ● 0.6 ● ● 0.7 ● ● 0.8 ● 0.9 ● ● 1 −20% ● ● ● −40% 0 1 2 313 Cardinality Order of Magnitude Diff erence
  14. 14. Implementation caveats  If you store an HLL for each key, you’ll likely be wasting space when all the registers aren’t set. Use map-based HLL or use compression.  Pick a good hash function!  Test on your data!  Tune parameters to suit your business needs!14
  15. 15. How we use them, in production  Original problem: fast, on-the-fly overlaps and unique counts  Solution: streaming, in-memory aggregations shipped to Postgres Postgres module to do set operations on binary representations in the DB  Freebie: PG analytics support like GROUP BY, sliding windows, etc…15
  16. 16. UI example To the browser, Robin!16
  17. 17. How we use them, Ad Hoc  Outside of production: amazing ad-hoc analysis tool  Example: gathering more than a year’s worth of data for an RFP, at 20B impressions/month painless and quick when we had the data as sketches much more effort to put it through Hadoop  Iterating on product and research is cheaper and faster. Waiting minutes instead of seconds between iterations is painful.17
  18. 18. “Soft” Caveats  Fixed N% error is deceiving  Additive error for set operations can balloon  Unbounded error sneaks in now and again18
  19. 19. Parting Advice  Test these on your data rigorously  Choose good hash functions  Tuning parameters are particularly sensitive  You’ll find all kinds of unexpected uses for them, so get building!  Bibliography blog post will be up in a bit!19
  20. 20. Questions? @timonk timon@aggregateknowledge.com blog.aggregateknowledge.com20
  21. 21. Credits All the adorable cartoons you saw in this presentation were taken from http://sureilldrawthat.com/ and http://sureilldrawthat.tumblr.com/ and belong to him/her.21

×
