Semantic content management: consuming and producing RDF in Drupal

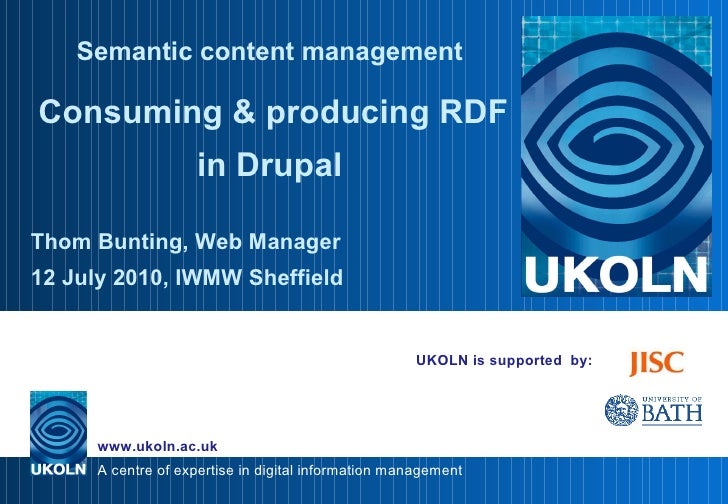

  1. 1. UKOLN is supported by: Semantic content management Consuming & producing RDF in Drupal Thom Bunting, Web Manager 12 July 2010, IWMW Sheffield
  2. 2. Semantic CMS objectives <ul><li>By automatically including Resource Description Framework information (RDF / RDFa), content management systems can: </li></ul><ul><li>Improve search engine visibility of content </li></ul><ul><li>Reduce need for manual crafting of code </li></ul><ul><li>Strengthen RDF / RDFa consistency </li></ul><ul><li>Extend semantic data consumption & production </li></ul><ul><li>Integrate websites into ‘giant global graph’ </li></ul>
  3. 4. Semantic Drupal: origins <ul><li>DrupalCon Boston 2008 keynote confirms importance of RDF in Drupal </li></ul><ul><li>Dries Buytaert ‘video from the future’ shows way forward via RDF </li></ul><ul><li>2 years active planning & development </li></ul>
  4. 5. Semantic Drupal: in context <ul><li>Google: Rich Snippets </li></ul><ul><li>Yahoo: SearchMonkey </li></ul><ul><li>Facebook: OpenGraph </li></ul><ul><li>BestBuy ‘poster child’ </li></ul>
  5. 6. Semantic Drupal: consuming <ul><li>Drupal supports retrieval of RDF from remote sites </li></ul><ul><li>Drupal facilitates synchronisation of ‘master’ data (FOAF files, DBpedia, etc) </li></ul><ul><li>Drupal to enable periodic refreshing / lazy loading of RDF data </li></ul><ul><li>Many use cases and examples possible </li></ul>
  6. 7. Semantic Drupal: producing <ul><li>Drupal can automatically produce RDF / RDFa resources from version 6, Drupal database fields can be mapped to produce machine-readable semantic content </li></ul><ul><li>Drupal websites can become productive citizens in world of Linked Data </li></ul>
  7. 8. Semantic Drupal: motivations <ul><li>Improved search engine results Yahoo reports 15% increase in click-through rates, BestBuy gains 30% traffic increase once RDFa included in web pages </li></ul><ul><li>Improved research & insight Connections between distributed data sets produce new insights (for example, linking people with locations, organisations, groups, etc) </li></ul><ul><li>Improved web management processes Mapping of CMS database fields supports automated inclusion of RDFa tags into web pages (reducing need for hand-crafting RDF code) and periodic updates of site-wide triple stores </li></ul>
  8. 9. Semantic Drupal: current options <ul><li>Drupal 6, a mature CMS prototype RDF modules add semantic functionality (these ‘contributed’ modules have been developed by those working to include RDF in Drupal 7 ‘core’) </li></ul><ul><li>Drupal 7, currently in alpha 6 RDF functionality supported ‘out of the box’ (Drupal 7 full release expected soon) </li></ul>
  9. 10. Semantic Drupal: v.6 details <ul><li>Drupal 6 ‘contributed’ modules provide key RDF functionality </li></ul><ul><li>Evoc Reference module: defines a field type for referencing RDF class or property from a node (web page) </li></ul><ul><li>RDF and RDF CCK modules: define mappings between fields and RDF elements, export nodes as RDF </li></ul><ul><li>External RDF Vocabulary Importer module: imports external vocabularies to be mapped with Drupal data objects </li></ul><ul><li>SPARQL API module: enables the use of SPARQL queries (local / remote graphs) </li></ul><ul><li>SPARQL endpoint module: exposes local RDF data in SPARQL endpoint </li></ul>
  10. 11. Semantic Drupal: v.6 benefits <ul><li>Version 6 is first Drupal to support RDF </li></ul><ul><li>Automatic production of RDF pages (discoverable via ‘rel’ tag links in HTML headers) </li></ul><ul><li>Periodic generation of triple stores triples derive from all RDF files generated on the website, so these can be queried in Drupal website’s SPARQL endpoint (ARC2 library) – or elsewhere </li></ul>
  11. 12. Semantic Drupal: v.6 challenges <ul><li>Drupal 6 RDF ‘contributed modules’ are prototypes </li></ul><ul><li>Drupal 6 lacks core RDF functionality, depends entirely upon ‘add-ons’ </li></ul>
  12. 13. Semantic Drupal: v.7 details <ul><li>Drupal 7 ‘core’ RDF module produces extensive, well structured RDFa </li></ul><ul><li>RDF API enables other modules to consume and produce RDFa with relatively little extra effort </li></ul><ul><li>Expectation is that full range of prototype RDF modules can be improved and ported to Drupal 7, once released </li></ul>
  13. 14. Semantic Drupal: v.7 benefits <ul><li>Drupal 7 automatically produces RDFa in all site pages (output as XHTML+RDFa 1.0) </li></ul><ul><li>Drupal 7 flexibly supports namespaces (website managers can add specialist namespaces if desired, in addition to ‘out of the box’ support for dc, foaf, sioc, etc) </li></ul>
  14. 15. Semantic Drupal: v.7 challenges <ul><li>Drupal 7 currently in alpha </li></ul><ul><li>Full range of v.7 RDF ‘contributed’ modules not likely to be available from day one of Drupal 7 release </li></ul><ul><li>Planning for incremental module releases </li></ul>
  15. 16. Semantic Drupal: v.7 guidance <ul><li>Drupal 7 RDF overviews </li></ul><ul><li>Video tutorials on Drupal 7 setup </li></ul><ul><li>DrupalCon 2010 explanations of Drupal 7 RDF technology in context </li></ul>
  16. 17. In practice: Drupal 6 & 7 examples
  17. 18. Semantic Drupal: discussion <ul><li>External RDF/XML vs. embedded RDFa </li></ul><ul><li>Key RDF tags / ontologies </li></ul><ul><li>Interoperability of RDF resources </li></ul>
  18. 19. Contact information Dr. Thom Bunting UKOLN University of Bath Bath BA2 7AY United Kingdom Email: [email_address]
  19. 20. Further information about UKOLN Web: Email: [email_address]
