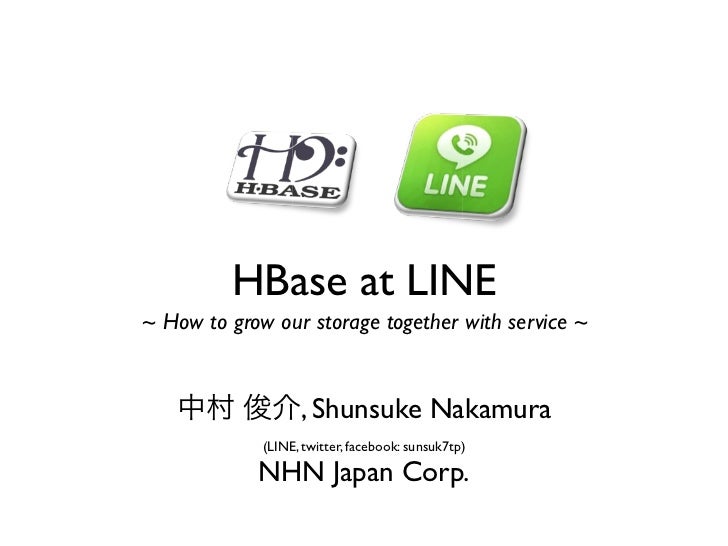

  1. 1. HBase at LINE ~ How to grow our storage together with service ~ 中村 俊介, Shunsuke Nakamura (LINE, twitter, facebook: sunsuk7tp) NHN Japan Corp.
  2. 2. 自己紹介 中村 俊介 • 2011.10 旧 Japan新卒入社 (2012.1から Japan) • LINE server engineer, storage team • Master of Science@東工大首藤研 • Distributed Processing, Cloud Storage, and NoSQL • MyCassandra [CASSANDRA-2995]: A modular NoSQL with Pluggable Storage Engine based on Cassandra • はてなインターン/インフラアルバイト
  3. 3. NHN/NAVER • NAVER Korea: 検索ポータルサイト • NHN = Next Human Network • NAVER • 韓国本社の検索シェア7割 • Hangame • 元Samsungの社内ベンチャー • livedoor • NAVER = Navigate + er • データホテル • NAVER Japan • NHN ST • Japanは今年で3年目 • JLISTING 韓国本社 • メディエータ Green Factory • 経営統合によりNAVERはサービス 名、グループ、宗教 • 深紅 • LINE、まとめ、画像検索、NDrive
  4. 4. LINE is NHN Japan STAND-ALONE
  5. 5. 8.17 5,500万users (日本 2,500万users) AppStore Ranking - Top 1 Japan,Taiwan,Thailand,, HongKong, Saudi, Malaysia, Bahrain, Jordan, Qatar, Singapore, Indonesia, Kazakhstan, Kuwait, Israel, Macau, Ukraine, UAE, Switzerland, Australia,Turkey,Vietnam, Germany, Russian
  6. 6. LINE Roadmap 2011.6 iPhone first release Android first release 2011.8 WAP I join to LINE team. 2011.10 Sticker VOIP Bots (News, Auto-translation, Public account, Gurin) PC (Win/Mac), Multi device Sticker Shop LINE Card/Camera/Brush WP first release 2012.6 Timeline BB first release 2012.8 LINE platform
  7. 7. Target of LINE Storage start 1. Performing well (put < 1ms, get < 5ms) 2. A high scalable, available, and eventually consistent storage system built around NoSQL 3. Geological distribution future Global Japan 56.8% 43.2%
  8. 8. LINE Storage and NoSQL 1. Performing well 2. A high scalable, available, and eventually consistent storage system 3. Geological distribution
  9. 9. At first, LINE launched with Redis.
  10. 10. Initial LINE Storage • Target: 1M DL within 2011 • Client-side sharding with a few Redis nodes • Redis • Performance: O(1) lookup • Availability: Async snapshot + slave nodes (+ backup MySQL) • Capacity: memory + Virtual Memory node queue app dispatcher server queue ... ... master storage backup slave
  11. 11. August 28~29 2011 Kuwait Saudi Arabia Qatar Bahrain…
  12. 12. 1Million over 2011 • Sharded Redis • Shard coordination: ZKs + Manager Daemons (shard allocation using consistent hashing, health check&failover) x 3 or 5 x3
  13. 13. October 13 2011 Hong Kong
  14. 14. However, in fact... 100M DL within 2012 Billions of Messages/Day...
  15. 15. We had encountered so much problems every day in 2011.10... Redis is NOT easily scalable NOT persistent And, easily dies
  16. 16. 2. A high scalable, available, and eventually consistent storage system built around NoSQL 2011年内1Mユーザーを想定したストレージを、 サービス無停止で2012年内1Bユーザーに対応する
  17. 17. Zuckerberg’s Law of Sharing (2011. July.7) Y = C * 2 ^ X (Y: sharing data, X: time, C: constance) Sharing activity will double each year.
  18. 18. LINEのmessage数/月は いくら?
  19. 19. 10億x30 = 300億 messages/month
  20. 20. Data and Scalability • constant • DATA: async operation • SCALE: thousands ~ millions per each queue • linear • DATA: users’ contact and group 10000000000 • SCALE: millions ~ billions 7500000000 • exponential 5000000000 • DATA: message and message inbox 2500000000 • SCALE: tens of billion ~ 0 constant linear exponential
  21. 21. Data and Workload Queue • constant • FIFO • read&write fast Zipfian curve • linear • zipf. • read fast [w3~5 : r95] Message timeline • exponential • latest • write fast [w50 : r50]
  22. 22. Choosing Storage • constant: Redis • linear, exponential: 選択肢幾つか • HBase • ⃝ workload, NoSQL on DFSで運用しやすい (DFSスペシャリスト++) • × SPOF, Random Readの99%ile性能がやや低い • Cassandra • ⃝ workload, No SPOF (No Coordinator, rack/DC-aware replication) • × Weak consistencyに伴う運用コスト, 実装が複雑 (特にCAS操作) • MongoDB • ⃝ 便利機能 (auto-sharding/failover, various query) → 解析向けで不要 • × workload, 帯域やディスクの使い方悪い • MySQL Cluster • ⃝ 使い慣れ (1サービス当たり最大数千台弱運用) • × 最初から分散設計でwrite scalableものを使うべき
  23. 23. HBase • 数百TBを格納可能 • 大量データに対してwrite scalable, 効率的なrandom access • Semi-structured model (< MongoDB, Redis) • RDBMSの高級機能はもたない (TX, joins) • Strong consistency per a row and columnfamily • NoSQL constructed on DFS • レプリカ管理不要 / Region移動が楽 • Multi-partition allocation per RS • ad hocなload balancing
  24. 24. LINE Storage (2012.3) iPhone Android WAP x 25 Million Thrift API / Authentication / Renderer app. server (nginx) app. server (nginx) app. server (nginx) Redis Queue Redis Queue Redis Queue x 100 nodes async operation failed operation dispatcher dispatcher dispatcher Sharded Redis clusters (message, contact, group) x 400 nodes Contact HBase Message HBase Backup MySQL HDFS x 100 nodes x2 nodes backup operation
  25. 25. LINE Storage (2012.7) phone (iPhone/Android/WP/blackberry/WAP) PC (win/mac) x 50 Million Thrift API / Authentication / Renderer app. server (nginx) app. server (nginx) app. server (nginx) Redis Queue Redis Queue Redis Queue x 200 nodes async operation failed operation dispatcher dispatcher dispatcher Sharded Redis clusters (message, contact, group) x 600 nodes Msg HBase01 Primary HBase Msg HBase02 Backup MySQL HDFS01 HDFS02 x2 nodes backup operation x 200 nodes
  26. 26. 2012.3 → 2012.7 • ユーザー数2倍、インフラ2倍 • まだHBaseにとってCasual Data • Message HBaseはdual cluster • message TTLに応じて切り替え (TTL: 2week → 3week) • HDFS DNはHBase用のM/Rとしても利用 • Sharded-Redisがまだ基本プライマリ (400→600) • messageはHBaseにもget • 他はmodelのみをbackup
  27. 27. LINE Data on HBase • LINE data userId User Model • MODEL: <key> → <model> email phone • INDEX: <key> <property in model> INDEX • User: <userId> → <User obj>, <userId> <phone> • 各modelを1つのrowで表現 • HBaseのconsistency: 1つのrow, columnFamily単位でstrong consistencyを保証 • contactなどの複数modelをもつものはqualifier (column)を利用 • レンジクエリが必要なDataは一つのrowにまとめる (e.g. message Inbox) • Cons.) column数に対してリニアにlatency大 → delete, search filter with timestamp
  28. 28. timestamp, version • Column level timestamp • modelのtimestampでindexを構築 • API実行timestampでasync, failure handling • Search filterとしても利用 (Cons. TTLの利用不可) • Multiple versioning • 複数emailのbinding (e.g. Google account password history) • CSの為のdata trace
  29. 29. Primary key for LINE • Long Type keyを元に生成: e.g. userId, messageId • simple ^ random for single lookup • range queryのためのlocalityの考慮不要 • prefix(key) + key • prefix(key): ALPHABETS[key%26] + key%1000 • o.a.h.hbase.util.RegionSplitter.SplitAlgorithmを実装 • prefixでRegion splitting a HRegion 2600 2626 2756 2782 b 2601 c 2602 d z 2652 2808 a000 a250 a500 a750 b000
  30. 30. Data stored in HBase • User, Contact, Group • linear scale • mutable • Message, Inbox • exponential scale • immutable
  31. 31. Message, Inbox performance, availability重視 • Sharded-Redisとのhybrid構成 • 片方から読み書きできればOK (< quorum) • failed queryはJVM Heap,Redisにqueuing&retry • immutable&idempotent query: 整合性, 重複の問題なし
  32. 32. User, Contact performanceよりconsistency重視 • Sharded-Redisがまだprimary • scalabilityの問題はない • mutableなので整合性重要 • RedisからHBaseへ移行 (途中) • Model Objectのみbackup
  33. 33. RedisからHBaseへ移行 1. modelのbackup • Redisにsync、HBaseにasync write (Java Future, Redis queuing) 2. M/Rを使ってSharded-Redisからfull migration 3. modelを元にindex/inverted index building (eventual) ←イマココ • Batch Operation: w/ M/R, model table full-scan using TableMapper • Incremental Operation: Diff logging and sequential indexing or Percolator, HBase Coprocessor 4. access path切り替え, Redis cache化
  34. 34. HBaseに置き換えたら 幸せになれた?
  35. 35. ある意味ではYES • Scalability Issuesが解決 • 今年いっぱいまでは • 広域分散 → 3rd issue (To be continue...)
  36. 36. Failure Decreased?
  37. 37. ABSOLUTELY NOT!
  38. 38. HBaseを8ヶ月運用してみた印象 • HBaseは火山 • 毎日小爆発 • 蓄積してたまに大爆発 • 火山のふもとでの安全な暮らし
  39. 39. 爆発 • 断続的なネットワーク障害によるRS退役 • H/W障害によるDN性能悪化・検知の遅延 • get (get, increment, checkAndPut, checkAndDelete)性能劣化、 それに伴う全体性能低下 • (major) compactionによる性能劣化 • データ不整合 • SPOF絡みの問題はまだ起こってない
  40. 40. HBaseのAvailability • SPOF or 死ぬとdowntimeが発生する箇 所が幾つか 1. HDFSのNameNode 2. HBaseのRegionServer, DataNode
  41. 41. 1. HDFS NameNode (NN) • HA Framework for HDFS NN (HDFS-1623) • Backup NN (0.21) • Avatar NN (Facebook) • HA NN using Linux HA • Active/passive configuration deploying two NN (cloudera)
  42. 42. HA NN using Linux-HA • DRBD+heartbeatで冗長化 • DRBD: disk mirroring (RAID1-like) • heartbeat: network monitoring • pacemaker: resource management (failover logicの登録)
  43. 43. 2. RegionServer, DataNode • HBase自体がレプリカをもたない • failoverされるまでdowntime発生 • 複数コンポーネントで構成されているので、 故障検知から全体合意まで、それぞれの通信区間でtimeoutを待た なければいけない
  44. 44. downtime対策 • HBase自身がreplicaを持たないのでRS死亡時のdowntimeが必ず発生 • distributed HLog splitting (>=cdh3u3) • timeout&retry • ほとんどHClient RS間のtimeout時間 • timeout調整 (retryごと, operationごと) • RS ZK間は短いとnetworkが不安定なときにRSが排除されやすい • 同じkeyを持つregionを同じRSに配置 → 障害の限定化 • LINEのHBase accessは基本的にasync • Cluster replication
  45. 45. HBase cluster replication • Cluster Replication: master push方式 • (MySQLのようなbinary logging mechanism), 馬本8.8章参照 • 非同期でWAL (HLog)をslave clusterにpush • 各RSごとにSynchronous Call • syncされていないWAL ListをZKが管理 • 検証しつつも、 • 独自実装 or 他の手段も考慮中 multi-DC間のreplication向けではない
  46. 46. HDFS tuning for HBase • Shortcut a local client reads to a Datanodes files directly > 0.23.1, 0.22.1, 1.0.0 (HDFS-2246) • Rack-aware Replica Placement (HADOOP-692)
  47. 47. 削除問題 • 削除が少し低速 • 論理削除なのでgetほどではないが、putの2倍かかる • 例) 1万件のコンタクトをもつユーザー退会処理 • カラム多すぎでクライアント側でtimeout → queuing + iterative delete • 例) TTLが過ぎたmessage削除 • cold dataに対するRandom I/Oが発生し、serviceに影響 • → dual cluster, full-truncate or TTL利用 • 例) スパマー対応 • compactionされるまでのget性能 (大量のskip処理)への影響 • → column単位ではなく、row単位の削除に
  48. 48. Compaction対策 • Bigtable: I/O最適化と削除の為に定期的なCompaction処理が必要 • RSごとにQueuingされ同時に1 HRegionずつCompactionが実行される • Compaction実行中にCPU利用率が上がるので、タイミング注意 • タイミング: periodic, StoreFile数, ユーザー実行 • peak-time時に連続して発生しないよう、 off-peakにcompactionとregion splitting
  49. 49. Balancing, Splitting, and Compaction • Region balancing • 自動balancer (request数ベースのbalancing)はOFF • serviceのoff-peak時にbalancing • 異なるtableの同一keyは同じserverに割当→障害を限定 • 問題のあるRegion専用のserver: prison RS • Region splittingとcompactionのスケジューリング • 自動splitもなるべく避ける (hbase.hregion.max.filesizeで自動split) • 連続的なmajor compactionを避ける • immutable storageはperiodic compactionをOFF
  50. 50. HBase Tools • Client: • HBaseTemplate: HBase Wrapper like spring’s RedisTemplate • MirroringHTable: 複数HBase cluster対応 • 運用監視: • auto splitting: off-peak時のregion split • auto HRegion balancer: metricsを元にoff-peak balancing • Region snapshot&restore: META Tableをdaily dump、RS死亡時の復元 • Data Migration: • Migrator with M/R (Redis → HBase) • H2H copy tool with M/R: table copy (HBase → HBase) • metrics collecting via JMX • Index Builder and Inconsistent Fixer with M/R, incremental implementation (coprocessor)
  51. 51. 今後の課題 • HBase上の<key, model>を中心にindexやRedis上にcacheを構築 • 停電・地震対策 (rack/dc-awareness) • HBase cluster replication • Cassandraをgeological distributed storage for HLogとして利用 • 今以上のスケーラビリティ (数 - 数十億ユーザー) • HBaseはnetwork-boundで1クラスタ数百台弱が限界 • Multi-clusterで凌ぐかCassandraを使うか

×
