2. XFILES, the APEX 4 versionThe truth is in there...Marco Gralike and Roel Hartman

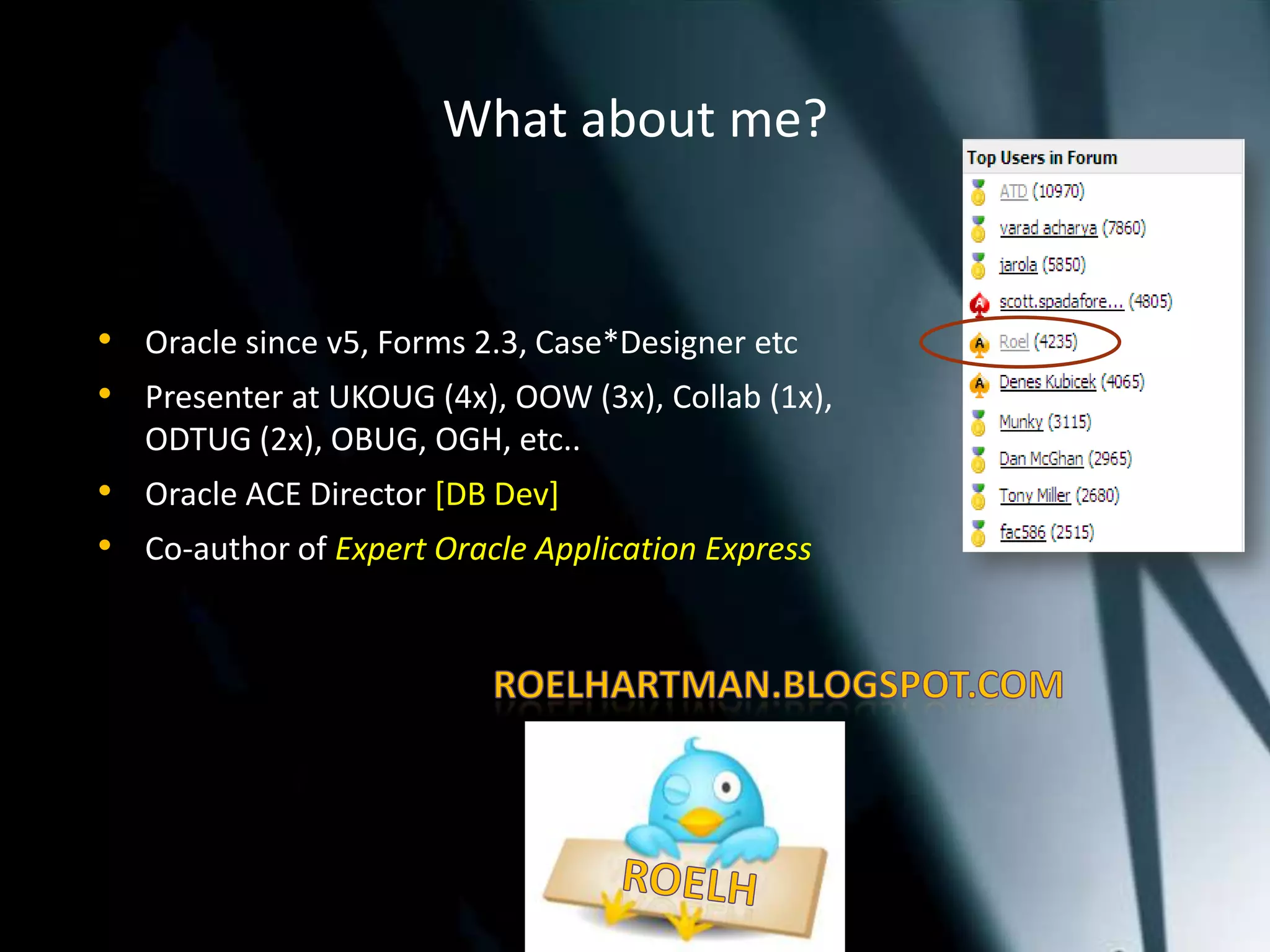

3. Oracle since v5, Forms 2.3, Case*Designer etc

4. Presenter at UKOUG (4x), OOW (3x), Collab (1x), ODTUG (2x), OBUG, OGH, etc..

5. Oracle ACE Director [DB Dev]

6. Co-author of Expert Oracle Application Expressroelhartman.blogspot.comWhatabout me?RoelH

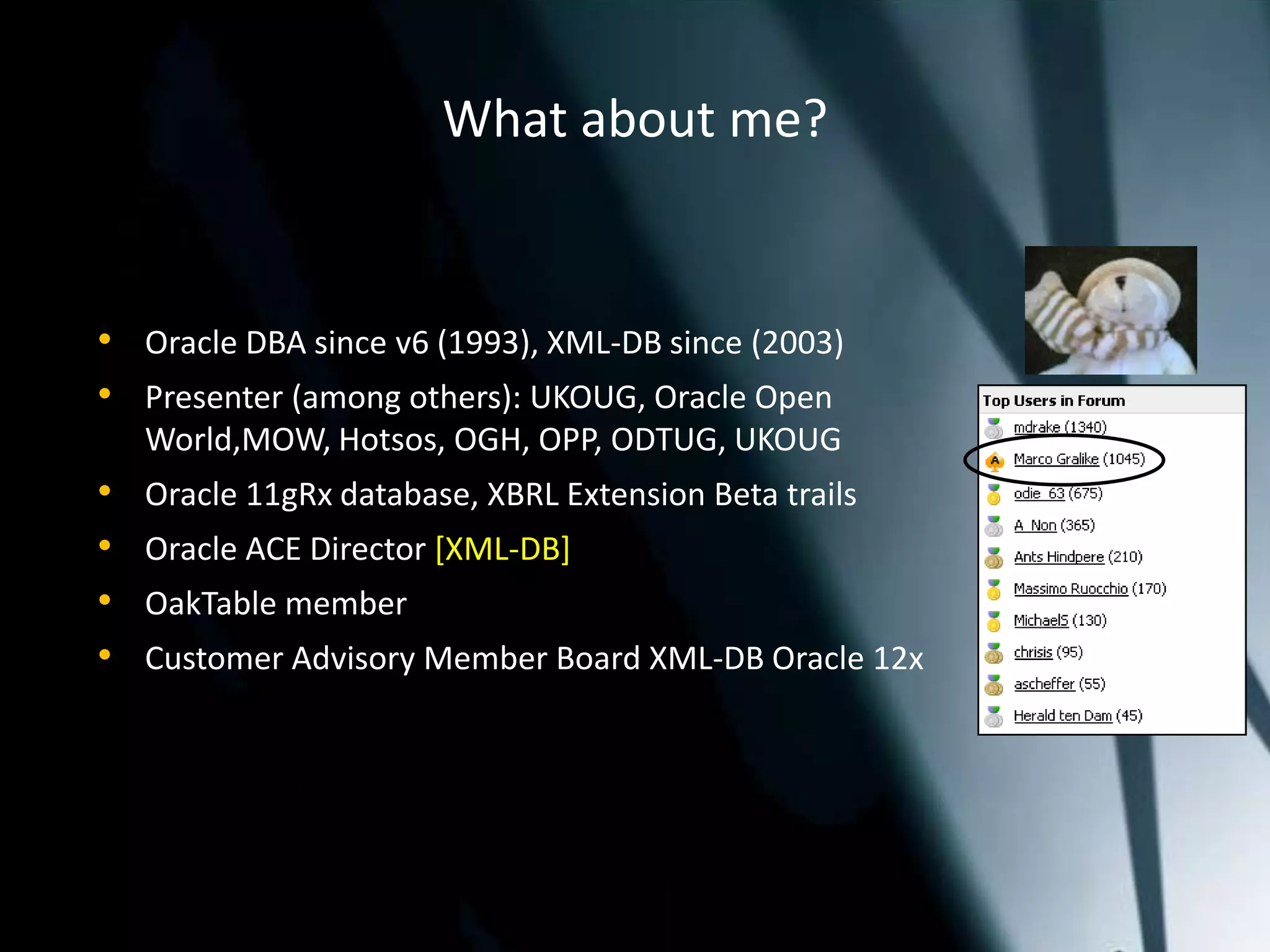

7. Whatabout me?Oracle DBA since v6 (1993), XML-DB since (2003)

8. Presenter (among others): UKOUG, Oracle Open World,MOW, Hotsos, OGH, OPP, ODTUG, UKOUG

9. Oracle 11gRx database, XBRL Extension Beta trails

10. Oracle ACE Director [XML-DB]

11. OakTable member

12. Customer Advisory Member Board XML-DB Oracle 12xHistory

13. XFILES - XMLDBXML-DB Demo Application GUI basedon AJAX / HTMLCurrentversion XFILES version VMark Drake Senior Product Manager Oracle XML-DBDemonstrates(amongothers)Native Database WebServices (NDWS) / SOAGeoInformationbased XML handling

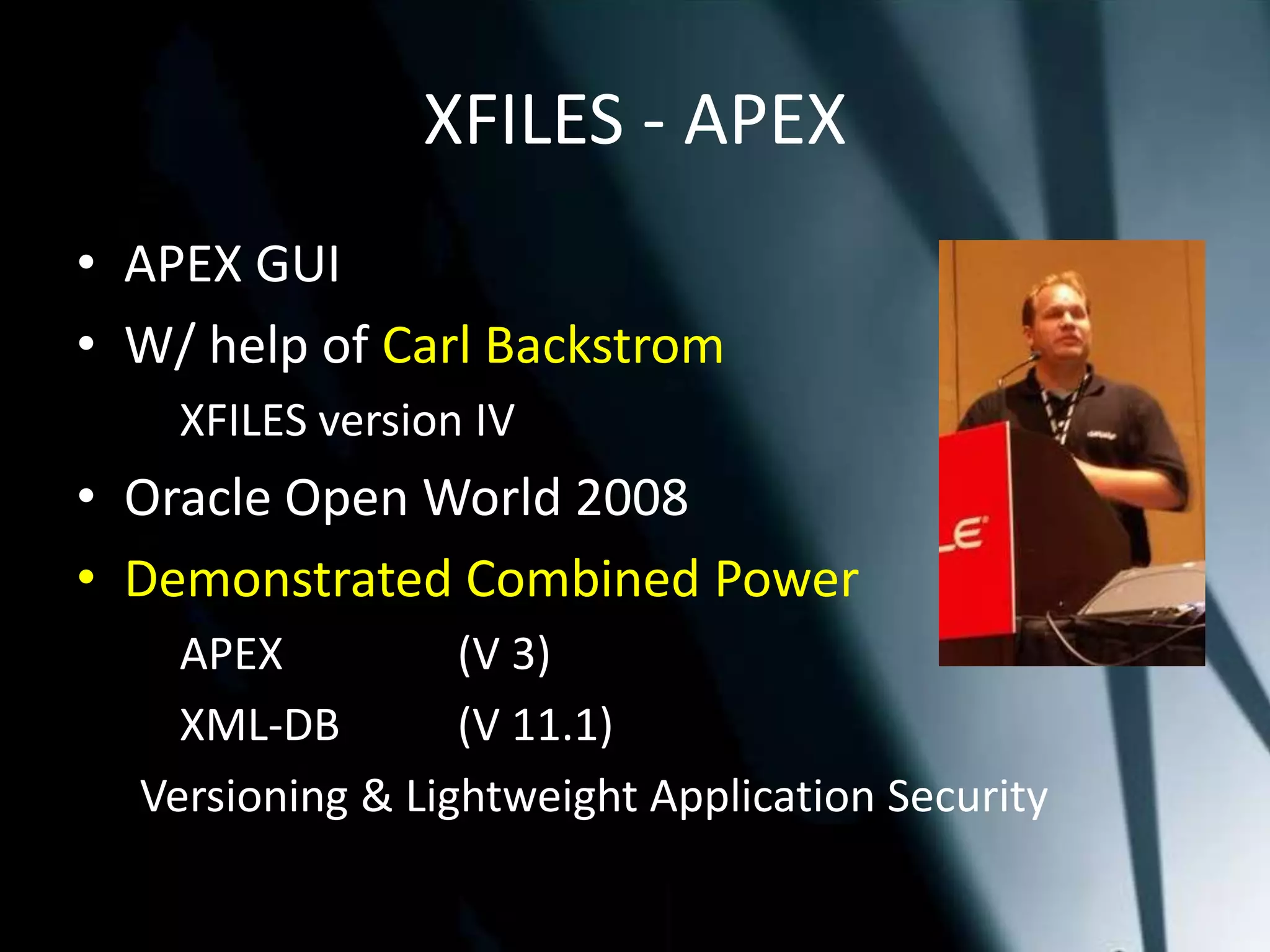

14. XFILES - APEXAPEX GUI W/ help of CarlBackstrom XFILES version IVOracle Open World 2008DemonstratedCombined Power APEX (V 3) XML-DB (V 11.1)Versioning & Lightweight Application Security

15. XML-DBBasedon XML (&Related) StandardsXML Handling Stores, Consumes, Generates, ValidationXDB Repository HTTP(s), FTP & WebDAVRepositoryEventsSupportsSecurity(ACL’s)&VersioningXPath V2, XSLT V1, XQuery V1, XBRL

16. Features UsedXDB RepositoryVersioning, CheckIn/Out functionalityDBMS_XDB_VERSIONResource (file, folder) manipulationDBMS_XDBDefault XDB ACL Driven Security

17. XDB Repository ResourcesAccess to XDB RepositoryPATH_VIEW, RESOURCE_VIEWXDB$ResourceXDBResource.xsdXMLType Table (Schema based XML Table)Select, Update, DeleteUNDER_PATH, EQUALS_PATH

18. Version ControlCreate ResourceLock the ResourceMakeitVersionedCheck itOutUpdate the ResourceCheck It InUnLockthe Resource

19. Process Flow# Create file / dbms_xdb.createResourcedbms_xdb.lockResourcedbms_xdb_version.makeVersioneddbms_xdb_version.checkOut # Update file contentdbms_xdb_version.checkIndbms_xdb.unlockResource # Done…

20. Create Versioned Resource

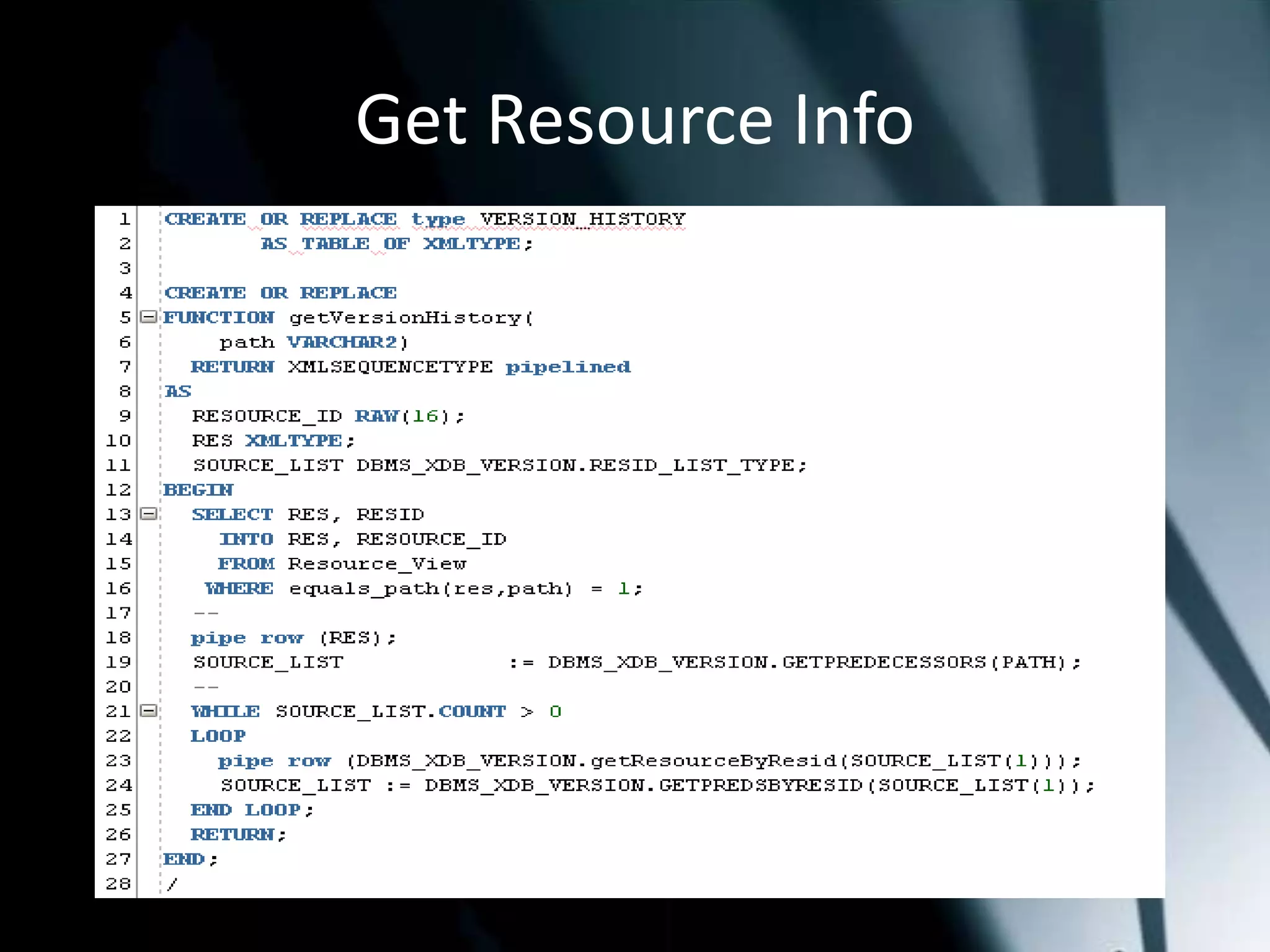

21. Get Resource Info

22. XMLTable Statement

23. Demo

24. VERSION

25. Version ControlAPEX has no files – at least, not a lot

26. APEXExport Utility

27. Export fromBuilder

28. Export from SQL DeveloperVersionControlfor APEX isn’tthatdifferent from PL/SQL !

29. XML-DB - Versioning

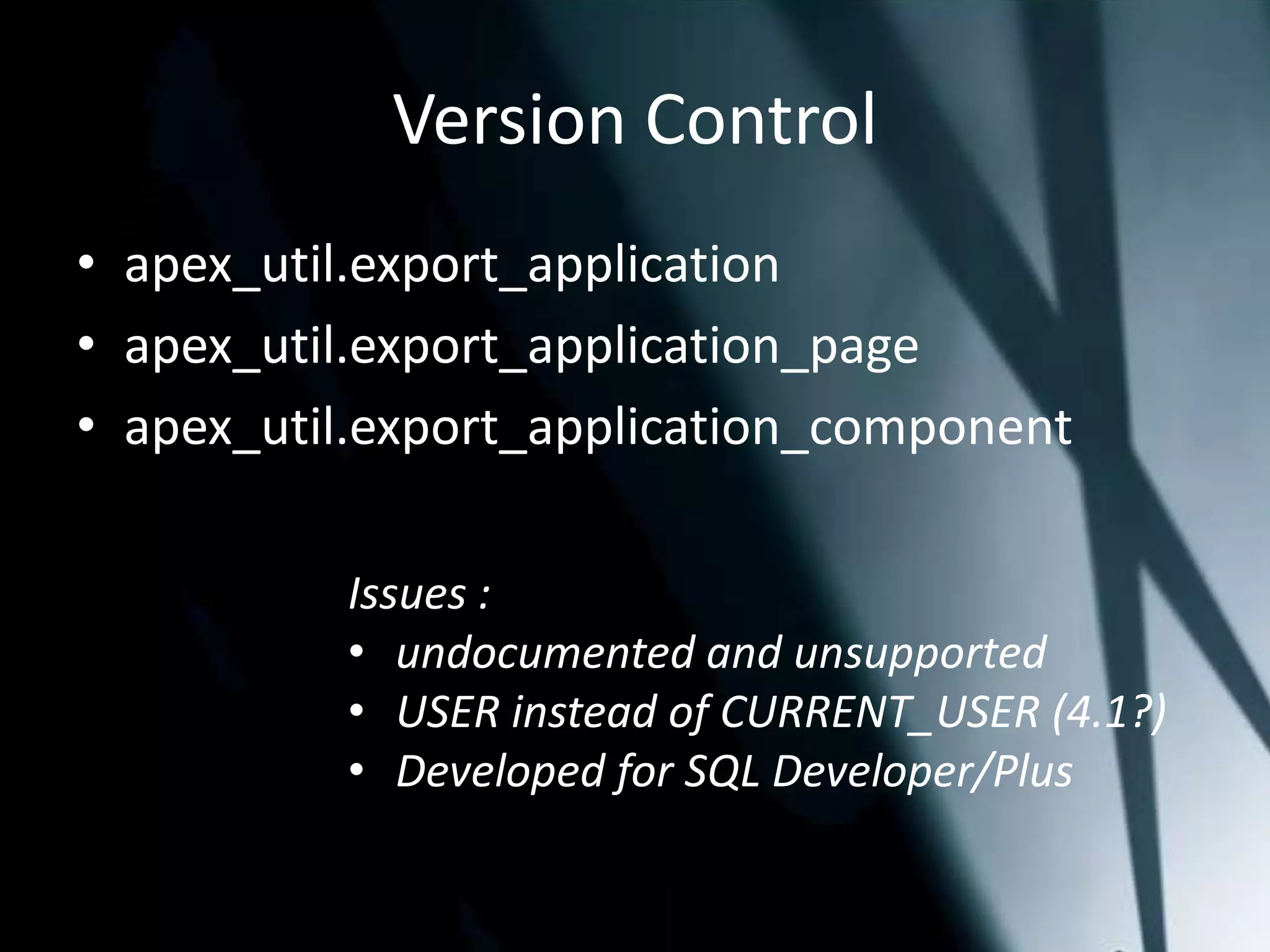

30. Version Controlapex_util.export_application

31. apex_util.export_application_page

32. apex_util.export_application_componentIssues :undocumented and unsupported

33. USER instead of CURRENT_USER (4.1?)

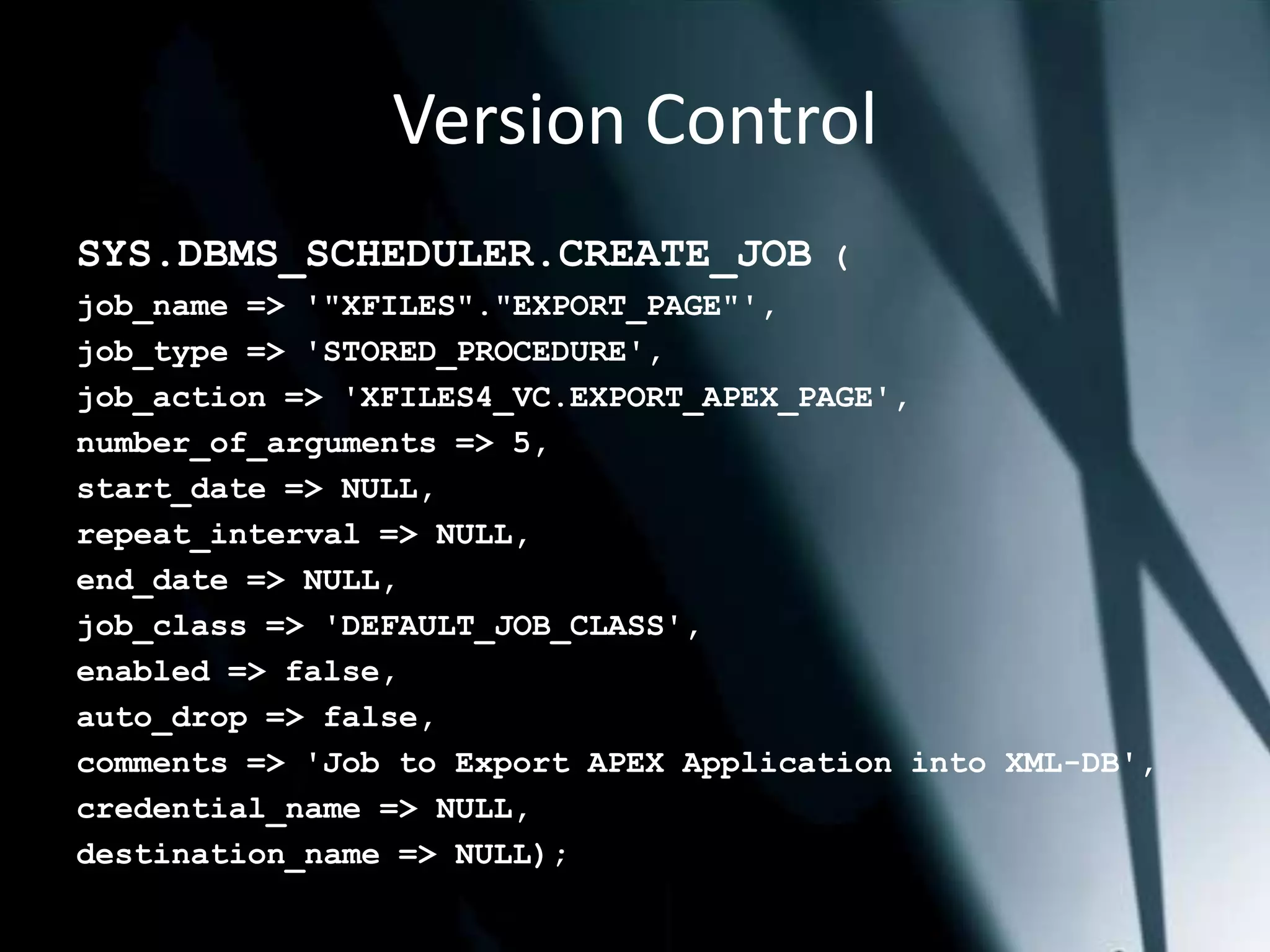

34. Developedfor SQL Developer/PlusVersion ControlSYS.DBMS_SCHEDULER.CREATE_JOB (job_name => '"XFILES"."EXPORT_PAGE"',job_type => 'STORED_PROCEDURE',job_action => 'XFILES4_VC.EXPORT_APEX_PAGE',number_of_arguments => 5,start_date => NULL,repeat_interval => NULL,end_date => NULL,job_class => 'DEFAULT_JOB_CLASS',enabled => false,auto_drop => false,comments => 'Job to Export APEX Application into XML-DB',credential_name => NULL,destination_name => NULL);

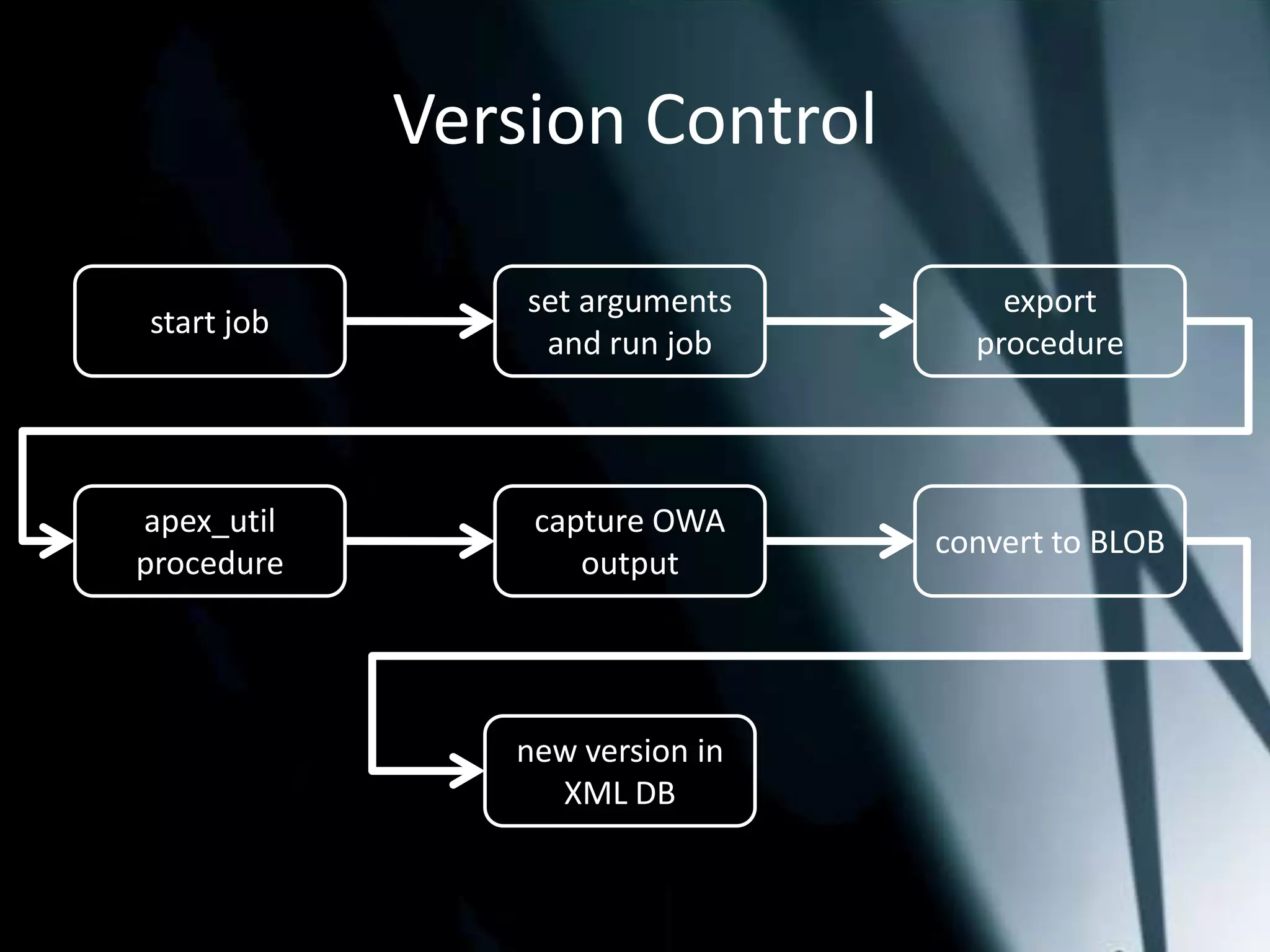

35. Version Controlstart jobset arguments and run jobexport procedureapex_util procedurecapture OWA outputconvert to BLOBnewversion in XML DB

36. Demo

37. Buy thisBook

38. Questions

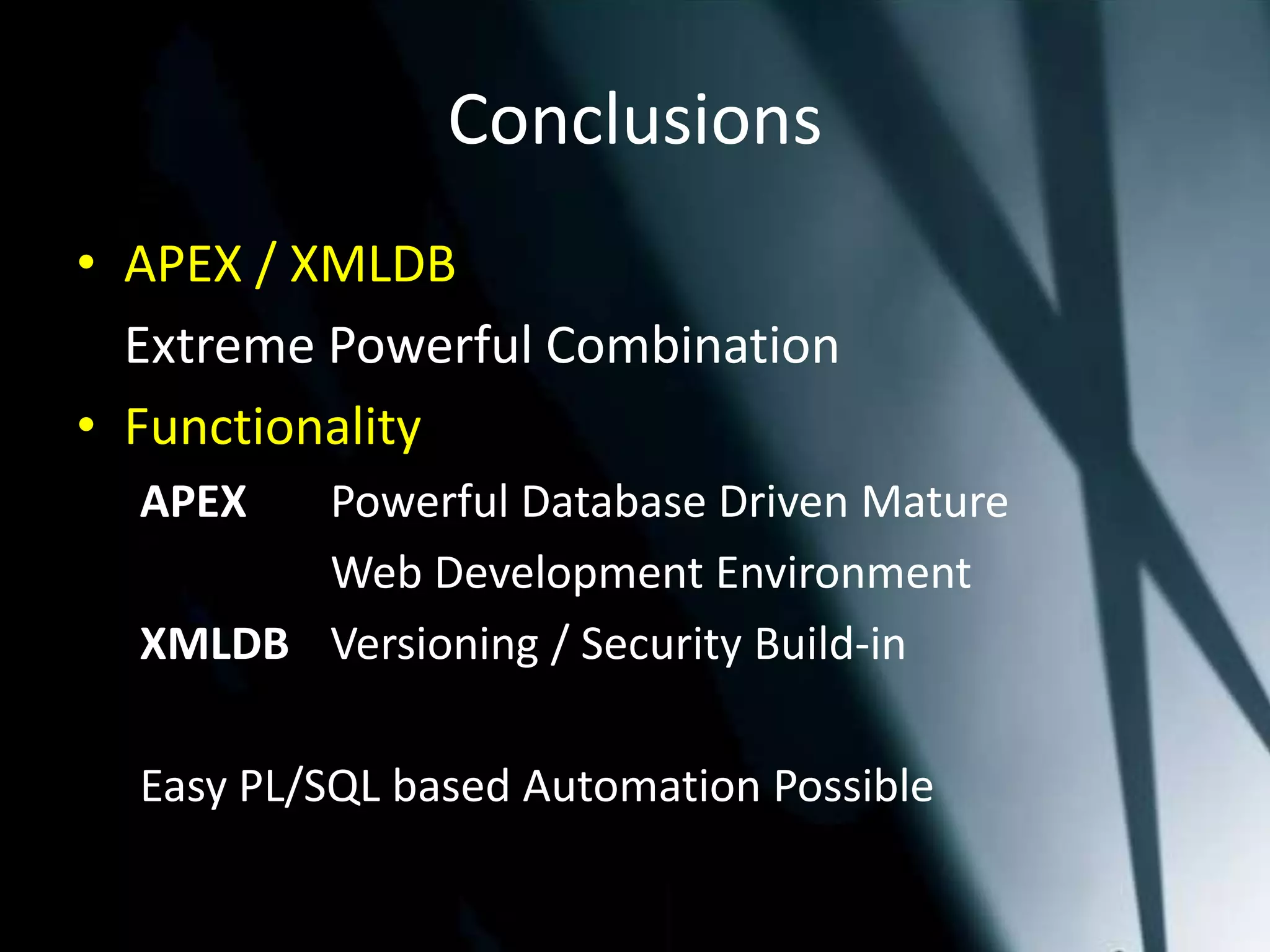

39. ConclusionsAPEX / XMLDB Extreme Powerful CombinationFunctionalityAPEXPowerful Database Driven Mature Web Development EnvironmentXMLDBVersioning / Security Build-inEasy PL/SQL based Automation Possible

40. To Do List27To do list :Download XFILES from<where?>

41. Thank youLogica | Meander 901 P.O. Box 7015 | 6801 HA Arnhem | The Netherlands | www.logica.comContact: Roel Hartman - Lead Technical Architect Oracle: +31 (0) 26 3765 000 M: +31 (0) 6 2954 3729 E: roel.hartman@logica.comAll slides © 2011 Logica
