What's New in Spring 3.0

What’s New in
Spring 3.0
Sam Brannen
Senior Software Consultant
Spring Geek Night
Zürich Switzerland
25 February 2010

Speaker Profile
Senior Software Consultant – Swiftmind GmbH
Spring Framework Core Developer
Previous SpringSource dm Server™ developer: OSGi-enabled
Web deployment models, Tomcat integration, Test Framework
Java developer with 12+ years' experience
Regular speaker at conferences on Spring, dm Server, Java,
OSGi, and testing
Co-author of Spring in a Nutshell;
chief technical reviewer for Spring Recipes
2Copyright 2009-2010 Sam Brannen. Copying, publishing or distributing without express written permission is prohibited.

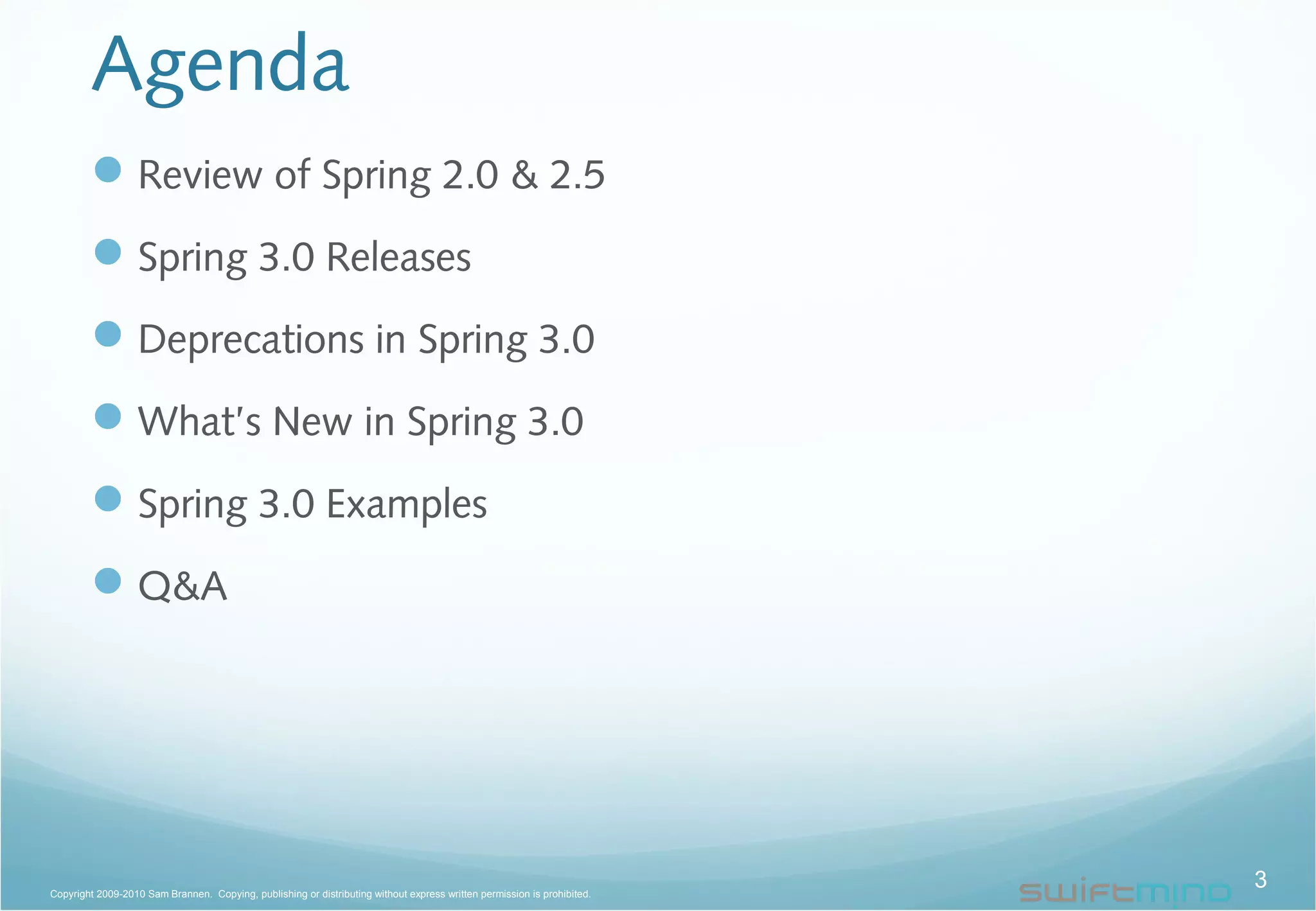

Agenda
Review of Spring 2.0 & 2.5
Spring 3.0 Releases
Deprecations in Spring 3.0
What’s New in Spring 3.0
Spring 3.0 Examples
Q&A

Spring 2.0

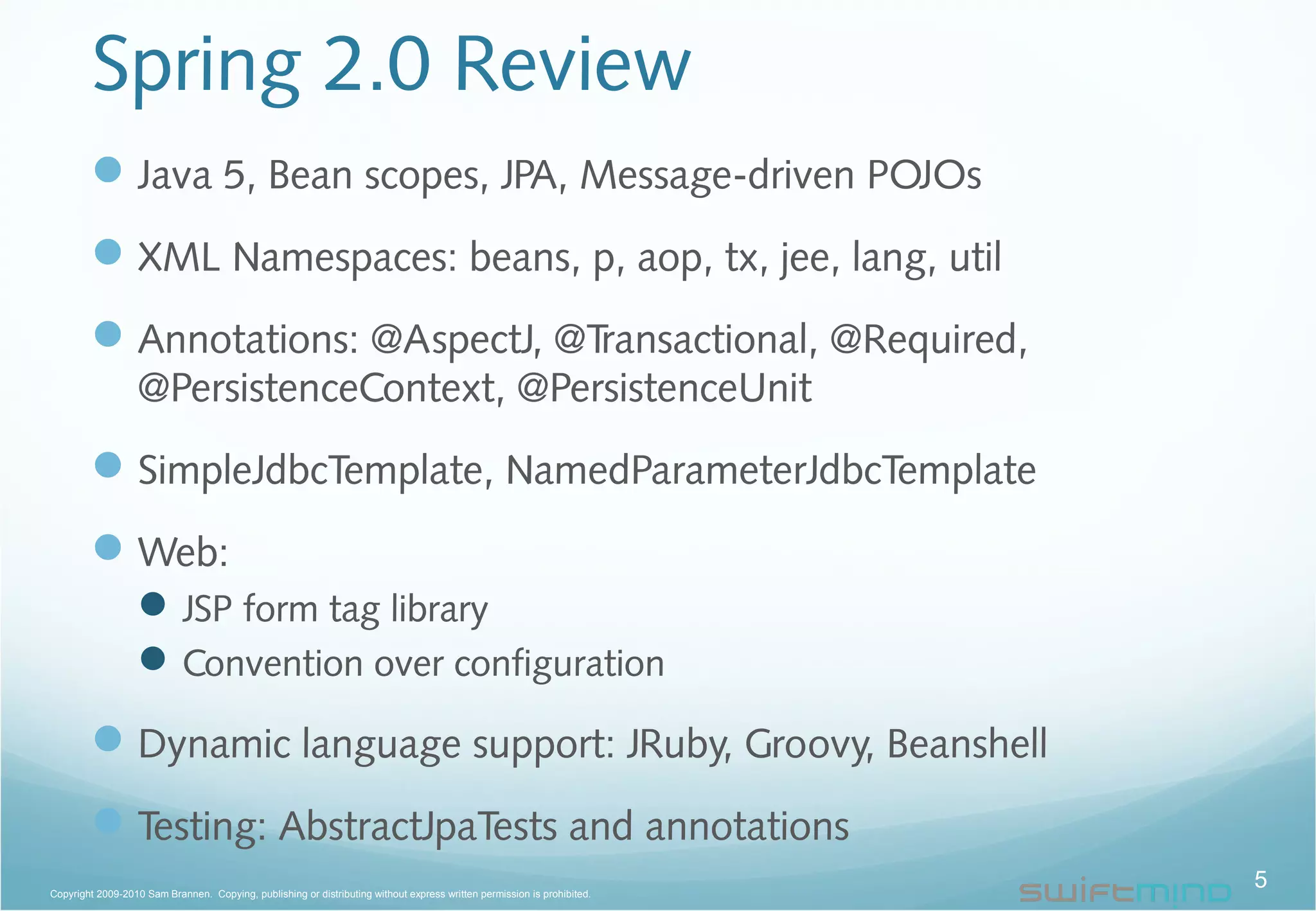

Spring 2.0 Review
Java 5, Bean scopes, JPA, Message-driven POJOs
XML Namespaces: beans, p, aop, tx, jee, lang, util
Annotations: @AspectJ, @Transactional, @Required,
@PersistenceContext, @PersistenceUnit
SimpleJdbcTemplate, NamedParameterJdbcTemplate
Web:
JSP form tag library
Convention over configuration
Dynamic language support: JRuby, Groovy, Beanshell
Testing: AbstractJpaTests and annotations

Spring 2.5

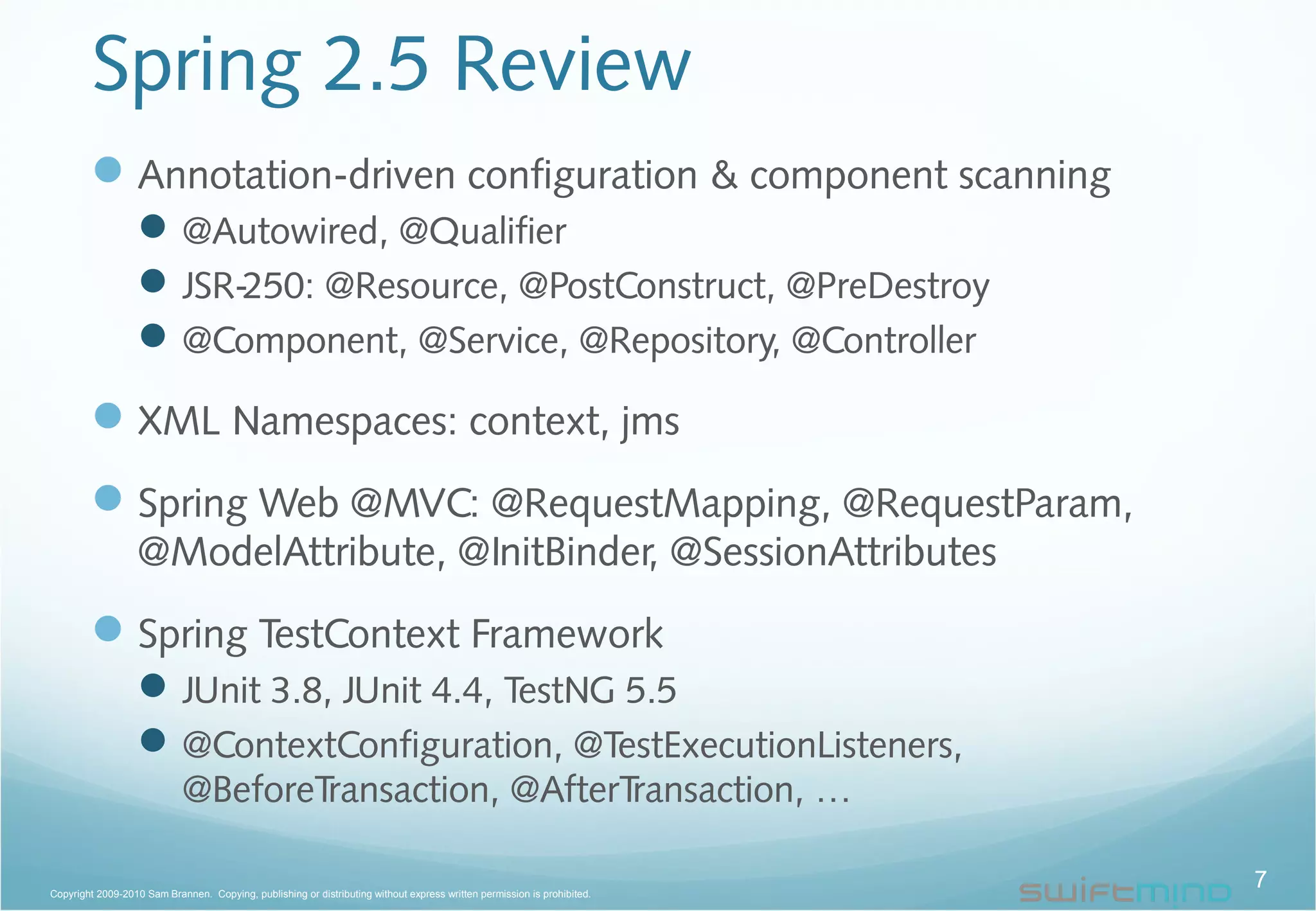

Spring 2.5 Review
Annotation-driven configuration & component scanning
@Autowired, @Qualifier
JSR-250: @Resource, @PostConstruct, @PreDestroy
@Component, @Service, @Repository, @Controller
XML Namespaces: context, jms
Spring Web @MVC: @RequestMapping, @RequestParam,
@ModelAttribute, @InitBinder, @SessionAttributes
Spring TestContext Framework
JUnit 3.8, JUnit 4.4, TestNG 5.5
@ContextConfiguration, @TestExecutionListeners,
@BeforeTransaction, @AfterTransaction, …

Spring 3.0

Spring 3.0.0.M1
Java 5+ and J2EE 1.4+
Java 5 language features: generics and var-args
Spring EL parser
Support for #{…} expressions in bean definitions
@PathVariable for URI template handling
@RequestParam defaultValue attribute
@RequestHeader for HTTP header attribute handling
AbstractAtomFeedView & AbstractRssFeedView
<spring:url /> & <spring:param /> JSP tags

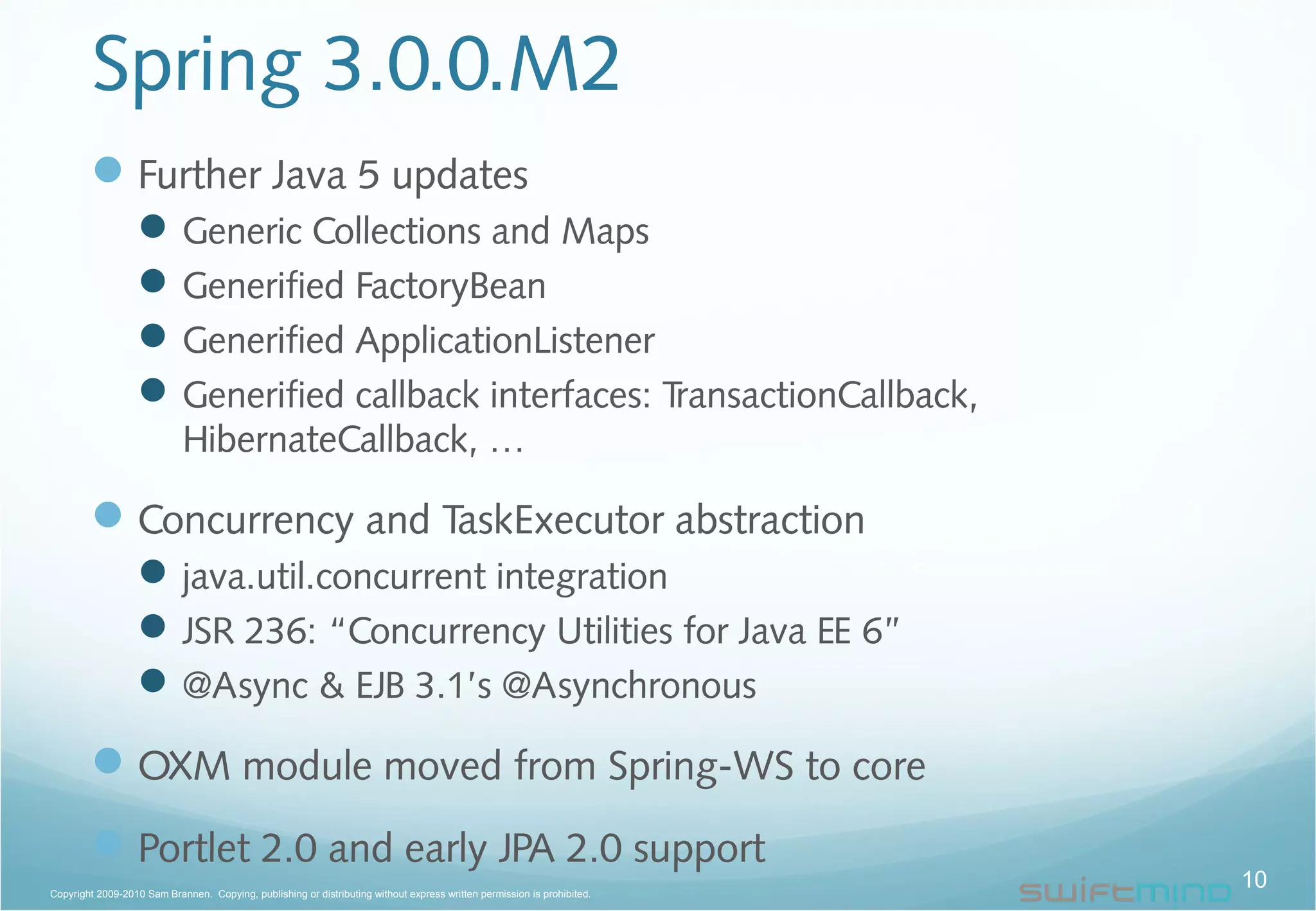

Spring 3.0.0.M2
Further Java 5 updates
Generic Collections and Maps
Generified FactoryBean
Generified ApplicationListener
Generified callback interfaces: TransactionCallback,
HibernateCallback, …
Concurrency and TaskExecutor abstraction
java.util.concurrent integration
JSR 236: “Concurrency Utilities for Java EE 6”
@Async & EJB 3.1’s @Asynchronous
OXM module moved from Spring-WS to core
Portlet 2.0 and early JPA 2.0 support

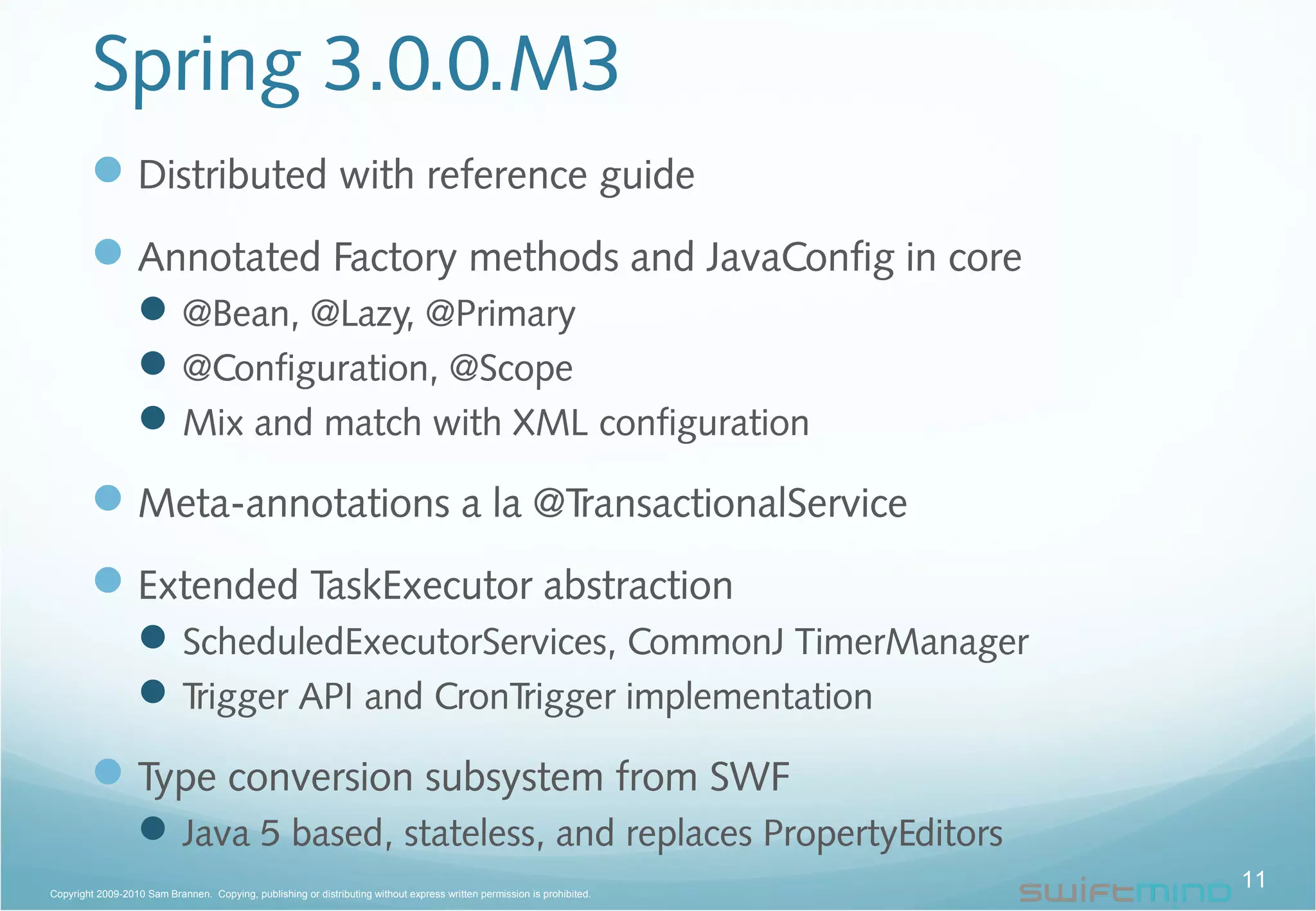

Spring 3.0.0.M3
Distributed with reference guide
Annotated Factory methods and JavaConfig in core
@Bean, @Lazy, @Primary
@Configuration, @Scope
Mix and match with XML configuration
Meta-annotations a la @TransactionalService
Extended TaskExecutor abstraction
ScheduledExecutorServices, CommonJ TimerManager
Trigger API and CronTrigger implementation
Type conversion subsystem from SWF
Java 5 based, stateless, and replaces PropertyEditors

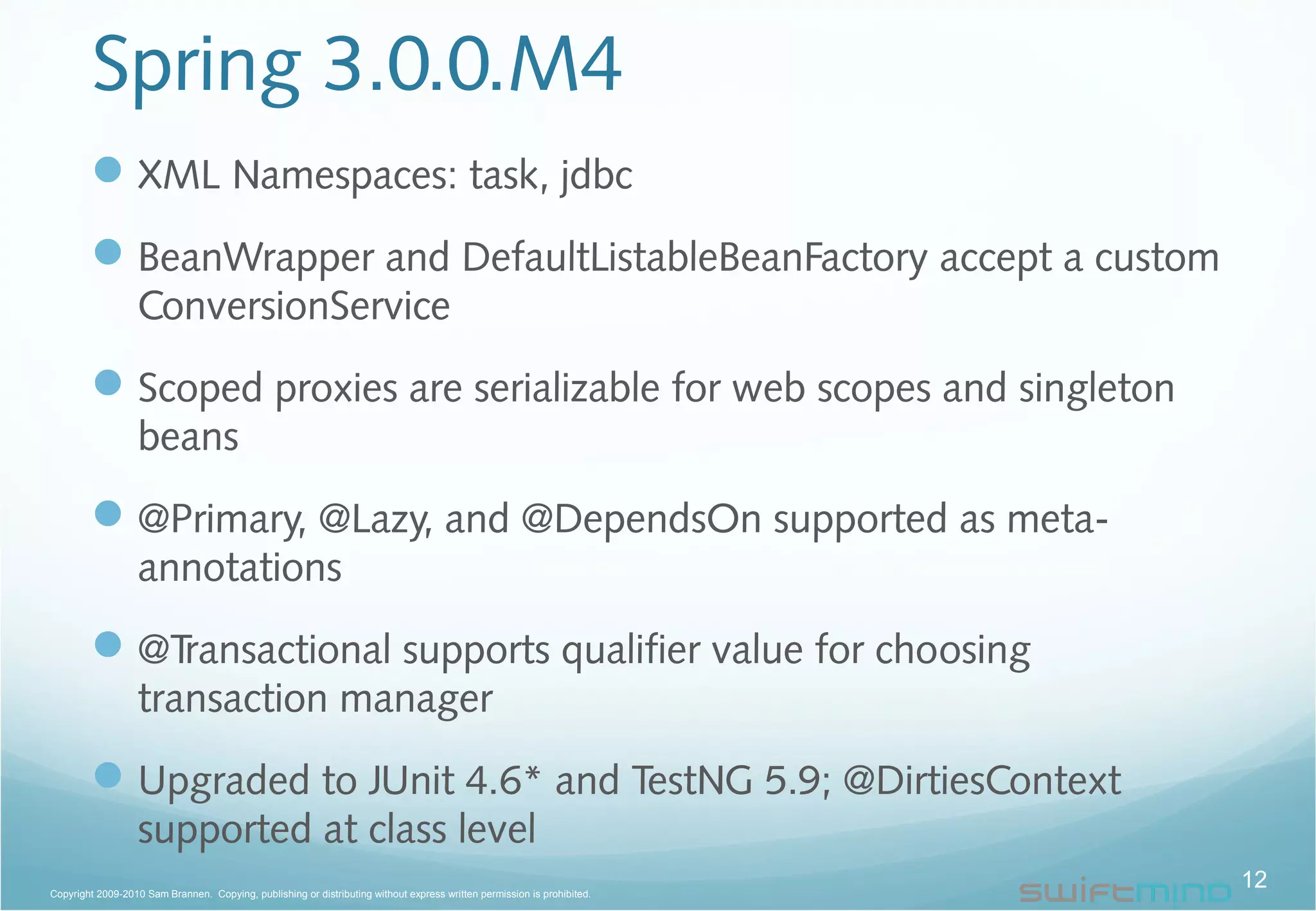

Spring 3.0.0.M4
XML Namespaces: task, jdbc
BeanWrapper and DefaultListableBeanFactory accept a custom
ConversionService
Scoped proxies are serializable for web scopes and singleton
beans
@Primary, @Lazy, and @DependsOn supported as meta-
annotations
@Transactional supports qualifier value for choosing
transaction manager
Upgraded to JUnit 4.6* and TestNG 5.9; @DirtiesContext
supported at class level

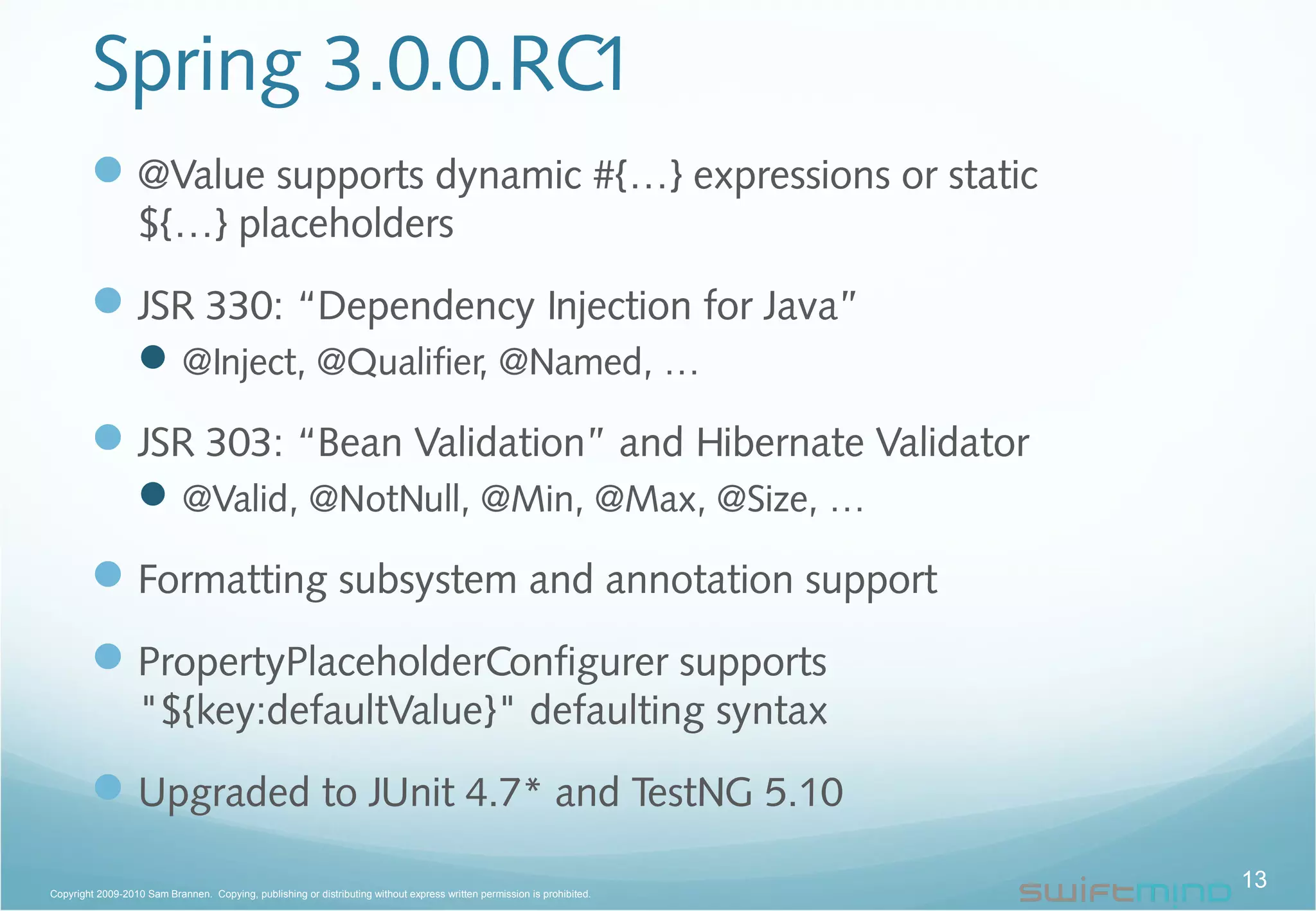

Spring 3.0.0.RC1
@Value supports dynamic #{…} expressions or static
${…} placeholders
JSR 330: “Dependency Injection for Java”
@Inject, @Qualifier, @Named, …
JSR 303: “Bean Validation” and Hibernate Validator
@Valid, @NotNull, @Min, @Max, @Size, …
Formatting subsystem and annotation support
PropertyPlaceholderConfigurer supports
"${key:defaultValue}" defaulting syntax
Upgraded to JUnit 4.7* and TestNG 5.10

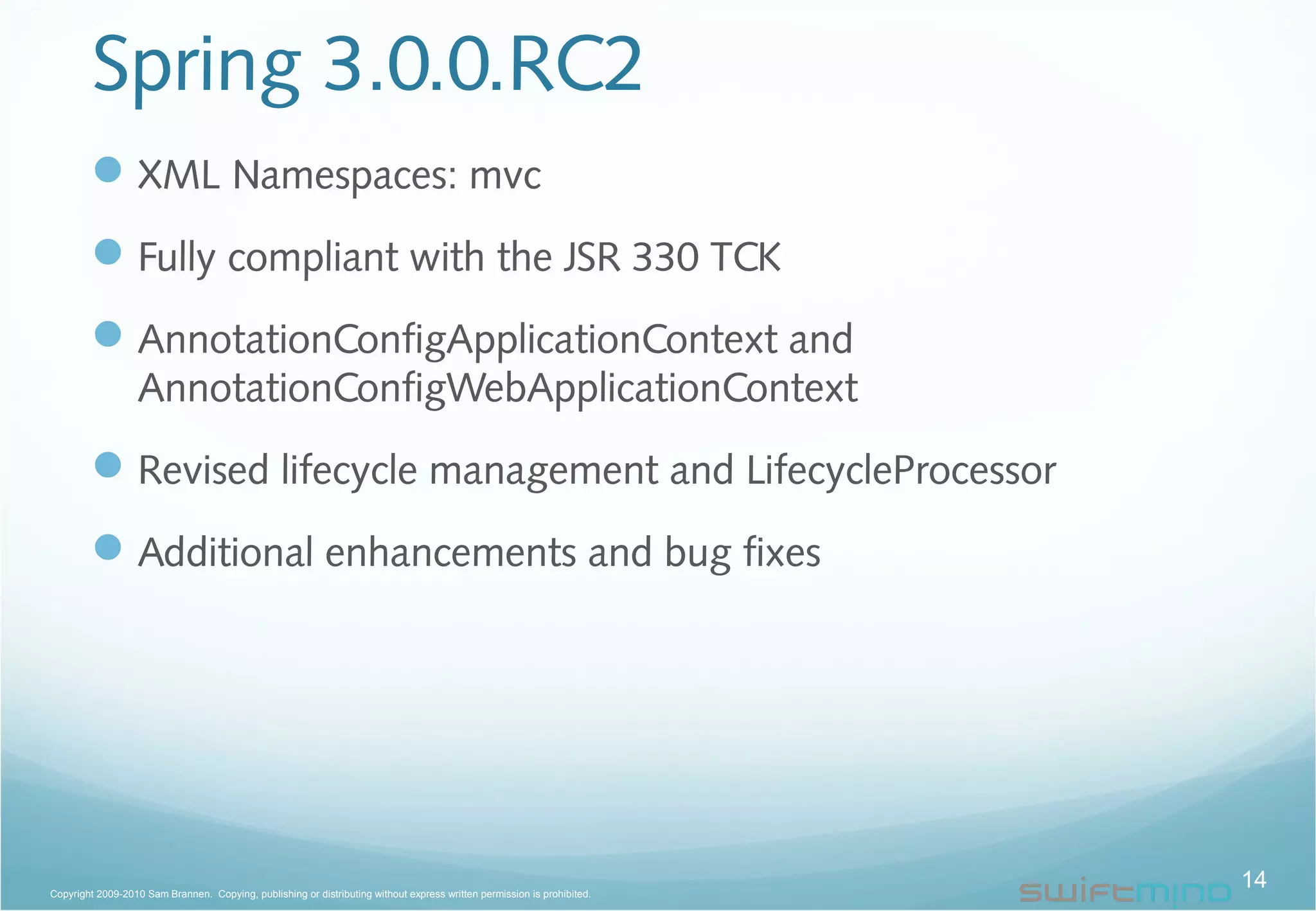

Spring 3.0.0.RC2
XML Namespaces: mvc
Fully compliant with the JSR 330 TCK
AnnotationConfigApplicationContext and
AnnotationConfigWebApplicationContext
Revised lifecycle management and LifecycleProcessor
Additional enhancements and bug fixes

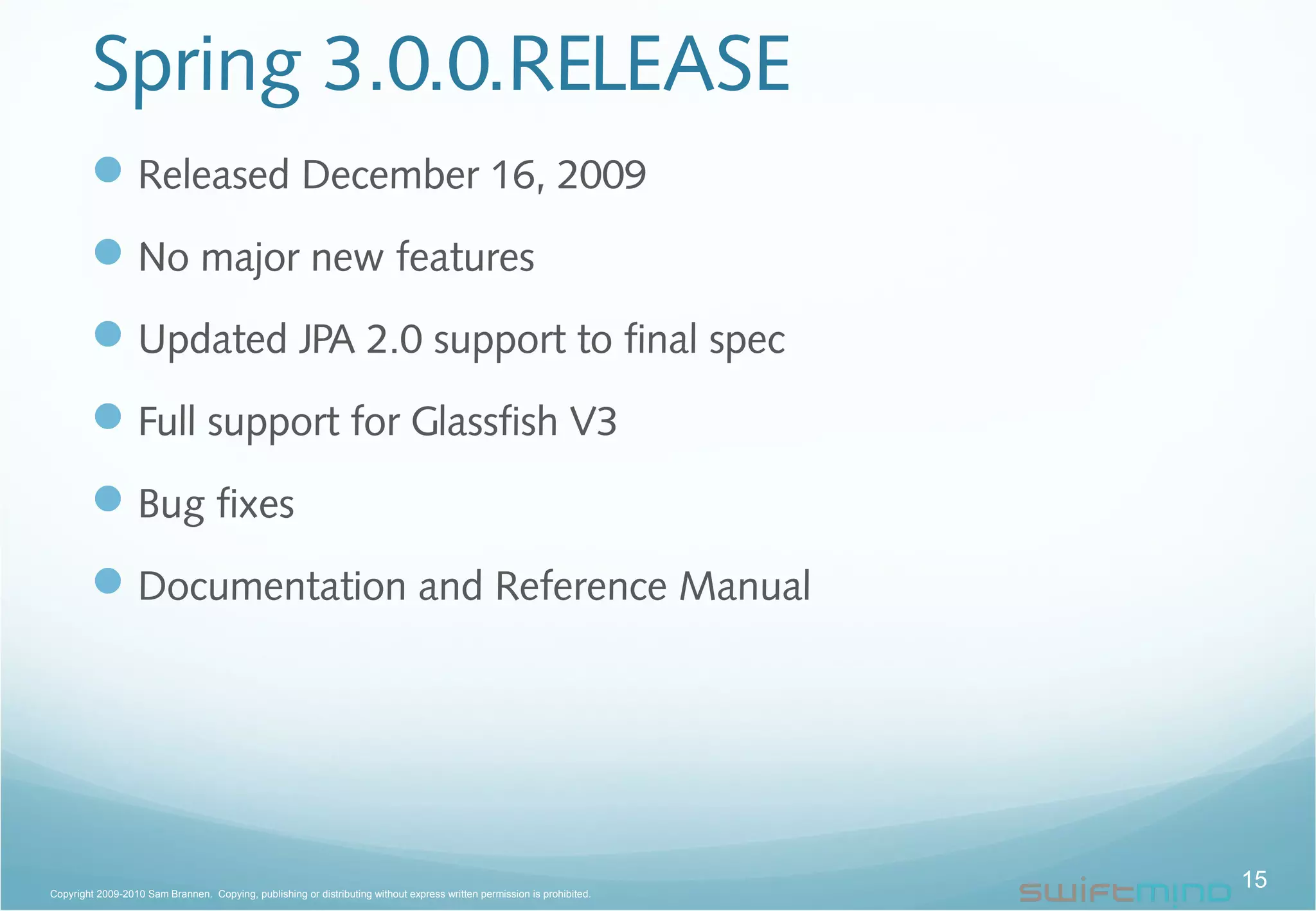

Spring 3.0.0.RELEASE
Released December 16, 2009
No major new features
Updated JPA 2.0 support to final spec
Full support for Glassfish V3
Bug fixes

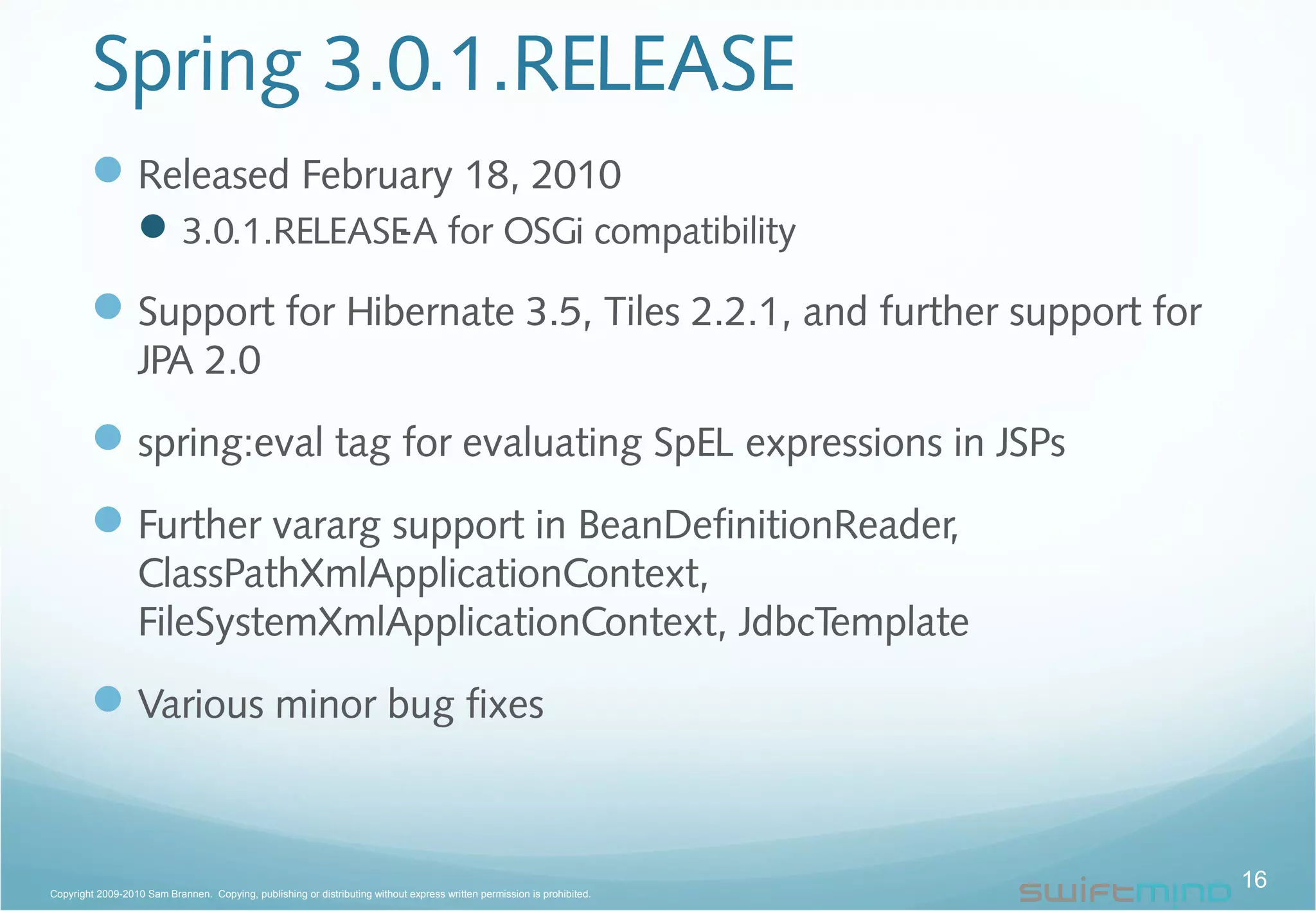

Documentation and Reference Manual

Released February 18, 2010
3.0.1.RELEASE-A for OSGi compatibility
Support for Hibernate 3.5, Tiles 2.2.1, and further support for
JPA 2.0
spring:eval tag for evaluating SpEL expressions in JSPs
Further vararg support in BeanDefinitionReader,
ClassPathXmlApplicationContext,
FileSystemXmlApplicationContext, JdbcTemplate
Various minor bug fixes

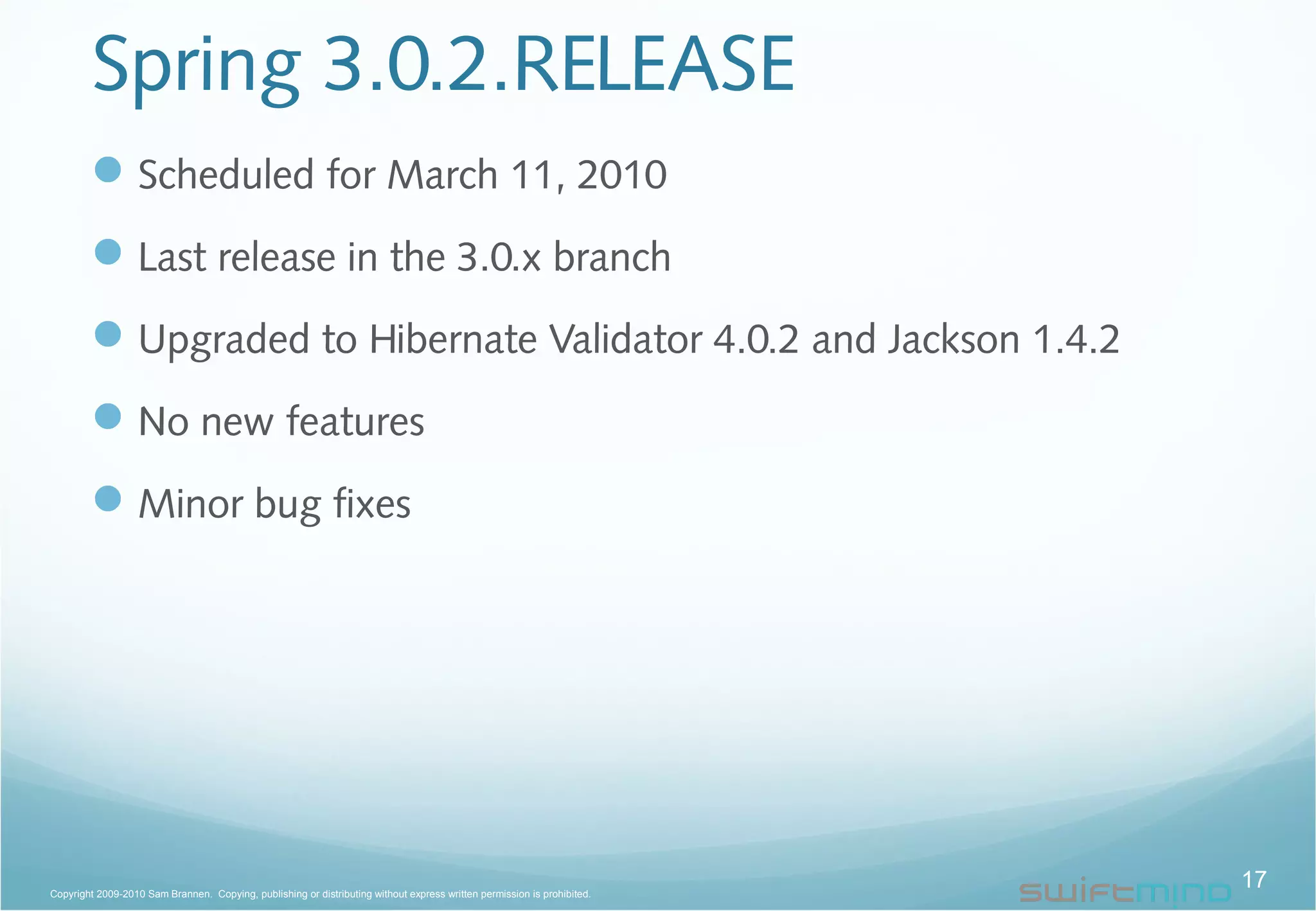

Scheduled for March 11, 2010
Last release in the 3.0.x branch
Upgraded to Hibernate Validator 4.0.2 and Jackson 1.4.2
No new features
Minor bug fixes

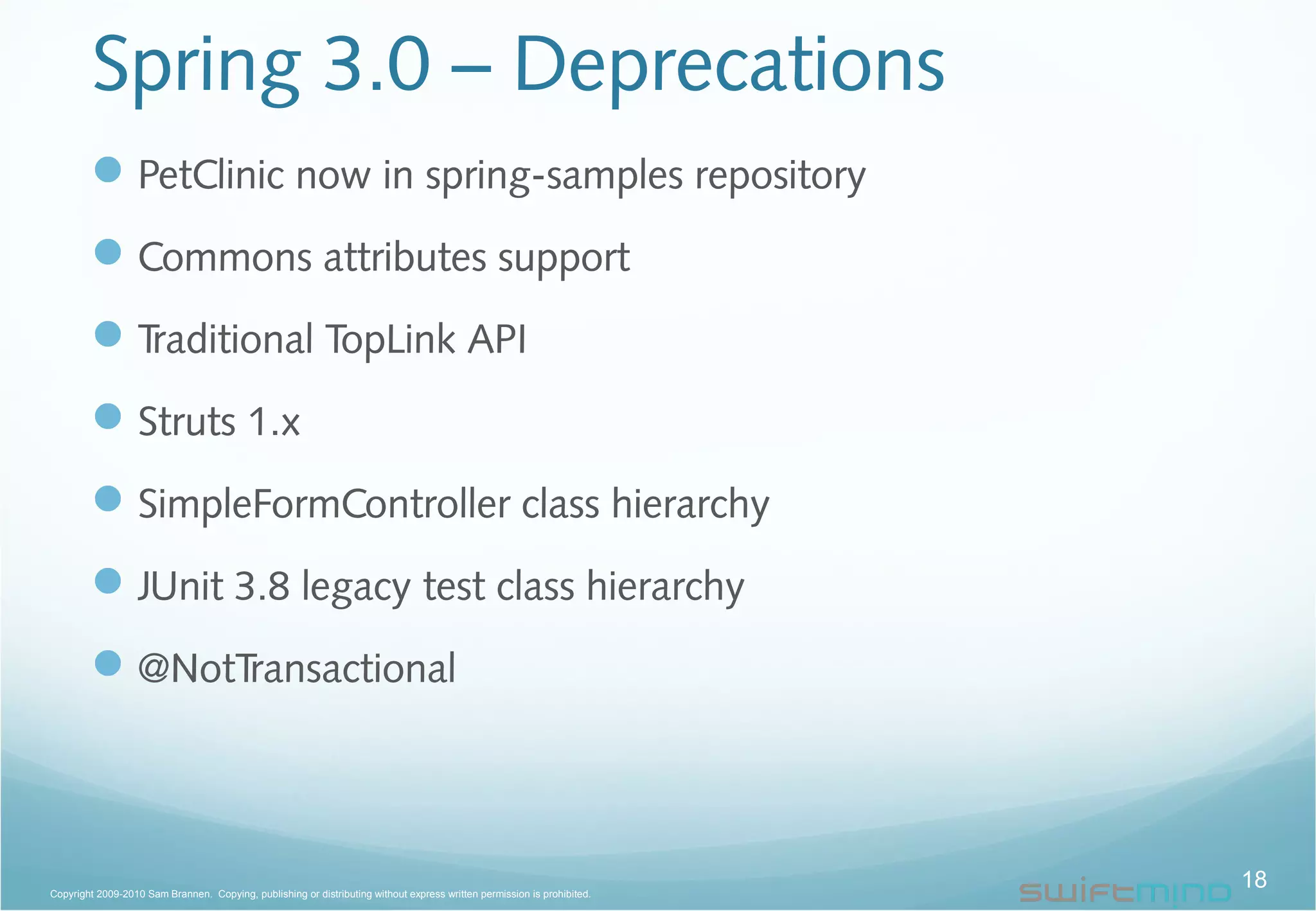

Spring 3.0 – Deprecations
PetClinic now in spring-samples repository
Commons attributes support
Traditional TopLink API
Struts 1.x
SimpleFormController class hierarchy
JUnit 3.8 legacy test class hierarchy
@NotTransactional

Spring Expression Language

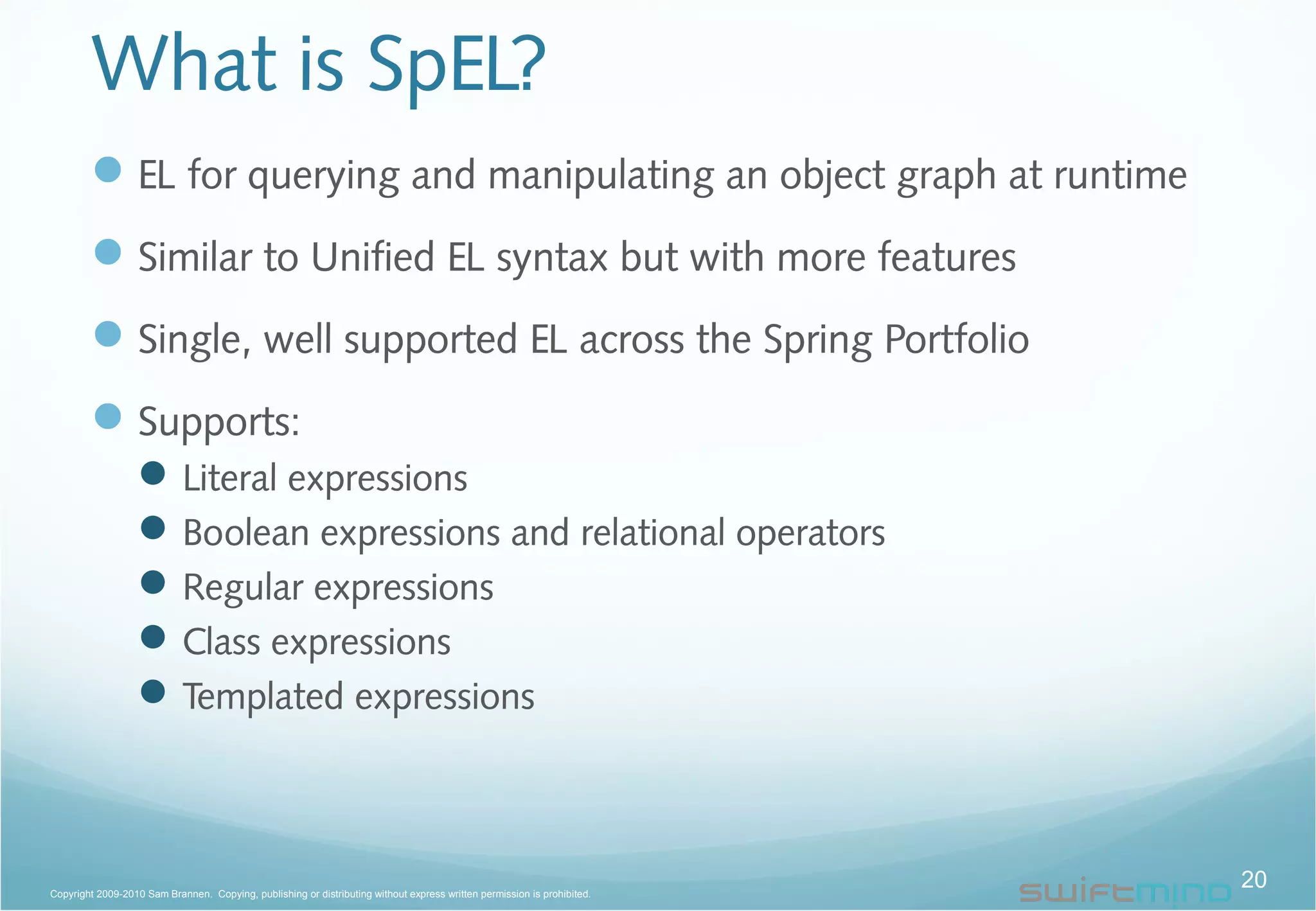

What is SpEL?
EL for querying and manipulating an object graph at runtime
Similar to Unified EL syntax but with more features
Single, well supported EL across the Spring Portfolio
Supports:
Literal expressions
Boolean expressions and relational operators
Regular expressions
Class expressions
Templated expressions

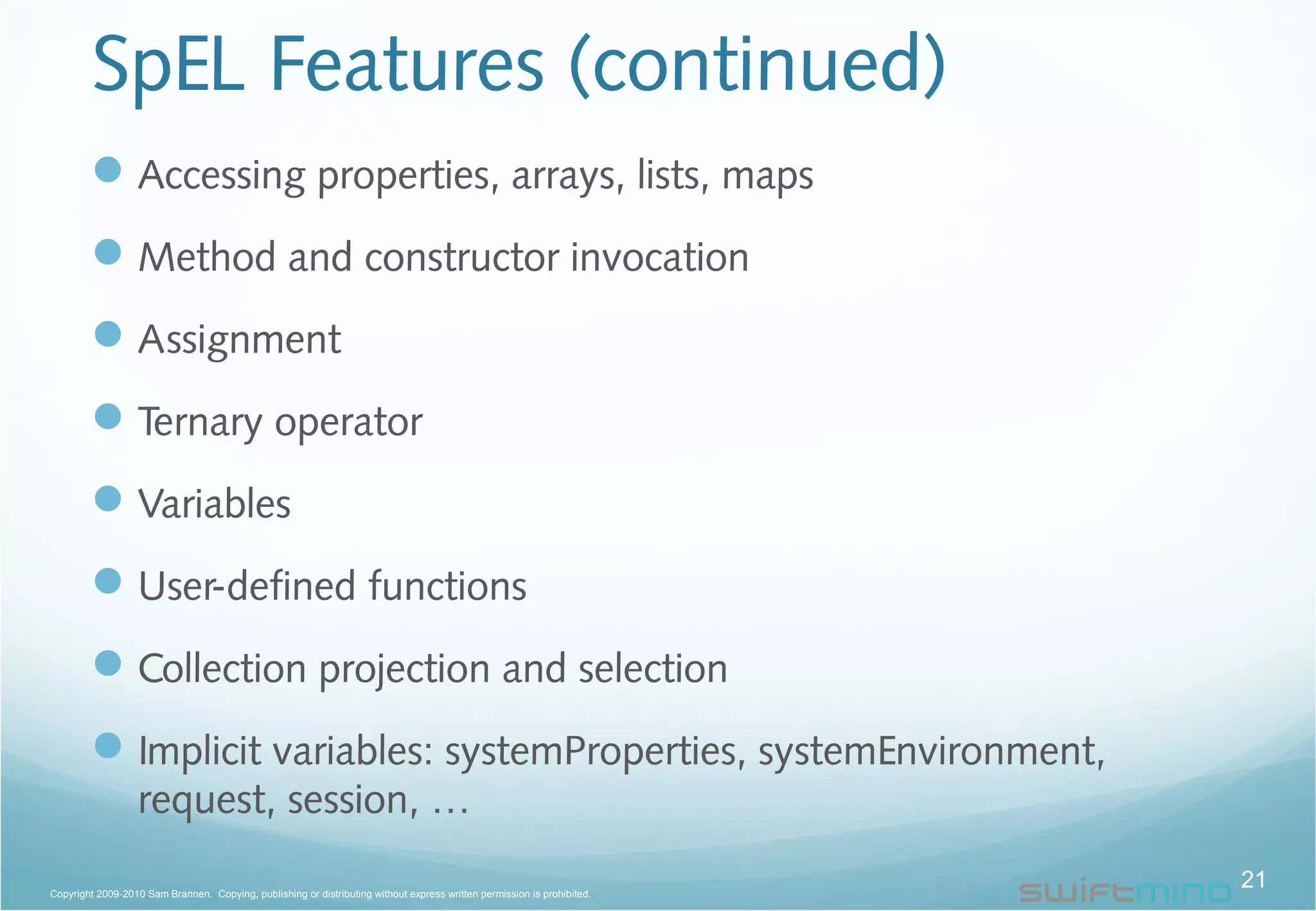

SpEL Features (continued)
Accessing properties, arrays, lists, maps
Method and constructor invocation
Assignment
Ternary operator
Variables
User-defined functions
Collection projection and selection
Implicit variables: systemProperties, systemEnvironment,
request, session, …

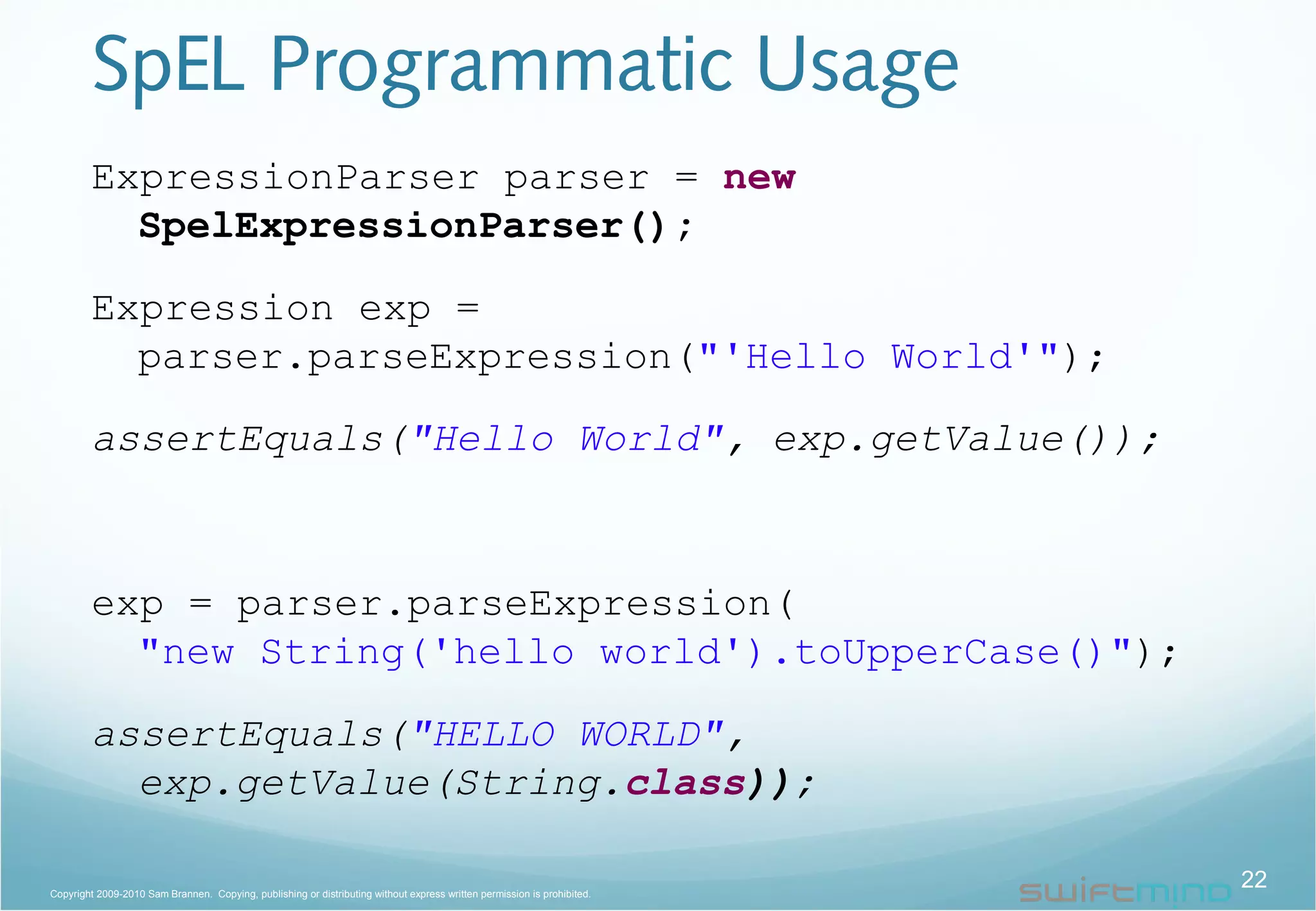

SpEL Programmatic Usage
ExpressionParser parser = new
SpelExpressionParser();
Expression exp =
parser.parseExpression("'Hello World'");
assertEquals("Hello World", exp.getValue());
exp = parser.parseExpression(
"new String('hello world').toUpperCase()");
assertEquals("HELLO WORLD",
exp.getValue(String.class));

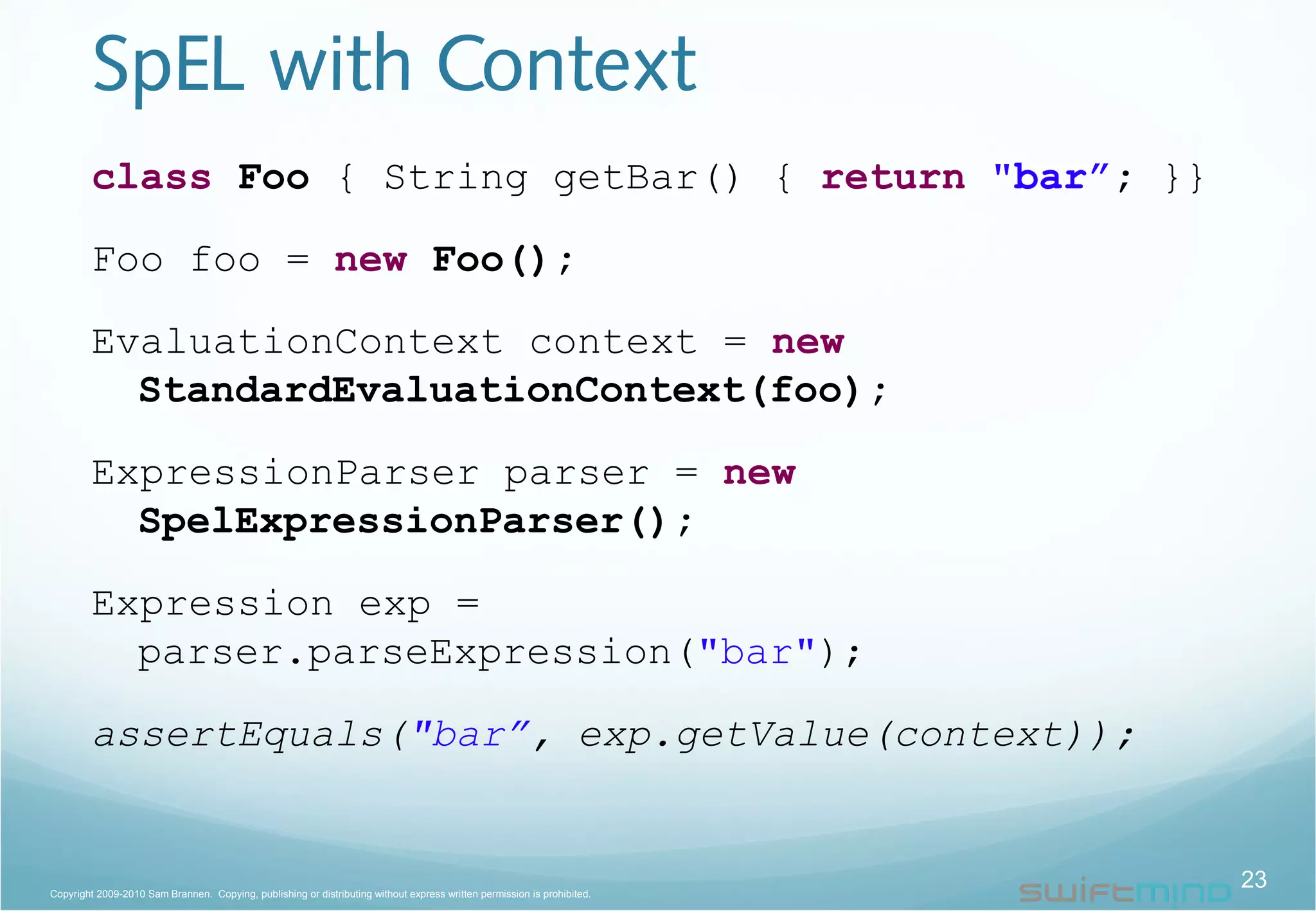

SpEL with Context
class Foo { String getBar() { return "bar”; }}
Foo foo = new Foo();
EvaluationContext context = new
StandardEvaluationContext(foo);
ExpressionParser parser = new
SpelExpressionParser();
Expression exp =
parser.parseExpression("bar");
assertEquals("bar”, exp.getValue(context));

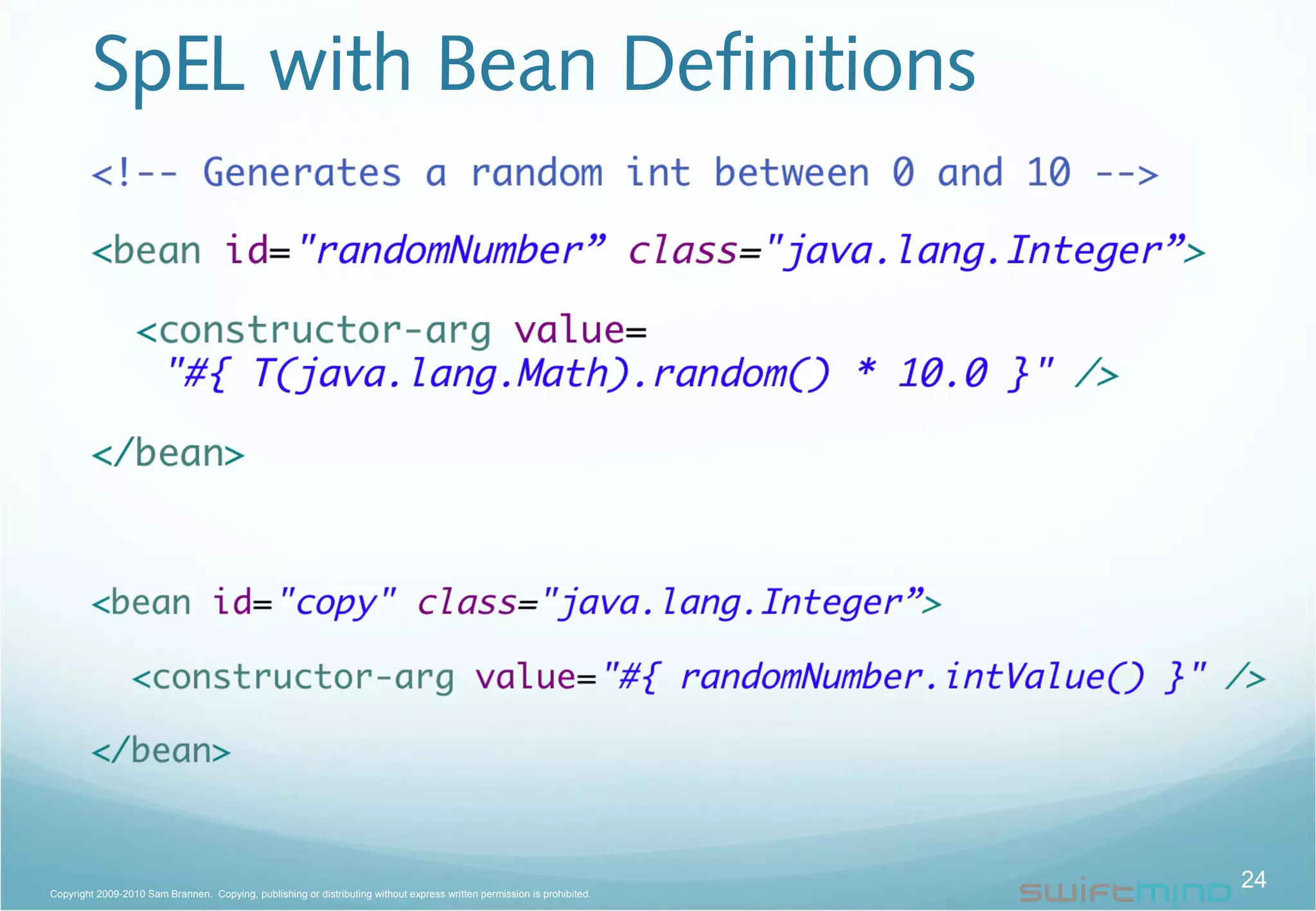

SpEL with Bean Definitions

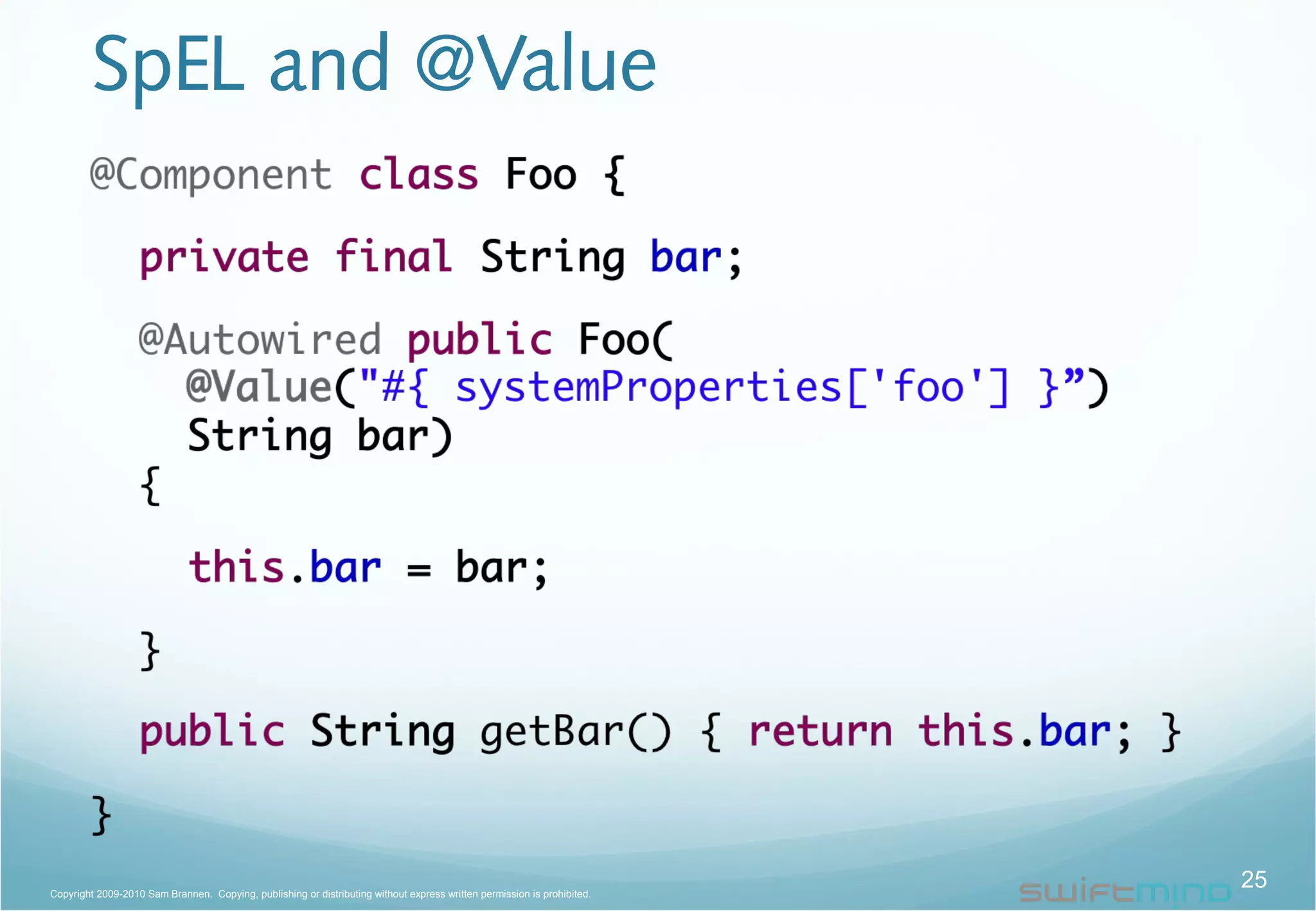

SpEL and @Value

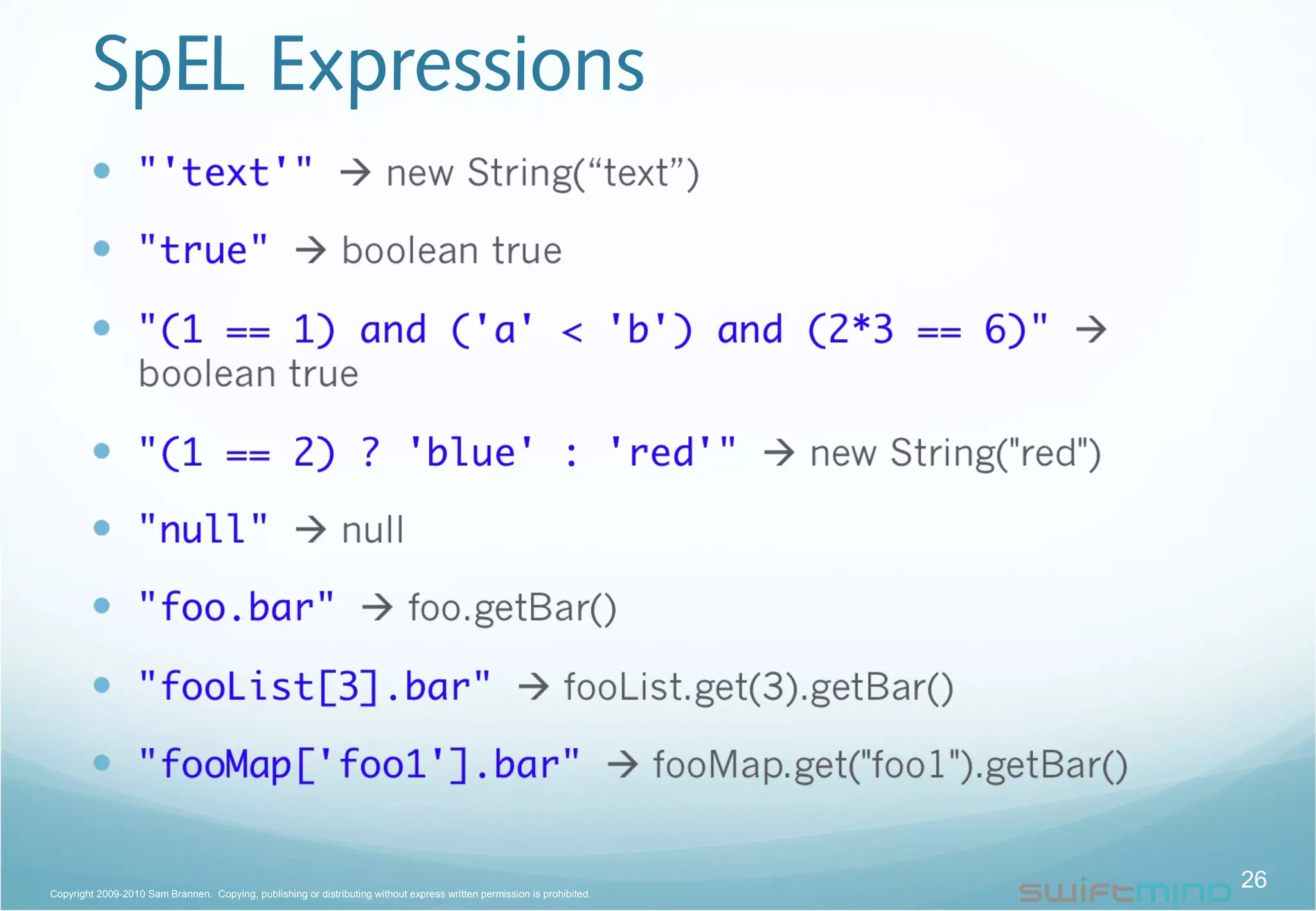

SpEL Expressions

Spring 3.0 MVC

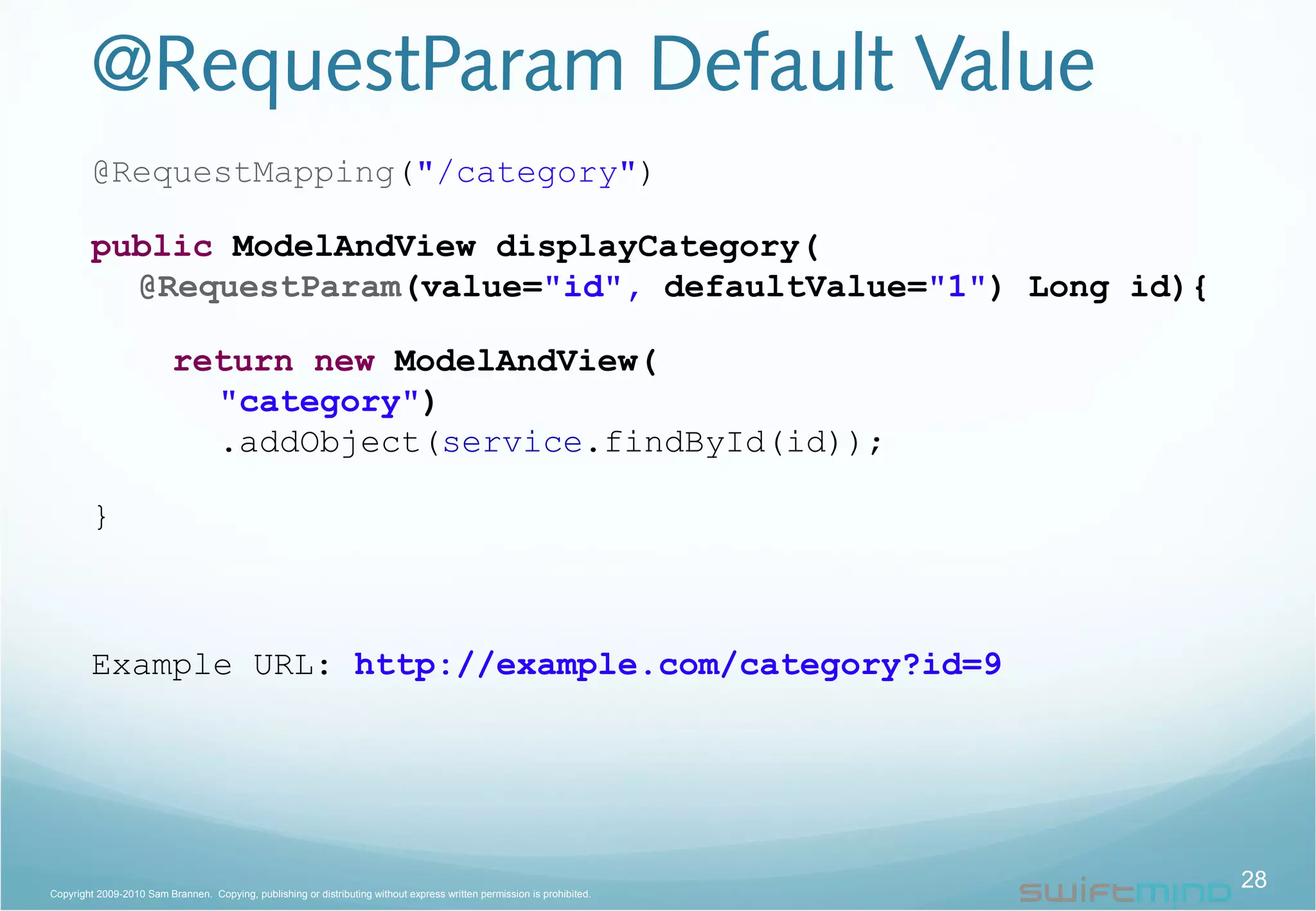

@RequestParam Default Value
@RequestMapping("/category")
public ModelAndView displayCategory(
@RequestParam(value="id", defaultValue="1") Long id){
return new ModelAndView(
"category")
.addObject(service.findById(id));
}
Example URL: http://example.com/category?id=9

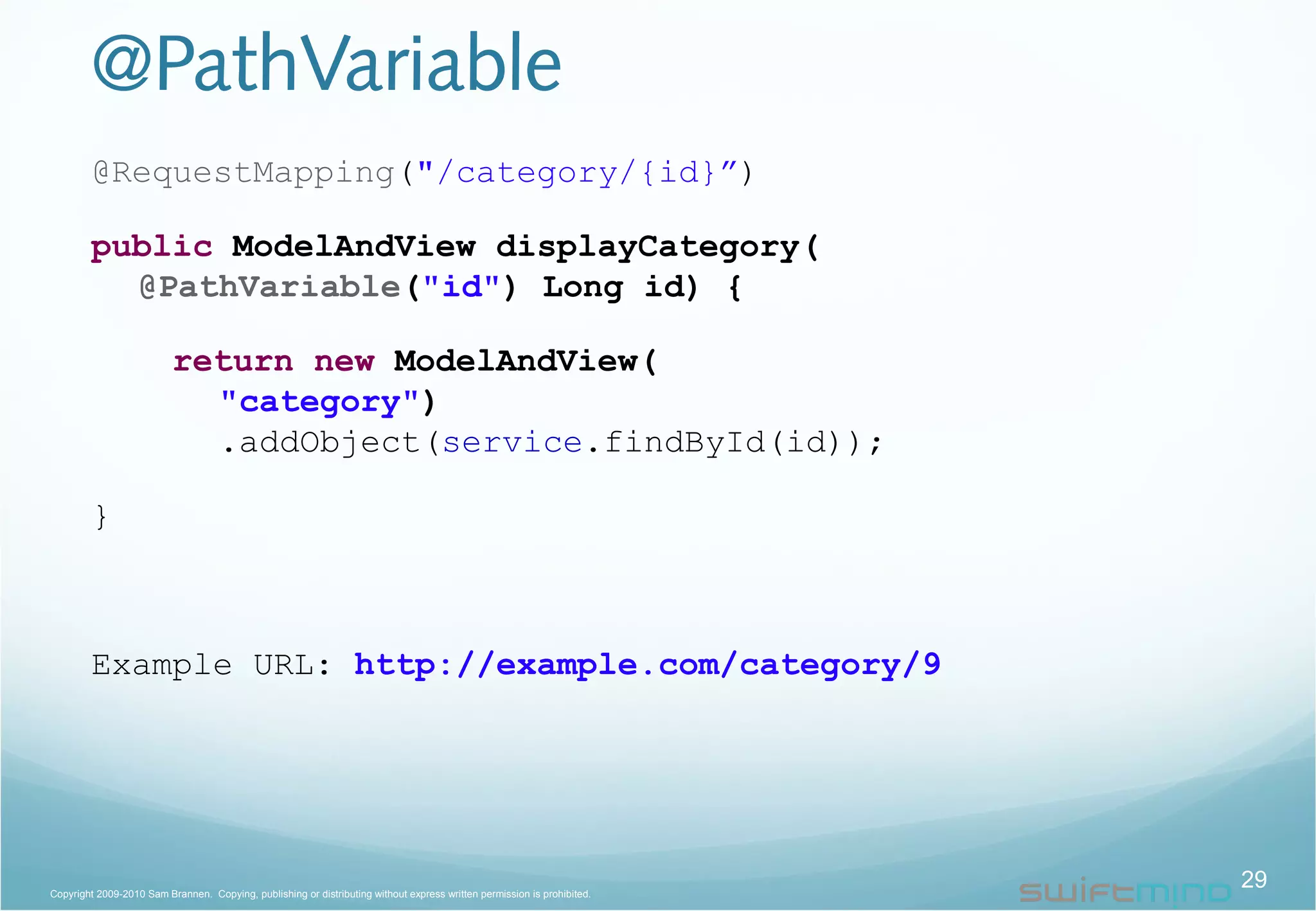

@PathVariable
@RequestMapping("/category/{id}”)
public ModelAndView displayCategory(
@PathVariable("id") Long id) {
return new ModelAndView(
"category")
.addObject(service.findById(id));
}
Example URL: http://example.com/category/9

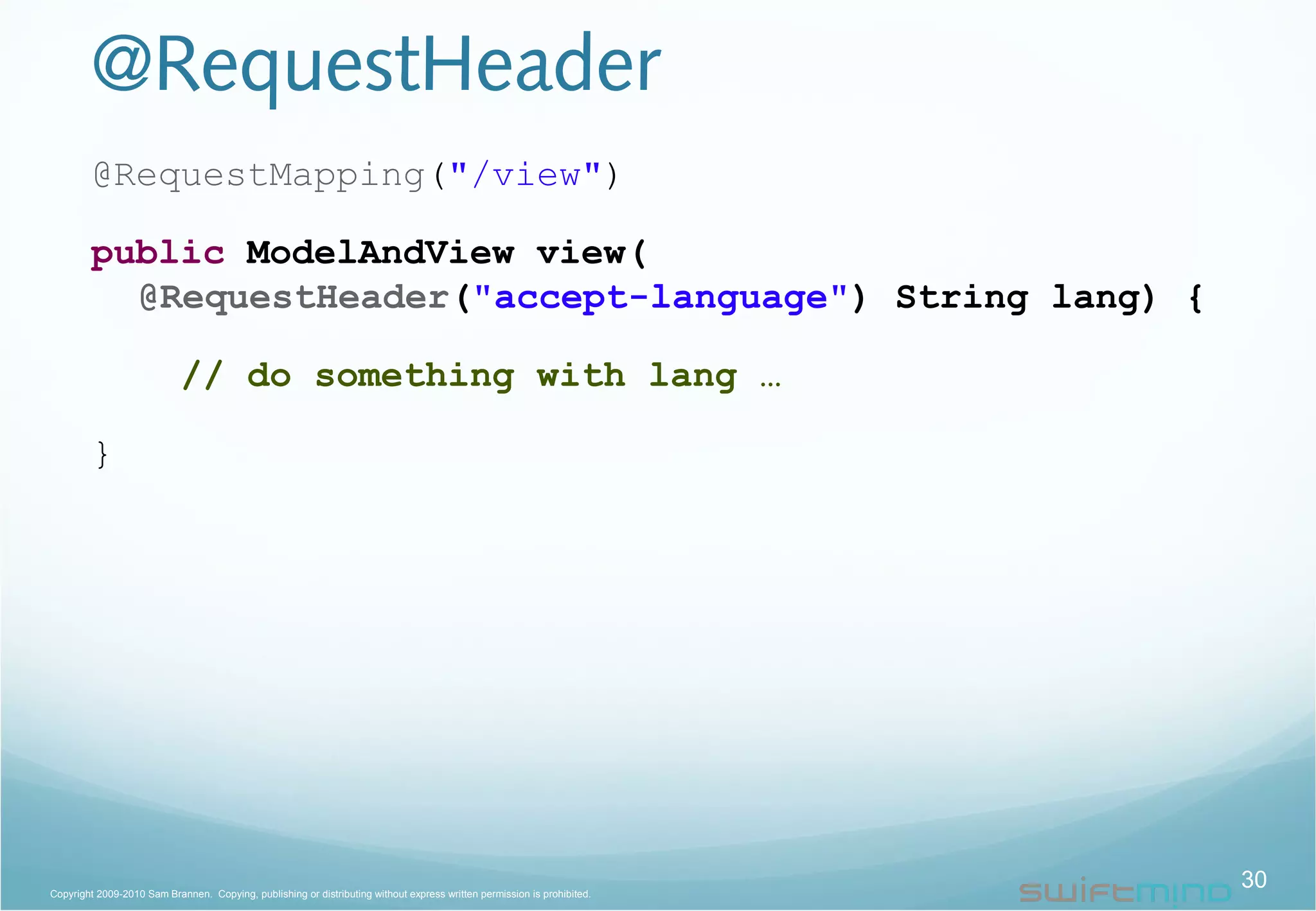

@RequestHeader
@RequestMapping("/view")
public ModelAndView view(
@RequestHeader("accept-language") String lang) {
// do something with lang …
}

@CookieValue
@RequestMapping("/view")
public ModelAndView view(
@CookieValue("lang") String lang) {
// do something with lang …
}

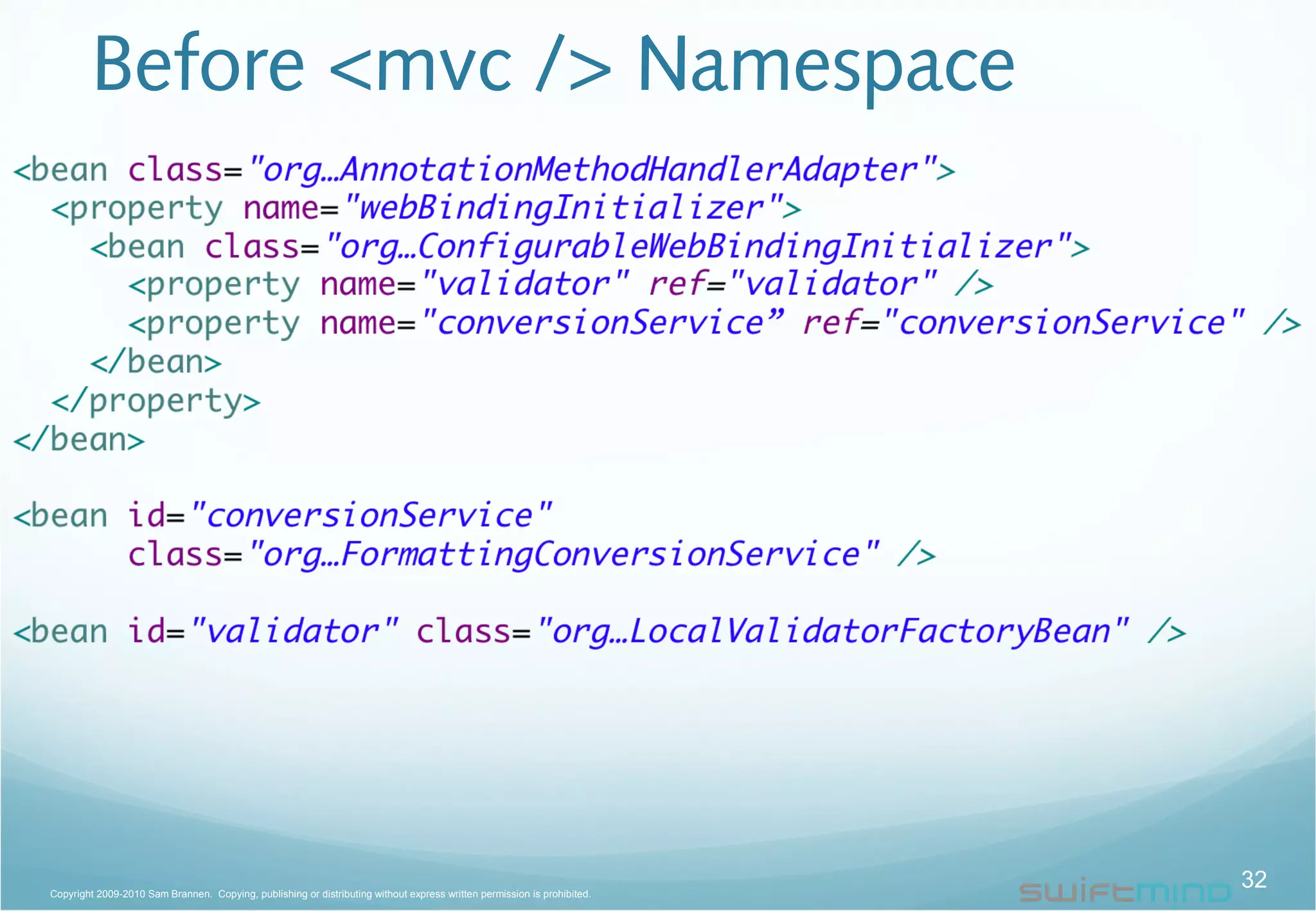

Before <mvc /> Namespace

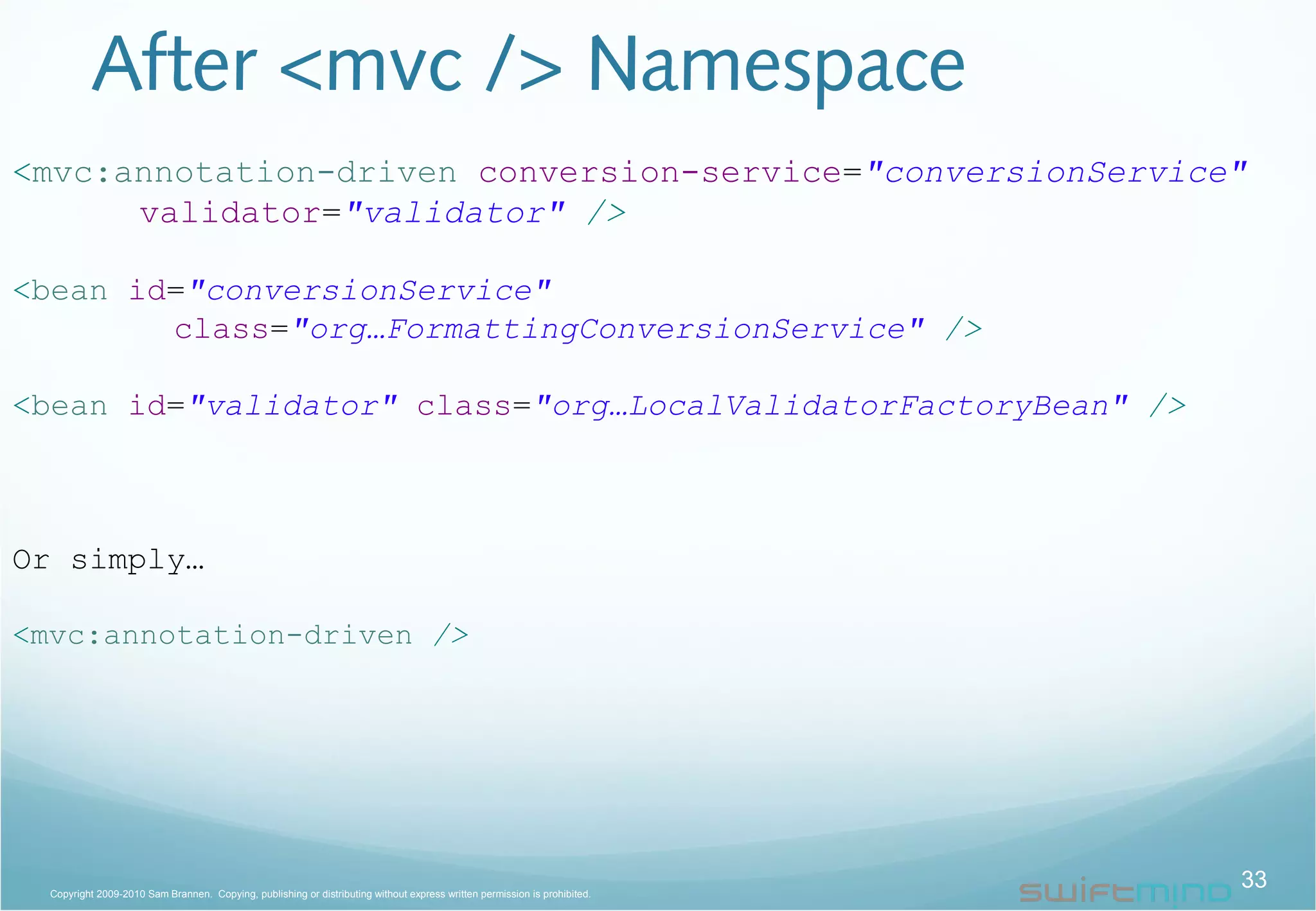

After <mvc /> Namespace
<mvc:annotation-driven conversion-service="conversionService"
validator="validator" />
<bean id="conversionService"
class="org…FormattingConversionService" />
<bean id="validator" class="org…LocalValidatorFactoryBean" />
Or simply…
<mvc:annotation-driven />

The jdbc Namespace

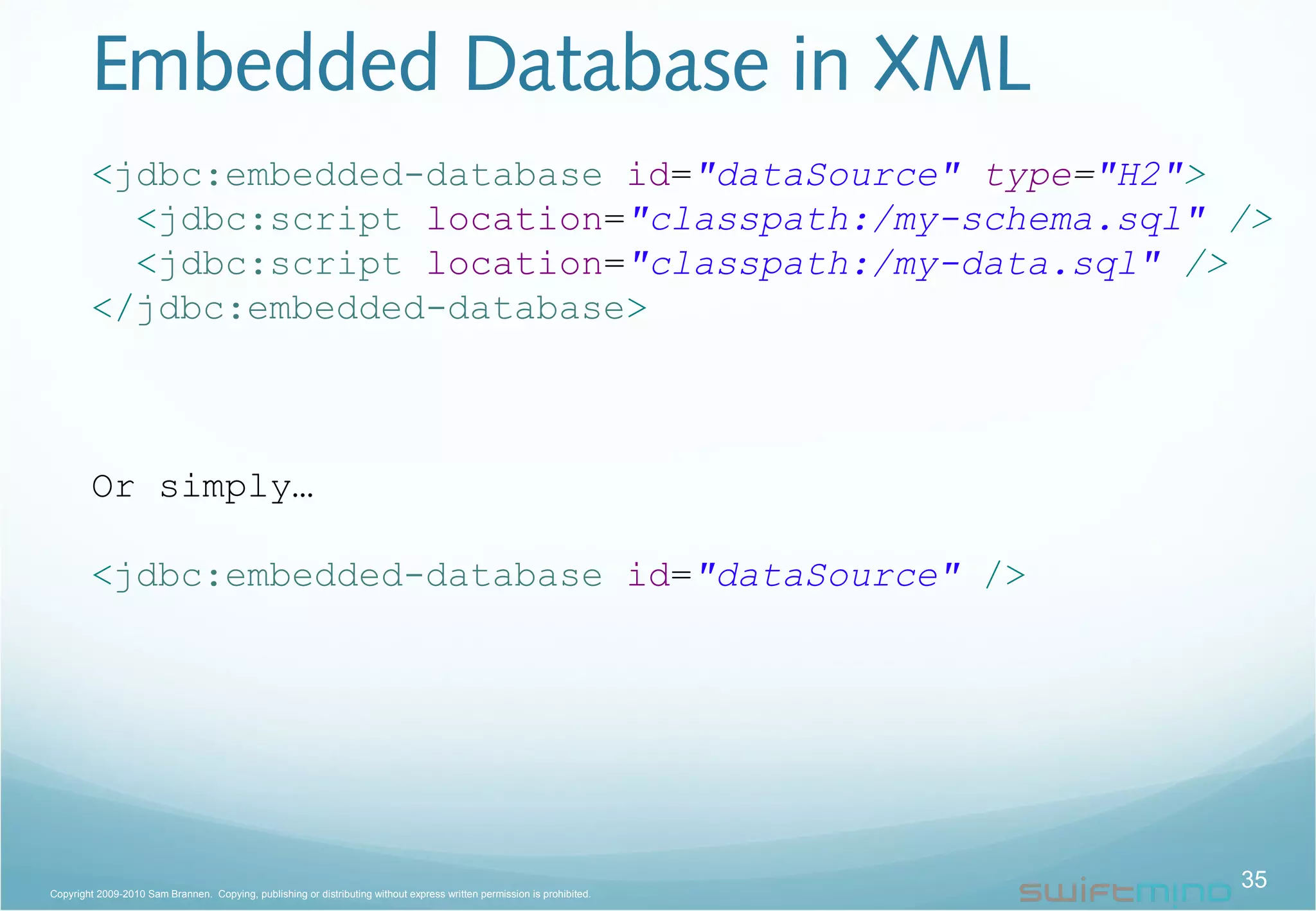

Embedded Database in XML
<jdbc:embedded-database id="dataSource" type="H2">
<jdbc:script location="classpath:/my-schema.sql" />
<jdbc:script location="classpath:/my-data.sql" />
</jdbc:embedded-database>
Or simply…
<jdbc:embedded-database id="dataSource" />

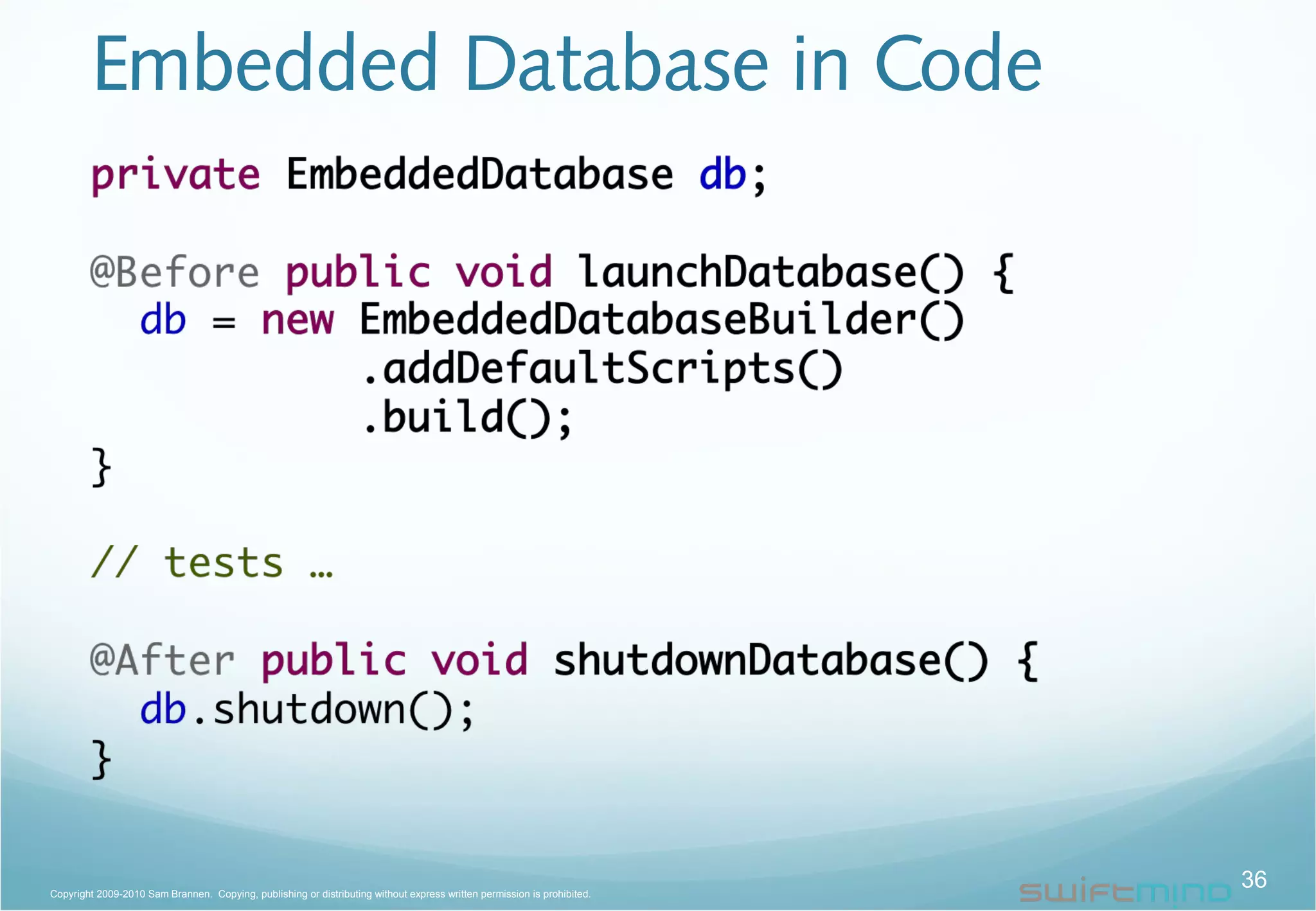

Embedded Database in Code

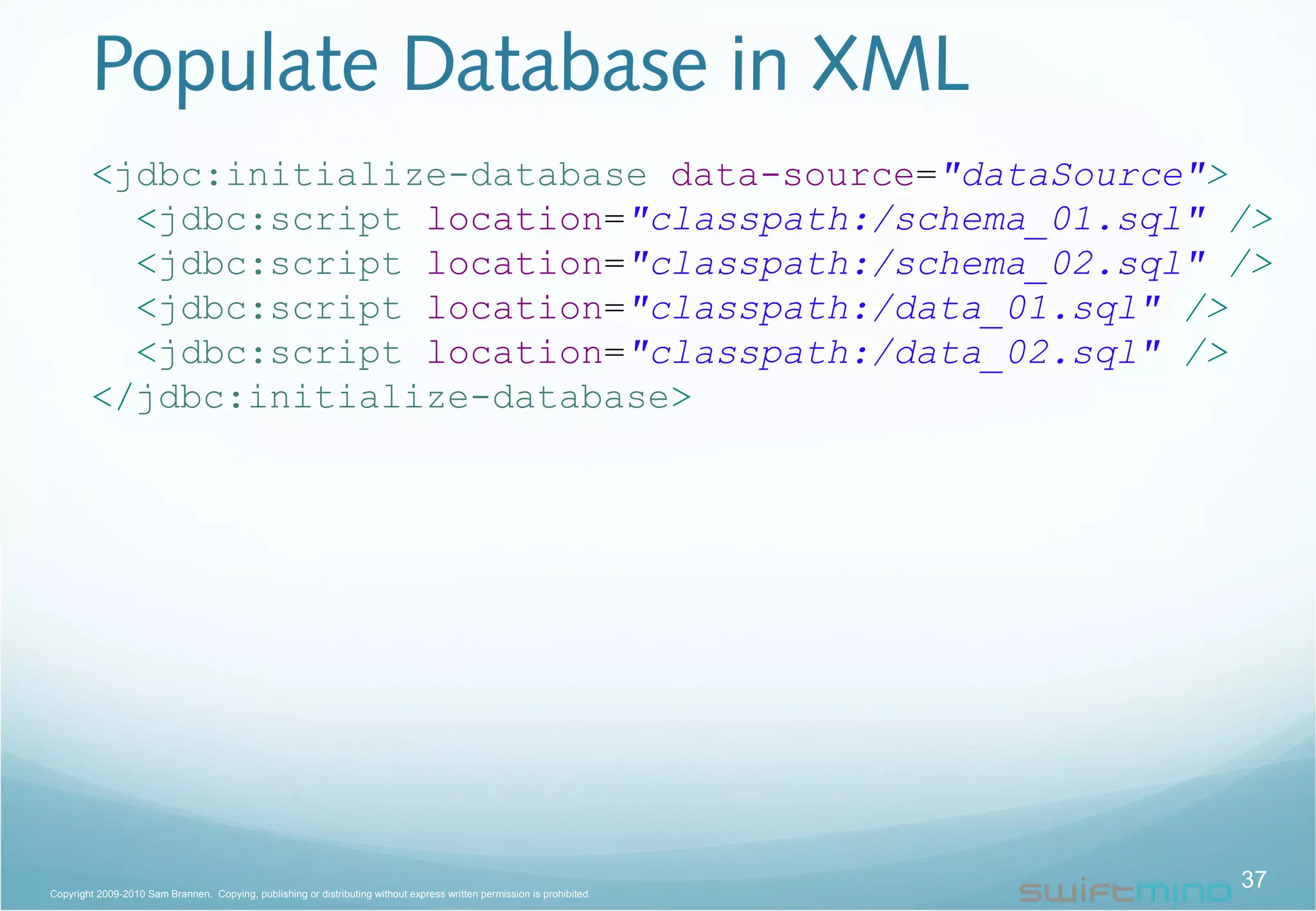

Populate Database in XML
<jdbc:initialize-database data-source="dataSource">
<jdbc:script location="classpath:/schema_01.sql" />
<jdbc:script location="classpath:/schema_02.sql" />
<jdbc:script location="classpath:/data_01.sql" />
<jdbc:script location="classpath:/data_02.sql" />
</jdbc:initialize-database>

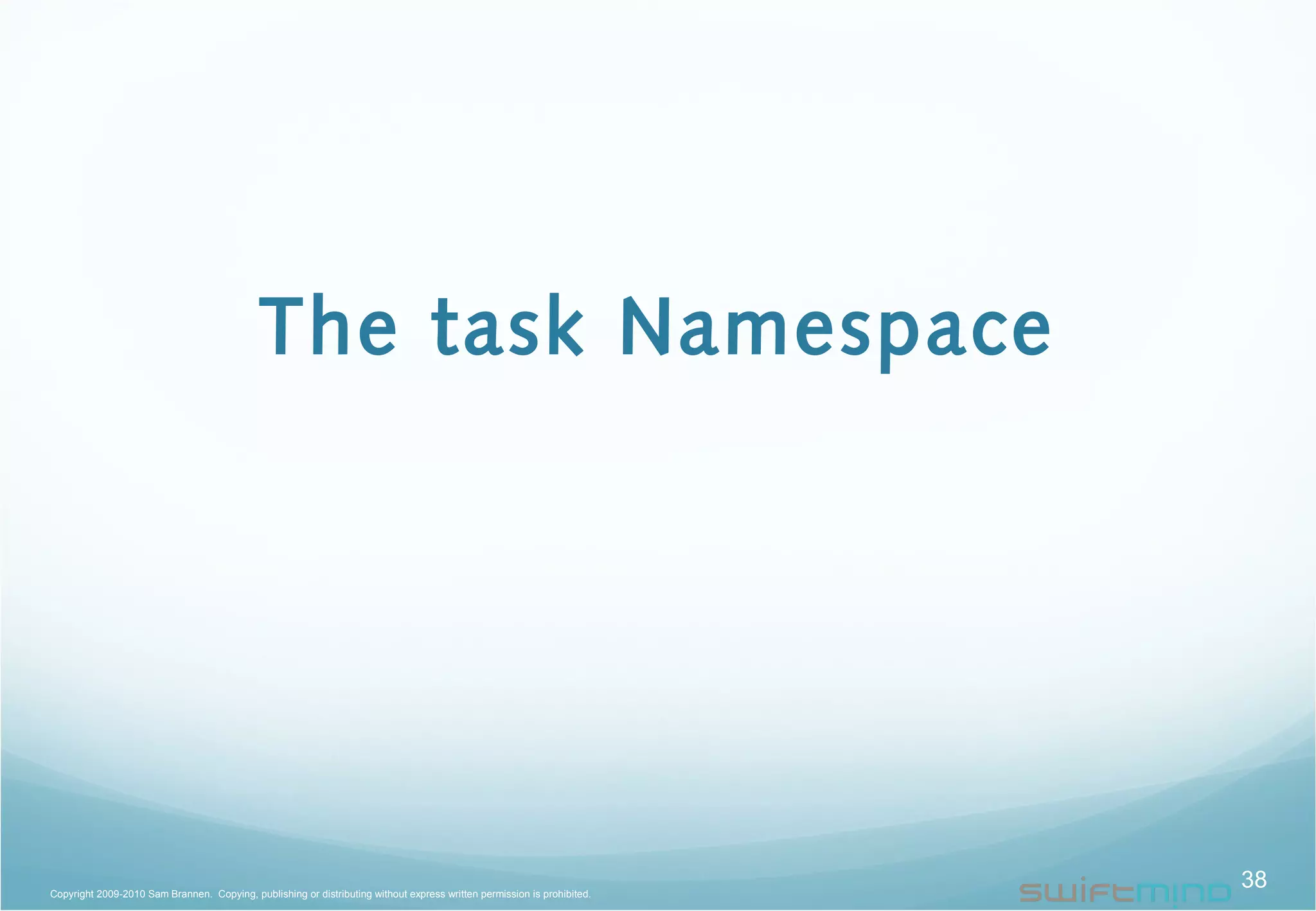

The task Namespace

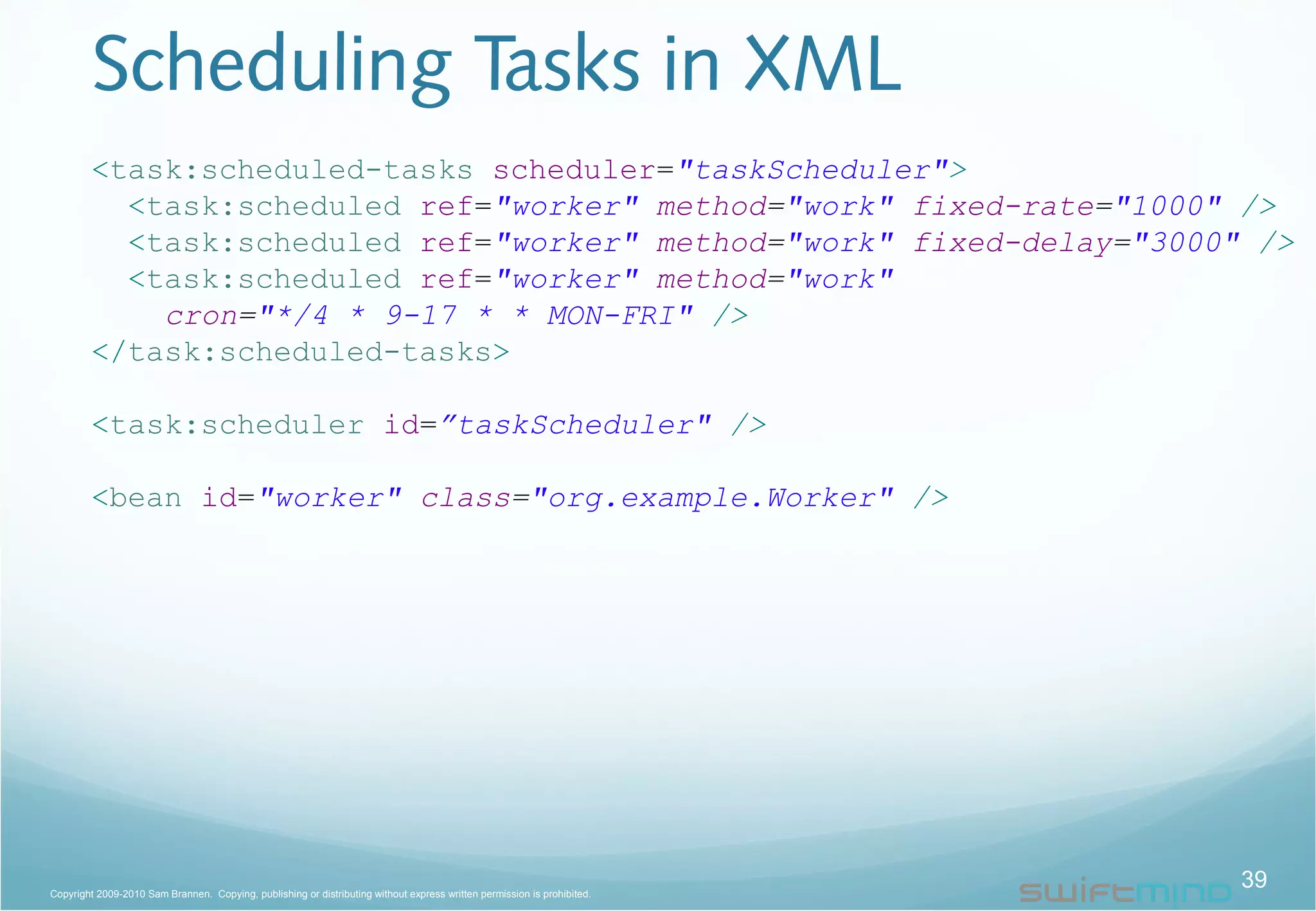

Scheduling Tasks in XML
<task:scheduled-tasks scheduler="taskScheduler">
<task:scheduled ref="worker" method="work" fixed-rate="1000" />
<task:scheduled ref="worker" method="work" fixed-delay="3000" />
<task:scheduled ref="worker" method="work"
cron="*/4 * 9-17 * * MON-FRI" />
</task:scheduled-tasks>
<task:scheduler id=”taskScheduler" />
<bean id="worker" class="org.example.Worker" />

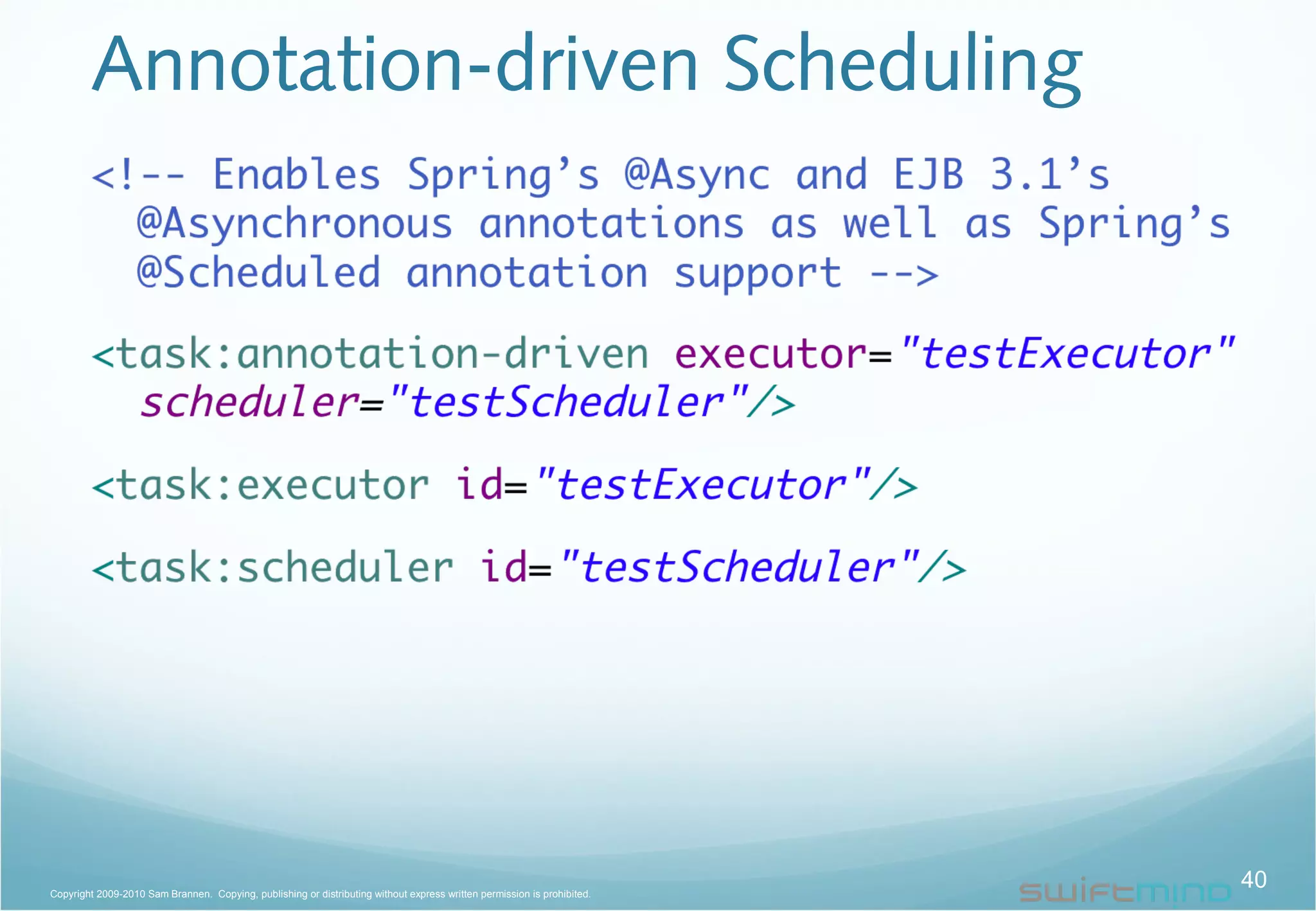

Annotation-driven Scheduling

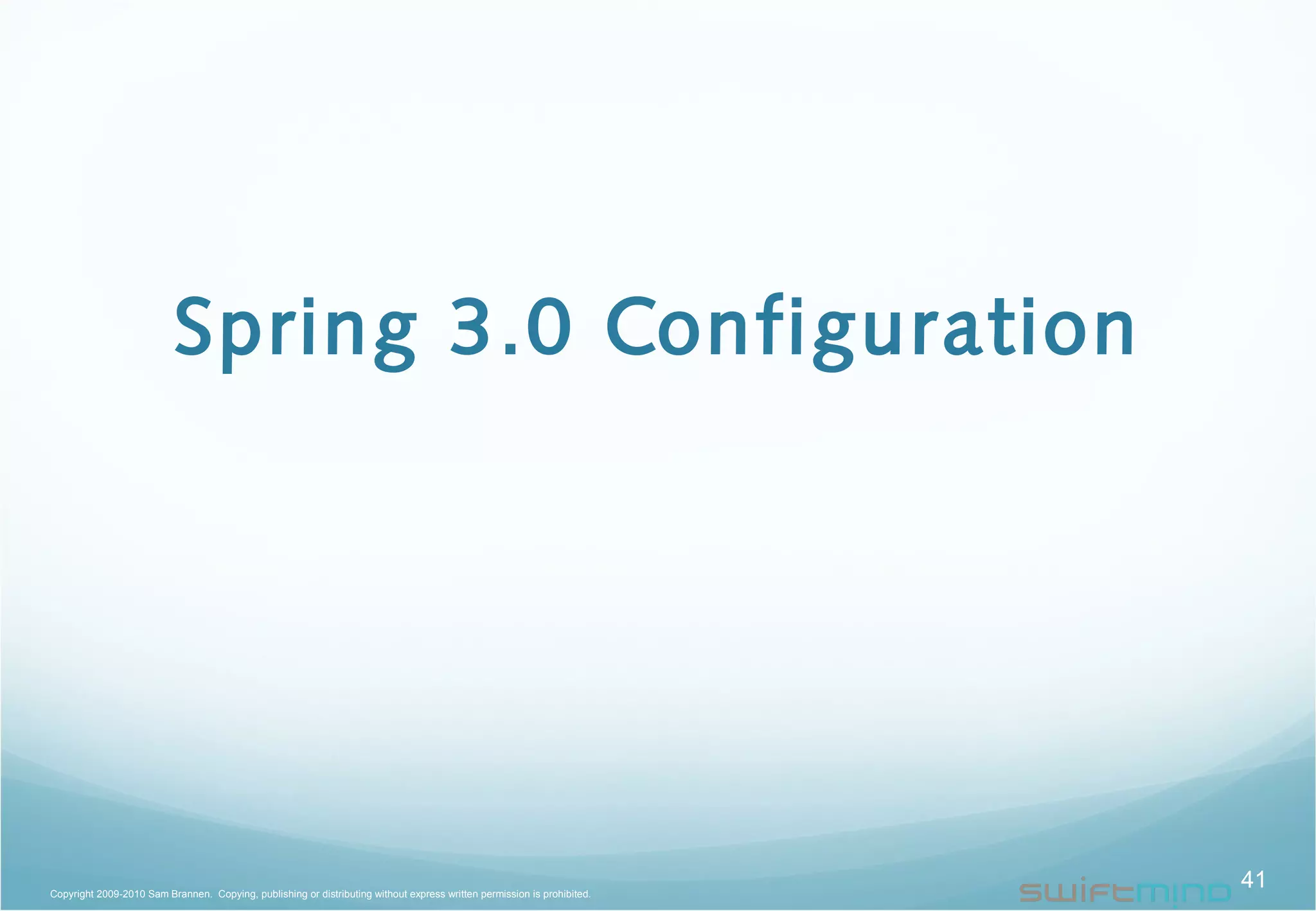

Spring 3.0 Configuration

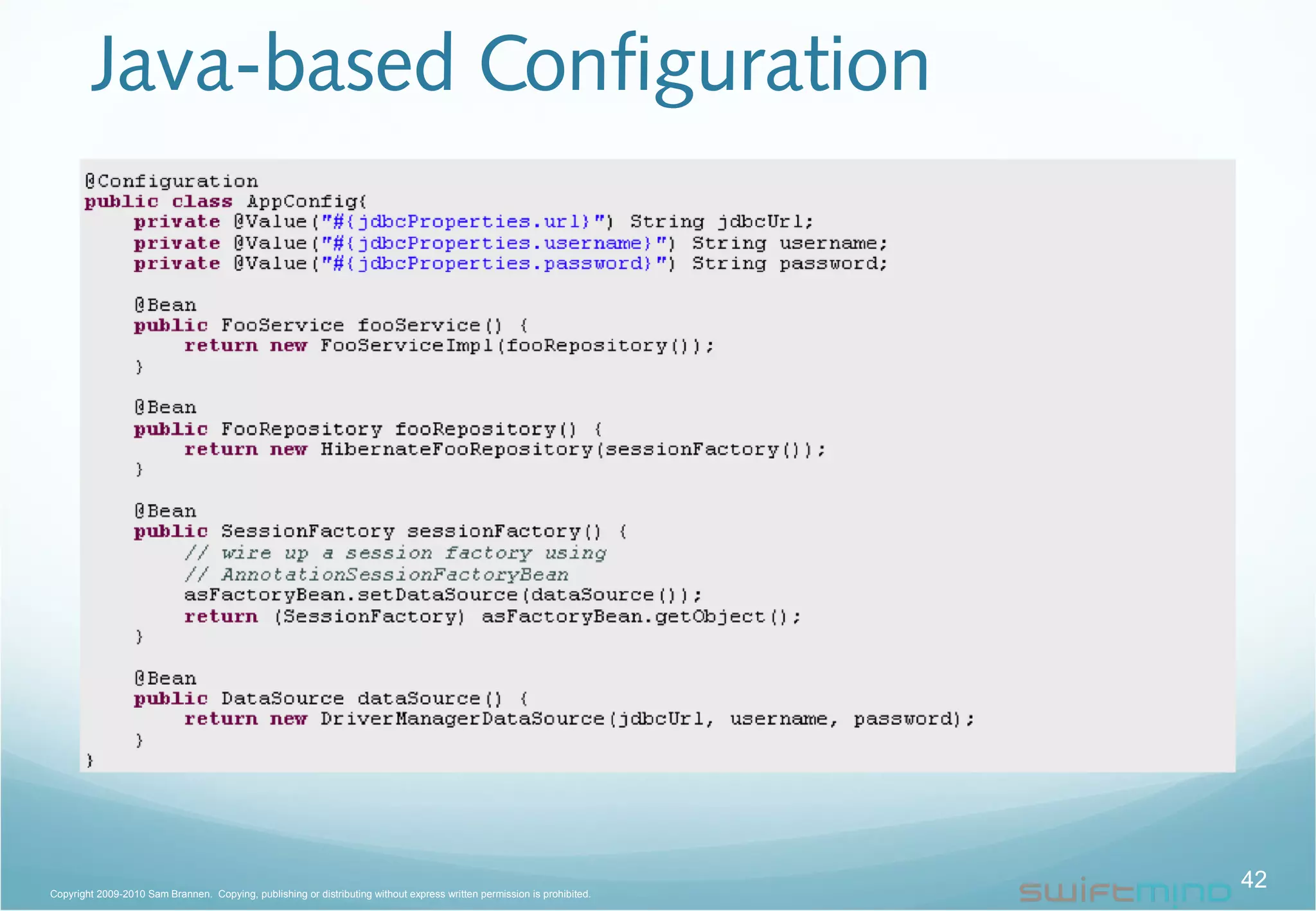

Java-based Configuration

JSR 303 Validation

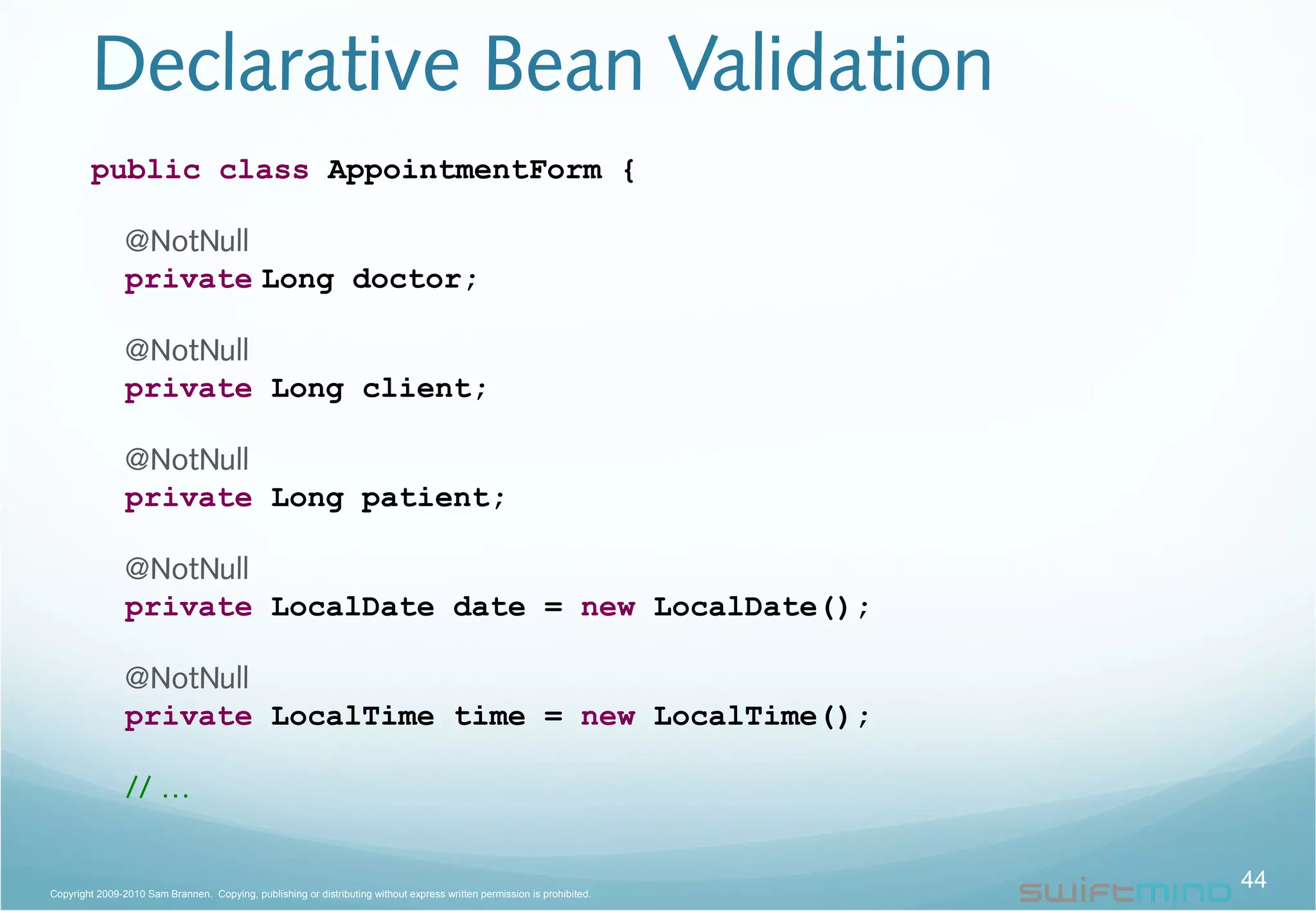

Declarative Bean Validation
public class AppointmentForm {
@NotNull
private Long doctor;
@NotNull
private Long client;
@NotNull
private Long patient;
@NotNull
private LocalDate date = new LocalDate();
@NotNull
private LocalTime time = new LocalTime();
// …

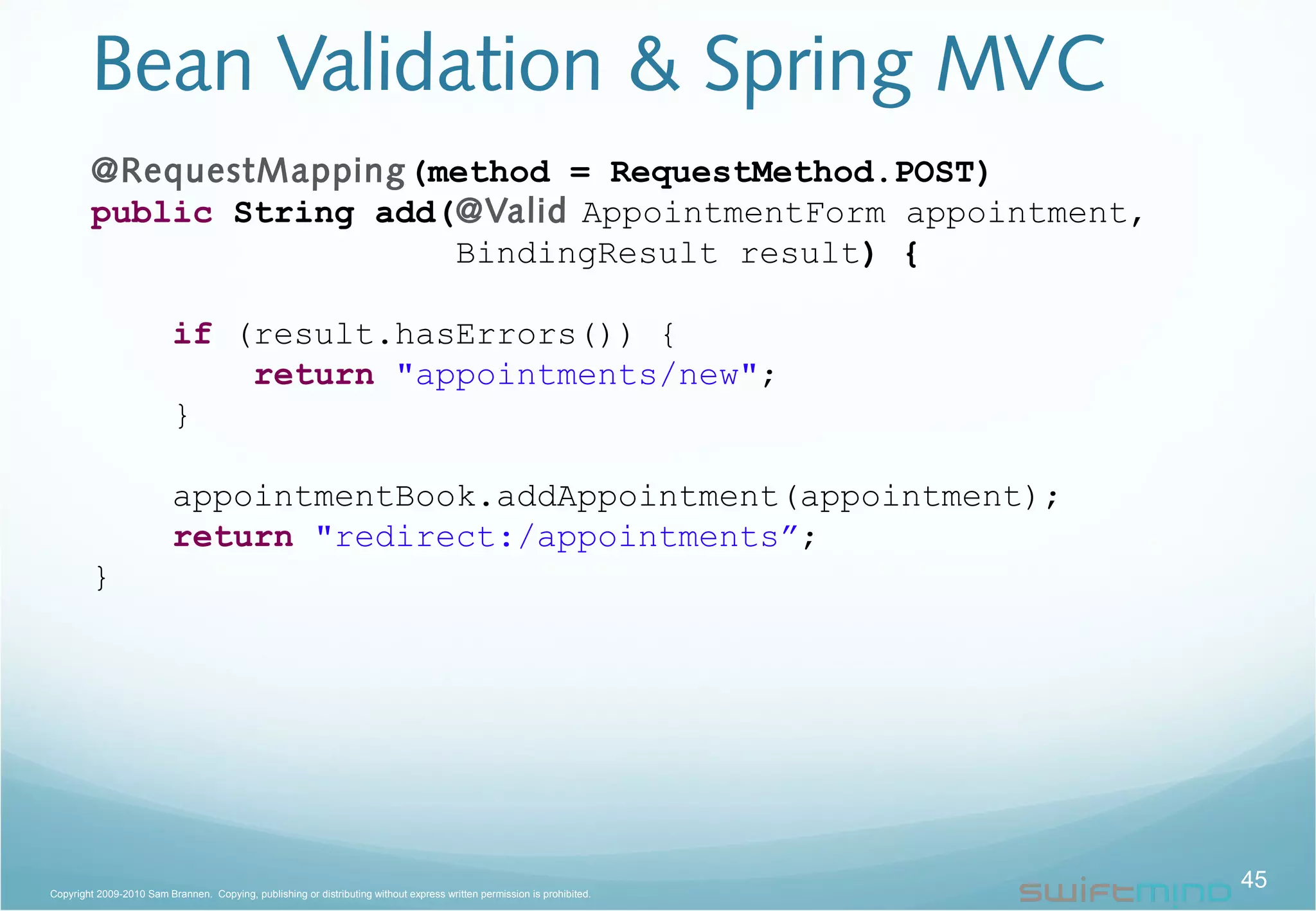

Bean Validation & Spring MVC
@RequestMapping(method = RequestMethod.POST)
public String add(@Valid AppointmentForm appointment,
BindingResult result) {
if (result.hasErrors()) {
return "appointments/new";
}
appointmentBook.addAppointment(appointment);
return "redirect:/appointments”;
}

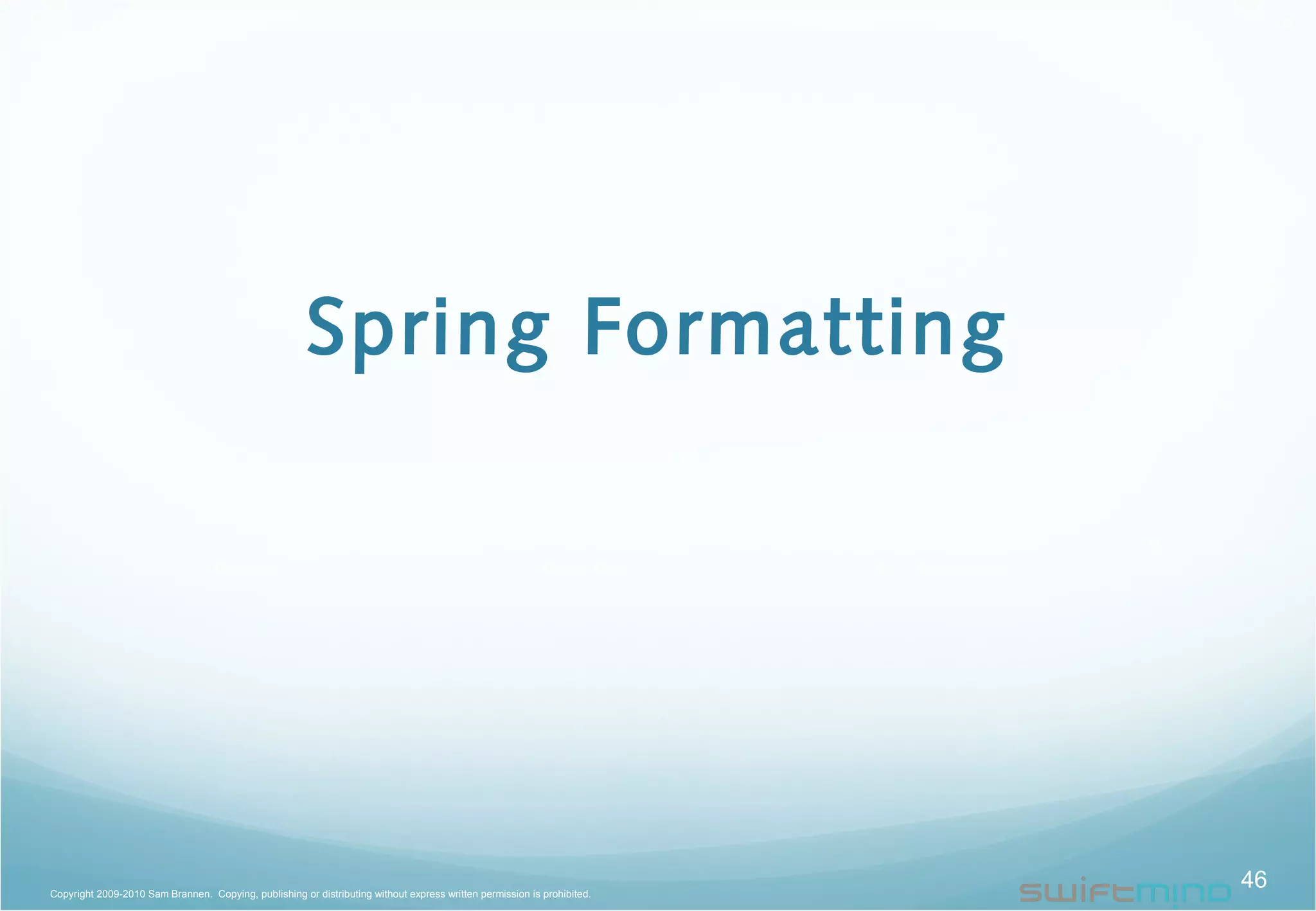

Spring Formatting

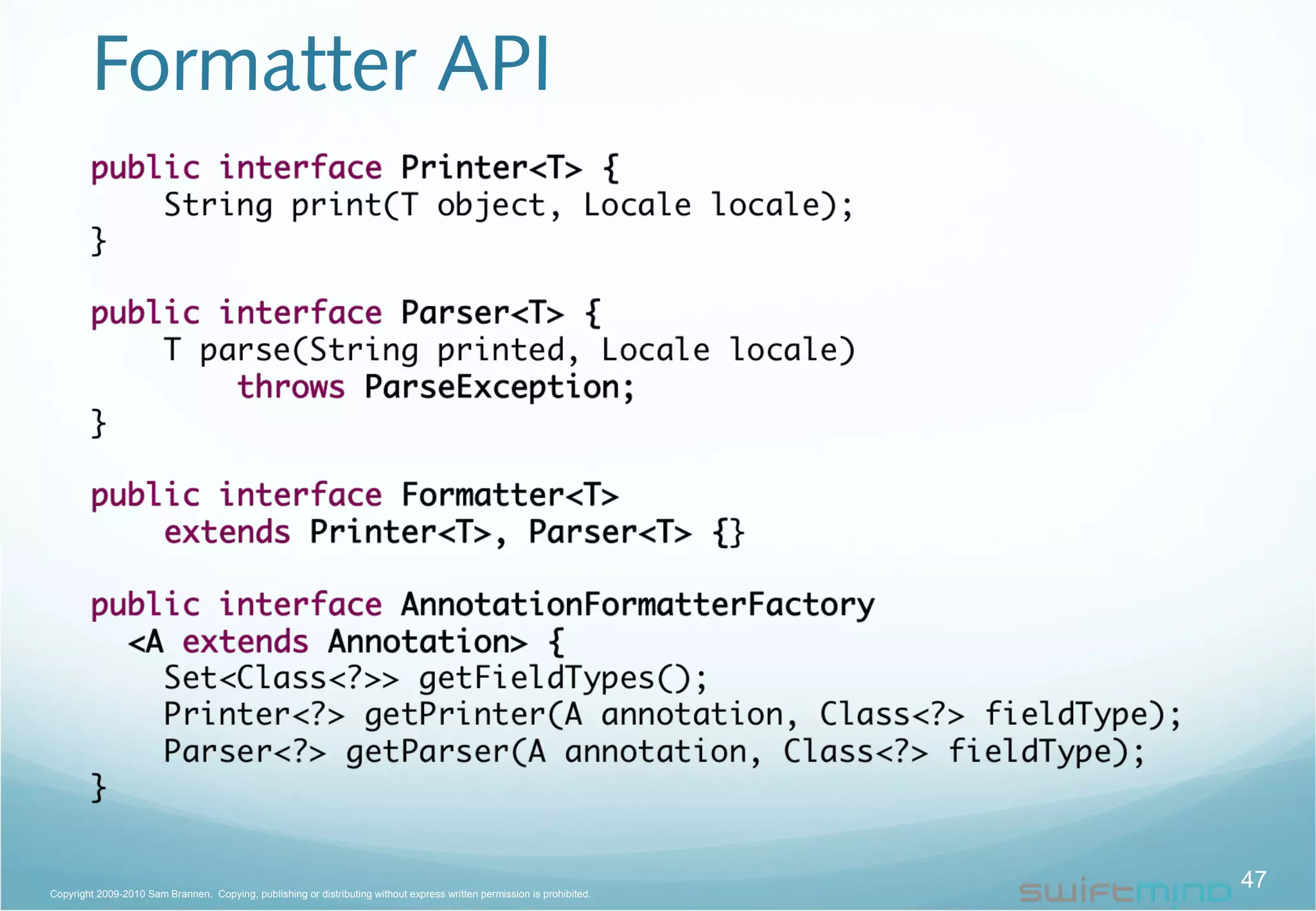

Formatter API

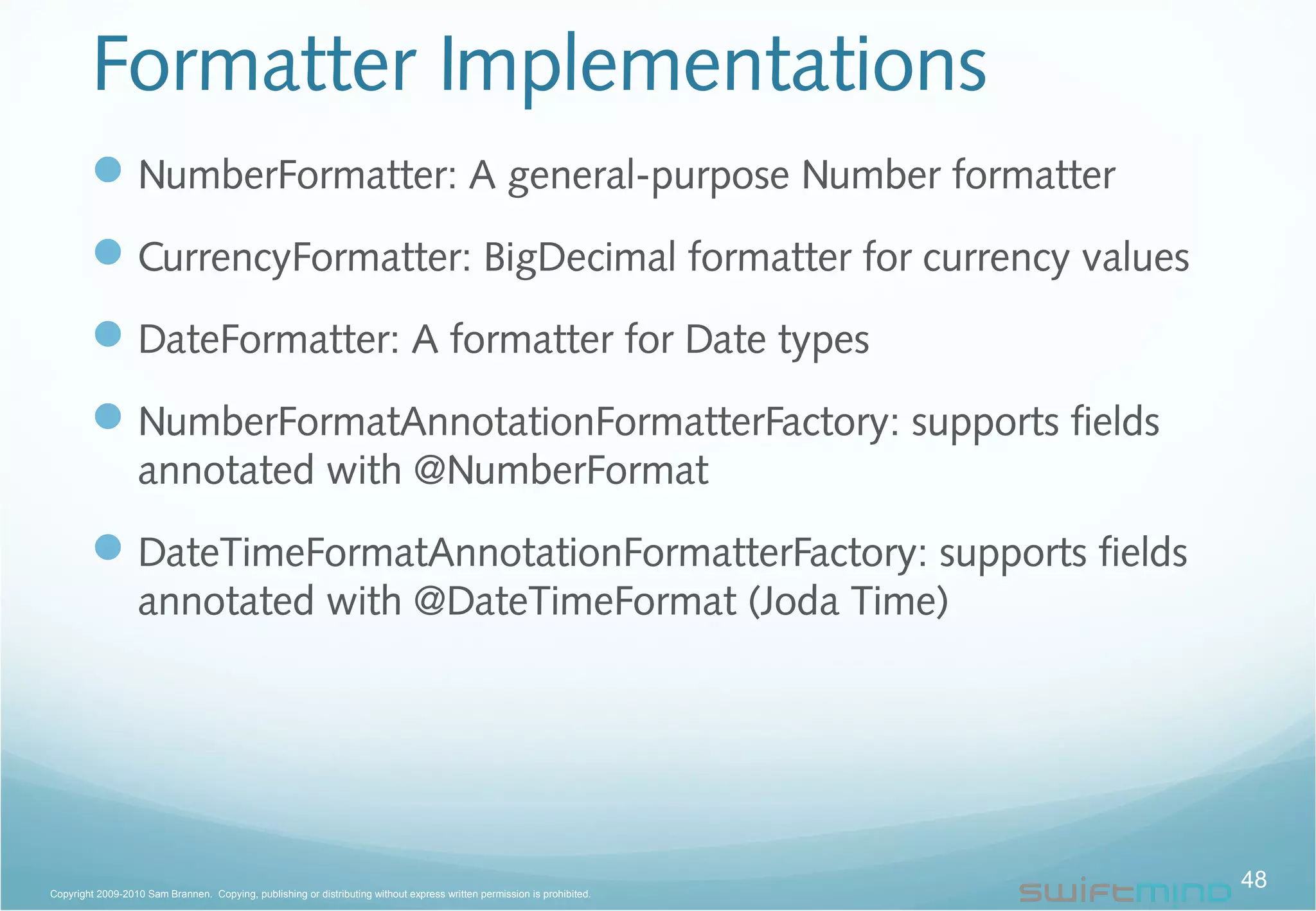

Formatter Implementations
NumberFormatter: A general-purpose Number formatter
CurrencyFormatter: BigDecimal formatter for currency values
DateFormatter: A formatter for Date types
NumberFormatAnnotationFormatterFactory: supports fields
annotated with @NumberFormat
DateTimeFormatAnnotationFormatterFactory: supports fields
annotated with @DateTimeFormat (Joda Time)

Formatting & Spring MVC
@RequestMapping(value="/{day}”, method=RequestMethod.GET)
public String getForDay(@PathVariable
@DateTimeFormat(iso=ISO.DATE) LocalDate day,
Model model)
{
DoctorAppointments appointments =
appointmentBook.getAppointmentsForDay(day);
model.addAttribute("doctorAppointmentsMap",
appointments.asMap());
return "appointments";
}

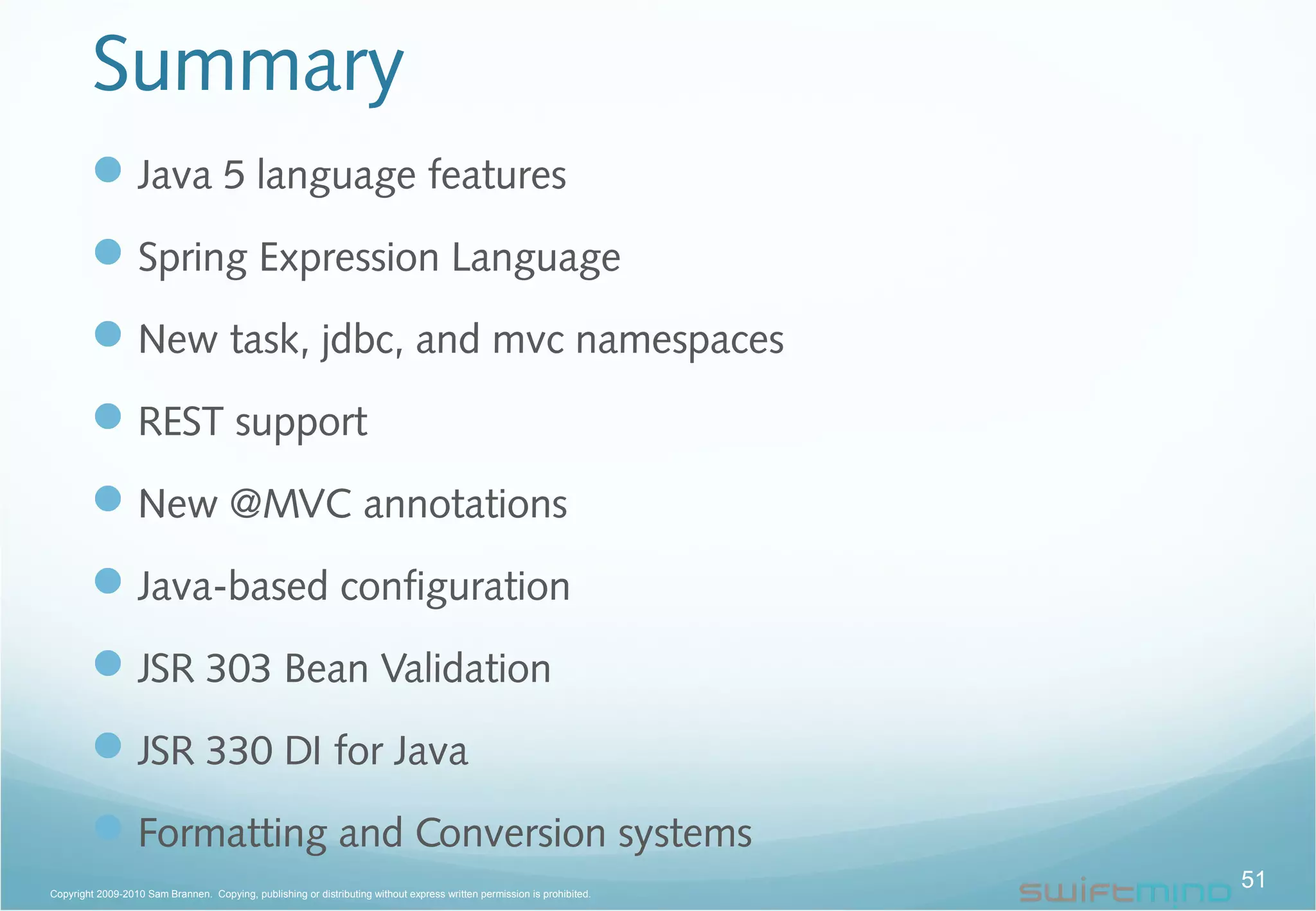

Summary

Summary
Java 5 language features
Spring Expression Language
New task, jdbc, and mvc namespaces
REST support
New @MVC annotations
Java-based configuration
JSR 303 Bean Validation
JSR 330 DI for Java
Formatting and Conversion systems

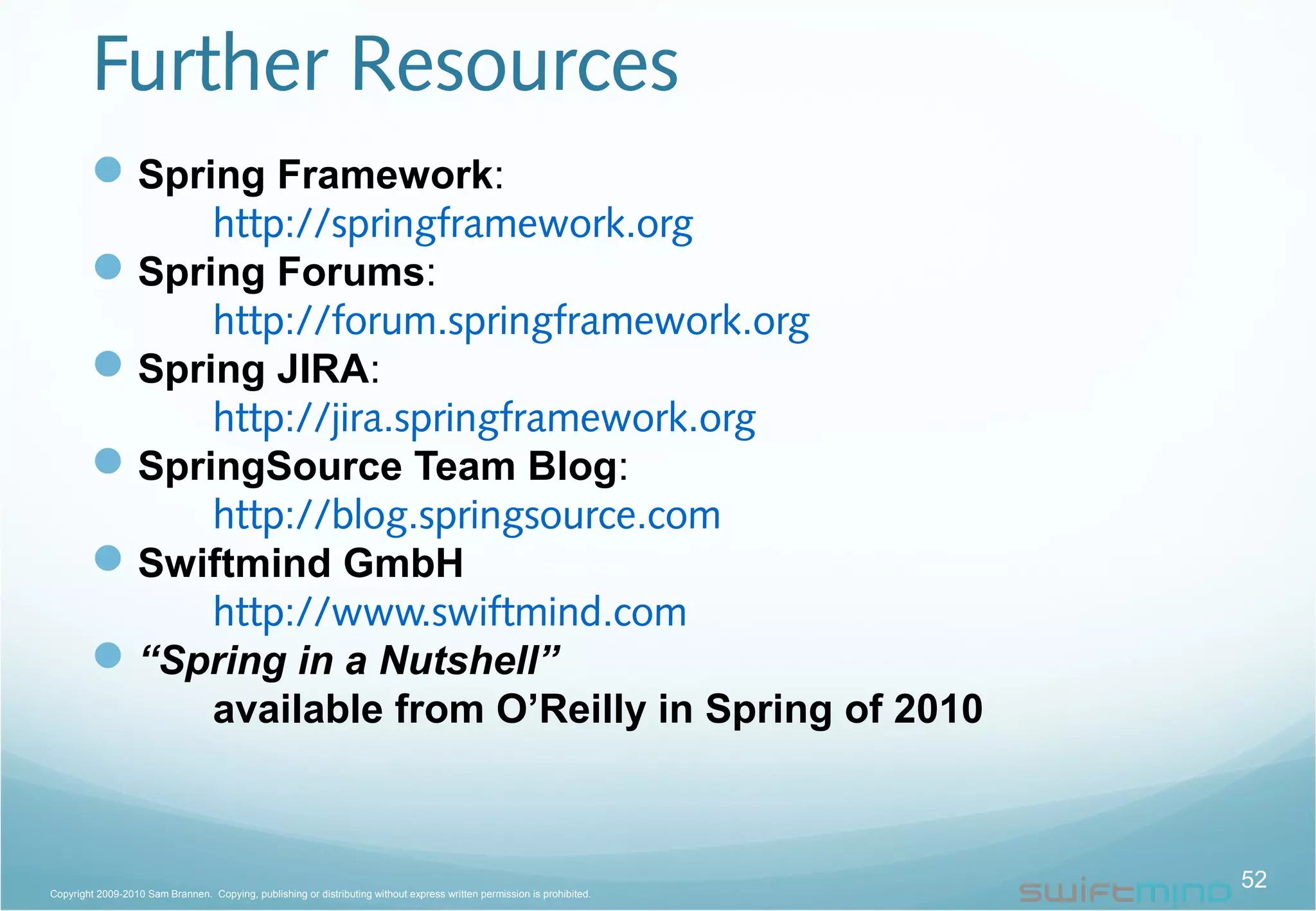

Further Resources
Spring Framework:
http://springframework.org
Spring Forums:
http://forum.springframework.org
Spring JIRA:
http://jira.springframework.org
SpringSource Team Blog:
http://blog.springsource.com
Swiftmind GmbH
http://www.swiftmind.com
“Spring in a Nutshell”
available from O’Reilly in Spring of 2010

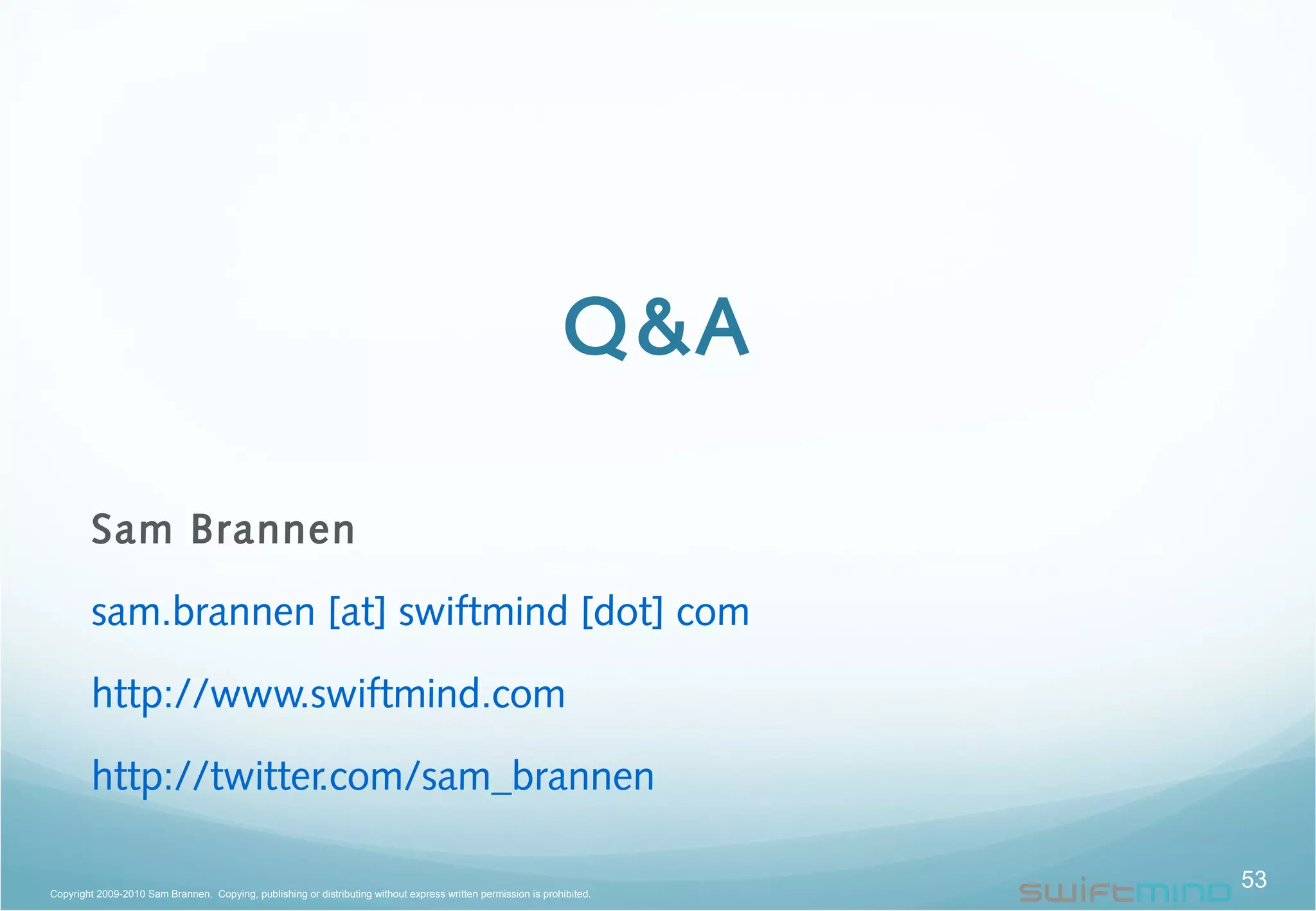

Q&A
Sam Brannen
sam.brannen [at] swiftmind [dot] com
http://www.swiftmind.com
http://twitter.com/sam_brannen
