UNIVERSITY OF
CALIFORNIA

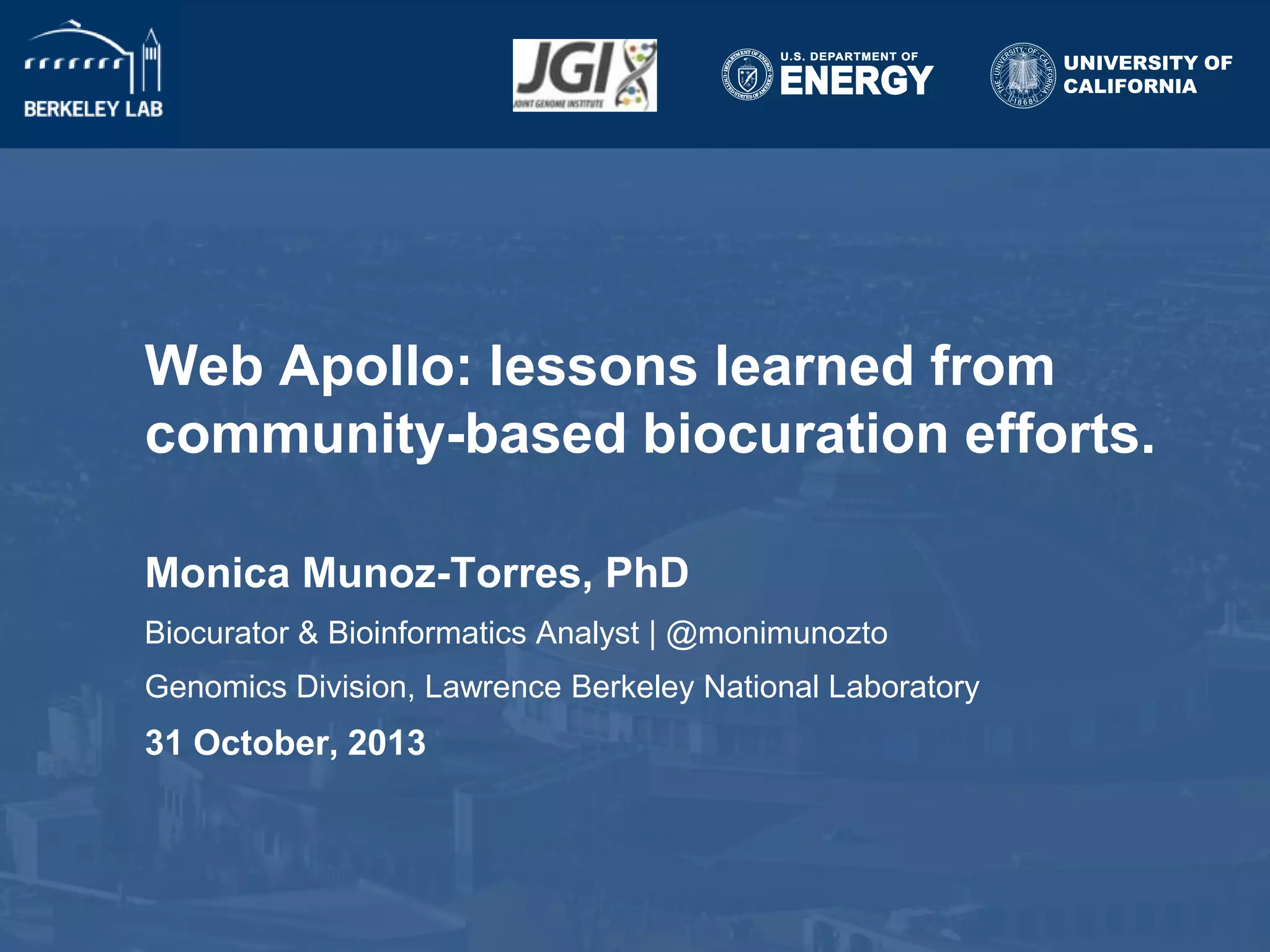

Web Apollo: lessons learned from
community-based biocuration efforts.
Monica Munoz-Torres, PhD
Biocurator & Bioinformatics Analyst | @monimunozto
Genomics Division, Lawrence Berkeley National Laboratory

31 October, 2013

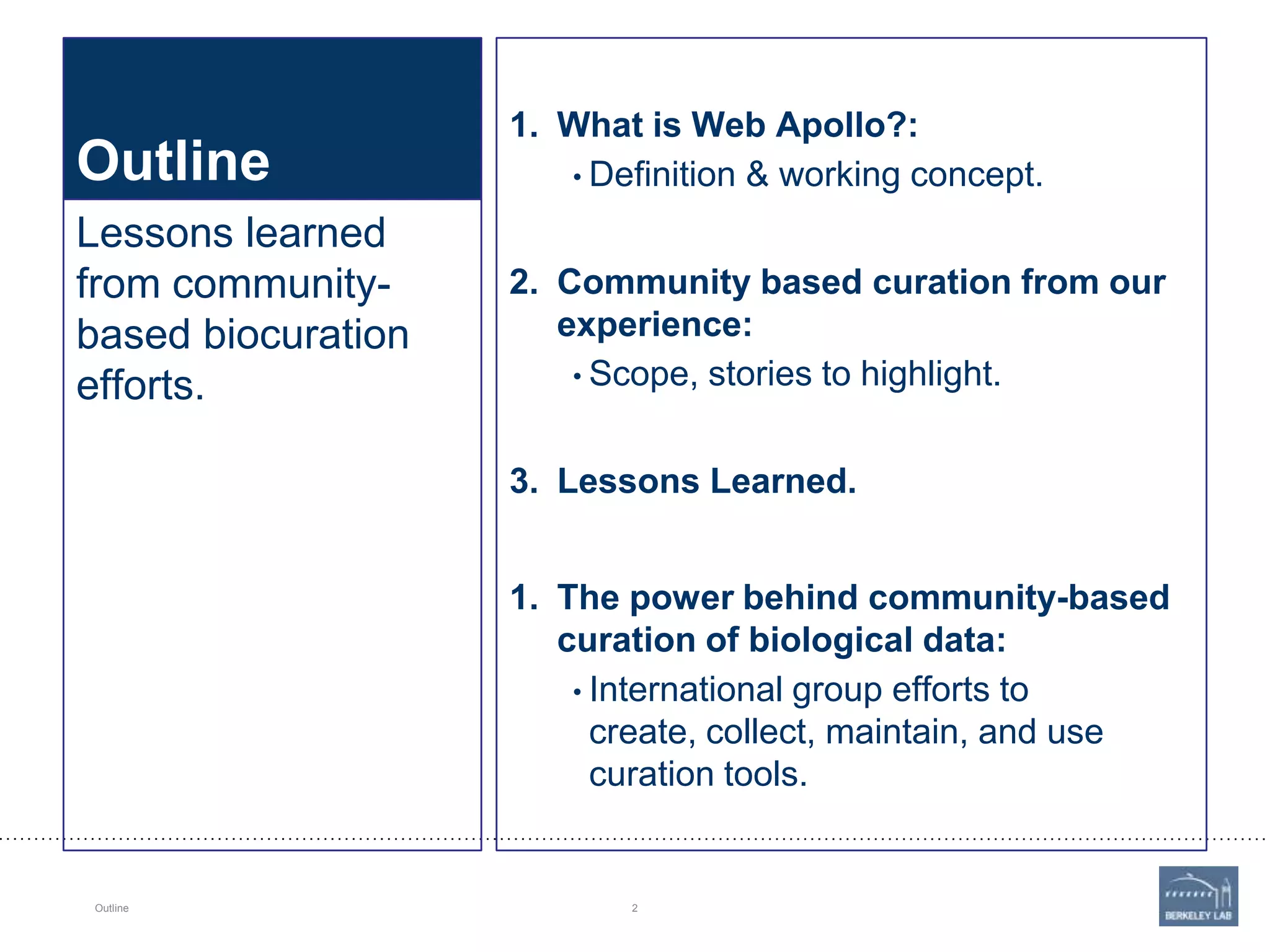

Outline

1. What is Web Apollo?:
• Definition & working concept.

Lessons learned
from communitybased biocuration
efforts.

2. Community based curation from our
experience:
• Scope, stories to highlight.
3. Lessons Learned.

1. The power behind community-based
curation of biological data:
• International group efforts to
create, collect, maintain, and use
curation tools.

Outline

2
What is Web Apollo?
• Web Apollo is a web-based genomic annotation editing

platform.
We need annotation editing tools to modify and refine the
precise location and structure of the genome elements that
predictive algorithms cannot yet resolve automatically.

Find more about Web Apollo at
http://GenomeArchitect.org
and
Genome Biol 14:R93. (2013).

1. What is Web Apollo?

3
A little history about Apollo*:
Biologists could finally visualize computational analysis and
experimental evidence from genomic features and build
manually-curated consensus gene structures. Apollo became a
very popular, open source tool (insects, fish, mammals, birds, etc.).
a. Desktop:
one person at a time editing a
specific region, annotations
saved in local files; slowed down
collaboration.

*

b. Java Web Start:
users saved annotations directly
to a centralized database;
potential issues with stale
annotation data remained.
1. What is Web Apollo?

4
Web Apollo
• Browser-based; plugin for JBrowse.
• Allows for intuitive annotation creation and
editing, with gestures and pull-down menus to
create transcripts, add/delete/resize
exons, merge/split exons or transcripts, insert
comments
(CV, freeform text), etc.
• Edits in one client are instantly
pushed to all other clients.

1. What is Web Apollo?

5
Our Working
Concept

In the context of gene manual
annotation, curation tries to find the best
examples and/or eliminate (most) errors.
To conduct manual annotation efforts:

Automated gene models

Evidence:
cDNAs, HMM domain
searches, alignments with
assemblies or genes from other
species.
Manual annotation & curation

2. In our experience.

Gather and evaluate all available evidence
using quality-control metrics to
corroborate or modify automated
annotation predictions.
Perform sequence similarity searches
(phylogenetic framework) and use
literature and public databases to:
• Predict functional assignments from
experimental data.
• Distinguish orthologs from
paralogs, classify gene membership in
families and networks.
6
Dispersed, community-based gene
manual annotation efforts.
Using Web Apollo, we* trained
geographically dispersed scientific
communities to perform biologically
supported manual annotations, and
monitored their findings: ~80
institutions, 14 countries, hundreds of
scientists, and gate keepers.
Education and Training done through:
– Training workshops and geneborees.
– Tutorials with detailed instructions.
*Elsik Lab. Hymenoptera
Genome Database.
– Personalized user support.
Georgetown University.

2. In our experience.

7
What did we learn?
Harvesting expertise from dispersed researchers who
assigned functions to predicted and curated
peptides, we developed more interactive and
responsive tools, as well as better
visualization, editing, and analysis capabilities.
Assessment:
1. Was it helpful / productive to work together?
2. Were manual annotations improved?
3. Did the shared and distributed annotation effort help
improve the quality of scientific findings?
3. Lessons Learned

8
It was helpful to work together.
Scientific community efforts brought together domainspecific and natural history expertise that would have
otherwise remain disconnected.
Warning: community-wide periodic and frequent
updates, as well as coordination of organization and
report (publication) of findings are necessary.

3. Lessons Learned

9
Automated annotations were improved*
In many cases, automated annotations were improved.
Also, learned of the challenges with new sequencing
technologies, e.g.:
– Frameshifts and indel errors
– Split genes across scaffolds
– Highly repetitive sequences
To face these challenges, we trained annotators in
recovering coding sequences in agreement with all
available biological evidence.

3. Lessons Learned

10
Horizontal gene transfer from virus to
bacteria to insect.

Scientific
findings lead to
untold stories…

The genome of the jewel wasp (Nasonia
vitripennis) contains the highest reported
number of Ankyrin domains in insects.
Thirteen ANK repeat-bearing proteins also
contain C-terminal PRANC (Pox protein
repeats of ankyrin C-terminal) domains.
LGT between bacteria and animals: source of
evolutionary innovation.

Nasonia genome working group. 2010. Science, 327:343-347

3. Lessons Learned

11
Characterizing adaptive radiation.

… and lead to
uncovering old
stories…

Uncovering suspected candidates from 30
year old research, the Heliconius
melpomene community was able to
characterize the few Mendelian loci
controlling divergence in wing patterns.
Islands of genome divergence underlying
adaptive radiation were characterized.
A community effort developed a de novo
reference genome on a small budget.
Their findings were a milestone for
understanding the basics of ecological
adaptation.
Heliconius genome consortium. 2012. Nature doi:10.1038/nature11041.

3. Lessons Learned

12
Understanding the evolution of sociality.
Comparison of the genomes of 7 species of
ants contributed to a better understanding
… and groups of
of the evolution and organization of insect
societies at the molecular level.
communities told
Insights drawn mainly from six core aspects of
us even more!
ant biology:
1. Alternative morphological castes
2. Division of labor
3. Chemical Communication
4. Alternative social organization
5. Social immunity
6. Mutualism

Libbrecht et al. 2012. Genome Biology 2013, 14:212

3. Lessons Learned

13
More lessons learned
1. Next generation technologies brought many and
new challenges.
2. You must enforce strict rules and formats; it is
necessary to maintain consistency.
3. Be flexible and adaptable: study and incorporate
new data, and adapt to support new platforms to
keep pace and maintain the interest of scientific
community. Evolve with the data!
4. A little training goes a long way! With the right
tools, wet lab scientists make exceptional curators
who can easily learn to maximize the generation of
accurate, biologically supported gene models.
3. Lessons Learned

14
i5K
Collaborative efforts for genome sequencing projects
lead to the birth of i5K.
Small groups became large networks, which turned into
an international, multi-institutional effort to sequence
the genomes of 5 thousand arthropods.
Up next: four species ready for community manual
annotation using Web Apollo.

4. The power of biocuration

15
Gene Ontology Consortium
This community-based effort seeks to standardize the
representation of gene and gene product attributes
across species and databases.

Collaborative efforts are focused on:
1. Capturing all available information to describe gene
products (BP, CC, MF) in a species-independent
manner.

2. Reviewing and updating the relationships.
3. Continuously developing tools to facilitate
creation, maintenance and use of ontologies.
4. The power of biocuration

16
Integrating biocuration practices
Frequently, groups incorporate both bibliographical
curation and gene manual annotation efforts into their
work to improve the quality and informative power of
their data.

E.g. Dictybase, curating literature for slime
mold since 2004, serves interests in
cellular development, chemotaxis, cytokinesis
defects, etc. New to Web Apollo, ready to
harness their community’s knowledge.

4. The power of biocuration

17
International Society for Biocuration
ISB provides a forum for
biocurators, developers, researchers, and students
who are interested in:
• Using common tools (GO, Genotype & Phenotype
curation, GMOD tools, etc.).
• Generation of gold standards for databases, ensuring
that database and tools meet specific user needs.

• Defining the profession of biocuration with respect to
the scientific community and the granting agencies.
• Member of BioDBCore, GOBLET, BioCreative.
4. The power of biocuration

18
The power behind
community-based
curation of
biological data.

4. The power of biocuration

19
•

Berkeley Bioinformatics Open-source Projects
(BBOP), Berkeley Lab: Web Apollo and Gene
Ontology teams. Suzanna Lewis (PI).

•

The team at Hymenoptera Genome Database.
§U. of Missouri. Christine G. Elsik (PI).

•

Ian Holmes Lab (PI). *U. of California Berkeley.

•

Arthropod genomics community (e.g. Gene
Robinson, Juergen Gadau, Chris R Smith, Owen
McMillan, Owain Edwards, Kevin Hackett, and a
few hundred more) and i5K: Org. Committee, NAL
(USDA), HGSC-BCM, BGI, 1KITE.

Rob Buels *

•

International Society for Biocuration

Mitch Skinner *

•

Web Apollo is supported by NIH grants 5R01GM080203
from NIGMS, and 5R01HG004483 from NHGRI, and by
the Director, Office of Science, Office of Basic Energy
Sciences, of the U.S. Department of Energy under
Contract No. DE-AC02-05CH11231.

•

Images used with permission: AlexanderWild.com

Thanks!
BBOP
Web Apollo

Gene Ontology

Gregg Helt

Chris Mungall

Ed Lee

Seth Carbon

Justin Reese §

Heiko Dietze

Chris Childers §

Web Apollo: http://GenomeArchitect.org
GO: http://GeneOntology.org
i5K: http://arthropodgenomes.org/wiki/i5K
ISB: http://biocurator.org

Thank you.

• For your attention, thank you!
20

More Related Content

What's hot

Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...
Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...
Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...
Larry Smarr

CCBC tutorial beiko
CCBC tutorial beikoCCBC tutorial beiko
CCBC tutorial beiko
beiko

Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...
Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...
Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...
Mick Watson

Metagenomics
MetagenomicsMetagenomics
Metagenomics
Chinthu V Saji

Beiko taconic-nov3
Beiko taconic-nov3Beiko taconic-nov3
Beiko taconic-nov3
beiko

Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013
Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013
Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013
VHIR Vall d’Hebron Institut de Recerca

Advancing the Metagenomics Revolution
Advancing the Metagenomics RevolutionAdvancing the Metagenomics Revolution
Advancing the Metagenomics Revolution
Larry Smarr

Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014
Monica Munoz-Torres

Pathogen Genome Data
Pathogen Genome DataPathogen Genome Data
Pathogen Genome Data
Leighton Pritchard

[2013.10.29] albertsen genomics metagenomics
[2013.10.29] albertsen genomics metagenomics[2013.10.29] albertsen genomics metagenomics
[2013.10.29] albertsen genomics metagenomics
Mads Albertsen

Microbial Metagenomics Drives a New Cyberinfrastructure
Microbial Metagenomics Drives a New CyberinfrastructureMicrobial Metagenomics Drives a New Cyberinfrastructure
Microbial Metagenomics Drives a New Cyberinfrastructure
Larry Smarr

BM405 Lecture Slides 21/11/2014 University of Strathclyde
BM405 Lecture Slides 21/11/2014 University of StrathclydeBM405 Lecture Slides 21/11/2014 University of Strathclyde
BM405 Lecture Slides 21/11/2014 University of Strathclyde
Leighton Pritchard

Molecular pathology in microbiology and metagenomics
Molecular pathology in microbiology and metagenomicsMolecular pathology in microbiology and metagenomics
Molecular pathology in microbiology and metagenomics
CharithRanatunga

Metagenomic analysis
Metagenomic analysisMetagenomic analysis
Metagenomic analysis
Animesh Kumar

[2013.09.27] extracting genomes from metagenomes
[2013.09.27] extracting genomes from metagenomes[2013.09.27] extracting genomes from metagenomes
[2013.09.27] extracting genomes from metagenomes
Mads Albertsen

The Emerging Global Community of Microbial Metagenomics Researchers
The Emerging Global Community of Microbial Metagenomics ResearchersThe Emerging Global Community of Microbial Metagenomics Researchers
The Emerging Global Community of Microbial Metagenomics Researchers
Larry Smarr

Poster (Final)
Poster (Final) Poster (Final)
Poster (Final)
Sophie Friedheim

Intro bioinformatics
Intro bioinformaticsIntro bioinformatics
Intro bioinformatics
Chris Dwan

[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes
[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes
[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes
Mads Albertsen

Metagenomics and Industrial Application
Metagenomics and Industrial ApplicationMetagenomics and Industrial Application
Metagenomics and Industrial Application
Zuleika86


What's hot (20)

Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...
Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...
Building a Community Cyberinfrastructure to Support Marine Microbial Ecology ...

CCBC tutorial beiko
CCBC tutorial beikoCCBC tutorial beiko
CCBC tutorial beiko

Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...
Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...
Discovery and Annotation of Novel Proteins from Rumen Gut Metagenomic Sequenc...

Metagenomics
MetagenomicsMetagenomics
Metagenomics

Beiko taconic-nov3
Beiko taconic-nov3Beiko taconic-nov3
Beiko taconic-nov3

Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013
Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013
Introduction to Metagenomics Data Analysis - UEB-VHIR - 2013

Advancing the Metagenomics Revolution
Advancing the Metagenomics RevolutionAdvancing the Metagenomics Revolution
Advancing the Metagenomics Revolution

Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014

Pathogen Genome Data
Pathogen Genome DataPathogen Genome Data
Pathogen Genome Data

[2013.10.29] albertsen genomics metagenomics
[2013.10.29] albertsen genomics metagenomics[2013.10.29] albertsen genomics metagenomics
[2013.10.29] albertsen genomics metagenomics

Microbial Metagenomics Drives a New Cyberinfrastructure
Microbial Metagenomics Drives a New CyberinfrastructureMicrobial Metagenomics Drives a New Cyberinfrastructure
Microbial Metagenomics Drives a New Cyberinfrastructure

BM405 Lecture Slides 21/11/2014 University of Strathclyde
BM405 Lecture Slides 21/11/2014 University of StrathclydeBM405 Lecture Slides 21/11/2014 University of Strathclyde
BM405 Lecture Slides 21/11/2014 University of Strathclyde

Molecular pathology in microbiology and metagenomics
Molecular pathology in microbiology and metagenomicsMolecular pathology in microbiology and metagenomics
Molecular pathology in microbiology and metagenomics

Metagenomic analysis
Metagenomic analysisMetagenomic analysis
Metagenomic analysis

[2013.09.27] extracting genomes from metagenomes
[2013.09.27] extracting genomes from metagenomes[2013.09.27] extracting genomes from metagenomes
[2013.09.27] extracting genomes from metagenomes

The Emerging Global Community of Microbial Metagenomics Researchers
The Emerging Global Community of Microbial Metagenomics ResearchersThe Emerging Global Community of Microbial Metagenomics Researchers
The Emerging Global Community of Microbial Metagenomics Researchers

Poster (Final)
Poster (Final) Poster (Final)
Poster (Final)

Intro bioinformatics
Intro bioinformaticsIntro bioinformatics
Intro bioinformatics

[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes
[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes
[2013.12.02] Mads Albertsen: Extracting Genomes from Metagenomes

Metagenomics and Industrial Application
Metagenomics and Industrial ApplicationMetagenomics and Industrial Application
Metagenomics and Industrial Application


Similar to Web Apollo: Lessons learned from community-based biocuration efforts.

Web Apollo Workshop UIUC
Web Apollo Workshop UIUCWeb Apollo Workshop UIUC
Web Apollo Workshop UIUC
Monica Munoz-Torres

An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.
Monica Munoz-Torres

Web Apollo Tutorial for Medfly Research Community
Web Apollo Tutorial for Medfly Research CommunityWeb Apollo Tutorial for Medfly Research Community
Web Apollo Tutorial for Medfly Research Community
Monica Munoz-Torres

Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of GenomesApollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Monica Munoz-Torres

Genome sequencing and the development of our current information library
Genome sequencing and the development of our current information libraryGenome sequencing and the development of our current information library
Genome sequencing and the development of our current information library
ZarlishAttique1

Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.
Monica Munoz-Torres

Advanced Bioinformatics for Genomics and BioData Driven Research
Advanced Bioinformatics for Genomics and BioData Driven ResearchAdvanced Bioinformatics for Genomics and BioData Driven Research
Advanced Bioinformatics for Genomics and BioData Driven Research
European Bioinformatics Institute

rheumatoid arthritis
rheumatoid arthritisrheumatoid arthritis
rheumatoid arthritis
Ankit Bhardwaj

EVE161: Microbial Phylogenomics - Class 1 - Introduction
EVE161: Microbial Phylogenomics - Class 1 - IntroductionEVE161: Microbial Phylogenomics - Class 1 - Introduction
EVE161: Microbial Phylogenomics - Class 1 - Introduction
Jonathan Eisen

eScience-School-Oct2012-Campinas-Brazil
eScience-School-Oct2012-Campinas-BrazileScience-School-Oct2012-Campinas-Brazil
eScience-School-Oct2012-Campinas-Brazil
Susanna-Assunta Sansone

Apollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 IntroductionApollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 Introduction
Monica Munoz-Torres

Bioinformatics
BioinformaticsBioinformatics
Bioinformatics
Vidya Kalaivani Rajkumar

Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...
Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...
Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...
fionabrinkman

Genome data management
Genome data managementGenome data management
Genome data management
Shareb Ismaeel

Genomics and Bioinformatics
Genomics and BioinformaticsGenomics and Bioinformatics
Genomics and Bioinformatics
Amit Garg

Lit Review Talk by Kato Mivule: A Review of Genetic Algorithms
Lit Review Talk by Kato Mivule: A Review of Genetic AlgorithmsLit Review Talk by Kato Mivule: A Review of Genetic Algorithms
Lit Review Talk by Kato Mivule: A Review of Genetic Algorithms
Kato Mivule

Introduction to Ontologies for Environmental Biology
Introduction to Ontologies for Environmental BiologyIntroduction to Ontologies for Environmental Biology
Introduction to Ontologies for Environmental Biology
Barry Smith

Forensic Identification using skin bacterial communities
Forensic Identification using skin bacterial communitiesForensic Identification using skin bacterial communities
Forensic Identification using skin bacterial communities
Christine Kelly

Reverse-and forward-engineering specificity of carbohydrate-processing enzymes
Reverse-and forward-engineering specificity of carbohydrate-processing enzymesReverse-and forward-engineering specificity of carbohydrate-processing enzymes
Reverse-and forward-engineering specificity of carbohydrate-processing enzymes
Leighton Pritchard

Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015
Monica Munoz-Torres


Similar to Web Apollo: Lessons learned from community-based biocuration efforts. (20)

Web Apollo Workshop UIUC
Web Apollo Workshop UIUCWeb Apollo Workshop UIUC
Web Apollo Workshop UIUC

An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.

Web Apollo Tutorial for Medfly Research Community
Web Apollo Tutorial for Medfly Research CommunityWeb Apollo Tutorial for Medfly Research Community
Web Apollo Tutorial for Medfly Research Community

Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of GenomesApollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes

Genome sequencing and the development of our current information library
Genome sequencing and the development of our current information libraryGenome sequencing and the development of our current information library
Genome sequencing and the development of our current information library

Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.

Advanced Bioinformatics for Genomics and BioData Driven Research
Advanced Bioinformatics for Genomics and BioData Driven ResearchAdvanced Bioinformatics for Genomics and BioData Driven Research
Advanced Bioinformatics for Genomics and BioData Driven Research

rheumatoid arthritis
rheumatoid arthritisrheumatoid arthritis
rheumatoid arthritis

EVE161: Microbial Phylogenomics - Class 1 - Introduction
EVE161: Microbial Phylogenomics - Class 1 - IntroductionEVE161: Microbial Phylogenomics - Class 1 - Introduction
EVE161: Microbial Phylogenomics - Class 1 - Introduction

eScience-School-Oct2012-Campinas-Brazil
eScience-School-Oct2012-Campinas-BrazileScience-School-Oct2012-Campinas-Brazil
eScience-School-Oct2012-Campinas-Brazil

Apollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 IntroductionApollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 Introduction

Bioinformatics
BioinformaticsBioinformatics
Bioinformatics

Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...
Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...
Biocuration 2013 - Fiona Brinkman - From genes, to genomes to networks, with ...

Genome data management
Genome data managementGenome data management
Genome data management

Genomics and Bioinformatics
Genomics and BioinformaticsGenomics and Bioinformatics
Genomics and Bioinformatics

Lit Review Talk by Kato Mivule: A Review of Genetic Algorithms
Lit Review Talk by Kato Mivule: A Review of Genetic AlgorithmsLit Review Talk by Kato Mivule: A Review of Genetic Algorithms
Lit Review Talk by Kato Mivule: A Review of Genetic Algorithms

Introduction to Ontologies for Environmental Biology
Introduction to Ontologies for Environmental BiologyIntroduction to Ontologies for Environmental Biology
Introduction to Ontologies for Environmental Biology

Forensic Identification using skin bacterial communities
Forensic Identification using skin bacterial communitiesForensic Identification using skin bacterial communities
Forensic Identification using skin bacterial communities

Reverse-and forward-engineering specificity of carbohydrate-processing enzymes
Reverse-and forward-engineering specificity of carbohydrate-processing enzymesReverse-and forward-engineering specificity of carbohydrate-processing enzymes
Reverse-and forward-engineering specificity of carbohydrate-processing enzymes

Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015


More from Monica Munoz-Torres

Apollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionalityApollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionality
Monica Munoz-Torres

Editing Functionality - Apollo Workshop
Editing Functionality - Apollo WorkshopEditing Functionality - Apollo Workshop
Editing Functionality - Apollo Workshop
Monica Munoz-Torres

Curation Introduction - Apollo Workshop
Curation Introduction - Apollo WorkshopCuration Introduction - Apollo Workshop
Curation Introduction - Apollo Workshop
Monica Munoz-Torres

Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015
Monica Munoz-Torres

Apollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citriApollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citri
Monica Munoz-Torres

Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing
Monica Munoz-Torres

JBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGRJBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGR
Monica Munoz-Torres

Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Monica Munoz-Torres

Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Monica Munoz-Torres

Gene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunityGene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunity
Monica Munoz-Torres

Essential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation ToolsEssential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation Tools
Monica Munoz-Torres

Introduction to Apollo for i5k
Introduction to Apollo for i5kIntroduction to Apollo for i5k
Introduction to Apollo for i5k
Monica Munoz-Torres

Genome Curation using Apollo - Workshop at UTK
Genome Curation using Apollo - Workshop at UTKGenome Curation using Apollo - Workshop at UTK
Genome Curation using Apollo - Workshop at UTK
Monica Munoz-Torres

Introduction to Apollo: i5K E affinis
Introduction to Apollo: i5K E affinisIntroduction to Apollo: i5K E affinis
Introduction to Apollo: i5K E affinis
Monica Munoz-Torres

Introduction to Apollo: A webinar for the i5K Research Community
Introduction to Apollo: A webinar for the i5K Research CommunityIntroduction to Apollo: A webinar for the i5K Research Community
Introduction to Apollo: A webinar for the i5K Research Community
Monica Munoz-Torres

Genome Curation using Apollo
Genome Curation using ApolloGenome Curation using Apollo
Genome Curation using Apollo
Monica Munoz-Torres

Apollo Introduction for i5K Groups 2015-10-07
Apollo Introduction for i5K Groups 2015-10-07Apollo Introduction for i5K Groups 2015-10-07
Apollo Introduction for i5K Groups 2015-10-07
Monica Munoz-Torres

CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcionalCONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
Monica Munoz-Torres

Apolo Taller en BIOS
Apolo Taller en BIOS Apolo Taller en BIOS
Apolo Taller en BIOS
Monica Munoz-Torres

Apollo Introduction for the Chestnut Research Community
Apollo Introduction for the Chestnut Research CommunityApollo Introduction for the Chestnut Research Community
Apollo Introduction for the Chestnut Research Community
Monica Munoz-Torres


More from Monica Munoz-Torres (20)

Apollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionalityApollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionality

Editing Functionality - Apollo Workshop
Editing Functionality - Apollo WorkshopEditing Functionality - Apollo Workshop
Editing Functionality - Apollo Workshop

Curation Introduction - Apollo Workshop
Curation Introduction - Apollo WorkshopCuration Introduction - Apollo Workshop
Curation Introduction - Apollo Workshop

Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015

Apollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citriApollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citri

Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing

JBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGRJBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGR

Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...

Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)

Gene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunityGene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunity

Essential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation ToolsEssential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation Tools

Introduction to Apollo for i5k
Introduction to Apollo for i5kIntroduction to Apollo for i5k
Introduction to Apollo for i5k

Genome Curation using Apollo - Workshop at UTK
Genome Curation using Apollo - Workshop at UTKGenome Curation using Apollo - Workshop at UTK
Genome Curation using Apollo - Workshop at UTK

Introduction to Apollo: i5K E affinis
Introduction to Apollo: i5K E affinisIntroduction to Apollo: i5K E affinis
Introduction to Apollo: i5K E affinis

Introduction to Apollo: A webinar for the i5K Research Community
Introduction to Apollo: A webinar for the i5K Research CommunityIntroduction to Apollo: A webinar for the i5K Research Community
Introduction to Apollo: A webinar for the i5K Research Community

Genome Curation using Apollo
Genome Curation using ApolloGenome Curation using Apollo
Genome Curation using Apollo

Apollo Introduction for i5K Groups 2015-10-07
Apollo Introduction for i5K Groups 2015-10-07Apollo Introduction for i5K Groups 2015-10-07
Apollo Introduction for i5K Groups 2015-10-07

CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcionalCONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional

Apolo Taller en BIOS
Apolo Taller en BIOS Apolo Taller en BIOS
Apolo Taller en BIOS

Apollo Introduction for the Chestnut Research Community
Apollo Introduction for the Chestnut Research CommunityApollo Introduction for the Chestnut Research Community
Apollo Introduction for the Chestnut Research Community


Recently uploaded

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)
Liyana Rozaini

BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptxBRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
kambal1234567890

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.
DrRavindrakshirsagar1

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
MJDuyan

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17
Celine George

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan

Webinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional SkillsWebinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional Skills
EduSkills OECD

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS
Celine George

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
artenzmartenkai

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
thanhluan21

How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17
Celine George

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17
Celine George

NC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline PartnershipNC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline Partnership
Mebane Rash

The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf
The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdfThe Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf
The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf
JackieSparrow3

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George

ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUMENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
HappieMontevirgenCas

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334


Recently uploaded (20)

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)

BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptxBRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence

Webinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional SkillsWebinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional Skills

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...

How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17

NC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline PartnershipNC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline Partnership

The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf
The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdfThe Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf
The Jewish Trinity : Sabbath,Shekinah and Sanctuary 4.pdf

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides

ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUMENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf


Web Apollo: Lessons learned from community-based biocuration efforts.

  • 1. UNIVERSITY OF CALIFORNIA Web Apollo: lessons learned from community-based biocuration efforts. Monica Munoz-Torres, PhD Biocurator & Bioinformatics Analyst | @monimunozto Genomics Division, Lawrence Berkeley National Laboratory 31 October, 2013
  • 2. Outline 1. What is Web Apollo?: • Definition & working concept. Lessons learned from communitybased biocuration efforts. 2. Community based curation from our experience: • Scope, stories to highlight. 3. Lessons Learned. 1. The power behind community-based curation of biological data: • International group efforts to create, collect, maintain, and use curation tools. Outline 2
  • 3. What is Web Apollo? • Web Apollo is a web-based genomic annotation editing platform. We need annotation editing tools to modify and refine the precise location and structure of the genome elements that predictive algorithms cannot yet resolve automatically. Find more about Web Apollo at http://GenomeArchitect.org and Genome Biol 14:R93. (2013). 1. What is Web Apollo? 3
  • 4. A little history about Apollo*: Biologists could finally visualize computational analysis and experimental evidence from genomic features and build manually-curated consensus gene structures. Apollo became a very popular, open source tool (insects, fish, mammals, birds, etc.). a. Desktop: one person at a time editing a specific region, annotations saved in local files; slowed down collaboration. * b. Java Web Start: users saved annotations directly to a centralized database; potential issues with stale annotation data remained. 1. What is Web Apollo? 4
  • 5. Web Apollo • Browser-based; plugin for JBrowse. • Allows for intuitive annotation creation and editing, with gestures and pull-down menus to create transcripts, add/delete/resize exons, merge/split exons or transcripts, insert comments (CV, freeform text), etc. • Edits in one client are instantly pushed to all other clients. 1. What is Web Apollo? 5
  • 6. Our Working Concept In the context of gene manual annotation, curation tries to find the best examples and/or eliminate (most) errors. To conduct manual annotation efforts: Automated gene models Evidence: cDNAs, HMM domain searches, alignments with assemblies or genes from other species. Manual annotation & curation 2. In our experience. Gather and evaluate all available evidence using quality-control metrics to corroborate or modify automated annotation predictions. Perform sequence similarity searches (phylogenetic framework) and use literature and public databases to: • Predict functional assignments from experimental data. • Distinguish orthologs from paralogs, classify gene membership in families and networks. 6
  • 7. Dispersed, community-based gene manual annotation efforts. Using Web Apollo, we* trained geographically dispersed scientific communities to perform biologically supported manual annotations, and monitored their findings: ~80 institutions, 14 countries, hundreds of scientists, and gate keepers. Education and Training done through: – Training workshops and geneborees. – Tutorials with detailed instructions. *Elsik Lab. Hymenoptera Genome Database. – Personalized user support. Georgetown University. 2. In our experience. 7
  • 8. What did we learn? Harvesting expertise from dispersed researchers who assigned functions to predicted and curated peptides, we developed more interactive and responsive tools, as well as better visualization, editing, and analysis capabilities. Assessment: 1. Was it helpful / productive to work together? 2. Were manual annotations improved? 3. Did the shared and distributed annotation effort help improve the quality of scientific findings? 3. Lessons Learned 8
  • 9. It was helpful to work together. Scientific community efforts brought together domainspecific and natural history expertise that would have otherwise remain disconnected. Warning: community-wide periodic and frequent updates, as well as coordination of organization and report (publication) of findings are necessary. 3. Lessons Learned 9
  • 10. Automated annotations were improved* In many cases, automated annotations were improved. Also, learned of the challenges with new sequencing technologies, e.g.: – Frameshifts and indel errors – Split genes across scaffolds – Highly repetitive sequences To face these challenges, we trained annotators in recovering coding sequences in agreement with all available biological evidence. 3. Lessons Learned 10
  • 11. Horizontal gene transfer from virus to bacteria to insect. Scientific findings lead to untold stories… The genome of the jewel wasp (Nasonia vitripennis) contains the highest reported number of Ankyrin domains in insects. Thirteen ANK repeat-bearing proteins also contain C-terminal PRANC (Pox protein repeats of ankyrin C-terminal) domains. LGT between bacteria and animals: source of evolutionary innovation. Nasonia genome working group. 2010. Science, 327:343-347 3. Lessons Learned 11
  • 12. Characterizing adaptive radiation. … and lead to uncovering old stories… Uncovering suspected candidates from 30 year old research, the Heliconius melpomene community was able to characterize the few Mendelian loci controlling divergence in wing patterns. Islands of genome divergence underlying adaptive radiation were characterized. A community effort developed a de novo reference genome on a small budget. Their findings were a milestone for understanding the basics of ecological adaptation. Heliconius genome consortium. 2012. Nature doi:10.1038/nature11041. 3. Lessons Learned 12
  • 13. Understanding the evolution of sociality. Comparison of the genomes of 7 species of ants contributed to a better understanding … and groups of of the evolution and organization of insect societies at the molecular level. communities told Insights drawn mainly from six core aspects of us even more! ant biology: 1. Alternative morphological castes 2. Division of labor 3. Chemical Communication 4. Alternative social organization 5. Social immunity 6. Mutualism Libbrecht et al. 2012. Genome Biology 2013, 14:212 3. Lessons Learned 13
  • 14. More lessons learned 1. Next generation technologies brought many and new challenges. 2. You must enforce strict rules and formats; it is necessary to maintain consistency. 3. Be flexible and adaptable: study and incorporate new data, and adapt to support new platforms to keep pace and maintain the interest of scientific community. Evolve with the data! 4. A little training goes a long way! With the right tools, wet lab scientists make exceptional curators who can easily learn to maximize the generation of accurate, biologically supported gene models. 3. Lessons Learned 14
  • 15. i5K Collaborative efforts for genome sequencing projects lead to the birth of i5K. Small groups became large networks, which turned into an international, multi-institutional effort to sequence the genomes of 5 thousand arthropods. Up next: four species ready for community manual annotation using Web Apollo. 4. The power of biocuration 15
  • 16. Gene Ontology Consortium This community-based effort seeks to standardize the representation of gene and gene product attributes across species and databases. Collaborative efforts are focused on: 1. Capturing all available information to describe gene products (BP, CC, MF) in a species-independent manner. 2. Reviewing and updating the relationships. 3. Continuously developing tools to facilitate creation, maintenance and use of ontologies. 4. The power of biocuration 16
  • 17. Integrating biocuration practices Frequently, groups incorporate both bibliographical curation and gene manual annotation efforts into their work to improve the quality and informative power of their data. E.g. Dictybase, curating literature for slime mold since 2004, serves interests in cellular development, chemotaxis, cytokinesis defects, etc. New to Web Apollo, ready to harness their community’s knowledge. 4. The power of biocuration 17
  • 18. International Society for Biocuration ISB provides a forum for biocurators, developers, researchers, and students who are interested in: • Using common tools (GO, Genotype & Phenotype curation, GMOD tools, etc.). • Generation of gold standards for databases, ensuring that database and tools meet specific user needs. • Defining the profession of biocuration with respect to the scientific community and the granting agencies. • Member of BioDBCore, GOBLET, BioCreative. 4. The power of biocuration 18
  • 19. The power behind community-based curation of biological data. 4. The power of biocuration 19
  • 20. • Berkeley Bioinformatics Open-source Projects (BBOP), Berkeley Lab: Web Apollo and Gene Ontology teams. Suzanna Lewis (PI). • The team at Hymenoptera Genome Database. §U. of Missouri. Christine G. Elsik (PI). • Ian Holmes Lab (PI). *U. of California Berkeley. • Arthropod genomics community (e.g. Gene Robinson, Juergen Gadau, Chris R Smith, Owen McMillan, Owain Edwards, Kevin Hackett, and a few hundred more) and i5K: Org. Committee, NAL (USDA), HGSC-BCM, BGI, 1KITE. Rob Buels * • International Society for Biocuration Mitch Skinner * • Web Apollo is supported by NIH grants 5R01GM080203 from NIGMS, and 5R01HG004483 from NHGRI, and by the Director, Office of Science, Office of Basic Energy Sciences, of the U.S. Department of Energy under Contract No. DE-AC02-05CH11231. • Images used with permission: AlexanderWild.com Thanks! BBOP Web Apollo Gene Ontology Gregg Helt Chris Mungall Ed Lee Seth Carbon Justin Reese § Heiko Dietze Chris Childers § Web Apollo: http://GenomeArchitect.org GO: http://GeneOntology.org i5K: http://arthropodgenomes.org/wiki/i5K ISB: http://biocurator.org Thank you. • For your attention, thank you! 20
