The document presents a comprehensive overview of SharePoint data technologies, focusing on the new capabilities of the list platform and various methods to interact with SharePoint data using technologies like LINQ, client object models, and RESTful services. It details improvements in SharePoint 2010, including list validation, relationships, and the development of client applications using JavaScript and Silverlight. Additionally, it provides example codes and deployment strategies, aiming to educate developers on building applications leveraging these data technologies.

1. Developing With Data TechnologiesChakkaradeep Chandranhttp://www.chakkaradeep.com@chakkaradeep

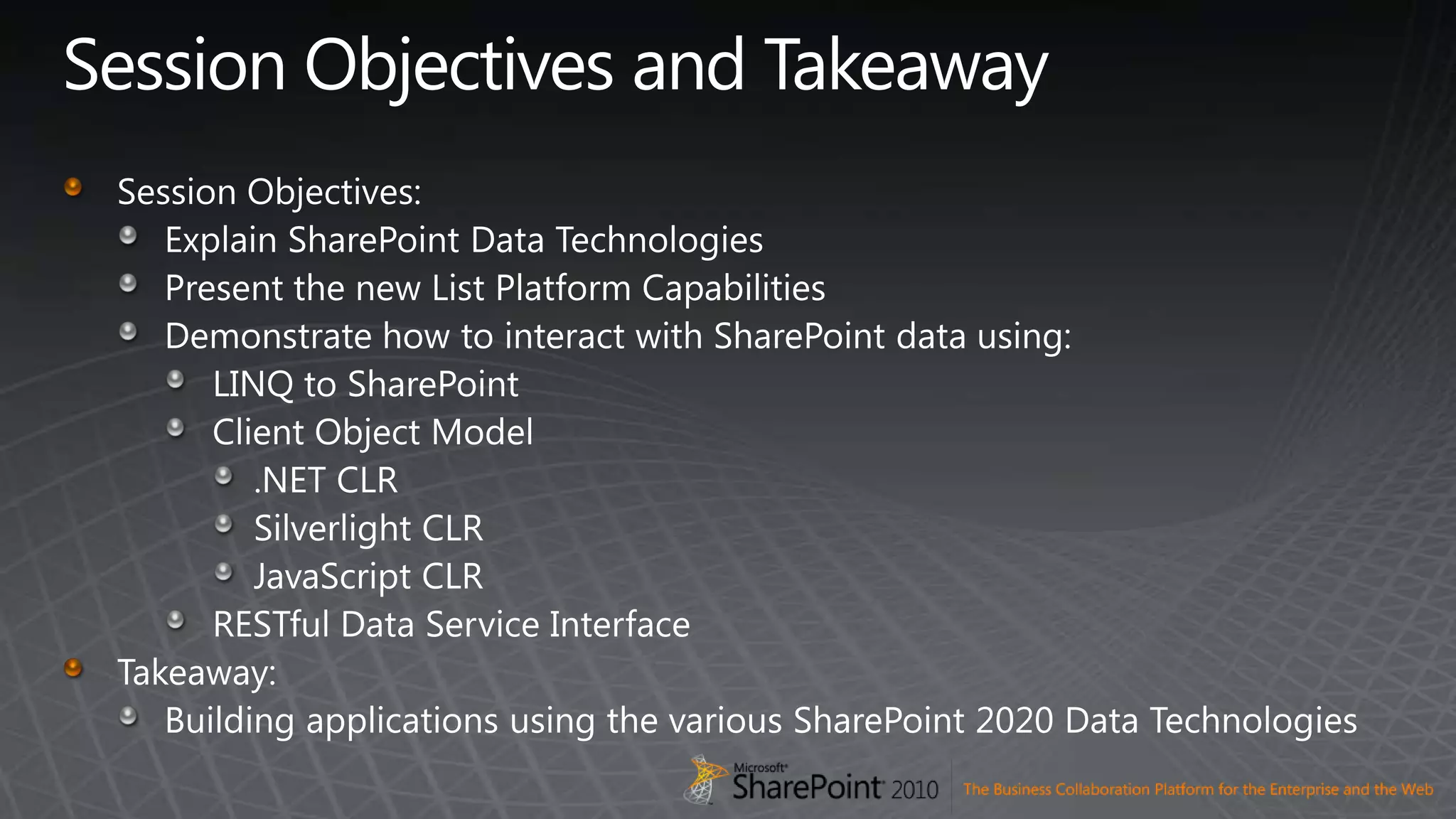

2. Session Objectives and TakeawaySession Objectives:Explain SharePoint Data TechnologiesPresent the new List Platform CapabilitiesDemonstrate how to interact with SharePoint data using:LINQ to SharePointClient Object Model.NET CLRSilverlight CLRJavaScript CLRRESTful Data Service InterfaceTakeaway:Building applications using the various SharePoint 2020 Data Technologies

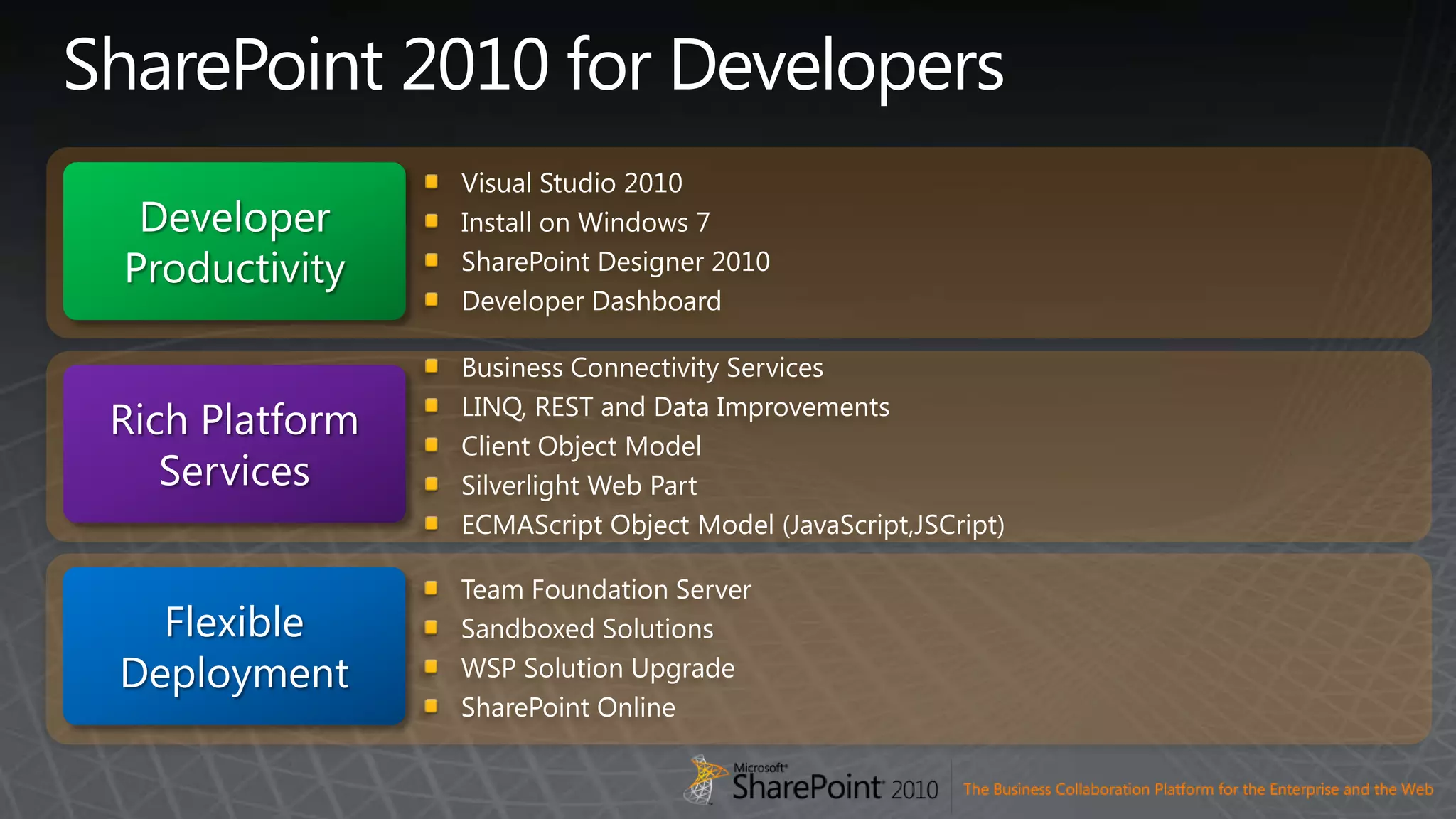

3. SharePoint 2010 for DevelopersVisual Studio 2010Install on Windows 7SharePoint Designer 2010Developer DashboardDeveloper ProductivityBusiness Connectivity Services LINQ, REST and Data ImprovementsClient Object ModelSilverlight Web PartECMAScript Object Model (JavaScript,JSCript)Rich Platform ServicesTeam Foundation ServerSandboxed SolutionsWSP Solution UpgradeSharePoint OnlineFlexible Deployment

4. Overview of Data TechnologiesREST APIsClient OMClient SideData PlatformServer SideFarmSiteList DataExternal ListsLINQ(spmetal.exe)ServerOM

5. List Data Improvements in SharePoint 2010

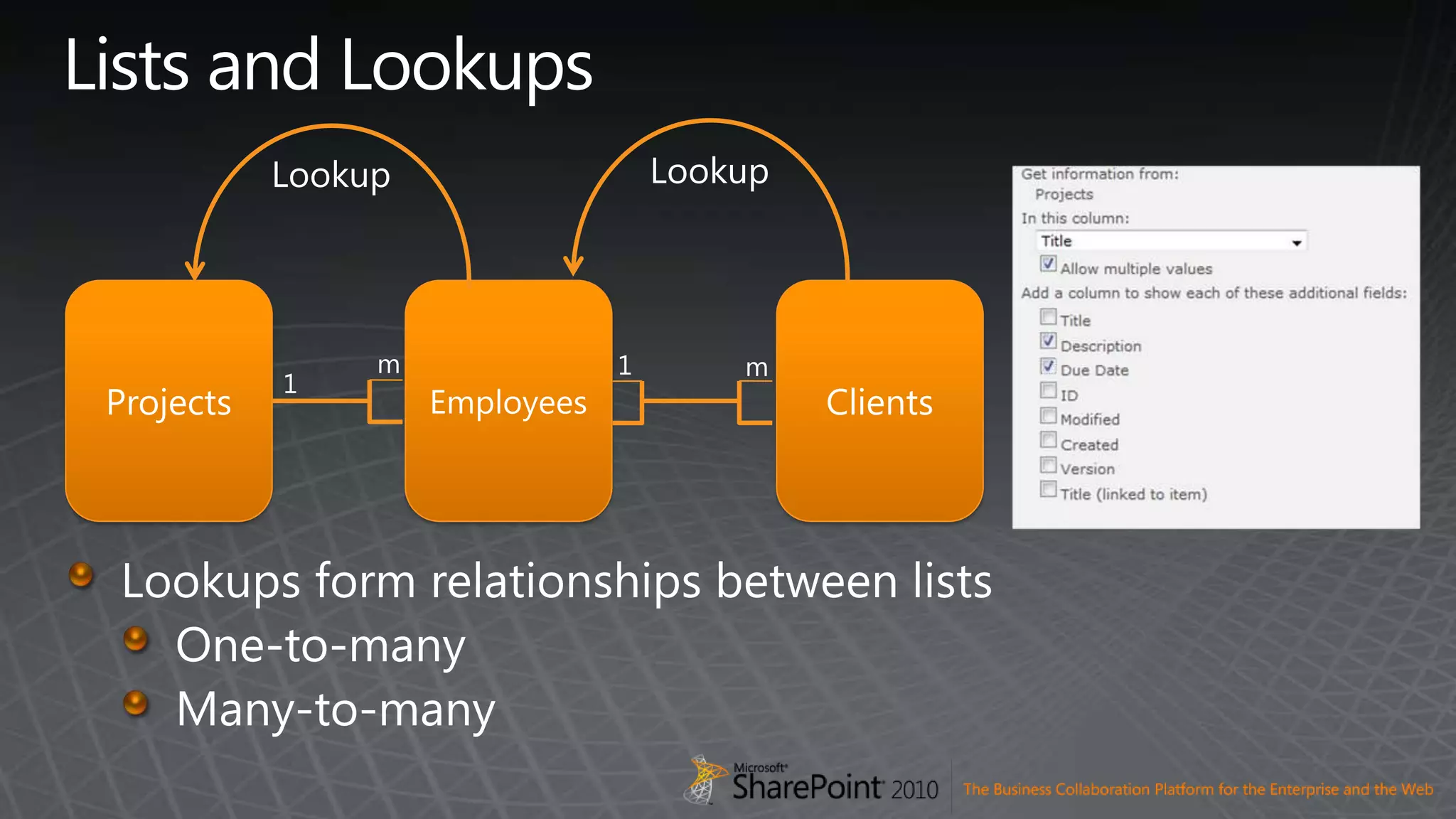

6. Lists and LookupsLookupLookupProjectsEmployeesClientsm1m1Lookups form relationships between listsOne-to-manyMany-to-many

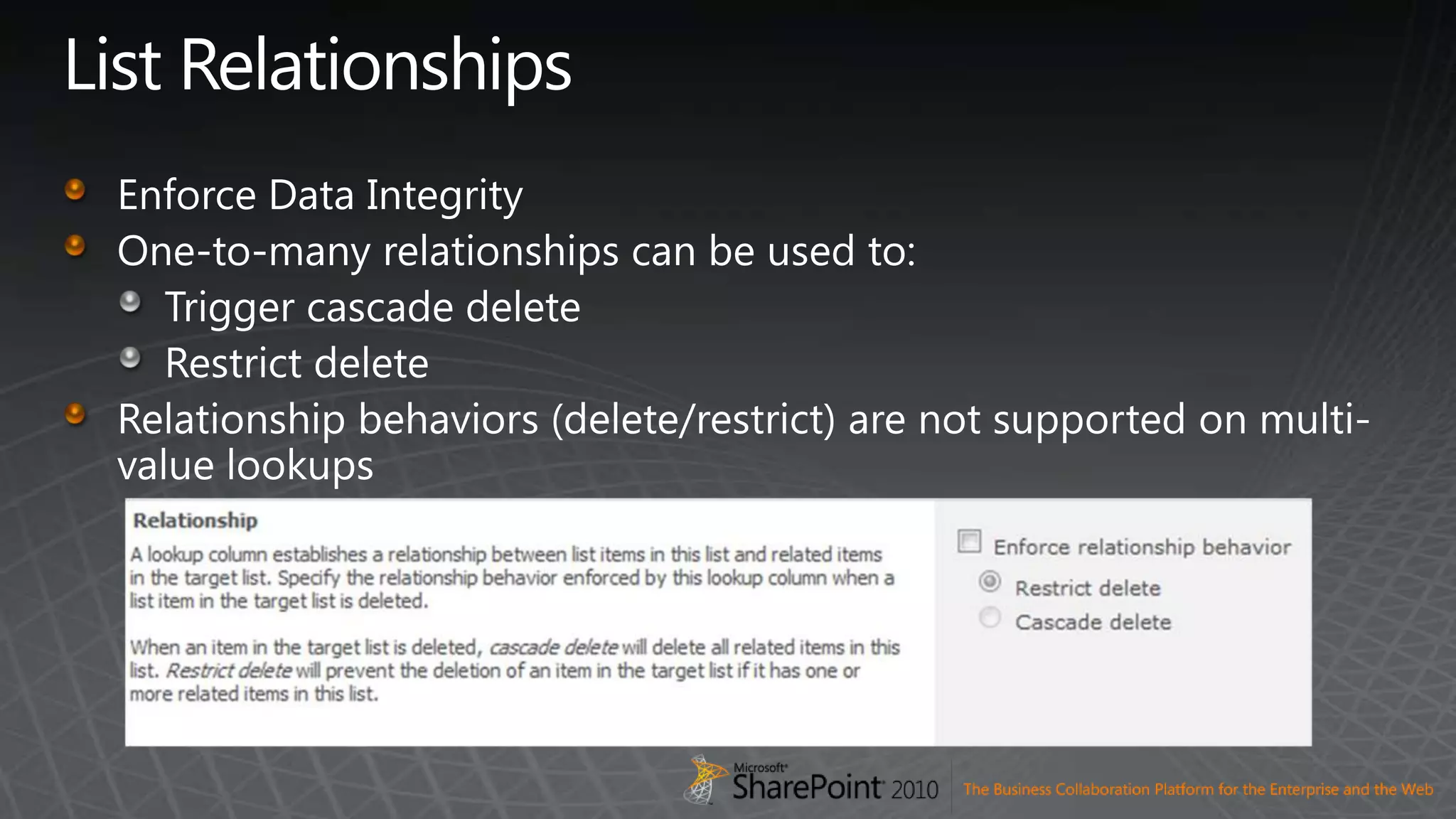

7. List RelationshipsEnforce Data IntegrityOne-to-many relationships can be used to:Trigger cascade deleteRestrict deleteRelationship behaviors (delete/restrict) are not supported on multi-value lookups

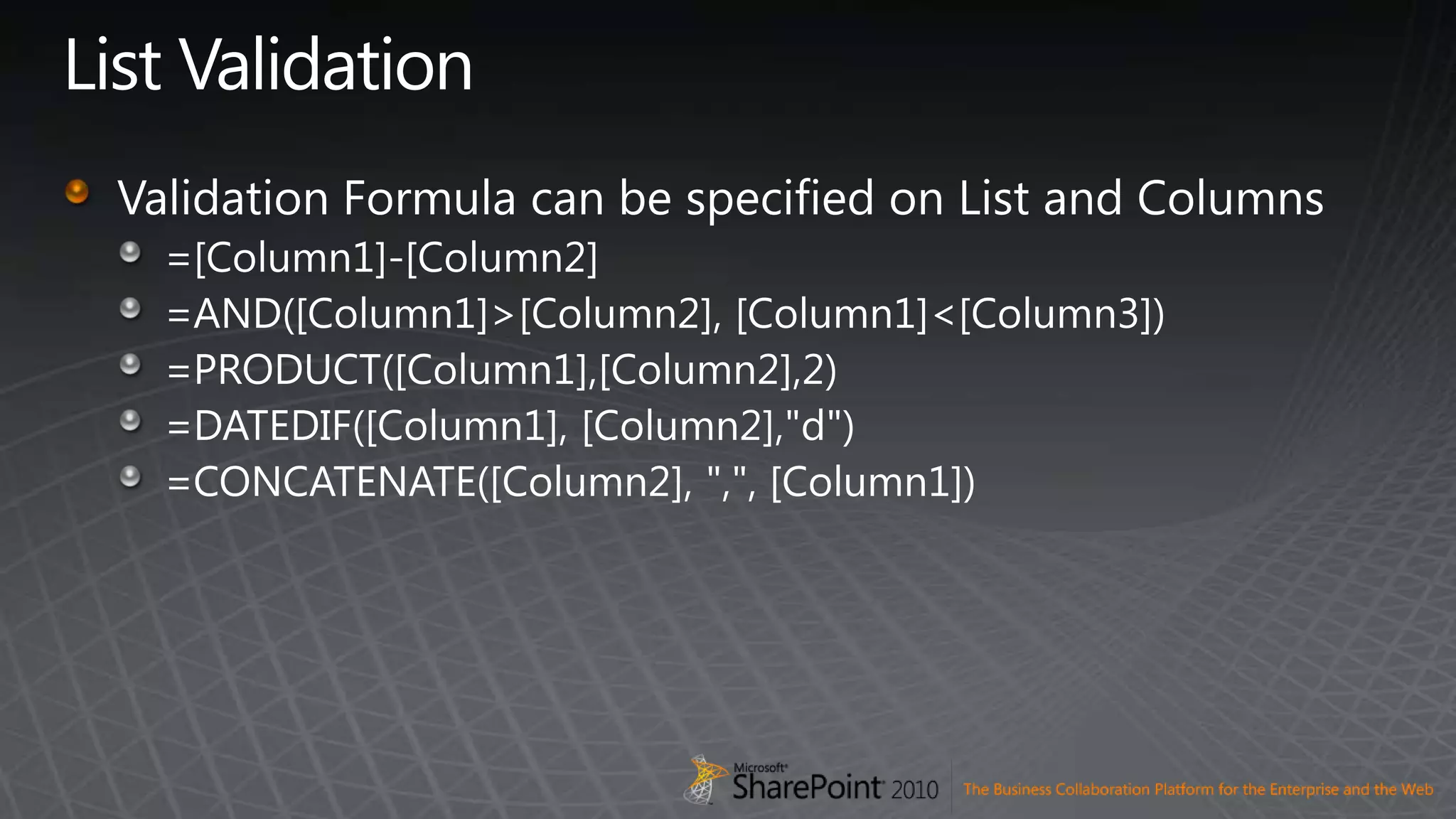

8. List ValidationValidation Formula can be specified on List and Columns=[Column1]-[Column2]=AND([Column1]>[Column2], [Column1]<[Column3])=PRODUCT([Column1],[Column2],2)=DATEDIF([Column1], [Column2],"d")=CONCATENATE([Column2], ",", [Column1])

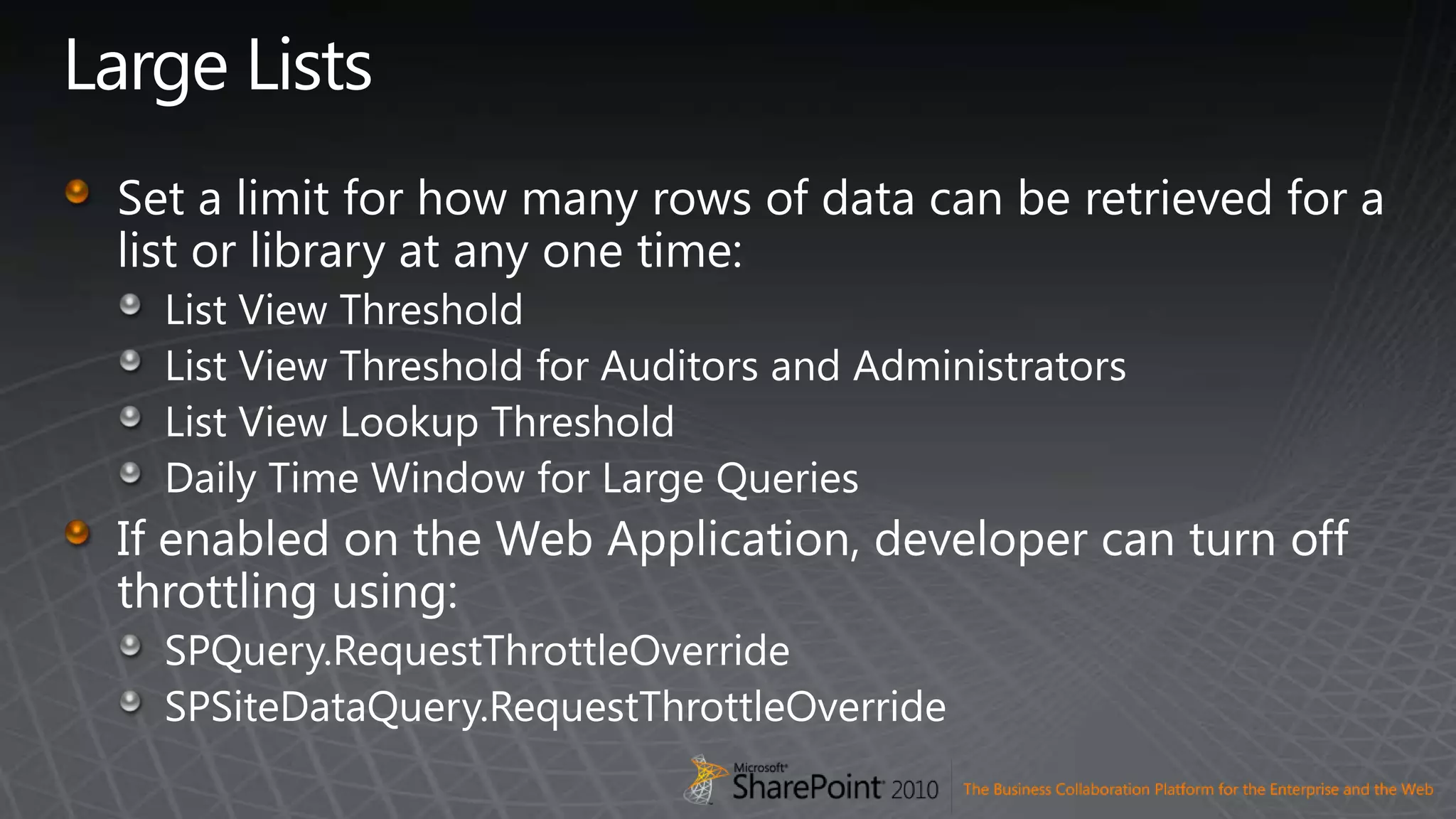

9. Large ListsSet a limit for how many rows of data can be retrieved for a list or library at any one time:List View ThresholdList View Threshold for Auditors and AdministratorsList View Lookup ThresholdDaily Time Window for Large QueriesIf enabled on the Web Application, developer can turn off throttling using:SPQuery.RequestThrottleOverrideSPSiteDataQuery.RequestThrottleOverride

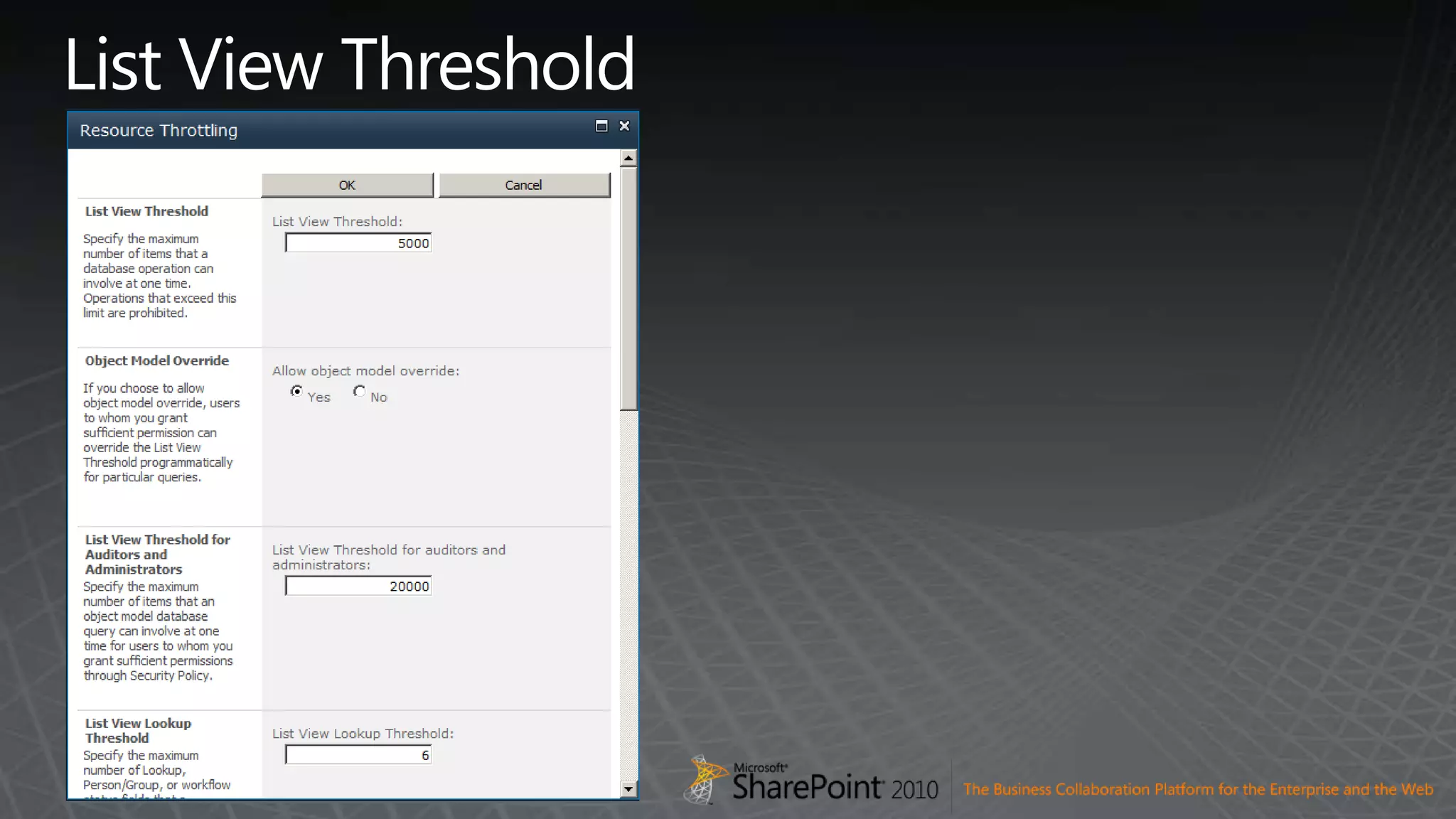

10. List View Threshold

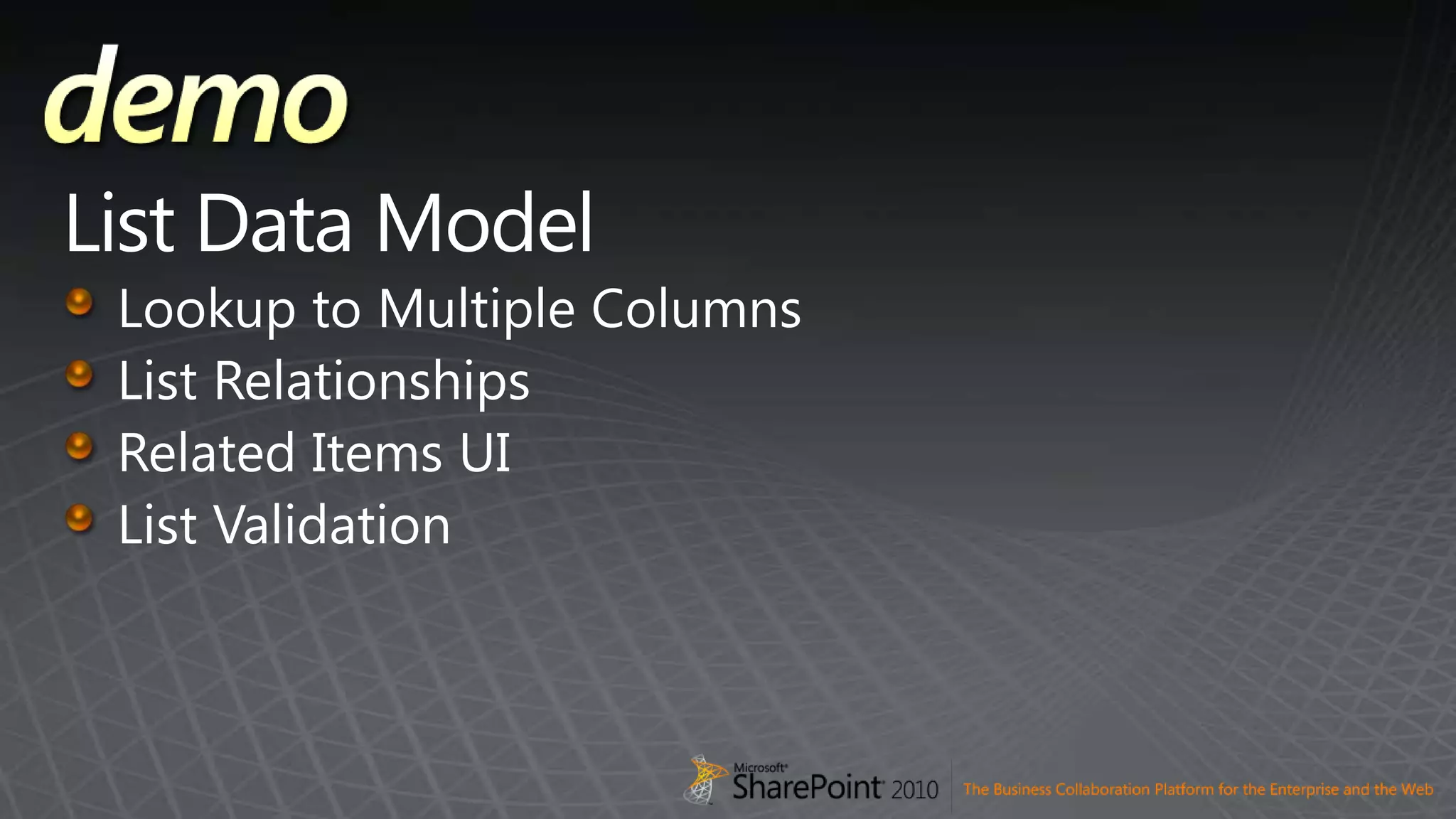

11. List Data ModelLookup to Multiple ColumnsList RelationshipsRelated Items UIList Validation

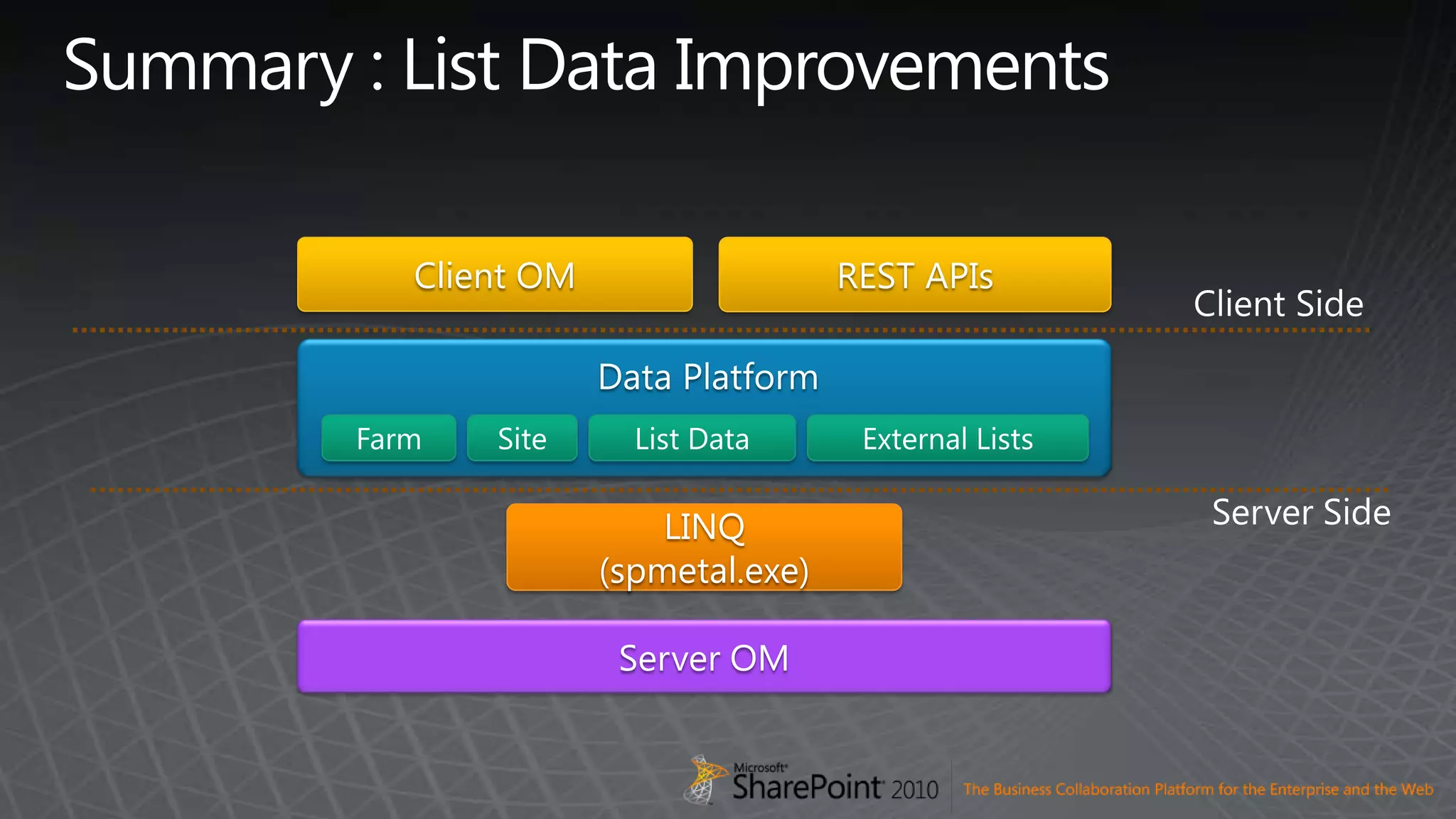

12. Summary : List Data ImprovementsREST APIsClient OMClient SideData PlatformServer SideFarmSiteList DataExternal ListsLINQ(spmetal.exe)ServerOM

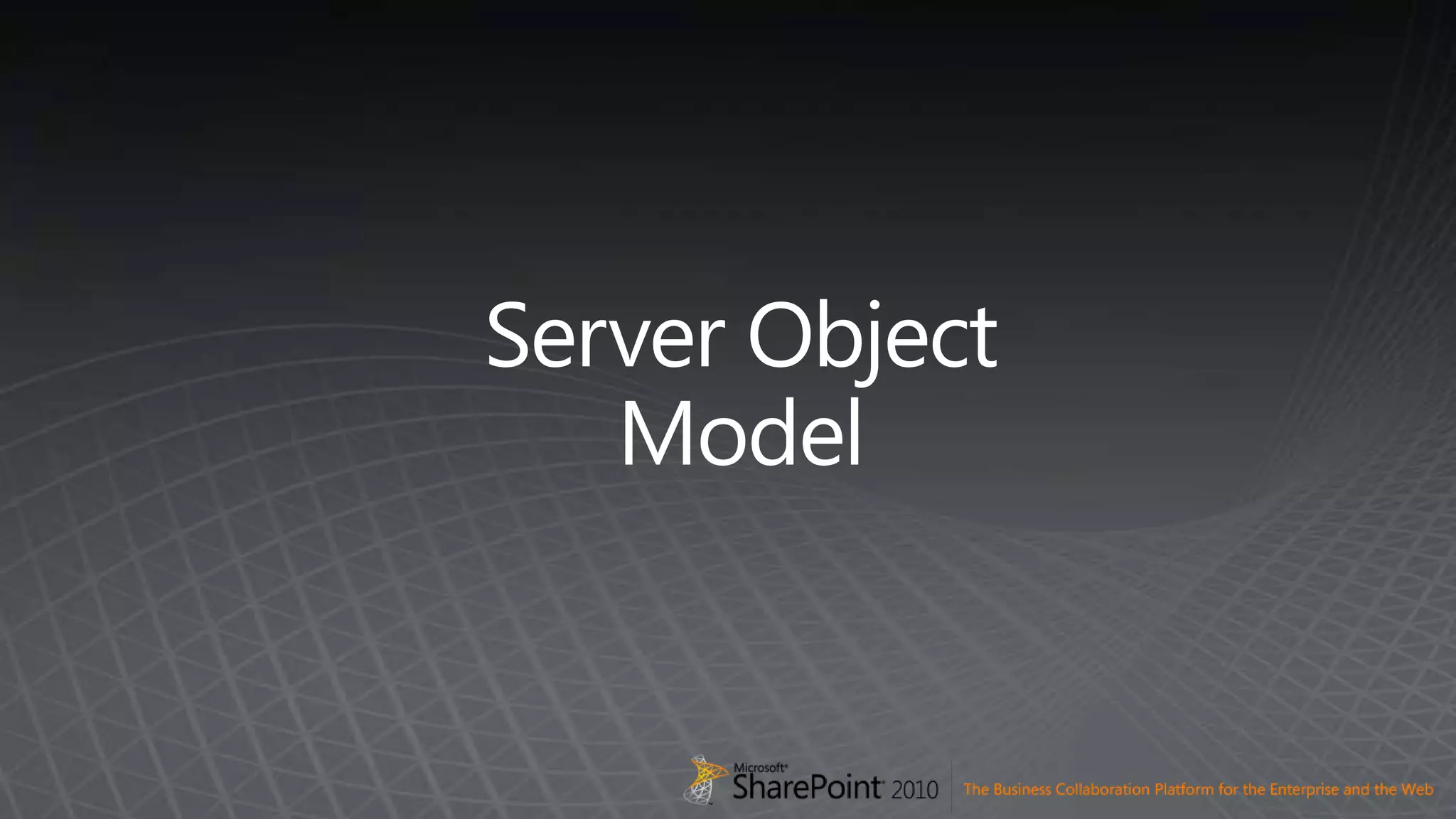

13. Server ObjectModel

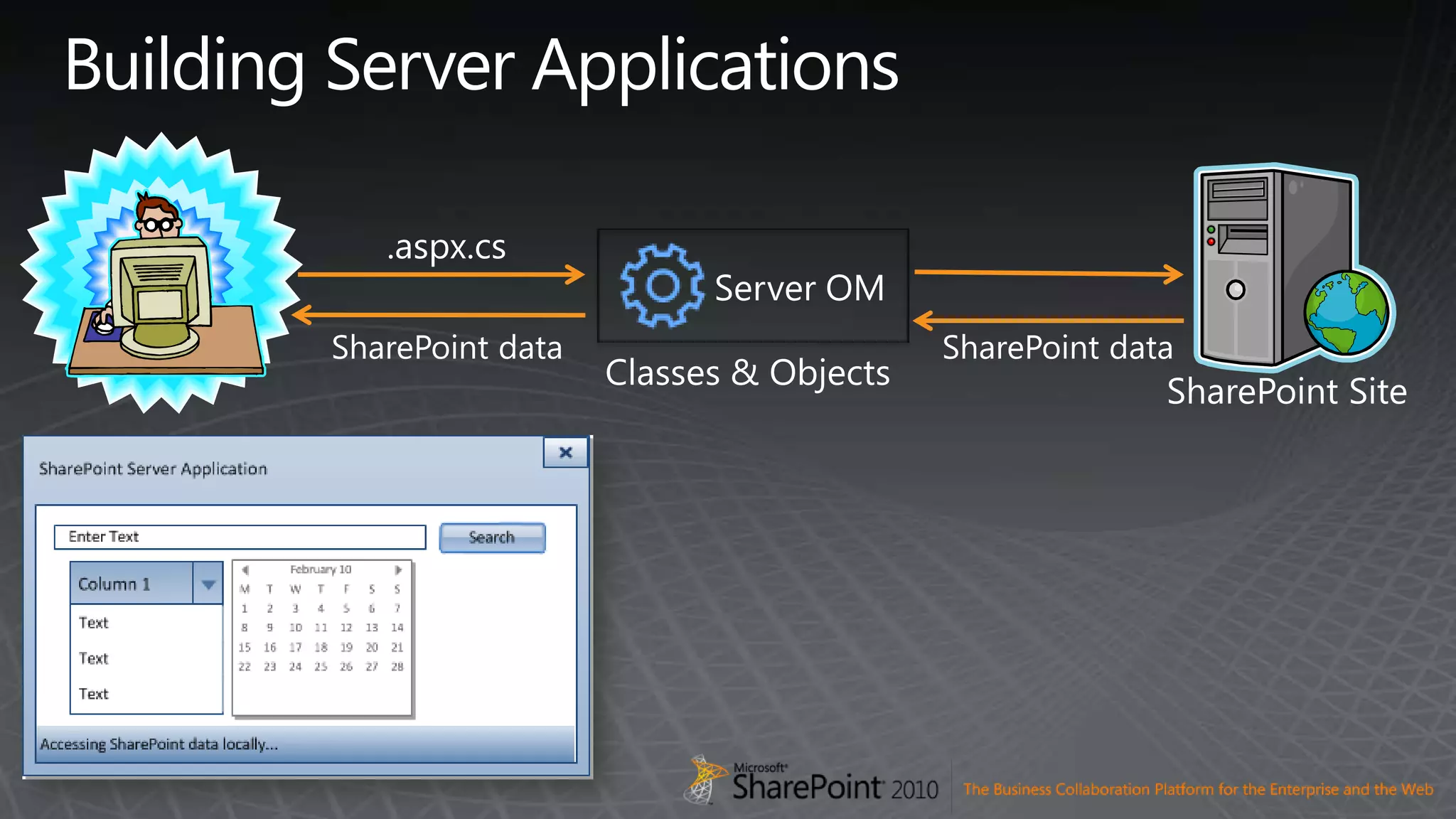

14. Building Server Applications.aspx.csServer OMSharePoint dataSharePoint dataClasses & ObjectsSharePoint Site

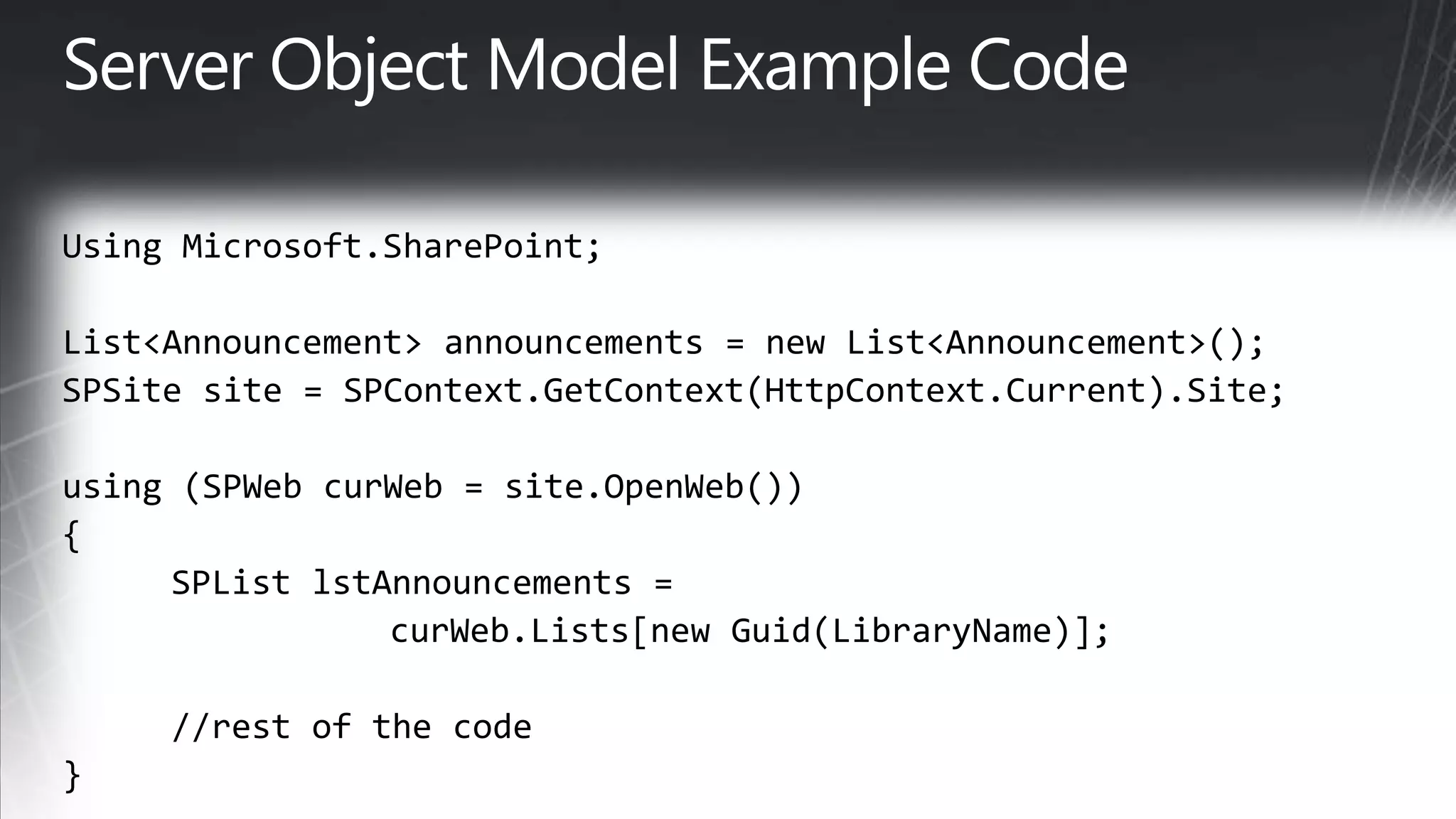

15. Server Object Model Example CodeUsing Microsoft.SharePoint;List<Announcement> announcements = new List<Announcement>(); SPSitesite = SPContext.GetContext(HttpContext.Current).Site; using (SPWebcurWeb = site.OpenWeb()) { SPListlstAnnouncements = curWeb.Lists[new Guid(LibraryName)]; //rest of the code }

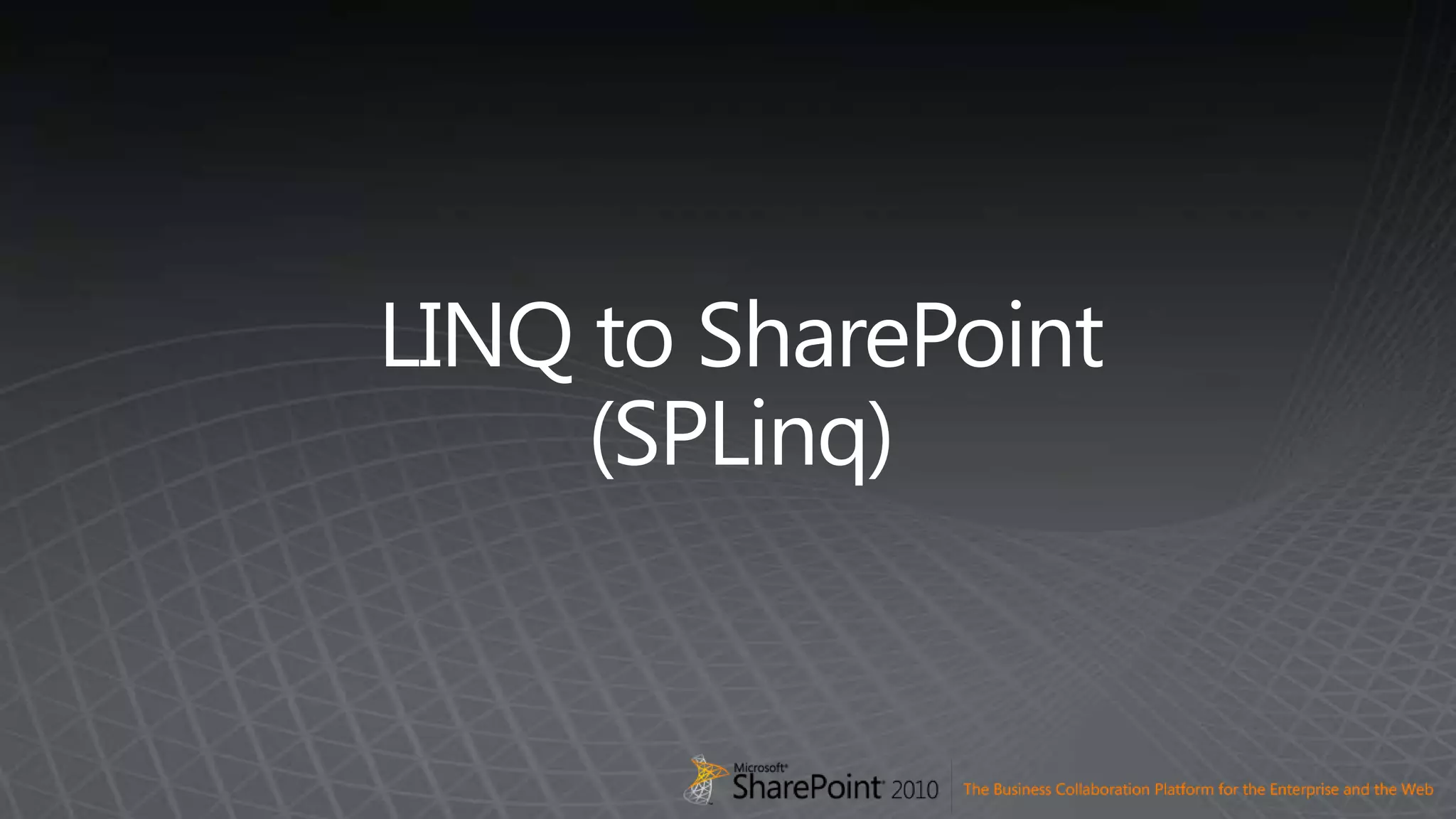

16. LINQ to SharePoint(SPLinq)

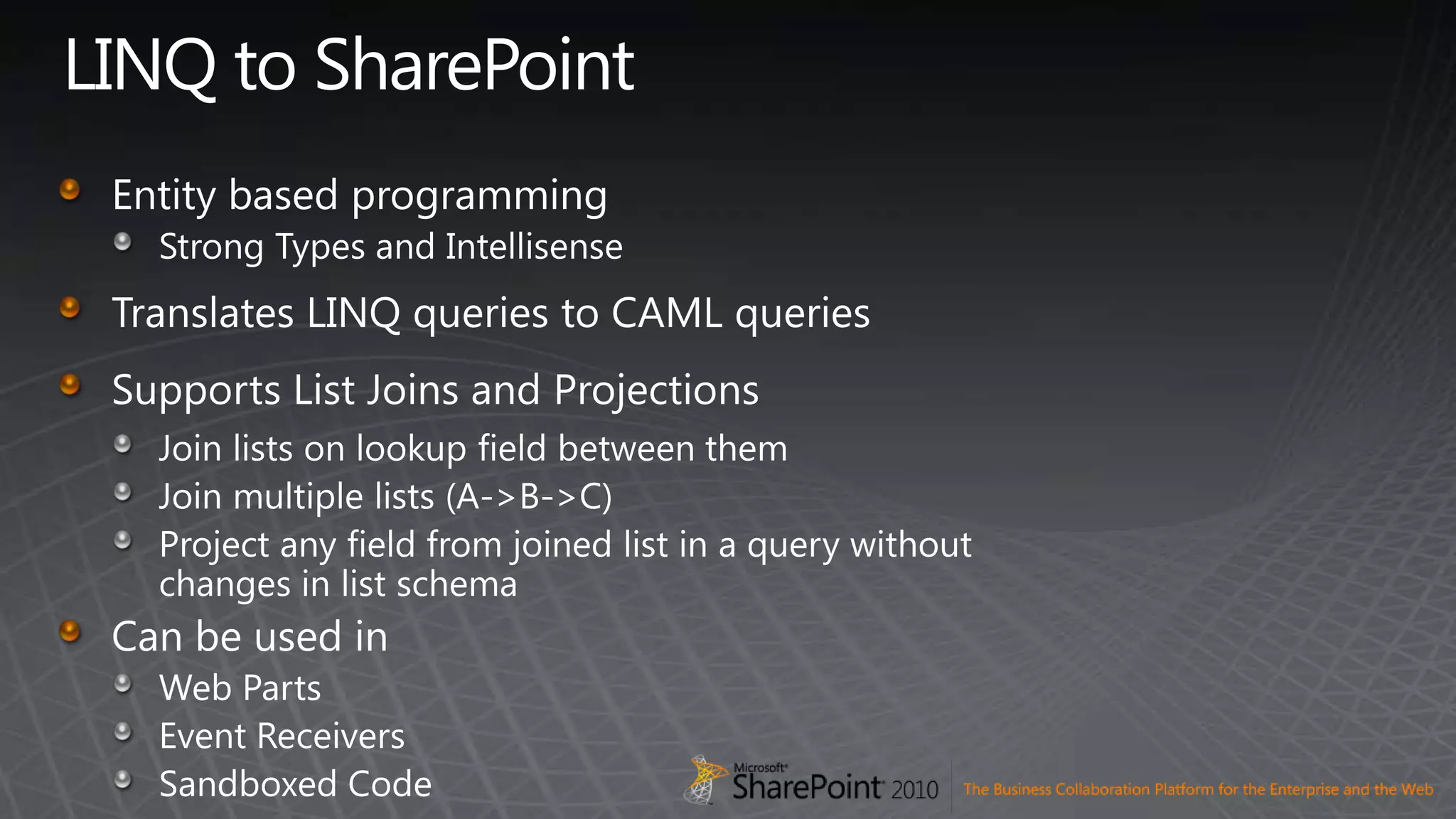

17. LINQ to SharePointEntity based programmingStrong Types and IntellisenseTranslates LINQ queries to CAML queriesSupports List Joins and ProjectionsJoin lists on lookup field between themJoin multiple lists (A->B->C)Project any field from joined list in a query without changes in list schemaCan be used inWeb PartsEvent ReceiversSandboxed Code

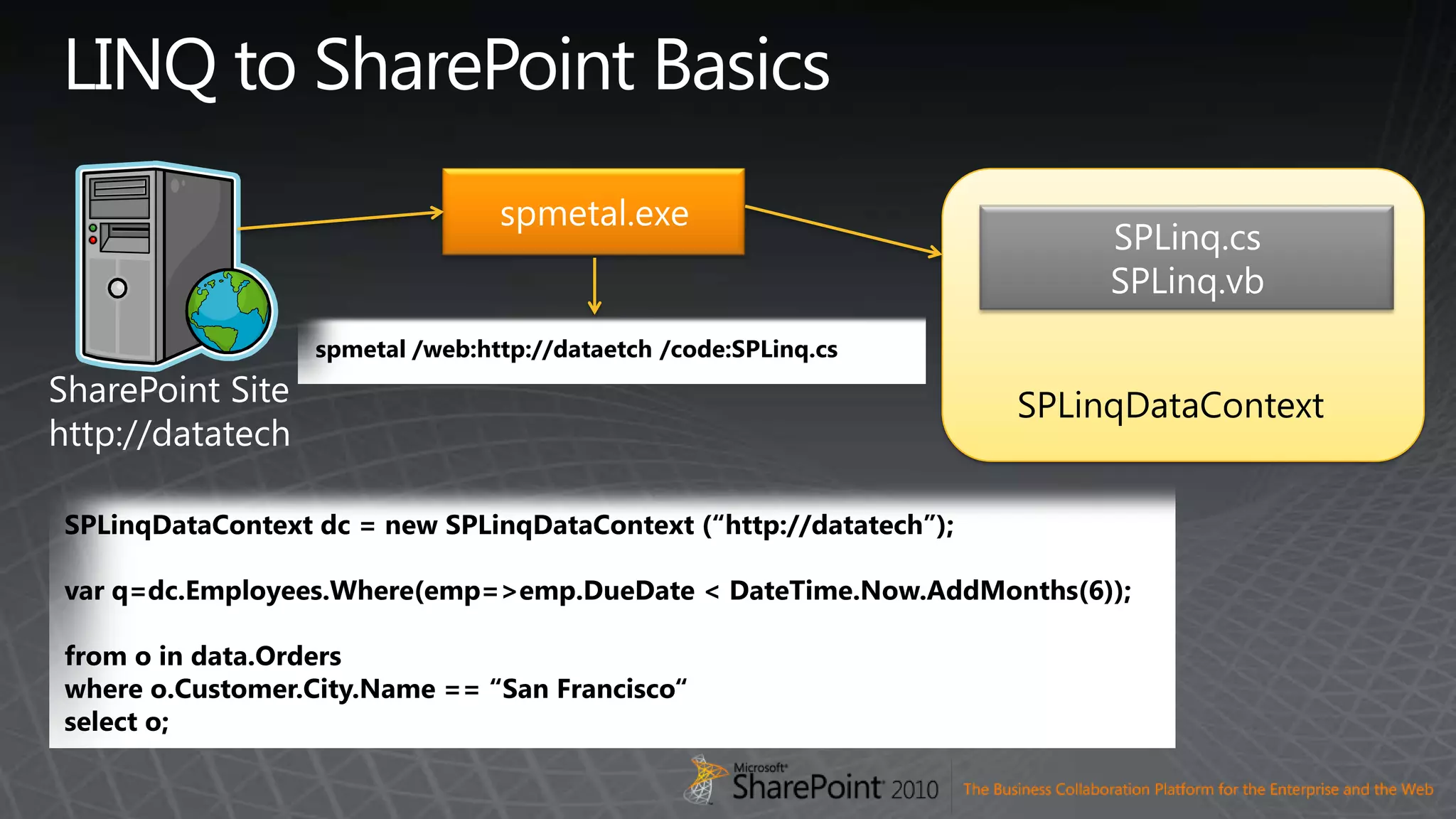

18. LINQ to SharePoint Basicsspmetal.exeSPLinq.csSPLinq.vbspmetal/web:http://dataetch/code:SPLinq.csSharePoint Sitehttp://datatechSPLinqDataContextSPLinqDataContext dc = new SPLinqDataContext (“http://datatech”);var q=dc.Employees.Where(emp=>emp.DueDate < DateTime.Now.AddMonths(6));from o in data.Orderswhere o.Customer.City.Name == “San Francisco“select o;

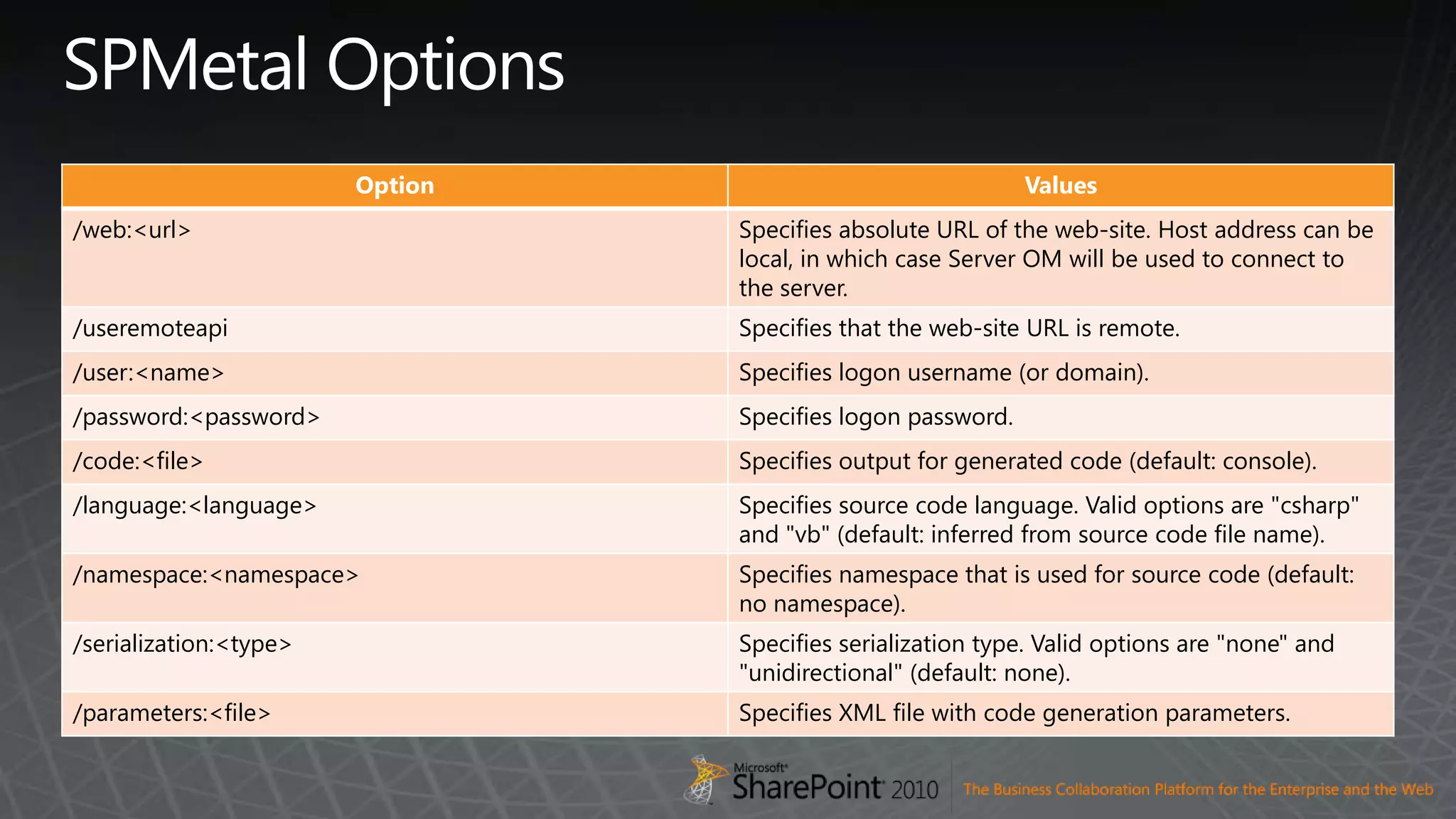

19. SPMetal Options

20. LINQ to SharePoint

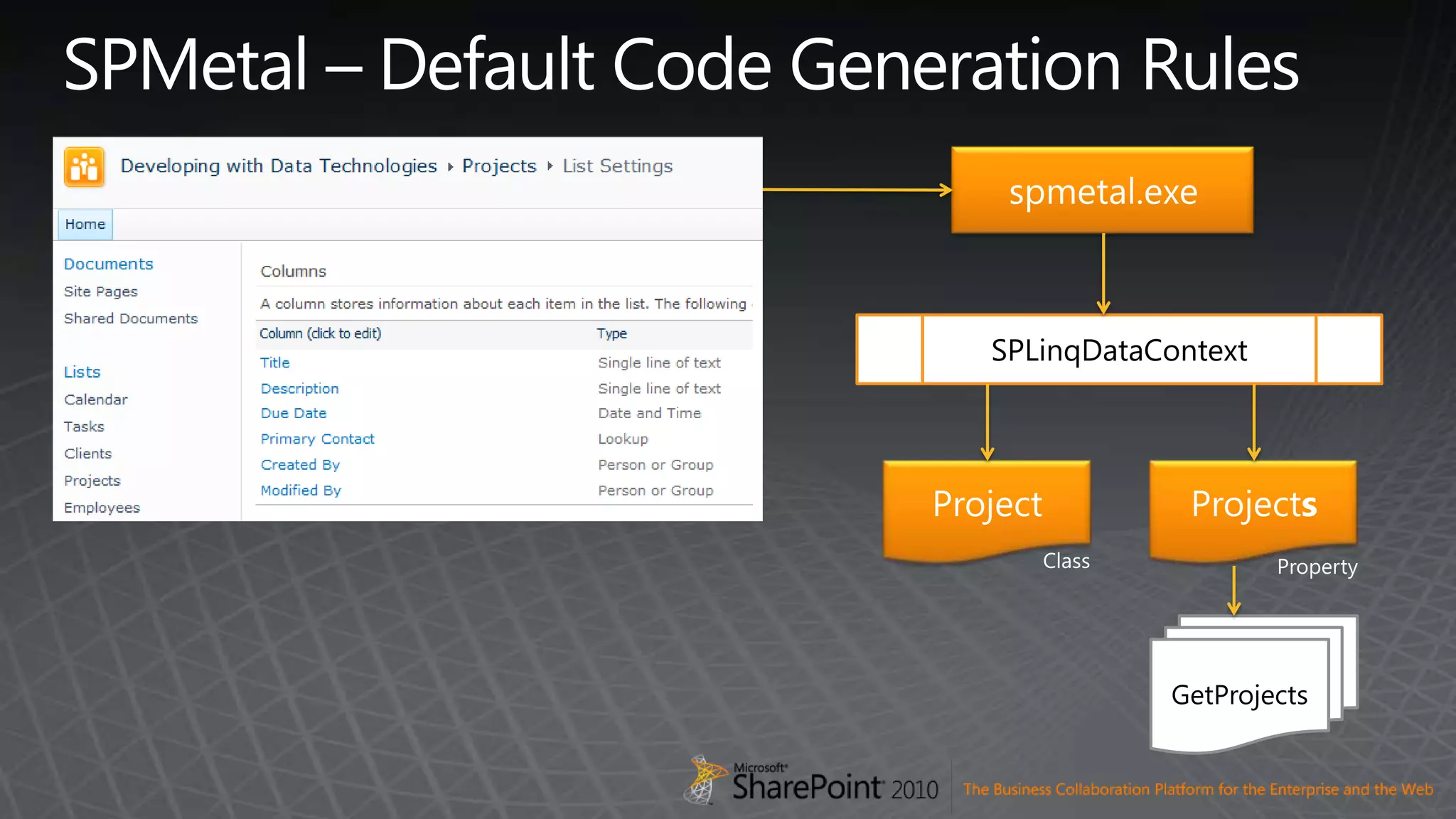

21. SPMetal – Default Code Generation Rulesspmetal.exeSPLinqDataContextProjectProjectsClassPropertyGetProjects

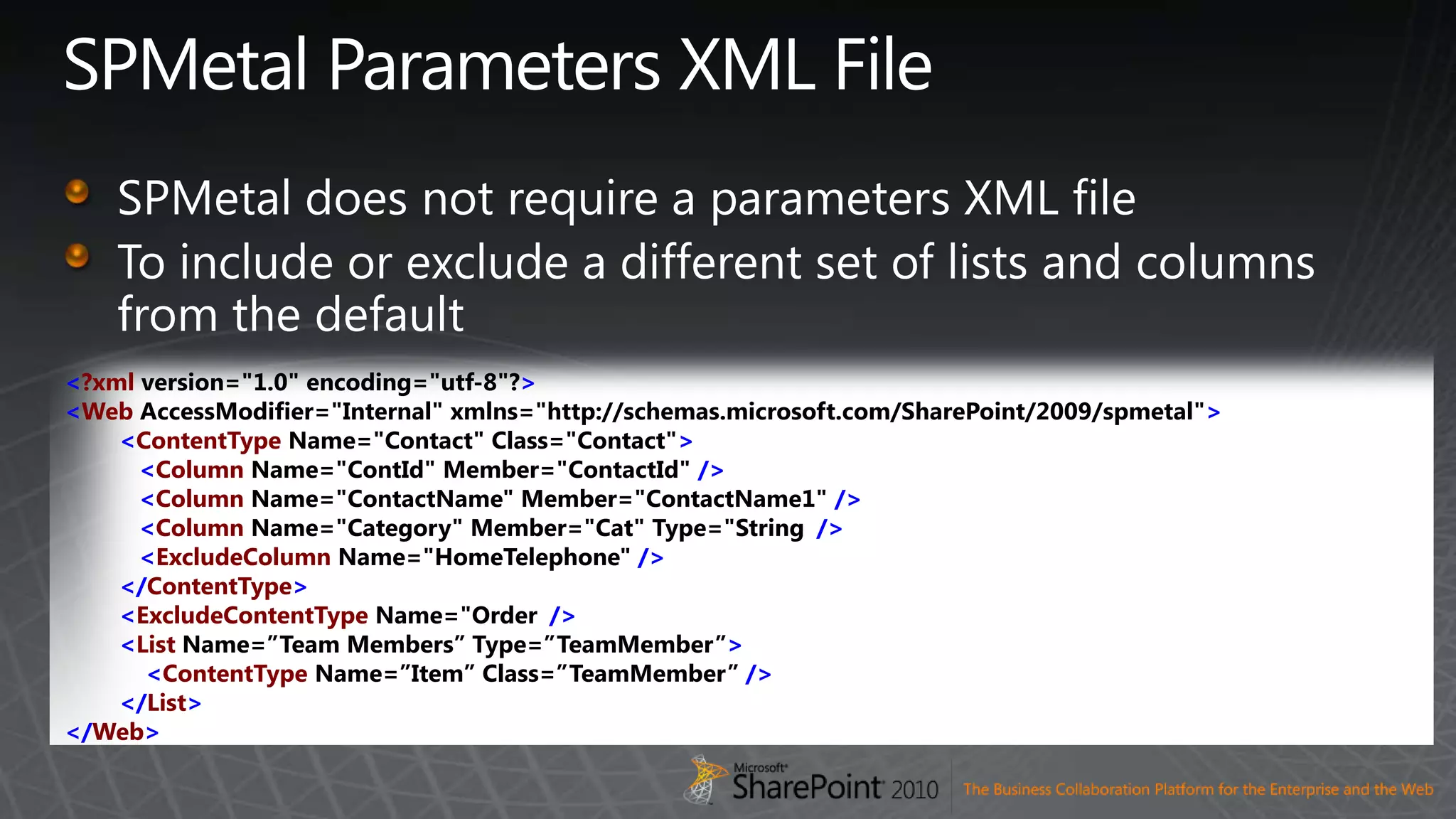

22. SPMetal Parameters XML FileSPMetal does not require a parameters XML fileTo include or exclude a different set of lists and columns from the default<?xmlversion="1.0" encoding="utf-8"?><WebAccessModifier="Internal" xmlns="http://schemas.microsoft.com/SharePoint/2009/spmetal"><ContentTypeName="Contact" Class="Contact"> <ColumnName="ContId" Member="ContactId" /> <ColumnName="ContactName" Member="ContactName1" /> <ColumnName="Category" Member="Cat" Type="String"/> <ExcludeColumnName="HomeTelephone" /></ContentType><ExcludeContentTypeName="Order"/><ListName=”Team Members” Type=”TeamMember”> <ContentTypeName=”Item” Class=”TeamMember” /></List></Web>

23. LINQ to SharePoint: Parameters XML File

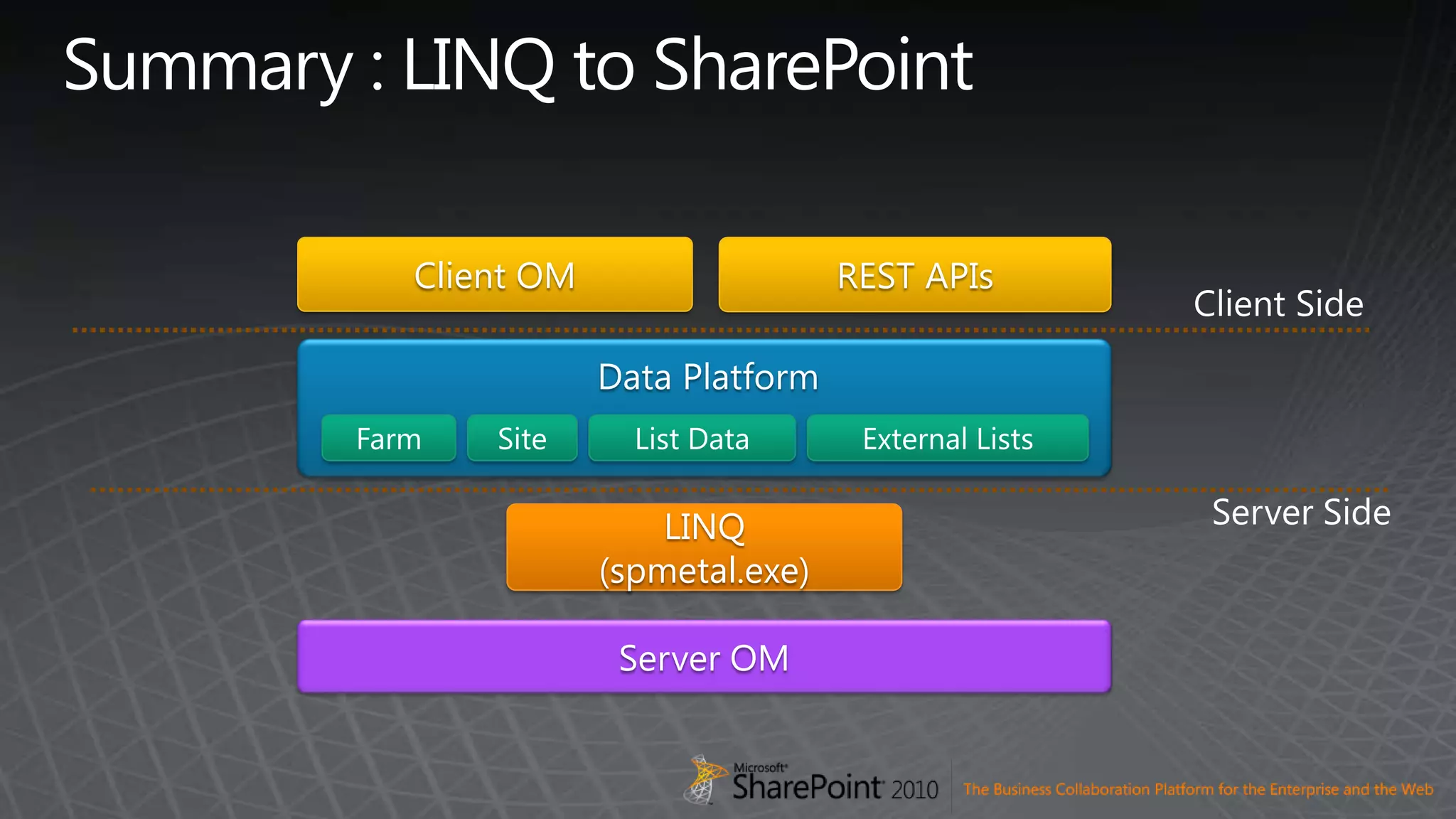

24. Summary : LINQ to SharePointREST APIsClient OMClient SideData PlatformServer SideFarmSiteList DataExternal ListsLINQ(spmetal.exe)ServerOM

25. Client ObjectModel

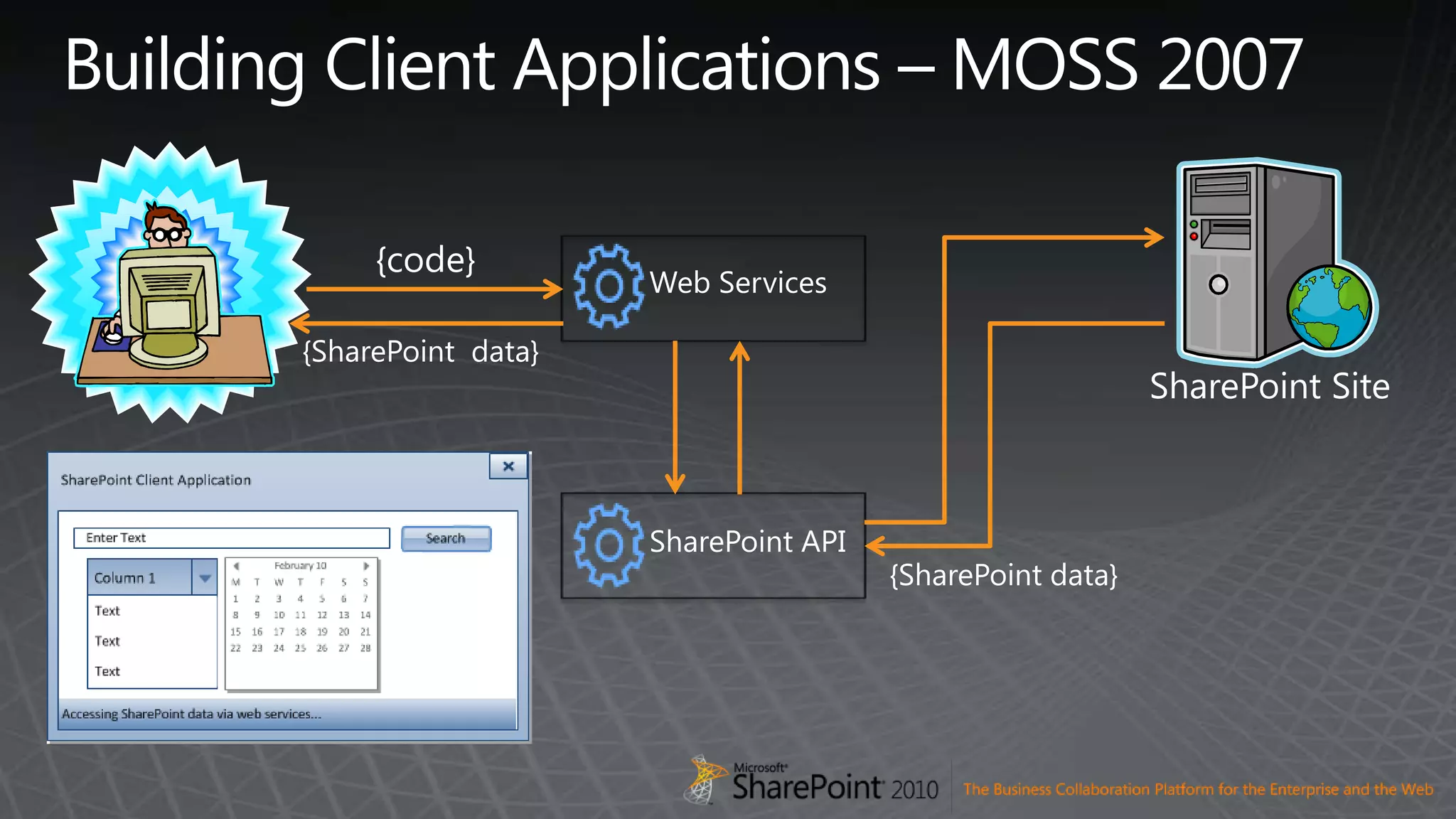

26. Building Client Applications – MOSS 2007{code}Web Services{SharePoint data}SharePoint SiteSharePoint API{SharePoint data}

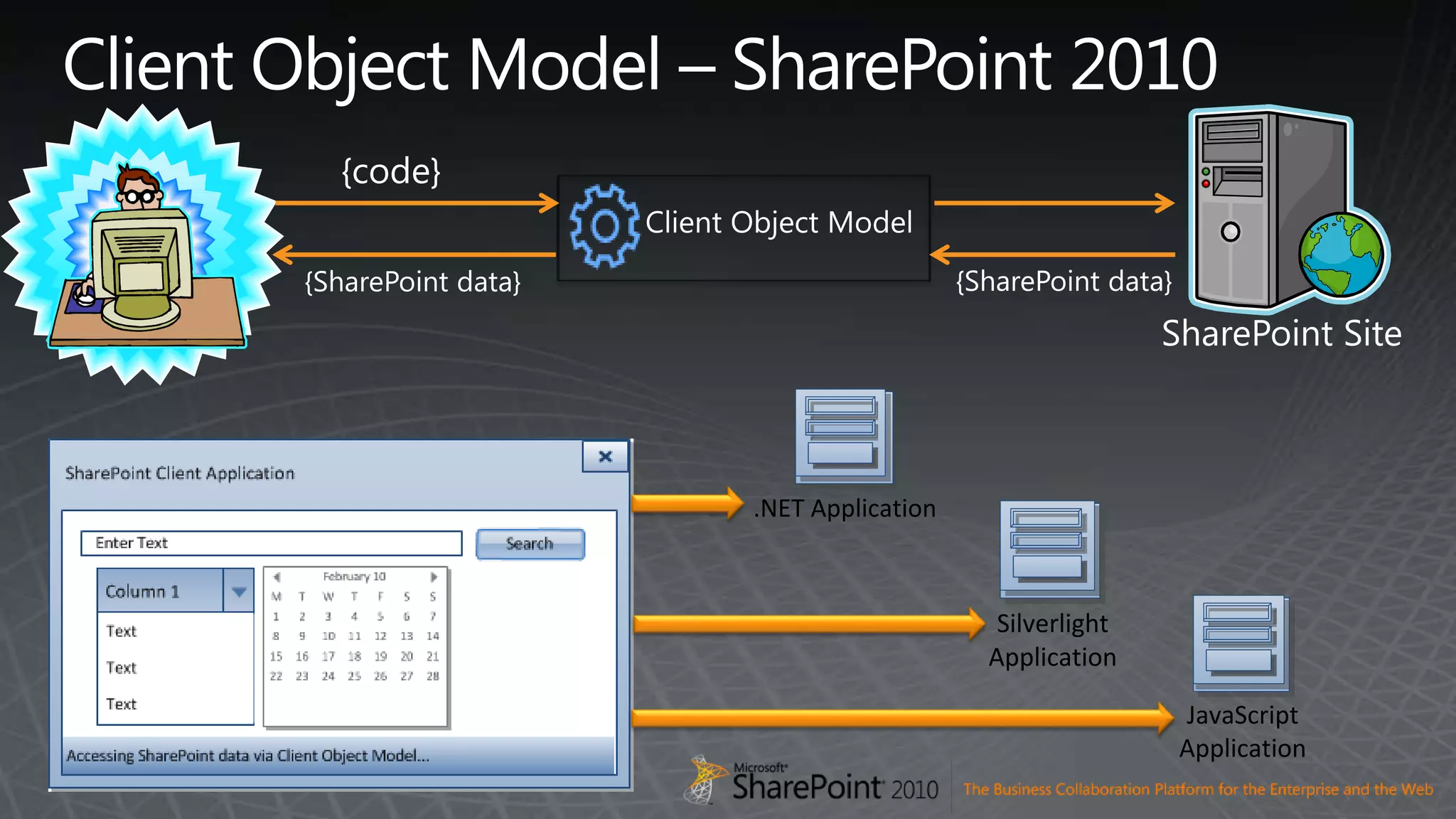

27. Client Object Model – SharePoint 2010{code}{SharePoint data}Client Object Model{SharePoint data}SharePoint Site

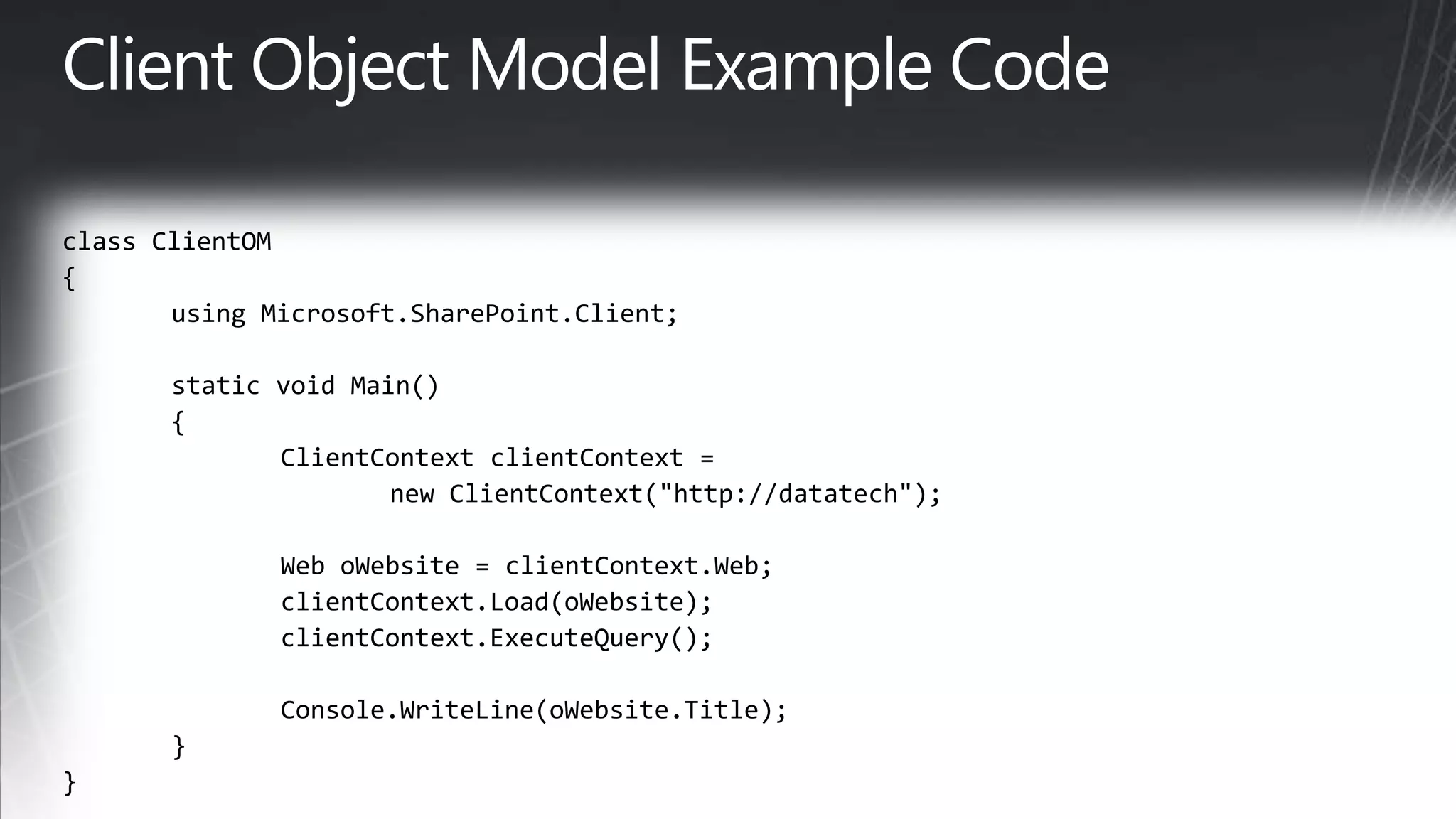

28. Client Object Model Example Codeclass ClientOM{ using Microsoft.SharePoint.Client; static void Main() { ClientContextclientContext= new ClientContext("http://datatech"); Web oWebsite = clientContext.Web; clientContext.Load(oWebsite); clientContext.ExecuteQuery();Console.WriteLine(oWebsite.Title); } }

29. Client OM

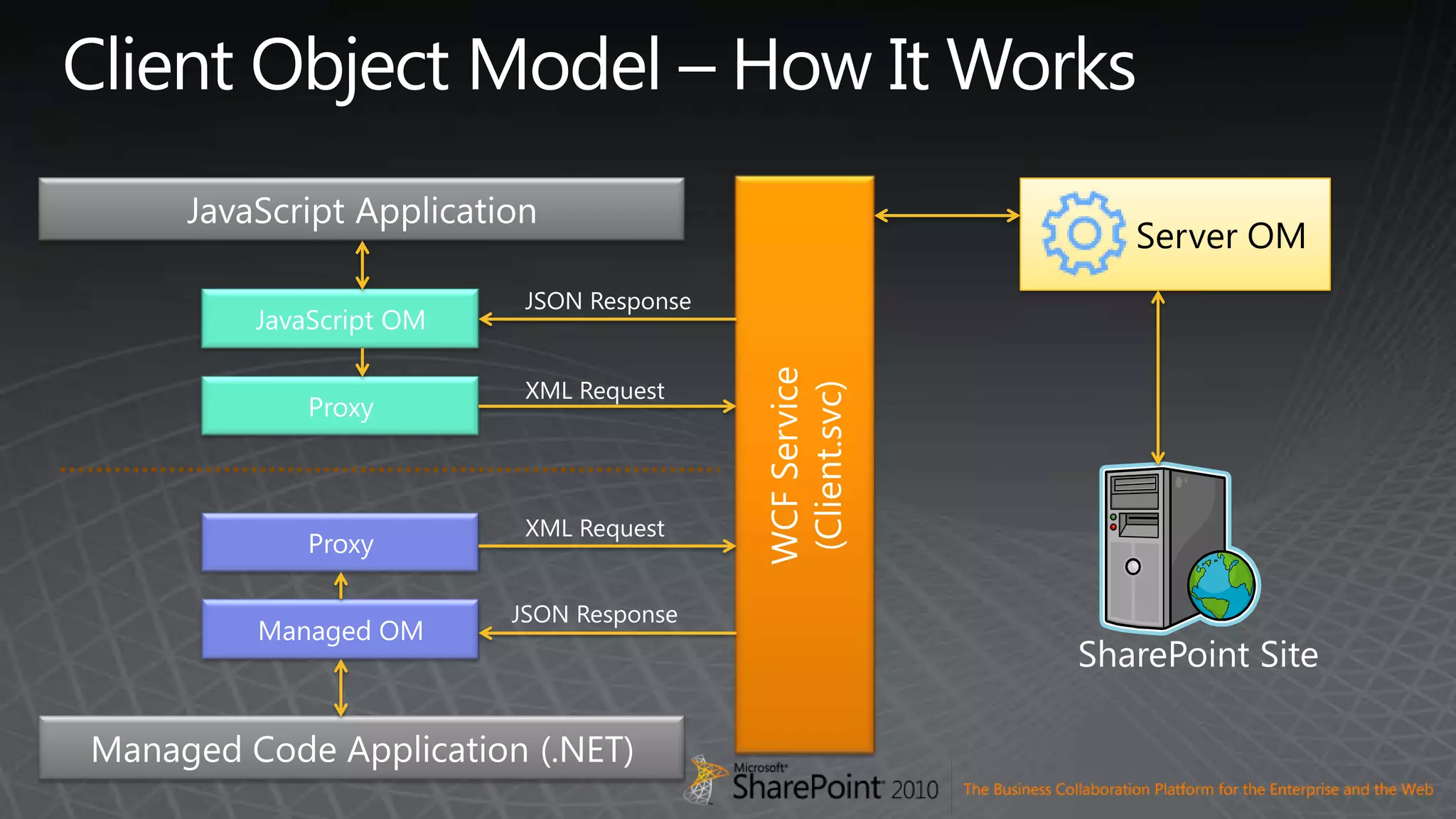

30. Client Object Model – How It WorksWCF Service(Client.svc)JavaScript ApplicationServer OMJSON ResponseJavaScript OMSharePoint SiteXML RequestProxyXML RequestProxyJSON ResponseManaged OMManaged Code Application (.NET)

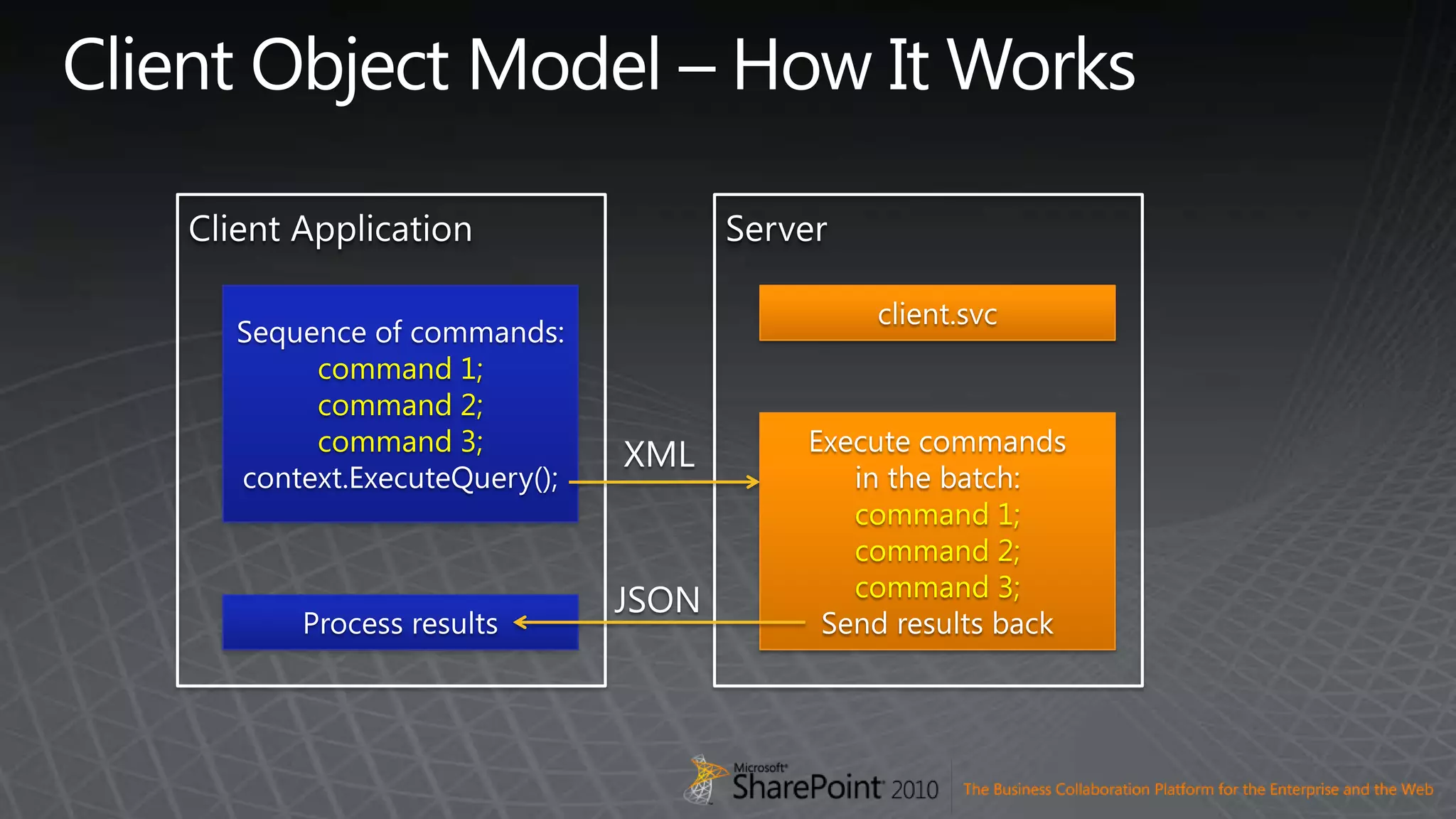

31. Client Object Model – How It WorksClient ApplicationServerSequence of commands:command 1;command 2;command 3;context.ExecuteQuery();client.svcExecute commandsin the batch:command 1;command 2;command 3;Send results backXMLJSONProcess results

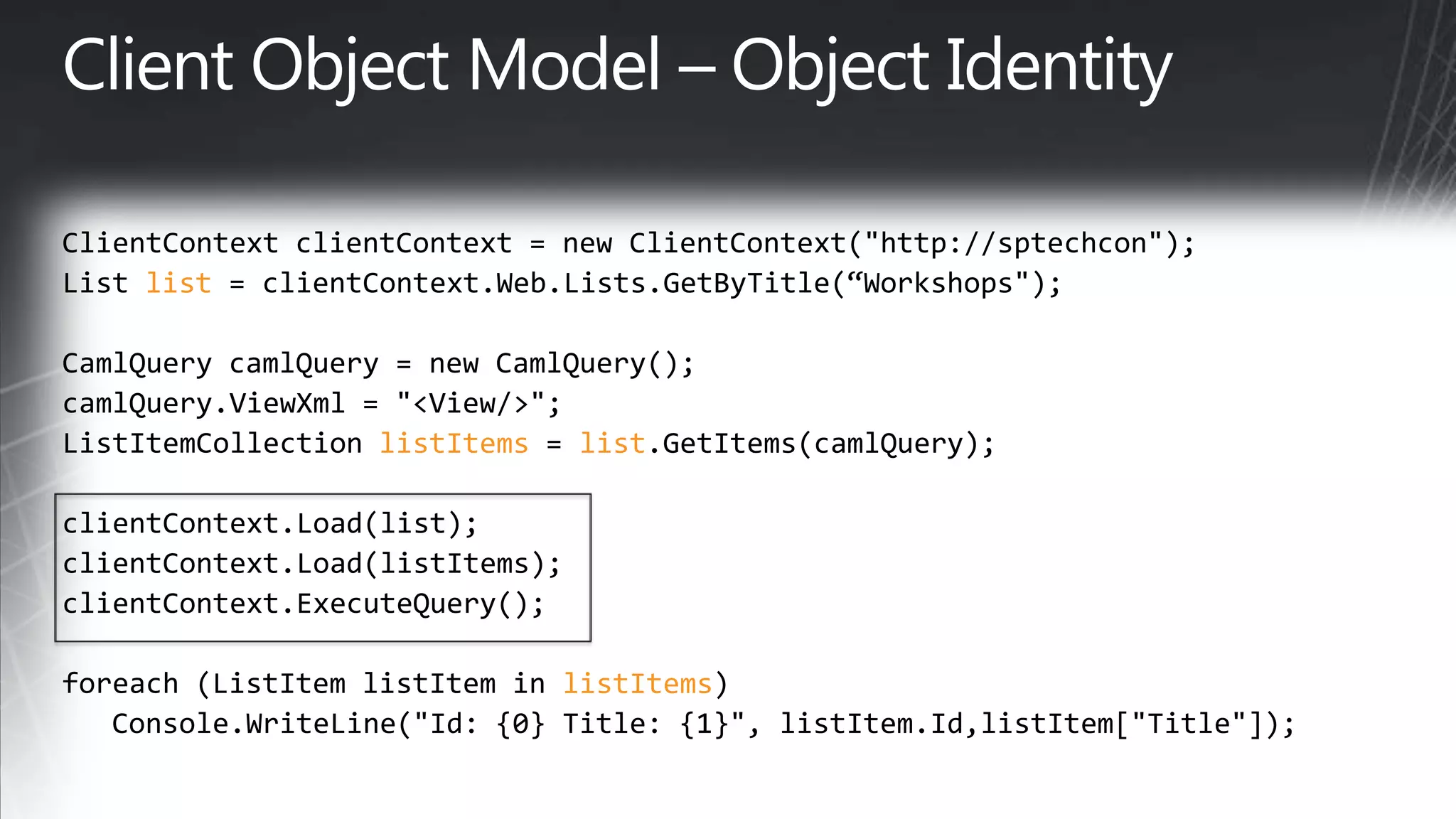

32. ClientContextclientContext= new ClientContext("http://sptechcon");List list= clientContext.Web.Lists.GetByTitle(“Workshops");CamlQuerycamlQuery = new CamlQuery();camlQuery.ViewXml= "<View/>";ListItemCollectionlistItems= list.GetItems(camlQuery);clientContext.Load(list);clientContext.Load(listItems);clientContext.ExecuteQuery();foreach(ListItemlistItem in listItems) Console.WriteLine("Id: {0} Title: {1}", listItem.Id,listItem["Title"]);Client Object Model – Object Identity

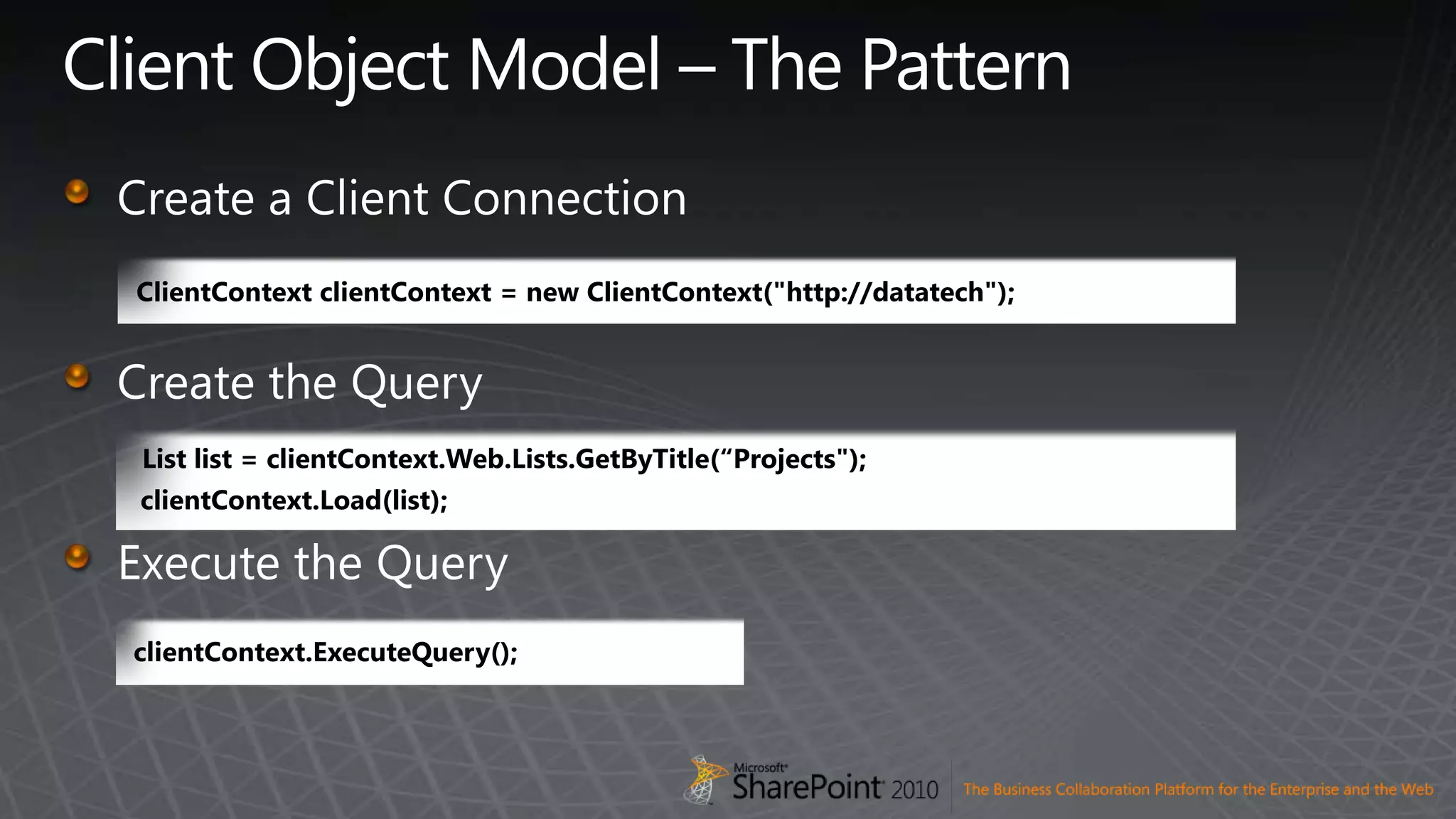

33. Client Object Model – The PatternCreate a Client ConnectionCreate the QueryExecute the QueryClientContextclientContext = new ClientContext("http://datatech");clientContext.ExecuteQuery();List list = clientContext.Web.Lists.GetByTitle(“Projects");clientContext.Load(list);

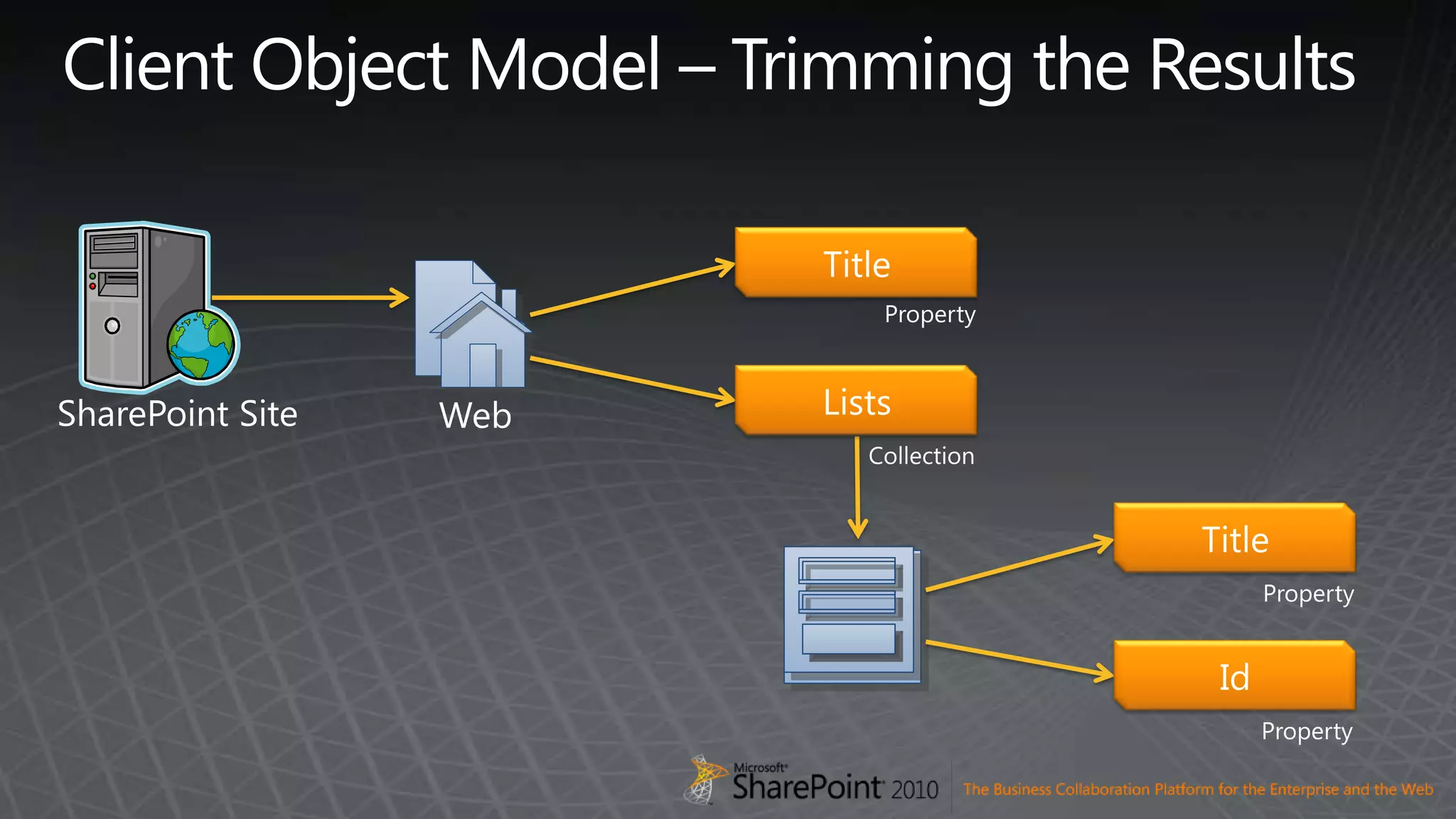

34. Client Object Model – Trimming the ResultsTitlePropertyWebSharePoint SiteListsCollectionTitlePropertyIdProperty

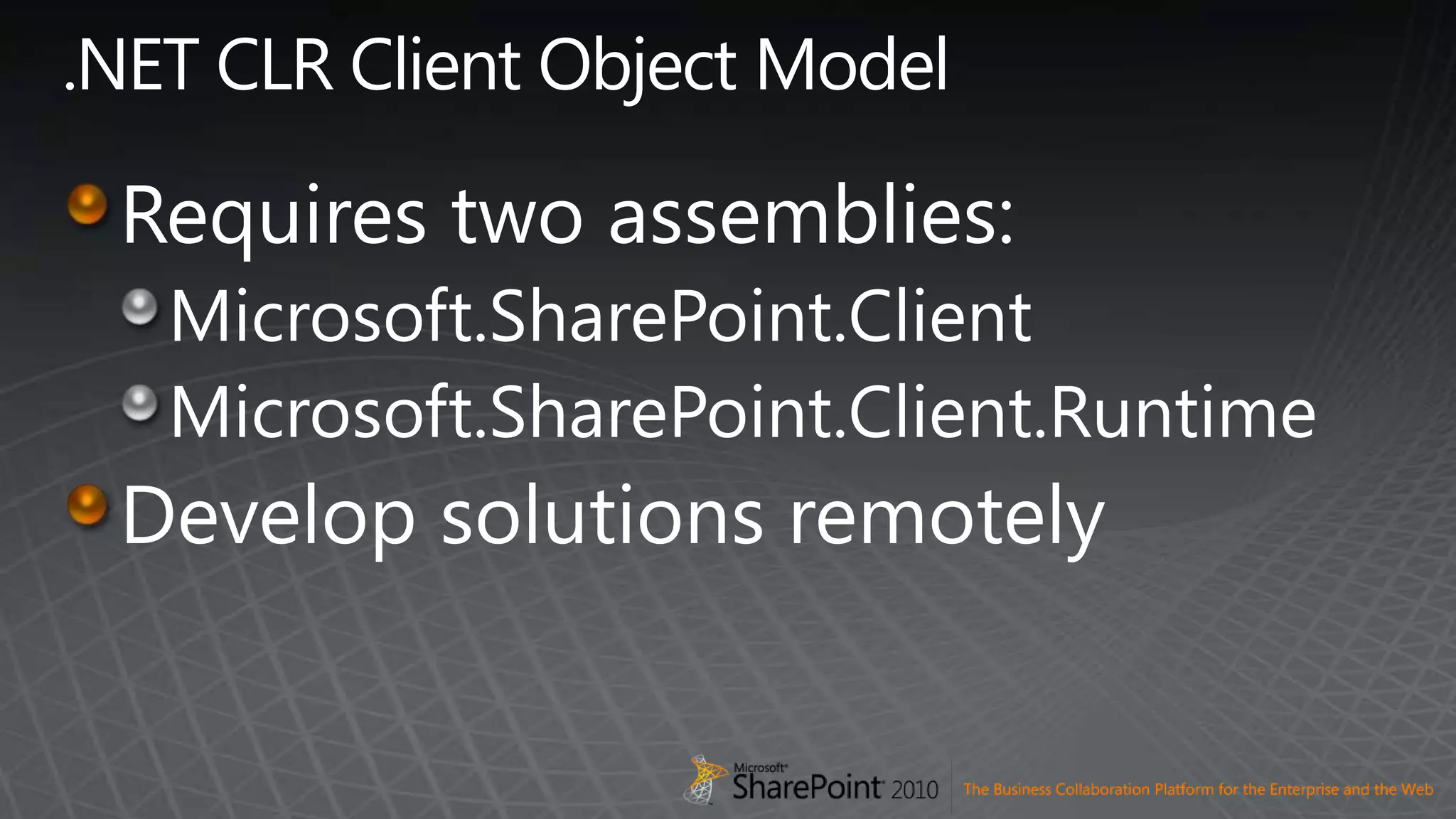

35. .NET CLR Client Object ModelRequires two assemblies:Microsoft.SharePoint.ClientMicrosoft.SharePoint.Client.RuntimeDevelop solutions remotely

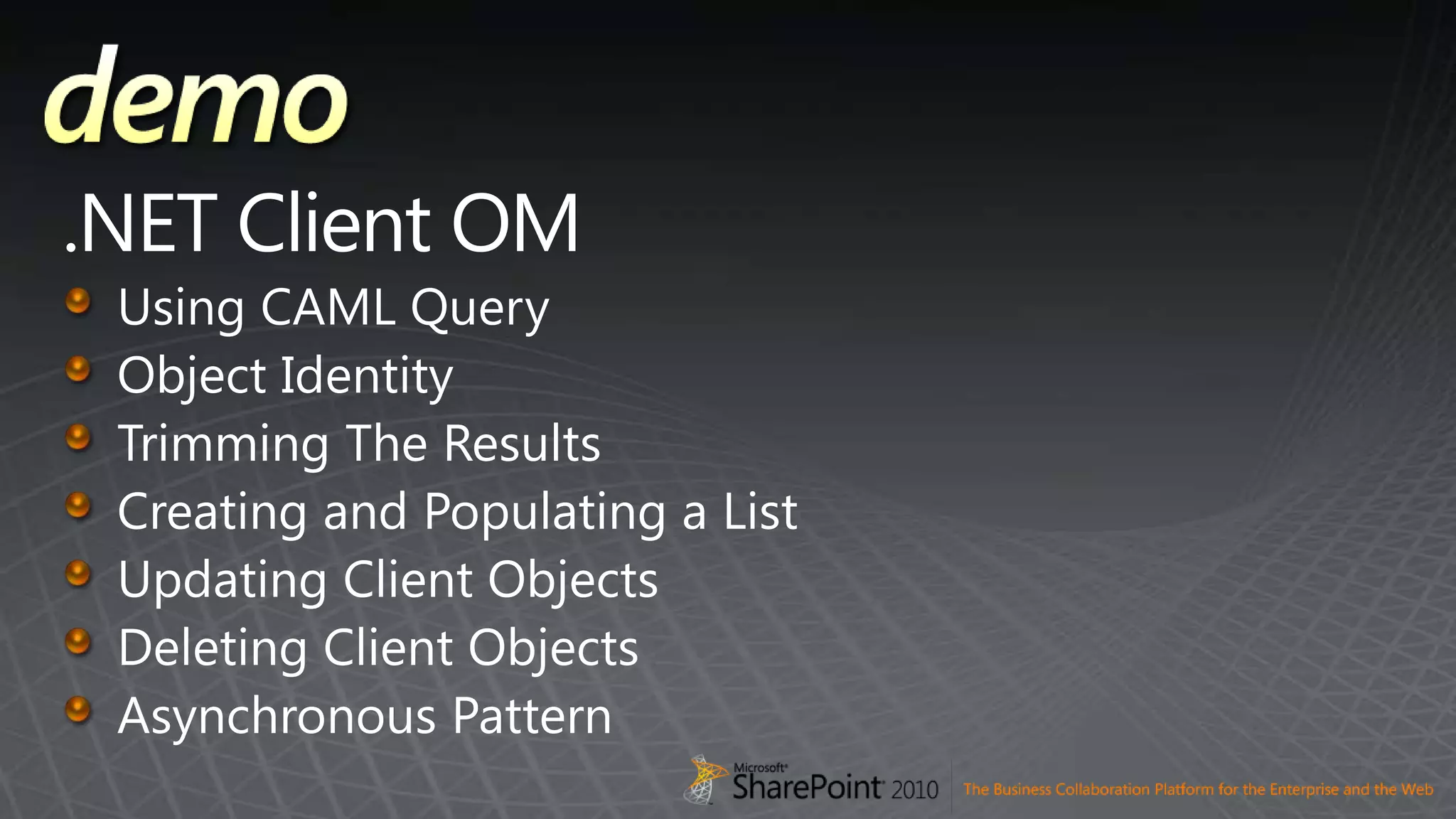

36. .NET Client OMUsing CAML QueryObject IdentityTrimming The ResultsCreating and Populating a ListUpdating Client ObjectsDeleting Client ObjectsAsynchronous Pattern

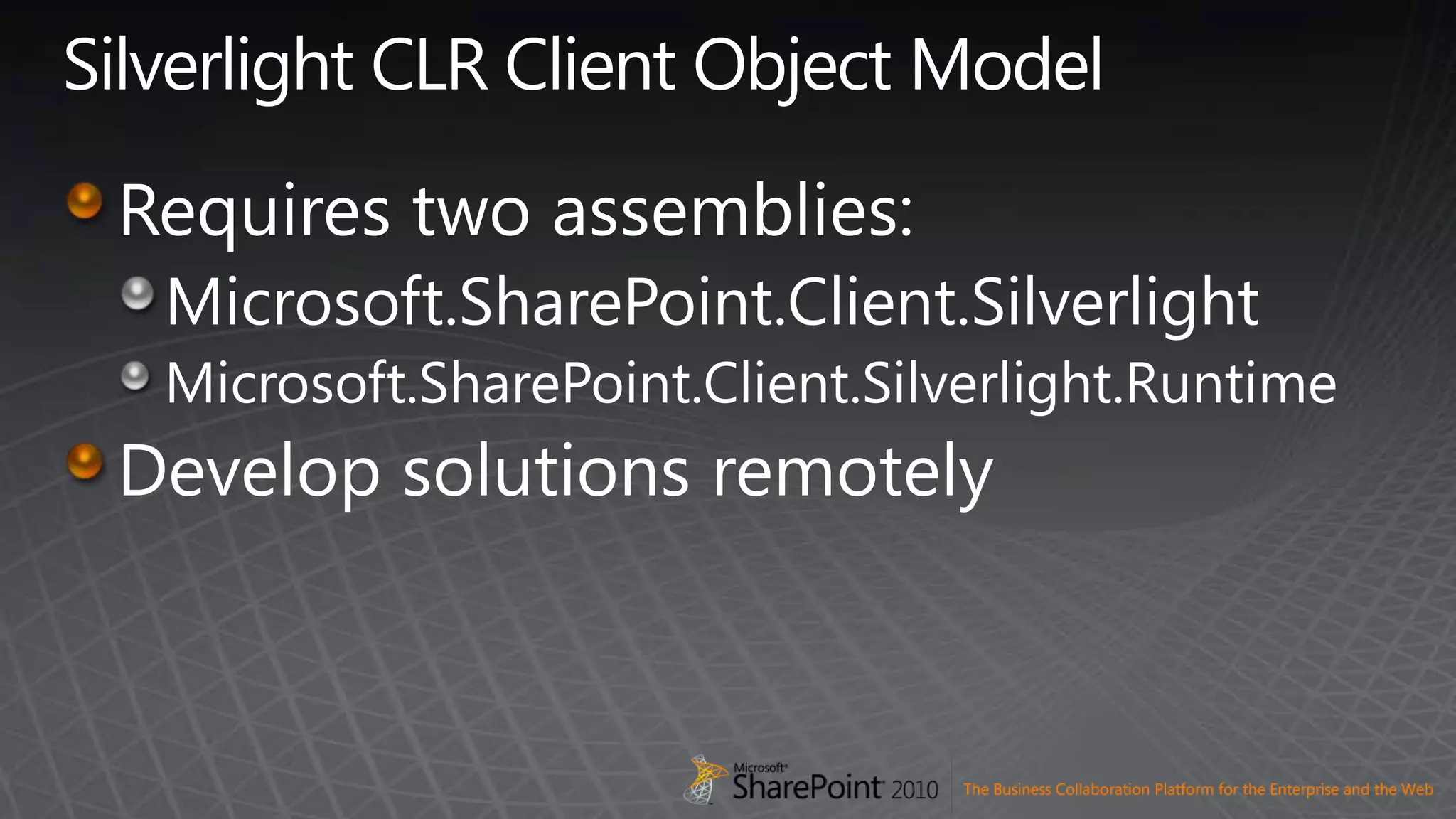

37. Silverlight CLR Client Object ModelRequires two assemblies:Microsoft.SharePoint.Client.SilverlightMicrosoft.SharePoint.Client.Silverlight.RuntimeDevelop solutions remotely

38. Silverlight Client OM

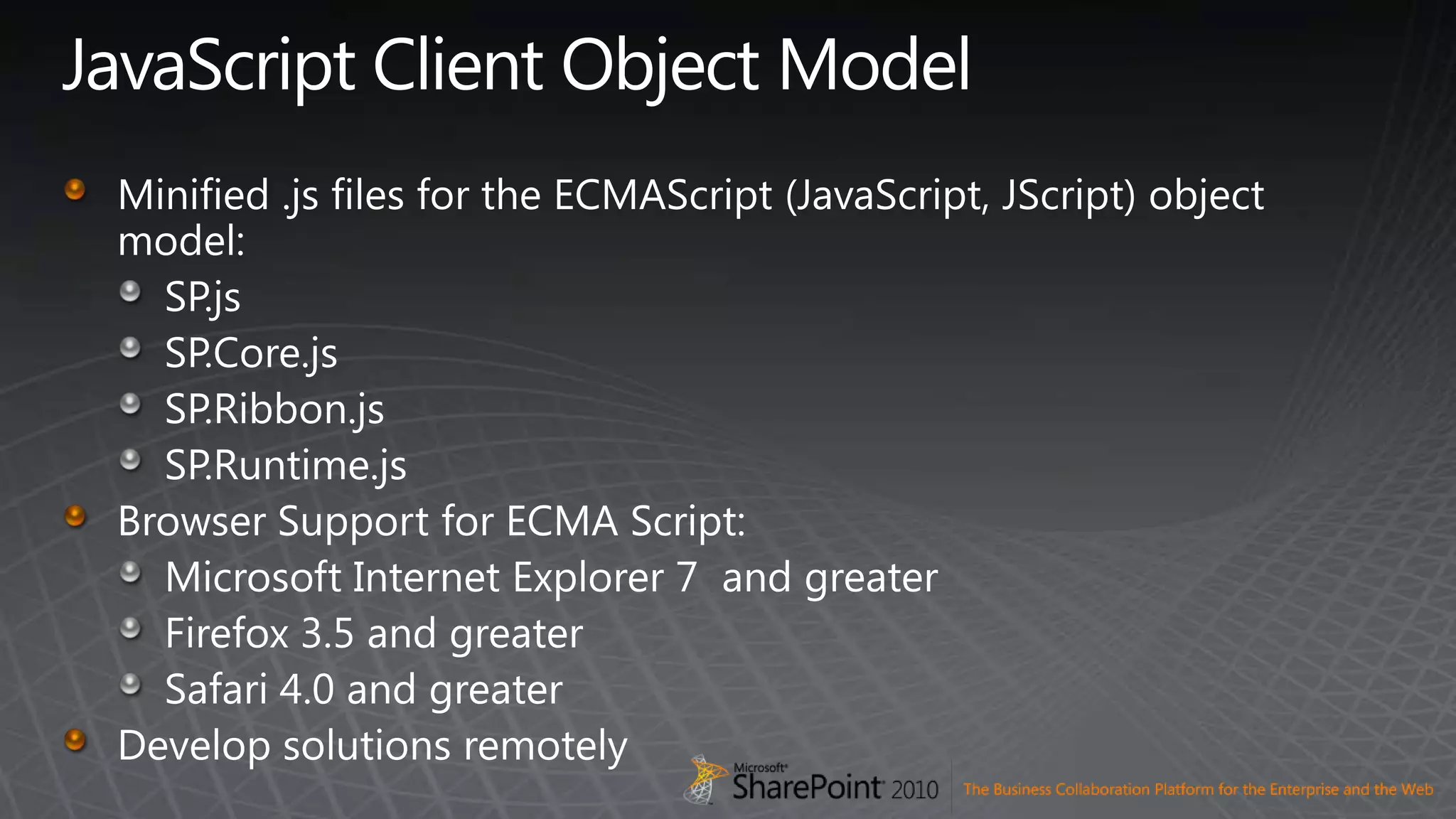

39. JavaScript Client Object ModelMinified .js files for the ECMAScript (JavaScript, JScript) object model:SP.jsSP.Core.jsSP.Ribbon.jsSP.Runtime.jsBrowser Support for ECMA Script:Microsoft Internet Explorer 7 and greaterFirefox 3.5 and greaterSafari 4.0 and greaterDevelop solutions remotely

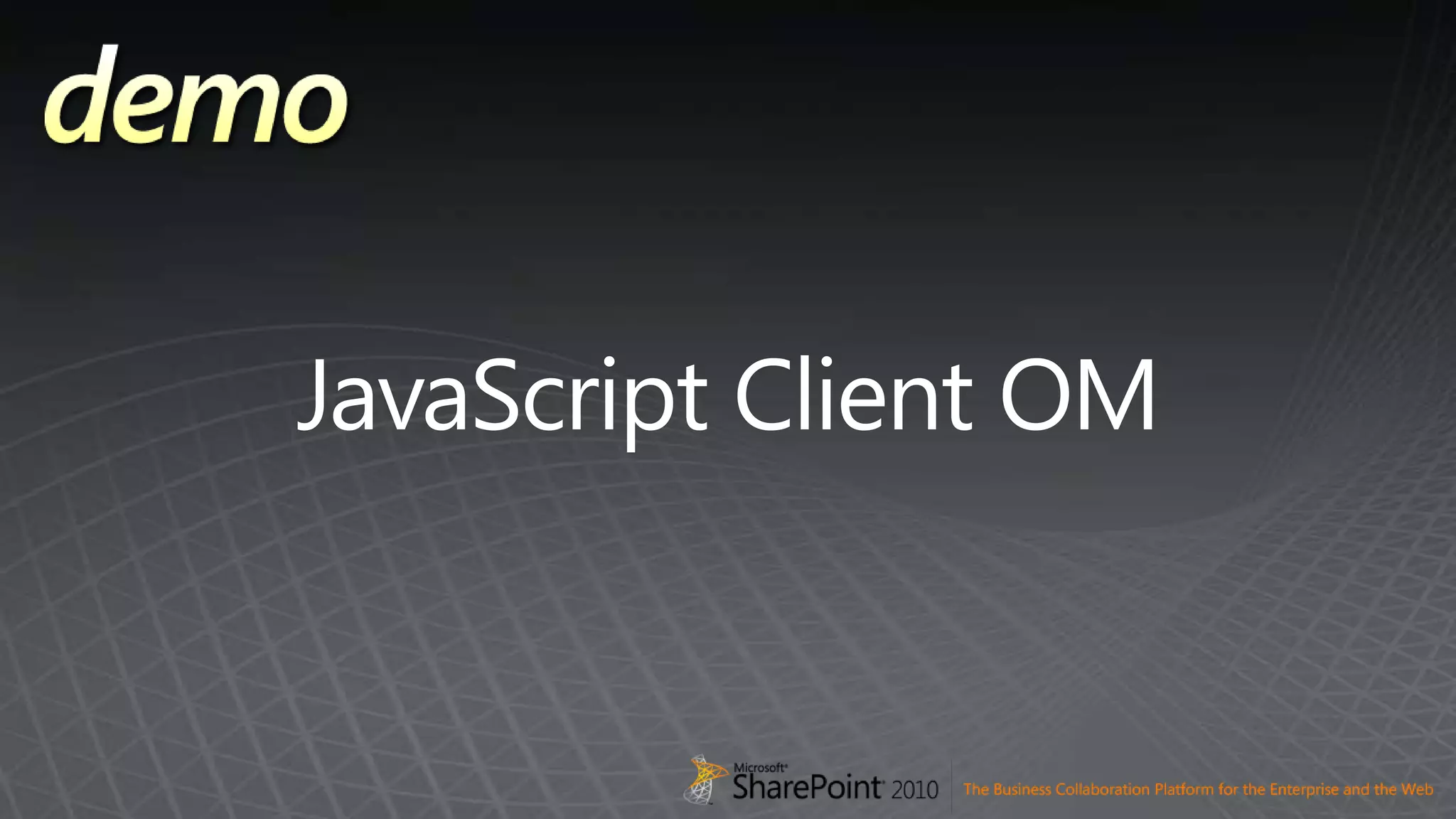

40. JavaScript Client OM

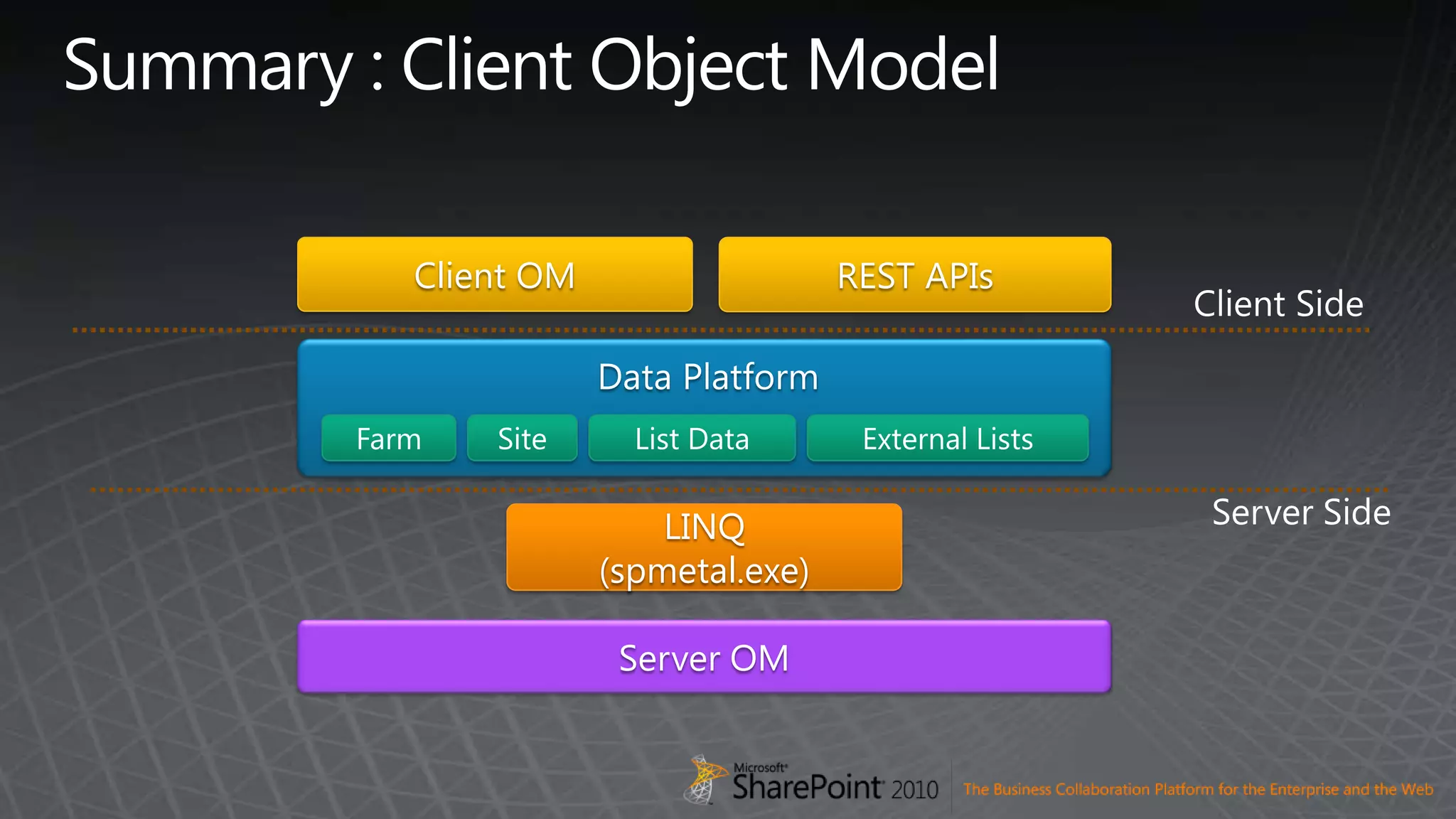

41. Summary : Client Object ModelREST APIsClient OMClient SideData PlatformServer SideFarmSiteList DataExternal ListsLINQ(spmetal.exe)ServerOM

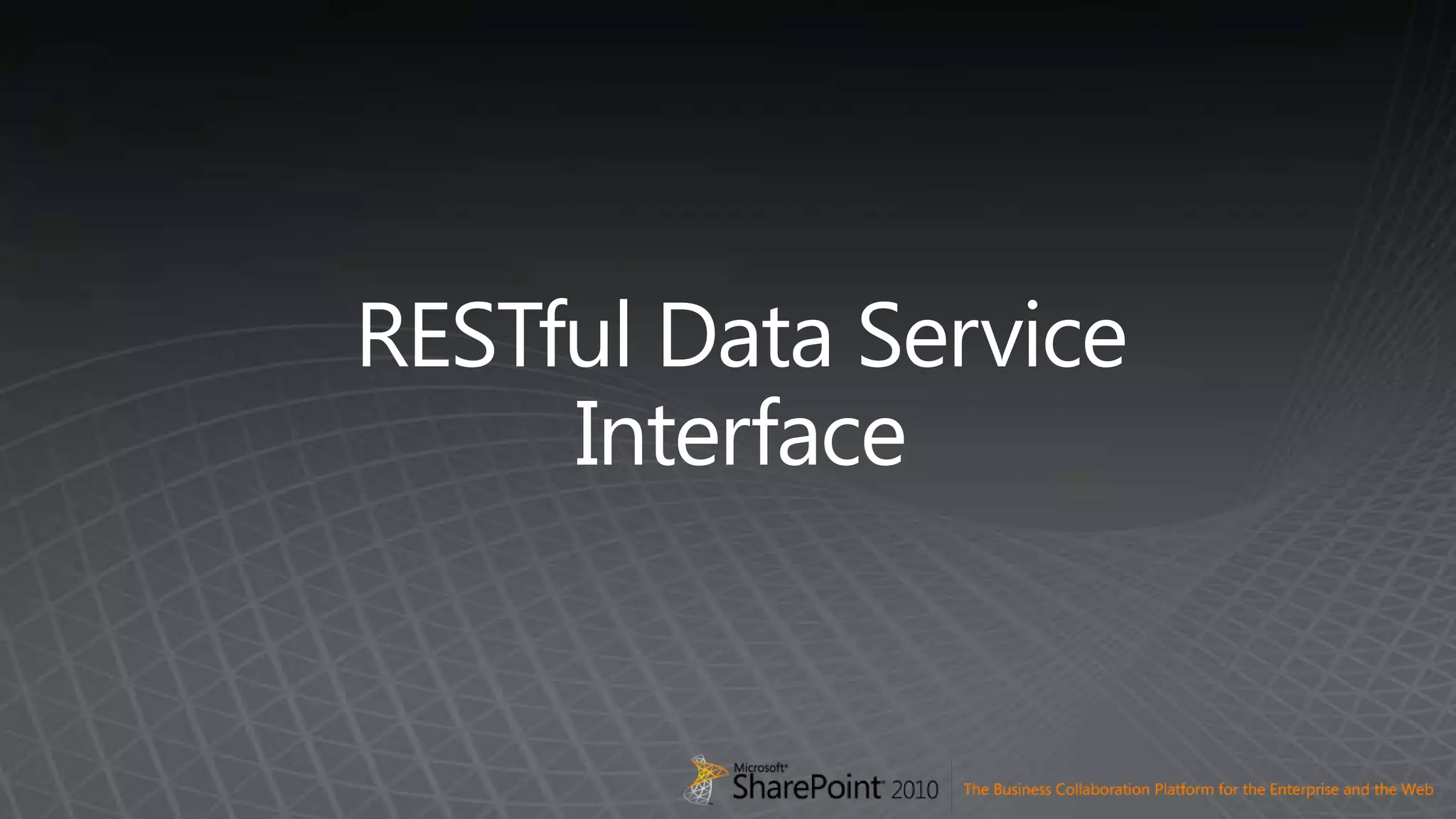

42. RESTful Data ServiceInterface

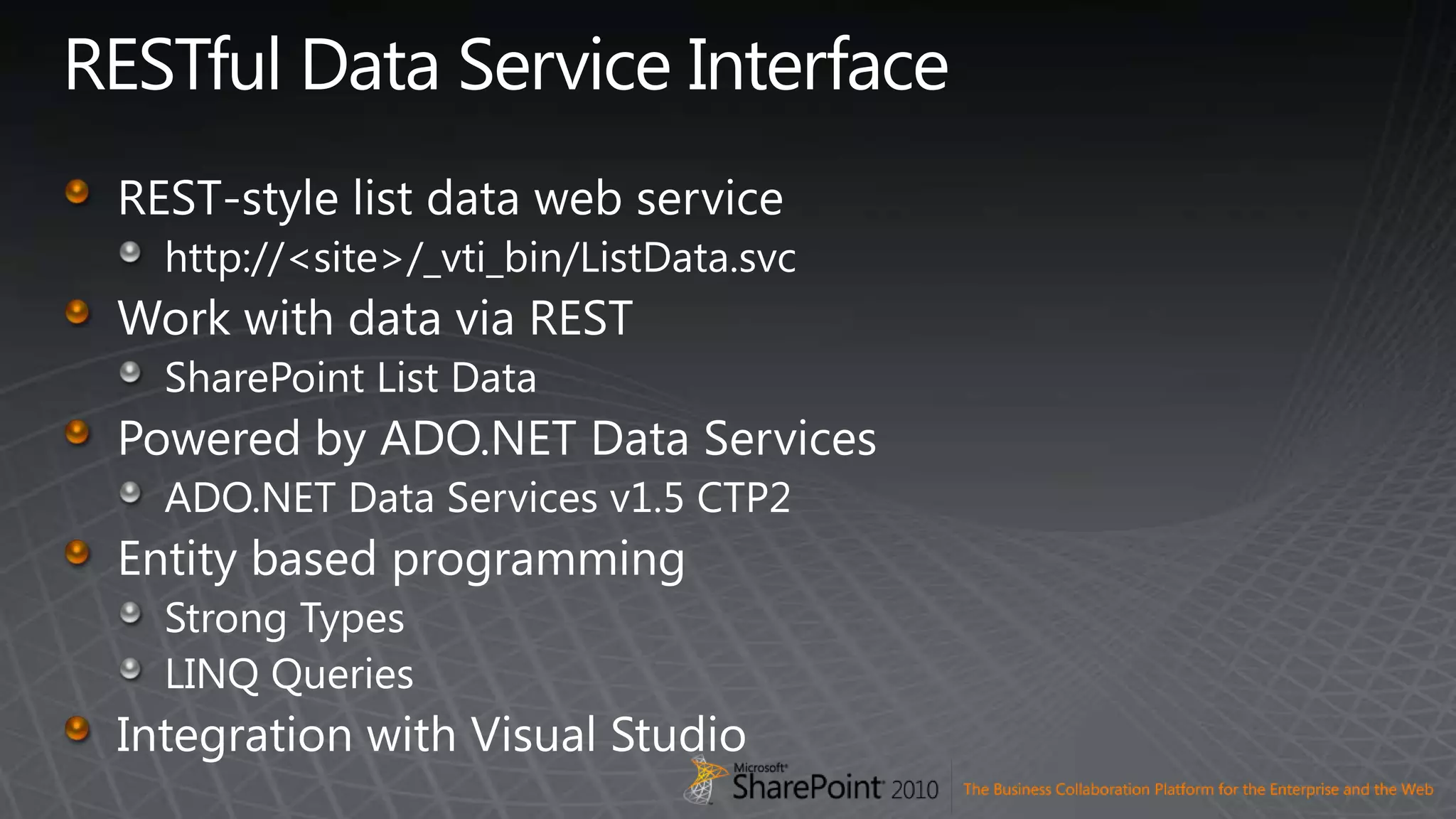

43. RESTful Data Service InterfaceREST-style list data web servicehttp://<site>/_vti_bin/ListData.svcWork with data via RESTSharePoint List DataPowered by ADO.NET Data ServicesADO.NET Data Services v1.5 CTP2Entity based programmingStrong TypesLINQ QueriesIntegration with Visual Studio

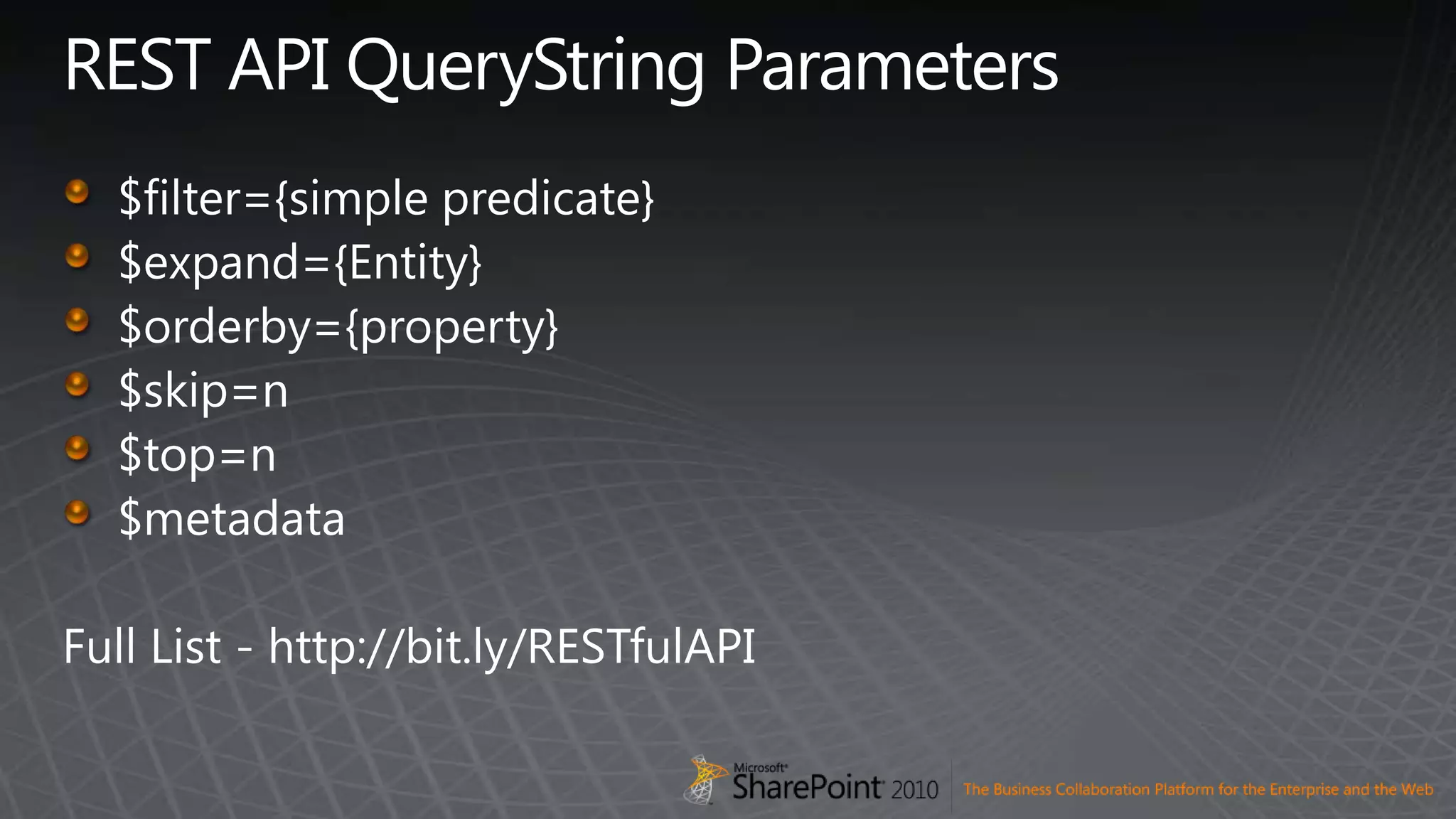

44. REST API QueryString Parameters$filter={simple predicate}$expand={Entity}$orderby={property}$skip=n$top=n$metadataFull List - http://bit.ly/RESTfulAPI

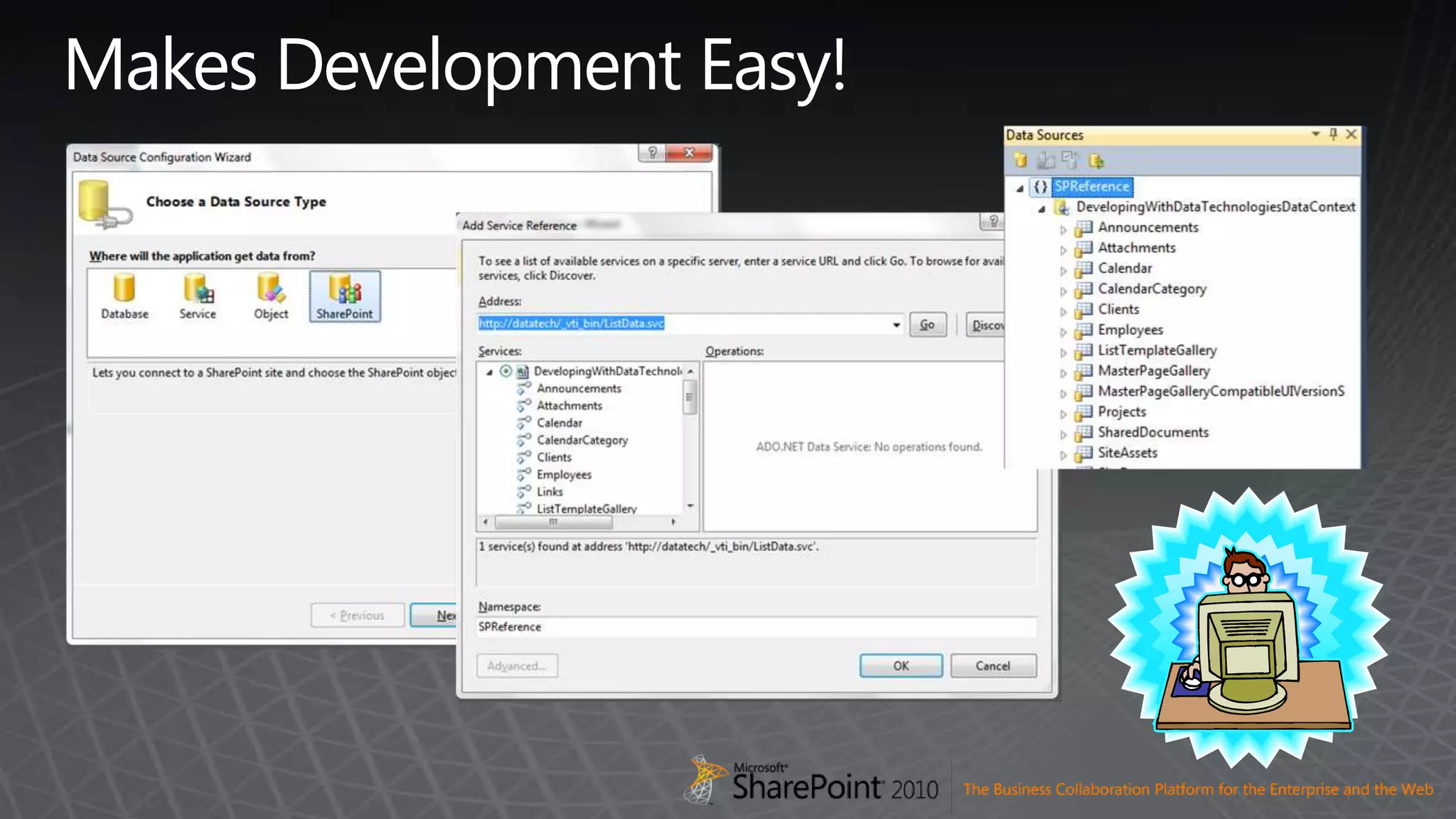

45. Makes Development Easy!

46. Accessing List Data via REST APIs

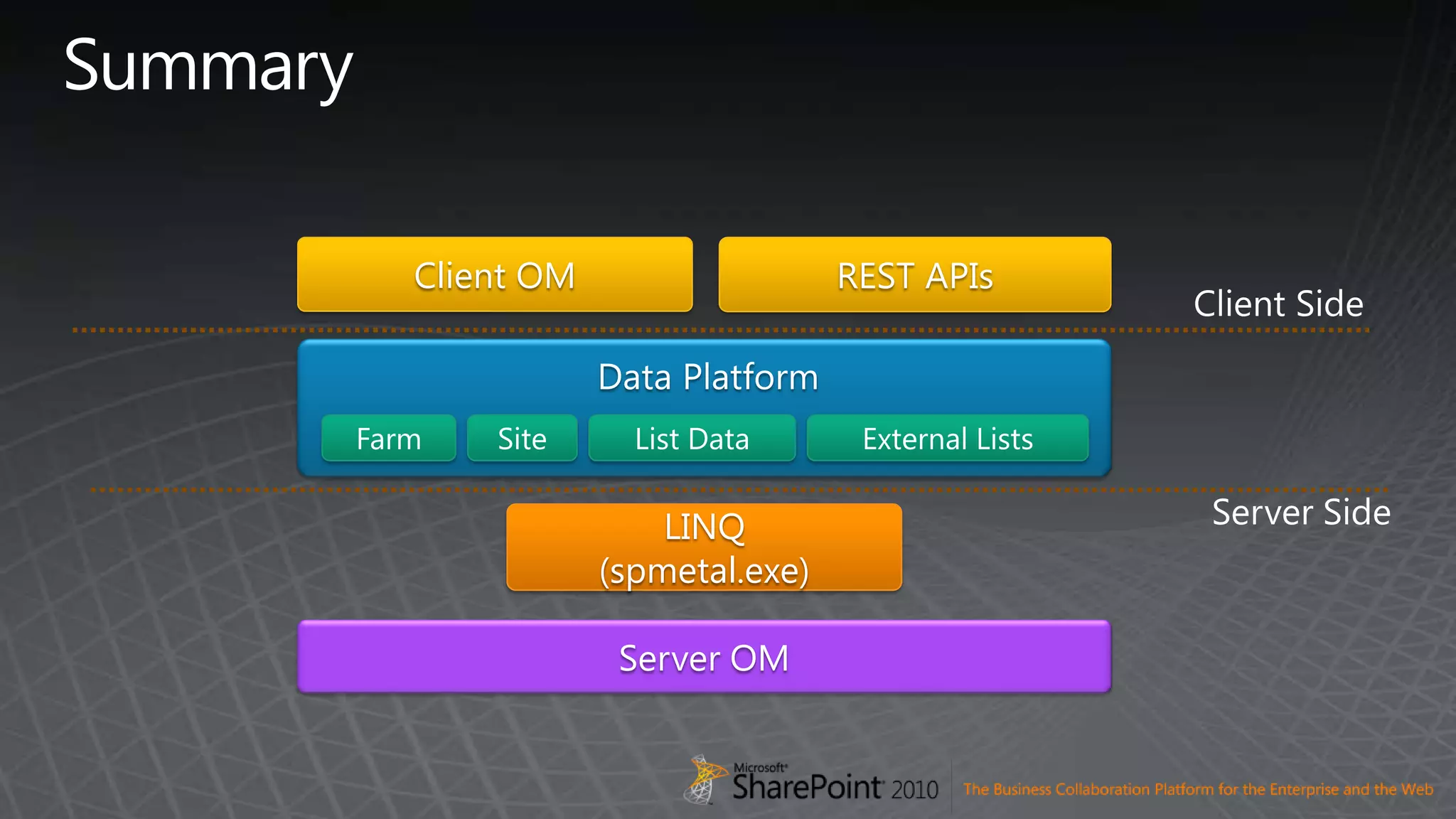

47. SummaryREST APIsClient OMClient SideData PlatformServer SideFarmSiteList DataExternal ListsLINQ(spmetal.exe)ServerOM

48. Thank Youchaks@intergen.co.nzhttp://www.chakkaradeep.com/category/SharePoint-2010.aspxhttp://twitter.com/chakkaradeep
