InfluxDB API Overview
Vinay Kumar - Senior Product Manager, InfluxData
InfluxDB offers a common API across the entire platform. Discover what
that means and how you can use the API to build solutions that deliver
real value for developers.
Vinay Kumar
Senior Product Manager, InfluxData
Platform Product Manager at InfluxData with a Cloud Infrastructure
and Networking background working at companies like MuleSoft,
Salesforce and Ericsson.
InfluxDB API Overview

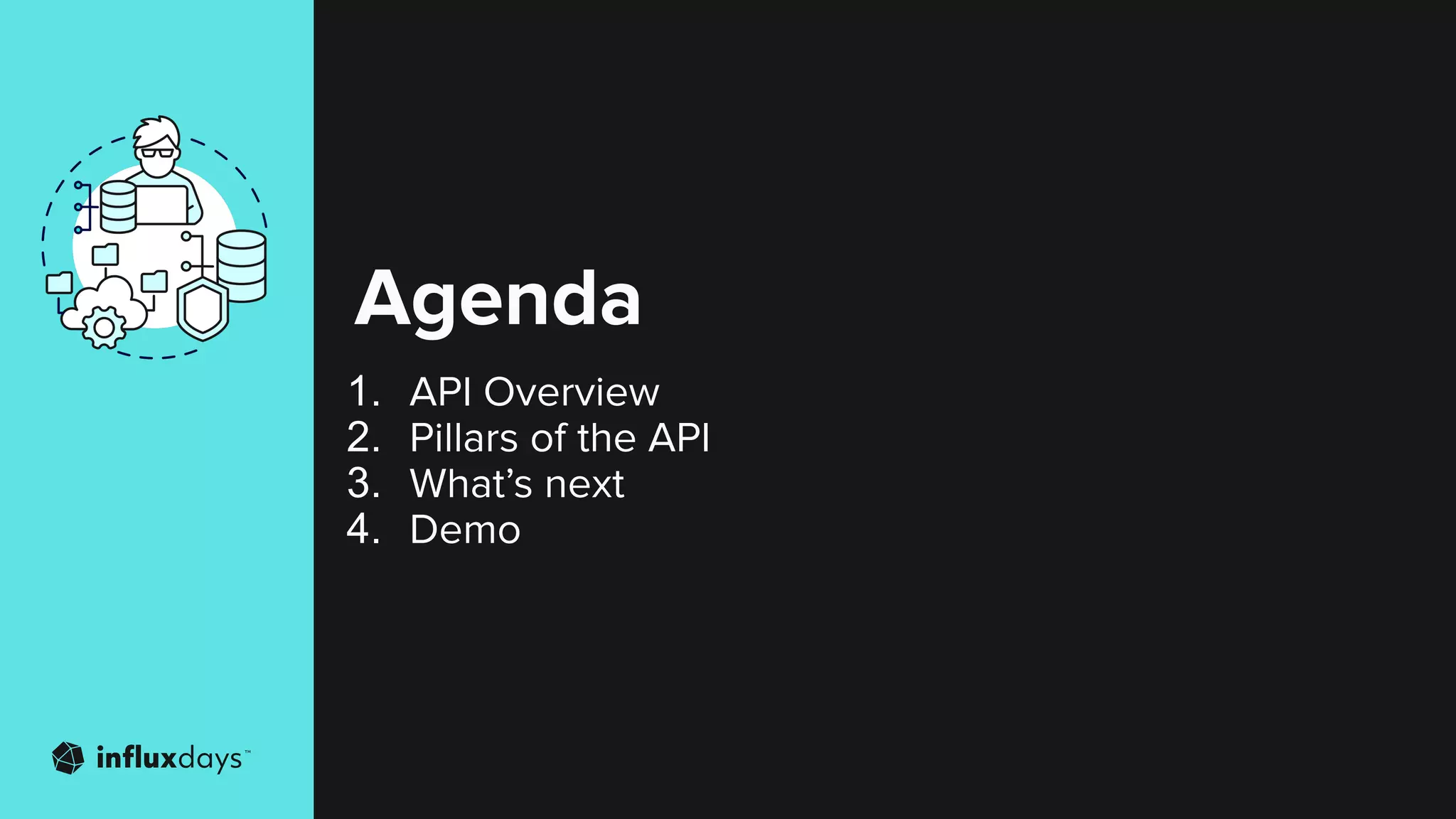

Agenda
1. API Overview
2. Pillars of the API
3. What’s next
4. Demo

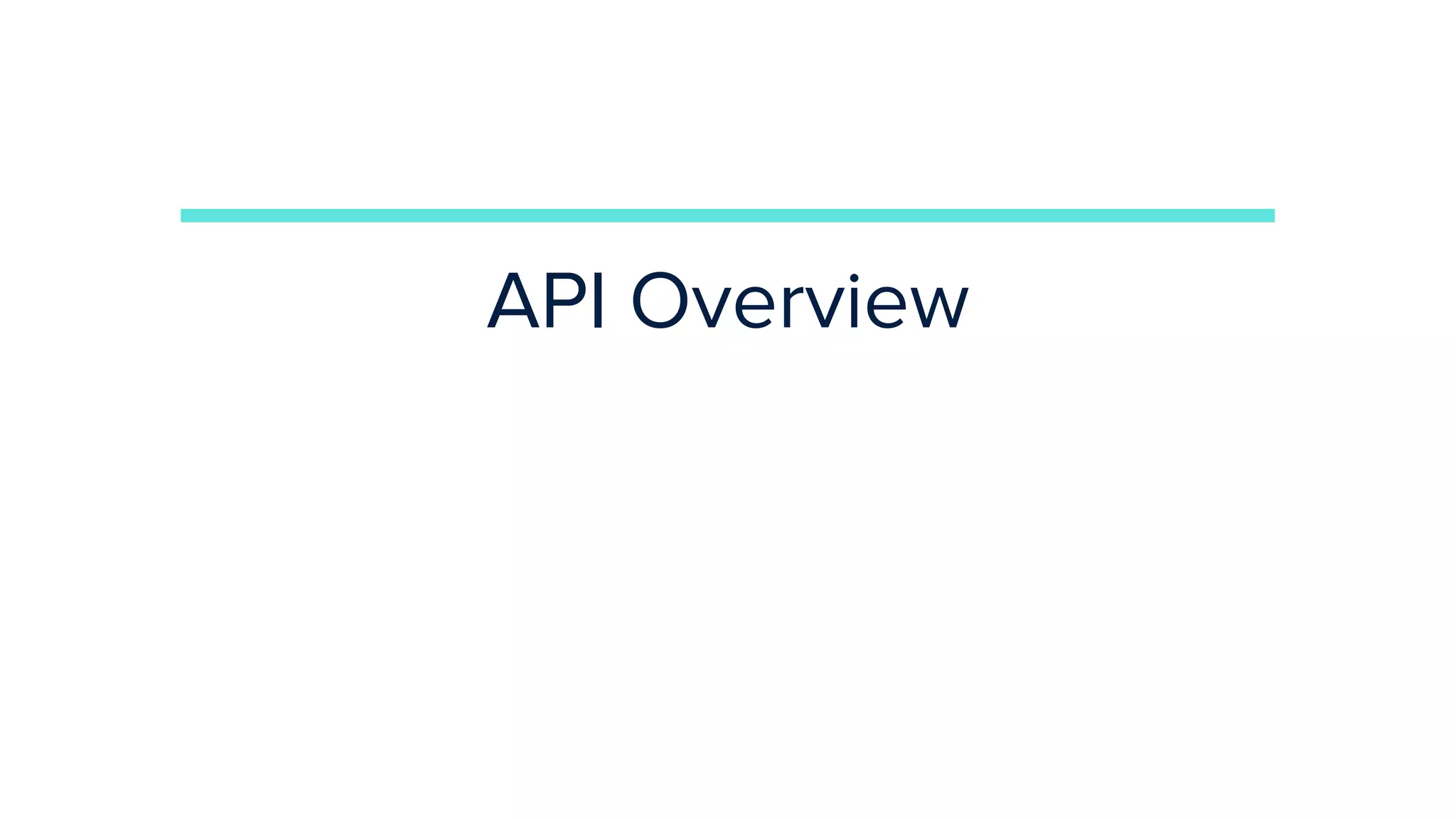

API Overview

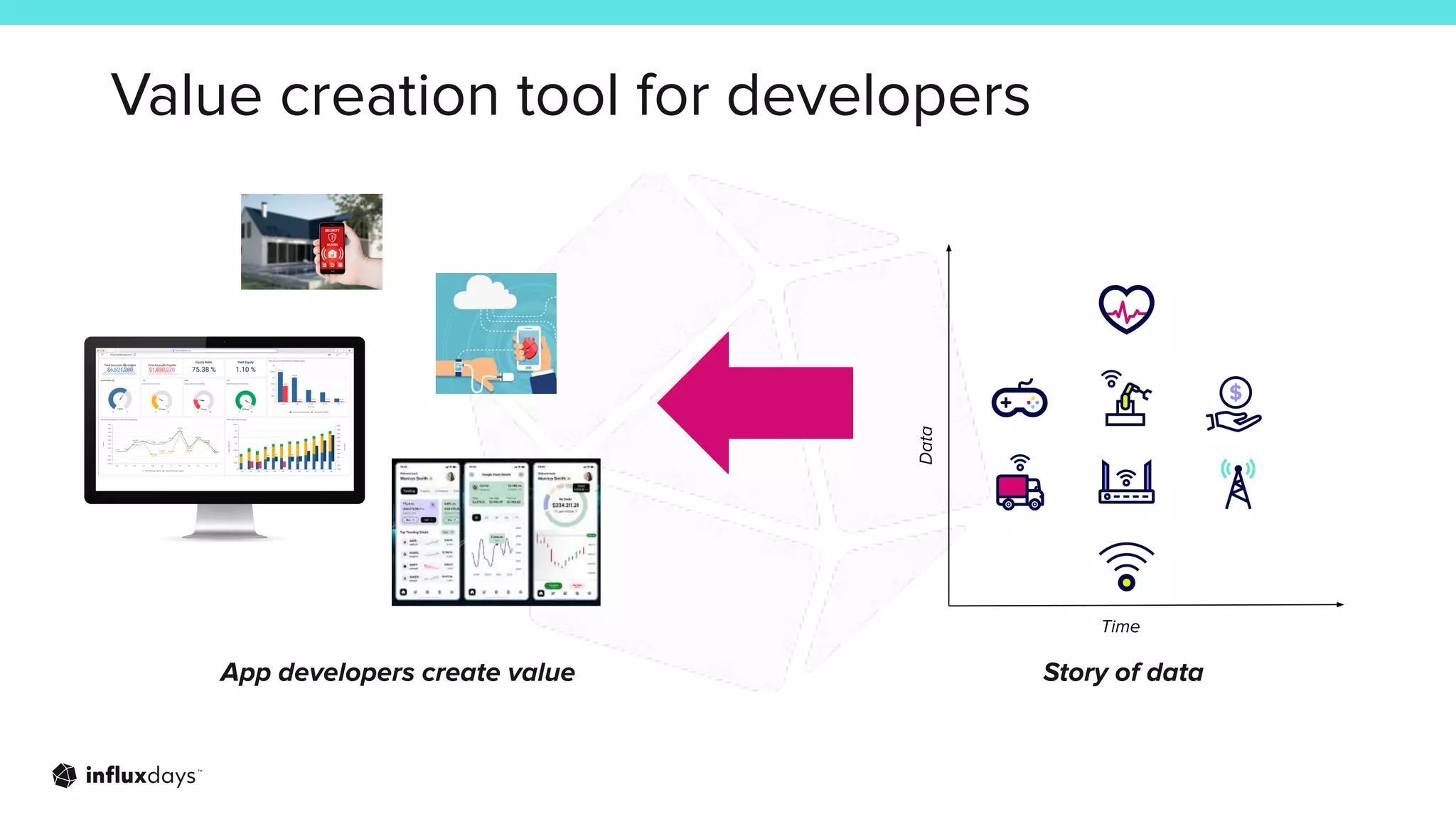

Value creation tool for developers
App developers create value Story of data
Time
Data

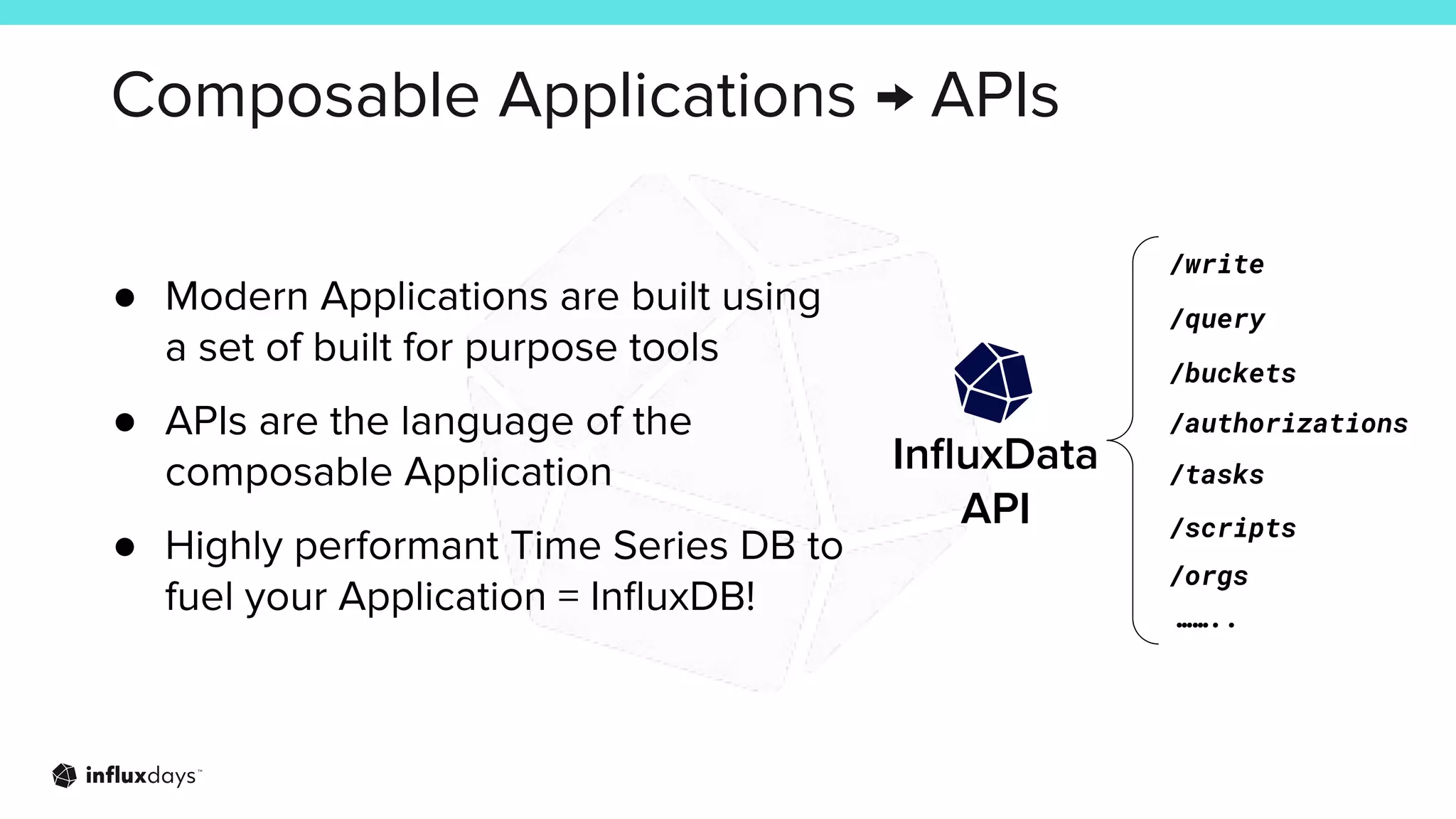

Composable Applications → APIs
● Modern Applications are built using
a set of built for purpose tools
● APIs are the language of the
composable Application
● Highly performant Time Series DB to
fuel your Application = InfluxDB!
/write
/query
/buckets
/authorizations
/tasks
/scripts
/orgs
……..
InfluxData
API

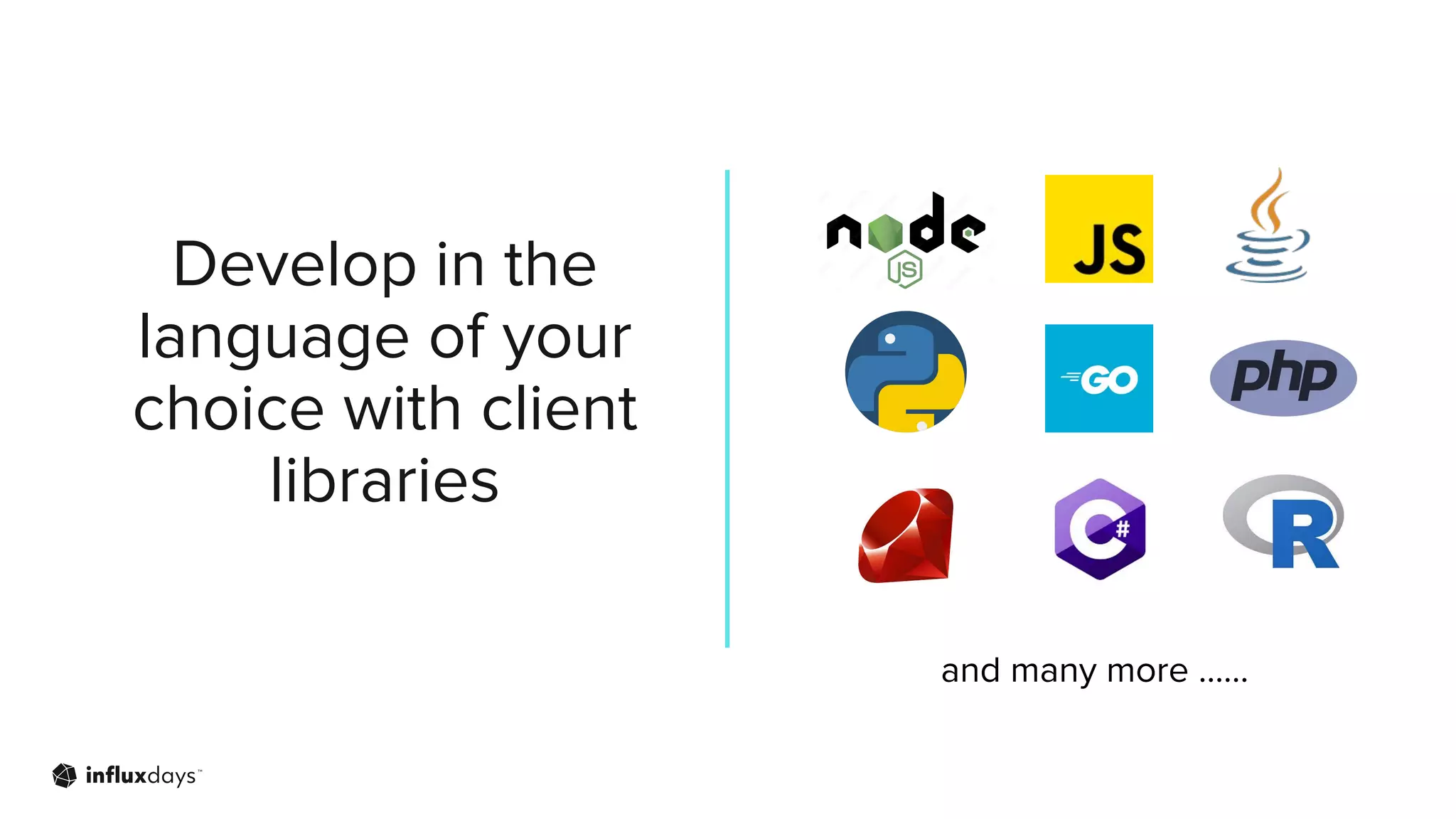

Develop in the
language of your
choice with client
libraries
and many more ……

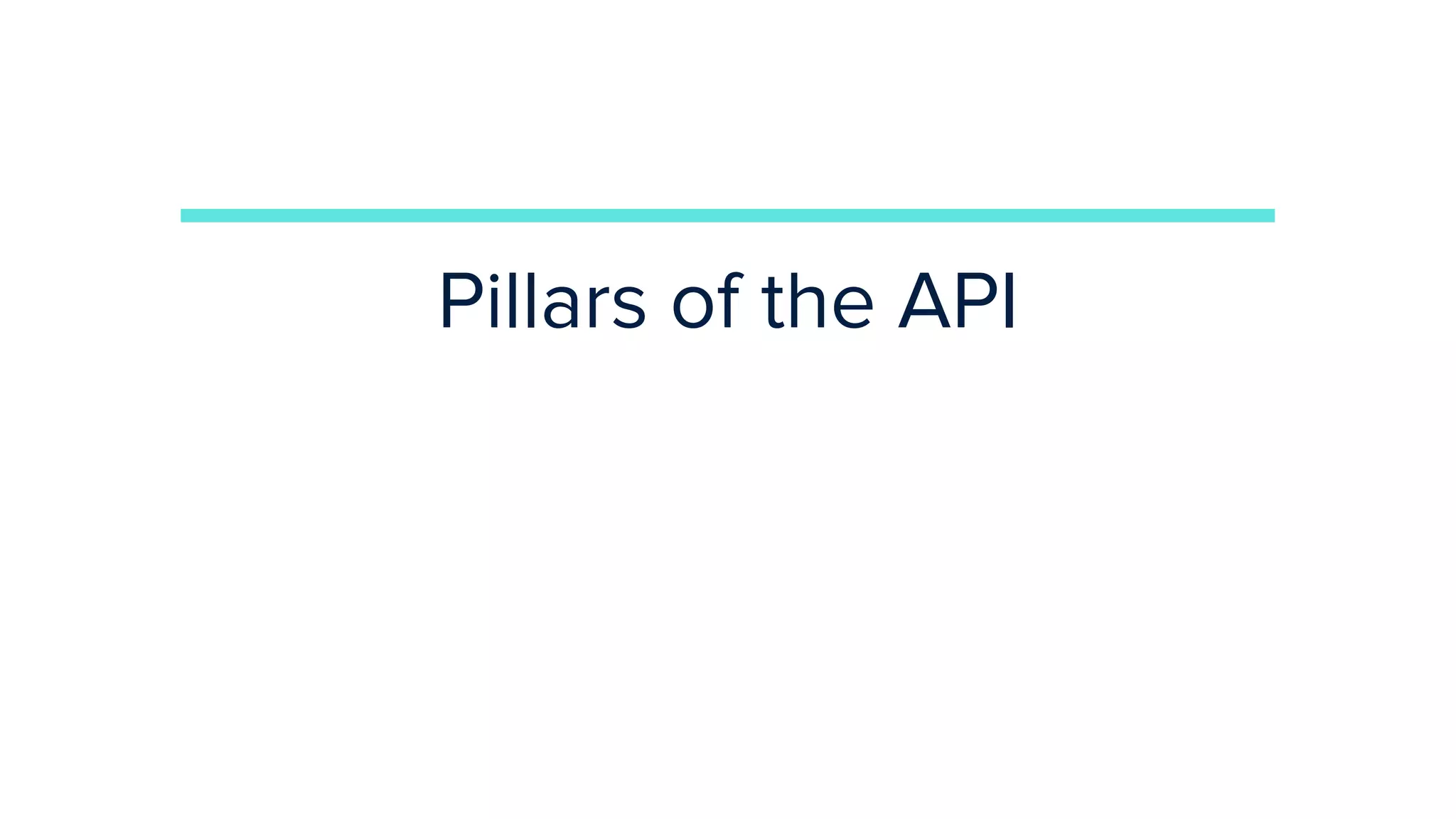

Pillars of the API

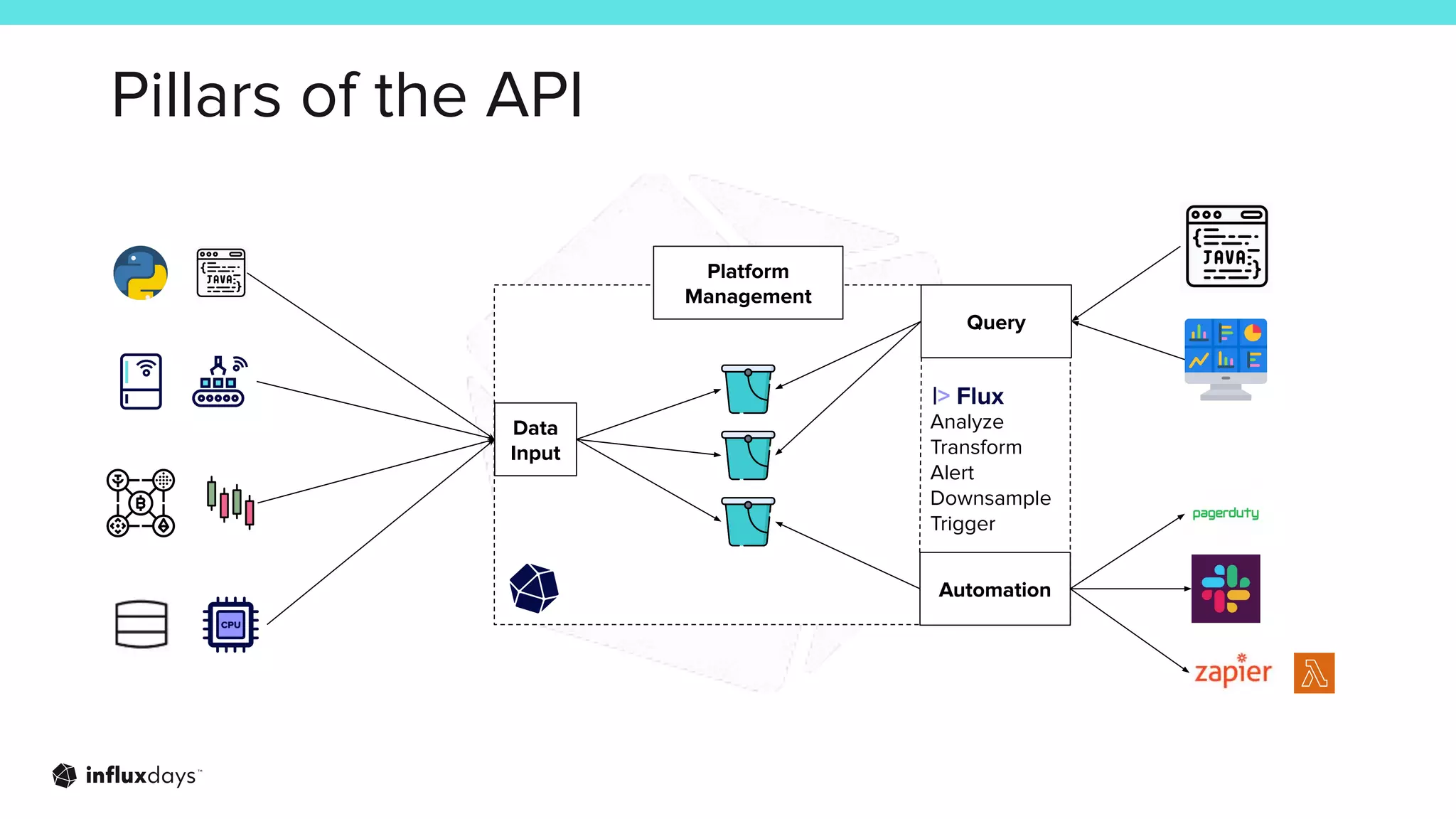

Pillars of the API
Data
Input
Query
Automation
Platform
Management
Analyze
Transform
Alert
Downsample
Trigger

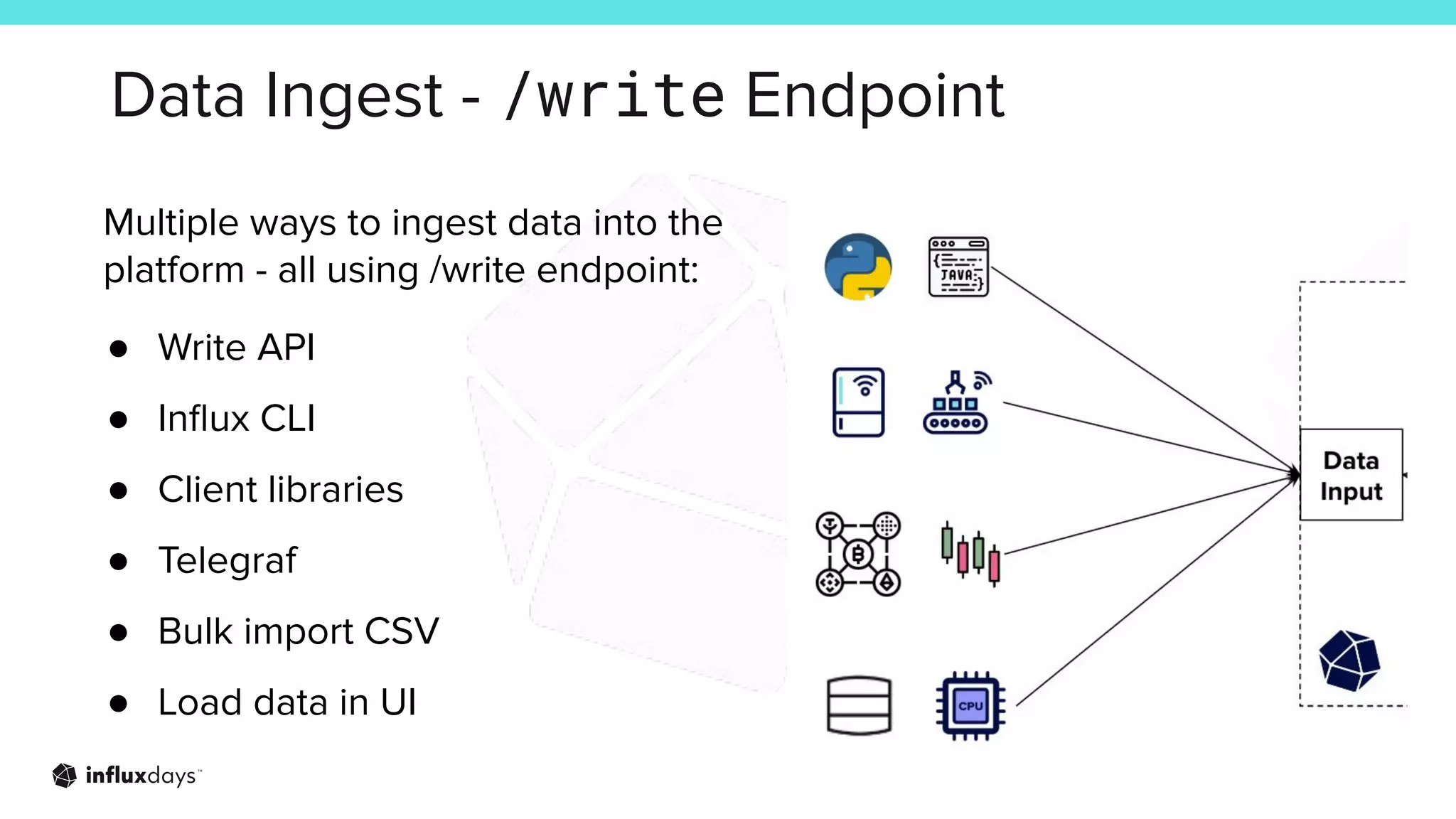

Data Ingest - /write Endpoint
Multiple ways to ingest data into the
platform - all using /write endpoint:
● Write API
● Influx CLI
● Client libraries
● Telegraf
● Bulk import CSV
● Load data in UI

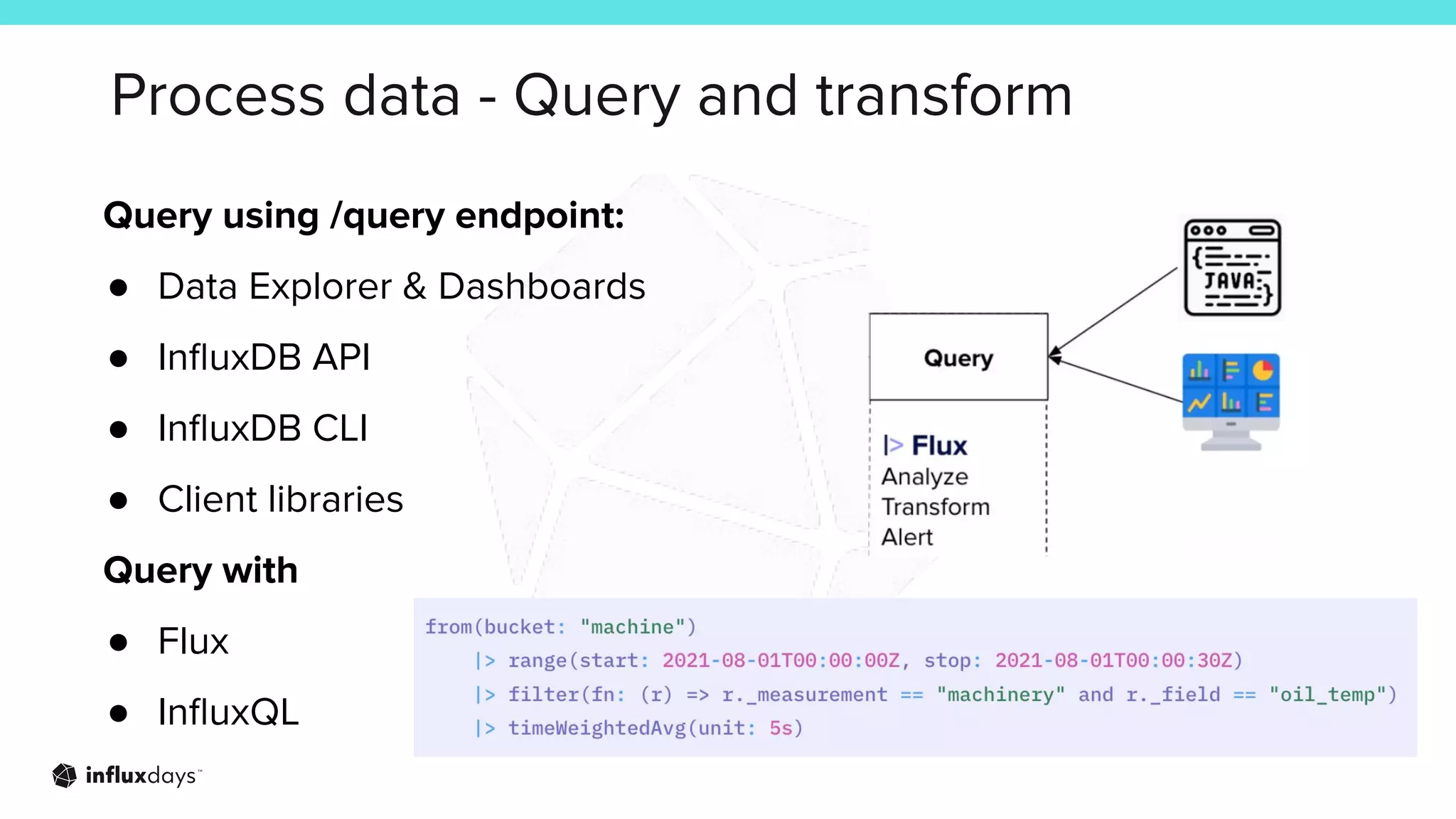

Process data - Query and transform
Query using /query endpoint:
● Data Explorer & Dashboards
● InfluxDB API
● InfluxDB CLI
● Client libraries
Query with
● Flux
● InfluxQL

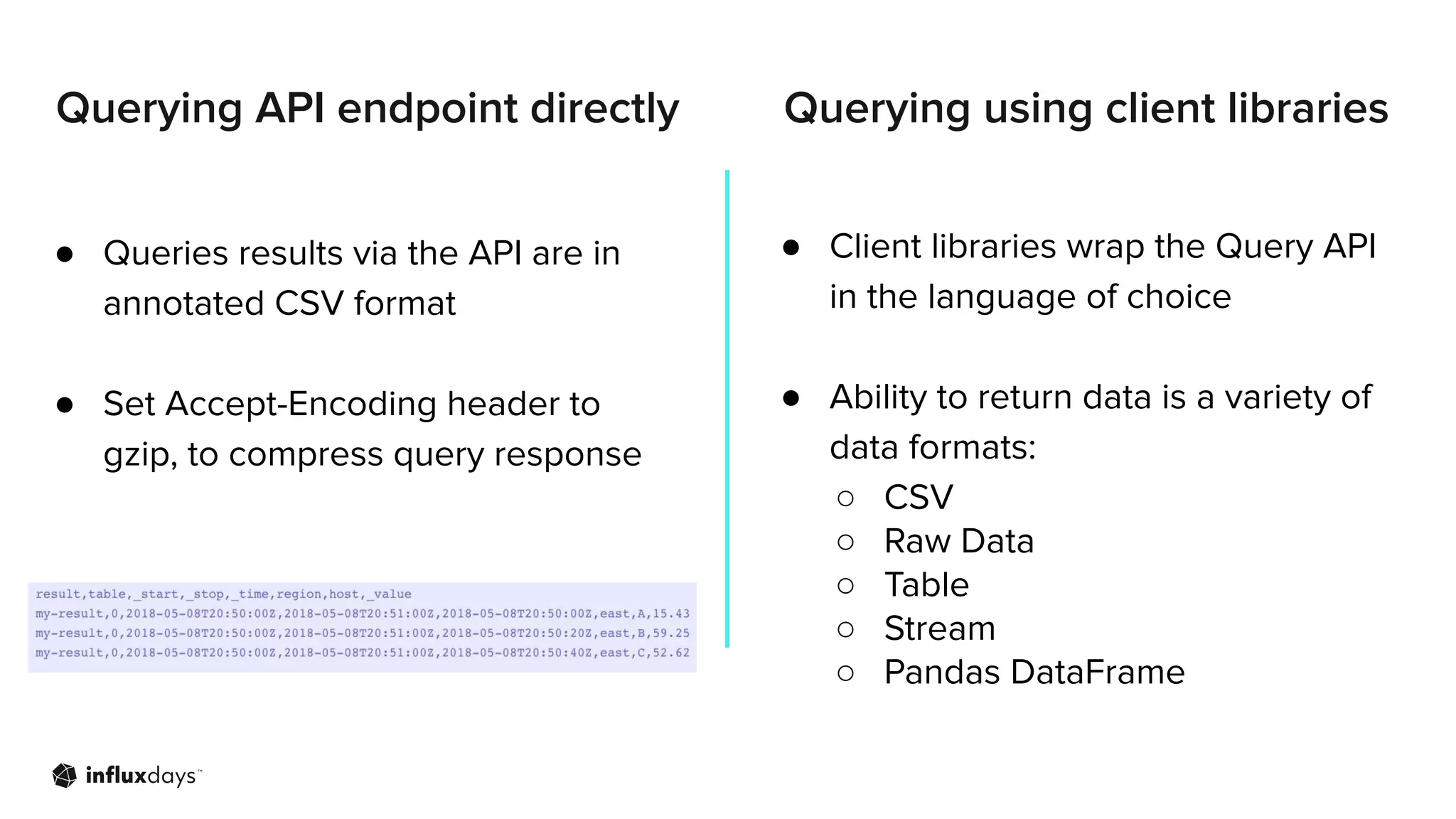

● Queries results via the API are in
annotated CSV format
● Set Accept-Encoding header to
gzip, to compress query response
● Client libraries wrap the Query API
in the language of choice
● Ability to return data is a variety of
data formats:
○ CSV
○ Raw Data
○ Table
○ Stream
○ Pandas DataFrame
Querying using client libraries
Querying API endpoint directly

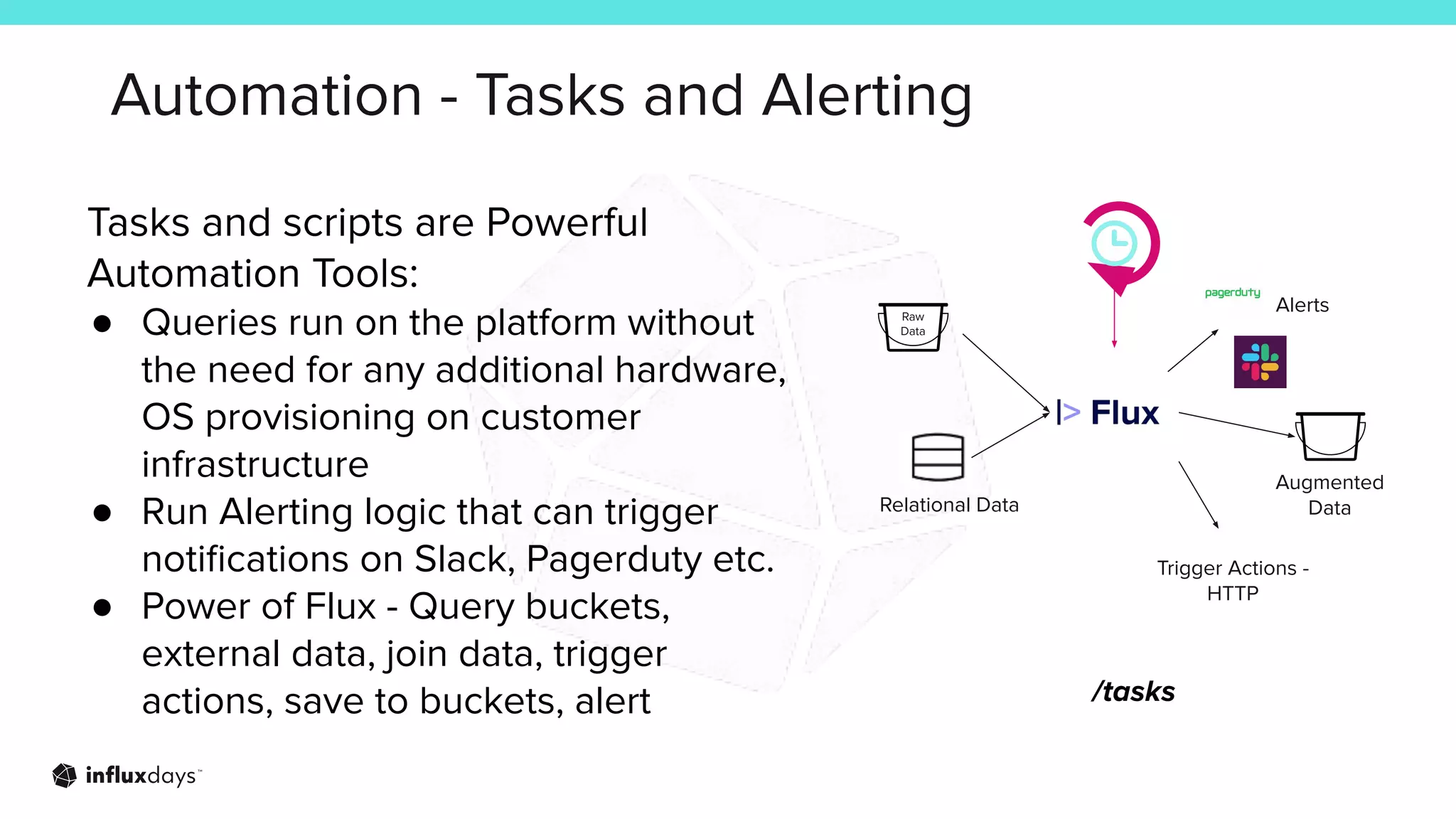

Automation - Tasks and Alerting
Tasks and scripts are Powerful
Automation Tools:
● Queries run on the platform without
the need for any additional hardware,
OS provisioning on customer
infrastructure
● Run Alerting logic that can trigger
notifications on Slack, Pagerduty etc.
● Power of Flux - Query buckets,
external data, join data, trigger
actions, save to buckets, alert /tasks
Augmented
Data
Relational Data
Alerts
Trigger Actions -
HTTP
Raw
Data
Script

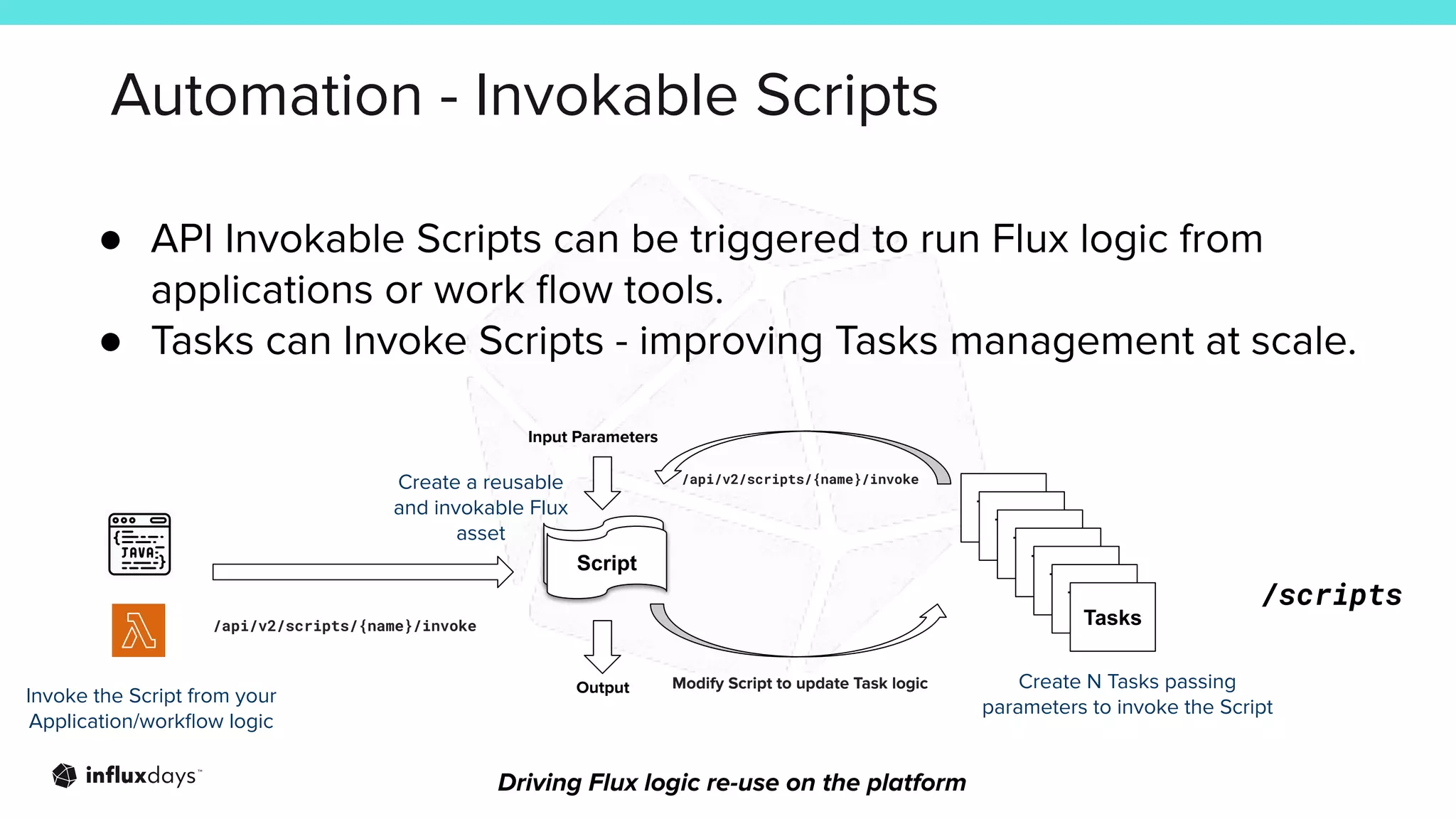

Automation - Invokable Scripts
● API Invokable Scripts can be triggered to run Flux logic from
applications or work flow tools.
● Tasks can Invoke Scripts - improving Tasks management at scale.
/scripts
Tasks
Script
Input Parameters
Output
Tasks
Tasks
Tasks
Tasks
Tasks
Tasks
Create N Tasks passing
parameters to invoke the Script
/api/v2/scripts/{name}/invoke
Modify Script to update Task logic
Create a reusable
and invokable Flux
asset
Driving Flux logic re-use on the platform
/api/v2/scripts/{name}/invoke
Invoke the Script from your
Application/workflow logic

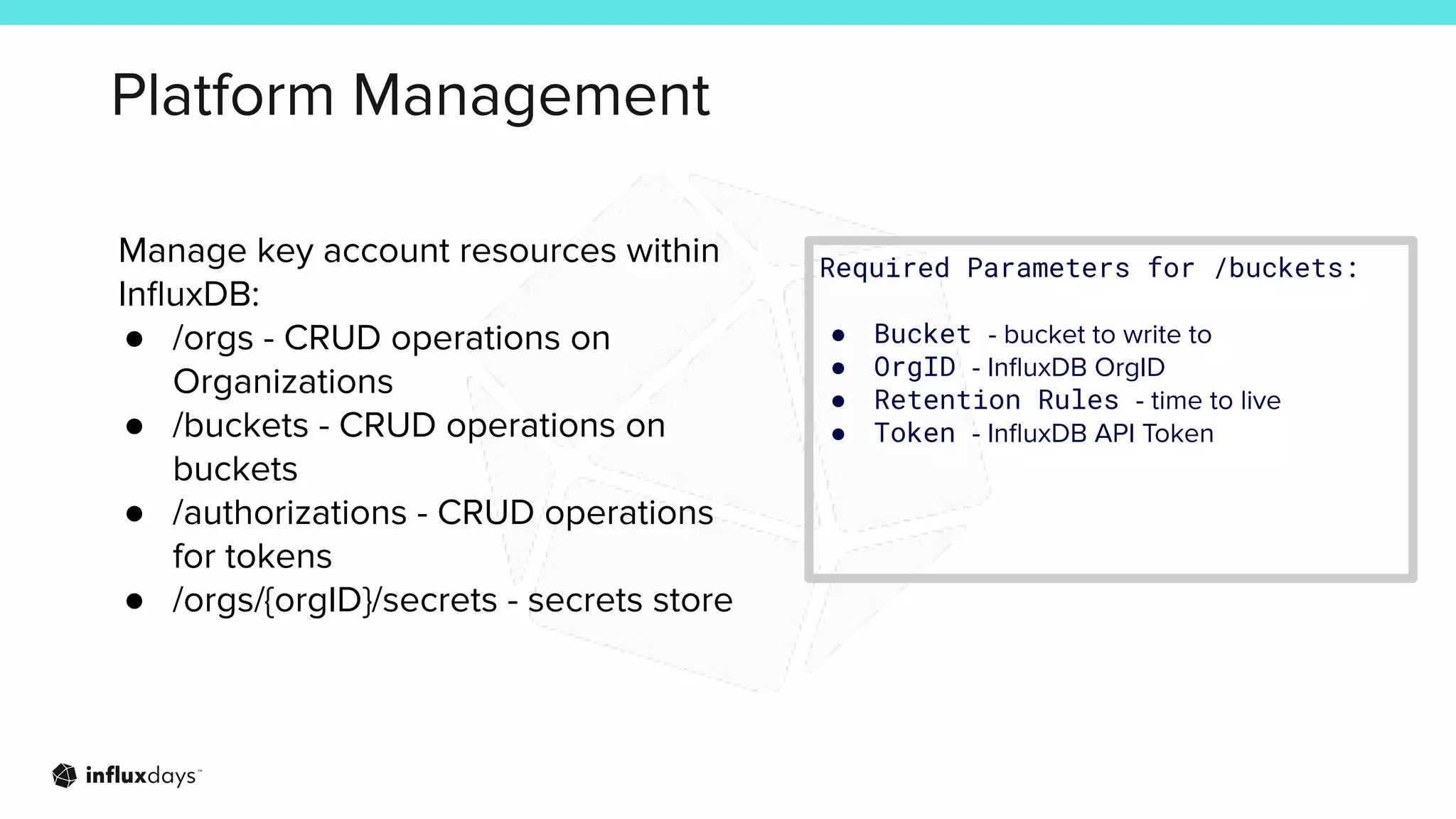

Platform Management
Manage key account resources within
InfluxDB:
● /orgs - CRUD operations on
Organizations
● /buckets - CRUD operations on
buckets
● /authorizations - CRUD operations
for tokens
● /orgs/{orgID}/secrets - secrets store
Required Parameters for /buckets:
● Bucket - bucket to write to
● OrgID - InfluxDB OrgID
● Retention Rules - time to live
● Token - InfluxDB API Token

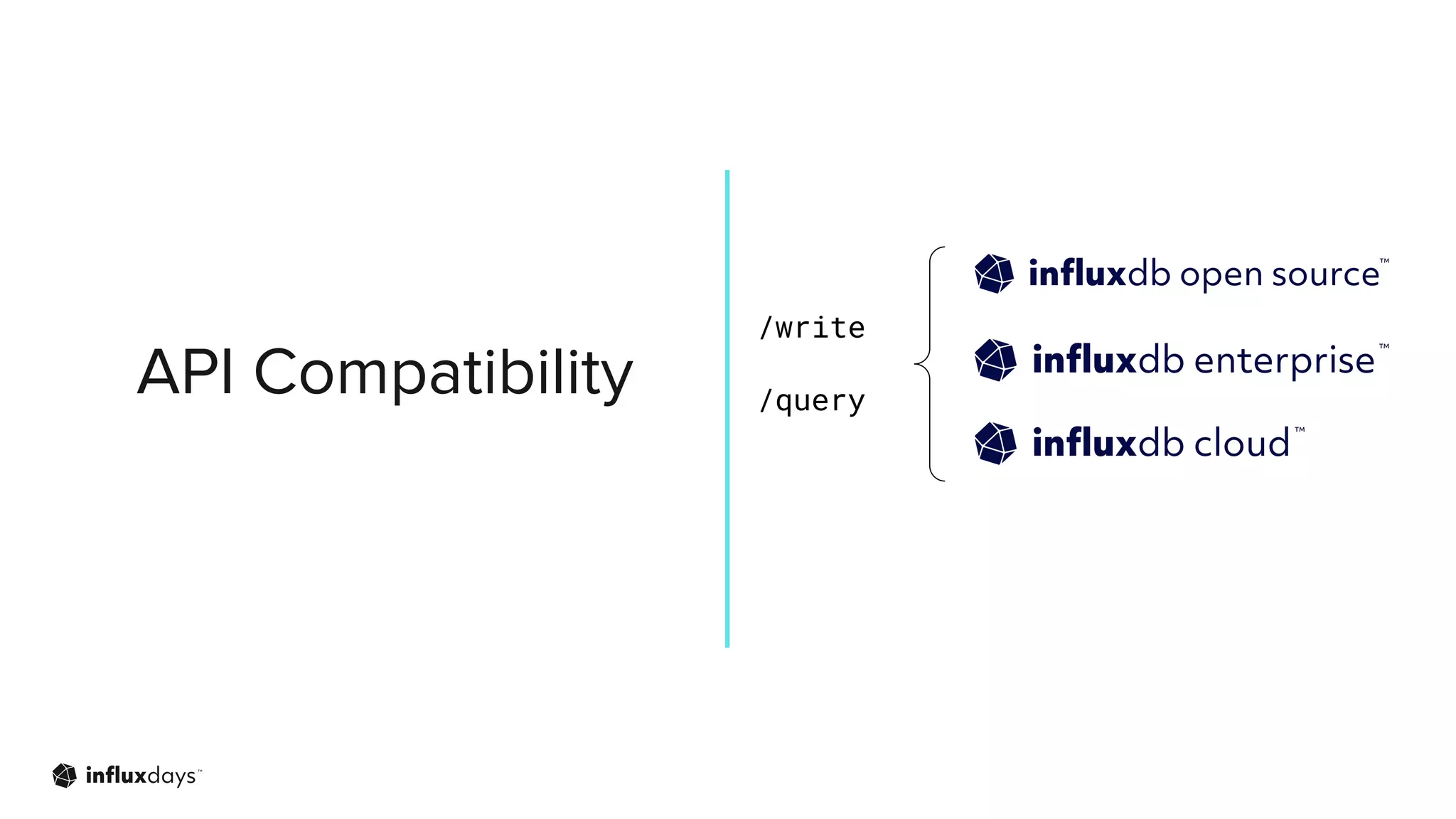

API Compatibility
/write
/query
What’s Next for the InfluxDB API?

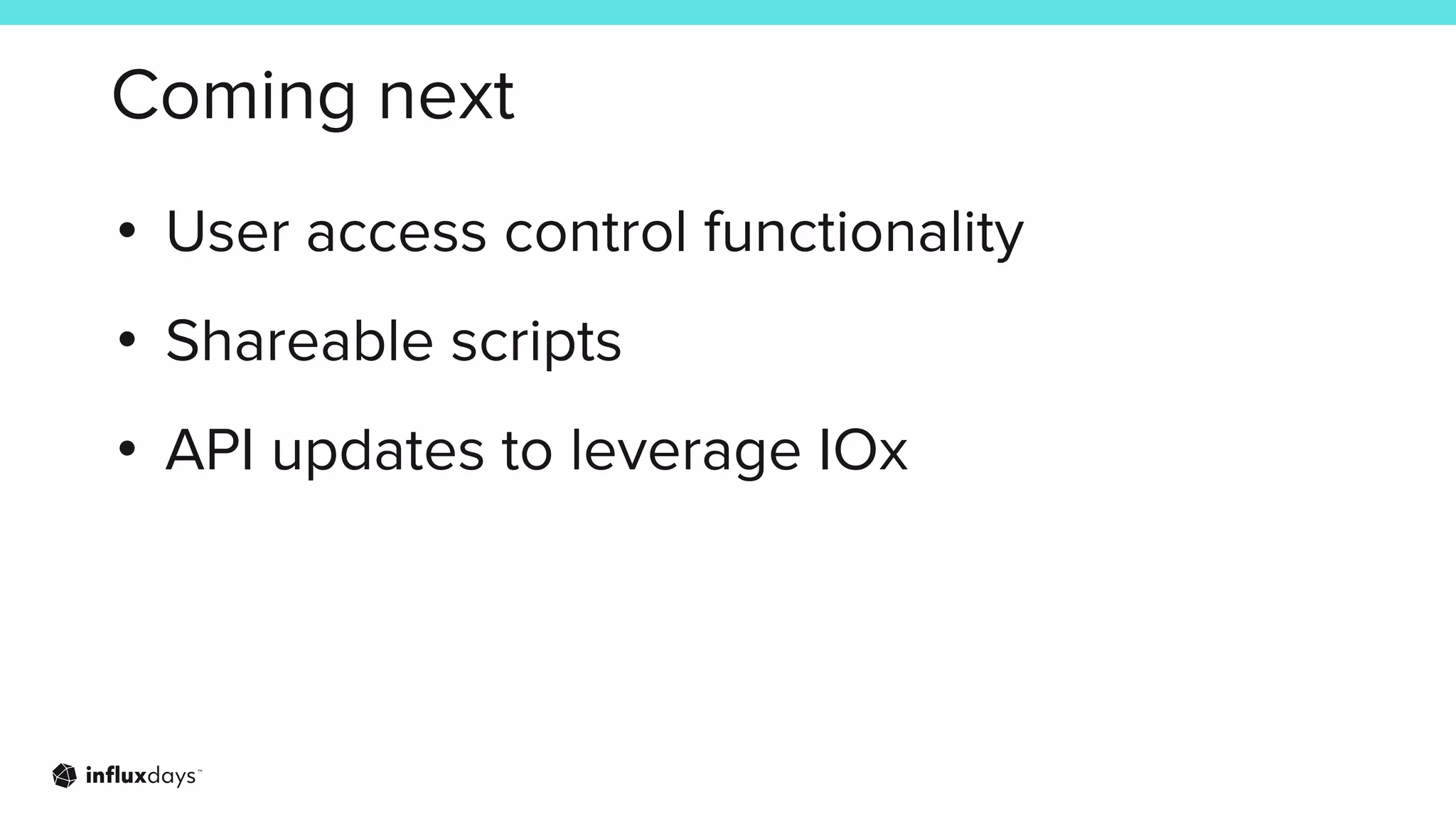

Coming next
• User access control functionality
• Shareable scripts
• API updates to leverage IOx

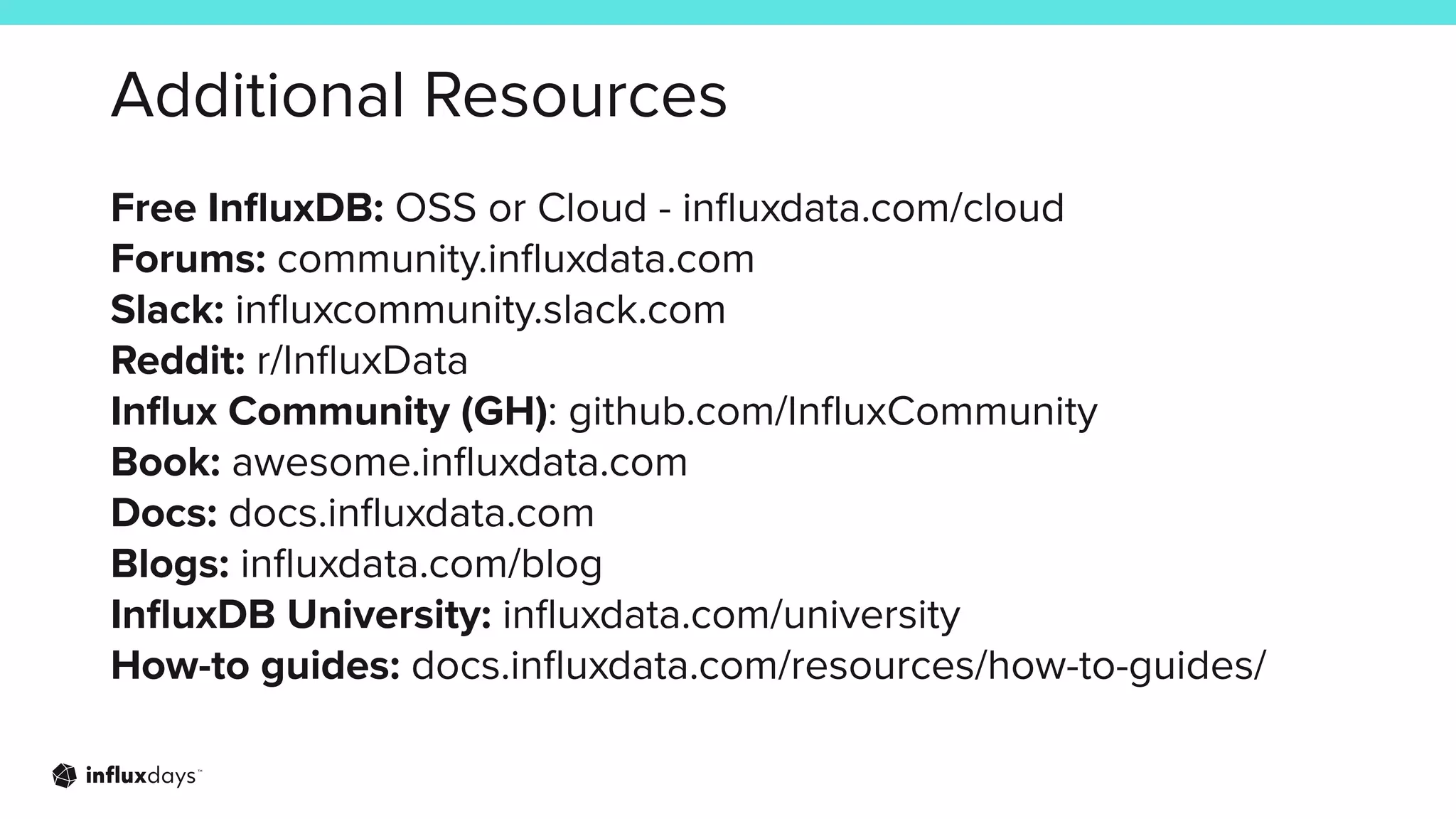

Additional Resources
Free InfluxDB: OSS or Cloud - influxdata.com/cloud
Forums: community.influxdata.com
Slack: influxcommunity.slack.com
Reddit: r/InfluxData
Influx Community (GH): github.com/InfluxCommunity
Book: awesome.influxdata.com
Docs: docs.influxdata.com
Blogs: influxdata.com/blog
InfluxDB University: influxdata.com/university
How-to guides: docs.influxdata.com/resources/how-to-guides/

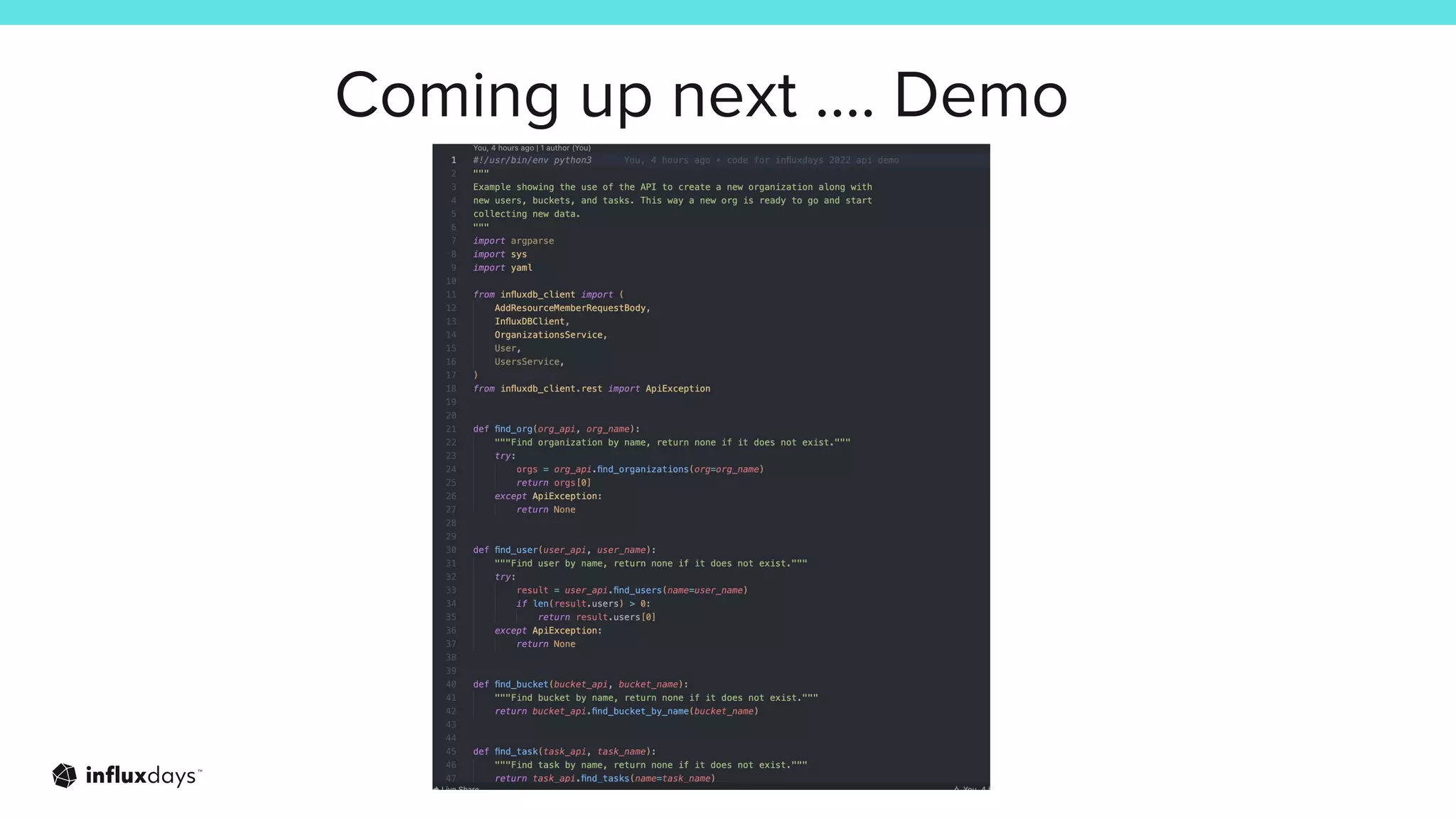

Coming up next …. Demo
T H A N K Y O U
