  Video + Language:Where Does Domain Knowledge Fit in? Jiebo Luo Department of Computer Science July 10, 2016 Keynote@2016 IJCAI Workshop on Semantic Machine Learning
• 2.

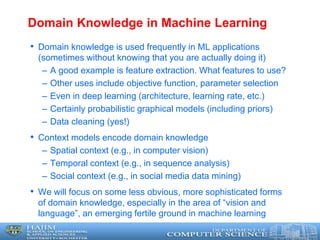

  Domain Knowledge inMachine Learning • Domain knowledge is used frequently in ML applications (sometimes without knowing that you are actually doing it) – A good example is feature extraction. What features to use? – Other uses include objective function, parameter selection – Even in deep learning (architecture, learning rate, etc.) – Certainly probabilistic graphical models (including priors) – Data cleaning (yes!) • Context models encode domain knowledge – Spatial context (e.g., in computer vision) – Temporal context (e.g., in sequence analysis) – Social context (e.g., in social media data mining) • We will focus on some less obvious, more sophisticated forms of domain knowledge, especially in the area of “vision and language”, an emerging fertile ground in machine learning
• 3.

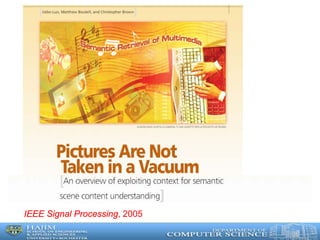

  IEEE Signal Processing,2005
• 4.

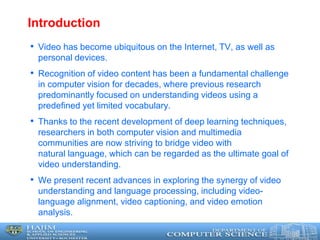

  Introduction • Video hasbecome ubiquitous on the Internet, TV, as well as personal devices. • Recognition of video content has been a fundamental challenge in computer vision for decades, where previous research predominantly focused on understanding videos using a predefined yet limited vocabulary. • Thanks to the recent development of deep learning techniques, researchers in both computer vision and multimedia communities are now striving to bridge video with natural language, which can be regarded as the ultimate goal of video understanding. • We present recent advances in exploring the synergy of video understanding and language processing, including video- language alignment, video captioning, and video emotion analysis.
• 5.

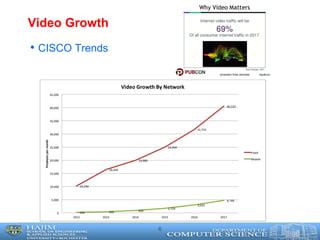

  Video Growth • CISCOTrends 6
• 6.
  SEMANTICS <> USERINTENT
• 7.
  SEMANTICS IN LARGESCALE VIDEO SEARCH & RETRIEVAL
• 8.
  SEMANTIC VIDEO ENTITYLINKING Users User Modeling User Content Understanding Learning From User Tags Yuncheng Li, Xitong Yang, Jiebo Luo
• 9.

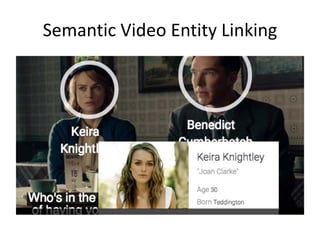

  Semantic Video EntityLinking
• 10.

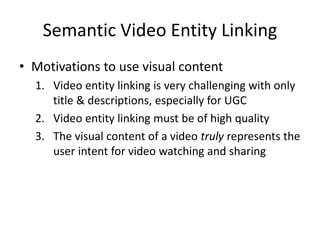

  Semantic Video EntityLinking • Motivations to use visual content 1. Video entity linking is very challenging with only title & descriptions, especially for UGC 2. Video entity linking must be of high quality 3. The visual content of a video truly represents the user intent for video watching and sharing
• 11.

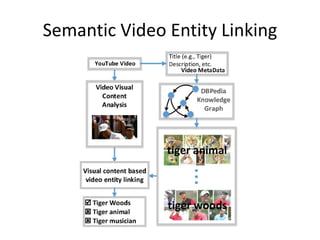

  Semantic Video EntityLinking
• 12.

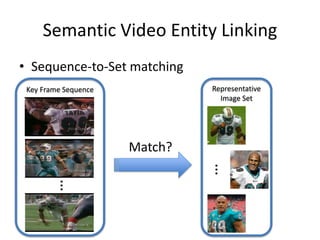

  Semantic Video EntityLinking • Sequence-to-Set matching Key Frame Sequence … Representative Image Set … Match?
• 13.

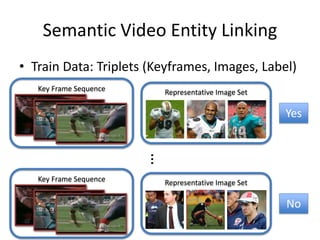

  Semantic Video EntityLinking • Train Data: Triplets (Keyframes, Images, Label) Key Frame Sequence … Representative Image Set Yes Key Frame Sequence No Representative Image Set
• 14.

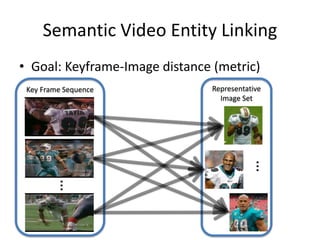

  Semantic Video EntityLinking • Goal: Keyframe-Image distance (metric) Key Frame Sequence … Representative Image Set …
• 15.

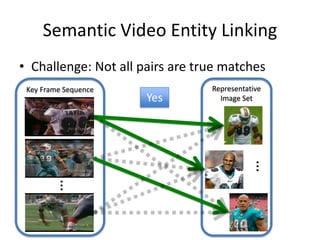

  Semantic Video EntityLinking • Challenge: Not all pairs are true matches Key Frame Sequence … Representative Image Set … Yes
• 16.
  Semantic Video EntityLinking • Solution: Multiple Instance Metric Learning – EM like algorithm: • E-Step: infer the true matches • M-Step: Retrain the metric • More Challenges – Overwhelming noise (variability & ambiguity) in both visual content • Solution – Structured constraints to suppress noise
• 17.

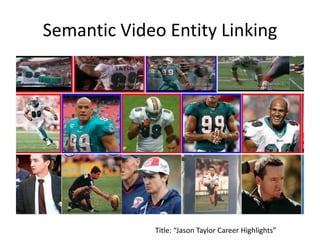

  Semantic Video EntityLinking Title: “Jason Taylor Career Highlights”
• 18.

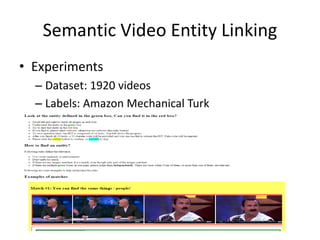

  Semantic Video EntityLinking • Experiments – Dataset: 1920 videos – Labels: Amazon Mechanical Turk
• 19.

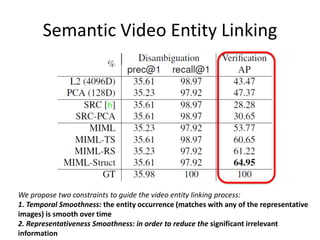

  Semantic Video EntityLinking We propose two constraints to guide the video entity linking process: 1. Temporal Smoothness: the entity occurrence (matches with any of the representative images) is smooth over time 2. Representativeness Smoothness: in order to reduce the significant irrelevant information
• 20.
  Conclusions • Metric Learninghelps by adapting to different topics and domains • Structured constraints are important for suppressing noises • Future work includes integrating the video metadata information and building entity integrated applications, e.g., video spam detection
• 21.

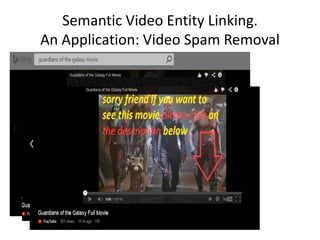

  Semantic Video EntityLinking. An Application: Video Spam Removal • “guardians of the galaxy full movie” – Let’s watch the movie
• 22.
  Unsupervised Alignment ofActions in Video with Text Descriptions Y. Song, I. Naim, A. Mamun, K. Kulkarni, P. Singla J. Luo, D. Gildea, H. Kautz
• 23.

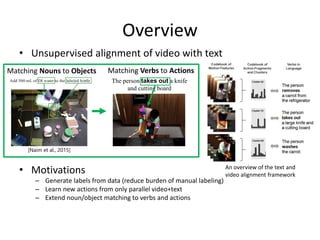

  Overview • Unsupervised alignmentof video with text • Motivations – Generate labels from data (reduce burden of manual labeling) – Learn new actions from only parallel video+text – Extend noun/object matching to verbs and actions Matching Verbs to Actions The person takes out a knife and cutting board Matching Nouns to Objects [Naim et al., 2015] An overview of the text and video alignment framework
• 24.

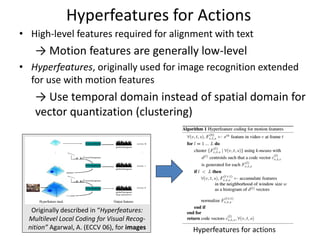

  Hyperfeatures for Actions •High-level features required for alignment with text → Motion features are generally low-level • Hyperfeatures, originally used for image recognition extended for use with motion features → Use temporal domain instead of spatial domain for vector quantization (clustering) Originally described in “Hyperfeatures: Multilevel Local Coding for Visual Recog- nition” Agarwal, A. (ECCV 06), for images Hyperfeatures for actions
• 25.

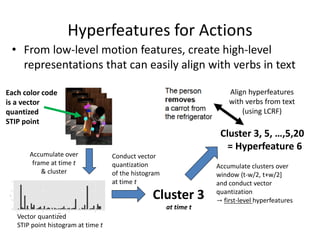

  Hyperfeatures for Actions •From low-level motion features, create high-level representations that can easily align with verbs in text Cluster 3 at time t Accumulate over frame at time t & cluster Conduct vector quantization of the histogram at time t Cluster 3, 5, …,5,20 = Hyperfeature 6 Each color code is a vector quantized STIP point Vector quantized STIP point histogram at time t Accumulate clusters over window (t-w/2, t+w/2] and conduct vector quantization → first-level hyperfeatures Align hyperfeatures with verbs from text (using LCRF)
• 26.

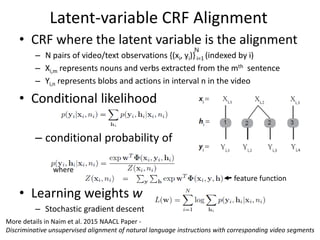

  Latent-variable CRF Alignment •CRF where the latent variable is the alignment – N pairs of video/text observations {(xi, yi)}i=1 (indexed by i) – Xi,m represents nouns and verbs extracted from the mth sentence – Yi,n represents blobs and actions in interval n in the video • Conditional likelihood – conditional probability of • Learning weights w – Stochastic gradient descent where feature function More details in Naim et al. 2015 NAACL Paper - Discriminative unsupervised alignment of natural language instructions with corresponding video segments N
• 27.

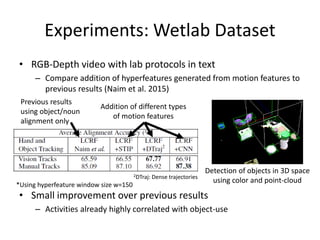

  Experiments: Wetlab Dataset •RGB-Depth video with lab protocols in text – Compare addition of hyperfeatures generated from motion features to previous results (Naim et al. 2015) • Small improvement over previous results – Activities already highly correlated with object-use Detection of objects in 3D space using color and point-cloud Previous results using object/noun alignment only Addition of different types of motion features 2DTraj: Dense trajectories *Using hyperfeature window size w=150
• 28.

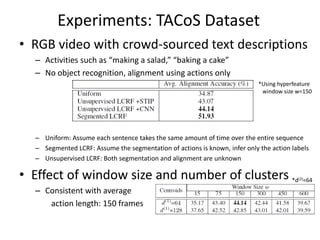

  Experiments: TACoS Dataset •RGB video with crowd-sourced text descriptions – Activities such as “making a salad,” “baking a cake” – No object recognition, alignment using actions only – Uniform: Assume each sentence takes the same amount of time over the entire sequence – Segmented LCRF: Assume the segmentation of actions is known, infer only the action labels – Unsupervised LCRF: Both segmentation and alignment are unknown • Effect of window size and number of clusters – Consistent with average action length: 150 frames *Using hyperfeature window size w=150 *d(2)=64
• 29.

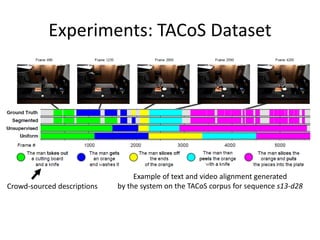

  Experiments: TACoS Dataset •Segmentation from a sequence in the dataset Crowd-sourced descriptions Example of text and video alignment generated by the system on the TACoS corpus for sequence s13-d28
• 30.
  Image Captioning withSemantic Attention (CVPR 2016) Quanzeng You, Jiebo Luo Hailin Jin, Zhaowen Wang and Chen Fang
• 31.

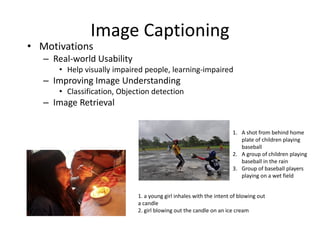

  Image Captioning • Motivations –Real-world Usability • Help visually impaired people, learning-impaired – Improving Image Understanding • Classification, Objection detection – Image Retrieval 1. a young girl inhales with the intent of blowing out a candle 2. girl blowing out the candle on an ice cream 1. A shot from behind home plate of children playing baseball 2. A group of children playing baseball in the rain 3. Group of baseball players playing on a wet field
• 32.

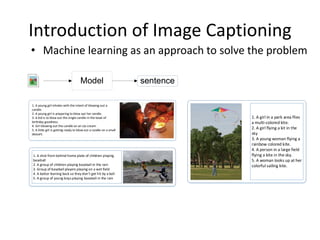

  Introduction of ImageCaptioning • Machine learning as an approach to solve the problem Model sentence 1. A young girl inhales with the intent of blowing out a candle. 2. A young girl is preparing to blow out her candle. 3. A kid is to blow out the single candle in the bowl of birthday goodness. 4. Girl blowing out the candle on an ice-cream 5. A little girl is getting ready to blow out a candle on a small dessert. 1. A shot from behind home plate of children playing baseball 2. A group of children playing baseball in the rain 3. Group of baseball players playing on a wet field 4. A batter leaning back so they don’t get hit by a ball 5. A group of young boys playing baseball in the rain 1. A girl in a park area flies a multi-colored kite. 2. A girl flying a kit in the sky 3. A young woman flying a rainbow colored kite. 4. A person in a large field flying a kite in the sky. 5. A woman looks up at her colorful sailing kite.
• 33.
  Overview • Brief overviewof current approaches • Our main motivation • The proposed semantic attention model • Evaluation results
• 34.
  Brief Introduction ofRecurrent Neural Network • Different from CNN 11),( −− +== ttttt BhAxhxfh tt Chy = • Unfolding over time  Feedforward network  Backpropagation Through Time Inputs Hidden Units Outputs xt ht-1 ht yt ... Convolutional Neural Network Inputs Hidden Units Outputs C yt Inputs Hidden Units Inputs Hidden Units B B A A A B t-1 t-2
• 35.
  Applications of RecurrentNeural Networks • Machine Translation • Reads input sentence “ABC” and produces “WXYZ” Decoder RNNEncoder RNN
• 36.
  Encoder-Decoder Framework forCaptioning • Inspired by neural network based machine translation • Loss function ∑= −−= −= N t tt wwIwp IwpL 1 10 ),,,|(log )|(log  ... Convolutional Neural Network w1 wstart w2 w1 wN wN-1 wend wN  Image Recurrent Neural Network ... Convolutional Neural Network  #Start# Some riverSome elephants . Some elephants roaming around on a river bank. bank bank
• 37.

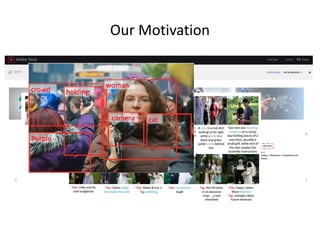

  Our Motivation • Additionaltextual information – Own noisy title, tags or captions (Web) – Visually similar nearest neighbor images – Success of low-level tasks • Visual attributes detection
• 38.
  Image Captioning withSemantic Attention • Main idea RNN ... CNN attention wave riding man surfboard ocean water surfer surfing person board 0 0.1 0.2 0.3 surfboard wave surfing
• 39.
  First Idea • Provideadditional knowledge at each input node • Concatenate the input word and the extra attributes K • Each image has a fixed keyword list )],,([),( 11 −− +== tktttt hbKWwfhxfh Visual Features: 1024 GoogleNet LSTM Hidden states: 512 Training details: 1. 256 image/sentence pairs 2. RMS-Prob ... Convolutional Neural Network w1 wstart w2 w1 wN wN-1 wend wN  Retrieve Tags, titles, descriptions from weak annotated images Feature extraction K Keywords, key-phrase Image Recurrent Neural Network
• 40.
  Using Attributes alongwith Visual Features • Provide additional knowledge at each input node • Concatenate the visual embedding and keywords for h0 ];[),( 10 bKWvWhvfh kiv +== − ... Convolutional Neural Network w1 wstart w2 w1 wN wN-1 wend wN  Retrieve Tags, titles, descriptions from weak annotated images Feature extraction K Keywords, key-phrase Image h0 Recurrent Neural Network
• 41.
  Attention Model onAttributes • Instead of using the same set of attributes at every step • At each step, select the attributes ∑= m mtmt kKwatt α),( )softmax VK(wT tt =α ))],,(;([),( 11 −− == tttttt hKwattxfhxfh ... CNN w1 wstart w2 w1 wN wN-1 wend wN  Retrieve Tags, titles, descriptions from weak annotated images Feature extraction K Keywords, key-phrase RNN
• 42.
  Overall Framework • Trainingwith a bilinear/bilateral attention model ht pt xt v {Ai} Yt~ 𝜑 𝜙 RNN Image CNN AttrDet 1 AttrDet 2 AttrDet 3 AttrDet N  RNN ... CNN attention wave riding man surfboard ocean water surfer surfing person board 0 0.1 0.2 0.3 surfboard wave surfing
• 43.
  Visual Attributes • Asecondary contribution • We try different approaches vase flowers bathroom table glass sink blue small white clear k-NN sitting table small many little glass different flowers vase shown Multi-label Ranking vase flowers table glass sitting kitchen water room white filled FCN
• 44.

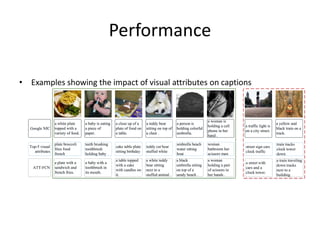

  Performance • Examples showingthe impact of visual attributes on captions Google NIC Top-5 visual attributes ATT-FCN a white plate topped with a variety of food. a plate with a sandwich and french fries. plate broccoli fries food french a baby with a toothbrush in its mouth. a baby is eating a piece of paper. teeth brushing toothbrush holding baby a traffic light is on a city street. a street with cars and a clock tower. street sign cars clock traffic a yellow and black train on a track. a train traveling down tracks next to a building. train tracks clock tower down a close up of a plate of food on a table. a table topped with a cake with candles on it. a teddy bear sitting on top of a chair . a white teddy bear sitting next to a stuffed animal . a person is holding colorful umbrella. a black umbrella sitting on top of a sandy beach . a woman is holding a cell phone in her hand . a woman holding a pair of scissors in her hands . cake table plate sitting birthday teddy cat bear stuffed white umbrella beach water sitting boat woman bathroom her scissors man
• 45.

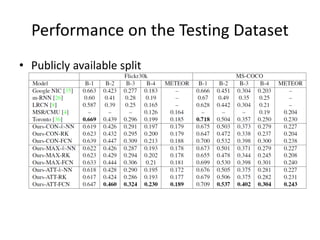

  Performance on theTesting Dataset • Publicly available split
• 46.
  Performance • MS-COCO ImageCaptioning Challenge
• 47.
  TGIF: A NewDataset and Benchmark on Animated GIF Description Yuncheng Li, Yale Song, Liangliang Cao, Joel Tetreault, Larry Goldberg, Jiebo Luo
• 48.

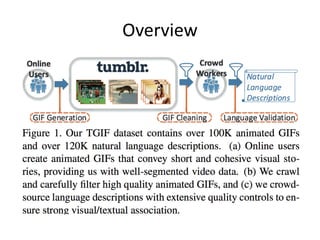

  Overview
• 49.

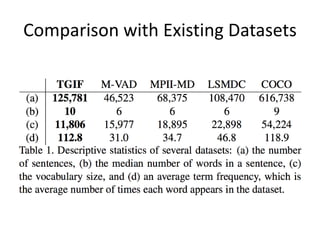

  Comparison with ExistingDatasets
• 50.
  Examples a skate boarderis doing trick on his skate board. a gloved hand opens to reveal a golden ring. a sport car is swinging on the race playground the vehicle is moving fast into the tunnel
• 51.

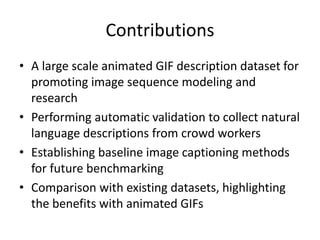

  Contributions • A largescale animated GIF description dataset for promoting image sequence modeling and research • Performing automatic validation to collect natural language descriptions from crowd workers • Establishing baseline image captioning methods for future benchmarking • Comparison with existing datasets, highlighting the benefits with animated GIFs
• 52.
  In Comparison withExisting Datasets • The language in our dataset is closer to common language • Our dataset has an emphasis on the verbs • Animated GIFs are more coherent and self contained • Our dataset can be used to solve more difficult movie description problem
• 53.

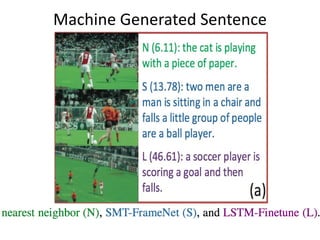

  Machine Generated Sentence Examples
• 54.

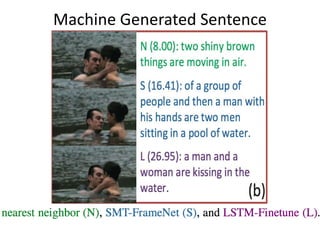

  Machine Generated Sentence Examples
• 55.

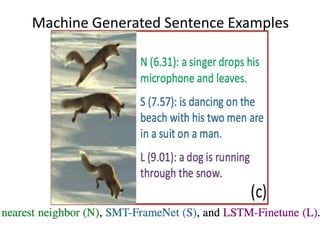

  Machine Generated SentenceExamples
• 56.

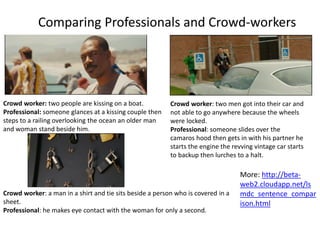

  Comparing Professionals andCrowd-workers Crowd worker: two people are kissing on a boat. Professional: someone glances at a kissing couple then steps to a railing overlooking the ocean an older man and woman stand beside him. Crowd worker: two men got into their car and not able to go anywhere because the wheels were locked. Professional: someone slides over the camaros hood then gets in with his partner he starts the engine the revving vintage car starts to backup then lurches to a halt. Crowd worker: a man in a shirt and tie sits beside a person who is covered in a sheet. Professional: he makes eye contact with the woman for only a second. More: http://beta- web2.cloudapp.net/ls mdc_sentence_compar ison.html
• 57.

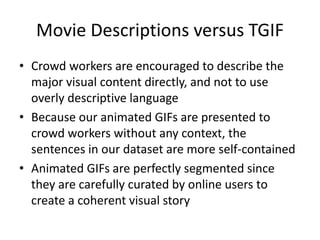

  Movie Descriptions versusTGIF • Crowd workers are encouraged to describe the major visual content directly, and not to use overly descriptive language • Because our animated GIFs are presented to crowd workers without any context, the sentences in our dataset are more self-contained • Animated GIFs are perfectly segmented since they are carefully curated by online users to create a coherent visual story
• 58.

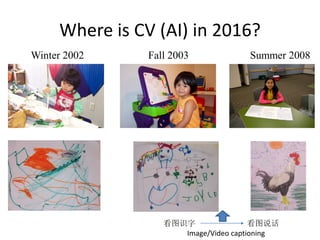

  Where is CV(AI) in 2016? Winter 2002 Fall 2003 Summer 2008 Image/Video captioning 看图识字 看图说话
• 59.

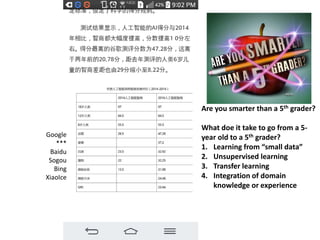

  Thanks Q & A Google *** Baidu Sogou Bing XiaoIce Areyou smarter than a 5th grader? What doe it take to go from a 5- year old to a 5th grader? 1. Learning from “small data” 2. Unsupervised learning 3. Transfer learning 4. Integration of domain knowledge or experience
• 60.
  Visual Intelligence &Social Multimedia Analytics www.cs.rochester.edu/u/jluo Questions?
