![# VCL version 5.0 is not supported so it should be 4.0 even though actually used
Varnish version is 6
vcl 4.0;
import std;
# The minimal Varnish version is 6.0
# For SSL offloading, pass the following header in your proxy server or load
balancer: 'X-Forwarded-Proto: https'

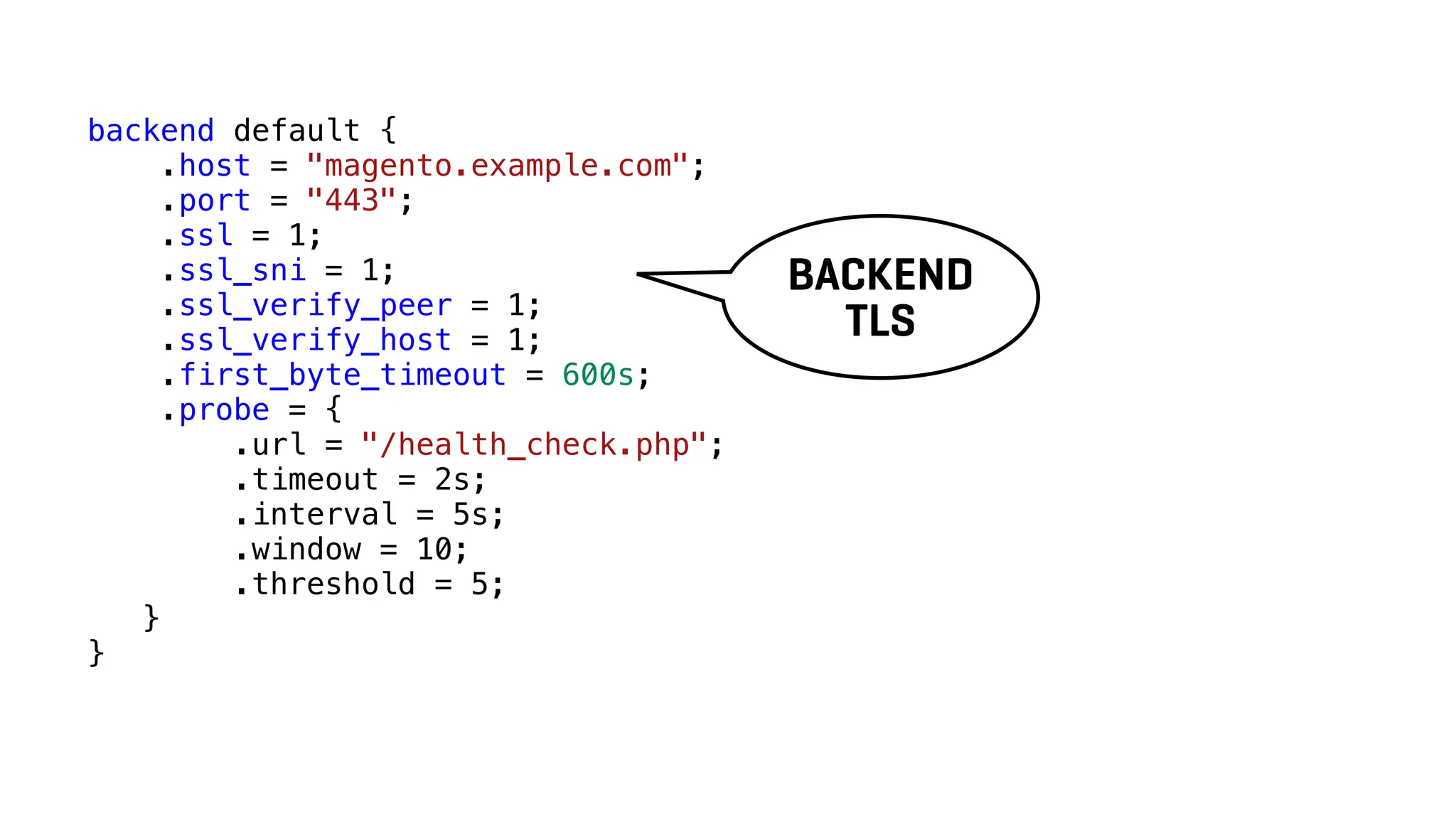

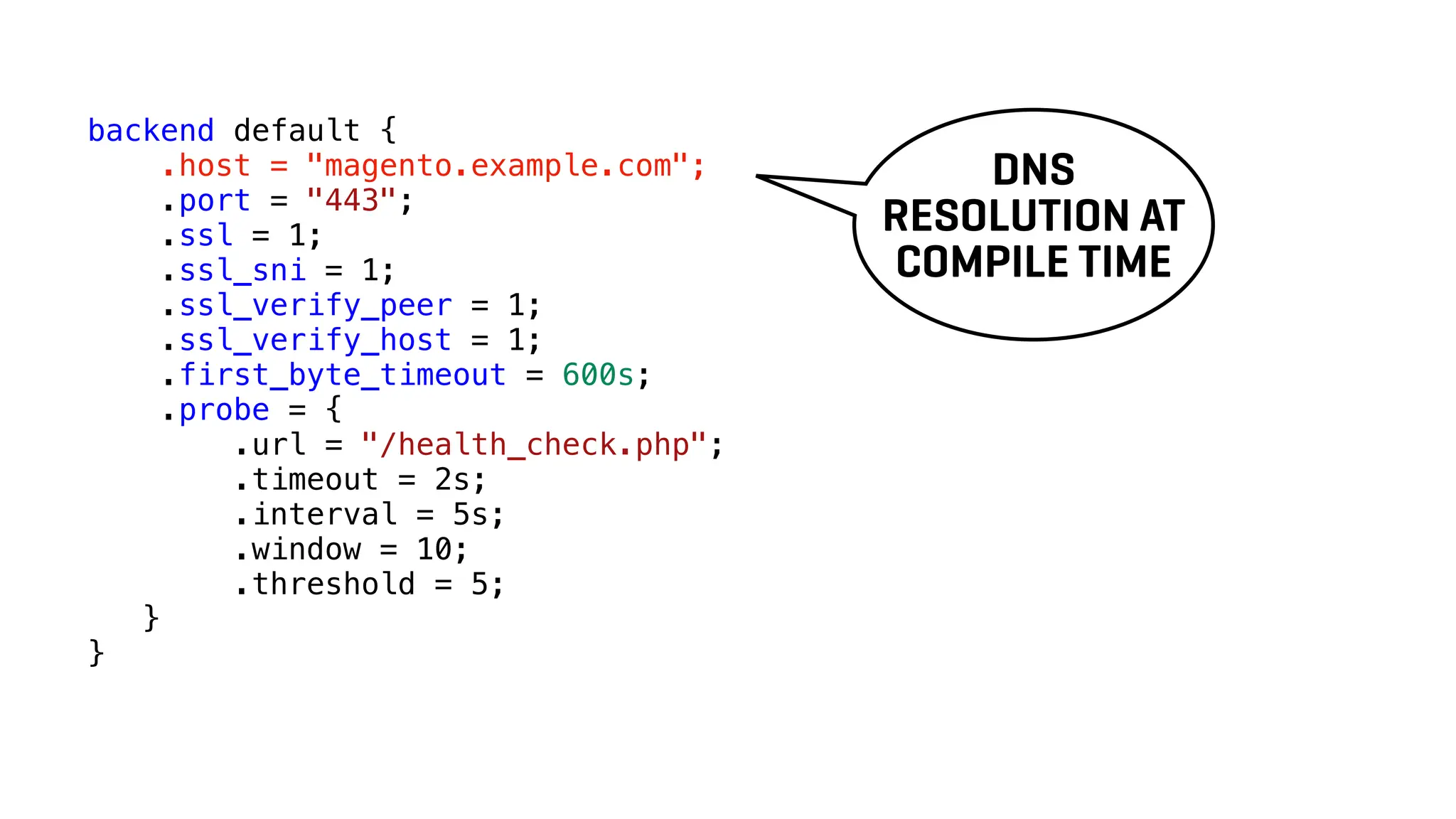

backend default {
.host = "localhost";
.port = "8080";
.first_byte_timeout = 600s;
.probe = {
.url = "/health_check.php";
.timeout = 2s;
.interval = 5s;
.window = 10;
.threshold = 5;
}
}

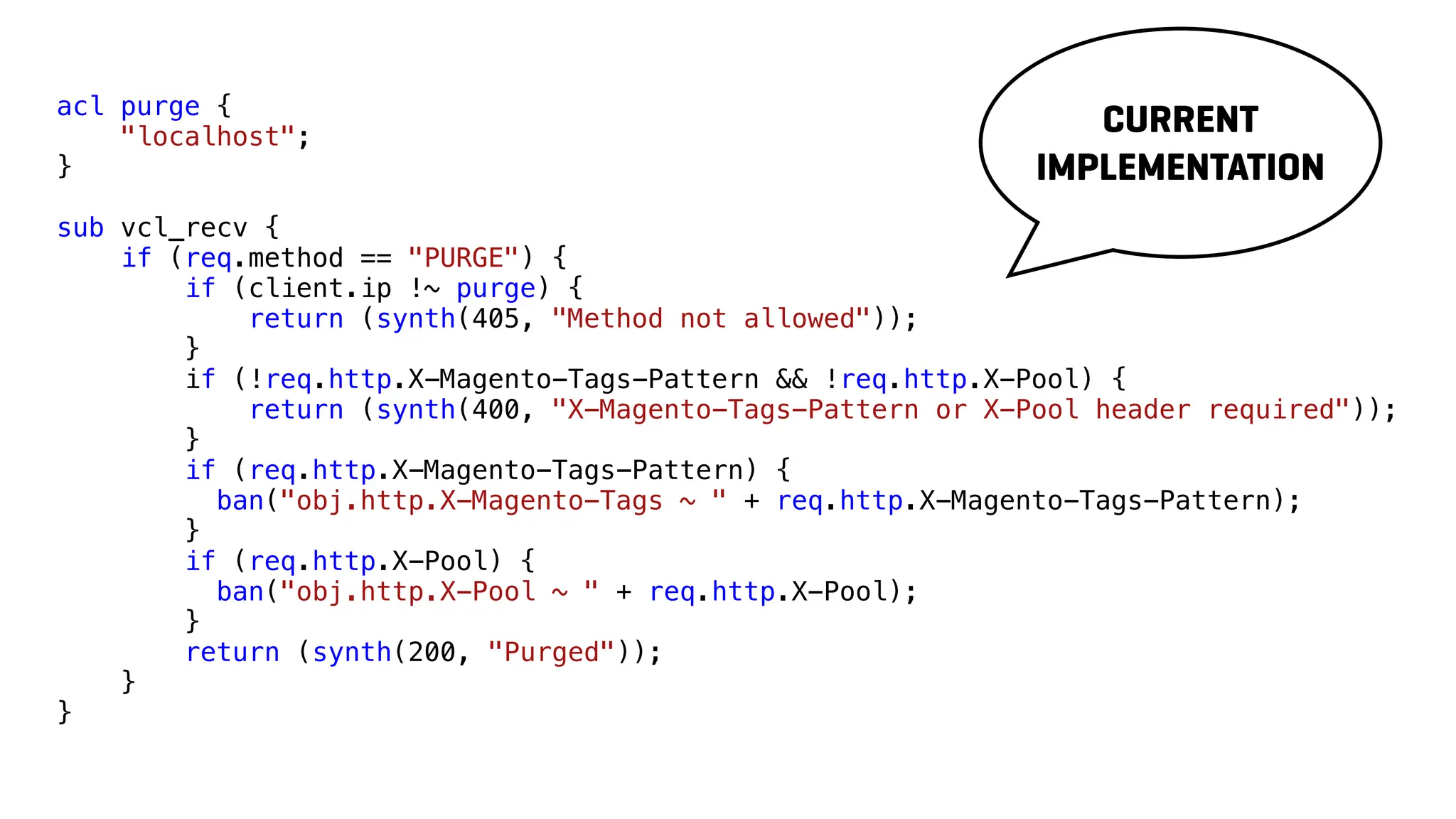

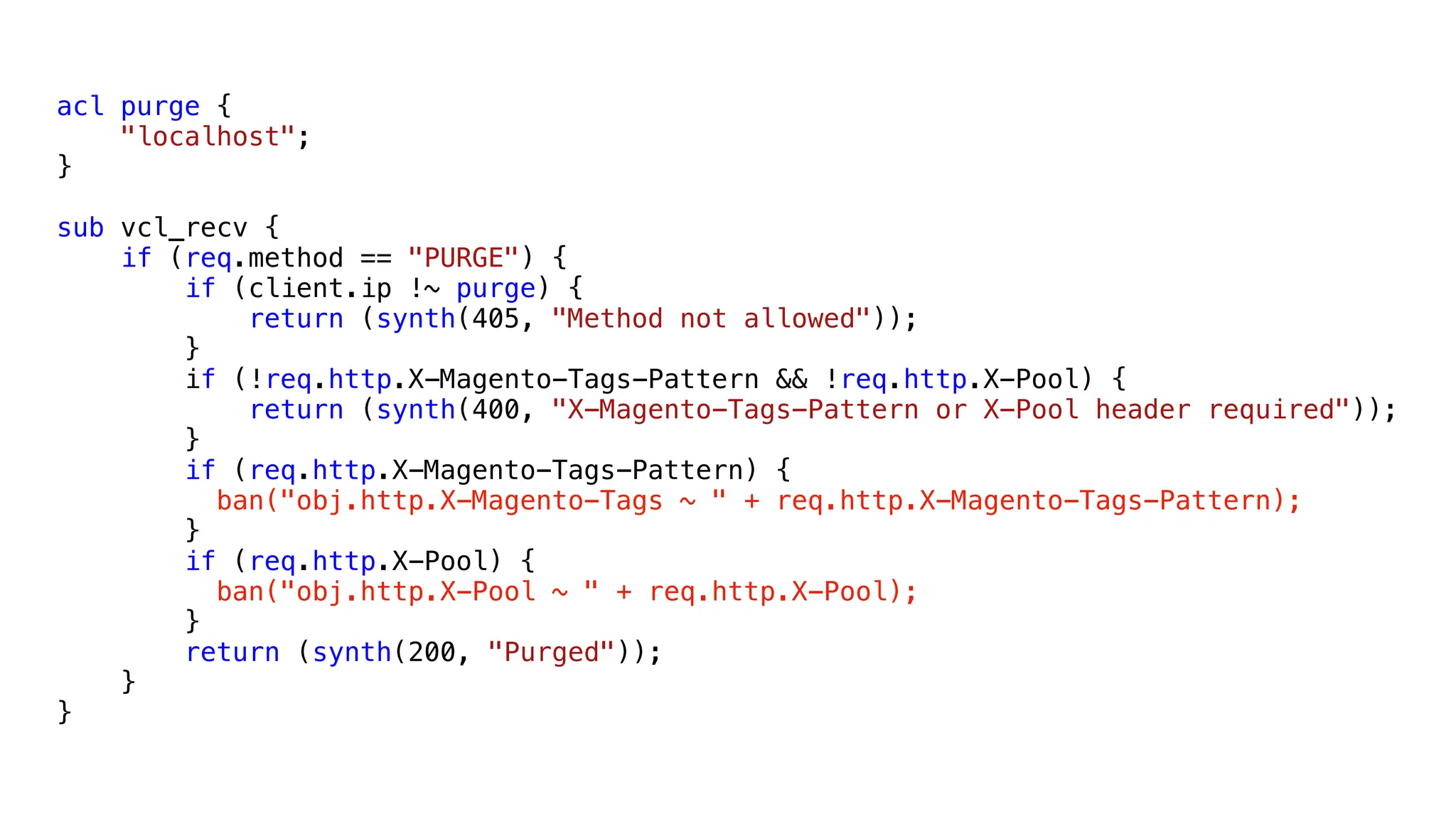

acl purge {
"localhost";
}
sub vcl_recv {
if (req.restarts > 0) {
set req.hash_always_miss = true;
}
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
# To use the X-Pool header for purging varnish during automated
deployments, make sure the X-Pool header
# has been added to the response in your backend server config. This is
used, for example, by the
# capistrano-magento2 gem for purging old content from varnish during it's
deploy routine.
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (synth(400, "X-Magento-Tags-Pattern or X-Pool header
required"));
}
if (req.http.X-Magento-Tags-Pattern) {
ban("obj.http.X-Magento-Tags ~ " + req.http.X-Magento-Tags-Pattern);
}
if (req.http.X-Pool) {
ban("obj.http.X-Pool ~ " + req.http.X-Pool);
}
return (synth(200, "Purged"));
}
if (req.method != "GET" &&
req.method != "HEAD" &&
req.method != "PUT" &&
req.method != "POST" &&
req.method != "TRACE" &&
req.method != "OPTIONS" &&
req.method != "DELETE") {
/* Non-RFC2616 or CONNECT which is weird. */
return (pipe);
}
# We only deal with GET and HEAD by default
if (req.method != "GET" && req.method != "HEAD") {
return (pass);
}
# Bypass customer, shopping cart, checkout
if (req.url ~ "/customer" || req.url ~ "/checkout") {
return (pass);
}
# Bypass health check requests
if (req.url ~ "^/(pub/)?(health_check.php)$") {
return (pass);
}

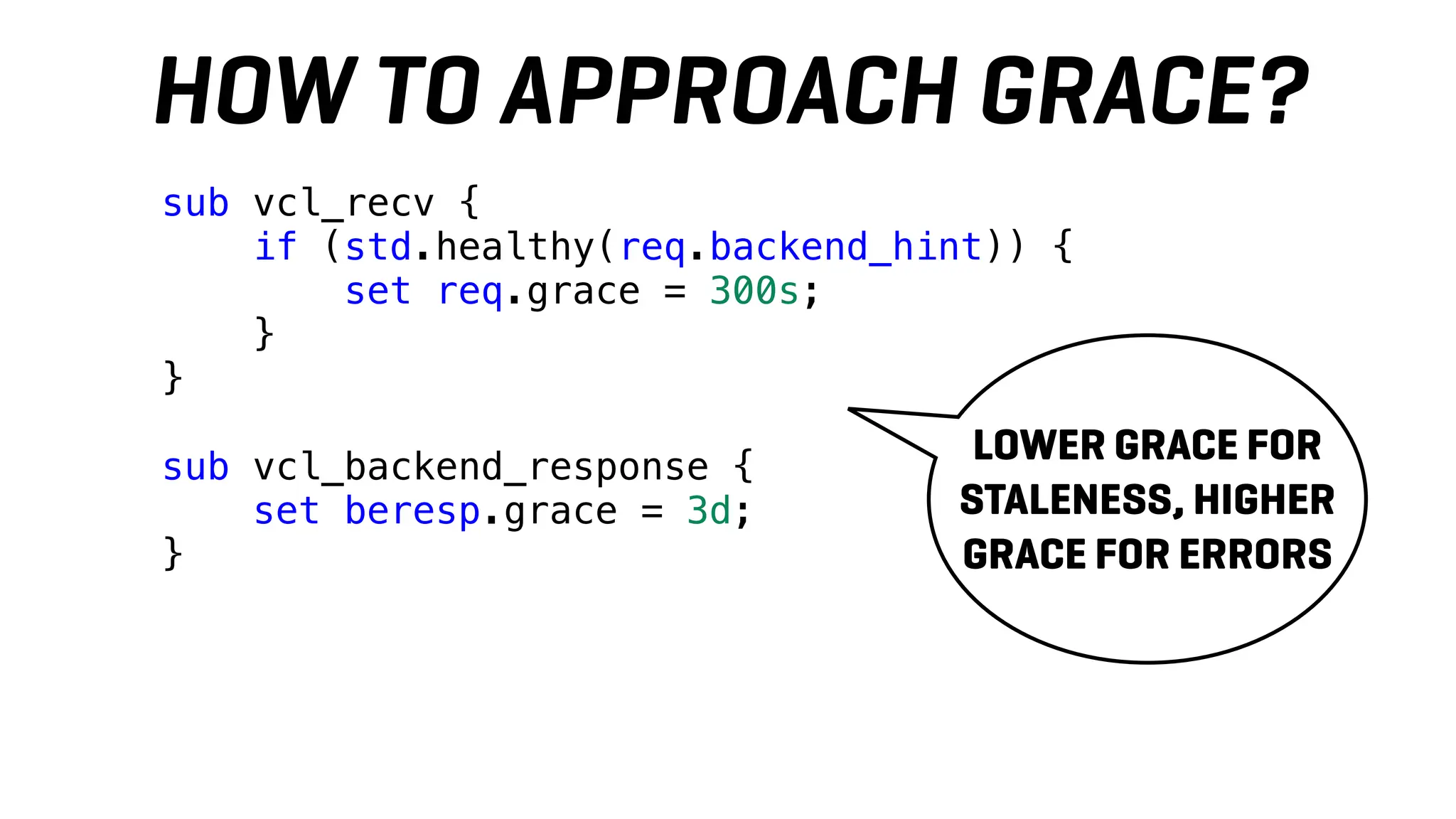

# Set initial grace period usage status
set req.http.grace = "none";
# normalize url in case of leading HTTP scheme and domain
set req.url = regsub(req.url, "^http[s]?://", "");
# collect all cookies
std.collect(req.http.Cookie);
# Remove all marketing get parameters to minimize the cache objects
if (req.url ~ "(?|&)(gclid|cx|ie|cof|siteurl|zanpid|origin|fbclid|mc_[a-z]+|
utm_[a-z]+|_bta_[a-z]+)=") {
set req.url = regsuball(req.url, "(gclid|cx|ie|cof|siteurl|zanpid|origin|
fbclid|mc_[a-z]+|utm_[a-z]+|_bta_[a-z]+)=[-_A-z0-9+()%.]+&?", "");
set req.url = regsub(req.url, "[?|&]+$", "");
}
# Static files caching
if (req.url ~ "^/(pub/)?(media|static)/") {
# Static files should not be cached by default
return (pass);
# But if you use a few locales and don't use CDN you can enable caching
static files by commenting previous line (#return (pass);) and uncommenting next 3
lines
#unset req.http.Https;
#unset req.http.X-Forwarded-Proto;
#unset req.http.Cookie;
}
# Bypass authenticated GraphQL requests without a X-Magento-Cache-Id
if (req.url ~ "/graphql" && !req.http.X-Magento-Cache-Id &&
req.http.Authorization ~ "^Bearer") {
return (pass);
}
return (hash);
}
sub vcl_hash {
if ((req.url !~ "/graphql" || !req.http.X-Magento-Cache-Id) && req.http.cookie
~ "X-Magento-Vary=") {
hash_data(regsub(req.http.cookie, "^.*?X-Magento-Vary=([^;]+);*.*$",
"1"));
}
# To make sure http users don't see ssl warning
if (req.http.X-Forwarded-Proto) {
hash_data(req.http.X-Forwarded-Proto);
}
if (req.url ~ "/graphql") {
call process_graphql_headers;
}
}
sub process_graphql_headers {
if (req.http.X-Magento-Cache-Id) {
hash_data(req.http.X-Magento-Cache-Id);
# When the frontend stops sending the auth token, make sure users stop
getting results cached for logged-in users
if (req.http.Authorization ~ "^Bearer") {
hash_data("Authorized");
}
}
if (req.http.Store) {
hash_data(req.http.Store);
}
if (req.http.Content-Currency) {
hash_data(req.http.Content-Currency);
}
}
sub vcl_backend_response {

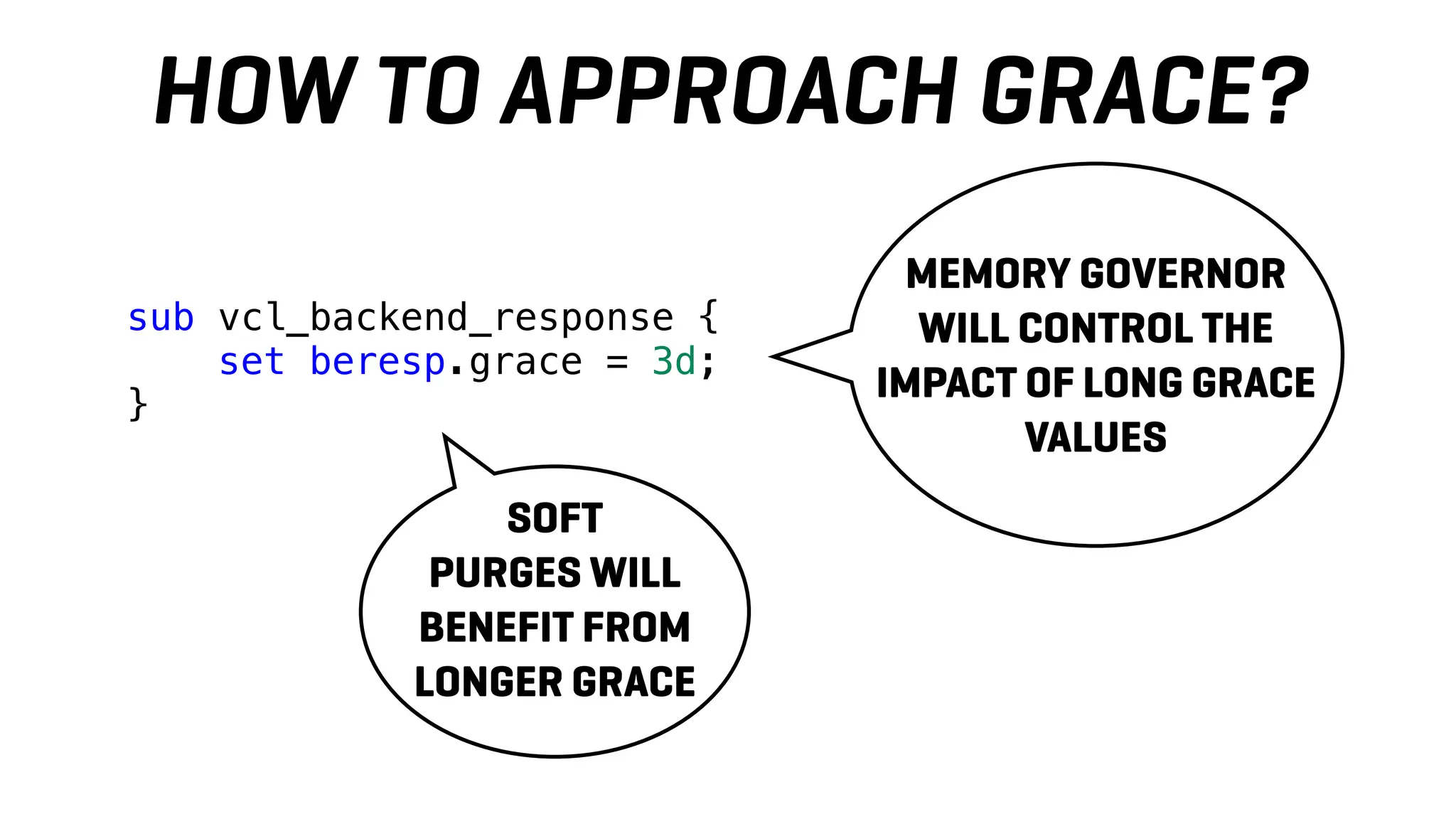

set beresp.grace = 3d;
if (beresp.http.content-type ~ "text") {
set beresp.do_esi = true;
}
if (bereq.url ~ ".js$" || beresp.http.content-type ~ "text") {
set beresp.do_gzip = true;
}
if (beresp.http.X-Magento-Debug) {
set beresp.http.X-Magento-Cache-Control = beresp.http.Cache-Control;
}
# cache only successfully responses and 404s that are not marked as private
if ((beresp.status != 200 && beresp.status != 404) || beresp.http.Cache-
Control ~ "private") {
set beresp.uncacheable = true;
set beresp.ttl = 86400s;
return (deliver);
}
# validate if we need to cache it and prevent from setting cookie
if (beresp.ttl > 0s && (bereq.method == "GET" || bereq.method == "HEAD")) {
# Collapse beresp.http.set-cookie in order to merge multiple set-cookie
headers
# Although it is not recommended to collapse set-cookie header,
# it is safe to do it here as the set-cookie header is removed below
std.collect(beresp.http.set-cookie);
# Do not cache the response under current cache key (hash),
# if the response has X-Magento-Vary but the request does not.
if ((bereq.url !~ "/graphql" || !bereq.http.X-Magento-Cache-Id)
&& bereq.http.cookie !~ "X-Magento-Vary="
&& beresp.http.set-cookie ~ "X-Magento-Vary=") {
set beresp.ttl = 0s;
set beresp.uncacheable = true;
}
unset beresp.http.set-cookie;
}
# If page is not cacheable then bypass varnish for 2 minutes as Hit-For-Pass
if (beresp.ttl <= 0s ||
beresp.http.Surrogate-control ~ "no-store" ||
(!beresp.http.Surrogate-Control &&
beresp.http.Cache-Control ~ "no-cache|no-store") ||
beresp.http.Vary == "*") {
# Mark as Hit-For-Pass for the next 2 minutes
set beresp.ttl = 120s;
set beresp.uncacheable = true;
}
# If the cache key in the Magento response doesn't match the one that was sent
in the request, don't cache under the request's key
if (bereq.url ~ "/graphql" && bereq.http.X-Magento-Cache-Id && bereq.http.X-
Magento-Cache-Id != beresp.http.X-Magento-Cache-Id) {
set beresp.ttl = 0s;
set beresp.uncacheable = true;
}
return (deliver);
}
sub vcl_deliver {
if (obj.uncacheable) {
set resp.http.X-Magento-Cache-Debug = "UNCACHEABLE";
} else if (obj.hits) {
set resp.http.X-Magento-Cache-Debug = "HIT";
set resp.http.Grace = req.http.grace;
} else {
set resp.http.X-Magento-Cache-Debug = "MISS";
}
# Not letting browser to cache non-static files.
if (resp.http.Cache-Control !~ "private" && req.url !~ "^/(pub/)?(media|
static)/") {
set resp.http.Pragma = "no-cache";
set resp.http.Expires = "-1";
set resp.http.Cache-Control = "no-store, no-cache, must-revalidate, max-
A LOT OF VCL CODE](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-15-2048.jpg)

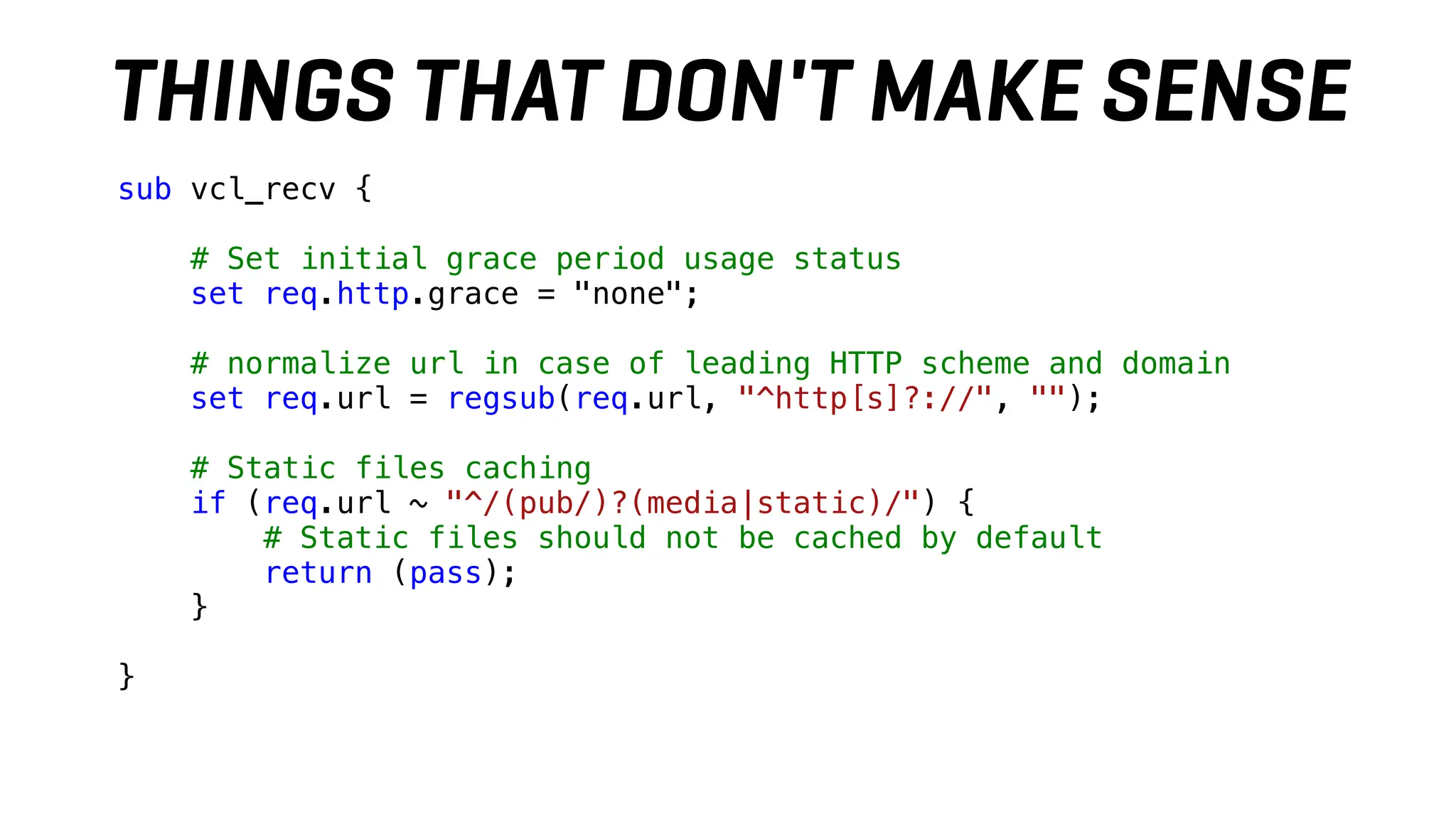

![sub vcl_recv {
# Set initial grace period usage status
set req.http.grace = "none";
# normalize url in case of leading HTTP scheme and domain
set req.url = regsub(req.url, "^http[s]?://", "");
# Static files caching
if (req.url ~ "^/(pub/)?(media|static)/") {
# Static files should not be cached by default
return (pass);
}
}

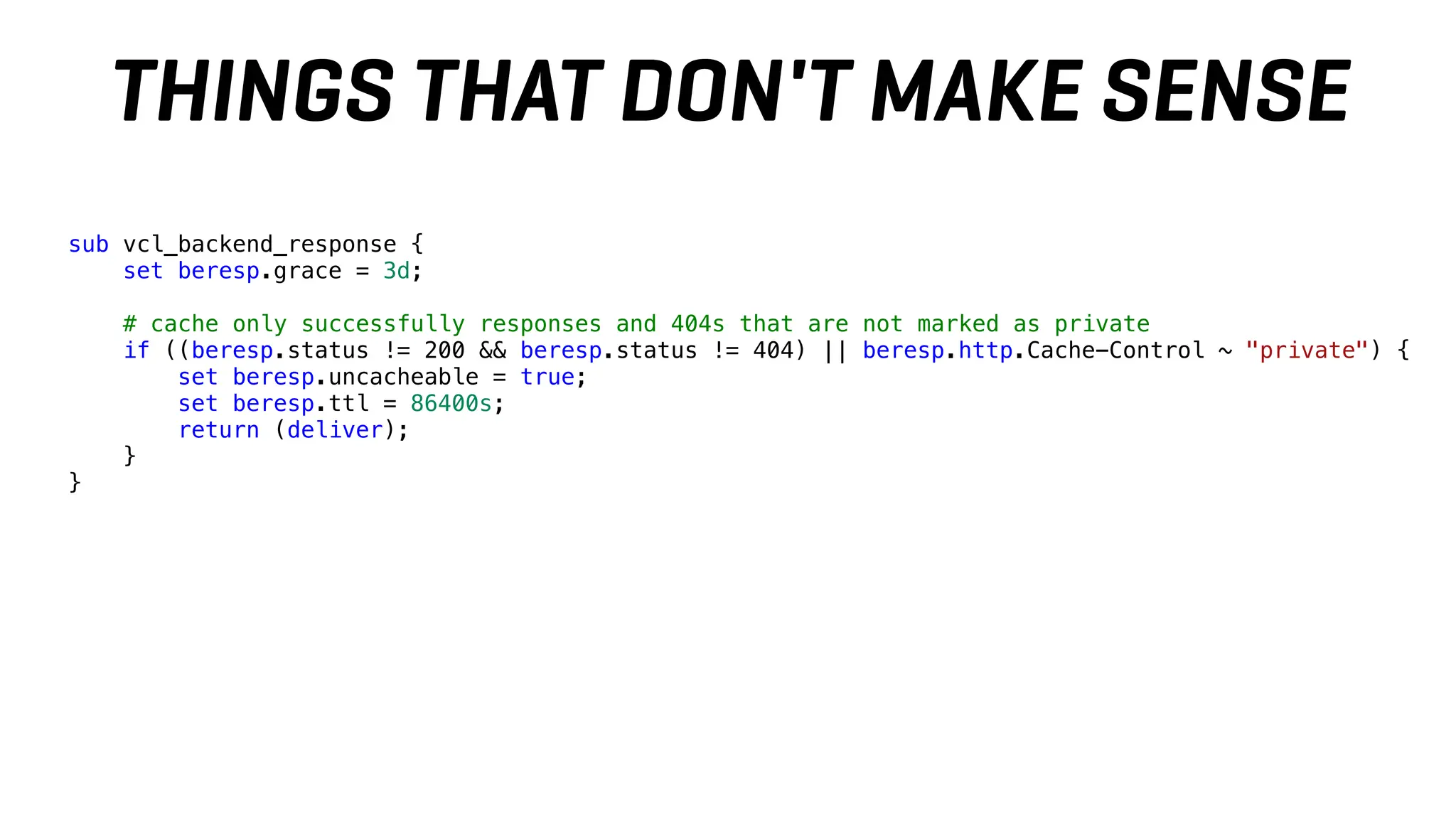

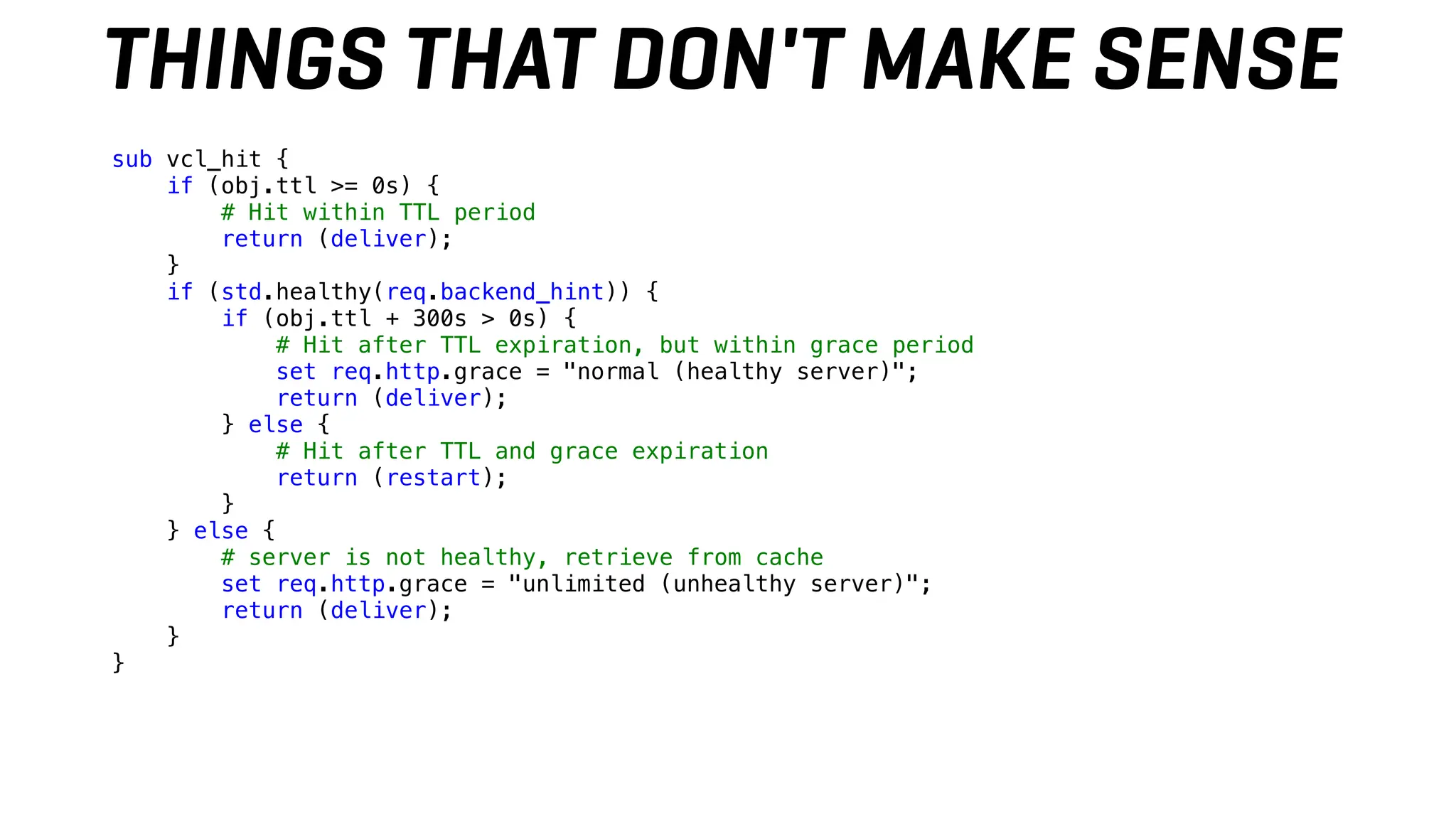

THINGS THAT DON'T MAKE SENSE](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-18-2048.jpg)

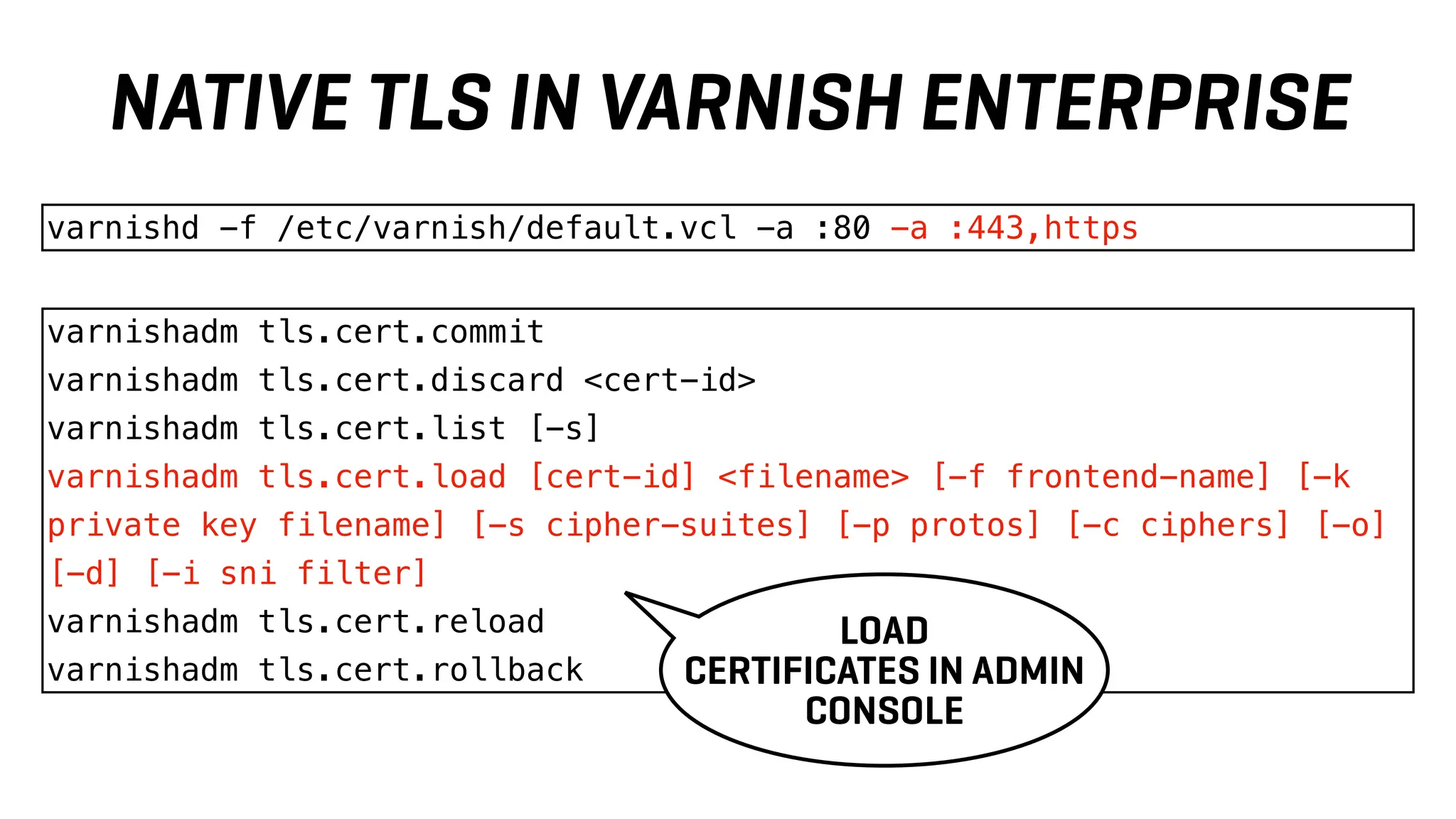

![varnishadm tls.cert.commit
varnishadm tls.cert.discard <cert-id>
varnishadm tls.cert.list [-s]
varnishadm tls.cert.load [cert-id] <filename> [-f frontend-name] [-k
private key filename] [-s cipher-suites] [-p protos] [-c ciphers] [-o]
[-d] [-i sni filter]
varnishadm tls.cert.reload
varnishadm tls.cert.rollback
varnishd -f /etc/varnish/default.vcl -a :80 -a :443,https
LOAD
CERTIFICATES IN ADMIN
CONSOLE

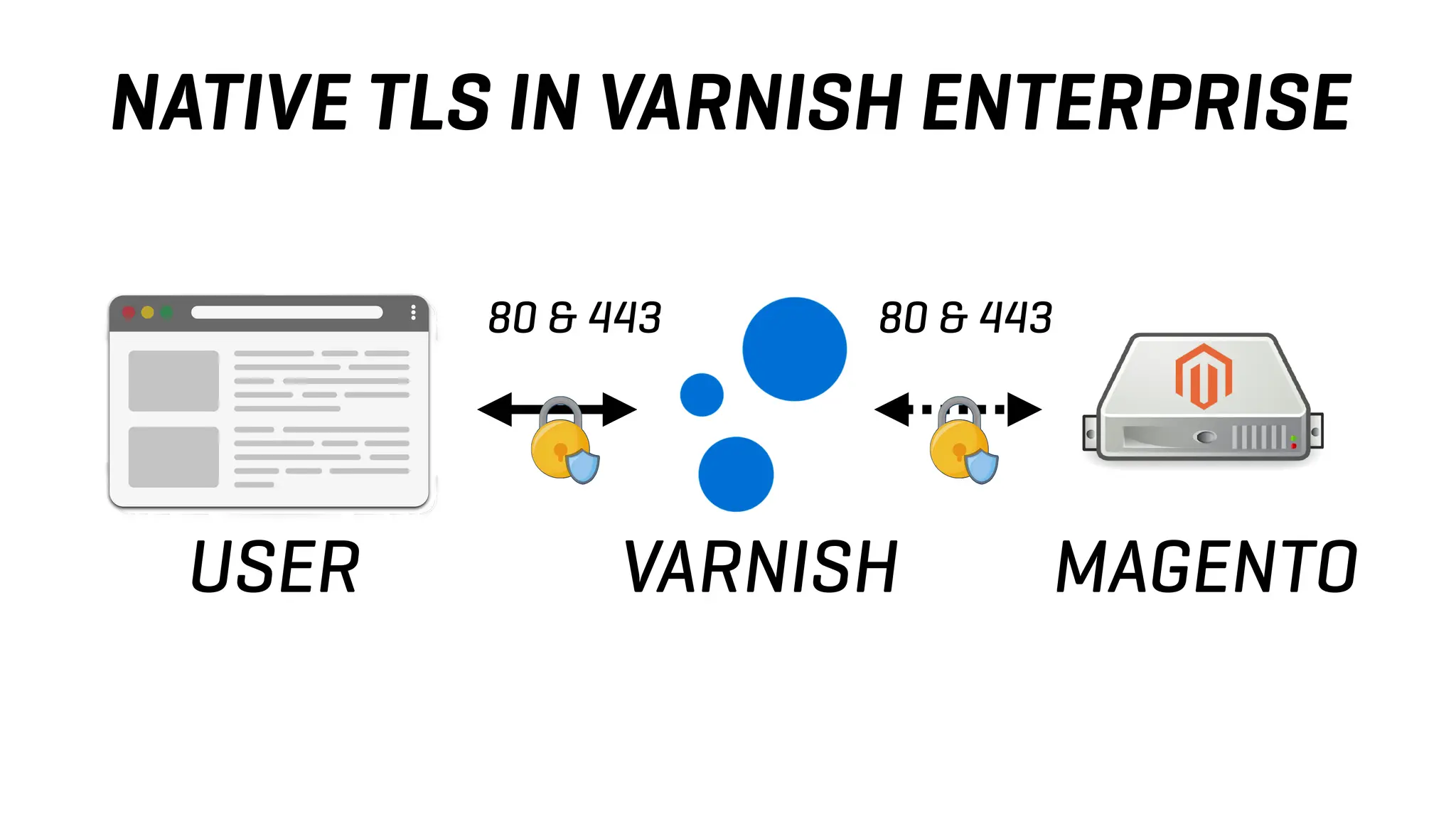

NATIVE TLS IN VARNISH ENTERPRISE](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-35-2048.jpg)

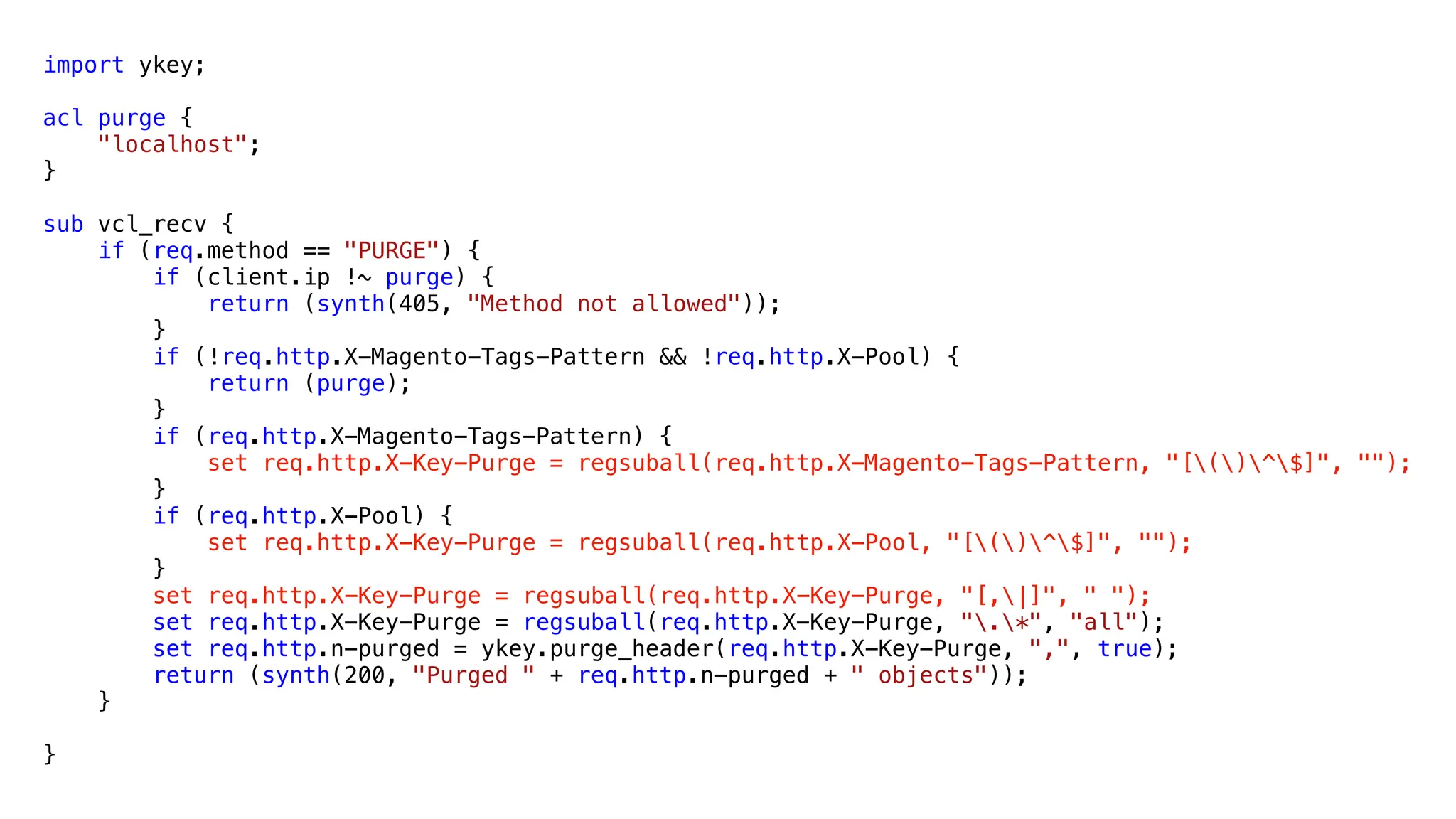

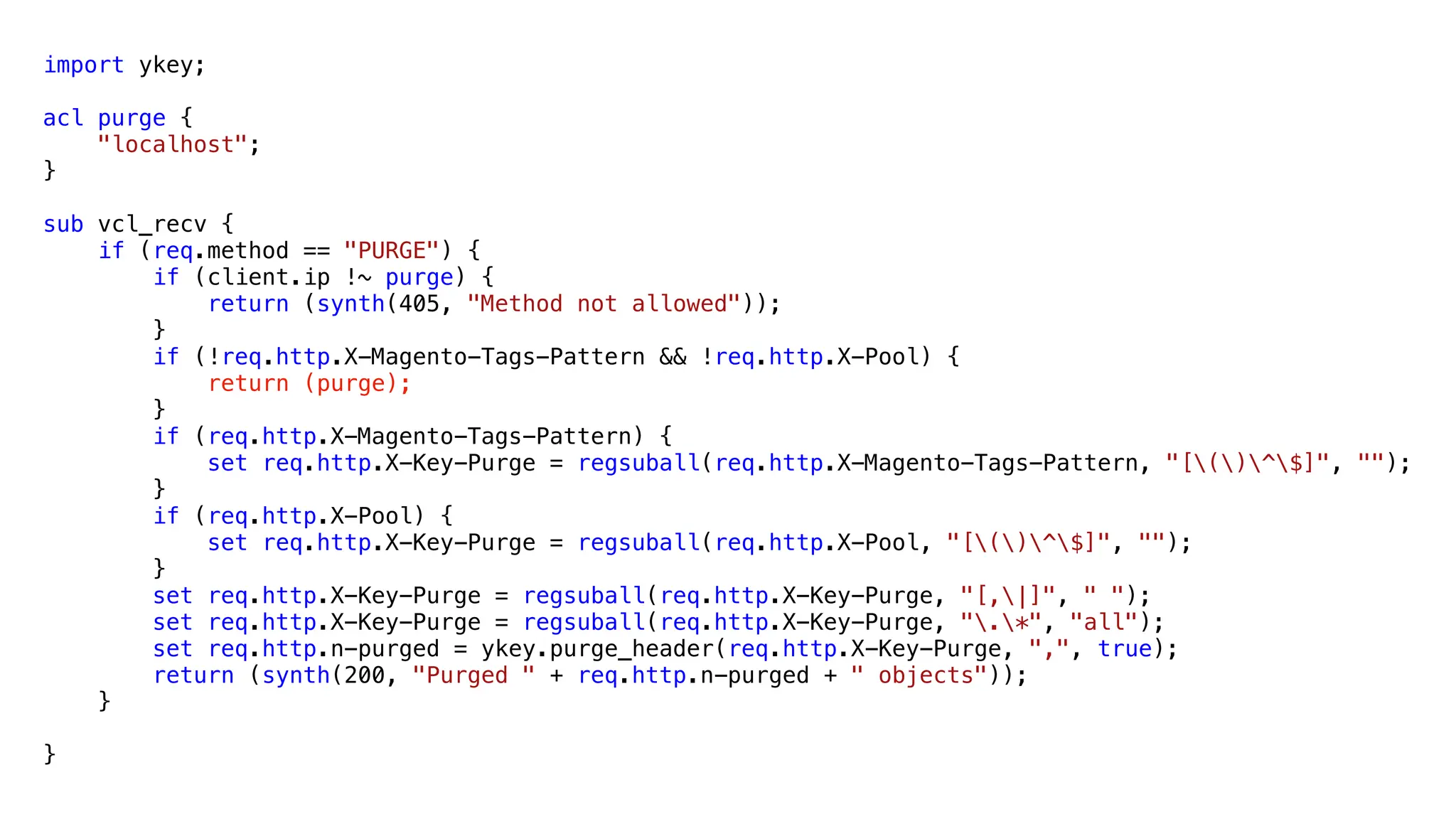

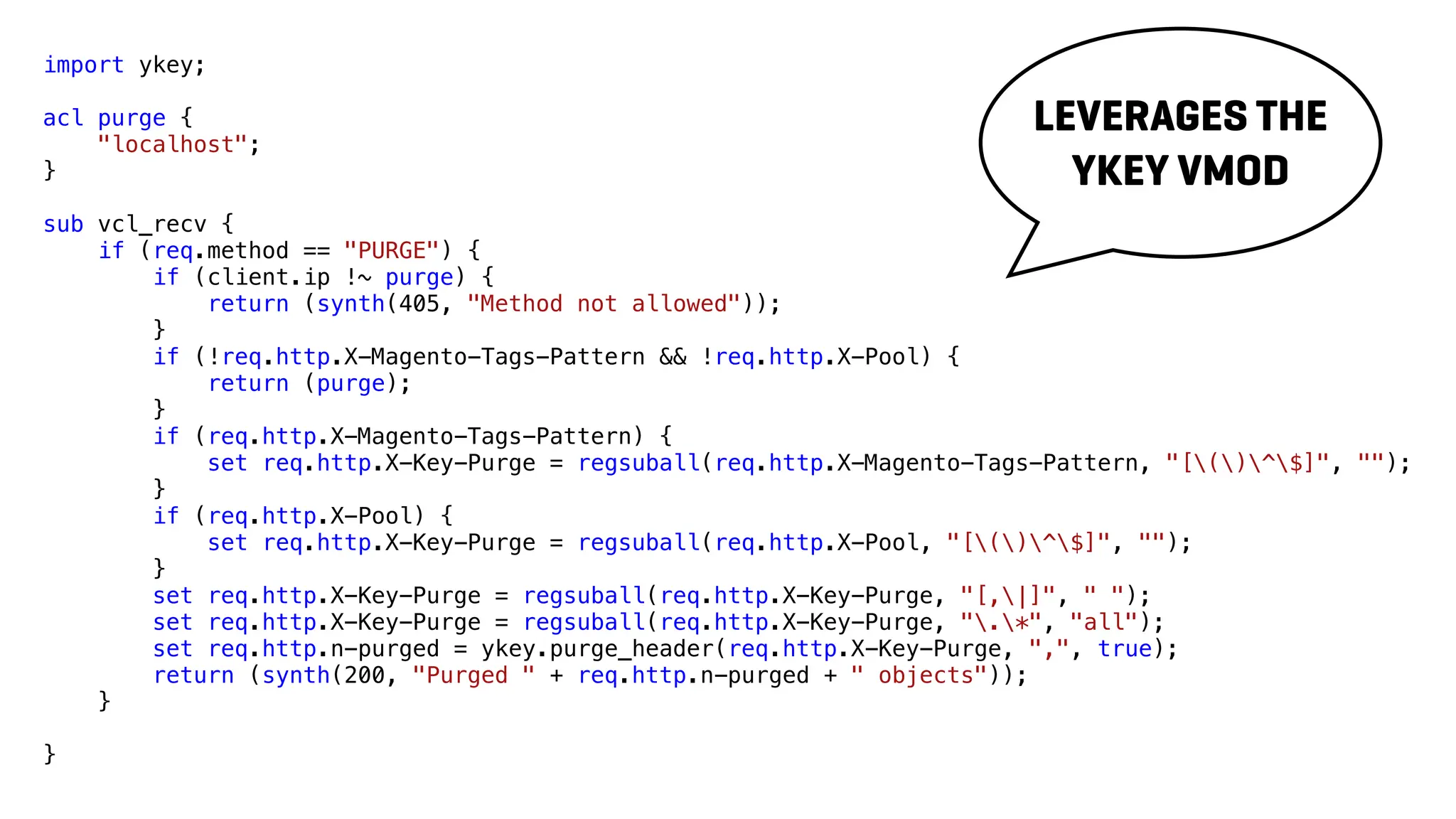

![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");

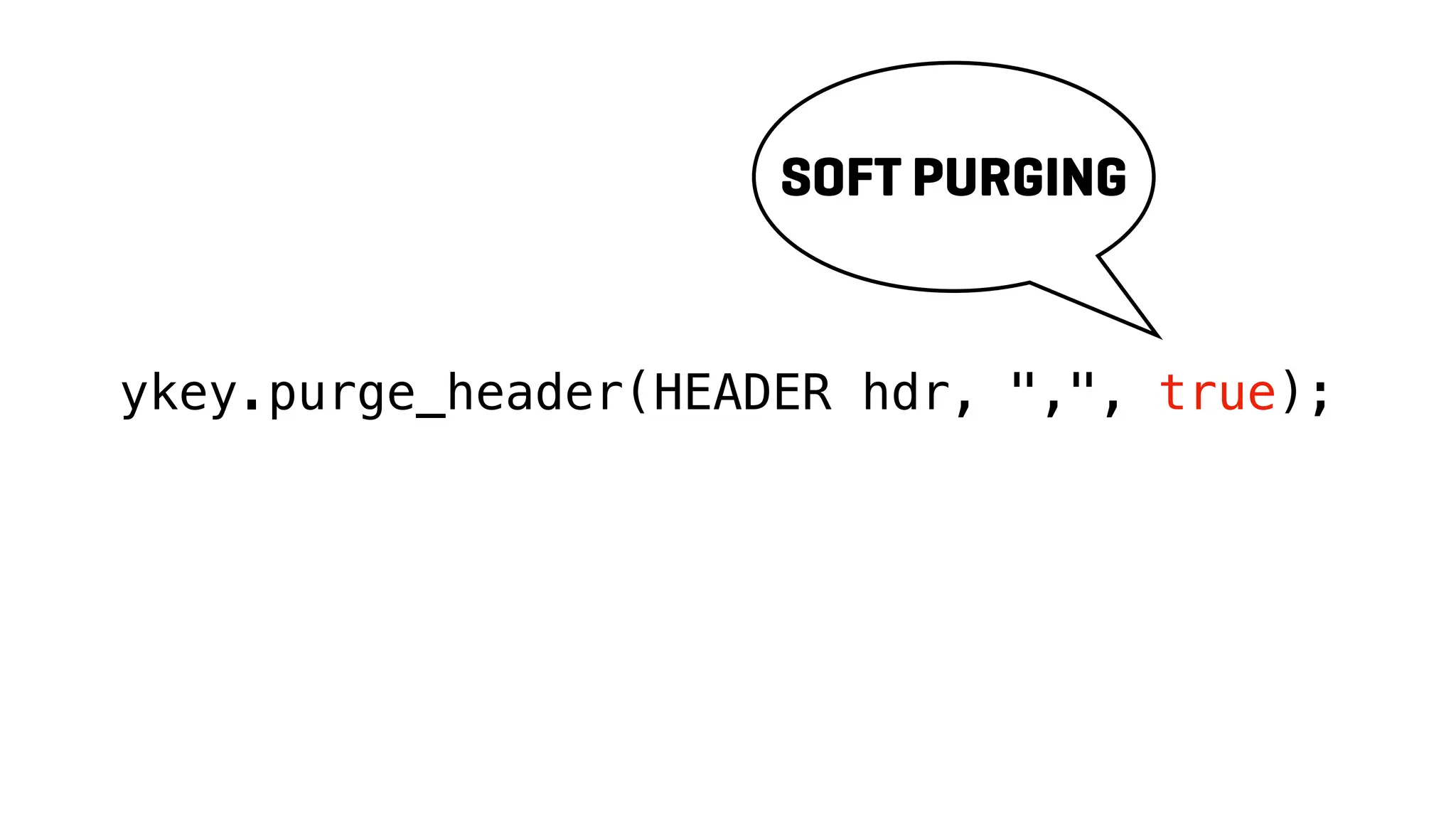

set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}
LEVERAGES THE
YKEY VMOD](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-53-2048.jpg)

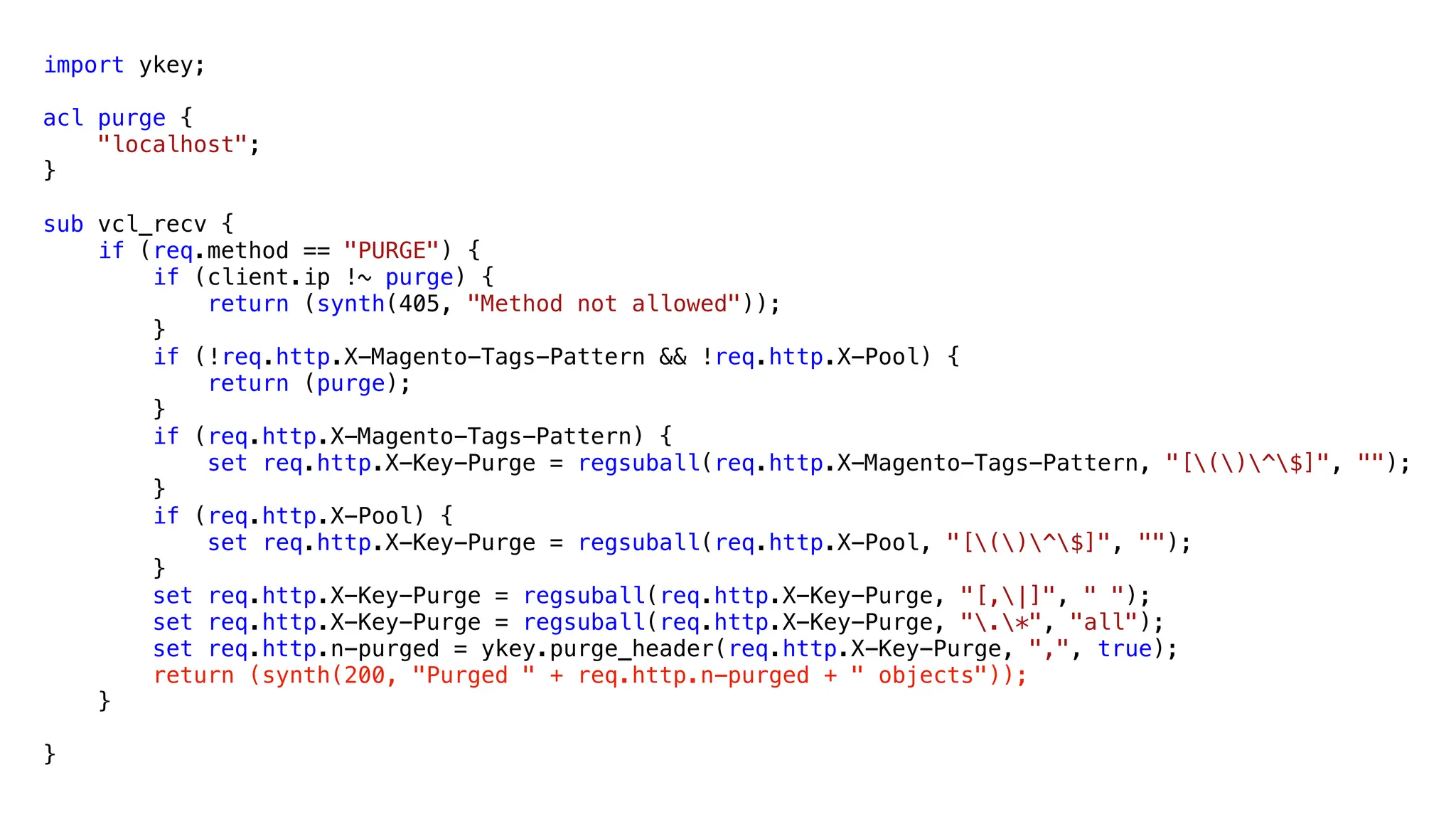

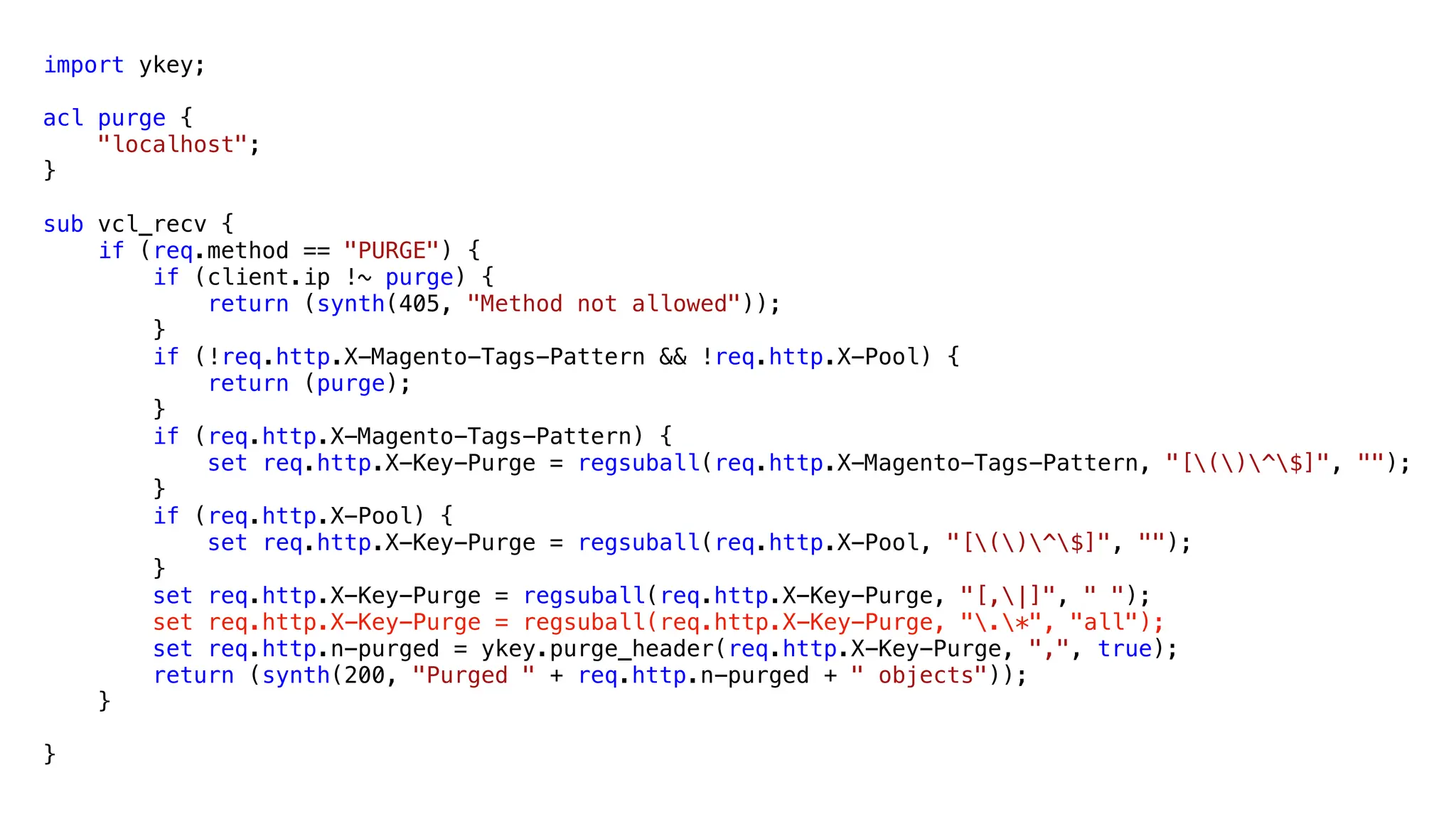

![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");
set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-54-2048.jpg)
![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");
set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-55-2048.jpg)
![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");
set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-56-2048.jpg)
![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");
set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-57-2048.jpg)
![import ykey;
acl purge {
"localhost";
}
sub vcl_recv {
if (req.method == "PURGE") {
if (client.ip !~ purge) {
return (synth(405, "Method not allowed"));
}
if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) {
return (purge);
}
if (req.http.X-Magento-Tags-Pattern) {
set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", "");
}
if (req.http.X-Pool) {
set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", "");
}
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " ");
set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all");
set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true);
return (synth(200, "Purged " + req.http.n-purged + " objects"));
}
}](https://image.slidesharecdn.com/varnishenterprisemagentopoznan24-241004201844-322e8034/75/Varnish-Enterprise-when-you-need-the-full-power-of-caching-58-2048.jpg)
Uploaded byThijs Feryn
Varnish Enterprise - when you need the full power of caching
The document outlines Varnish Software's optimization techniques for Magento users, focusing on its configuration language (VCL) and caching features for improved web performance. It discusses the requirements for VARNISH, including SSL offloading and header settings, along with advanced features like tag-based cache invalidation, rate limiting, and dynamic backends offered in the enterprise version. Additionally, it mentions an exclusive offer for Meet Magento Poland attendees to upgrade to Varnish Enterprise for Magento at a reduced price.
More Related Content
Similar to Varnish Enterprise - when you need the full power of caching
![[BDD 2025 - Full-Stack Development] The Modern Stack: Building Web & AI Appli...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-themodernstackbuildingwebaiapplicationswithserverless-251124030844-388cf04f-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] Digital Accessibility: Why Developers nee...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-digitalaccessibilitywhydevelopersneedtoknowandcarein2025-251127011019-0674441d-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...](https://cdn.slidesharecdn.com/ss_thumbnails/md-craftingimmersiveuiwithe2eandagslshaderveronicaputrianggraini-251124030840-0c677f44-thumbnail.jpg?width=640&height=640&fit=bounds)
Varnish Enterprise - when you need the full power of caching
- 2.
- 3.
- 4. I'M THE TECHEVANGELIST AT VARNISH SOFTWARE
- 8. WE BUILD SOFTWARE-DEFINED WEBACCELERATION & CONTENT DELIVERY SOLUTIONS
- 10.
- 11.
- 12.
- 13.
- 15. # VCL version5.0 is not supported so it should be 4.0 even though actually used Varnish version is 6 vcl 4.0; import std; # The minimal Varnish version is 6.0 # For SSL offloading, pass the following header in your proxy server or load balancer: 'X-Forwarded-Proto: https' backend default { .host = "localhost"; .port = "8080"; .first_byte_timeout = 600s; .probe = { .url = "/health_check.php"; .timeout = 2s; .interval = 5s; .window = 10; .threshold = 5; } } acl purge { "localhost"; } sub vcl_recv { if (req.restarts > 0) { set req.hash_always_miss = true; } if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } # To use the X-Pool header for purging varnish during automated deployments, make sure the X-Pool header # has been added to the response in your backend server config. This is used, for example, by the # capistrano-magento2 gem for purging old content from varnish during it's deploy routine. if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (synth(400, "X-Magento-Tags-Pattern or X-Pool header required")); } if (req.http.X-Magento-Tags-Pattern) { ban("obj.http.X-Magento-Tags ~ " + req.http.X-Magento-Tags-Pattern); } if (req.http.X-Pool) { ban("obj.http.X-Pool ~ " + req.http.X-Pool); } return (synth(200, "Purged")); } if (req.method != "GET" && req.method != "HEAD" && req.method != "PUT" && req.method != "POST" && req.method != "TRACE" && req.method != "OPTIONS" && req.method != "DELETE") { /* Non-RFC2616 or CONNECT which is weird. */ return (pipe); } # We only deal with GET and HEAD by default if (req.method != "GET" && req.method != "HEAD") { return (pass); } # Bypass customer, shopping cart, checkout if (req.url ~ "/customer" || req.url ~ "/checkout") { return (pass); } # Bypass health check requests if (req.url ~ "^/(pub/)?(health_check.php)$") { return (pass); } # Set initial grace period usage status set req.http.grace = "none"; # normalize url in case of leading HTTP scheme and domain set req.url = regsub(req.url, "^http[s]?://", ""); # collect all cookies std.collect(req.http.Cookie); # Remove all marketing get parameters to minimize the cache objects if (req.url ~ "(?|&)(gclid|cx|ie|cof|siteurl|zanpid|origin|fbclid|mc_[a-z]+| utm_[a-z]+|_bta_[a-z]+)=") { set req.url = regsuball(req.url, "(gclid|cx|ie|cof|siteurl|zanpid|origin| fbclid|mc_[a-z]+|utm_[a-z]+|_bta_[a-z]+)=[-_A-z0-9+()%.]+&?", ""); set req.url = regsub(req.url, "[?|&]+$", ""); } # Static files caching if (req.url ~ "^/(pub/)?(media|static)/") { # Static files should not be cached by default return (pass); # But if you use a few locales and don't use CDN you can enable caching static files by commenting previous line (#return (pass);) and uncommenting next 3 lines #unset req.http.Https; #unset req.http.X-Forwarded-Proto; #unset req.http.Cookie; } # Bypass authenticated GraphQL requests without a X-Magento-Cache-Id if (req.url ~ "/graphql" && !req.http.X-Magento-Cache-Id && req.http.Authorization ~ "^Bearer") { return (pass); } return (hash); } sub vcl_hash { if ((req.url !~ "/graphql" || !req.http.X-Magento-Cache-Id) && req.http.cookie ~ "X-Magento-Vary=") { hash_data(regsub(req.http.cookie, "^.*?X-Magento-Vary=([^;]+);*.*$", "1")); } # To make sure http users don't see ssl warning if (req.http.X-Forwarded-Proto) { hash_data(req.http.X-Forwarded-Proto); } if (req.url ~ "/graphql") { call process_graphql_headers; } } sub process_graphql_headers { if (req.http.X-Magento-Cache-Id) { hash_data(req.http.X-Magento-Cache-Id); # When the frontend stops sending the auth token, make sure users stop getting results cached for logged-in users if (req.http.Authorization ~ "^Bearer") { hash_data("Authorized"); } } if (req.http.Store) { hash_data(req.http.Store); } if (req.http.Content-Currency) { hash_data(req.http.Content-Currency); } } sub vcl_backend_response { set beresp.grace = 3d; if (beresp.http.content-type ~ "text") { set beresp.do_esi = true; } if (bereq.url ~ ".js$" || beresp.http.content-type ~ "text") { set beresp.do_gzip = true; } if (beresp.http.X-Magento-Debug) { set beresp.http.X-Magento-Cache-Control = beresp.http.Cache-Control; } # cache only successfully responses and 404s that are not marked as private if ((beresp.status != 200 && beresp.status != 404) || beresp.http.Cache- Control ~ "private") { set beresp.uncacheable = true; set beresp.ttl = 86400s; return (deliver); } # validate if we need to cache it and prevent from setting cookie if (beresp.ttl > 0s && (bereq.method == "GET" || bereq.method == "HEAD")) { # Collapse beresp.http.set-cookie in order to merge multiple set-cookie headers # Although it is not recommended to collapse set-cookie header, # it is safe to do it here as the set-cookie header is removed below std.collect(beresp.http.set-cookie); # Do not cache the response under current cache key (hash), # if the response has X-Magento-Vary but the request does not. if ((bereq.url !~ "/graphql" || !bereq.http.X-Magento-Cache-Id) && bereq.http.cookie !~ "X-Magento-Vary=" && beresp.http.set-cookie ~ "X-Magento-Vary=") { set beresp.ttl = 0s; set beresp.uncacheable = true; } unset beresp.http.set-cookie; } # If page is not cacheable then bypass varnish for 2 minutes as Hit-For-Pass if (beresp.ttl <= 0s || beresp.http.Surrogate-control ~ "no-store" || (!beresp.http.Surrogate-Control && beresp.http.Cache-Control ~ "no-cache|no-store") || beresp.http.Vary == "*") { # Mark as Hit-For-Pass for the next 2 minutes set beresp.ttl = 120s; set beresp.uncacheable = true; } # If the cache key in the Magento response doesn't match the one that was sent in the request, don't cache under the request's key if (bereq.url ~ "/graphql" && bereq.http.X-Magento-Cache-Id && bereq.http.X- Magento-Cache-Id != beresp.http.X-Magento-Cache-Id) { set beresp.ttl = 0s; set beresp.uncacheable = true; } return (deliver); } sub vcl_deliver { if (obj.uncacheable) { set resp.http.X-Magento-Cache-Debug = "UNCACHEABLE"; } else if (obj.hits) { set resp.http.X-Magento-Cache-Debug = "HIT"; set resp.http.Grace = req.http.grace; } else { set resp.http.X-Magento-Cache-Debug = "MISS"; } # Not letting browser to cache non-static files. if (resp.http.Cache-Control !~ "private" && req.url !~ "^/(pub/)?(media| static)/") { set resp.http.Pragma = "no-cache"; set resp.http.Expires = "-1"; set resp.http.Cache-Control = "no-store, no-cache, must-revalidate, max- A LOT OF VCL CODE

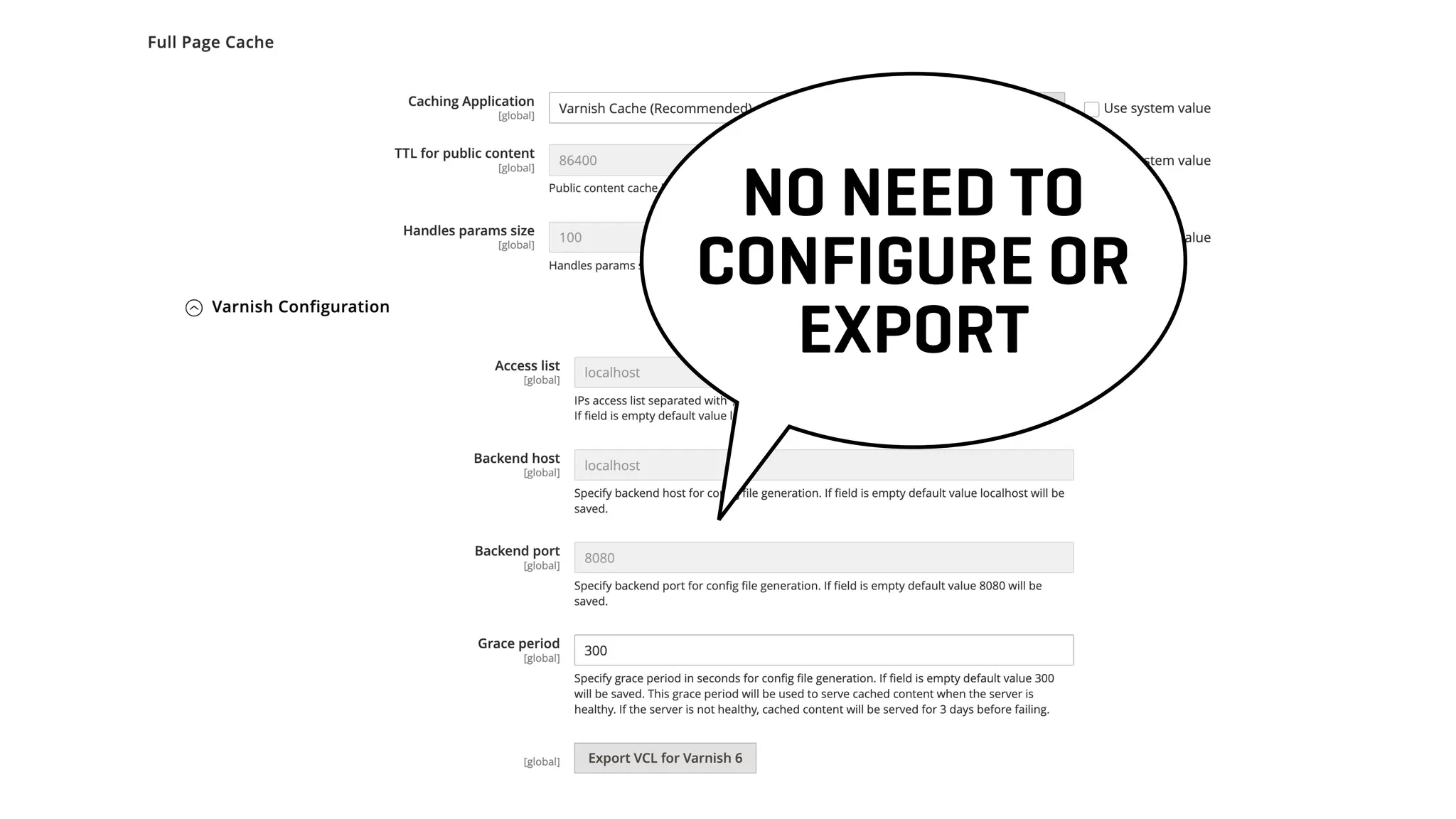

- 17. NO NEED TO CONFIGUREOR EXPORT
- 18. sub vcl_recv { #Set initial grace period usage status set req.http.grace = "none"; # normalize url in case of leading HTTP scheme and domain set req.url = regsub(req.url, "^http[s]?://", ""); # Static files caching if (req.url ~ "^/(pub/)?(media|static)/") { # Static files should not be cached by default return (pass); } } THINGS THAT DON'T MAKE SENSE
- 19. sub vcl_backend_response { setberesp.grace = 3d; # cache only successfully responses and 404s that are not marked as private if ((beresp.status != 200 && beresp.status != 404) || beresp.http.Cache-Control ~ "private") { set beresp.uncacheable = true; set beresp.ttl = 86400s; return (deliver); } } THINGS THAT DON'T MAKE SENSE
- 20. OBJECT LIFETIME =TTL + GRACE + KEEP

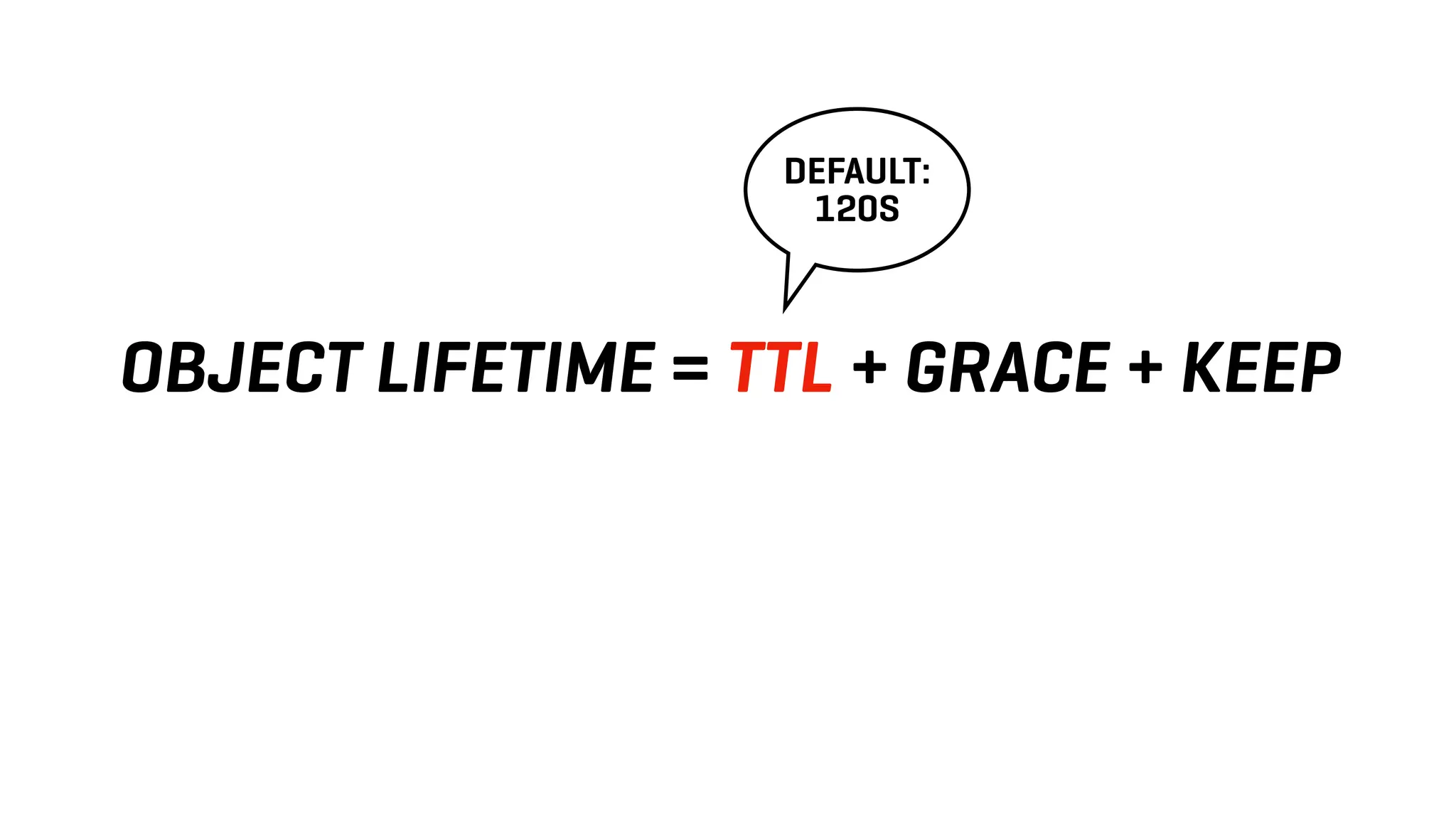

- 21. OBJECT LIFETIME =TTL + GRACE + KEEP DEFAULT: 120S

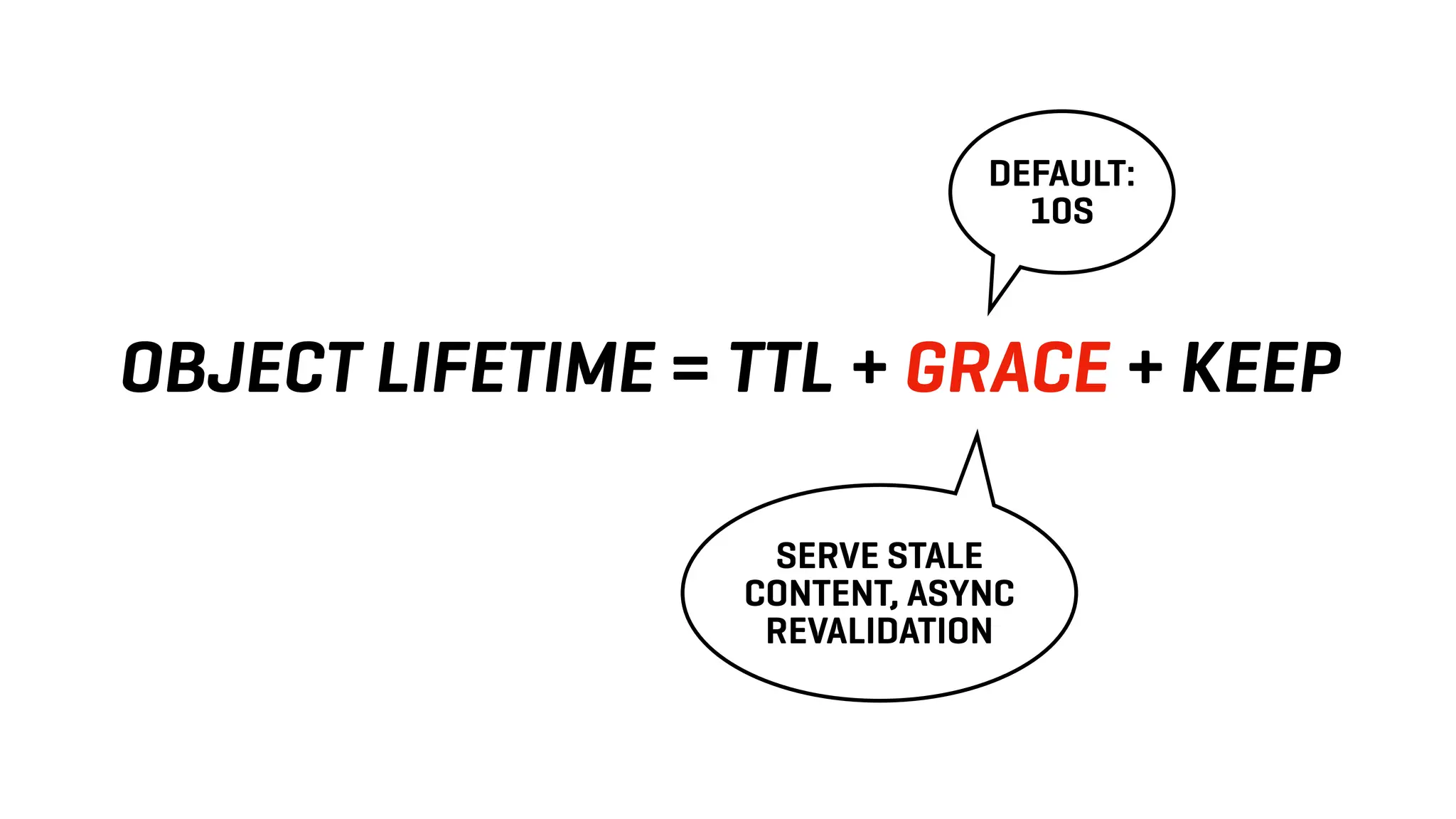

- 22. OBJECT LIFETIME =TTL + GRACE + KEEP DEFAULT: 10S SERVE STALE CONTENT, ASYNC REVALIDATION

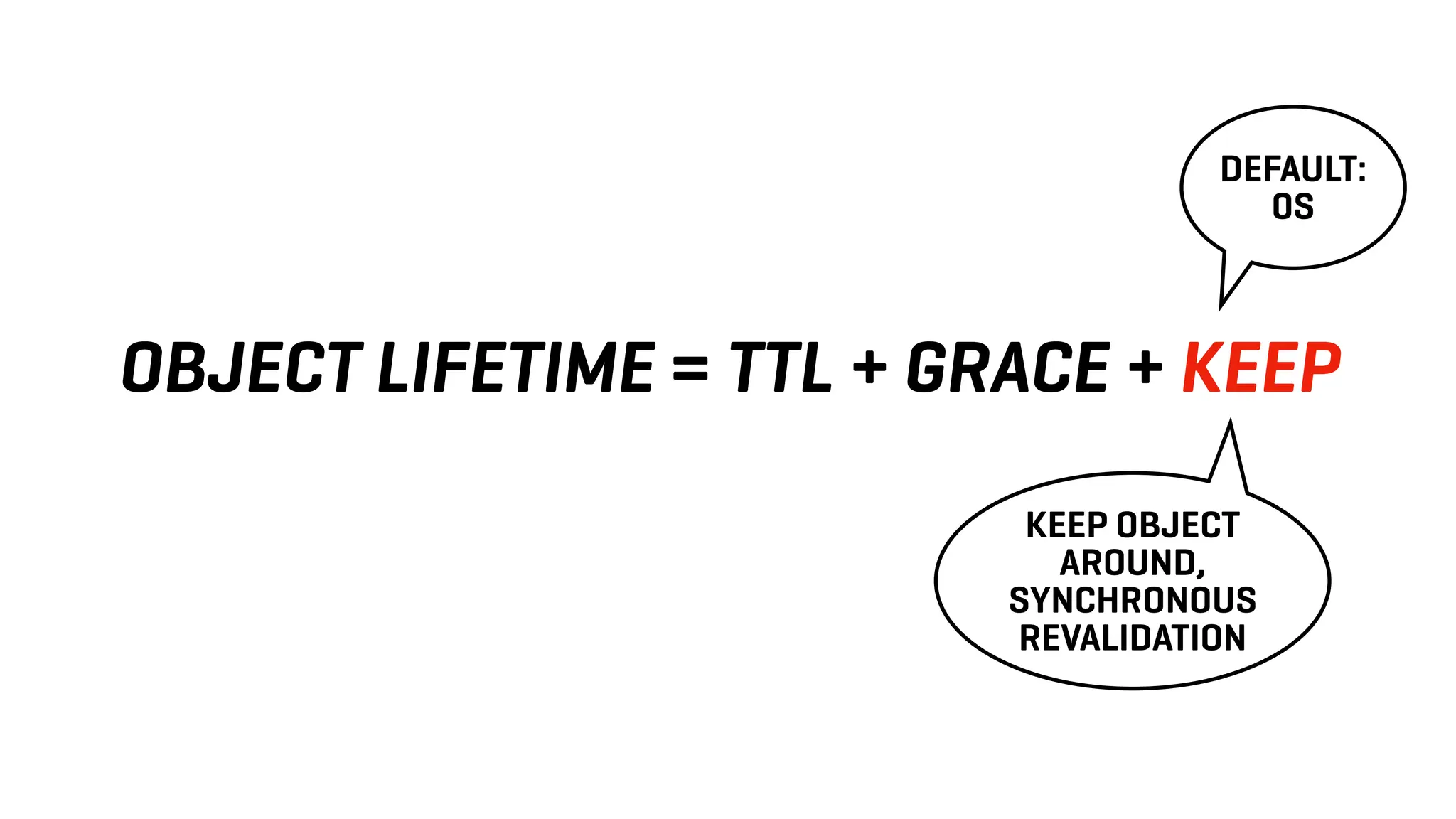

- 23. OBJECT LIFETIME =TTL + GRACE + KEEP DEFAULT: 0S KEEP OBJECT AROUND, SYNCHRONOUS REVALIDATION
- 24. HIGH GRACE ORKEEP HAS MEMORY IMPACT LRU EVICTION WILL KICK IN
- 25. THINGS THAT DON'TMAKE SENSE sub vcl_hit { if (obj.ttl >= 0s) { # Hit within TTL period return (deliver); } if (std.healthy(req.backend_hint)) { if (obj.ttl + 300s > 0s) { # Hit after TTL expiration, but within grace period set req.http.grace = "normal (healthy server)"; return (deliver); } else { # Hit after TTL and grace expiration return (restart); } } else { # server is not healthy, retrieve from cache set req.http.grace = "unlimited (unhealthy server)"; return (deliver); } }
- 26.
- 27. COMMON OBSTACLES ✓ TLSHANDLING ✓ BACKEND ISSUES ✓ CACHE INVALIDATION & SOFT PURGES ✓ STORAGE & MEMORY MANAGEMENT ✓ UNDERSTANDING VCL & DEBUGGING
- 28.
- 29. WE'RE TACKLING SOME OF THESELIMITATIONS IN OUR COMMERCIAL OFFERING
- 30. End-to-end TLS support Client-side& backend TLS support DELIVERY & COURIER SERVICES NEED TO SEND SOMETHING? WE OFFER Tag-based cache invalidation Invalidate multiple objects based on user- defined tags. Outperforms Varnish bans and is fully compatible with Magento Advanced header, cookie & URL processing A collection of VMODs that give you the ability to manage cookies, headers and URLs using a clean API, without the messy regular expressions Optimized Varnish Enterprise for Magento VCL file A VCL file that is optimized for Magento and that uses the Varnish Enterprise for Magento feature set Memory Governor Dynamically scale the size of the cache based on worker process memory requirements. Prevents Out-Of-Memory issues at scale Dynamic backends Dynamic DNS resolution of backend hostnames, supporting DNS changes at runtime and DNS-based load balancing Rate limiting & bandwidth throttling Scan here for details Enforce rate limiting of user requests and throttle bandwidth based on user- defined criteria Meet Magento Poland attendees can take advantage of an exclusive offer to upgrade to Varnish Enterprise for Magento at a reduced price. This version of Varnish is packaged with select enterprise features that will further enhance the caching of Magento. The packaged features include: SELECT VARNISH ENTERPRISE FEATURES, OPTIMIZED AND PACKAGED FOR MAGENTO REGISTER YOUR INTEREST EXCLUSIVELY FOR MEET MAGENTO POLAND ATTENDEES, LIMITED AVAILABILITY, REDUCED PRICE TERMS & CONDITIONS APPLY* VARNISH ENTERPRISE FOR MAGENTO EXCLUSIVE OFFER: ✓ EXCLUSIVE OFFER ONLY FOR MEET MAGENTO POLAND ATTENDEES ✓ VARNISH ENTERPRISE CORE + SELECT ENTERPRISE FEATURES & MODULES ✓ REDUCED PRICE ✓ OPTIMIZED FOR MAGENTO V I S I T O U R B O O T H
- 31.

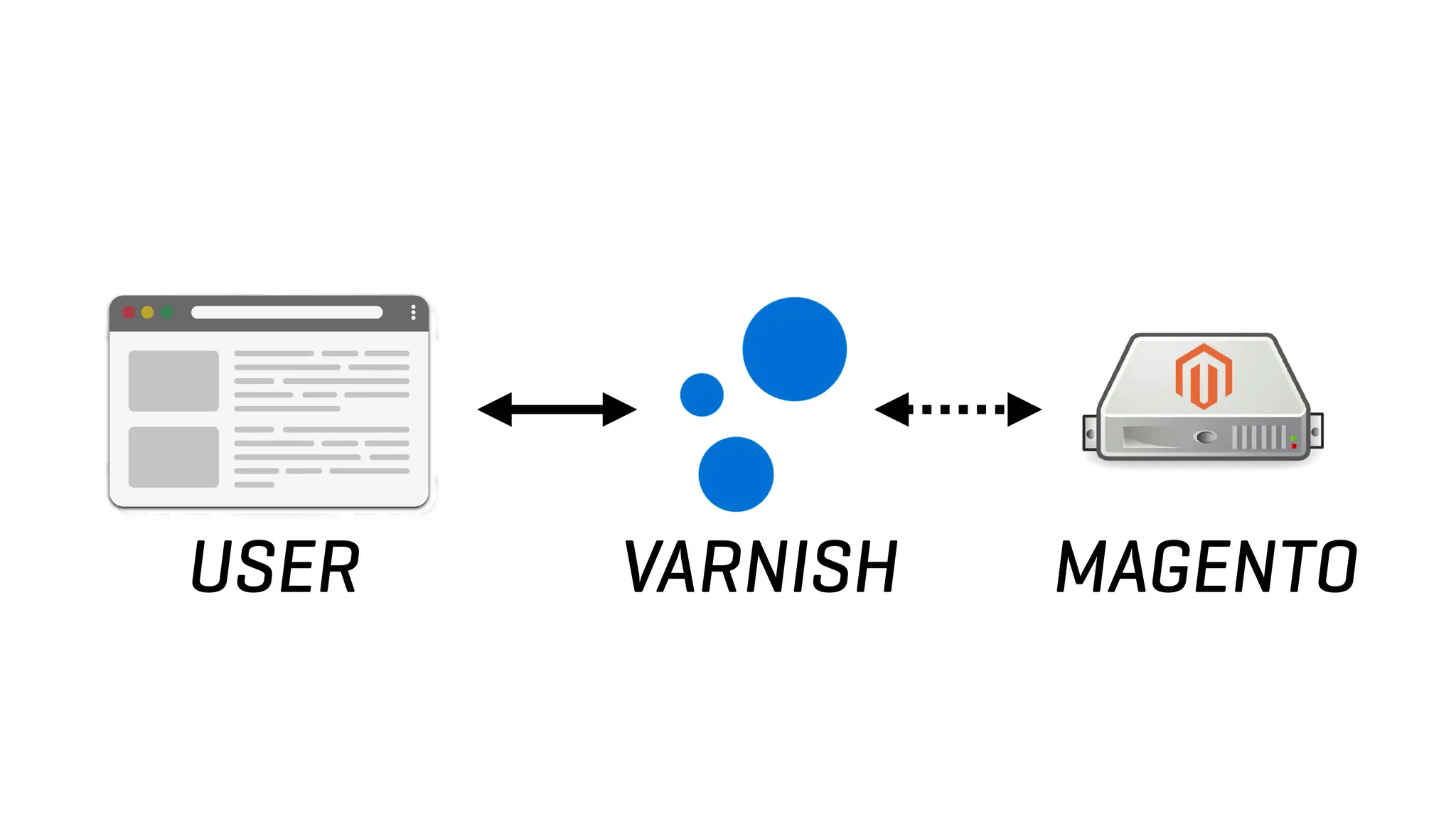

- 32. USER VARNISH MAGENTO NATIVETLS IN VARNISH ENTERPRISE 80 & 443 80 & 443
- 33. BUILT TO GOBEYOND 150 GBPS WE CAN HANDLE 1.5 TBPS NOW
- 34. frontend = { host= "*" port = "443" } pem-file = { cert = "/etc/varnish/certs/my.crt" private-key = "/etc/varnish/certs/my.key" } ciphersuites = "TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256" ciphers = "ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM- SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE- RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-CHACHA20-POLY1305" tls-protos = TLSv1.2 TLSv1.3 ecdh-curve = "X25519:prime256v1:secp384r1" prefer-server-ciphers = false alpn-protos = "h2,http/1.1" varnishd -f /etc/varnish/default.vcl -a :80 -A /etc/varnish/tls.cfg TLS.CFG
- 35. varnishadm tls.cert.commit varnishadm tls.cert.discard<cert-id> varnishadm tls.cert.list [-s] varnishadm tls.cert.load [cert-id] <filename> [-f frontend-name] [-k private key filename] [-s cipher-suites] [-p protos] [-c ciphers] [-o] [-d] [-i sni filter] varnishadm tls.cert.reload varnishadm tls.cert.rollback varnishd -f /etc/varnish/default.vcl -a :80 -a :443,https LOAD CERTIFICATES IN ADMIN CONSOLE NATIVE TLS IN VARNISH ENTERPRISE
- 36. socket.close start tls.cert.load /etc/varnish/certs/mycert.pem tls.cert.commit socket.open varnishd -f/etc/varnish/default.vcl -a :80 -a :443,https -I /etc/ varnish/cli.cfg CLI.CFG LOADED ON STARTUP NATIVE TLS IN VARNISH ENTERPRISE
- 37. backend default { .host= "magento.example.com"; .port = "443"; .ssl = 1; .ssl_sni = 1; .ssl_verify_peer = 1; .ssl_verify_host = 1; .first_byte_timeout = 600s; .probe = { .url = "/health_check.php"; .timeout = 2s; .interval = 5s; .window = 10; .threshold = 5; } } BACKEND TLS

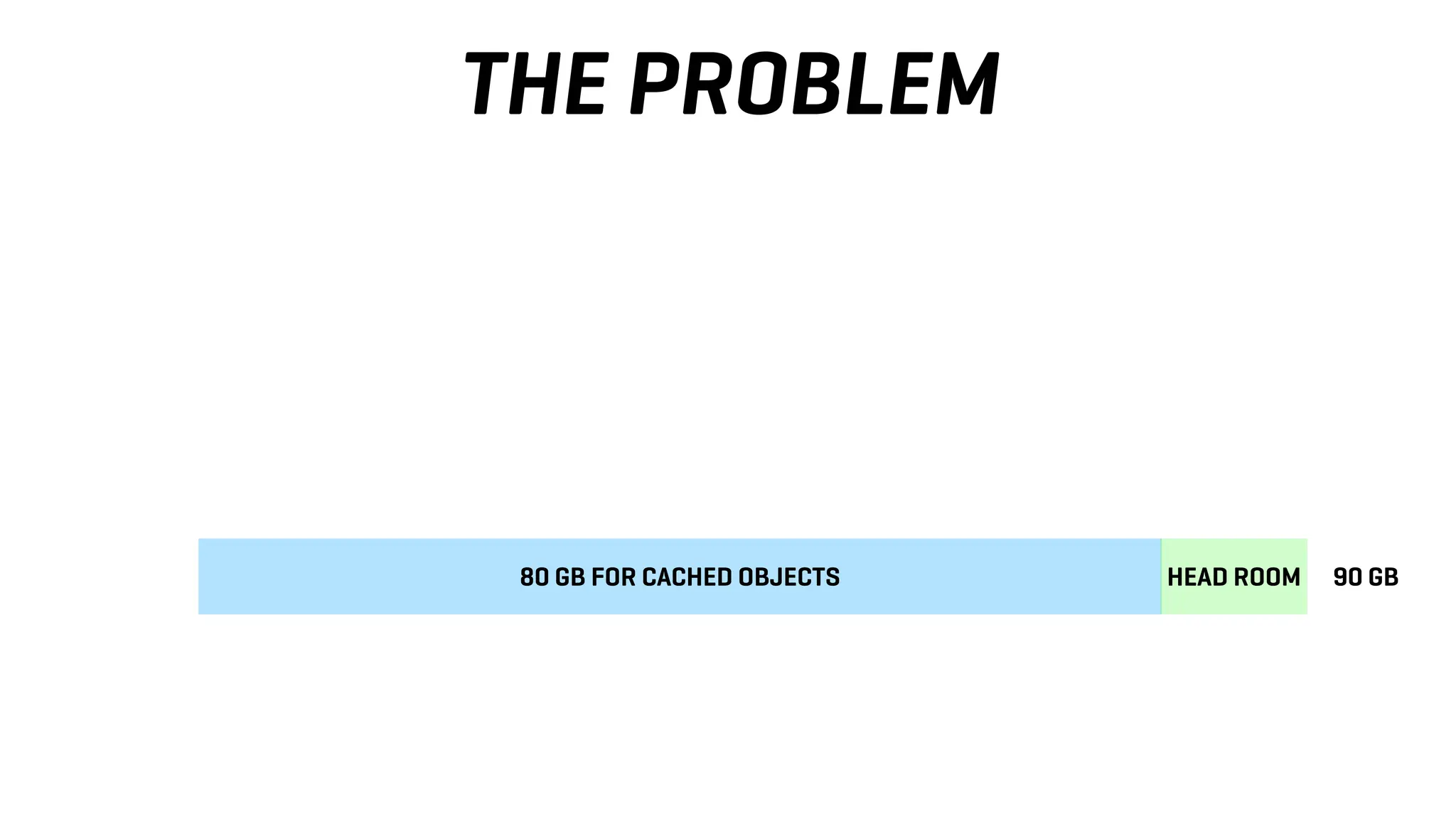

- 39. THE PROBLEM 80 GBFOR CACHED OBJECTS HEAD ROOM 90 GB

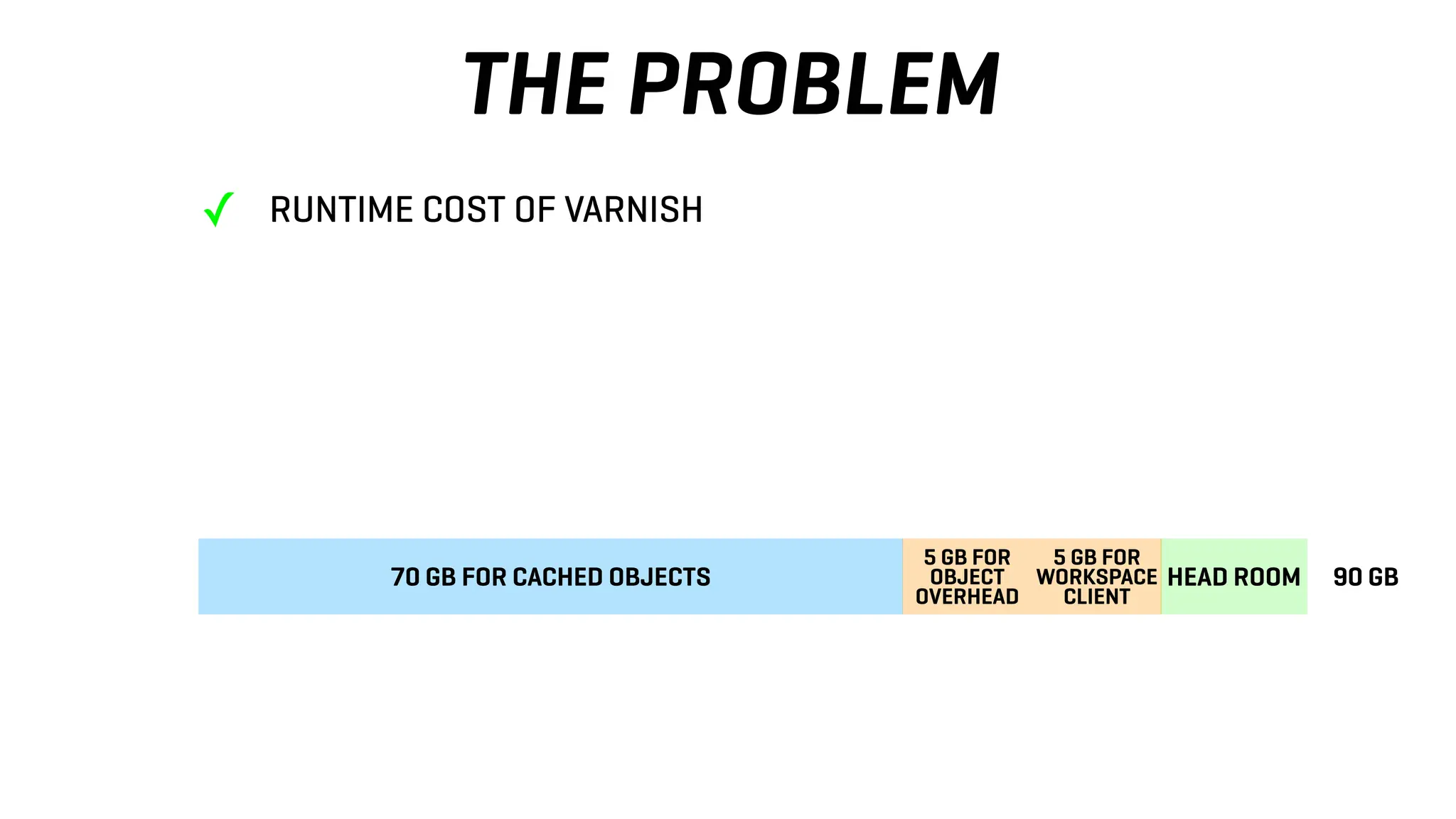

- 40. THE PROBLEM 70 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT ✓ RUNTIME COST OF VARNISH

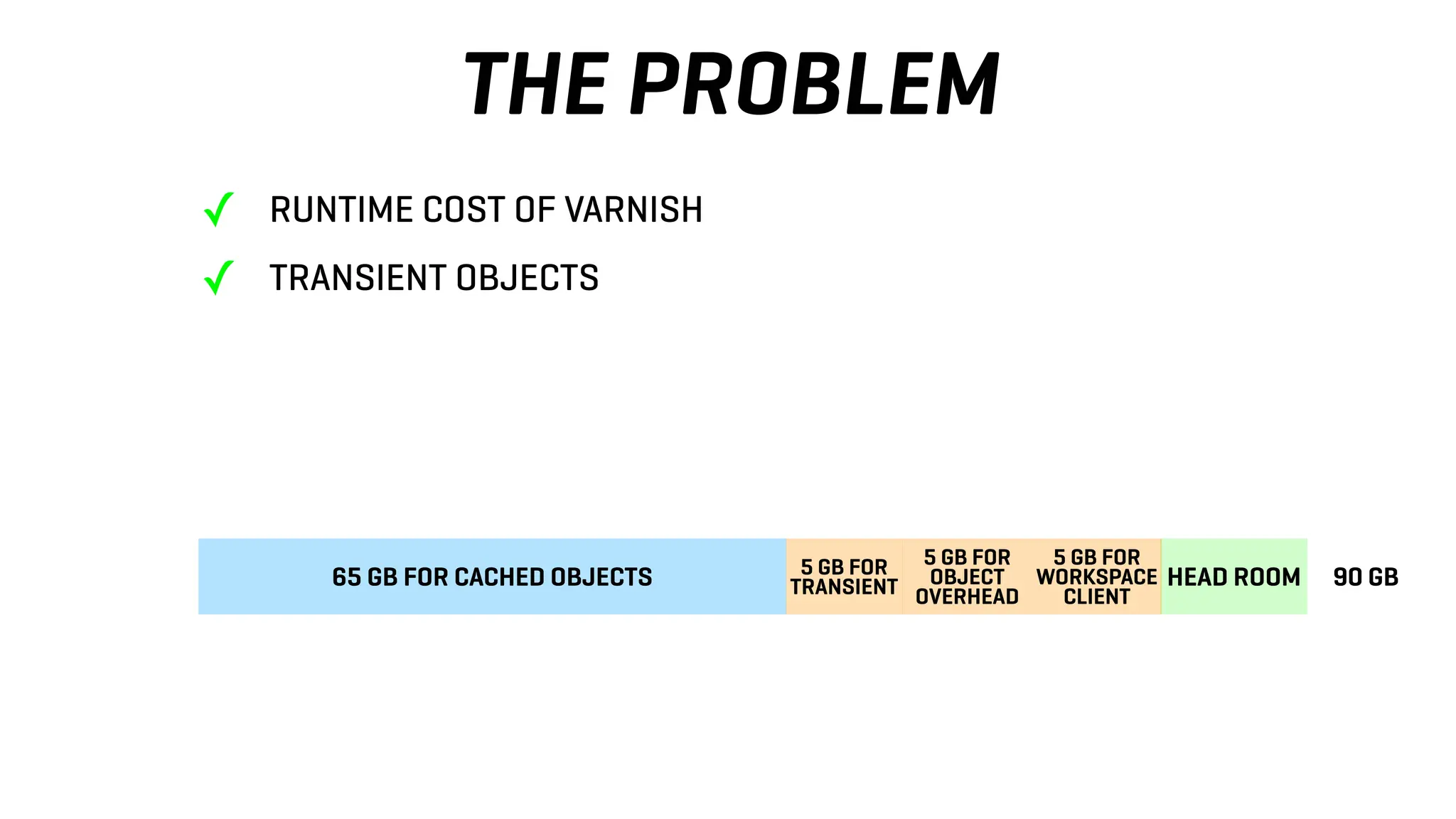

- 41. THE PROBLEM 65 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT ✓ RUNTIME COST OF VARNISH ✓ TRANSIENT OBJECTS 5 GB FOR TRANSIENT

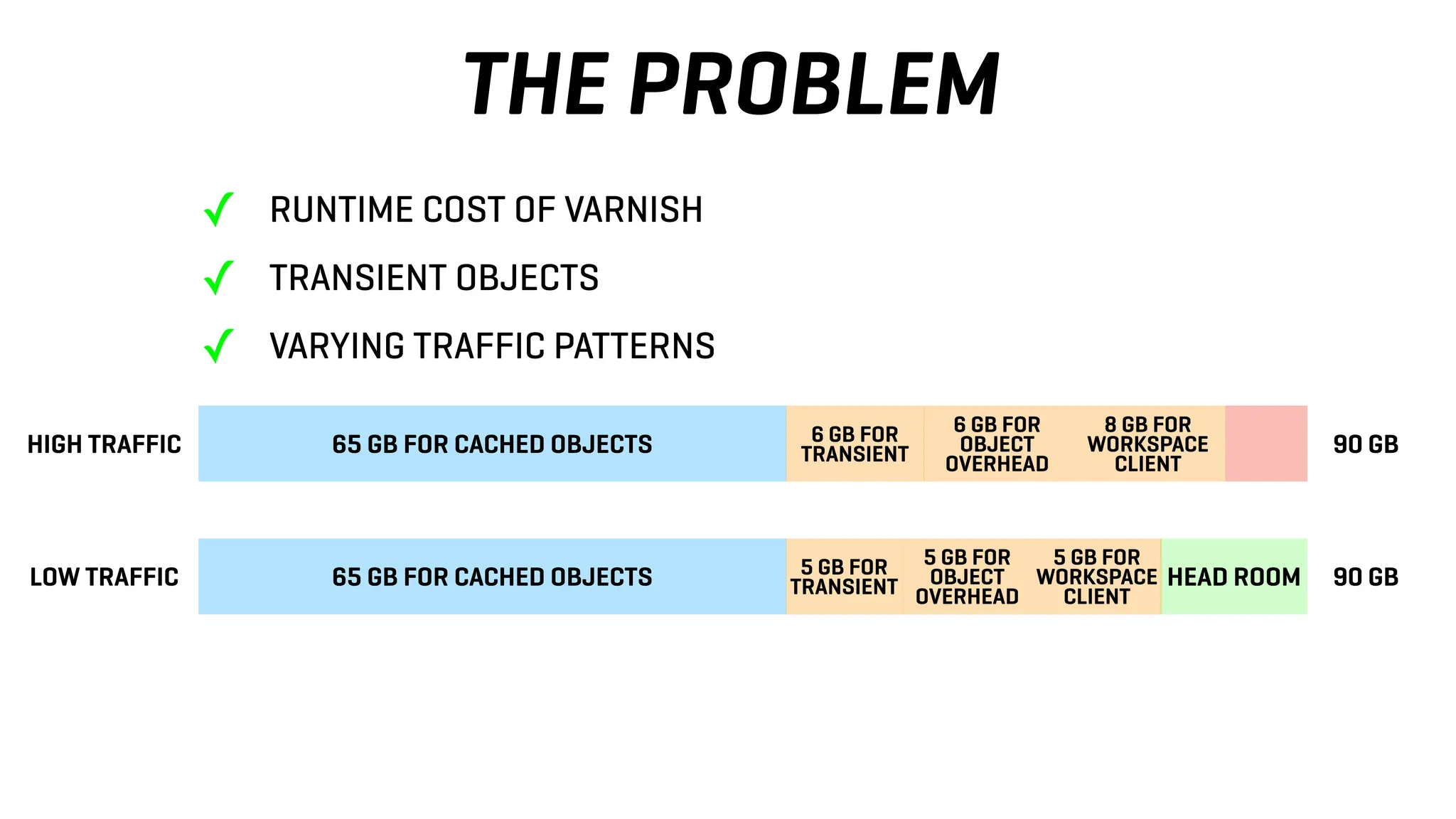

- 42. THE PROBLEM 65 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT ✓ RUNTIME COST OF VARNISH ✓ TRANSIENT OBJECTS ✓ VARYING TRAFFIC PATTERNS 5 GB FOR TRANSIENT 65 GB FOR CACHED OBJECTS 90 GB 6 GB FOR OBJECT OVERHEAD 8 GB FOR WORKSPACE CLIENT 6 GB FOR TRANSIENT HIGH TRAFFIC LOW TRAFFIC

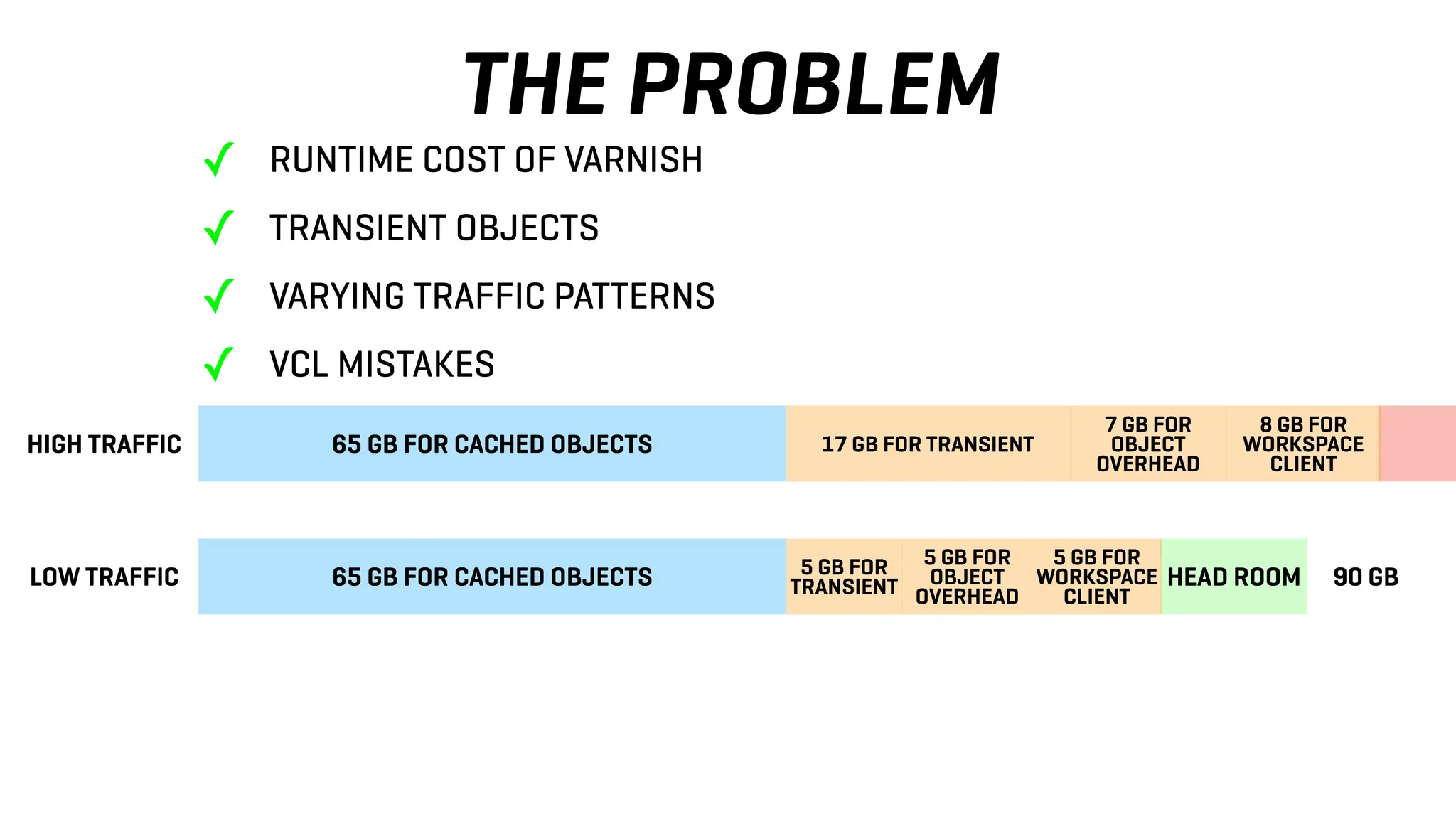

- 43. THE PROBLEM 65 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT ✓ RUNTIME COST OF VARNISH ✓ TRANSIENT OBJECTS ✓ VARYING TRAFFIC PATTERNS ✓ VCL MISTAKES 5 GB FOR TRANSIENT 65 GB FOR CACHED OBJECTS 7 GB FOR OBJECT OVERHEAD 8 GB FOR WORKSPACE CLIENT 17 GB FOR TRANSIENT HIGH TRAFFIC LOW TRAFFIC

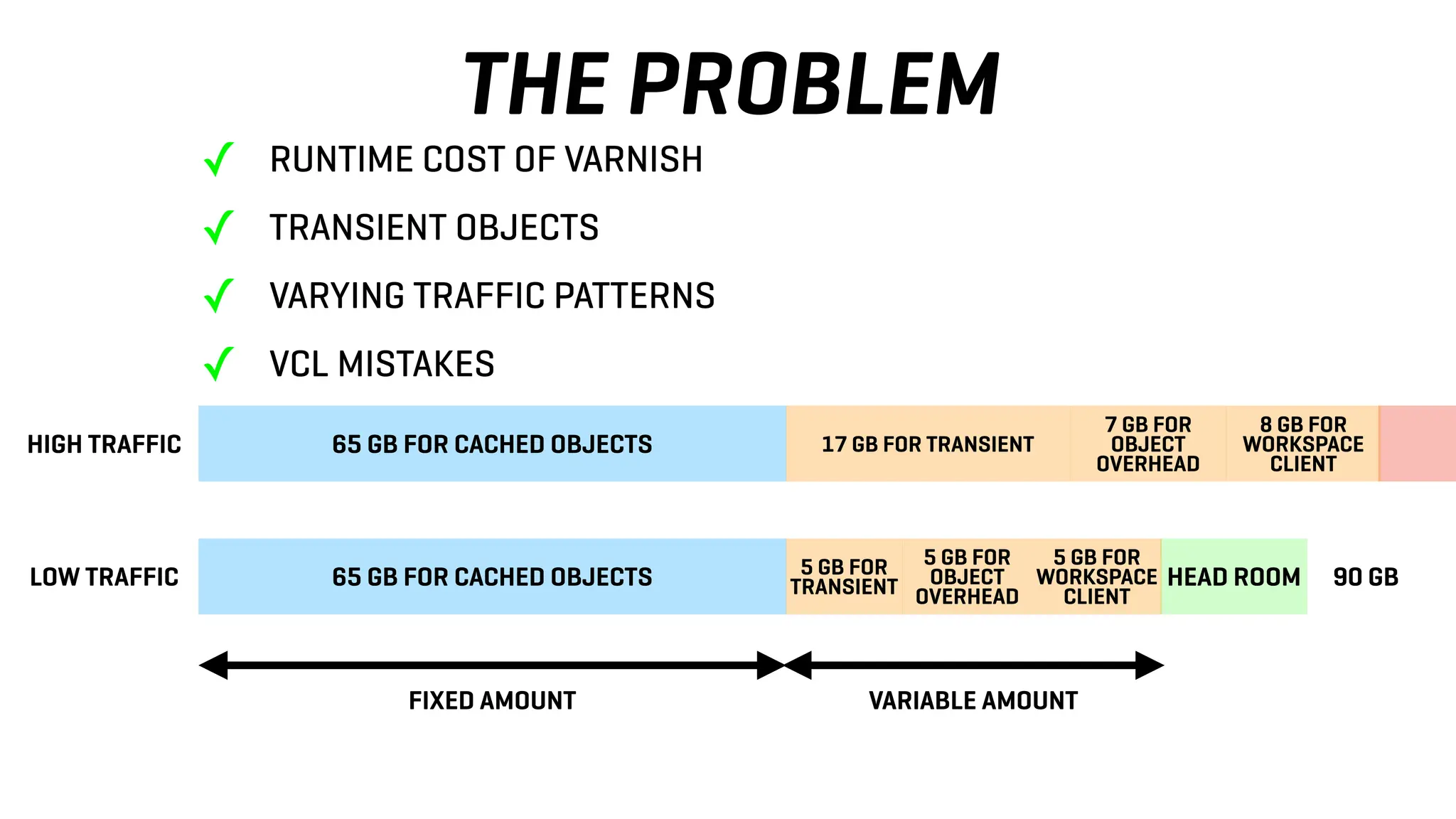

- 44. THE PROBLEM 65 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT ✓ RUNTIME COST OF VARNISH ✓ TRANSIENT OBJECTS ✓ VARYING TRAFFIC PATTERNS ✓ VCL MISTAKES 5 GB FOR TRANSIENT 65 GB FOR CACHED OBJECTS 7 GB FOR OBJECT OVERHEAD 8 GB FOR WORKSPACE CLIENT 17 GB FOR TRANSIENT HIGH TRAFFIC LOW TRAFFIC FIXED AMOUNT VARIABLE AMOUNT
- 45. MEMORY GOVERNOR LIMITSTHE MEMORY SIZE OF THE VARNISH PROCESS INSTEAD OF THE CACHE OBJECT SIZE

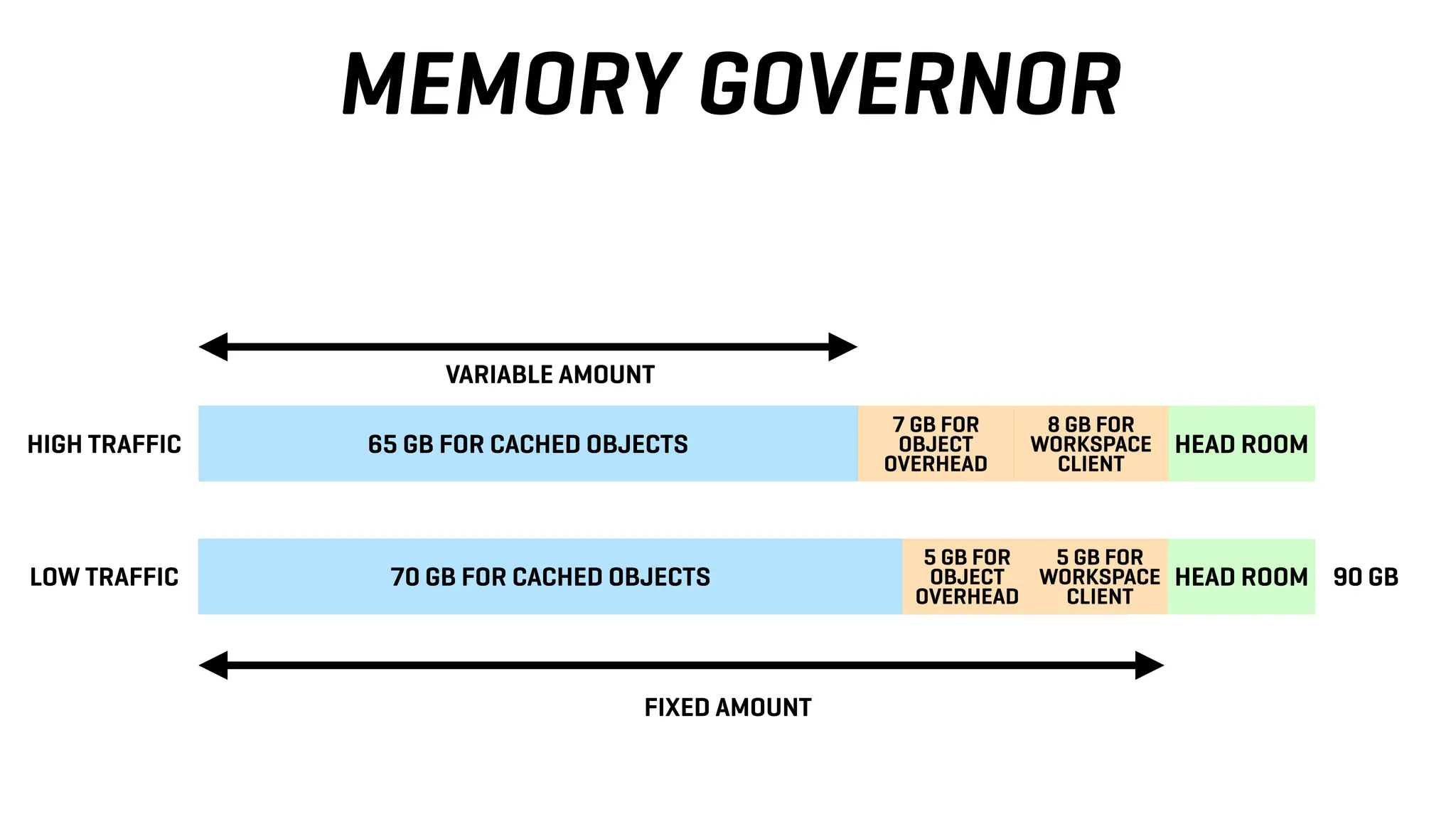

- 46. MEMORY GOVERNOR 70 GBFOR CACHED OBJECTS HEAD ROOM 90 GB 5 GB FOR OBJECT OVERHEAD 5 GB FOR WORKSPACE CLIENT 65 GB FOR CACHED OBJECTS 7 GB FOR OBJECT OVERHEAD 8 GB FOR WORKSPACE CLIENT FIXED AMOUNT HEAD ROOM HIGH TRAFFIC LOW TRAFFIC VARIABLE AMOUNT
- 47.

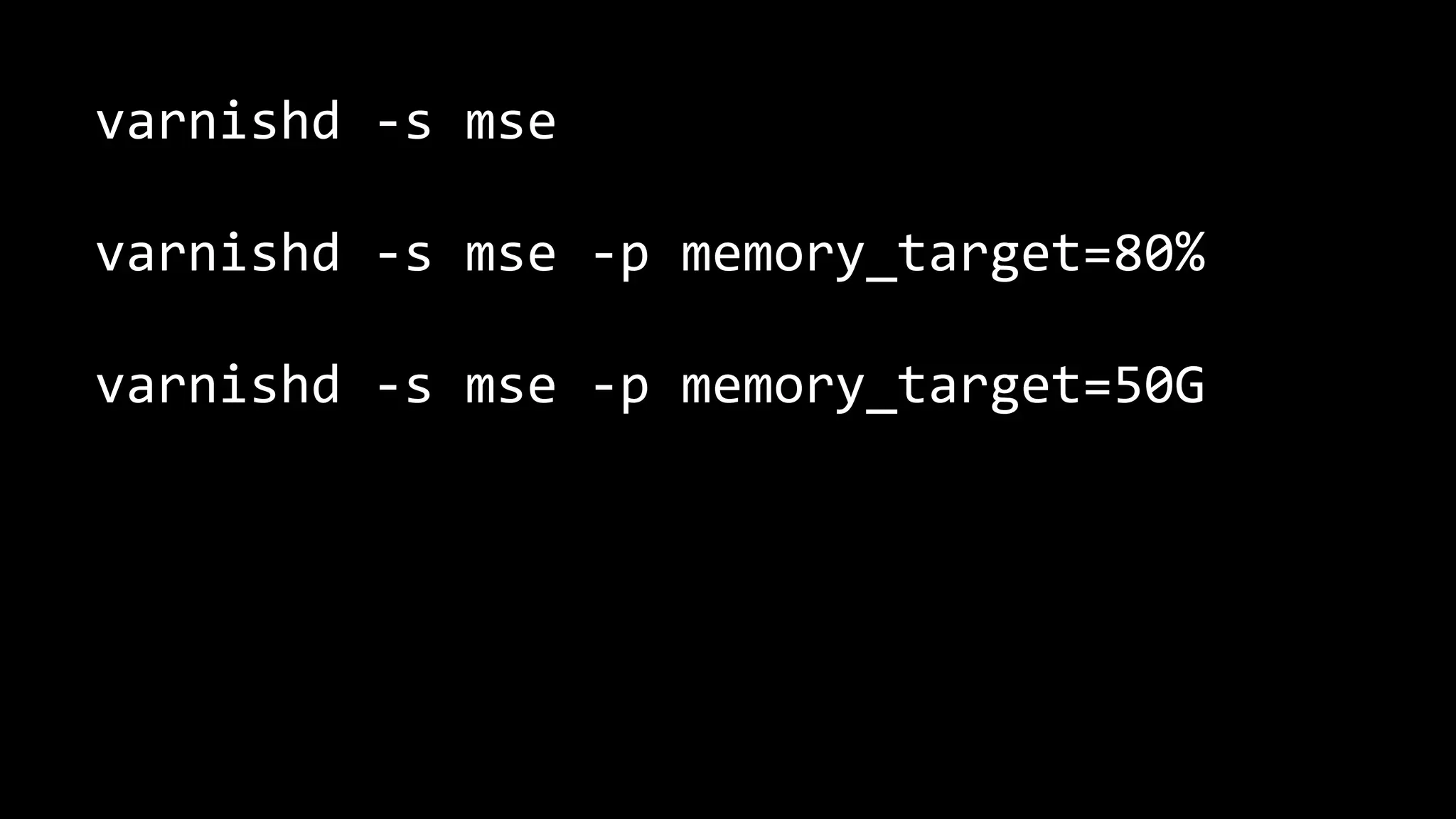

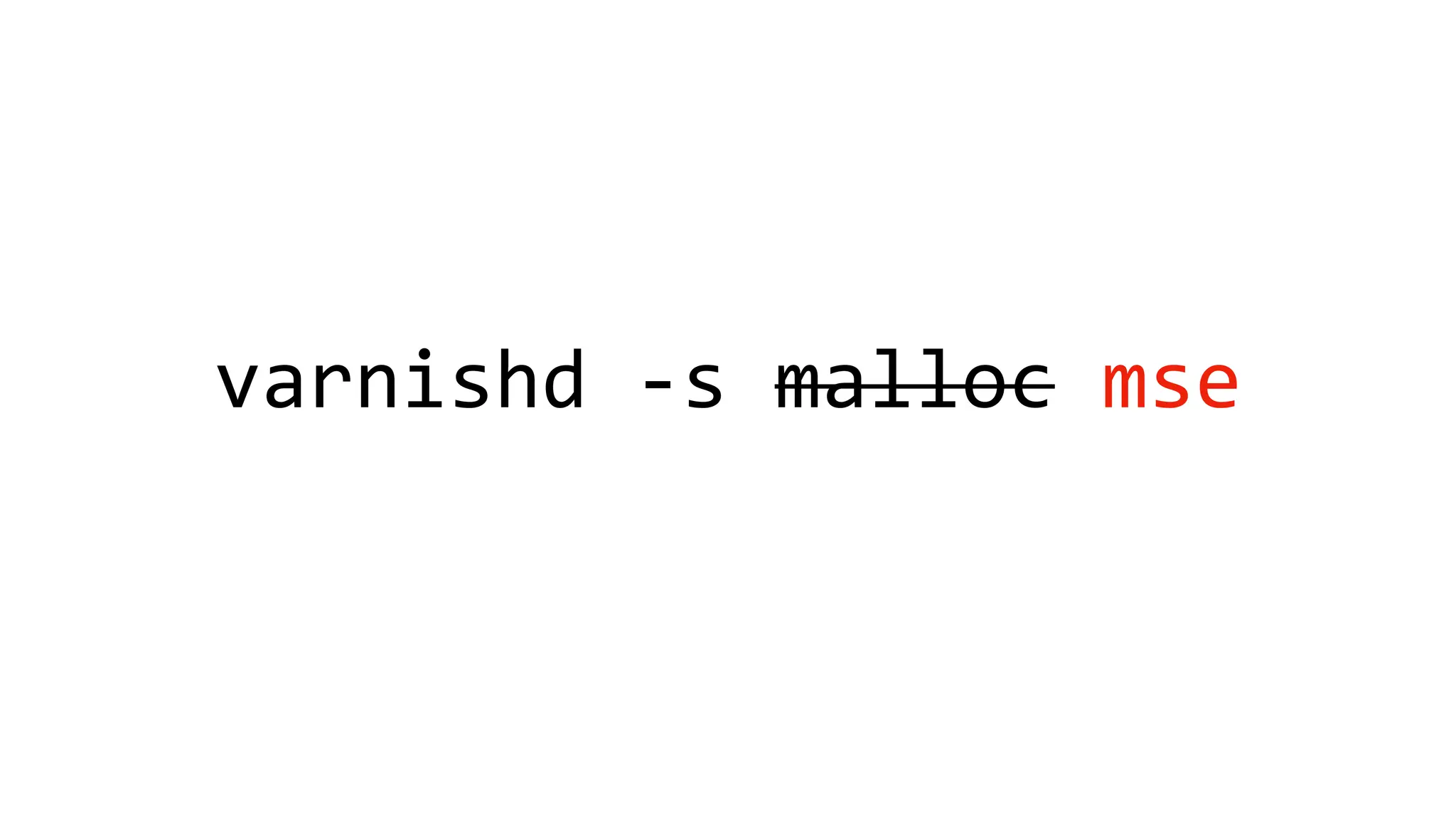

- 48. varnishd -s mse varnishd-s mse -p memory_target=80% varnishd -s mse -p memory_target=50G
- 49.
- 50. acl purge { "localhost"; } subvcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (synth(400, "X-Magento-Tags-Pattern or X-Pool header required")); } if (req.http.X-Magento-Tags-Pattern) { ban("obj.http.X-Magento-Tags ~ " + req.http.X-Magento-Tags-Pattern); } if (req.http.X-Pool) { ban("obj.http.X-Pool ~ " + req.http.X-Pool); } return (synth(200, "Purged")); } } CURRENT IMPLEMENTATION
- 51. acl purge { "localhost"; } subvcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (synth(400, "X-Magento-Tags-Pattern or X-Pool header required")); } if (req.http.X-Magento-Tags-Pattern) { ban("obj.http.X-Magento-Tags ~ " + req.http.X-Magento-Tags-Pattern); } if (req.http.X-Pool) { ban("obj.http.X-Pool ~ " + req.http.X-Pool); } return (synth(200, "Purged")); } }

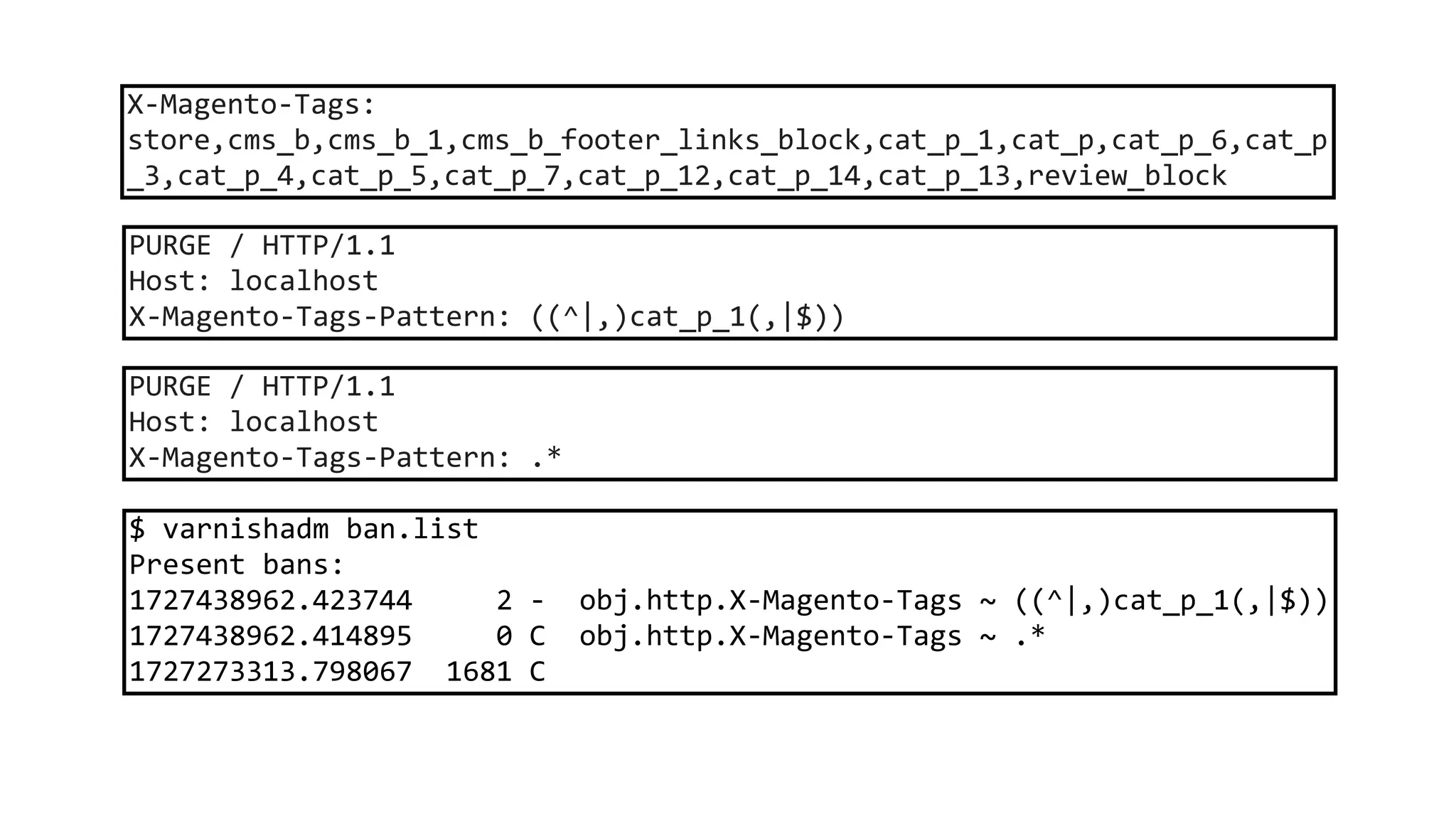

- 52. $ varnishadm ban.list Presentbans: 1727438962.423744 2 - obj.http.X-Magento-Tags ~ ((^|,)cat_p_1(,|$)) 1727438962.414895 0 C obj.http.X-Magento-Tags ~ .* 1727273313.798067 1681 C X-Magento-Tags: store,cms_b,cms_b_1,cms_b_footer_links_block,cat_p_1,cat_p,cat_p_6,cat_p _3,cat_p_4,cat_p_5,cat_p_7,cat_p_12,cat_p_14,cat_p_13,review_block PURGE / HTTP/1.1 Host: localhost X-Magento-Tags-Pattern: ((^|,)cat_p_1(,|$)) PURGE / HTTP/1.1 Host: localhost X-Magento-Tags-Pattern: .*
- 53. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } } LEVERAGES THE YKEY VMOD
- 54. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } }
- 55. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } }
- 56. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } }
- 57. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } }
- 58. import ykey; acl purge{ "localhost"; } sub vcl_recv { if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern && !req.http.X-Pool) { return (purge); } if (req.http.X-Magento-Tags-Pattern) { set req.http.X-Key-Purge = regsuball(req.http.X-Magento-Tags-Pattern, "[()^$]", ""); } if (req.http.X-Pool) { set req.http.X-Key-Purge = regsuball(req.http.X-Pool, "[()^$]", ""); } set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, "[,|]", " "); set req.http.X-Key-Purge = regsuball(req.http.X-Key-Purge, ".*", "all"); set req.http.n-purged = ykey.purge_header(req.http.X-Key-Purge, ",", true); return (synth(200, "Purged " + req.http.n-purged + " objects")); } }

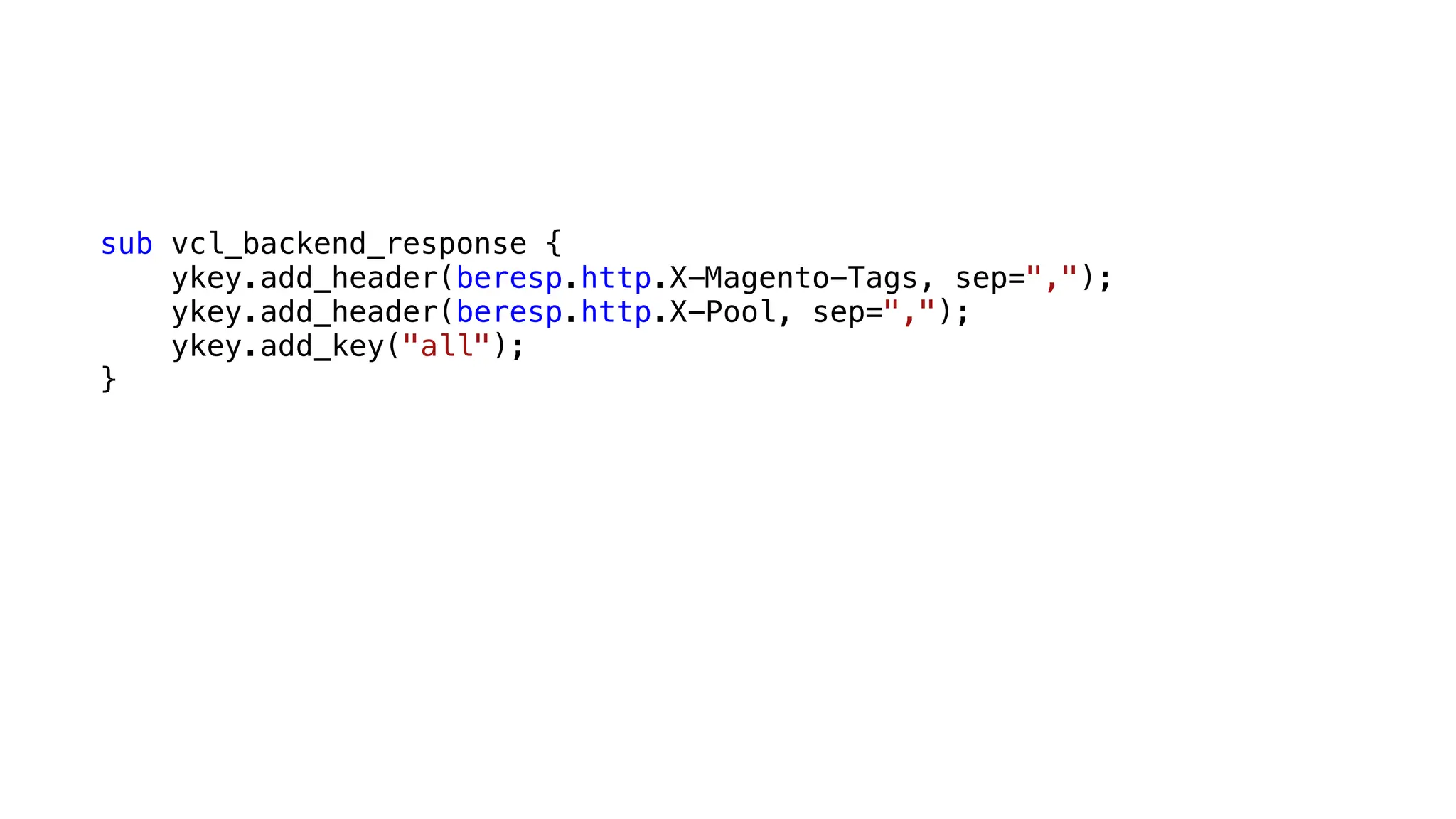

- 59. sub vcl_backend_response { ykey.add_header(beresp.http.X-Magento-Tags,sep=","); ykey.add_header(beresp.http.X-Pool, sep=","); ykey.add_key("all"); }
- 60. ykey.purge_header(HEADER hdr, ",",true); SOFT PURGING

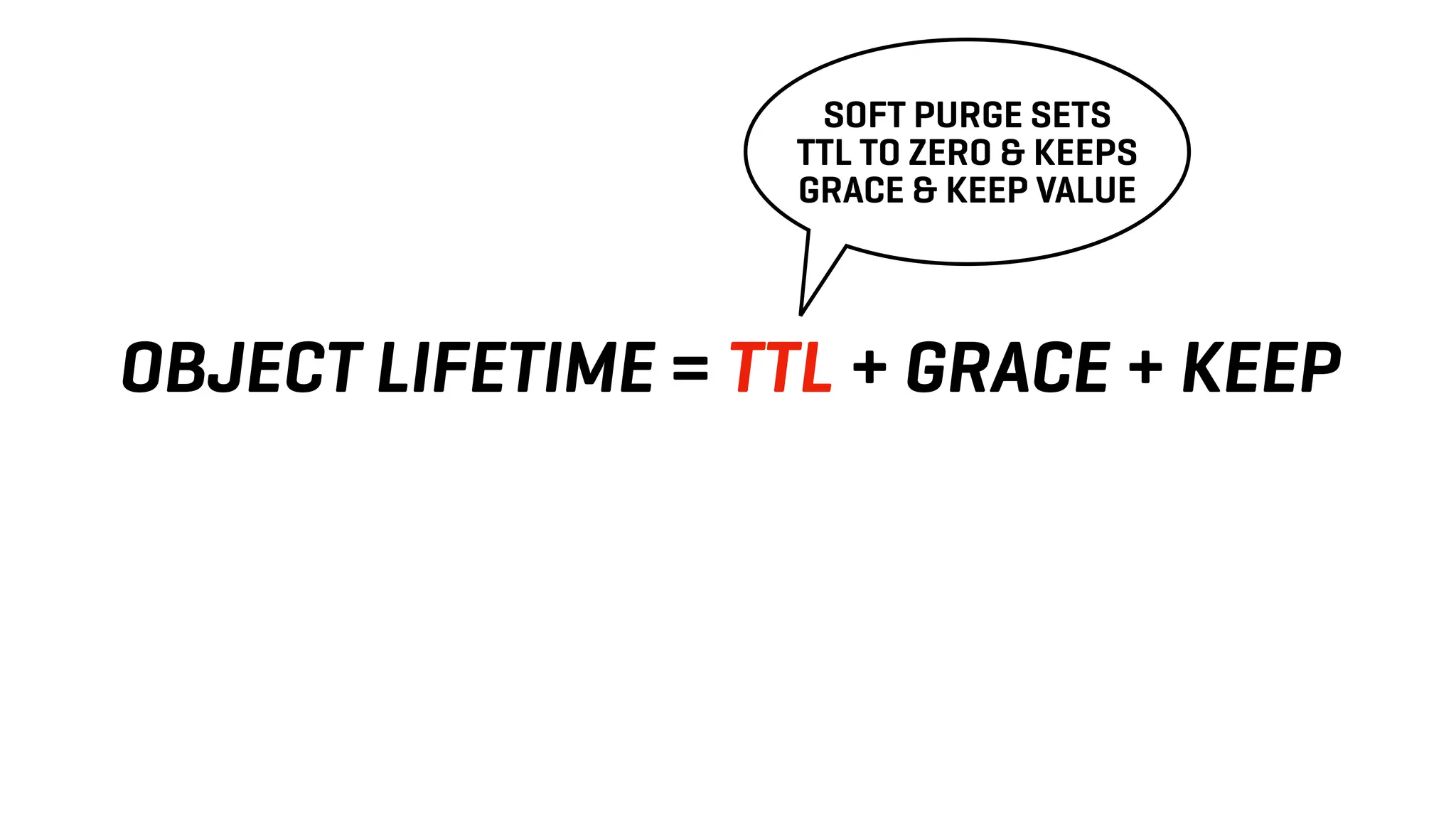

- 61. OBJECT LIFETIME =TTL + GRACE + KEEP SOFT PURGE SETS TTL TO ZERO & KEEPS GRACE & KEEP VALUE
- 62. sub vcl_backend_response { setberesp.grace = 3d; } HOW TO APPROACH GRACE? MEMORY GOVERNOR WILL CONTROL THE IMPACT OF LONG GRACE VALUES SOFT PURGES WILL BENEFIT FROM LONGER GRACE
- 63. sub vcl_recv { if(std.healthy(req.backend_hint)) { set req.grace = 300s; } } sub vcl_backend_response { set beresp.grace = 3d; } HOW TO APPROACH GRACE? LOWER GRACE FOR STALENESS, HIGHER GRACE FOR ERRORS
- 64. backend default { .host= "magento.example.com"; .port = "443"; .ssl = 1; .ssl_sni = 1; .ssl_verify_peer = 1; .ssl_verify_host = 1; .first_byte_timeout = 600s; .probe = { .url = "/health_check.php"; .timeout = 2s; .interval = 5s; .window = 10; .threshold = 5; } } DNS RESOLUTION AT COMPILE TIME

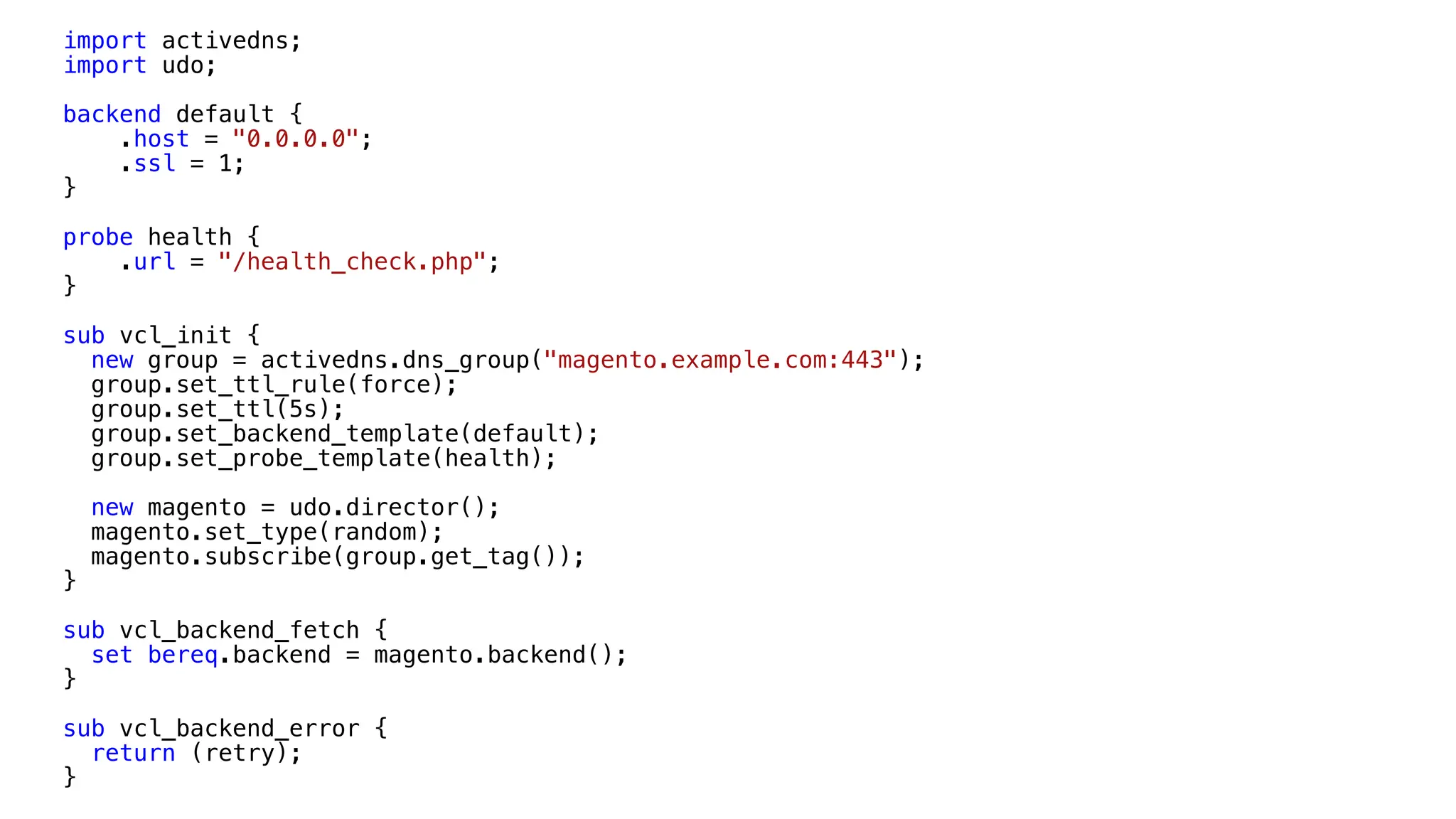

- 65. import activedns; import udo; backenddefault { .host = "0.0.0.0"; .ssl = 1; } probe health { .url = "/health_check.php"; } sub vcl_init { new group = activedns.dns_group("magento.example.com:443"); group.set_ttl_rule(force); group.set_ttl(5s); group.set_backend_template(default); group.set_probe_template(health); new magento = udo.director(); magento.set_type(random); magento.subscribe(group.get_tag()); } sub vcl_backend_fetch { set bereq.backend = magento.backend(); } sub vcl_backend_error { return (retry); }

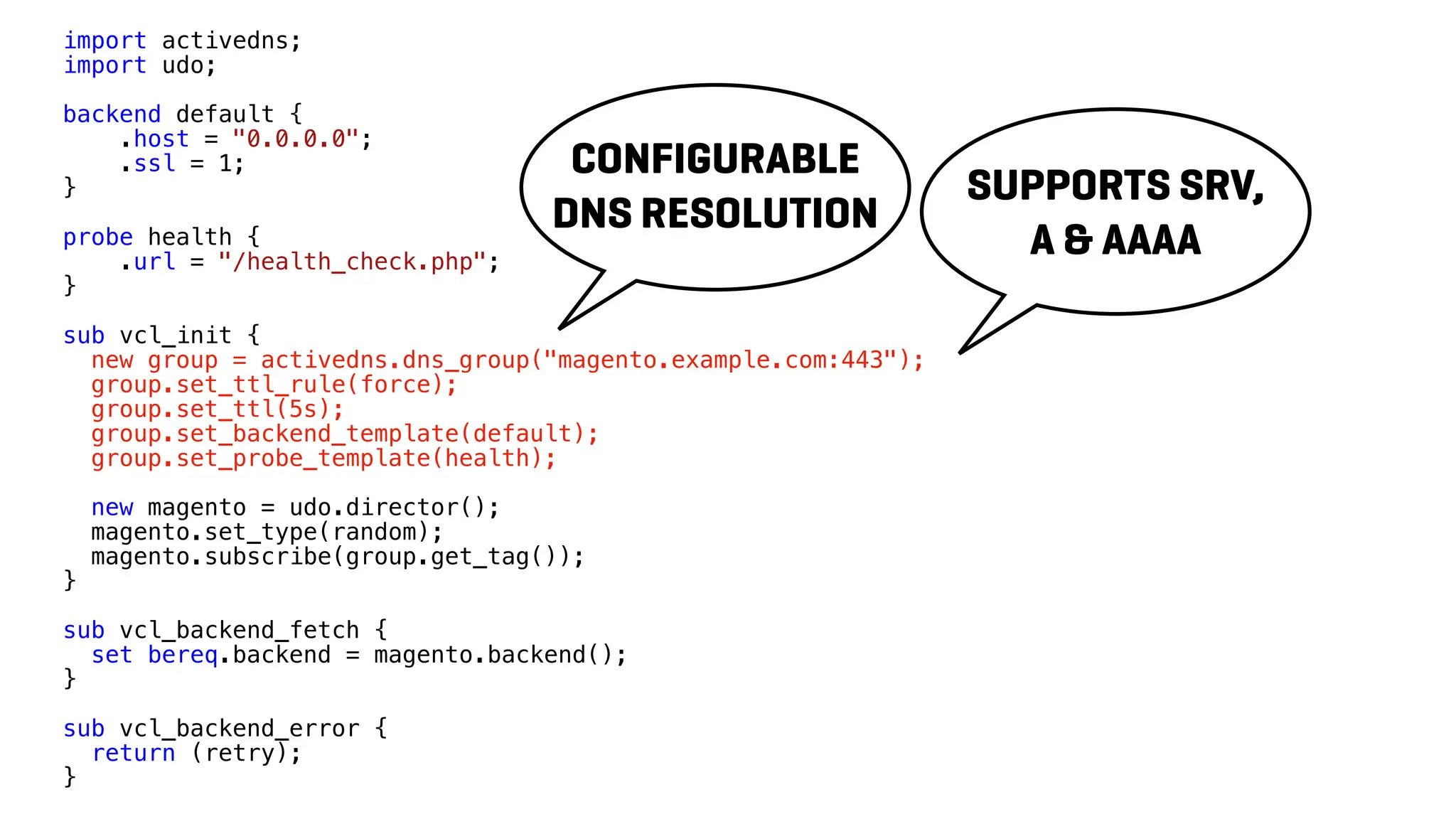

- 66. import activedns; import udo; backenddefault { .host = "0.0.0.0"; .ssl = 1; } probe health { .url = "/health_check.php"; } sub vcl_init { new group = activedns.dns_group("magento.example.com:443"); group.set_ttl_rule(force); group.set_ttl(5s); group.set_backend_template(default); group.set_probe_template(health); new magento = udo.director(); magento.set_type(random); magento.subscribe(group.get_tag()); } sub vcl_backend_fetch { set bereq.backend = magento.backend(); } sub vcl_backend_error { return (retry); } CONFIGURABLE DNS RESOLUTION SUPPORTS SRV, A & AAAA
- 67. import activedns; import udo; backenddefault { .host = "0.0.0.0"; .ssl = 1; } probe health { .url = "/health_check.php"; } sub vcl_init { new group = activedns.dns_group("magento.example.com:443"); group.set_ttl_rule(force); group.set_ttl(5s); group.set_backend_template(default); group.set_probe_template(health); new magento = udo.director(); magento.set_type(random); magento.subscribe(group.get_tag()); } sub vcl_backend_fetch { set bereq.backend = magento.backend(); } sub vcl_backend_error { return (retry); } DNS-BASED LOADBALANCING HASH, FALLBACK OR RANDOM DISTRIBUTION

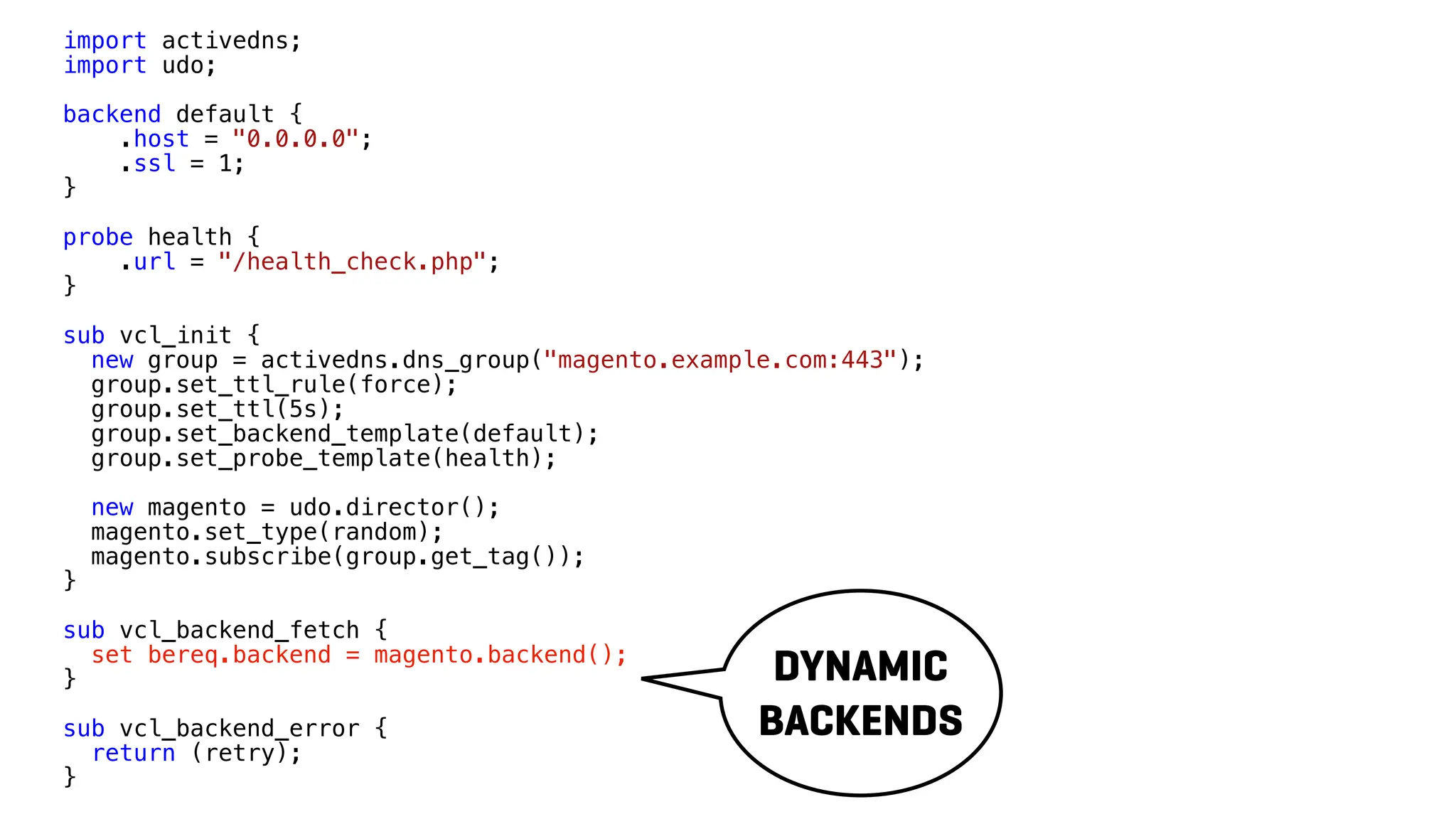

- 68. import activedns; import udo; backenddefault { .host = "0.0.0.0"; .ssl = 1; } probe health { .url = "/health_check.php"; } sub vcl_init { new group = activedns.dns_group("magento.example.com:443"); group.set_ttl_rule(force); group.set_ttl(5s); group.set_backend_template(default); group.set_probe_template(health); new magento = udo.director(); magento.set_type(random); magento.subscribe(group.get_tag()); } sub vcl_backend_fetch { set bereq.backend = magento.backend(); } sub vcl_backend_error { return (retry); } DYNAMIC BACKENDS

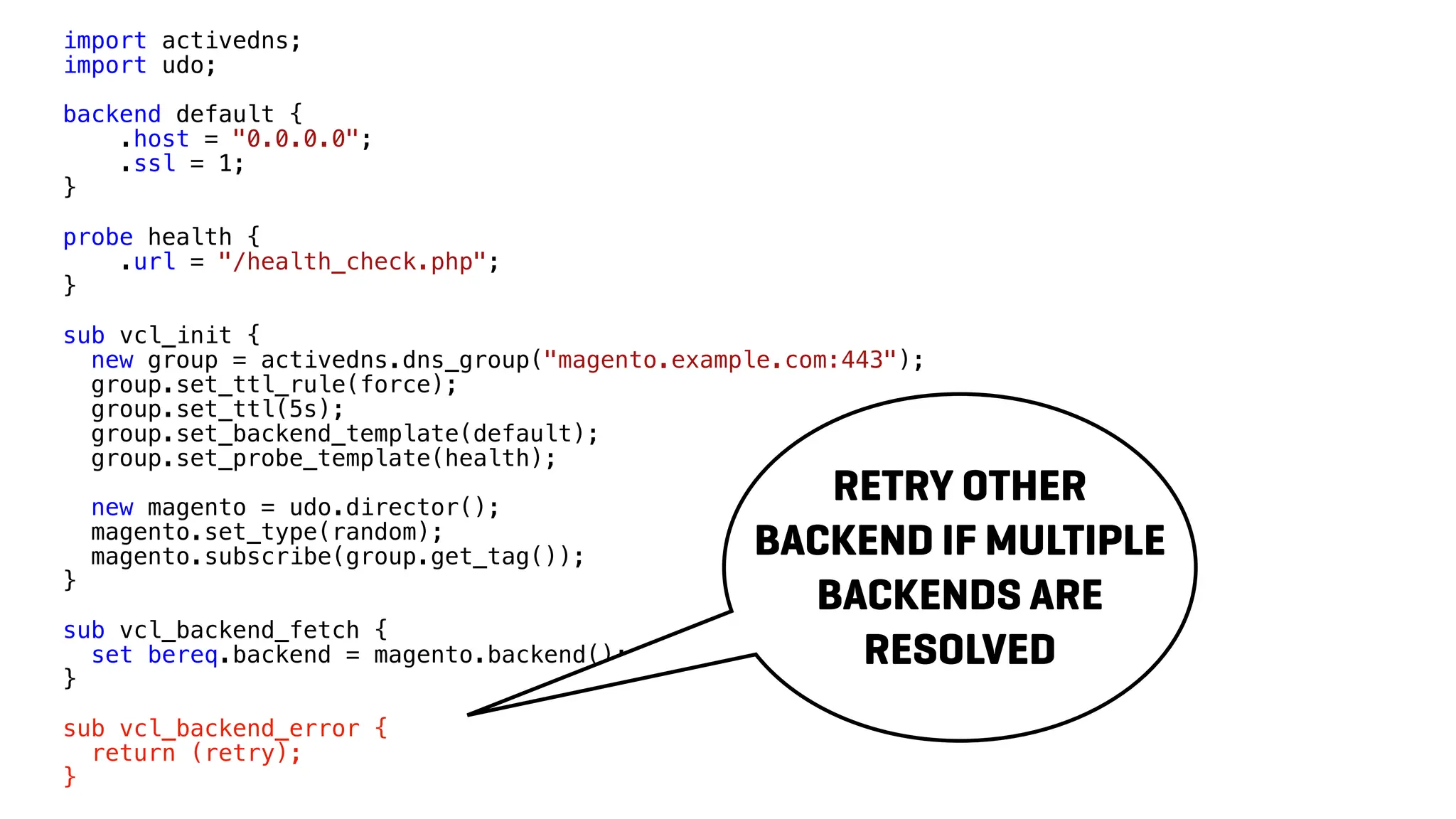

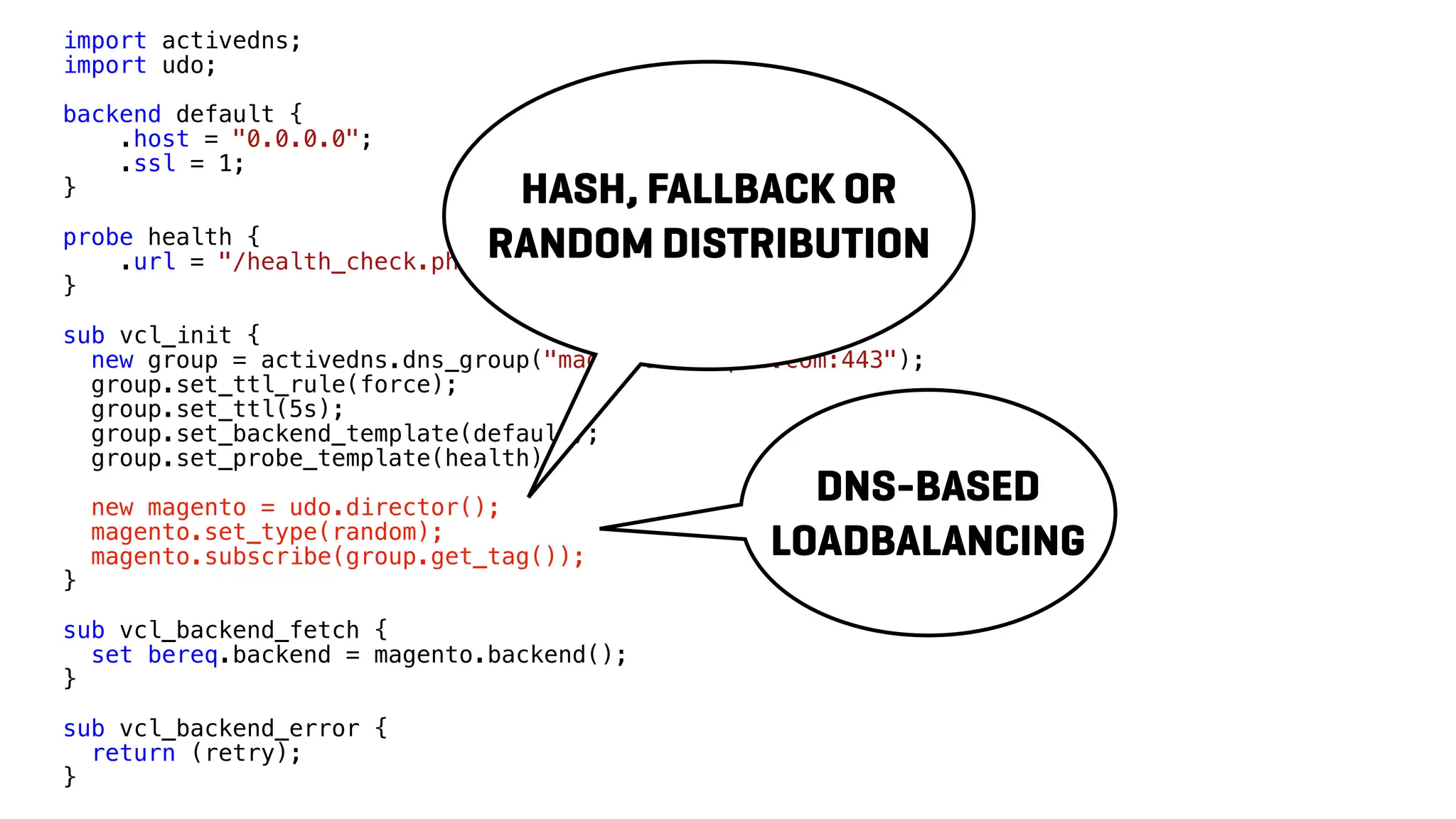

- 69. import activedns; import udo; backenddefault { .host = "0.0.0.0"; .ssl = 1; } probe health { .url = "/health_check.php"; } sub vcl_init { new group = activedns.dns_group("magento.example.com:443"); group.set_ttl_rule(force); group.set_ttl(5s); group.set_backend_template(default); group.set_probe_template(health); new magento = udo.director(); magento.set_type(random); magento.subscribe(group.get_tag()); } sub vcl_backend_fetch { set bereq.backend = magento.backend(); } sub vcl_backend_error { return (retry); } RETRY OTHER BACKEND IF MULTIPLE BACKENDS ARE RESOLVED
- 70. OPTIMIZED MAGENTO VCLWITH ENTERPRISE FEATURES
- 71. End-to-end TLS support Client-side& backend TLS support DELIVERY & COURIER SERVICES NEED TO SEND SOMETHING? WE OFFER Tag-based cache invalidation Invalidate multiple objects based on user- defined tags. Outperforms Varnish bans and is fully compatible with Magento Advanced header, cookie & URL processing A collection of VMODs that give you the ability to manage cookies, headers and URLs using a clean API, without the messy regular expressions Optimized Varnish Enterprise for Magento VCL file A VCL file that is optimized for Magento and that uses the Varnish Enterprise for Magento feature set Memory Governor Dynamically scale the size of the cache based on worker process memory requirements. Prevents Out-Of-Memory issues at scale Dynamic backends Dynamic DNS resolution of backend hostnames, supporting DNS changes at runtime and DNS-based load balancing Rate limiting & bandwidth throttling Scan here for details Enforce rate limiting of user requests and throttle bandwidth based on user- defined criteria Meet Magento Poland attendees can take advantage of an exclusive offer to upgrade to Varnish Enterprise for Magento at a reduced price. This version of Varnish is packaged with select enterprise features that will further enhance the caching of Magento. The packaged features include: SELECT VARNISH ENTERPRISE FEATURES, OPTIMIZED AND PACKAGED FOR MAGENTO REGISTER YOUR INTEREST EXCLUSIVELY FOR MEET MAGENTO POLAND ATTENDEES, LIMITED AVAILABILITY, REDUCED PRICE TERMS & CONDITIONS APPLY* VARNISH ENTERPRISE FOR MAGENTO EXCLUSIVE OFFER: V I S I T O U R B O O T H
- 72.
