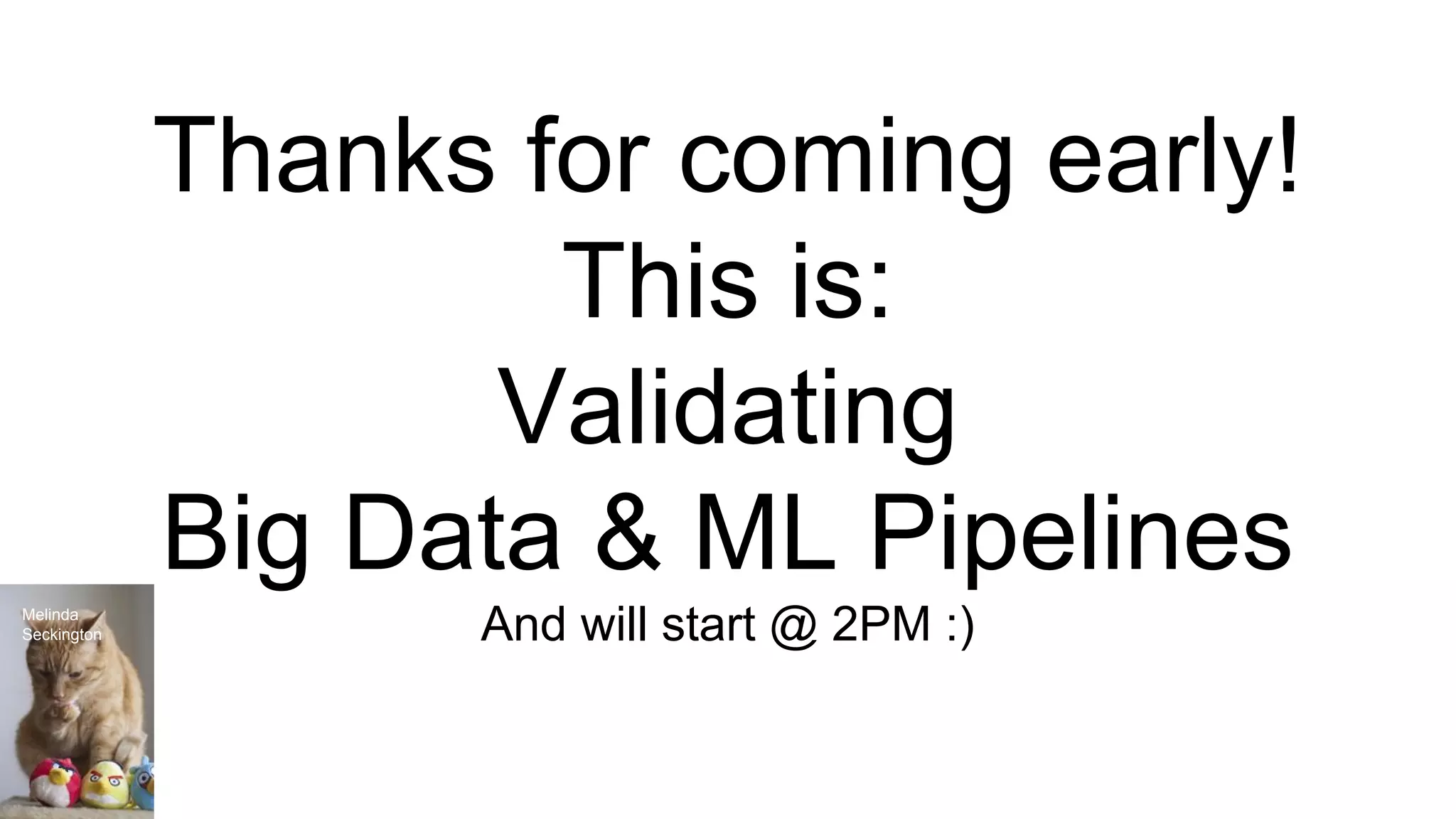

1. Thanks for coming early!
This is:
Validating
Big Data & ML Pipelines
And will start @ 2PM :)Melinda
Seckington

2. Validating
Big Data & ML Pipelines
(Apache Spark)
Now
mostly
“works”*
Melinda
Seckington

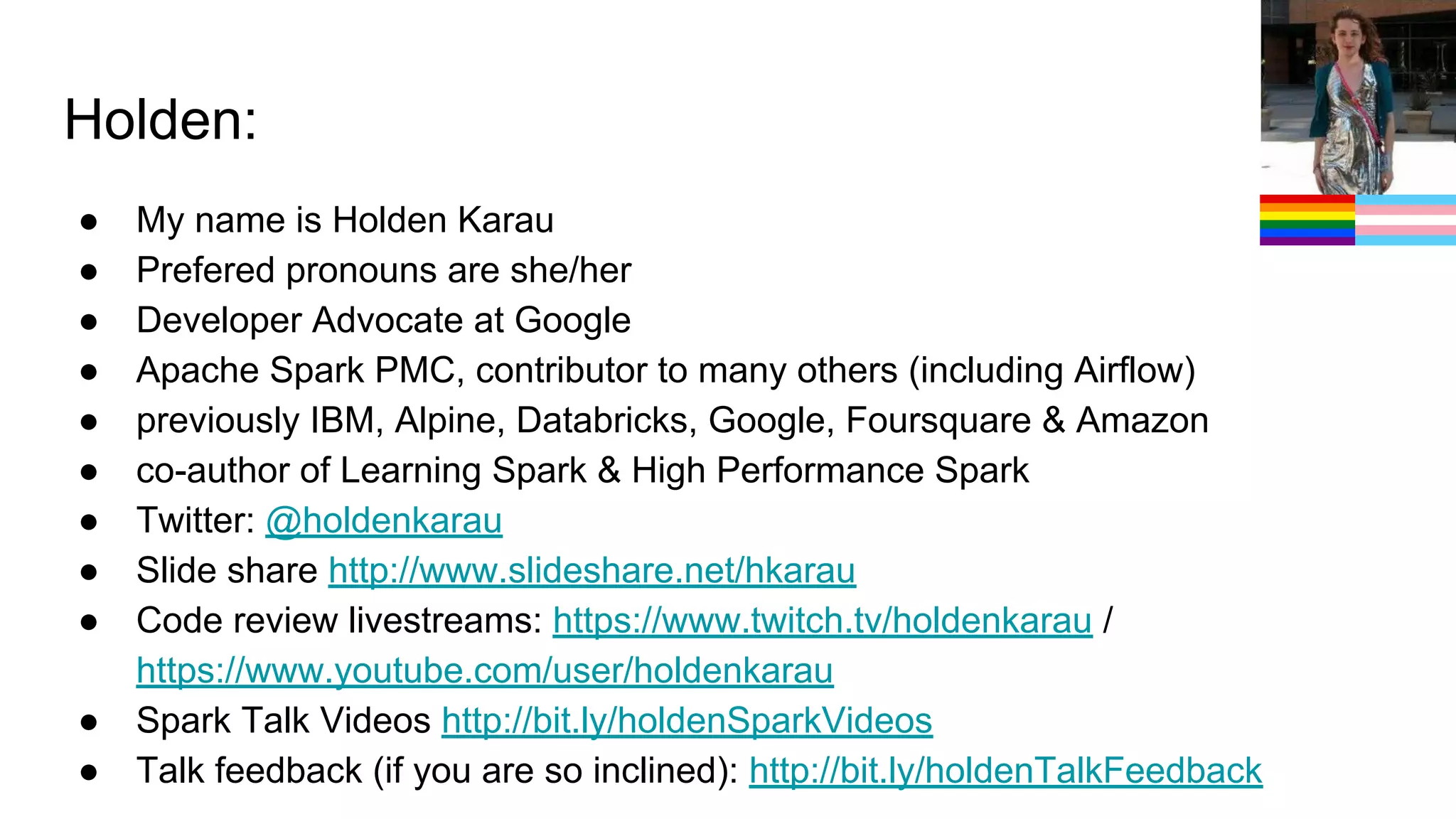

3. Holden:
● My name is Holden Karau
● Prefered pronouns are she/her
● Developer Advocate at Google
● Apache Spark PMC, contributor to many others (including Airflow)
● previously IBM, Alpine, Databricks, Google, Foursquare & Amazon
● co-author of Learning Spark & High Performance Spark
● Twitter: @holdenkarau
● Slide share http://www.slideshare.net/hkarau
● Code review livestreams: https://www.twitch.tv/holdenkarau /
https://www.youtube.com/user/holdenkarau
● Spark Talk Videos http://bit.ly/holdenSparkVideos
● Talk feedback (if you are so inclined): http://bit.ly/holdenTalkFeedback

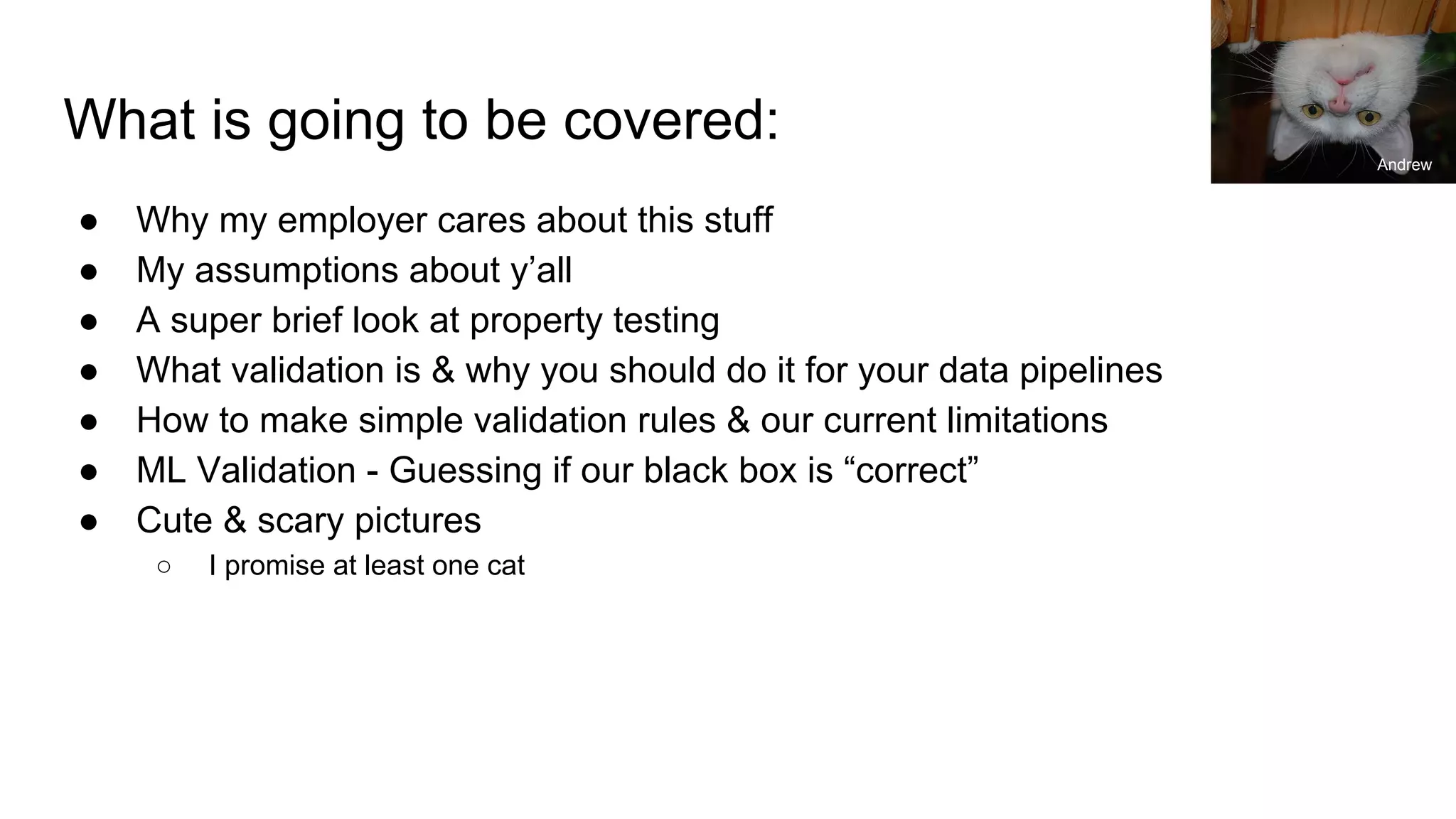

5. What is going to be covered:
● Why my employer cares about this stuff
● My assumptions about y’all
● A super brief look at property testing
● What validation is & why you should do it for your data pipelines
● How to make simple validation rules & our current limitations
● ML Validation - Guessing if our black box is “correct”
● Cute & scary pictures
○ I promise at least one cat
Andrew

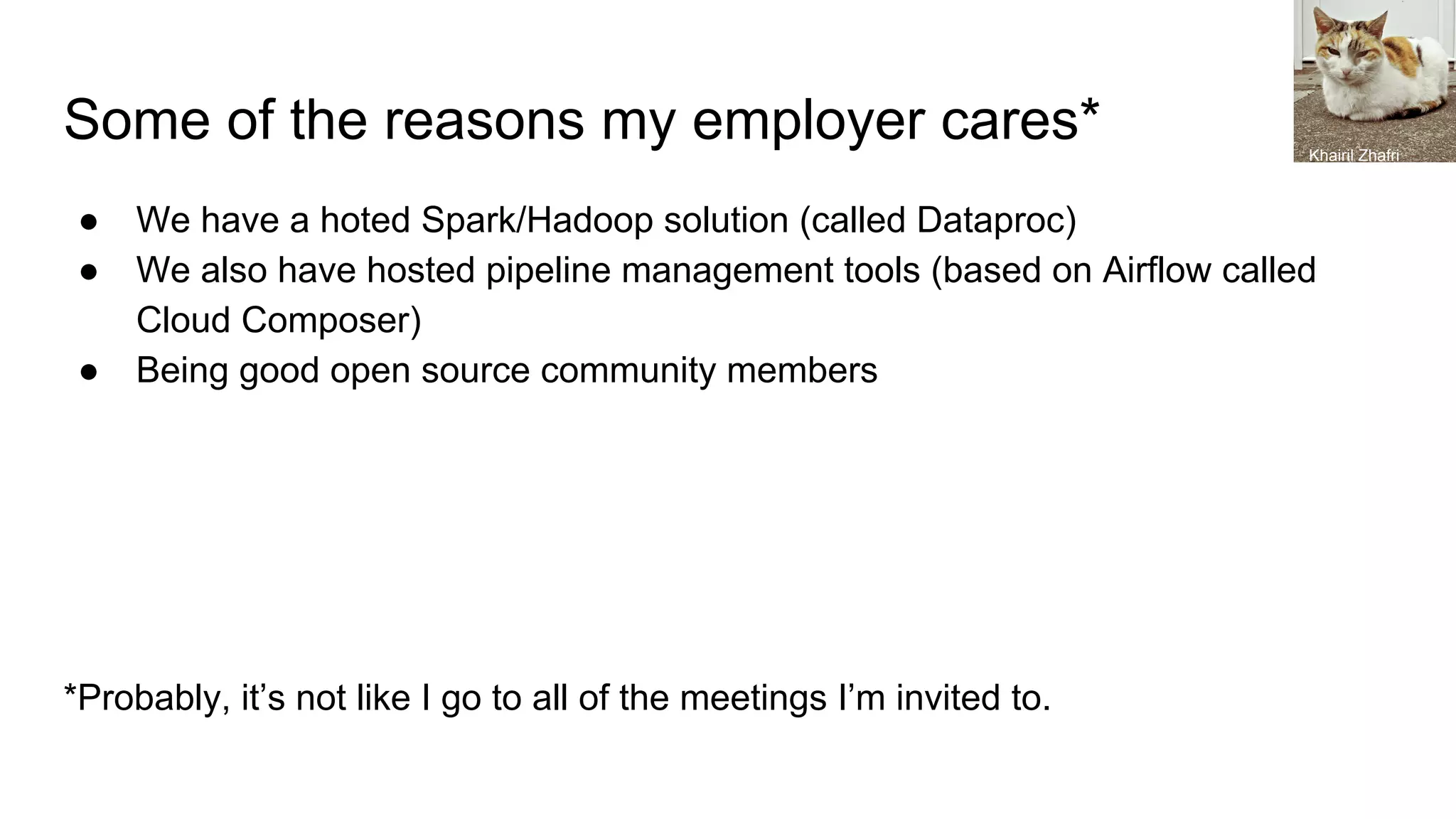

6. Some of the reasons my employer cares*
● We have a hoted Spark/Hadoop solution (called Dataproc)
● We also have hosted pipeline management tools (based on Airflow called
Cloud Composer)
● Being good open source community members
*Probably, it’s not like I go to all of the meetings I’m invited to.
Khairil Zhafri

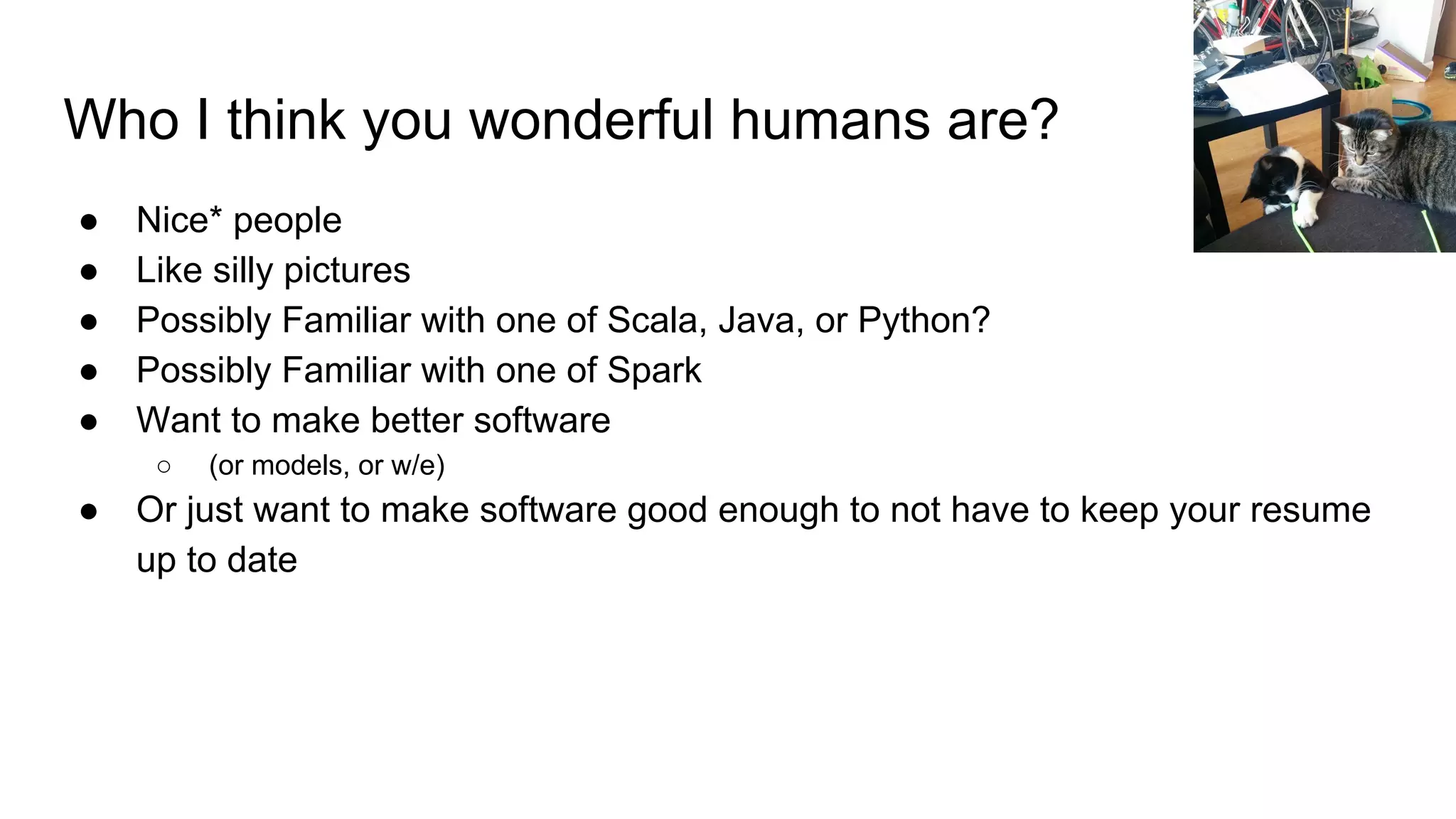

7. Who I think you wonderful humans are?
● Nice* people
● Like silly pictures
● Possibly Familiar with one of Scala, Java, or Python?
● Possibly Familiar with one of Spark
● Want to make better software
○ (or models, or w/e)
● Or just want to make software good enough to not have to keep your resume
up to date

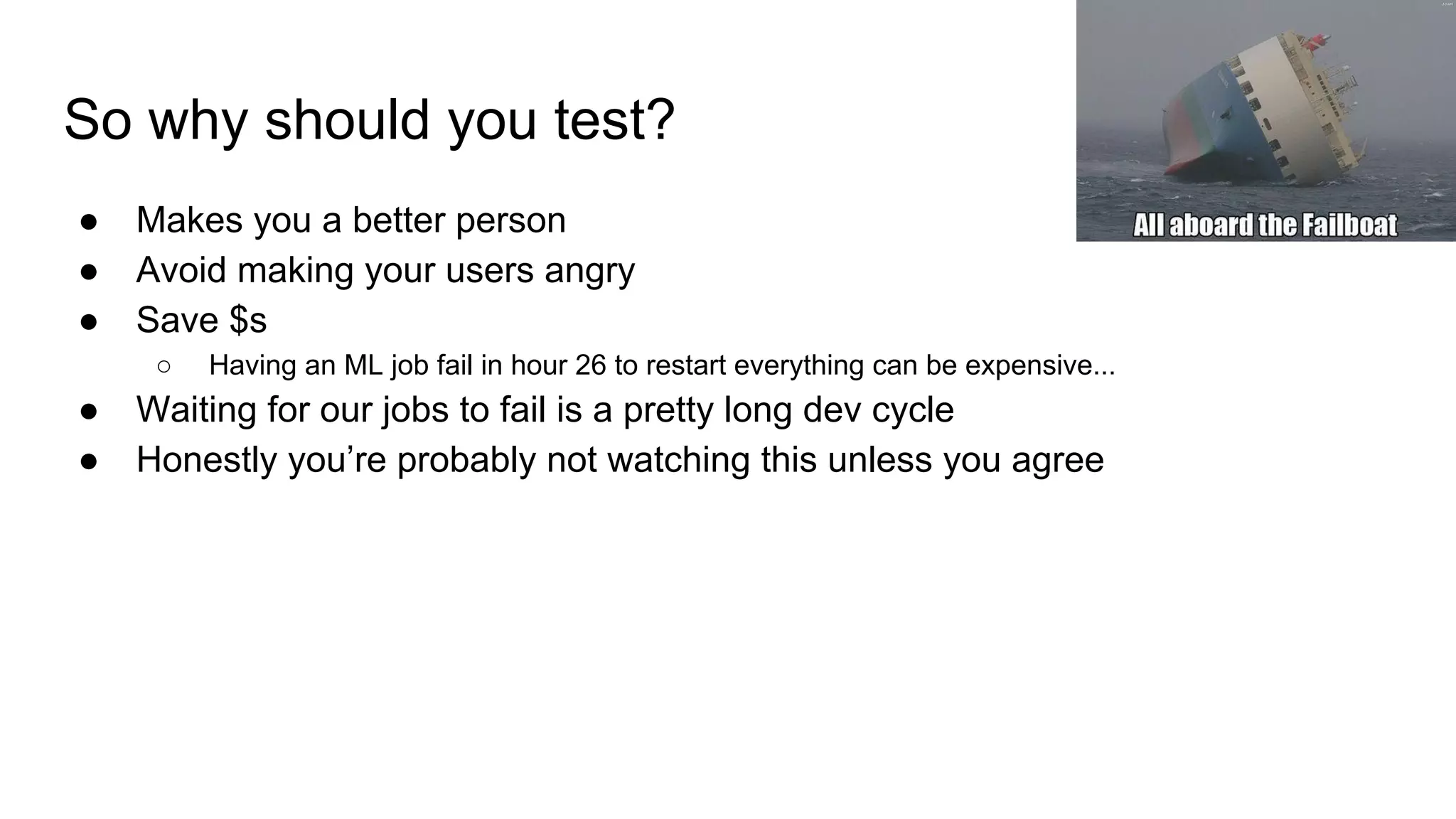

8. So why should you test?
● Makes you a better person
● Avoid making your users angry
● Save $s
○ Having an ML job fail in hour 26 to restart everything can be expensive...
● Waiting for our jobs to fail is a pretty long dev cycle
● Honestly you’re probably not watching this unless you agree

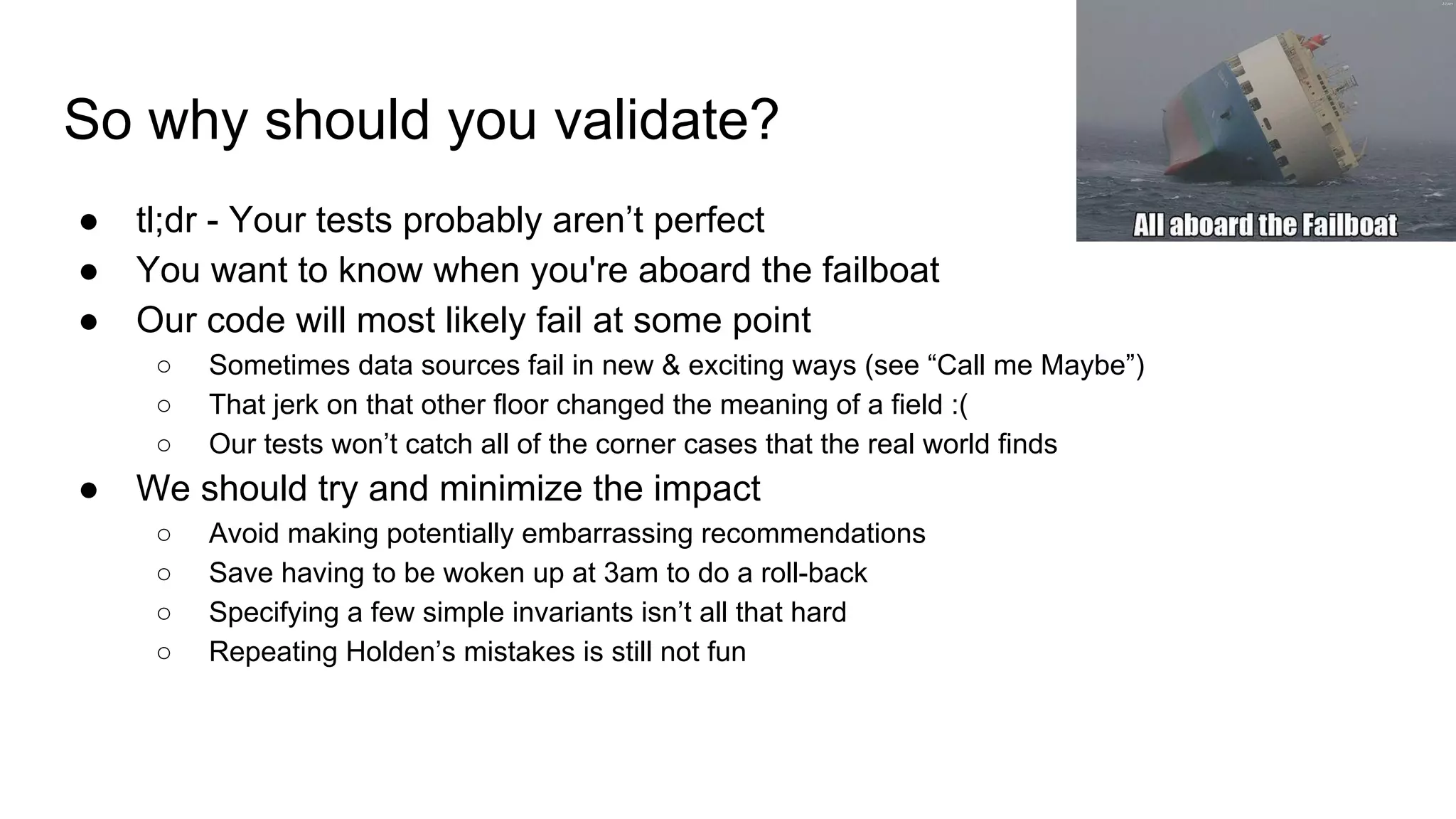

9. So why should you validate?
● tl;dr - Your tests probably aren’t perfect
● You want to know when you're aboard the failboat
● Our code will most likely fail at some point
○ Sometimes data sources fail in new & exciting ways (see “Call me Maybe”)
○ That jerk on that other floor changed the meaning of a field :(
○ Our tests won’t catch all of the corner cases that the real world finds
● We should try and minimize the impact
○ Avoid making potentially embarrassing recommendations
○ Save having to be woken up at 3am to do a roll-back
○ Specifying a few simple invariants isn’t all that hard
○ Repeating Holden’s mistakes is still not fun

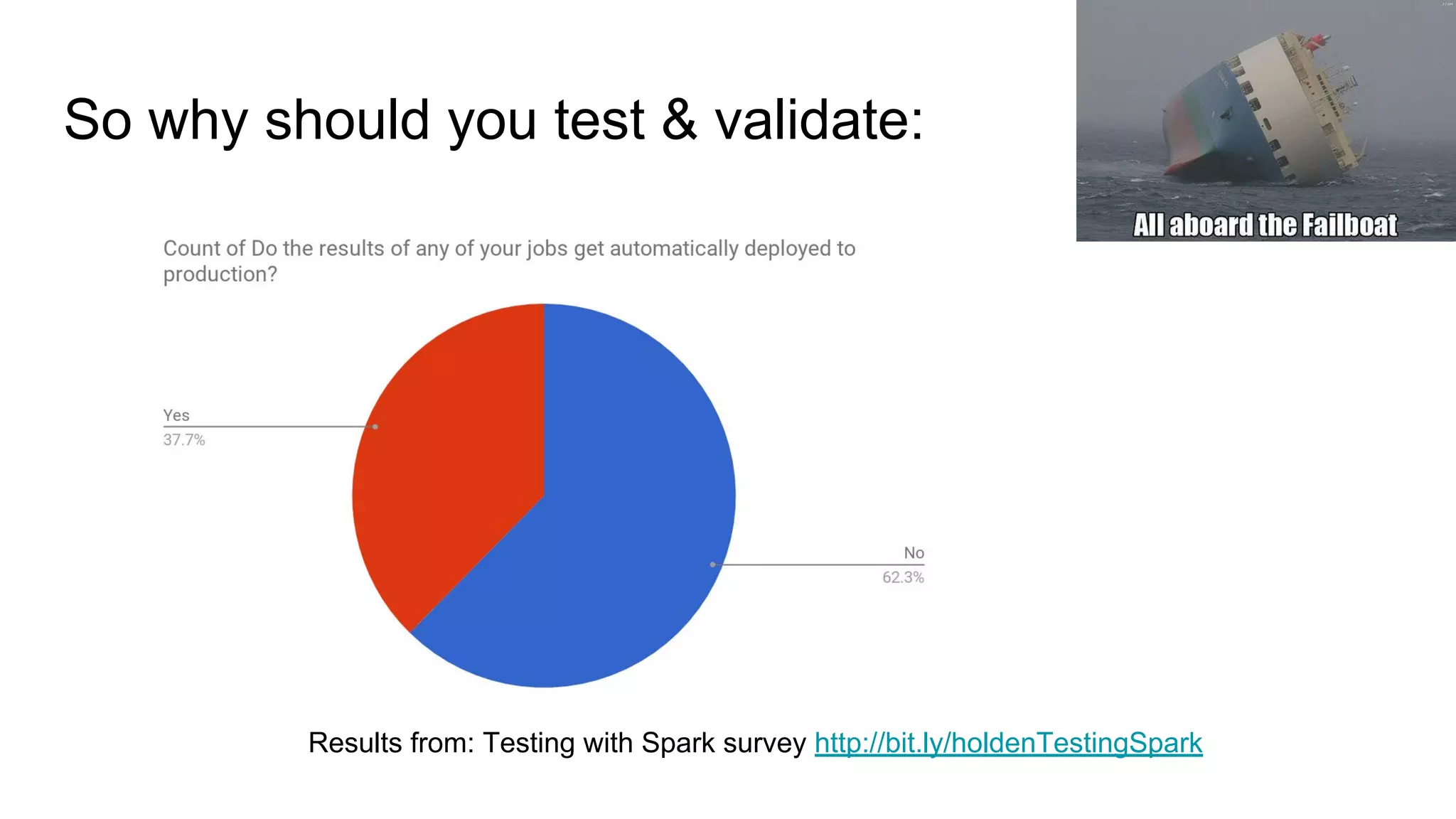

10. So why should you test & validate:
Results from: Testing with Spark survey http://bit.ly/holdenTestingSpark

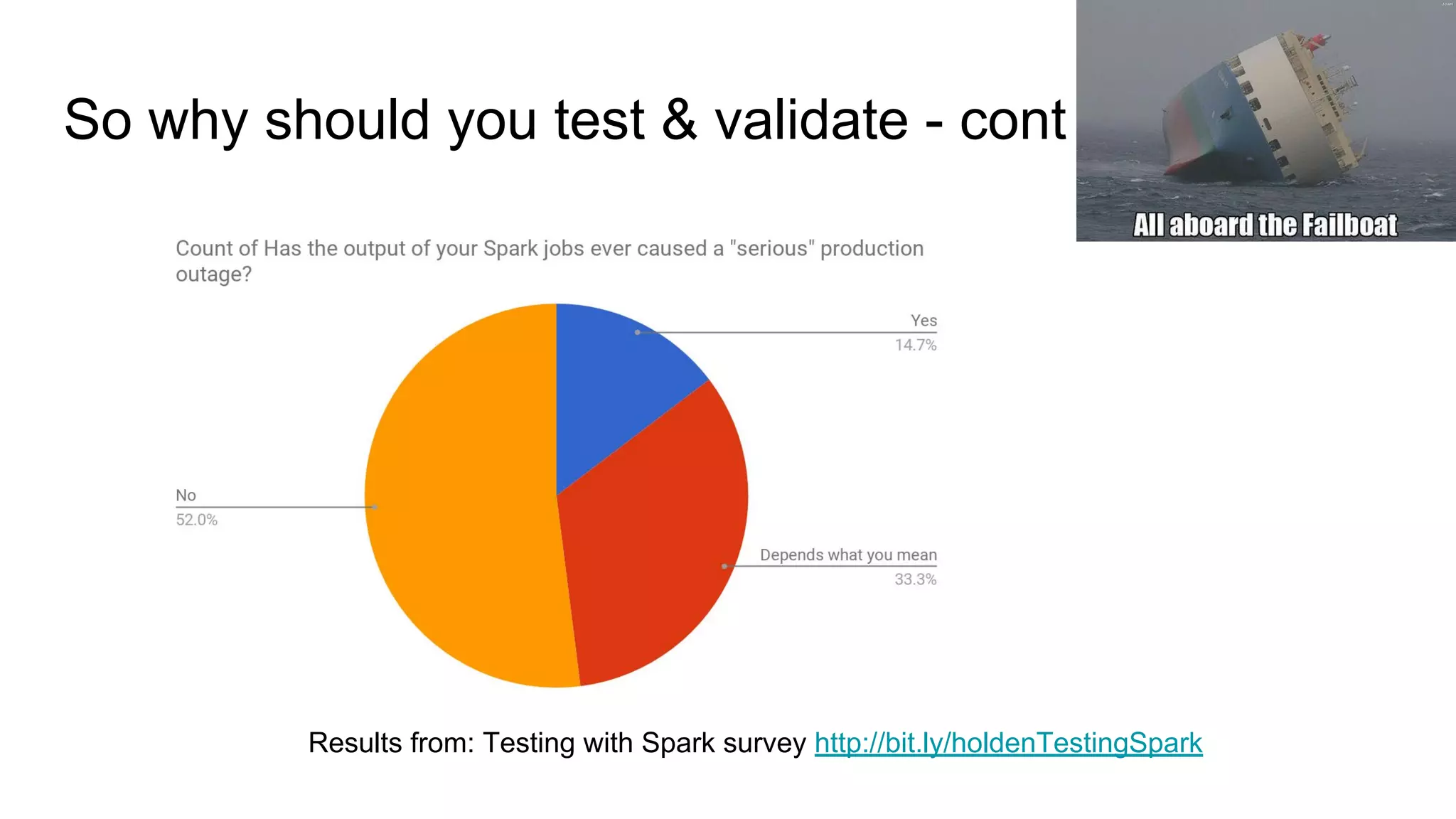

11. So why should you test & validate - cont
Results from: Testing with Spark survey http://bit.ly/holdenTestingSpark

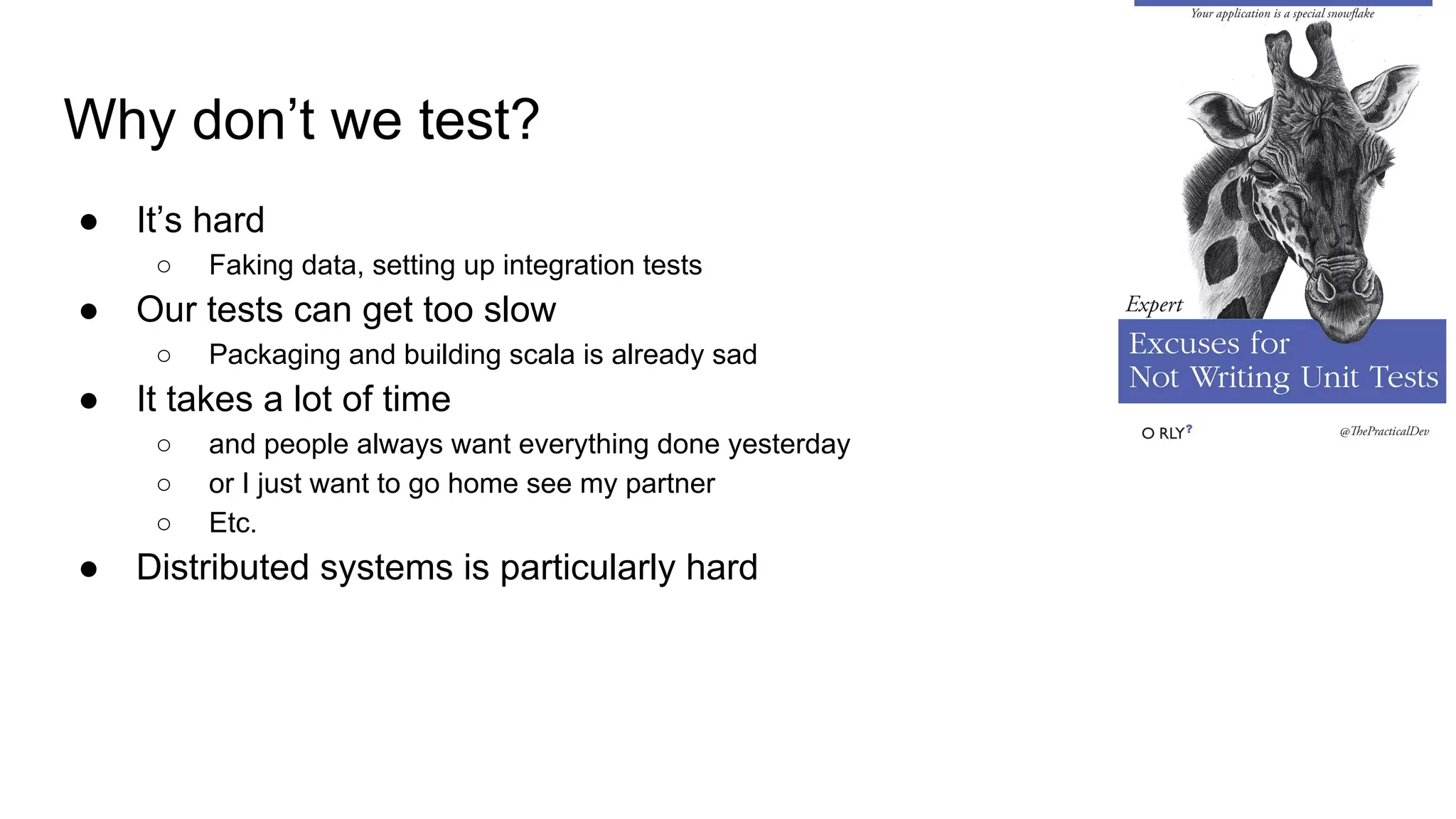

12. Why don’t we test?
● It’s hard
○ Faking data, setting up integration tests
● Our tests can get too slow
○ Packaging and building scala is already sad
● It takes a lot of time
○ and people always want everything done yesterday
○ or I just want to go home see my partner
○ Etc.
● Distributed systems is particularly hard

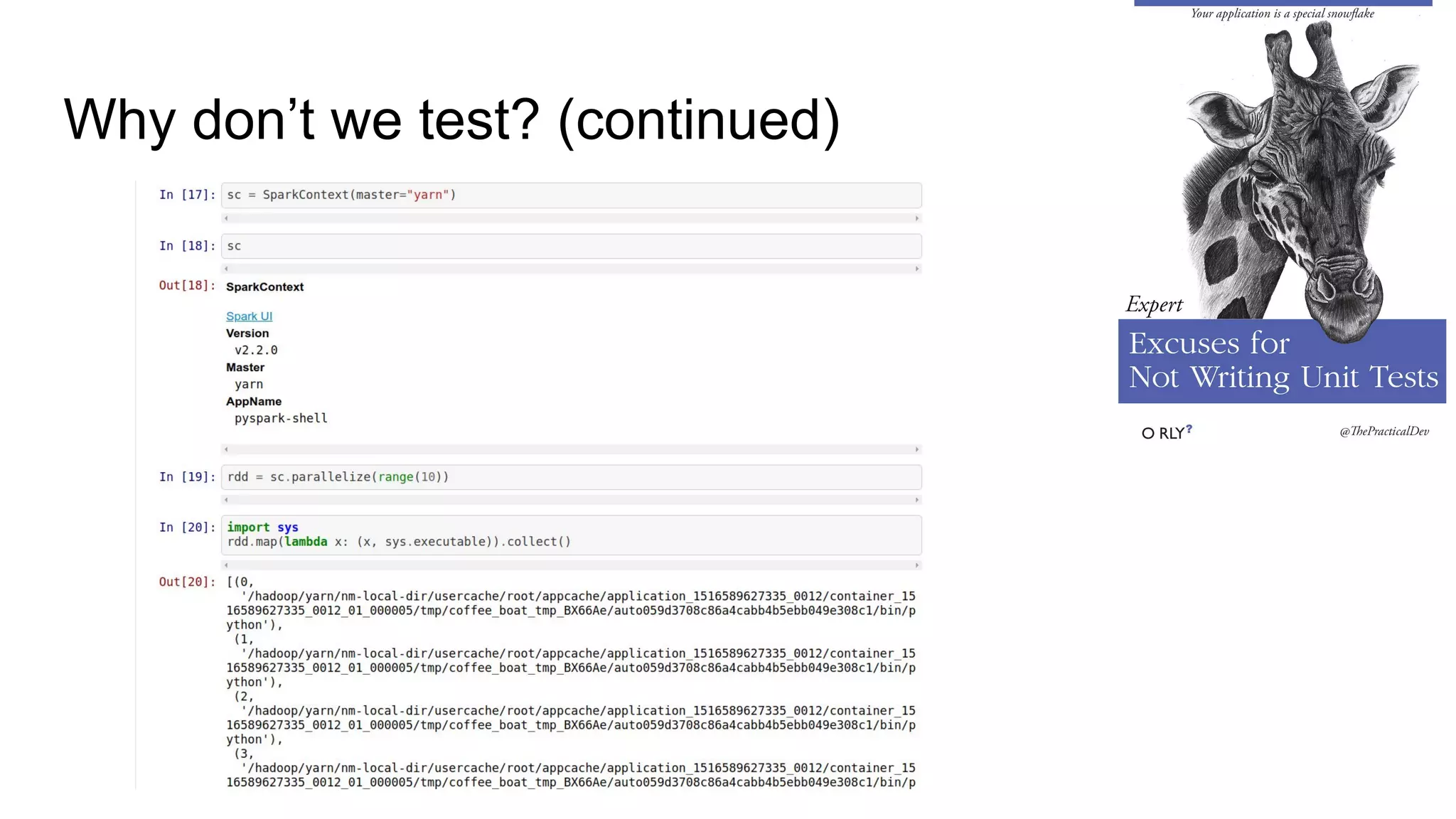

13. Why don’t we test? (continued)

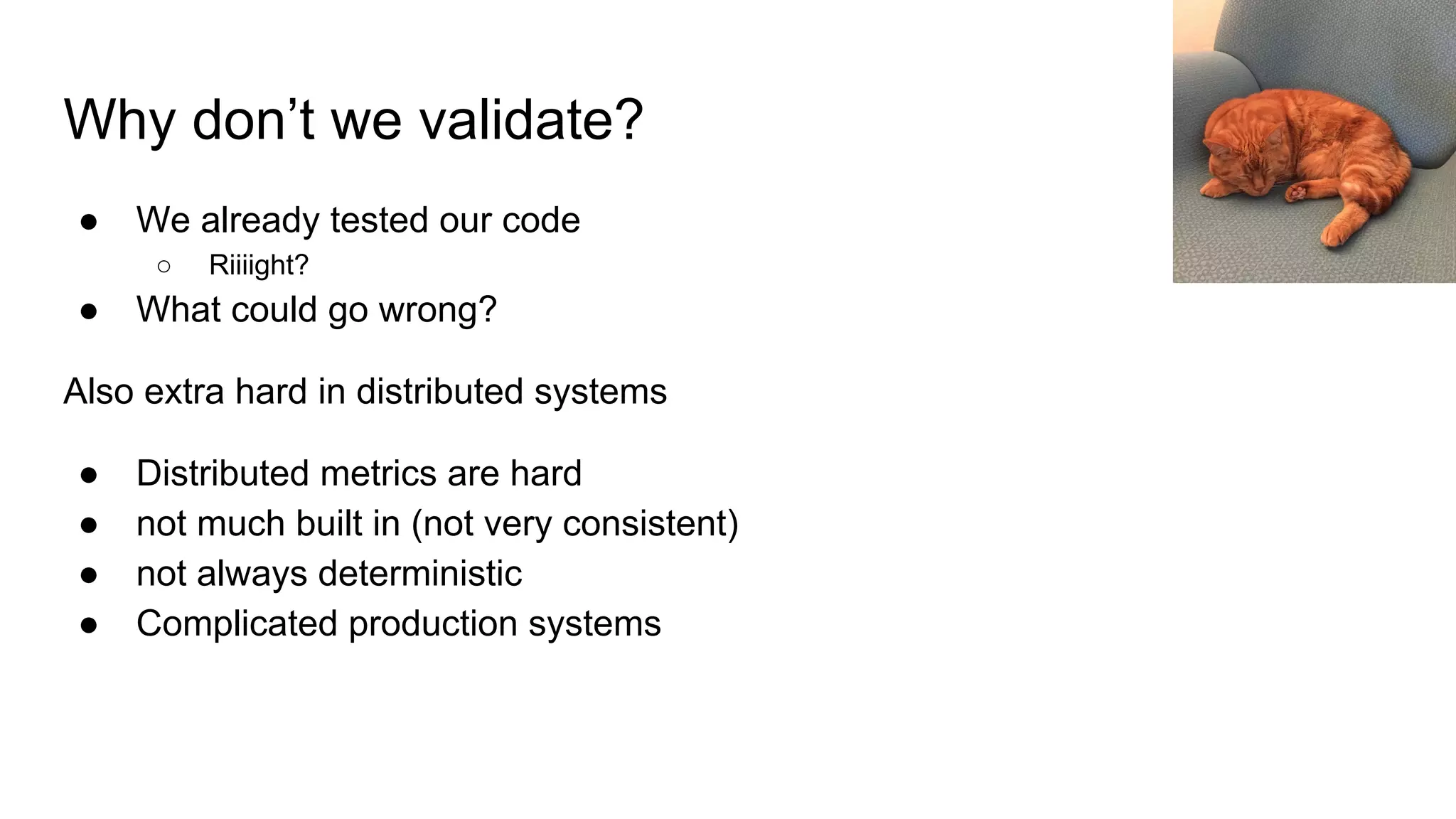

14. Why don’t we validate?
● We already tested our code
○ Riiiight?
● What could go wrong?
Also extra hard in distributed systems
● Distributed metrics are hard
● not much built in (not very consistent)
● not always deterministic
● Complicated production systems

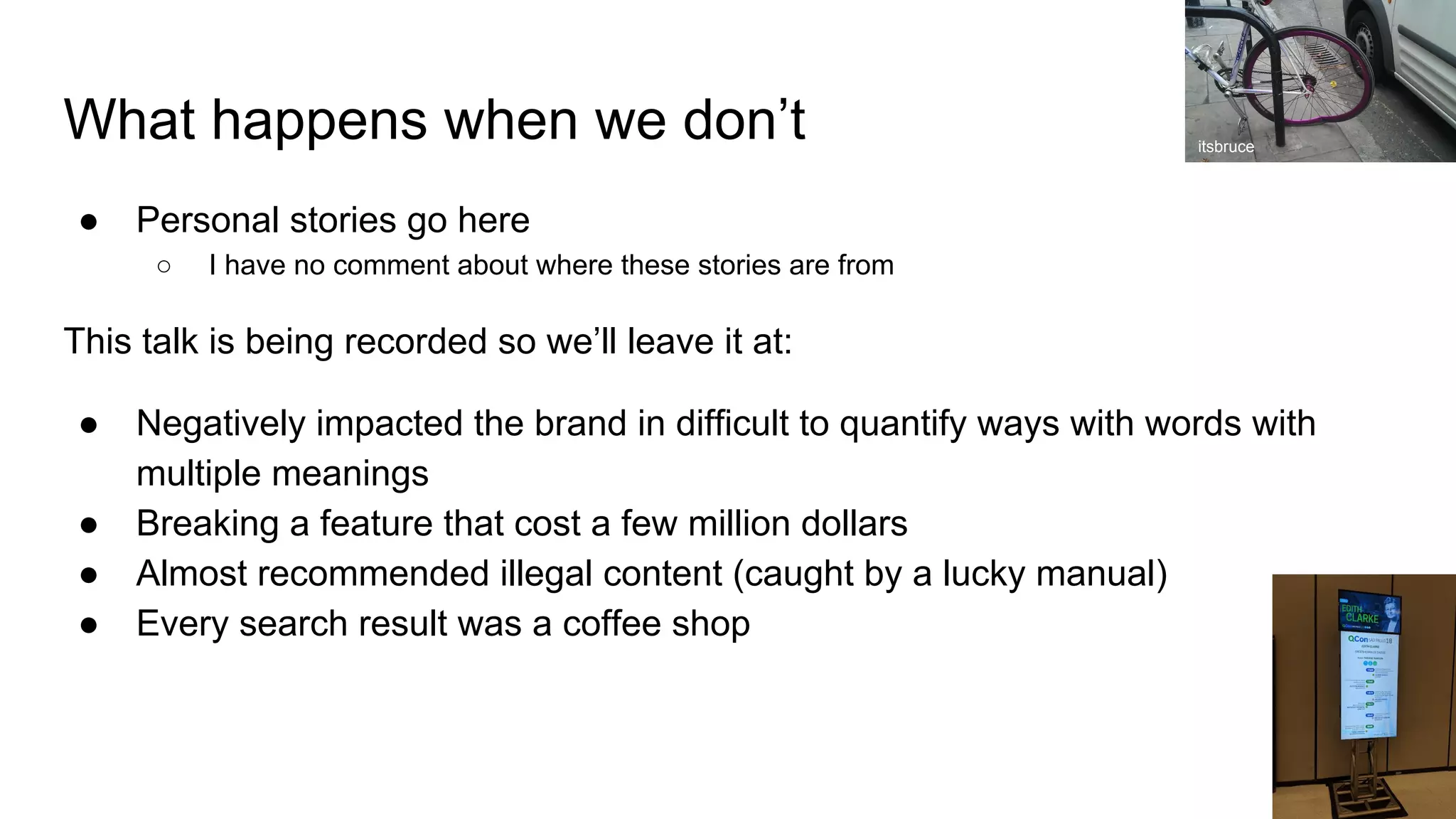

15. What happens when we don’t
● Personal stories go here
○ I have no comment about where these stories are from
This talk is being recorded so we’ll leave it at:
● Negatively impacted the brand in difficult to quantify ways with words with
multiple meanings
● Breaking a feature that cost a few million dollars
● Almost recommended illegal content (caught by a lucky manual)
● Every search result was a coffee shop
itsbruce

16. Cat photo from http://galato901.deviantart.com/art/Cat-on-Work-Break-173043455

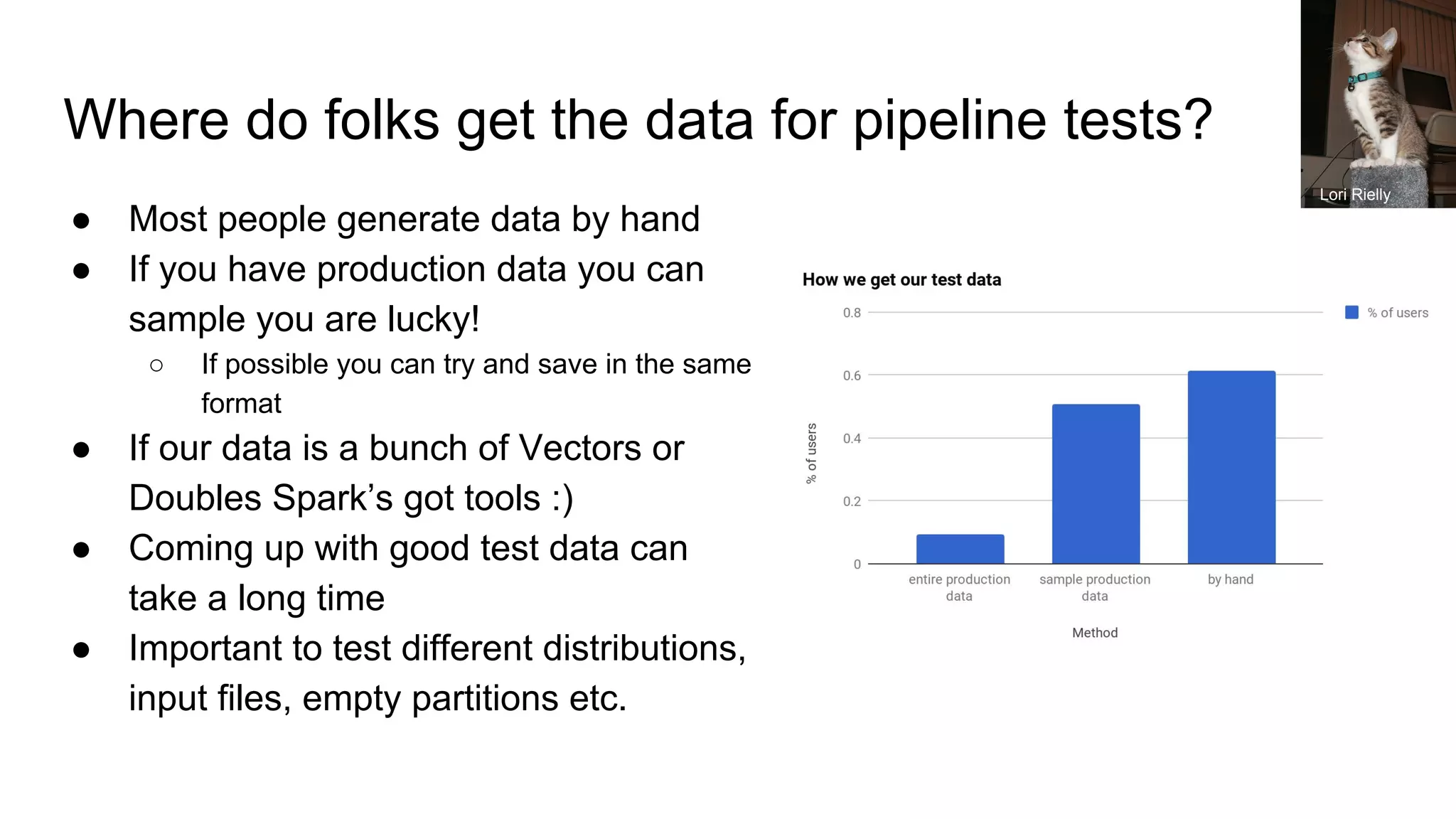

17. Where do folks get the data for pipeline tests?
● Most people generate data by hand
● If you have production data you can
sample you are lucky!
○ If possible you can try and save in the same
format
● If our data is a bunch of Vectors or
Doubles Spark’s got tools :)
● Coming up with good test data can
take a long time
● Important to test different distributions,
input files, empty partitions etc.
Lori Rielly

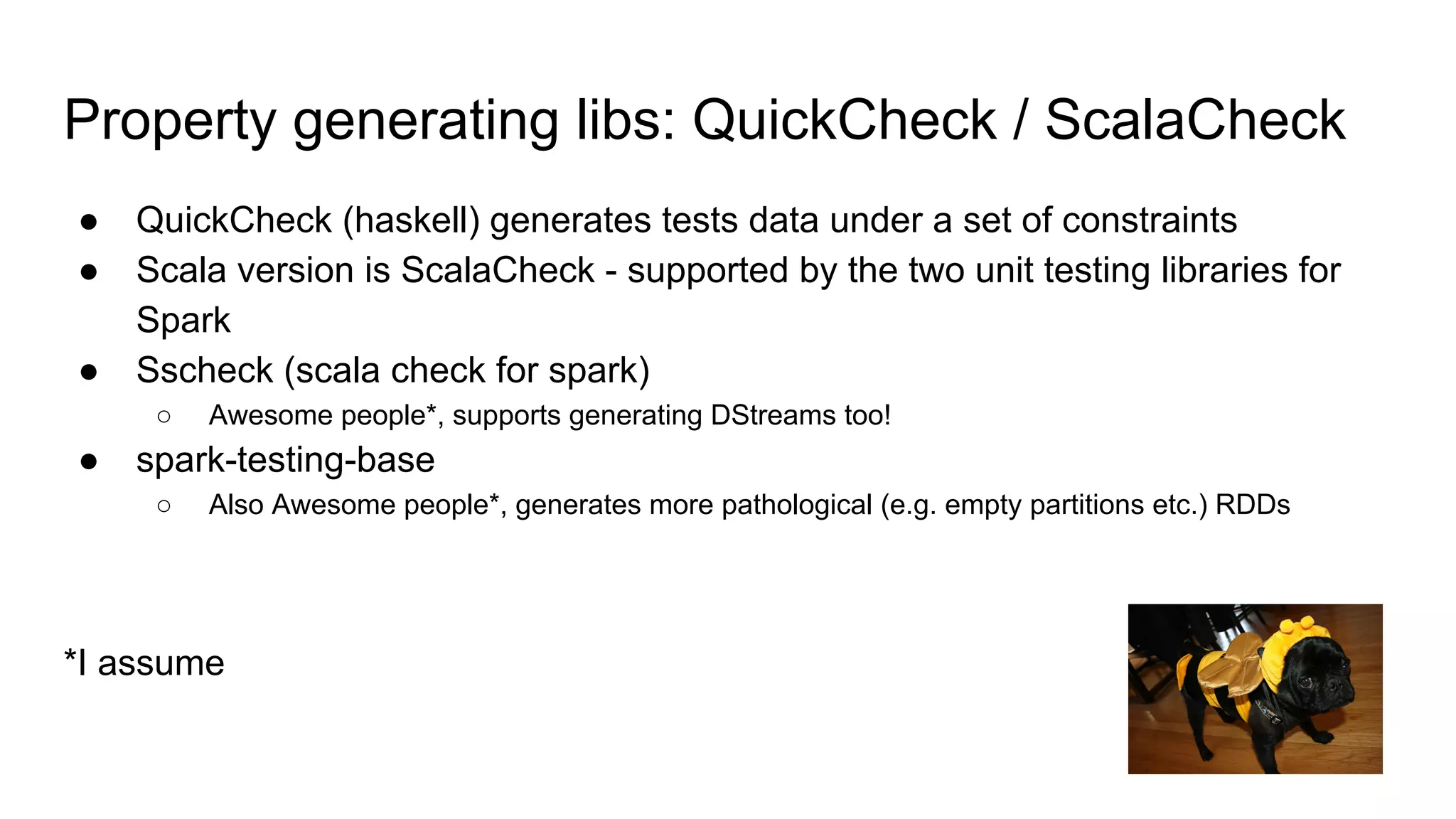

18. Property generating libs: QuickCheck / ScalaCheck
● QuickCheck (haskell) generates tests data under a set of constraints
● Scala version is ScalaCheck - supported by the two unit testing libraries for
Spark
● Sscheck (scala check for spark)
○ Awesome people*, supports generating DStreams too!
● spark-testing-base
○ Also Awesome people*, generates more pathological (e.g. empty partitions etc.) RDDs
*I assume
PROtara hunt

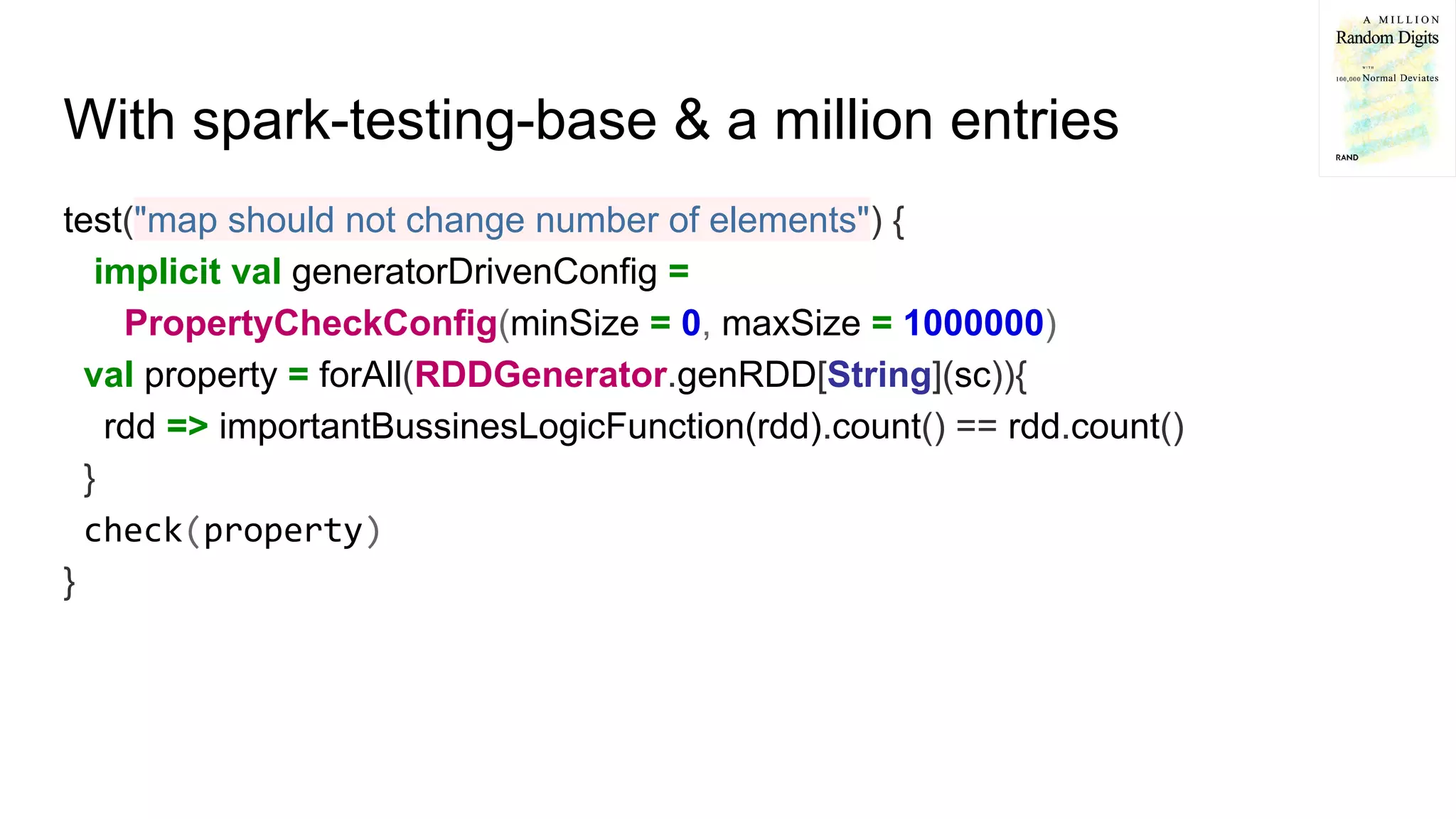

19. With spark-testing-base & a million entries
test("map should not change number of elements") {
implicit val generatorDrivenConfig =
PropertyCheckConfig(minSize = 0, maxSize = 1000000)
val property = forAll(RDDGenerator.genRDD[String](sc)){
rdd => importantBussinesLogicFunction(rdd).count() == rdd.count()
}
check(property)
}

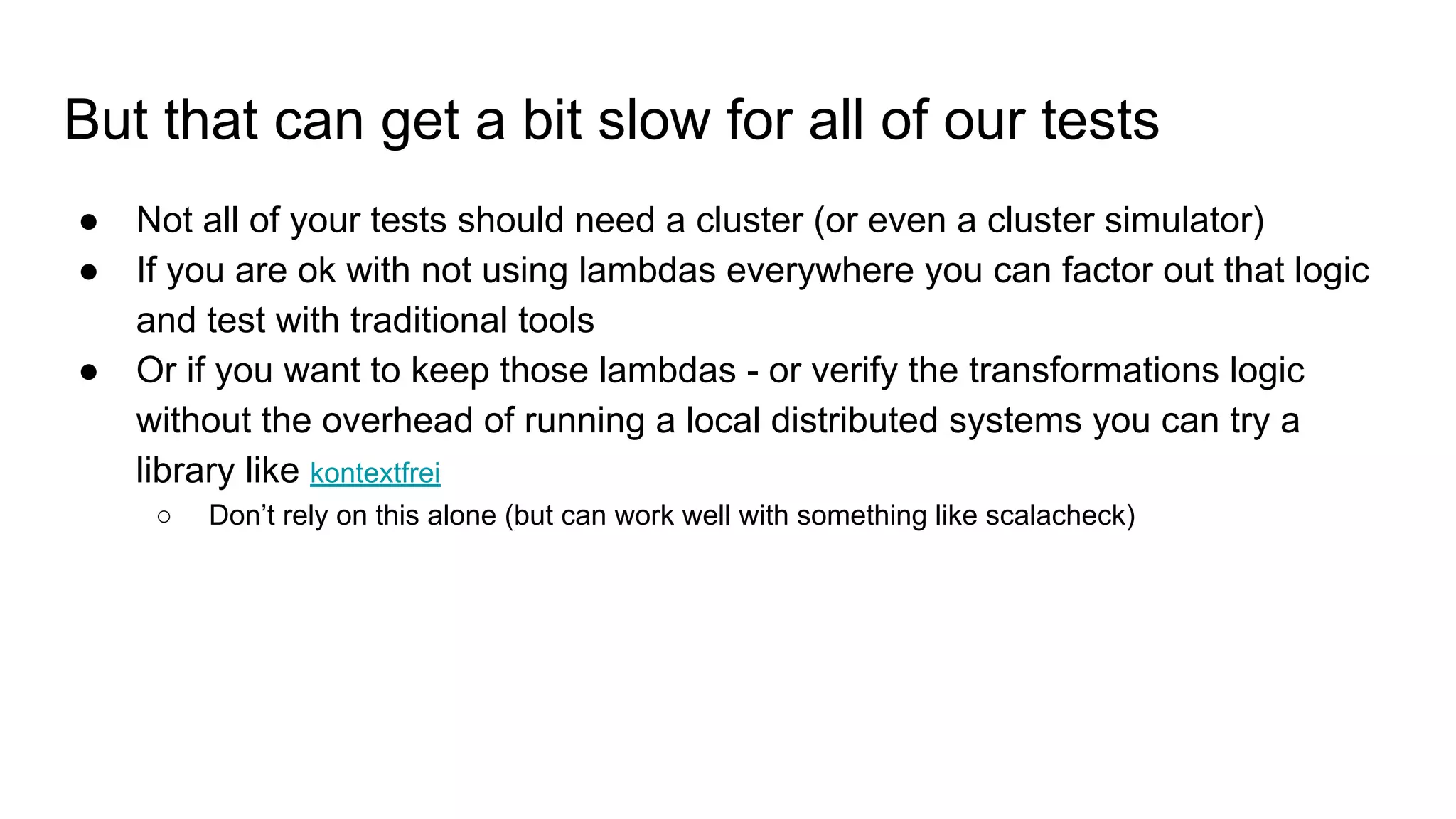

20. But that can get a bit slow for all of our tests
● Not all of your tests should need a cluster (or even a cluster simulator)
● If you are ok with not using lambdas everywhere you can factor out that logic
and test with traditional tools
● Or if you want to keep those lambdas - or verify the transformations logic
without the overhead of running a local distributed systems you can try a
library like kontextfrei
○ Don’t rely on this alone (but can work well with something like scalacheck)

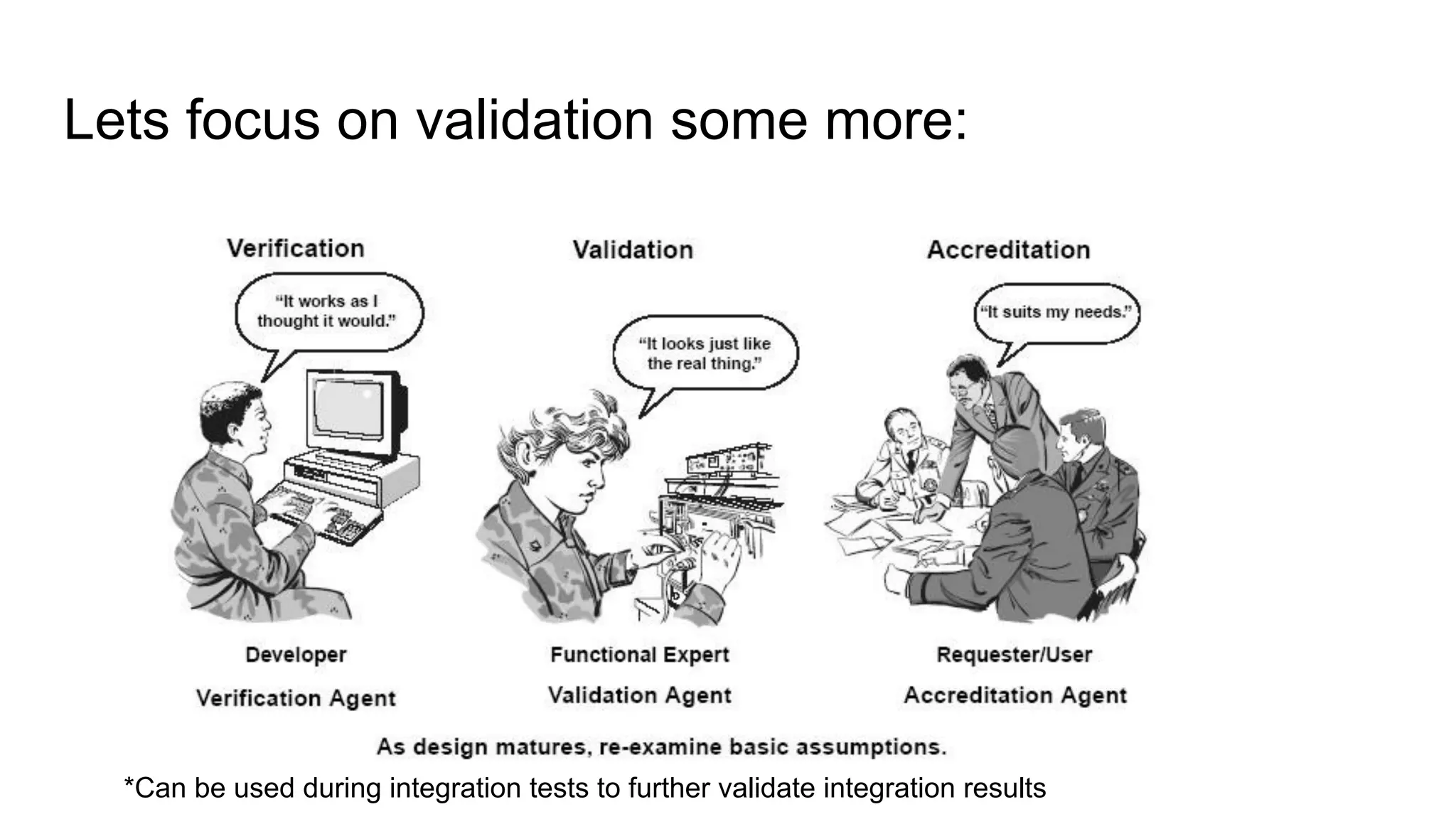

21. Lets focus on validation some more:
*Can be used during integration tests to further validate integration results

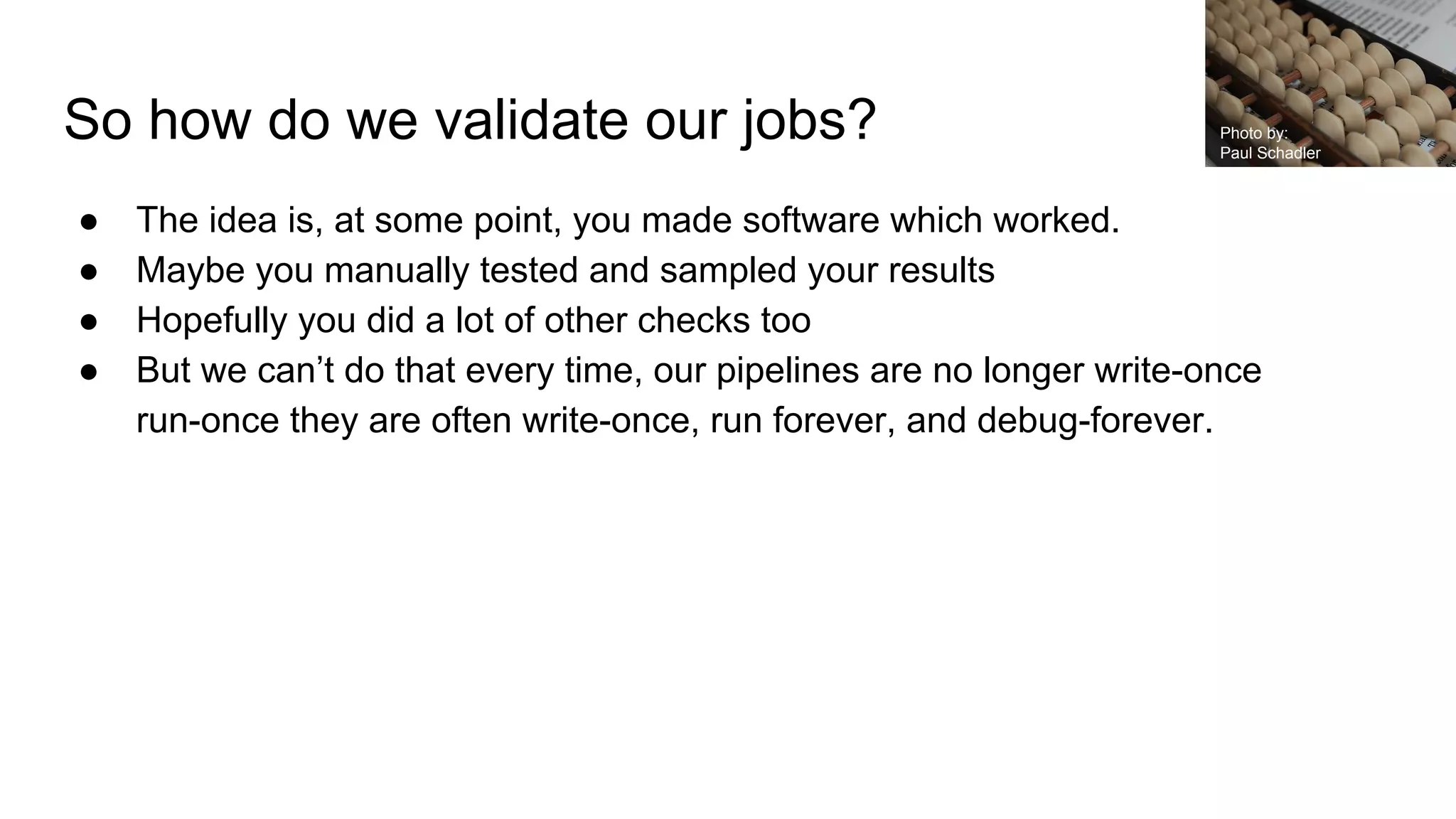

22. So how do we validate our jobs?
● The idea is, at some point, you made software which worked.
● Maybe you manually tested and sampled your results
● Hopefully you did a lot of other checks too
● But we can’t do that every time, our pipelines are no longer write-once
run-once they are often write-once, run forever, and debug-forever.
Photo by:
Paul Schadler

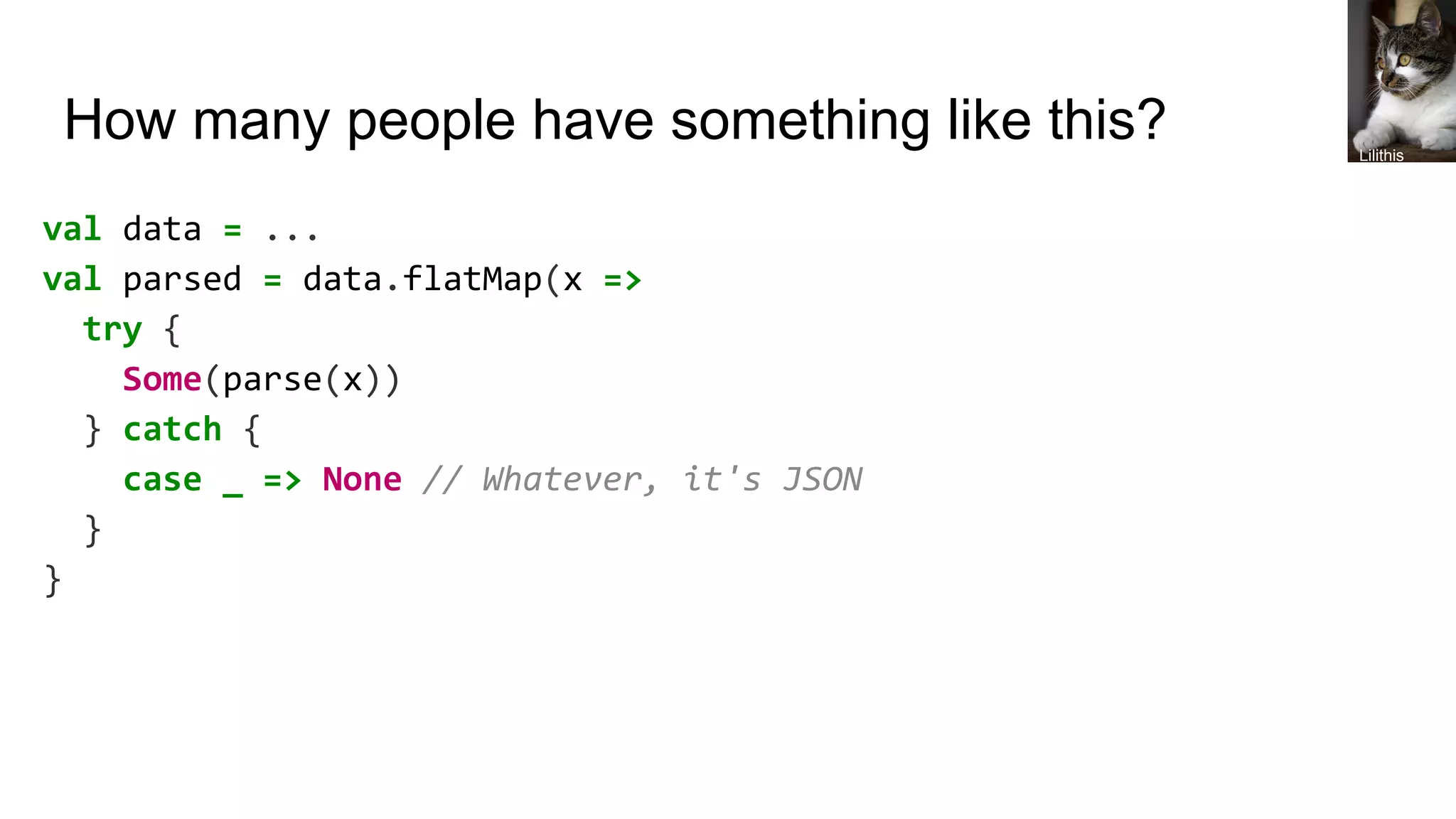

23. How many people have something like this?
val data = ...
val parsed = data.flatMap(x =>
try {
Some(parse(x))
} catch {
case _ => None // Whatever, it's JSON
}
}
Lilithis

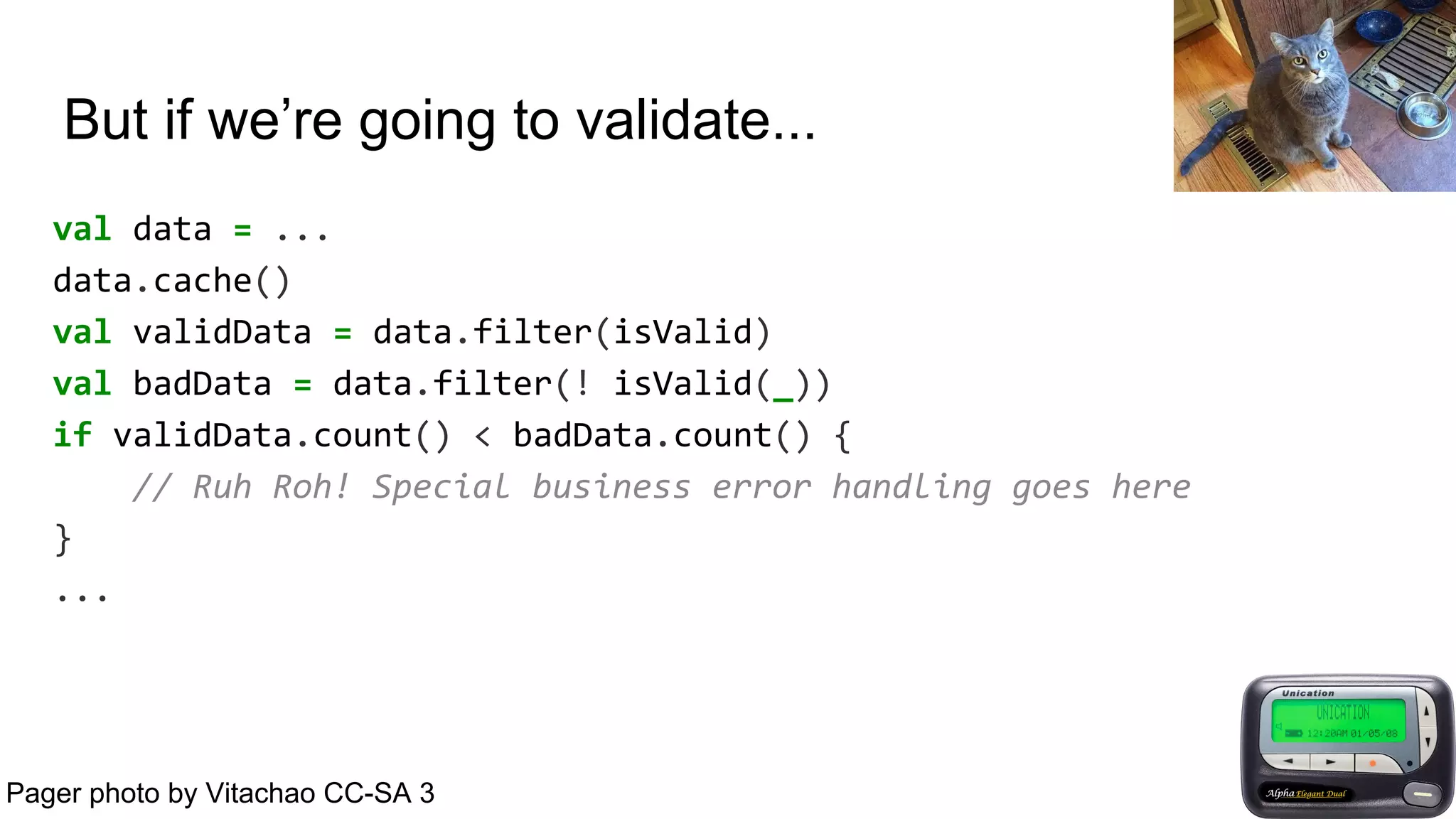

24. But if we’re going to validate...
val data = ...
data.cache()
val validData = data.filter(isValid)
val badData = data.filter(! isValid(_))
if validData.count() < badData.count() {
// Ruh Roh! Special business error handling goes here
}
...
Pager photo by Vitachao CC-SA 3

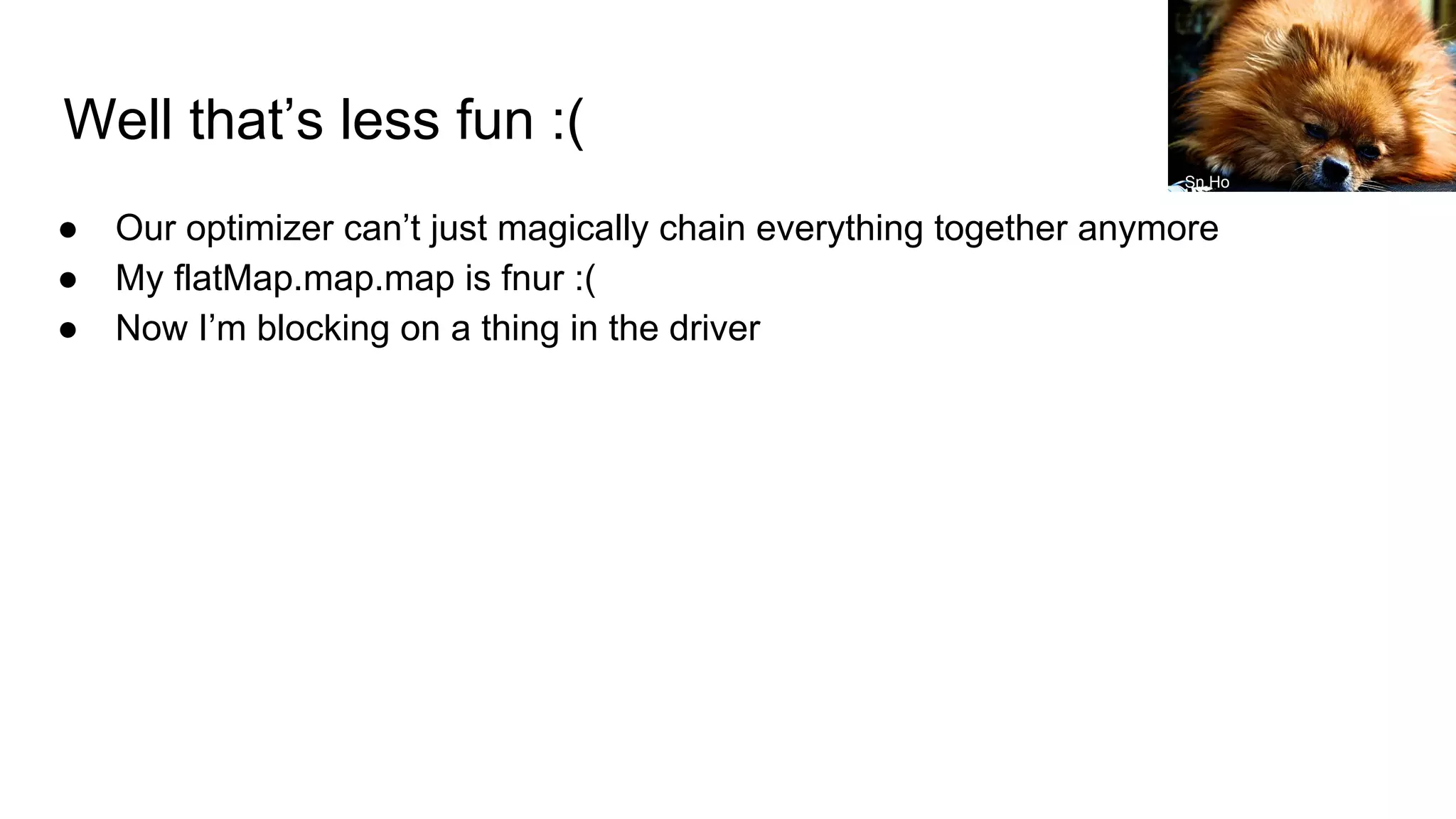

25. Well that’s less fun :(
● Our optimizer can’t just magically chain everything together anymore
● My flatMap.map.map is fnur :(
● Now I’m blocking on a thing in the driver
Sn.Ho

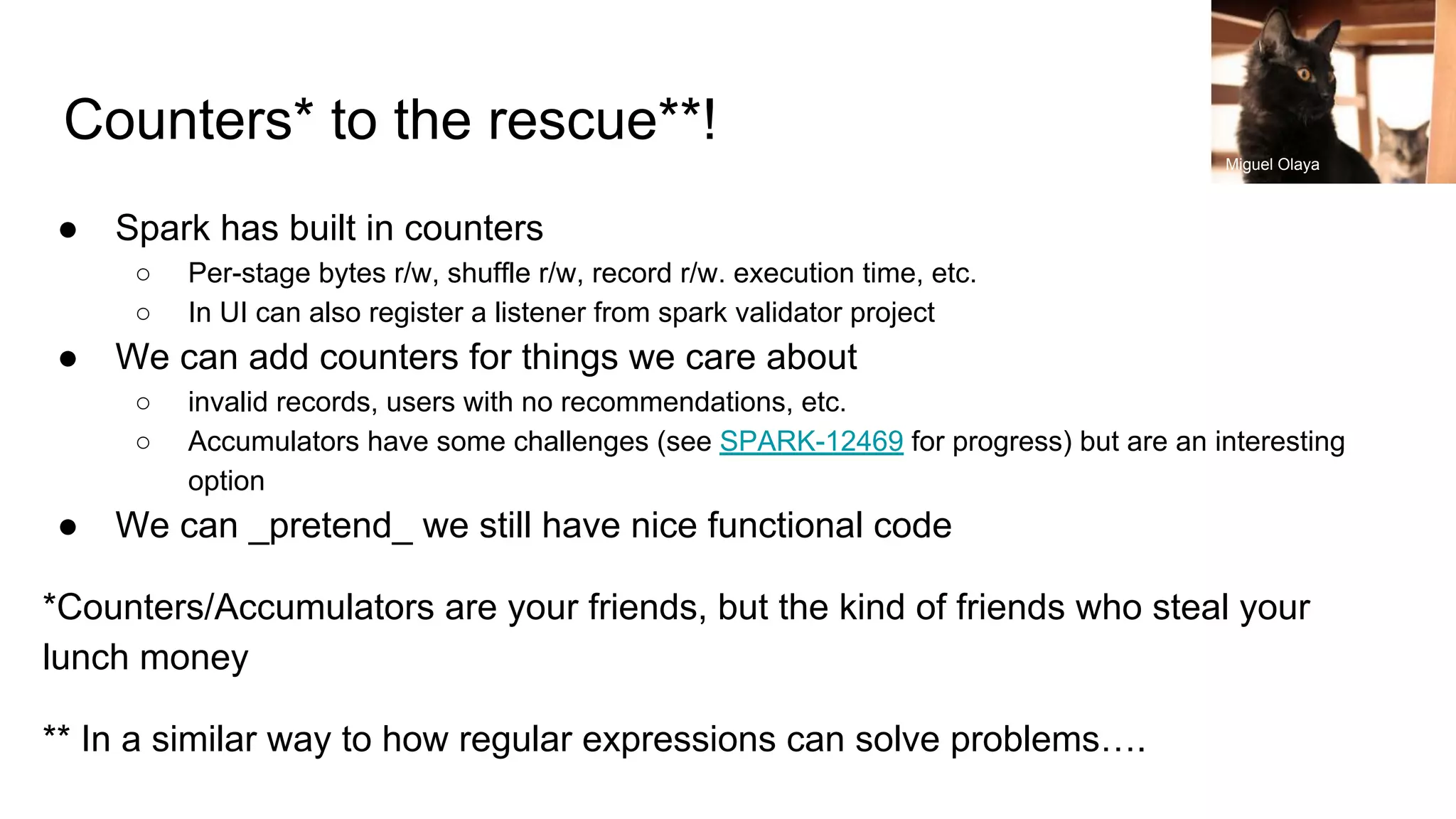

26. Counters* to the rescue**!
● Spark has built in counters
○ Per-stage bytes r/w, shuffle r/w, record r/w. execution time, etc.
○ In UI can also register a listener from spark validator project
● We can add counters for things we care about
○ invalid records, users with no recommendations, etc.
○ Accumulators have some challenges (see SPARK-12469 for progress) but are an interesting
option
● We can _pretend_ we still have nice functional code
*Counters/Accumulators are your friends, but the kind of friends who steal your
lunch money
** In a similar way to how regular expressions can solve problems….
Miguel Olaya

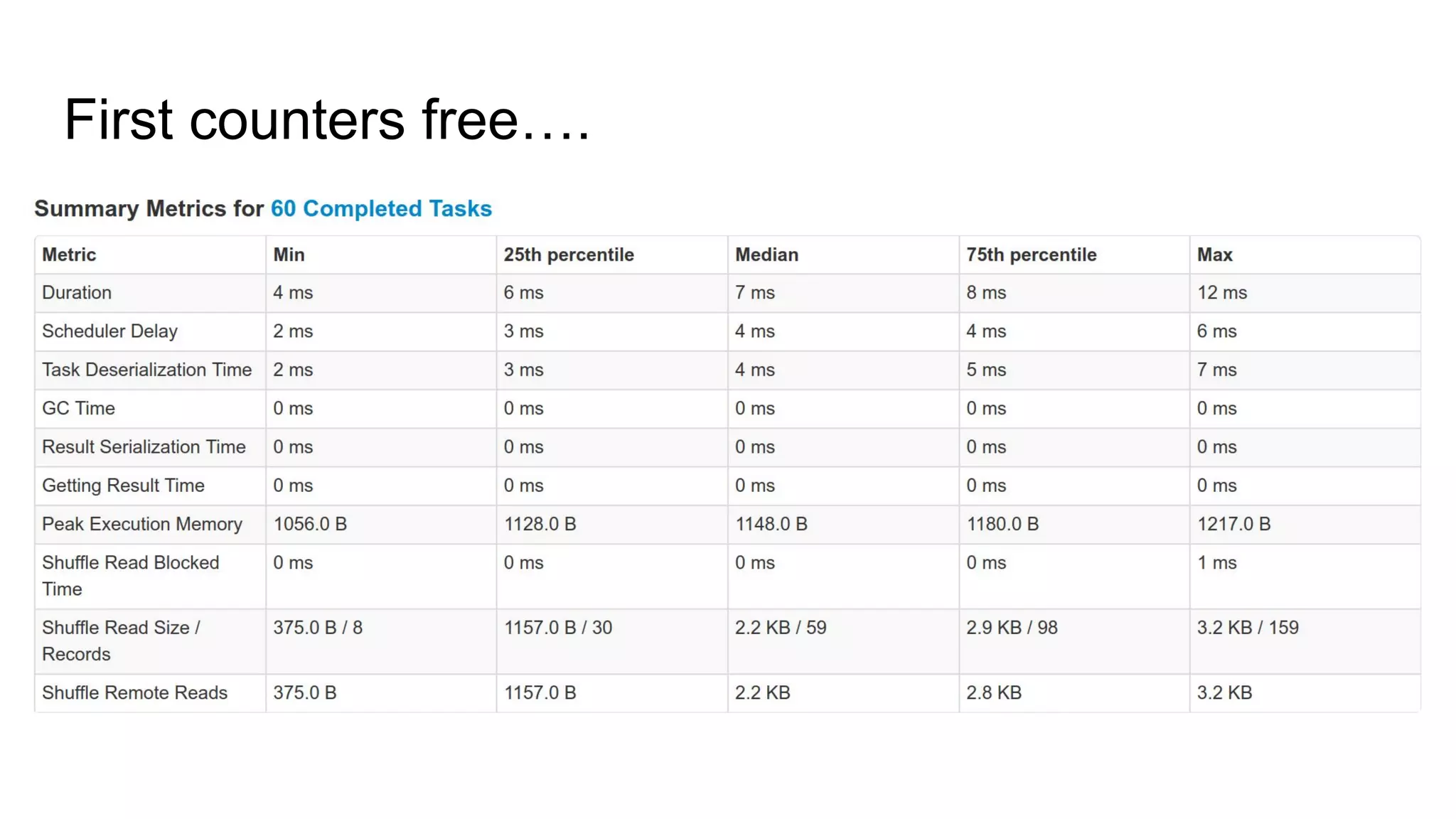

27. First counters free….

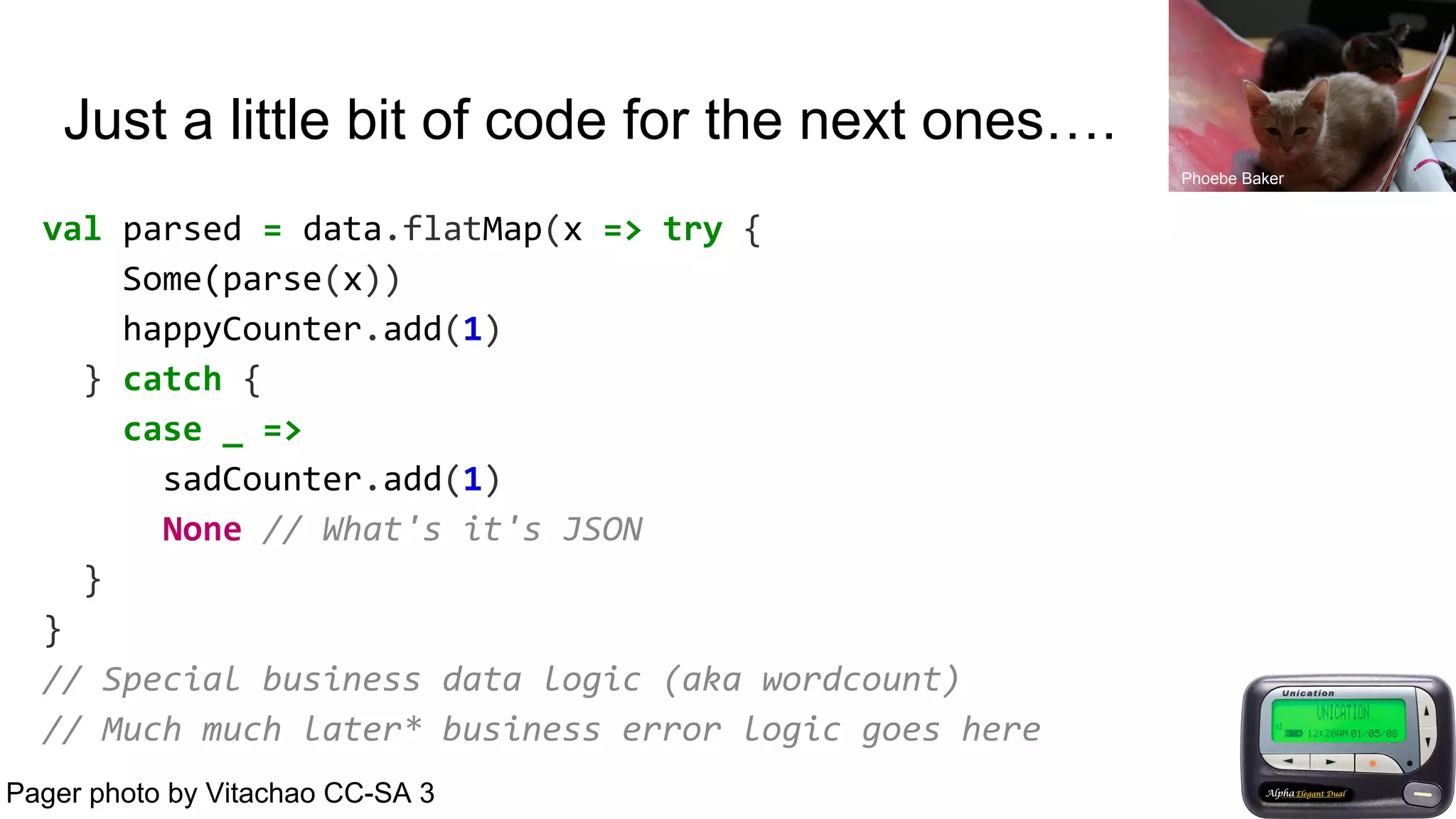

28. Just a little bit of code for the next ones….
val parsed = data.flatMap(x => try {
Some(parse(x))
happyCounter.add(1)
} catch {
case _ =>
sadCounter.add(1)
None // What's it's JSON
}
}
// Special business data logic (aka wordcount)
// Much much later* business error logic goes here
Pager photo by Vitachao CC-SA 3
Phoebe Baker

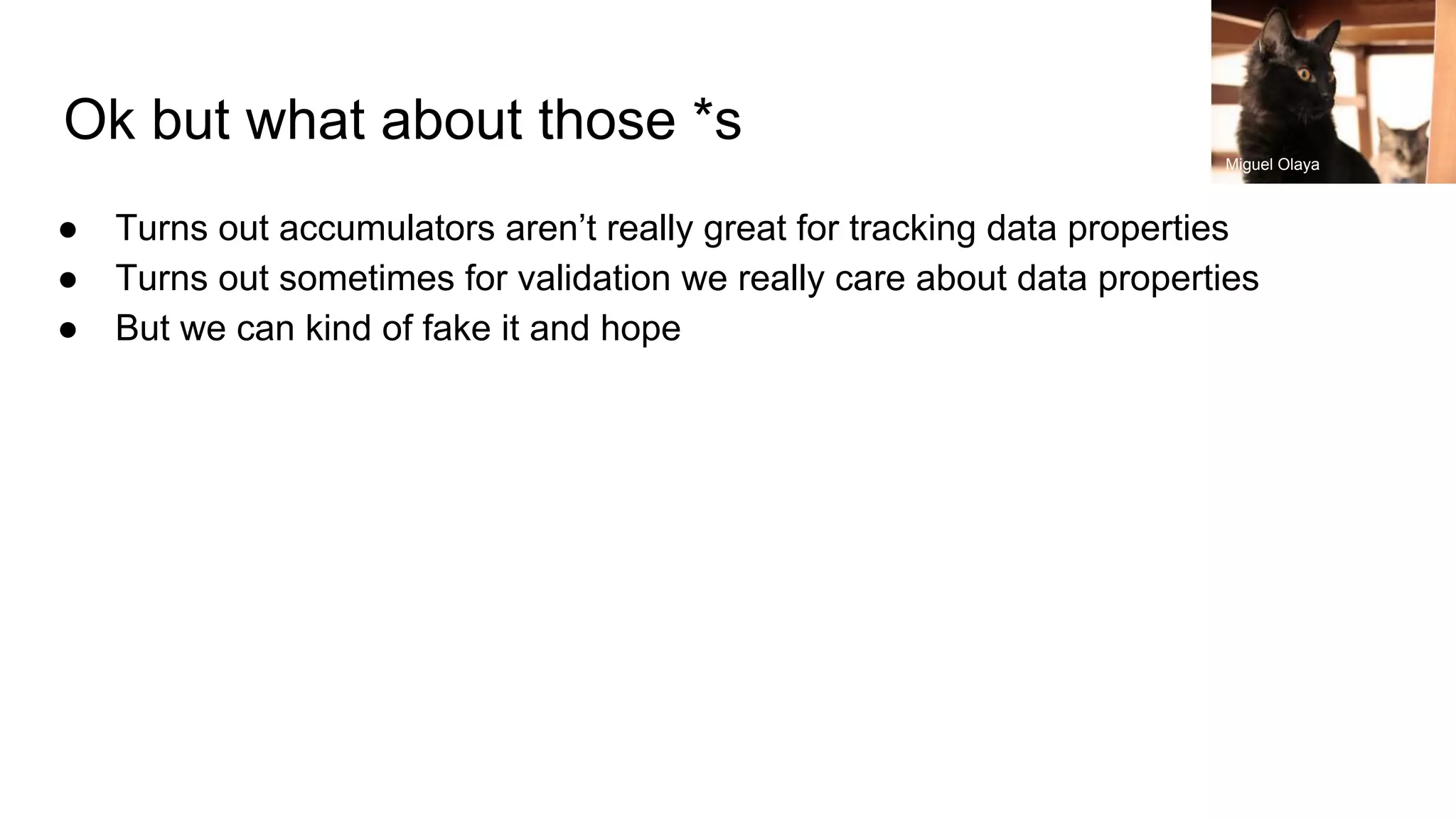

29. Ok but what about those *s
● Turns out accumulators aren’t really great for tracking data properties
● Turns out sometimes for validation we really care about data properties
● But we can kind of fake it and hope
Miguel Olaya

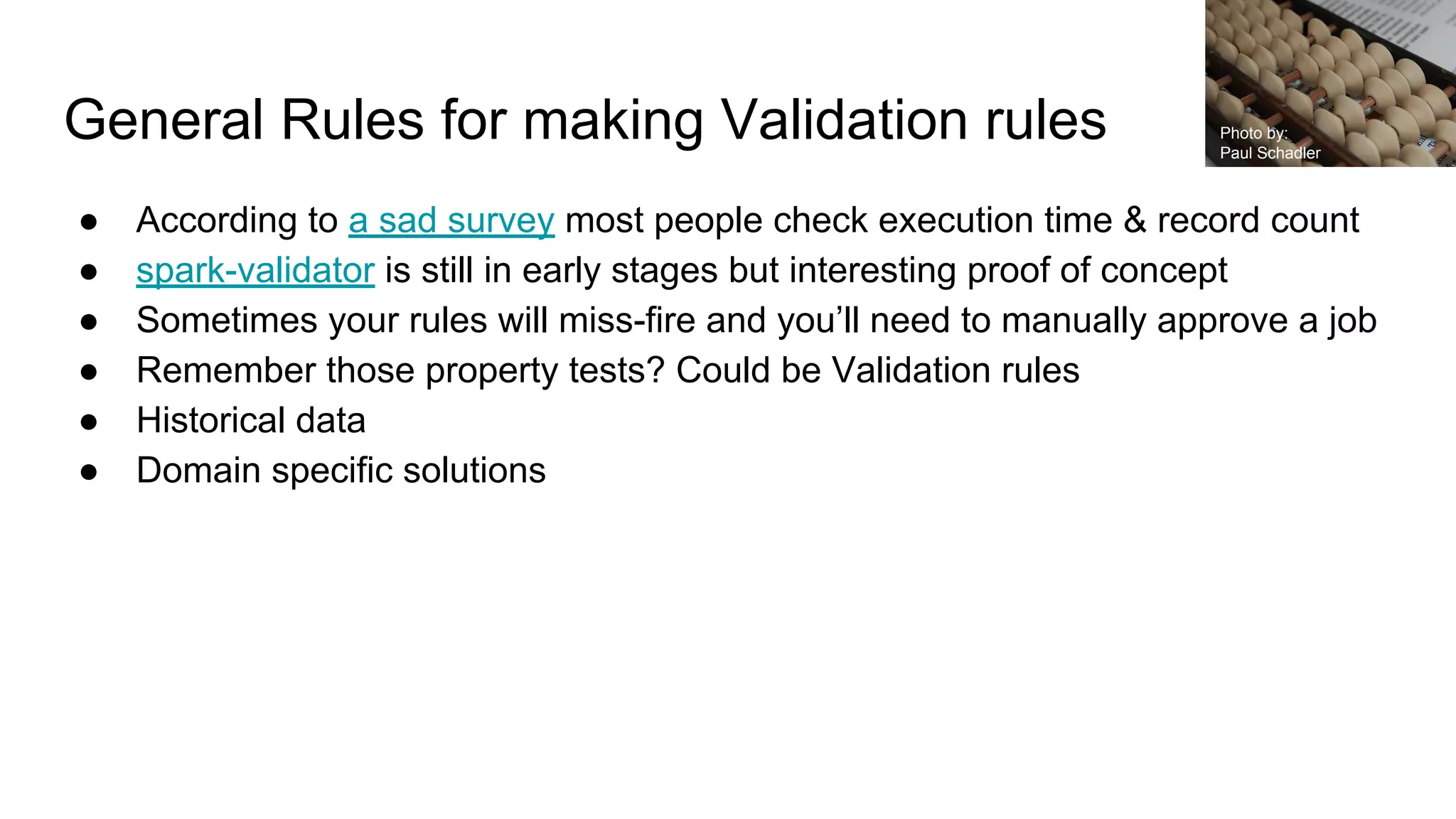

30. General Rules for making Validation rules
● According to a sad survey most people check execution time & record count
● spark-validator is still in early stages but interesting proof of concept
● Sometimes your rules will miss-fire and you’ll need to manually approve a job
● Remember those property tests? Could be Validation rules
● Historical data
● Domain specific solutions
Photo by:
Paul Schadler

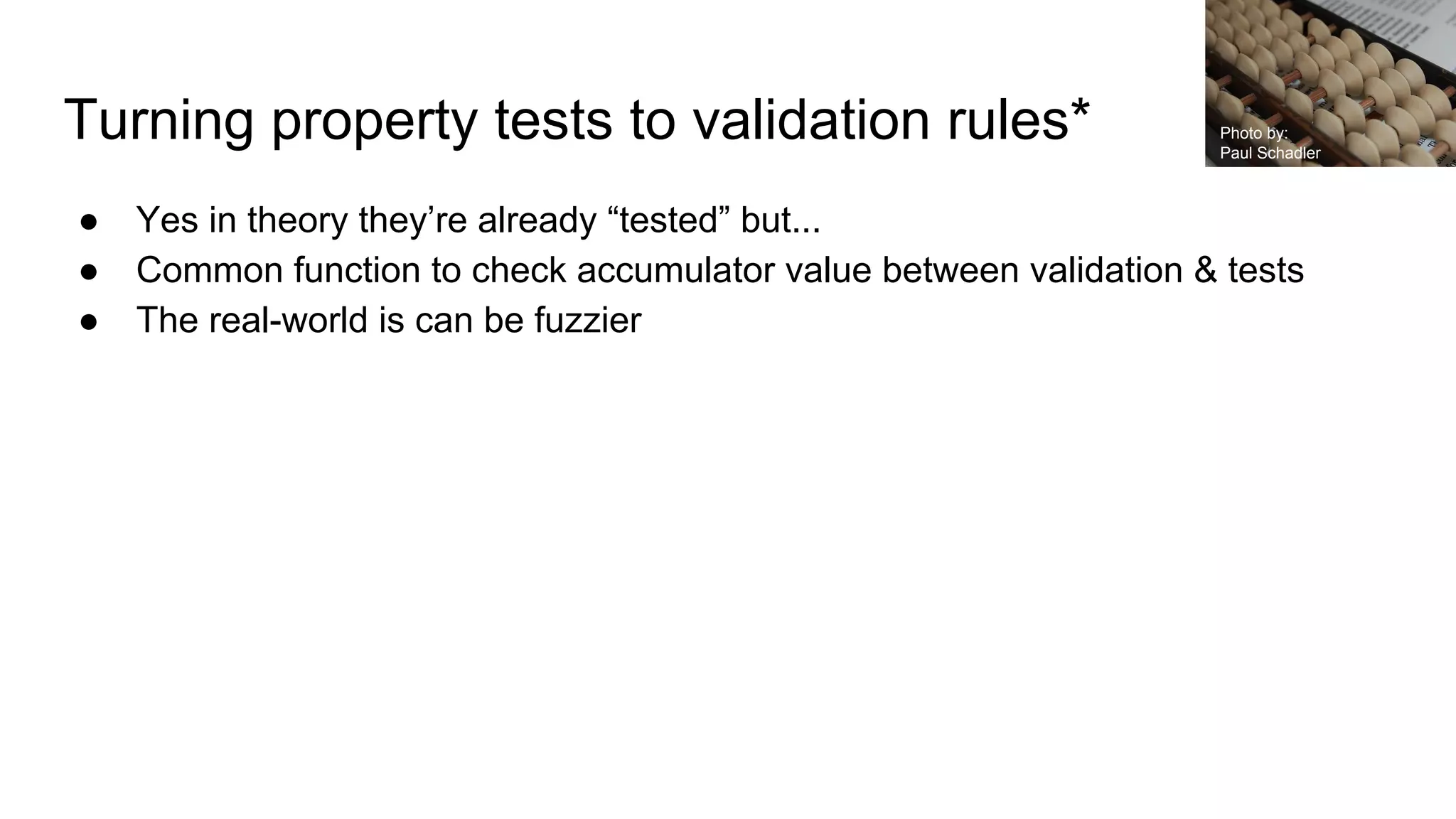

31. Turning property tests to validation rules*
● Yes in theory they’re already “tested” but...
● Common function to check accumulator value between validation & tests
● The real-world is can be fuzzier
Photo by:
Paul Schadler

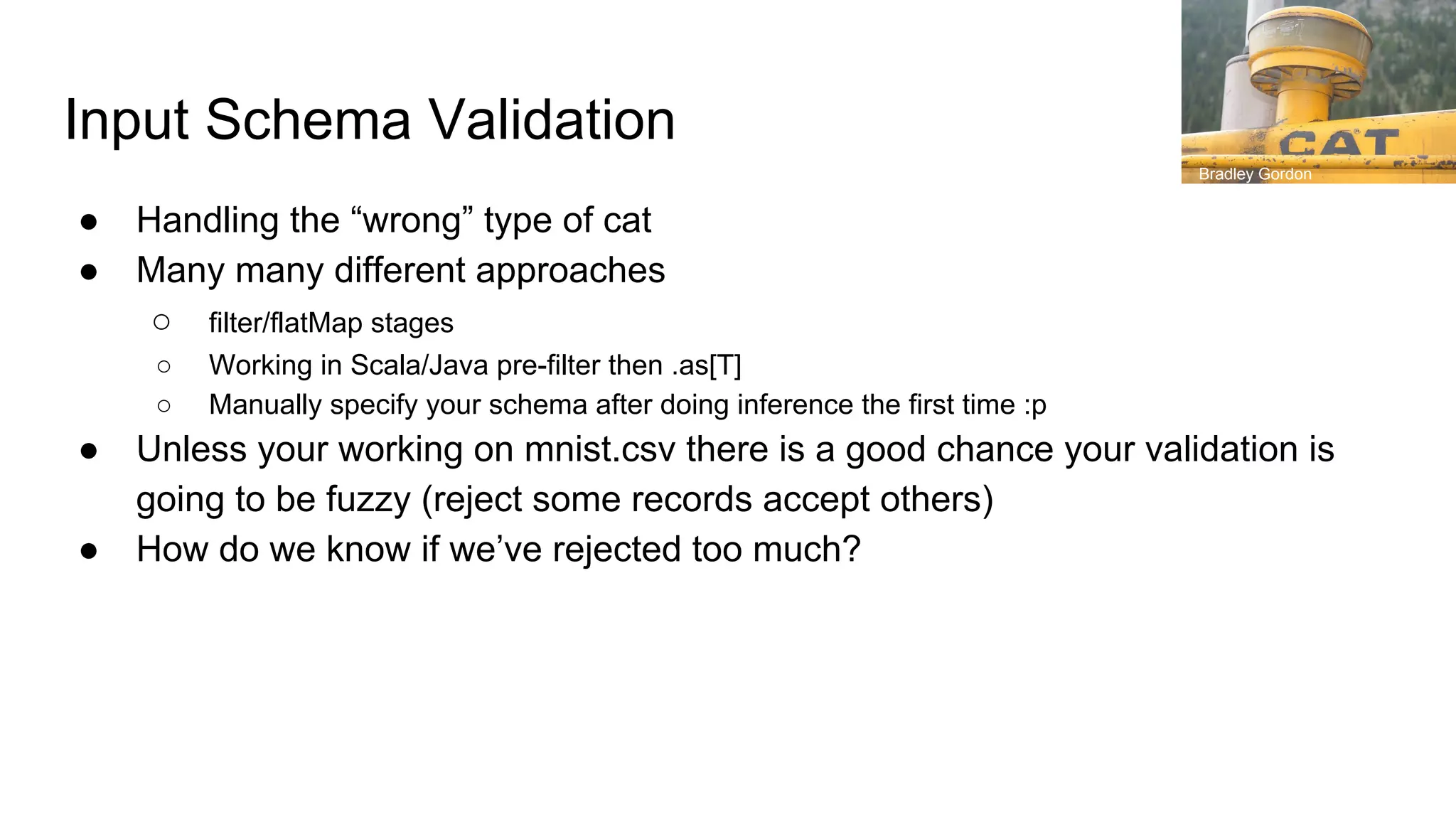

32. Input Schema Validation
● Handling the “wrong” type of cat
● Many many different approaches
○ filter/flatMap stages
○ Working in Scala/Java pre-filter then .as[T]
○ Manually specify your schema after doing inference the first time :p
● Unless your working on mnist.csv there is a good chance your validation is
going to be fuzzy (reject some records accept others)
● How do we know if we’ve rejected too much?
Bradley Gordon

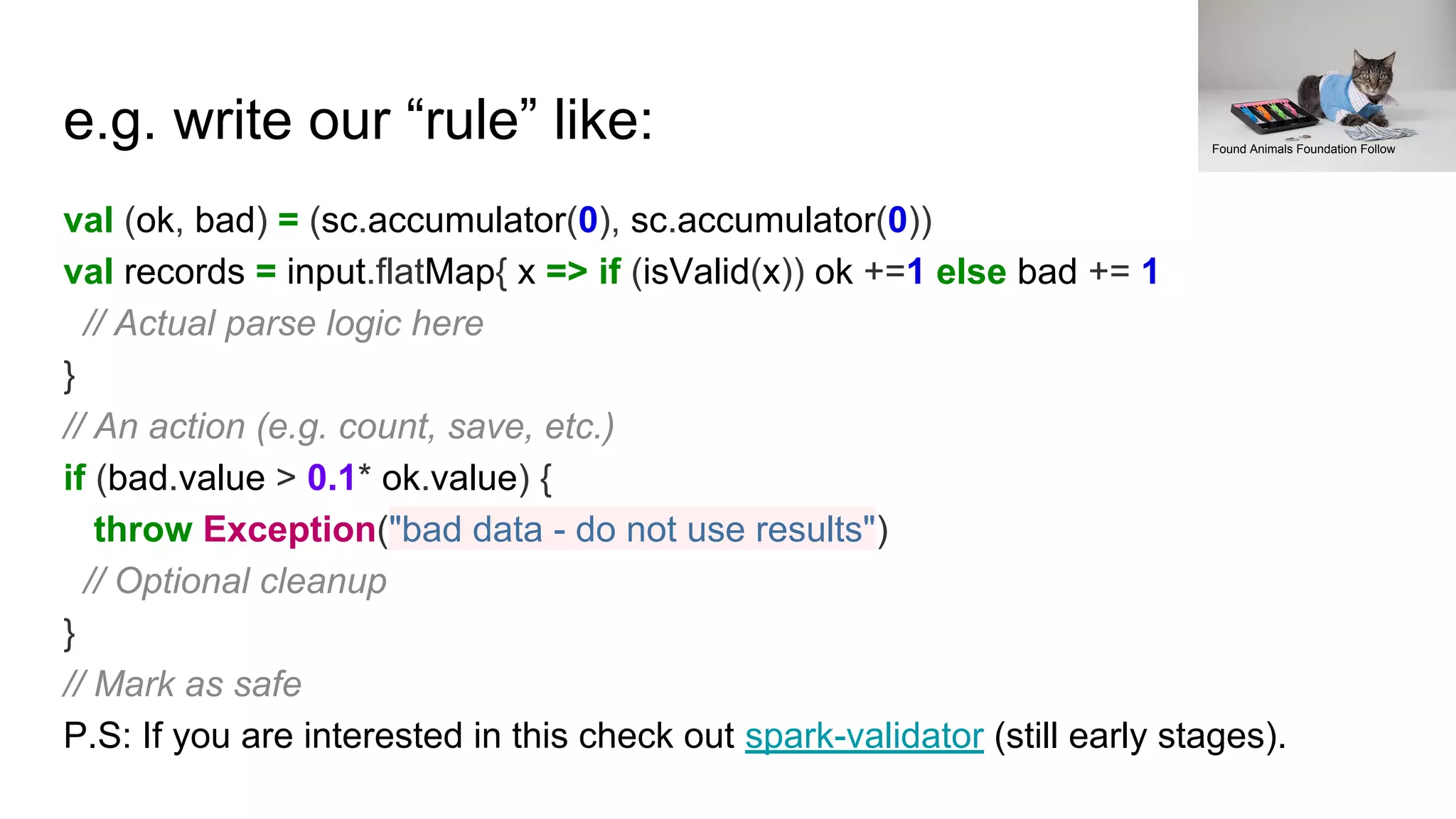

33. e.g. write our “rule” like:
val (ok, bad) = (sc.accumulator(0), sc.accumulator(0))
val records = input.flatMap{ x => if (isValid(x)) ok +=1 else bad += 1
// Actual parse logic here
}
// An action (e.g. count, save, etc.)
if (bad.value > 0.1* ok.value) {
throw Exception("bad data - do not use results")
// Optional cleanup
}
// Mark as safe
P.S: If you are interested in this check out spark-validator (still early stages).
Found Animals Foundation Follow

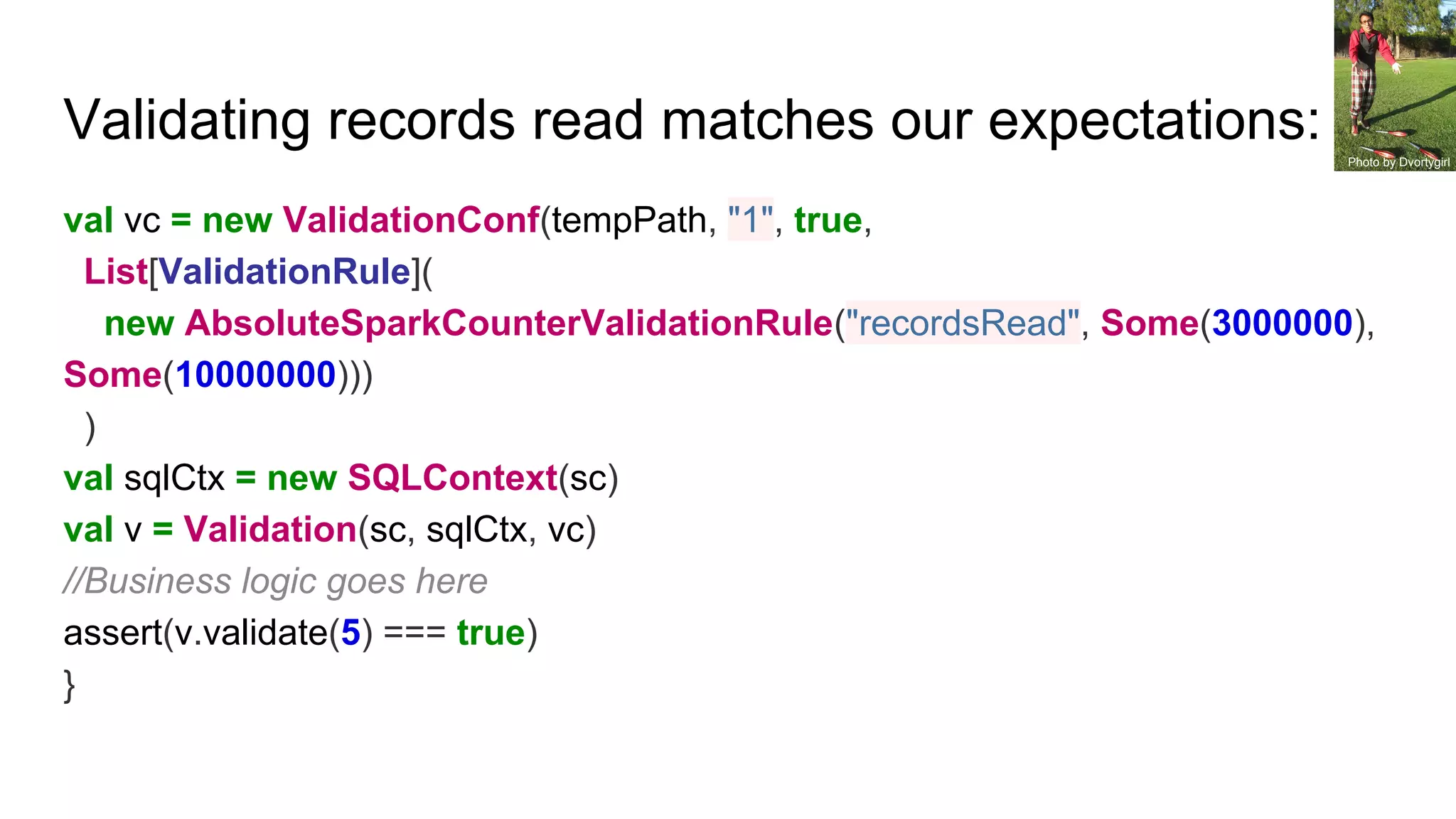

34. Validating records read matches our expectations:
val vc = new ValidationConf(tempPath, "1", true,
List[ValidationRule](
new AbsoluteSparkCounterValidationRule("recordsRead", Some(3000000),
Some(10000000)))
)
val sqlCtx = new SQLContext(sc)
val v = Validation(sc, sqlCtx, vc)
//Business logic goes here
assert(v.validate(5) === true)
}
Photo by Dvortygirl

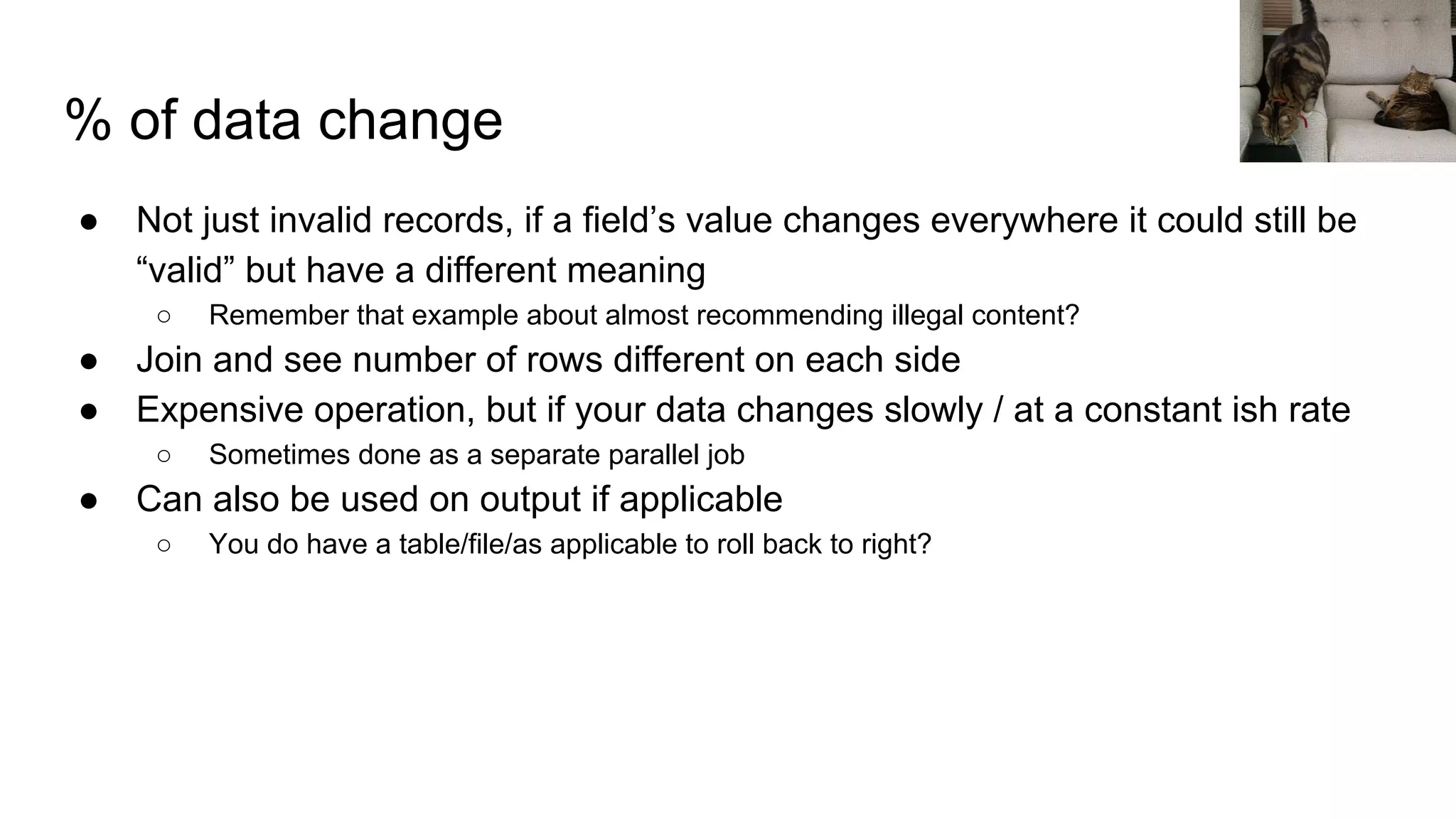

35. % of data change
● Not just invalid records, if a field’s value changes everywhere it could still be
“valid” but have a different meaning
○ Remember that example about almost recommending illegal content?
● Join and see number of rows different on each side
● Expensive operation, but if your data changes slowly / at a constant ish rate
○ Sometimes done as a separate parallel job
● Can also be used on output if applicable
○ You do have a table/file/as applicable to roll back to right?

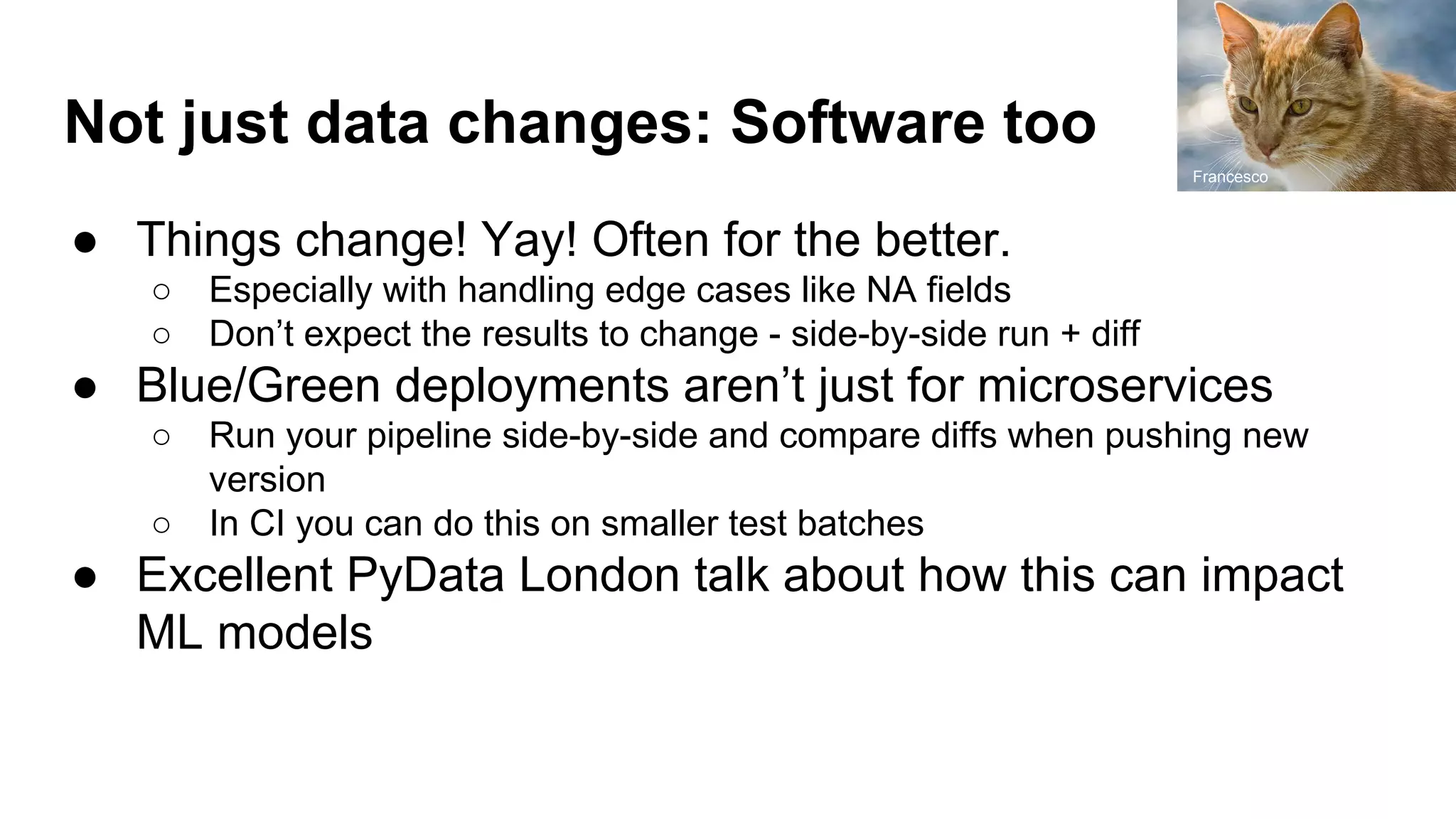

36. Not just data changes: Software too
● Things change! Yay! Often for the better.
○ Especially with handling edge cases like NA fields
○ Don’t expect the results to change - side-by-side run + diff
● Blue/Green deployments aren’t just for microservices
○ Run your pipeline side-by-side and compare diffs when pushing new
version
○ In CI you can do this on smaller test batches
● Excellent PyData London talk about how this can impact
ML models
Francesco

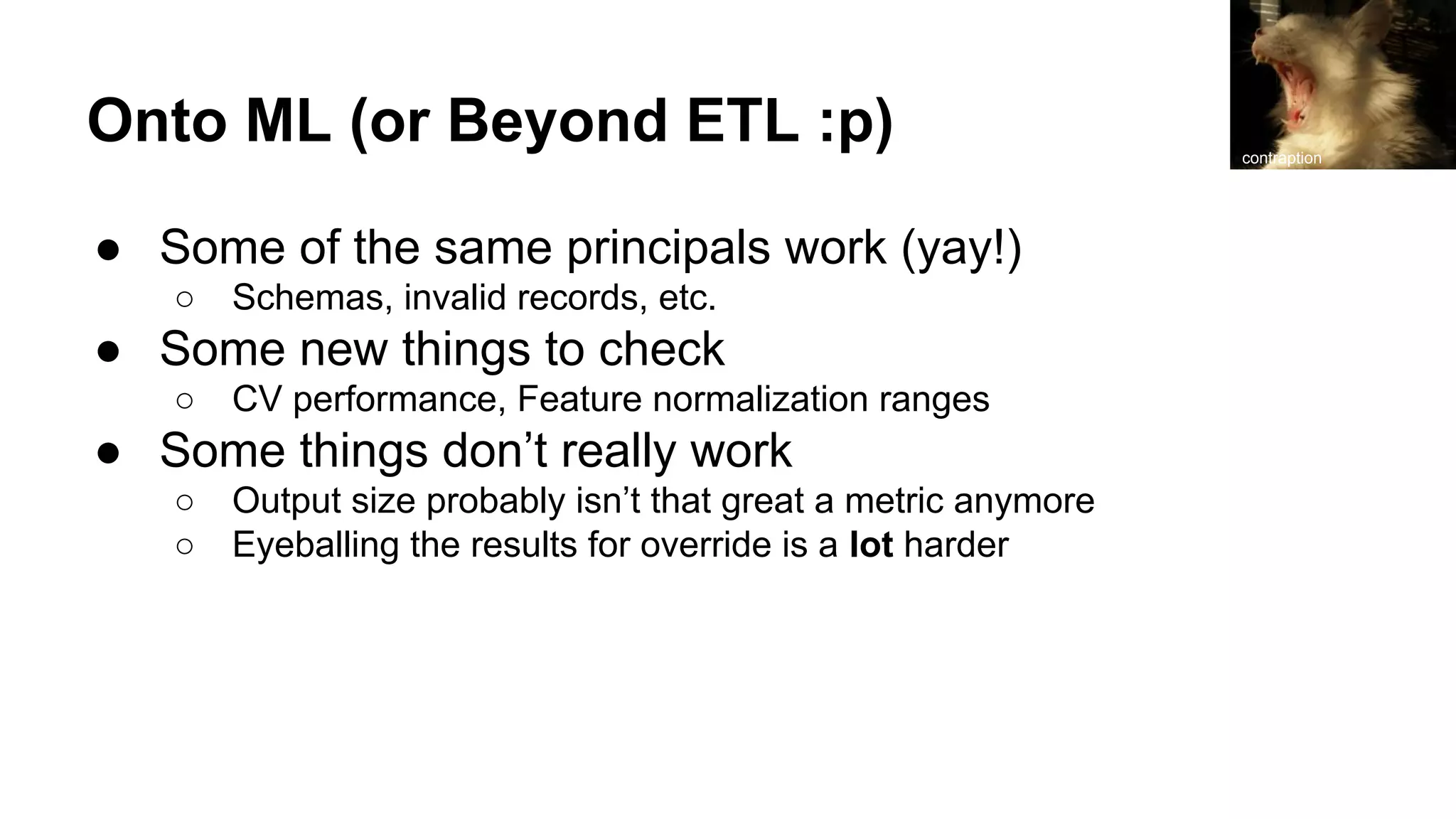

37. Onto ML (or Beyond ETL :p)
● Some of the same principals work (yay!)
○ Schemas, invalid records, etc.
● Some new things to check
○ CV performance, Feature normalization ranges
● Some things don’t really work
○ Output size probably isn’t that great a metric anymore
○ Eyeballing the results for override is a lot harder
contraption

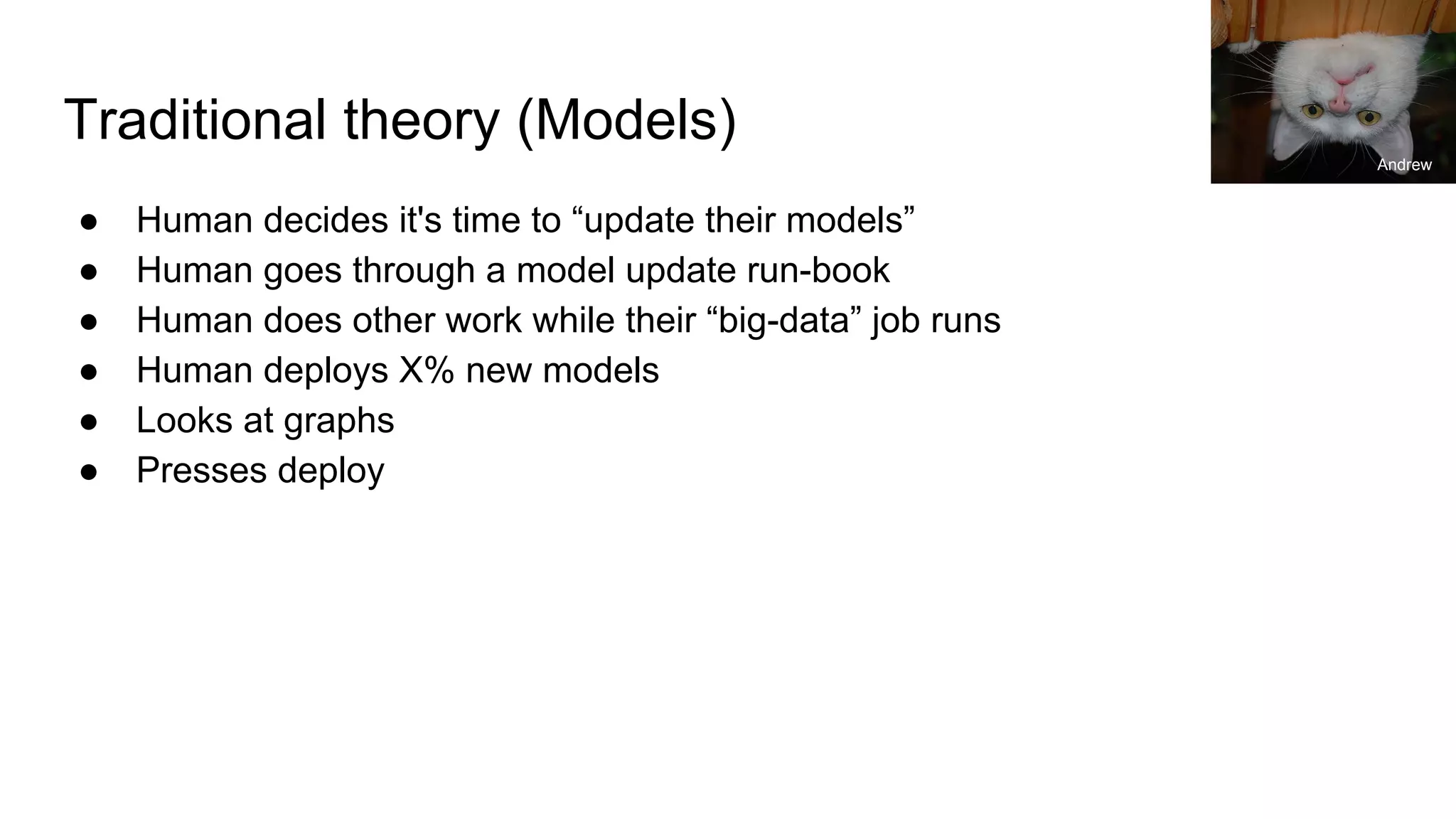

38. Traditional theory (Models)
● Human decides it's time to “update their models”
● Human goes through a model update run-book
● Human does other work while their “big-data” job runs
● Human deploys X% new models
● Looks at graphs
● Presses deploy
Andrew

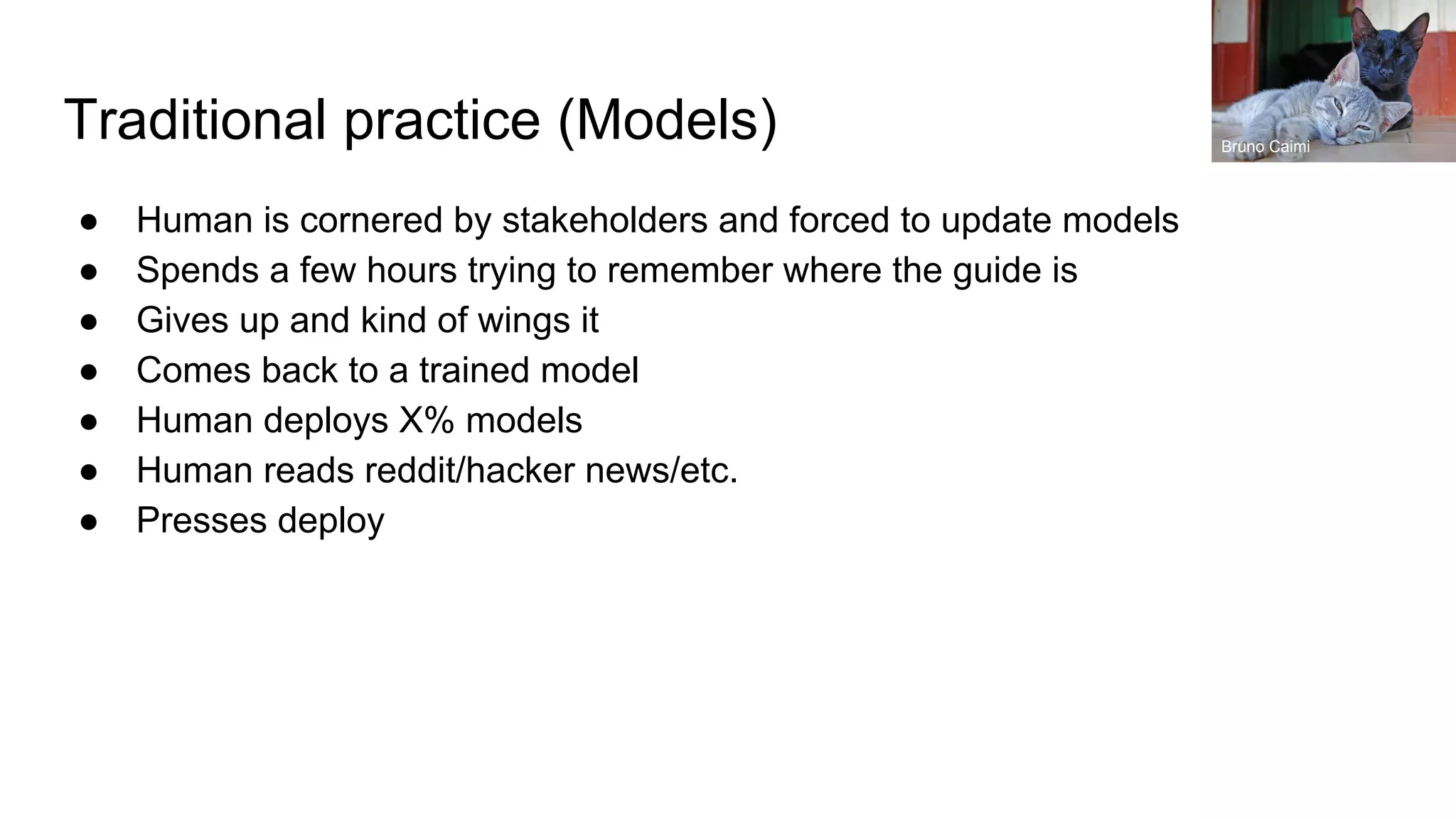

39. Traditional practice (Models)
● Human is cornered by stakeholders and forced to update models
● Spends a few hours trying to remember where the guide is
● Gives up and kind of wings it
● Comes back to a trained model
● Human deploys X% models
● Human reads reddit/hacker news/etc.
● Presses deploy
Bruno Caimi

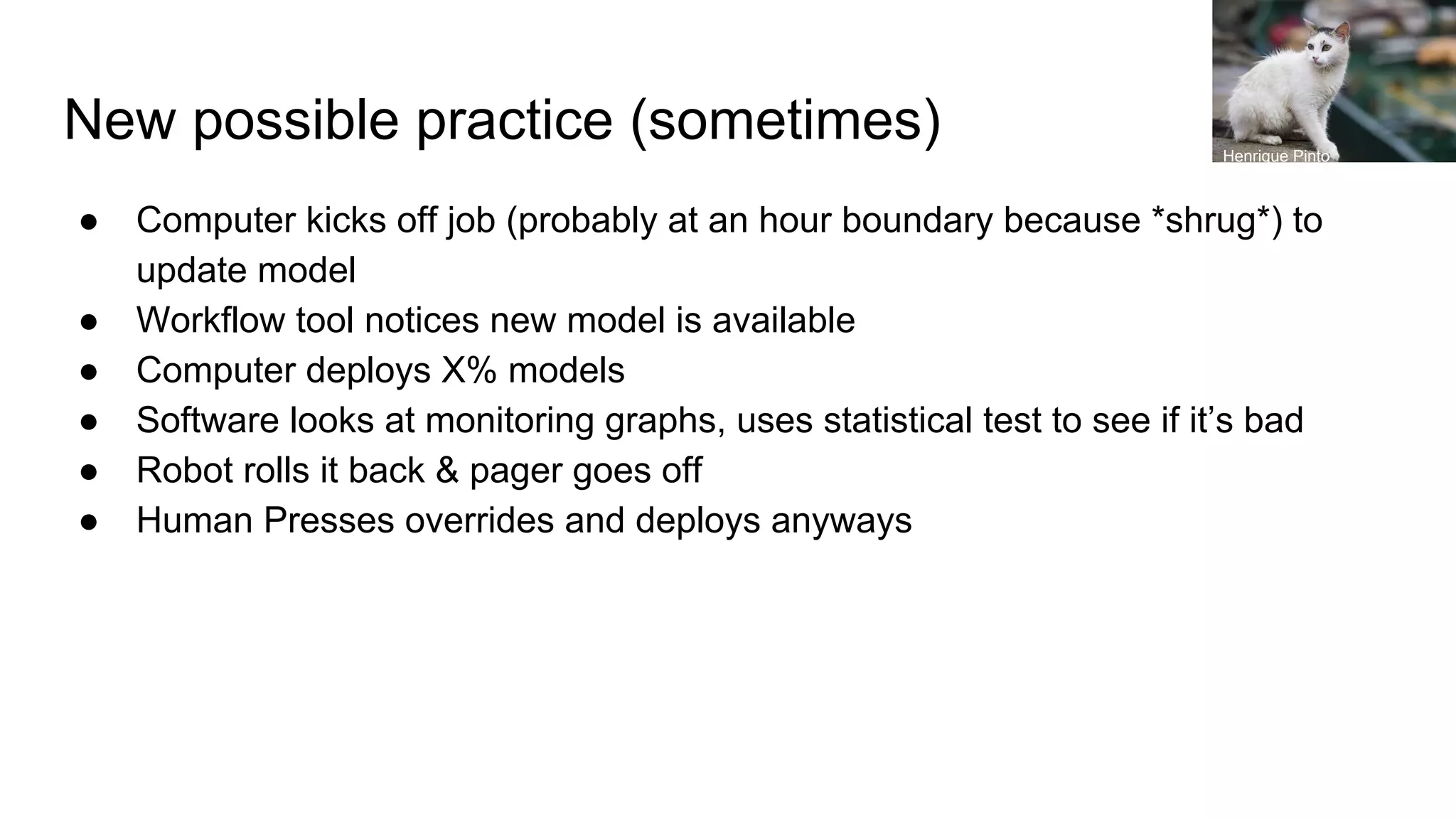

40. New possible practice (sometimes)
● Computer kicks off job (probably at an hour boundary because *shrug*) to
update model
● Workflow tool notices new model is available
● Computer deploys X% models
● Software looks at monitoring graphs, uses statistical test to see if it’s bad
● Robot rolls it back & pager goes off
● Human Presses overrides and deploys anyways
Henrique Pinto

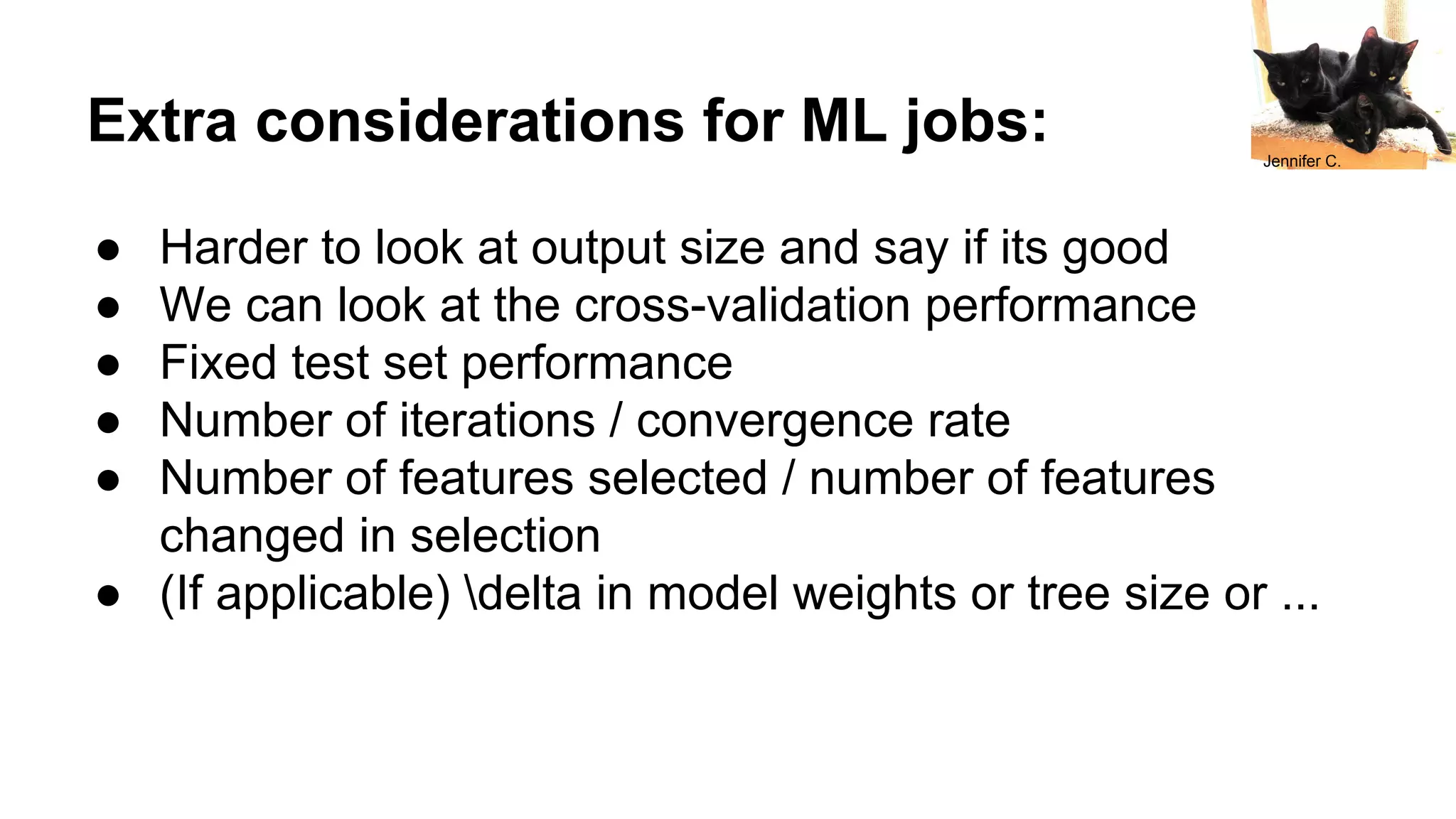

41. Extra considerations for ML jobs:
● Harder to look at output size and say if its good
● We can look at the cross-validation performance
● Fixed test set performance
● Number of iterations / convergence rate
● Number of features selected / number of features
changed in selection
● (If applicable) delta in model weights or tree size or ...
Jennifer C.

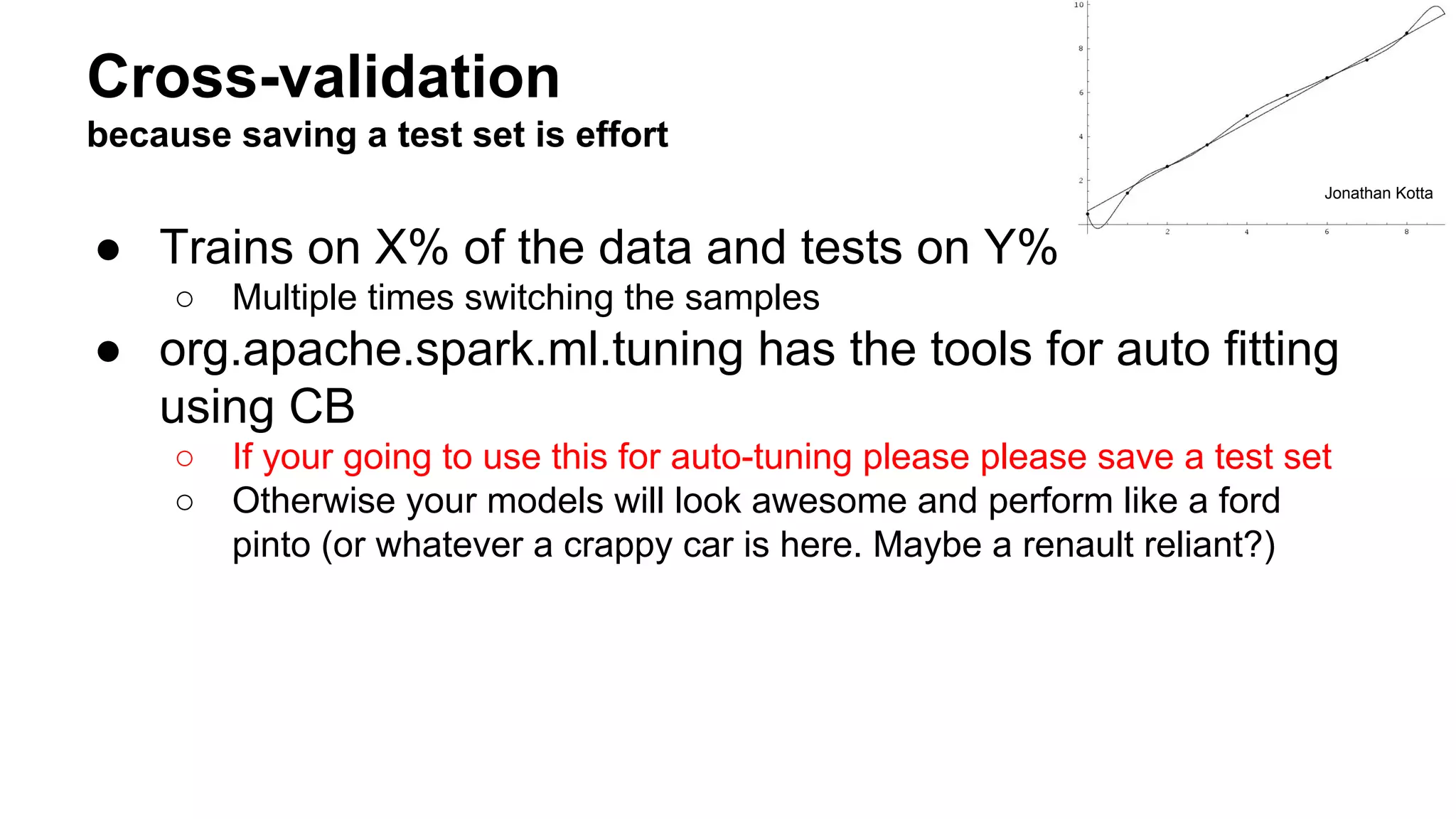

42. Cross-validation
because saving a test set is effort
● Trains on X% of the data and tests on Y%
○ Multiple times switching the samples
● org.apache.spark.ml.tuning has the tools for auto fitting
using CB
○ If your going to use this for auto-tuning please please save a test set
○ Otherwise your models will look awesome and perform like a ford
pinto (or whatever a crappy car is here. Maybe a renault reliant?)
Jonathan Kotta

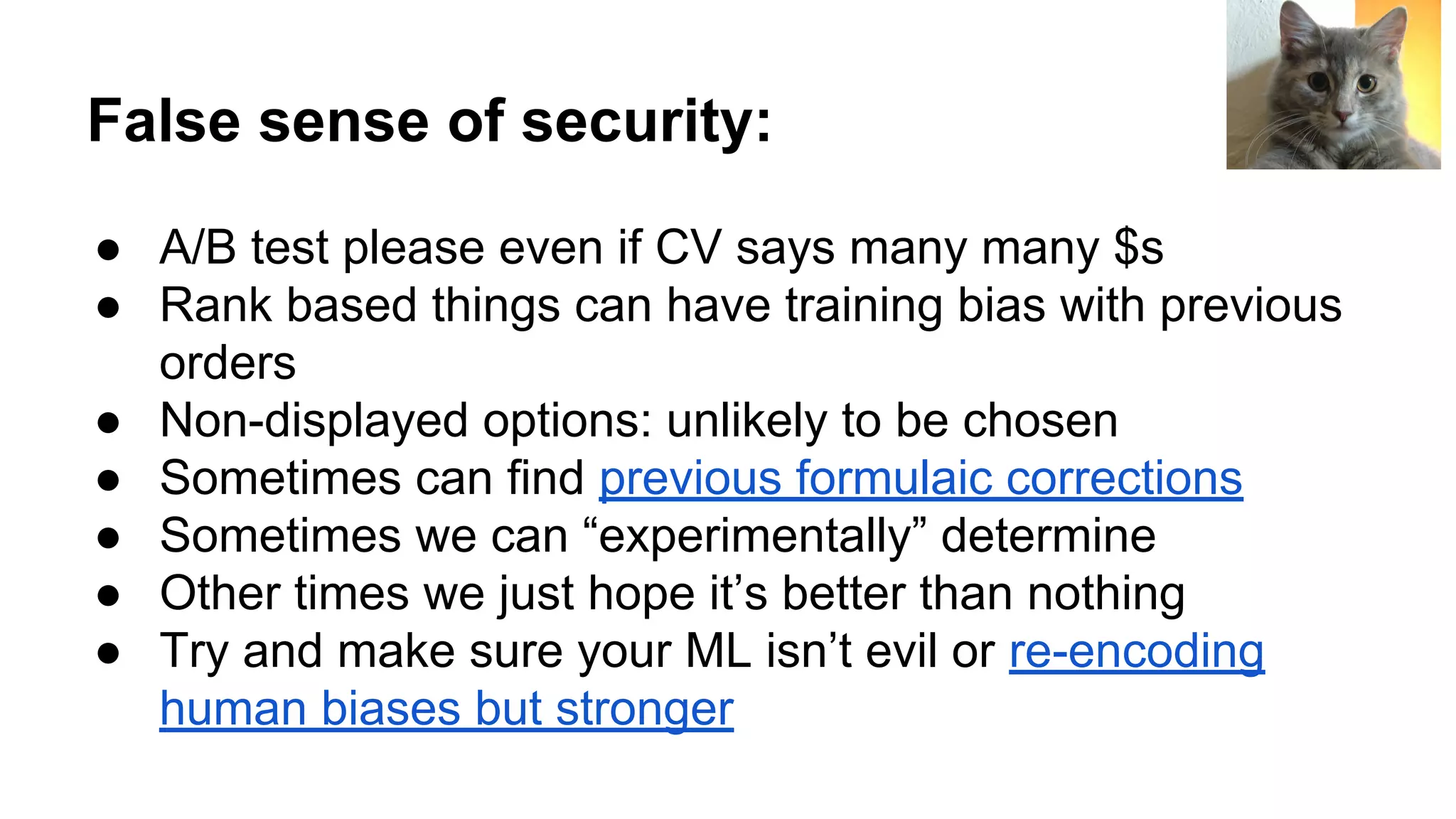

43. False sense of security:
● A/B test please even if CV says many many $s
● Rank based things can have training bias with previous
orders
● Non-displayed options: unlikely to be chosen
● Sometimes can find previous formulaic corrections
● Sometimes we can “experimentally” determine
● Other times we just hope it’s better than nothing
● Try and make sure your ML isn’t evil or re-encoding
human biases but stronger

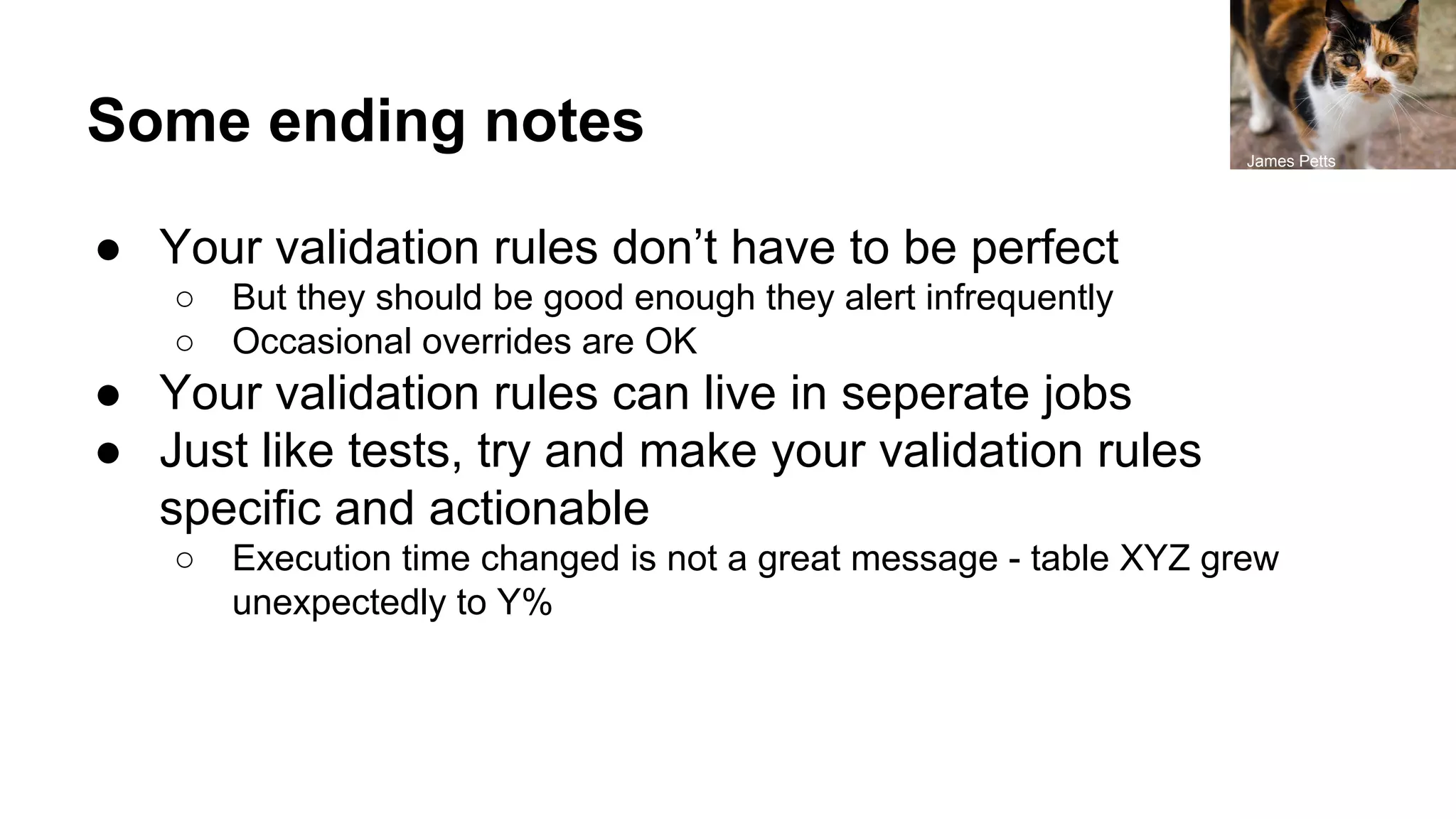

44. Some ending notes
● Your validation rules don’t have to be perfect
○ But they should be good enough they alert infrequently
○ Occasional overrides are OK
● Your validation rules can live in seperate jobs
● Just like tests, try and make your validation rules
specific and actionable
○ Execution time changed is not a great message - table XYZ grew
unexpectedly to Y%
James Petts

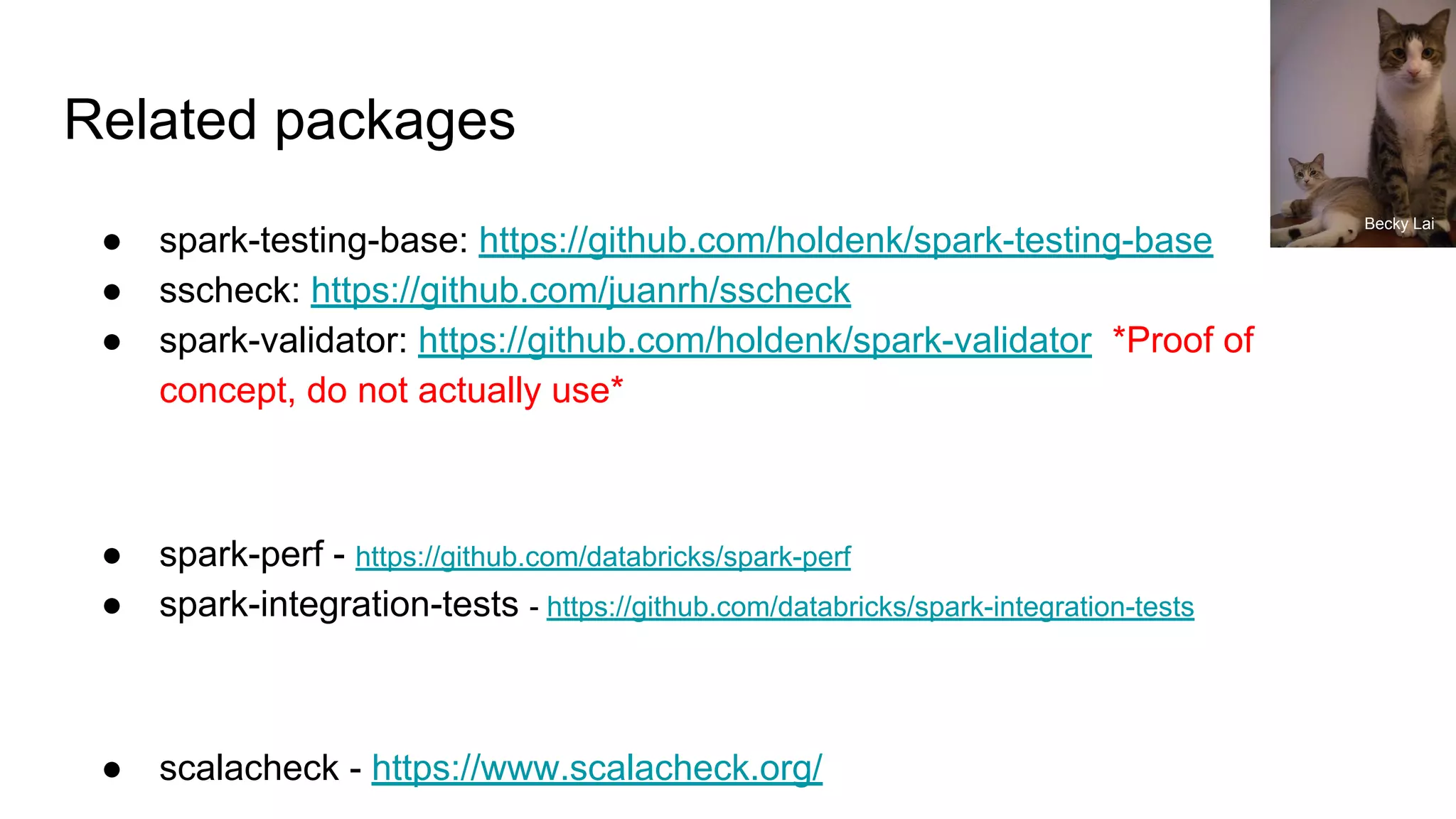

45. Related packages
● spark-testing-base: https://github.com/holdenk/spark-testing-base
● sscheck: https://github.com/juanrh/sscheck
● spark-validator: https://github.com/holdenk/spark-validator *Proof of
concept, do not actually use*
● spark-perf - https://github.com/databricks/spark-perf
● spark-integration-tests - https://github.com/databricks/spark-integration-tests
● scalacheck - https://www.scalacheck.org/
Becky Lai

46. Learning Spark
Fast Data
Processing with
Spark
(Out of Date)
Fast Data
Processing with
Spark
(2nd edition)
Advanced
Analytics with
Spark
Spark in Action
High Performance SparkLearning PySpark

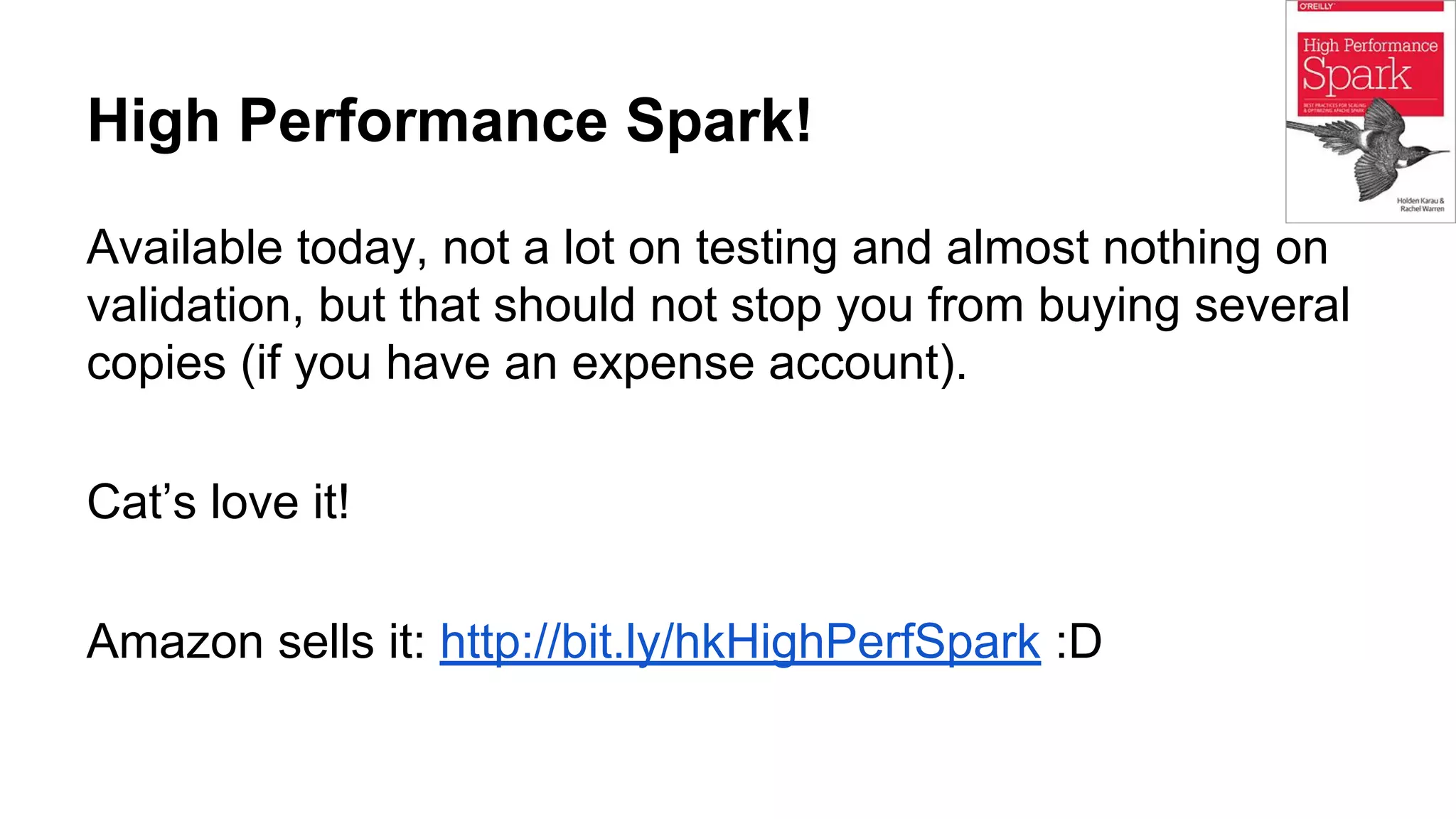

47. High Performance Spark!
Available today, not a lot on testing and almost nothing on
validation, but that should not stop you from buying several
copies (if you have an expense account).
Cat’s love it!
Amazon sells it: http://bit.ly/hkHighPerfSpark :D

48. Sign up for the mailing list @
http://www.distributedcomputing4kids.com

49. Cat wave photo by Quinn Dombrowski
k thnx bye! (or questions…)
If you want to fill out survey:
http://bit.ly/holdenTestingSpark
I will use update results in &
give the talk again the next
time Spark adds a major
feature.
Give feedback on this presentation
http://bit.ly/holdenTalkFeedback
Have questions? - sli.do: SL18 -
Union Grand EF
I’ll be giving another talk
tomorrow @ 4:20 PM on ML
on Spark Error Messages*

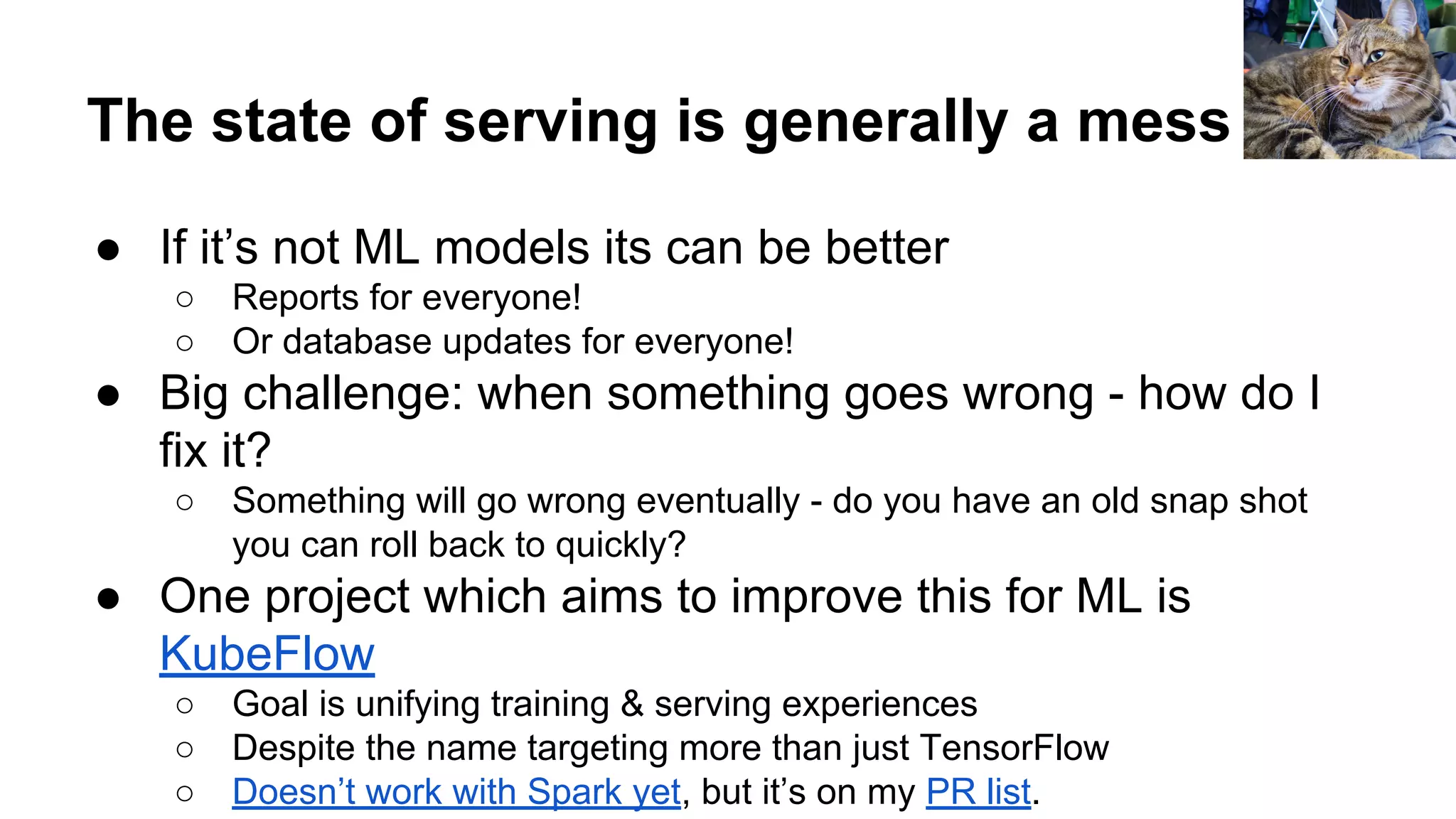

50. The state of serving is generally a mess
● If it’s not ML models its can be better
○ Reports for everyone!
○ Or database updates for everyone!
● Big challenge: when something goes wrong - how do I
fix it?
○ Something will go wrong eventually - do you have an old snap shot
you can roll back to quickly?
● One project which aims to improve this for ML is
KubeFlow
○ Goal is unifying training & serving experiences
○ Despite the name targeting more than just TensorFlow
○ Doesn’t work with Spark yet, but it’s on my PR list.

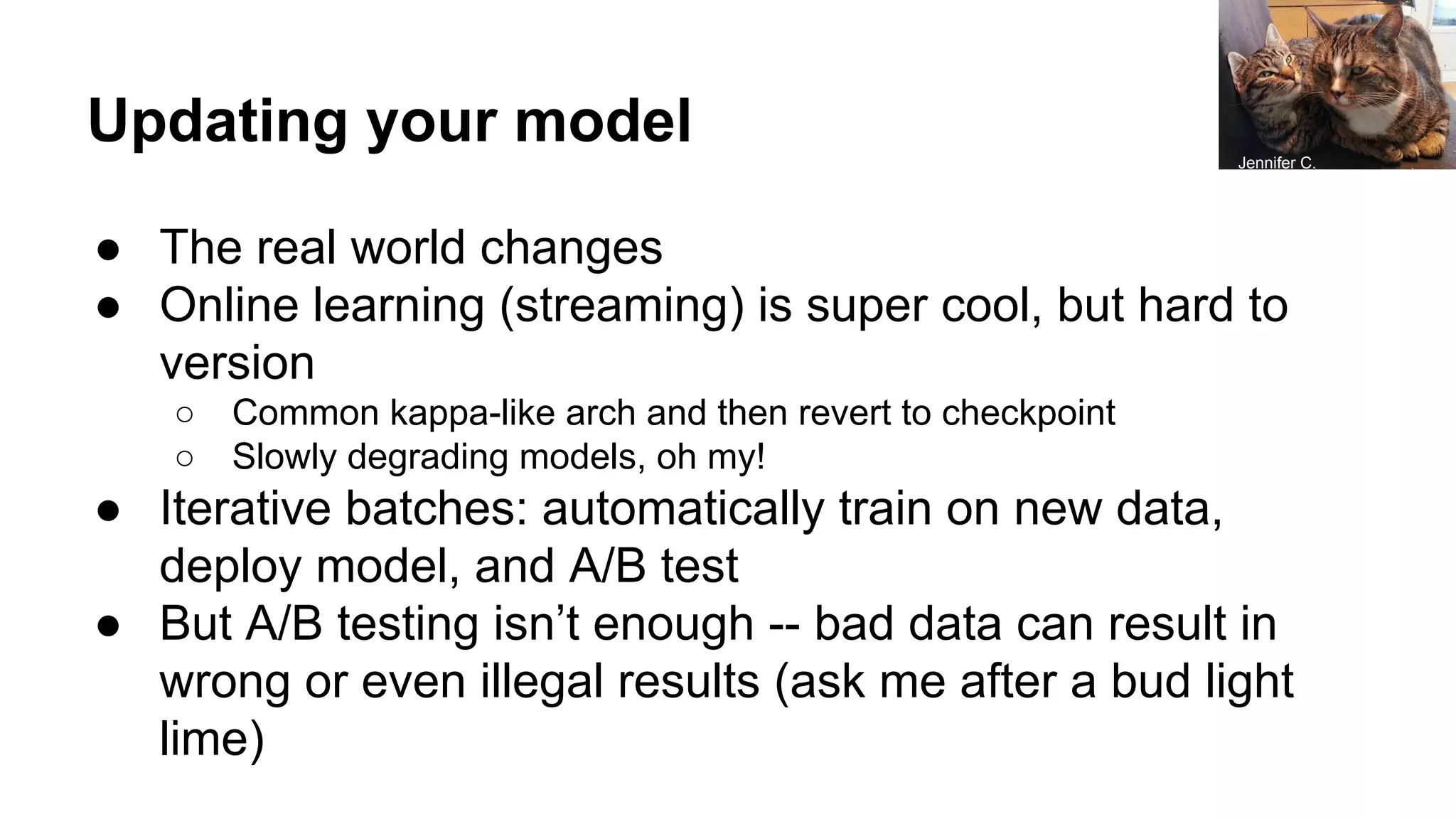

51. Updating your model
● The real world changes
● Online learning (streaming) is super cool, but hard to
version
○ Common kappa-like arch and then revert to checkpoint
○ Slowly degrading models, oh my!
● Iterative batches: automatically train on new data,
deploy model, and A/B test
● But A/B testing isn’t enough -- bad data can result in
wrong or even illegal results (ask me after a bud light
lime)
Jennifer C.

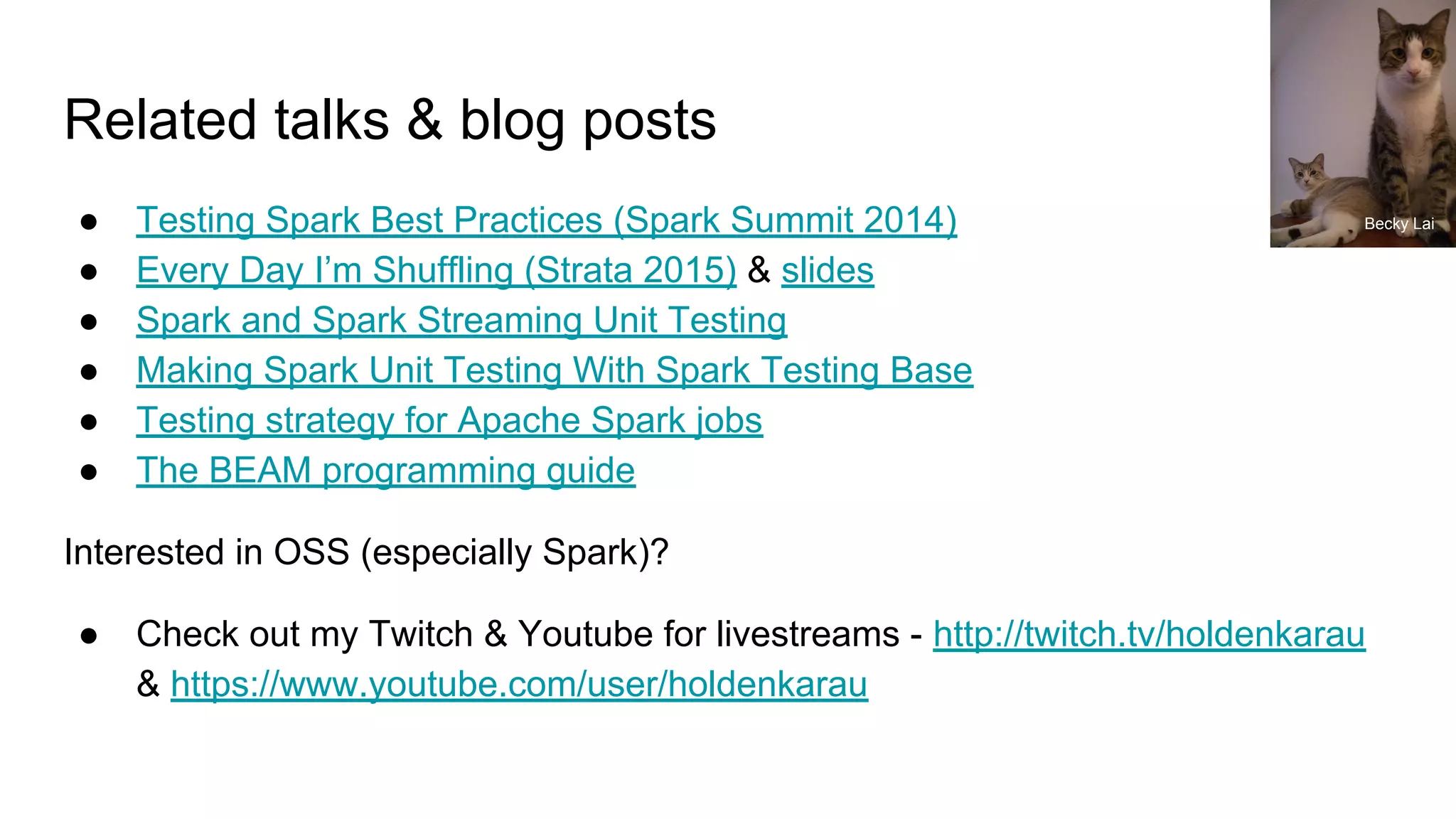

52. Related talks & blog posts
● Testing Spark Best Practices (Spark Summit 2014)
● Every Day I’m Shuffling (Strata 2015) & slides
● Spark and Spark Streaming Unit Testing
● Making Spark Unit Testing With Spark Testing Base
● Testing strategy for Apache Spark jobs
● The BEAM programming guide
Interested in OSS (especially Spark)?
● Check out my Twitch & Youtube for livestreams - http://twitch.tv/holdenkarau
& https://www.youtube.com/user/holdenkarau
Becky Lai

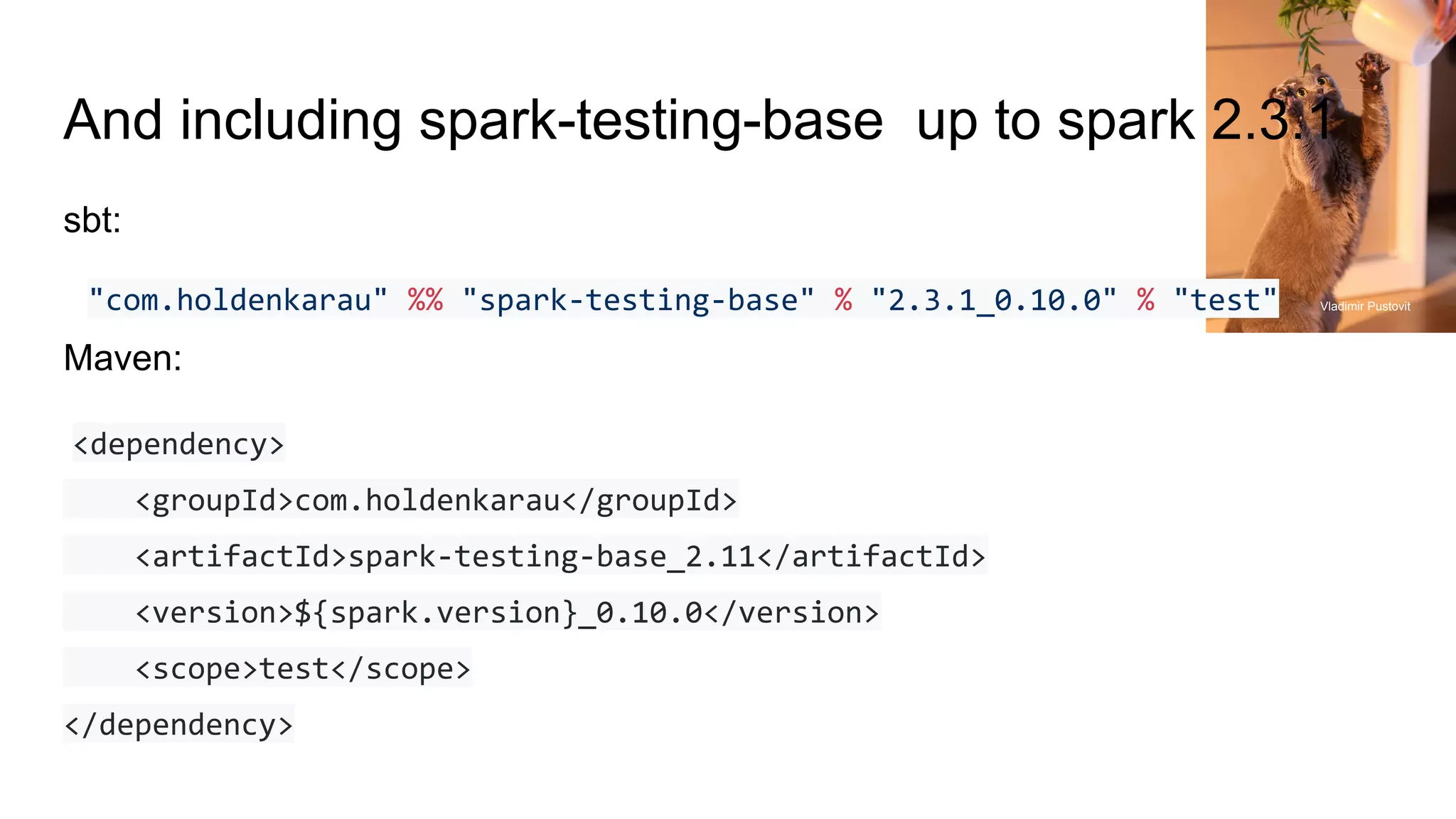

53. And including spark-testing-base up to spark 2.3.1
sbt:
"com.holdenkarau" %% "spark-testing-base" % "2.3.1_0.10.0" % "test"
Maven:
<dependency>
<groupId>com.holdenkarau</groupId>
<artifactId>spark-testing-base_2.11</artifactId>
<version>${spark.version}_0.10.0</version>
<scope>test</scope>
</dependency>
Vladimir Pustovit

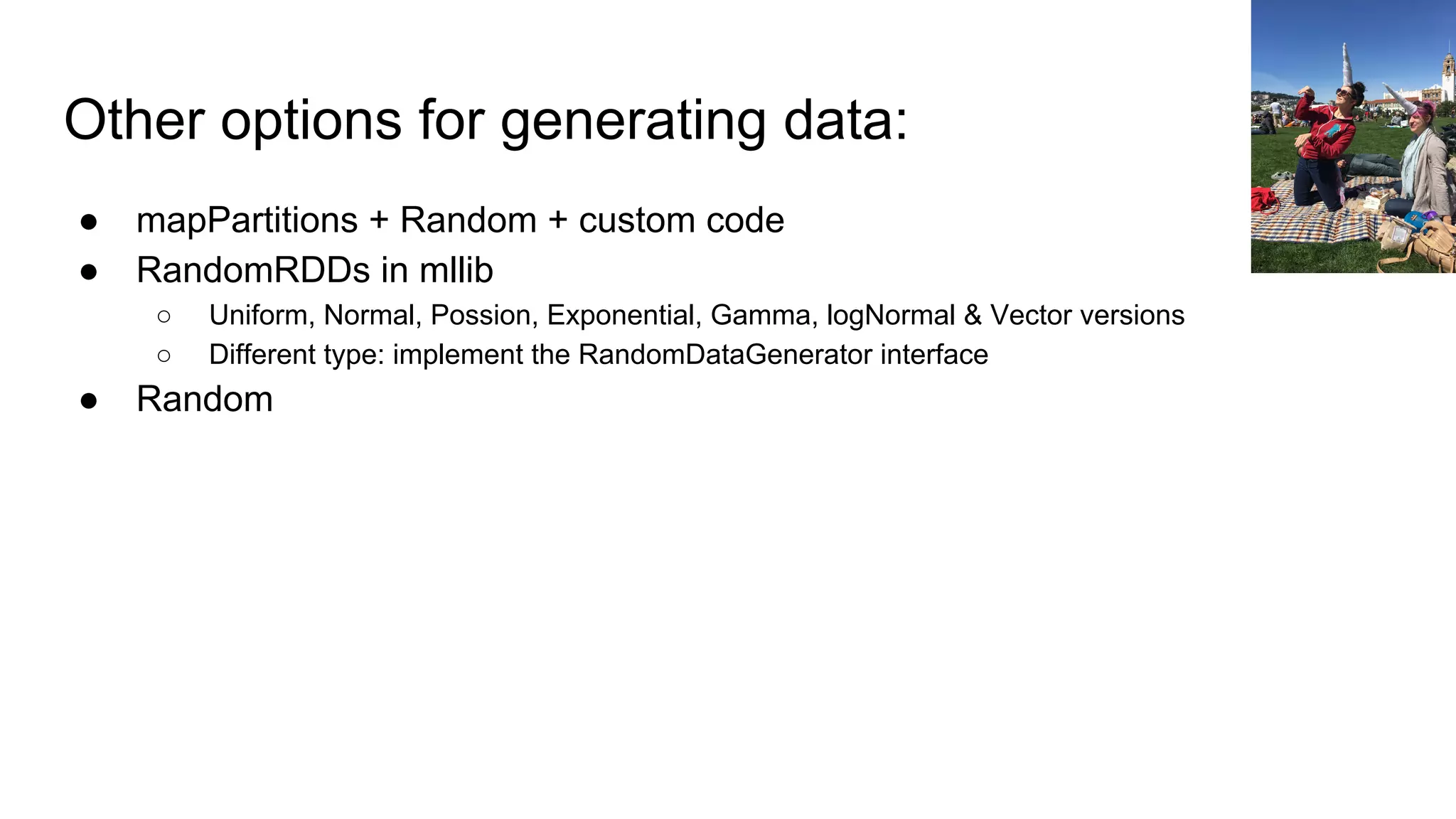

54. Other options for generating data:
● mapPartitions + Random + custom code
● RandomRDDs in mllib
○ Uniform, Normal, Possion, Exponential, Gamma, logNormal & Vector versions
○ Different type: implement the RandomDataGenerator interface
● Random

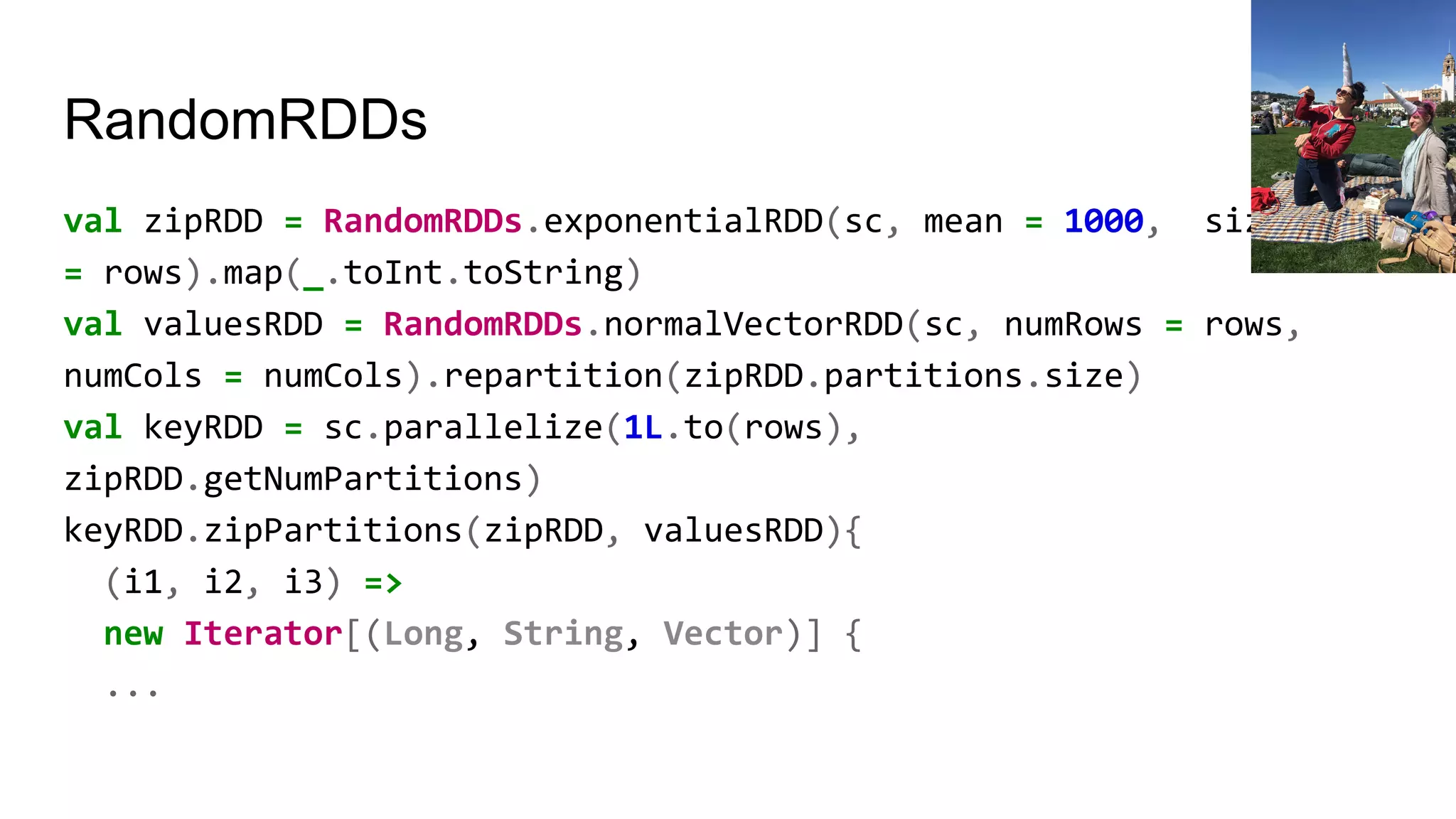

55. RandomRDDs
val zipRDD = RandomRDDs.exponentialRDD(sc, mean = 1000, size
= rows).map(_.toInt.toString)
val valuesRDD = RandomRDDs.normalVectorRDD(sc, numRows = rows,
numCols = numCols).repartition(zipRDD.partitions.size)
val keyRDD = sc.parallelize(1L.to(rows),
zipRDD.getNumPartitions)
keyRDD.zipPartitions(zipRDD, valuesRDD){
(i1, i2, i3) =>
new Iterator[(Long, String, Vector)] {
...

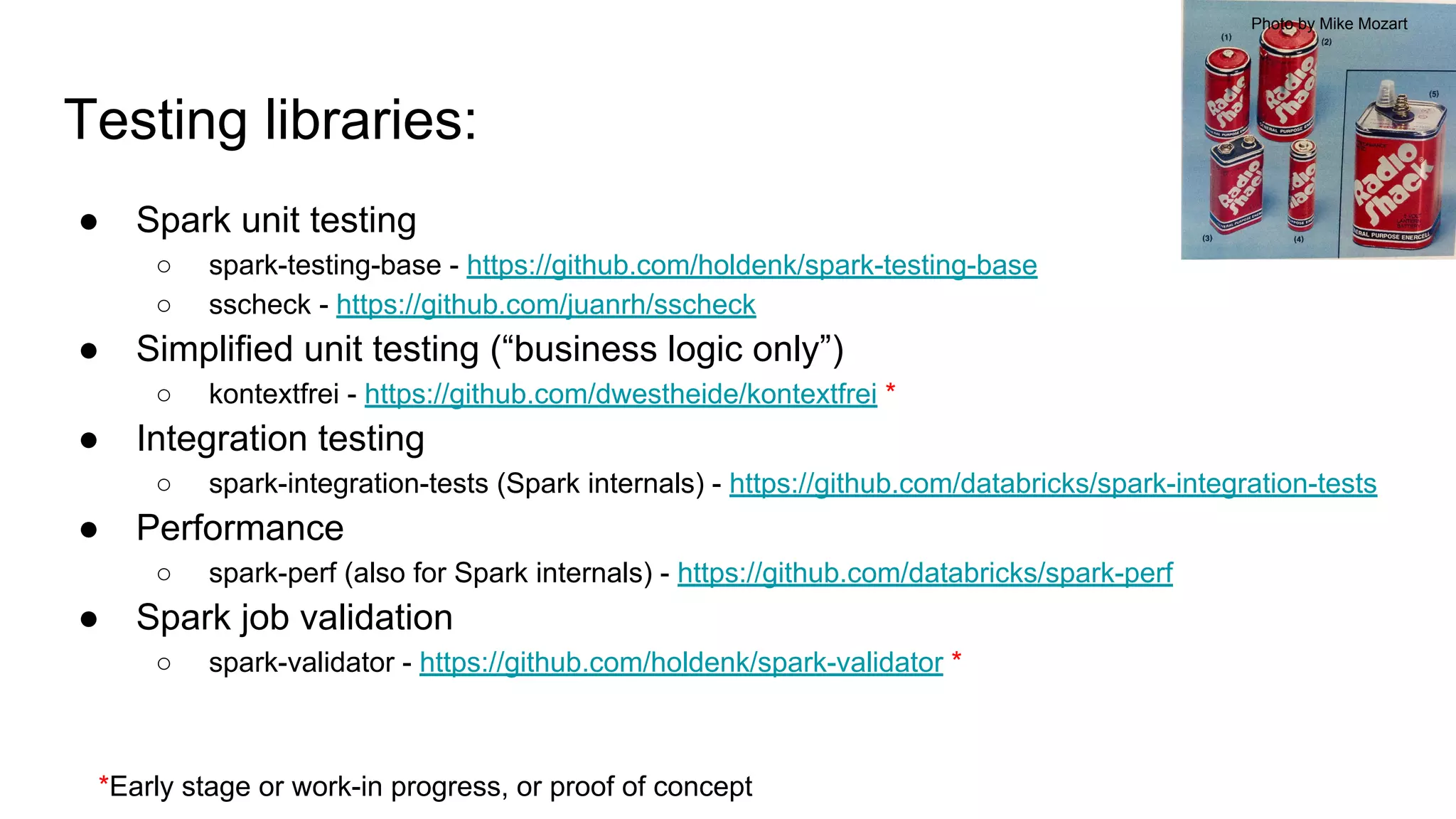

56. Testing libraries:
● Spark unit testing
○ spark-testing-base - https://github.com/holdenk/spark-testing-base
○ sscheck - https://github.com/juanrh/sscheck
● Simplified unit testing (“business logic only”)
○ kontextfrei - https://github.com/dwestheide/kontextfrei *
● Integration testing
○ spark-integration-tests (Spark internals) - https://github.com/databricks/spark-integration-tests
● Performance
○ spark-perf (also for Spark internals) - https://github.com/databricks/spark-perf
● Spark job validation
○ spark-validator - https://github.com/holdenk/spark-validator *
Photo by Mike Mozart
*Early stage or work-in progress, or proof of concept

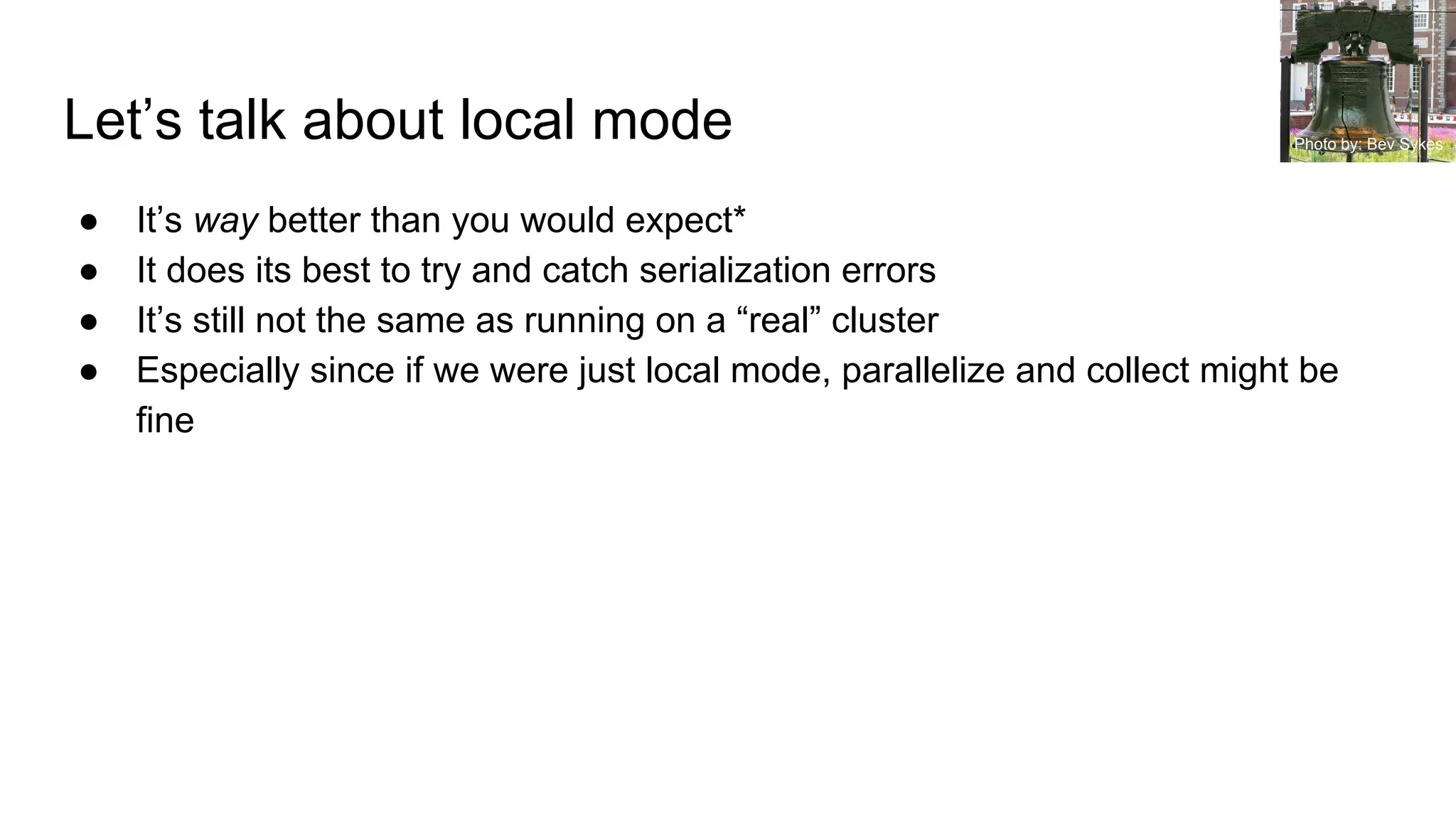

57. Let’s talk about local mode
● It’s way better than you would expect*
● It does its best to try and catch serialization errors
● It’s still not the same as running on a “real” cluster
● Especially since if we were just local mode, parallelize and collect might be
fine
Photo by: Bev Sykes

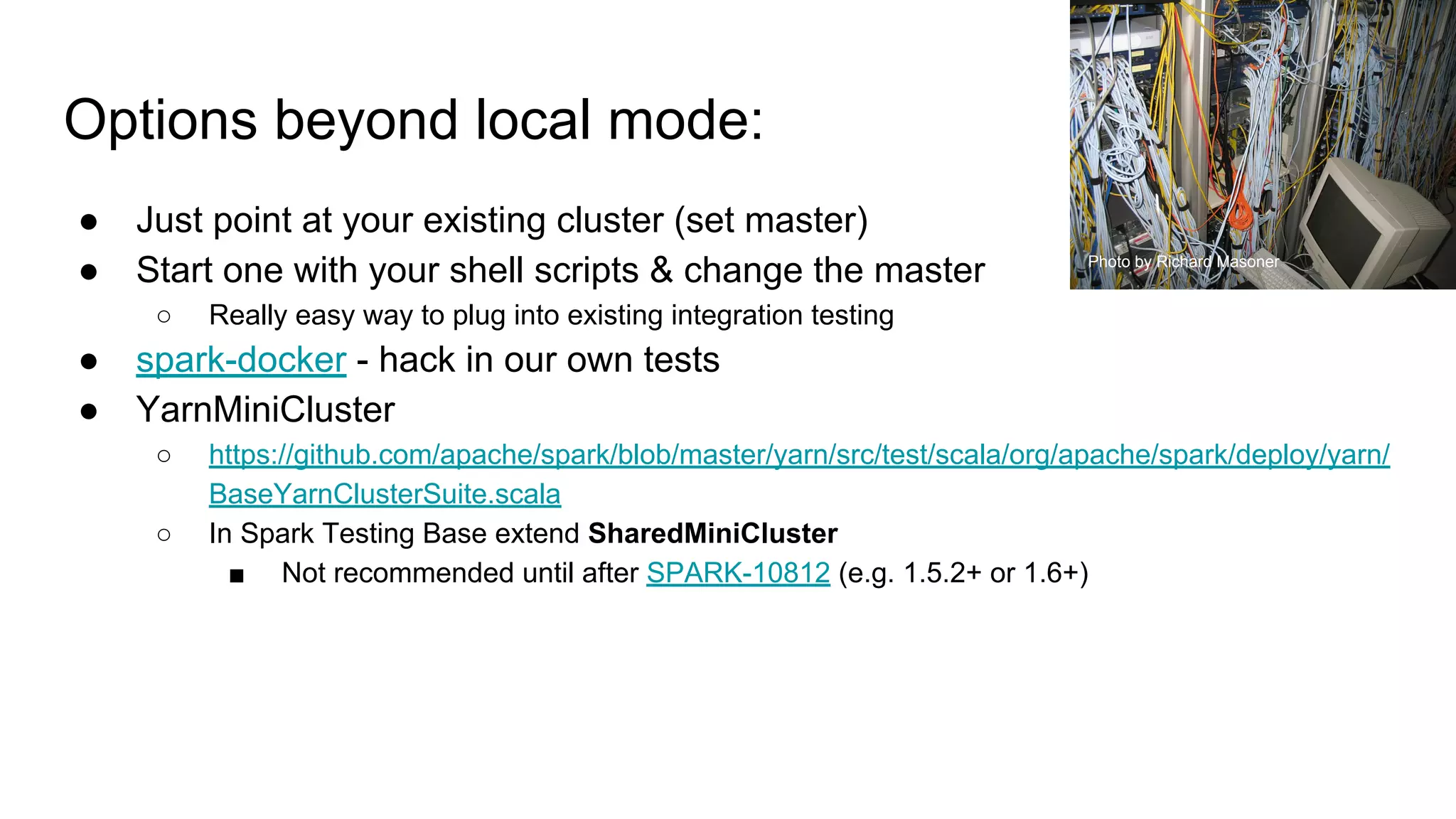

58. Options beyond local mode:
● Just point at your existing cluster (set master)
● Start one with your shell scripts & change the master
○ Really easy way to plug into existing integration testing
● spark-docker - hack in our own tests
● YarnMiniCluster
○ https://github.com/apache/spark/blob/master/yarn/src/test/scala/org/apache/spark/deploy/yarn/
BaseYarnClusterSuite.scala
○ In Spark Testing Base extend SharedMiniCluster
■ Not recommended until after SPARK-10812 (e.g. 1.5.2+ or 1.6+)
Photo by Richard Masoner

59. Integration testing - docker is awesome
● Spark-docker, kafka-docker, etc.
○ Not always super up to date sadly - if you are last stable release A-OK, if you build from
master - sad pandas
● Or checkout JuJu Charms (from Canonical) - https://jujucharms.com/
○ Makes it easy to deploy a bunch of docker containers together & configured in a reasonable
way.

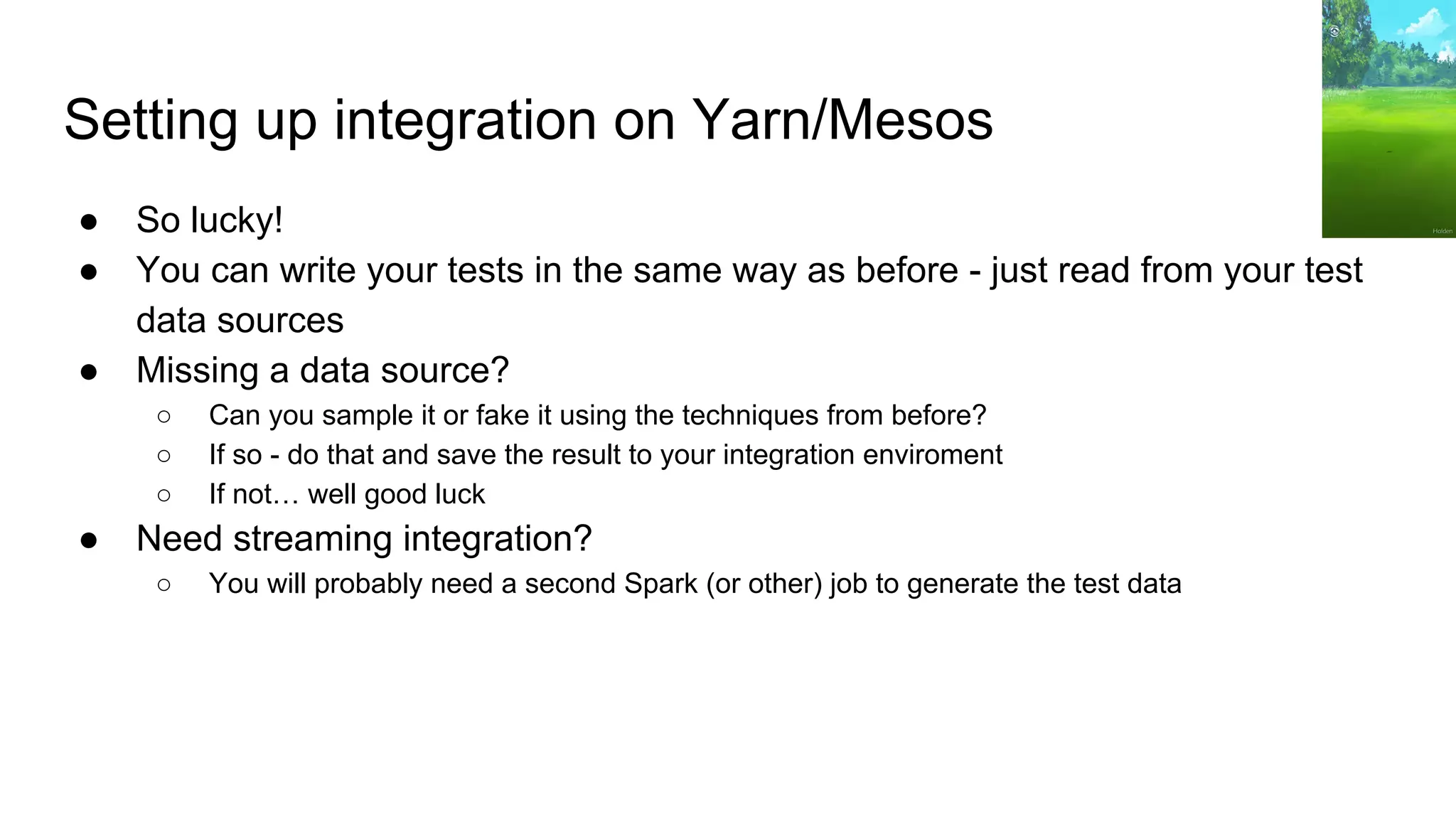

60. Setting up integration on Yarn/Mesos
● So lucky!
● You can write your tests in the same way as before - just read from your test
data sources
● Missing a data source?
○ Can you sample it or fake it using the techniques from before?
○ If so - do that and save the result to your integration enviroment
○ If not… well good luck
● Need streaming integration?
○ You will probably need a second Spark (or other) job to generate the test data

61. “Business logic” only test w/kontextfrei
import com.danielwestheide.kontextfrei.DCollectionOps
trait UsersByPopularityProperties[DColl[_]] extends
BaseSpec[DColl] {
import DCollectionOps.Imports._
property("Each user appears only once") {
forAll { starredEvents: List[RepoStarred] =>
val result =
logic.usersByPopularity(unit(starredEvents)).collect().toList
result.distinct mustEqual result
}
}
… (continued in example/src/test/scala/com/danielwestheide/kontextfrei/example/)

62. Generating Data with Spark
import org.apache.spark.mllib.random.RandomRDDs
...
RandomRDDs.exponentialRDD(sc, mean = 1000, size = rows)
RandomRDDs.normalVectorRDD(sc, numRows = rows, numCols = numCols)
