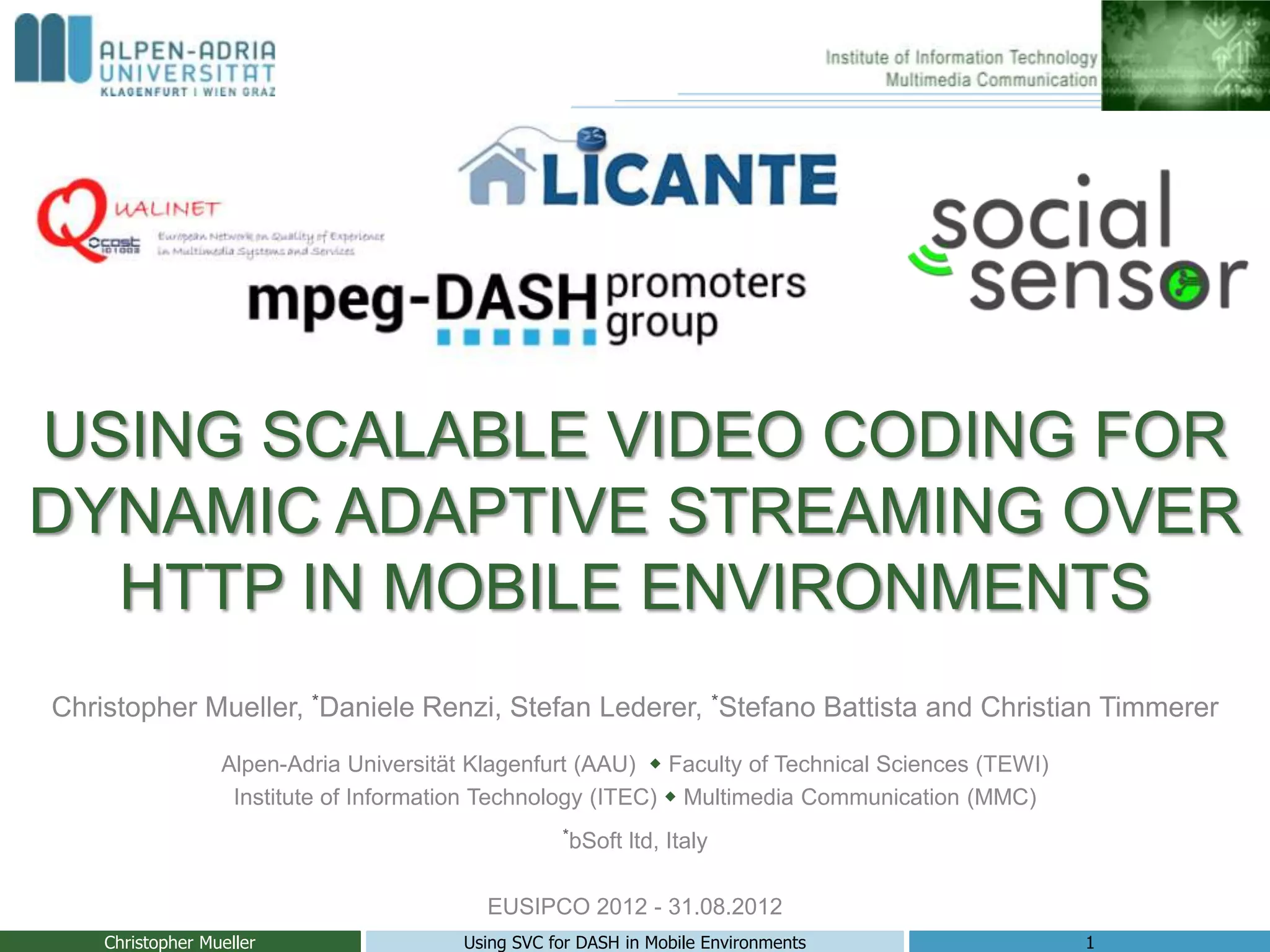

USING SCALABLE VIDEO CODING FOR
DYNAMIC ADAPTIVE STREAMING OVER
  HTTP IN MOBILE ENVIRONMENTS
Christopher Mueller, *Daniele Renzi, Stefan Lederer, *Stefano Battista and Christian Timmerer
                  Alpen-Adria Universität Klagenfurt (AAU)  Faculty of Technical Sciences (TEWI)
                   Institute of Information Technology (ITEC)  Multimedia Communication (MMC)
                                                    *bSoft   ltd, Italy

                                           EUSIPCO 2012 - 31.08.2012
    Christopher Mueller                  Using SVC for DASH in Mobile Environments                  1

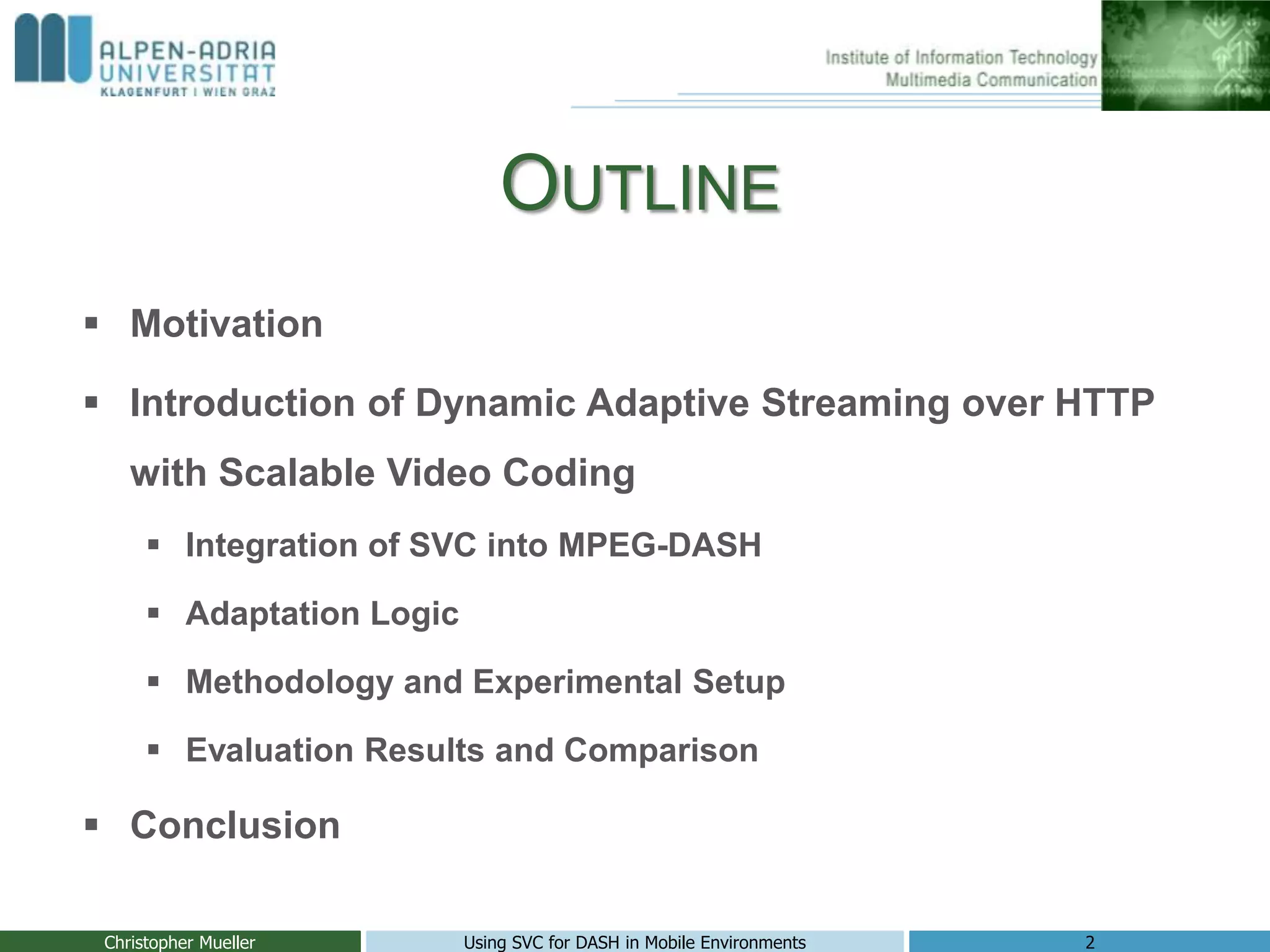

OUTLINE
 Motivation

 Introduction of Dynamic Adaptive Streaming over HTTP
    with Scalable Video Coding
       Integration of SVC into MPEG-DASH

       Adaptation Logic

       Methodology and Experimental Setup

       Evaluation Results and Comparison

 Conclusion

 Christopher Mueller       Using SVC for DASH in Mobile Environments   2
MOTIVATION
 Real-Time Entertainment is accounting for more than 50% of the
  whole internet traffic
 HTTP is the major protocol and used for a variety of services
 Already entered a Post-PC era even for fixed access networks
  and mobile multimedia
  traffic still grows tremendously
 Although problems exists:
       Firewall and NAT traversal
       No reuse of the internet
        infrastructure, e.g., proxies, CDN’s
       Fluctuating bandwidth conditions
        especially in mobile networks
       Multiple annoying rebuffering
        events
 Christopher Mueller         Using SVC for DASH in Mobile Environments   3
DYNAMIC ADAPTIVE STREAMING
                    OVER HTTP




     Media Presentation Description (MPD)
     Dynamic adaption to the network conditions
     Reuse of existing Internet infrastructure
     Has the potential to play a major role in future networks
      optimizations are crucial
    Christopher Mueller      Using SVC for DASH in Mobile Environments   4
INTRODUCTION DASH & SVC
 Integration of Scalable Video Coding into MPEG-DASH
       Potential advantages due to the layered architecture
       More flexibility for the segment selection (cancelation of segments)




 Adaptation logic based on an explorative specified buffer model
 Evaluation and comparison of MPEG-DASH SVC with the major
  industry solutions (Microsoft, Apple, Adobe) and our MPEG-DASH
  AVC implementation

 Christopher Mueller        Using SVC for DASH in Mobile Environments    5
INTEGRATION OF SVC INTO DASH
   Content has been encoded with the BSoft SVC encoder at 14
    different bitrates from 100kbps to 4500kbps
   Same source content has been used for all other experiments
   Media stored on the server without any further container
    format to support media bitrates lower than 1Mbps [1]
   Reordering of the NAL units on the client side
    This is more efficient than having the NAL units stored in
    decoding order on the server



[1] I. Kofler, R. Kuschnig, H. Hellwagner, “Implications of the ISO Base Media File
    Format on Adaptive HTTP Streaming of H.264/SVC,” In Proc. of 9th IEEE Consumer
    Communications and Networking Conference, Los Alamitos, CA, USA, Jan. 2012.
    Christopher Mueller       Using SVC for DASH in Mobile Environments    6
ADAPTATION LOGIC
 Based on the available bandwidth and the current state of the
  buffer – explorative specified
 The model must be fitted to the network conditions
 SVC model is more aggressive




 Christopher Mueller      Using SVC for DASH in Mobile Environments   7
METHODOLOGY AND EXPERIMENTAL
            SETUP
 3 Tracks / Experiments based on mobile freeway traces
 Evaluation Network
       Bandwidth shaping with Linux tc
       Static RTT of 150ms
 Metrics
          Average bitrate
          Number of quality switches
          Buffer level
          Number of unsmooth seconds




 Christopher Mueller       Using SVC for DASH in Mobile Environments   8
MPEG-DASH AVC




 Adaptation process is very stable
 Adaptation reacts accurately, e.g., Second 190
 Christopher Mueller     Using SVC for DASH in Mobile Environments   9
MPEG-DASH SVC




 Better bandwidth utilization than AVC without stalls and a
  quite stable buffer
 Christopher Mueller     Using SVC for DASH in Mobile Environments   10
COMPARISON
       Name               Average             Average Switches                Average Unsmoothness
                       Bitrate [kbps]       [Number of Switches]                    [Seconds]
  Microsoft [2]            1522                            51                          0
     Adobe [2]             1239                            97                         64
     Apple [2]             1162                             7                          0
 MPEG-DASH [2]             1464                           166                          0
MPEG-DASH AVC              2341                            81                          0
MPEG-DASH SVC              2738                           101                          0



[2] C. Mueller, S. Lederer and C. Timmerer, “An Evaluation of Dynamic Adaptive
    Streaming over HTTP in Vehicular Environments”, In Proceedings of the 4th ACM
    Workshop on Mobile Video, Chapel Hill, North Carolina, February 24, 2012.
 Christopher Mueller              Using SVC for DASH in Mobile Environments                11
CONCLUSION
 SVC achieves a higher bandwidth utilization of
  approximately 15% compared to AVC
 Mapping the adaption process smoothly to the buffer
  increases the streaming performance
 However PSNR of SVC is quite low

 Future work
       will include a configuration with multiple baselayers (one for
        each major device class/resolution)
       Improvement of the adaptation logic


 Christopher Mueller      Using SVC for DASH in Mobile Environments   12
THANK YOU FOR YOUR ATTENTION



                  … questions, comments, etc. are welcome …


                           Christopher Mueller | dash.itec.aau.at
         Alpen-Adria Universität Klagenfurt (AAU)  Faculty of Technical Sciences (TEWI)
         Institute of Information Technology (ITEC)  Multimedia Communication (MMC)




Christopher Mueller              Using SVC for DASH in Mobile Environments            13
