Use Neo4j In Your
Next Java Project
Love relationships again
Tobias Coetzee
@tobiascode

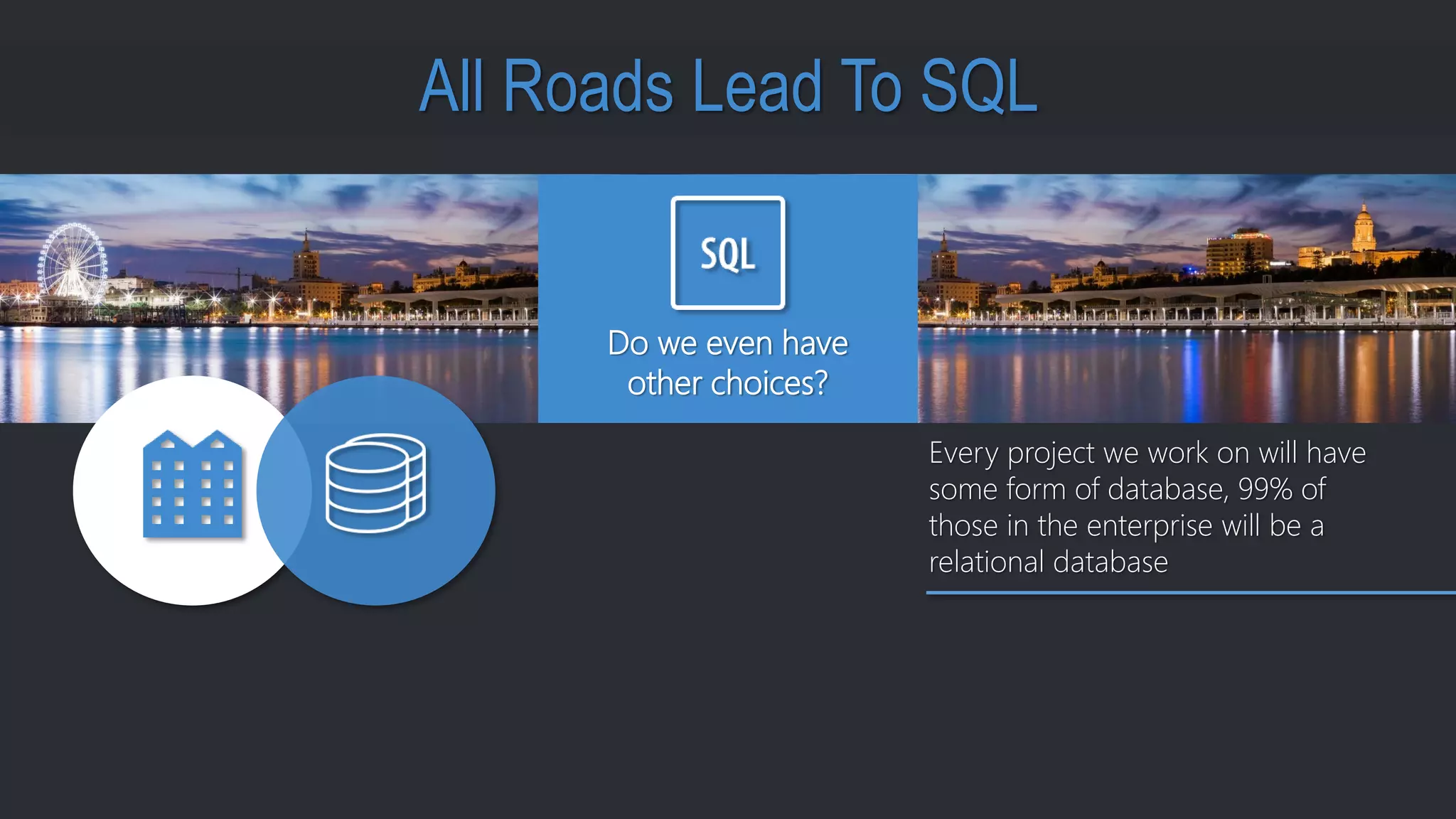

All Roads Lead To SQL
Do we even have
other choices?
Every project we work on will have
some form of database, 99% of
those in the enterprise will be a
relational database
Impedance Mismatch
The database model does not
match the domain model
Not Scaling
More data means less speed
Complex Queries
Lots of joins and some self
joining nightmares as a bonus
Relationship Problems
Facebook For Superheroes
MEMBER_OF
TOOK_PART_IN
WAS_IN
Characters
Events
Teams
Stories
CONSISTS_OF
FRIEND_OF
Queries with lots of joins to get to the final answer
Similar Data Models
Configuration
Security
Navigation
Graph Databases
Just Mathematics
Based on graph theory, created
by Leonhard Euler
All About Relationships
In graph databases relationships
are first class citizens
Neo4j
Most well known and widely
used graph database
Graph Databases
Nodes
Represent the entities or
records in the database
Relationships
Link nodes together
Properties
Nodes and relationships can
also have properties
MEMBER_OF
MEMBER_OF
FRIEND_OF
WAS_IN
TOOK_PART_IN • Eyes: Blue
• Hair: None
• Citizenship: Canada• Since: 14 Feb 2001
Graph Databases
The database model does not
match the domain model
Impedance Mismatch
Impedance Mismatch
Character_Team
Character_Event
Team_Event
Character_Story
Team_Story
Event_Story
Friends
MarvelCharacter
Team
Event
Story
Traditional Solutions
ORM Frameworks, e.g.
Hibernate or Spring Data
Boilerplate code generation
tools
Impedance Mismatch
Impedance Mismatch
MEMBER_OF
TOOK_PART_IN
WAS_IN
Characters
Events
Teams
Stories
CONSISTS_OF
FRIEND_OF
MATCH
(c:Character)-[:MEMBER_OF]->(t:Team)
WHERE t.name = 'Avengers'
RETURN c.name
Cypher Intro
Demo Time
Lots of joins and some self
joining nightmares as a bonus
Complex Queries
Denormalise the database
Hide complexity behind
views and stored procedures
Traditional Solutions
Complex Queries
Friends of Friends
Name Number Friends
in Common
Vision 51
Wolfsbane 38
Punisher 33
Rage 38
Shard 25
Wind Dancer 25
Possible friend recommendations for Deadpool
SELECT FriendOfFriend.Name, COUNT(*)
FROM MarvelCharacter deadpool
INNER JOIN Friends DeadpoolFriends
ON deadpool.Id = DeadpoolFriends.CharacterId1
INNER JOIN Friends FriendsFriends
ON DeadpoolFriends.CharacterId2 = FriendsFriends.CharacterId1
INNER JOIN MarvelCharacter FriendOfFriend
ON FriendsFriends.CharacterId2 = FriendOfFriend.Id
WHERE deadpool.Name = 'Deadpool'
AND FriendsFriends.CharacterId2 NOT IN( SELECT CharacterId2
FROM MarvelCharacter
INNER JOIN Friends
ON MarvelCharacter.Id = CharacterId1
WHERE Name = 'Deadpool')
GROUP BY FriendOfFriend.Name
ORDER BY COUNT(*) DESC
Sooo Many Joins
MATCH (deadpool:Character)-[:FRIEND_OF*2]->(FriendOfFriend)
WHERE deadpool.name = 'Deadpool'
AND NOT (deadpool)-[:FRIEND_OF]->(FriendOfFriend)
AND NOT deadpool = FriendOfFriend
RETURN FriendOfFriend.name, COUNT(*)
ORDER BY COUNT(*) DESC, FriendOfFriend.name
Sooo Many Joins
MATCH (deadpool:Character)-[:FRIEND_OF*2]->(FriendOfFriend)
Sooo Many Joins
FROM MarvelCharacter deadpool
INNER JOIN Friends DeadpoolFriends
ON deadpool.Id = DeadpoolFriends.CharacterId1
INNER JOIN Friends FriendsFriends
ON DeadpoolFriends.CharacterId2 = FriendsFriends.CharacterId1
INNER JOIN MarvelCharacter FriendOfFriend
ON FriendsFriends.CharacterId2 = FriendOfFriend.Id
Quick Demo
How Do You Know Him?
MEMBER_OF
MEMBER_OF
FRIEND_OF
How can Deadpool connect to Ironman?
MATCH (deadpool:Character { name:"Deadpool" }),
(other:Character { name:"Ultron" }),
path = shortestPath((deadpool)-[*]-(other))
RETURN path
Shortest Path
MATCH (deadpool:Character { name:"Deadpool" }),
(other:Character { name:"Ultron" }),
path = shortestPath((deadpool)-[*]-(other))
RETURN path
Shortest Path
MATCH (deadpool:Character { name:"Deadpool" }),
(other:Character { name:"Ultron" }),
path = shortestPath((deadpool)-[*]-(other))
RETURN path
Shortest Path
MATCH (deadpool:Character { name:"Deadpool" }),
(other:Character { name:"Ultron" }),
path = shortestPath((deadpool)-[*]-(other))
RETURN path
Shortest Path
Quick Demo
Not Scaling
More data means less speed
Traditional Solutions
Offline databases
Batch runs to
process data
More indexes
Not Scaling
Speed
Embedded Server
Processing requires reading the
same data you wrote
Fixed Size Records
All records of the same type
have the same size on disk
Index-Free Adjacency
Pointer to the next node
Demo Time
Wrong Usage
This is not a hammer
Wrong Usage
Set Orientated
Lists of things with few or no
joins
Global Operations
Made for local graph
operations
Aggregate Queries
Processing requires reading the
same data you wrote
Thank You
For Staying Till The End!
@tobiascode
