Unit 5 Part 1 Macros

Jagannath Institute of Management Sciences
Vasant Kunj-II, New Delhi - 110070
Subject Name: Programming In C
Department of Information Technology
Created By: Dr. Arpana Chaturvedi
@Dr. Arpana Chaturvedi

Subject: Programming In C
Topic: Unit V- Part I
Preprocessor Directives

Topics to be Covered
▰ Introduction to Preprocessor
▰ Macros
▰ Header file inclusion
▰ Conditional compilation
▰ Other directives

Introduction to Preprocessor in C

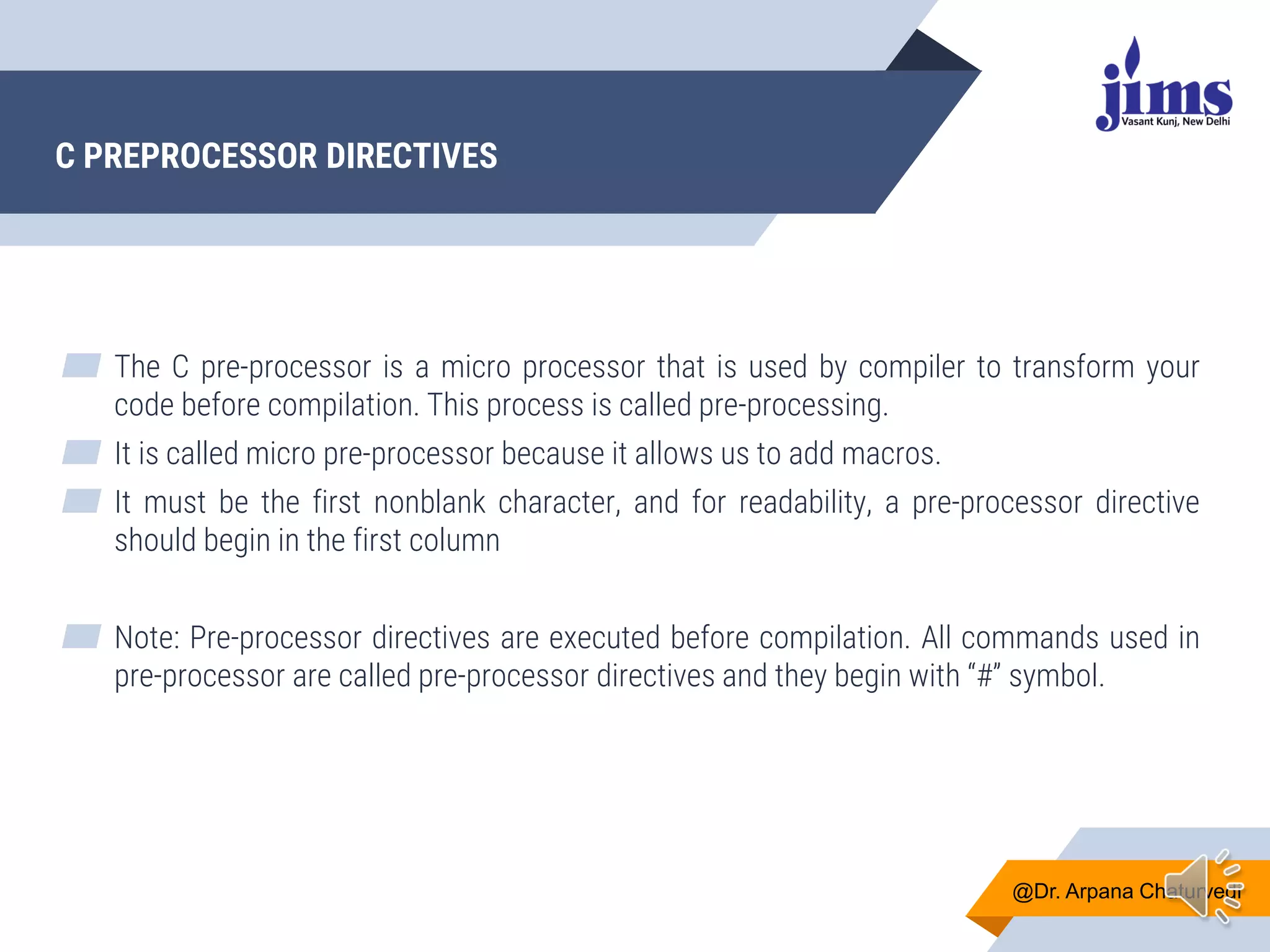

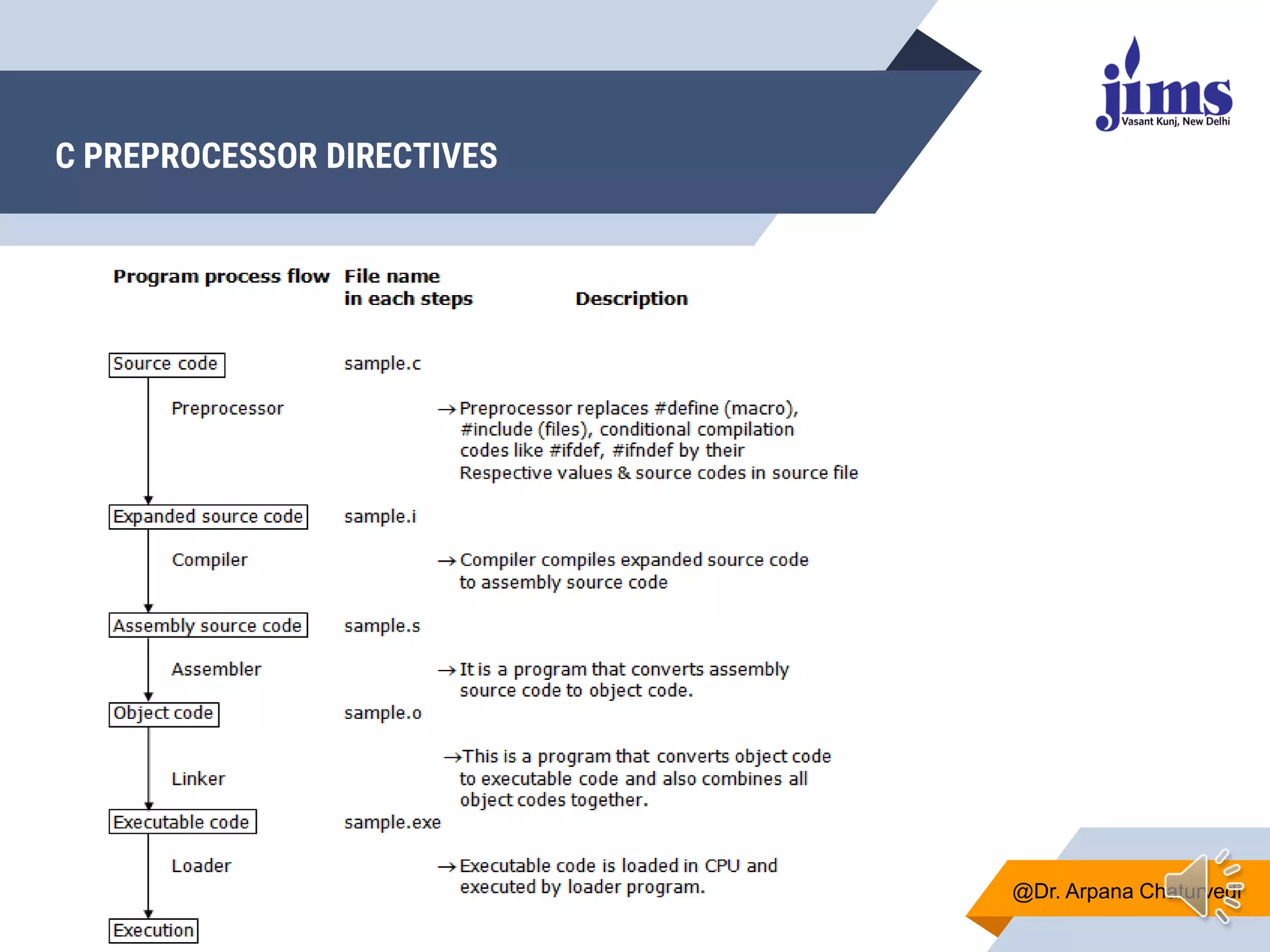

C PREPROCESSOR DIRECTIVES
▰ The C pre-processor is a micro processor that is used by compiler to transform your
code before compilation. This process is called pre-processing.
▰ It is called micro pre-processor because it allows us to add macros.
▰ It must be the first nonblank character, and for readability, a pre-processor directive
should begin in the first column
▰ Note: Pre-processor directives are executed before compilation. All commands used in
pre-processor are called pre-processor directives and they begin with “#” symbol.

C PREPROCESSOR DIRECTIVES

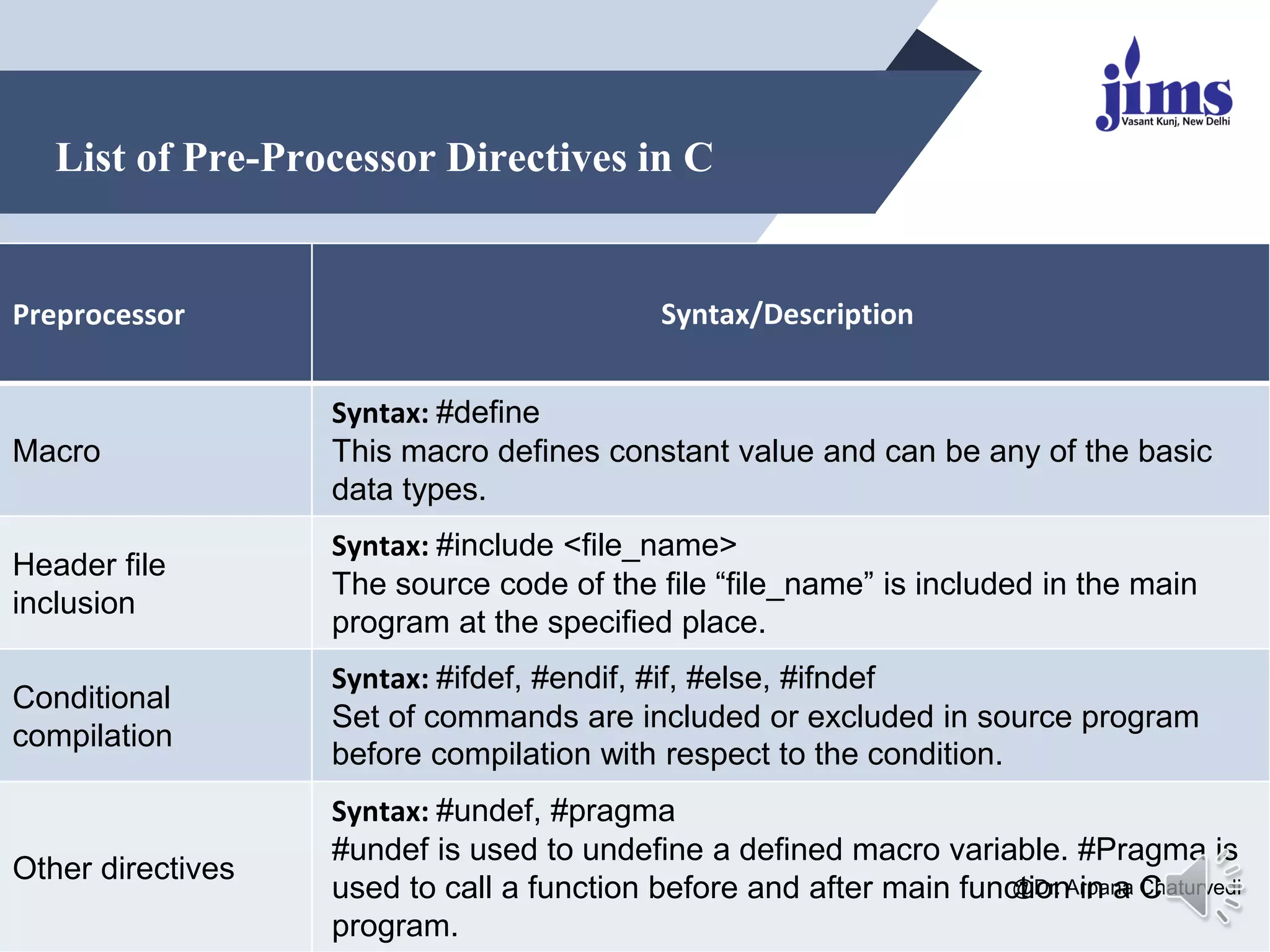

List of Pre-Processor Directives in C
Preprocessor Syntax/Description
Macro
Syntax: #define
This macro defines constant value and can be any of the basic
data types.
Header file
inclusion
Syntax: #include <file_name>
The source code of the file “file_name” is included in the main
program at the specified place.
Conditional
compilation
Syntax: #ifdef, #endif, #if, #else, #ifndef
Set of commands are included or excluded in source program
before compilation with respect to the condition.
Other directives
Syntax: #undef, #pragma

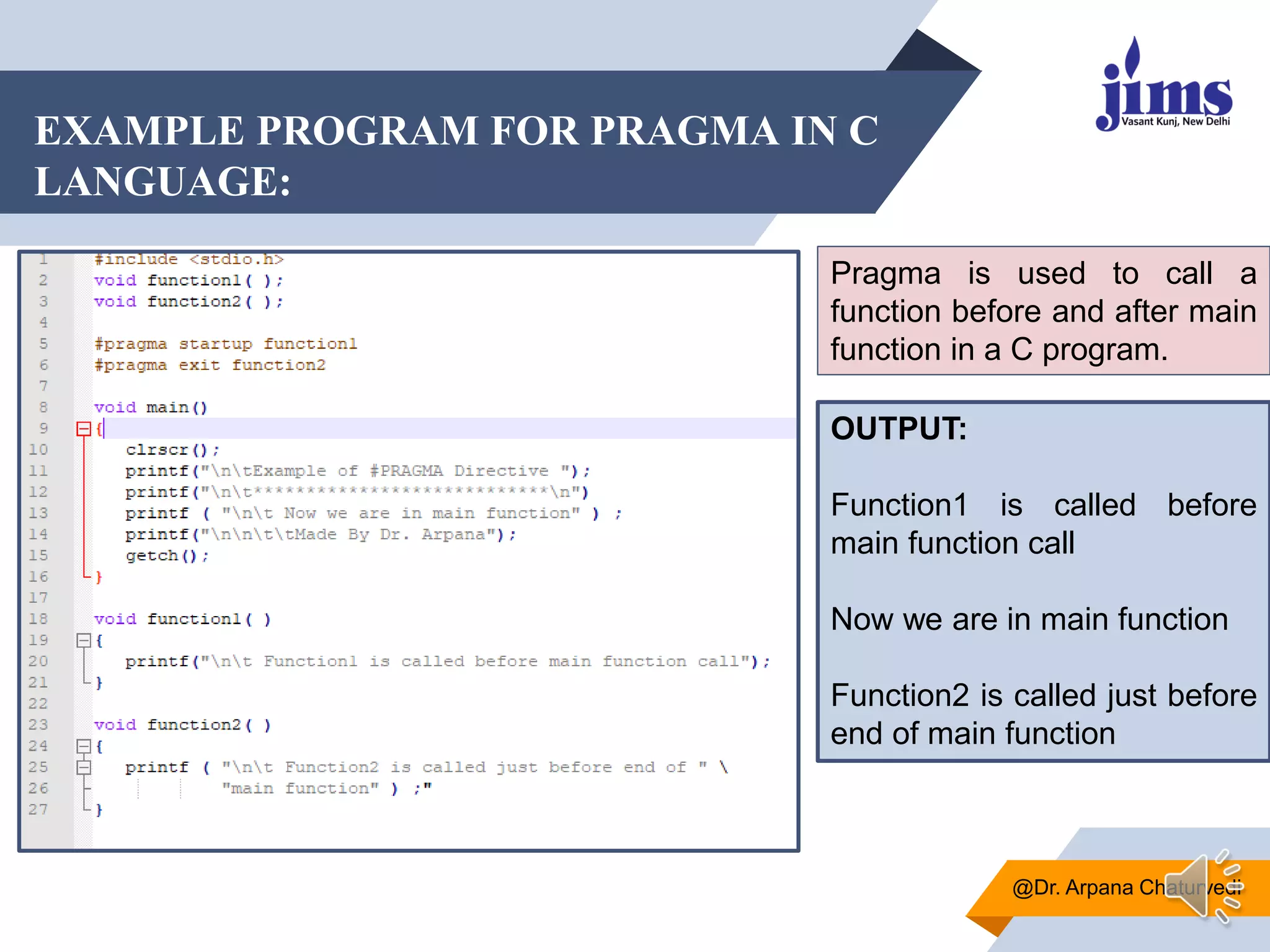

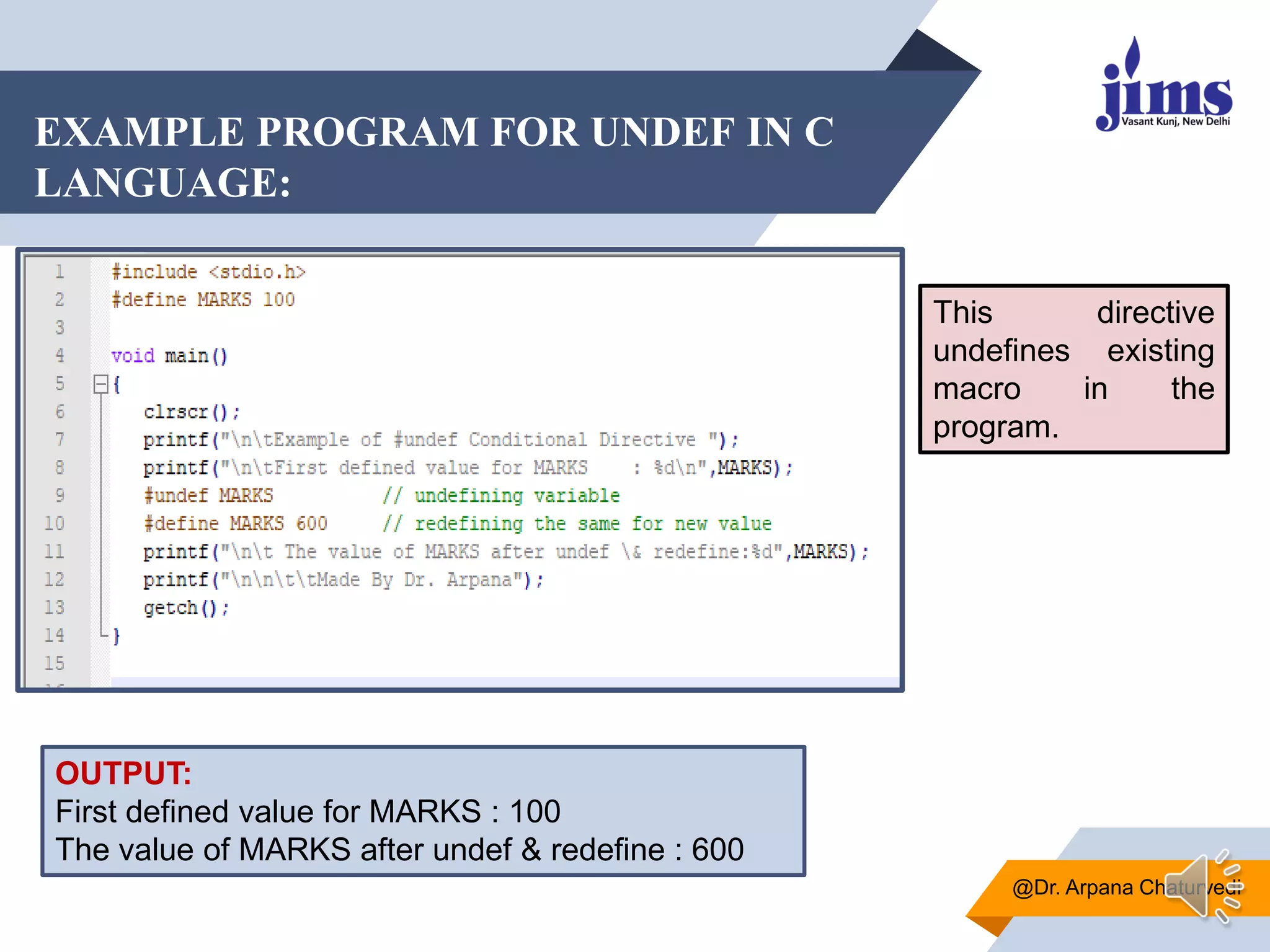

#undef is used to undefine a defined macro variable. #Pragma is
used to call a function before and after main function in a C
program.

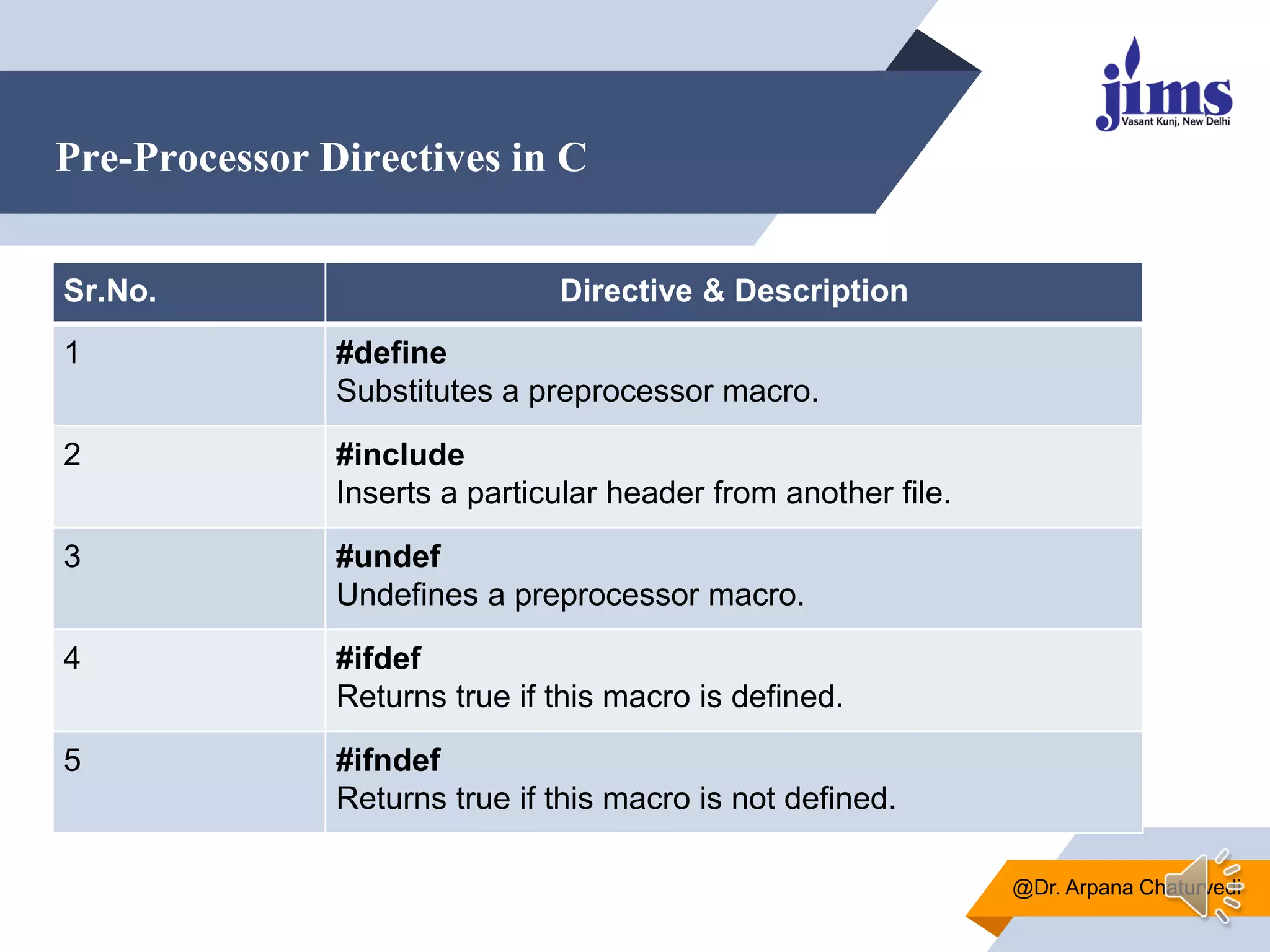

Pre-Processor Directives in C
Sr.No. Directive & Description
1 #define
Substitutes a preprocessor macro.
2 #include
Inserts a particular header from another file.
3 #undef
Undefines a preprocessor macro.
4 #ifdef
Returns true if this macro is defined.
5 #ifndef
Returns true if this macro is not defined.

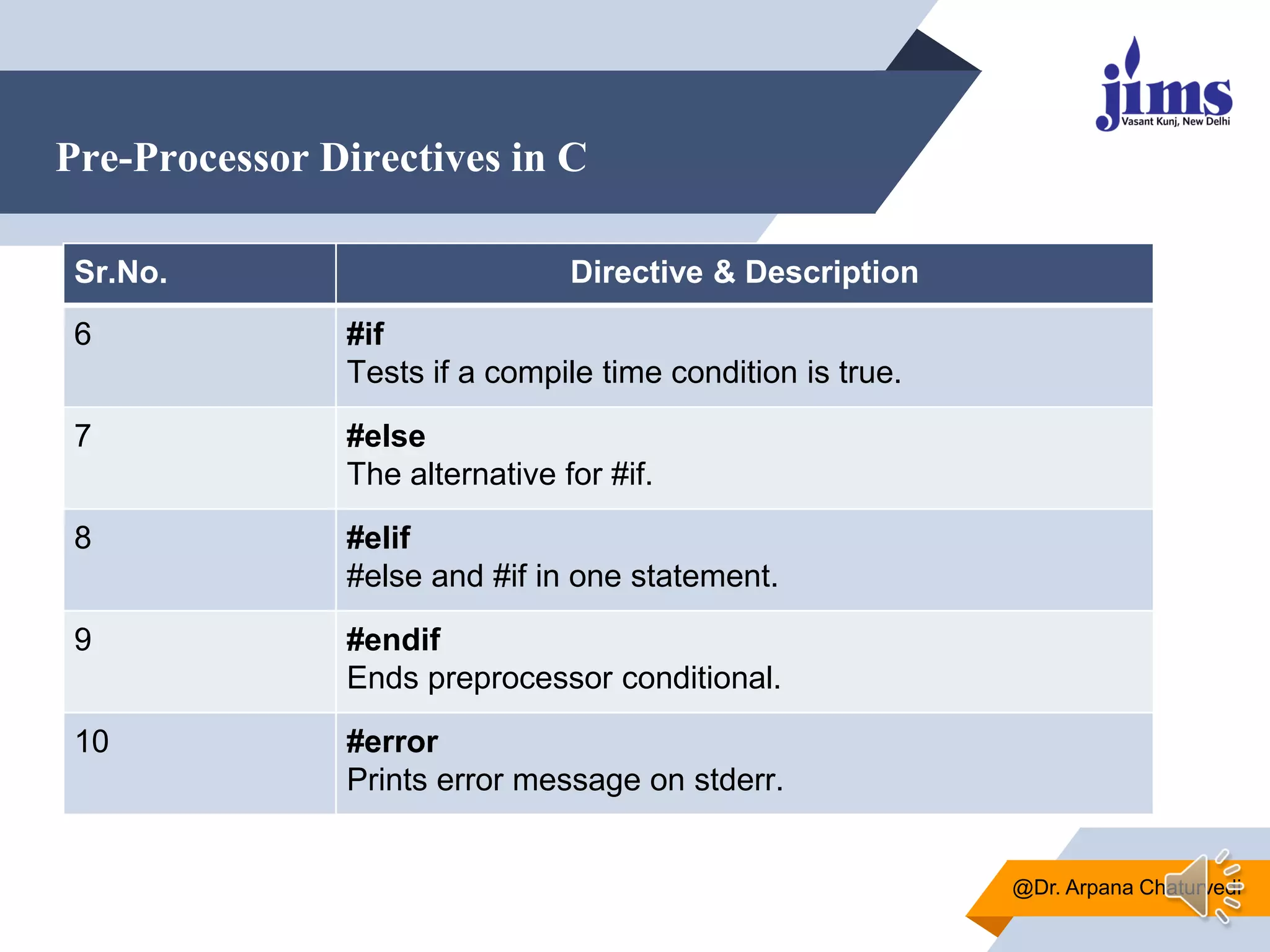

Pre-Processor Directives in C
Sr.No. Directive & Description
6 #if
Tests if a compile time condition is true.
7 #else
The alternative for #if.
8 #elif
#else and #if in one statement.
9 #endif
Ends preprocessor conditional.
10 #error
Prints error message on stderr.

Preprocessor Operators
The Macro Continuation () Operator:
▰ A macro is normally confined to a single line.
▰ The macro continuation operator () is used to continue a macro that is too long for a single
line.
▰ For example −
▰ #define message_for(a, b)
▰ printf(#a " and " #b ": We Welcome you to JIMS Vasant Kunj-II!n")

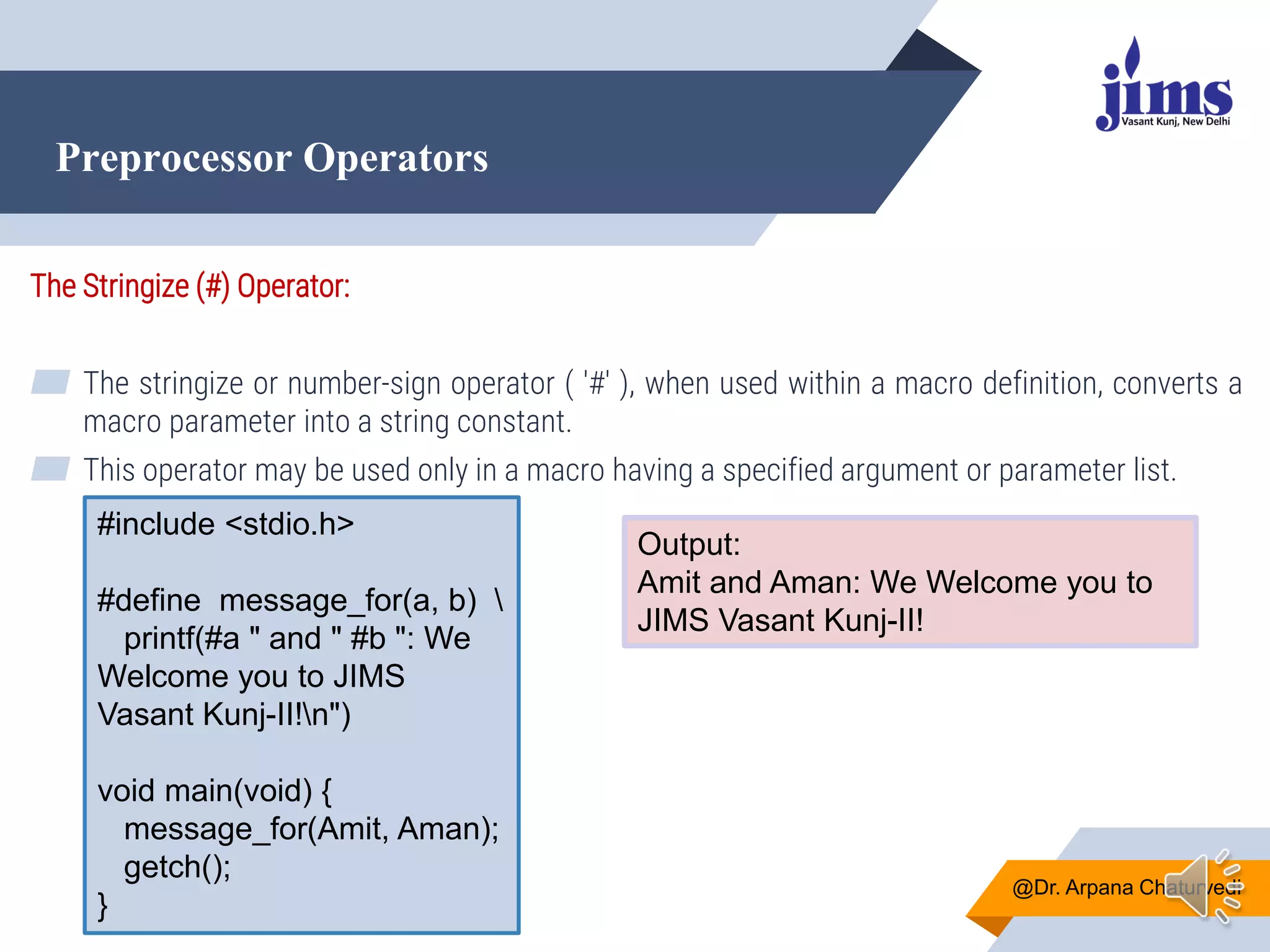

The Stringize (#) Operator:
▰ The stringize or number-sign operator ( '#' ), when used within a macro definition, converts a
macro parameter into a string constant.
▰ This operator may be used only in a macro having a specified argument or parameter list.
#include <stdio.h>
#define message_for(a, b)
printf(#a " and " #b ": We
Welcome you to JIMS
Vasant Kunj-II!n")
void main(void) {
message_for(Amit, Aman);
getch();
}
Output:
Amit and Aman: We Welcome you to
JIMS Vasant Kunj-II!

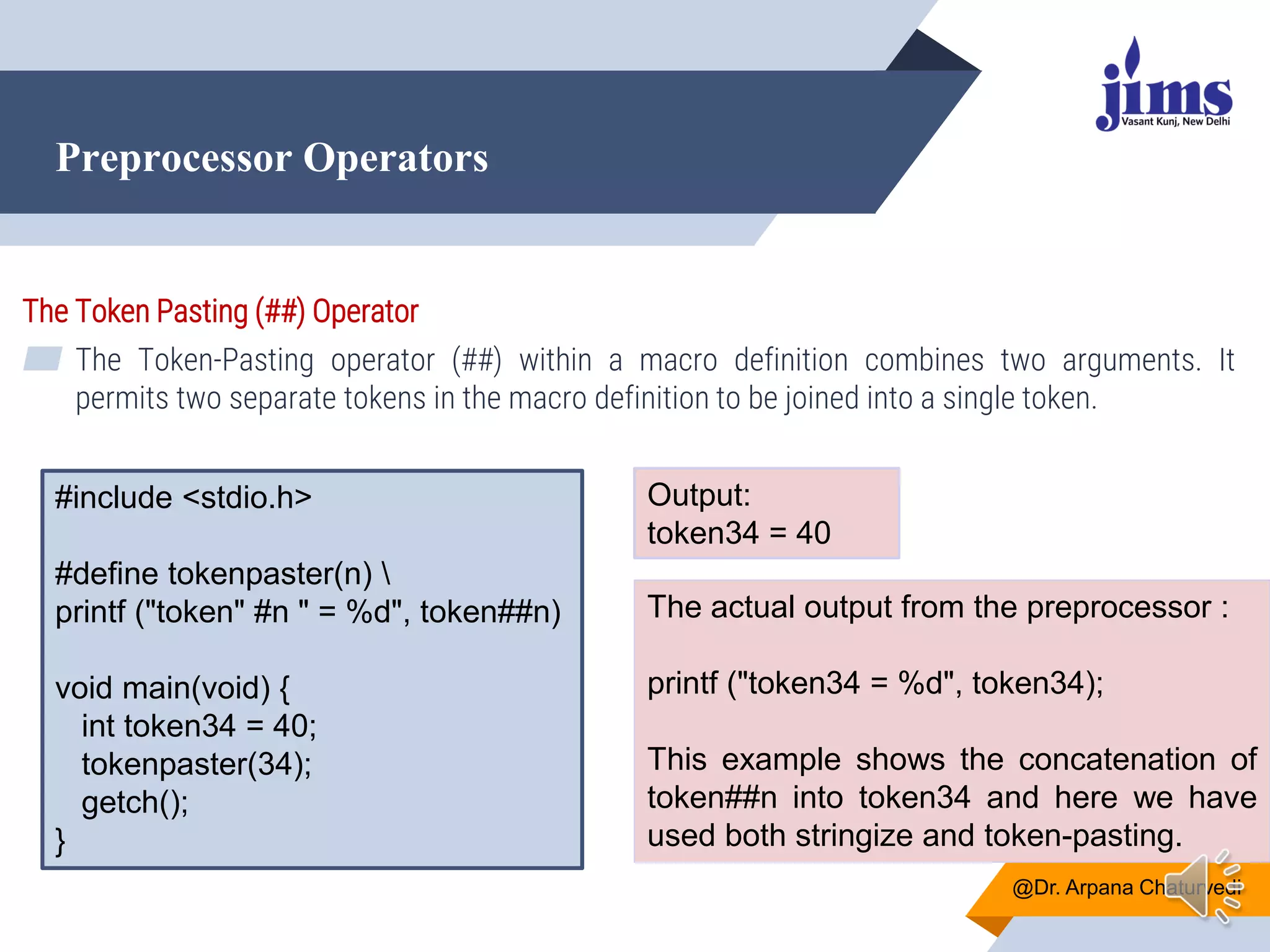

The Token Pasting (##) Operator
▰ The Token-Pasting operator (##) within a macro definition combines two arguments. It
permits two separate tokens in the macro definition to be joined into a single token.
#include <stdio.h>
#define tokenpaster(n)
printf ("token" #n " = %d", token##n)
void main(void) {
int token34 = 40;
tokenpaster(34);
getch();
}
Output:
token34 = 40
The actual output from the preprocessor :
printf ("token34 = %d", token34);
This example shows the concatenation of
token##n into token34 and here we have
used both stringize and token-pasting.

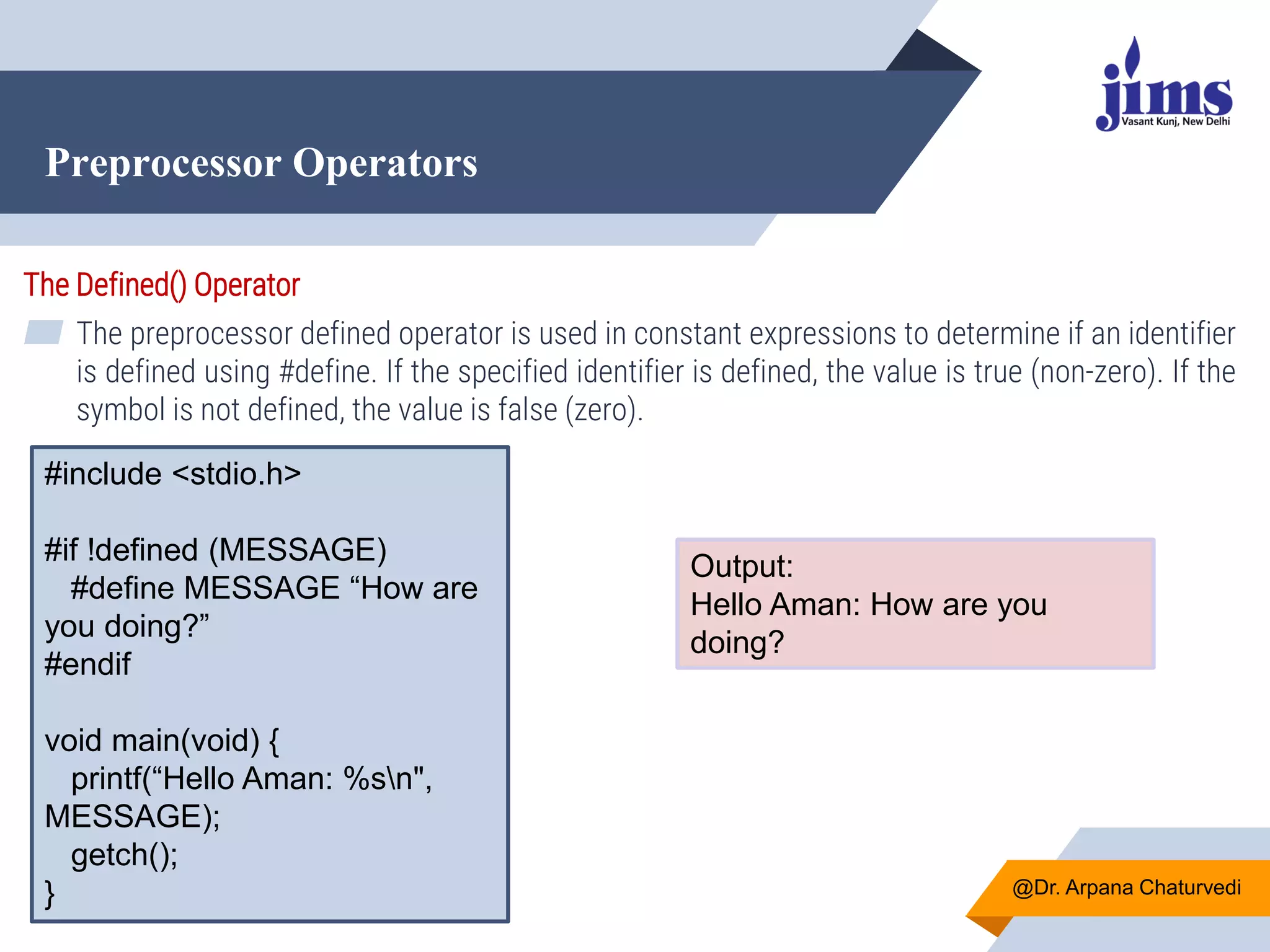

The Defined() Operator
▰ The preprocessor defined operator is used in constant expressions to determine if an identifier
is defined using #define. If the specified identifier is defined, the value is true (non-zero). If the
symbol is not defined, the value is false (zero).
#include <stdio.h>
#if !defined (MESSAGE)
#define MESSAGE “How are
you doing?”
#endif
void main(void) {
printf(“Hello Aman: %sn",
MESSAGE);
getch();
}
Output:
Hello Aman: How are you
doing?

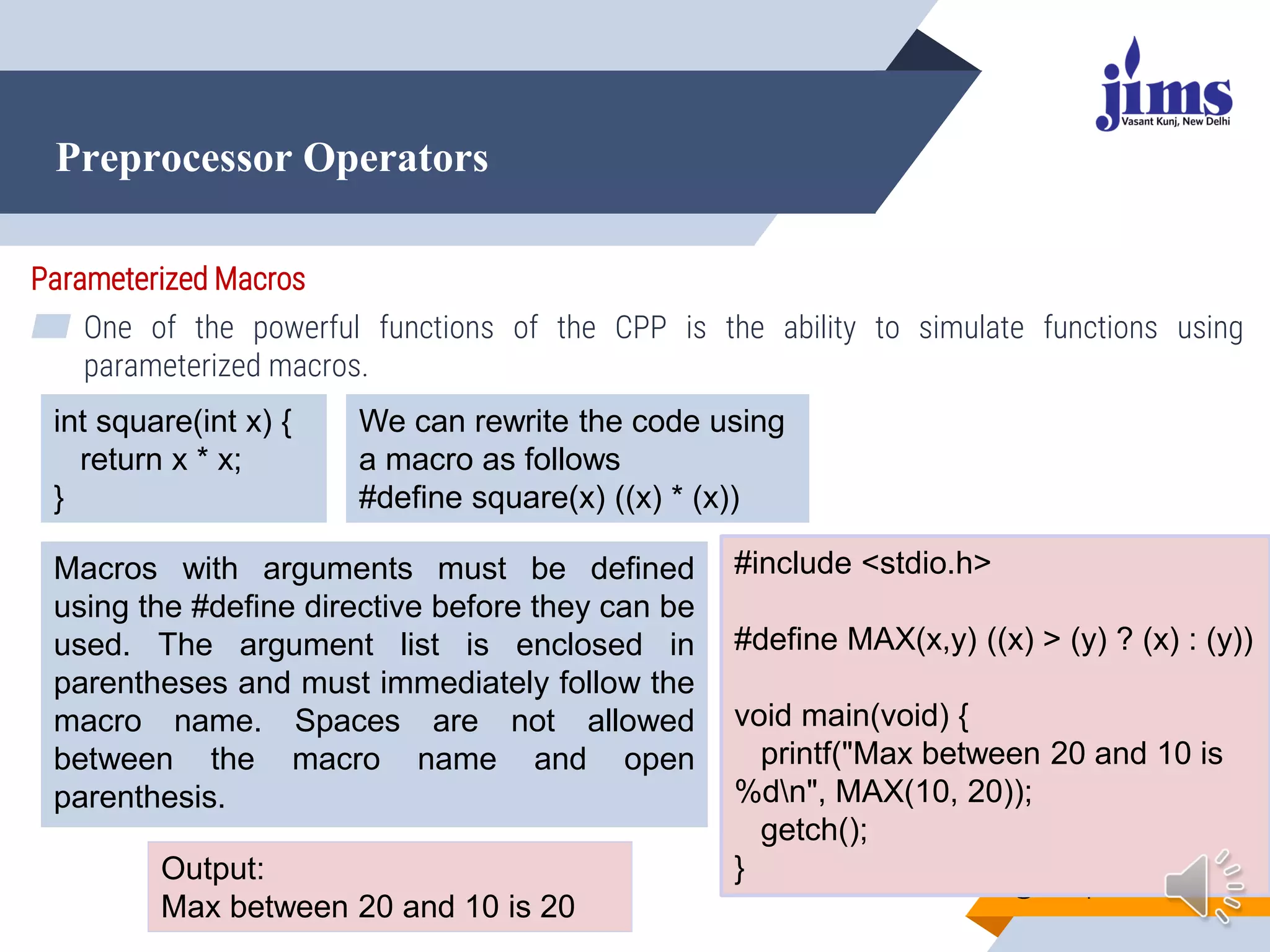

Parameterized Macros
▰ One of the powerful functions of the CPP is the ability to simulate functions using
parameterized macros.
int square(int x) {
return x * x;
}
We can rewrite the code using
a macro as follows
#define square(x) ((x) * (x))
Macros with arguments must be defined
using the #define directive before they can be
used. The argument list is enclosed in
parentheses and must immediately follow the
macro name. Spaces are not allowed
between the macro name and open
parenthesis.
#include <stdio.h>
#define MAX(x,y) ((x) > (y) ? (x) : (y))
void main(void) {
printf("Max between 20 and 10 is
%dn", MAX(10, 20));
getch();
}
Output:
Max between 20 and 10 is 20

1. Macros in C
@ Dr.Arpana Chaturvedi

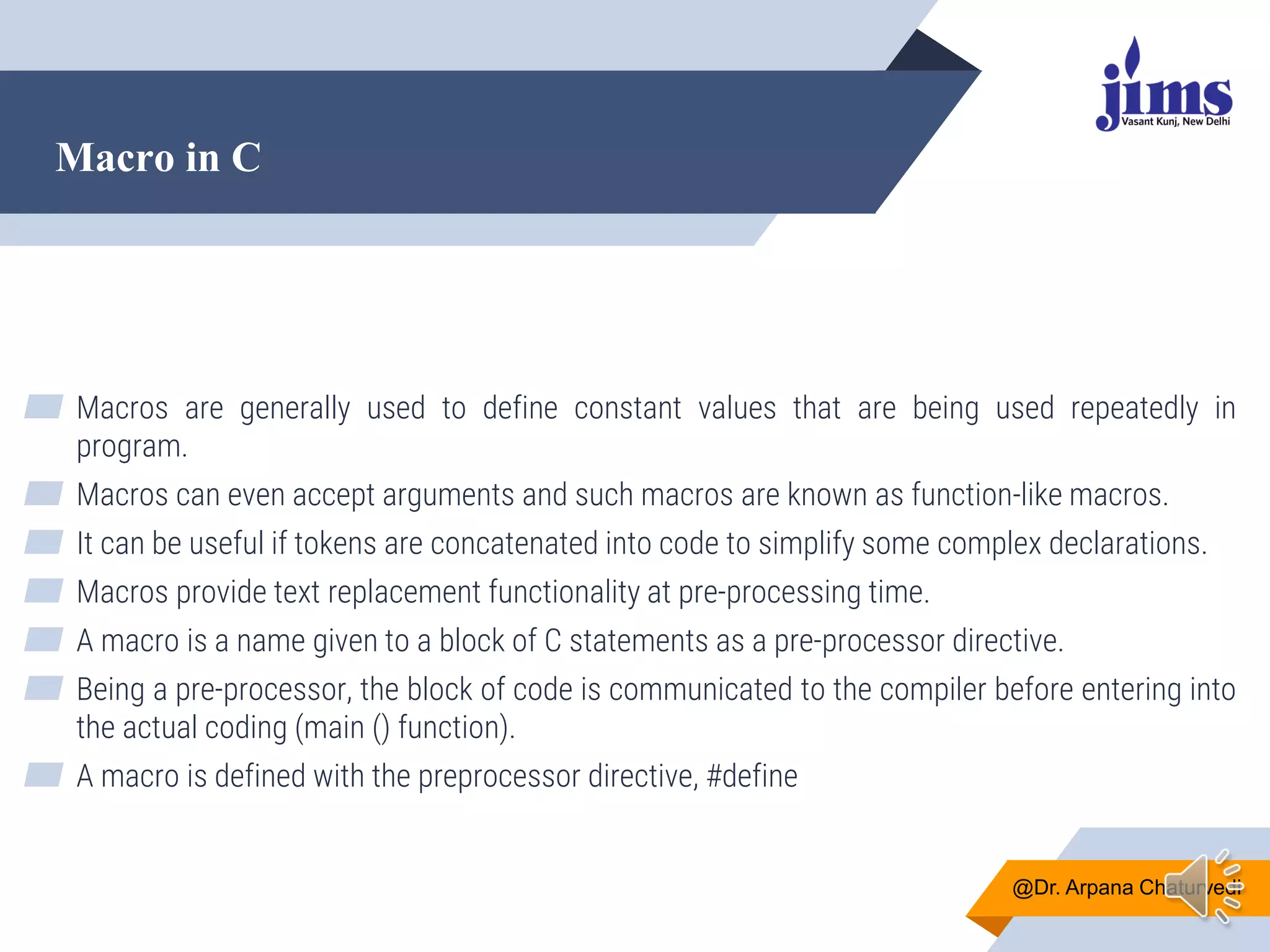

Macro in C
▰ Macros are generally used to define constant values that are being used repeatedly in
program.
▰ Macros can even accept arguments and such macros are known as function-like macros.
▰ It can be useful if tokens are concatenated into code to simplify some complex declarations.
▰ Macros provide text replacement functionality at pre-processing time.
▰ A macro is a name given to a block of C statements as a pre-processor directive.
▰ Being a pre-processor, the block of code is communicated to the compiler before entering into
the actual coding (main () function).
▰ A macro is defined with the preprocessor directive, #define

Macro in C
▰ A macro is a segment of code which is replaced by the value of macro. Macro is defined by
#define directive. There are two types of macros:
▰ Object-like Macros
▰ Function-like Macros

Object-like Macros in C
▰ The object-like macro is an identifier that is replaced by value. It is widely used to represent
numeric constants. For example:
▰ #define PI 3.14
▰ Here, PI is the macro name which will be replaced by the value 3.14.

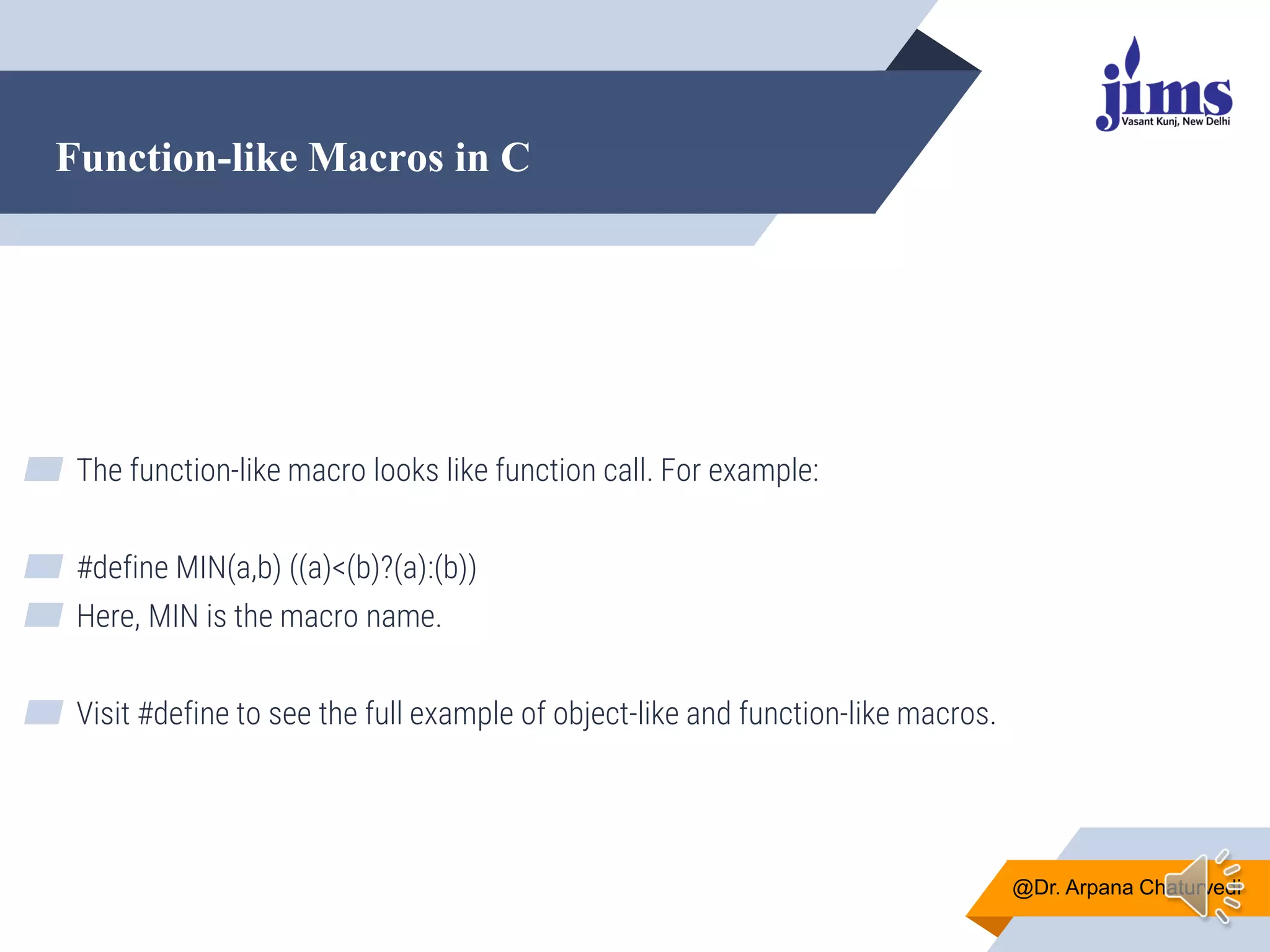

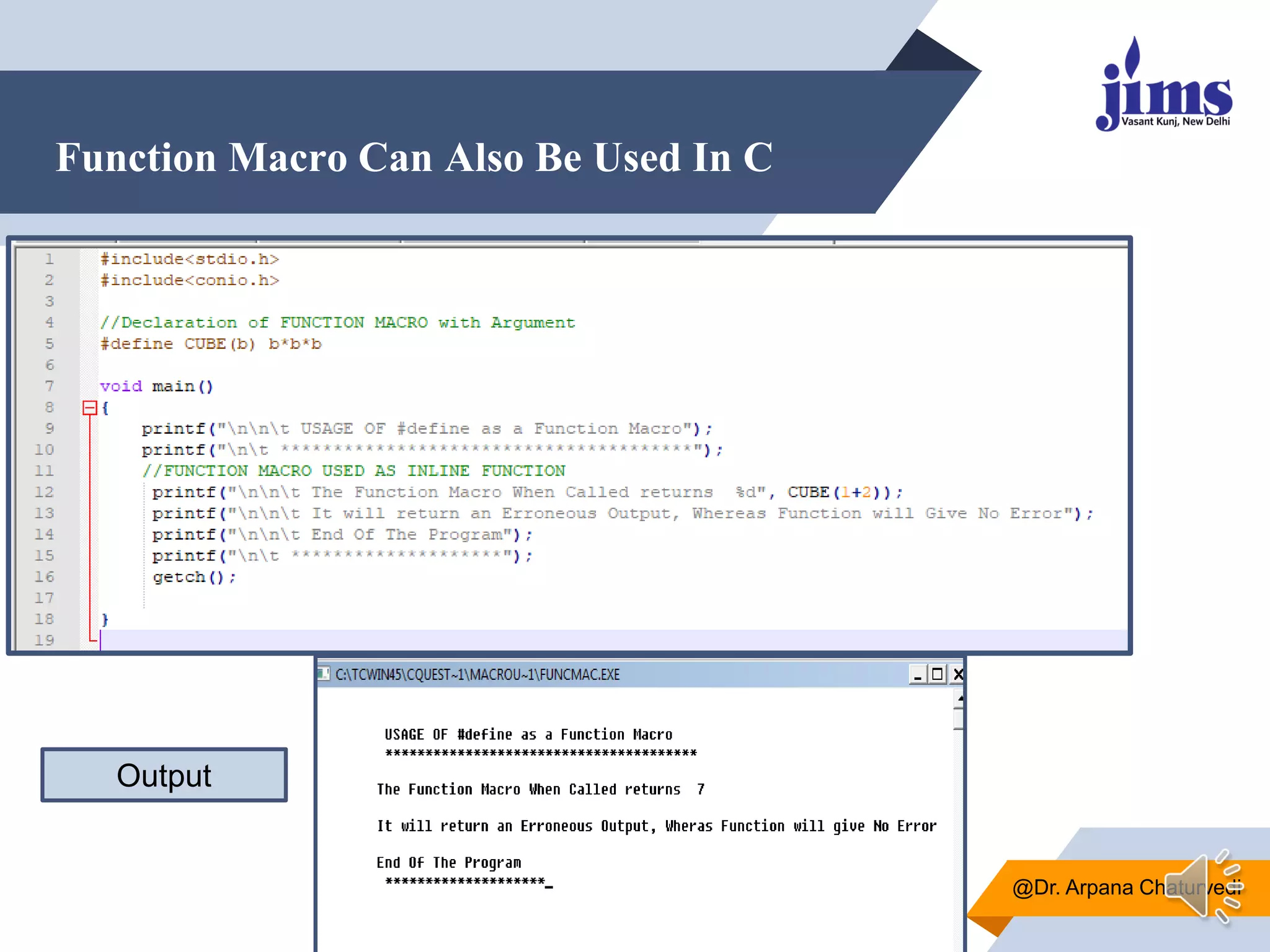

Function-like Macros in C
▰ The function-like macro looks like function call. For example:
▰ #define MIN(a,b) ((a)<(b)?(a):(b))
▰ Here, MIN is the macro name.
▰ Visit #define to see the full example of object-like and function-like macros.

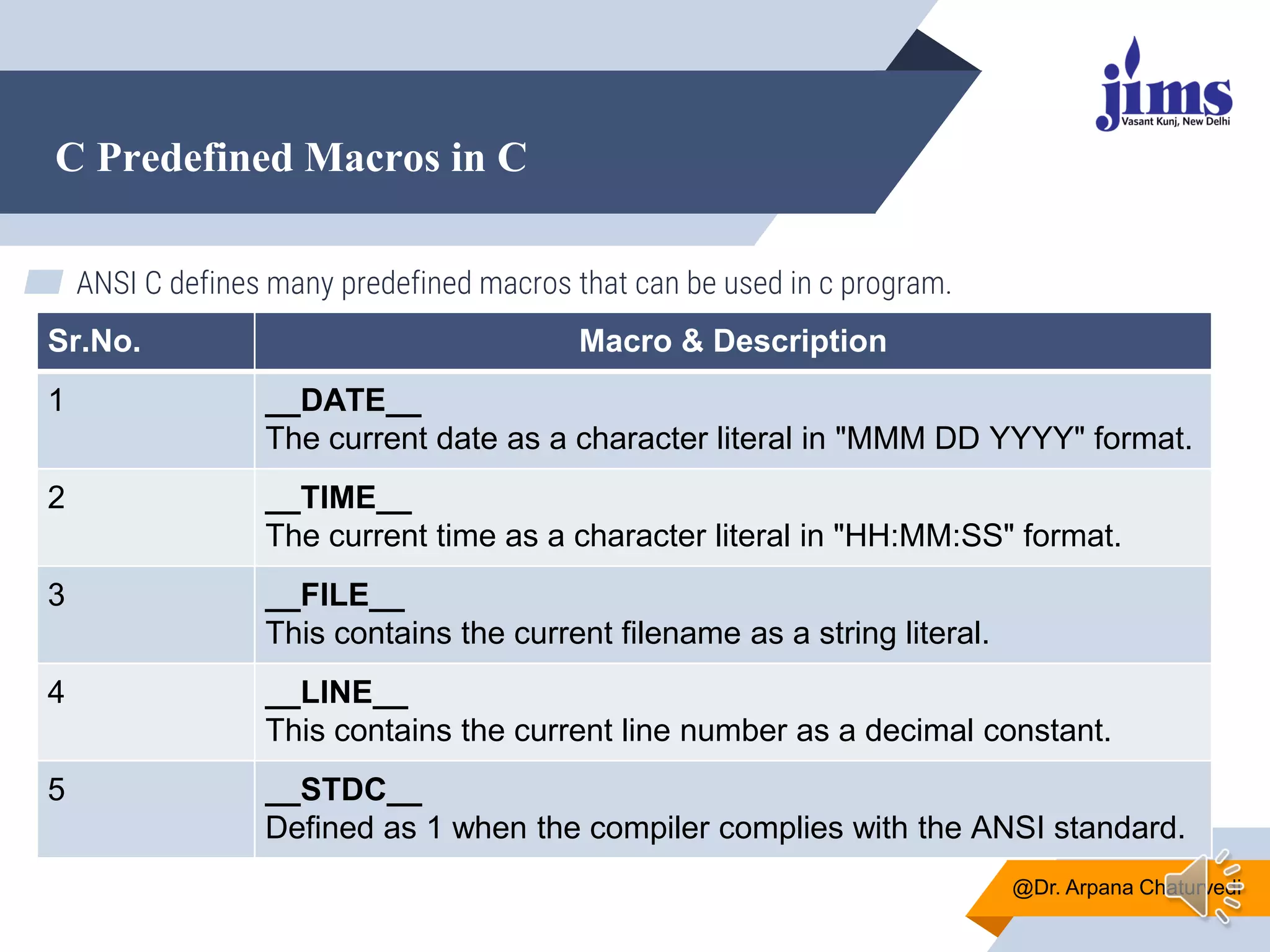

C Predefined Macros in C
▰ ANSI C defines many predefined macros that can be used in c program.
Sr.No. Macro & Description
1 __DATE__
The current date as a character literal in "MMM DD YYYY" format.
2 __TIME__
The current time as a character literal in "HH:MM:SS" format.
3 __FILE__
This contains the current filename as a string literal.
4 __LINE__
This contains the current line number as a decimal constant.
5 __STDC__
Defined as 1 when the compiler complies with the ANSI standard.

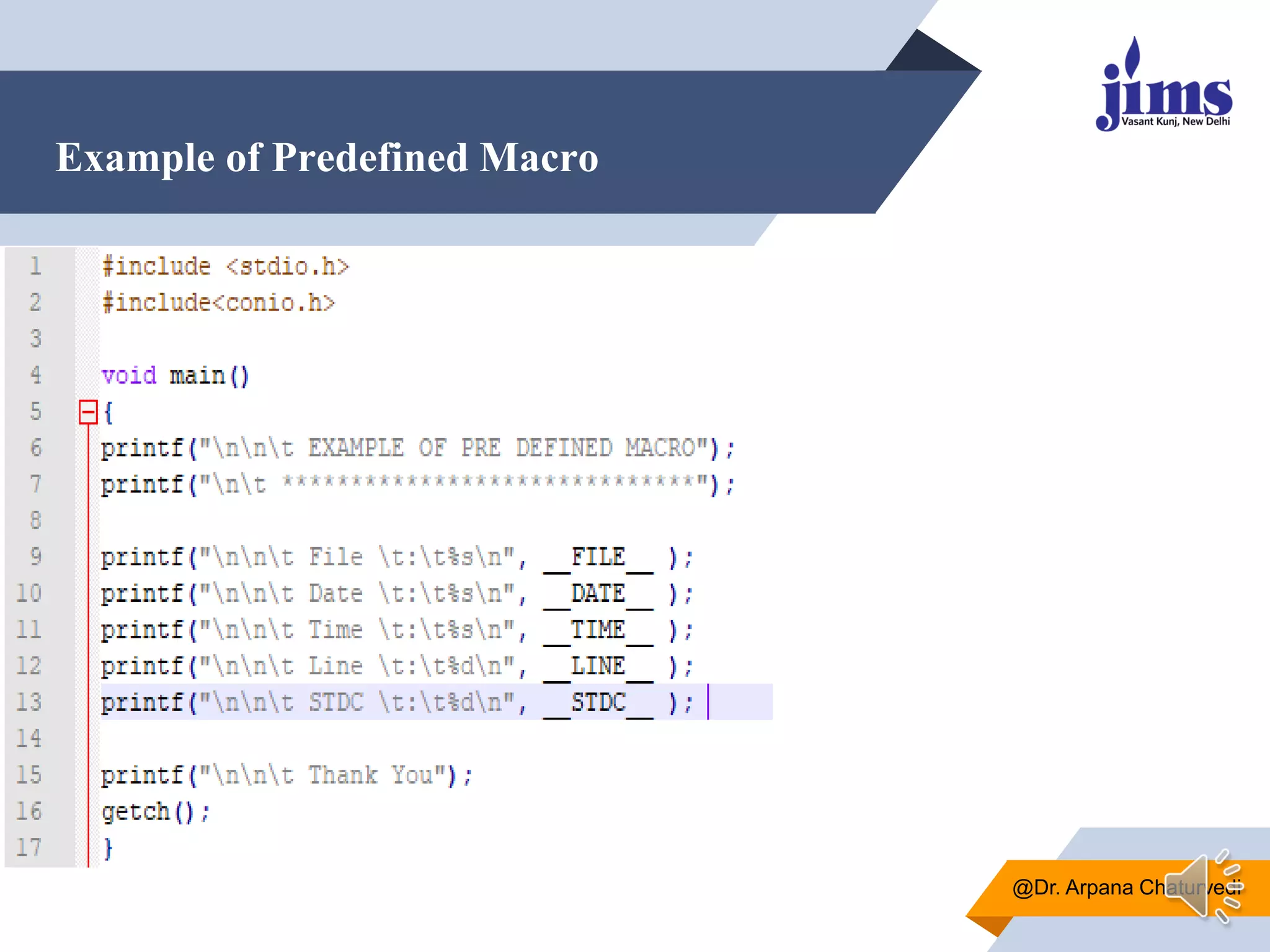

Example of Predefined Macro

#define Macro
▰ In the C Programming Language, the #define directive allows the definition of macros within
your source code.
▰ These macro definitions allow constant values to be declared for use throughout your code.
▰ Macro definitions are not variables and cannot be changed by your program code like
variables.
▰ You generally use this syntax when creating constants that represent numbers, strings or
expressions.

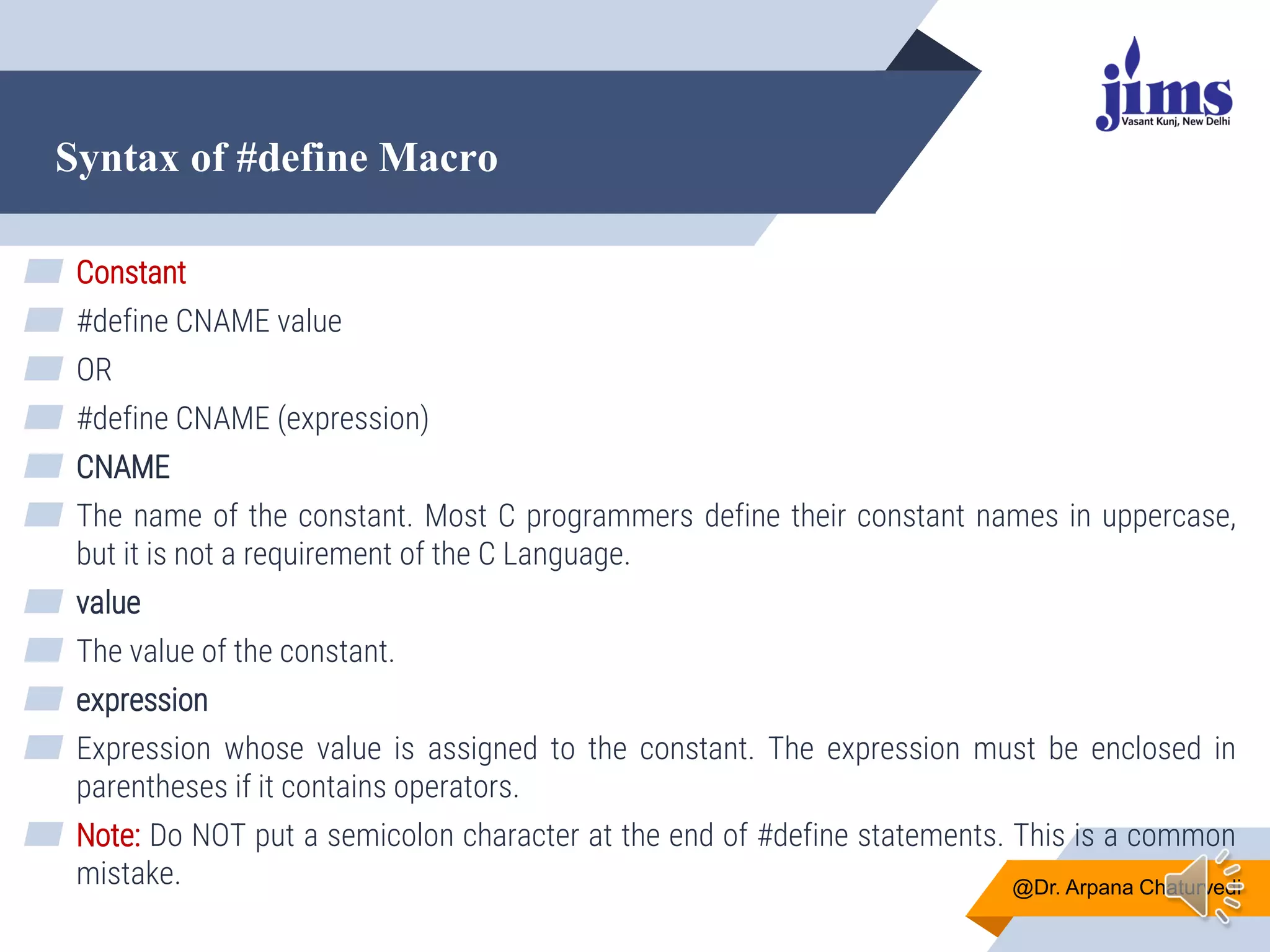

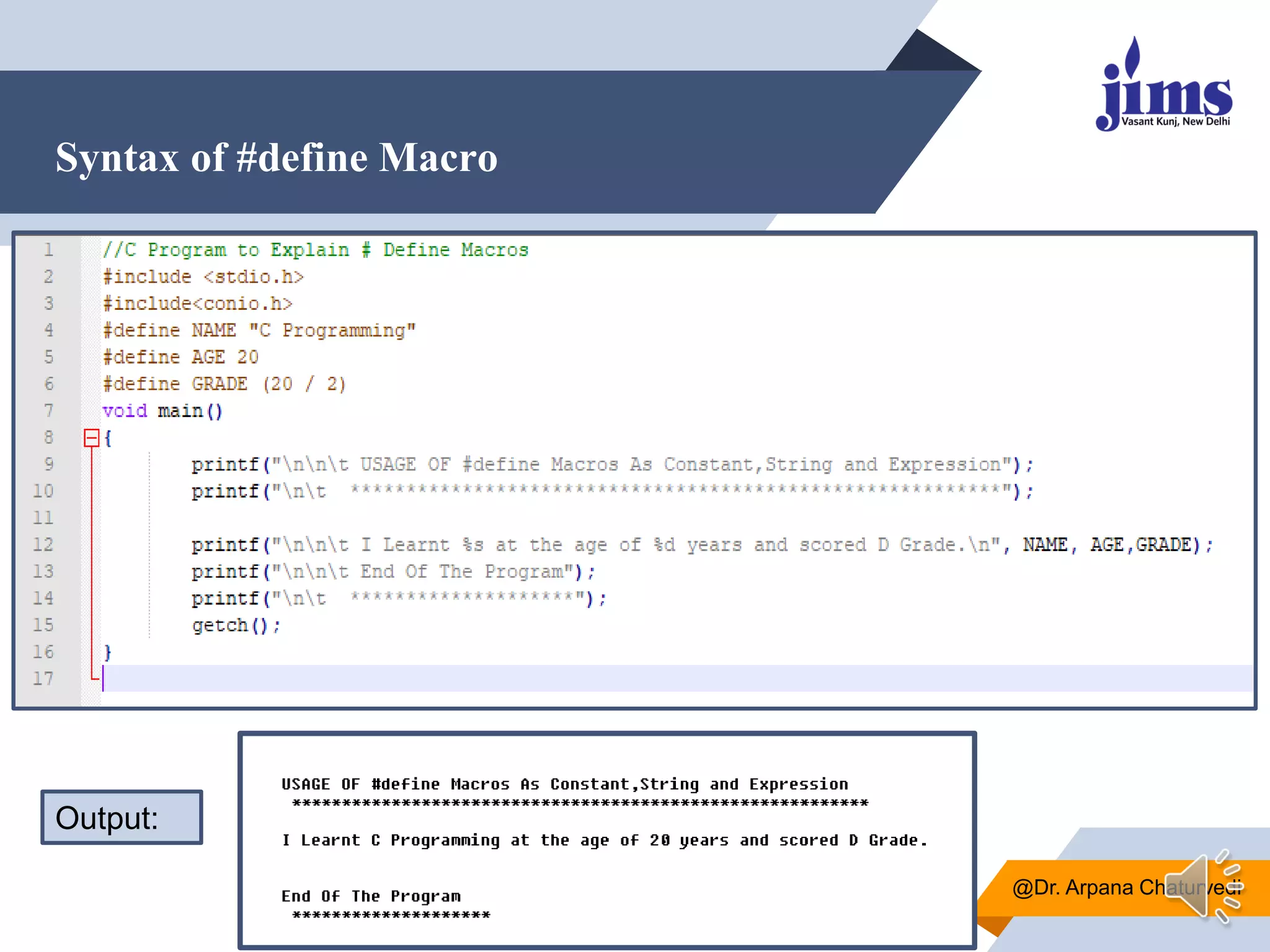

Syntax of #define Macro
▰ Constant
▰ #define CNAME value
▰ OR
▰ #define CNAME (expression)
▰ CNAME
▰ The name of the constant. Most C programmers define their constant names in uppercase,
but it is not a requirement of the C Language.
▰ value
▰ The value of the constant.
▰ expression
▰ Expression whose value is assigned to the constant. The expression must be enclosed in
parentheses if it contains operators.
▰ Note: Do NOT put a semicolon character at the end of #define statements. This is a common
mistake.

▰ Number
▰ #define directive to define a numeric constant:
▰ Example: The constant named AGE would contain the value of 10.
▰ #define AGE 10
▰ String
▰ #define directive to define a string constant.
▰ Example: The constant called NAME would contain the value of "C Programming".
▰ #define NAME "C Programming"
▰ Expression
▰ Example :The #define directive to define a constant using an expression.
▰ #define GRADE (20 / 2)

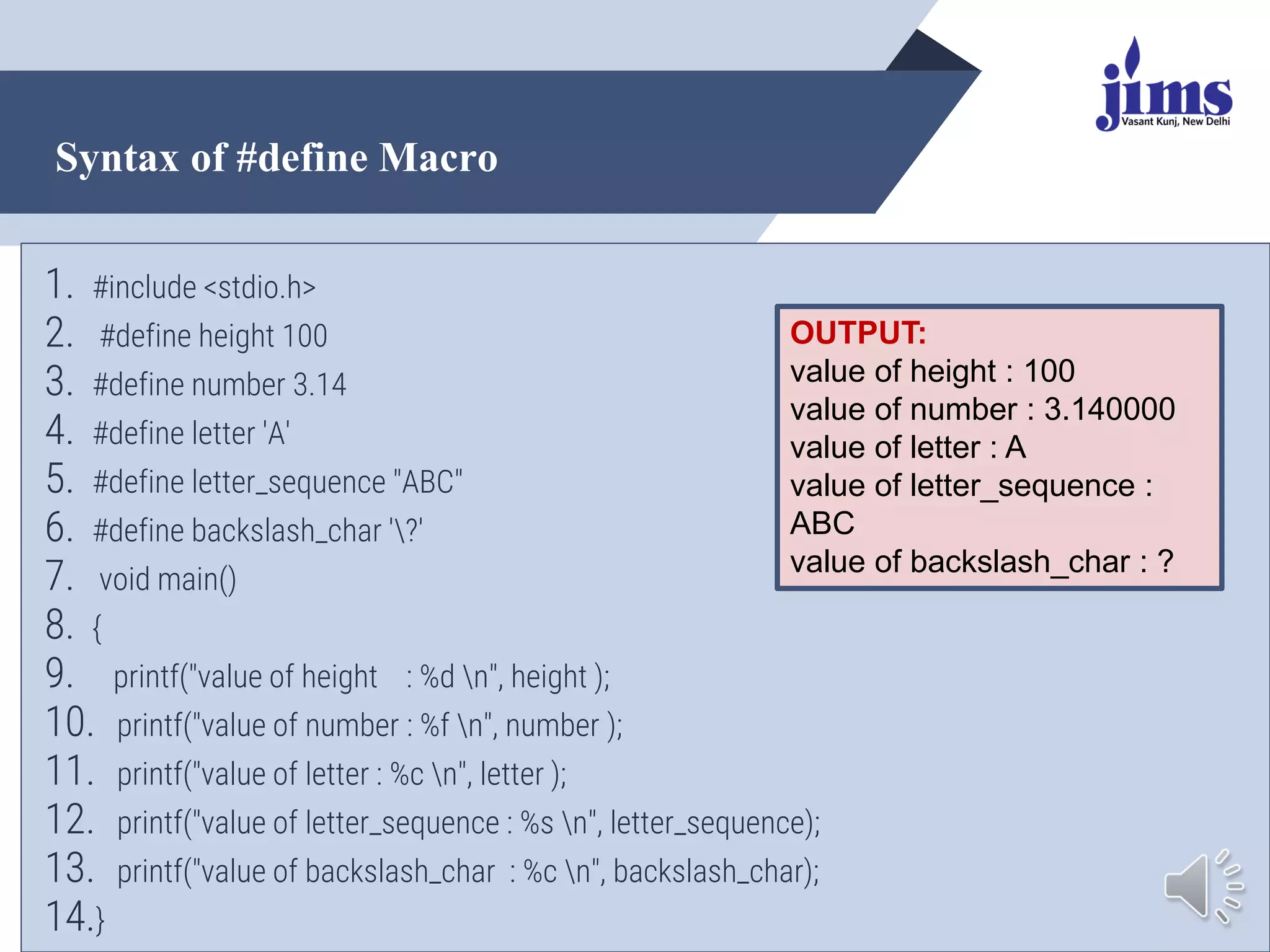

Output:

1. #include <stdio.h>
2. #define height 100
3. #define number 3.14
4. #define letter 'A'
5. #define letter_sequence "ABC"
6. #define backslash_char '?'
7. void main()
8. {
9. printf("value of height : %d n", height );
10. printf("value of number : %f n", number );
11. printf("value of letter : %c n", letter );
12. printf("value of letter_sequence : %s n", letter_sequence);
13. printf("value of backslash_char : %c n", backslash_char);
14.}
OUTPUT:
value of height : 100
value of number : 3.140000
value of letter : A
value of letter_sequence :
ABC
value of backslash_char : ?

2. Header File Inclusion

#include Preprocessor Directive
▰ #include Pre-processor directive is used to include header files in C Program.
▰ Header File is a file with extension .h which contains C function declarations and macro
definitions.
▰ These functions can be with any number of source files in which the header file is included
with #include Pre-processor directives.
▰ In the C Programming Language, the #include directive tells the Pre-processor to insert the
contents of another file into the source code at the point where the #include directive is found.
▰ Include directives are typically used to include the C header files for C functions that are held
outside of the current source file.
▰ By the use of #include directive, we provide information to the pre-processor where to look for
the header files.
▰ If included file is not found, compiler renders error.

Types of Header Files for Inclusion
There are two types of header files:
▰ User Defined Header Files
The files that the programmer writes
▰ System Defined Header Files
The files that comes with your compiler.

Syntax to include Header Files in C
Syntax of User Defined Header File:
#include "file“
▰ This form is used for header files of your own program. It searches for a file named 'file' in the
directory containing the current file.
▰ You can prepend directories to this list with the -I option while compiling your source code
Syntax of System Defined Header File:
#include <file>
▰ This form is used for system header files.
▰ It searches for a file named 'file' in a standard list of system directories.
▰ You can prepend directories to this list with the -I option while compiling your source code.

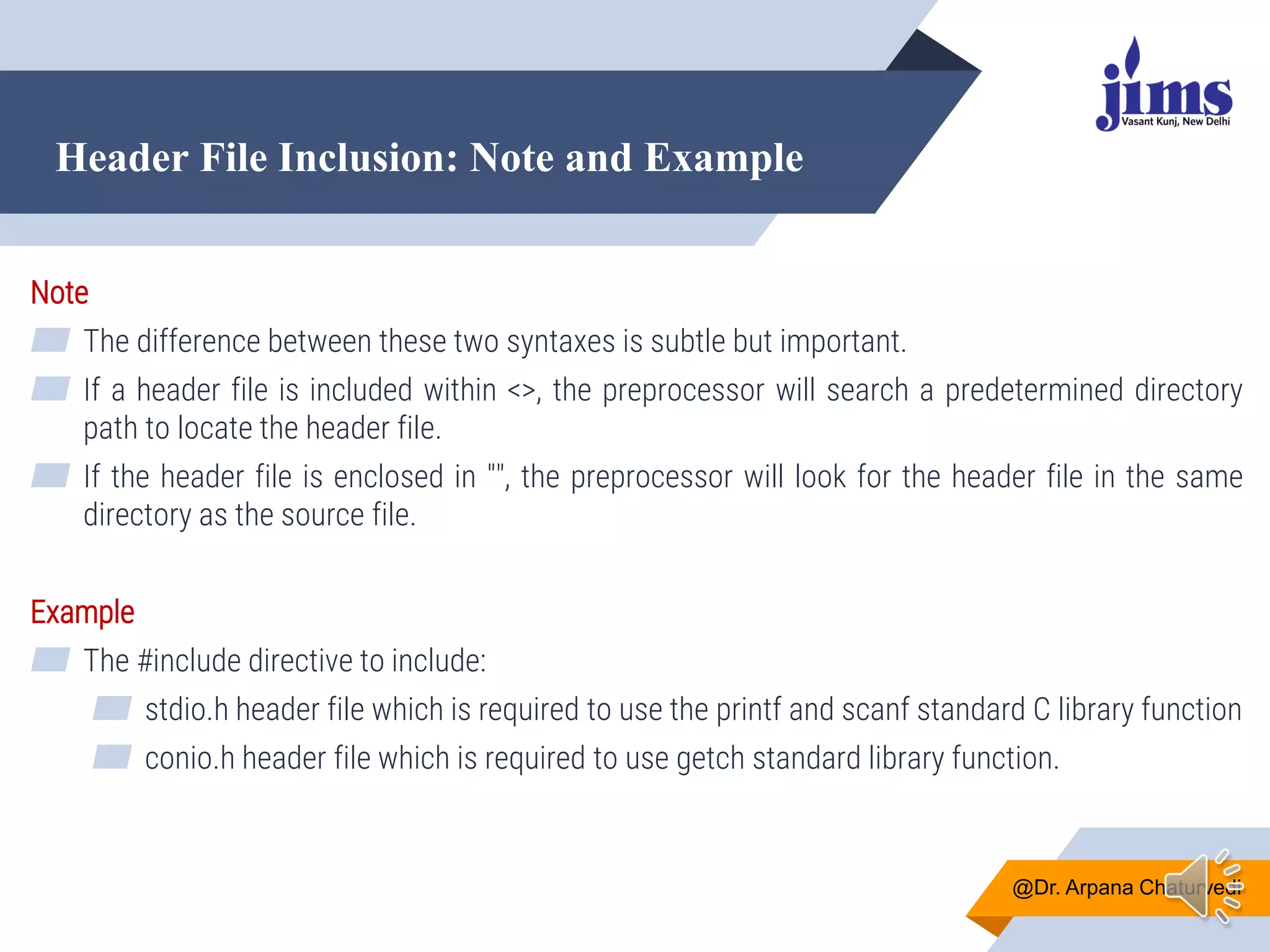

Header File Inclusion: Note and Example
Note
▰ The difference between these two syntaxes is subtle but important.
▰ If a header file is included within <>, the preprocessor will search a predetermined directory
path to locate the header file.
▰ If the header file is enclosed in "", the preprocessor will look for the header file in the same
directory as the source file.
Example
▰ The #include directive to include:
▰ stdio.h header file which is required to use the printf and scanf standard C library function
▰ conio.h header file which is required to use getch standard library function.

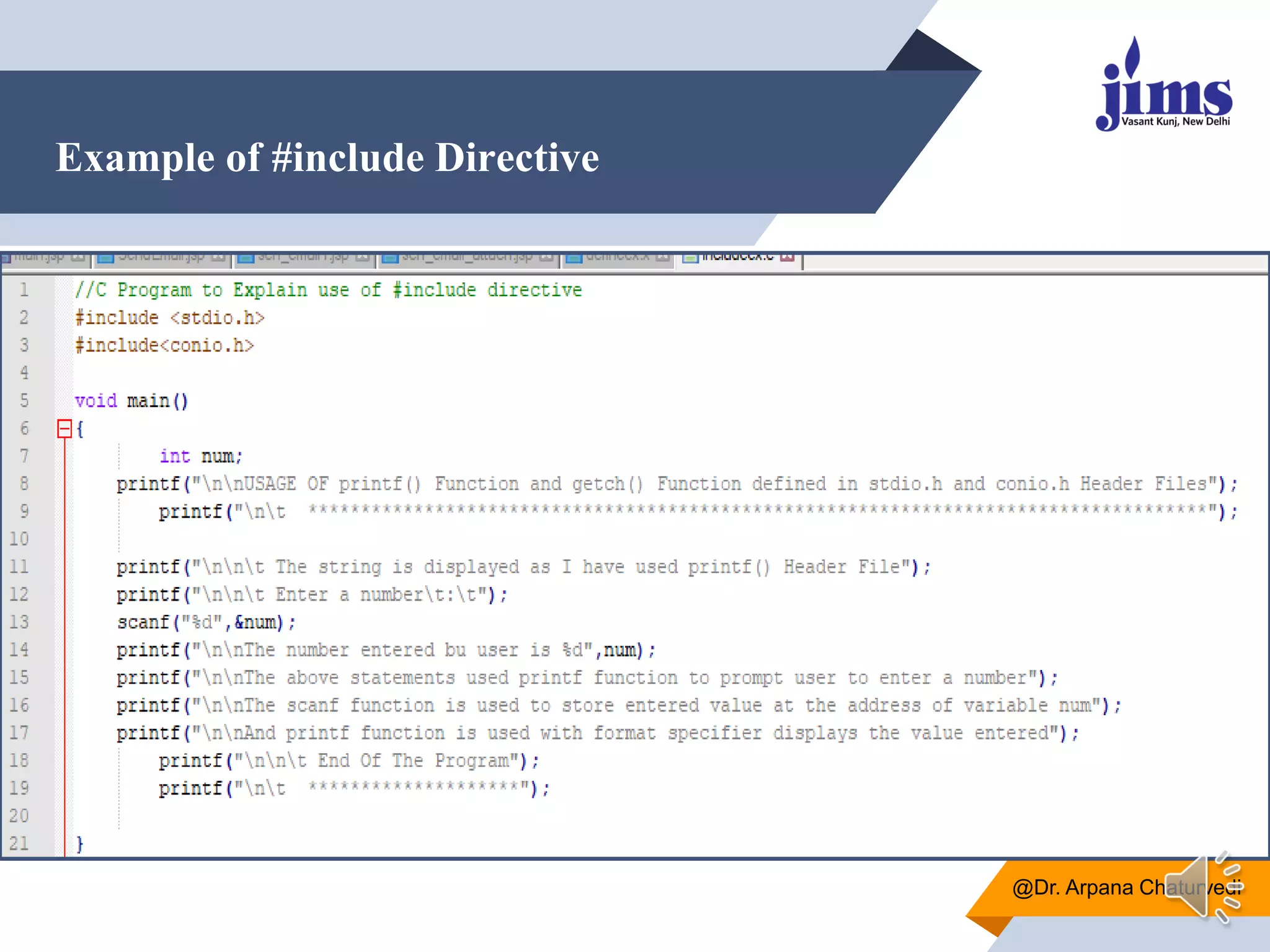

Example of #include Directive

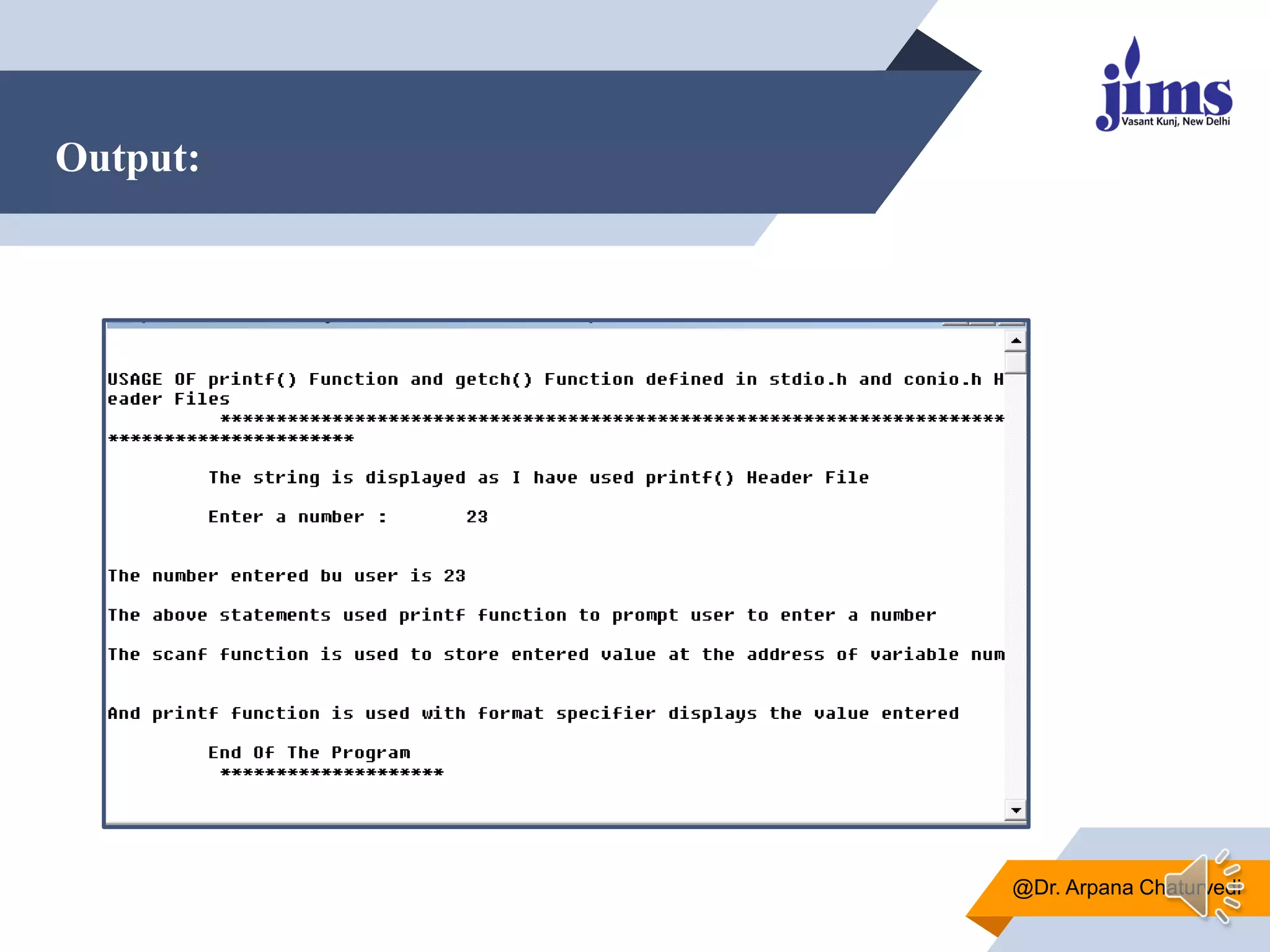

Output:

3. Conditional Compilation

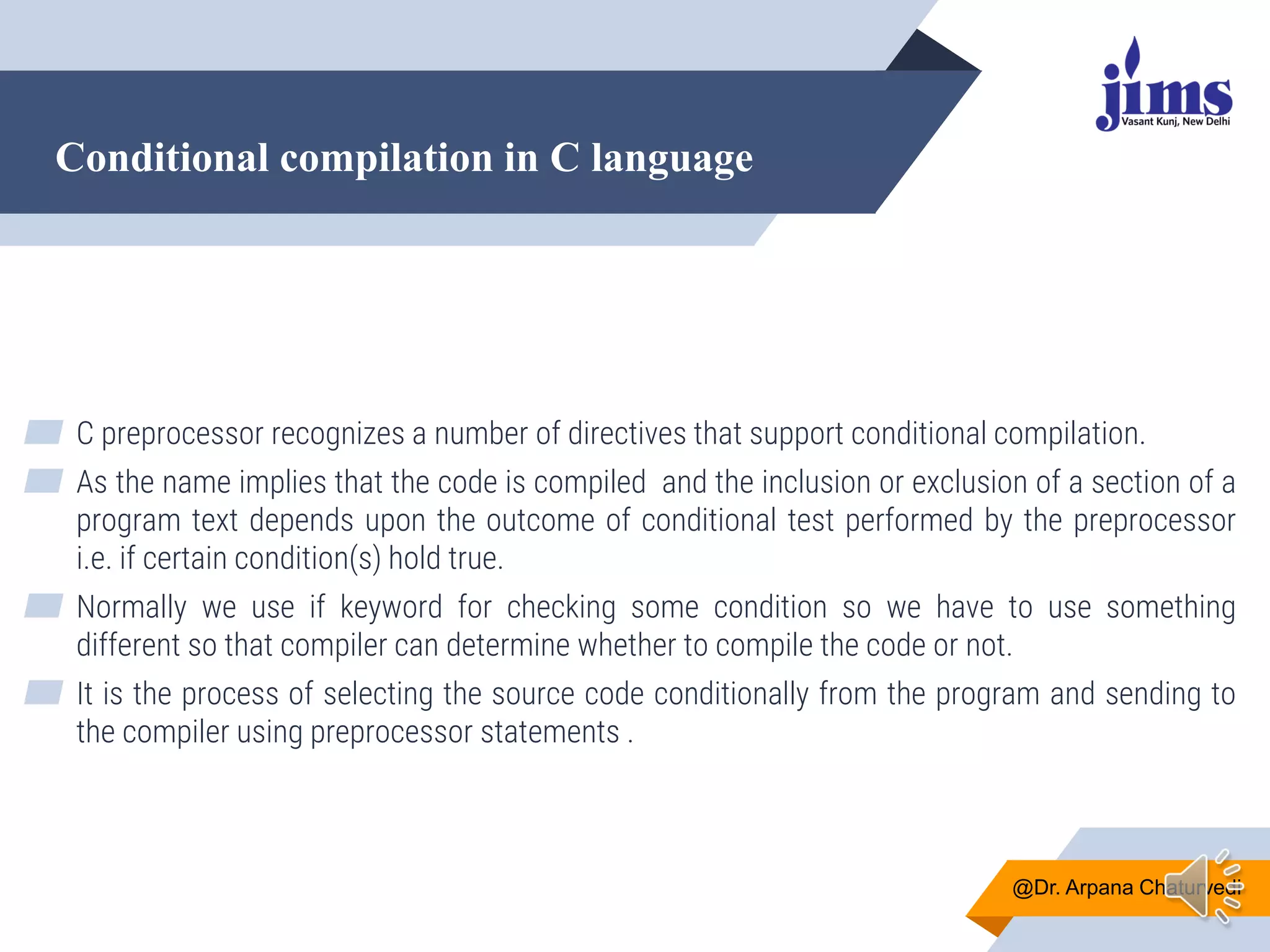

Conditional compilation in C language
▰ C preprocessor recognizes a number of directives that support conditional compilation.
▰ As the name implies that the code is compiled and the inclusion or exclusion of a section of a
program text depends upon the outcome of conditional test performed by the preprocessor
i.e. if certain condition(s) hold true.
▰ Normally we use if keyword for checking some condition so we have to use something
different so that compiler can determine whether to compile the code or not.
▰ It is the process of selecting the source code conditionally from the program and sending to
the compiler using preprocessor statements .

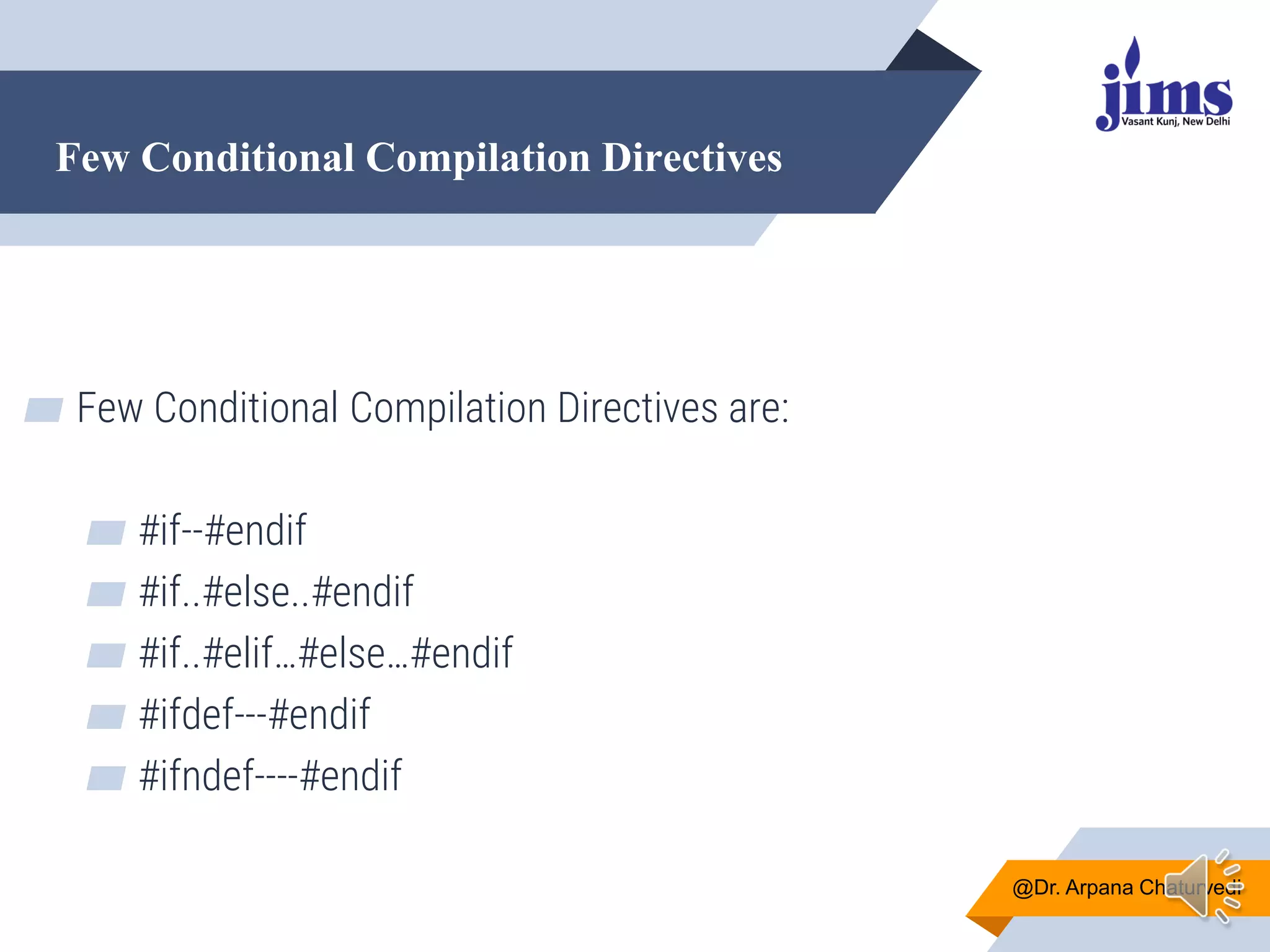

Few Conditional Compilation Directives
▰ Few Conditional Compilation Directives are:
▰ #if--#endif
▰ #if..#else..#endif

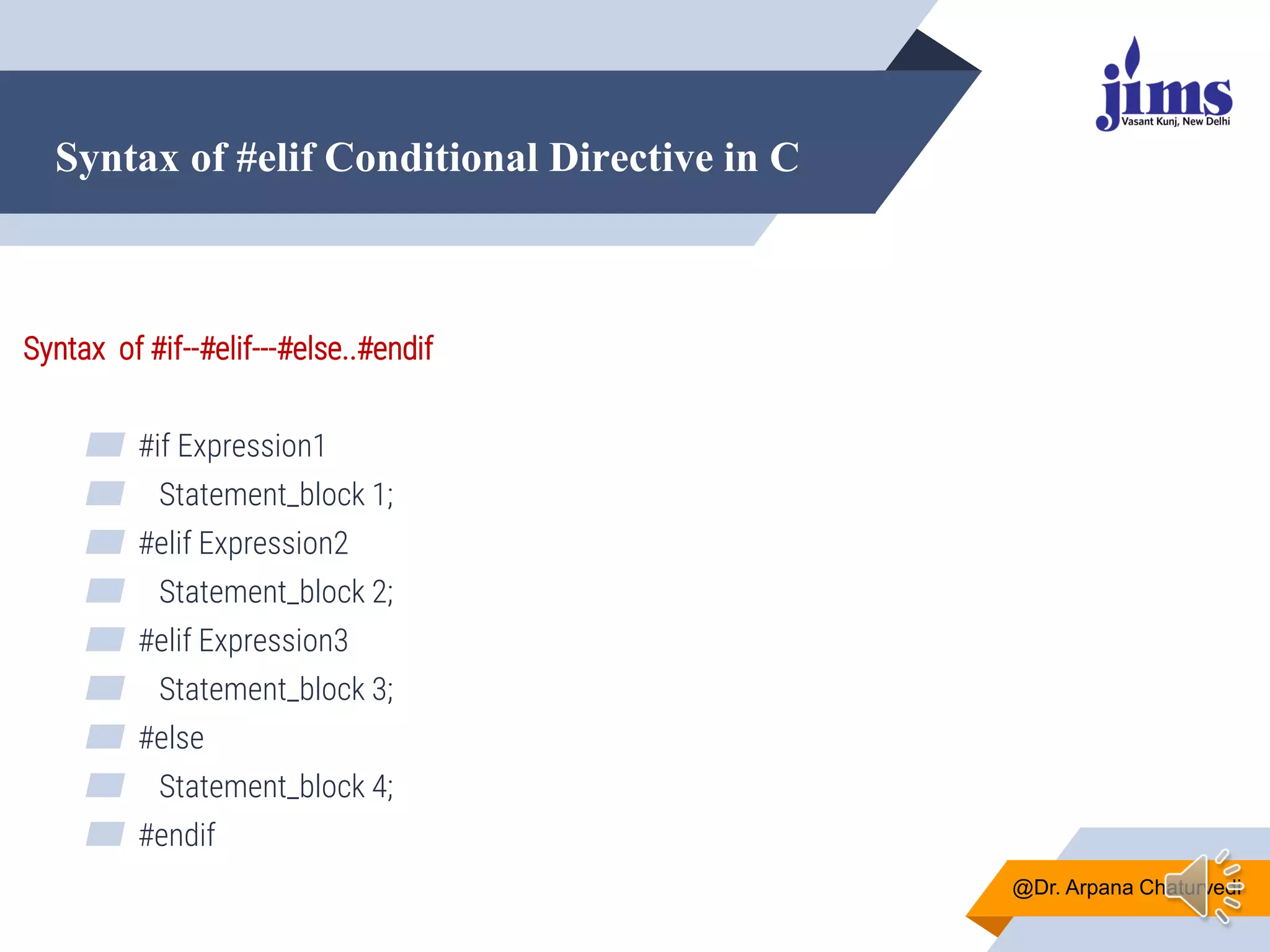

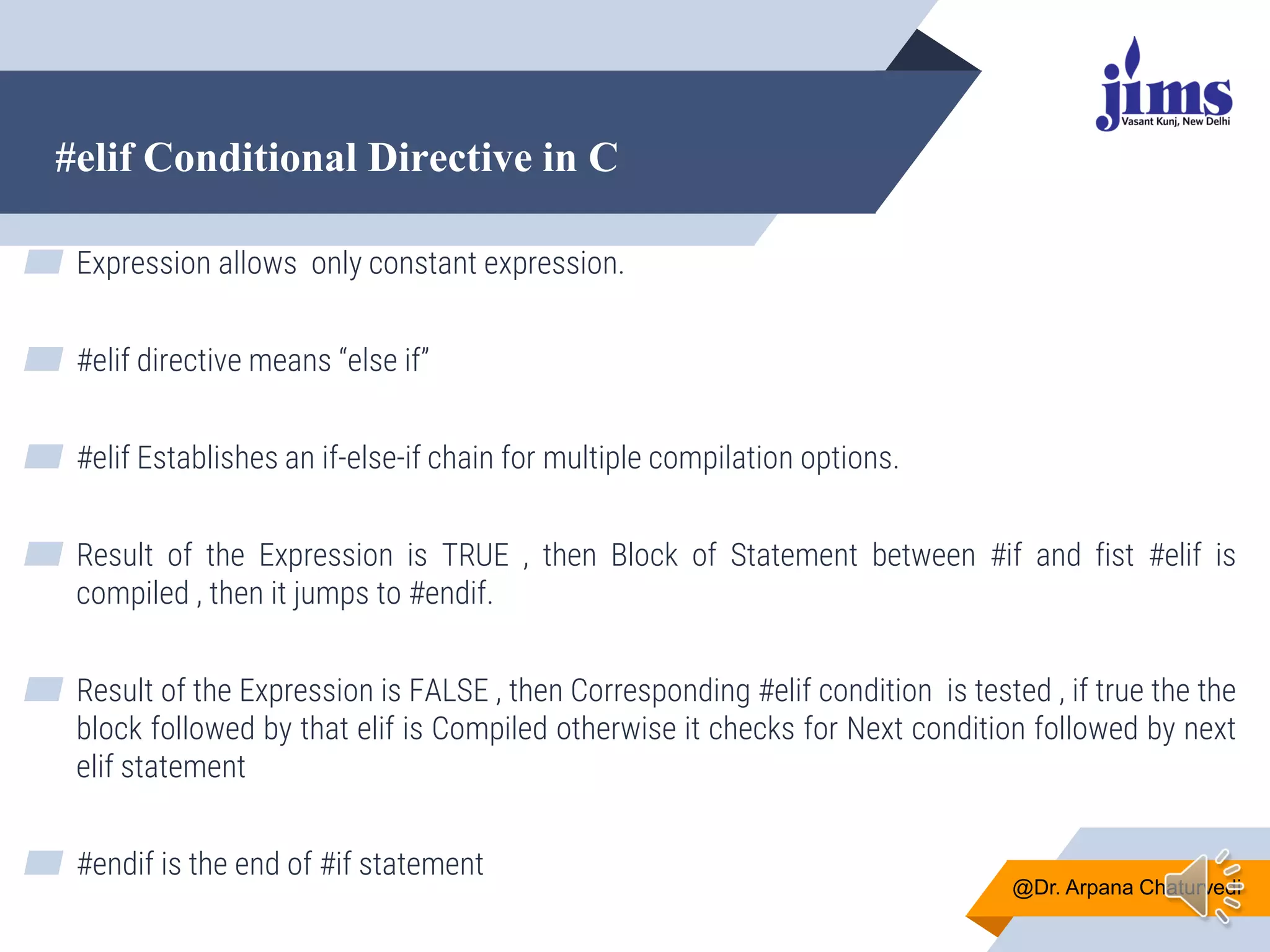

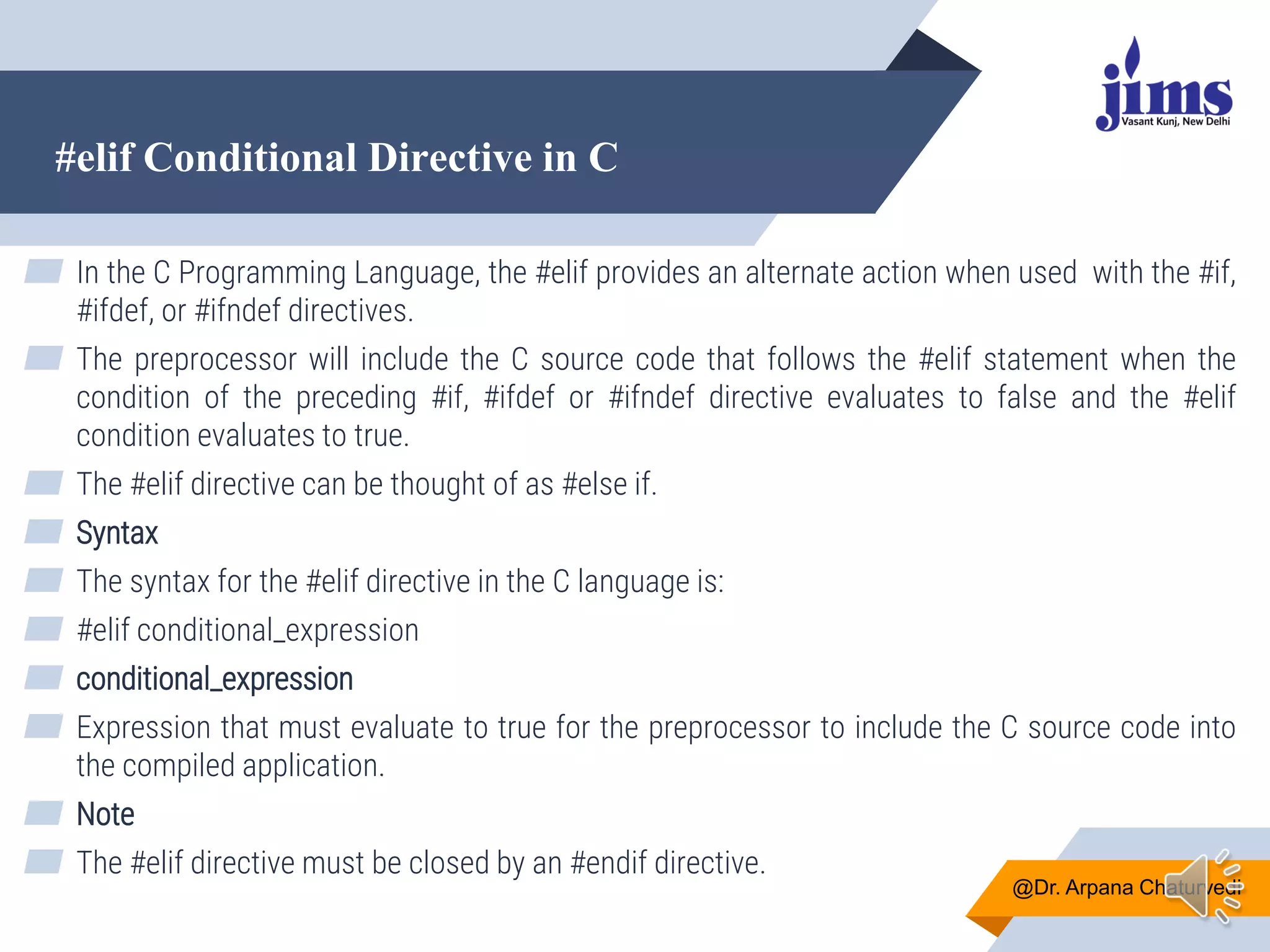

▰ #if..#elif…#else…#endif

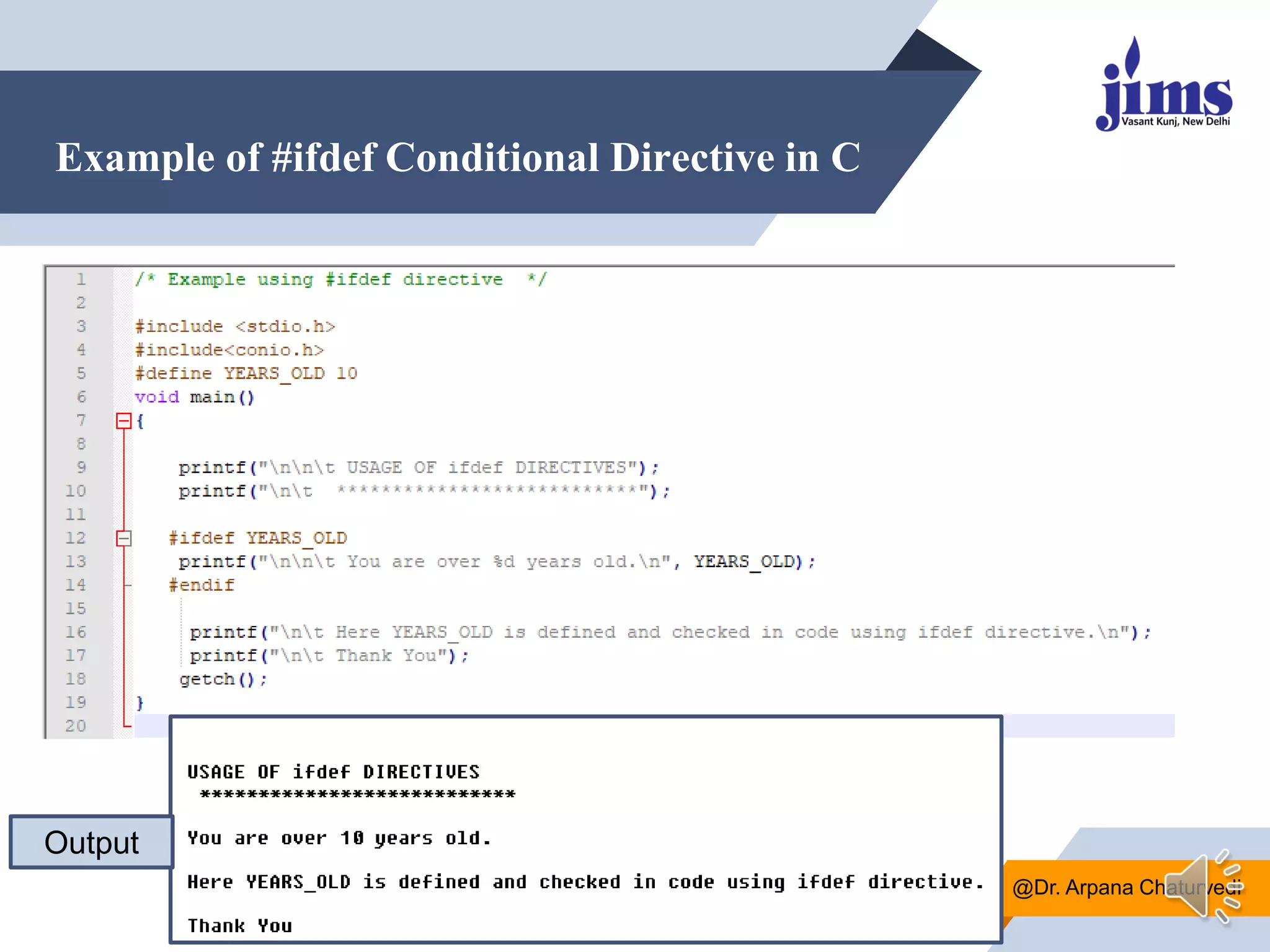

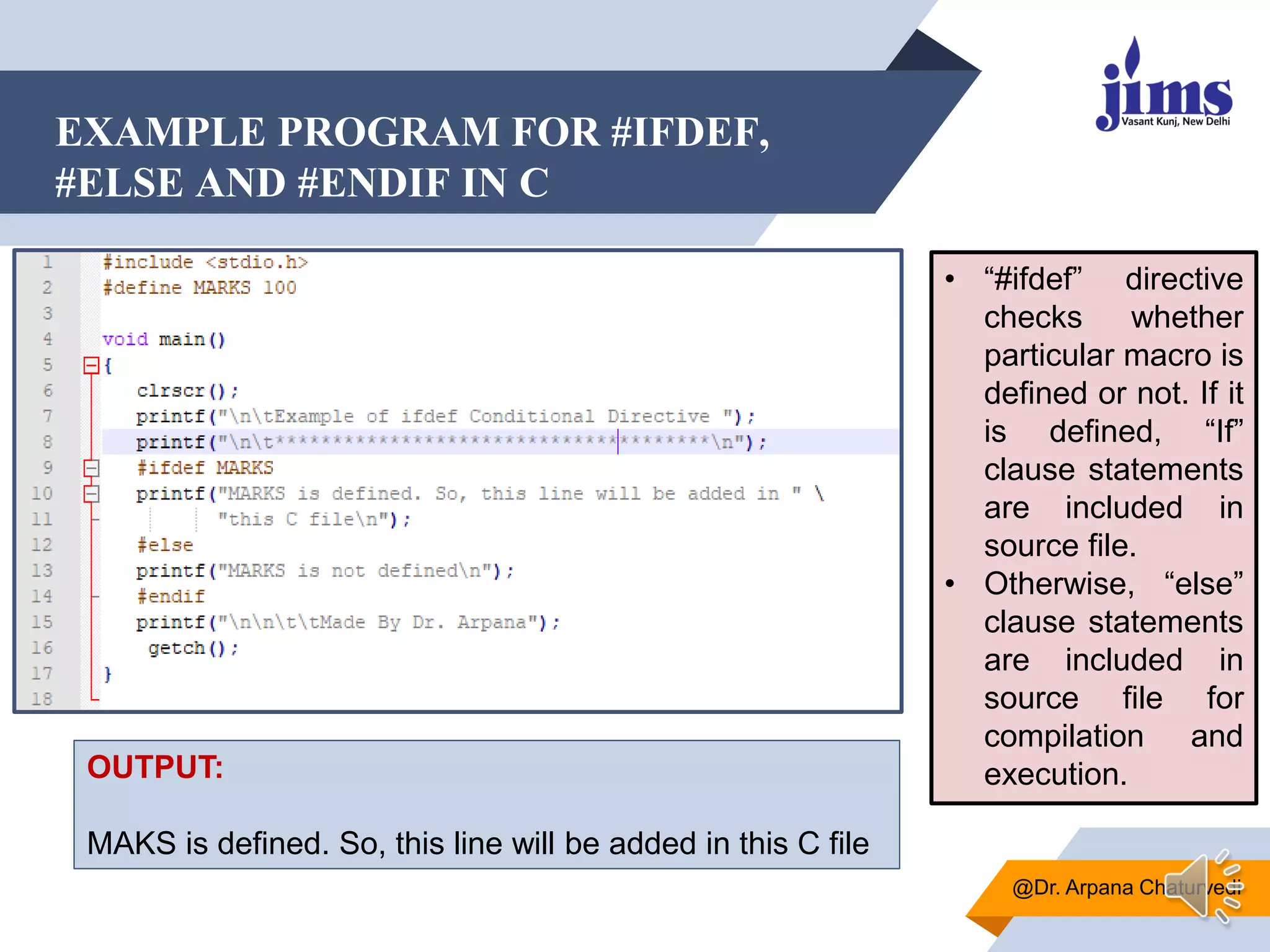

▰ #ifdef---#endif

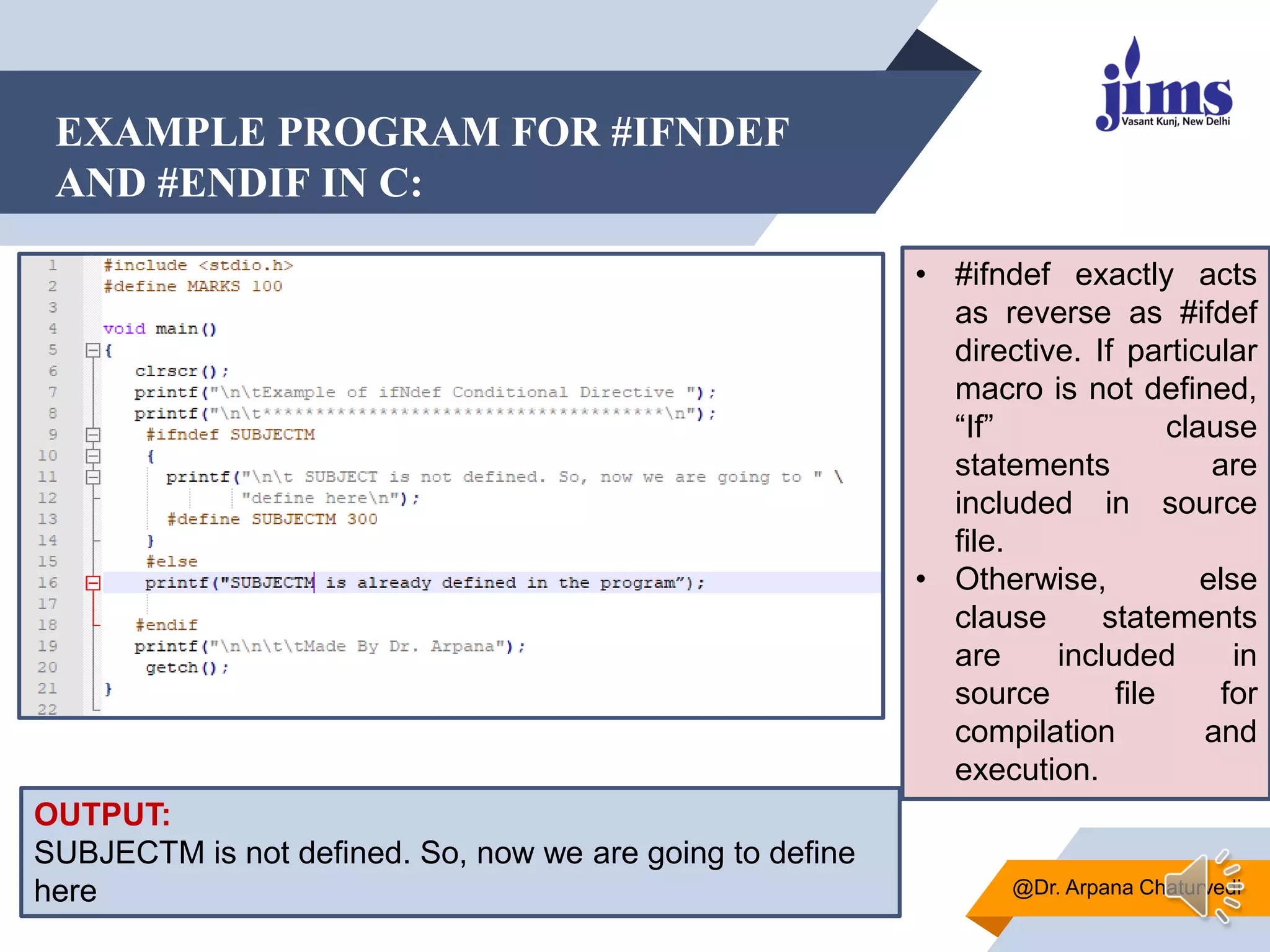

▰ #ifndef----#endif

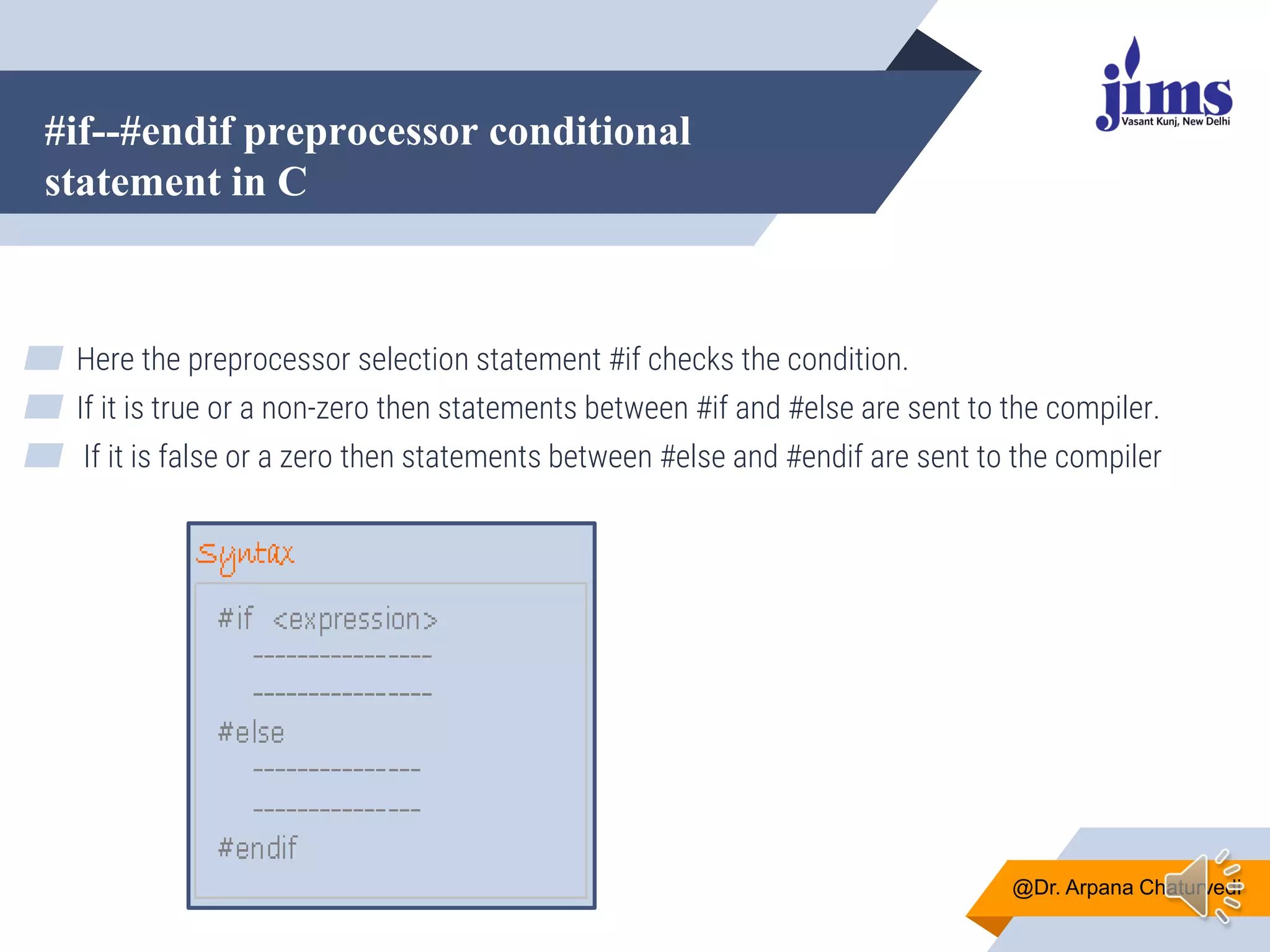

#if--#endif preprocessor conditional
statement in C
▰ Here the preprocessor selection statement #if checks the condition.
▰ If it is true or a non-zero then statements between #if and #else are sent to the compiler.
▰ If it is false or a zero then statements between #else and #endif are sent to the compiler

Example of #if--#endif in C

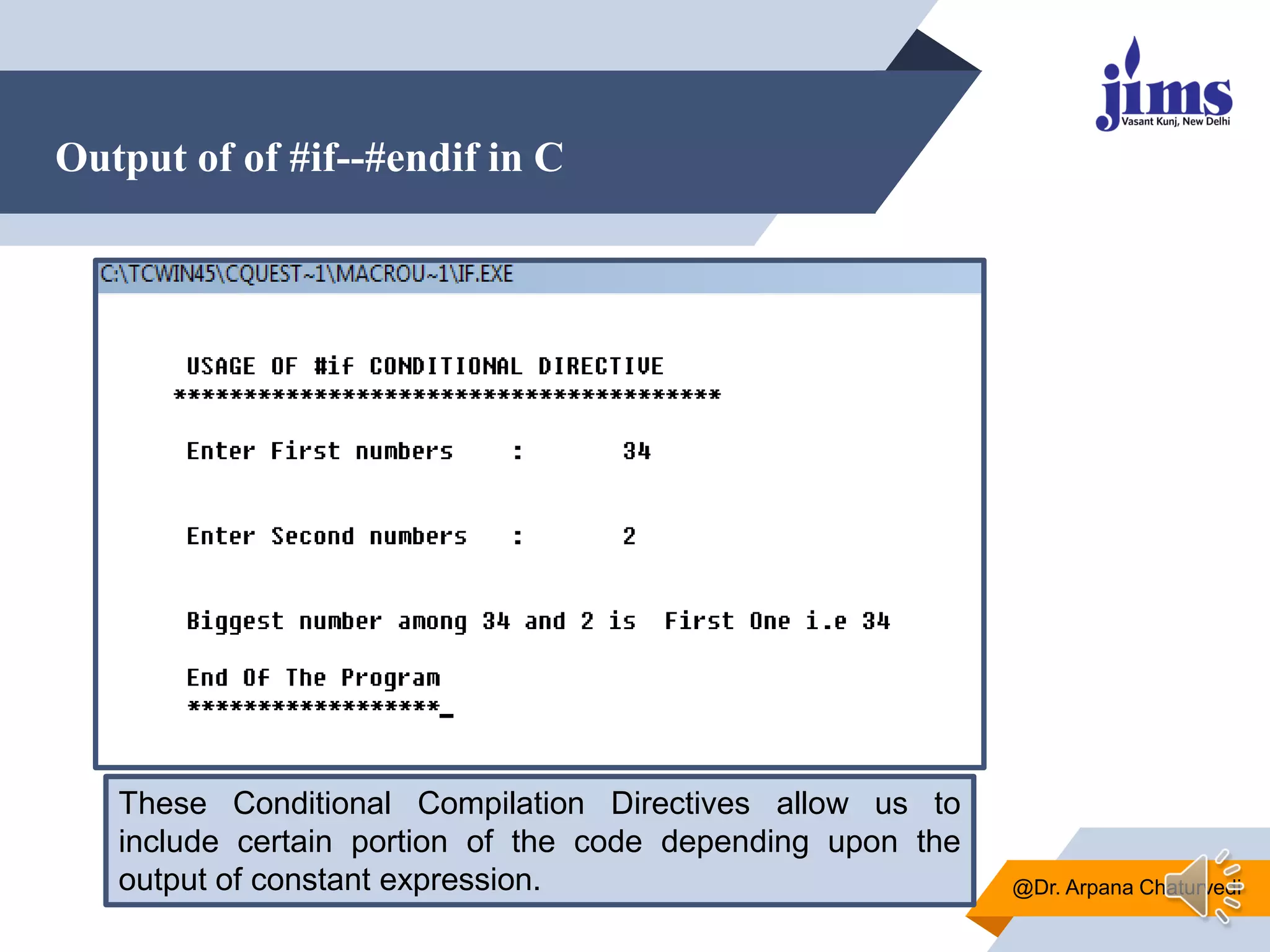

Output of of #if--#endif in C
These Conditional Compilation Directives allow us to
include certain portion of the code depending upon the
output of constant expression.

#elif Conditional Directive in C
▰ In the C Programming Language, the #elif provides an alternate action when used with the #if,
#ifdef, or #ifndef directives.
▰ The preprocessor will include the C source code that follows the #elif statement when the
condition of the preceding #if, #ifdef or #ifndef directive evaluates to false and the #elif
condition evaluates to true.
▰ The #elif directive can be thought of as #else if.
▰ Syntax
▰ The syntax for the #elif directive in the C language is:
▰ #elif conditional_expression
▰ conditional_expression
▰ Expression that must evaluate to true for the preprocessor to include the C source code into
the compiled application.
▰ Note
▰ The #elif directive must be closed by an #endif directive.

#elif Conditional Directive in C
▰ Expression allows only constant expression.
▰ #elif directive means “else if”
▰ #elif Establishes an if-else-if chain for multiple compilation options.
▰ Result of the Expression is TRUE , then Block of Statement between #if and fist #elif is
compiled , then it jumps to #endif.
▰ Result of the Expression is FALSE , then Corresponding #elif condition is tested , if true the the
block followed by that elif is Compiled otherwise it checks for Next condition followed by next
elif statement
▰ #endif is the end of #if statement

Syntax of #elif Conditional Directive in C
Syntax of #if--#elif---#else..#endif
▰ #if Expression1
▰ Statement_block 1;
▰ #elif Expression2
▰ #elif Expression3
▰ #else
▰ #endif

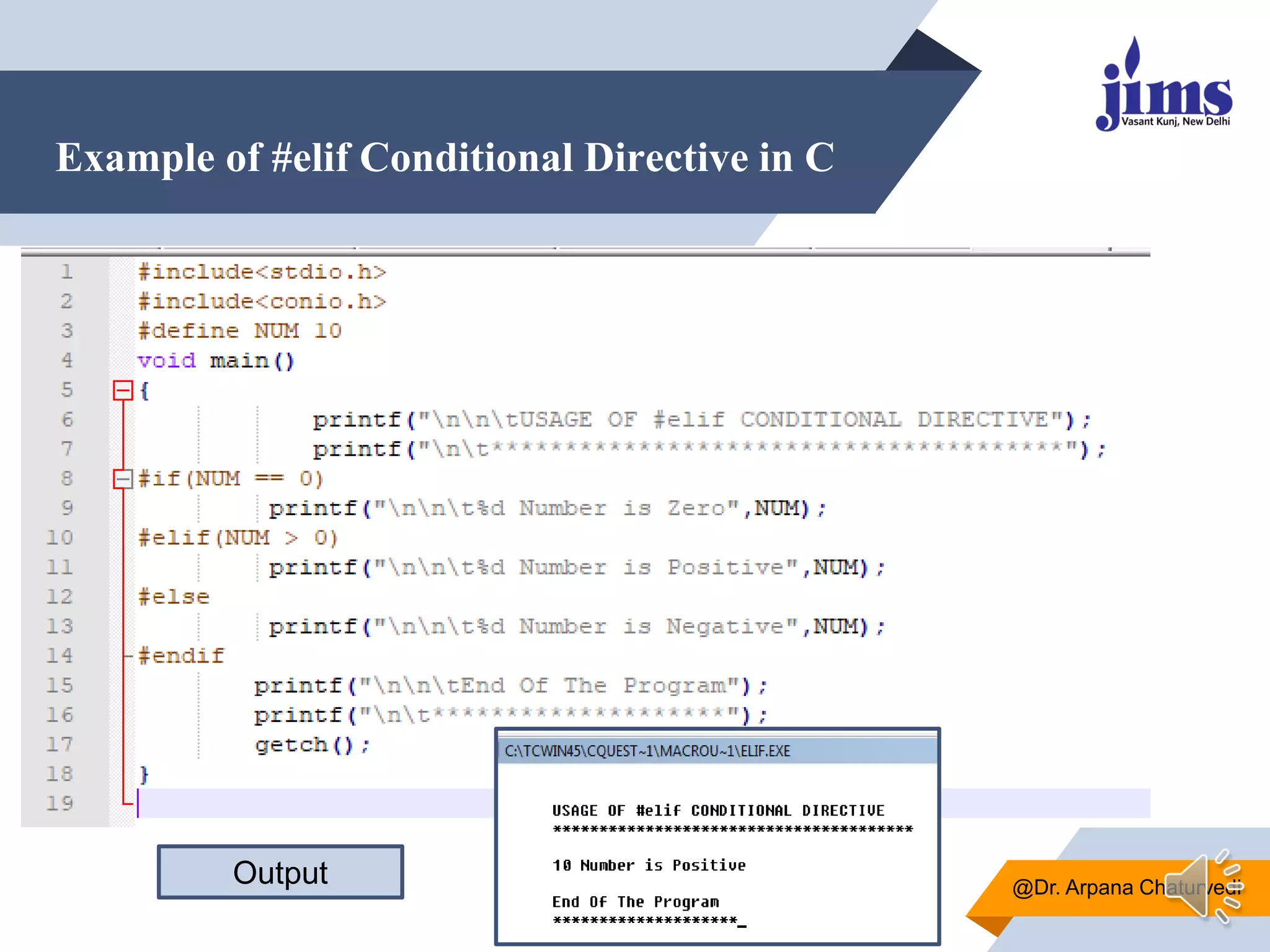

Example of #elif Conditional Directive in C
Output

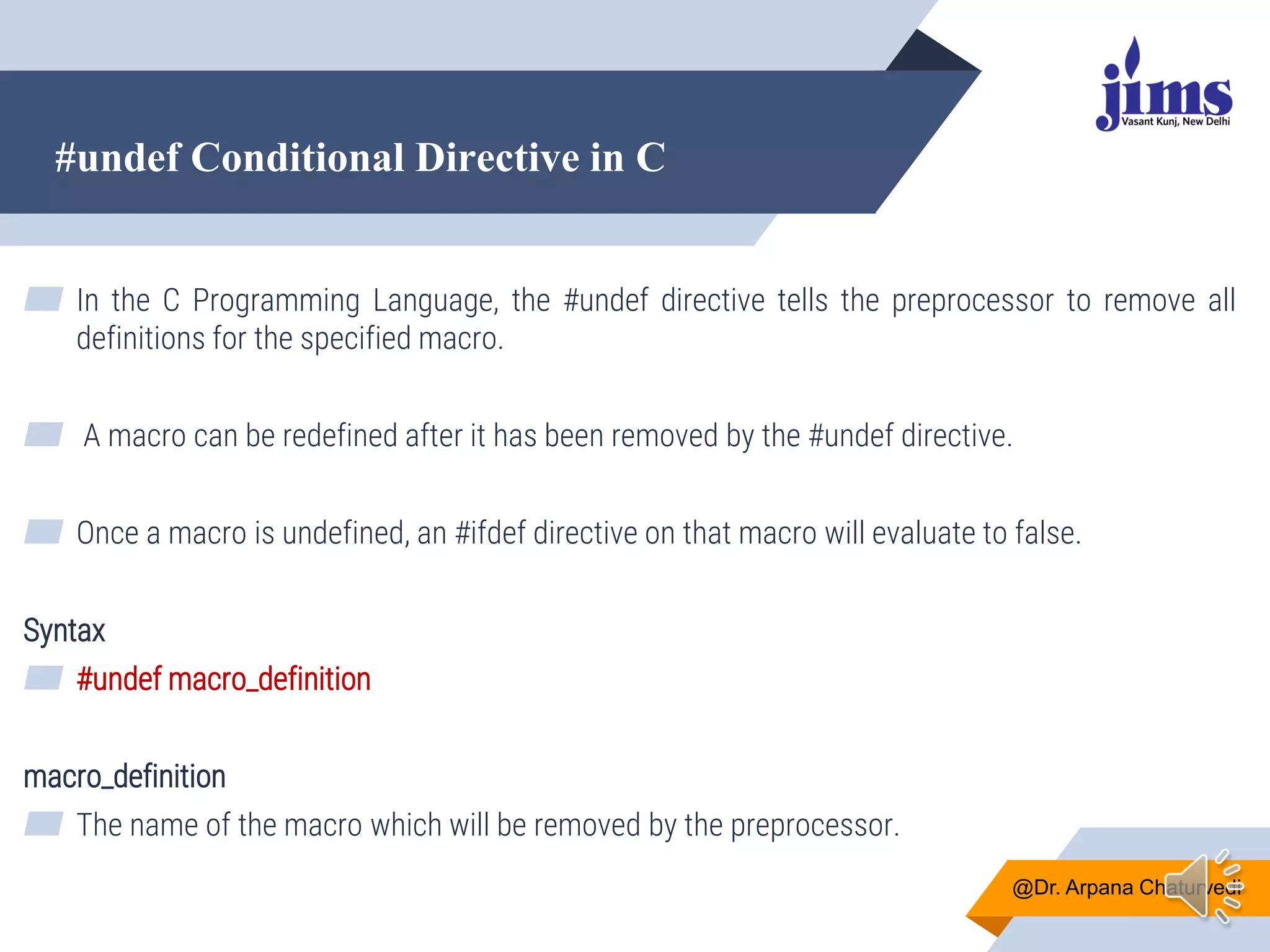

#undef Conditional Directive in C
▰ In the C Programming Language, the #undef directive tells the preprocessor to remove all
definitions for the specified macro.
▰ A macro can be redefined after it has been removed by the #undef directive.
▰ Once a macro is undefined, an #ifdef directive on that macro will evaluate to false.
Syntax
▰ #undef macro_definition
macro_definition
▰ The name of the macro which will be removed by the preprocessor.

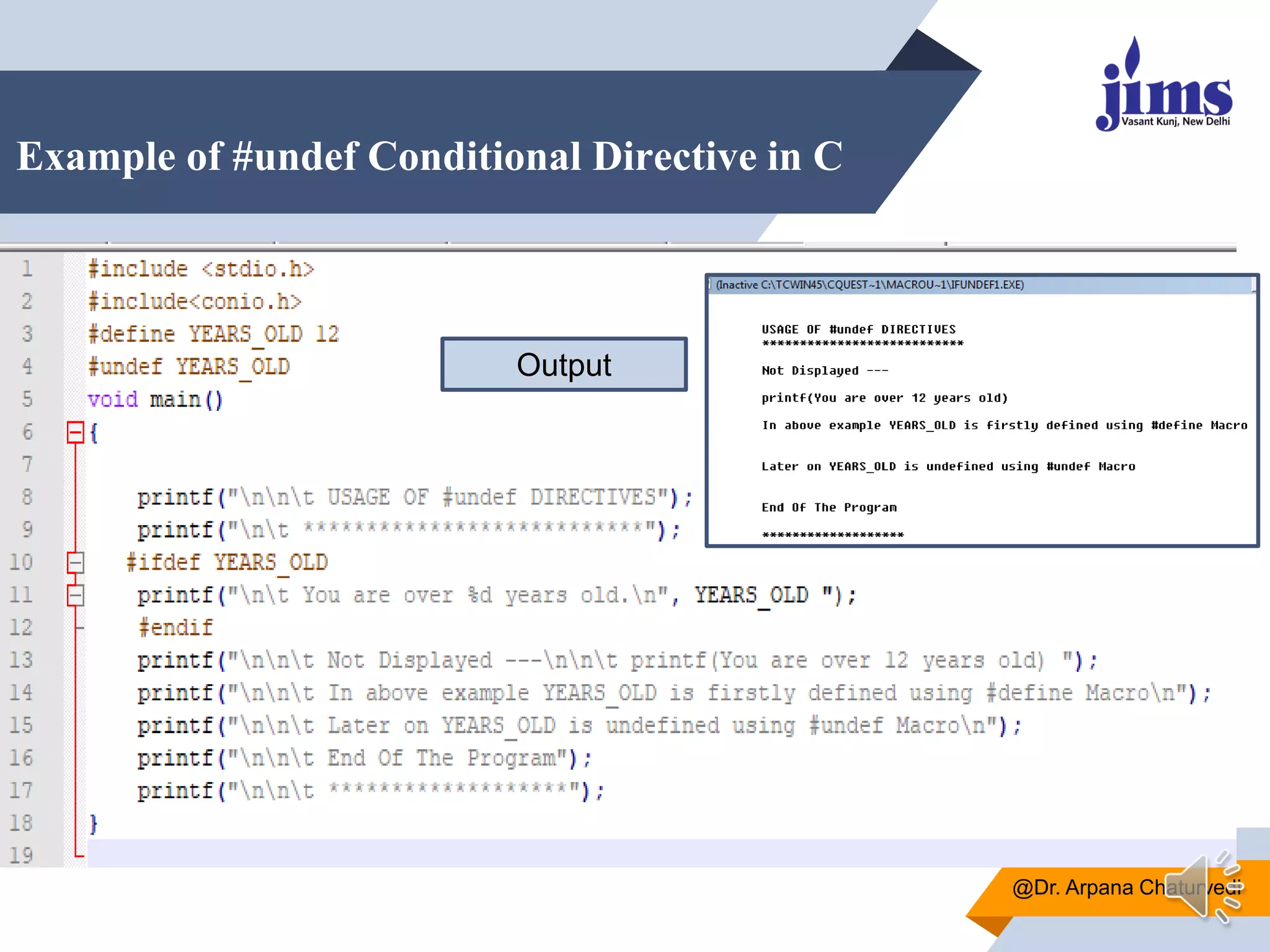

Example of #undef Conditional Directive in C
Output

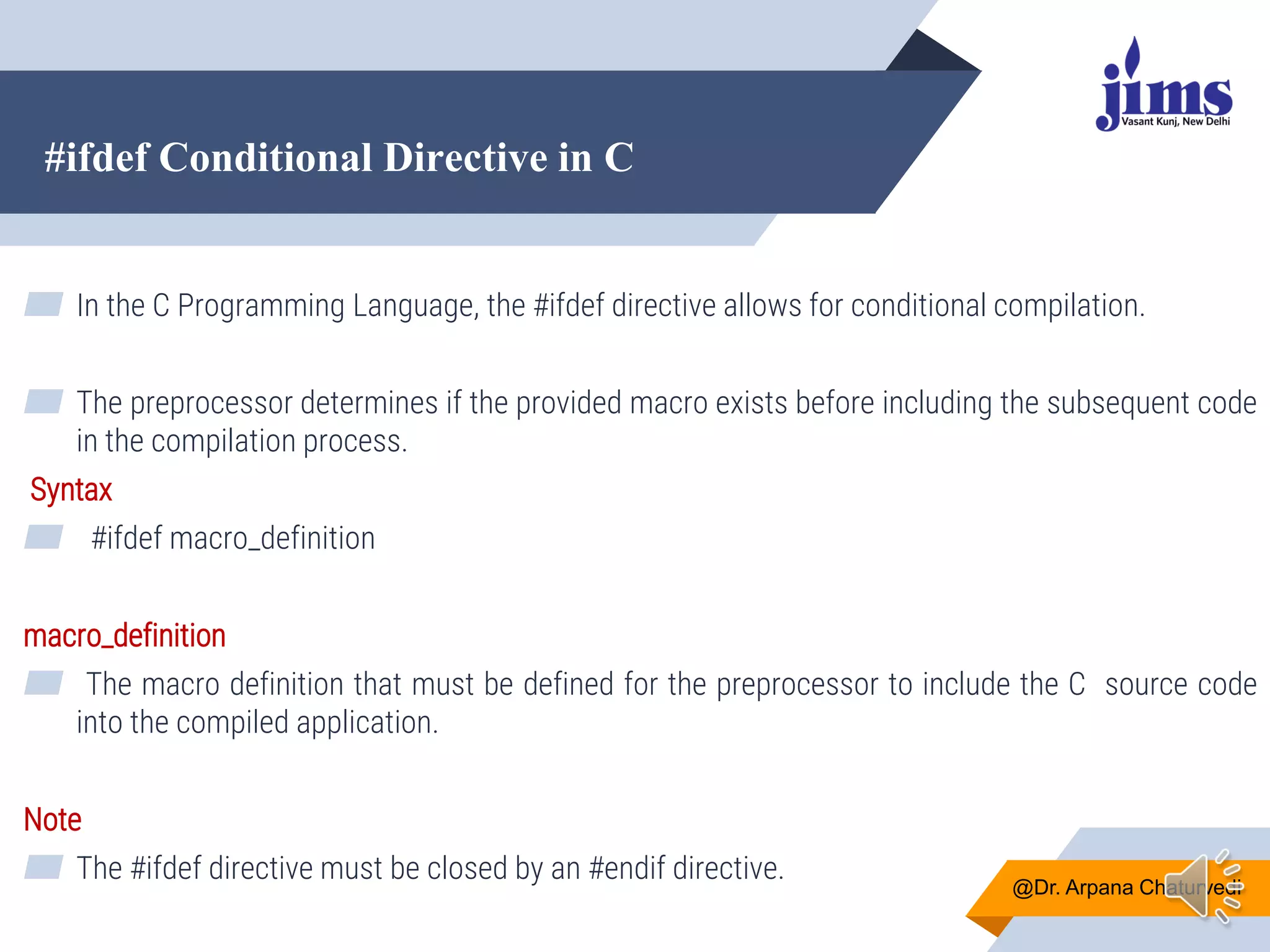

#ifdef Conditional Directive in C
▰ In the C Programming Language, the #ifdef directive allows for conditional compilation.
▰ The preprocessor determines if the provided macro exists before including the subsequent code
in the compilation process.
Syntax
▰ #ifdef macro_definition
macro_definition
▰ The macro definition that must be defined for the preprocessor to include the C source code
into the compiled application.
Note
▰ The #ifdef directive must be closed by an #endif directive.

Example of #ifdef Conditional Directive in C
Output

EXAMPLE PROGRAM FOR #IFDEF,
#ELSE AND #ENDIF IN C
OUTPUT:
MAKS is defined. So, this line will be added in this C file
• “#ifdef” directive
checks whether
particular macro is
defined or not. If it
is defined, “If”
clause statements
are included in
source file.
• Otherwise, “else”
clause statements
are included in
source file for
compilation and
execution.

EXAMPLE PROGRAM FOR #IFNDEF
AND #ENDIF IN C:
• #ifndef exactly acts
as reverse as #ifdef
directive. If particular
macro is not defined,
“If” clause
statements are
included in source
file.
• Otherwise, else
clause statements
are included in
source file for
compilation and
execution.
OUTPUT:
SUBJECTM is not defined. So, now we are going to define
here

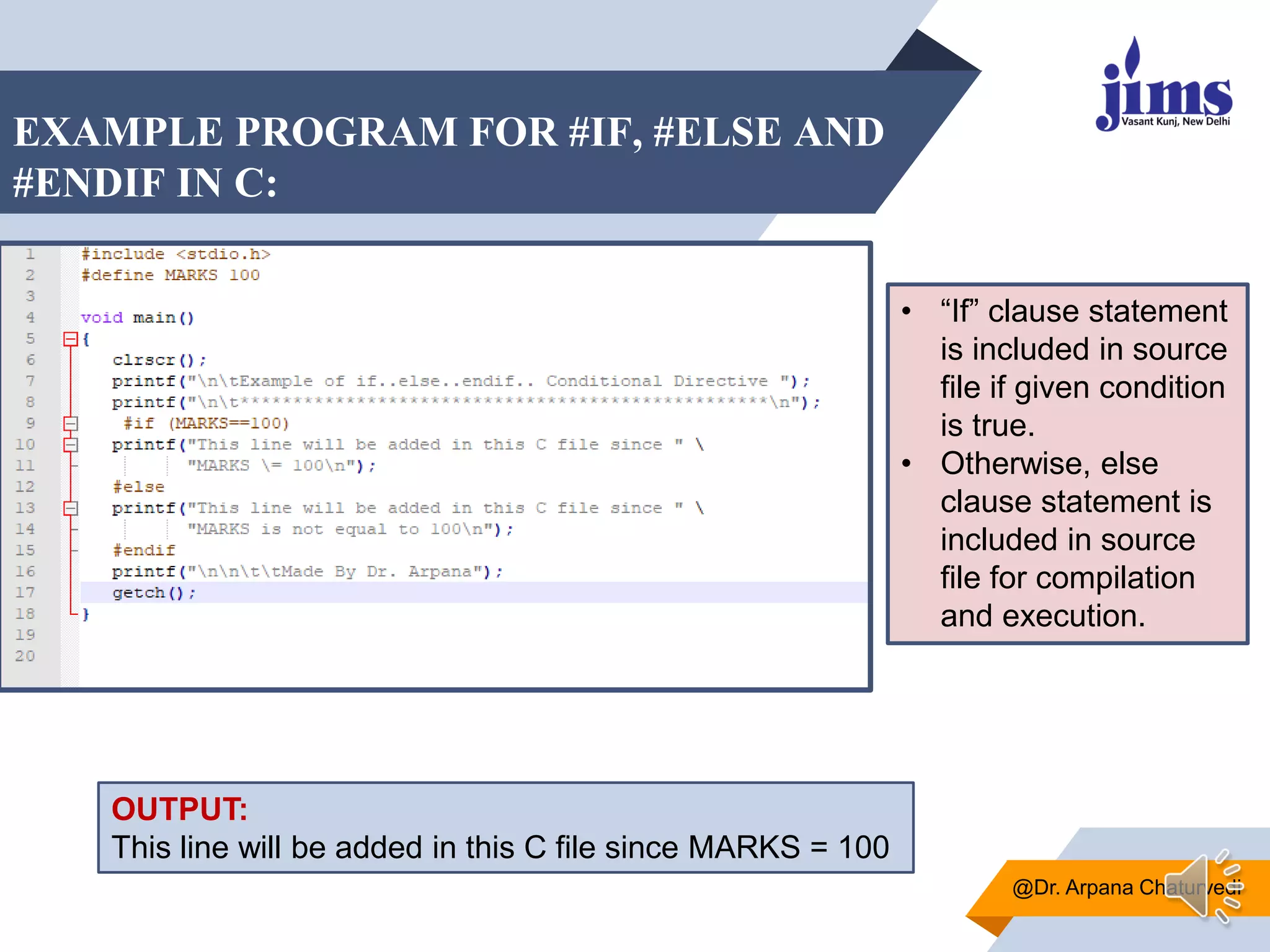

EXAMPLE PROGRAM FOR #IF, #ELSE AND
#ENDIF IN C:
• “If” clause statement
is included in source
file if given condition
is true.
• Otherwise, else
clause statement is
included in source
file for compilation
and execution.
OUTPUT:
This line will be added in this C file since MARKS = 100

EXAMPLE PROGRAM FOR UNDEF IN C
LANGUAGE:
OUTPUT:
First defined value for MARKS : 100
The value of MARKS after undef & redefine : 600
This directive
undefines existing
macro in the
program.

4. Pragma

EXAMPLE PROGRAM FOR PRAGMA IN C
LANGUAGE:
Pragma is used to call a
function before and after main
function in a C program.
OUTPUT:
Function1 is called before
main function call
Now we are in main function
Function2 is called just before
end of main function

Macro and Functions

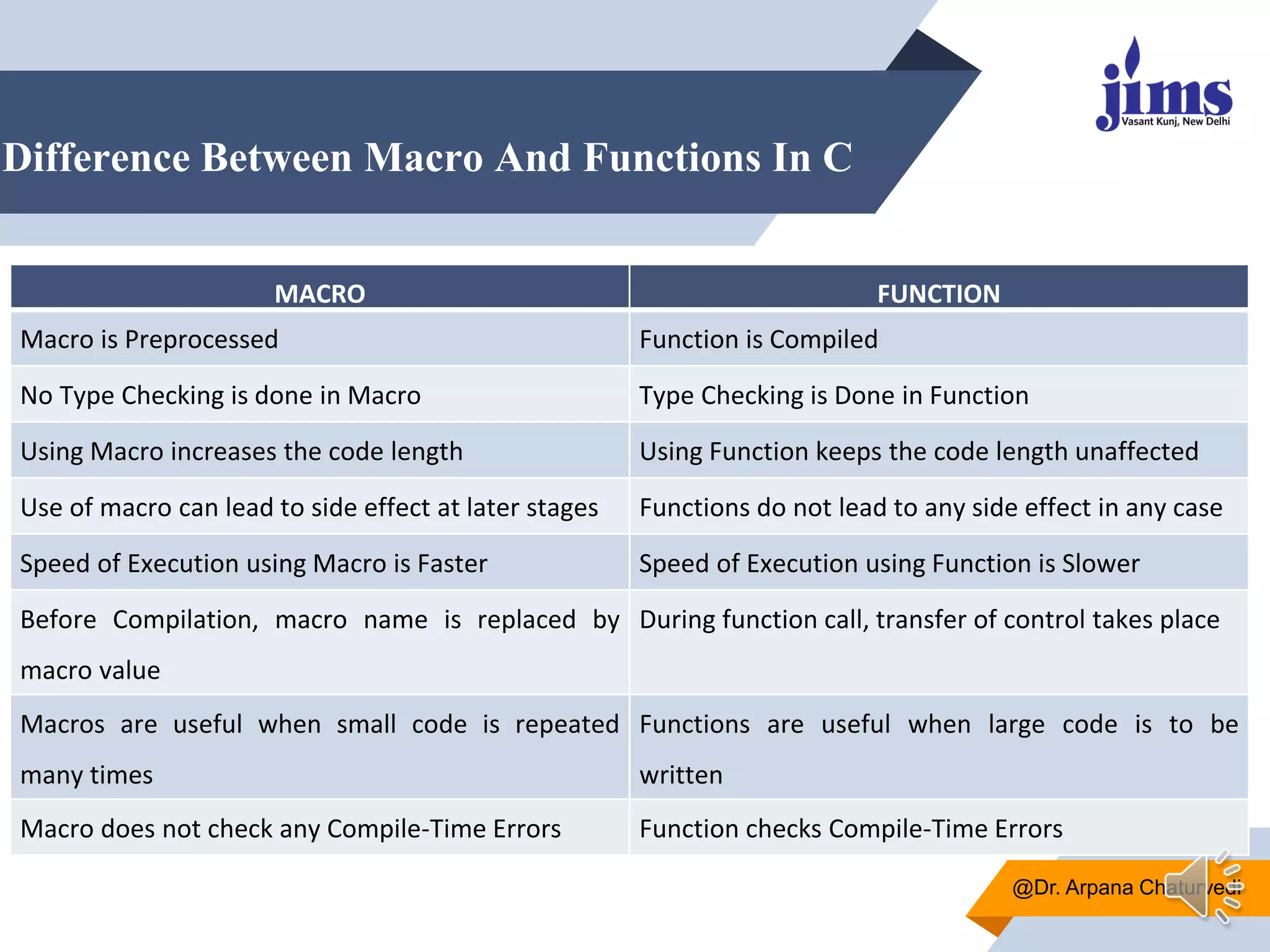

Difference Between Macro And Functions In C
MACRO FUNCTION
Macro is Preprocessed Function is Compiled
No Type Checking is done in Macro Type Checking is Done in Function
Using Macro increases the code length Using Function keeps the code length unaffected
Use of macro can lead to side effect at later stages Functions do not lead to any side effect in any case
Speed of Execution using Macro is Faster Speed of Execution using Function is Slower
Before Compilation, macro name is replaced by
macro value
During function call, transfer of control takes place
Macros are useful when small code is repeated
many times
Functions are useful when large code is to be
written
Macro does not check any Compile-Time Errors Function checks Compile-Time Errors

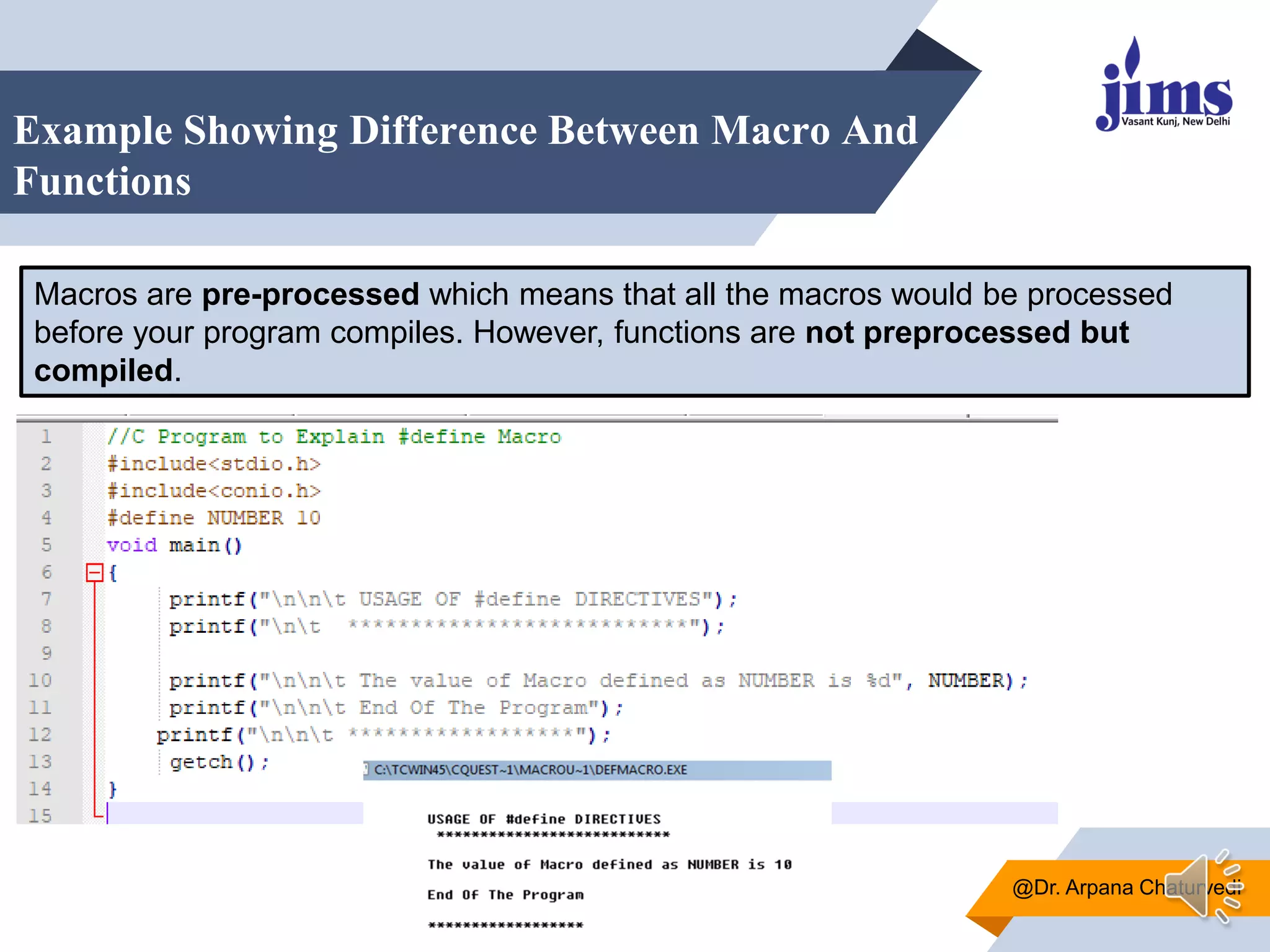

Example Showing Difference Between Macro And
Functions
Macros are pre-processed which means that all the macros would be processed
before your program compiles. However, functions are not preprocessed but
compiled.

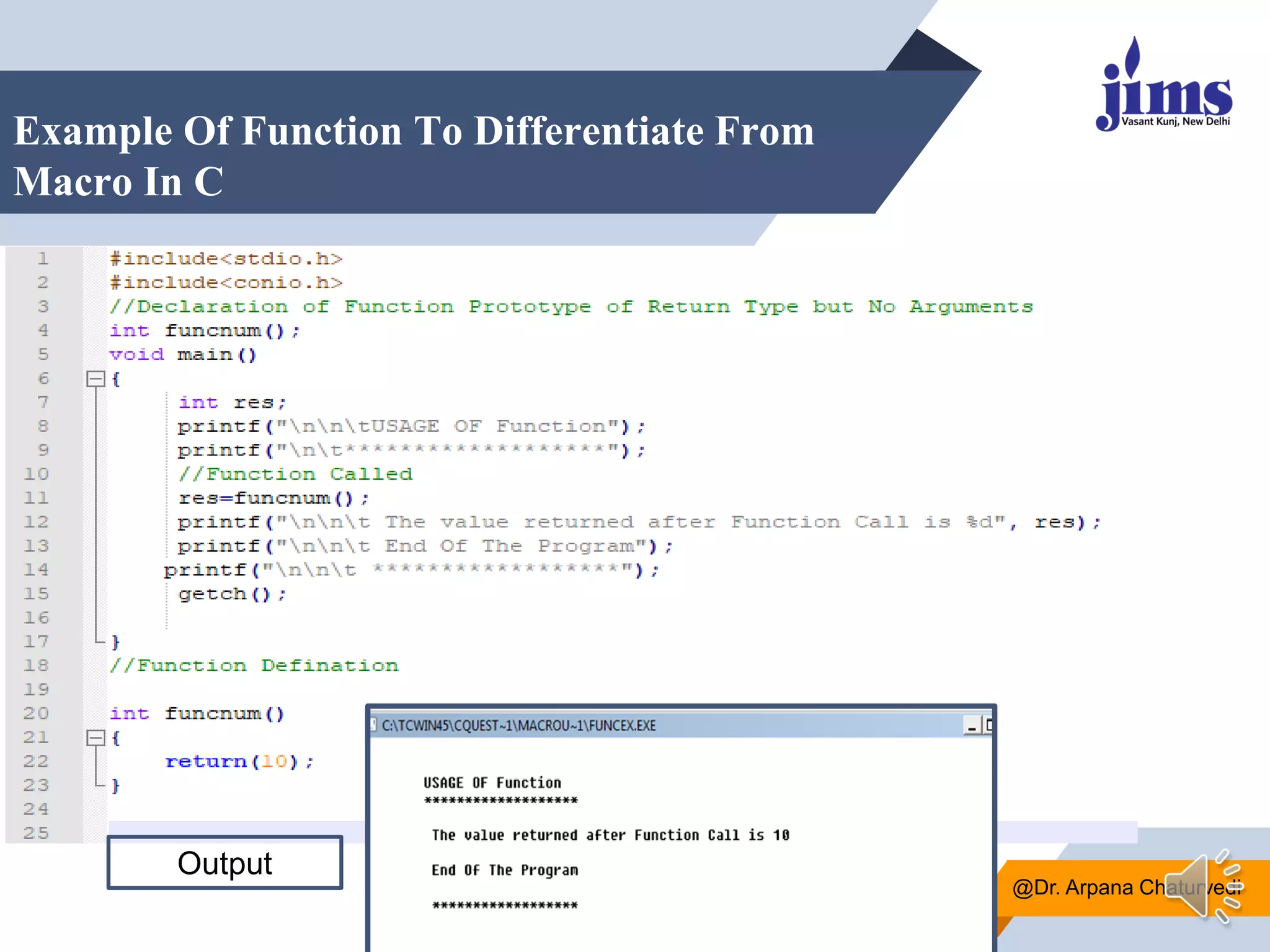

Example Of Function To Differentiate From
Macro In C
Output

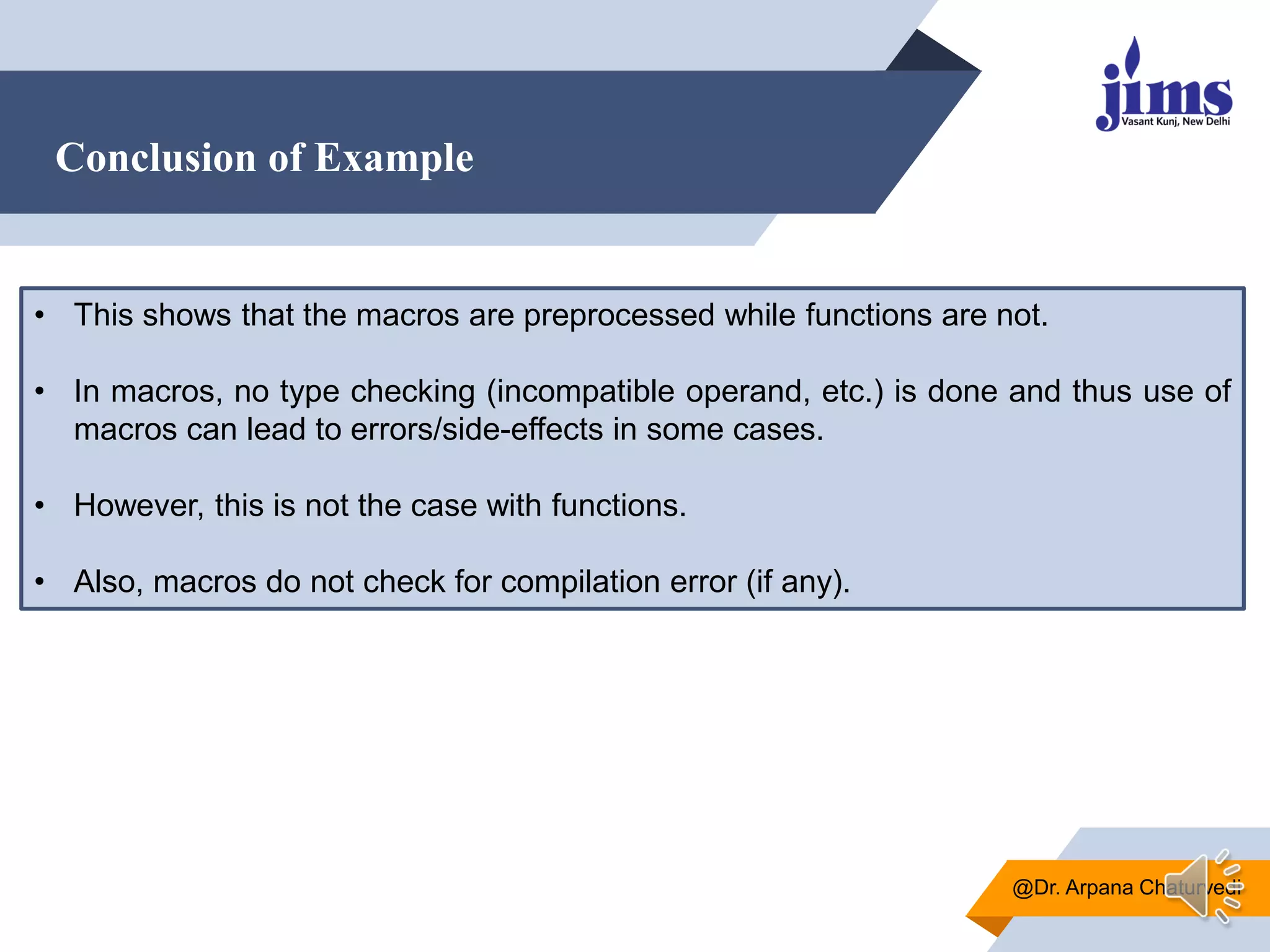

Conclusion of Example
• This shows that the macros are preprocessed while functions are not.
• In macros, no type checking (incompatible operand, etc.) is done and thus use of
macros can lead to errors/side-effects in some cases.
• However, this is not the case with functions.
• Also, macros do not check for compilation error (if any).

Function Macro Can Also Be Used In C
Output

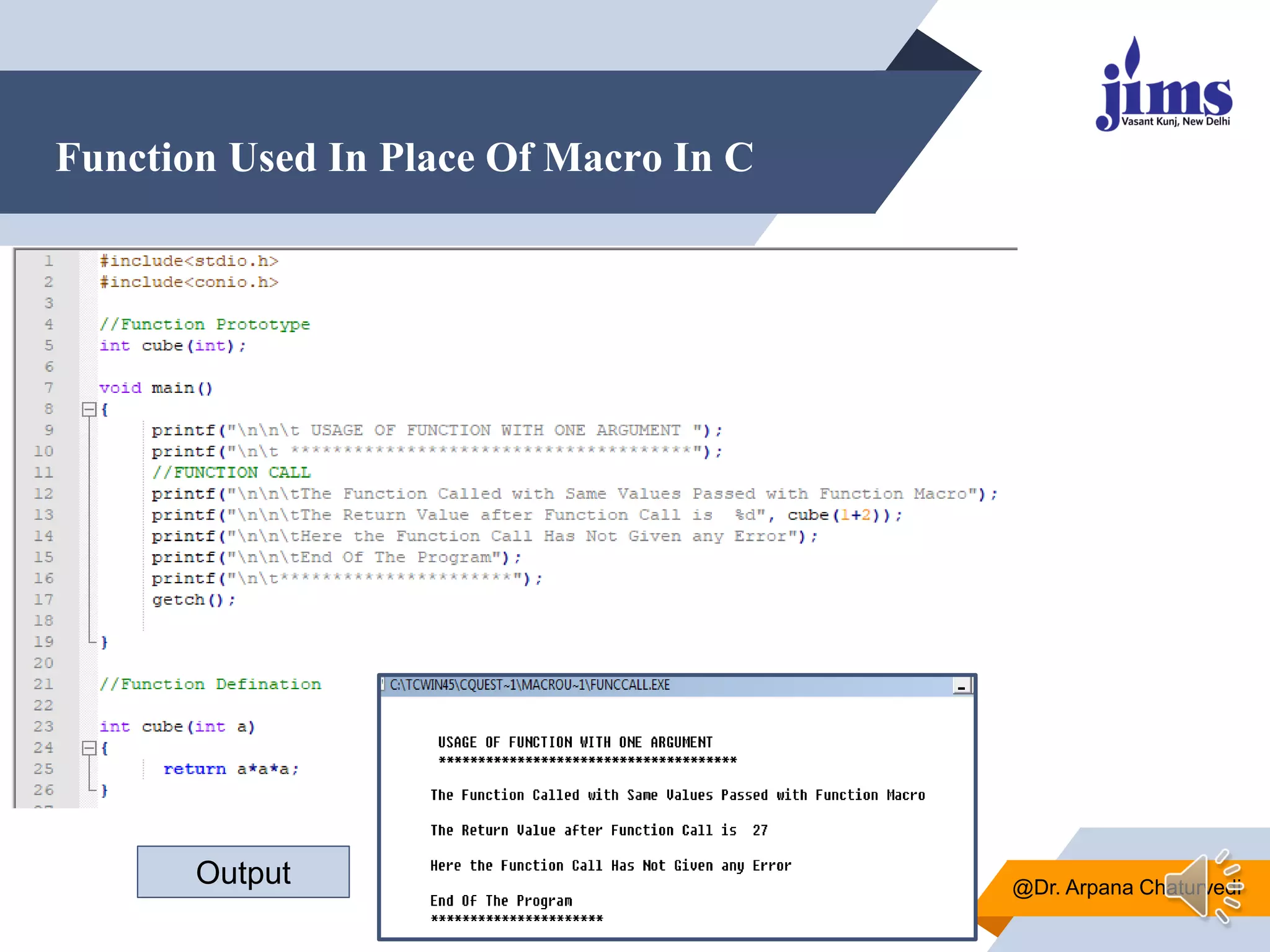

Function Used In Place Of Macro In C
Output

Conclusion of Example
• Macros are usually one liner. However, they can consist of more than one line.
There are no such constraints in functions.
• The speed at which macros and functions differs. Macros are typically faster than
functions as they don’t involve actual function call overhead.

Advantages – Disadvantages
of Macro

Advantages Of Using Macro In C
▰ A macro is a name given to a block of the code which can be substituted where the code
snippet is to be used for more than once.
A) The speed of the execution of the program is the major advantage of using a macro.
B) It saves a lot of time that is spent by the compiler for invoking / calling the functions.
C) It reduces the length of the program

Disadvantages Of Macros
▰ Macros are no longer recommended as they cause following issues. There is a better way in
modern compilers that is inline functions and const variable.
a) There is no type checking
b) Difficult to debug as they cause simple replacement.
c) Macro don’t have namespace, so a macro in one section of code can affect
other section.
d) Macros can cause side effects

Thank You !!

Unit 5 Part 1 Macros

More Related Content

What's hot

Similar to Unit 5 Part 1 Macros

More from Arpana Awasthi

Recently uploaded

Unit 5 Part 1 Macros
